Microwave Oven
Owner's Manual
ME1060WB/BB/SB
ME1260WB/BB/SB
ME1460WB/BB/SB
MW1030WA/BA/SB
MW1060WA/BA
MWl 150WA/BA
MW1230WA/BA
MW1235WA/BA
MW1250WA/BA
MW1255WA/BA
MW1260WA/BA
MW1430WA/BA
MW1455WA/BA
MW1460WA/BA
MW1660WA/BA
Safety

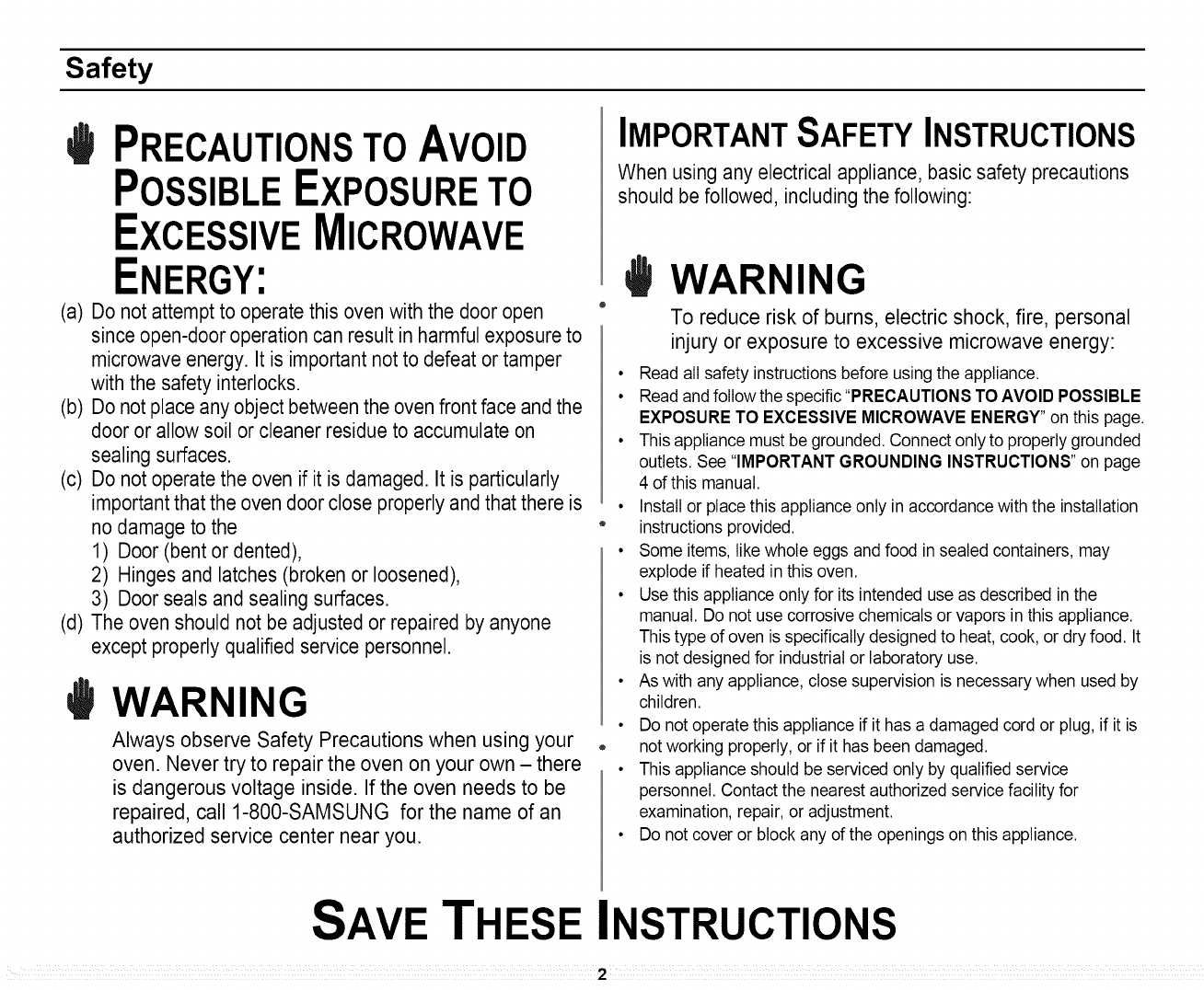

PRECAUTIONSTOAVOID
POSSIBLEEXPOSURETO
EXCESSIVEMICROWAVE
ENERGY:
(a) Do not attempt to operate this oven with the door open "
since open-door operation can result in harmful exposure to
microwave energy. It is important not to defeat or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face and the
door or allow soil or cleaner residue to accumulate on
sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly
important that the oven door close properly and that there is
no damage to the "
1) Door (bent or dented),
2) Hinges and latches (broken or loosened),
3) Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone
except properly qualified service personnel.
WARNING
Always observe Safety Precautions when using your
oven. Never try to repair the oven on your own - there
is dangerous voltage inside. If the oven needs to be
repaired, call 1-800-SAMSUNG for the name of an
authorized service center near you.
IMPORTANTSAFETY INSTRUCTIONS
When using any electrical appliance, basic safety precautions
should be followed, including the following:
WARNING
To reduce risk of burns, electric shock, fire, personal
injury or exposure to excessive microwave energy:
Read all safety instructions before using the appliance.
Read andfollow the specific"PRECAUTIONS TO AVOID POSSIBLE
EXPOSURETO EXCESSIVE MICROWAVE ENERGY"on this page.
This appliance must be grounded. Connect only to properly grounded
outlets. See "IMPORTANT GROUNDING INSTRUCTIONS" on page
4 of this manual.
Install or place this appliance only in accordance with the installation
instructions provided.
Some items, like whole eggs andfood in sealed containers, may
explode if heated in this oven.
Use this appliance only for its intended use as described in the
manual. Do not use corrosive chemicals or vapors in this appliance.
This type of oven is specifically designed to heat, cook, or dry food. It
is not designed for industrial or laboratory use.
As with any appliance, close supervision is necessary when used by
children.
Do not operate this appliance if it has a damaged cord or plug, if it is
not working properly, or if it has been damaged.
This appliance should be serviced only by qualified service
personnel. Contact the nearest authorized service facility for
examination, repair, or adjustment.
Do not cover or block any of the openings on this appliance.
SAVE THESE INSTRUCTIONS
2
Safety

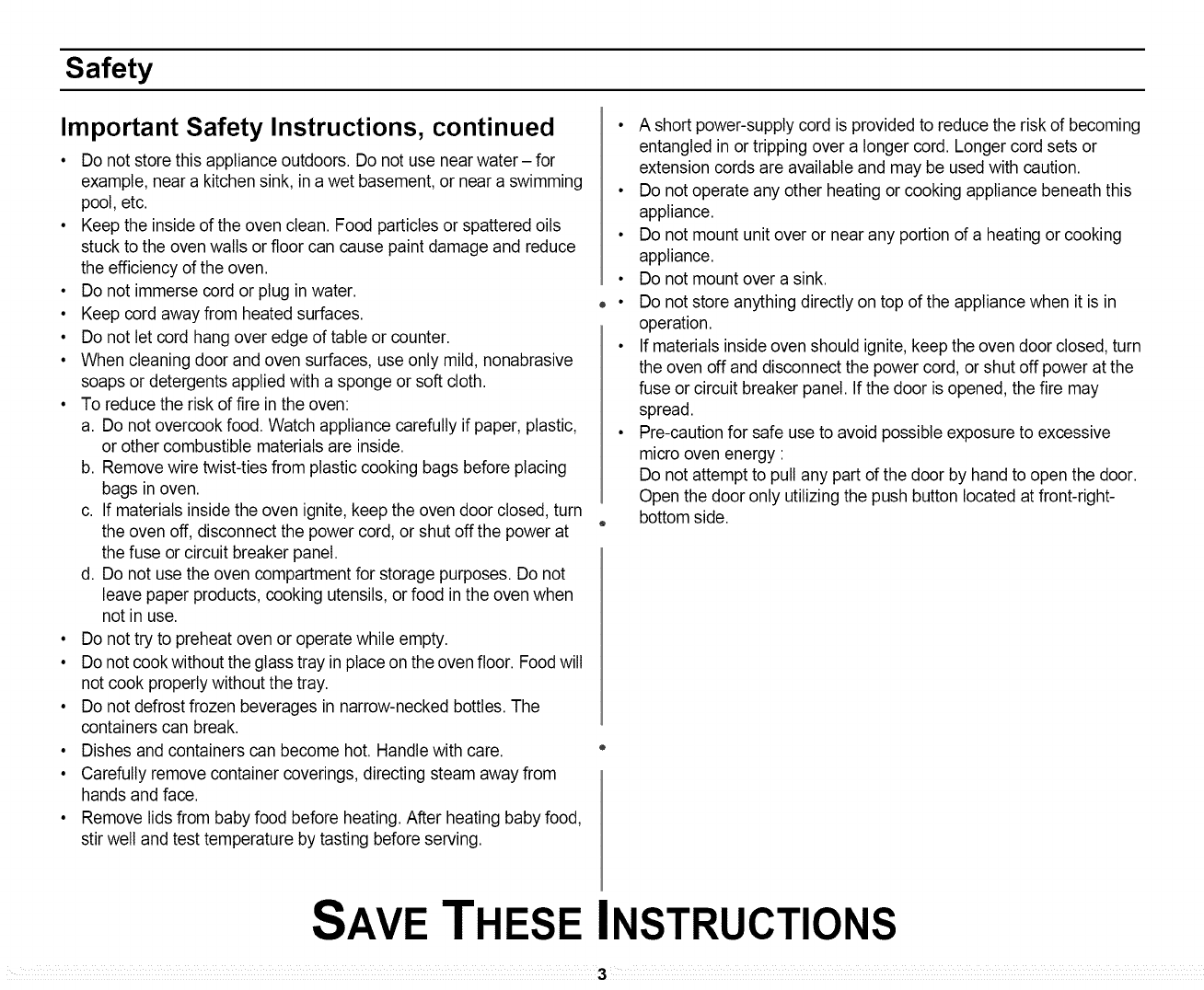

Important Safety Instructions, continued
Do not store this appliance outdoors. Do not use near water- for
example, near a kitchen sink, in a wet basement, or near a swimming
pool, etc.
Keep the inside of the oven clean. Food particles or spattered oils
stuck to the oven walls or floor can cause paint damage and reduce
the efficiency of the oven.
Do not immerse cord or plug in water.
Keep cord away from heated surfaces. "
Do not let cord hang over edge of table or counter.
When cleaning door and oven surfaces, use only mild, nonabrasive
soaps or detergents applied with a sponge or soft cloth.
To reduce the risk of fire in the oven:
a. Do not overcook food. Watch appliance carefully if paper, plastic,
or other combustible materials are inside.
b. Remove wire twist-ties from plastic cooking bags before placing
bags inoven.
c. If materials inside the oven ignite, keep the oven door closed, turn ®
the oven off, disconnect the power cord, or shut off the power at
the fuse or circuit breaker panel.
d. Do not use the oven compartment for storage purposes. Do not
leave paper products, cooking utensils, or food in the oven when
not in use.
Do not try to preheat oven or operate while empty.
Do not cook without the glass tray in place on the oven floor. Food will
not cook properly without the tray.
Do not defrost frozen beverages in narrow-necked bottles. The
containers can break.
Dishes and containers can become hot. Handle with care. "
Carefully remove container coverings, directing steam away from
hands and face.
Remove lids from baby food before heating. After heating baby food,
stir well and test temperature by tasting before serving.
A short power-supply cord is provided to reduce the risk of becoming
entangled in or tripping over a longer cord. Longer cord sets or
extension cords are available and may be used with caution.
Do not operate any other heating or cooking appliance beneath this
appliance.
Do not mount unit over or near any portion of a heating or cooking
appliance.
Do not mount over a sink.
Do not store anything directly on top of the appliance when it is in
operation.
If materials inside oven should ignite, keep the oven door closed, turn
the oven off and disconnect the power cord, or shut off power at the
fuse or circuit breaker panel. If the door is opened, the fire may
spread.
Pre-cautionfor safe use to avoid possible exposure to excessive
micro oven energy :
Do not attempt to pull any part of the door by hand to open the door.
Open the door only utilizing the push button located at front-right-
bottom side.
SAVE THESE INSTRUCTIONS
3
Safety

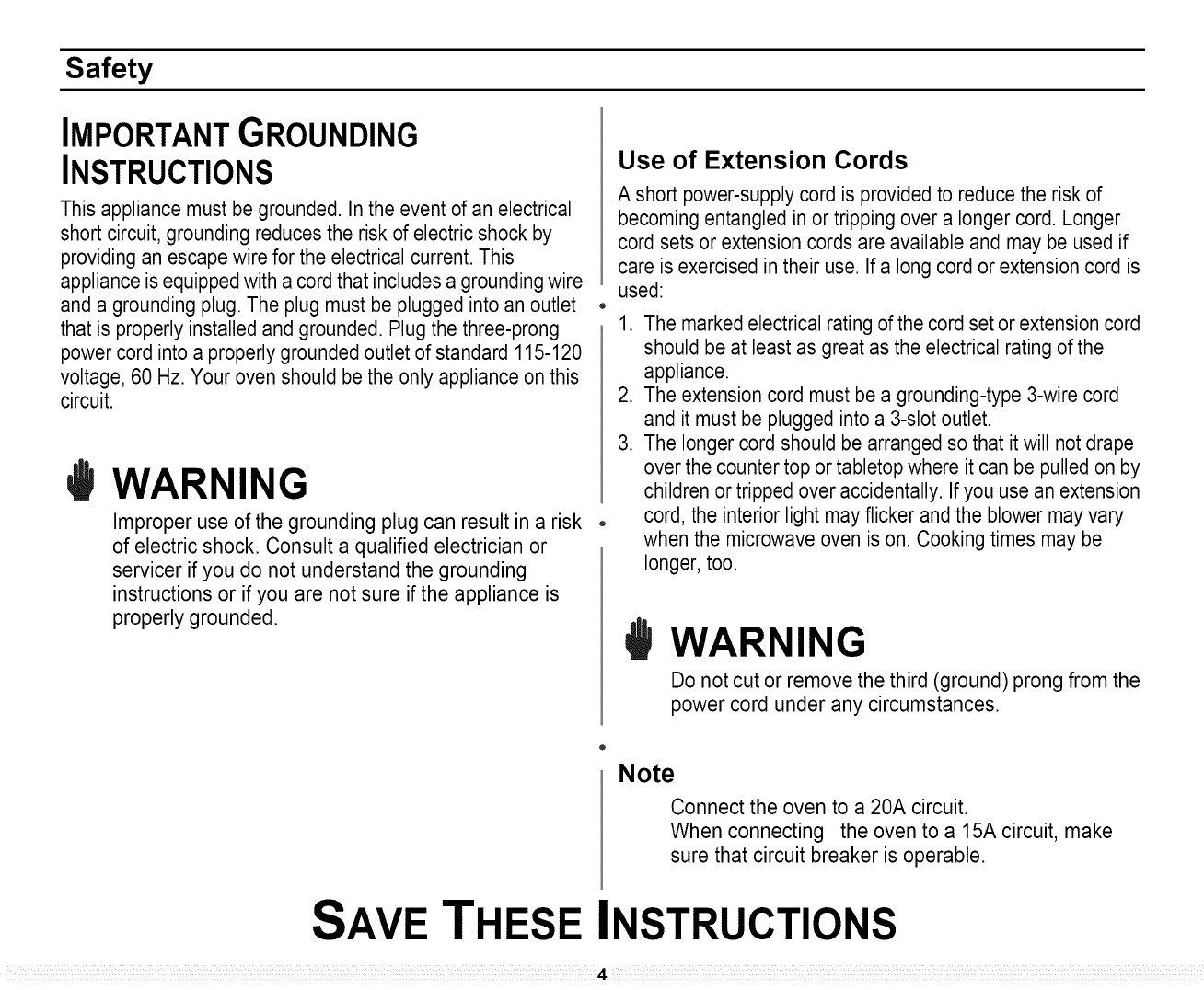

IMPORTANTGROUNDING
INSTRUCTIONS
This appliance must be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electrical current. This
appliance is equipped with a cord that includes a grounding wire
and a grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded. Plug the three-prong
power cord into a properly grounded outlet of standard 115-120
voltage, 60 Hz. Your oven should be the only appliance on this
circuit.
WARNING
Improper use of the grounding plug can result in a risk
of electric shock. Consult a qualified electrician or
servicer if you do not understand the grounding
instructions or if you are not sure if the appliance is
properly grounded.
Use of Extension Cords
A short power-supply cord is provided to reduce the risk of
becoming entangled in or tripping over a longer cord. Longer
cord sets or extension cords are available and may be used if
care is exercised in their use. If a long cord or extension cord is
used:
1. The marked electrical rating of the cord set or extension cord
should be at least as great as the electrical rating of the
appliance.
2. The extension cord must be a grounding-type 3-wire cord
and it must be plugged into a 3-slot outlet.
3. The longer cord should be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on by
children or tripped over accidentally. Ifyou use an extension
cord, the interior light may flicker and the blower may vary
when the microwave oven is on. Cooking times may be
longer, too.
WARNING
Do not cut or remove the third (ground) prong from the
power cord under any circumstances.
Note
Connect the oven to a 20A circuit.
When connecting the oven to a 15A circuit, make
sure that circuit breaker is operable.
SAVE THESE INSTRUCTIONS
Your New Microwave oven
Table of Contents

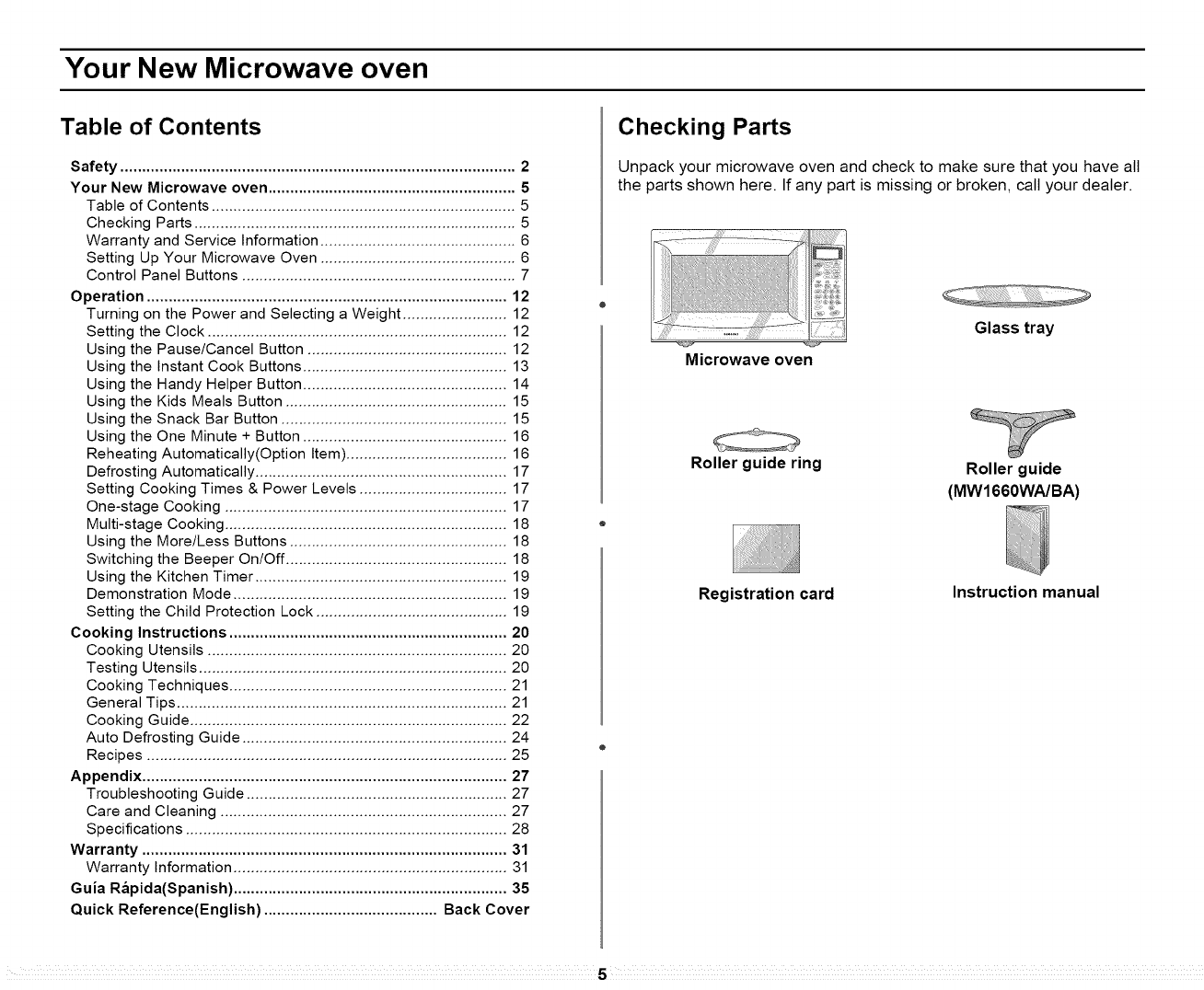

Safety ........................................................................................... 2
Your New Microwave oven ......................................................... 5
Table of Contents ...................................................................... 5
Checking Parts .......................................................................... 5
Warranty and Service Information ............................................. 6

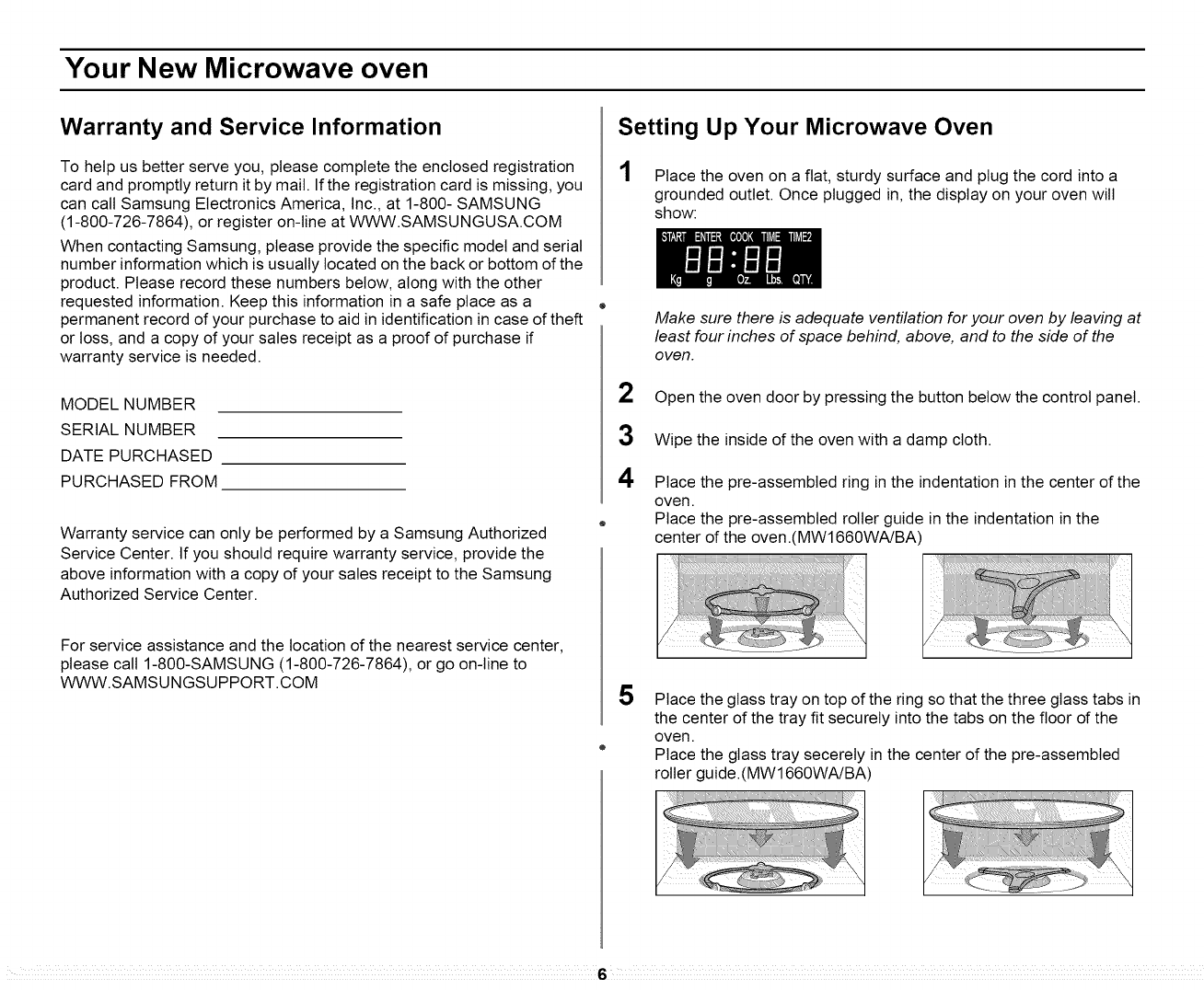

Setting Up Your Microwave Oven ............................................. 6

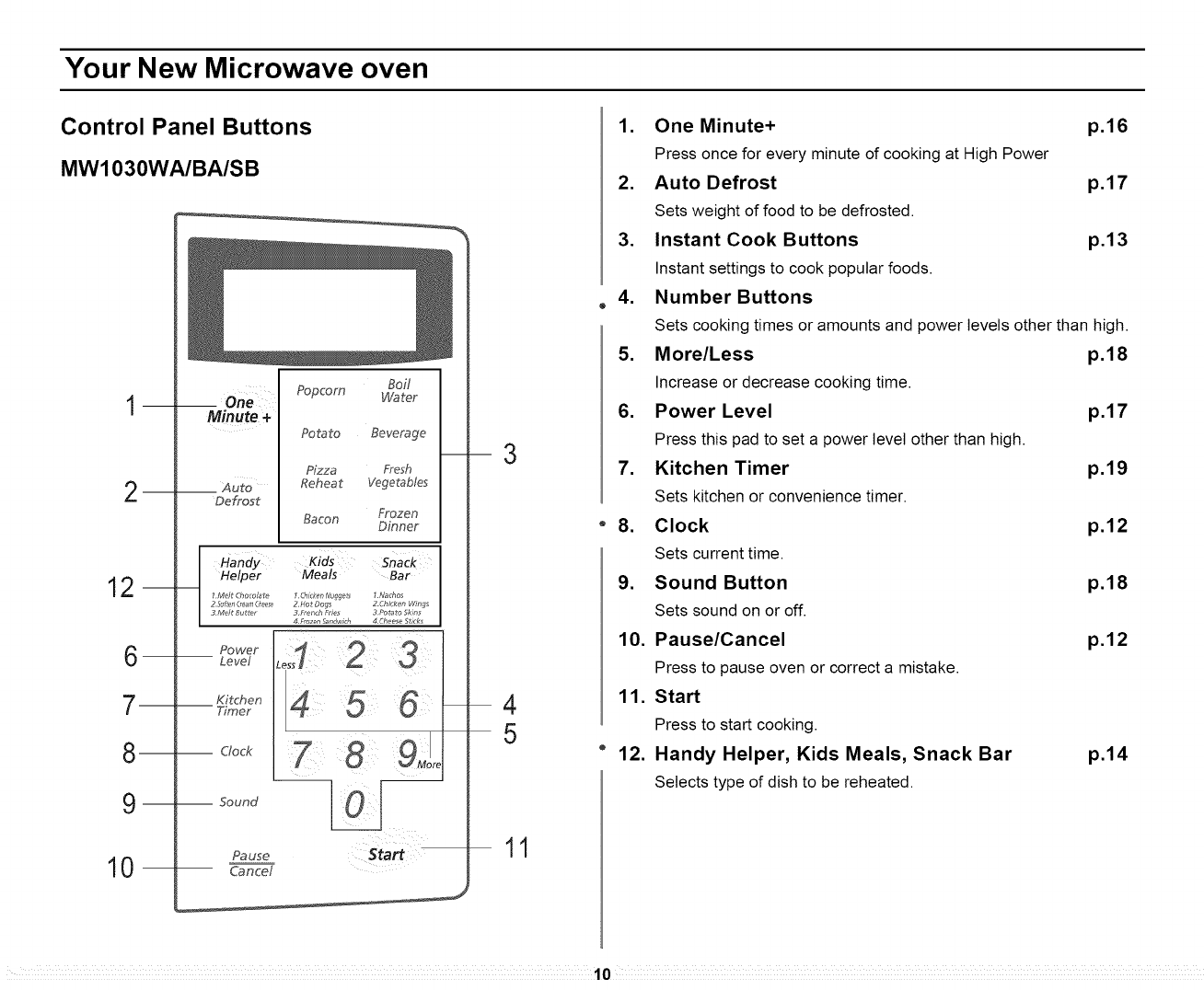

Control Panel Buttons ............................................................... 7
Operation ................................................................................... 12 e

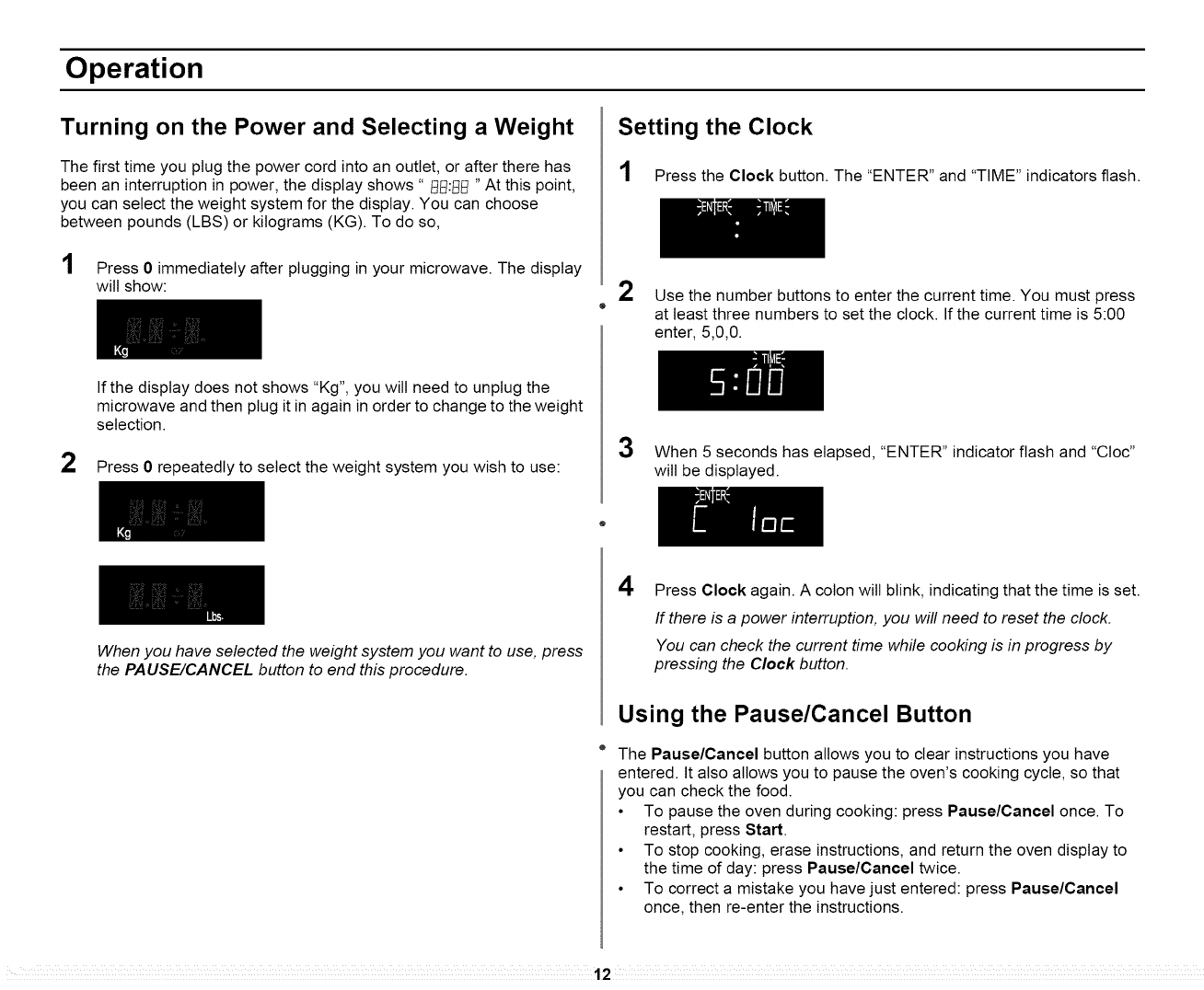

Turning on the Power and Selecting a Weight ........................ 12
Setting the Clock ..................................................................... 12
Using the Pause/Cancel Button .............................................. 12
Using the Instant Cook Buttons ............................................... 13
Using the Handy Helper Button ............................................... 14
Using the Kids Meals Button ................................................... 15
Using the Snack Bar Button .................................................... 15
Using the One Minute + Button ............................................... 16

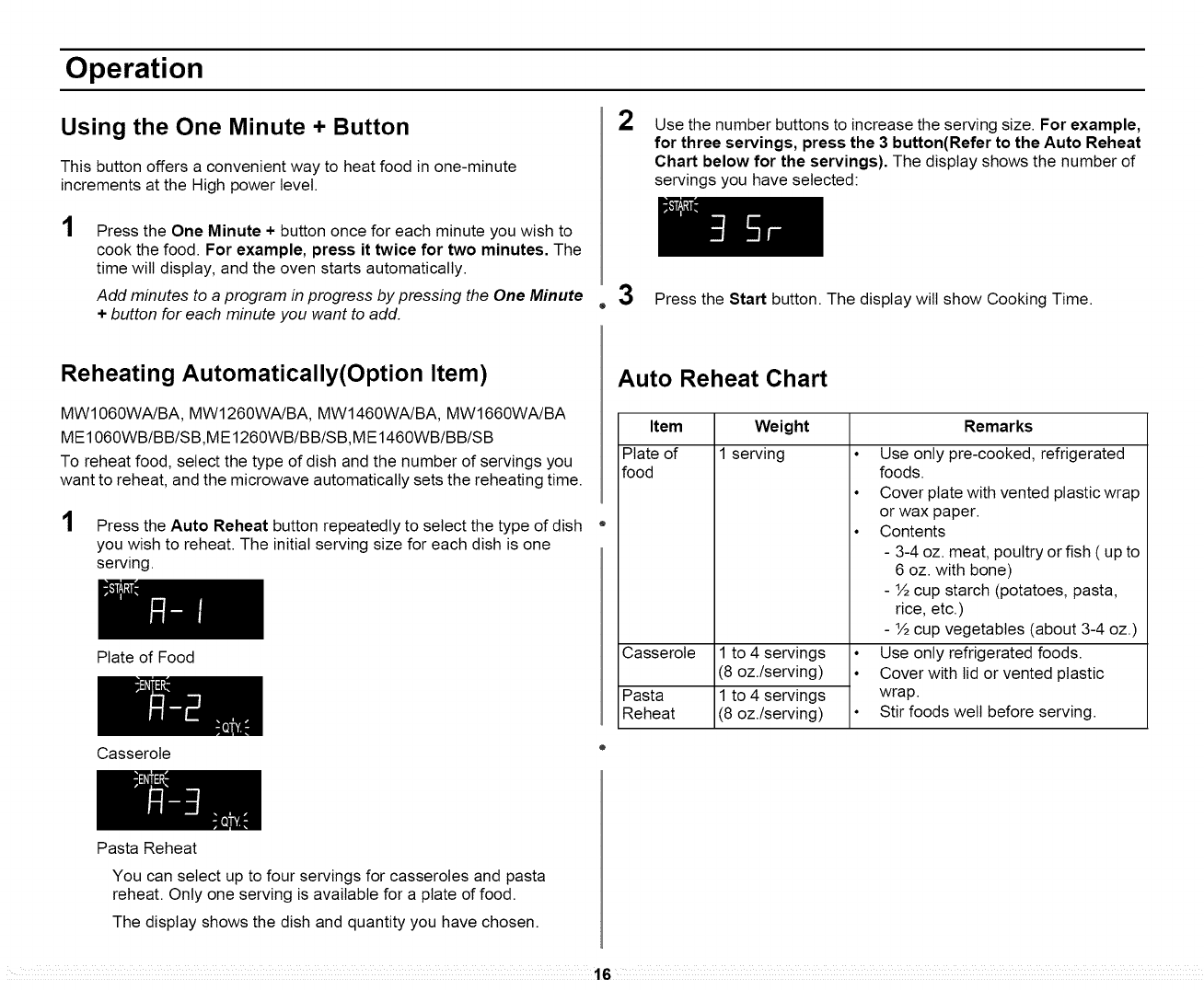

Reheating Automatically(Option Item) ..................................... 16
Defrosting Automatically .......................................................... 17
Setting Cooking Times & Power Levels .................................. 17
One-stage Cooking ................................................................. 17

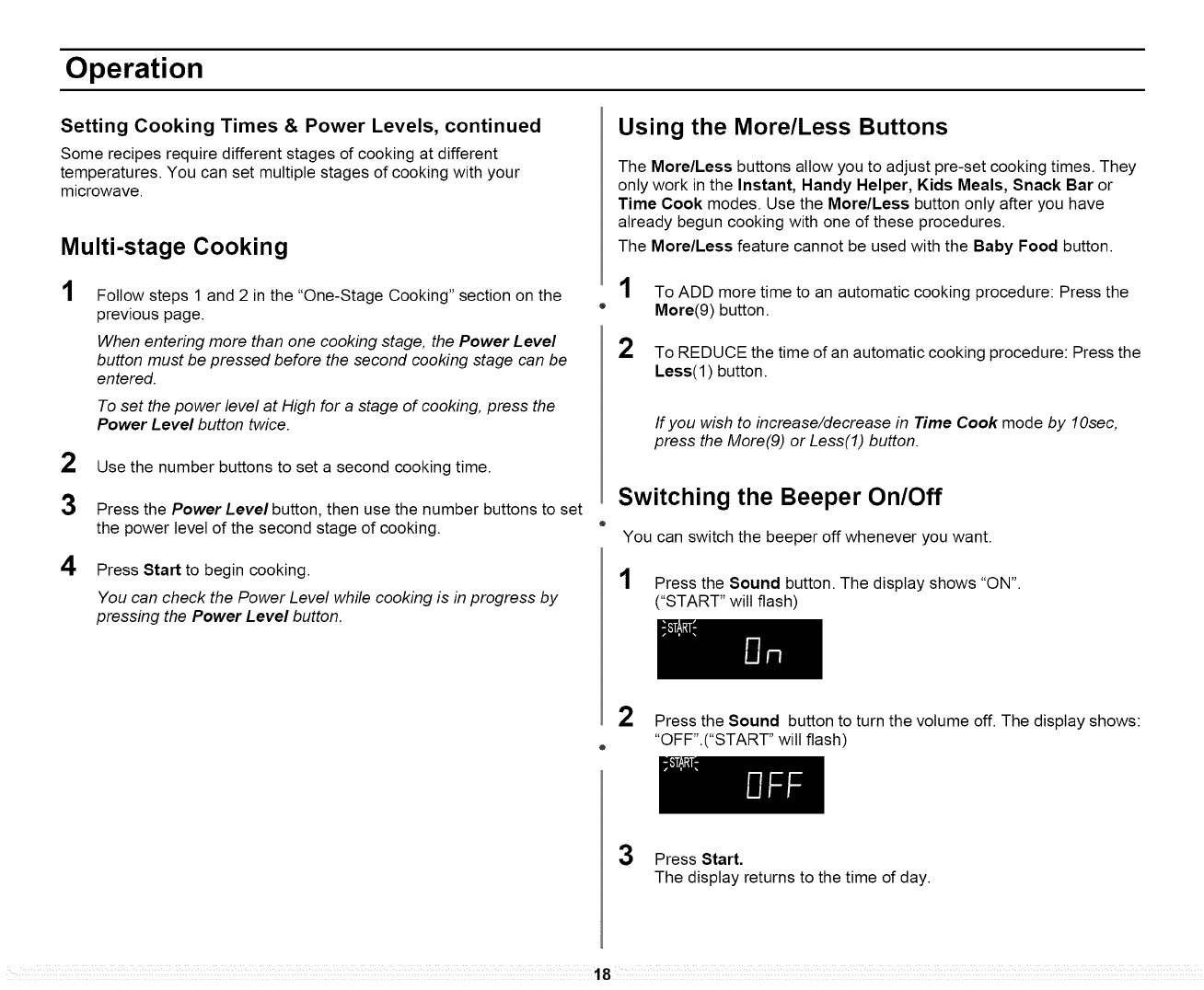

Multi-stage Cooking ................................................................. 18 e
Using the More/Less Buttons .................................................. 18
Switching the Beeper On/Off ................................................... 18

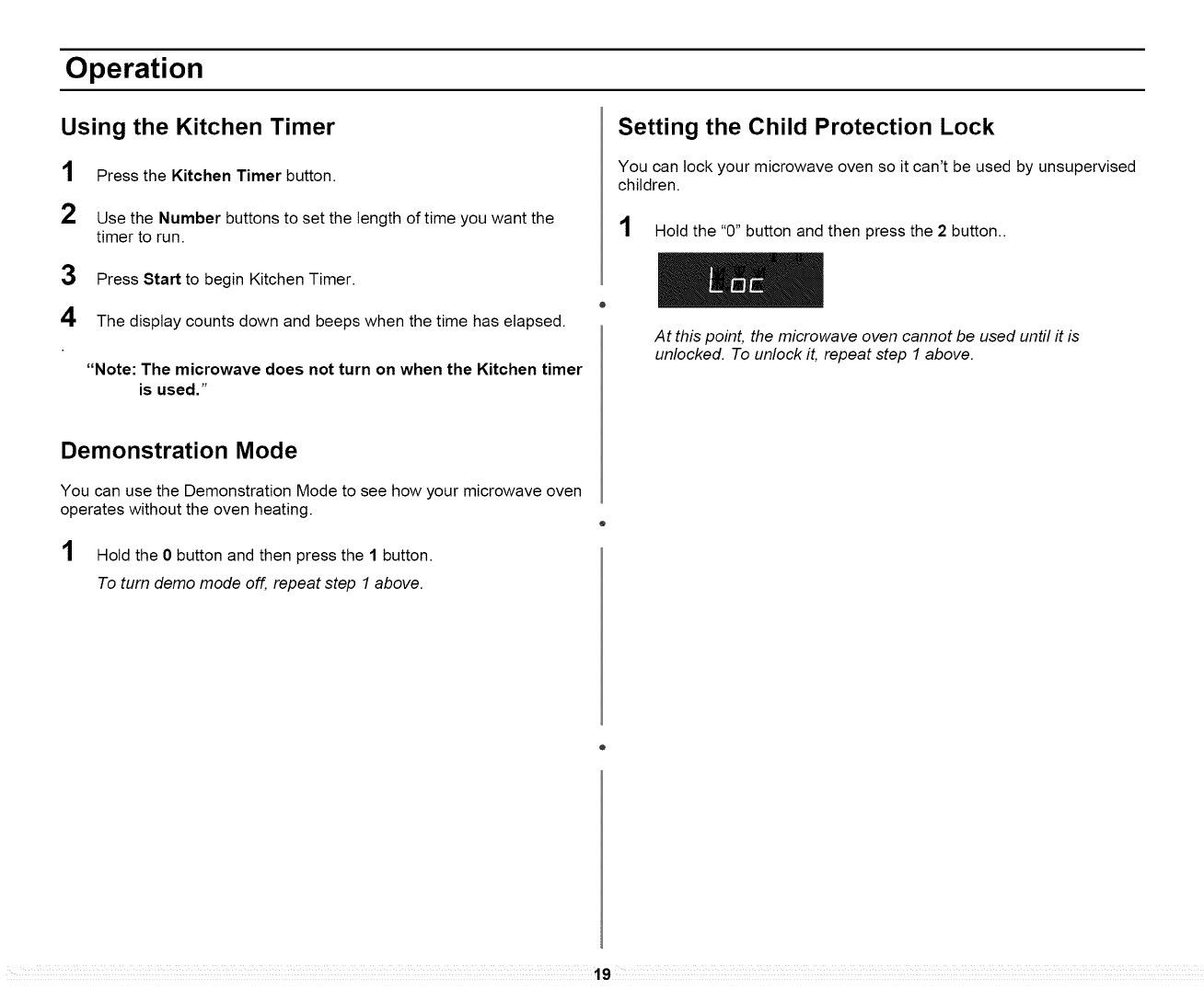

Using the Kitchen Timer .......................................................... 19
Demonstration Mode ............................................................... 19
Setting the Child Protection Lock ............................................ 19
Cooking Instructions ................................................................ 20

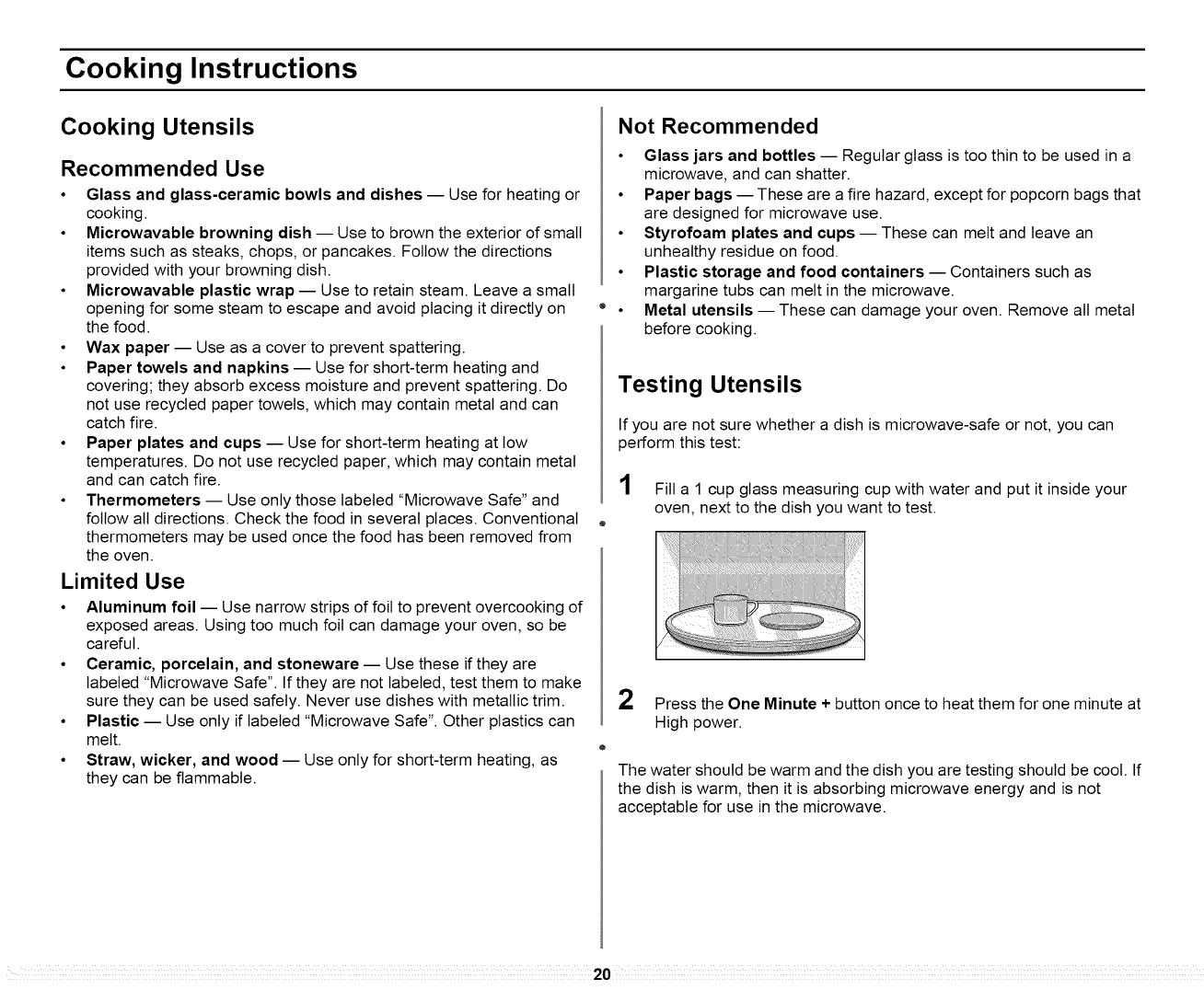

Cooking Utensils ..................................................................... 20
Testing Utensils ....................................................................... 20
Cooking Techniques ................................................................ 21
General Tips ............................................................................ 21
Cooking Guide ......................................................................... 22
Auto Defrosting Guide ............................................................. 24 o

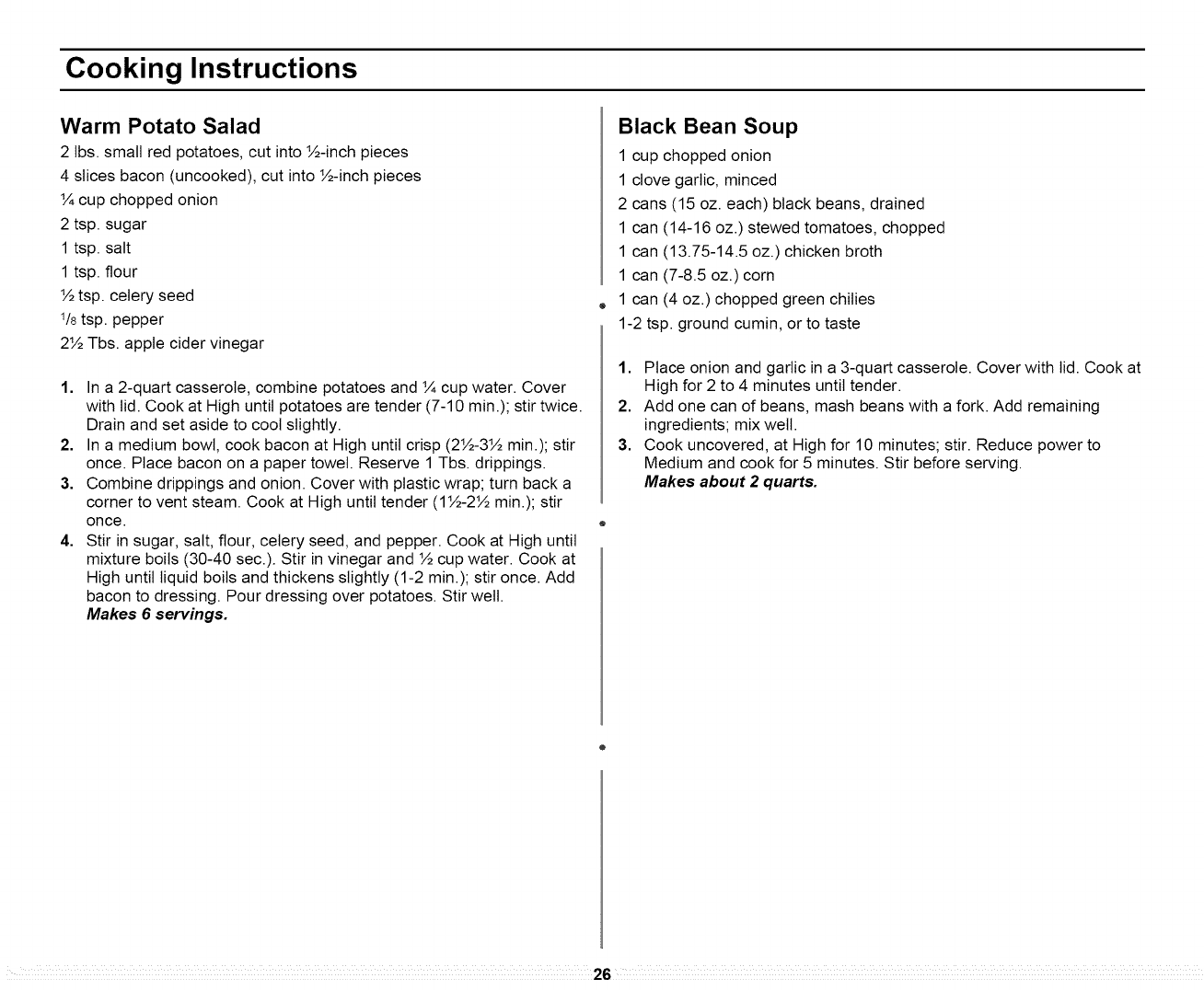

Recipes ................................................................................... 25
Appendix .................................................................................... 27
Troubleshooting Guide ............................................................ 27
Care and Cleaning .................................................................. 27

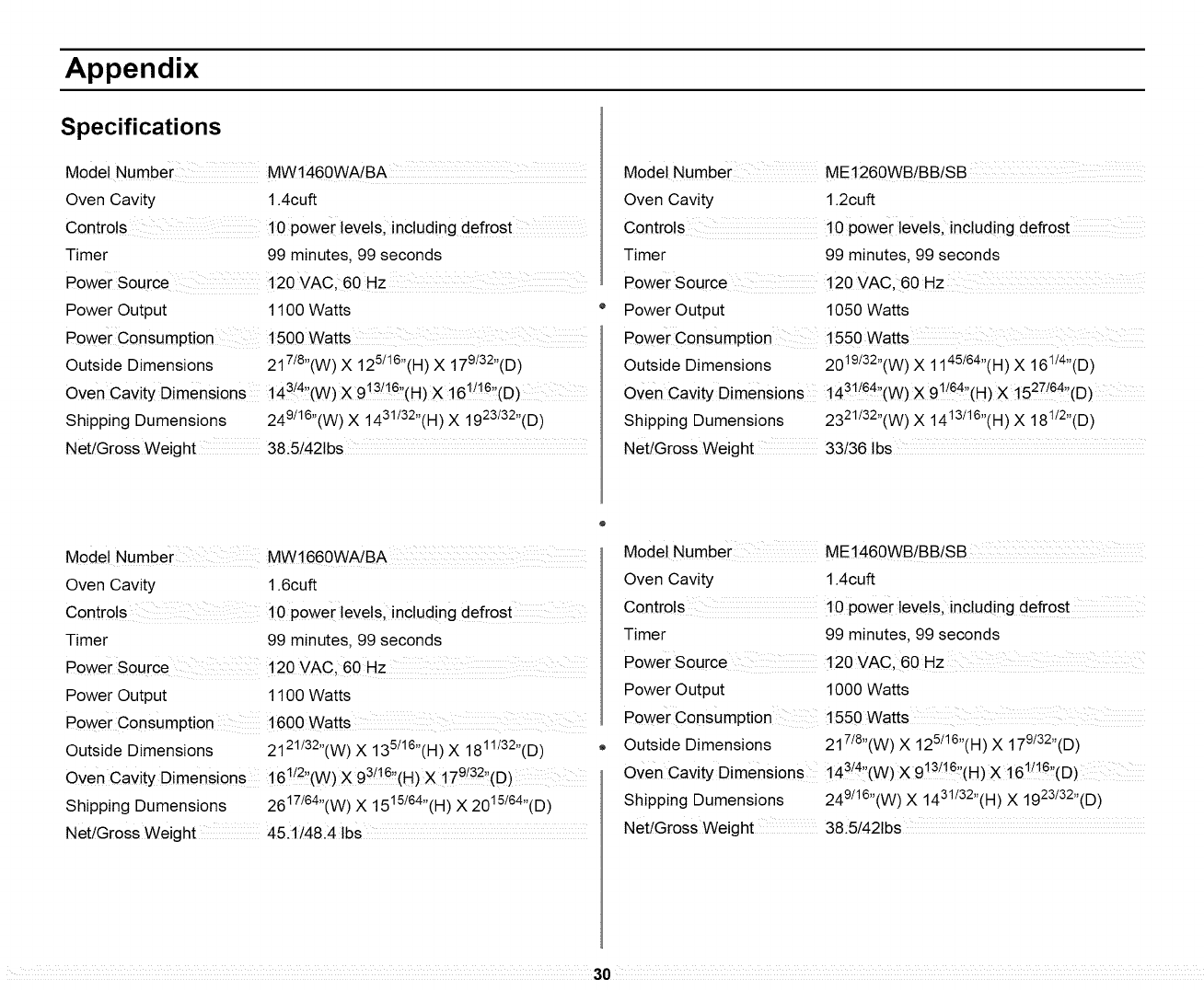

Specifications .......................................................................... 28
Warranty .................................................................................... 31

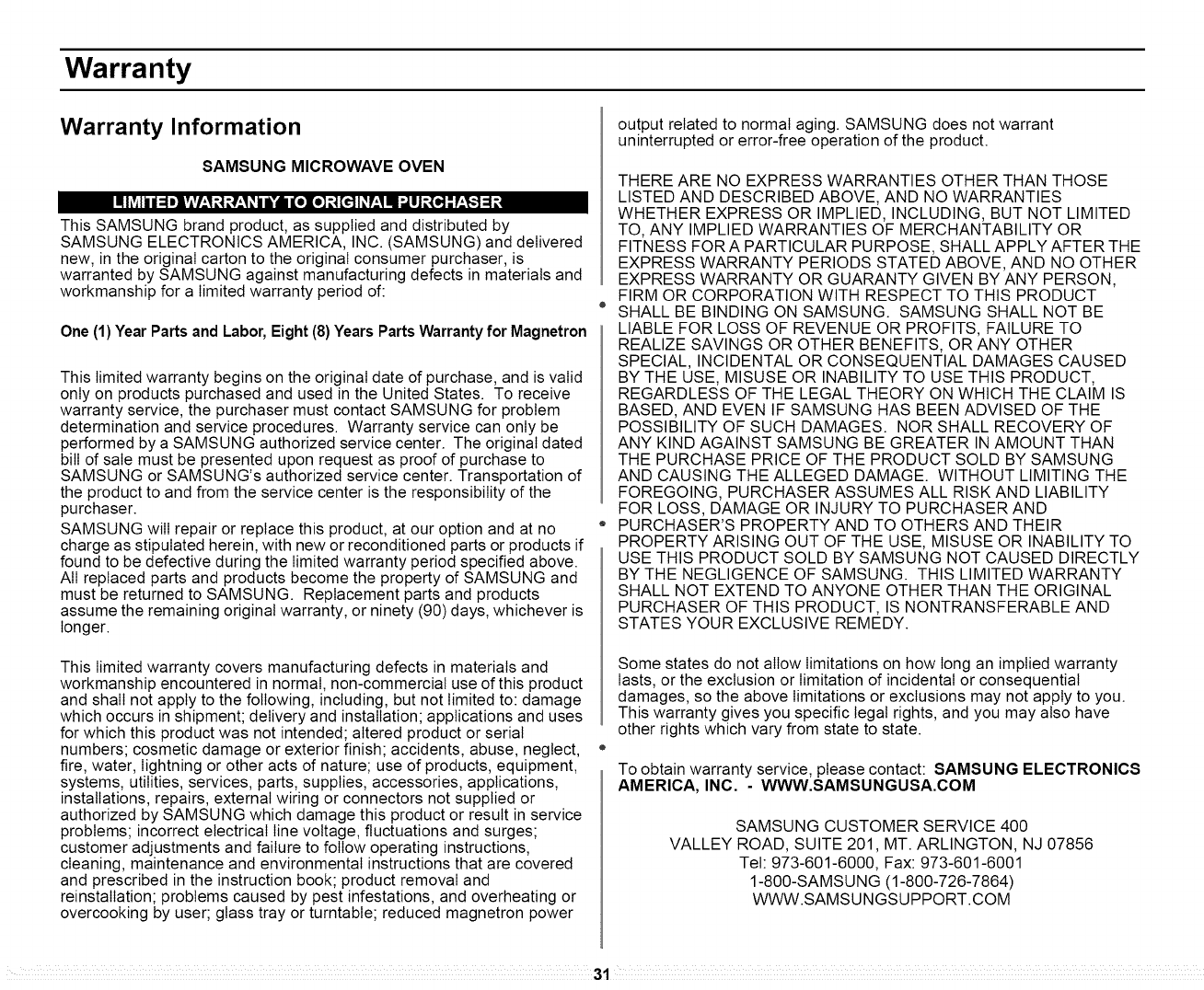

Warranty Information ............................................................... 31

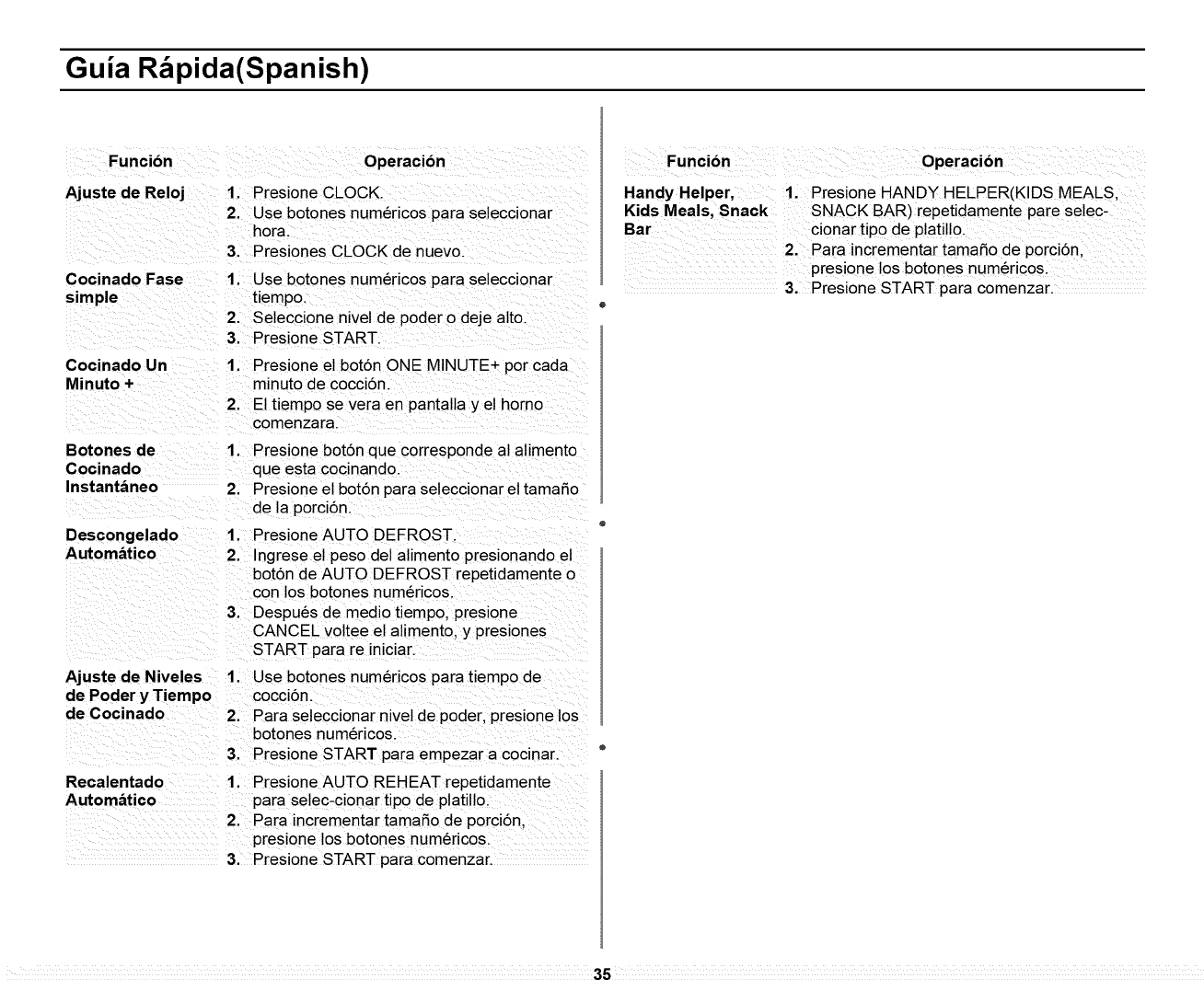

Guia Rapida(Spanish) ............................................................... 35

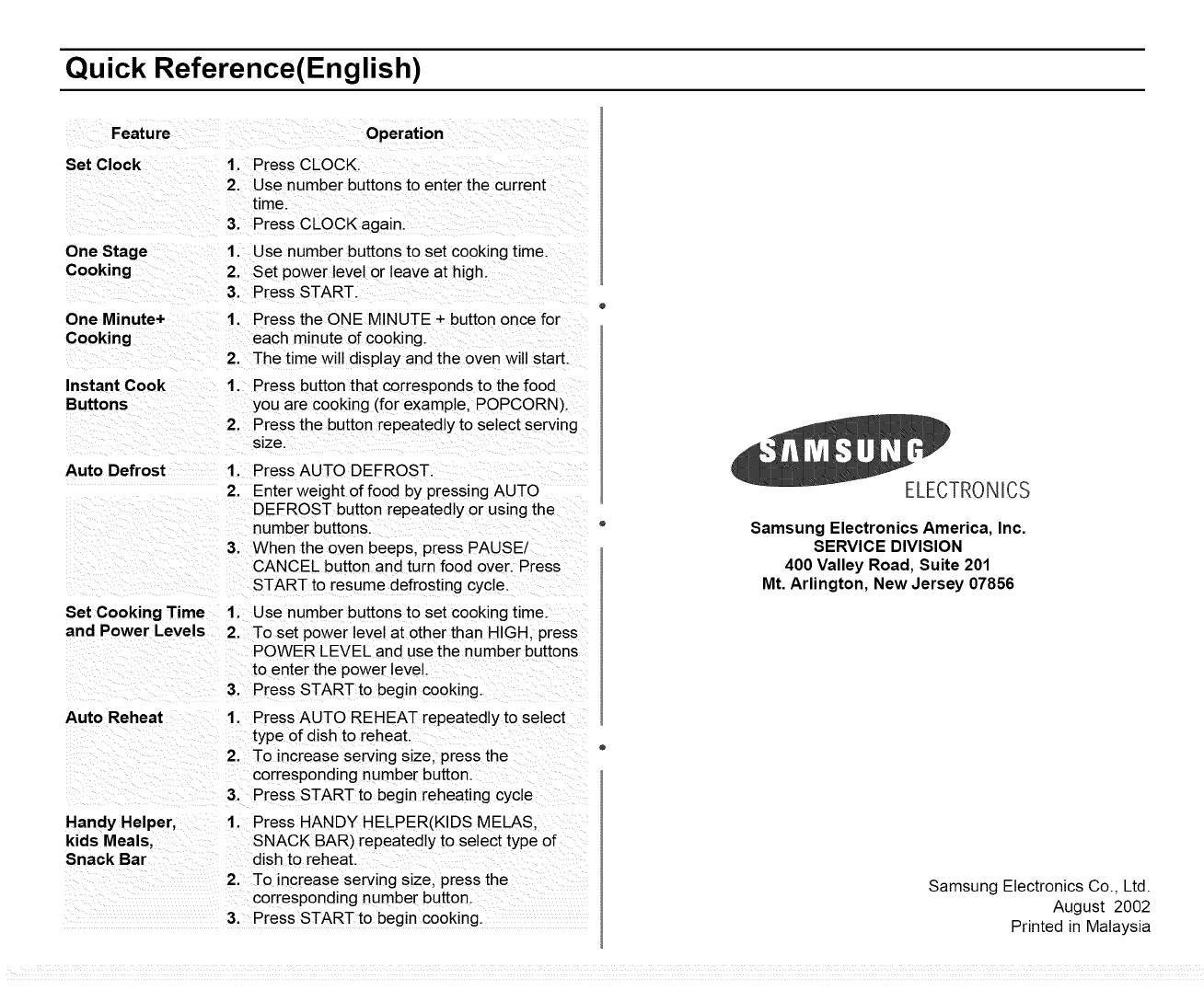

Quick Reference(English) ........................................ Back Cover
Checking Parts
Unpack your microwave oven and check to make sure that you have all
the parts shown here. If any part is missing or broken, call your dealer.
Microwave oven
Glass tray
Roller guide ring Roller guide
(MW1660WA/BA)
Registration card Instruction manual
Your New Microwave oven
Warranty and Service Information
To help us better serve you, please complete the enclosed registration
card and promptly return it by mail. If the registration card is missing, you
can call Samsung Electronics America, Inc., at 1-800- SAMSUNG
(1-800-726-7864), or register on-line at WWW.SAMSUNGUSA.COM
When contacting Samsung, please provide the specific model and serial
number information which is usually located on the back or bottom of the
product. Please record these numbers below, along with the other
requested information. Keep this information in a safe place as a
permanent record of your purchase to aid in identification in case of theft
or toss, and a copy of your sales receipt as a proof of purchase if
warranty service is needed.
MODEL NUMBER
SERIAL NUMBER
DATE PURCHASED
PURCHASED FROM
Warranty service can only be performed by a Samsung Authorized
Service Center. If you should require warranty service, provide the
above information with a copy of your sales receipt to the Samsung
Authorized Service Center.
For service assistance and the location of the nearest service center,
please call 1-800-SAMSUNG (1-800-726-7864), or go on-line to
WWW.SAMSUNGSUPPORT.COM
Setting Up Your Microwave Oven
,4
|Place the oven on a flat, sturdy surface and plug the cord into a
grounded outlet. Once plugged in, the display on your oven will
show:
2
3
4
Make sure there is adequate ventilation for your oven by leaving at
least four inches of space behind, above, and to the side of the
oven.
Open the oven door by pressing the button below the control panel.
Wipe the inside of the oven with a damp cloth.
Place the pre-assembled ring in the indentation in the center of the
oven.
Place the pre-assembled roller guide in the indentation in the
center of the oven.(MW1660WA/BA
5Place the glass tray on top of the ring so that the three glass tabs in
the center of the tray fit securely into the tabs on the floor of the
oven.
Place the glass tray secerely in the center of the pre-assembled
roller guide.(MW1660WA/BA
Your New Microwave oven
Control Panel Buttons

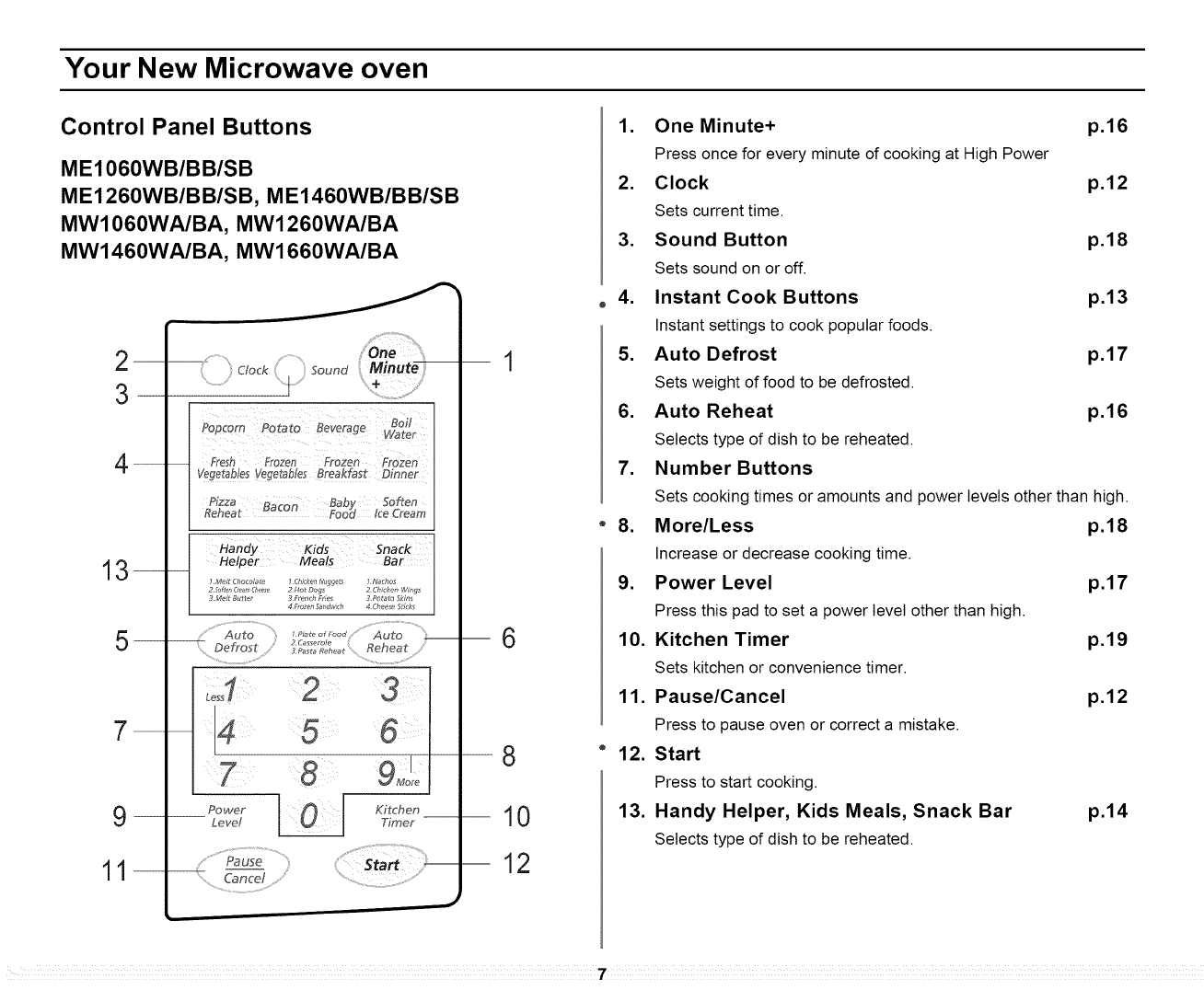

ME1060WB/BB/SB
ME1260WB/BB/SB, ME1460WB/BB/SB
MW1060WA/BA, MW1260WA/BA
MW1460WA/BA, MW1660WA/BA
.................................
13--
__
.................................
9
11
C,ockBoun_M'O.tO
+
Popcorn Potato Beverage B°ll
_!_3ter
Fresh Frozen Frozen Frozen
vegetables vegetables Breakfast Dinner
Pizza Bacon Babx ,Soften
Reheat FooJ Ice Cream
fHandy Kids snack
Helper Meals Bar
l Melt Choco/ate l Ch cken Nuggets l Na ho_
2often (tean_ deese 2 Hot Dogs 2 (hfcken Wng_
3Melt Bu_ter 3 Frer_ch :rie_ .?Potato Skin_
4 Frozen Sar'dw ch 4 Chee_e _J k_
.... Auto _Pl_te Auto
Defrost 2Casserole
3Pasta Reheat Reheat
Power
Level Kitchen
Timer
6
8
10
12
1. One Minute+ p.16
Press once for every minute of cooking at High Power
2. Clock p.12
Sets current time.
3. Sound Button p.18
Sets sound on or off.
4. Instant Cook Buttons p.13
Instant settings to cook popular foods.
5. Auto Defrost p.17
Sets weight of food to be defrosted.
6. Auto Reheat p.16
Selects type of dish to be reheated.
7. Number Buttons
Sets cooking times or amounts and power levels other than high.
8. More/Less p.18
Increase or decrease cooking time.
9. Power Level p.17
Press this pad to set a power level other than high.
10. Kitchen Timer p.19
Sets kitchen or convenience timer.
11. Pause/Cancel p.12
Press to pause oven or correct a mistake.
12. Start
Press to start cooking.
13. Handy Helper, Kids Meals, Snack Bar p.14
Selects type of dish to be reheated.
7
Your New Microwave oven
Control Panel Buttons
MW1255WA/BA, MW1455WA/BA
2
ram
12 mm
ram
6
8
10
Auto One
Defrost Minute +
Fresh Frozen Frozen Frozen
Handy Kids Snack
Helper Meals Bar
l Melt O_ocoJate l Chicke¢;Nugge#_ 7N_ ho5
2 S_ffe_Oe_m_eese 2HotDogs 2Chi_ke_ngs
3Me/_ Bu_ter 3French Fries 3Potato Skin5
4 Frozen_ndwich 4Check, Stick5
¸¸¸2¸¸¸¸¸
Power Kitchen
Level Timer
Clock Sound
Pause Start
5
7
9
11
1. One Minute+ p.16
Press once for every minute of cooking at High Power
2, Auto Defrost p,17
Sets weight of food to be defrosted.
3, Instant Cook Buttons p,13
Instant settings to cook popular foods.
4, Number Buttons
Sets cooking times or amounts and power levels other than high.
5. More/Less p.18
Increase or decrease cooking time.
6, Power Level p,17
Press this pad to set a power level other than high.
7. Kitchen Timer p.19
Sets kitchen or convenience timer.
8. Clock p.12
Sets current time.
9, Sound Button p,18
Sets sound on or off.
10. Pause/Cancel p.12
Press to pause oven or correct a mistake.
11. Start
Press to start cooking.
12. Handy Helper, Kids Meals, Snack Bar p.14
Selects type of dish to be reheated.
8
Your New Microwave oven
Control Panel Buttons

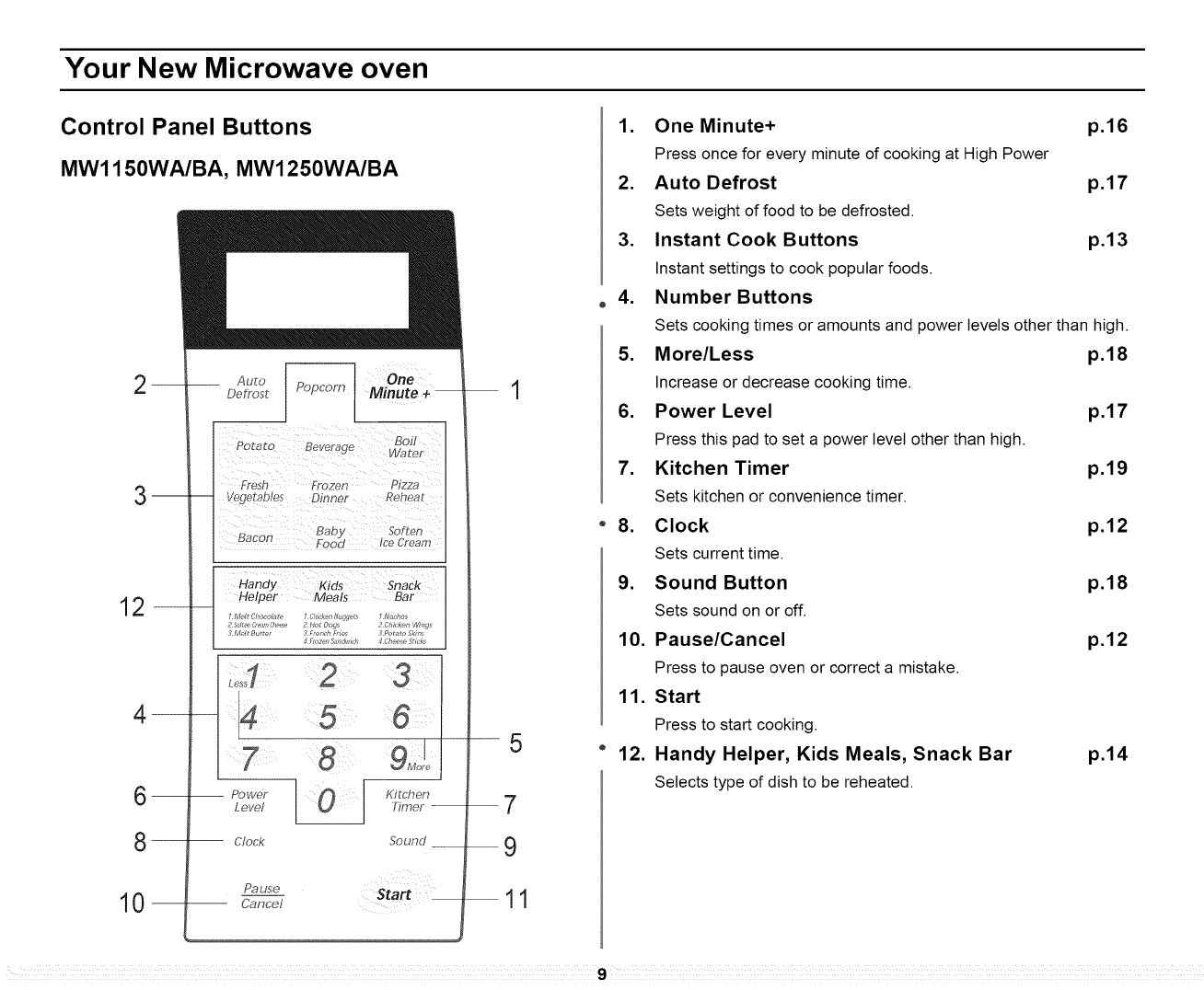

MW1150WA/BA, MW1250WA/BA
I I
12--
__
6
8
10
Defros_
Po_to Bevep_: j_ Water
Fresh FFozen Pfzza
VO_OT_DI©_ DJDD_,,F Nelle_
L_;JD_ bOl _ttn
B_con [_9od Ice Cream
Handy Kids _nack
Helper Meals Bar
1 M_lt Chc_ ola_e I Ch_cl_, fvugg_r_ 1 Nahes
Sot[an haa._ [_e _ Hot Do_ls 2 Choker, VCng_
3#_eh Ructer 3 _renh Fnes 3 f'u_a_o _k_n_
# hoz_, 5al,dwJ(h # Cheese _t_k
Po wet
Level Kitchen
77met --
Clock Sound
F_ause
Cancel
5
--11
°4.
_8.
° 12.
1. One Minute+ p.16
Press once for every minute of cooking at High Power
2. Auto Defrost p.17
Sets weight of food to be defrosted.
3. Instant Cook Buttons p.13
Instant settings to cook popular foods.
Number Buttons
Sets cooking times or amounts and power levels other than high.
5. More/Less p.18
Increase or decrease cooking time.
6. Power Level p.17
Press this pad to set a power level other than high.
7. Kitchen Timer p.19
Sets kitchen or convenience timer.
Clock p.12
Sets current time.
9. Sound Button p.18
Sets sound on or off.
10. Pause/Cancel p.12
Press to pause oven or correct a mistake.
11. Start
Press to start cooking.
Handy Helper, Kids Meals, Snack Bar p.14
Selects type of dish to be reheated.
9
Your New Microwave oven
Control Panel Buttons
MW1030WA/BA/SB
2
12 m
m
7
8
9--
10
One
Minute +
Auto
Defrost
Popcorn Boil
Water
Potato Beverage
Pizza Fresh
Reheat Vegetables
Bacon Frozen
Dinner
Handy Kids Snack
Helper Mea/s Bar
l Mel_ Cho olate l@_@en Nugget_ 1Nachos
25often Croat1 Cheese 2Hot Dogs 2.Chicken Wing_
3Melt Buzter d.French Fries 3Potato Sklr,s
4 Frozen _andw_ch 4Chee_e _t_ck_
Power
Level ,4 23
78 9 :,o
Kitchen
Timer
Clock
--3
Sound
Pause Start
Cancel
4
5
11
,
o
"8.
° 12.
1. One Minute+ p.16
Press once for every minute of cooking at High Power
2. Auto Defrost p.17
Sets weight of food to be defrosted.
3. Instant Cook Buttons p.13
Instant settings to cook popular foods.
Number Buttons
Sets cooking times or amounts and power levels other than high.
5. More/Less p.18
Increase or decrease cooking time.
6. Power Level p.17
Press this pad to set a power level other than high.
7. Kitchen Timer p.19
Sets kitchen or convenience timer.
Clock p.12
Sets current time.
9, Sound Button p,18
Sets sound on or off.
10. Pause/Cancel p.12
Press to pause oven or correct a mistake.
1 1. Start
Press to start cooking.
Handy Helper, Kids Meals, Snack Bar p.14
Selects type of dish to be reheated.
10
Your New Microwave oven
Control Panel Buttons

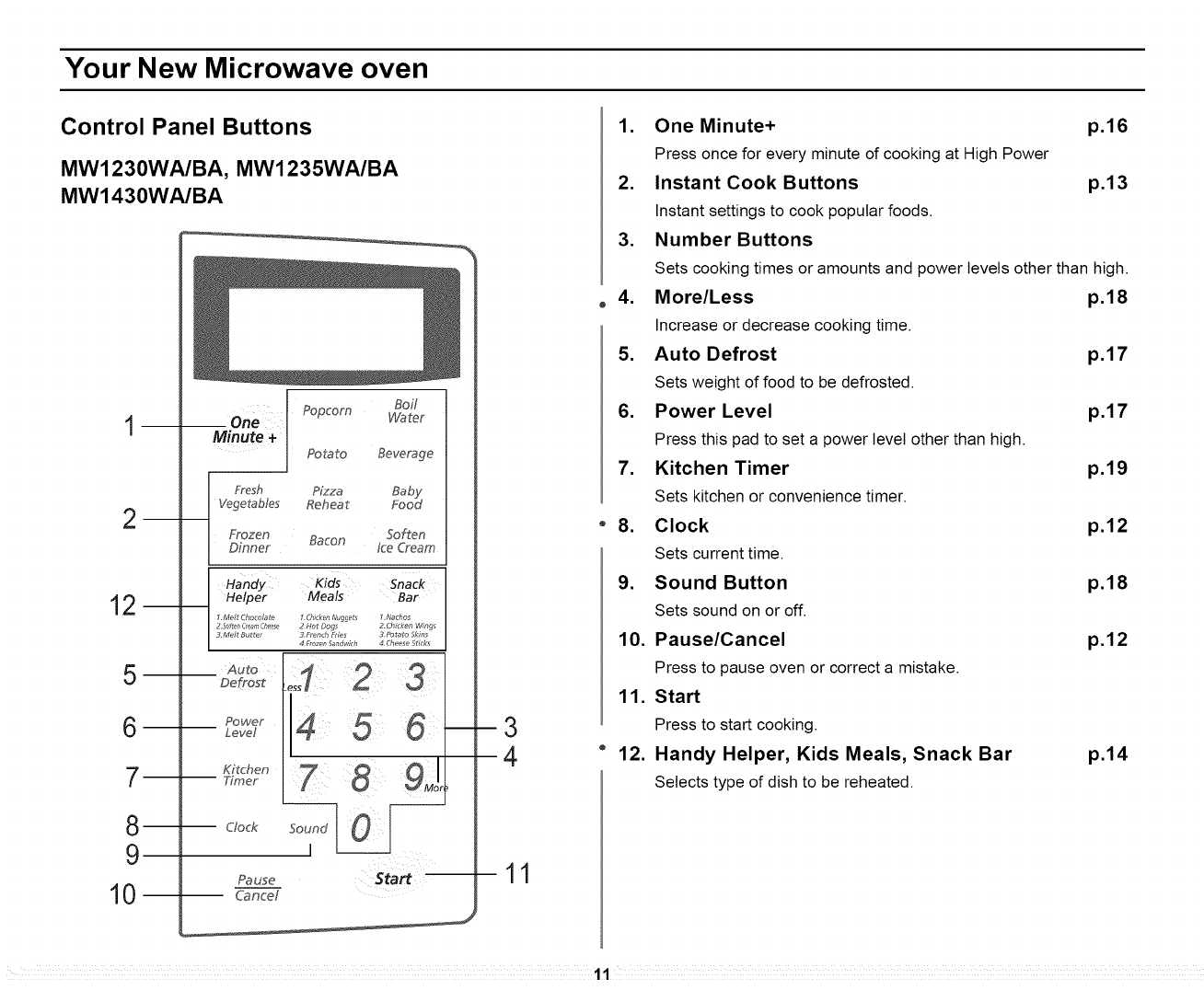

MW1230WA/BA, MW1235WA/BA
MW1430WA/BA
m
12m
5
6
7
8
9
10
One
Minute +
Popcorn Boil
Water
Potato Beverage
Fresh Pizza Baby
Vegetables Reheat Food
Frozen Bacon Soften
Dinner Ice Cream
Handy Kids Snack
Helper Meals Bar
l Melt ChocolatF, lChickenNugget l Nachos
2Soft_ Cream Chics,, 2Hot Dogs 2.Chicken Wing_
3Melt Butter .?,French Fti s 3Potalo Sk_n_
4 Frozen %andwich 4Chee_e gticks
Clock Sound
Pa USe
Cancel -11
.4.
"8.
° 12.
1. One Minute+ p.16
Press once for every minute of cooking at High Power
2. Instant Cook Buttons p.13
Instant settings to cook popular foods.
3. Number Buttons
Sets cooking times or amounts and power levels other than high.
M ore/Less p. 18
Increase or decrease cooking time.
5. Auto Defrost p.17
Sets weight of food to be defrosted.
6. Power Level p.17
Press this pad to set a power level other than high.
7. Kitchen Timer p.19
Sets kitchen or convenience timer.
Clock p.12
Sets current time.
9. Sound Button p.18
Sets sound on or off.
10. Pause/Cancel p.12
Press to pause oven or correct a mistake.
11. Start
Press to start cooking.
Handy Helper, Kids Meals, Snack Bar p.14
Selects type of dish to be reheated.
11
Operation
Turning on the Power and Selecting a Weight
The first time you plug the power cord into an outlet, or after there has
been an interruption in power, the display shows " B_:B_ "At this point,
you can select the weight system for the display. You can choose
between pounds (LBS) or kilograms (KG). To do so,
A
|Press 0immediately after plugging in your microwave. The display
will show:
2
If the display does not shows "Kg", you wilt need to unplug the
microwave and then plug it in again in order to change to the weight
selection.
Press 0 repeatedly to select the weight system you wish to use:
Setting the Clock
1Press the Clock button. The "ENTER" and "TIME" indicators flash.
/Use the number buttons to enter the current time. You must press
at least three numbers to set the clock. If the current time is 5:00
enter, 5,0,0.
3When 5 seconds has elapsed, "ENTER" indicator flash and "Cloc"
will be displayed.
When you have selected the weight system you want to use, press
the PAUSE/CANCEL button to end this procedure.
4Press Clock again. A colon will blink, indicating that the time is set.
If there is a power interruption, you will need to reset the clock.
You can check the current time while cooking is in progress by
pressing the Clock button.
Using the Pause/Cancel Button
The Pause/Cancel button allows you to clear instructions you have
entered. It also allows you to pause the oven's cooking cycle, so that
you can check the food.
To pause the oven during cooking: press Pause/Cancel once. To
restart, press Start.
To stop cooking, erase instructions, and return the oven display to
the time of day: press Pause/Cancel twice.
To correct a mistake you have just entered: press Pause/Cancel
once, then re-enter the instructions.
12
Operation

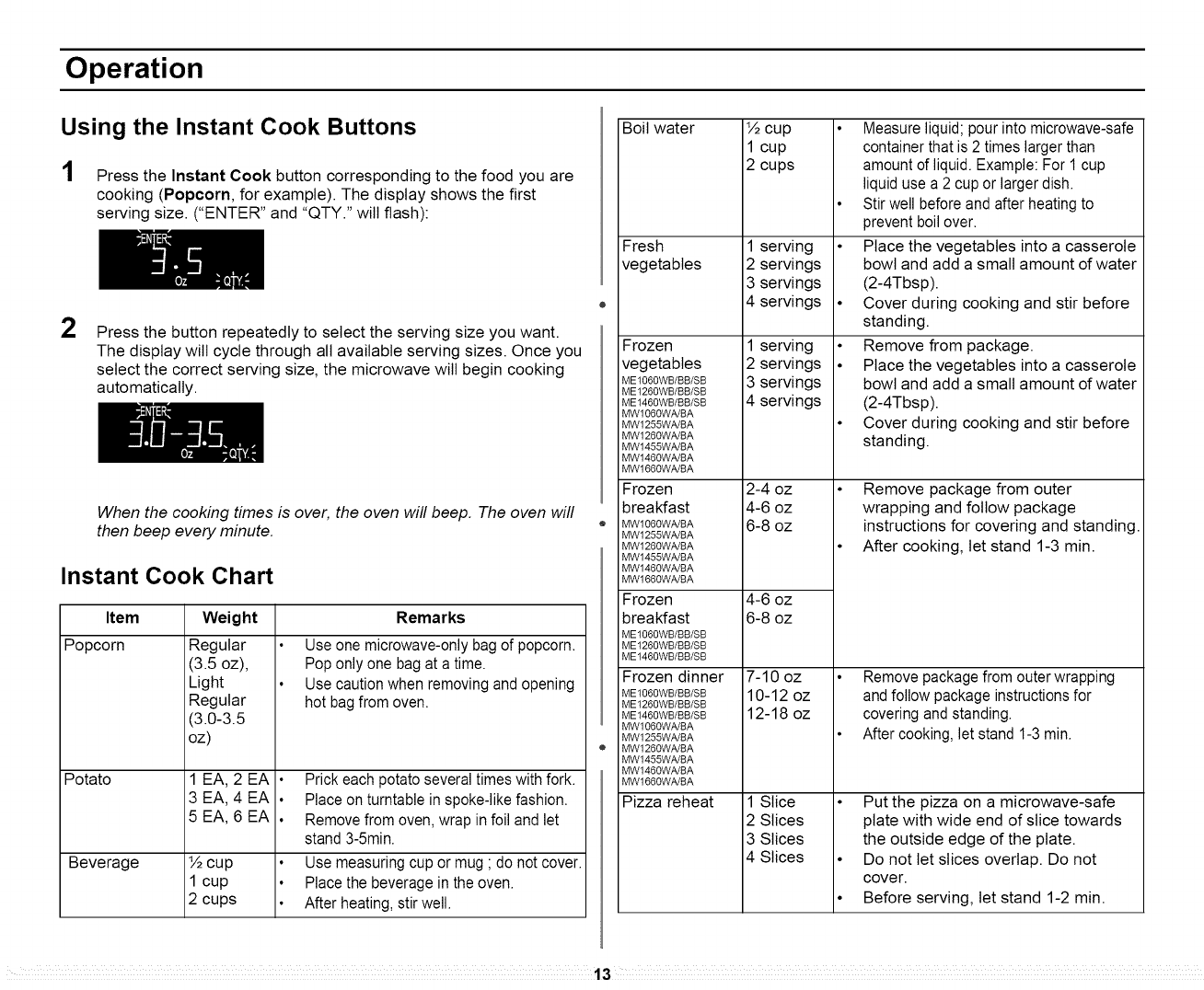

Using the Instant Cook Buttons
1Press the Instant Cook button corresponding to the food you are
cooking (Popcorn, for example). The display shows the first
serving size. ("ENTER" and "QTY." will flash):
2Press the button repeatedly to select the serving size you want.
The display will cycle through all available serving sizes. Once you
select the correct serving size, the microwave will begin cooking
automatically.
When the cooking times is over, the oven will beep. The oven will
then beep every minute.
Instant Cook Chart
Item Remarks
Popcorn
Potato
Beverage
Weight
Regular
(3.5 oz),
Light
Regular
(3.0-3.5
oz)
1 EA, 2 EA
3 EA, 4 EA
5 EA, 6 EA
½ cup
1 cup
2 cups
Use one microwave-only bag of popcorn.
Pop only one bag at a time.
Use caution when removing and opening
hot bag from oven.
Prick each potato several times with fork.
Place on turntable in spoke-like fashion.
Remove from oven, wrap in foil and let
stand 3-5min.
Use measuring cup or mug ; do not cover.
Place the beverage in the oven.
After heating, stir well.
Boil water
Fresh
vegetables
Frozen
vegetables
ME1060WB/BB/SB
ME1260WB/BB/SB
ME1460WB/BB/SB
MWl060WA/BA
MW1255WA/BA
MW1260WA/BA
MW1455WA/BA
MW1460WA/BA
MW1660WA/BA
Frozen
breakfast
MWl060WA/BA
MW1255WA/BA
MW1260WA/BA
MW1455WA/BA
MW1460WA/BA
MW1660WA/BA
Frozen
breakfast
ME1060WB/BB/SB
ME1260WB/BB/SB
ME1460WB/BB/SB
Frozen dinner
ME1060WB/BB/SB
ME1260WB/BB/SB
ME1460WB/BB/SB
MWl060WA/BA
MW1255WA/BA
MW1260WA/BA
MW1455WA/BA
MW1460WA/BA
MW1660WA/BA
Pizza reheat
½ cup
1 cup
2 cups
1 serving
2 servings
3 servings
4 servings
1 serving
2 servings
3 servings
4 servings
214 oz
4-6 oz
6-8 oz
4-6 oz
6-8 oz
7-10 oz
10-12 oz
12-18 oz
1 Slice
2 Slices
3 Slices
4 Slices
Measure liquid; pour into microwave-safe
container that is 2 times larger than
amount of liquid. Example: For 1 cup
liquid use a 2 cup or larger dish.
Stir well before and after heating to
prevent boil over.
Place the vegetables into a casserole
bowl and add a small amount of water
(2-4Tbsp).
Cover during cooking and stir before
standing.
Remove from package.
Place the vegetables into a casserole
bowl and add a small amount of water
(2-4Tbsp).
Cover during cooking and stir before
standing.
Remove package from outer
wrapping and follow package
instructions for covering and standing.
After cooking, let stand 1-3 min.
Remove package from outer wrapping
and follow package instructions for
covering and standing.
After cooking, let stand 1-3 min.
Put the pizza on a microwave-safe
plate with wide end of slice towards
the outside edge of the plate.
Do not let slices overlap. Do not
cover.
Before serving, let stand 1-2 min.
13
Operation
Instant Cook Chart
Item
Bacon
Baby food
ME1060WB/BB/SB
ME1260WB/BB/SB
ME1460WB/BB/SB
MW1060WA/BA
MW1150WA/BA
MW1230WA/BA
MW1235WA/BA
MW1250WA/BA
MW1255WA/BA
MW1260WA/BA
MW1430WA/BA
MW1455WA/BA
MW1460WA/BA
MW1660WA/BA
Soften ice
cream
ME1060WB/BB/SB
ME1260WB/BB/SB
ME1460WB/BB/SB
MW1060WA/BA
MW1150WA/BA
MW1230WA/BA
MW1235WA/BA
MW1250WA/BA
MW1255WA/BA
MW1260WA/BA
MW1430WA/BA
MW1455WA/BA
MW1460WA/BA
MW1660WA/BA
Weight
2 Slices
4 Slices
6 Slices
2.5 oz
4 oz
6 oz
1 pint
½ gallon
Remarks
Place 2 paper towels on plate and
arrange bacon on towels, do not
overlap. Cover with additional paper
towel. Remove paper towel
immediately after cooking.
Use More or Less button for desired
crispness.
Remove lid from baby food and place
in the center of oven.
Check temperature and stir well
before serving.
The More/Less key cannot be used
with the baby food key.
Remove top of carton. Place carton in
center of microwave oven.
Let stand 2 min. after microwaving.
Using the Handy Helper Button
1. Press the Handy Helper button corresponding to the food you are
cooking. The display show "A-l".(code of item) Press the
Handy Helper button repeatedly to select the item you want.(Refer
to the Handy Helper Chart below)
2. Press the Number button to select the serving size you want. You
can press "1" or "2" button for selecting serving size.
Only "1" button(serving)is available for Sofetn Cream Cheese and
Melt Chocolate.(Refer to the Handy Helper Chart below for the
serving)
3. Press Start button to begin cooking.
Handy Helper Chart
Item Code Weight
Melt A-1 1 cup chips
Chocolate
Soften A-2 1 package
Cream (8 oz.)
Cheese
Melt Butter A-3 1 stick
(1/4 lb.)
2 sticks
(1/2 lb.)
Remarks
Place chocolate chips or square in a
microwave-safe dish.
Stirwell at half time when the oven
beeps, and re-start the oven.
Unless stirred, the chocolate keeps
its shape even when heating time is
over.
Unwrap cream cheese and place on
microwave-safe dish.
Let stand 1-2 min.
Removewrapping and cut butter in
half vertically.
Place butter in dish, cover with wax
paper.
Stirwell after finishing and let stand
1-2 min.
14.
Operation

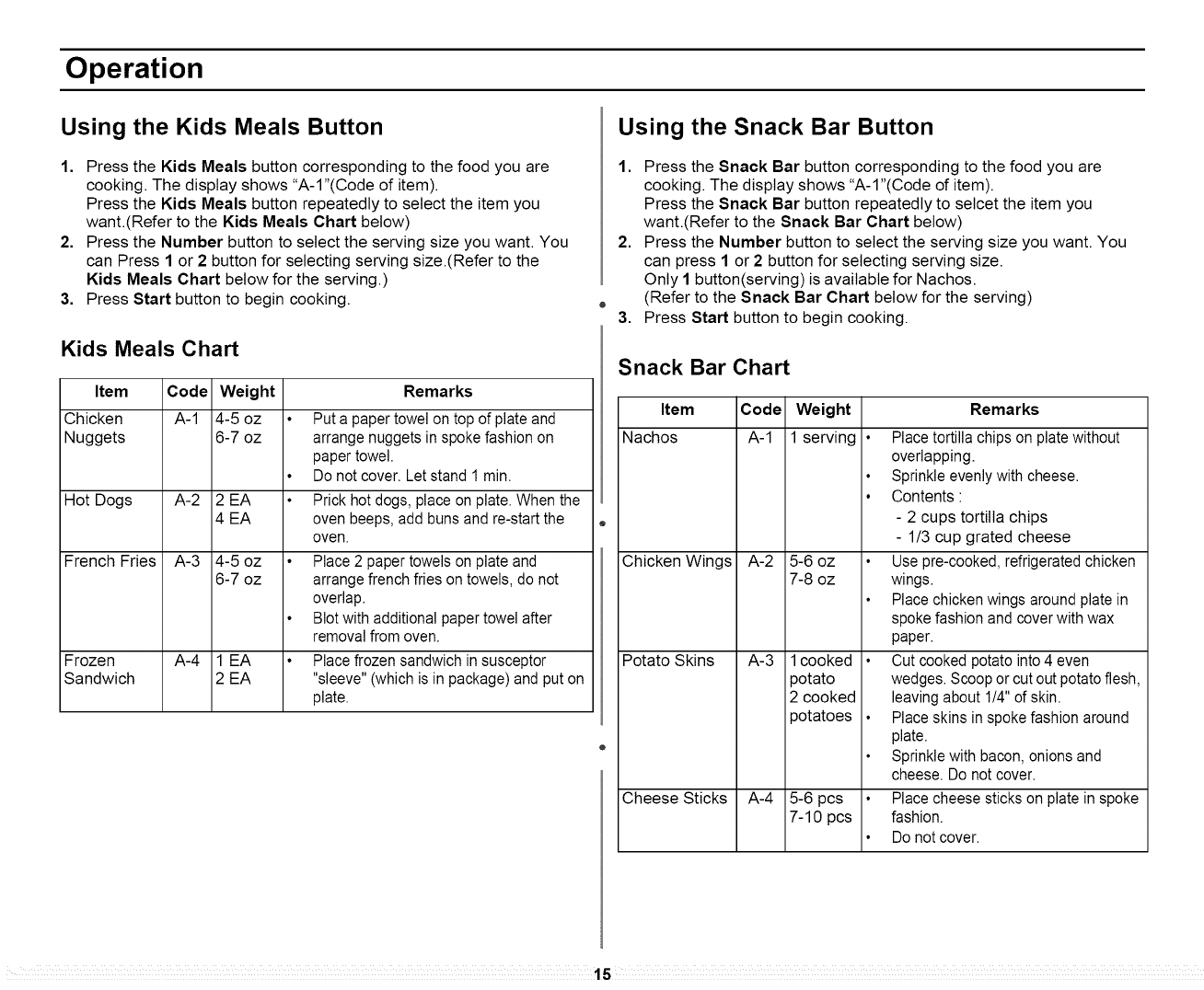

Using the Kids Meals Button
1. Press the Kids Meals button corresponding to the food you are
cooking. The display shows "A-l"(Code of item).
Press the Kids Meals button repeatedly to select the item you
want.(Refer to the Kids Meals Chart below)
2. Press the Number button to select the serving size you want. You
can Press 1 or 2 button for selecting serving size.(Refer to the
Kids Meals Chart below for the serving.)
3. Press Start button to begin cooking.
Kids Meals Chart
Item Code Weight
Chicken A-1 4-5 oz
Nuggets 6-7 oz
Hot Dogs A-2 2 EA
4 EA
French Fries A-3 4-5 oz
6-7 oz
Frozen A-4 1 EA
Sandwich 2 EA
Remarks
Put a paper towel on top of plate and
arrange nuggets in spoke fashion on
paper towel.
Do not cover. Let stand 1 min.
Prick hot dogs, place on plate. When the
oven beeps, add buns and re-start the
oven.
Place 2 paper towels on plate and
arrange french fries on towels, do not
overlap.
Blot with additional paper towel after
removal from oven.
Place frozen sandwich in susceptor
"sleeve" (which is in package) and put on
plate.
Using the Snack Bar Button
1. Press the Snack Bar button corresponding to the food you are
cooking. The display shows "A-1 "(Code of item).
Press the Snack Bar button repeatedly to selcet the item you
want.(Refer to the Snack Bar Chart below)
2. Press the Number button to select the serving size you want. You
can press 1 or 2 button for selecting serving size.
Only 1 button(serving) is available for Nachos.
(Refer to the Snack Bar Chart below for the serving)
3. Press Start button to begin cooking.
Snack Bar Chart
Item Code
Nachos A-1
Chicken Wings A-2
Potato Skins A-3
Cheese Sticks A-4
Weight Remarks
1 serving Place tortilla chips on plate without
overlapping.
Sprinkle evenlywith cheese.
• Contents
- 2 cups tortilla chips
- 1/3 cup grated cheese
5-6 oz Use pre-cooked, refrigerated chicken
7-8 oz wings.
Place chicken wings around plate in
spoke fashion and cover with wax
paper.
1 cooked Cut cooked potato into 4 even
potato wedges. Scoop or cut out potato flesh,
2 cooked leaving about 1/4" of skin.
potatoes Place skinsin spoke fashion around
plate.
Sprinkle with bacon, onions and
cheese. Do not cover.
5-6 pcs Place cheese stickson plate in spoke
7-10 pcs fashion.
Do notcover.
15
Operation
Using the One Minute + Button
This button offers a convenient way to heat food in one-minute
increments at the High power level.
1Press the One Minute + button once for each minute you wish to
cook the food. For example, press it twice for two minutes. The
time will display, and the oven starts automatically.
Add minutes to a program in progress by pressing the One Minute
÷button for each minute you want to add.
2
,3
Use the number buttons to increase the serving size. For example,
for three servings, press the 3 button(Refer to the Auto Reheat
Chart below for the servings). The display shows the number of
servings you have selected:
Press the Start button. The display will show Cooking Time.
Reheating Automatically(Option Item)
MW1060WA/BA, MW1260WA/BA, MW1460WA/BA, MW1660WA/BA
ME1060WB/BB/SB,ME1260WB/BB/SB,ME1460WB/BB/SB
To reheat food, select the type of dish and the number of servings you
want to reheat, and the microwave automatically sets the reheating time.
1 Press the Auto Reheat button repeatedly to select the type of dish
you wish to reheat. The initial serving size for each dish is one
serving.
Plate of Food
Casserole
Auto Reheat Chart
Item
Plate of
food
Casserole
Pasta
Reheat
Weight Remarks
1 serving
1 to 4 servings
(8 oz./serving)
1 to 4 servings
(8 oz./serving)
Use only pre-cooked, refrigerated
foods.
Cover plate with vented plastic wrap
or wax paper.
Contents
- 3-4 oz. meat, poultry or fish ( upto
6 oz. with bone)
- ½ cup starch (potatoes, pasta,
rice, etc.)
- ½ cup vegetables (about 3-4 oz.)
Use only refrigerated foods.
Cover with lid or vented plastic
wrap.
Stir foods well before serving.
Pasta Reheat
You can select up to four servings for casseroles and pasta
reheat. Only one serving is available for a plate of food.
The display shows the dish and quantity you have chosen.
16
Operation

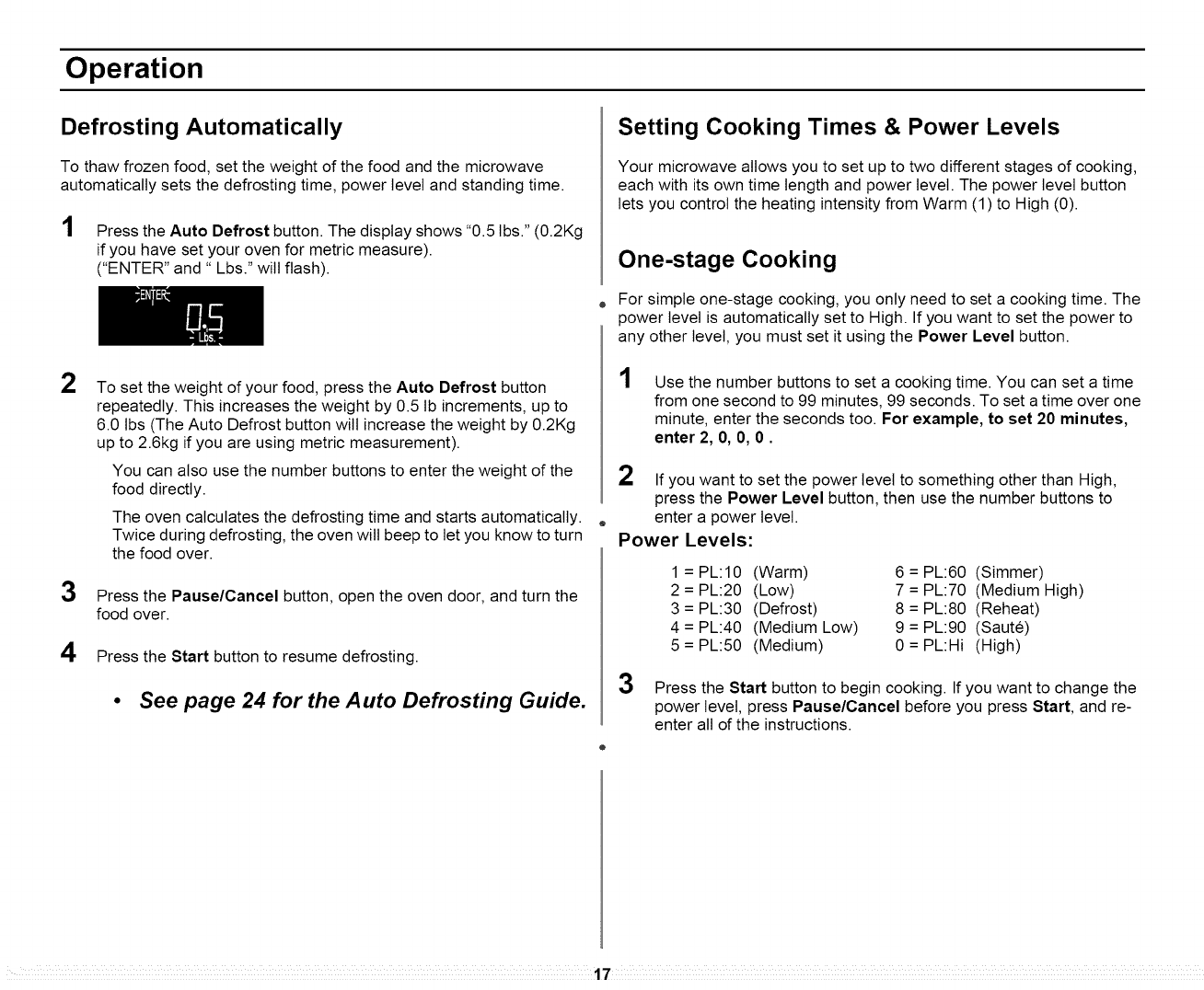

Defrosting Automatically
To thaw frozen food, set the weight of the food and the microwave
automatically sets the defrosting time, power level and standing time.
1Press the Auto Defrost button. The display shows "0.5 lbs." (0.2Kg
if you have set your oven for metric measure).
("ENTER" and " Lbs." will flash).
2
3
4
To set the weight of your food, press the Auto Defrost button
repeatedly. This increases the weight by 0.5 lb increments, up to
6.0 lbs (The Auto Defrost button wilt increase the weight by 0.2Kg
up to 2.6kg if you are using metric measurement).
You can also use the number buttons to enter the weight of the
food directly.
The oven calculates the defrosting time and starts automatically.
Twice during defrosting, the oven will beep to let you know to turn
the food over.
Press the Pause/Cancel button, open the oven door, and turn the
food over.
Press the Start button to resume defrosting.
See page 24 for the Auto Defrosting Guide.
Setting Cooking Times & Power Levels
Your microwave allows you to set up to two different stages of cooking,
each with its own time length and power level. The power level button
lets you control the heating intensity from Warm (1) to High (0).
One-stage Cooking
For simple one-stage cooking, you only need to set a cooking time. The
power level is automatically set to High. If you want to set the power to
any other level, you must set it using the Power Level button.
1Use the number buttons to set a cooking time. You can set a time
from one second to 99 minutes, 99 seconds. To set a time over one
minute, enter the seconds too. For example, to set 20 minutes,
enter 2, 0, 0, 0.
2 If you want to set the power level to something other than High,
press the Power Level button, then use the number buttons to
enter a power level.
Power Levels:
1 = PL:10 (Warm)
2 = PL:20 (Low)
3 = PL:30 (Defrost)
4 = PL:40 (Medium Low)
5 = PL:50 (Medium)
6 = PL:60 (Simmer)
7 = PL:70 (Medium High)
8 = PL:80 (Reheat)
9 = PL:90 (Saute)
0 = PL:Hi (High)
0Press the Start button to begin cooking. If you want to change the
power level, press Pause/Cancel before you press Start, and re-
enter all of the instructions.
17
Operation
Setting Cooking Times & Power Levels, continued
Some recipes require different stages of cooking at different
temperatures. You can set multiple stages of cooking with your
microwave.
Multi-stage Cooking
1Follow steps 1 and 2 in the "One-Stage Cooking" section on the
previous page.
When entering more than one cooking stage, the Power Level
button must be pressed before the second cooking stage can be
entered.
To set the power level at High for a stage of cooking, press the
Power Level button twice.
2 Use the number buttons to set a second cooking time.
3 Press the Power Level button, then use the number buttons to set
the power level of the second stage of cooking.
4 Press Start to begin cooking.
You can check the Power Level while cooking is in progress by
pressing the Power Level button.
Using the More/Less Buttons
The More/Less buttons allow you to adjust pre-set cooking times. They
only work in the Instant, Handy Helper, Kids Meals, Snack Bar or
Time Cook modes. Use the More/Less button only after you have
already begun cooking with one of these procedures.
The More/Less feature cannot be used with the Baby Food button.
1
2
To ADD more time to an automatic cooking procedure: Press the
More(9) button.
To REDUCE the time of an automatic cooking procedure: Press the
Less(1 ) button.
If you wish to increase/decrease in Time Cook mode by l Osec,
press the More(9) or Less(l) button.
Switching the Beeper On/Off
You can switch the beeper off whenever you want.
1 Press the Sound button. The display shows "ON".
("START" will flash)
2Press the Sound button to turn the volume off. The display shows:
"OFF".("START" will flash)
3 Press Start.
The display returns to the time of day.
18
Operation
Using the Kitchen Timer
1Press the Kitchen Timer button.
2 Use the Number buttons to set the length of time you want the
timer to run.
3Press Start to begin Kitchen Timer.
4 The display counts down and beeps when the time has elapsed.
"Note: The microwave does not turn on when the Kitchen timer
is used,"
Demonstration Mode
You can use the Demonstration Mode to see how your microwave oven
operates without the oven heating.
1 Hold the 0button and then press the 1 button.
To turn demo mode off, repeat step 1 above.
Setting the Child Protection Lock
You can lock your microwave oven so it can't be used by unsupervised
children.
1Hold the "0" button and then press the 2 button..
At this point, the microwave oven cannot be used until it is
unlocked. To unlock it, repeat step 1 above.
19
Cooking Instructions
Cooking Utensils
Recommended Use
Glass and glass-ceramic bowls and dishes -- Use for heating or
cooking.
Microwavable browning dish -- Use to brown the exterior of small
items such as steaks, chops, or pancakes. Follow the directions
provided with your browning dish.
Microwavable plastic wrap-- Use to retain steam. Leave asmall
opening for some steam to escape and avoid placing it directly on ®
the food.
Wax paper-- Use as a cover to prevent spattering.
Paper towels and napkins -- Use for short-term heating and
covering; they absorb excess moisture and prevent spattering. Do
not use recycled paper towels, which may contain metal and can
catch fire.
Paper plates and cups -- Use for short-term heating at low
temperatures. Do not use recycled paper, which may contain metal
and can catch fire.
Thermometers -- Use only those labeled "Microwave Safe" and
follow all directions. Check the food in several places. Conventional
thermometers may be used once the food has been removed from
the oven.
Limited Use
Aluminum foil -- Use narrow strips of foil to prevent overcooking of
exposed areas. Using too much foil can damage your oven, so be
careful.
Ceramic, porcelain, and stoneware-- Use these if they are
labeled "Microwave Safe". If they are not labeled, test them to make
sure they can be used safely. Never use dishes with metallic trim.
Plastic -- Use only if labeled "Microwave Safe". Other plastics can
melt. •
Straw, wicker, and wood -- Use only for short-term heating, as
they can be flammable.
Not Recommended
Glass jars and bottles -- Regular glass is too thin to be used in a
microwave, and can shatter.
Paper bags -- These are a fire hazard, except for popcorn bags that
are designed for microwave use.
Styrofoam plates and cups -- These can melt and leave an
unhealthy residue on food.
Plastic storage and food containers -- Containers such as
margarine tubs can melt in the microwave.
Metal utensils -- These can damage your oven. Remove all metal
before cooking.
Testing Utensils
If you are not sure whether a dish is microwave-safe or not, you can
perform this test:
1 Fill a 1 cup glass measuring cup with water and put it inside your
oven, next to the dish you want to test.
2Press the One Minute + button once to heat them for one minute at
High power.
The water should be warm and the dish you are testing should be cool. If
the dish is warm, then it is absorbing microwave energy and is not
acceptable for use in the microwave.
20

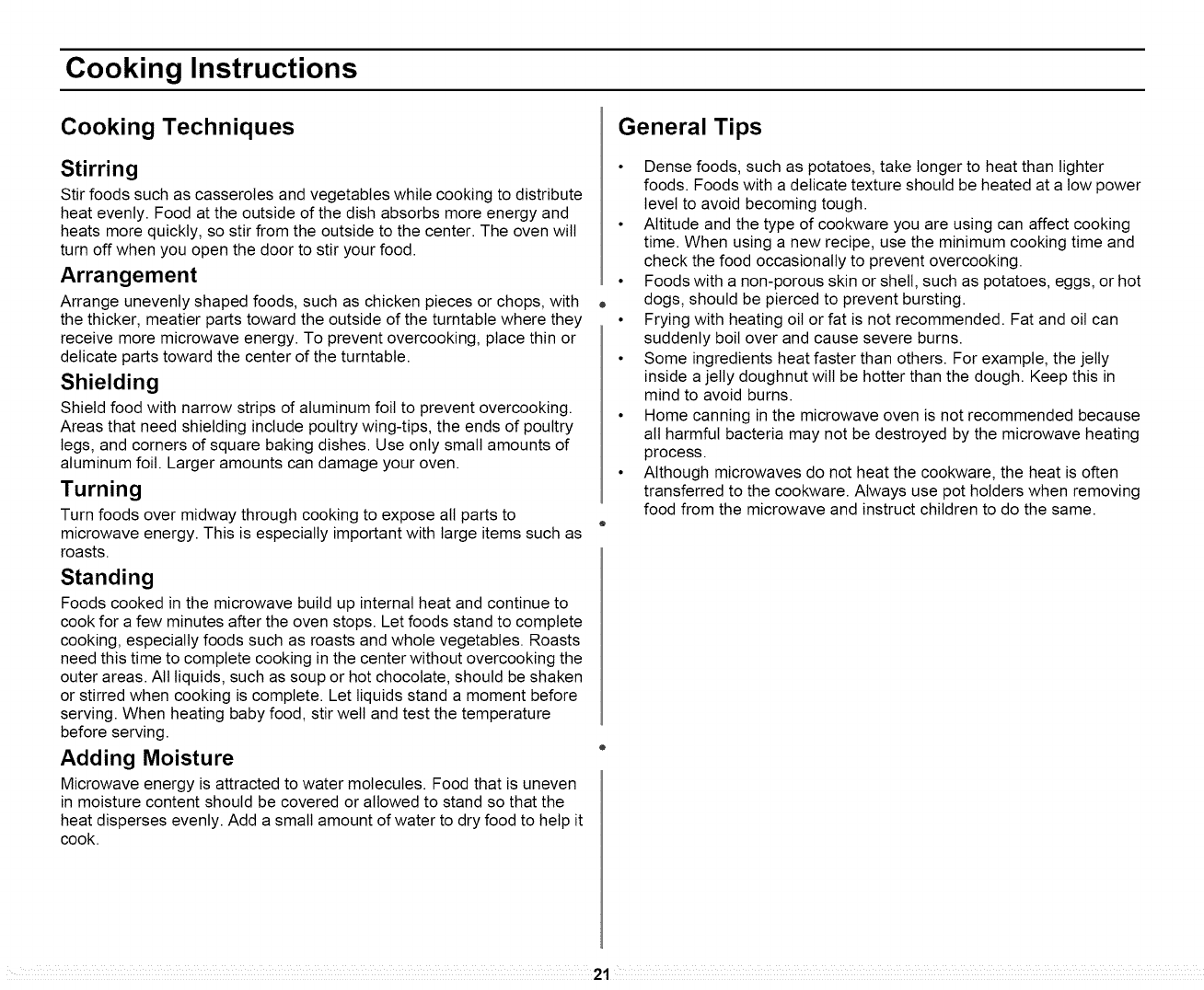

Cooking Instructions
Cooking Techniques
Stirring
Stir foods such as casseroles and vegetables while cooking to distribute
heat evenly. Food at the outside of the dish absorbs more energy and
heats more quickly, so stir from the outside to the center. The oven will
turn off when you open the door to stir your food.
Arrangement
Arrange unevenly shaped foods, such as chicken pieces or chops, with ®
the thicker, meatier parts toward the outside of the turntable where they
receive more microwave energy. To prevent overcooking, place thin or
delicate parts toward the center of the turntable.
Shielding
Shield food with narrow strips of aluminum foil to prevent overcooking.
Areas that need shielding include poultry wing-tips, the ends of poultry
legs, and corners of square baking dishes. Use only small amounts of
aluminum foil. Larger amounts can damage your oven.
Turning
Turn foods over midway through cooking to expose all parts to ®
microwave energy. This is especially important with large items such as
roasts.
Standing
Foods cooked in the microwave build up internal heat and continue to
cook for a few minutes after the oven stops. Let foods stand to complete
cooking, especially foods such as roasts and whole vegetables. Roasts
need this time to complete cooking inthe center without overcooking the
outer areas. All liquids, such as soup or hot chocolate, should be shaken
or stirred when cooking is complete. Let liquids stand a moment before
serving. When heating baby food, stir well and test the temperature
before serving.
Adding Moisture °
Microwave energy is attracted to water molecules. Food that is uneven
in moisture content should be covered or allowed to stand so that the
heat disperses evenly. Add a small amount of water to dry food to help it
cook.
General Tips
Dense foods, such as potatoes, take longer to heat than lighter
foods. Foods with a delicate texture should be heated at a low power
level to avoid becoming tough.
Altitude and the type of cookware you are using can affect cooking
time. When using a new recipe, use the minimum cooking time and
check the food occasionally to prevent overcooking.
Foods with a non-porous skin or shell, such as potatoes, eggs, or hot
dogs, should be pierced to prevent bursting.
Frying with heating oil or fat is not recommended. Fat and oil can
suddenly boil over and cause severe burns.
Some ingredients heat faster than others. For example, the jelly
inside a jelly doughnut will be hotter than the dough. Keep this in
mind to avoid burns.
Home canning in the microwave oven is not recommended because
all harmful bacteria may not be destroyed by the microwave heating
process.
Although microwaves do not heat the cookware, the heat is often
transferred to the cookware. Always use pot holders when removing
food from the microwave and instruct children to do the same.
21
Cooking Instructions
Cooking Guide

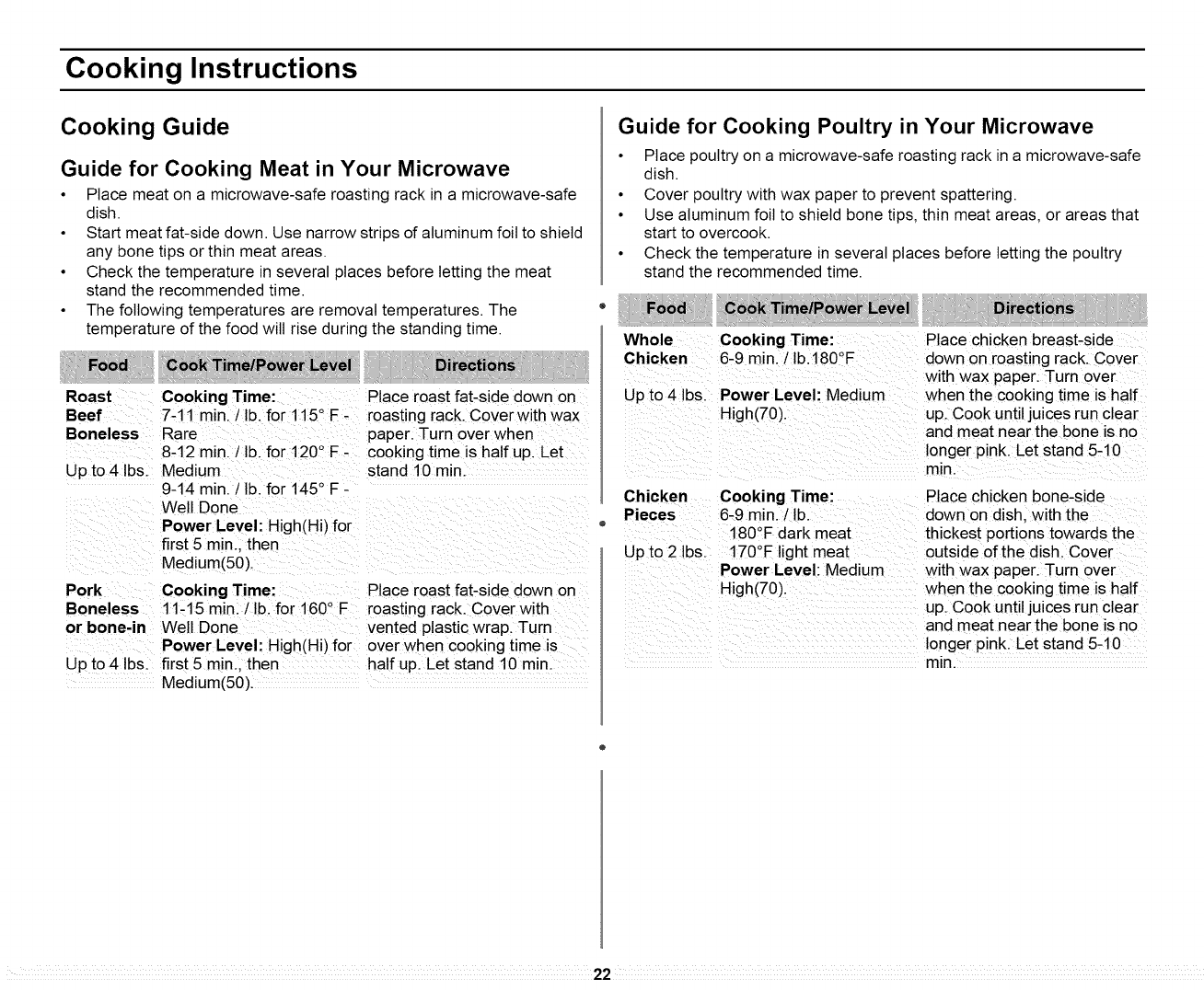

Guide for Cooking Meat in Your Microwave
Place meat on a microwave-safe roasting rack in a microwave-safe
dish.
Start meat fat-side down. Use narrow strips of aluminum foil to shield
any bone tips or thin meat areas.
Check the temperature in several places before letting the meat
stand the recommended time.
The following temperatures are removal temperatures. The
temperature of the food wilt rise during the standing time.
Food ,kTime/P r LeVel
Roast Cooking Time:
Beef 7-11 min. /lb. for 115 ° F -
Boneless Rare
8-12 min. /lb. for 120 ° F -
Up to 4 Ibs. Medium
9-14 min. /lb. for 145 ° F -
Well Done
Power Level: High(Hi) for
first 5 min.. then
Medium(50).
Pork Cooking Time:
Boneless 11-15 min. /lb. for 160 ° F
or bone-in Well Done
Power Level: High(Hi) for
Up to 4 Ibs. first 5 rain., then
Directions
Place roast fat-side down on
roasting rack. Coverwith wax
paper. Turn over when
cooking time is half up. Let
stand 10 min.
Place roast fat-side down on
roasting rack. Cover with
vented plastic wrap. Turn
over when cooking time _s
half up. Let stand 10 min.
Medium(50).
Guide for Cooking Poultry in Your Microwave
Place poultry on a microwave-safe roasting rack in a microwave-safe
dish.
Cover poultry with wax paper to prevent spattering.
Use aluminum foil to shield bone tips, thin meat areas, or areas that
start to overcook.
Check the temperature in several places before letting the poultry
stand the recommended time.
Whole
Chicken Cooking Time:
6-9 min. /Ib.180°F
Up to 4 Ibs. Power Level: Medium
High(70).
Chicken
Pieces
Up to 2 Ibs.
Cooking Time:
6-9 min. tb.
180°F dark meat
170°F light meat
Power Level: Medium
High(70).
Place chicken breast-side
down on roasting rack. Cover
with wax paper. Turn over
when the cooking time is half
up. Cook until juices run clear
and meat near the bone is no
longer pink. Let stand 5-10
min.
Place chicken bone-side
down on dish. with the
thickest portions towards the
outside of the dish. Cover
with wax paper. Turn over
when the cooking time is half
up. Cook until juices run clear
and meat near the bone is no
longer pink. Let stand 5-10
min.
22
Cooking Instructions

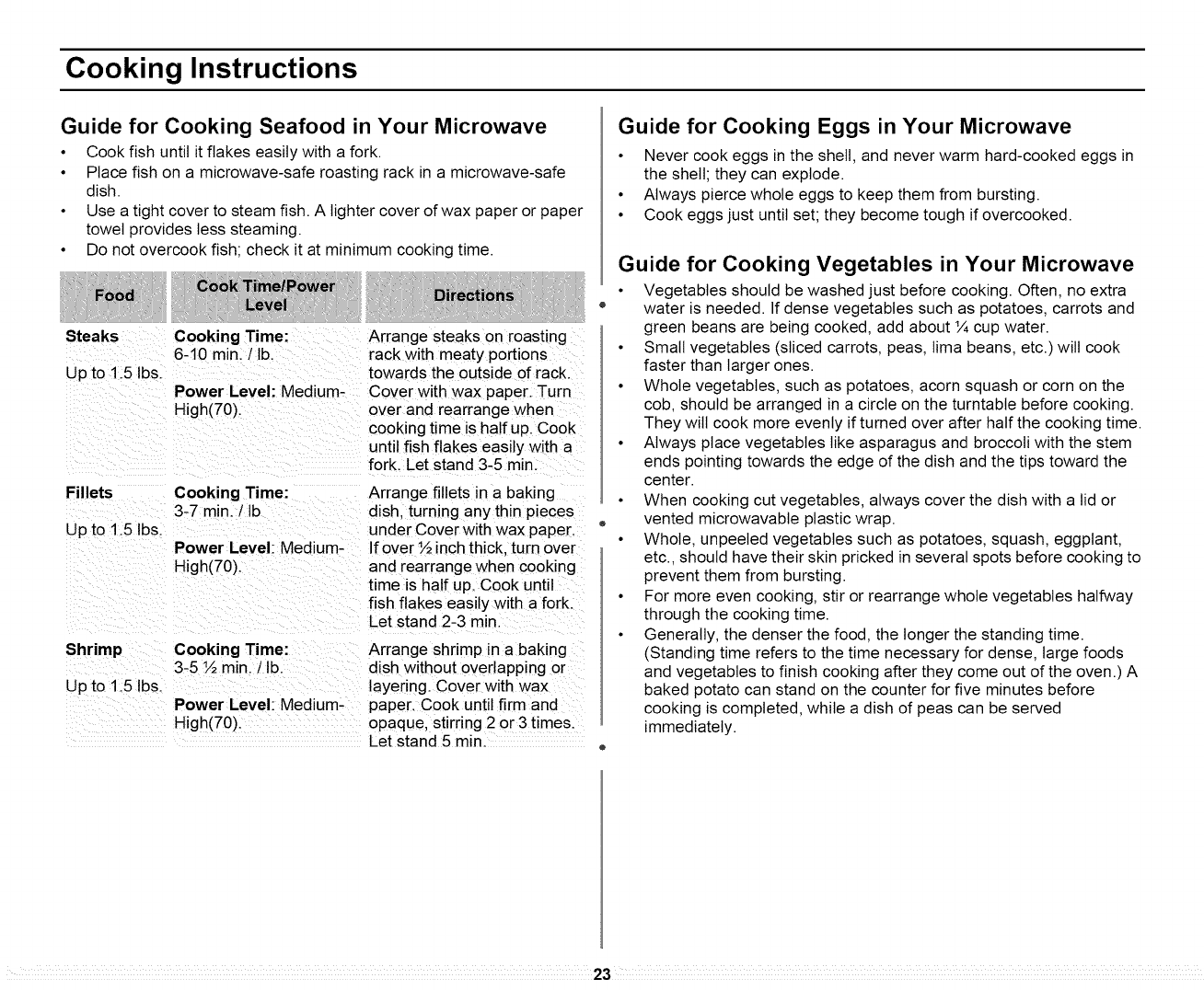

Guide for Cooking Seafood in Your Microwave
Cook fish until it flakes easily with a fork.
Place fish on a microwave-safe roasting rack in a microwave-safe
dish,
Use a tight cover to steam fish, A lighter cover of wax paper or paper
towel provides less steaming,
Do not overcook fish; check it at minimum cooking time,
Steaks Cooking Time:
6-10 min. tIb,
Up to 1.5 Ibs. Power Level: Medium-
High(70).
Fillets Cooking Time:
3-7 min. /Ib
Up to 1.5 Ibs. Power Level: Medium-
High(70).
Shrimp Cooking Time:
3-5 ½ mn. !lb.
Up to 1.5 Ibs. Power Level: Medium-
High(70).
Arrange steaks on roasting
rack with meaty portions
towards the outside of rack
Cover with wax paper. Turn
over and rearrange when
cooking time is half up. Cook
until fish flakes easily with a
fork. Let stand 3-5 min.
Arrange fillets in a baking
dish, turning any thin p_eces
under Cover with wax paper.
If over ½ inch thick, turn over
and rearrange when cooking
time is half up. Cook until
fish flakes easily with a fork.
Let stand 2-3 rain.
Arrange shrimp in a baking
dish without overlapping or
layering. Cover with wax
paper. Cook until firm and
opaque, stirring 2 or 3 times.
Let stand 5 min.
Guide for Cooking Eggs in Your Microwave
Never cook eggs in the shell, and never warm hard-cooked eggs in
the shell; they can explode.
Always pierce whole eggs to keep them from bursting.
Cook eggs just until set; they become tough if overcooked.
Guide for Cooking Vegetables in Your Microwave
Vegetables should be washed just before cooking. Often, no extra
water is needed. If dense vegetables such as potatoes, carrots and
green beans are being cooked, add about ¼ cup water.
Small vegetables (sliced carrots, peas, lima beans, etc.) will cook
faster than larger ones.
Whole vegetables, such as potatoes, acorn squash or corn on the
cob, should be arranged in a circle on the turntable before cooking.
They wilt cook more evenly if turned over after half the cooking time.
Always place vegetables like asparagus and broccoli with the stem
ends pointing towards the edge of the dish and the tips toward the
center.
When cooking cut vegetables, always cover the dish with a lid or
vented microwavable plastic wrap.
Whole, unpeeled vegetables such as potatoes, squash, eggplant,
etc., should have their skin pricked in several spots before cooking to
prevent them from bursting.
For more even cooking, stir or rearrange whole vegetables halfway
through the cooking time.
Generally, the denser the food, the longer the standing time.
(Standing time refers to the time necessary for dense, large foods
and vegetables to finish cooking after they come out of the oven.) A
baked potato can stand on the counter for five minutes before
cooking is completed, while a dish of peas can be served
immediately.
23

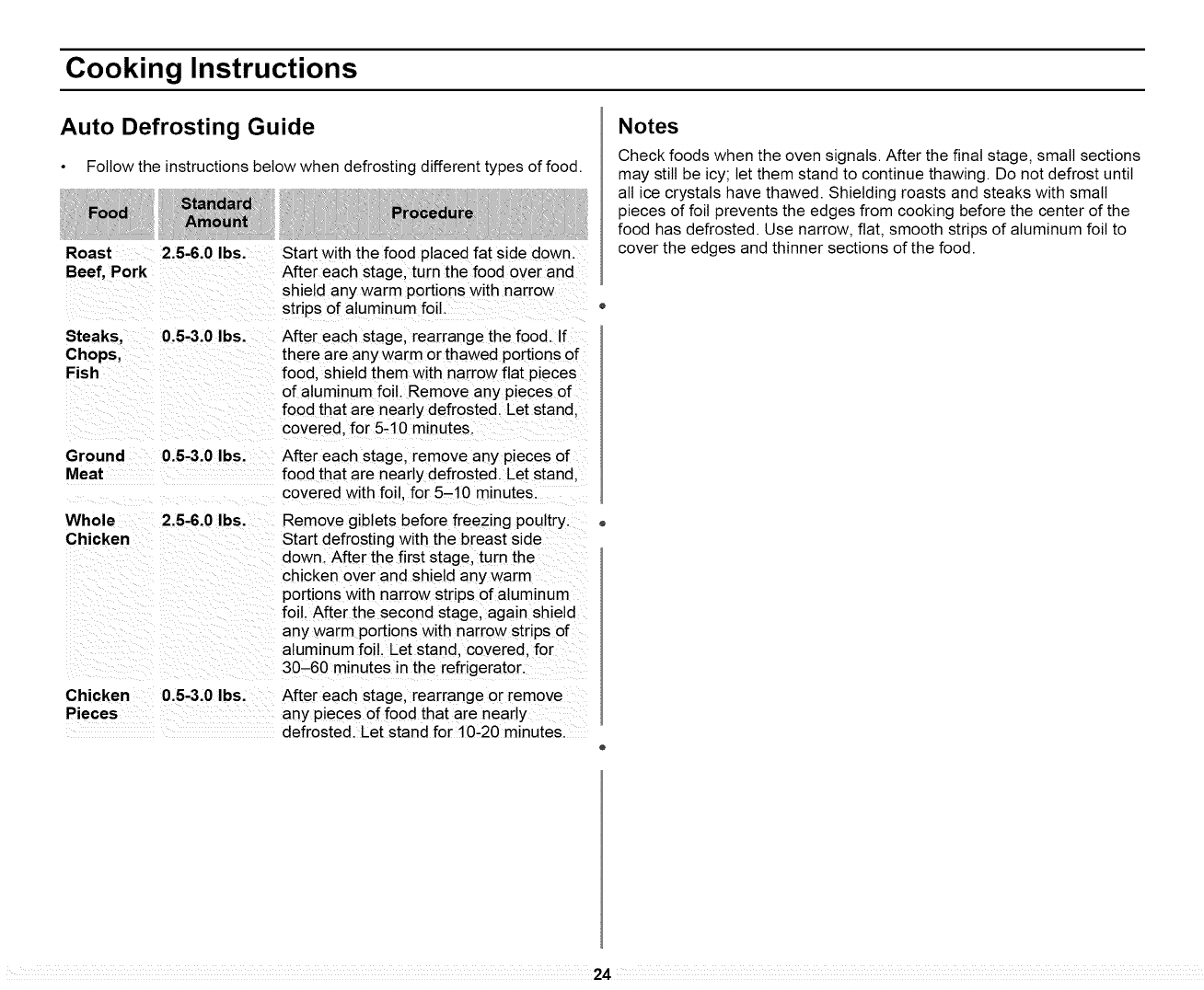

Cooking Instructions
Auto Defrosting Guide
Follow the instructions below when defrosting different types of food.
Roast 2.5-6.0 Ibs.
Beef, Pork
Steaks,
Chops,
Fish
0.5-3.0 Ibs.
Ground 0.5-3.0 Ibs.
Meat
Whole 2.5-6.0 Ibs.
Chicken
Chicken 0.5-3.0 Ibs.
Pieces
Start with the food placed fat side down.
After each stage, turn the food over and
shield anywarm portions with narrow
strips of aluminum foil.
After each stage, rearrange the food. If
there are any warm or thawed portions of
food. shield them with narrow flat pieces
of aluminum foil. Remove any pieces of
food that are nearly defrosted. Let stand
covered, for 5-10 m nutes.
After each stage, remove any pieces of
food that are nearly defrosted. Let stand
covered with foil, for 5-10 minutes.
Remove giblets before freezing poultry.
Start defrosting with the breast side
down. After the first stage, turn the
chicken over and shield any warm
portions with narrow strips of aluminum
foil. After the second stage, again shield
any warm portions with narrow strips of
aluminum foi. Let stand, covered, for
30-60 minutes in the refrigerator.
After each stage, rearrange or remove
any pieces of food that are nearly
defrosted. Let stand for 10-20 minutes.
Notes
Check foods when the oven signals. After the final stage, small sections
may still be icy; let them stand to continue thawing. Do not defrost until
all ice crystals have thawed. Shielding roasts and steaks with small
pieces of foil prevents the edges from cooking before the center of the
food has defrosted. Use narrow, flat, smooth strips of aluminum foil to
cover the edges and thinner sections of the food.
24

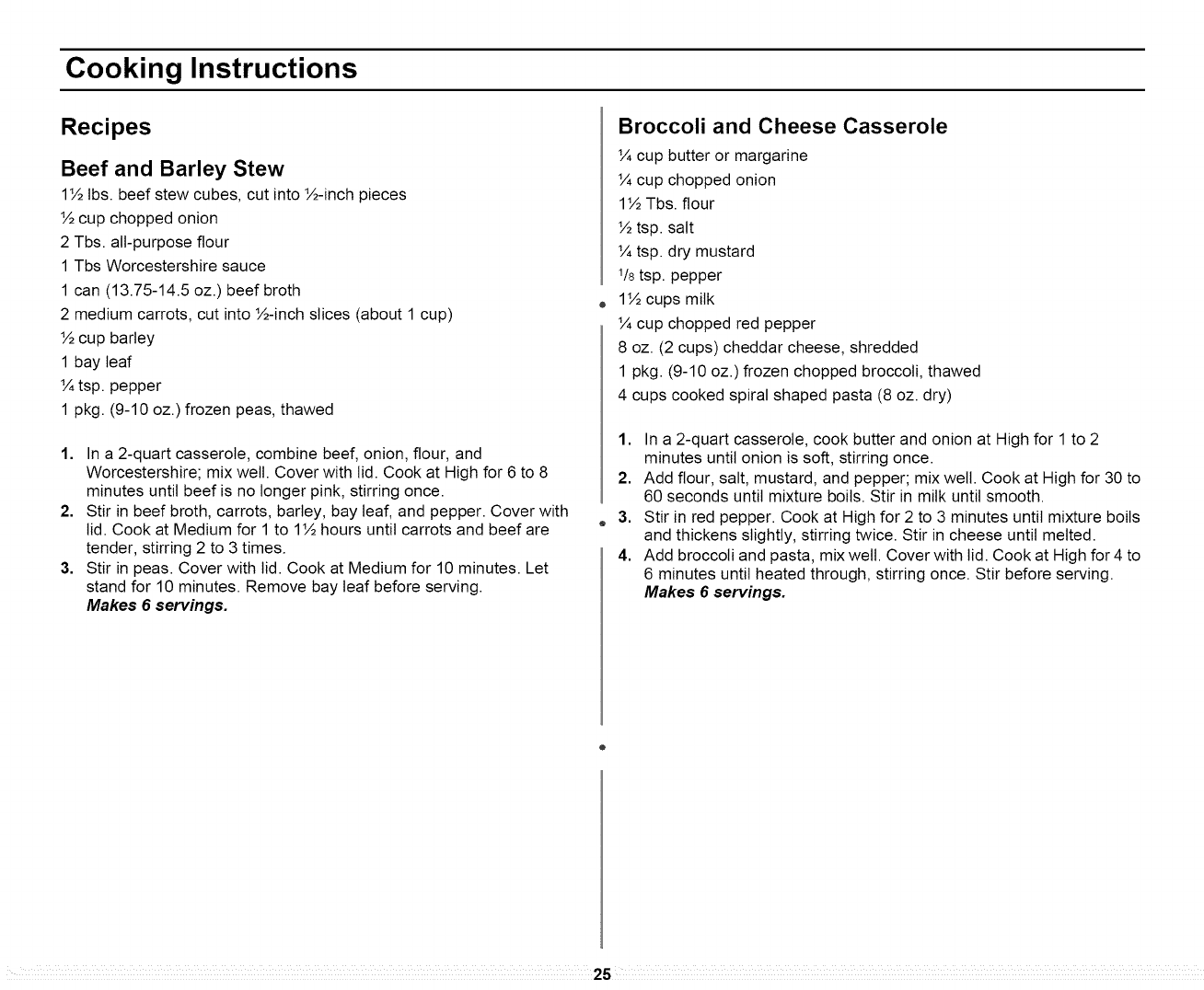

Cooking Instructions
Recipes
Beef and Barley Stew
lbs. beef stew cubes, cut into ½-inch pieces
½ cup chopped onion
2 Tbs. all-purpose flour
1 Tbs Worcestershire sauce
1 can (13.75-14.5 oz.) beef broth
2 medium carrots, cut into ½-inch slices (about 1 cup)
½ cup barley
1 bay leaf
¼ tsp. pepper
1 pkg. (9-10 oz.)frozen peas, thawed
1. In a 2-quart casserole, combine beef, onion, flour, and
Worcestershire; mix well. Cover with lid. Cook at High for 6 to 8
minutes until beef is no longer pink, stirring once.
2. Stir in beef broth, carrots, barley, bay leaf, and pepper. Cover with
lid. Cook at Medium for 1 to 1½ hours until carrots and beef are
tender, stirring 2 to 3 times.
3. Stir in peas. Cover with lid. Cook at Medium for 10 minutes. Let
stand for 10 minutes. Remove bay leaf before serving.
Makes 6servings.
Broccoli and Cheese Casserole
¼ cup butter or margarine
¼ cup chopped onion
Tbs. flour
½ tsp. salt
¼ tsp. dry mustard
1/8tsp. pepper
1½ cups milk
¼ cup chopped red pepper
8 oz. (2 cups) cheddar cheese, shredded
1 pkg. (9-10 oz.)frozen chopped broccoli, thawed
4 cups cooked spiral shaped pasta (8 oz. dry)
1. In a 2-quart casserole, cook butter and onion at High for 1 to 2
minutes until onion is soft, stirring once.
2. Add flour, salt, mustard, and pepper; mix welt. Cook at High for 30 to
60 seconds until mixture boils. Stir in milk until smooth.
3. Stir in red pepper. Cook at High for 2 to 3 minutes until mixture boils
and thickens slightly, stirring twice. Stir in cheese until melted.
4. Add broccoli and pasta, mix welt. Cover with lid. Cook at High for 4 to
6 minutes until heated through, stirring once. Stir before serving.
Makes 6servings.
25
Cooking Instructions
Warm Potato Salad
2 lbs. small red potatoes, cut into ½-inch pieces
4 slices bacon (uncooked), cut into ½-inch pieces
¼ cup chopped onion
2 tsp. sugar
1 tsp. salt
1 tsp. flour
½ tsp. celery seed
1/8tsp. pepper
2½ Tbs. apple cider vinegar
1. In a 2-quart casserole, combine potatoes and ¼ cup water. Cover
with lid. Cook at High until potatoes are tender (7-10 min.); stir twice.
Drain and set aside to cool slightly.
2. In a medium bowl, cook bacon at High until crisp (2½-3½ min.); stir
once. Place bacon on a paper towel. Reserve 1 Tbs. drippings.
3. Combine drippings and onion. Cover with plastic wrap; turn back a
corner to vent steam. Cook at High until tender (1½-2½ min.); stir
once.
4. Stir in sugar, salt, flour, celery seed, and pepper. Cook at High until
mixture boils (30-40 sec.). Stir in vinegar and ½ cup water. Cook at
High until liquid boils and thickens slightly (1-2 min.); stir once. Add
bacon to dressing. Pour dressing over potatoes. Stir well.
Makes 6 servings.
Black Bean Soup
1 cup chopped onion
1 clove garlic, minced
2 cans (15 oz. each) black beans, drained
1 can (14-16 oz.) stewed tomatoes, chopped
1 can (13.75-14.5 oz.) chicken broth
1 can (7-8.5 oz.) corn
1 can (4 oz.) chopped green chilies
1-2 tsp. ground cumin, or to taste
1. Place onion and garlic in a 3-quart casserole. Cover with lid. Cook at
High for 2 to 4 minutes until tender.
2. Add one can of beans, mash beans with a fork. Add remaining
ingredients; mix welt.
3. Cook uncovered, at High for 10 minutes; stir. Reduce power to
Medium and cook for 5 minutes. Stir before serving.
Makes about 2 quarts.
26

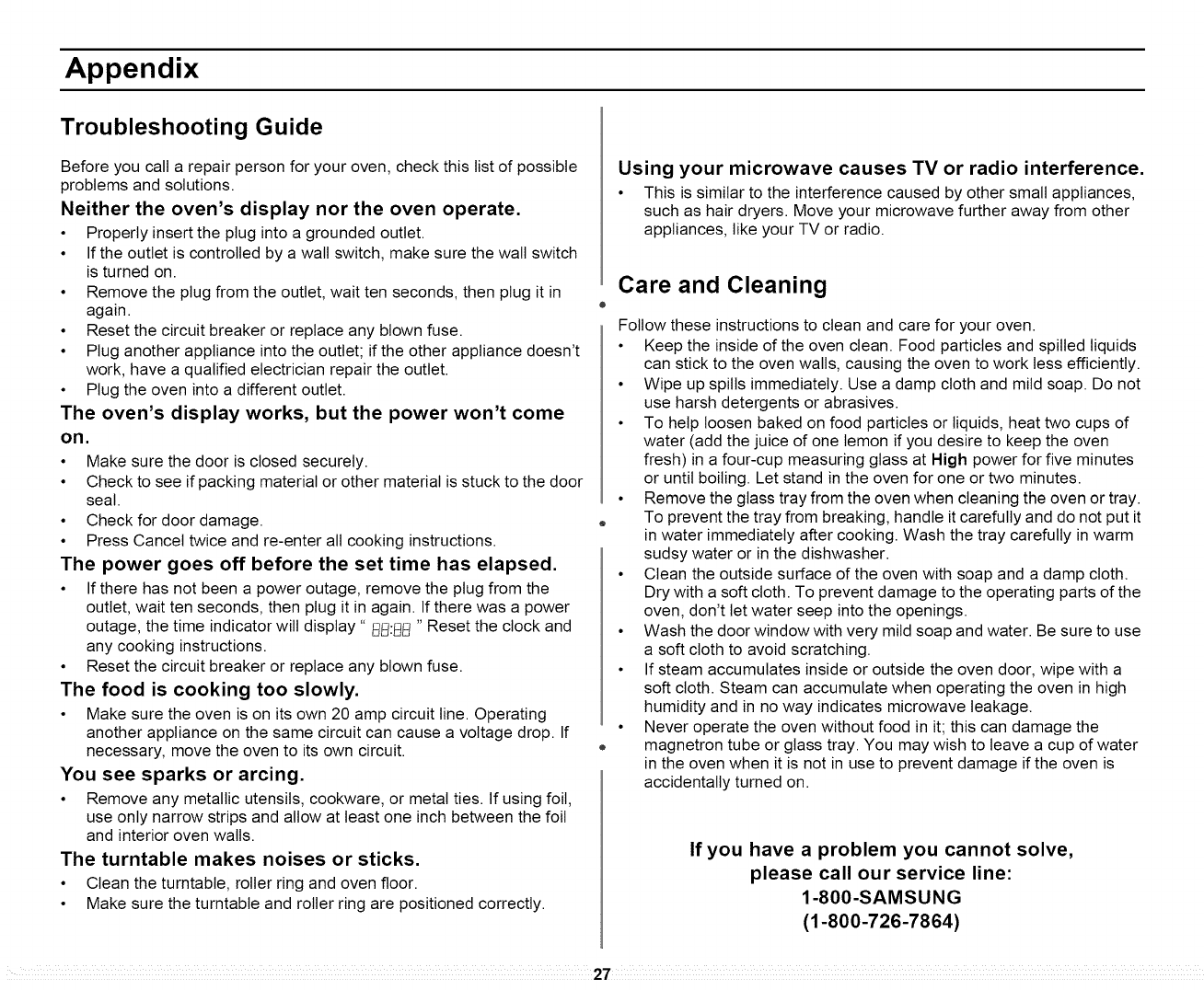

Appendix
Troubleshooting Guide
Before you call a repair person for your oven, check this list of possible
problems and solutions.
Neither the oven's display nor the oven operate.
Properly insert the plug into a grounded outlet.
If the outlet is controlled by a wall switch, make sure the wall switch
is turned on.
Remove the plug from the outlet, wait ten seconds, then plug it in
again, e
Reset the circuit breaker or replace any blown fuse.
Plug another appliance into the outlet; if the other appliance doesn't
work, have a qualified electrician repair the outlet.
Plug the oven into a different outlet.
The oven's display works, but the power won't come
on,
Make sure the door is closed securely.
Check to see if packing material or other material is stuck to the door
seal.
Check for door damage. ,,
Press Cancel twice and re-enter all cooking instructions.
The power goes off before the set time has elapsed.
If there has not been a power outage, remove the plug from the
outlet, wait ten seconds, then plug it in again. If there was a power
outage, the time indicator will display" _:_B " Reset the clock and
any cooking instructions.
Reset the circuit breaker or replace any blown fuse.
The food is cooking too slowly.
Make sure the oven is on its own 20 amp circuit line. Operating
another appliance on the same circuit can cause a voltage drop. If
necessary, move the oven to its own circuit.
You see sparks or arcing.
Remove any metallic utensils, cookware, or metal ties. If using foil,
use only narrow strips and allow at least one inch between the foil
and interior oven walls.
The turntable makes noises or sticks.
Clean the turntable, roller ring and oven floor.
Make sure the turntable and roller ring are positioned correctly.
Using your microwave causes TV or radio interference.
This is similar to the interference caused by other small appliances,
such as hair dryers. Move your microwave further away from other
appliances, like your TV or radio.
Care and Cleaning
Follow these instructions to clean and care for your oven.
Keep the inside of the oven clean. Food particles and spilled liquids
can stick to the oven walls, causing the oven to work tess efficiently.
Wipe up spills immediately. Use a damp cloth and mild soap. Do not
use harsh detergents or abrasives.
To help loosen baked on food particles or liquids, heat two cups of
water (add the juice of one lemon if you desire to keep the oven
fresh) in a four-cup measuring glass at High power for five minutes
or until boiling. Let stand in the oven for one or two minutes.
Remove the glass tray from the oven when cleaning the oven or tray.
To prevent the tray from breaking, handle it carefully and do not put it
in water immediately after cooking. Wash the tray carefully in warm
sudsy water or in the dishwasher.
Clean the outside surface of the oven with soap and a damp cloth.
Dry with a soft cloth. To prevent damage to the operating parts of the
oven, don't let water seep into the openings.
Wash the door window with very mild soap and water. Be sure to use
a soft cloth to avoid scratching.
If steam accumulates inside or outside the oven door, wipe with a
soft cloth. Steam can accumulate when operating the oven in high
humidity and in no way indicates microwave leakage.
Never operate the oven without food in it; this can damage the
magnetron tube or glass tray. You may wish to leave a cup of water
in the oven when it is not in use to prevent damage if the oven is
accidentally turned on.
If you have a problem you cannot solve,
please call our service line:
1-800-SAMSUNG
(1-800-726-7864)
27

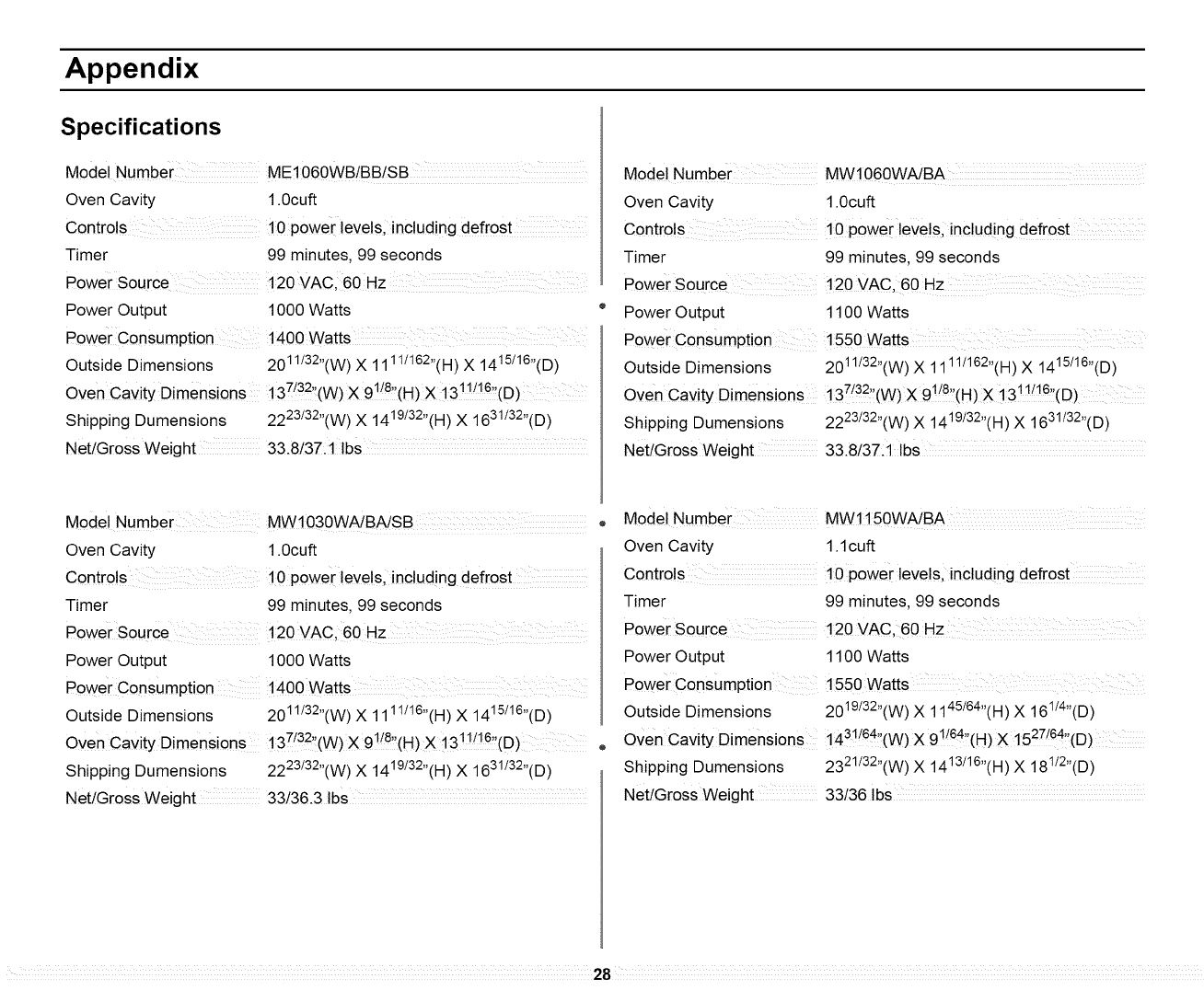

Appendix
Specifications
Model Number ME1060WB/BB/SB
Oven Cavity 1.0cuft
Controls ! 0 powei levels, inc!uding defrost
Timer 99 minutes, 99 seconds
Power Source 120 VAC, 60 Hz
Power Output 1000 Watts
Power Consumption 1400 Watts
Outside Dimensions 2011/32"(W) X1111/162"(H) X 1415/16"(D)
Oven Cavity Dimensions !37(321!(W)X 9!!8,!(H)X !3!!1!6!!(D)
Shipping Dumensions 2223/32"(W) X 1419/32"(H) X 1631/32"(D)
Net/Gross Weight 33.8/37.1 Ibs
Model Number MW1060WA/BA
Oven Cavity 1.0cuft
Controls 10 powe[ !eVe!s, including defrost
Timer 99 minutes, 99 seconds
Power Source 120 VAC, 60 Hz
Power Output 1100 Watts
Power Consumption 1550 Watts
Outside Dimensions 2011/32"(W) X1111/162"(H) X 1415/16"(D)
Oven Cavity Dimensions !37!3211(W)X 9118:,(H)X! 31!!!6,,(D)
Shipping Dumensions 2223132"(W) X 1419/32"(H) X 1631/32"(D)
Net/Gross Weight 33.8/37:1 Ibs
Model Number MW1030WA/BA/SB o
Oven Cavity 1.0cuft
Controls i0 powei leve!s, including defrost
Timer 99 minutes, 99 seconds
Power Source 120 VAC, 60Hz
Power Output 1000 Watts
Power Consumption 1400 Watts
Outside Dimensions 2011/32"(W) X1111/16"(H) X 1415/16"(D)
Oven Cavity Dimensions !37!321!(W)X 9!!8,,(H)X !3!!!!6"(D),,
Shipping Dumensions 2223/32"(W) X 1419132"(H)X 1631132"(D)
Net/Gross Weight 33/36.3 Ibs
Model Number MW1150WA/BA
Oven Cavity 1.lcuft
Controls !0 power !eve!s, inc!uding defrost
Timer 99 minutes, 99 seconds
Power Source !20 VAC, 60 Hz
Power Output 1100 Watts
Power Consumption ! 550 Watts
Outside Dimensions 2019/32"(W) X 1145/64"(H) X 161/4"(D)
oven Cavity Dimensions !43!/641!(W) X 91/64!,(H)X !527/64!'(D)
Shipping Dumensions 2321/32"(W) X 1413/16"(H) X 181/2"(D)
Net/Gross Weight 33/36 Ibs
28

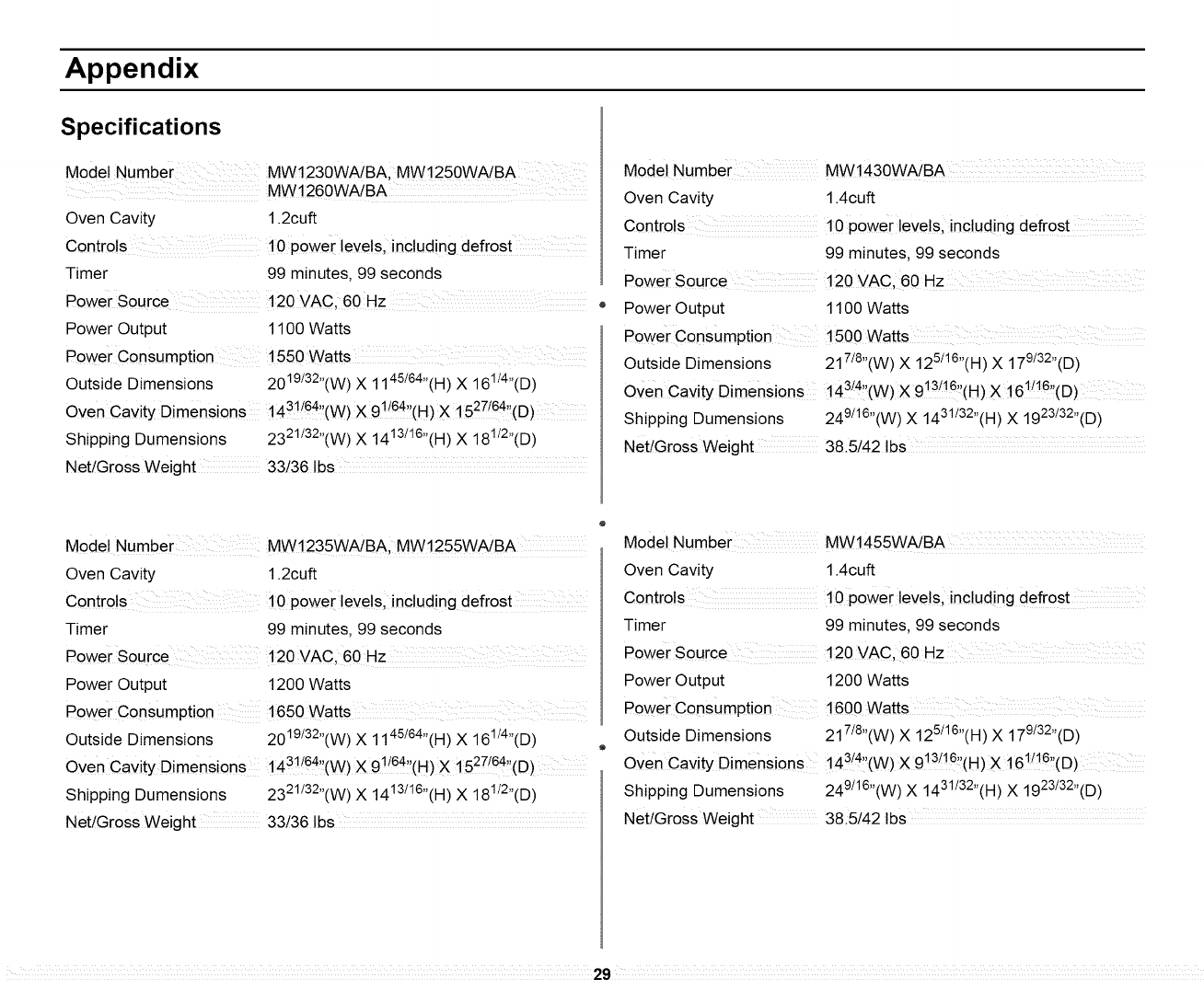

Appendix
Specifications
Model Number
Oven Cavity
Control s
Timer
Power Source
Power Output
Power Consumption
Outside Dimensions
Oven Cavity Dimensions
Shipping Dumensions
MW1230WA/BA. MW1250WA/BA
MW1260WA/BA
1.2cuft
10 power levels, including defrost
99 minutes. 99 seconds
120 VAC. 60 Hz
1100 Watts
1550 Watts
2019/32"(W) X 1145/64"(H) X 161/4"(D)
1431/64"(W) X 91/64"(H) X 1527/64"(D)
2321/32"(W) X 1413/16"(H) X 181/2"(D)
Net/Gross Weight 33/36 Ibs
Model Number
Oven Cavity
Controls
Timer
Power Source
Power Output
Power Consum ption
Outside Dimensions
Oven Cavity Dimensions
Shipping Dumensions
Net/Gross Weight
MW1430WA/BA
1.4cuft
10 power levels, including defrost
99 minutes. 99 seconds
120 VAC. 60 Hz
1100 Watts
1500 Watts
217/8"(W) X 125/16"(H) X 179/32"(D)
143/4"(W) X 913116"(H)X 161/16"(D)
249/16"(W) X 1431/32"(H) X 1923/32"(D)
38.5142 bs
Model Number MW1235WA/BA, MW1255WA/BA
Oven Cavity 1.2cuft
Controls i0 powei leve!s, including defrost
Timer 99 minutes, 99 seconds
Power Source 120 VAC, 60 Hz
Power Output 1200 Watts
Power Consumption 1650 Watts
Outside Dimensions 2019/32"(W) X 1145/64"(H) X 161/4"(D)
Oven Cavity Dimensions !43!!64,,(W)X9!/64!'(H)X 1527!64!'(D)
Shipping Dumensions 2321/32"(W) X 1413/16"(H) X 181/2"(D)
Net/Gross Weight 33/36 Ibs
Model Num ber MW !455WA/BA
Oven Cavity 1.4cuft
Controls 10 power levels, including defrost
Timer 99 minutes, 99 seconds
Power Source 120 VAC, 60 Hz
Power Output 1200 Watts
Power Consumption !600 Watts
Outside Dimensions 217/8"(W) X 125/16"(H) X 179/32"(D)
Oven Cavity Dimensions 143/4(w)x913/16( )H X161/16'D( )
Shipping Dumensions 249/16"(W) X 1431/32"(H) X 1923/32"(D)
Net/Gross Weight 38:5/42 Ibs
29
Appendix
Specifications
Mode! Number MW! 460WA/BA
Oven Cavity 1.4cuft
Controls !0 powei levels, including defrost
Timer 99 minutes, 99 seconds
Power Source 120 VAC, 60Hz
Power Output 1100 Watts
Power Consumption 1500 Watts
Outside Dimensions 217/8"(W) X 125/16"(H) X 179/32"(D)
Oven Cavity Dimensions 143/4!'(W) X 913!!6"(H) X 161/!6"(D)
Shipping Dumensions 249/16"(W) X 1431/32"(H) X 1923/32"(D)
Net/Gross Weight 38:5/421bs
Model Number ME1260WB/BB/SB
Oven Cavity 1.2cuft
Controls 10 power !eve!s, including defrost
Timer 99 minutes, 99 seconds
Power Source 120 VAC, 60 Hz
Power Output 1050 Watts
Power Consumption 1550 Watts
Outside Dimensions 2019/32"(W) X 1145/64"(H) X 161/4"(D)
Oven Cavity Dimensions 143!!64!'(W) X9!/64',(H) X !527{64,(9)
Shipping Dumensions 2321/32"(W) X 1413/16"(H) X 181/2"(D)
Net/Gross Weight 33/36 Ibs
Model Number MW1660WA/BA
Oven Cavity 1.6cuft
Controls i0 powei leve!s, including defrost
Timer 99 minutes, 99 seconds
Power Source 120 VAC, 60Hz
Power Output 1100 Watts
Power Consumption 1600 Watts
Outside Dimensions 2121/32"(W) X 135/16"(H) X 1811/32"(D)
Oven Cavity Dimensions !6!!2!,(W)X 93!!6'!(H)X!79!32"(D)
Shipping Dumensions 2617/64"(W) X 1515/64"(H) X 2015/64"(D)
Net/Gross Weight 45.1/48:4 Ibs
Model Number ME1460WB/BB/SB
Oven Cavity 1.4cuft
Controls 10 power levels, including defrost
Timer 99 minutes, 99 seconds
Power Source 120 VAC, 60 Hz
Power Output 1000 Watts
Power Consumption !550 Watts
Outside Dimensions 217/8"(W) X 125/16"(H) X 179/32"(D)
Oven Cavity Dimensions 143/4(W)X913/16( )H X161/16'D( )
Shipping Dumensions 249/16"(W) X 1431/32"(H) X 1923/32"(D)
Net/Gross Weight 38:5/421bs
30
Warranty
Warranty Information
SAMSUNG MICROWAVE OVEN
ImhV_Ii | _-,]kW_*1:_:__*__ink"dkn[o][o]:_[e]I_r_*1ml;,ZuJ:[o]: f_*_,.;]_:|
This SAMSUNG brand product, as supplied and distributed by
SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered
new, in the original carton to the original consumer purchaser, is
warranted by SAMSUNG against manufacturing defects in materials and
workmanship for a limited warranty period of:
One (1) Year Parts and Labor, Eight (8) Years Parts Warranty for Magnetron
This limited warranty begins on the original date of purchase, and is valid
only on products purchased and used in the United States. To receive
warranty service, the purchaser must contact SAMSUNG for problem
determination and service procedures. Warranty service can only be
performed by a SAMSUNG authorized service center. The original dated
bill of sale must be presented upon request as proof of purchase to
SAMSUNG or SAMSUNG's authorized service center. Transportation of
the product to and from the service center is the responsibility of the
purchaser.
SAMSUNG will repair or replace this product, at our option and at no
charge as stipulated herein, with new or reconditioned parts or products if
found to be defective during the limited warranty period specified above.
All replaced parts and products become the property of SAMSUNG and
must be returned to SAMSUNG. Replacement parts and products
assume the remaining original warranty, or ninety (90) days, whichever is
longer.
This limited warranty covers manufacturing defects in materials and
workmanship encountered in normal, non-commercial use of this product
and shall not apply to the following, including, but not limited to: damage
which occurs in shipment; delivery and installation; applications and uses
for which this product was not intended; altered product or serial
numbers; cosmetic damage or exterior finish; accidents, abuse, neglect,
fire, water, lightning or other acts of nature; use of products, equipment,
systems, utilities, services, parts, supplies, accessories, applications,
installations, repairs, external wiring or connectors not supplied or
authorized by SAMSUNG which damage this product or result in service
problems; incorrect electrical line voltage, fluctuations and surges;
customer adjustments and failure to follow operating instructions,
cleaning, maintenance and environmental instructions that are covered
and prescribed in the instruction book; product removal and
reinstaIIation; problems caused by pest infestations, and overheating or
overcooking by user; glass tray or turntable; reduced magnetron power
output related to normal aging. SAMSUNG does not warrant
uninterrupted or error-free operation of the product.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE
LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES
WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE
EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER
EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON,
FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT
SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE
LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO
REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED
BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT,
REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS
BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF
ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN
THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG
AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE
FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY
FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND
PURCHASER'S PROPERTY AND TO OTHERS AND THEIR
PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO
USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY
BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY
SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL
PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND
STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty
lasts, or the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
To obtain warranty service, please contact: SAMSUNG ELECTRONICS
AMERICA, INC. -WWW.SAMSUNGUSA.COM
SAMSUNG CUSTOMER SERVICE 400
VALLEY ROAD, SUITE 201, MT. ARLINGTON, NJ 07856
Tel: 973-601-6000, Fax: 973-601-6001
1-800-SAMSUNG (1-800-726-7864)
WWW.SAMSU NGSU PPORT.COM
31
Warranty Note
SAMSUNG ELECTRONICS
_[o]Zlli-"I1';!_V_l_1z,1[_;I _IINhV_lilii=1-] kvAv/;1zl zl';1_i ik"dr;1-]-] _!_I-]UJ _v_
Subject to the requirements, conditions, exclusions and limitations of the
Original Limited Warranty supplied with Samsung Electronics
(SAMSUNG) products, and the requirements, conditions, exclusions
and limitations contained herein, SAMSUNG will additionally provide
Warranty Repair Service in the United States on SAMSUNG products
purchased in Canada, and in Canada on SAMSUNG products
purchased in the United States, for the warranty period originally
specified, and to the Original Purchaser only.
The above described warranty repairs must be performed by a
SAMSUNG Authorized Service Center. Along with this Statement, the
Original Limited Warranty Statement and a dated Bill of Sale as Proof of
Purchase must be presented to the Service Center. Transportation to
and from the Service Center is the responsibility of the purchaser.
Conditions covered are limited only to manufacturing defects in material ,,
or workmanship, and only those encountered in normal use of the
product.
Excluded, but not limited to, are any original specified provisions for, in-
home or on-site services, minimum or maximum repair times,
exchanges or replacements, accessories, options, upgrades, or
consumables.
For the locations of a SAMSUNG Authorized Service Center in the
United States and Canada, please contact SAMSUNG at:
1-800-SAMSUNG (1-800-726-7864)
Or on-line at:
WWW.SAMSUNGUSA.COM and WWW.SAMSUNGCANADA.COM
32
Note
33
Note
34
Guia Rbpida(Spanish)
Funcion Operacion
Ajuste de Reloj 1. Presione CLOCK.
2. Use botones numericos para seleccionar
nora.
3. Presiones CLOCK de nuevo.
Cocinado Fase
simple 1. Use botones numericos para seleccionar
tiempo.
2. Seleccione nivel de poder o deje alto.
3. Presione START.
Cocinado Un
Minuto + 1. Presione el bot6n ONE MINUTE+ por cada
minuto de cocci6n.
2. El tiempo se vera en pantalla y el homo
comenzara.
Botones de 1. Presione bot6n que corresoonde al alimento
Cocinado que esta cocinando.
Instantaneo 2. Presione el bot6n para seleccionar el tamafio
de la porci6n o
Descongelado 1. PresioneAUTO DEFROST.
Automati¢o 2. Ingrese el peso del alimento presionando el
bot6n de AUTO DEFROST repetidamente o
con los botones numericos.
3. Despues de medio tiempo, presione
CANCEL voltee el alimento, y presiones
START para re iniciar.
Ajuste de Niveles 1. Use botones numericos para tiempo de
de Poder y Tiempo cocci6n.
de Cocinado 2. Para seleccionar nivel de poder, presione los
botones numericos.
3. Presione START para empezar a cocinar, o
Recalentado 1. Presione AUTO REHEAT repetidamente
Automati¢o para selec-cionar tipo de platillo.
2. Para incrementar tamafio de porci6n.
presione los botones numericos.
3. Presione START para comenzar.
Funcion
Handy Helper,
Kids Meals, Snack
Bar
Operacion
1. Presione HANDY HELPER(KIDS MEALS.
SNACK BAR) repetidamente pare selec-
cionar tipo de platillo.
2. Para incrementar tamafio de porci6n,
presione los botones numericos.
3. Presione START para comenzar.
35
Quick Reference(English)
Feature Operation
Set Clock
One Stage
Cooking
1. Press CLOCK.
2. Use number buttons to enter the current
time
3. Press CLOCK again.
1. Use number buttons to set cooking time.
2. Set power level or leave at high.
3. Press START.
One Minute+
Cooking
Instant Cook
Buttons
1. Press the ONE MINUTE ÷ button once for
each minute of cooking.
2. The time will display and the oven wJ start.
1. Press button that corresponds to the food
you are cooking (for example, POPCORN).
2. Press the button repeatedly to select serving
size.
Auto Defrost 1. Press AUTO DEFROST.
2. Enter weight of food by pressing AUTO
DEFROST button repeatedly or using the
number buttons.
3. When the oven beeps, press PAUSE/
CANCEL button and turn food over. Press
START to resume defrosting cycle.
Set Cooking Time 1. Use number buttons to set cooking time.
and Power Levels 2. To set power level at other than HIGH, press
POWER LEVEL and use the number buttons
to enter the power evel.
3. Press START to begin cooking.
Auto Reheat 1. Press AUTO REHEAT repeatedly to select
type of dish to reheat.
2. To increase serving size, press the
corresponding number button.
3. Press START to begl n reheating cycle
Handy Helper, 1. Press HANDY HELPER(KIDS MELAS.
kids Meals, SNACK BAR) repeatedly to select type of
Snack Bar dish to reheat.
2. To increase serving size, press the
corresponding number button.
3. Press START to begin cooking.
ELECTRONICS
Samsung Electronics America, Inc.
SERVICE DIVISION
400 Valley Road, Suite 201
Mt. Arlington, New Jersey 07856
Samsung Electronics Co., Ltd.
August 2002
Printed in Malaysia

Navigation menu
