Contact SAMSUNG WORLDWIDE

if you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Comuniquese con 8AMSUNG WORLDWIDE

Si desea formular alguna pregunta o comentario en relaci6n con los productos de Samsung, comuniquese con el centro de

atenci6n al cliente de SAMSUNG

i!i'!ii_i_!iii!_!ii!i_!!i!_i _!!_!!_i_!i_ii'ii_i!__!_!!_!_!!_!_!_ii_!,i_,_i_,!_i_i_!__ii_!_i__!_!_!_i_i_ix!,!,_i!_!_i_!i!_i_!i!ii_!_!i_!_ii!iii!ii!_i! _!i!_!!i!!!ii!!!i!!!_i_!_!!!_!_!i!i!!!!!!!!!!_!!_i!i!!_i!i!!_!_!!_i!_!!_!!!!_!!!!!i_!!!!!!!!!!!!!!!!!i_!i!i_!!i!i_!!i!_i_!i!ii_!!!!!i!_!i!i!!!i!i!!!i!_!!i!!!i_i!!i__i_iiiii'ii'ii'ii!ii!!i_i_!_i_i!i!i!i_i_i_i_!_i_ii__i_!_i_i_!_iiliiii!i!i!i_ii_ii_i_i_i_i_i_i_i!ii!ii!iiiliiiiiliiii!_ii_i!_!!_!_i_!_i_!i!ii!ililii_!_!iii_i_i_i!_!!i!i_i!_i!_iiiiiiiiiiiiiiiiiiiiiiii_i_i_iiiii_i_i_i_i_i_!ii_!_!i_!i_i_!!_!i_i!i!!if!i!ii!ii!ii!ii!ii!ii!ii!i_!i!!i!!i!i!i!i!i_ii_ii_ii_i_!_i!_!!!!!i!i!iiiii!ii!i_i!i!_i_i_i!_i!i!i!ii!ii!ii!ii!ii!ii!iiiiiiiiiiiiii_ii_iiiiiiiiiiiiiiiiiiiiiii!i!_!i!i!i!_!_!_iiiiiii_iiiiiii!i!i!i!i!i!ililii_!i'

Samsung Electronics Canada Inc., Customer

Service 55 Standish Court Mississauga,

Ontario L5R 4B2 Canada

CANADA 1-800-SAMSUNG(726-7864) www.samsung.com Samsung Electronique Canada Inc.,

Service a la Clientele 55 Standish Court

Mississauga, Ontario L5R 4B2 Canada

Samsung Electronics America, Inc.

U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com 105 Challenger Road

Ridgefield Park, NJ 07660-0511

imagine the possibilities

Thankyou for purchasingthis Samsungproduct.

To receive more complete service, please register

your product at

www. samsu ng .com/register

Model Serial No.

BN68-02716A-01

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and specifications may be changed without notice.

'_bs See the warranty card for more information on warranty terms.

Wide screen format LCD Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format full-

motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model

offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark sidebars on

nonexpanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week.

Additionally, viewing other stationary images and text such as stock market reports, video game displays, station Iogos, web sites or computer

graphics and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines

can cause uneven aging of LCD Displays that leave subtle, but permanent bumeddn ghost images in the LCD picture. To avoid this, vary the

programming and images, and primarily display full screen moving images, not stationary patterns or dark bars. On LCD models that offer picture

sizing features, use these controls to view different formats as a full screen picture.

Be careful in the selection and duration of television formats used for viewing. Uneven LCD aging as a result of format selection and use, as well as

burneddn images, are not covered by your Samsung limited warranty.

,, SAMSUNG ELECTRONICS NORTH AMERICAN UMITED WARRANTY STATEMENT

Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics

(SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide

Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products

purchased in the United States, for the warranty period originally specified, and to the Original Purchaser only.

The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original

Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and

from the Service Center is the responsibility of the purchaser. Conditions covered are limited only to manufacturing defects in material or

workmanship, and only those encountered in normal use of the product.

Excluded, but not limited to, are any originally specified provisions for, in-home or on-site services, minimum or maximum repair times,

exchanges or replacements, accessories, options, upgrades, or consumables.

For the location of a SAMSUNG Authorized Service Center, please call toll-free:

In the United States : 1-806-SAMSUNG (1-800-726-7864)

In Canada : 1-800-SAMSUNG

Avoid displaying still images (such as jpeg picture files) or still image elements (such as TV channel Iogos, panorama or 4:3 image format, stock

or news bars at screen bottom etc.) on the screen. Constant displaying of still pictures can cause uneven wear of the screen phosphor, which will

affect image quality. To reduce risk of this effect, please follow below recommendations:

,, Avoid displaying the same TV channel for long periods.

,, Always try to display any image on full screen, use TV set picture format menu for best possible match.

,, Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout

process.

,, Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.

'_bs When using a stand or wall-mount, use parts provided by Samsung Electronics only.

*If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product failing.

The appearance may differ depending on the product.

4inches

r i

English

4,no, Ll

[ 4inches

J 4inches _,.i

Contents

• List of Features ......................................................... 4

• Accessories .............................................................. 4

• Installing the LCD TV Stand ...................................... 4

• Viewing the Control Panel ......................................... 5

• Viewing the Remote Control ...................................... 6

• Connecting to an Antenna ........................................ 7

• Plug & Play (Initial Setup) ........................................... 7

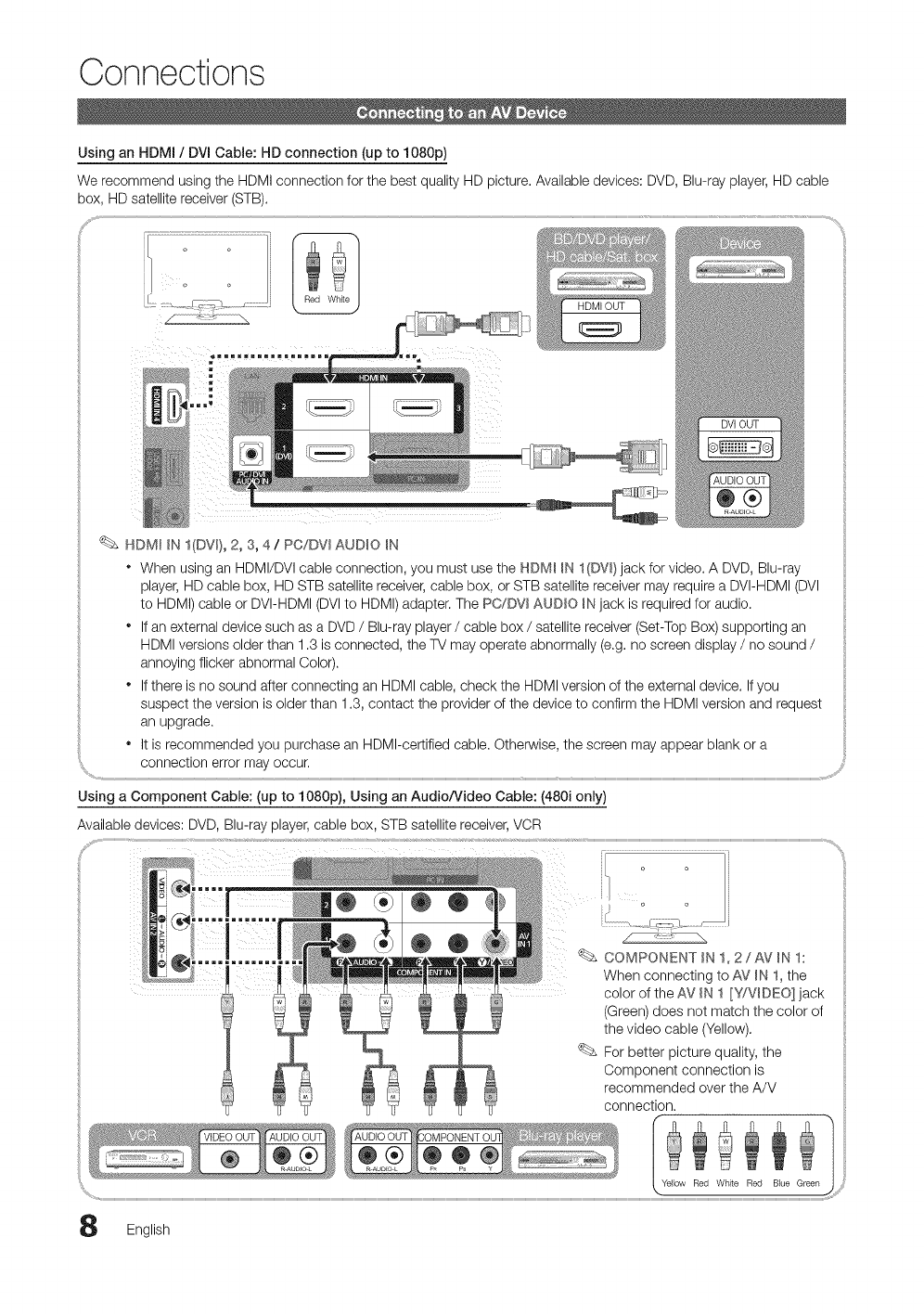

• Connecting to an AV Device...................................... 8

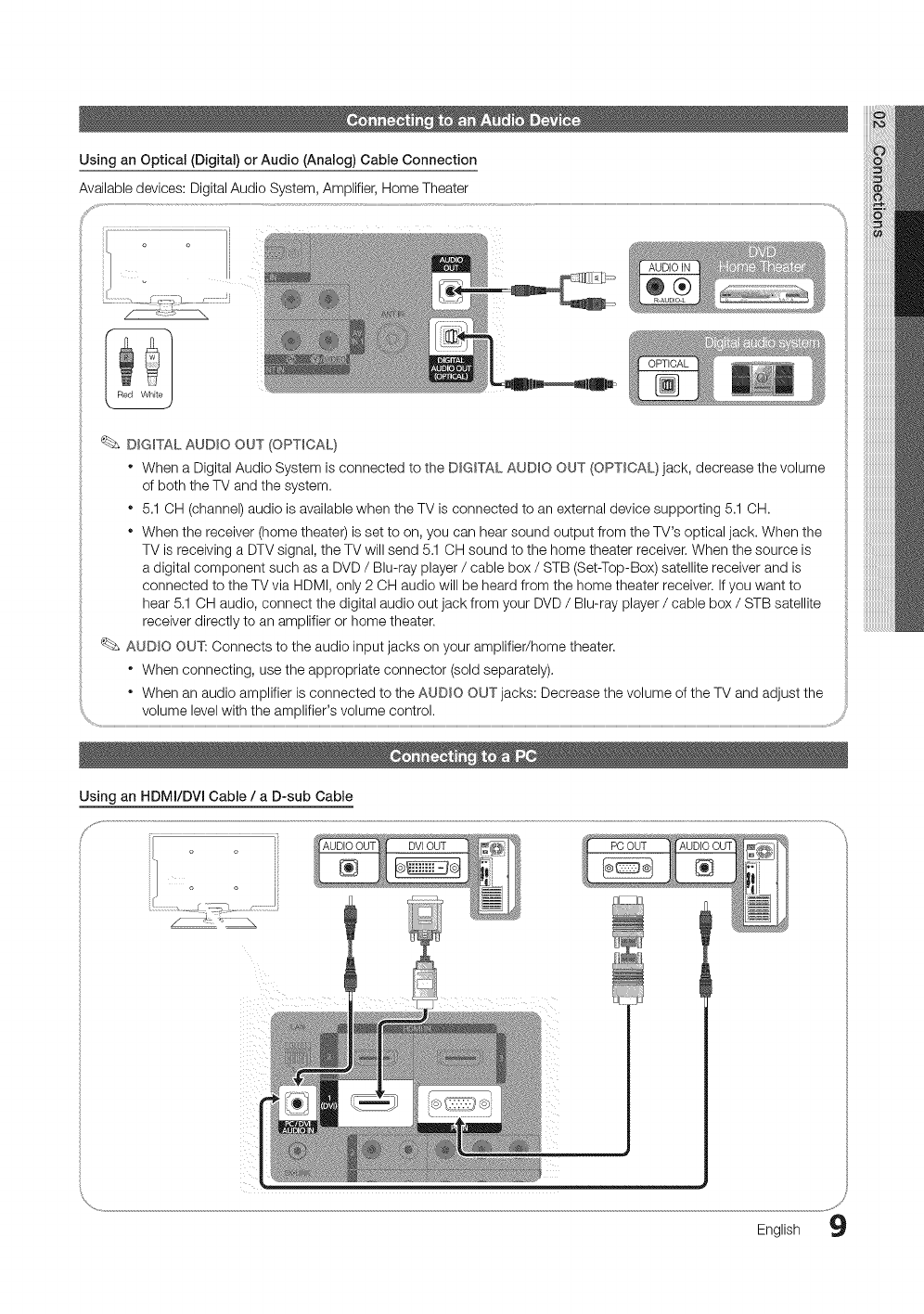

• Connecting to an Audio Device ................................. 9

• Connecting to a PC .................................................. 9

• Changing the Input source ...................................... 10

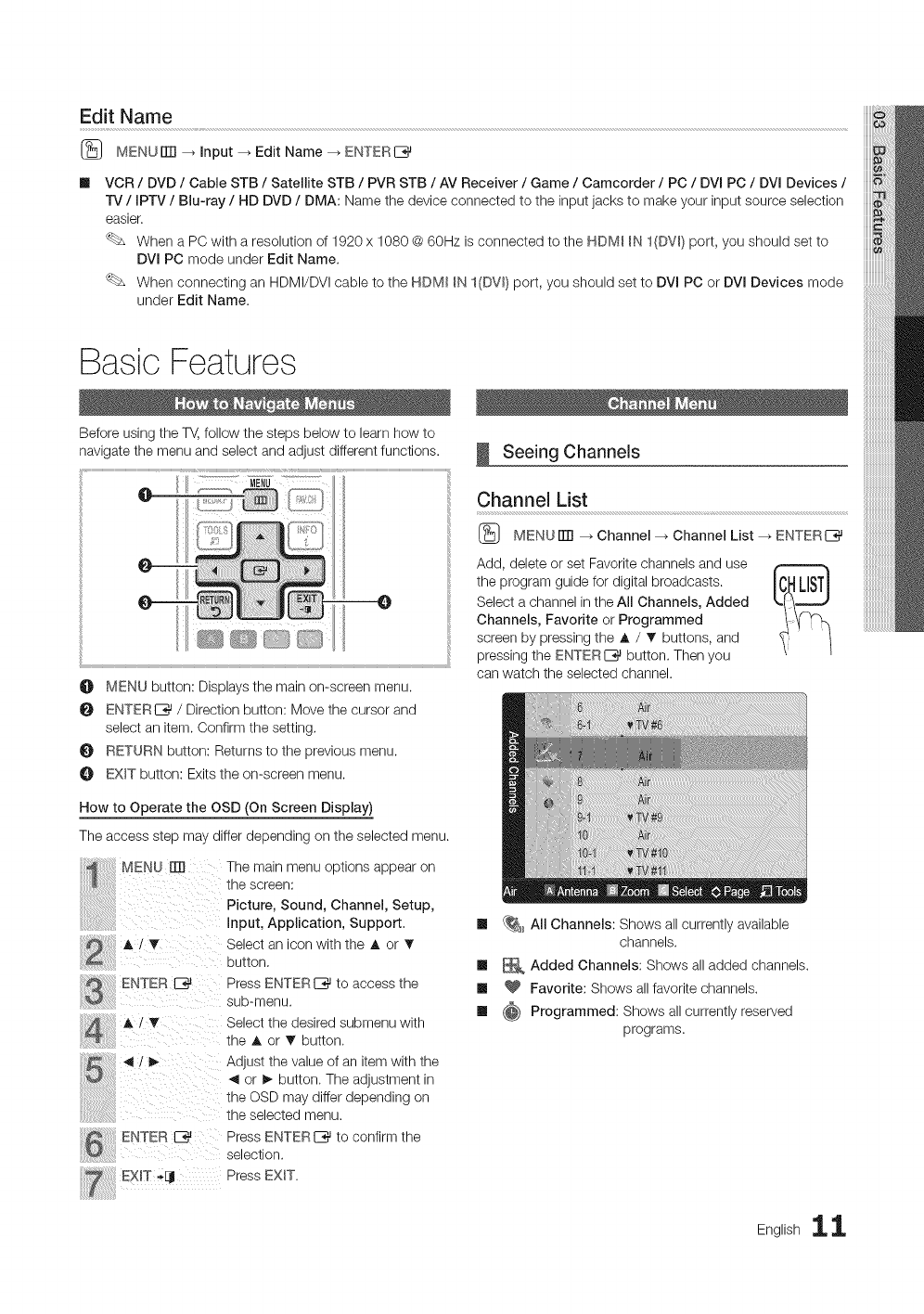

• How to Navigate Menus .......................................... 11

• Channel Menu ........................................................ 11

Seeing Channels 11

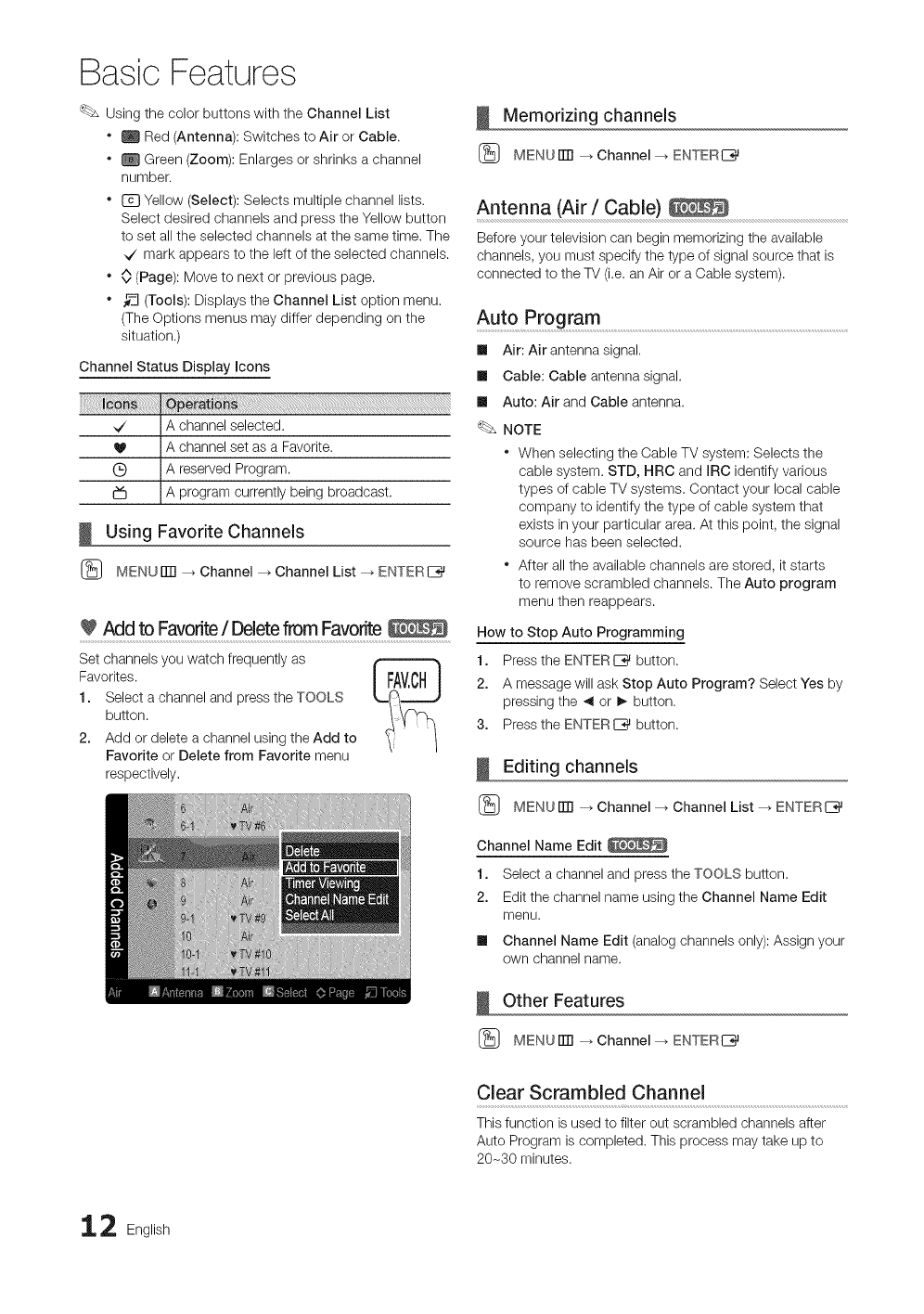

Using FavoriteChannels 12

Memorizing channels 12

Editing channels 12

Other Features 12

• Picture Menu .......................................................... 13

Changing the Preset Picture Mode 13

Adjusting picture settings 14

Economical Solutions 14

Setting up the TVwith your PC 14

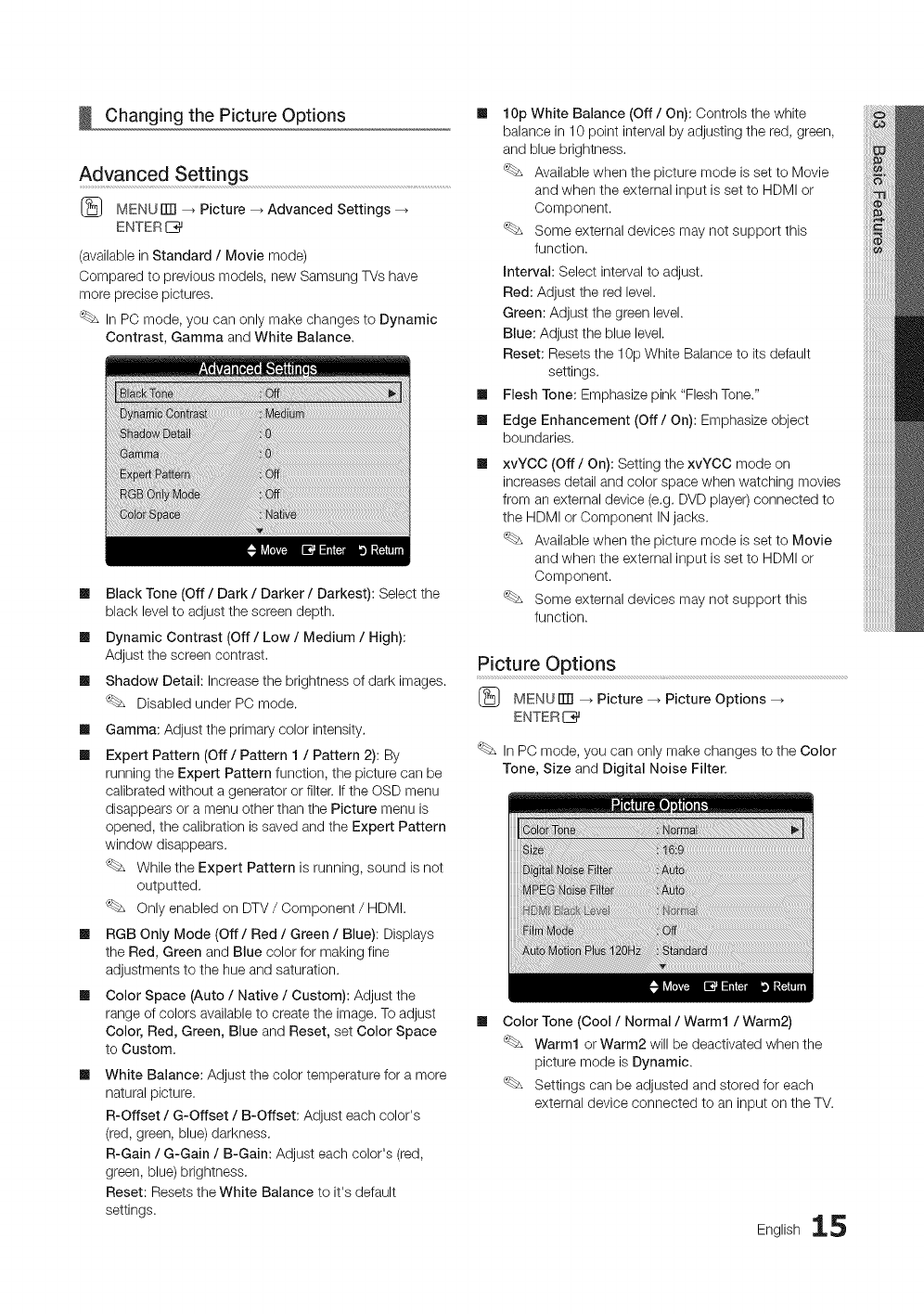

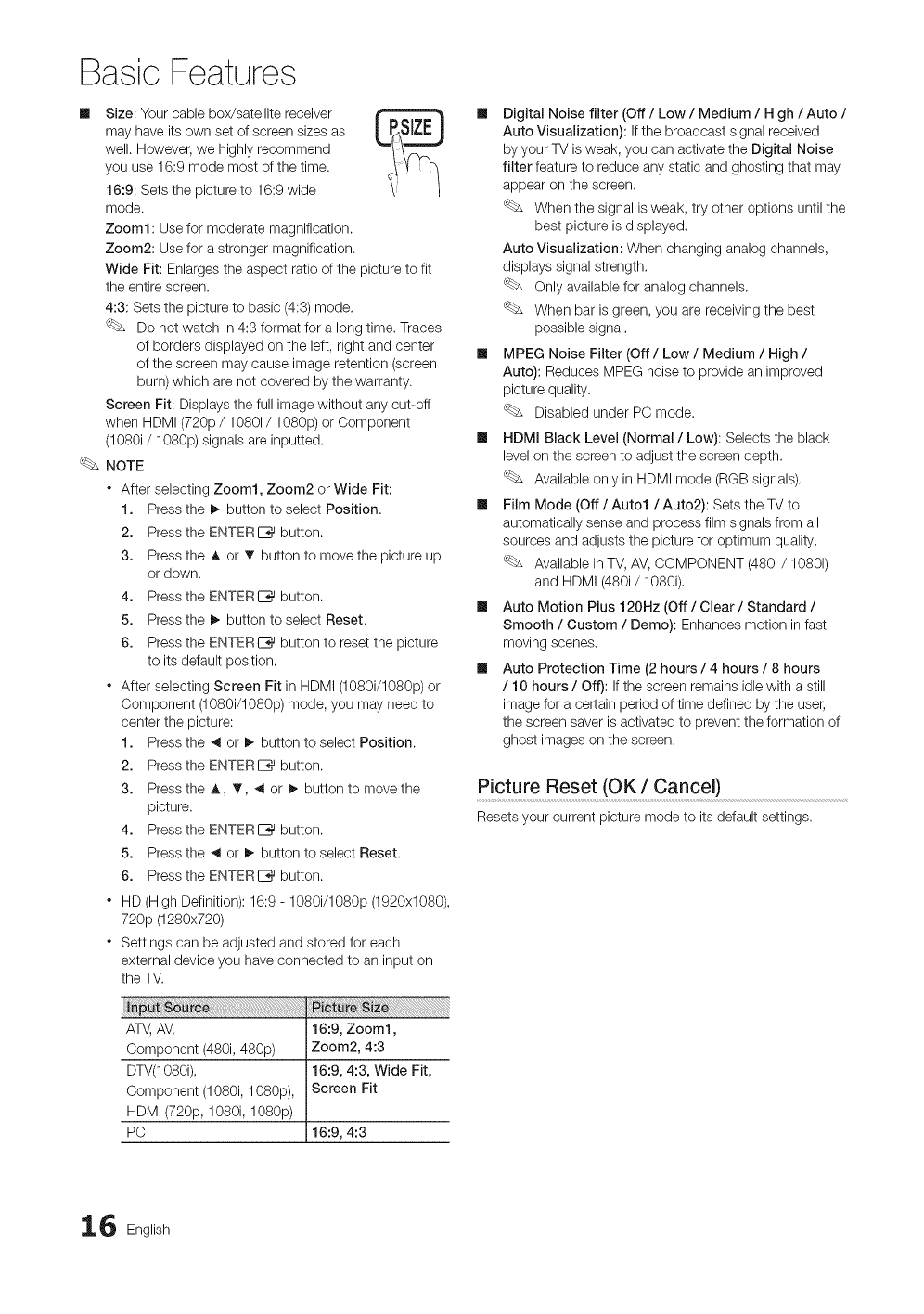

Changing the Picture Options 15

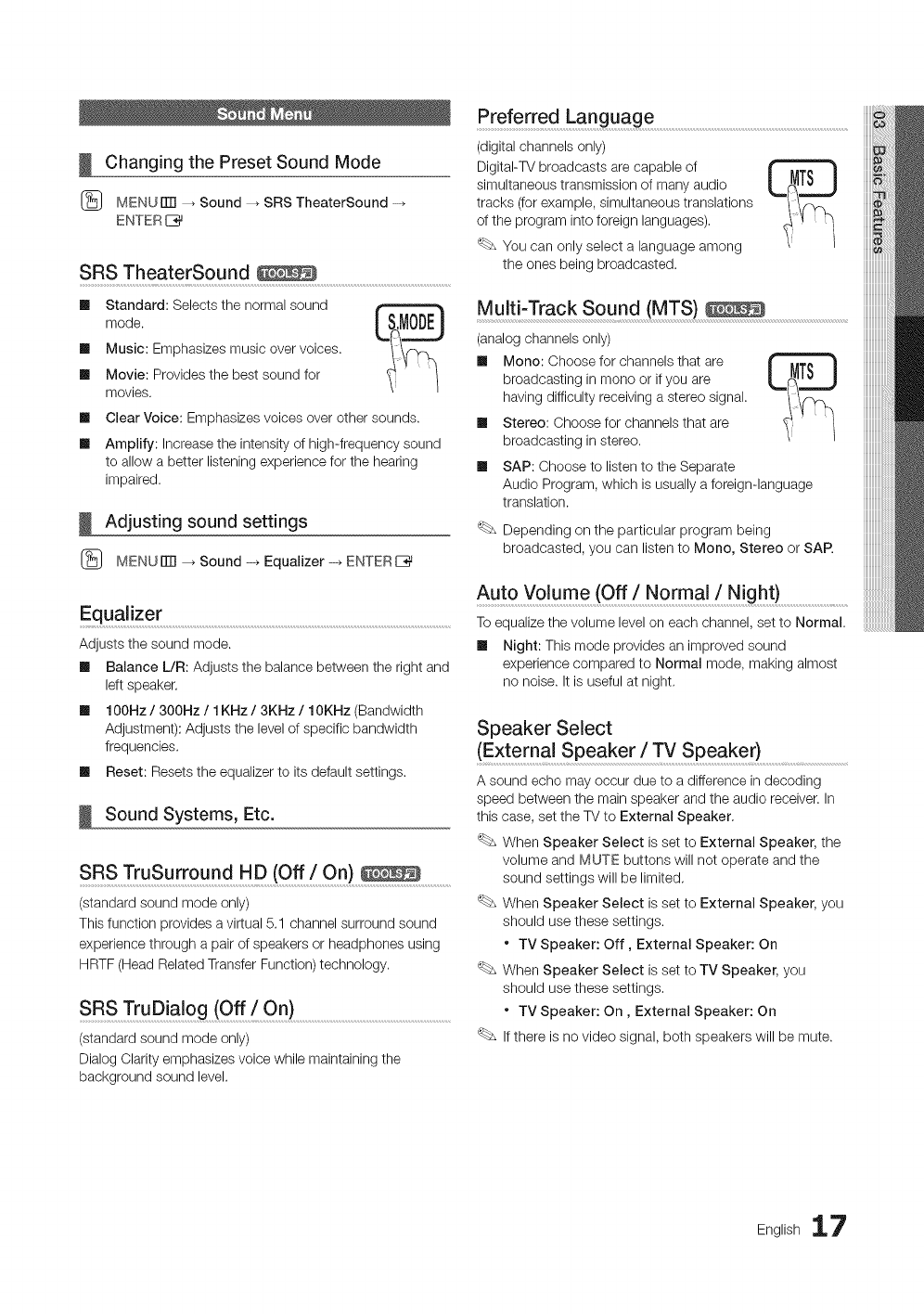

• Sound Menu ........................................................... 17

Changingthe PresetSound Mode 17

Adjusting sound settings 17

Sound Systems, Etc. 17

• Setup Menu ............................................................ 18

Setting the Time 18

Using the Sleep Timer 18

Setting the On/Off Timer 18

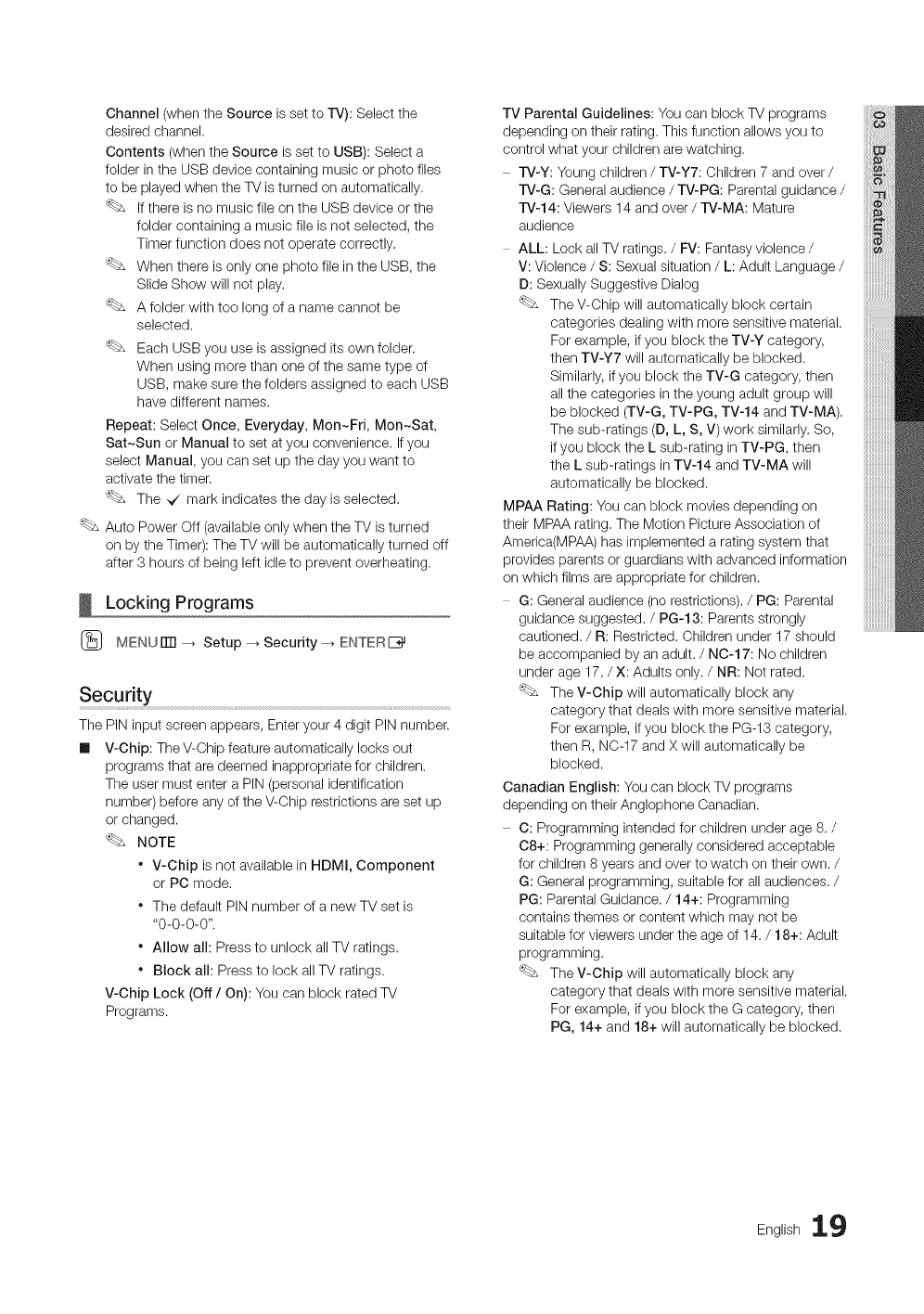

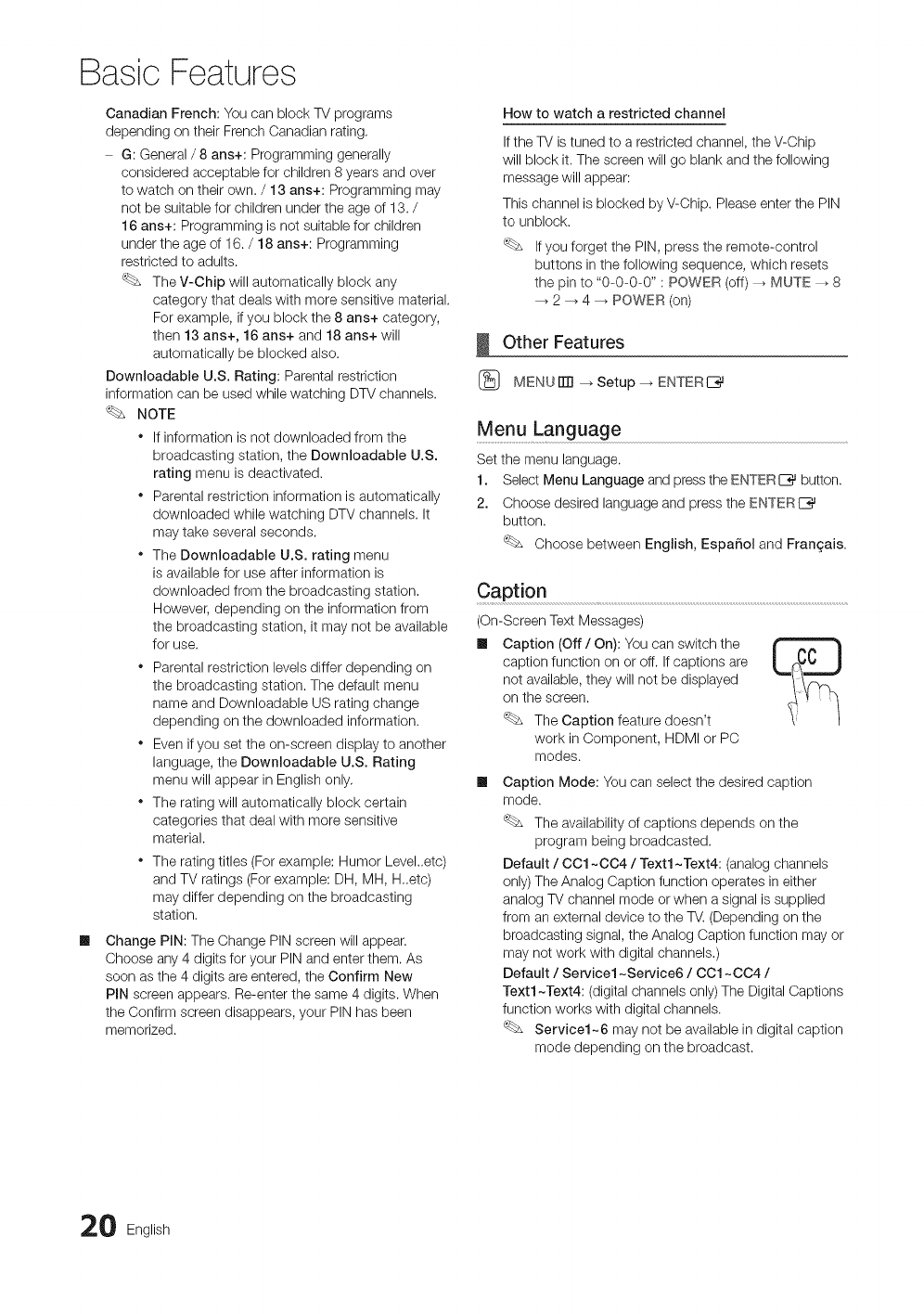

Locking Programs 19

Other Features 20

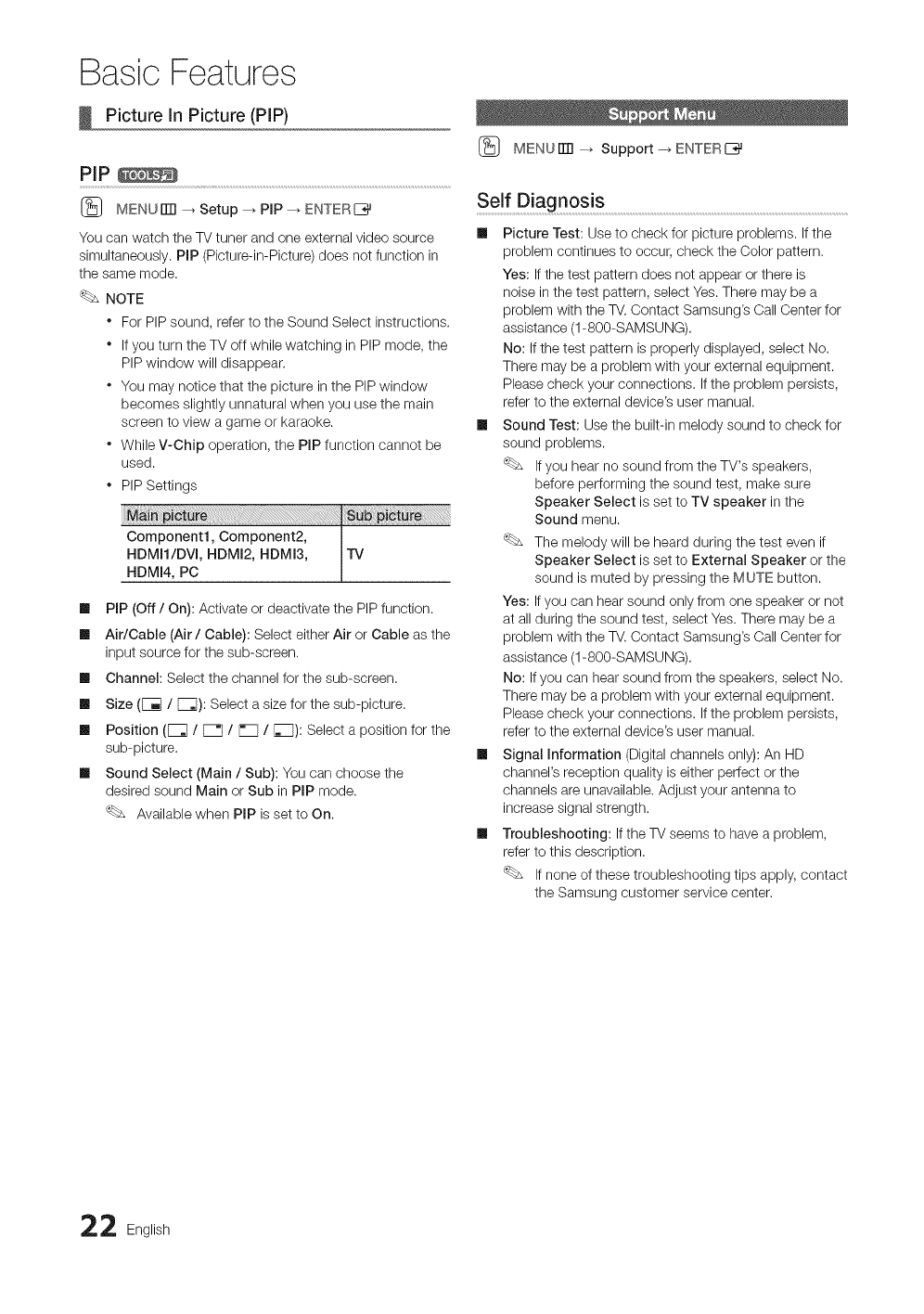

Picture in Picture (PIP) 22

Support Menu ......................................................... 22

• Network Connection ............................................... 24

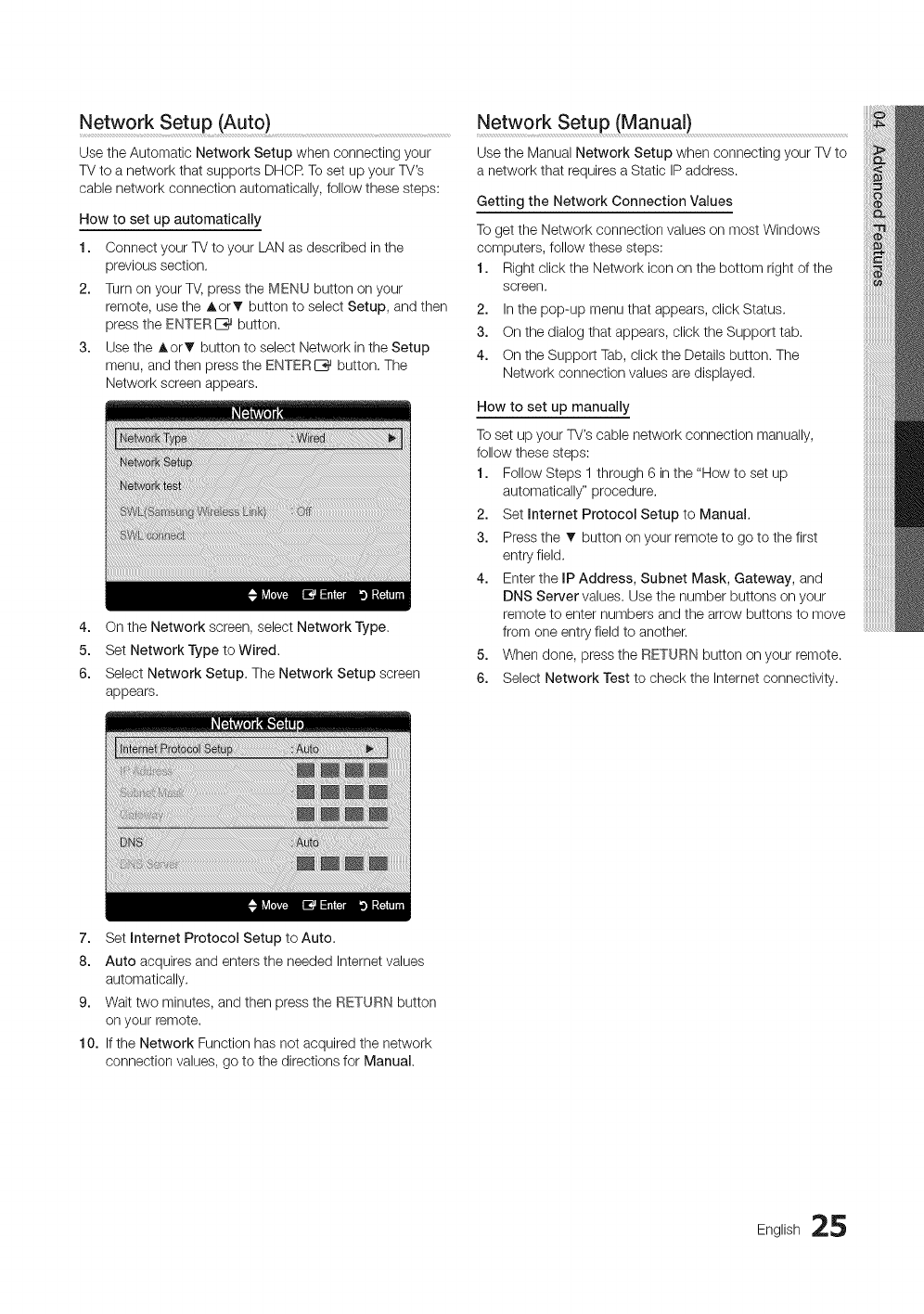

Connecting to a Wired Network 24

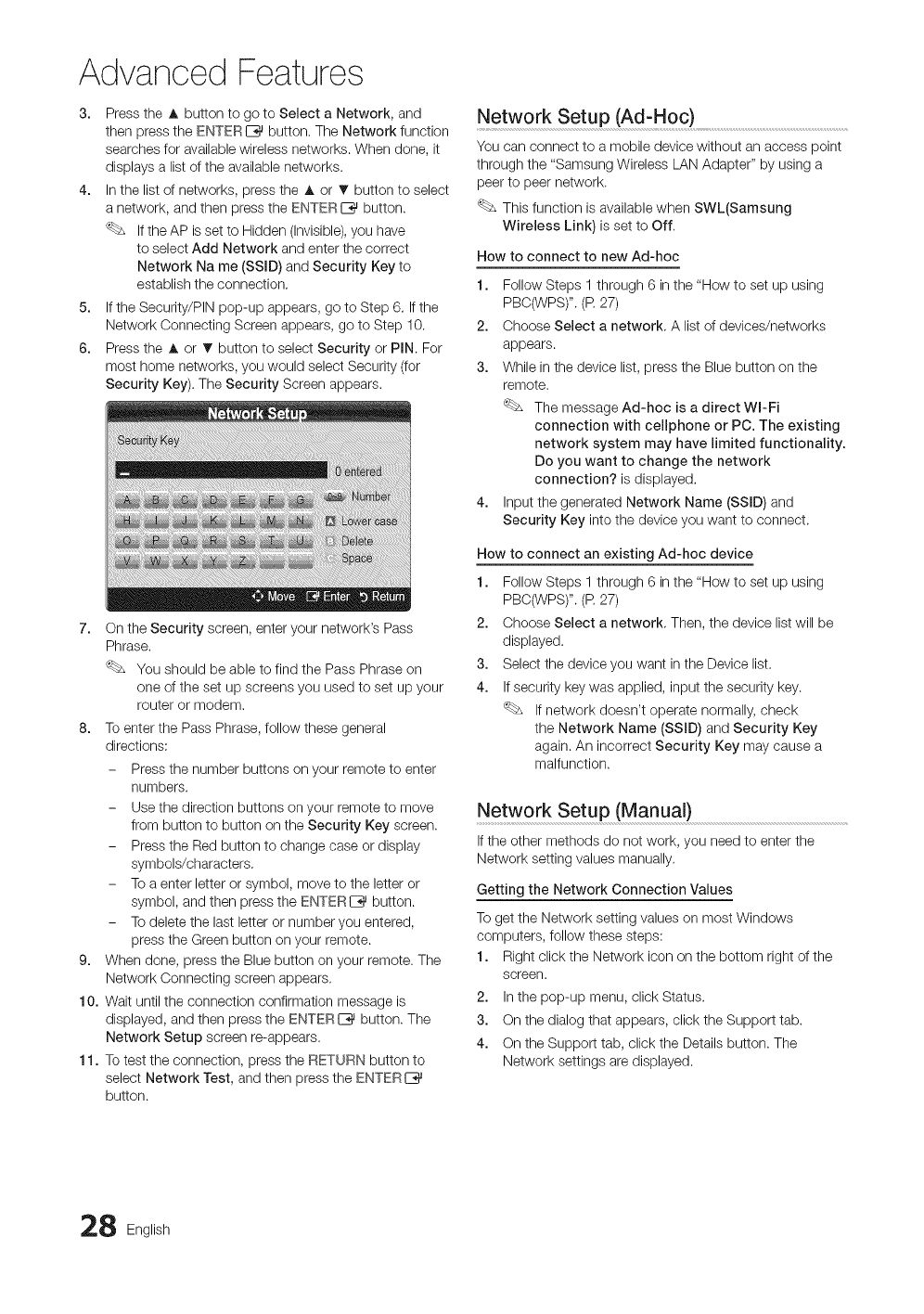

Connecting Wireless Network 26

• Media Play .............................................................. 30

Connecting a USB Device 30

Connecting to the PC through network 30

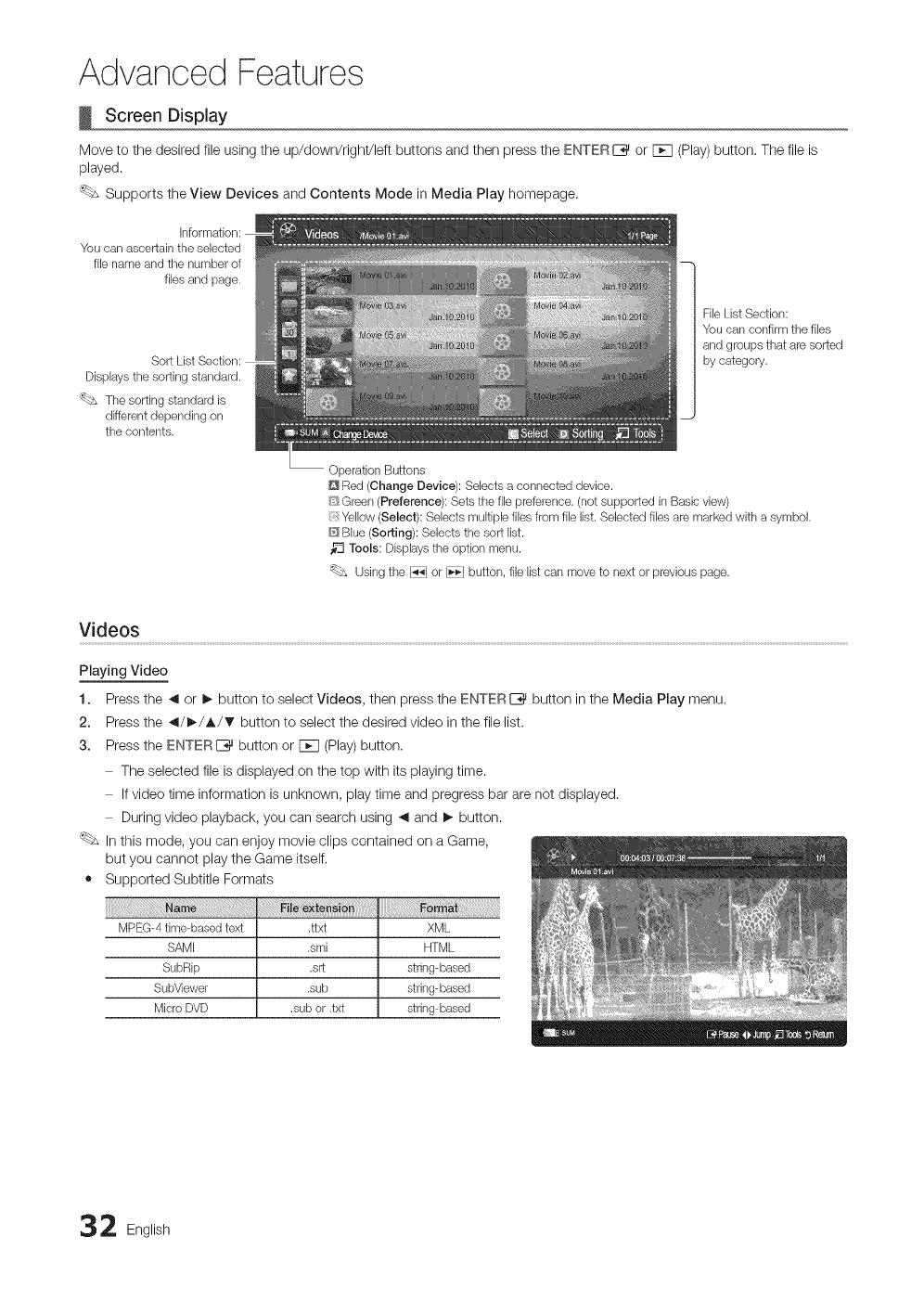

Screen Display 32

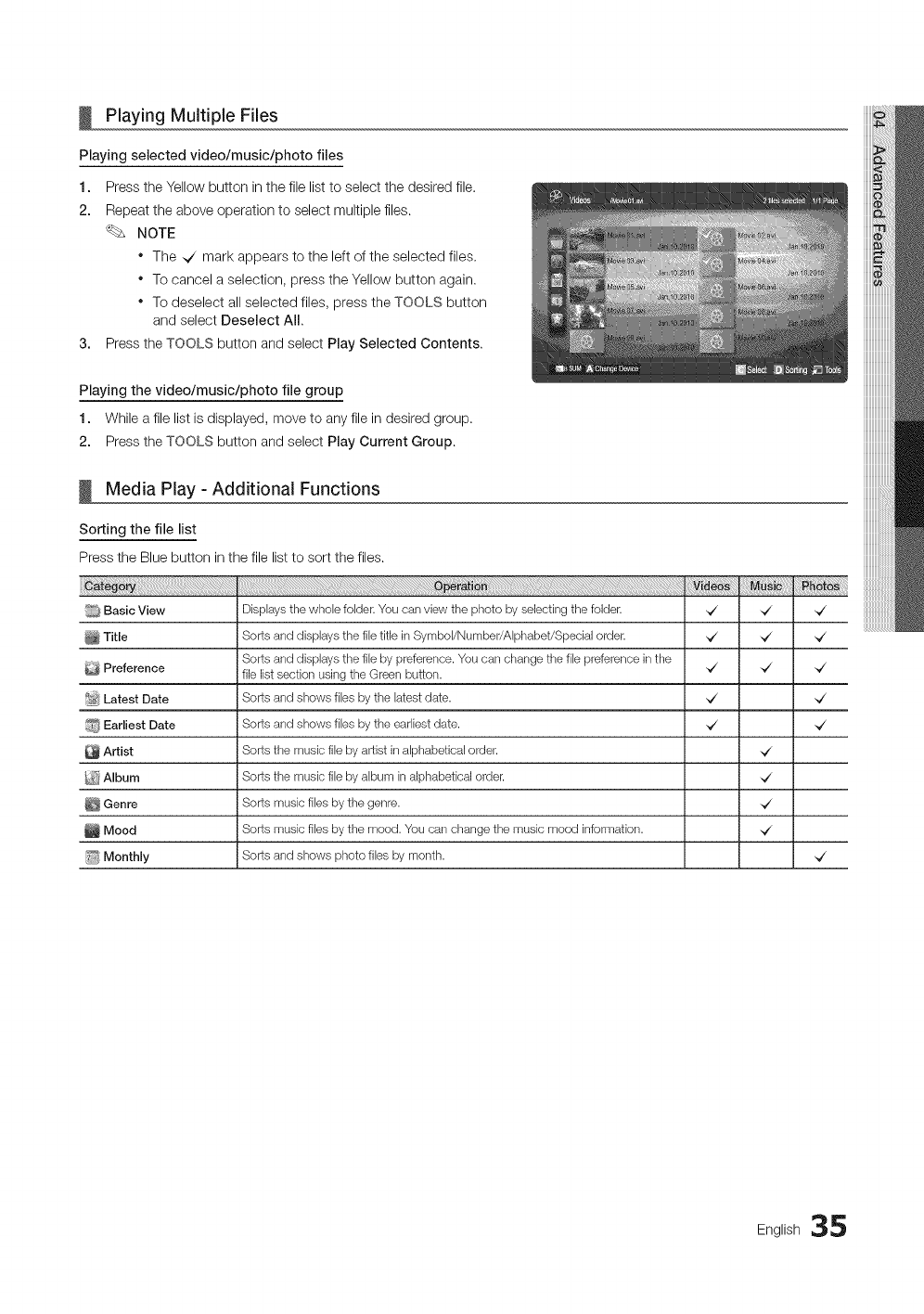

PlayingMultiple Files 35

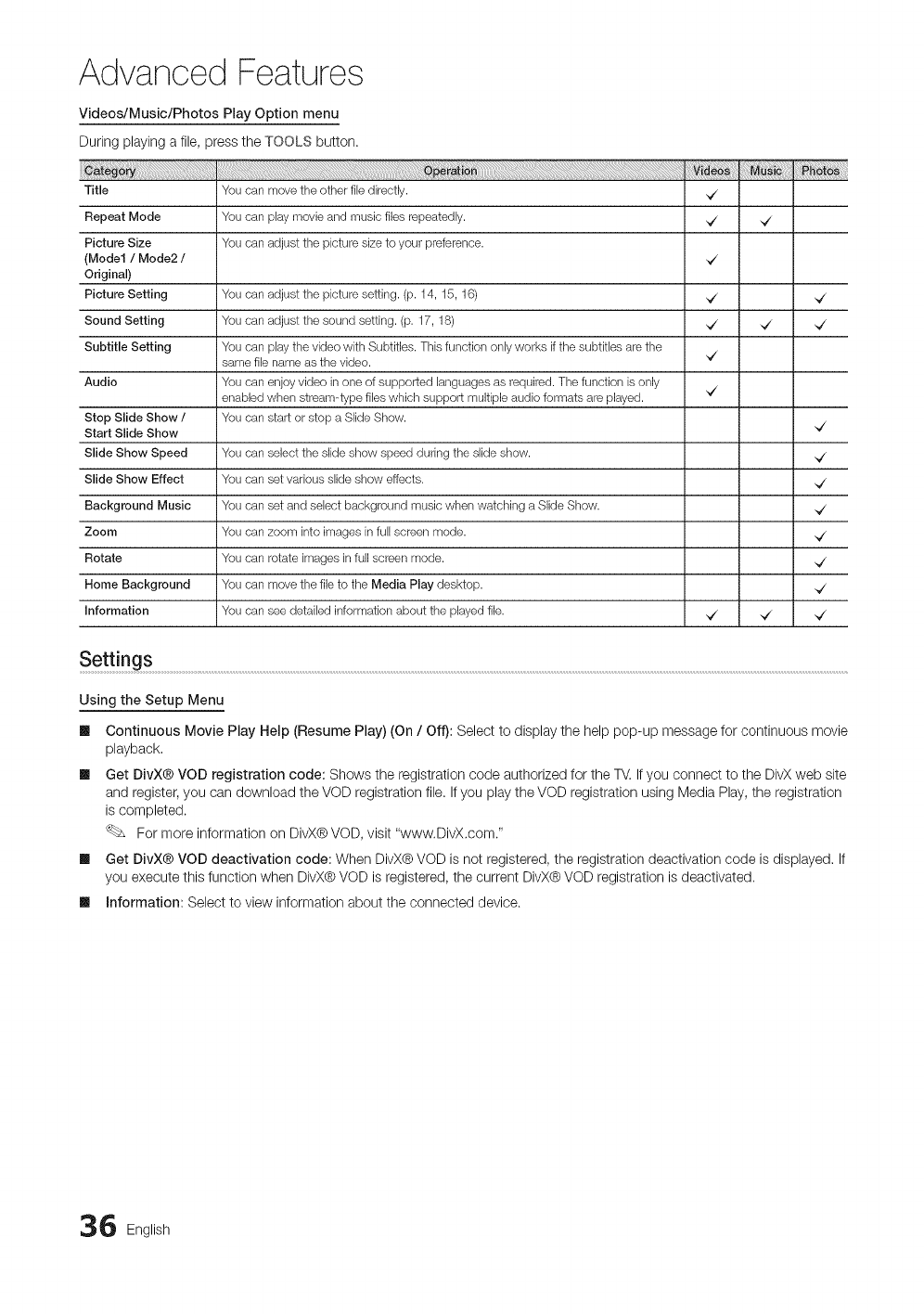

Media Play - Additional Functions 35

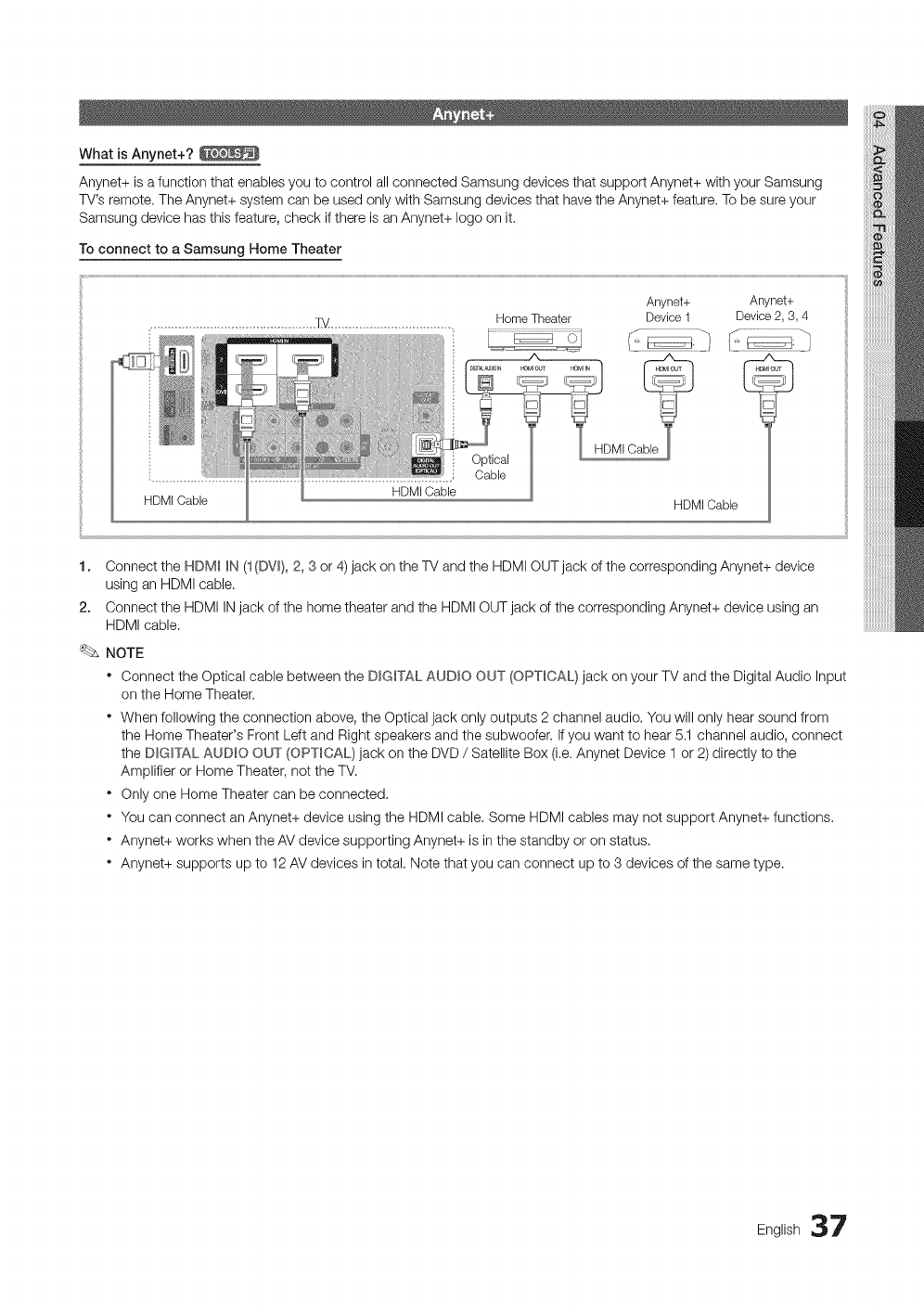

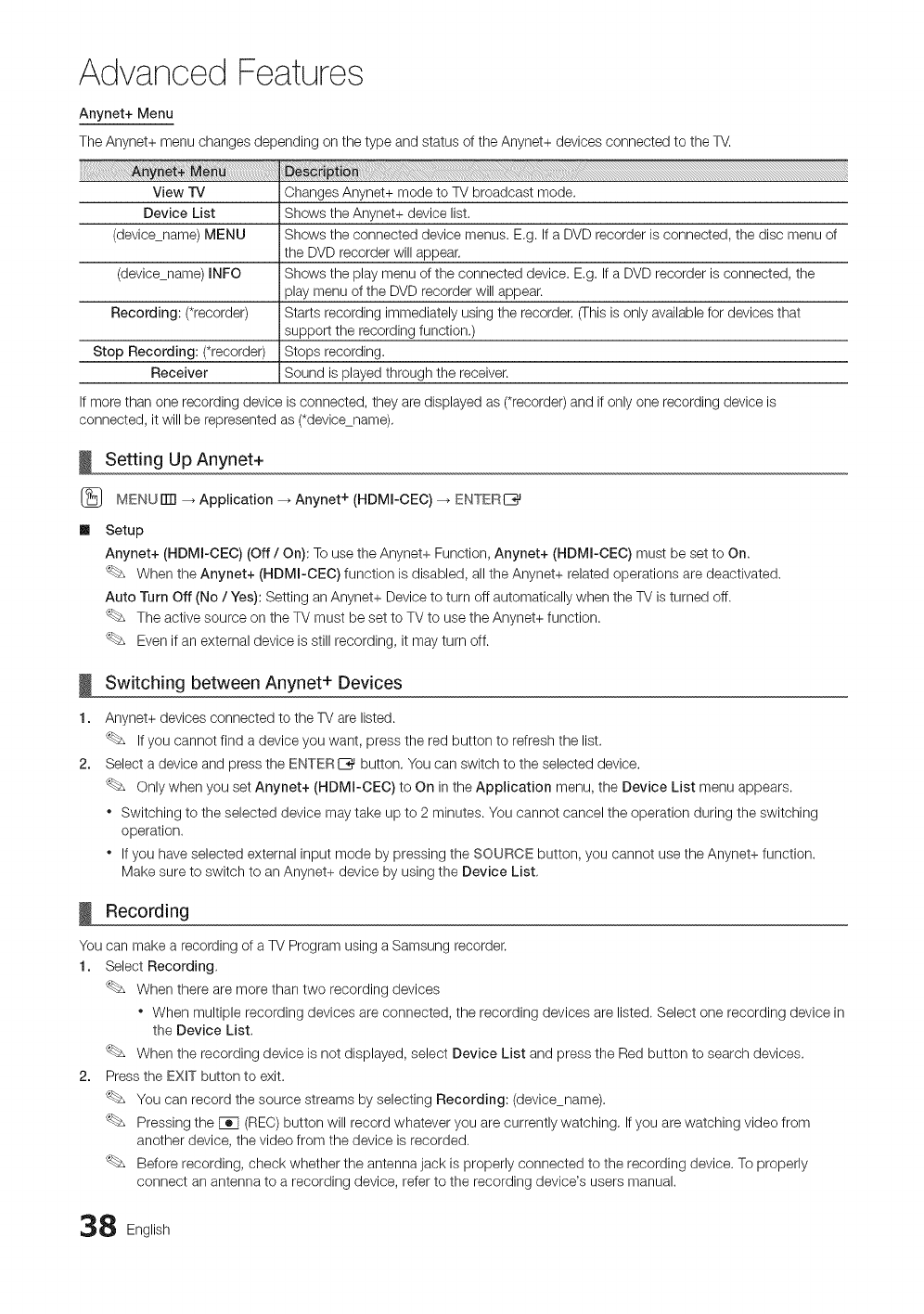

• Anynet+ ................................................................. 37

Setting UpAnynet+ 38

Switching between Anynet+ Devices 38

Recording 38

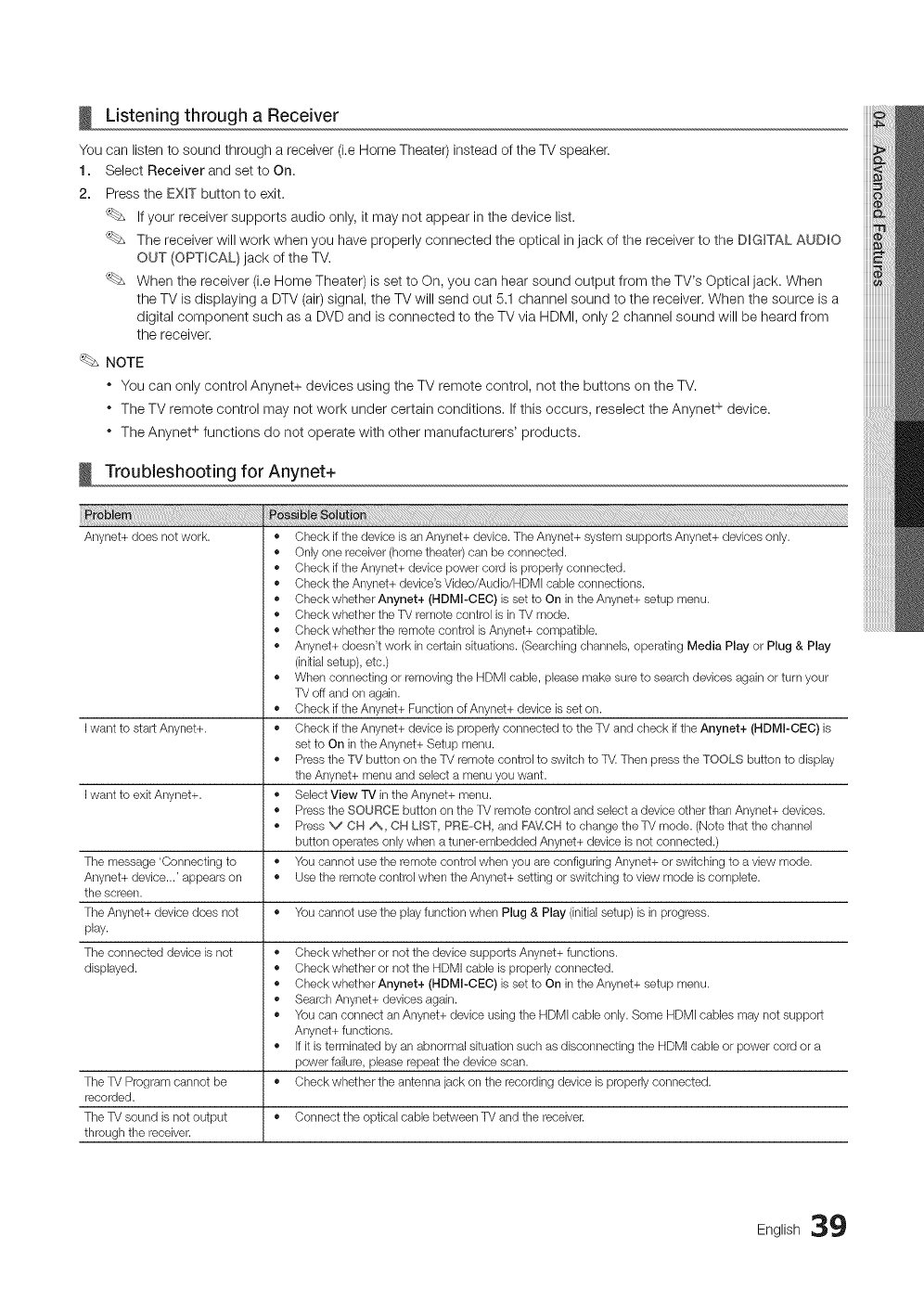

Listeningthrough a Receiver 39

Troubleshootingfor Anynet+ 39

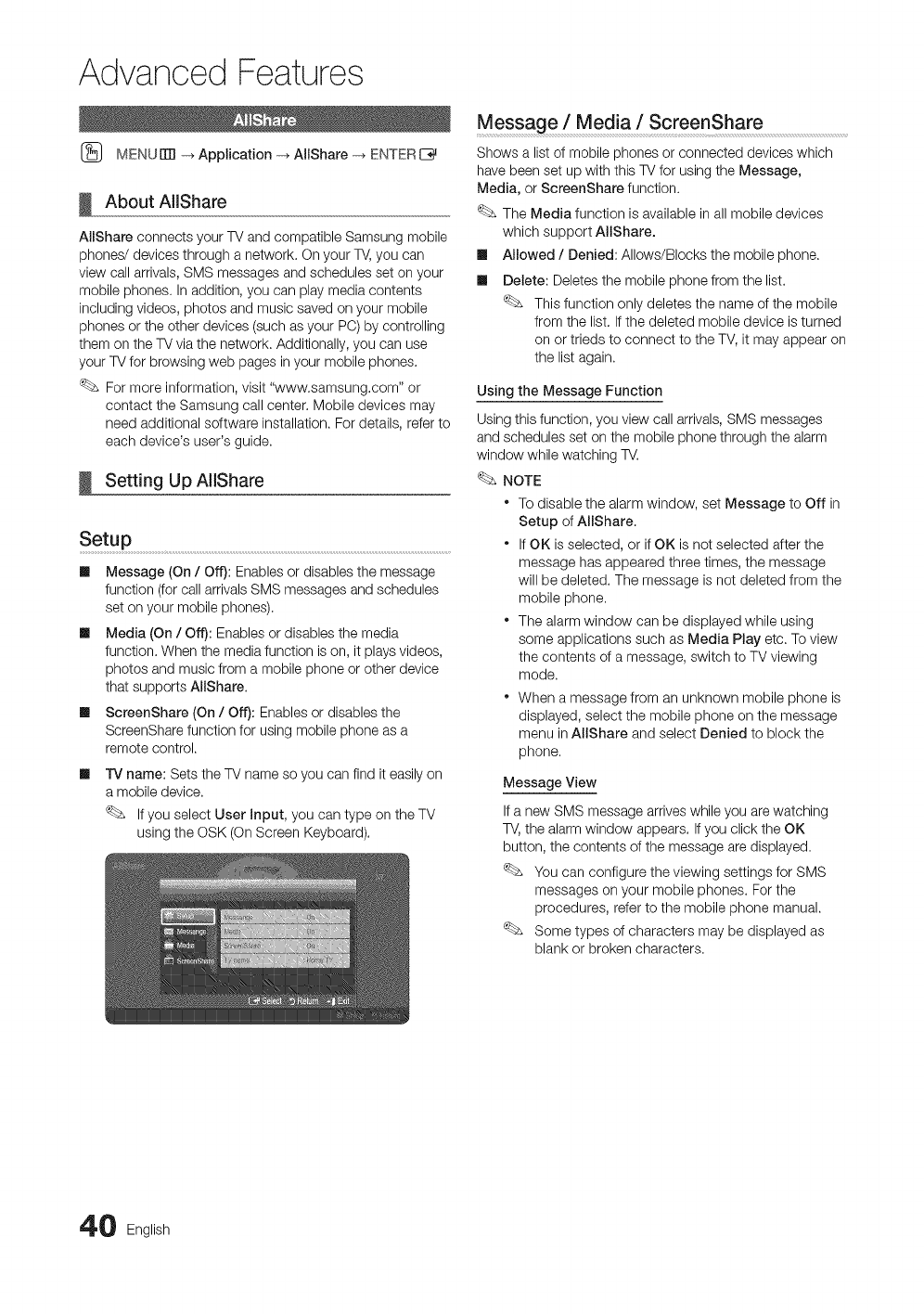

• AIIShare .................................................................. 40

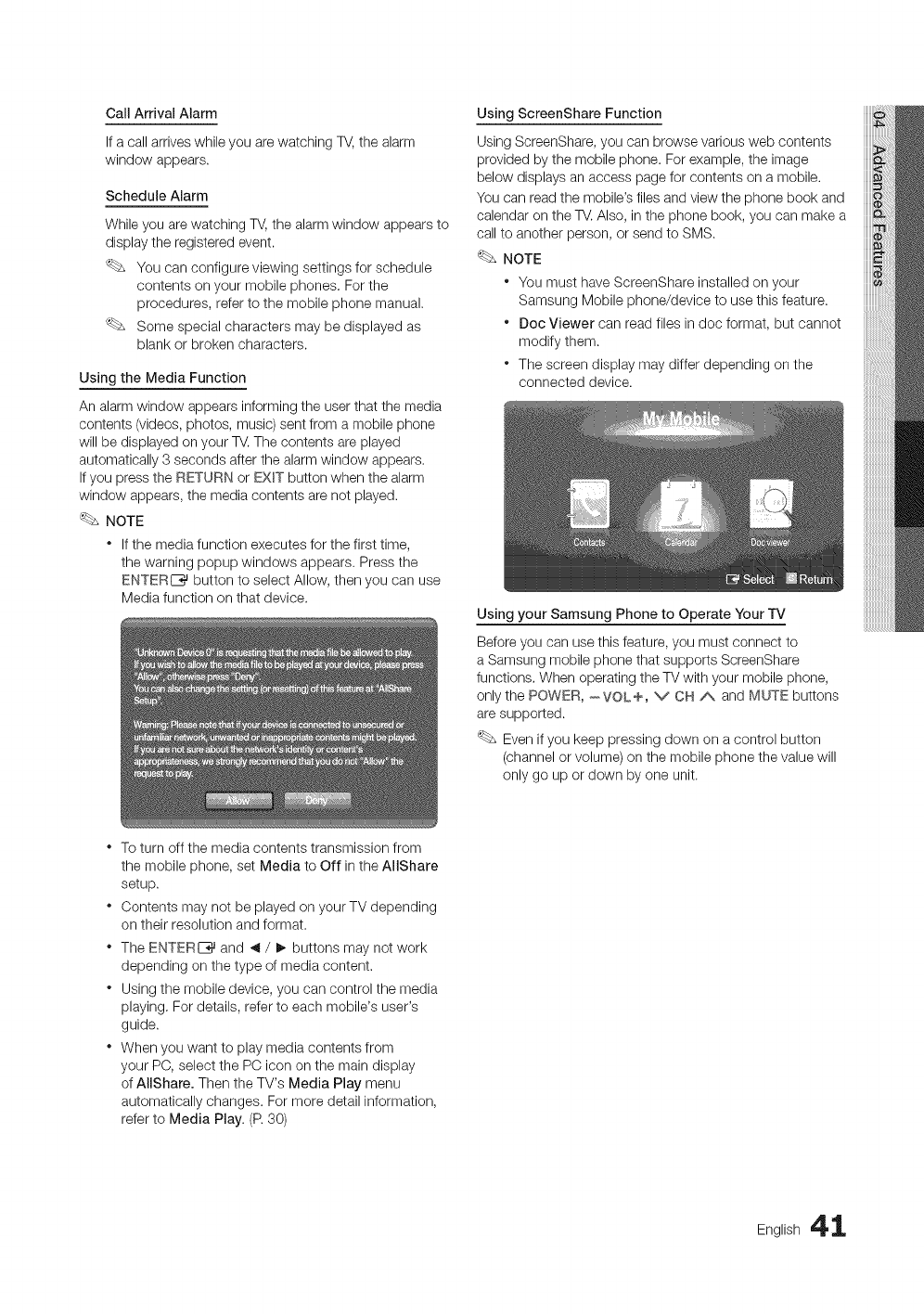

About AlIShare 40

Setting UpAlIShare 40

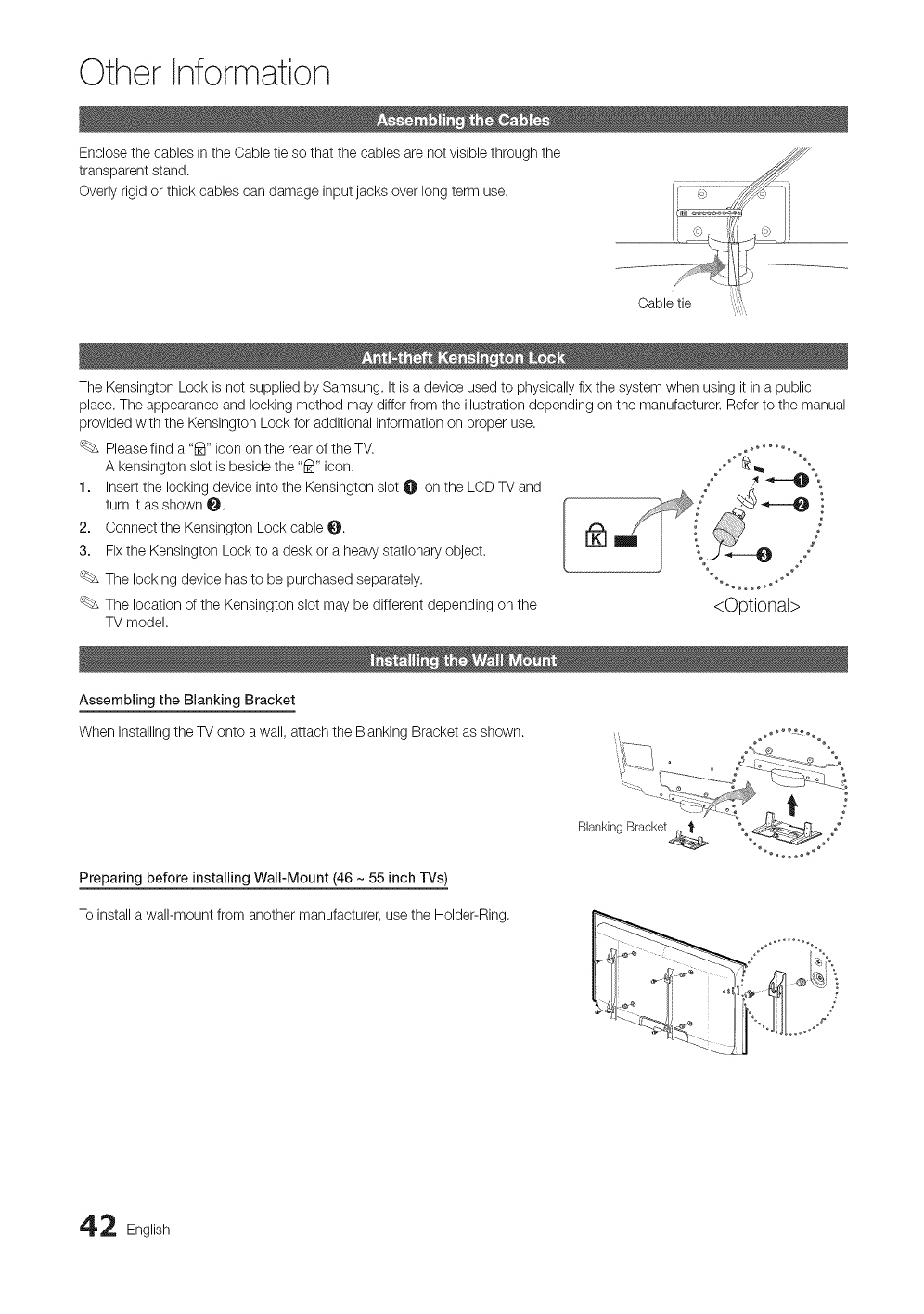

• Assembling the Cables ........................................... 42

• Anti-theft Kensington Lock ...................................... 42

• Installing the Wall Mount ......................................... 42

• Securing the TV to the Wall ..................................... 44

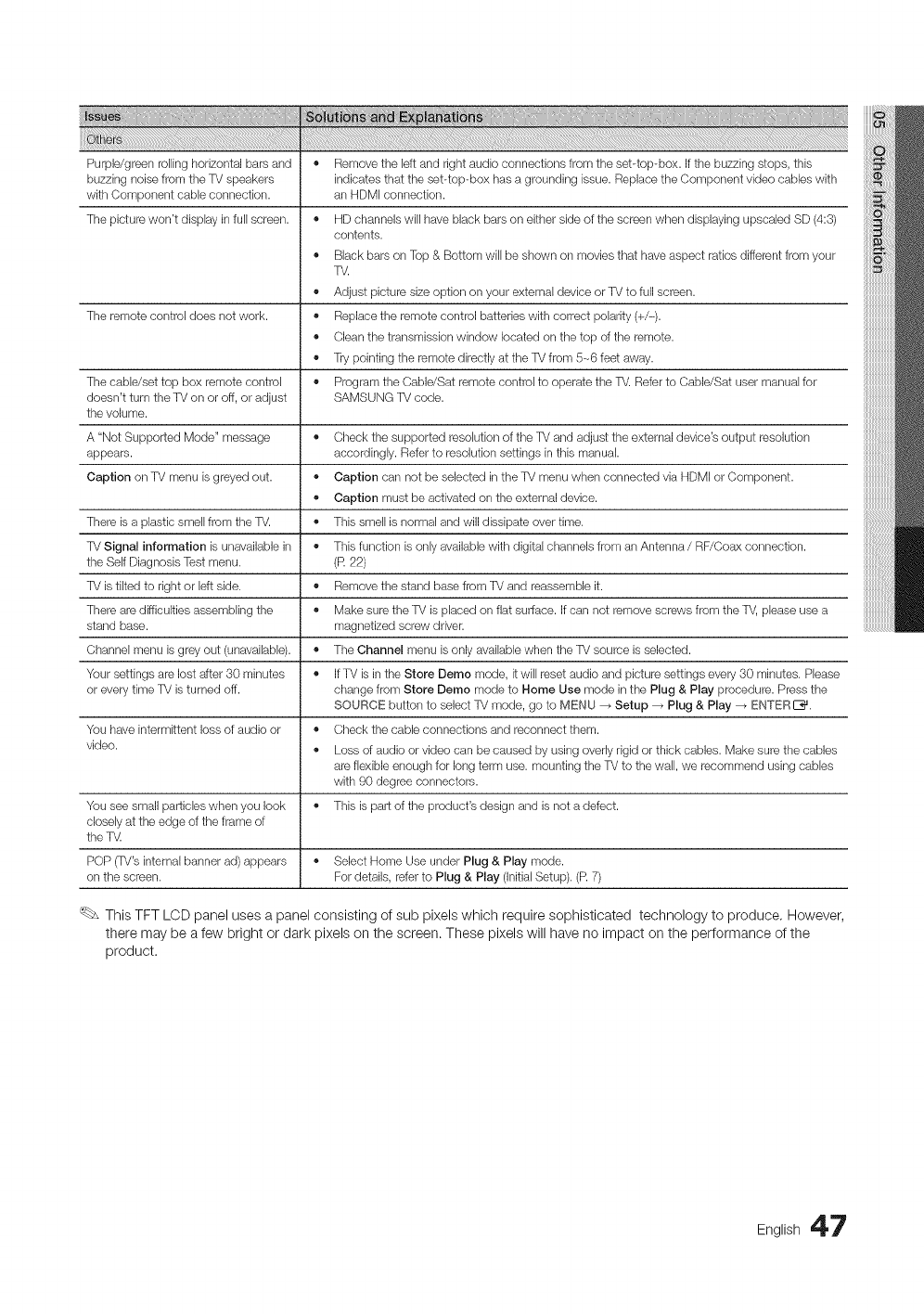

• Troubleshooting ...................................................... 45

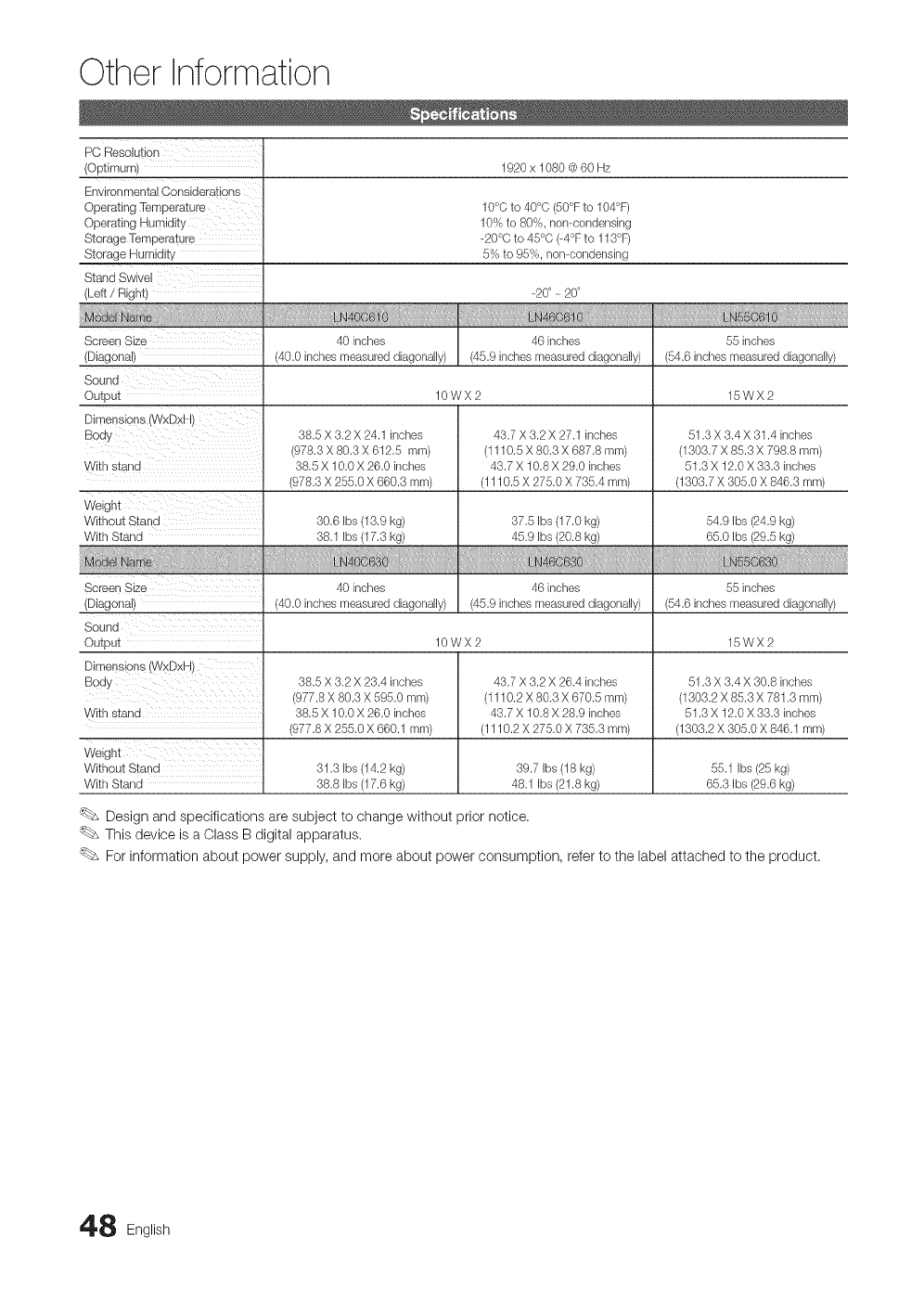

• Specifications ......................................................... 48

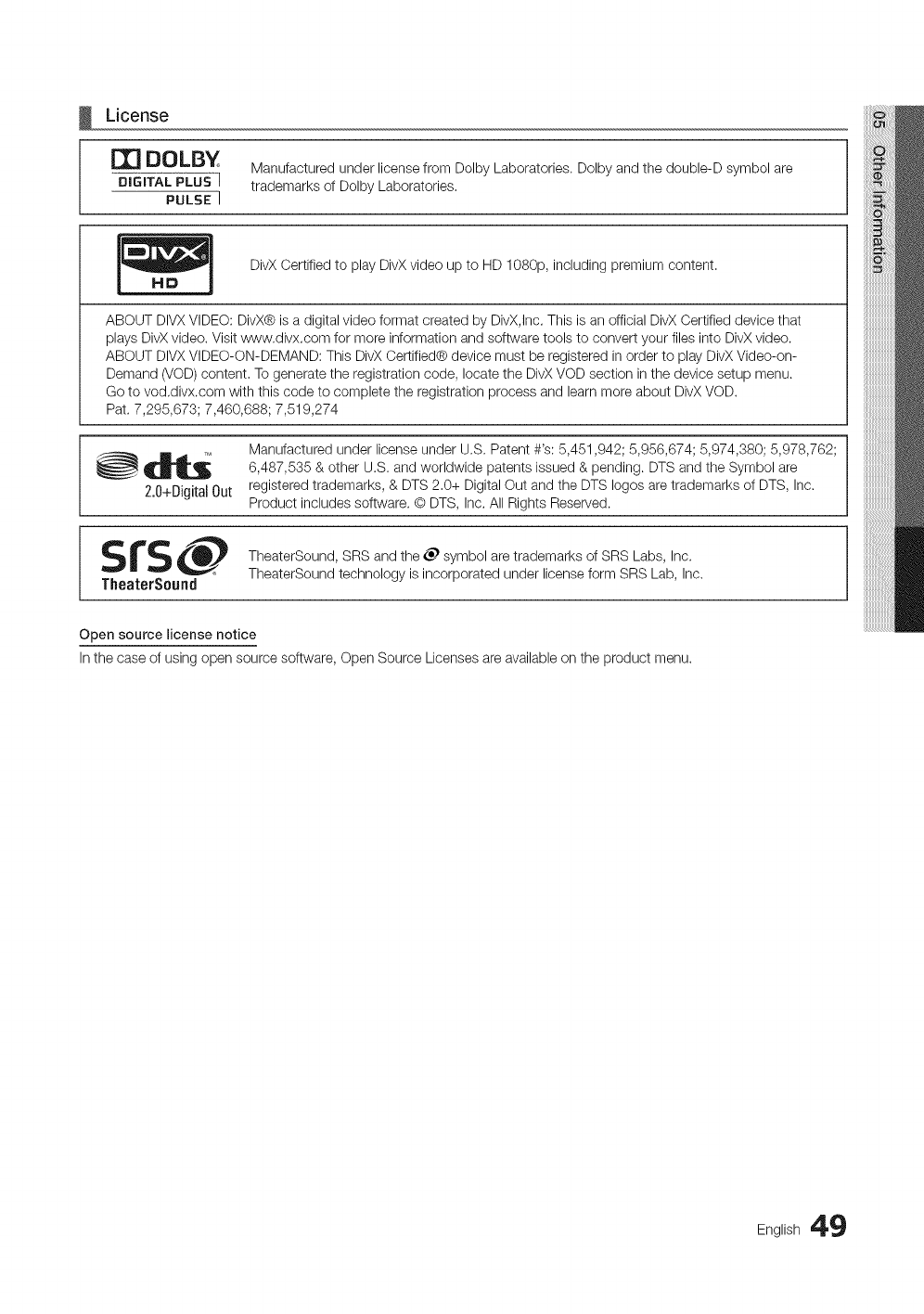

License 49

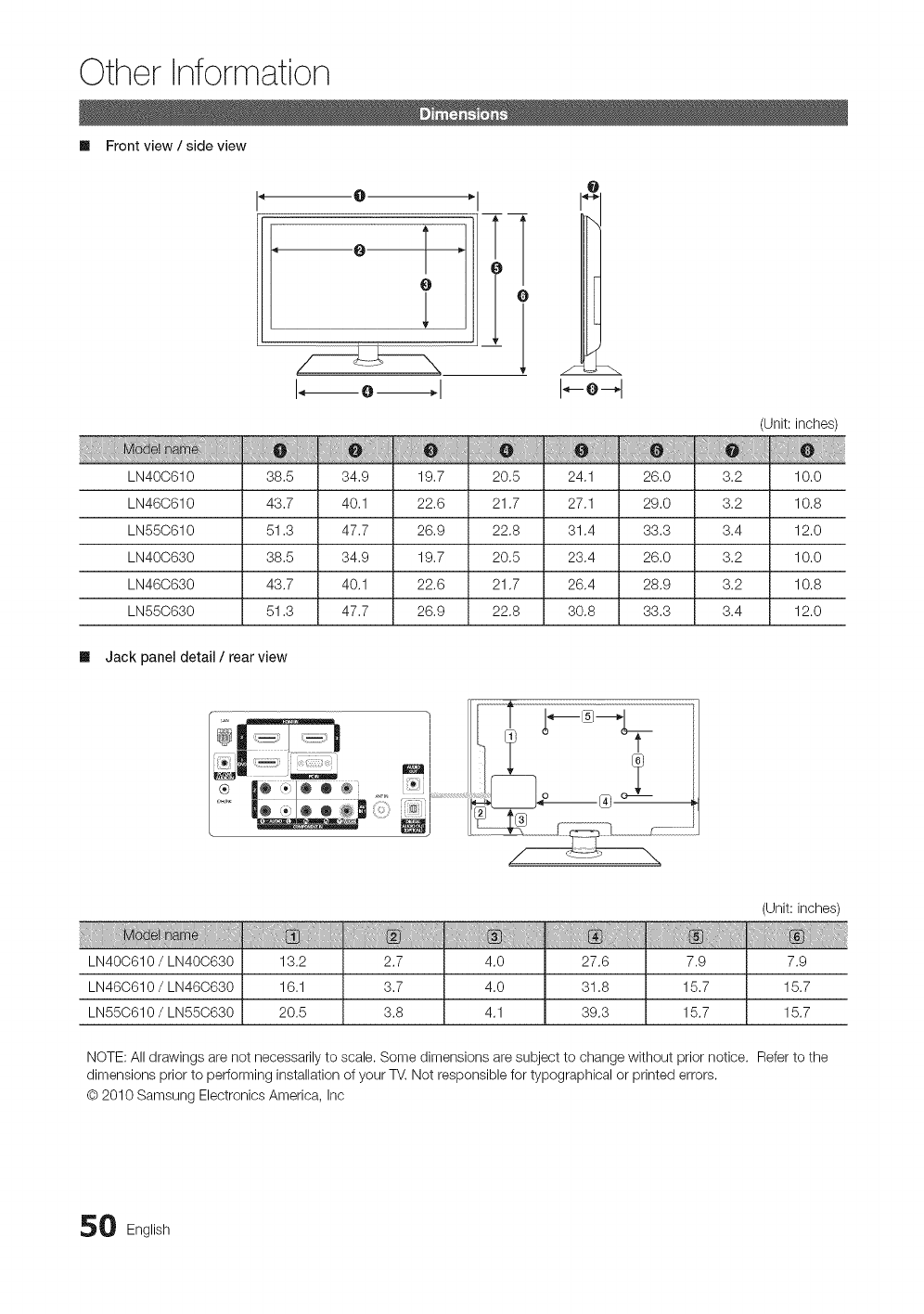

• Dimensions ............................................................. 50

• Index ...................................................................... 51

Check the Symbol!

This function can be used by pressing the Note :

TOOLS button on the remote control. Important information

Step by step guide :

Informs you how to access

the menu.

English 3

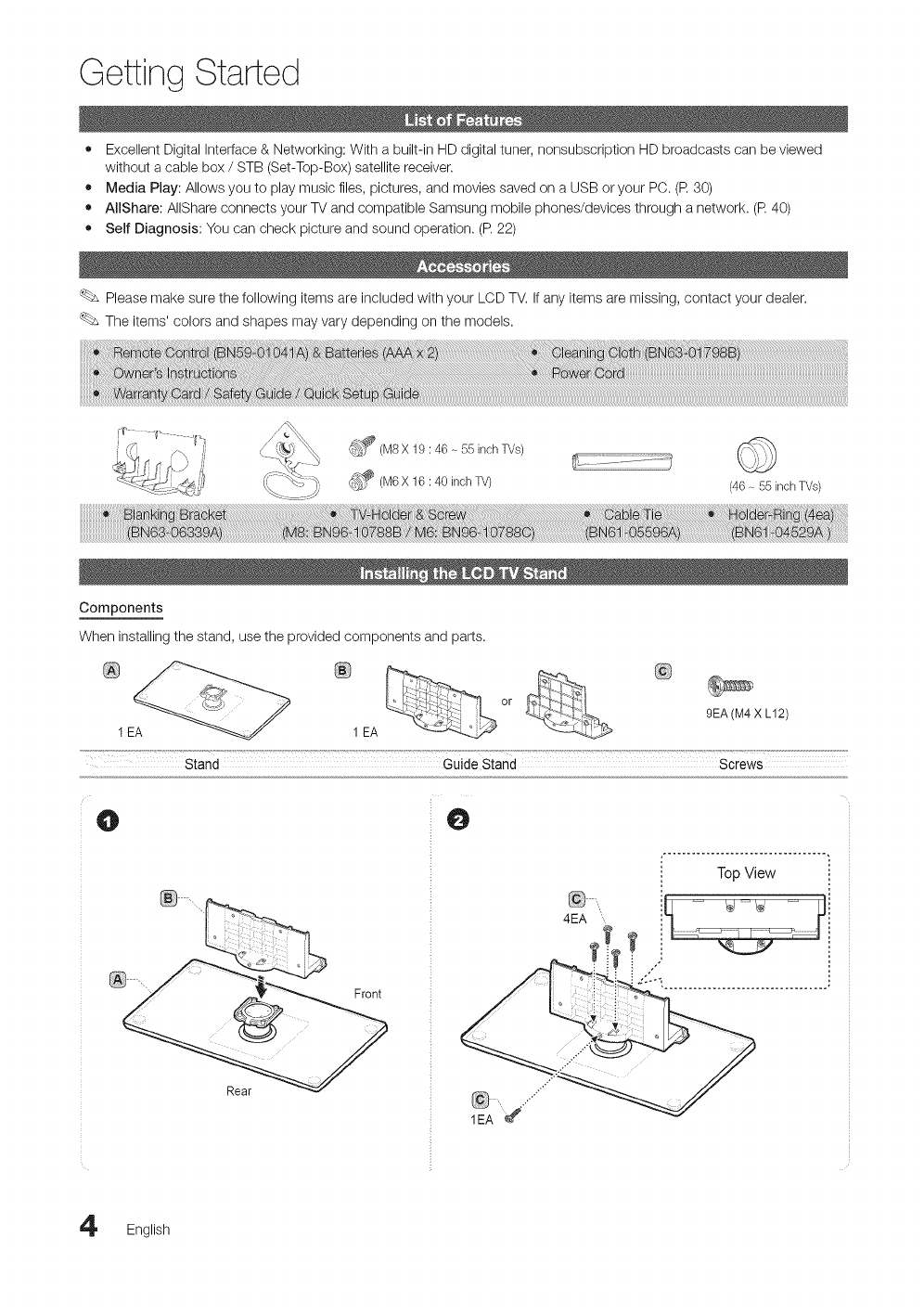

Getting Started

• Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed

without a cable box /STB (Set-Top-Box) satellite receiver.

• Media Play: Allows you to play music files, pictures, and movies saved on a USB or your PC. (R 30)

• AllShare: AIIShare connects your TV and compatible Samsung mobile phones/devices through a network. (R 40)

• Self Diagnosis: You can check picture and sound operation. (R 22)

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

The items' colors and shapes may vary depending on the models.

_(M8 X 19 : 46 - 55 inch TVs)

_¢(M6 X 16 : 40 inch TV) (46 - 55 inch TVs)

Components

When installing the stand, use the provided components and parts.

9EA(M4X L12)

1 1 EA

Stand Guide Stand Screws

_ ........_ Front

4EA

Top View

English

O O

Bottom View _-. :

.......... i

® ......::::::::::::::::::::::::::::

4EA'"_ ::}:::...... ..............m_--_

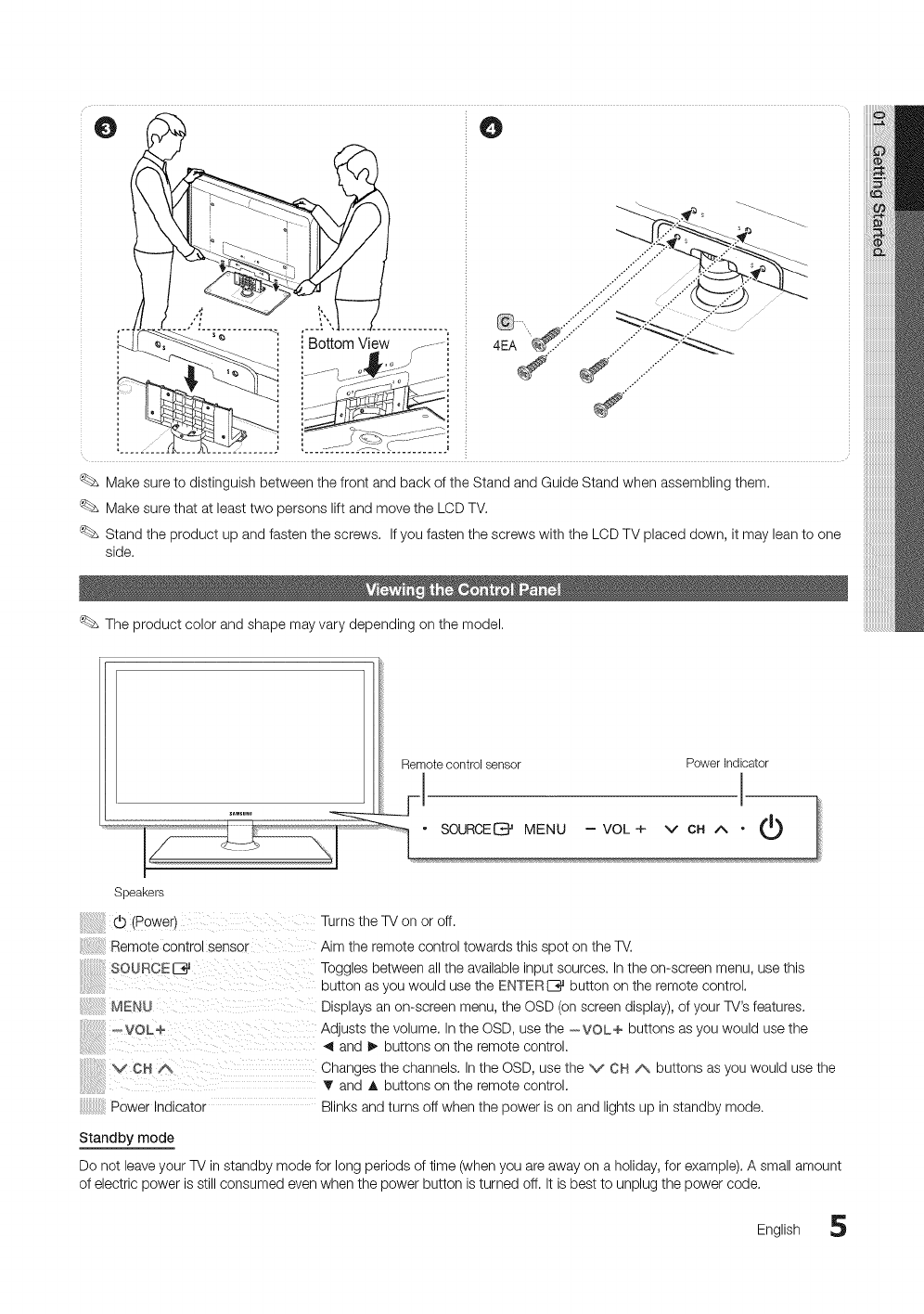

Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.

Make sure that at least two persons lift and move the LCD TV.

Stand the product up and fasten the screws, If you fasten the screws with the LCD TV placed down, it may lean to one

side,

The product color and shape may vary depending on the model,

Remote control sensor Power Indicator

Speakers

(b (Power) Turns the TV on or off.

Remote Control sensor Aim the remote control towards this spot on the TV.

SOURCE IZ;# Toggles between all the available input sources. In the on-screen menu, use this

button as you would use the ENTER I:_ button on the remote control,

MENU Displays an on-screen menu, the OSD (on screen display), of your TV's features.

_VOL+ Adjusts the volume, In the OSD, use the --VOL+ buttons as you would use the

_1and I_ buttons on the remote control,

V CH/_ Changes the channels, In the OSD, use the V CH /\ buttons as you would use the

_r and A buttons on the remote control,

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example), A small amount

of electric power is still consumed even when the power button is turned off. It is best to unplug the power code,

English 5

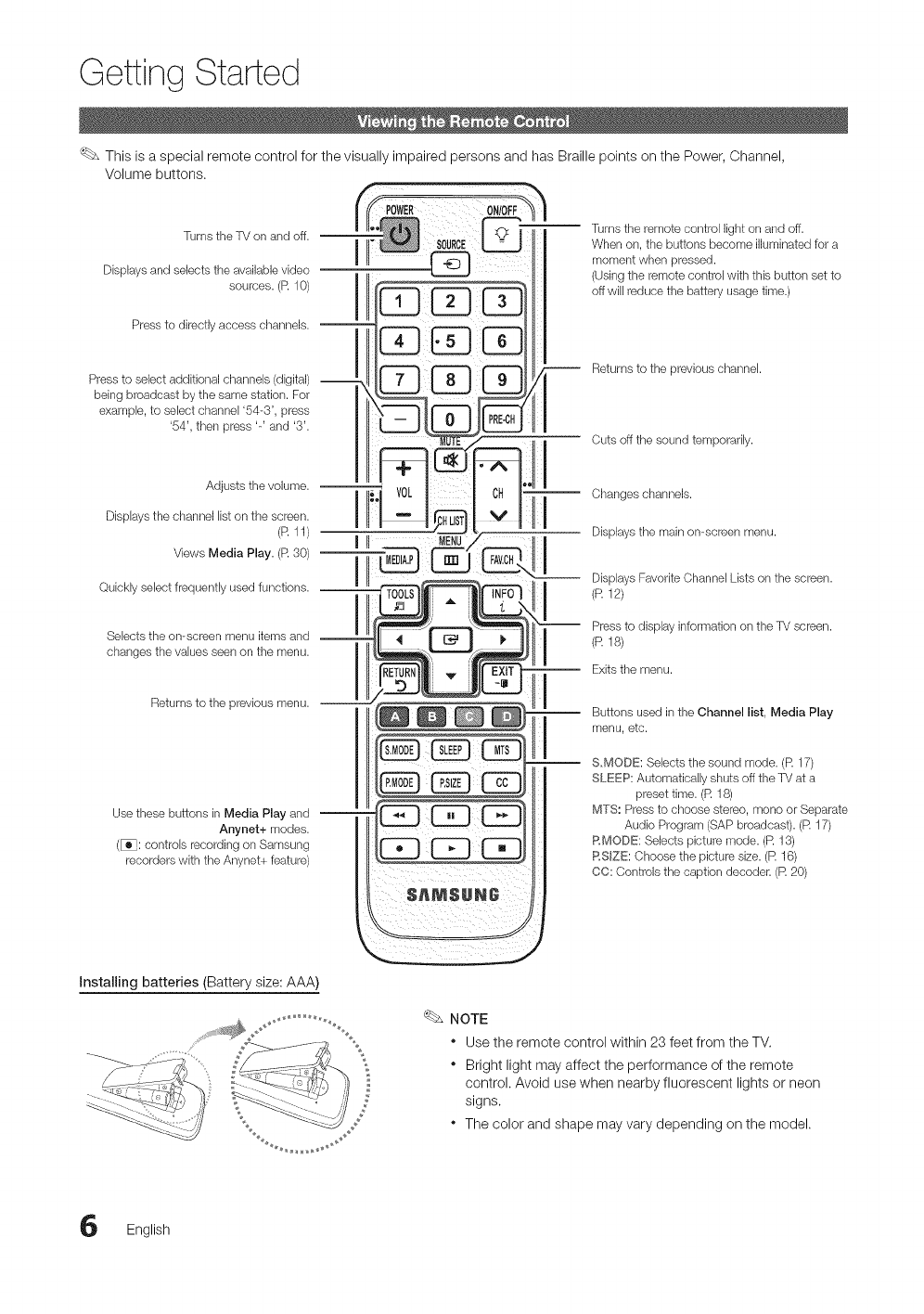

Getting Started

This is a special remote control for the visually impaired persons and has Braille points on the Power, Ohannel,

Volume buttons.

Turns the TV on and off. -- I

Dbplays and selects the available video |

sources. (R 10) I

Press to directly access ctlanneb. --

-- Turns the remote control light on and off.

When on, the buttons become illuminated for a

moment when pressed.

(Using the remote control with this button set to

off will reduce the battery usage time.)

Press to select additional channels (digital) --

being broadcast by the same station. For

example, to select channel '54-3', press

'54', then press '-' and '3'.

Returns to the previous ctlannel.

Cuts off the sound temporarily.

Adjusts the volume. --

Displays the channel list on the screen.

(R 11)

Vbws Media Play. (R 30) --

Quickly select frequently used functions. --

Selects the on-screen menu items and --

changes the values seen on the menu.

Returns to the previous menu. --

Use these buttons in Media Play and --

Anynet+ modes.

(_: controls recording on Samsung

recorders with the Anynet+ feature)

SUNG¸

Changes channels.

Displays the main on-screen menu.

Displays Favorite Channel Lists on the screen.

(R f2)

Press to display information on the TV screen.

(R f8)

Exits the menu.

Buttons used in the Channel list, Media Play

menu, etc.

S,MODE: Selects the sound mode. (R 17)

SLEEP: Automatically shuts off the TV at a

preset time. (R 18)

MTS: Press to choose stereo, mono or Separate

Audio Program (SAP broadcast). (R 17)

RMODE: Selects picture mode. (R 13)

RqZE: Choose the picture size. (R 16)

CC: Controls the caption decoder. (R 20)

Installing batteries (Battery size: AAA)

NOTE

"Use the remote control within 23 feet from the TV.

"Bright light may affect the performance of the remote

control. Avoid use when nearby fluorescent lights or neon

signs.

"The color and shape may vary depending on the model.

English

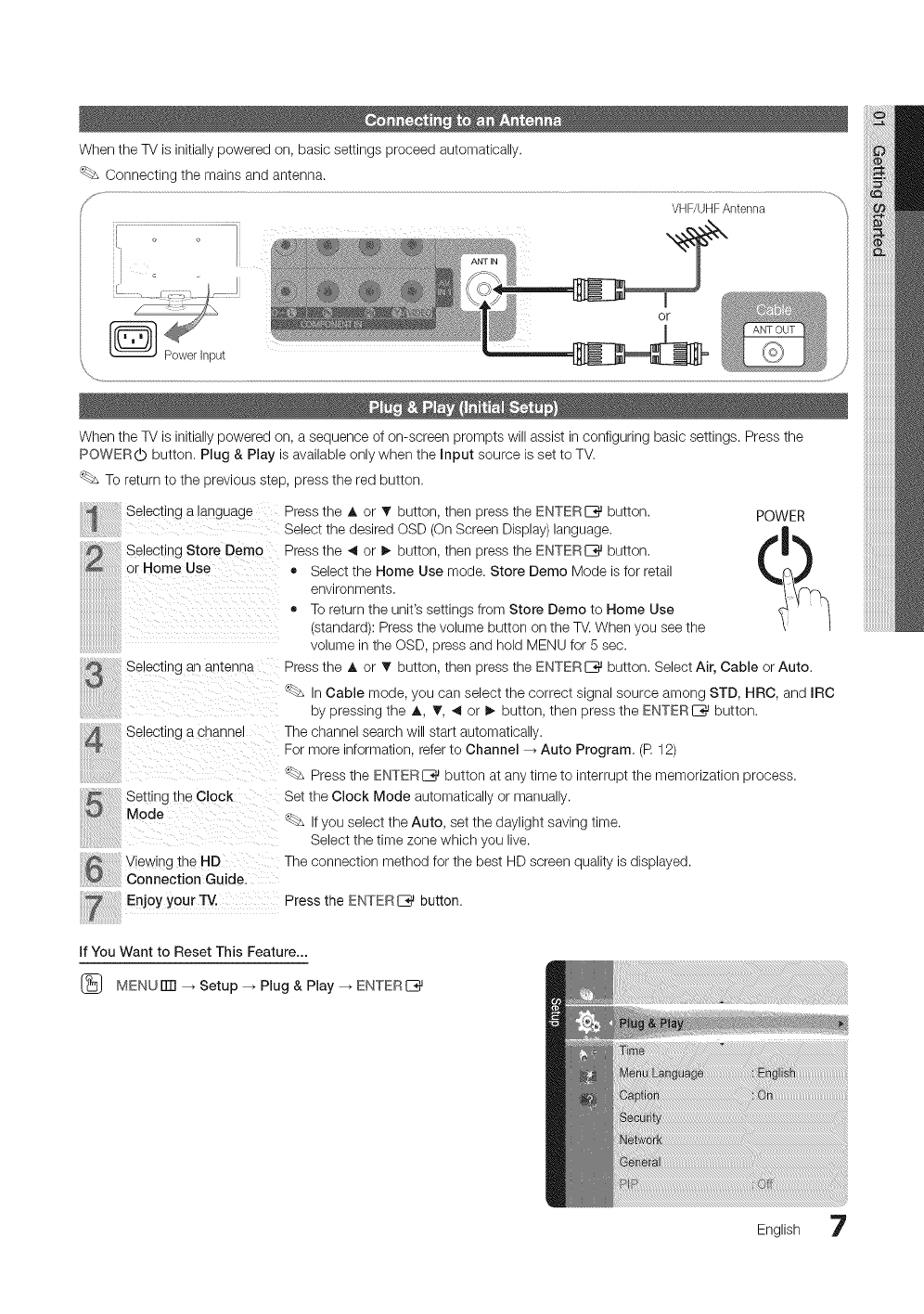

WhentheTVisinitiallypoweredon,basicsettingsproceedautomatically.

Connectingthemainsandantenna.

WhentheTVisinitiallypoweredon,asequenceofon-screenpromptswillassistinconfiguringbasicsettings.Pressthe

POWER(bbutton.Plug&PlayisavailableonlywhentheInputsourceissettoTV.

Toreturntothepreviousstep,presstheredbutton.

SelectingaJanguagePresstheAorTbutton,thenpresstheENTERE_button. POWER

SelectthedesiredOSD(OnScreenDisplay)language.

SelectingStoreDemoPressthe_1or!_button,thenpresstheENTERE_button.

orHome Use ,_ Select the Home Use mode. Store Demo Mode is for retail

environments.

• To return the unit's settings from Store Demo to Home Use

stanoaro): Press the volume button on the TV. When you see the

olume intne OSD, press and hold MENU for 5 sec.

Selecting an antenna Press the A or T button, then press the ENTERI_ button. Select Air, Cable or Auto.

_ - Cable mode, you can select the correct signal source among STD, HRC, and IRC

by pressing the A, T, ,_ or I_ button, then press the ENTERI_ button.

Selecung a channel The cnannel searcn will start automatically.

For more information, refer to Channel --_ Auto Program. (R 12)

Press the ENTERI_ button at any time to interrupt the memorization process.

Setting the Clock Set the Clock Mode automatically or manually.

Mode _ _ jou select the Auto, set the daylight saving time.

Select the time zone which you live.

The connection method for the best HD screen quality is displayed.Viewing the HD

Connection Guide.

Enjoy your TV. Press the ENTER I_ button.

If You Want to Reset This Feature...

(_ MENUiTrl --_ Setup _ Plug & Play _ ENTERI_

English 7

Connections

Using an HDMI /DVI Cable: HD connection (up to 1080p)

We recommend using the HDMI connection for the best quality HD picture. Available devices: DVD, Blu-ray player, HD cable

box, HD satellite receiver (STB). @

W-_-___ x t ''_ ''''_ )

HDM111/I{DVI), 2, 3, 4 /PC/DW AUDIO IN

•When using an HDMI/DVl cable connection, you must use the HDMI IN 1(DVI)jack for video. A DVD, Blu-ray

player, HD cable box, HD STB satellite receiver, cable box, or STB satellite receiver may require a DVI-HDMI (DVl

to HDMI) cable or DVI-HDMI (DVl to HDMI) adapter. The PC/DVl AUDIO IN jack is required for audio.

• If an external device such as a DVD /Blu-ray player /cable box /satellite receiver (Set-Top Box) supporting an

HDMI versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display /no sound /

annoying flicker abnormal Color).

• If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you

suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and request

an upgrade.

•It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a

connection error may occur.

Using a Component Cable: (up to 1080p), Using an Audio/Video Cable: (480i only)

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

COMPONENT IN 1, 2/AV IN 1:

When connecting to AV IN 1, the

color of the AV IN 1 [Y/VIDEO] jack

(Green) does not match the color of

the video cable (Yellow).

For better picture quality, the

Component connection is

English

Using an Optical (Digital) or Audio (Analog) Cable Connection

Available devices: Digital Audio System, Amplifier, Home Theater

DIGmTALAUDIO OUT (OPTICAL}

° When a Digital Audio System is connected to the D_G_TALAUDIO OUT (OPTICAL) jack, decrease the volume

of both the TV and the system, ::i

• 5,1 OH (channel) audio is available when the TV is connected to an external device supporting 5,1 OH, ::i

• When the receiver (home theater) is set to on, you can hear sound output from the TV's optical jack. When the

TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver, When the source is

a digital component such as a DVD /Blu-ray player /cable box /STB (Set-Top-Box) satellite receiver and is

connected to the TV via HDMI, only 2 CH audio will be heard from the home theater receiver, If you want to

hear 5,1 OH audio, connect the digital audio out jack from your DVD /Blu-ray player /cable box /STB satellite

receiver directly to an amplifier or home theater. ::i

AUDIO OUT: Connects to the audio input jacks on your amplifier/home theater.

• When connecting, use the appropriate connector (sold separately). ili

° When an audio amplifier is connected to the AUDIO OUT jacks: Decrease the volume of the TV and adjust the

volume level with the amplifier's volume control,

Using an HDMI/DVl Cable /a D-sub Cable

English 9

Connections

Display Modes (D-Sub and HDMI/DVl Input)

Optimal resolution is 1920X1080@60Hz.

IBM

MAC

VESA CVT

VESA DMT

VESA GTF

VESA DMT /DTV CEA

NOTE

640 x 350

720 x 400

640 x 480

832 x 624

1152x 870

720 x 576

1152x 864

1280 x 720

1280 x 960

640 x 480

800 x 600

1024 x 768

1152x 864

1280x1024

1280 x 800

1280 x 960

1280 x 720

1360 x 768

1440 x 900

1680x1050

1280 x 720

1280x1024

1920 x 1080p

31.469

35.000

49.726

68.681

35.910

53.783

56.456

75.231

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

67.500

63.981

79.976

49.702

62.795

60.000

45.000

47.712

55.935

70.635

65.290

52.500

74.620

67.500

70.086

70.087

66.667

74.551

75.062

59.950

59.959

74.777

74.857

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

75.000

60.020

75.025

59.810

74.934

60.000

60.015

59.887

74.984

59.954

70.000

60.000

• For HDMI/DVl cable connection, you must use the HDM_

• The interlace mode is not supported.

_NI(DW)jack.

• The set might operate abnormally if a non-standard video format is selected.

25.175

28.322

30.240

57.284

100.000

32.750

81.750

95.750

130.000

25.175

31.500

40.000

50.000

49.500

65.000

75.000

78.750

108.000

135.000

83.500

106.500

108.000

74.250

85.500

106.500

136.750

146.250

89.040

128.943

148.500

• Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

EX-LINK

+/-

-/+

-/-

-/+

-/-

+/+

-/-

+/+

-/+

+/+

-/+

-/-

+/+

Input Cables (Sold Separately)

Source List

[_ MENU[ill -_ Input -_ Source List -_ ENTERC_

Use to select TV or an external input sources

such as a DVD /Blu-ray player /cable box /

STB satellite receiver.

0English

[] TV /AV1 /AV2 /Component1 /Component2 /PC /

HDMI1/DVI /HDMI2 /HDMI3 /HDMI4 /USB

You can only choose external devices that

are connected to the TV. In the Source List,

connected inputs will be highlighted.

PC always stay activated.

Edit Name

(_ MENUITTI _ input _ Edit Name _ ENTERI_

VCR /DVD /Cable STB /Satellite STB /PVR STB /AV Receiver /Game /Camcorder /PC /DV( PC /DV( Devices /

TV /(PTV /Bin-ray /HD DVD /DMA: Name the device connected to the input jacks to make your input source selection

easier.

When a PC with a resolution of 1920 x 1080 @60Hz is connected to the HDM( )N I(DW) port, you should set to

DVl PC mode under Edit Name.

When connecting an HDMI/DVI cable to the HDM( )N I(DW) port, you should set to DV( PC or DVI Devices mode

under Edit Name.

Basic Features

Before usinq the T_, follow the steps below to learn how to

navk ate the menu and select and adjust different functions.

O MENU button: Displays the main on-screen menu.

ENTERE_ /Direction button: Move the cursor and

select an item. Confirm the setting,

RETURN button: Returns to the previous menu.

O EXIT button: Exits the on-screen menu.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

MEN U rrrl The main menu options appear on

!il thescreen:

i !il i P,cture,Sound,Channe,,Sotup,

Input, Application, Support,

A! _ Select an icon with the A or

button,

ENTER IZ_

ENTER E_ Press ENTERI_ to confirm the

selection.

EX)T -4j Press EXIT.

Press ENTERI_ to access the

sub-menu.

Select the desired submenu with

the A or _' button.

Adjust the value of an item with the

or _ button. The adjustment in

the OSD may differ depending on

the selected menu.

Seeing Channels

Channel List

(_ MENUiTrl _ Channel --+ Channel List _ ENTERIZ_

Add, delete or set Favorite channels and use

the program guide for digital broadcasts.

Select a channel in the All Channels, Added

Channels, Favorite or Programmed

screen by pressing the A /T buttons, and

pressing the ENTERIZ_ button. Then you

can watch the selected channel.

Ill {_ AII Channels: Shows all currently available

channels.

Ill _ Added Channels: Shows all added channels.

Ill _ Favorite: Shows all favorite channels.

Ill {_ Programmed: Shows all currently reserved

programs.

English 11

Basic Features

Using the color buttons with the Channel List

" U Red (Antenna): Switches to Air or Cable.

. _ Green (Zoom): Enlarges or shrinks a channel

number.

" _ Yellow (Select): Selects multiple channel lists.

Select desired channels and press the Yellow button

to set all the selected channels at the same time. The

,7 mark appears to the left of the selected channels.

" 0 (Page): Move to next or previous page.

" _-_ (Tools): Displays the Channel List option menu.

(The Options menus may differ depending on the

situation.)

Channel Status Display icons

Using Favorite Channels

(_ MENUiTrl --_ Channel _ Channel List _ ENTERI_

Add to Favorite /Deletefrom Favorite

Set channels you watch frequently as

Favorites.

1. Select a channel and press the TOOLS

button.

2. Add or delete a channel using the Add to

Favorite or Delete from Favorite menu

respectively.

Memorizing channels

(_ MENUiTrl _ Channel --_ ENTERE_

Antenna (Air /Cable)

Before your television can begin memorizing the available

channels, you must specify the type of signal source that is

connected to the TV (i.e. an Air or a Cable system).

Auto Program ..........................................................................................................................................................................................

Ill Air: Air antenna signal.

Ill Cable: Cable antenna signal.

Ill Auto: Air and Cable antenna.

NOTE

" When selecting the Cable TV system: Selects the

cable system. STD, HRC and mRCidentify various

types of cable TV systems. Contact your local cable

company to identify the type of cable system that

exists in your particular area. At this point, the signal

source has been selected.

" After all the available channels are stored, it starts

to remove scrambled channels. The Auto program

menu then reappears.

How to Stop Auto Programming

1. Press the ENTERC_ button.

2. A message will ask Stop Auto Program? Select Yes by

pressing the _ or !_ button.

3. Press the ENTERI_ button.

Editing channels

(_ MENUiTrl _ Channel --_ Channel List _ ENTERI_

Channel Name Edit

1. Select a channel and press the TOOLS button.

2. Edit the channel name using the Channel Name Edit

menu.

Ill Channel Name Edit (analog channels only): Assign your

own channel name.

Other Features

(_ MENUiTrl _ Channel --_ ENTERI_

Clear Scrambled Channel

This function is used to filter out scrambled channels after

Auto Program is completed. This process may take up to

20-30 minutes.

2 English

How to Stop Searching Scrambled Channels

1. Press the ENTERIZ_ button to select Stop.

2. Press the _ button to select Yes.

3. Press the ENTER[_ button.

This function is only available in Cable mode.

Channel List

(_ MENUiTR --_ Channel _ Channel List _ ENTER_

Channel List Option Menu

Set each channel using the Channel List menu options (Add/

Delete, Timer Viewing, Select All/Deselect All), Option

menu items may differ depending on the channel status.

1. Select a channel and press the TOOLS button.

2. Select a function and change its settings.

Ill Add /Delete: Delete or add a channel to display the

channels you want.

NOTE

* All deleted channels will be shown on the All

Channels menu.

* A gray-colored channel indicates the channel

has been deleted.

* The Add menu only appears for deleted

channels.

* Delete a channel from the Added Channels or

Favorite menu in the same manner.

Ill Timer Viewing: You can set a desired channel to be

displayed automatically at the intended time. Set the

current time first to use this function. (R 18)

1. Press the 41 /I_/A /T buttons to select the

desired channel in Channel List,

2. Press the TOOLS button, then select Timer Viewing.

3. Scroll up or down to adjust the settings in the box,

or use the numeric buttons on your remote for

entering the date and time.

If you selected Once, Every Week or Every Day

in Repeat, you can enter the date you want.

4. SelectOK, then pressthe ENTER_ button when done,

NOTE

* Only memorized channels can be reserved.

* Reserved programs will be displayed in the

Programmed menu.

* When a digital channel is selected, press the I_

button to view the digital program.

Ill Select All: Select all the channels in the channel list.

Ill Deselect All: Deselect all the selected channels.

You can only select Deselect All when one or

more channels are selected.

Programmed

(in Channel List)

You can view, modify or delete a a show you have reserved

to watch.

1. Press the ENTER_ button to select Channel List,

2. Press the ,_ and T button move to the Programmed

menu.

Ill Change Info: Change a show you have reserved to

watch,

Ill Cancel Schedules: Cancel a show you have reserved

to watch,

Ill Information: Display a show you have reserved

to watch, (You can also change the reservation

Information,)

Ill Select All /Deselect All: You can select or deselect all

channels in the channel list.

Fine Tune

(analog channels only)

If the reception is clear, you do not have to fine tune the

channel, as this is done automatically during the search and

store operation. If the signal is weak or distorted, fine tune

the channel manually.

• Select Fine Tune in the Channel menu.

Fine tuned channels that have been saved are marked

with an asterisk ..... on the right-hand side of the

channel number in the channel banner.

To reset the fine-tuning, select Reset.

Changing the Preset Picture Mode

[_ MENUITTI _ Picture _ Mode -* ENTERE_

Mode

Select your preferred picture type by pressing

the P,MODE button,

Ill Dynamic: Suitable for a bright room.

Ill Standard: Suitable for a normal

environment.

Ill Natural : Suitable for an eye comfortable display.

Natural is not available in PC mode.

Ill Movie: Suitable for watching movies in a dark room.

English 13

Basic Features

Adjusting picture settings

(_ MENUrlTI _ Picture _ Backlight _ ENTERI_

Backlight /Contrast /Brightness /

Sharpness /Color /Tint (G/R)

Your television has several setting options for picture quality

control.

NOTE

* When you make changes to Backlight, Contrast,

Brightness, Sharpness, Color or Tint (G/R) the

OSD will be adjusted accordingly.

* In PC mode, you can only make changes to

Backlight, Contrast and Brightness.

* Settings can be adjusted and stored for each

external device connected to the TV.

* Lowering picture brightness reduces power

consumption.

Economical Solutions

ECO Solution

(_ MENU rlTl _ Picture _ ECO Solution _ ENTERI_

Ill Energy Saving (Off /Low /Medium /High /Picture

Off /Auto): This adjust the brightness of the TV in order

to reduce power consumption. If you select Picture

Off, the screen isturned off, but the sound remains on.

Press any button to turn on the screen again.

Ill Eco Sensor (Off /On): To enhance your power savings;

the picture settings will automatically adapt to the light

in the room.

If you adjust the Backlight, the Eco Sensor will

be set to Off.

Min Backlight: When ECO sensor is On, the minimum

screen brightness can be adjusted manually.

If Eco Sensor is On, the display brightness may

change (become slightly darker in most cases)

depending on the surrounding light intensity.

Ill No Signal Power Off (Off /15 min. /30 min. /

60 rain.)

Sets how quickly the TV switches to standby mode, if no

picture is being received.

Disabled when the PC is in power saving mode.

Setting up the TV with your PC

Set the input source to PC.

Auto Adjustment _ .................................................................................

(_ MENU rlTI _ Picture _ Auto Adjustment

ENTER E_

Adjust frequency values/positions and fine tune the settings

automatically.

Not available when connecting through HDMI/DVI

cable.

Screen

Ill Coarse /Fine: Removes or reduces picture noise. If the

noise is not removed by Fine-tuning alone, then adjust

the frequency as best as possible (Coarse) and Fine-

tune again. After the noise has been reduced, readjust

the picture so that it is aligned to the center of screen.

Ill Position: Adjust the PC's screen positioning if it does

not fit the TV screen. Press the A or T button to adjust

the Vertical-Position. Press the _ or !_ button to adjust

the Horizontal-Position.

Ill image Reset: Resets the image to default settings.

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP)

Depending on the version of Windows and the video card,

the actual screens on your PC will probably look different, but

the same basic set-up information will apply in most cases.

(Ifnot, contact your computer manufacturer or Samsung

Dealer.)

1. Click on "Control Panel" on the Windows start menu.

2. Click on "Appearance and Themes" in the "Control

Panel" window and a display dialog-box will appear.

3. Click on "Display" and a display dialog box will appear.

4. Navigate to the "Settings" tab on the display dialog-box.

• The correct size setting (resolution) [Optimum: 1920 X

1080 pixels]

• If a vertical-frequency option exists on your display

settings dialog box, the correct value is '60' or '60 Hz'.

Otherwise, just click 'OK' and exit the dialog box.

4 English

Changing the Picture Options

Advanced Settings

(_ MENUiTR _ Picture _ Advanced Settings

ENTER 1_

(available in Standard /Movie mode)

Compared to previous models, new Samsung TVs have

more precise pictures.

In PC mode, you can only make changes to Dynamic

Contrast, Gamma and White Balance.

Black Tone (Off /Dark /Darker /Darkest): Select the

black level to adjust the screen depth.

Dynamic Contrast (Off /Low /Medium /High):

Adjust the screen contrast.

Shadow Detail: Increase the brightness of dark images.

Disabled under PC mode.

Gamma: Adjust the primary color intensity.

Expert Pattern (Off /Pattern 1 /Pattern 2): By

running the Expert Pattern function, the picture can be

calibrated without a generator or filter. If the OSD menu

disappears or a menu other than the Picture menu is

opened, the calibration is saved and the Expert Pattern

window disappears.

While the Expert Pattern is running, sound is not

outputted.

Only enabled on DTV /Component /HDMI.

RGB Only Mode (Off/Red /Green /Blue): Displays

the Red, Green and Blue color for making fine

adjustments to the hue and saturation.

Color Space (Auto /Native /Custom): Adjust the

range of colors available to create the image. To adjust

Color, Red, Green, Blue and Reset, set Color Space

to Custom,

White Balance: Adjust the color temperature for a more

natural picture.

R-Offset /G-Offset /B-Offset: Adjust each color's

(red, green, blue) darkness.

R-Gain /G-Gain /B-Gain: Adjust each color's (red,

green, blue) brightness.

Reset: Resets the White Balance to it's default

settings.

m 10p White Balance (Off /On): Controls the white

balance in 10 point interval by adjusting the red, green,

and blue brightness.

Available when the picture mode is set to Movie

and when the external input is set to HDMI or

Component.

Some external devices may not support this

function.

Interval: Select interval to adjust.

Red: Adjust the red level.

Green: Adjust the green level.

Blue: Adjust the blue level.

Reset: Resets the 10p White Balance to its default

settings.

Ill Flesh Tone: Emphasize pink "Flesh Tone."

Ill Edge Enhancement (Off/On): Emphasize object

boundaries.

mxvYCC (Off /On): Setting the xvYCC mode on

increases detail and color space when watching movies

from an external device (e.g. DVD player) connected to

the HDMI or Component IN jacks.

Available when the picture mode is set to Movie

and when the external input is set to HDMI or

Component.

Some external devices may not support this

function.

Picture Options

(_ MENU iTR _ Picture --_ Picture Options

ENTER I_

In PC mode, you can only make changes to the Color

Tone, Size and Digital Noise Filter.

mColor Tone (Cool /Normal /Warm1 /Warm2)

Warm1 or Warm2 will be deactivated when the

picture mode is Dynamic.

Settings can be adjusted and stored for each

external device connected to an input on the TV.

English 15

Basic Features

Size: Your cable box/satellite receiver

may have its own set of screen sizes as

well. However, we highly recommend

you use 16:9 mode most of the time.

16:9: Sets the picture to 16:9 wide

mode.

Zoom1 : Use for moderate magnification.

Zoom2: Use for a stronger magnification.

Wide Fit: Enlarges the aspect ratio of the picture to fit

the entire screen.

4:8: Sets the picture to basic (4:8) mode.

Do not watch in 4:3 format for a long time. Traces

of borders displayed on the left, right and center

of the screen may cause image retention (screen

burn) which are not covered by the warranty.

Screen Fit: Displays the fuji image without any cut-off

when HDMI (720p /1080i /1080p) or Component

(1080i /1080p) signals are inputted.

NOTE

" After selecting Zoom1, Zoom2 or Wide Fit:

1. Press the I_ button to select Position.

2. Press the ENTERIZ_ button.

3. Press the A or • button to move the picture up

or down.

4. Press the ENTERIZ_ button.

5. Press the I_ button to select Reset.

6. Press the ENTERI_ button to reset the picture

to its default position.

• After selecting Screen Fit in HDMI (1080i/1080p) or

Component (1080i/1080p) mode, you may need to

center the picture:

1. Press the _ or _ button to select Position.

2. Press the ENTERI_ button.

3. Press the A, _', _ or !_ button to move the

picture.

4. Press the ENTERIZ_ button.

5. Press the _ or _- button to select Reset,

6. Press the ENTERI_ button.

* HD (High Definition): 16:9 - 1080i/1080p (1920x1080),

720p (1280x720)

* Settings can be adjusted and stored for each

external device you have connected to an input on

the TV.

ATe, AV, 16:9, Zoom1,

Component (480i, 480p) Zoom2, 4:3

DTV(1080i), 16:9, 4:3, Wide Fit,

Component (1080i, 1080p), Screen Fit

HDMI (720p, 1080i, 1080p)

PC 16:9, 4:3

m Digital Noise filter (Off /Low /Medium /High /Auto /

Auto Visualization): If the broadcast signal received

by your TV is weak, you can activate the Digital Noise

filter feature to reduce any static and ghosting that may

appear on the screen.

When the signal is weak, try other options until the

best picture is displayed.

Auto Visualization: When changing analog channels,

displays signal strength,

Only available for analog channels,

When bar is green, you are receiving the best

possible signal.

m MPEG Noise Filter (Off /Low /Medium /High /

Auto): Reduces MPEG noise to provide an improved

picture quality.

Disabled under PC mode.

Ill HDMI Black Level (Normal /Low): Selects the black

level on the screen to adjust the screen depth.

Available only in HDMI mode (RGB signals),

Ill Film Mode (Off /Auto1 /Auto2): Sets the TV to

automatically sense and process film signals from all

sources and adjusts the picture for optimum quality.

Available in TV, AV, COMPONENT (480i/1080i)

and HDMI (480i/1080i).

Ill Auto Motion Plus 120Hz (Off /Clear /Standard /

Smooth /Custom /Demo): Enhances motion in fast

moving scenes.

Ill Auto Protection Time (2 hours /4 hours /8 hours

/10 hours /Off): If the screen remains idle with a still

image for a certain period of time defined by the user,

the screen saver is activated to prevent the formation of

ghost images on the screen,

Picture Reset (OK /Cancel)

Resets your current picture mode to its default settings.

6 English

Changing the Preset Sound Mode

(_ MENU FITI--_ Sound --_ SRS TheaterSound -_

ENTER I_

SRS TheaterSound

Ill Standard: Selects the normal sound

mode.

Ill Music: Emphasizes music over voices.

Ill Movie: Provides the best sound for

movies.

Clear Voice: Emphasizes voices over other sounds.

Amplify: Increase the intensity of high-frequency sound

to allow a better listening experience for the hearing

impaired.

Adjusting sound settings

(_ MENUrlTI _ Sound -, Equalizer-_ ENTERE_

Equalizer

Adjusts the sound mode.

Ill Balance L/R: Adjusts the balance between the right and

left speaker.

Ill 100Hz /300Hz /1KHz /3KHz /10KHz (Bandwidth

Adjustment): Adjusts the level of specific bandwidth

frequencies.

Ill Reset: Resets the equalizer to its default settings.

Sound Systems, Etc.

SRS TruSurround HD (Off /On).............................

(standard sound mode only)

This function provides a virtual 5.1 channel surround sound

experience through a pair of speakers or headphones using

HRTF (Head Related Transfer Function) technology.

SRS TruDia Iog (Off! On )......................................................................................................................

(standard sound mode only)

Dialog Clarity emphasizes voice while maintaining the

background sound level.

Preferred Language ..................................................................................................................................................

(digital channels only)

DigitaI-TV broadcasts are capable of

simultaneous transmission of many audio

tracks (for example, simultaneous translations

of the program into foreign languages),

You can only select a language among

the ones being broadcasted.

MultFTrack Sound (MTS)

(analog channels only)

Ill Mono: Choose for channels that are

broadcasting in mono or if you are

having difficulty receiving a stereo signal.

Ill Stereo: Choose for channels that are

broadcasting in stereo.

Ill SAP: Choose to listen to the Separate

Audio Program, which is usually a foreign-language

translation.

Depending on the particular program being

broadcasted, you can listen to Mono, Stereo or SAR

Auto Volume (Off /Normal /Night)

To equalize the volume level on each channel, set to Normal.

Ill Night: This mode provides an improved sound

experience compared to Normal mode, making almost

no noise. It is useful at night.

Speaker Select

(External Speaker /TV Speaker} ......................................

A sound echo may occur due to a difference in decoding

speed between the main speaker and the audio receiver. In

this case, set the TV to External Speaker,

When Speaker Select is set to External Speaker, the

volume and MUTE buttons will not operate and the

sound settings will be limited,

When Speaker Select is set to External Speaker, you

should use these settings.

* TV Speaker: Off, External Speaker: On

When Speaker Select is set to TV Speaker, you

should use these settings,

* TV Speaker: On, External Speaker: On

If there is no video signal, both speakers will be mute.

English 17

Basic Features

SPDIF Output

SPDIF (Sony Philips Digital Interface)is used to provide digital

sound, reducing interference going to speakers and various

digital devices such as a DVD player.

[] Audio Format: During the reception of a digital TV

broadcast, you can select the Digital Audio output

(SPDIF)format from the options PCM or Dolby Digital.

By connecting to 5.1ch speakers in a dolby

digital setup, maximize your interactive 3D sound

experience.

[] Audio Delay: Correct audio-video mismatch, when

watching TV or video, and listening to digital audio

output using an external device such as an AV receiver

(0ms - 250ms).

Sound Reset

Reset all sound settings to the factory defaults.

Setting the Time

[_ MENUmI -_ Setup -_ Time -_ ENTERE_

Time

The current time will appear every time you press the

_NFO button.

[] Clock: Setting the clock isfor using various timer

features of the TV.

If you disconnect the power cord, you have to set

the clock again,

Clock Mode: Set up the current time manually or

automatically.

Auto: Set the current time automatically using the

time from a digital channek

The antenna must be connected in order to set

the time automatically,

Manual: Set the current time manually.

Depending on the broadcast station and signal,

the auto time set up may not be correct, in this

case, set the time manually.

Clock Set: Set the Month, Day, Year, Hour, Minute

and am/pm.

Available only when Clock Mode is set to

Manual.

You can set the month, day, year, hour and minute

directly by pressing the number buttons on the

remote control.

[]

DST (Daylight Saving Time) (Off/On): Switches the

Daylight Saving Time function on or off.

This function is only available when the Clock

Mode is set to Auto.

Time Zone: Select your time zone.

This function is only available when the Clock

Mode is set to Auto.

Using the Sleep Timer

MENU rlTI _ Setup _ Time _ Sleep Timer

ENTER 1_

Sleep Timer _ :Automatically

shuts off the TV after a preset period

of time. (30, 60, 90, 120, 150 and 180

minutes).

To cancel the Sleep Timer, select

Off.

Setting the On/Off Timer

[_ MENU rlTI _ Setup --_ Time --_ Timer 1

ENTER I_

[] Timer 1 /Timer 2 /Timer 3: Three different on /off

timer settings can be made. You must set the clock first.

On Time /Off Time: Set the hour, minute, am/pm and

activate/inactivate. (To activate the timer with the setting

you've chosen, set to Activate.)

Volume: Set the desired volume level.

Source: Select TV or USB content to be played when

the TV is turned on automatically. (USB can be selected

only when a USB device is connected to the TV)

Antenna (when the Source is set to rv): Select Air or

Cable.

8 English

Channel(whentheSourceissettorv):Selectthe

desiredchannel.

Contents(whentheSourceissettoUSB):Selecta

folderintheUSBdevicecontainingmusicorphotofiles

tobeplayedwhentheTVisturnedonautomatically.

IfthereisnomusicfileontheUSBdeviceorthe

foldercontainingamusicfileisnotselected,the

Timerfunctiondoesnotoperatecorrectly.

WhenthereisonlyonephotofileintheUSB,the

SlideShowwillnotplay.

Afolderwithtoolongofanamecannotbe

selected.

EachUSByouuseisassigneditsownfolder.

Whenusingmorethanoneofthesametypeof

USB,makesurethefoldersassignedtoeachUSB

havedifferentnames,

Repeat:SelectOnce,Everyday,Mon~Fri,Mort~Sat,

Sat~SunorManualtosetatyouconvenience.Ifyou

selectManual,youcansetupthedayyouwantto

activatethetimer.

The_/markindicatesthedayisselected.

AutoPowerOff(availableonlywhentheTVisturned

onbytheTimer):TheTVwillbeautomaticallyturnedoff

after3hoursofbeingleftidletopreventoverheating.

Locking Programs

(_ MENUiTr] _ Setup _ Security _ ENTER[_

Security

The PIN input screen appears, Enter your 4 digit PIN number.

Ill V-Chip: The V-Chip feature automatically locks out

programs that are deemed inappropriate for children.

The user must enter a PIN (personal identification

number) before any of the V-Chip restrictions are set up

or changed.

NOTE

* V-Chip is not available in HDMI, Component

or PC mode.

* The default PIN number of a new TV set is

"0-0-0-0".

* Allow all: Press to unlock allTV ratings.

* Block all: Press to lock all TV ratings.

V-Chip Lock (Off/On): You can block rated TV

Programs.

TV Parental Guidelines: You can block TV programs

depending on their rating. This function allows you to

control what your children are watching,

IV-Y: Young children /TV-Y7: Children 7 and over /

rV-G: General audience/TV-PG: Parental guidance/

TV-14: Viewers 14 and over /TV-MA: Mature

audience

ALL: Lock all TV ratings. /FV: Fantasy violence /

V: Violence /S: Sexual situation /L: Adult Language /

D: Sexually Suggestive Dialog

The V-Chip will automatically block certain

categories dealing with more sensitive material.

For example, if you block the TV-Y category,

then TV-Y7 will automatically be blocked.

Similarly, if you block the TV-G category, then

all the categories in the young adult group will

be blocked (TV-G, TV-PG, TV-14 and TV-MA),

The sub-ratings (D, L, S, V) work similarly. So,

if you block the L sub-rating in TV-PG, then

the L sub-ratings in TV-14 and TV-MA will

automatically be blocked.

MPAA Rating: You can block movies depending on

their MPAA rating, The Motion Picture Association of

America(MPAA) has implemented a rating system that

provides parents or guardians with advanced information

on which films are appropriate for children.

G: General audience (no restrictions). /PG: Parental

guidance suggested. /PG-13: Parents strongly

cautioned. /R: Restricted. Children under 17 should

be accompanied by an adult. /NO-17: No children

under age 17./X: Adults only. /NR: Not rated.

The V-Chip will automatically block any

category that deals with more sensitive material.

For example, if you block the PG-13 category,

then R, N0-17 and X will automatically be

blocked.

Canadian English: You can block TV programs

depending on their Anglophone Canadian.

C: Programming intended for children under age 8. /

08+: Programming generally considered acceptable

for children 8 years and over to watch on their own. /

G: General programming, suitable for all audiences. /

PG: Parental Guidance. /14+: Programming

contains themes or content which may not be

suitable for viewers under the age of 14. /18+: Adult

programming.

The V-Chip will automatically block any

category that deals with more sensitive material.

For example, if you block the G category, then

PG, 14+ and 18+ will automatically be blocked.

English 19

Basic Features

Canadian French: You can block TV programs

depending on their French Canadian rating,

G: General/8 ans+: Programming generally

considered acceptable for children 8 years and over

to watch on their own. /13 arts+: Programming may

not be suitable for children under the age of 13. /

16 ans+: Programming is not suitable for children

under the age of 16. /18 arts+: Programming

restricted to adults.

The V-Chip will automatically block any

category that deals with more sensitive material.

For example, if you block the 8 ans+ category,

then 13 arts+, 16 arts+ and 18 ans+ will

automatically be blocked also.

Downloadable U.S. Rating: Parental restriction

information can be used while watching DTV channels.

NOTE

* If information is not downloaded from the

broadcasting station, the Downloadable U.S.

rating menu is deactivated.

* Parental restriction information is automatically

downloaded while watching DTV channels. It

may take several seconds.

* The Downloadable U.S. rating menu

is available for use after information is

downloaded from the broadcasting station.

However, depending on the information from

the broadcasting station, it may not be available

for use.

* Parental restriction levels differ depending on

the broadcasting station. The default menu

name and Downloadable US rating change

depending on the downloaded information.

* Even if you set the on-screen display to another

language, the Downloadable U.S. Rating

menu will appear in English only,

" The rating will automatically block certain

categories that deal with more sensitive

material.

" The rating titles (For example: Humor Level..etc)

and TV ratings (For example: DH, MH, H,,etc)

may differ depending on the broadcasting

station,

Change PIN: The Change PIN screen will appear.

Choose any 4 digits for your PIN and enter them. As

soon as the 4 digits are entered, the Confirm New

PIN screen appears. Re-enter the same 4 digits. When

the Confirm screen disappears, your PIN has been

memorized.

How to watch a restricted channel

If the TV istuned to a restricted channel, the V-Chip

will block it. The screen will go blank and the following

message will appear:

This channel is blocked by V-Chip. Please enter the PIN

to unblock.

If you forget the PIN, press the remote-control

buttons in the following sequence, which resets

the pin to "0-0-0-0" : POWER (off) -_ MUTE _ 8

-_ 2 -_ 4 _ POWER (on)

Other Features

(_ MENUiTrl _Setup--_ ENTERE__}_

Menu Language

Set the menu language.

1. Select Menu Language and press the ENTERIZ_ button.

2. Choose desired language and press the ENTERI_

button.

Choose between English, EspaSol and Fran£;ais.

Caption ............................................................................................................................................................................................

(On-Screen Text Messages)

Ill Caption (Off /On): You can switch the

caption function on or off. If captions are

not available, they will not be displayed

on the screen.

The Caption feature doesn't

work in Component, HDMI or PC

modes.

mCaption Mode: You can select the desired caption

mode.

The availability of captions depends on the

program being broadcasted.

Default /OO1 ~004 /Text1 ~Text4: (analog channels

only) The Analog Caption function operates in either

analog TV channel mode or when a signal is supplied

from an external device to the TV. (Depending on the

broadcasting signal, the Analog Caption function may or

may not work with digital channels.)

Default /Servbel ~Service6 /OO1~004 /

Text1 ~Text4: (digital channels only) The Digital Captions

function works with digital channels.

Service1~6 may not be available in digital caption

mode depending on the broadcast.

0 English

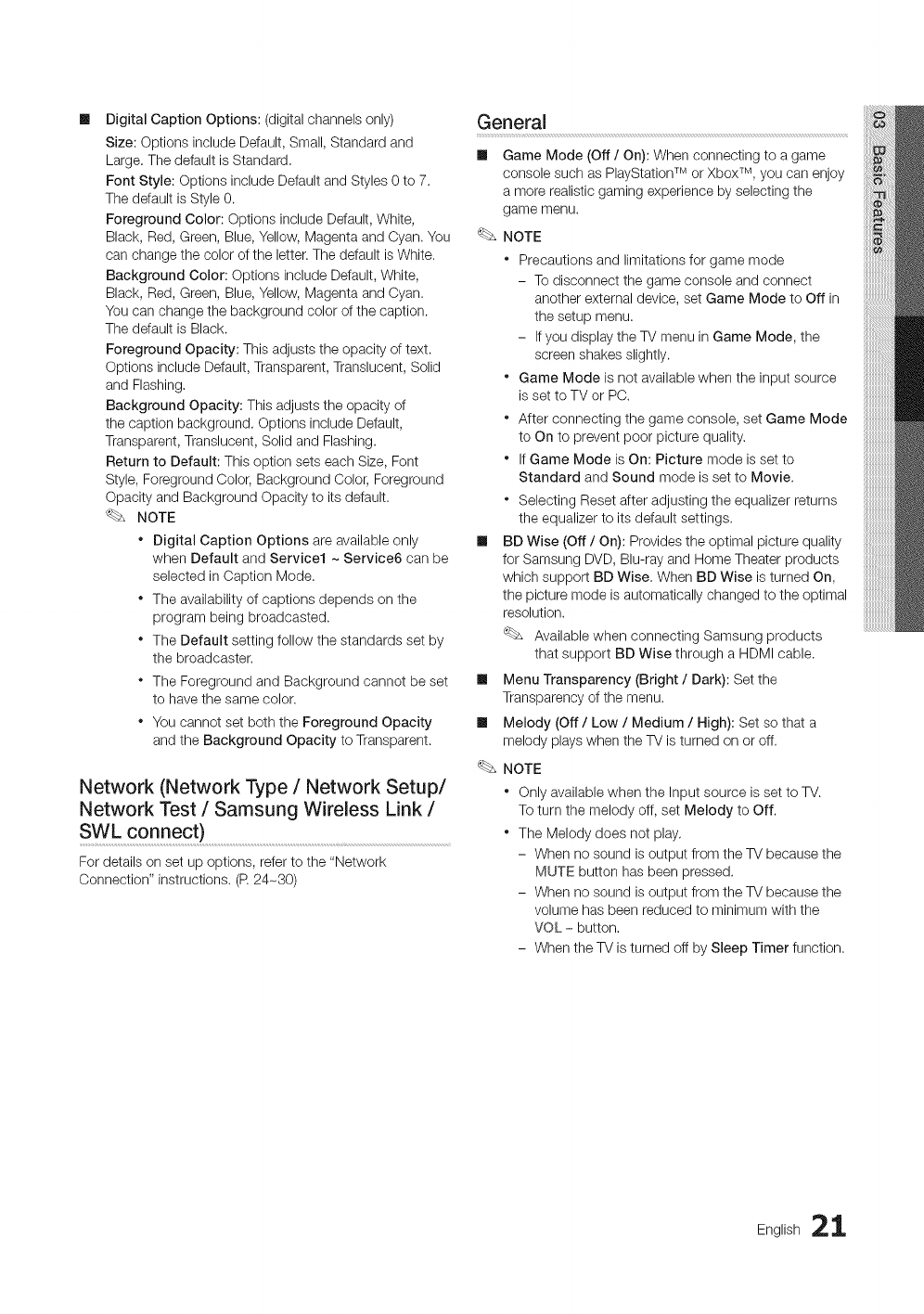

DigitalCaptionOptions:(digitalchannelsonly)

Size:OptionsincludeDefault,Small,Standardand

Large.ThedefaultisStandard.

FontStyle:OptionsincludeDefaultandStyles0to7.

ThedefaultisStyle0.

ForegroundColor:OptionsincludeDefault,White,

Black,Red,Green,Blue,Yellow,MagentaandCyan.You

canchangethecoloroftheletter.ThedefaultisWhite.

BackgroundColor:OptionsincludeDefault,White,

Black,Red,Green,Blue,Yellow,MagentaandCyan.

Youcanchangethebackgroundcolorofthecaption.

ThedefaultisBlack.

ForegroundOpacity:Thisadjuststheopacityoftext.

OptionsincludeDefault,Transparent,Translucent,Solid

andFlashing.

BackgroundOpacity:Thisadjuststheopacityof

thecaptionbackground.OptionsincludeDefault,

Transparent,Translucent,SolidandFlashing.

ReturntoDefault:ThisoptionsetseachSize,Font

Style,ForegroundColor,BackgroundColor,Foreground

OpacityandBackgroundOpacitytoitsdefault.

NOTE

* DigitalCaptionOptionsareavailableonly

whenDefaultandService1~Service6canbe

selectedinCaptionMode.

* Theavailabilityofcaptionsdependsonthe

programbeingbroadcasted.

* TheDefaultsettingfollowthestandardssetby

thebroadcaster.

* TheForegroundandBackgroundcannotbeset

tohavethesamecolor.

* YoucannotsetboththeForegroundOpacity

andtheBackgroundOpacitytoTransparent.

Network (Network Type /Network Setup/

Network Test /Samsung Wireless Link /

SWL connect) .............................................................................................................

For details on set up options, refer to the "Network

Connection" instructions. (R 24-30)

General

Ill Game Mode (Off /On): When connecting to a game

console such as PlayStation TM or Xbox TM, you can enjoy

a more realistic gaming experience by selecting the

game menu.

NOTE

* Precautions and limitations for game mode

- To disconnect the game console and connect

another external device, set Game Mode to Off in

the setup menu.

- If you display the TV menu in Game Mode, the

screen shakes slightly.

* Game Mode is not available when the input source

is set to TV or PC.

* After connecting the game console, set Game Mode

to On to prevent poor picture quality.

* If Game Mode is On: Picture mode is set to

Standard and Sound mode is set to Movie.

* Selecting Reset after adjusting the equalizer returns

the equalizer to its default settings.

Ill BD Wise (Off /On): Provides the optimal picture quality

for Samsung DVD, Blu-ray and Home Theater products

which support BD Wise, When BD Wise is turned On,

the picture mode is automatically changed to the optimal

resolution.

Available when connecting Samsung products

that support BD Wise through a HDMI cable.

Ill Menu Transparency (Bright /Dark): Set the

Transparency of the menu.

Ill Melody (Off /Low /Medium /High): Set so that a

melody plays when the TV is turned on or off.

NOTE

* Only available when the Input source is set to TV.

To turn the melody off, set Melody to Off.

* The Melody does not play.

- When no sound is output from the TV because the

MUTE button has been pressed.

- When no sound is output from the TV because the

volume has been reduced to minimum with the

VOL- button.

- When the TV is turned off by Sleep Timer function.

English 21

Basic Features

Picture in Picture (PIP)

PIP

(_ MENUITTI --_ Setup _ PiP _ ENTER[_

You can watch the TV tuner and one external video source

simultaneously. PIP (Picture-in-Picture) does not function in

the same mode.

NOTE

* For PIP sound, refer to the Sound Select instructions.

* If you turn the TV off while watching in PIP mode, the

PIP window will disappear.

* You may notice that the picture in the PIP window

becomes slightly unnatural when you use the main

screen to view a game or karaoke.

* While V-Chip operation, the PIP function cannot be

used.

* PIP Settings

Component1, Component2,

HDMI1/DVI, HDMI2, HDMI3, iV

HDMI4, PC

Ill PIP (Off /On): Activate or deactivate the PIP function.

Ill Air/Cable (Air /Cable): Select either Air or Cable as the

input source for the sub-screen.

Ill Channel: Select the channel for the sub-screen.

Ill Size (F_ /[_): Select a size for the sub-picture.

Ill Position (_ /_/P_ /F_): Select a position for the

sub-picture.

Ill Sound Select (Main /Sub): You can choose the

desired sound Main or Sub in PIP mode.

Available when PIP is set to On.

(_ MENUiTrl _ Support-_ENTERE_

Self Diagnos!s ......................................................................................................................................................................................

Ill Picture Test: Use to check for picture problems. If the

problem continues to occur, check the Color pattern.

Yes: Ifthe test pattern does not appear or there is

noise in the test pattern, select Yes.There may be a

problem with the TV. Contact Samsung's Call Center for

assistance (1-800-SAMSUNG).

No: Ifthe test pattern is properly displayed, select No.

There may be a problem with your external equipment.

Please check your connections. If the problem persists,

refer to the external device's user manual.

Ill Sound Test: Use the built-in melody sound to check for

sound problems.

If you hear no sound from the TV's speakers,

before performing the sound test, make sure

Speaker Select is set to TV speaker in the

Sound menu.

The melody will be heard during the test even if

Speaker Select is set to External Speaker or the

sound is muted by pressing the MUTE button.

Yes: Ifyou can hear sound only from one speaker or not

at all during the sound test, select Yes. There may be a

problem with the TV. Contact Samsung's Call Center for

assistance (1-800-SAMSUNG).

No: Ifyou can hear sound from the speakers, select No.

There may be a problem with your external equipment.

Please check your connections. If the problem persists,

refer to the external device's user manual.

Ill Signal Information (Digital channels only): An HD

channel's reception quality is either perfect or the

channels are unavailable. Adjust your antenna to

increase signal strength.

Ill Troubleshooting: If the TV seems to have a problem,

refer to this description.

If none of these troubleshooting tips apply, contact

the Samsung customer service center.

2 English

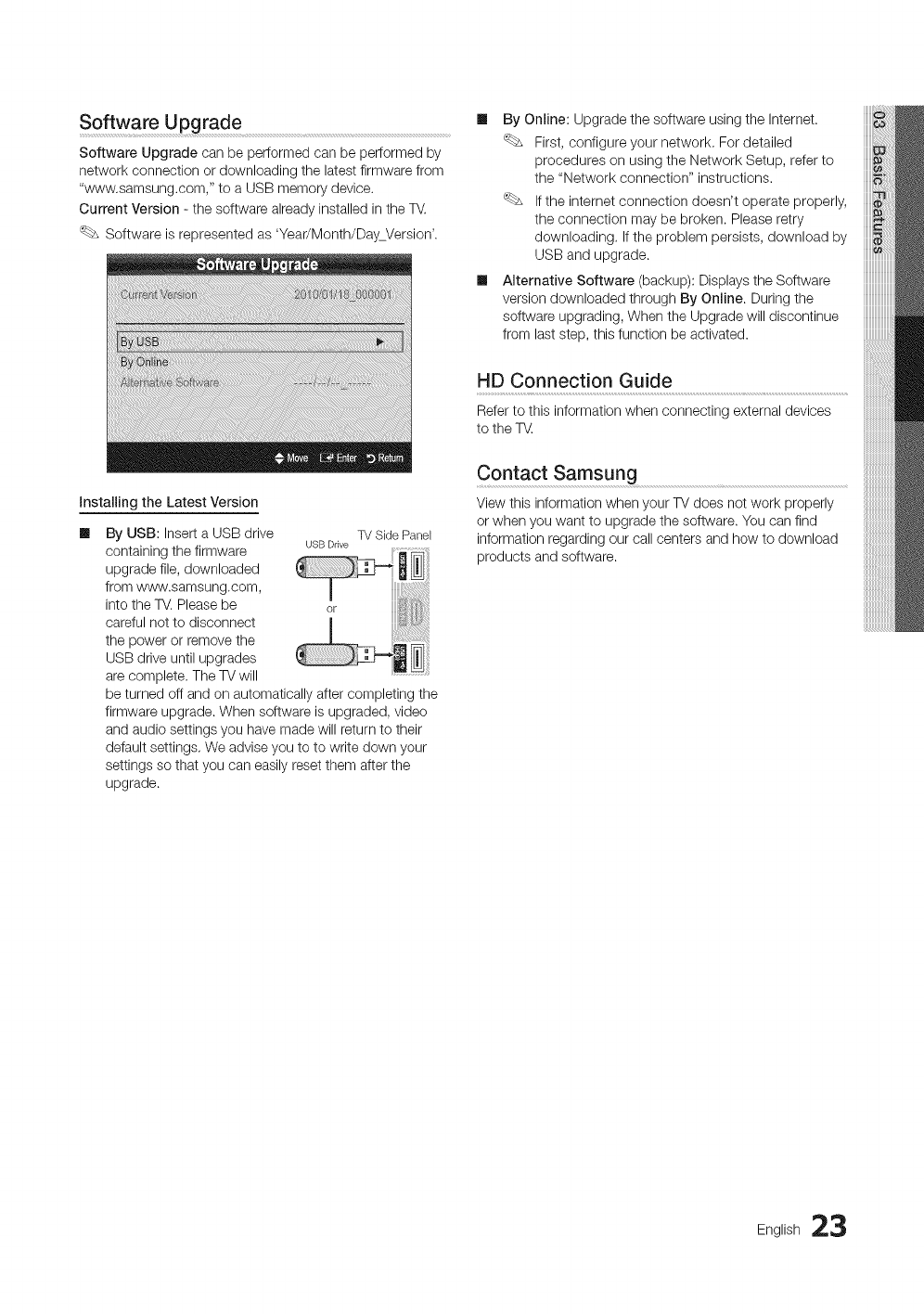

Software Upgrade

Software Upgrade can be performed can be performed by

network connection or downloading the latest firmware from

"www.samsung.com," to a USB memory device.

Current Version - the software already installed in the TV.

Software is represented as 'Year/Month/DayVersion'.

hstalling the Latest Version

By USB: Insert a USB drive TVSidePanel

containing the firmware USBDrive

upgrade file, downloaded

from www.samsung.com,

into the TV. Please be

careful not to disconnect

the power or remove the

USB drive until upgrades

are complete. The TV will

be turned off and on automatically after completing the

firmware upgrade. When software is upgraded, video

and audio settings you have made will return to their

default settings, We advise you to to write down your

settings so that you can easily reset them after the

upgrade.

Ill By Online: Upgrade the software using the Internet.

First, configure your network, For detailed

procedures on using the Network Setup, refer to

the "Network connection" instructions,

If the internet connection doesn't operate properly,

the connection may be broken. Please retry

downloading, If the problem persists, download by

USB and upgrade.

Ill Alternative Software (backup): Displays the Software

version downloaded through By Online. During the

software upgrading, When the Upgrade will discontinue

from last step, this function be activated.

HD Connection Guide

Refer to this information when connecting external devices

to the T_.

Contact Samsung

View this information when your TV does not work properly

or when you want to upgrade the software. You can find

information regarding our call centers and how to download

products and software.

English 23

Advanced Features

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless

connection.

Connecting to a Wired Network

You can attach your TV to your LAN using cable in three ways:

• You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat

5 cable. See the diagram below.

The Modem Port on the Wall

Modem Cable

ExternalModem

(ADSL/VDSL/CableTV)

LAN{}able

TV Rear Panel

You can attach your TV to your LAN by connecting the LAN port on the back of your TV to a IP Sharer which is connected

to an external modem. Use Oat 5 cable for the connection. See the diagram below.

TheModemPortoil the Wall ExternalModem IPSharer TVRearPanel

(ADSL/VDSL/CableTV) (havingDHCPserver)

Modem Cable

Depending on how your network is configured, you may be able to attach your TV to your LAN by connecting the LAN

port on the back of your TV directly to a network wall outlet using a Cat 5 cable. See the diagram below. Note that the wall

outlet is attached to a modem or router elsewhere in your house.

The Modem Port on the Wall TV Rear Pand

LAN Cable

If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Configuration

Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway,

and DNS values your TV needs to access the Internet so you don't have to enter them manually. Most home networks

are Dynamic Networks,

Some networks require a Static IP address. Ifyour network requires a Static IP address, you must enter the IP address,

subnet mask, gateway, and DNS values manually on your TV's Cable Setup Screen when you set up the network

connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP),

If you have a Windows computer, you can also get these values through your computer.

You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that

support DHCP also let you use Static IP addresses.

4 English

Network Setup (Auto) Network Setup (Manual)

Use the Automatic Network Setup when connecting your

TV to a network that supports DHCR To set up your TV's

cable network connection automatically, follow these steps:

How to set up automatically

1. Connect your TV to your LAN as described in the

previous section.

2. Turn on your TV, press the MENU button on your

remote, use the AorT button to select Setup, and then

press the ENTERE_ button.

3. Use the Aor_ button to select Network in the Setup

menu, and then press the ENTERC_ button. The

Network screen appears.

Use the Manual Network Setup when connecting your TV to

a network that requires a Static IP address.

Getting the Network Connection Values

To get the Network connection values on most Windows

computers, follow these steps:

1. Right click the Network icon on the bottom right of the

screen.

2. In the pop-up menu that appears, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support Tab, click the Details button. The

Network connection values are displayed.

How to set up manually

4. On the Network screen, select Network Type.

5. Set Network Type to Wired.

6. Select Network Setup. The Network Setup screen

appears.

To set up your TV's cable network connection manually,

follow these steps:

1. Follow Steps 1 through 6 in the "How to set up

automatically" procedure.

2. Set Internet Protocol Setup to Manual.

3. Press the _' button on your remote to go to the first

entry field.

4. Enter the IP Address, Subnet Mask, Gateway, and

DNS Server values. Use the number buttons on your

remote to enter numbers and the arrow buttons to move

from one entry field to another.

5. When done, press the RETURN button on your remote.

6. Select Network Test to check the Internet connectivity.

7. Set Internet Protocol Setup to Auto.

8. Auto acquires and enters the needed Internet values

automatically.

9. Wait two minutes, and then press the RETURN button

on your remote.

10. If the Network Function has not acquired the network

connection values, go to the directions for Manual.

English 25

Advanced Features

Connecting Wireless Network

To connect your TV to your network wirelessly, you need a wireless router or modem and a Samsung Wireless LAN Adapter

WIS09ABGN), which you connect to your TV's back or side panel USB jack. See the illustration below.

To use the SWL(Samsung Wireless Link) function, connect to the USB 1 (HDD) port.

TV Side Panel

The LAN Pert oil

tile Wa,,

WirelessIPsharer

(AP

havi_

LANCable

Samsung Wireless

LAN Adapter

Samsung's Wireless LAN adapter is sold separately and is offered by select retailers, Ecommerce sites and Samsungparts.

com. Samsung's Wireless LAN adapter supports the IEEE 802.11A/B/G and N communication protocols. Samsung

recommends using IEEE802.11N. When you play video over a IEEE802.11B/G connection, the video may not play smoothly.

NOTE

*You must use the "Samsung Wireless LAN Adapter" (WIS09ABGN) to use a wireless network.

*Samsung's Wireless LAN adapter is sold separately. The WIS09ABGN Wireless LAN adapter is offered by select

retailers, Ecommerce sites and Samsungparts.com.

*To use a wireless network, your TV must be connected to a wireless IP sharer. If the wireless IP sharer supports

DHCP, your TV can use a DHCP or static IP address to connect to the wireless network.

*Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer

is currently being used by another device nearby, this will result in interference and communication failure.

*If you apply a security system other than the systems listed blow, it will not work with the TM

*If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or

TKIPAES (WPS2Mixed) for your AP, Samsung TVs will not support a connection in compliance with new Wi-Fi

certification specifications.

*If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button

Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in

either mode.

*Keep the Samsung Wireless LAN Adapter at a distance from the TV. If you watch the TV with the Adapter connected

nearby, images may appear corrupted for some channels.

*If your router, modem, or device isn't, it may not connect to the TV via the "Samsung Wireless LAN Adapter."

*Connection Methods: You can setup the wireless network connection six ways.

- Samsung Auto Configuration

- PBCONPS)

- Auto Setup (Using the Auto Network Search function)

- Manual Setup

- SWL(Samsung Wireless Link)

- Ad-Hoc

*All of Samsung Wireless LAN Adapter shoud be connected directly to the TV's USB port. USB HUB are not

supported.

6 English

Network Setup

(Samsung Auto Configuration) .............................................................................

This function is available in APs (Access Points) that support

Samsung Auto Configuration. If there is no such AP, you can

connect through PBC(WPS) or manually.

This function is available when SWL(Samsung

Wireless Link) set to Off.

You can check for equipment that supports Samsung

Auto Configuration on www.samsung.com.

How to set up using Samsung Auto Configuration

1. Place the AP and TV next to each other and turn them on.

Because the booting times of applications differ,

you may have to wait for approximately 2 minutes.

If the LAN cable connected the WAN port of AP

during Samsung Auto Configuration, you are able

to complete until internet connection test. If you

do not connect, Samsung Auto configuration will

check only device connecting of AP (Not check

internet),

2. After 2 minutes, connect the Samsung Wireless LAN

Adapter to the TV.When the Samsung Wireless LAN

Adapter is established, the pop-up window appears.

3. As soon as a connection is established, place the AP in

parallelwith the Samsung Wireless LAN Adapter giving a

gap no larger than 25cm.

4. Wait until the connection is automatically established.

If the connection fails, reset the AP and then try

again.

If Samsung Auto Configuration does not connect

your TV to your AP, a pop-up window appears

on the screen notifying you of the failure. Reset

the AP, and then try again, If the connection fails

again, choose one of the other connection setup

methods, PBC(WPS), auto, or manual.

5. After the connection is established, locate the sharer at

the desired location.

If the AP settings have been changed or it is the

first time you use the new AP after purchase, you

need to set up again beginning from Step 1.

Network Setup (PBC(WPS)) ................................................................................................

How to set up using PBC(WPS)

If your router has a PBC(WPS) button, follow these steps:

1. Connect your TV to your LAN as described in the

previous section.

2. Turn on your TV, press the MENU button on your

remote, use the AorT button to select Setup, and then

press the ENTERE_ button.

3. Use the Aor_ button to select Network in the Setup

menu, and then press the ENTER[_ button.

4. On the Network screen, select Network Type.

5. Set Network Type to Wireless.

6. Select Network Setup. The Network Setup screen

appears.

Press the Red button on your remote.

Press the PBC(WPS) button on your router within 2

minutes. Your TV player automatically acquires all the

network setting values it needs and connects to your

network.

After the network connection is set up, press the

RETURN button to exit the Network Setup screen.

Network Setup (Auto)

Most wireless networks have an optional security system

that requires devices that access the network to transmit

an encrypted security code called an Access or Security

Key. The Security Key is based on a Pass Phrase, typically

a word or a series of letters and numbers of a specified

length you were asked to enter when you set up security for

your wireless network. If you use this method of setting up

the network connection, and have a Security Key for your

wireless network, you will have to enter the Pass Phrase

during the setup process.

How to set up automatically

To set up the wireless connection automatically, follow these

steps:

1. Follow Steps 1 through 6 in the "How to set up

PBO(WPS)" above.

2. Press the T button to select Internet Protocol Setup,

and then press the ENTERIZ_ button. Press the A or

T button to select Auto, and then press the ENTERI_

button.

English 27

Advanced Features

3. Press the A button to go to Select a Network, and

then press the ENTERIZ_ button. The Network function

searches for available wireless networks. When done, it

displays a list of the available networks.

4. In the list of networks, press the A or Iv button to select

a network, and then press the ENTERIZ_ button.

If the AP is set to Hidden (Invisible),you have

to select Add Network and enter the correct

Network Na me (SSID) and Security Key to

establish the connection.

5. If the Security/PIN pop-up appears, go to Step 6. If the

Network Connecting Screen appears, go to Step 10.

6. Press the A or Iv button to select Security or PIN. For

most home networks, you would select Security (for

Security Key). The Security Screen appears.

7. On the Security screen, enter your network's Pass

Phrase.

You should be able to find the Pass Phrase on

one of the set up screens you used to set up your

router or modem.

8. To enter the Pass Phrase, follow these general

directions:

- Press the number buttons on your remote to enter

numbers.

- Use the direction buttons on your remote to move

from button to button on the Security Key screen.

- Press the Red button to change case or display

symbols/characters.

- To a enter letter or symbol, move to the letter or

symbol, and then press the ENTERE_ button.

- To delete the last letter or number you entered,

press the Green button on your remote.

9. When done, press the Blue button on your remote. The

Network Connecting screen appears.

10. Wait until the connection confirmation message is

displayed, and then press the ENTERI_ button. The

Network Setup screen re-appears.

11. To test the connection, press the RETURN button to

select Network Test, and then press the ENTERI_

button.

Network Setup (Ad-Hoc)

You can connect to a mobile device without an access point

through the "Samsung Wireless LAN Adapter" by using a

peer to peer network.

This function is available when SWL(Samsung

Wireless Link) is set to Off.

How to connect to new Ad-hoc

1. Follow Steps 1 through 6 in the "How to set up using

PBC(WPS)". (R 27)

2. Choose Select a network. A list of devices/networks

appears.

3. While in the device list, press the Blue button on the

remote.

The message Ad-hoc is a direct WI-Fi

connection with cellphone or PC. The existing

network system may have limited functionality.

Do you want to change the network

connection? is displayed.

4. Input the generated Network Name (SSlD) and

Security Key into the device you want to connect.

How to connect an existing Ad-hoc device

1. Follow Steps 1 through 6 in the "How to set up using

PBC(WPS)". (R 27)

2. Choose Select a network. Then, the device list will be

displayed.

3. Select the device you want in the Device list.

4. If security key was applied, input the security key.

If network doesn't operate normally, check

the Network Name (SSlD) and Security Key

again. An incorrect Security Key may cause a

malfunction.

Network Setup (Manua0

If the other methods do not work, you need to enter the

Network setting values manually,

Getting the Network Connection Values

To get the Network setting values on most Windows

computers, follow these steps:

1. Right click the Network icon on the bottom right of the

screen.

2. In the pop-up menu, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support tab, click the Details button. The

Network settings are displayed.

8 English

How to set up manually

To enter the Network settings into your TV,follow these

steps:

1. Follow Steps 1 through 6 in the "How to set up using

PBO(WPS)". (R 27)

2. Press the _' button to select Internet Protocol Setup,

and then press ENTERC_ button. Press the A or T

button to select Manual, and then press ENTERI_

button.

3. Press the • button to go to the first entry field (IP

Address).

4. Use the number buttons to enter numbers.

5. When done with each field, use the !_ button to move

successively to the next field. You can also use the other

arrow buttons to move up, down, and back.

6. Enter the IP Address, Subnet Mask, and Gateway

values.

7. Press the A or _' button to go to DNS.

8. Press the T button to go to the first DNS entry field.

Enter the numbers as above.

9. When done, press the A button to go to Select

a Network. Select your network, and then press

ENTER C_ button.

10. Go to Step 4 in the "How to set up automatically" (R 27),

and follow the directions from that point on.

Network Setup

(SWL(Samsung Wireless Link))

This function lets you connect a Samsung device that

supports the PBC(WPS) to your TV. You can connect devices

to the TV even if a sharer is not connected to the T_,

To use the Internet on the TV, the AP (access point)

must be connected to the wireless network.

If a Samsung Wireless Lan Adapter is connected to the

USB 2 port, the network may not operate normally. We

recommend to connect to USB 1 (HDD} port.

Only sharers using the 2.4 Ghz band are supported.

Sharers using the 5 Ghz band are not supported,

SWL connect

You can directly connect a device that supports the

PBO(WPS) to the TV.

This function is available when SWL(Samsung

Wireless Link) is set to On.

How to connect Samsung Wireless link

For the procedures to establish a connection, refer to the

following:

1. Follow Steps 1 through 5 in the "How to set up using

PBO(WPS)". (R 27)

2. Select Samsung Wireless Link by using the _' button

and press the ENTERE_ button to turn it On.

3. Select SWL connect by using the T button and press

the ENTER E_ button.

4. If the "Press the PBC button on the device which

supports PBC button to connect within 120

seconds" message appears, press the PBC button on

the device to connect.

For more information, refer to the wireless network

setup manual of the device to be connected.

5. If the device is connected properly to the TV after

starting count on message box then message box will

be disappeared automatically.

If the connection fails, please retry after 2 minutes.

If Your TV Fails to Connect to the Internet

Your TV may not be able to connect to the Internet

because your ISP has permanently registered the

MAO address (a unique identifying number) of your

PC or modem, which it then authenticates each time

you connect to the Internet as a way of preventing

unauthorized access. As your TV has a different MAC

address, your ISP can not authenticate its MAC address,

and your TV can not connect.

To resolve this problem, ask your ISPabout the procedures

required to connect devices other than a PC (such as your

TV) to the Internet.

If your Internet service provider requires an ID or assword

to connect to the Internet, your TV may not be able to

connect to the Internet. If this is the case, you must enter

your ID or password when connecting to the Internet.

The internet connection may fail because of a firewall

problem. If this is the case, contact your Internet service

provider.

If you cannot connect to the Internet even after you have

followed the procedures of your Internet service provider,

please contact Samsung Electronics at 1-800-SAMSUNG.

English 29

Advanced Features

Enjoy photos, music and/or movie files saved on

a USB Mass Storage Class (MSC) device and/or

your PC.

(_ MENU rm -_ Application -. Media Play

-_ ENTER C_

Connecting a USB Device

Turn on your TV.

Connect a USB device containing photo, music and/or movie files to the

USB 1 (HDD} or USB 2 jack on the side of the TV.

When USB is connected to the TV, popup window appears. Then you can select

Media Play.

USBDr_ve

TV Side Panel

W Connecting to the PC through network

You can play )ictures, music and videos saved on your PC or on your TV through a network connection in the Media PBay

mode.

If you want to use Media Play to play files saved on your PC over your TV, you should download "PC Share Manager"

and users manual from "www.samsung.com."

TVSidePanel

u,N iiii

@ iii

J_J

// "x

External Modem

(ADSL/VDSL/Cable TV)

Samsung

Wireless

LAN

Adapter

iii.........................................................................

}

4" i£ },..

1. For more information on how to configure your network, refer to 'Network Connection'.

- You are recommended to locate both TV and PC in same subnet. The first 3 parts of the subnet address of the TV and

the PC IP addresses should be the same and only the last part (the host address) should be changed. (e.g. IP Address:

123.456.789.**)

2. Using a LAN cable, connect between the external modem and the PC onto which the Samsung PC Share Manager

program will be installed.

- You can connect the TV to the PC directly without connecting it through a Sharer (Router).

0 English

FunctionsthatarenotsupportedwhenconnectingtoaPCthroughanetwork:

* TheBackgroundMusicandBackgroundMusicSettingfunctions.

* SortingfilesbypreferenceinthePhoto,Music,andMoviefolders.

* TheF_q (REW) or [_q (FF) button while a movie is playing,

The Divx DRM, Multi-audio, embedded caption does not supported.

Samsung PC Share manager should be permitted by the firewall program on your PC.

When you use Media Play mode through a network connection, According to functions of the provided server:

* The sorting method may vary.

* The scene search function may not be supported.

* The Play Continuously function, which resumes playing of a video, may not be supported,

- The Play Continuously function does not support multiple users. (It will have only memorized the point where the

most recent user stopped playing,)

* The F_q (REW), [_q (FF) or _ (Pause) buttons may not work depending on the content information.

If you experience any file stuttering issue while playing a video over a wireless network, we recommend using a wired

network.

It might not work properly with unlicensed multimedia files.

Need-to-Know List before using Media Play

* MTP (Media Transfer Protocol) is not supported.

* The file system supports FAT16,FAT32 and NTFS.

* Certain types of USB Digital camera and audio devices may not be compatible with this TV.

* Media Play only supports USB Mass Storage Class (MSC) devices, MSC is a Mass Storage Class Bulk-Only

Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not

supported). Devices should be connected directly to the TV's USB port.

* Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.

SAMSUNG is not responsible for any data file damage or data loss.

* Connect a USB HDD to the dedicated port, VSB 1 (HDD) port.

* Do not disconnect the USB device while it is loading.

* The higher the resolution of the image, the longer it takes to display on the screen.

* The maximum supported JPEG resolution is 15360X8640 pixels.

* For unsupported or corrupted files, the "Not Supported File Format" message is displayed.

* If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.

* MP3 files with DRM that have been downloaded from a non-free site cannot be played, Digital Rights Management

(DRM) is a technology that supports the creation, distribution and management of the content in an integrated and

comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the

illegal copying of contents, as well as managing billings and settlements.

* If more than 2 PTP devices are connected, you can only use one at a time.

* If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high

power (more than 500mA or 5V) may not be supported.

* If an over-power warning message is displayed while you are connecting or using a USB device, the device may not

be recognized or may malfunction.

* If the TV has been no input during time set in Auto Protection Time, the Screensaver will run.

* The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.

* If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.

* If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is

not played, connect the USB device to the PC, format the device and check the connection.

* If a file deleted from the PC is still found when Media Play is run, use the "Empty the Recycle Bin" function on the PC

to permanently delete the file.

English 31

Advanced Features

Screen Display

Move to the desired file using the up/down/righ'dleft buttons and then press the ENTER[__ or FCq(Play)button. The file is

played.

Supports the View Devices and Contents Mode in Media Play homepage.

You call ascertain the selected

fib name and the number of

fibs and page.

Dbplays the sorting standard.

'(_bs The sorting standard is

different depending on

the contents.

Fib List Section:

You can confirm the fibs

and groups that are sorted

by category.

Operation Buttons

Red (Change Device): Selects a connected device.

/:_£Green (Preference): Sets the fib preference. (not supported in Basic vbw)

Yellow (Select): Selects multipb files from fib list. Selected fibs are marked with a symbol.

D Blue (Sorting): Selects the sort list.

Tools: Displays the option menu.

Using the _ or _ button, file list can move to next or previous page.

Videos

Playing Video

1. Press the _ or _, button to select Videos, then press the ENTERIZ_ button in the Media Play menu.

2. Press the _/_-/A/_' button to select the desired video in the file list.

3. Press the ENTERI_ button or F_q(Play) button.

The selected file is displayed on the top with its playing time.

If video time information is unknown, play time and pregress bar are not displayed.

During video playback, you can search using _ and I_ button.

In this mode, you can enjoy movie clips contained on a Game,

but you cannot play the Game itself.

• Supported Subtitle Formats

MPEG-4 time-based text .ttxt XML

SAMI .smi HTML

SubRip .srt string-based

SubViewer .sub string-based

Micro DVD .sub or .txt string-based

2English

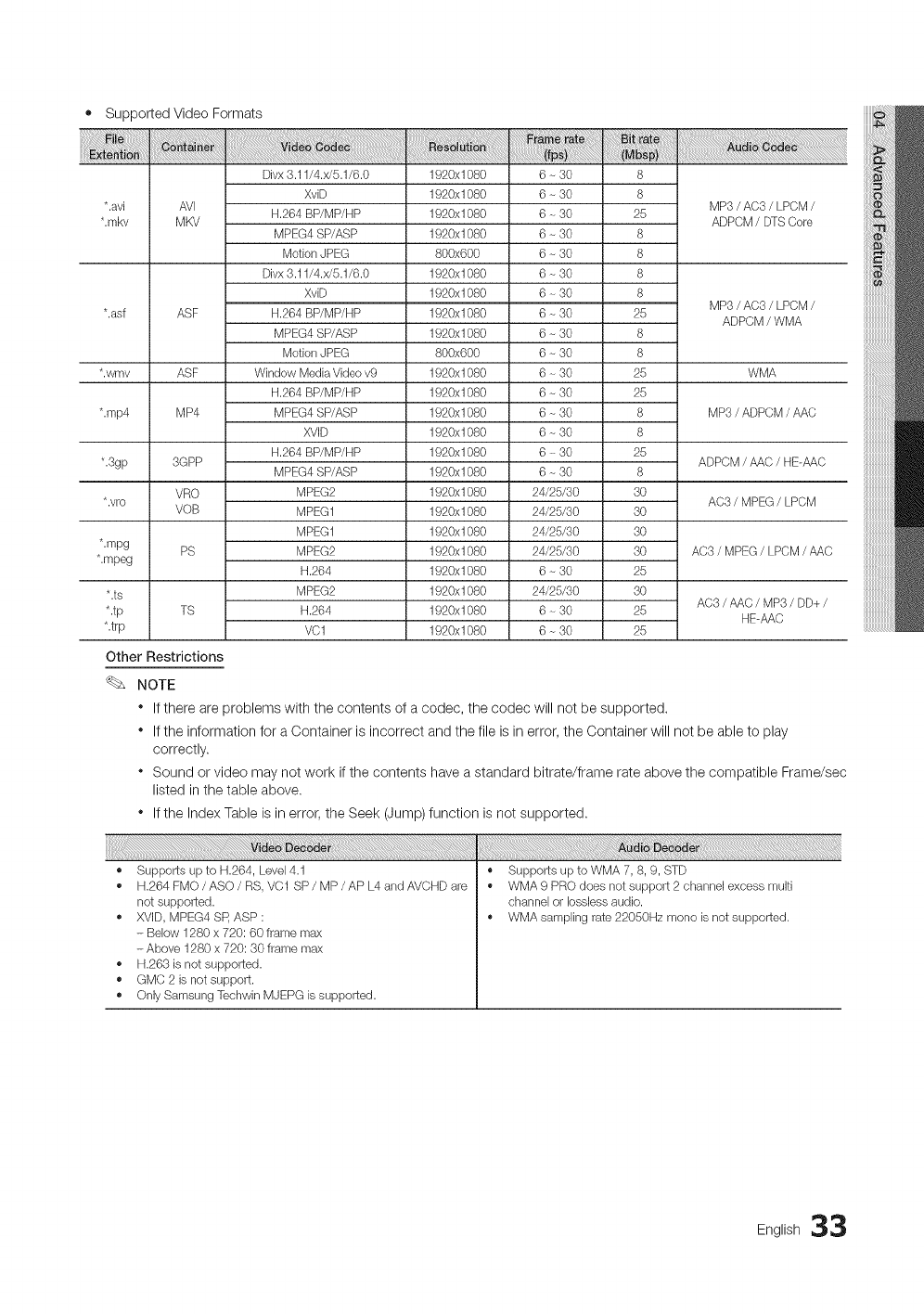

• SupportedVideoFormats

Divx 3.11/4.x/5.1/6.0

XviD

*.avi AVI H.264 BP/MP/HP

*.mkv MKV MPEG4 SP/ASP

Motion JPEG

Divx 3.11/4.25.1/6.0

XviD

*.asf ASF H.264 BP/MP/HP

MPEG4 SP/ASP

Motion JPEG

*.wmv ASF Window Media Video v9

H.264 BP/MP/HP

*.rap4 MP4 MPEG4 SP/ASP

XVID

H.264 BP/MP/HP

*.3gp 3GPP MPEG4 SP/ASP

VRO MPEG2

* .vro VQB MPEG1

MPEG1

*.mpg PS MPEG2

*.mpeg H.264

*.ts MPEG2

*.tp TS H.264

*.trp VC1

1920x1080

800x600

1920x1080

800x600

1920x1080

6 - 30 8

6 - 30 8 MP3/AC3/LPCM /

6 _ 30 25 ADPCM/DTS Core

6 _ 30 8

6 - 30 8 MP3/AC3/LPCM /

6 _ 30 25 ADPCM/WMA

6 _ 30 8

6 _ 30 25 WMA

6 - 30 25

6 _ 30 8 MP3/ADPCM/AAC

6 _ 30 8

6 _ 30 25 ADPCM/AAC /HE-AAC

6 _ 30 8

24/25/30 30 AC3/MPEG /LPCM

24/25/30 30

24/25/30 30 AC3/MPEG/LPCM/AAC

6 - 30 25

24/25/30 30 AC3/AAC/MP3/DD+/

6 _ 30 25 HE-AAC

6 ~ 30 25

Other Restrictions

NOTE

* If there are problems with the contents of a codec, the codec will not be supported.

* If the information for a Container is incorrect and the file is in error, the Container will not be able to play

correctly.

* Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec

listed in the table above.

* If the Index Table is in error, the Seek (Jump) function is not supported.

• Supports up to H.264, Level 4.1

• H.264FMO/ASO/RS, VC1 SP/MP/APL4andAVCHDare

not supported.

• XVID, MPEG4 SP,ASP :

- Below 1280 x 720:60 frame max

- Above 1280 x 720:30 frame max

• H.263 is not supported.

• GMC 2 is not support.

• Only Samsung Techwin MJEPG is supported.

• Supports up to WMA 7, 8, 9, STD

• WMA 9 PRO does not support 2 channel excess multi

channel or Iossless audio.

• WMA sampling rate 22050Hz mono is not supported.

Eng,,sh33

Advanced Features

Playing movie continuously (Resume Play)

If you exit the playing movie function, the movie can be played later from the point where it was stopped.

1. Select the movie file you want to play continuously by pressing

the _ or I_ button to select it from the file list section.

2. Press the F_q (Play)/ENTERIZ_ button.

3. Select Play Continuously (Resume Play) by pressing the Blue

button. The Movie will begin to play from where it was stopped.

The Blue button is available when resuming play.

If the Continuous Movie Play Help function is set to On

in the Settings menu, a pop-up message will appear

when you resume play a movie file.

Music

Playing Music

1. Press the _ or I_ button to select Music, then press the

ENTERI_ button in the Media Play menu.

2. Press the _/_/A/_' button to select the desired Music in the

file list.

3. Press the ENTERI_ button or F_q(Play) button.

During music playback, you can search using _ and I_

button.

- [_ (REW) and [_ buttons do not function during play.

Only displays the files with MP3 and PCM file extension. Other

file extensions are not displayed, even if they are saved on the

same USB device.

If the sound is abnormal when playing MP3 files, adjust the

Equalizer in the Sound menu. (An over-modulated MP3 file

may cause a sound problem.)

Photos

Viewing a Photo (or Slide Show)

1. Press the _ or I_ button to select Photos, then press the

ENTERI_ button in the Media Play menu.

2. Press the _/_/A/_' button to select the desired photo in the

file list.

3. Press the ENTERI_ button or F_q(Play) button.

While a photo list is displayed, press the F_q (Play)/

ENTERI_ button on the remote control to start the slide

show.

All files in the file list section will be displayed in the slide show.

During the slide show, files are displayed in order.

Music files can be automatically played during the Slide Show if

the Background Music is set to On.

The BGM Mode cannot be changed until the BGM has finished

4 English

Playing Multiple Files

Playing selected video/music/photo files

1. Press the Yellow button in the file list to select the desired file.

2. Repeat the above operation to select multiple files.

NOTE

* The _ mark appears to the left of the selected files.

* To cancel a selection, press the Yellow button again.

* To deselect all selected files, press the TOOLS button

and select Deselect All.

3. Press the TOOLS button and select Play Selected Contents.

Playing the video/music/photo file group

1. While a file list is displayed, move to any file in desired group.

2. Press the TOOLS button and select Play Current Group.

Media Play - Additional Functions

Sorting the file list

Press the Blue button in the file list to sort the files.

i_ Basic View

Title

Preference

_ Latest Date

Earliest Date

Artist

_i Album

Genre

Mood

_!_ Monthly

i_i!_i_:_:_:!:_;_!;iii;ii;;;i_iiiiiiiiii!iii_i_i_i_!_!_iilllllllilllllllilllllil!_!_!_!i_!_!i_!!_!i_iiiiii!!_!_!_!i_iii_!_ll_lll_i_i_ii_i_i_i_i_i!_!i_i_ii!!ii_i_i_i_i_i_iii_i_i_ii!_ii_!iiiii_i_iiiiii_i_i_!!_;_i_i_i_i_!12_i¸i!iii_iiiii_!!!_!!!!!!!!!!!!!!!!iiiiii_i!_i!_!_!_!!:_iii!!_!_!ii_i_i_i_!_iiiiiiii_iii!!ii_iii!_iii!ii_i_i!i_ili!i!i!_iiiiiiiiii!iii!!iiiiiiii!iiliiiii!iiiiiili

Displaysthe wholefolder.Youcanviewthe photo byselectingthe folder.

Sortsanddisplaysthe filetitle inSymboVNumber/AIphabet/Specialorder.

Sortsanddisplaysthefile by preference.Youcanchangethefile preferenceinthe

filelistsectionusingtheGreenbutton.

Sortsandshows filesby the latestdate.

Sortsandshows filesby the earliestdate.

Sortsthe musicfilebyartistinalphabeticalorder.

Sortsthe musicfilebyalbuminalphabeticalorder.

Sortsmusicfilesbythe genre.

Sortsmusicfilesbythe mood.Youcanchangethe musicmoodinformation.

Sortsandshows photofilesby month.

,,Z

English 35

Advanced Features

Videos/Music/Photos Play Option menu

During playing a file, press the TOOLS button.

Title

Repeat Mode

Picture Size

(Model /Mode2 /

Original)

Picture Setting

Sound Setting

Subtitle Setting

Audio

Stop Slide Show /

Start Slide Show

Slide Show Speed

Slide Show Effect

Background Music

Zoom

Rotate

Home Background

Information

You can move the other fib dkectly.

You can pJaymovie and music fibs repeatedly.

You can adjust the picture size to your preference.

`7 `7

You can adjust the picture setting. (p. 14, 15, 16) `7 `7

You can adjust the sound setting. (p. 17, 18) `7 `7 `7

You can pJaythe video with Subtitbs. This function only works if the subtitbs are the

same fib name as the video. ,7

You can enjoy video in one of supported languages as required. The function is only ,7

enabled when stream-type fibs which support multiple audio formats are played.

You can start or stop a Slide Show. ,7

You can select the slide show speed during the slide show. ,7

You can set various slide show effects. ,7

You can set and sebct background music when watching a Slide Show. ,7

You can zoom into images in full screen mode. ,7

You can rotate images in full screen mode. ,7

You can move the file to the Media Play desktop. ,7

You can see detailed information about the played file. ,7 ,7 ,7

Settings ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

Using the Setup Menu

Ill Continuous Movie Play Help (Resume Play) (On /Off): Select to display the help pop-up message for continuous movie

playback,

Ill Get DivX® VOD registration code: Shows the registration code authorized for the TV. If you connect to the DivX web site

and register, you can download the VOD registration file. If you play the VOD registration using Media Play, the registration

is completed.

For more information on DivX® VOD, visit "www.DivX,com."

Ill Get DivX® VOD deactivation code: When DivX® VOD is not registered, the registration deactivation code is displayed. If

you execute this function when DivX® VOD is registered, the current DivX® VOD registration isdeactivated.

Ill information: Select to view information about the connected device.

6 English

What is Anynet+?

Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung

TV's remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your

Samsung device has this feature, check if there is an Anynet+ logo on it.

To connect to a Samsung Home Theater

Anynet+ Anynet+

Device1 Device2, 3, 4

HDMI Cable

HomeTheater

HDMI Cable

HDMICa

HDMI Cable

1. Connect the HDM_ _N (1(DV_),2, 3 or 4)jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device

using an HDMI cable.

2. Connect the HDMI IN jack of the home theater and the HDMI OUT jack of the corresponding Anynet+ device using an

HDMI cable.

NOTE

° Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL} jack on your TV and the Digital Audio Input

on the Home Theater,

• When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from

the Home Theater's Front Left and Right speakers and the subwoofer. Ifyou want to hear 5.1 channel audio, connect

the D_G_TALAUDIO OUT (OPTICAL) jack on the DVD /Satellite Box (i.e. Anynet Device 1 or 2) directly to the

Amplifier or Home Theater, not the TV.

• Only one Home Theater can be connected,

• You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions,

• Anynet+ works when the AV device supporting Anynet+ is in the standby or on status.

• Anynet+ supports up to 12 AV devices in total, Note that you can connect up to 3 devices of the same type.

English 37

Advanced Features

Anynet+ Menu

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.

View IV Changes Anynet+ mode to TV broadcast mode.

Device List Shows the Anynet+ device list.

(devicename) MENU Shows the connected device menus. E,g. If a DVD recorder is connected, the disc menu of

the DVD recorder will appear,

(devicename) INFO Shows the play menu of the connected device. E,g. If a DVD recorder is connected, the

play menu of the DVD recorder will appear.

Recording: (*recorder) Starts recording immediately using the recorder, (This is only available for devices that

support the recording function.)

Stop Recording: (*recorder) Stops recording.

Receiver Sound is played through the receiver.

If more than one recording device is connected, they are displayed as (*recorder) and if only one recording device is

connected, it will be represented as (*devicename),

Setting Up Anynet+

(_ MENU iTrl --_ Application _ Anynet + (HDMI-CEC) -_ ENTERI_

Setup

Anynet+ (HDMI-CEC) (Off /On): To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On.

When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated.

Auto Turn Off (No /Yes): Setting an Anynet+ Device to turn off automatically when the TV is turned off.

The active source on the TV must be set to TV to use the Anynet+ function.

Even if an external device is still recording, it may turn off.

Switching between Anynet+ Devices

Anynet+ devices connected to the TV are listed.

If you cannot find a device you want, press the red button to refresh the list.

Select a device and press the ENTERE_ button, You can switch to the selected device,

Only when you set Anynet+ (HDMI-CEC) to On in the Application menu, the Device List menu appears.

* Switching to the selected device may take up to 2 minutes. You cannot cancel the operation during the switching

operation.

* If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function.

Make sure to switch to an Anynet+ device by using the Device List,

Recording

You can make a recording of a TV Program using a Samsung recorder.

1. Select Recording,

When there are more than two recording devices

* When multiple recording devices are connected, the recording devices are listed. Select one recording device in

the Device List.

When the recording device is not displayed, select Device List and press the Red button to search devices.

2. Press the EXIT button to exit.

You can record the source streams by selecting Recording: (device_name).

Pressing the [_q (REC)button will record whatever you are currently watching, If you are watching video from

another device, the video from the device is recorded.

Before recording, check whether the antenna jack is properly connected to the recording device. To properly

connect an antenna to a recording device, refer to the recording device's users manual.

8 English

Listening through a Receiver

You can listen to sound through a receiver (i.e Home Theater) instead of the TV speaker.

1. Select Receiver and set to On.

2. Press the EXIT button to exit.

If your receiver supports audio only, it may not appear in the device list.

The receiver will work when you have properly connected the optical in jack of the receiver to the DIGITAL AUDIO

OUT (OPTICAL} jack of the TV.

When the receiver (i.e Home Theater) is set to On, you can hear sound output from the TV's Optical jack. When

the TV is displaying a DTV (air) signal, the TV will send out 5.1 channel sound to the receiver, When the source is a

digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from

the receiver.

NOTE

* You can only control Anynet+ devices using the TV remote control, not the buttons on the TV.

* The TV remote control may not work under certain conditions, If this occurs, reselect the Anynet + device.

* The Anynet + functions do not operate with other manufacturers' products.

Troubleshooting for Anynet+

iiiiii_!_!@!i_i_@i__:!i_!ii_}ii;iii!!i!i!8!ii!!i_!i_!i_iii!ii!iii!i!ii_!i_ii!iii!iiiiiiiliii!iii!ii!_i_i_!!i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_ii_!_ii!i_i_i_i!_i_!!_ii!ii!iili!i!i!i_i!i_i!i_i!i_i_i_i_i_i_ili!_}_i!!!_!!!!!!!!!!!!!!!!!!!!!!_!!_!!_i!i!!i!_ii_iiiiii!iii!ii!!iii!ii!!iii!ii_i!_ii_i!_!_il!_iii_iii_iii_iii_iii_iii_iii_ili_!!!!_!!_!_ii!_iliiii_ii_i!!!!ii!!iiiii!iii_iii_iii_i!i_i!_i!_i!_i!_i!_iiii_iiiiii!_ii_ii!i!!i!!i!!i!!i!!i!!i!!i!iii!iiiiiii_!i!_iiiiii!iii!iil!iii!iii!iiiiilliii!!i!_{_ii_i!_ii_ii_iiiii_ii!iiiii_iiiiii!iiiiiii!iiiiiii!iiiiiii!iiiiiii!iiiiiii!i_!_i!!!_!_!_!_!_!!_i_!;_,_i_i_!_i_il!!i{_i!_ii_ii_!!i!_ii}ii_ili}_i!i}!i_i!i_i!!_iliiii_ii_ii_ii_iii!iii!iiiiiiiii_iiii!ii_iii!iiilililili_ii_iiii_iii_ii_ililJiiiiii_!!_i!i;i!i_i!i_iii_iiiiii_;i_iiiiiiii!!}

• Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.

• Only one receiver (home theater) can be connected.

• Check if the Anynet+ device power cord is properly connected.

• Check the Anynet+ device's Video/Audio/HDMI cable connections.

• Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

• Check whether the TV remote control is in TV mode.

• Check whether the remote control is Anynet+ compatible.

• Anynet+ doesn't work in certain situations. (Searching channels, operating Media Play or Plug & Play

(initialsetup), etc.)

• When connecting or removing the HDMI cable, please make sure to search devices again or turn your

TV off and on again.

• Check if the Anynet+ Function of Anynet+ device isset on.

I want to start Anynet+. • Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is

set to On in the Anynet+ Setup menu.

• Press the TV button on the TV remote control to switch to TV. Then press the TOOLS button to display

the Anynet+ menu and select a menu you want.

I want to exit Anynet+. • Select View TV in the Anynet+ menu.

• Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices.

• Press V OH A, OH UST, PREoCH, and FA_4CHto change the TV mode. (Notethat the channel

button operates only when a tuner-embedded Anynet+ device is not connected.)

The message 'Connecting to ,, You cannot use the remote control when you are configuring Anynet+ or switching to a view mode.

Anynet+ device...' appears on ,, Use the remote control when the Anynet+ setting or switching to vbw mode is complete.

the screen.

The Anynet+ device does not ,, You cannot use the play function when Plug & Play (initial setup) is in progress.

play.

The connected device is not

displayed.

Anynet+ does not work.

The TV Program cannot be ,,

recorded.

The TV sound is not output ,, Connect the optical cable between TV and the receiver.

through the receiver.

,, Check whether or not the device supports Anynet+ functions.

,, Check whether or not the HDMI cable is properly connected.

,, Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

,, Search Anynet+ devices again.

,, You can connect an Anynet+ device using the HDMI cable only. Some HDMI cables may not support

Anynet+ functions.

,, If it is terminated by an abnormal situation such as disconnecting the HDMI cable or power cord or a

power failure, please repeat the device scan.

Check whether the antenna jack on the recording devbe is properly connected.

English 39

Advanced Features

(_ MENUrm -_ Application -_ AIIShare -_ ENTERC_

About AlIShare

AIIShare connects your TV and compatible Samsung mobile

phones/devices through a network. On your TV, you can

view call arrivals, SMS messages and schedules set on your

mobile phones. In addition, you can play media contents

including videos, photos and music saved on your mobile

phones or the other devices (such as your PC) by controlling

them on the TV via the network. Additionally, you can use

your TV for browsing web pages in your mobile phones.

For more information, visit "www.samsung.com" or

contact the Samsung call center. Mobile devices may

need additional software installation. For details, refer to

each device's user's guide.

Setting Up AilShare

SetuP ................................................................................................................................................................................................................................................

m Message (On /Off}: Enables or disables the message

function (for call arrivals SMS messages and schedules

set on your mobile phones).

m Media (On /Off): Enables or disables the media

function. When the media function is on, it plays videos,

photos and music from a mobile phone or other device

that supports AIIShare.

m ScreenShare (On /Off): Enables or disables the

ScreenShare function for using mobile phone as a

remote control.

TV name: Sets the TV name so you can find it easily on

a mobile device.

If you select User input, you can type on the TV

using the OSK (On Screen Keyboard).

Message /Media /ScreenShare

Shows a list of mobile phones or connected devices which

have been set up with this TV for using the Message,

Media, or ScreenShare function.

The Media function is available in all mobile devices

which support AIIShare.

m Allowed /Denied: Allows/Blocks the mobile phone.

m Delete: Deletes the mobile phone from the list.

This function only deletes the name of the mobile

from the list. Ifthe deleted mobile device is turned

on or trieds to connect to the TV, it may appear on

the list again.

Using the Message Function

Using this function, you view call arrivals, SMS messages

and schedules set on the mobile phone through the alarm

window while watching TV.

NOTE

°To disable the alarm window, set Message to Off in

Setup of AHShare.

• If OK is selected, or if OK is not selected after the

message has appeared three times, the message

will be deleted. The message is not deleted from the

mobile phone.

• The alarm window can be displayed while using

some applications such as Media Play etc. To view

the contents of a message, switch to TV viewing

mode.

• When a message from an unknown mobile phone is

displayed, select the mobile phone on the message

menu in AIIShare and select Denied to block the

phone.

Message View

If a new SMS message arrives while you are watching

TV, the alarm window appears. If you click the OK

button, the contents of the message are displayed.

You can configure the viewing settings for SMS

messages on your mobile phones. For the

procedures, refer to the mobile phone manual.

Some types of characters may be displayed as

blank or broken characters.

0English

Call Arrival Alarm

If a call arrives while you are watching TV, the alarm

window appears.

Schedule Alarm

While you are watching TV, the alarm window appears to

display the registered event.

You can configure viewing settings for schedule

contents on your mobile phones. For the

procedures, refer to the mobile phone manual.

Some special characters may be displayed as

blank or broken characters.

Using the Media Function

An alarm window appears informing the user that the media

contents (videos, photos, music) sent from a mobile phone

will be displayed on your TV. The contents are played

automatically 3 seconds after the alarm window appears.

If you press the RETURN or EXiT button when the alarm

window appears, the media contents are not played.

NOTE

* If the media function executes for the first time,

the warning popup windows appears. Press the

ENTERE_ button to select Allow, then you can use

Media function on that device.

Using ScreenShare Function

Using ScreenShare, you can browse various web contents

provided by the mobile phone. For example, the image

below displays an access page for contents on a mobile.

You can read the mobile's files and view the phone book and

calendar on the TV.Also, in the phone book, you can make a

call to another person, or send to SMS.

NOTE

* You must have ScreenShare installed on your

Samsung Mobile phone/device to use this feature.

* Dec Viewer can read files in doc format, but cannot

modify them.

* The screen display may differ depending on the

connected device.

Using your Samsung Phone to Operate Your TV

Before you can use this feature, you must connect to

a Samsung mobile phone that supports ScreenShare

functions. When operating the TV with your mobile phone,

only the POWER, --VOL+, v CH /k and MUTE buttons

are supported.

Even if you keep pressing down on a control button

(channel or volume) on the mobile phone the value will

only go up or down by one unit.

To turn off the media contents transmission from

the mobile phone, set Media to Off in the AllShare

setup.

Contents may not be played on your TV depending

on their resolution and format.

The ENTERC_ and _ /!_ buttons may not work

depending on the type of media content.

Using the mobile device, you can control the media

playing. For details, refer to each mobile's user's

guide.

When you want to play media contents from

your PC, select the PC icon on the main display

of AllShare. Then the TV's Media Play menu

automatically changes. For more detail information,

refer to Media Play. (R 30)

English 4 1

Other Information

Enclose the cables in the Cable tie so that the cables are not visible through the

transparent stand,

Overly rigid or thick cables can damage input jacks over long term use,

Cable tie

The Kensington Lock is not supplied by Samsung, It is a device used to physically fix the system when using it in a public

place, The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual

provided with the Kensington Lock for additional information on proper use.

Please find a "1_" icon on the rear of the TV.

A kensington slot is beside the "1_" icon.

1. Insert the locking device into the Kensington slot O on the LCD TV and

turn it as shown O,

2. Connect the Kensington Lock cable _,

3. Fixthe Kensington Lock to a desk or a heavy stationary object.

The locking device has to be purchased separately.

The location of the Kensington slot may be different depending on the

TV model.

o.."C.....',

Assembling the Blanking Bracket

When installing the TV onto a wall, attach the Blanking Bracket as shown.

Preparing before installing Wall-Mount (46 ~ 55 inch l-Vs)

To install a wall-mount from another manufacturer, use the Holder-Ring,

Blanking Bracket_

_fr_ Ki_•. :o_°_ ...... o_%

2 English

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the wall mount items. Contact a

technician for assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the

product or injury to yourself or others if you elect to install the TV on your own.

Wall Mount Kit Specifications (VESA)

The wall mount kit is not supplied, but sold separately.

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact

your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

NOTE

* Standard dimensions for wall mount kits are shown in the table below.

* When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

* Do not use screws that do not comply with the VESA standard screw specifications.

* Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw

specifications. Screws that are too long may cause damage to the inside of the TV set.

* For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ

depending on the wall mount specifications.

* Do not fasten the screws too strongly; this may damage the product or cause the product to fall, leading to personal

injury, Samsung is not liable for these kinds of accidents.

* Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or

the consumer fails to follow the product installation instructions.

* Do not mount the TV at more than a 15 degree tilt.

* Always use two people to mount the TV to a wall.

LCD-TV

75 X 75

19-22 100 X 100 M4

23-29 200 X 100

30-40 200 X 200 M6

46-55 400 X 400

57-65 600 X 400 M8

70-80 800 X 400

80- 1400 X 800

//_ Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due toelectric shock.

English 43

Other Information

Cautioni Rullingl pushingl 0r _!imbing _n theW may cause the _ t_ fa!l. in Particular, ensure yoU[ Children do

not hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or death.

Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device

for safety purposes, as follows.

Accessories

(M6X 16) (M8X 19)

W-Holder Screw0 (40inchTV) ScrewQ (46_ 55 inchTVs)

To prevent the -iV from falling

1. Unscrew a screw attached on the back of your TV, then connect the W-Holder [@or @]with the screw through the hole.

Make sure to only use the supplied screw.

2. Firmly fasten the screw to the wall or cabinet where the TV is to be installed. Tie the W-Holder attached to the TV and the

screw fastened on the wall or cabinet so that the TV is fixed.

Purchase the screws to be used on the wall or cabinet separately.

Install the TV close to the wall so that it does not fall.

When attaching the TV to the wall, tie the cord level with the ground or slanted downwards for safety purposes.

Confirm that the cord or link does not come loose frequently.

Before moving the TV, separate the connected cord first.

Use the Wood screw (sold separately) from the size M4x20.

3. Verify all connections are properly secured. Periodically check connections for any sign of fatigue or failure. If you have any

doubt about the security of your connections, contact a professional installer.

44 English

IftheTVseemstohaveaproblem,firsttrythislistofpossibleproblemsandsolutions.Ifnoneofthesetroubleshootingtips

apply,visitsamsung.com,thenclickonSupport,orcallSamsungcustomerserviceat1-800-SAMSUNG.

The TV image does not look as good

as it did in the store.

The picture is distorted: macroblock

error, small block, dots, pixelization.

Color iswrong or missing.

There is poor color or brightness.

There is a dotted line on the edge of

the screen.

The picture is black and white.

When changing channels, the picture

freezes or is distorted or delayed.

• Ifyou have an analog cable/satellite box, upgrade to a digital set top box. Use HDMI or

Component cables to deliver HD (high definition) picture quality.

• Cable/Satellite subscribers: Try HD stations from the channel line up.

• AidCable Antenna connection: Try HD stations after performing Auto program.

'_bs Many HD channels are upscaled from SD(Standard Definition) contents.

• Adjust the Cable/Sat box video output resolution to 1080i or 720p.

• Compression of video contents may cause picture distortion, especially in fast moving pictures

such as sports and action movies.

• Los! signal levelcan cause picture distortion. This is not a TV problem.

• Ifyou're using a component connection, make sure the component cables are connected to the

correct jacks. Incorrect or loose connections may cause color problems or a blank screen.

• Adjust the Picture options in the TV menu.

(go to Picture mode /Color /Brightness /Sharpness) (R 14)

• Adjust Energy Saving option in the TV menu (go to MENU - Picture - ECO Solution - Energy

Saving) (R 14)

• Try resetting the picture to vies! the default picture setting.

(go to MENU - Picture - Picture Reset)(R 16)

• Ifthe picture size is set to Screen Fit, change it to 16:9.

• Change cable/satellite box resolution.

• Ifyou are using an AVcomposite input, connect the video cable (yellow) to the Green jack of

component input 1 on the T_

• Ifconnected to a cable box, please try to reset it. (reconnect the AC cord and wait until the cable

box reboots. It may take up to 20 minutes)

• Set output resolution of cable box to 1080i or 720p.

There is no sound or the sound is too • Please check the volume the of device (Cable/Sat Box, DVD, Blu-ray etc) connected to your TV.

los! at maximum volume.

The picture is good but there is no

sound.

The speakers are making an

inappropriate noise.

,, Set the Speaker Select option to TV speaker in the sound menu. (R 17)

,, Ifyou are using an external device, check the device's audio output option (ex. you may need to

change your cable box's audio option to HDMI when you have a HDMI connected to your TV).

,, Ifyou are using a DVI to HDMI cable, a separate audio cable is required.

,, Reboot the connected device by reconnecting the device's power cable.

,, Check the cable connections. Make sure a video cable is not connected to an audio input.

,, For Antenna or Cable connections, check the signal information. Los! signal level may cause

sound distortion.

,, Perform the Sound Test as explained above.

English 45

Other Information

The TV won't turn on.

The TV turns off automatically.

There is no pbture/video.

• Make sure the AC power cord is securely plugged in to the wall outlet and the TV.

• Make sure the wall outlet is working.

• Try pressing the POWER button on the TV to make sure the problem is not the remote.

Ifthe TV turns on, refer to 'Remote control does not work' below.

• Ensure the Sleep Timer is set to Off in the Setup menu. (R 18)

+ Ifyour PC is connected to the TV, check your PC power settings.

• Make sure the AC power cord is plugged in securely to the wall outlet and the TV.

• When watching TV from an antenna or cabb connection, the TV will turn off after 10 - 15

minutes if there is no signal.

• Check cable connections. (remove and reconnect all cables connected to the TV and external

devices).

• Set your external device's (Cabb/Sat Box, DVD, Blu-ray etc) video outputs to match the

connections to the TV input. For example, if an external device's output is HDMI, it should be

connected to an HDMI input on the TV.

- Make sure your connected devices are powered on.

- Be sure to select the TV's correct source by pressing the SOURCE button on the remote

control.

Reboot the connected device by reconnecting the device's power cable.

The TV is not receiving all channels. - Make sure the coaxial cable is connected securely.

- Please try Auto Program to add available channels to the channel list. Go to MENU - Channel -

Auto Program then select Auto and make sure correct Cable TV signal type is set in the menu.

There are 3 options. (STD, HRC and IRC) (R 12)

,, Verify the Antenna is positioned correctly.

No Caption on digital channels. - Check Caption Setup menu. Try changing Caption Mode Service 1 to OO1. (R 20)

,, Some channels may not have caption data.

The picture is distorted: macroblock, - Compression of video contents may cause picture distortion, especially on fast moving pictures

error, small block, dots, pixelization, such as sports and action movbs.

,, A los! signal can cause picture distortion. This is not a TV problem.

A "Not Supported Mode" message ,, Set your PC's output resolution so they match the resolutions supported by the TV.

appears.

"PC" is always shown on the source ,, This is normal; "PC" is always shown on the source list, regardless of whether a PC is

list, even if a PC is not connected, connected.

The video is OK but there is no audio. - Ifyou are using a HDMI connection, check the audio output setting on your PC.

The wireless network connection failed. - Samsung Wireless USB dongle is required to use a wireless network.

- Make sure the Network Connection is set to Wireless. (R 26)

• Make sure the TV is connected to a wireless IP sharer (Router).

Software Upgrade over the network - Try network test in Setup menu. (R 25, 27)

fails. - Ifyou have latest SW version, SW upgrade will not proceed.

6English

Purple/green rolling horizontal bars and • Remove the left and right audio connections from the sebtop-box. Ifthe buzzing stops, this

buzzing noise from the TV speakers indicates that the sebtop-box has a grounding issue. Replace the Component video cables with

with Component cable connection, an HDMI connection.

The picture won't display in full screen. • HD channels will have black bars on either side of the screen when displaying upscaled SD (4:3)

contents.

• Black bars on Top & Bottom will be shown on movies that have aspect ratios different from your

TV.

• Adjust picture size option on your external device or TV to full screen.

The remote control does not work. • Replace the remote control batteries with correct polarity (+/-).

• Clean the transmission window located on the top of the remote.

• Try pointing the remote directly at the TV from 5~6 feet away.

The cable/set top box remote control • Program the Cable/Sat remote control to operate the TV. Refer to Cable/Sat user manual for

doesn't turn the TV on or off, or adjust SAMSUNG TV code.

the volume.

A "Not Supported Mode" message • Check the supported resolution of the TV and adjust the external device's output resolution

appears, accordingly. Refer to resolution settings in this manual.

Caption on TV menu is greyed out. • Caption can not be selected in the TV menu when connected via HDMI or Component.

• Caption must be activated on the external device.

There is a plastic smell from the TV. • This smell is normal and will dissipate over time.

TV Signal information is unavailable in • This function is only available with digital channels from an Antenna /RF/Coax connection.

the Self Diagnosis Test menu. (R 22)

TV is tilted to right or left side. • Remove the stand base from TV and reassemble it.

There are difficulties assembling the • Make sure the TV is placed on flat surface. Ifcan not remove screws from the TV, please use a

stand base. magnetized screw driver.

Channel menu isgrey out (unavailable). ,, The Channel menu is only available when the TV source is selected.

Your settings are lost after 30 minutes ,, IfTV is in the Store Demo mode, itwill reset audio and picture settings every 30 minutes. Please

or every time TV is turned off. change from Store Demo mode to Home Use mode in the Plug & Play procedure. Press the

SOURCE button to select TV mode, go to MENU _ Setup _ Plug & Play _ ENTERS.

You have intermittent loss of audio or ,, Check the cable connections and reconnect them.

video. ,, Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables

are flexible enough for long term use. mounting the TV to the wall, we recommend using cables

with 90 degree connectors.

You see small particles when you look ,, This is part of the product's design and is not a defect.

closely at the edge of the frame of

the T_

POP (TV's internal banner ad) appears ,, Select Home Use under Plug & Play mode.

on the screen. For details, refer to Plug & Play (Initial Setup). (R 7)

This TFT LCD panel uses a panel consisting of sub pixels which require sophisticated technology to produce, However,

there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the

product.

English 4?

Other Information

PC Resolution

(Optimum) 1920 x 1080 @60 Hz

Environmental Considerations

Operating Temperature 10°C to 40°C (50°Fto 104°F)

Operating Humidity 10% to 80%, non-condensing

Storage Temperature -20°C to 45°C (-4°F to 113°F)

Storage Humidity 5% to 95%, non-condensing

(Left /Right) -20°- 20°

Screen Size 40 inches 46 inches 55 inches

(Diagonal) (40.0 inches measured diagonally) (45.9 inches measured diagonally) (54.6 inches measured diagonally)

Sound

Output 10WX2 15WX2

Dimensions 6NxDxH)

38.5 X 3.2 X 24.1 inches 43.7 X 3.2 X 27.1 inches 51.3 X 3.4 X 31.4 inctles

(978.3 X 80.3 X 612.5 ram) (1110.5 X 80.3 X 687.8 ram) (1303.7 X 85.3 X 798.8 ram)

With stand 38.5 X 10.0 X 26.0 inches 43.7 X 10.8 X 29.0 inches 51.3 X 12.0 X 33.3 inches

(978.3 X 255.0 X 660.3 ram) (1110.5 X 275.0 X 735.4 ram) (1303.7 X 305.0 X 846.3 mm)

Without Stand 30.6 bs (13.9 kg) 37.5 Ibs (17.0 kg) 54.9 Ibs (24.9 kg)

With Stand 38.1 bs (17.3 kg) 45.9 Ibs (20.8 kg) 65.0 Ibs (29.5 kg)

Screen Size 40 inches 46 inches 55 inches

(Diagonal) (40.0 inches measured diagonally) (45.9 inches measured diagonally) (54.6 inches measured diagonally)

Sound

Output 10WX2 15WX2

Dimensions (WxDxH)

38.5 X 3.2 X 23.4 inches 43.7 X 3.2 X 26.4 inches 51.3 X 3.4 X 30.8 inctles

(977.8 X 80.3 X 595.0 mm) (1110.2 X 80.3 X 670.5 ram) (1303.2 X 85.3 X 781.3 ram)

Withstand 38.5 X 10.0 X 26.0 inches 43.7 X 10.8 X 28.9 inches 51.3 X 12.0 X 33.3 inches

(977.8 X 255.0 X 660.1 ram) (1110.2 X 275.0 X 735.3 ram) (1303.2 X 305.0 X 846.1 mm)

Weight

Without Stand 31.3 bs (14.2 kg) 39.7 Ibs (18 kg) 55.1 Ibs (25 kg)

With Stand 38.8 bs (17.6 kg) 48.1 Ibs (21.8 kg) 65.3 Ibs (29.6 kg)

Design and specifications are subject to change without prior notice.

This device is a Class B digital apparatus.

For information about power supply, and more about power consumption, refer to the label attached to the product.

8 English

License

OZ] DOLBY

D=G=TALPLUS]

PULSE: 1

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are

trademarks of Dolby Laboratories.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVXVIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that

plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVXVIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-

Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu.

Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.

Pat. 7,295,673; 7,460,688; 7,519,274

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;

__LS 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are

2.0+Digital 0ut registered trademarks, & DTS 2.0+ Digital Out and the DTS Iogos are trademarks of DTS, Inc.

SfS_ TheaterSound, SRS and the _ symbol are trademarks of SRS Labs, Inc.

TheaterSound TheaterSound technology is incorporated under license form SRS Lab, Inc.

Open source license notice

In the case of using open source software, Open Source Licenses are available on the product menu.

English 49

Other Information

Ill Front view /side view

I--o-4

(Unit: inches)

LN400610 38.5

LN460610 43.7

LN550610 51.3

LN400630 38.5

LN460630 43.7

LN550630 51.3

34.9 19.7 20.5 24.1 26.0 3.2 10.0

40.1 22.6 21.7 27.1 29.0 3.2 10.8

47.7 26.9 22.8 31.4 33.3 3.4 12.0

34.9 19.7 20.5 23.4 26.0 3.2 10.0

40.1 22.6 21.7 26.4 28.9 3.2 10.8

47.7 26.9 22.8 30.8 33.3 3.4 12.0

Ill Jack panel detail /rear view

(Unit: inches)

LN40C610 /LN40C630

LN46C610 /LN46C630

LN55C610 /LN55C630

13.2

16.1

20.5

2.7

3.7

3.8

4.0

4.1

27.6

31.8

39.3

7.9

15.7

7.9

15.7

NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Referto the

dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors.

0 English

A H S

AIIShare 40 HD 16 Screen Fit 16

Antenna 7 HDMI 8 Sleep Timer 18

Anynet+ 37 Home theater 9, 37 Slide Show 34

AUDIO OUT 9 Software Upgrade 23

Auto Adjustment 14 _ Source List 10

Auto Program 12 Speaker Select 17

Internet Protocol Setup 27, 28 Standby mode 5

a Supported Subtitle Formats 32

.......................................................................................................................L Supported Video Formats 33

Blanking Bracket 42 License 49

Balance 17 T

C M Timer 18

Media Play 30

Cables 10

Cable Tie 42 Melody 21

Caption 20 Menu Language 20

Clear Scrambled Channel 12 MP3 Play 34

MTS 6, 17

Clear Voice 17

Component 8

Composite 10 N

Network Connection 24

DNetwork Setup 25

Device List 38

D_GITAL AUDIO OUT 9, 37

DST (Daylight Saving Time) 18

D-sub 9

DVD home theater 9

Dynamic Contrast 15

ON/OFF button 6

Optimal resolution 10

Video play 32

Volume 5, 6, 18

Wall Mount 42

White Balance 15

Wide Fit 16

Wireless 26

xvYCC 15

E Photo view

Picture Reset

Editing channels 12 PIN number

Energy Saving 14 PIP

Equalizer 17 Position

External Speaker 17 Power Indicator

F R

FAV,CH button 6, 12 Remote Control

Favorite Channel 12 RGB

English 51

SAMSUNG LCD Television Manual L1003193

Navigation menu

Versions of this User Manual:

Views

Navigation
