SANYO Electric Co., Ltd. Spread Spectrum Transmitter Installation Manual

Contents

Installation Manual

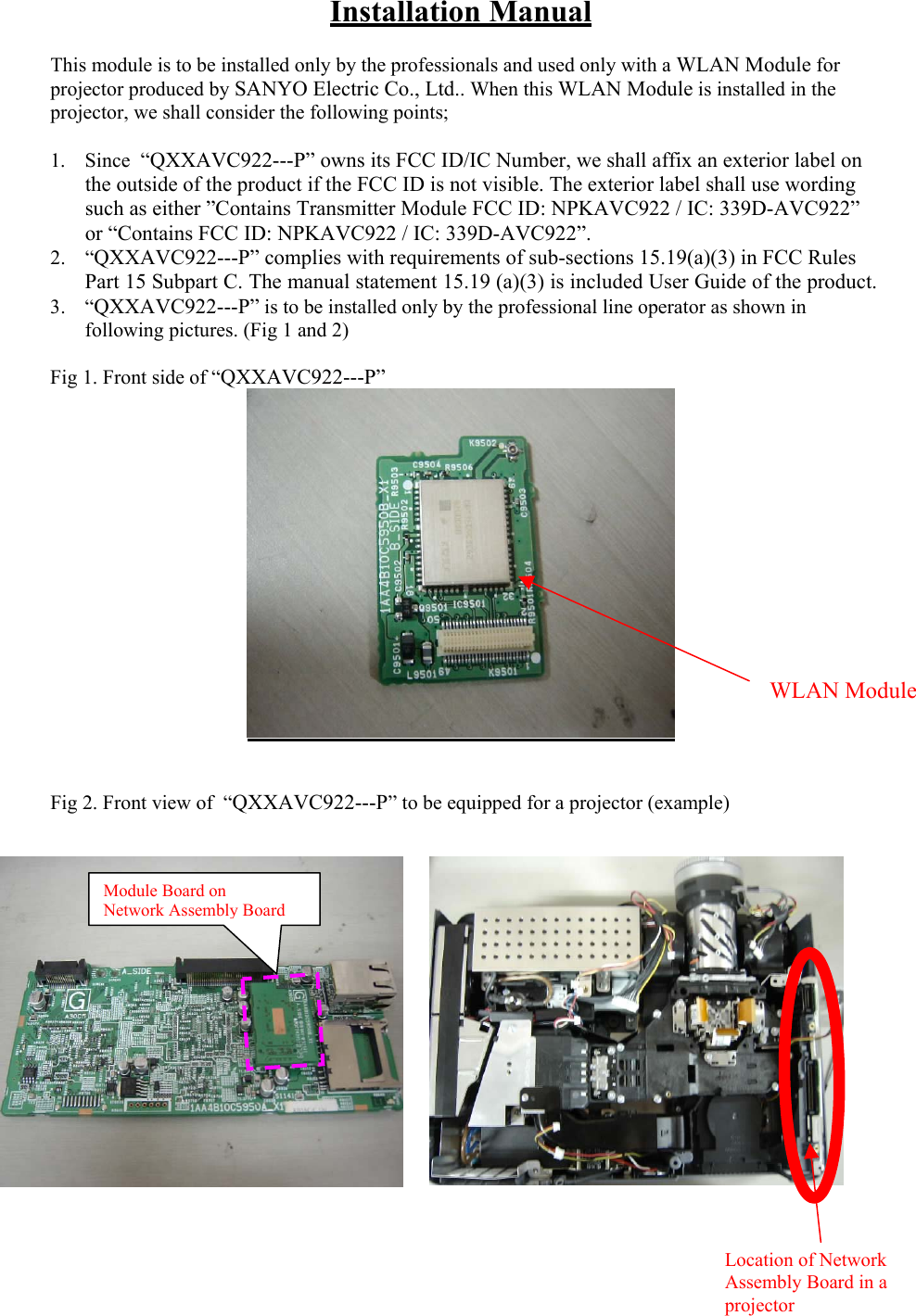

Installation Manual This module is to be installed only by the professionals and used only with a WLAN Module for projector produced by SANYO Electric Co., Ltd.. When this WLAN Module is installed in the projector, we shall consider the following points; 1. Since “QXXAVC922---P” owns its FCC ID/IC Number, we shall affix an exterior label on the outside of the product if the FCC ID is not visible. The exterior label shall use wording such as either ”Contains Transmitter Module FCC ID: NPKAVC922 / IC: 339D-AVC922” or “Contains FCC ID: NPKAVC922 / IC: 339D-AVC922”. 2. “QXXAVC922---P” complies with requirements of sub-sections 15.19(a)(3) in FCC Rules Part 15 Subpart C. The manual statement 15.19 (a)(3) is included User Guide of the product. 3. “QXXAVC922---P” is to be installed only by the professional line operator as shown in following pictures. (Fig 1 and 2) Fig 1. Front side of “QXXAVC922---P” WLAN Module Fig 2. Front view of “QXXAVC922---P” to be equipped for a projector (example) Module Board on Network Assembly Board Location of Network Assembly Board in a projector

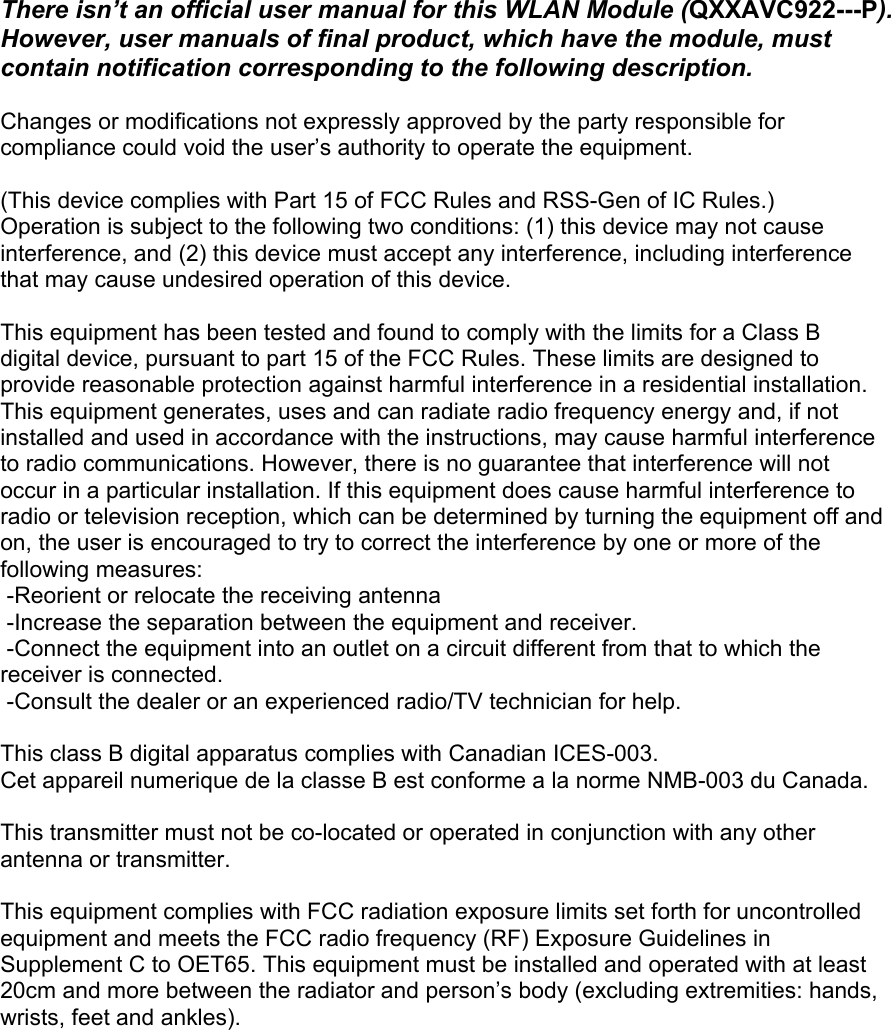

There isn’t an official user manual for this WLAN Module (QXXAVC922---P). However, user manuals of final product, which have the module, must contain notification corresponding to the following description. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. (This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules.) Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment must be installed and operated with at least 20cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and ankles).
