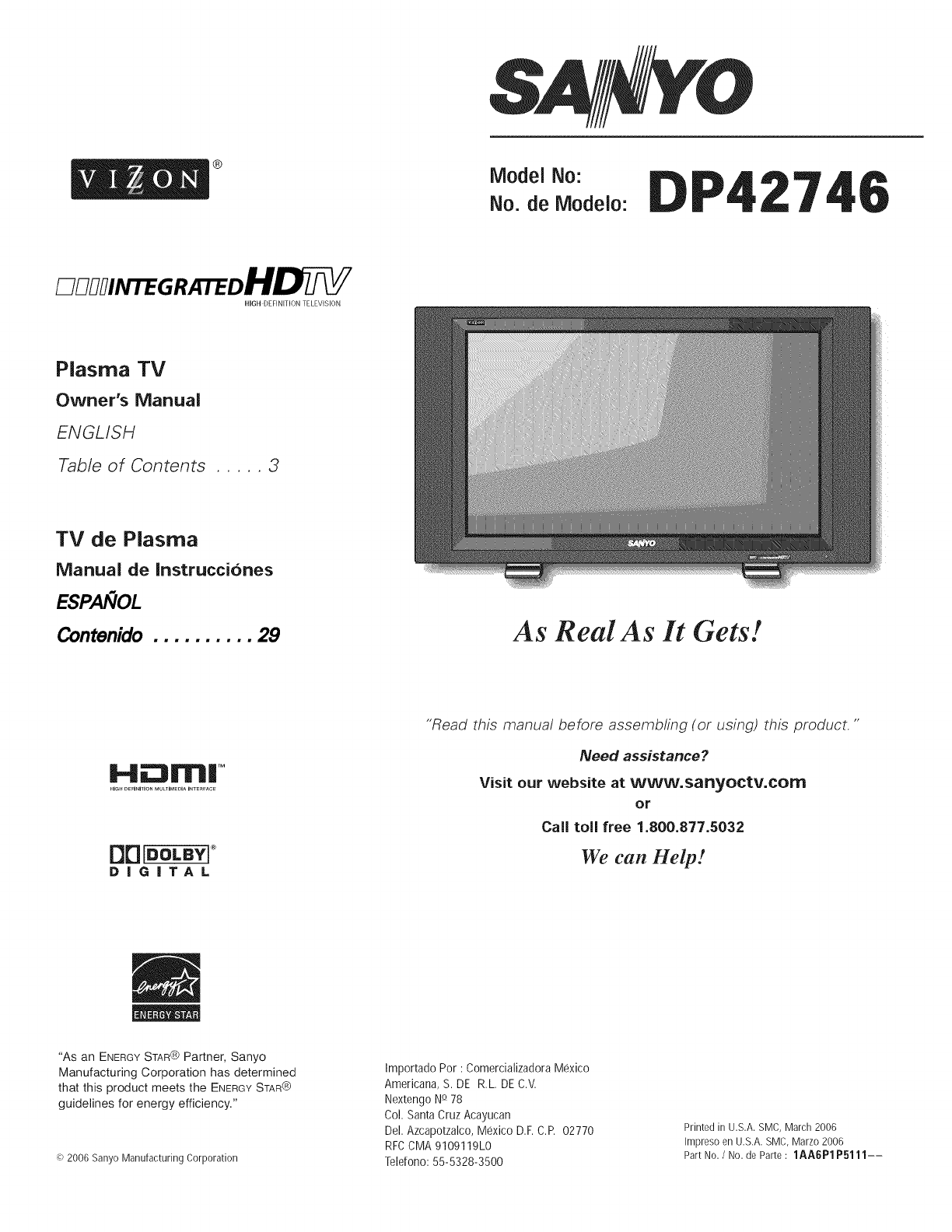

®Model No:

No. de iVlodelo: 7

HIGH DEFINITION TELEViSiON

Plasma TV

Owner's Manual

ENGLISH

Table of Contents ..... 3

TV de Plasma

Manual de InstrucciGnes

ESPAKIOL

Contenido .......... 29 As Real As It Gets!

HEIFFI| T°

_lG_ DE_lnnlON MULtIMEDIaINtE_FAC_

DrIInOLBYI _

DIGITAL

"Read this manual before assembling (or using) this product. ""

Need assistance?

Visit our website at www.sanyoctv.com

Call toll free 1.800.877.5032

We can Help!

"As an ENERGYSTAR® Partner, Sanyo

Manufacturing Corporation has determined

that this product meets the ENERGYSTAR®

guidelines for energy efficiency."

(_)2006 Sanyo Manufacturing Corporation

Importado Por :Comercializadora Mexico

Americana, S. DE R.L. DEC.V.

Nextengo N° 78

Col. Santa Cruz Acayucan

Del. Azcapotzalco, Mexico D.F.C.R 02770

RFCCMA 9109119L0

Telefono: 55-5328-3500

Printed in U.S.A. SMC, March 2006

Impreso en U.S.A. SMC, Marzo 2006

Part No./No. de Parte : 1AAGP1P5111--

CAUTION

CAUTION: TO REDUCE THE RiSK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER-SERViCEABLE PARTS iNSiDE. REFER SERViCiNG TO QUALiFiED

SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUT- AJL,

ING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT. h,_,

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING

AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOM-

PANYING THIS UNIT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install

accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radia-

tors, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding-type plug

has two blades and a third grounding prong. The

wide blade or the third prong are provided for your

safety. If the provided plug does not fit fully into your

outlet, consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience recepta-

cles, and the point where they exit from the

apparatus.

11. Only use attachments/accessories specified by the

manufacturer.

12. Use only with the cart, stand, tripod,

bracket, or table specified by the manu-

facturer, or sold with the apparatus.

When a cart is used, use caution when

moving the cart/apparatus combination

to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Ser-

vicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has

been exposed to rain or moisture, does not operate

normally, or has been dropped.

15. If an outside antenna is connected to the television

equipment, be sure the antenna system is grounded

so as to provide some protection against voltage

surges and built up static charges. In the U.S. Selec-

tion 810-21 of the National Electrical Code provides

information with respect to proper grounding of the

mast and supporting structure, grounding of the lead-

in wire to an antenna discharge unit, size of

grounding conductors, location of antenna discharge

unit, connection to grounding electrodes, and

requirements for the grounding electrodes.

EXAMPLE OF ANTENNA GROUNDING ACCORDING TO NATIONAL ELECTRICAL

CODE, ANSI/NEPA70

ANTENNA

LEADIN

WIRE GROUND

CLAMP

ANTENNA

I SERVICE ---_/_ D!SCHARGE UNIT

____ ...... !NEC SECTION 810-20)

GROUND CLAMPS = \\ GROUNDING CONDUCTORS

POWER SERVICE GROUNDING _ (NEC SECTION 810-21)

ELECTRODE SYSTEM

(NEC ART 250,PART H) NEC -NATIONAL ELECTRICAL CODE

"Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to

Article 820-40 of the NEC that provides guidelines for proper grounding

and, in particular, specifies that the cable ground shall be connected to

the grounding system of the building, as close to the point of cable entry

as practical."

16. An outside antenna system should not be located in

the vicinity of overhead power lines or other electrical

light or power circuits, or where it can fall into such

power lines or circuits. When installing an outside

antenna system, extreme care should be taken to

keep from touching such power lines or circuits as

contact with them might be fatal.

17. "Apparatus shall not be exposed to dripping or

splashing and no objects filled with liquids, such as

vases, shall be placed on the apparatus."

2Need help? Visit our Web site at WWW.Sanyoctv.conl or Call 1-800-877-5032

Welcome to the Wodd of Sanyo

Thank you for purchasing this Sanyo Plasma High-Definition

television. You made an excellent choice for Performance,

Reliability, Features, Value, and Styling.

Important Information

Before installing and operating this Plasma DTV, read this

manual thoroughly. This Plasma DTV provides many convenient

features and functions. Operating the Plasma DTV properly

enables you to manage those features and maintain it in good

condition for many years to come. Improper operation may

result in not only shortening the product-life, but may also

cause malfunctions or other serious proNems.

If your Plasma DTV seems to operate improperly, read this

manual again, check operations and cable connections and try

the solutions in the "Helpful Hints" section, page 26 of this

manual. If the problem still persists, visit our website at

www,sanyoctv.com or call 1.800.877.5032. We Can Help/

important Safety instructions ....................... 2

ToThe Owner .................................. 3

Contents ...................................... 3

Features ...................................... 4

Specifications .................................. 4

Handling Precautions ............................. 5

Care and Cleaning ............................... 5

Cleaning the Plasma DTV ................................ 5

Caring for the Plasma DTV ............................... 5

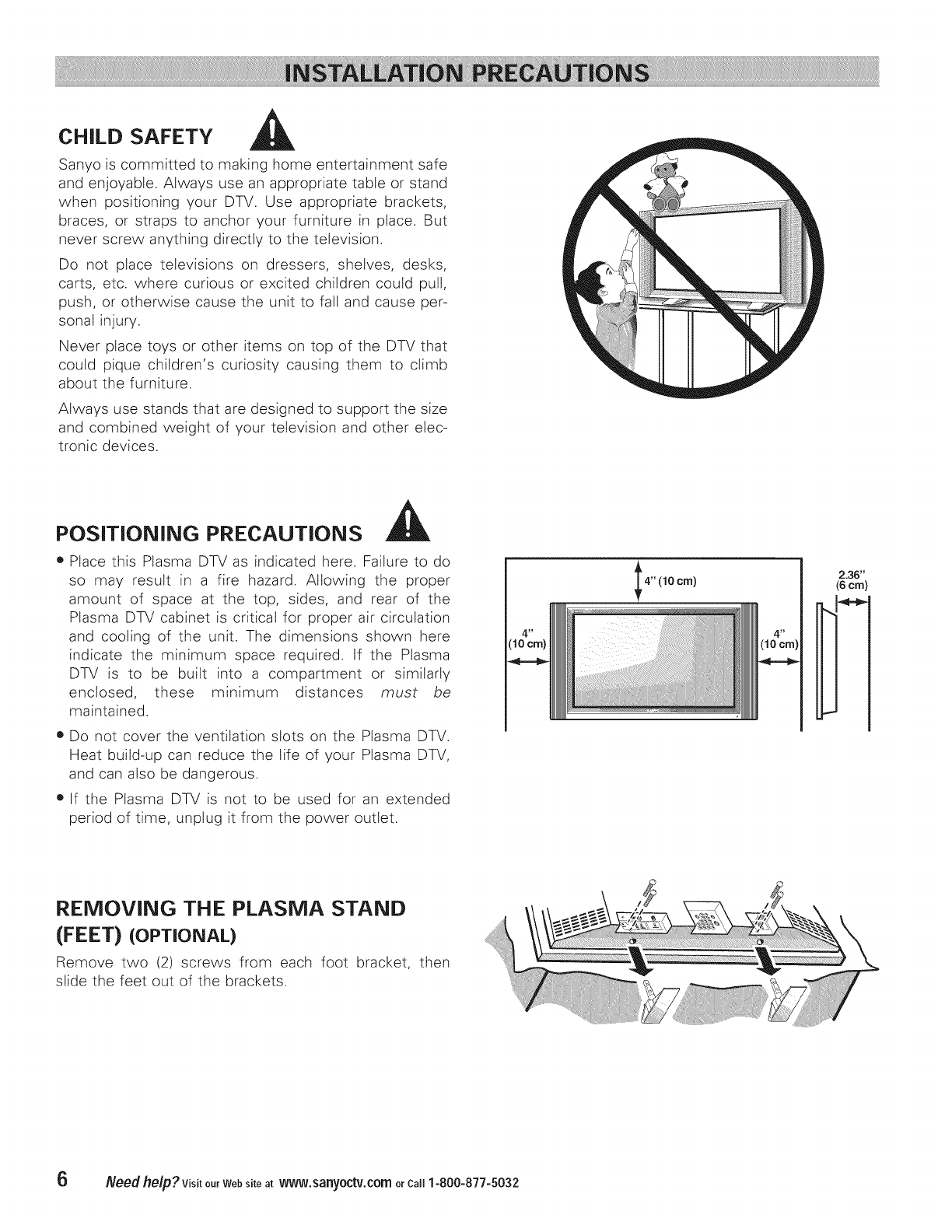

Installation Precautions ........................... 6

Child Safety .......................................... 6

Positioning Precautions ................................. 6

Removing the Plasma Stand (Feet) (Optional) ................ 6

First-Things-First (Required initial Setup) ............... 7

InitialSignal Connections ................................ 7

Digital RF Antenna Connection ........................... 7

Analog RF Antenna Connection .......................... 7

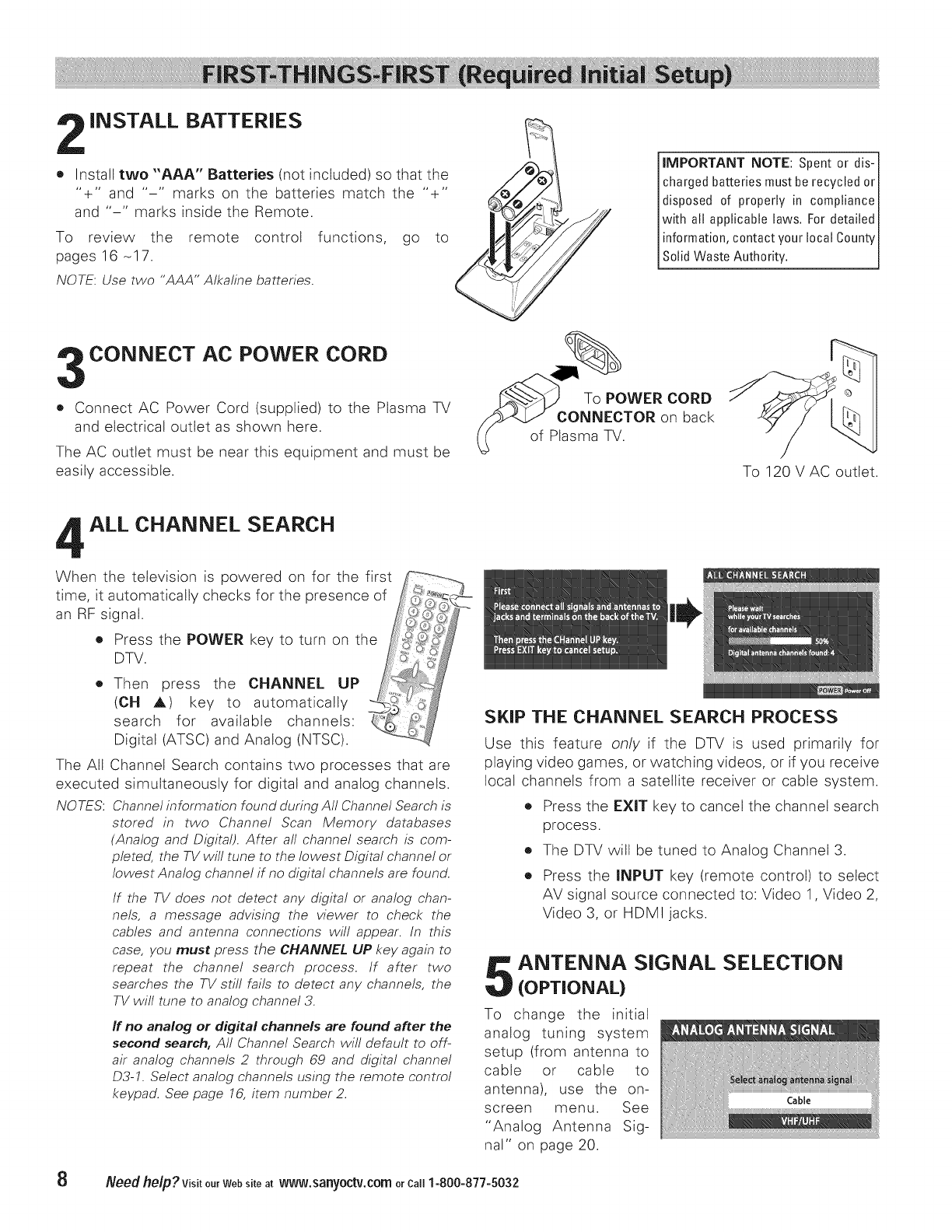

Install Batteries ........................................ 8

Connect AC Power Cord ................................. 8

All ChannelSearch ...................................... 8

Analog Antenna Signal Selection (Optional) .................. 8

Top and Back Panels ............................. 9

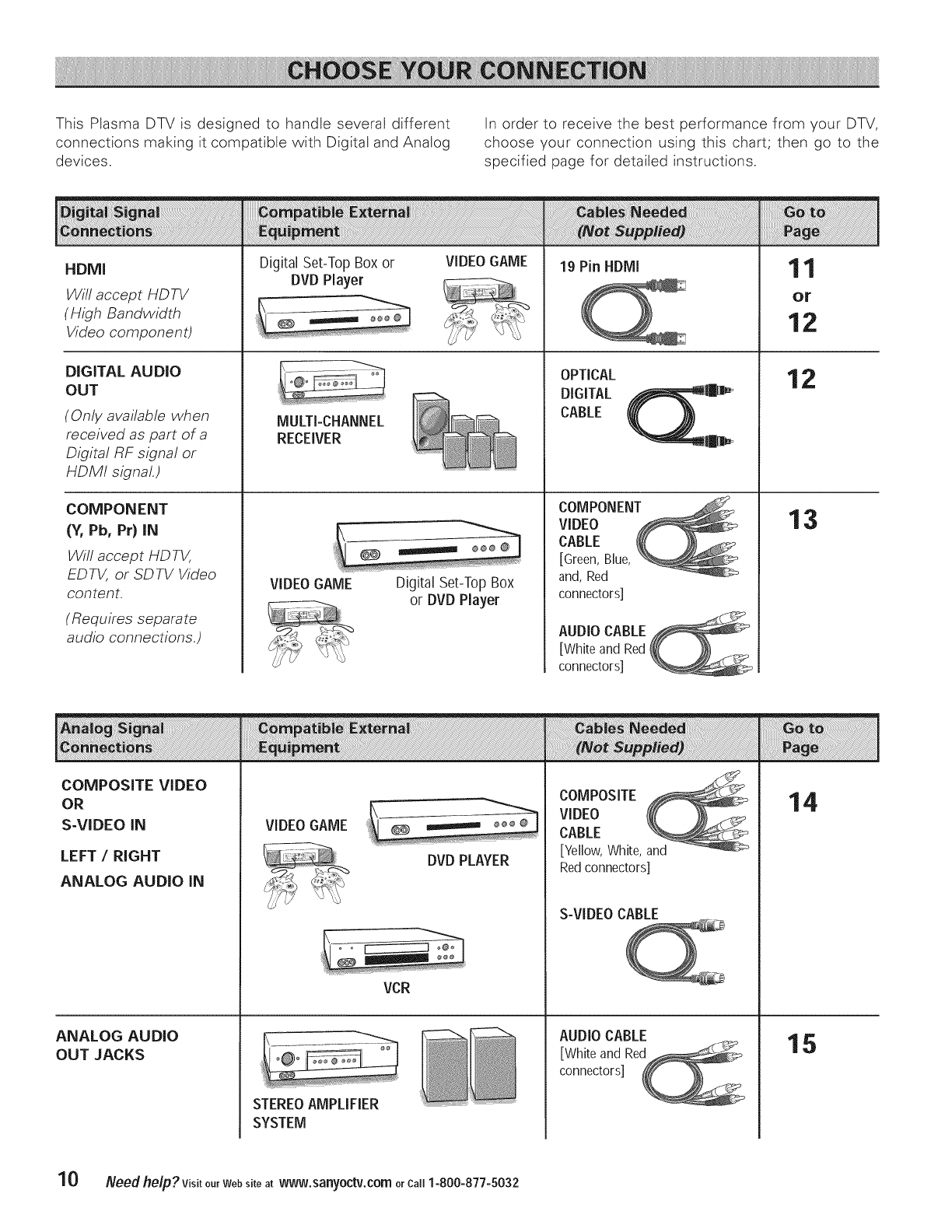

Choose Your Connection .......................... 10

Digital AV Connections

Connecting External Equipment to HDMI Input ............... 11

Connect STB or DVDwith DVI Output to HDMI Input .......... 12

Connecting Digital Audio Output to a Multi-Channel Receiver.... 12

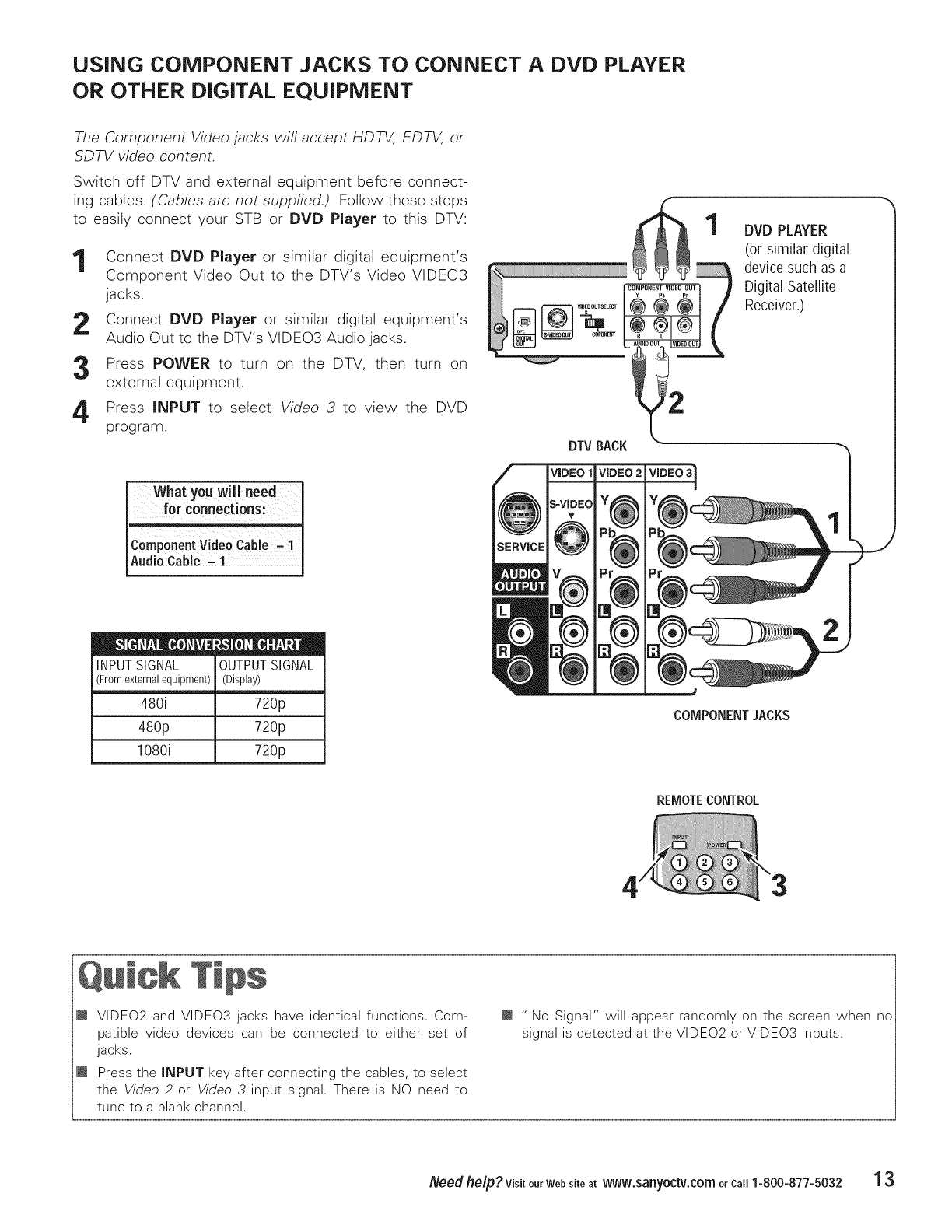

Usethe Component Jacks to Connect a DVD Player

or Other Digital Equipment .............................. 13

Analog AV INPUT Connections

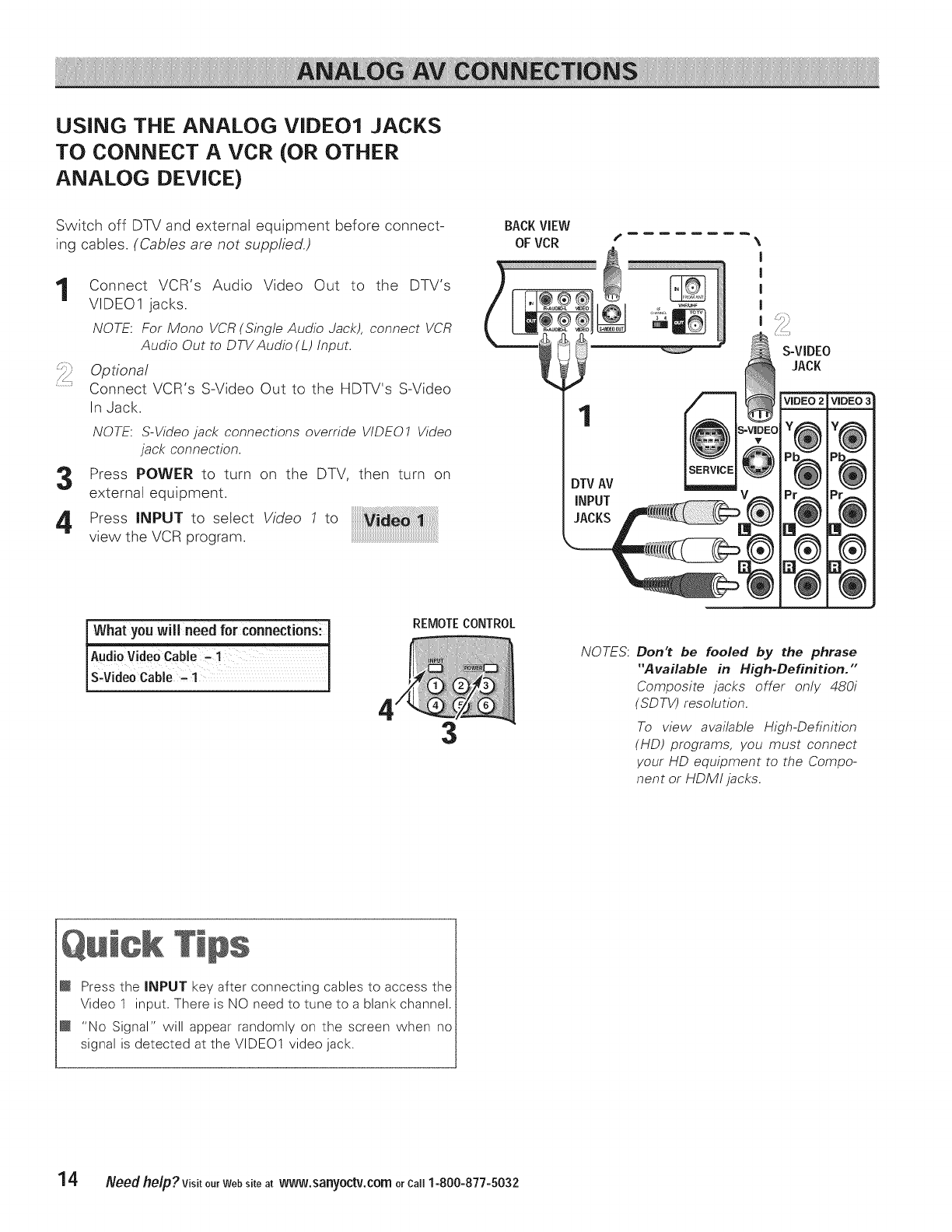

Usethe Video1 Jacks to Connecta VGR

or other Analog Equipment .............................. 14

Connecting Analog Audio Output Jacks to Stereo Amplifier ..... 15

Typical Home Theater Connections .................. 15

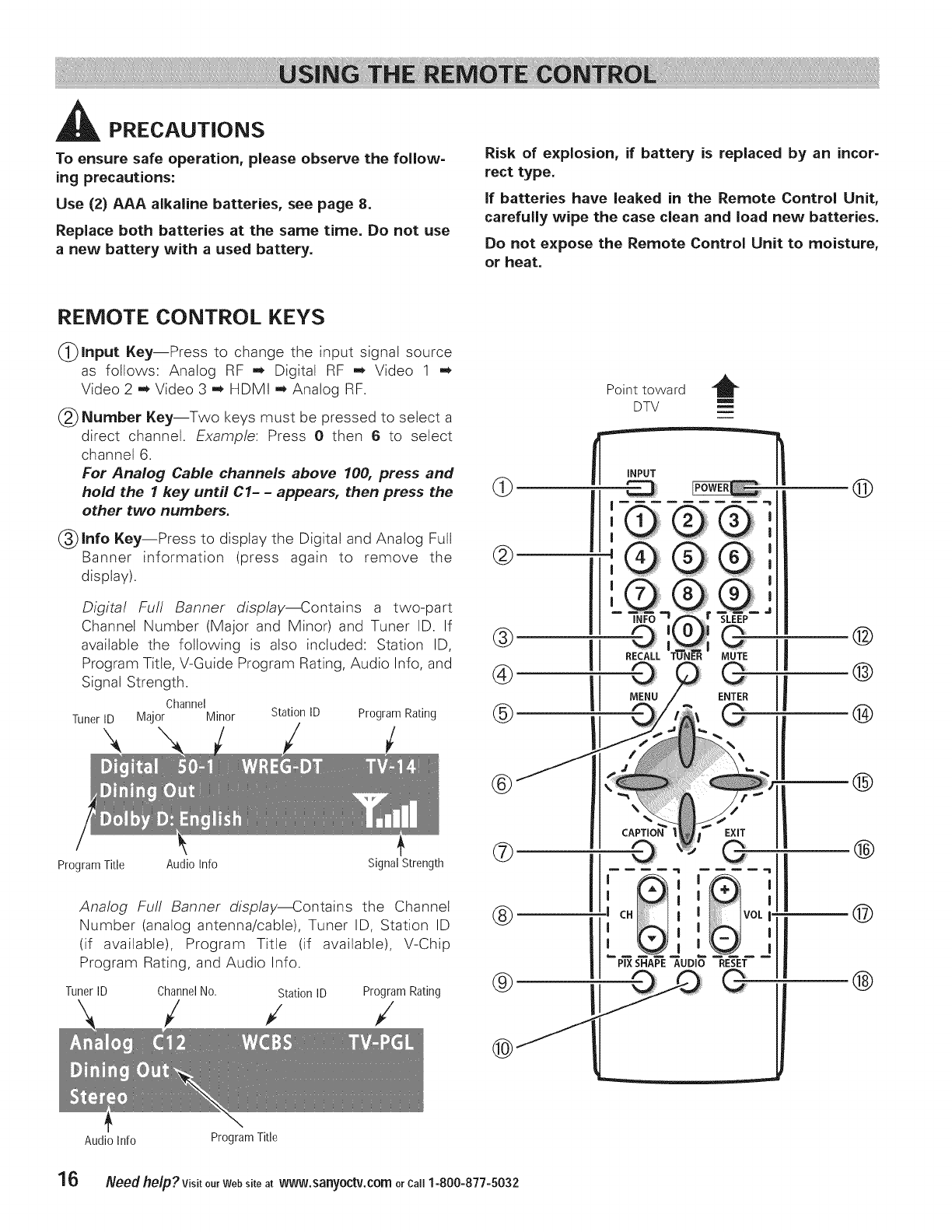

Using the Remote Control ......................... 16

Precautions .......................................... 16

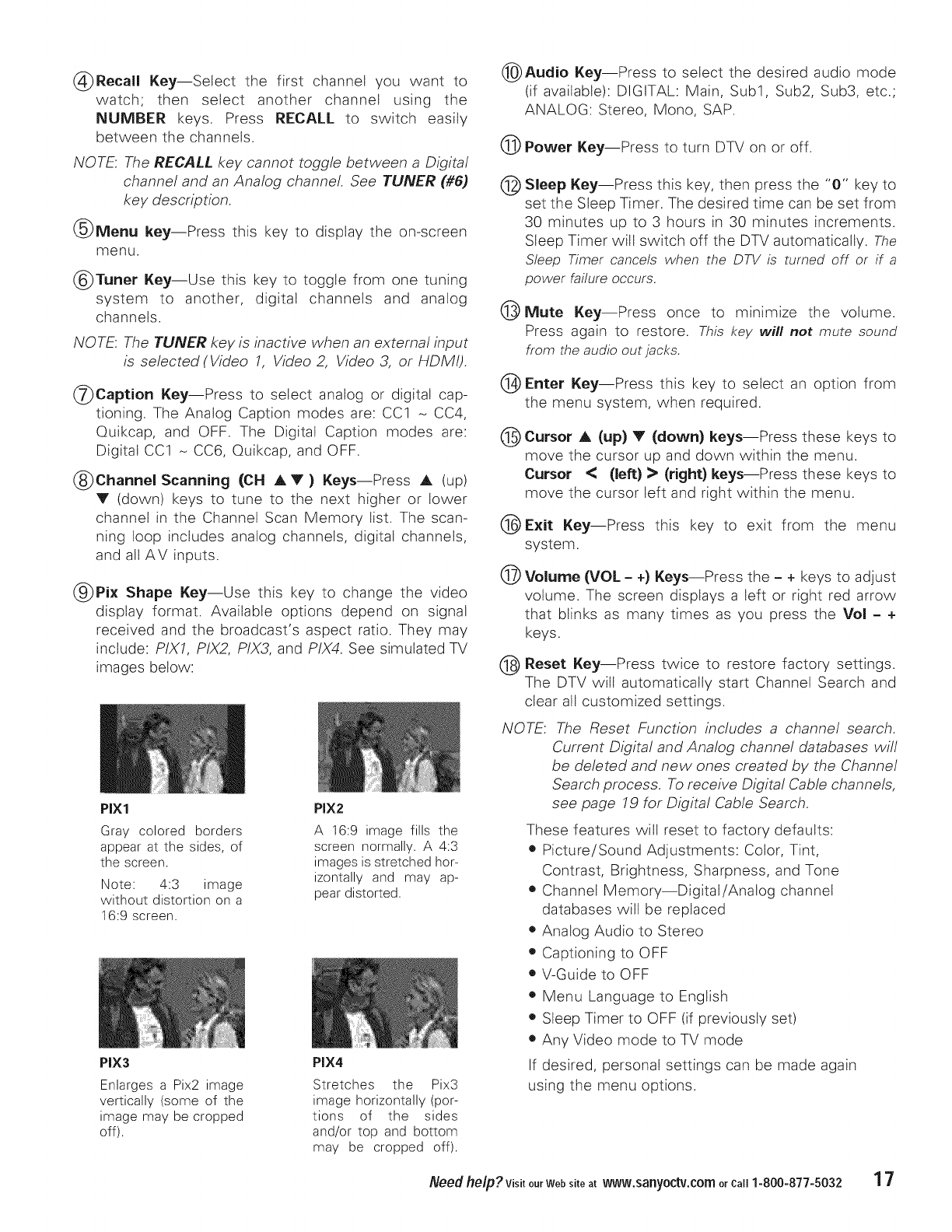

Remote Control Keys .............................. 16 - 17

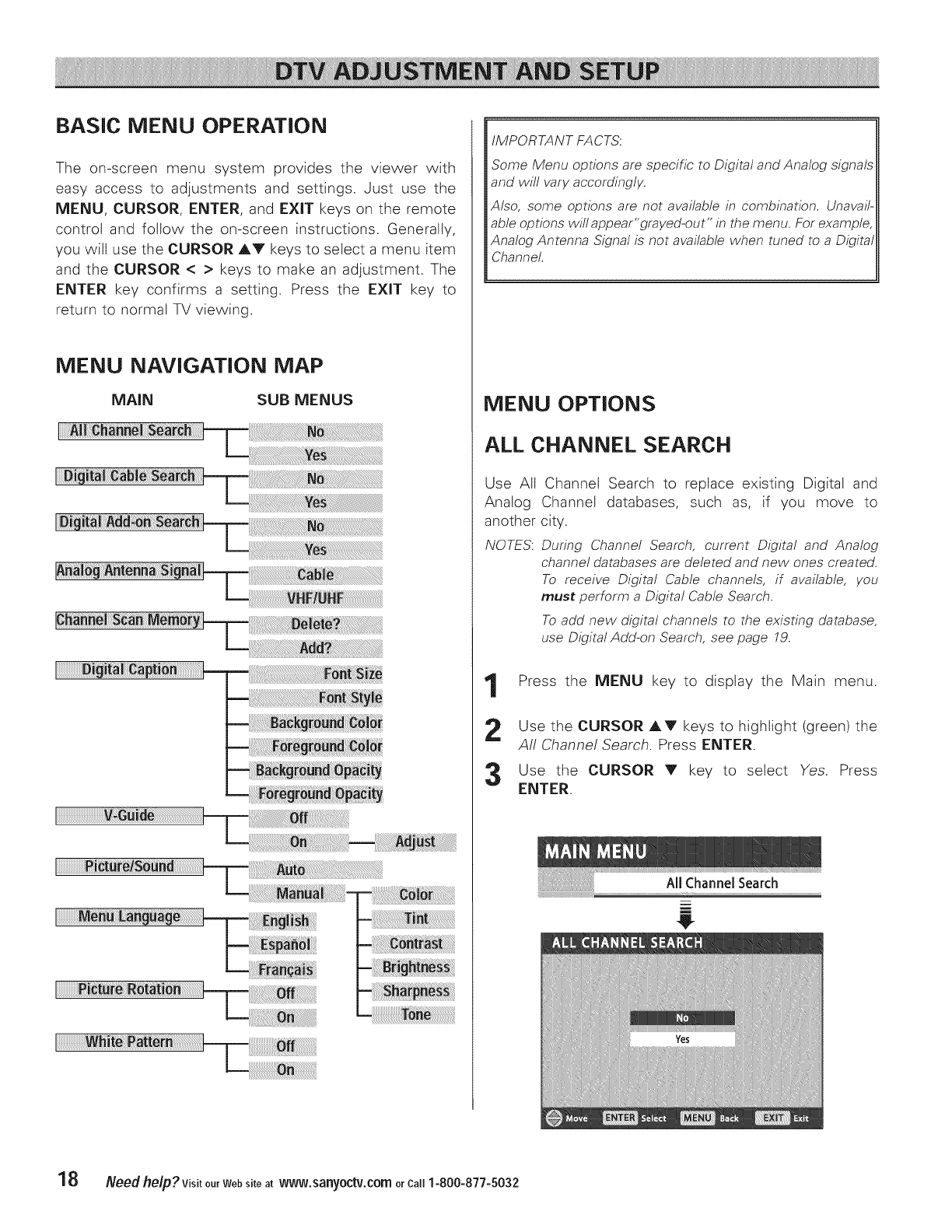

TV Adjustment and Setup ......................... 18

Basic Menu Operation .................................. 18

Menu NavigationMap .................................. 18

Menu Options:

All Channel Search ..................................... 18

Digital CableSearch (Optional) ........................... 19

Digital Add-on Search .................................. 19

Analog AntennaSignal Selection (Optional) ................. 20

ChannelScan Memory ................................. 20

Digital Caption ........................................ 21

Changing the Look of Digital Captions ................... 21

To View Captions .................................... 21

V-Guide (Parental Control) .............................. 22

To Block MPAA Movie or TV Program .................... 22

To Setup V-Guide Ratings ............................. 22

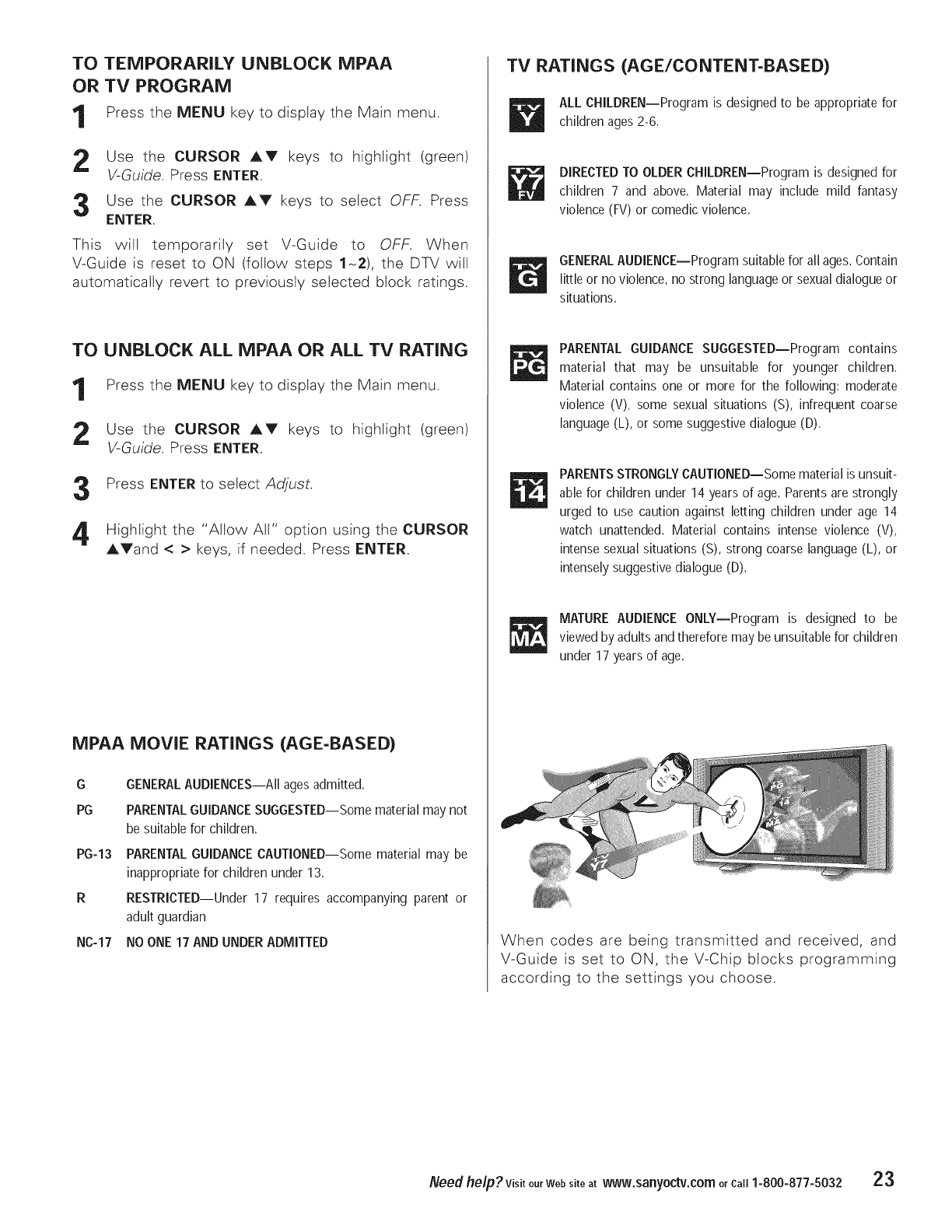

Temporarily Unblock MPAA Movie or TV Program .......... 23

To Unblock All MPAA Movie or All TV Ratings .............. 23

MPAA Movie Ratings (Age-Based) ....................... 23

TV Ratings (Age/Content-Based) ........................ 23

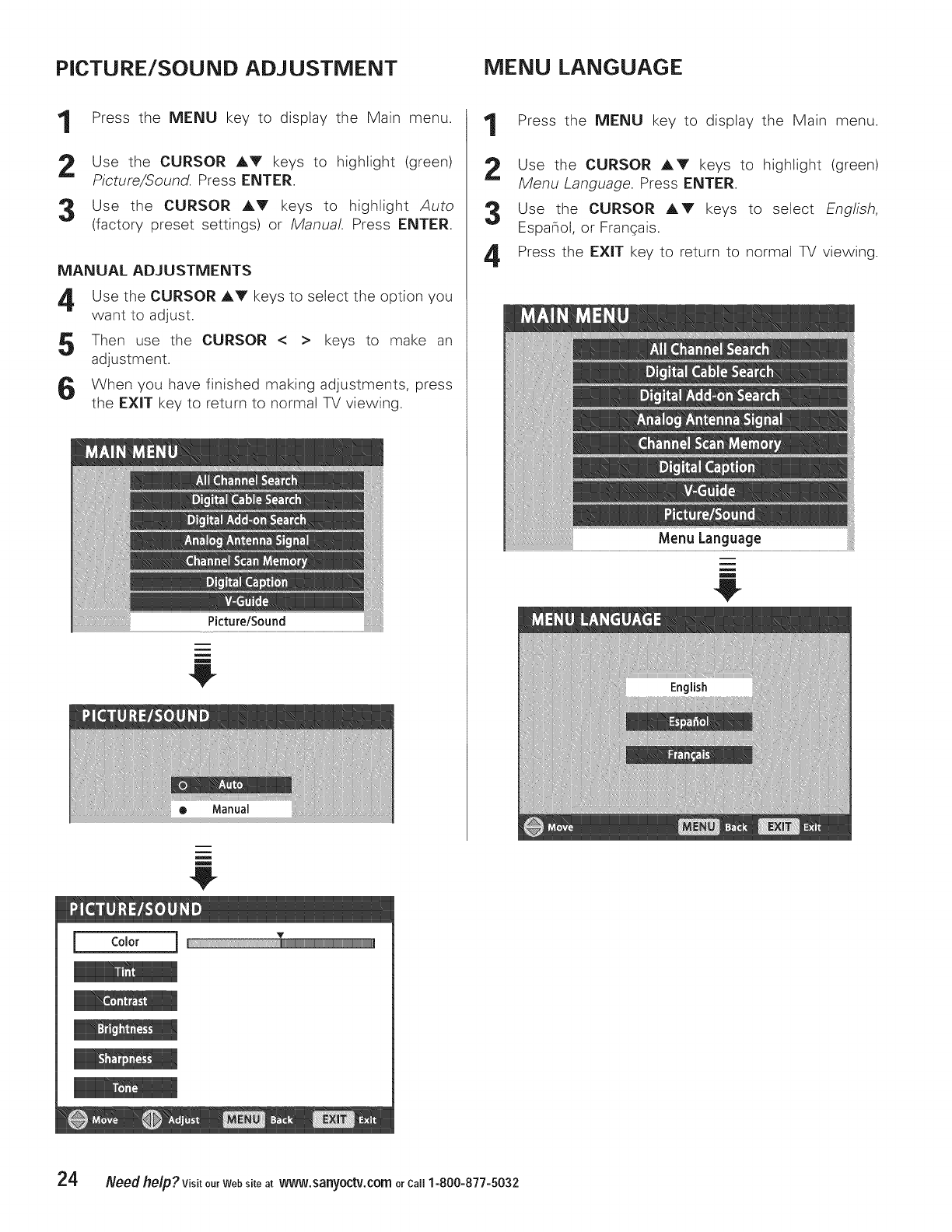

Picture/Sound Adjustment .............................. 24

Menu Language ....................................... 24

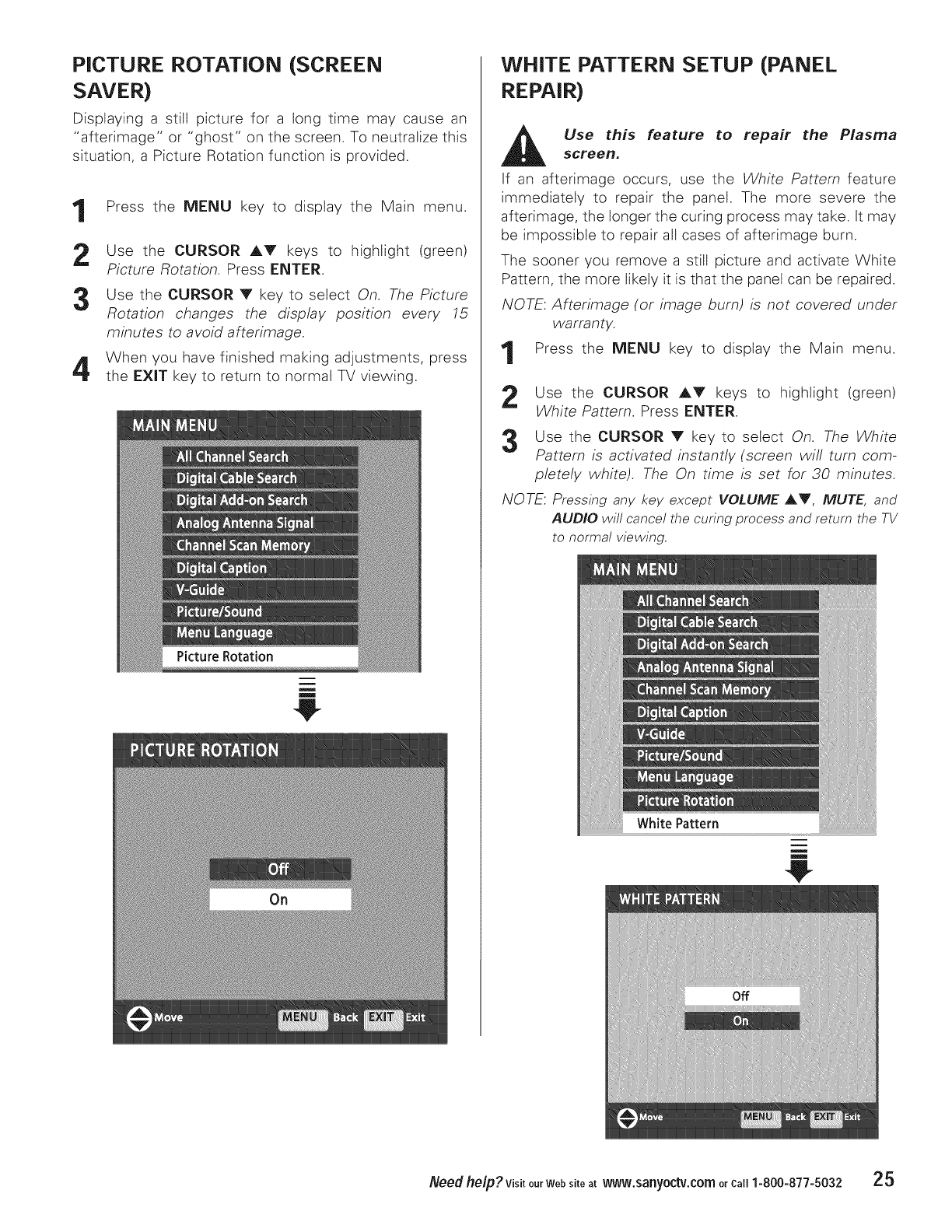

Picture Rotation (Screen Saver) .......................... 25

White Pattern Setup (Panel Repair) ........................ 25

Helpful Hints (ProblemslSolutions) .................. 26

Mexico Guarantee .............................. 27

United States and Canada Warranty .................. 28

Need help? Visit our Web site at www.sanyoctv.comor Call 1-800-877-5032 3

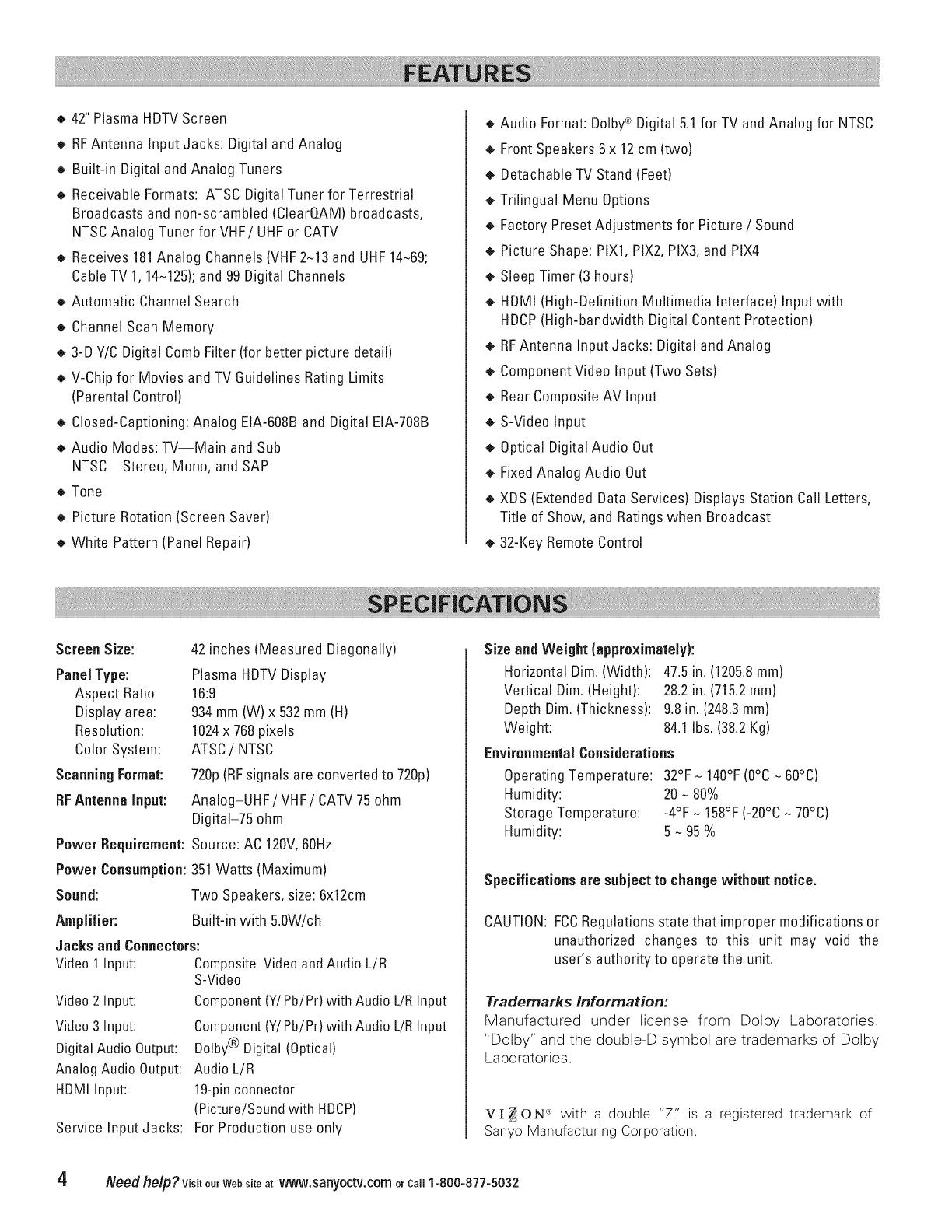

42"Plasma HDTVScreen

RFAntenna Input Jacks: Digital and Analog

Built-in Digital and Analog Tuners

Receivable Formats: ATSCDigital Tuner for Terrestrial

Broadcasts and non-scrambled (ClearQAM) broadcasts,

NTSCAnalog Tuner for VHF/UHF or CATV

Receives 181Analog Channels(VHF2-_13and UHF14_69;

Cable TV 1, 14-q25);and 99 Digital Channels

Automatic Channel Search

Channel Scan Memory

3-D Y/CDigital CombFilter (for better picture detail)

V-Chipfor Movies and TV Guidelines Rating Limits

(Parental Control)

Closed-Captioning: Analog EIA-608Band Digital EIA-708B

Audio Modes: TV--Main and Sub

NTSC--Stereo, Mono, and SAP

Tone

Picture Rotation (Screen Saver)

White Pattern (Panel Repair)

Audio Format: Dolby® Digital 5.1for TV andAnalog for NTSC

Front Speakers 6 x 12cm (two)

_, Detachable TV Stand (Feet)

Trilingual Menu Options

Factory Preset Adjustments for Picture /Sound

Picture Shape: PIX1,PIX2,PIX3,and PIX4

Sleep Timer (3 hours)

HDMI (High-Definition Multimedia Interface)Input with

HDCP(High-bandwidth Digital Content Protection)

RFAntenna Input Jacks: Digital and Analog

_, Component Video Input (Two Sets)

Rear CompositeAV Input

S-Video Input

Optical Digital Audio Out

FixedAnalog Audio Out

XDS (Extended Data Services) Displays Station Call Letters,

Title of Show, and Ratings when Broadcast

32-Key Remote Control

Screen Size:

PanelType:

Aspect Ratio

Display area:

Resolution:

Color System:

Scanning Format:

RFAntennainput:

Power Requirement:

Power Consumption:

Sound:

Amplifier:

42inches (Measured Diagonally)

Plasma HDTVDisplay

16:9

934mm (W) x 532mm (H)

1024x 768pixels

ATSC/NTSC

720p(RFsignals are converted to 720p)

Analog-UHF /VHF/CAW 75ohm

Digital-75 ohm

Source: AC 120V,60Hz

351Watts (Maximum)

Two Speakers, size: 6x12cm

Built-in with 5.0W/ch

Jacks and Connectors:

Video 1 Input: Composite Video and Audio L/R

Video 2 Input:

Video 3 Input:

Digital Audio Output:

Analog Audio Output:

HDMI Input:

Service Input Jacks:

S-Video

Component (Y/Pb/Pr) with Audio L/R Input

Dolby® Digital (Optical)

Audio L/R

19-pin connector

(Picture/Sound with HDCP)

For Production use only

Size and Weight (approximately):

Horizontal Dim. (Width): 47.5in. (1205.8mm)

Vertical Dim. (Height): 28.2in. (715.2mm)

Depth Dim. (Thickness): 9.8 in. (248.3ram)

Weight: 84.1Ibs. (38.2Kg)

Environmental Considerations

Operating Temperature: 32°F_ 140°F(0°C_ 60°C)

Humidity: 20 *-80%

Storage Temperature: -4°F *- 158°F(-20°C*-70°C)

Humidity: 5 *- 95%

Specifications are subject to change without notice.

CAUTION: FCCRegulations state that improper modifications or

unauthorized changes to this unit may void the

user's authority to operate the unit.

Trademarks information:

Manufactured under license from Dolby Laboratories.

"Dotby" and the doubte-D symbol are trademarks of Dolby

Laboratories.

VI_ON ® with a double "Z" is a registered trademark of

Sanyo Manufacturing Corporation.

4Need help? Visit our Web site at www.sanyoctv.com orCall1-800-877-5032

• HandlethePlasmaDTVcarefullywheninstalling.Do

NotDrop.

• Locatetheset awayfrom heat,excessivedust,and

directsunlight.

NOTE"WhenthePlasmaDTVisnotusedforalongperiod

oftime,darkdotsmaybeobserved.Thisisachar-

acteristicofthePlasmadisplay.Ifthisoccurs,turn

thePlasmaDTVOnandleaveit onaboutonehour.

Thesedotswillgraduallydisappear.

• Throughout the installation process, handling by more

than two people is recommended.

• When removing the feet, use a working space that is

larger than the screen size. The work surface must be

fiat and covered with a soft cloth or blanket to protect

the screen surface.

• Before placing the Plasma DTV face down, make sure

there are no objects under the screen. Leaving any

object may cause damage on the screen surface.

Hand Slots

CLEANING THE PLASMA DTV

The surface of the cabinet can be damaged if not properly

maintained. Many common household aerosol sprays,

cleaning agents, solvents, and polishes will cause perma-

nent damage to the fine surface.

1, Unplug the power cord before cleaning the Plasma

DTV

2. Gently wipe the screen and cabinet with dry soft

cloth.

screen.

Do not use benzene, thinner, or

any volatile substances to clean

the Plasma DTV. These chemi-

cals may damage the cabinet

finish.

The screen is likely to be damaged if it is not maintained

properly. Do not use hard objects like a hard cloth or

paper. Do not use solvents or abrasives.

NOTES:Never spray liquids on the

CARING FOR THE PLASMA DTV

Do not bump or scratch the panel surface as this causes

flaws on the surface of the screen.

Do not display a still image on the screen for a long time.

Otherwise, an afterimage or "ghost" may appear on a

part of the panel. To prevent this symptom, use the

"Picture Rotation (Screen Saver) and White Pattern

(panel repair)'" function of the Plasma DTV. See page 25.

There may be some tiny black points and/or blight points

on the Plasma Display Panel. These points are normal.

Need help? visitour Websiteat www.sanyoctv.comorcall1-800-877-5032 5

CHILD SAFETY

Sanyo is committed to making home entertainment safe

and enjoyable. Always use an appropriate table or stand

when positioning your DTV. Use appropriate brackets,

braces, or straps to anchor your furniture in place. But

never screw anything directly to the television.

Do not place televisions on dressers, shelves, desks,

carts, etc. where curious or excited children could pull,

push, or otherwise cause the unit to fall and cause per-

sonal injury.

Never place toys or other items on top of the DTV that

could pique children's curiosity causing them to climb

about the furniture.

Always use stands that are designed to support the size

and combined weight of your television and other elec-

tronic devices.

POSITIONING PRECAUTIONS

• Place this Plasma DTV as indicated here. Failure to do

so may result in a fire hazard. Allowing the proper

amount of space at the top, sides, and rear of the

Plasma DTV cabinet is critical for proper air circulation

and cooling of the unit. The dimensions shown here

indicate the minimum space required. If the Plasma

DTV is to be built into a compartment or similarly

enclosed, these minimum distances must be

maintained.

• Do not cover the ventilation slots on the Plasma DTV.

Heat build-up can reduce the life of your Plasma DTV,

and can also be dangerous.

• If the Plasma DTV is not to be used for an extended

period of time, unplug it from the power outlet.

4"(10crn) 2.36"

(6crn)

REMOVING THE PLASMA STAND

(FEET) (OPTIONAL)

Remove two (2) screws from each foot bracket, then

slide the feet out of the brackets.

6Need help? Visit our Web site at WWW.SalllyOCIV.COnl or Call 1-800-877-5032

This Plasma television will reproduce a crystal clear Digital picture and exceptional sound.

The signa! makes the difference!

INITIAL SIGNAL CONNECTIONS

Digital (DTV) RF Antenna Connection

• Connect an RF Antenna to the Digital Antenna

terminal.

The digital tuner in this DTV receives HD signals from an

antenna. Digital signals from a Set-top Box (STB) are

received through the Component In jacks.

This DTV can receive ANY resolution being broadcast

(HDTV, EDTV, or SDTV). However, ALL resolutions are

converted to 1080i for display.

DIGITALANTENNAiNPUT

PLASMATV BACK

DiGiTALRF

ANTENNA

Analog RF Antenna Connection

• Connect a Cable signal (with or without a cable box),

Satellite Receiver, or RF antenna to the Analog RF

input.

The analog tuner in this Plasma DTV receives Analog

Antenna signals, Analog Cable signals, or the RF output

from a Satellite Receiver, VCR, or cable box.

)

VCRBACK

ALOGCABLE

PLASMA

DTVBACK

VCRBACK

I_ ANALOGSATELLITERECEIVER

CATV FRANCHISE NOTE: Cable companies, like public

utilities, are franchised by local government authori-

ties. To receive cable programs, even with equipment

Iwhich is capable of receiving cable channels, the con-

sumer must subscribe to the cable company's service.

DTV BACK

ANALOGRF

ANTENNA

VCRBACK

Notes: If you do not have a VCR, connect signal directly to the TV

75 ohm terminal ( UHF/VHF/CA TV).

Don't be fooled by the phrase "Available in High-

Definition," The only resolution available with any of these

analog connections, regardless of the original content, is

standard analog (SD TV).

W DTV will select the correct Antenna mode for the type of

Analog RF signal connected automatically.

W Use "Analog Antenna Signal" in the Setup menu to change

the Antenna Mode.

@ If you move the DTV to a new location, press the RESET

key twice after connecting the signal and turning on the

DTV.

(Continued on next page.)

Needhelp?Visit our Web site at www.sanyoctv.cornorcall1-800-877-5032 7

INSTALL BATTERIES

• Install two "AAA" Batteries (not included) so that the

"+" and "-" marks on the batteries match the "+"

and "-" marks inside the Remote.

To review the remote control functions, go to

pages 16 N17.

NOTE: Use two "AAA" Alkaline batteries.

iMPORTANT NOTE: Spent or dis-

charged batteries must be recycled or

disposed of properly in compliance

with all applicable laws. For detailed

information, contact your local Count

Solid Waste Authority.

CONNECT AC POWER CORD

• Connect AC Power Cord (supplied) to the Plasma TV

and electrical outlet as shown here.

The AC outlet must be near this equipment and must be

easily accessible.

To POWER CORD

CONNECTOR on back

of Plasma TV.

To 120 V AC outlet.

ALL CHANNEL SEARCH

When the television is powered on for the first /

it automatically checks for the presence of /'time,

an RF signal. ,J'!_'

• Press the POWER key to turn on the

DTV.

• Then press the CHANNEL UP

(CH A) key to automatically _i_#_;_'_'_

search for available channels: -_

Digital (ATSC) and Analog (NTSC).

The All Channel Search contains two processes that are

executed simultaneously for digital and analog channels.

NOTES: Channelinformation found during All Channel Searchis

stored in two Channel Scan Memory databases

(Analog and Digital). After all channel search is com-

pleted, the TVwill tune to the lowest Digital channel or

lowest Analog channel if no digital channels are found.

If the TV does not detect any digital or analog chan-

nels, a message advising the viewer to check the

cables and antenna connections will appear. In this

case, you must press the CHANNEL UP key again to

repeat the channel search process. If after two

searches the TV still fails to detect any channels, the

TV will tune to analog channel 3.

ff no analog or digital channels are found after the

second search, All Channel Search will default to off-

air analog channels 2 through 69 and digital channel

D3-1. Select analog channels using the remote control

keypad. See page 16, item number 2.

SKIP THE CHANNEL SEARCH PROCESS

Use this feature only if the DTV is used primarily for

playing video games, or watching videos, or if you receive

local channels from a satellite receiver or cable system.

• Press the EXiT key to cancel the channel search

process.

• The DTV will be tuned to Analog Channel 3.

• Press the INPUT key (remote control) to select

AV signal source connected to: Video 1, Video 2,

Video 3, or HDMI jacks.

ANTENNA SIGNAL SELECTION

(OPTIONAL)

To change the initial

analog tuning system

setup (from antenna to

cable or cable to

antenna), use the on-

screen menu. See

"Analog Antenna Sig-

nal" on page 20.

8Need help? Visit our Web site at WWW.SalllyOCtV.COnl or Call 1-800-877-5032

[ °°1

HDMI DIGITAL

INPUT AUDIO

OUTPUT @ e @

DIGITAL SERVICE UHFNHF/CAT_

_,NTENNA IN

® 6@

BACKPANEL--BOTTOMVIEW(CENTER)

Power key Volume

+keys

TopPanelView (seeitems8, 11, &17on page17.)

(J) HDNll (High Definition Multimedia interface) input,

PAGES 11 ~12--Connect digital video equipment to

this jack. It takes only one high bandwidth cable (not

supplied) to communicate between the video/audio

equipment and this TV. This connection is compatible

with DVI equipped devices. (Separate audio connec-

tion and an adapter are required for DVI device.)

(_) Digital Audio Output, PAGE 12--Use an Optical

Audio cable to connect Digital Audio Output to an

advanced stereo home theater system equipped with

Dotby ® Digital 5.1.

(_ Digital Antenna Input, PAGE 7--Connect an RF

antenna to this jack.

(_ Service JacksmFor production use only

@ Analog Antenna Input (UHF/VHF/CATV), PAGE

7--Connect an RF antenna or Analog cable system to

this jack.

(_) S-Video Input (VIDEO1}, PAGE 14--To enhance

video detail use the S-Video jacks instead of the Video

jacks, if available on your external equipment.

(S-Video connection wilt override connection to the

Video input jack [VIDE01]).

(_ Analog Audio Out (L/R) Jacks, PAGE 15--Connect

external audio equipment here.

(_ Audio/Video Input (VIDEO1), PAGE 14--Connect

analog video equipment here.

NOTE: S-Video connection overrides the (Video1)

composite video connection.

(_ Component Video Input (VIDEO2), PAGE 13-

Connect digital video equipment to the Y, Pb, PFand

Audio L/R jacks. These jacks will automatically detect

the type of signal being received.

@Component Video Input (VIDEO::}), PAGE 13-

Connect digital video equipment to the Y, Pb, Pr and

Audio L/R jacks. These jacks will automatically detect

the type of signal being received.

@ AC IN 120V--Connect power cord here. See page 8.

Need help? Visit ourWeb site at www.sanyoctv.comorca, 1-800-877-5032 9

This Plasma DTV is designed to handle several different

connections making it compatible with Digital and Analog

devices.

In order to receive the best performance from your DTV,

choose your connection using this chart; then go to the

specified page for detailed instructions.

HDMI Digital Set-Top Box or

DVDPlayer

MULTI-CHANNEL

RECEIVER

Will accept HDTV

(High Bandwidth

Video component)

DiGiTAL AUDIO

OUT

(Only available when

received as part of a

Digital RF signal or

HDMI signal.)

COMPONENT

(Y, Pb, Pr) iN

Wil! accept HD TV,

EDTV, or SDTV Video

content.

(Requires separate

audio connections.)

VIDEOGAME

19 Pin HDMI

OPTICAL

DiGiTAL _11[]_

CABLE I

COMPONENT

VIDEO

CABLE

[Green, Blue,

and, Red

connectors]

AUDIO CABLE _'_

[White and Red

connectors] '*

COMPOSITE VIDEO

S-VIDEO iN

LEFT /RIGHT

ANALOG AUDIO iN

ANALOG AUDIO

OUT JACKS

VIDEOGAME

DVD PLAYER

VCR

STEREO AMPLIFIER

SYSTEM

COMPOSITE

VIDEO

CABLE _

[Yellow,White,

Redconnectors]

S-VIDEOCABLE

AUDIO CABLE

[WhiteandRed_

ooooc,or

10 Need help? visitourWebsiteat www.sanyoctv.comorcall 1-800-877-5032

This is the best option for picture and sound! Using the HDMI connection, which has high-definition

content protection, provides you with uncompressed digital video and audio, Dolby @ Digital 5.1 or

PCM sound. This connection requires only one cable. As Real As It Gets!

CONNECTING EXTERNAL EQUIPMENT TO HDMi

(INCLUDES HDCP COPY PROTECTION)

To avoid problems with some brands of external equip-

ment, follow this procedure when connecting cables and

powering on your equipment.

Switch off DTV and external equipment before con-

necting cable. (Cable is not supplied.)

Connect the external equipment's high bandwidth

HDMI Output to the DTV's HDMI Input.

The DTV must be turned on first, press POWER:. Then

turn on your external equipment.

4 Press IN PUTtoseiect HDMIto viewa i

digital program.

What you w!ll need for connectiOnS:

19 Pin HDMI Digita! Cable- 1

(Make sure you checkthe pin €0nfigurationof the

cab epug.end_)

_Adapter may be required. Check with your local

lectronicsstore.

SET-TOP BOX (Can be a Digital Satellite Receiver,

DVD PLAYER, or similar digital device.)

HDMI CABLE

(Gentlyinsert

cableinto TV

HDMI Input

jack.)

REMOTECONTROL

ii ii i i i _ i i i _ii

HDMI

INPUT DIGITAL SERVIC

ANTENNA IN

4BACKVIEW OF DTV

@ If the television HDMI pin configuration is different from

the pin configuration on your set-top box, you will need to

use an Adapter.

W Press the INPUT key after connecting cables to access the

AV Inputs. There is NO need to tune to a blank channel.

INPUTSIGNAL

(From external equipment)

480i

OUTPUTSIGNAL

(Display)

720p

480p 720p

1080i 720p

Need help? visitour Websiteat www.sanyoctv.comorcall1-800-877-5032 11

CONNECTING STB WiTH DVl

OUTPUT TO HDMi iNPUT

Switch off DTV and external equipment before con-

necting cable. (Cable is not supplied.)

Connect the STB DVI Output to a "DVI to HDMI

Cable;" then connect the cable to the DTV's HDMI

input.

NOTE: Check with your local electronics store for a

DVI to HDMI Cable that matches your equip-

ment and the DTV.

Connect the STB Audio L/R to the DTV's

VIDEO3 Audio L/R.

The DTV must be turned on first, press POWER. Then

turn on your external equipment.

Press INPUT to select HDMI to view a digital program.

SET-TOPBOX(Canbea DigitalSatelliteReceiver,DVD

PLAYER,or similar digital device.)

HDMI DIGITAL

INPUT AUDIO

OUTPUT

REMOTECONTROL

23BACKViEW

OF DTV

l_L__! V_IPr IPr

What you will need for connections:

DVI to HDMI Cable. 1

Audio Cable -1

CONNECTING DIGITAL AUDIO OUT

TO AMULTI-CHANNEL RECEIVER

Doiby ® Digital Audio provides 5.1 channels of surround

sound (five full-range channels [5] and one tow-frequency

effect channel [.1]). A fiber optics cable is used to carry

the 5.1 surround sound (for low-noise signal transfer).

Using a Fiber Optics cable, connect the DTV's Digital

Audio Output to the Digital Audio Input of a Multi-

Channel Receiver. (Fiber optics cable is not supplied.)

Press POWER to turn on the DTV, then turn on

external equipment.

NOTES:

When making the connection, do not pinch or kink the fiber

optics cable.

Red light visible at the Digital Audio Output does not nec-

essarily indicate that Dolby ®Digital 5. 1 audio is available.

Digital audio is made up of light pulses that the human eye

cannot detect. Dolby @Digital 5. 1 audio is available at the

Digital Audio Output only when received as part of a Digital

signal.

MULTI-CHANNELRECEIVER

OPTICAL BACKVIEW

DiGiTALCABLE OFDTV

What youwill need for connections:i

opticalcable: 1 J

REMOTECONTROL

@ Press the iNPUT key after connecting cables to access the

AV Inputs. There is NO need to tune to a blank channel.

E With a DVI connection, make sure you connect Audio out to

the TV's VIDEO3 Audio In.

@ Because the VIDEO3 audio jacks are used to receive the

audio from the DVI device, these video jacks cannot be used

when a DVI device is connected.

@ Position your DTV at least 2 feet from stereo speakers. The

magnets in the speakers may affect the picture quality.

12 Need help? visitourWebsiteat www.sanyoctv.comorCall1-800-877-5032

USING COMPONENT JACKS TO CONNECT A DVD PLAYER

OR OTHER DiGiTAL EQUIPMENT

The Component Video jacks will accept HDTV, EDTV, or

SDTV video content.

Switch off DTV and external equipment before connect-

ing cables. (Cables are not supplied.) Follow these steps

to easily connect your STB or DVD Player to this DTV:

Connect DVD Player or similar digital equipment's

Component Video Out to the DTV's Video VIDEO3

jacks.

Connect DVD Player or similar digital equipment's

Audio Out to the DTV's VIDEO3 Audio jacks.

Press POWER to turn on the DTV, then turn on

external equipment.

Press INPUT to select Video 3 to view the DVD

program.

What you w!ll need I

ComponentVide0 Cable -! I

AudioCable. 1 J

INPUTSIGNAL

From externalequipment_

480i

480p

1080i

OUTPUTSIGNAL

(Display,

720p

DTV BACK

1DVD PLAYER

(or similar digital

device such as a

Digital Satellite

Receiver.)

COMPONENTJACKS

REMOTECONTROL

@ VIDEO2 and VIDEO3 jacks have identical functions. Com-

patible video devices can be connected to either set of

jacks.

@ Press the INPUT key after connecting the cables, to select

the Video 2 or Video 3 input signal. There is NO need to

tune to a blank channel.

@ " No Signal" will appear randomly on the screen when no

signal is detected at the VIDEO2 or VIDEO3 inputs.

Need help? visitour Websiteat www.sanyoctv.comorca, 1-800-877-5032 13

USING THE ANALOG VIDEO1 JACKS

TO CONNECT AVCR (OR OTHER

ANALOG DEVICE)

Switch off DTV and external equipment before connect-

ing cables. (Cables are not supplied.)

Connect VCR's Audio Video Out to the DTV's

VIDEO1 jacks.

NOTE: For Mono VCR(Single Audio Jack), connect VCR

Audio Out to DTVAudio (L) Input.

Optional

Connect VCR's S-Video Out to the HDTV's S-Video

In Jack.

NOTE: S-Videojack connections override VIDE01 Video

jack connection.

Press POWER to turn on the DTV, then turn on

external equipment.

Press INPUT to select Video I to

view the VCR program.

BACKViEW

OFVCR

What you will ne_

Audio Video Cable, 1

S.Video Cable -1

REMOTE CONTROL

DTV AV

iNPUT t

_ S-VIDEO

_ACK_

- NN

NOTES: Don't be fooled by the phrase

"Available in High-Definition."

Composite jacks offer only 480i

(SDTV) resolution.

To view available High-Definition

(HD) programs, you must connect

your HD equipment to the Compo-

nent or HDMI jacks.

@ Press the INPUT key after connecting cables to access the

Video1 input. There is NO need to tune to a blank channel.

W "No Signal" will appear randomly on the screen when no

signal is detected at the VIDEO1 video jack.

14 Need help? visitourwebsiteat www.sanyoctv.com orcall 1-800-877-5032

CONNECTING ANALOG AUDIO OUT JACKS TO A STEREO AMPLiFiER

Switch off DTV and external equipment before connect-

ing cables. (Cables are not supplied.)

Connect the DTV Audio Out (R/L) to the Stereo

Amplifier In (R/L).

Press POWER to turn on the DTV, then turn on

external equipment.

NOTE: Do not connect external speakers directly to the DT_Z

REMOTE CONTROL

Position your DTV at least 2 feet from stereo speakers. The

magnets in the speakers may affect the picture quality.

STEREOAMPLiFiER

Set=Top Box

(Can be aDigital

Satellite Receiver

DVD Player or other

Digital Device)

t........................

Surround

Sound System

=Necessarv_l(Strong Signal __ __. I

splitter ._ "_ _ Analog = =

Analog I_:i| VCR _ =

Cable or _ ._ ................ _ I

VHF/UHF _- _ '_ .................................. _,t,_,

Antenna _ Isplitter I _ "_o_@o,_ [_ _/ ,,o -"_

........................................................................................ s

Digital Video Recorder

DVD Player

Need help? visitour Websiteat www.sanyoctv.comorcall1-800-877-5032 15

i !

,_ PRECAUTIONS

To ensure safe operation, please observe the follow-

ing precautions:

Use (2) AAA alkaline batteries, see page 8.

Replace both batteries at the same time. Do not use

anew battery with aused battery.

Risk of explosion, if battery is replaced by an incor-

rect type.

If batteries have leaked in the Remote Control Unit,

carefuUy wipe the case clean and load new batteries.

Do not expose the Remote Control Unit to moisture,

or heat.

REMOTE CONTROL KEYS

(_lnput Key--Press to change the input signal source

as follows: Analog RF .m Digital RF ,_ Video 1 ,_

Video 2 ,_ Video 3 ,_ HDMI ,mAnalog RF.

(_) Number Key--Two keys must be pressed to select a

direct channel. Example: Press 0 then 6 to select

channel 6.

For Analog Cable channels above 100, press and

hold the 1 key until C1- - appears, then press the

other two numbers.

(_)lnfo Key--Press to display the Digital and Analog Fuji

Banner information (press again to remove the

display).

Digital Full Banner display--Contains a two-part

Channel Number (Major and Minor) and Tuner ID. If

available the following is also included: Station ID,

Program Title, V-Guide Program Rating, Audio Info, and

Signal Strength.

Channel

Tuner ID Major Minor Station ID Program Rating

Point toward "_

DTV

q} @

® II II ®

@ @

iNPUT

®@®

RECALL TUNER MUTE

MENU ENTER

@ ®

Program Title Audio Info Signal Strength

Analog Full Banner display_ontains the Channet

Number (analog antenna/cable), Tuner ID, Station ID

(if available), Program Title (if available), V-Chip

Program Rating, and Audio Info.

TunerlD ChannelNo. Station ID Program Rating

,/ ,l ,/

AudioInfo ProgramTitle

16 Need #elp? visit our Websiteat www.sanyoctv.com orCall1-800-877-5032

(_)Recali Key--Select the first channel you want to

watch; then select another channel using the

NUMBER keys. Press RECALL to switch easily

between the channels.

NOTE: The RECALL key cannot toggle between a Digital

channel and an Analog channel. See TUNER (#6)

key description.

@Menu key--Press this key to display the on-screen

menu.

(_)Tuner Key--Use this key to toggle from one tuning

system to another, digital channels and analog

channels.

NOTE: The TUNER key is inactive when an external input

is selected (Video 1, Video 2, Video 3, or HDMI).

(_)Caption Key--Press to setect analog or digital cap-

tioning. The Analog Caption modes are: CC1 - CC4,

Quikcap, and OFF. The Digital Caption modes are:

Digital CC1 N CC6, Quikcap, and OFF.

(_Channei Scanning (OH J,V ) Keys--Press J, (up)

V (down) keys to tune to the next higher or lower

channel in the Channel Scan Memory list. The scan-

ning loop includes analog channels, digital channels,

and all AV inputs.

(_Pix Shape Key--Use this key to change the video

display format. Available options depend on signal

received and the broadcast's aspect ratio. They may

include: PIX1, PIX2, PIX3, and PIX4. See simulated TV

images below:

PIX1 PIX2

Gray colored borders

appear at the sides, of

the screen.

Note: 4:3 image

without distortion on a

16:9 screen.

A 16:9 image fills the

screen normally. A 4:3

images is stretched hor-

izontally and may ap-

pear distorted.

PI×3

Enlarges a Pix2 image

vertically (some of the

image may be cropped

off).

PIX4

Stretches the Pix3

image horizontally (por-

tions of the sides

and/or top and bottom

may be cropped off).

(_Audio Key--Press to select the desired audio mode

(if available): DIGITAL: Main, Sub1, Sub2, Sub3, etc.;

ANALOG: Stereo, Mono, SAP.

(_) Power Key--Press to turn DTV on or off.

(_) Sleep Key--Press this key, then press the "0" key to

set the Sleep Timer. The desired time can be set from

30 minutes up to 3 hours in 30 minutes increments.

Sleep Timer will switch off the DTV automatically. The

Sleep Timer cancels when the DTV is turned off or if a

power failure occurs.

(_) Mute Key--Press once to minimize the volume.

Press again to restore. This key will not mute sound

from the audio out jacks.

(_) Enter Key--Press this key to select an option from

the menu system, when required.

(_) Cursor A (up) Y(down) keys--Press these keys to

move the cursor up and down within the menu.

Cursor < (left} > (right} keys--Press these keys to

move the cursor left and right within the menu.

(_Exit Key--Press this key to exit from the menu

system.

(_) Volume (VOL -+) Keys--Press the -+ keys to adjust

volume. The screen displays a left or right red arrow

that blinks as many times as you press the Vol - +

keys.

(_) Reset Key--Press twice to restore factory settings.

The DTV will automatically start Channel Search and

clear all customized settings.

NOTE: The Reset Function includes a channel search.

Current Digital and Analog channel databases will

be deleted and new ones created by the Channel

Search process. To receive Digital Cable channels,

see page 19 for Digital Cable Search.

These features will reset to factory defaults:

• Picture/Sound Adjustments: Color, Tint,

Contrast, Brightness, Sharpness, and Tone

• Channel Memory--Digital/Analog channel

databases will be replaced

• Analog Audio to Stereo

• Captioning to OFF

• V-Guide to OFF

• Menu Language to English

• Sleep Timer to OFF (if previously set)

• Any Video mode to TV mode

If desired, personal settings can be made again

using the menu options.

Need help? visitour Websiteat www.sanyoctv.comorcall1-800-877-5032 17

BASIC MENU OPERATION

The on-screen menu system provides the viewer with

easy access to adjustments and settings. Just use the

MENU, CURSOR, ENTER, and EXiT keys on the remote

control and follow the on-screen instructions. Generally,

you wilt use the CURSOR AY keys to select a menu item

and the CURSOR < > keys to make an adjustment. The

ENTER key confirms a setting. Press the EXiT key to

return to normal TV viewing.

MENU NAVIGATION MAP

MAiN SUB MENUS

IMPORTANT FACTS:

Some Menu options are specific to Digital and Analog signals

and will vary accordingly.

Also, some options are not available in combination. Unavail-

able options will appear'grayed-out" in the menu. For example,

Analog Antenna Signal is not available when tuned to a Digital

Channel.

MENU OPTIONS

ALL CHANNEL SEARCH

Use Aii Channel Search to replace existing Digital and

Analog Channel databases, such as, if you move to

another city.

NOTES: During Channel Search, current Digital and Analog

channel databases are deleted and new ones created.

To receive Digital Cable channels, if available, you

must perform a Digital Cable Search.

To add new digital channels to the existing database,

use Digital Add-on Search, see page 19.

Press the MENU key to display the Main menu.

Use the CURSOR J,V keys to highlight (green) the

All Channel Search, Press ENTER.

Use the CURSOR Y key to select Yes. Press

ENTER.

All Channel Search

Yes

18 Need help? visitourwebsiteat www.sanyoctv.com orcall 1-800-877-5032

DiGiTAL CABLE SEARCH (OPTIONAL)

This DTV can receive unscrambled (CtearQAM) digital

cable channels, when available. However, not all cable

companies provide ClearQAM digital channels.

Searching for digital cable channels will take about 10

minutes, please be patient.

Connect a Digital Cable signal

directly to the DTV Digital Antenna

In Terminal.

Press the TUNER key to select the Digital Tuner.

Press the MENU key to display the Main menu.

keys to highlight (green)

Use the CURSOR AV

Digita/ Cab/e Search. Press ENTER.

Use the CURSOR Y select Yes. Press

key to

ENTER.

Digital Cable Search

NOTE: After Channel Search is complete, the DTV will tune to

the lowest Digital Cable channel (or lowest Analog

channel if no Digital Cable channel is found).

IMPORTANT FACT: This DTV maintains only one database of

digital channels. Therefore, when you search for ClearQAM

digital cable channels, the database of antenna digital channels

will be deleted. You will only be able to receive those Clear-

QAM channels your cable company provides.

Cable companies rearrange virtual

channels as programming

changes, which may cause the

program you are watching to move

to another channel This message will appear on the screen

briefly to notify you of a change. You will have to relocate the

program you were watching by scanning through the channels.

To restore the antenna digital channel database, reconnect the

antenna and use the menu system to perform an All Channel

Search.

DIGITAL ADD-ON SEARCH

Use this feature to add new channels to the digital

antenna channel database. Also, use this feature to add

channels when broadcast towers are in multiple direc-

tions from your location.

Press the TUNER key to select the Digital Tuner.

Press the MENU key to display the Main menu.

Use the CURSOR AV keys to highlight (green)

Digital Add-On Search. Press ENTER.

Use the CURSOR Y key to select Yes. Press

ENTER.

NOTES: Turn your Antenna and repeat these steps for each

direction in which there are transmitting towers.

Go to www.antennaweb.org and type in your zip

code to obtain specific tower and antenna information.

Digital Add-on Search

NOTE: If the DTV is switched off by pressing the

POWER key or unplugging the AC during

Digital Add-On Search, all channel infor-

mation detected before the power loss

occurred will be saved.

Need help? visitour Websiteat www.sanyoctv.comorcall1-800-877-5032 19

ANALOG ANTENNA SIGNAL

(OPTIONAL)

Use this feature to switch between analog off-air

channels and analog cable channels.

Press the TUNER key to select analog channels.

Press the MENU key to display the Main menu.

Use the CURSOR AV keys to highlight (green) the

Analog Antenna Signal. Press ENTER.

Use the CURSOR Ay keys to choose Cable or

VHF/UHE Press ENTER.

Press the EXiT key to return to normal TV viewing.

Analog Antenna Signal

CHANNEL SCAN MEMORY

Channel Scan Memory is a list of active channels that

you can scan through using the Channel Scan CH A (up)

CH V (down) keys. This list can be customized by delet-

ing and/or adding channels.

Press the MENU key to display the Main menu.

Use the CURSOR AV keys to highlight (green)

Channel Scan Memory. Press ENTER.

Channel Scan Memory

To delete channels from the Channel Scan Memory

Use the CHANNEL (CH AY) keys or numerical

0 ~ 9keys to select desired channel. HINT: Press the

TUNER key to switch between Digital and Analog

Channel Scan memories.

Press the ENTER key to delete the channel. The

display wiii change to "deleted."

NOTES

""Delete?'" will ap-

pear below the

channel number if

the selected chan-

nel is already in

the Channel Scan

Memory.

Use the number

keys to tune to

active channels not

in the Channel

Scan Memory list.

To Add a channel to the Channel Scan Memory

Use the numerical 0 ~ 9 keys to select the desired

channel number. "Add7" will appear below the

channel number.

Press the ENTER key to add the channel. The display

will change to "Added."

When you have fin-

ished adding and/or

deleting channels,

press the EXiT key

to return to normal

TV viewing.

When a digital channel is deleted, all of that channel's sub-

channels are deleted as well.

@ Only previously deleted digital channels can be added back

to the Channel Scan Memory.

@ If one digital sub-channel is added back to the Channel Scan

Memory all of that channel's sub-channels will be added back.

@ If the last remaining digital channel is deleted, the entire previ-

ous Channel Scan Memory list will be restored automatically.

@ If the last remaining analog channel is deleted (cable or off-air

channel), ALL analog channels (cable or off-air) will be

restored automatically, regardless of the previous Analoc

Channel Scan Memory list.

20 Need help? visitourwebsiteat www.sanyoctv.com orCall1-800-877-5032

DiGiTAL CAPTION

Closed-Captioning is hidden textual information transmit-

ted along with the picture and sound. Turning Captioning

ON causes the DTV to open these captions and superim-

pose them on the screen. Because different types of

closed-captions can be transmitted with the picture and

sound, separate captioning modes are provided. The cap-

tioning modes recognized by this model are: Analog

EIA-608B and Digital EIA-708B. Local broadcasters

decide which caption signals to transmit.

CHANGING THE LOOK OF DiGiTAL

CAPTIONS

This Font Size, Font Style, Background Color, Foreground

Color, Background Opacity, and Foreground Opacity of

Digital Captions can be changed.

NOTES: If Background Opacity is set to transparent, captions

may be difficult to see.

Only true EIA 708B Digital Closed-Captions are affected

by all of these settings.

Analog captions generally will not respond to these

adjustments, however, upconverted analog captions may

respond to some options.

Press the TUNER key to select the Digital Tuner.

Press the MENU key to display the Main menu.

Use the CURSOR AY keys to highlight (green) the

Digital Caption. Press ENTER.

Use the CURSOR AV keys to highlight (green) an

option. Press ENTER.

Use the CURSOR AY or < > keys to select the

desired effect.

When you have finished making adjustments, press

the EXIT key to return to normal TV viewing.

TO ViEW CAPTIONS

1Press the CAPTION key to select caption modes.

Digital modes: Digital CC1 through Digital CC6,

QuikCap, and Off.

Analog modes : CC1 through CC4, QuikCap, and Off.

Analog Caption

Digital Caption

QUIKCAP OPERATION

QuikCap turns captioning on and off with the Mute func-

tion. Press the MUTE key on the remote control to block

the TV sound; the captions display automatically, if avail-

able. Press the MUTE key again to restore the sound.

Captions will disappear.

Digital Caption

Need help? visitour Websiteat www.sanyoctv.comorcall1-800-877-5032 21

V-GUIDE (PARENTAL CONTROL)

NOTE: THiS FEATURE iS DESIGNED TO COMPLY WiTH THE

UNITED STATES OF AMERICA'S FCC V-CHIP REGULATIONS.

THEREFORE, iT MAY NOT FUNCTION WiTH BROADCASTS

THAT ORIGINATE iN OTHER COUNTRIES.

This Sanyo television is equipped with an electronic

V-Chip to interpret MPAA (Motion Picture Association of

America) and TV Parental Guidelines rating codes. When

these codes are detected, the DTV wilt automatically

display or block the program, depending upon choices you

make when setting up the V-Guide system. Content

ratings are represented by the initials: FV (fantasy

violence), L (adult language), S (sexual situations), V

(violence), and D (suggestive dialog). A rating icon will

generally appear at the beginning of a program, see chart

on page 23.

This television can be set to block programs with content

you deem as inappropriate for your children to view.

BLOCK MPAA OR TV PROGRAM

Press the MENU key to display the Main menu.

Use the CURSOR ,A,'V' keys to highlight (green)

V-Guide. Press ENTER.

Use the CURSOR ,A,'V' keys to select ON. Press

ENTER.

TO SETUP V-GUIDE RATINGS

Use the CURSOR 'V' to select Adjust. Press ENTER.

Press CURSOR A_' and <>keys to select MPAA,

TV Rating, or Content Ratings. (A green square wiii

appear beside the selected item.)

Press the ENTER key to Block or Unblock selected

option. A lock ( _ ) will appear beside the selected

rating option indicating it is blocked.

When you have finished making adjustments, press

the EXiT key to return to normal TV viewing.

V-GUIDERATINGS--AT-A-GLANCE

MPAA(Movie)RATING TVRATING CONTENTRATING

BLOCKEDRATINGS

(Lock symbol)

You can block portions of a TV rating by choosing one or

more of the Content ratings (D, L, S, & V). By blocking just

the L & S content ratings of TV-14, for example, TV-14

rated programs with a D and/or V content rating could still

be viewed.

@ V-Guide limits on programming received via the Analog

antenna input, Digital antenna input, Video 1 input, and

any 480i signals received through the Component jacks

can be controlled by this TV.

@ V-Guide limits on digital programming received through

the Component jacks are controlled by the external device

connected to those jacks (such as a DVD Player or Digital

Satellite Receiver). Refer to your external device's

owner's manual for instructions on setting V-Guide limits.

@ Networks and local stations may or may not include the

content portion of the TV Parental Guidelines.

@ The TV will automatically block ratings above or unblock

ratings below a selection. For example, if you block TV

rating TV-PG, ratings TV-14 and TV-MA will be blocked

automatically; or if you block Movie rating PG-13, ratings

R, NC17, and X will be blocked automatically. Blocking

TVY7 does not block higher ratings.

22 Need help? visitourwebsiteat www.sanyoctv.comorca, 1-800-877-5032

TO TEMPORARILY UNBLOCK MPAA

OR TV PROGRAM

Press the MENU key to display the Main menu.

Use the CURSOR ,A,'V' keys to highlight (green)

V-Guide. Press ENTER.

Use the CURSOR AY keys to select OFF. Press

ENTER.

This will temporarily set V-Guide to OFF. When

V-Guide is reset to ON (follow steps 1-2), the DTV wiii

automatically revert to previously selected block ratings.

TO UNBLOCK ALL MPAA OR ALL TV RATING

Press the MENU key to display the Main menu.

Use the CURSOR A_' keys to highlight (green)

V-Guide. Press ENTER.

Press ENTER to select Adjust.

Highlight the "Allow All" option using the CURSOR

AYand < > keys, if needed. Press ENTER.

MPAA MOVIE RATINGS (AGE-BASED)

PG-13

NC-17

GENERALAUDENCES--All ages admitted.

PARENTAL GUIDANCE SUGGESTED--Some materialmay not

be suitable for children.

PARENTAL GUIDANCE CAUTIONED--Some materialmay be

inappropriate for children under 13.

RESTRICTED--Under 17 requires accompanying parent or

adult guardian

NO ONE 17 AND UNDER ADMITTED

TV RATINGS (AGE/CONTENT-BASED)

ALL CHILDREN--Program is designed to be appropriate for

children ages 2-6.

DIRECTEDTO OLDER CHILDREN--Program is designed for

children 7 and above. Material may include mild fantasy

violence (FV) or comedic violence.

GENERALAUDIENCE--Program suitable for all ages. Containlittle or no violence, no strong language or sexualdialogue or

situations.

PARENTAL GUIDANCE SUGGESTED--Program contains

material that may be unsuitable for younger children.

Material contains one or more for the following: moderate

violence (V), some sexual situations (S), infrequent coarse

language(L), or some suggestive dialogue (D).

PARENTSSTRONGLYCAUTIONED--Some material is unsuit-

able for children under 14 years of age. Parents are strongly

urged to use caution against letting children under age 14

watch unattended. Material contains intense violence (V),

intense sexual situations (S), strong coarse language (L), or

intensely suggestive dialogue (D).

MATURE AUDIENCE ONLY--Program is designed to be

viewed by adults and therefore may be unsuitable for children

under 17years of age.

When codes are being transmitted and received, and

V-Guide is set to ON, the V-Chip blocks programming

according to the settings you choose.

Need help? visitour Websiteat www.sanyoctv.comorcall1-800-877-5032 2 3

PICTURE/SOUND ADJUSTMENT MENU LANGUAGE

Press the MENU key to display the Main menu.

Use the CURSOR ,AT keys to highlight (green)

Picture/Sound. Press ENTER.

Use the CURSOR AV keys to highlight Auto

(factory preset settings) or Manual Press ENTER.

MANUAL ADJUSTMENTS

Use the CURSOR,_,Y keys to select the option you

want to adjust.

Then use the CURSOR < > keys to make an

adjustment.

When you have finished making adjustments, press

the EXIT key to return to normal TV viewing.

Press the MENU key to display the Main menu.

Use the CURSOR AV keys to highlight (green)

Menu Language. Press ENTER.

Use the CURSOR A'V' keys to select English,

Espa_ol, or Francais.

Press the EXIT key to return to normal TV viewing.

Color ] Y

24 Need help? visitourwebsiteat www.sanyoctv.com orcall 1-800-877-5032

PICTURE ROTATION (SCREEN

SAVER)

Displaying a still picture for a tong time may cause an

"afterimage" or "ghost" on the screen. To neutralize this

situation, a Picture Rotation function is provided.

Press the MENU key to display the Main menu.

Use the CURSOR AT keys to highlight (green)

Picture Rotation. Press ENTER.

Use the CURSOR _' key to select On. The Picture

Rotation changes the display position every 15

minutes to avoid afterimage.

When you have finished making adjustments, press

the EXIT key to return to normal TV viewing.

WHITE PATTERN SETUP (PANEL

REPAIR)

Use this feature to repair the PlasmascreeN.

If an afterimage occurs, use the White Pattern feature

immediately to repair the panel. The more severe the

afterimage, the longer the curing process may take. It may

be impossible to repair all cases of afterimage burn.

The sooner you remove a still picture and activate White

Pattern, the more likely it is that the panel can be repaired.

NOTE: Afterimage (or image burn) is not covered under

warranty.

Press the MENU key to display the Main menu.

Use the CURSOR AT keys to highlight (green)

White Pattern. Press ENTER.

Use the CURSOR _' key to select On. The White

Pattern is activated instantly (screen will turn com-

pletely white). The On time is set for 30 minutes.

NOTE: Pressing any key except VOLUME AV, MUTE, and

AUDIO will cancel the curing process and return the TV

to normal viewing.

White Pattern

Need help? visitour Websiteat www.sanyoctv.comorcall1-800-877-5032 2 5

Because of the Quality we build into our product,

very few problems are actual DTV defects. Most prob-

lems only involve simple hookup or setup changes that

can be solved by the customer. Please check the chart

below and try the solutions listed for your problem. If the

problem still persists, before returning your HDTV,

please visit our website at wwwosanyoctvocom or call

us toil free at 1.800.877.5032. We can Help!

Problem:

No picture, sound

(Digital Picture)

Check these Conditions:

• Check antenna/external connections

• May be station trouble, NO signal

broadcast.

• MUTE function may be on.

• The Plasma TV takes a few seconds to

display an image.

Try these Solutions:

• Adjust antenna.

• Try a different channel.

• Press RESET key to restart channel

search.

• Adjust Volume.

Page No.

7, 17

No captioning, Check if Station is broadcasting a, Press CAPTION key to select capti0ning

Closed-Caption signal. 'mode, 17,21

• se ect an0ther channe.

Cannot customize • Digital Caption signal is not being • Press CAPTION key to select Analog

Caption broadcast, captioning. 21

[:::annot display ® Check AsPect Ratio of broadcast. • Press pIX SHAPE keyto change Settingl

P cture 0n afu I_

screen .. .

Poor Picture/Sound • Check if program is in color. • Try a different channel.

(watching Analog) • Check antenna/external connections. • Adjust antenna. 14, 15,

• Color or Tint misadjusted. • Press RESET key to restart channel

• May be station trouble, search. 17, 24

• May be MUTE function is on. • Adjust Volume.

// - r/ • " ° °

NoSlgnal message CheckAudlo/Vdeoconnechons. , PresS lNPUT key:

appears On screen • Check external equipment connectionsl 0 switCh on external equipment: I

I" Check external equipment settingl -Turn antenna, inStal! Signa! booste r, 11~ 15

® Check antenna connection:, Set external equipment output connec-

tions tO match input c0nnect!0ns.

Pixilation of Digital • Press INFO key and check signal • Turn antenna, install signal booster.

image strength. • Install outdoor Digital antenna. 7f 16

No DTV Stereo or ® Check if stati0n iS broadcasting a true - Press AUDIO key: 17

SAP sound MTS stereo Signal 0r a SAP signal..

• Select CH. SCAN MEMORY and manually

add channels or start CH. (channel) search.

• Set V-Guide to "None" or press RESET

key to clear all settings and restart

channel search.

• Turn antenna, install signal booster.

22 ~ 23

Cannot select or scan

some channels • Channel may be removed from

memory.

• Check antenna connections.

• No digital signal being broadcast.

• V-Guide is set to block programming.

• Weak Signal

No Cable Channels , Cable Channel Indicator C should .... ,Switch Anal0g Antenna Signal Selection I 20

above number 13 ' appear next t0 channel number: I tocable:

Remote Control • Check batteries. • Replace batteries. 8

will not work TV • Check if TV is plugged in. • Aim remote control at front of TV. 16 ~ 17

Afterimages(ghosts) ® D0 not display the same _mage on _ , Use the Picture Rotation Screen Saver

appear screen for aiong Period oft me AfterL fUnCtionl I 2"

images or gh0sts may appear on parts ,Use the White Screen Feature to repair _

of the pane!, the panel.

Cabinet makes • This is a normal condition during

popping sound warm-up and cool down of the plastic

cabinet parts.

26 Need help? visitourwebsiteat www.sanyoctv.com orcall 1-800-877-5032

IMPORTADOR:

COMERCIALIZADORA MEXICO

AMERICANA, S.DE R.L. DE C.V.

AV. NEXTENGO N°78

COL. SANTA CRUZ ACAYUCAN

DEL. AZCAPOTZALCO, MEXICO, C.P. 02770

RFC: CMA9109119L0

DESCRiPTiON: Television

BRAND: SANYO

MODEL: DP42746

GUARANTEE

THE APPARATUS THAT YOU HAVE ACQUIRED HAS A ONE YEAR GUARANTEE FOR MANUFACTURING DEFECTS

AND A ONE YEAR SERVICE WARRANTY FROM THE DATE OF PURCHASE GRANTED BY:

COMERCIALIZADORA MEXICO-AMERICANA, S. DE R.L. DE C.V.

UNDER THE FOLLOWING CONDiTiONS:

1. TO MAKE THE GUARANTEE EFFECTIVE, SIMPLY SHOW THIS POLICY FILLED OUT BY THE STORE OR

SUPPLIER UNIT OR THIS SALES INVOICE, WITH THE APPARATUS iN ANY OF THE SERVICE CENTERS

INDICATED ON THIS GUARANTEE.

2. iF THE FAULT iS ATTRIBUTED TO A MANUFACTURING DEFECT, THE APPARATUS WILL BE REPLACED OR

YOUR MONEY REFUNDED. DURING THE 30 DAYS SUBSEQUENT TO THE PURCHASE THE GUARANTEE

WILL BE VALID AT THE STORE WERE THE APPARATUS WAS PURCHASED, PRESENTING THE ABOVE

DOCUMENTS.

3. REPAIR TIME WILL NEVER BE MORE THAN 30 DAYS. iF THIS TIME HAS ELAPSED, AND THE PRODUCT ISN'T

REPAIRED, COMERClALIZADORA MEXICO AMERICANA, S. DE R.L. DE C.V. WILL PROCEED TO EFFECTUATE

THE EXCHANGE FOR AN EQUIVALENT APPARATUS OR THE RETURN OF THE BUYING-SALE

COST RESPECTIVELY.

4. THIS GUARANTEE WILL COVER iTS TOTALITY OF PIECES, COMPONENTS AND SERVICE REPAIR OF

PRODUCT, AND THE RESPECTIVE COST OF TRANSPORTATION.

THIS GUARANTEE WILL BE NULL AND VOID iN THE FOLLOWING CIRCUMSTANCES:

, WHEN PRODUCT HAS BEEN USED iN A DIFFERENT CONDITION THAN iTS NORMAL USE.

, WHEN PRODUCT HASN'T BEEN OPERATING CORRECTLY ACCORDING TO THE INSTRUCTIONS iN THIS

MANUAL.

, WHEN PRODUCT HAS BEEN CHANGED OR REPAIRED BY PERSONS NOT AUTHORIZED FROM THE

MANUFACTURER, IMPORTER, OR MERCHANT RESPONSIBLE RESPECTIVE.

CENTRO DE SERVICIO YLUGAR DONDE OBTENER PARTES, COMPONENTES, CONSUMIBLES YACCESORIOS:

SUCURSAL VALLEJO

Poniente 126 N° 288 B

Col. Nueva Vallejo

Mexico, D.F.

Tels. 5567-5378

5368-0105, 8589-8033

SUCURSAL MINERVA

Silos NO 135, Col. Minerva

Deleg. Iztapalapa

Mexico, D.F. 09810

Tels. 5646-4551

5646-4550

0_::

STORE

DESCRiPTiON:

CLIENT'S NAME:

ADDRESS:

EXTERIOR NUMBER:

SUB DIVISION:

TELEPHONE:

TELEVISION BRAND: SANYO MODEL: DP42746

INTERIOR NUMBER:

STATE/DELEGATION:

Need help? visitour Websiteat www.sanyoctv.comorcall1-800-877-5032 2 7

ONE-YEAR LiMiTED WARRANTY

THIS LIMITED WARRANTY IS VALID ONLY ON SANYO PLASMA TELEVISIONS PURCHASED AND USED IN

THE UNITED STATES OF AMERICA, CANADA, AND PUERTO RICO, EXCLUDING THE UNITED STATES'

OTHER TERRITORIES AND PROTECTORATES. THIS LIMITED WARRANTY APPLIES ONLY TO THE ORIGINAL

PURCHASER, AND DOES NOT APPLY TO PRODUCTS USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES.

FOR ONE YEAR from the date of purchase, Sanyo Manufacturing Corporation will replace any defective

Plasma TV.

To insure proper warranty exchange, keep the original sales receipt for evidence of purchase. Return the

defective Plasma TV to the retailer along with the receipt and the included accessories, such as the remote

control. The defective Plasma TV will be exchanged for the same model, or a replacement model of equal

value, if necessary. Replacement model wili be contingent on availability and at the sole discretion of

Sanyo Manufacturing Corporation.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

OBMGATIONS

For one year from the date of purchase, Sanyo Manufacturing Corporation warrants this product to be free

from defects in material and workmanship under normal use and conditions. Should replacement be nec-

essary under this warranty for any reason due to manufacturing defect or malfunction during the first year

from date of original purchase, Sanyo Manufacturing Corporation will provide a new Plasma TV via

exchange at the retailer.

For customer assistance, whether during or out of the warranty period, carl toll free 1-800-877-5032.

Weekdays 7:30 AM - 7:00 PM Central Time

Saturday 7:30 AM -4:00 PM Central Time

This warranty expresses specific contractual rights; retail purchasers may have additional statutory rights

which vary from state to state.

(EFFECTIVE:March 1, 2005)

For your protection in the event of theft or loss of this product, please fill in the information requested below

and KEEP IN A SAFE PLACE FOR YOUR OWN PERSONAL RECORDS.

Model No. Date of Purchase

Serial No. Purchase Price

(Located on back of unit) Where Purchased

Sanyo Manufacturing Corp.

3333 Sanyo Road, Forrest City, AR 72335

c( 0s

LISTED

This symbol on the nameplate means the product is Listed by Under-

writers' Laboratories Inc. It is designed and manufactured to meet rigid

U.L safety standards against risk of fire, casualty and electrical hazards.

28 Need help? visitourwebsiteat www.sanyoctv.com orcalt 1-800-877-5032

YX6-A 42-J3TZ GXBD [This manual printed with Soy Ink.]

SANYO Plasma Television Manual L1002491

Navigation menu

Versions of this User Manual:

Views

Navigation
