SBO Hearing A S RTBNL4 Range test device for verification of nEARlink 4 interface User Manual range tester nl4 manual

SBO Hearing A/S Range test device for verification of nEARlink 4 interface range tester nl4 manual

range tester nl4 manual

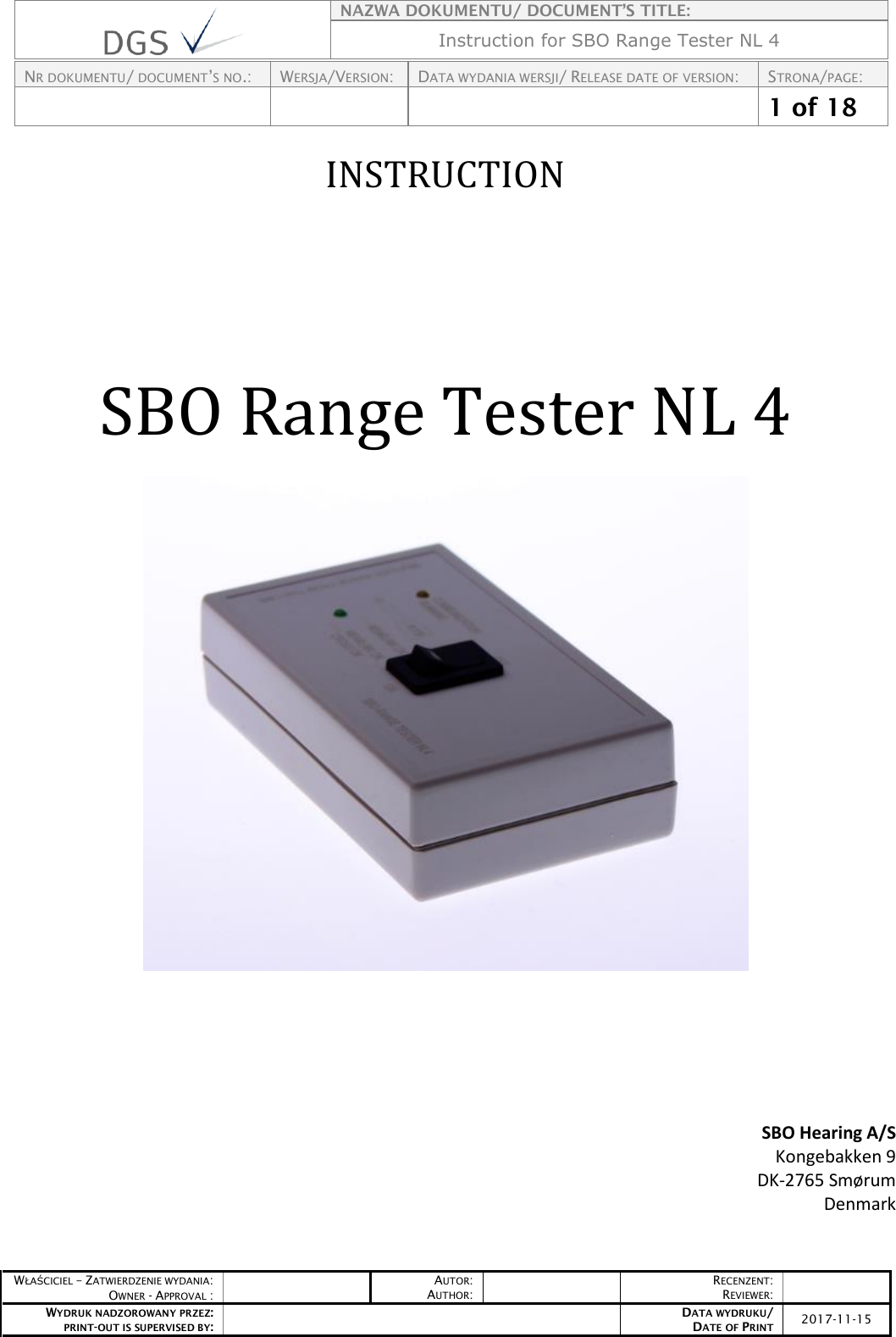

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 1 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 INSTRUCTION SBO Range Tester NL 4 SBO Hearing A/S Kongebakken 9 DK-2765 Smørum Denmark

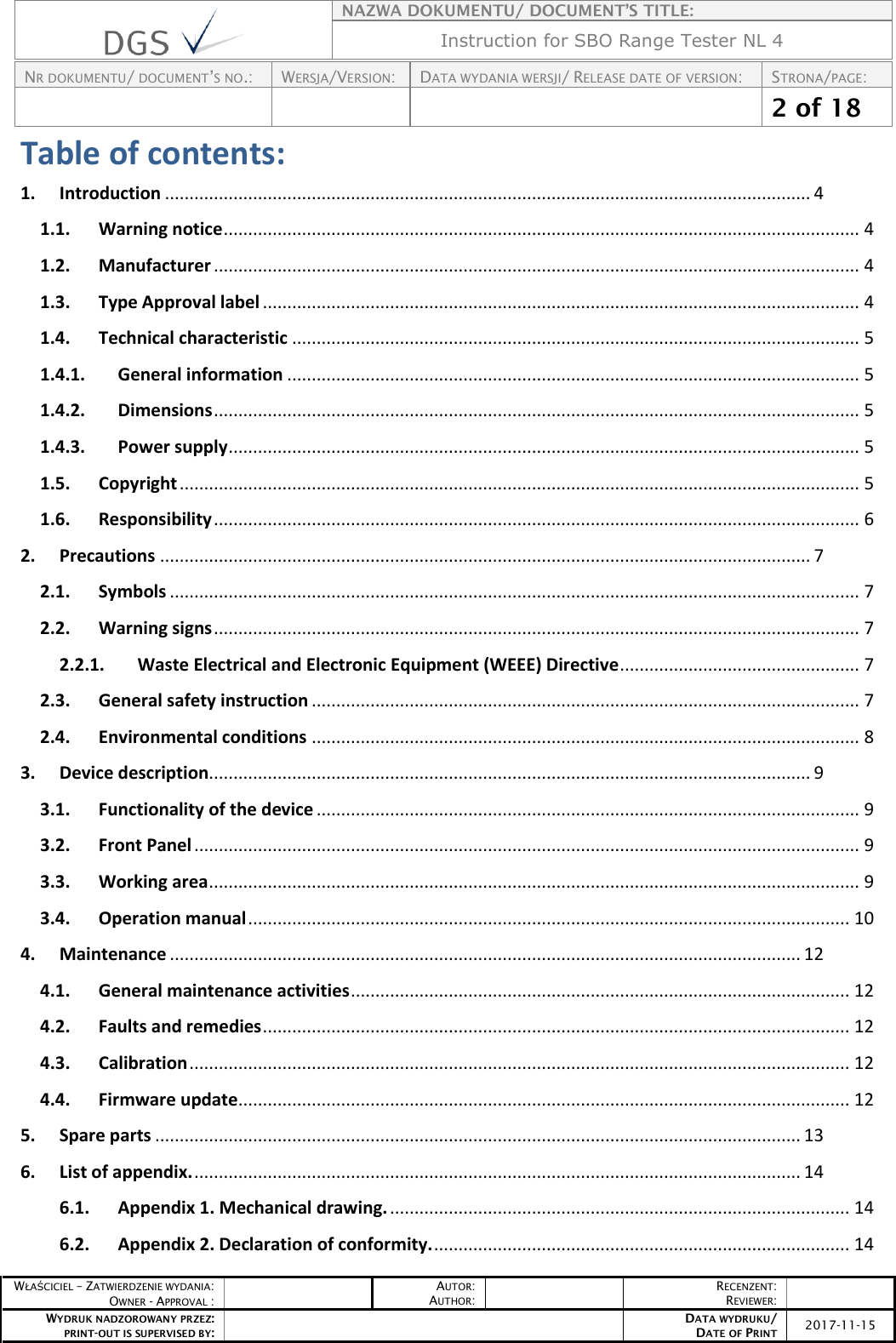

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 2 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 Table of contents: 1. Introduction .................................................................................................................................... 4 1.1. Warning notice .................................................................................................................................. 4 1.2. Manufacturer .................................................................................................................................... 4 1.3. Type Approval label .......................................................................................................................... 4 1.4. Technical characteristic .................................................................................................................... 5 1.4.1. General information ..................................................................................................................... 5 1.4.2. Dimensions .................................................................................................................................... 5 1.4.3. Power supply ................................................................................................................................. 5 1.5. Copyright ........................................................................................................................................... 5 1.6. Responsibility .................................................................................................................................... 6 2. Precautions ..................................................................................................................................... 7 2.1. Symbols ............................................................................................................................................. 7 2.2. Warning signs .................................................................................................................................... 7 2.2.1. Waste Electrical and Electronic Equipment (WEEE) Directive ................................................. 7 2.3. General safety instruction ................................................................................................................ 7 2.4. Environmental conditions ................................................................................................................ 8 3. Device description........................................................................................................................... 9 3.1. Functionality of the device ............................................................................................................... 9 3.2. Front Panel ........................................................................................................................................ 9 3.3. Working area ..................................................................................................................................... 9 3.4. Operation manual ........................................................................................................................... 10 4. Maintenance ................................................................................................................................. 12 4.1. General maintenance activities ...................................................................................................... 12 4.2. Faults and remedies ........................................................................................................................ 12 4.3. Calibration ....................................................................................................................................... 12 4.4. Firmware update............................................................................................................................. 12 5. Spare parts .................................................................................................................................... 13 6. List of appendix. ............................................................................................................................ 14 6.1. Appendix 1. Mechanical drawing. .............................................................................................. 14 6.2. Appendix 2. Declaration of conformity. ..................................................................................... 14

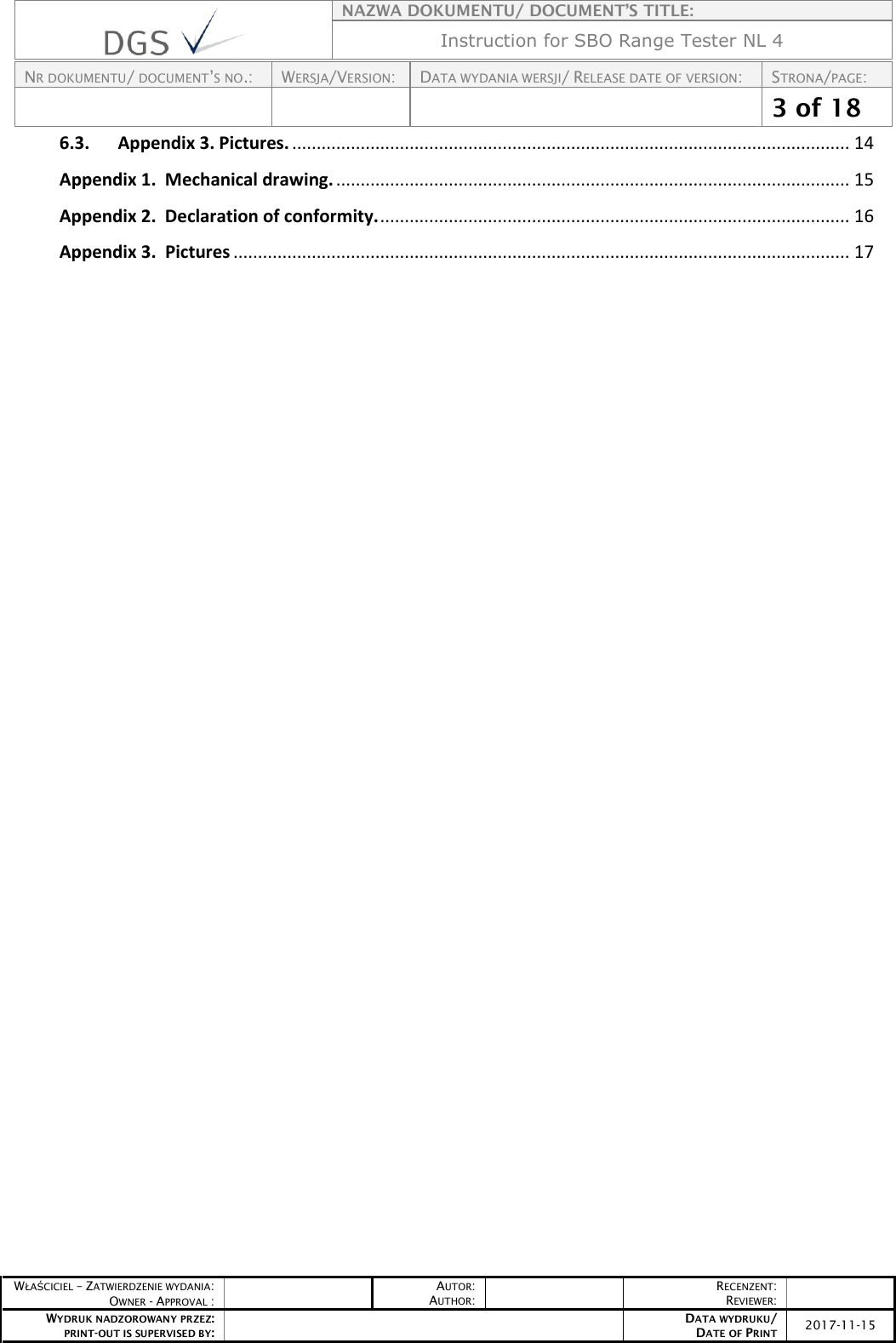

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 3 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 6.3. Appendix 3. Pictures. .................................................................................................................. 14 Appendix 1. Mechanical drawing. ......................................................................................................... 15 Appendix 2. Declaration of conformity. ................................................................................................ 16 Appendix 3. Pictures .............................................................................................................................. 17

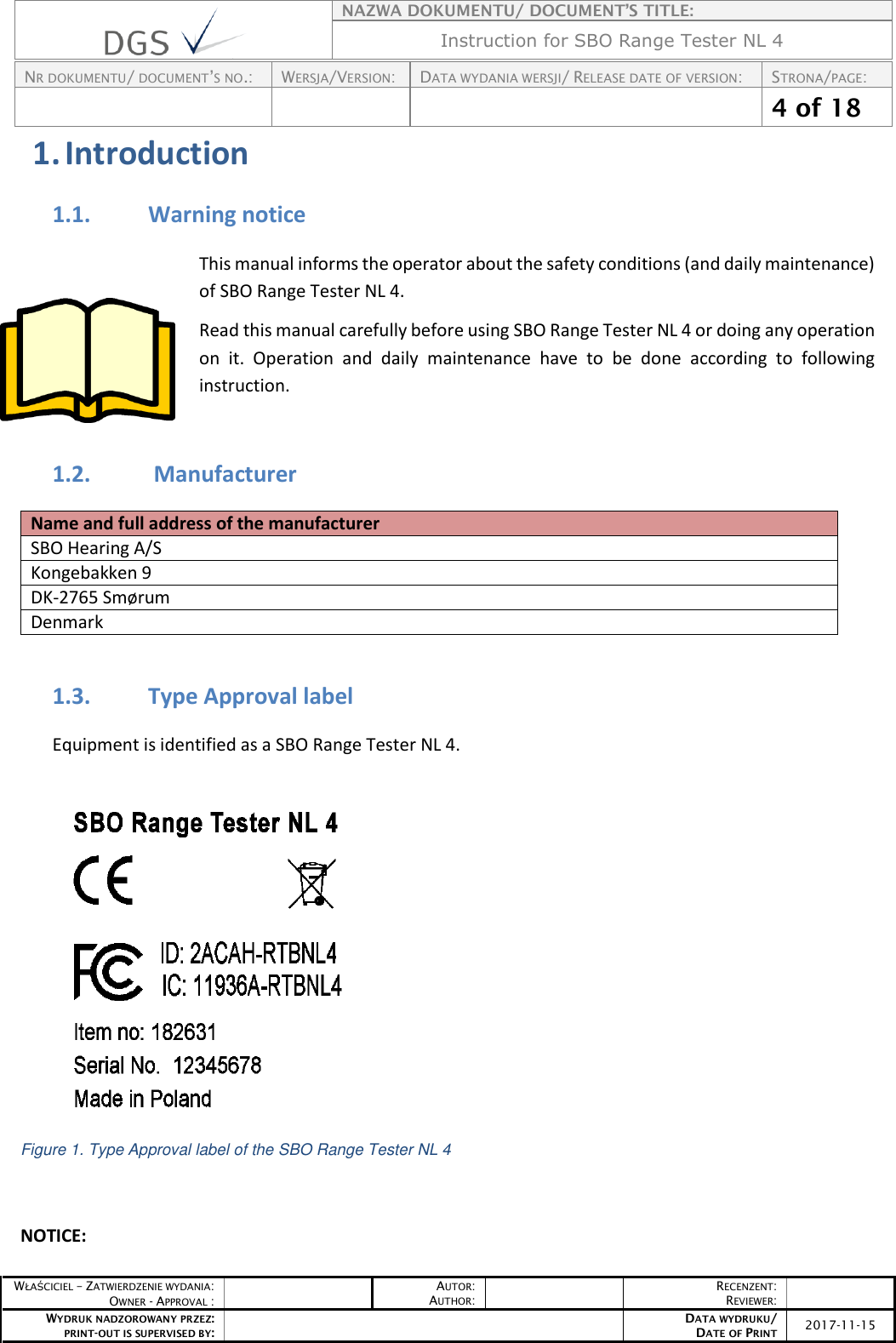

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 4 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 1. Introduction 1.1. Warning notice This manual informs the operator about the safety conditions (and daily maintenance) of SBO Range Tester NL 4. Read this manual carefully before using SBO Range Tester NL 4 or doing any operation on it. Operation and daily maintenance have to be done according to following instruction. 1.2. Manufacturer Name and full address of the manufacturer SBO Hearing A/S Kongebakken 9 DK-2765 Smørum Denmark 1.3. Type Approval label Equipment is identified as a SBO Range Tester NL 4. Figure 1. Type Approval label of the SBO Range Tester NL 4 NOTICE:

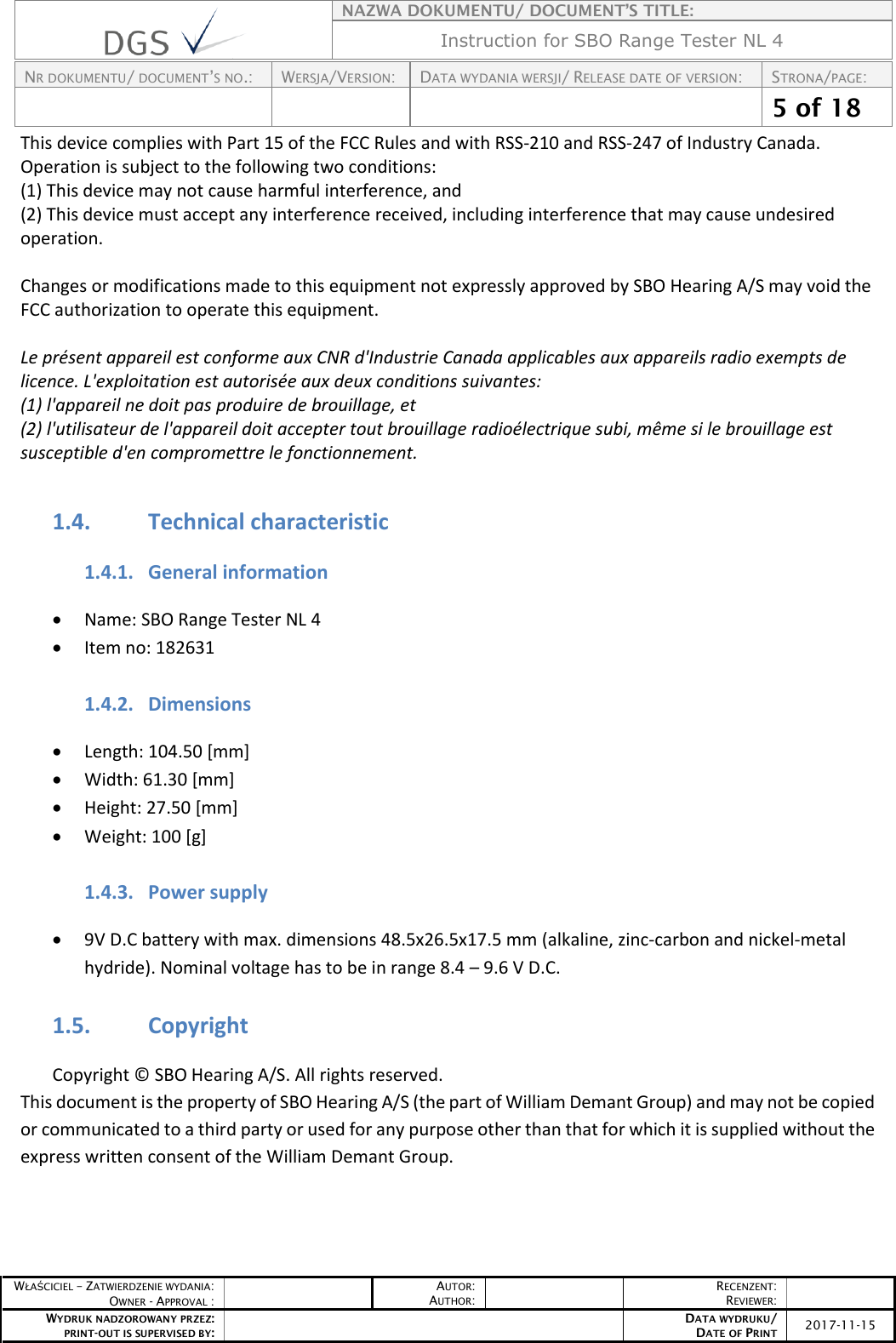

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 5 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 This device complies with Part 15 of the FCC Rules and with RSS-210 and RSS-247 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this equipment not expressly approved by SBO Hearing A/S may void the FCC authorization to operate this equipment. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. 1.4. Technical characteristic 1.4.1. General information  Name: SBO Range Tester NL 4  Item no: 182631 1.4.2. Dimensions  Length: 104.50 [mm]  Width: 61.30 [mm]  Height: 27.50 [mm]  Weight: 100 [g] 1.4.3. Power supply  9V D.C battery with max. dimensions 48.5x26.5x17.5 mm (alkaline, zinc-carbon and nickel-metal hydride). Nominal voltage has to be in range 8.4 – 9.6 V D.C. 1.5. Copyright Copyright © SBO Hearing A/S. All rights reserved. This document is the property of SBO Hearing A/S (the part of William Demant Group) and may not be copied or communicated to a third party or used for any purpose other than that for which it is supplied without the express written consent of the William Demant Group.

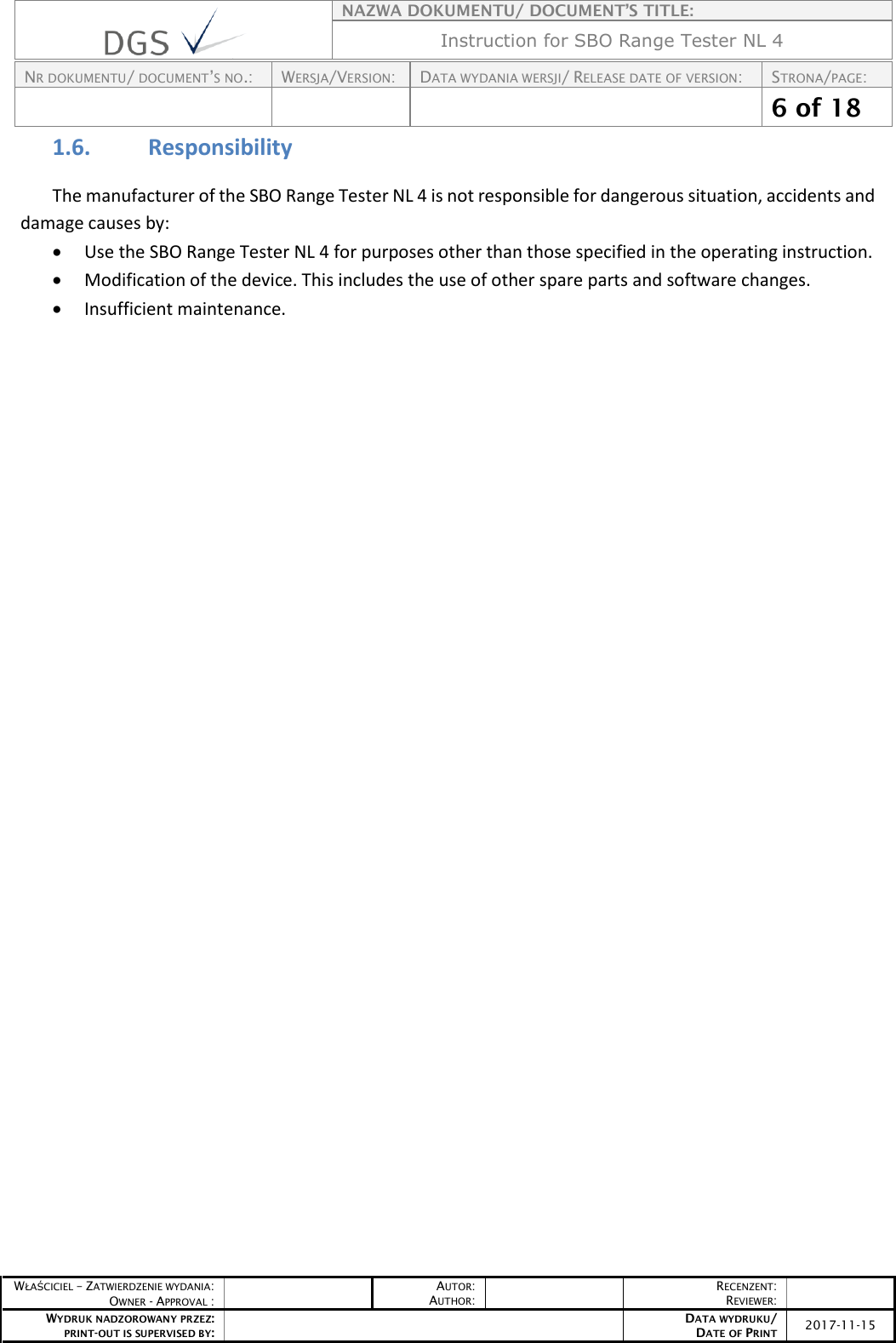

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 6 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 1.6. Responsibility The manufacturer of the SBO Range Tester NL 4 is not responsible for dangerous situation, accidents and damage causes by:  Use the SBO Range Tester NL 4 for purposes other than those specified in the operating instruction.  Modification of the device. This includes the use of other spare parts and software changes.  Insufficient maintenance.

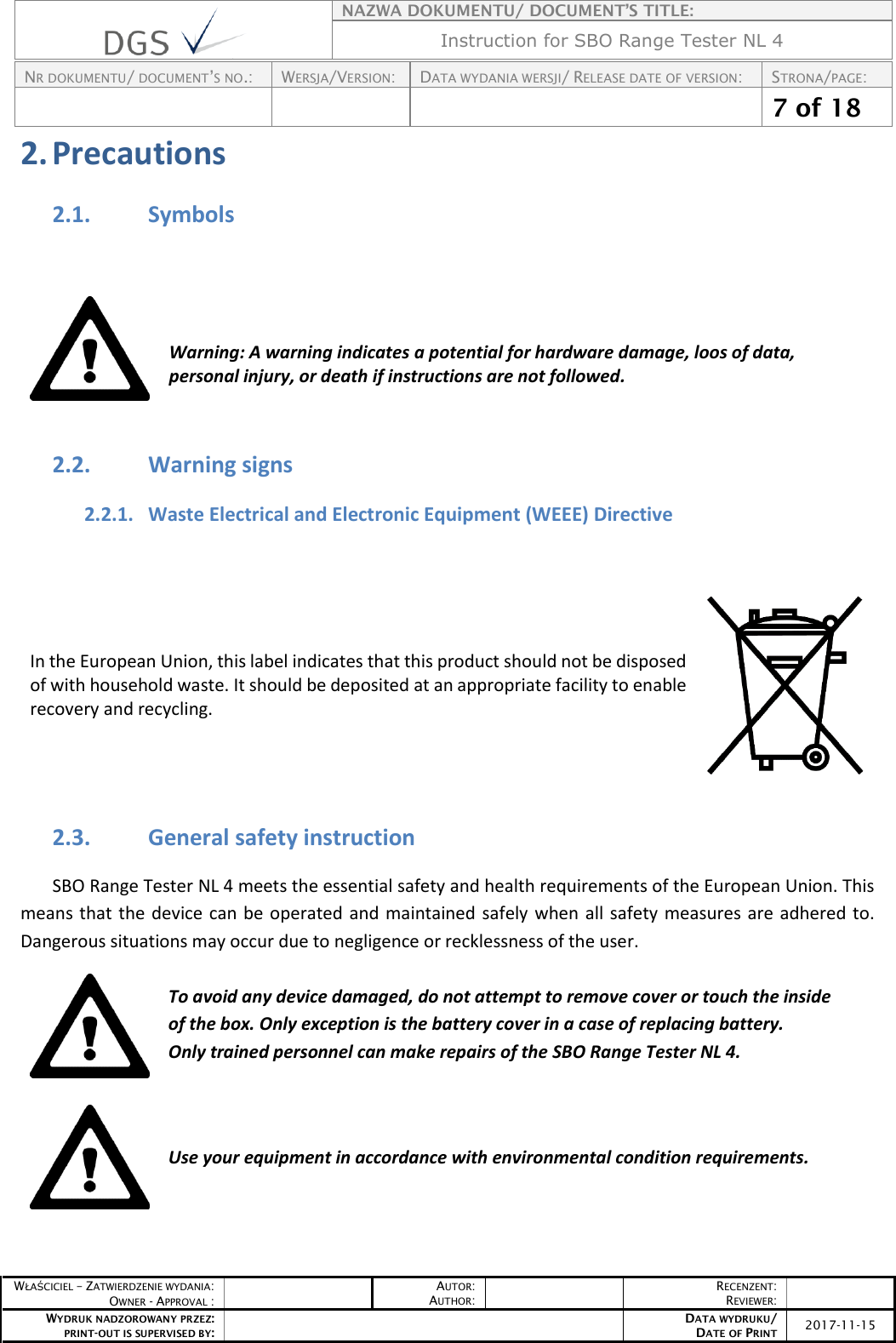

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 7 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 2. Precautions 2.1. Symbols Warning: A warning indicates a potential for hardware damage, loos of data, personal injury, or death if instructions are not followed. 2.2. Warning signs 2.2.1. Waste Electrical and Electronic Equipment (WEEE) Directive In the European Union, this label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling. 2.3. General safety instruction SBO Range Tester NL 4 meets the essential safety and health requirements of the European Union. This means that the device can be operated and maintained safely when all safety measures are adhered to. Dangerous situations may occur due to negligence or recklessness of the user. To avoid any device damaged, do not attempt to remove cover or touch the inside of the box. Only exception is the battery cover in a case of replacing battery. Only trained personnel can make repairs of the SBO Range Tester NL 4. Use your equipment in accordance with environmental condition requirements.

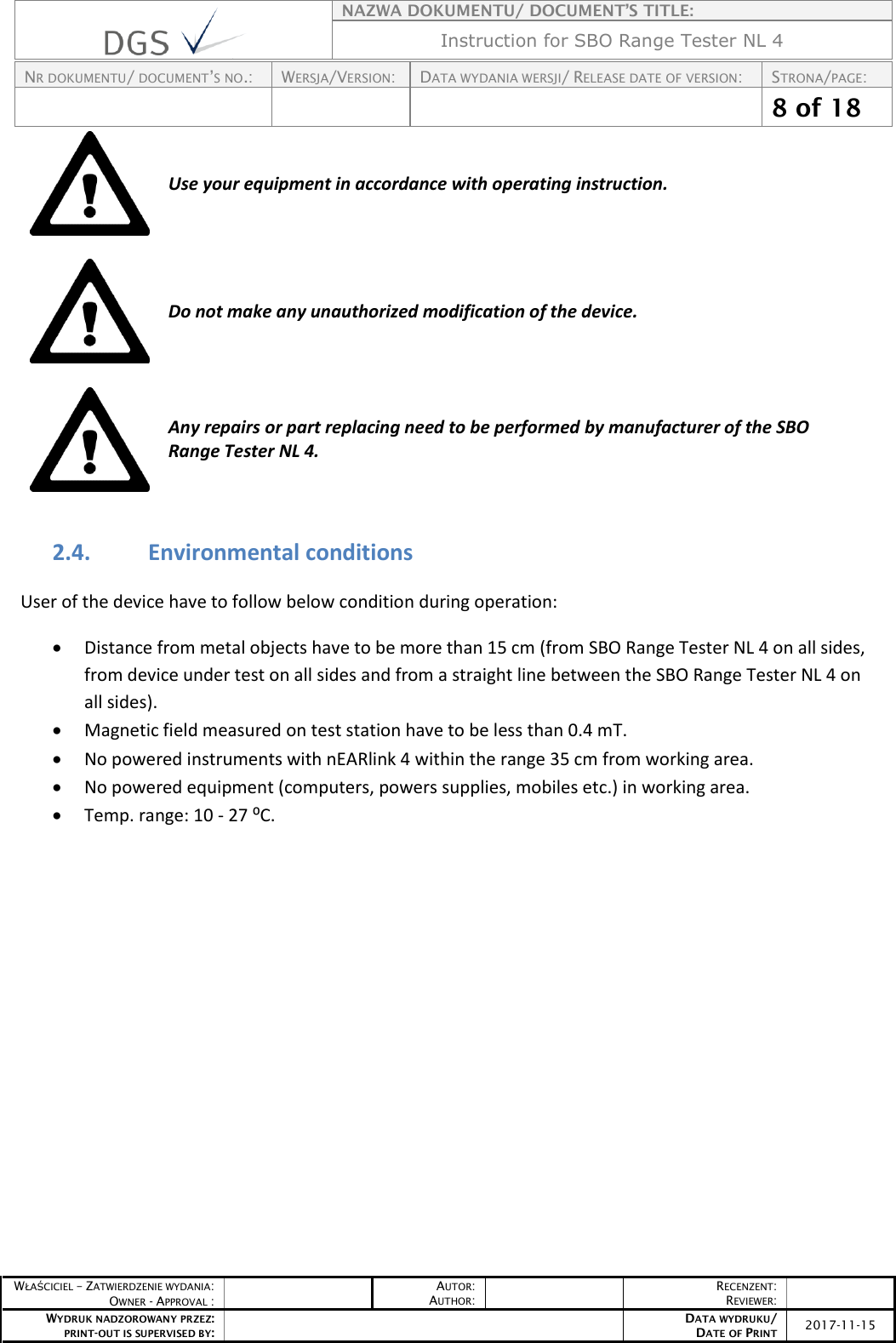

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 8 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 Use your equipment in accordance with operating instruction. Do not make any unauthorized modification of the device. Any repairs or part replacing need to be performed by manufacturer of the SBO Range Tester NL 4. 2.4. Environmental conditions User of the device have to follow below condition during operation:  Distance from metal objects have to be more than 15 cm (from SBO Range Tester NL 4 on all sides, from device under test on all sides and from a straight line between the SBO Range Tester NL 4 on all sides).  Magnetic field measured on test station have to be less than 0.4 mT.  No powered instruments with nEARlink 4 within the range 35 cm from working area.  No powered equipment (computers, powers supplies, mobiles etc.) in working area.  Temp. range: 10 - 27 ⁰C.

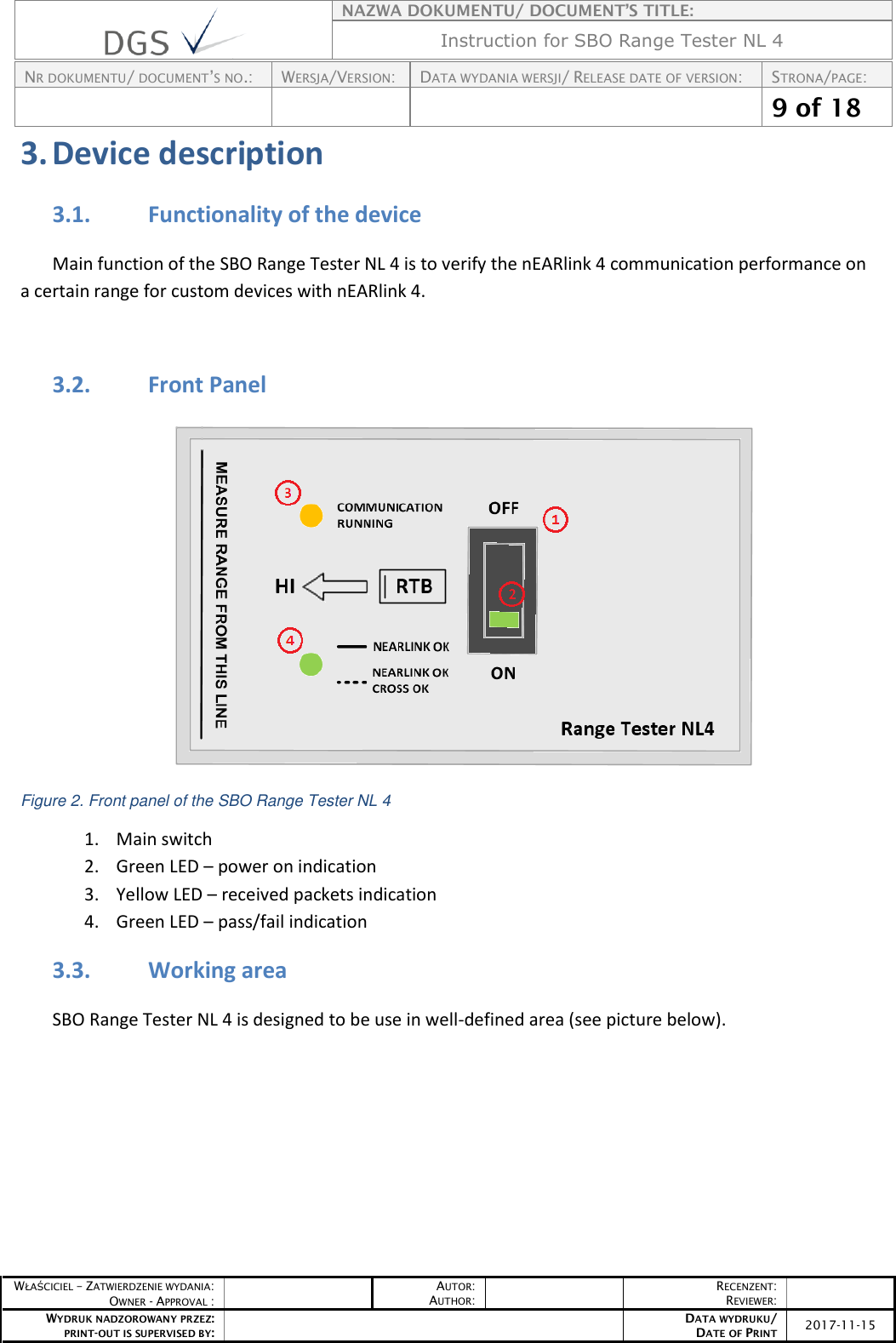

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 9 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 3. Device description 3.1. Functionality of the device Main function of the SBO Range Tester NL 4 is to verify the nEARlink 4 communication performance on a certain range for custom devices with nEARlink 4. 3.2. Front Panel Figure 2. Front panel of the SBO Range Tester NL 4 1. Main switch 2. Green LED – power on indication 3. Yellow LED – received packets indication 4. Green LED – pass/fail indication 3.3. Working area SBO Range Tester NL 4 is designed to be use in well-defined area (see picture below).

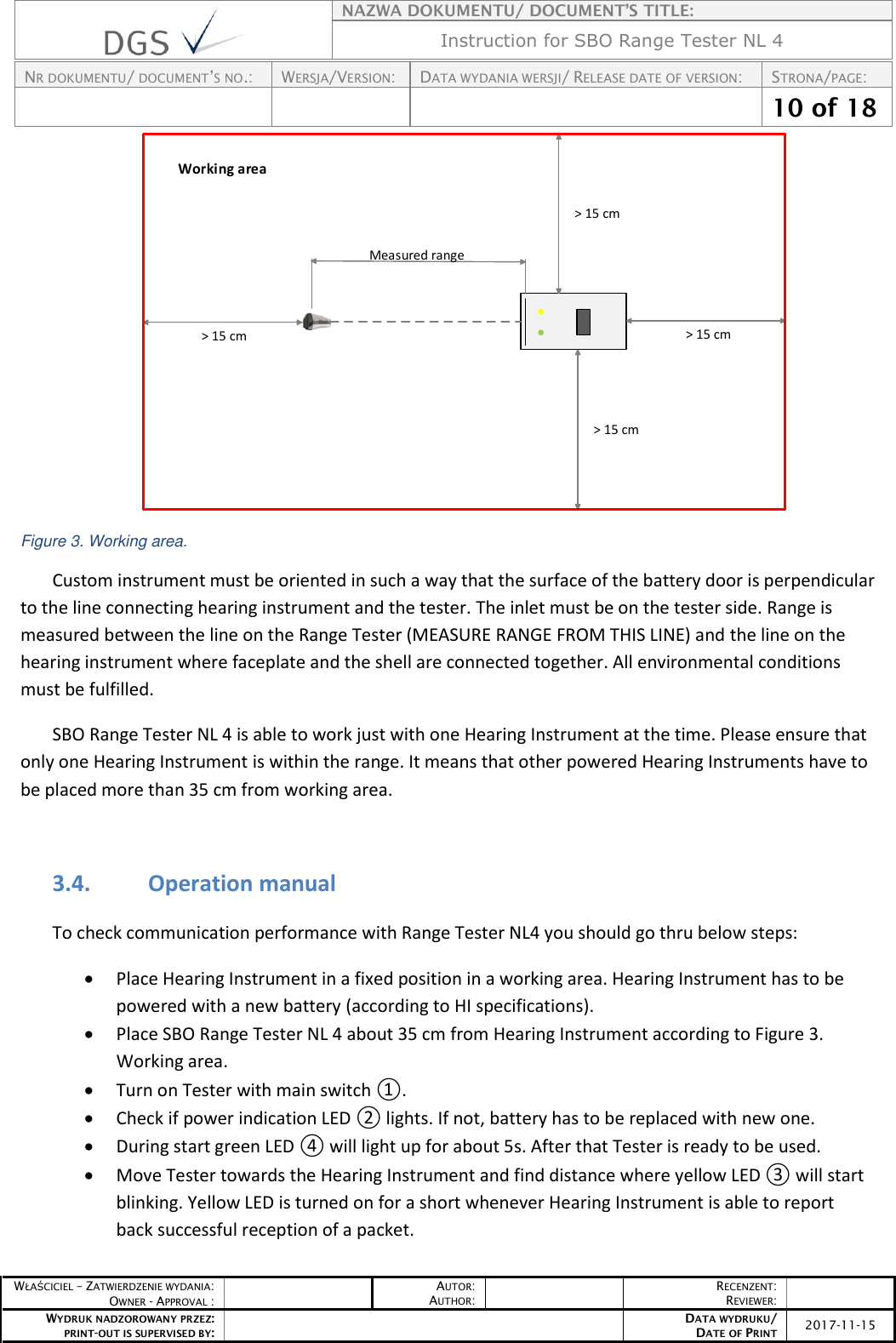

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 10 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 Measured range > 15 cm > 15 cm > 15 cm > 15 cmWorking area Figure 3. Working area. Custom instrument must be oriented in such a way that the surface of the battery door is perpendicular to the line connecting hearing instrument and the tester. The inlet must be on the tester side. Range is measured between the line on the Range Tester (MEASURE RANGE FROM THIS LINE) and the line on the hearing instrument where faceplate and the shell are connected together. All environmental conditions must be fulfilled. SBO Range Tester NL 4 is able to work just with one Hearing Instrument at the time. Please ensure that only one Hearing Instrument is within the range. It means that other powered Hearing Instruments have to be placed more than 35 cm from working area. 3.4. Operation manual To check communication performance with Range Tester NL4 you should go thru below steps:  Place Hearing Instrument in a fixed position in a working area. Hearing Instrument has to be powered with a new battery (according to HI specifications).  Place SBO Range Tester NL 4 about 35 cm from Hearing Instrument according to Figure 3. Working area.  Turn on Tester with main switch ①.  Check if power indication LED ② lights. If not, battery has to be replaced with new one.  During start green LED ④ will light up for about 5s. After that Tester is ready to be used.  Move Tester towards the Hearing Instrument and find distance where yellow LED ③ will start blinking. Yellow LED is turned on for a short whenever Hearing Instrument is able to report back successful reception of a packet.

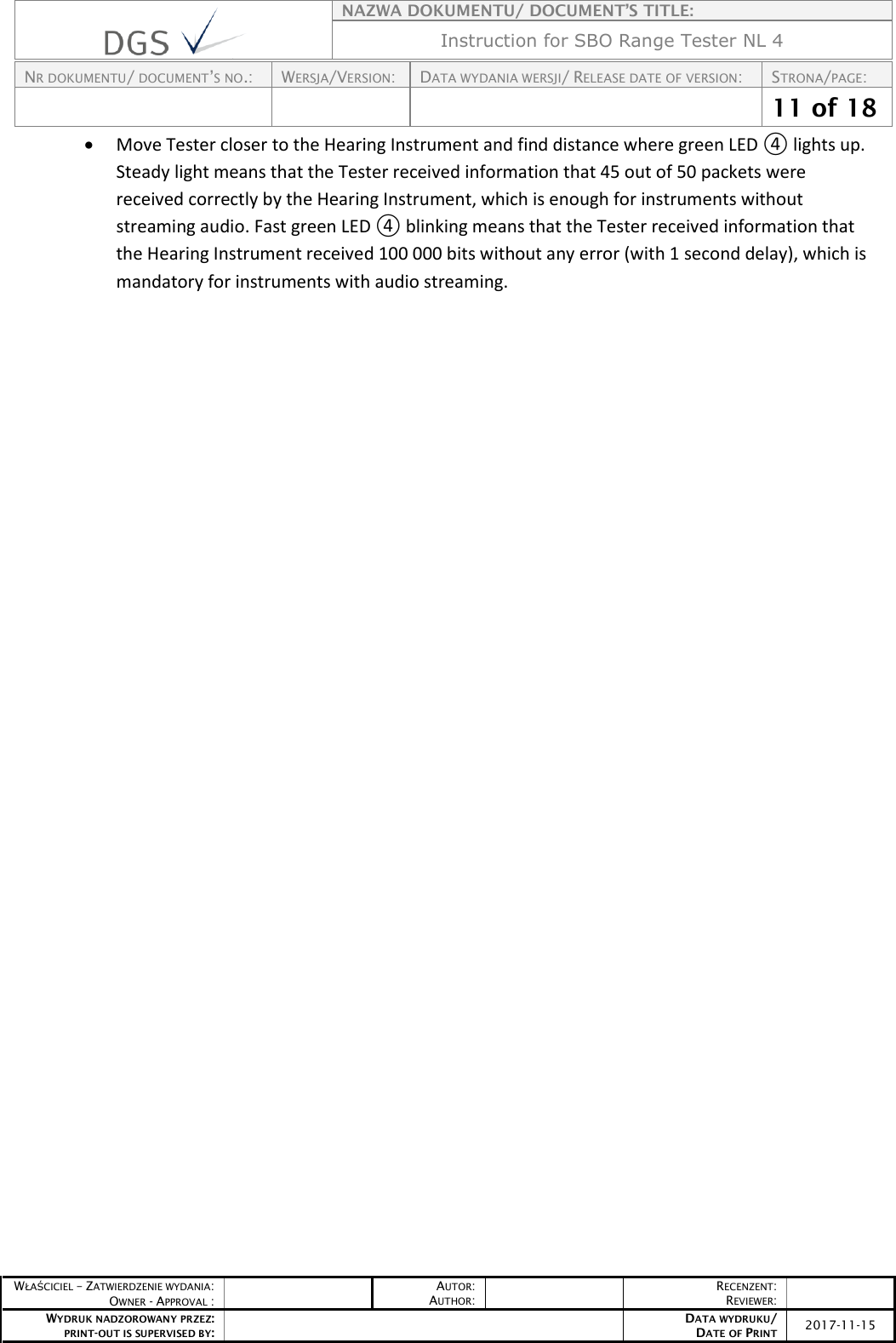

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 11 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15  Move Tester closer to the Hearing Instrument and find distance where green LED ④ lights up. Steady light means that the Tester received information that 45 out of 50 packets were received correctly by the Hearing Instrument, which is enough for instruments without streaming audio. Fast green LED ④ blinking means that the Tester received information that the Hearing Instrument received 100 000 bits without any error (with 1 second delay), which is mandatory for instruments with audio streaming.

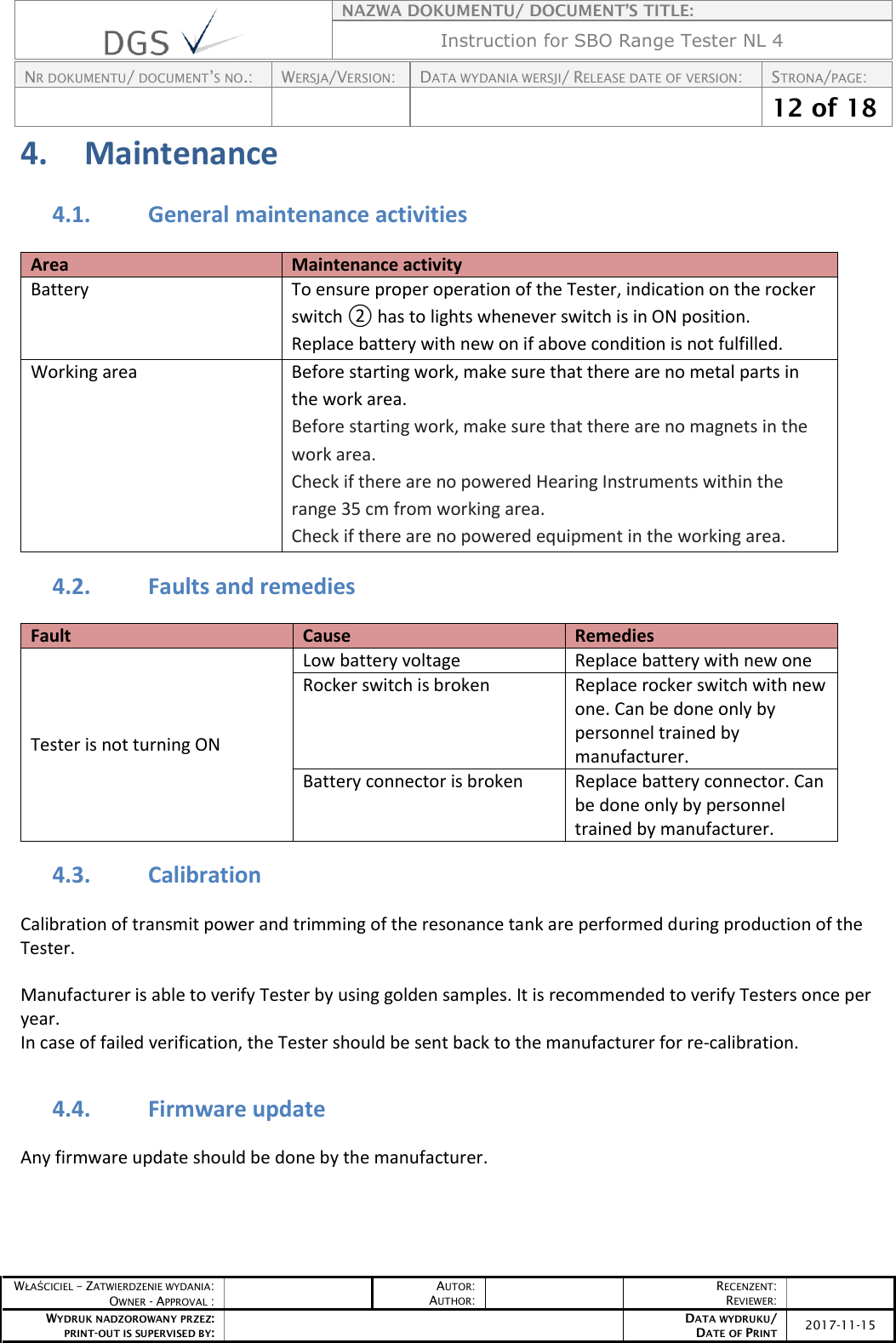

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 12 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 4. Maintenance 4.1. General maintenance activities Area Maintenance activity Battery To ensure proper operation of the Tester, indication on the rocker switch ② has to lights whenever switch is in ON position. Replace battery with new on if above condition is not fulfilled. Working area Before starting work, make sure that there are no metal parts in the work area. Before starting work, make sure that there are no magnets in the work area. Check if there are no powered Hearing Instruments within the range 35 cm from working area. Check if there are no powered equipment in the working area. 4.2. Faults and remedies Fault Cause Remedies Tester is not turning ON Low battery voltage Replace battery with new one Rocker switch is broken Replace rocker switch with new one. Can be done only by personnel trained by manufacturer. Battery connector is broken Replace battery connector. Can be done only by personnel trained by manufacturer. 4.3. Calibration Calibration of transmit power and trimming of the resonance tank are performed during production of the Tester. Manufacturer is able to verify Tester by using golden samples. It is recommended to verify Testers once per year. In case of failed verification, the Tester should be sent back to the manufacturer for re-calibration. 4.4. Firmware update Any firmware update should be done by the manufacturer.

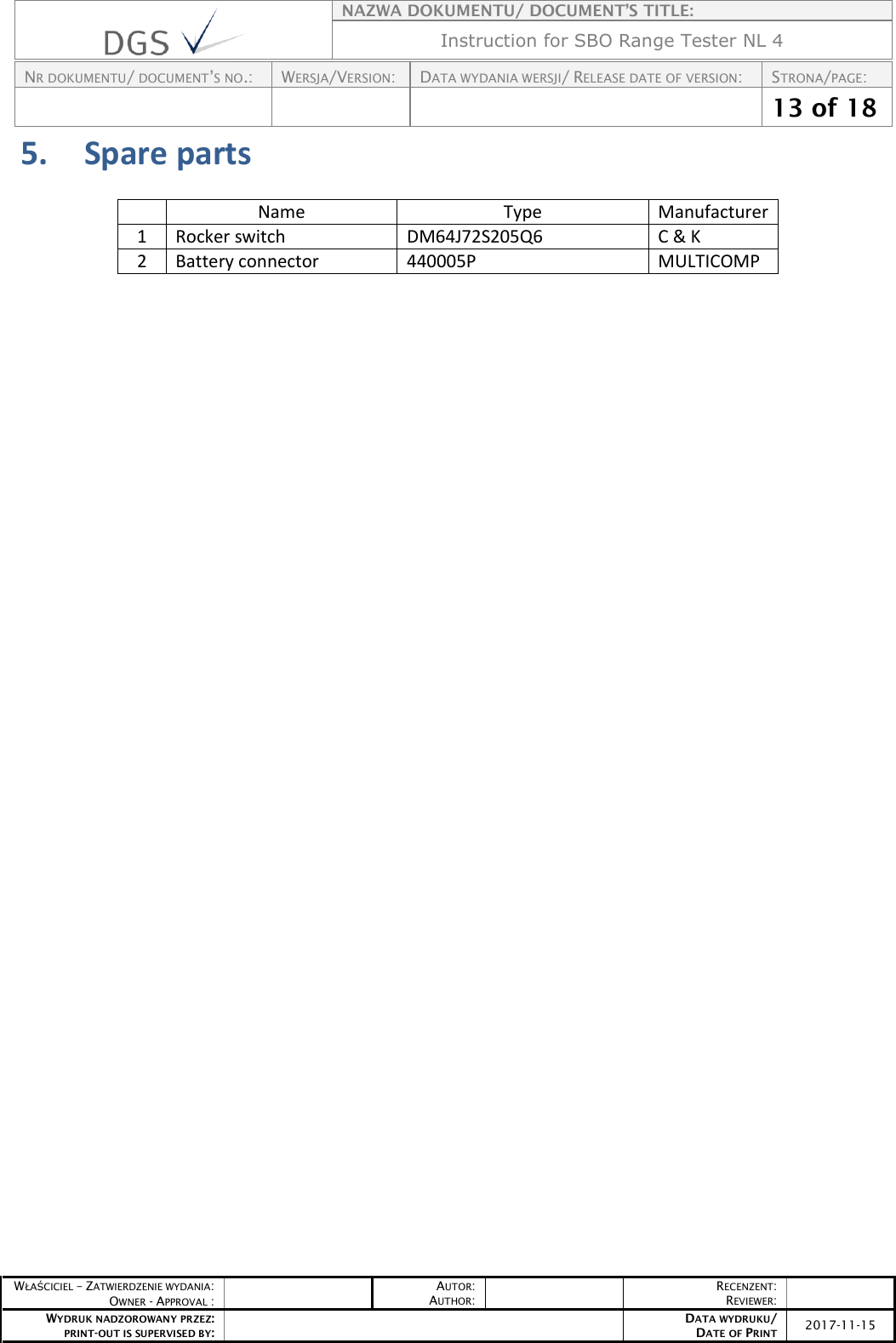

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 13 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 5. Spare parts Name Type Manufacturer 1 Rocker switch DM64J72S205Q6 C & K 2 Battery connector 440005P MULTICOMP

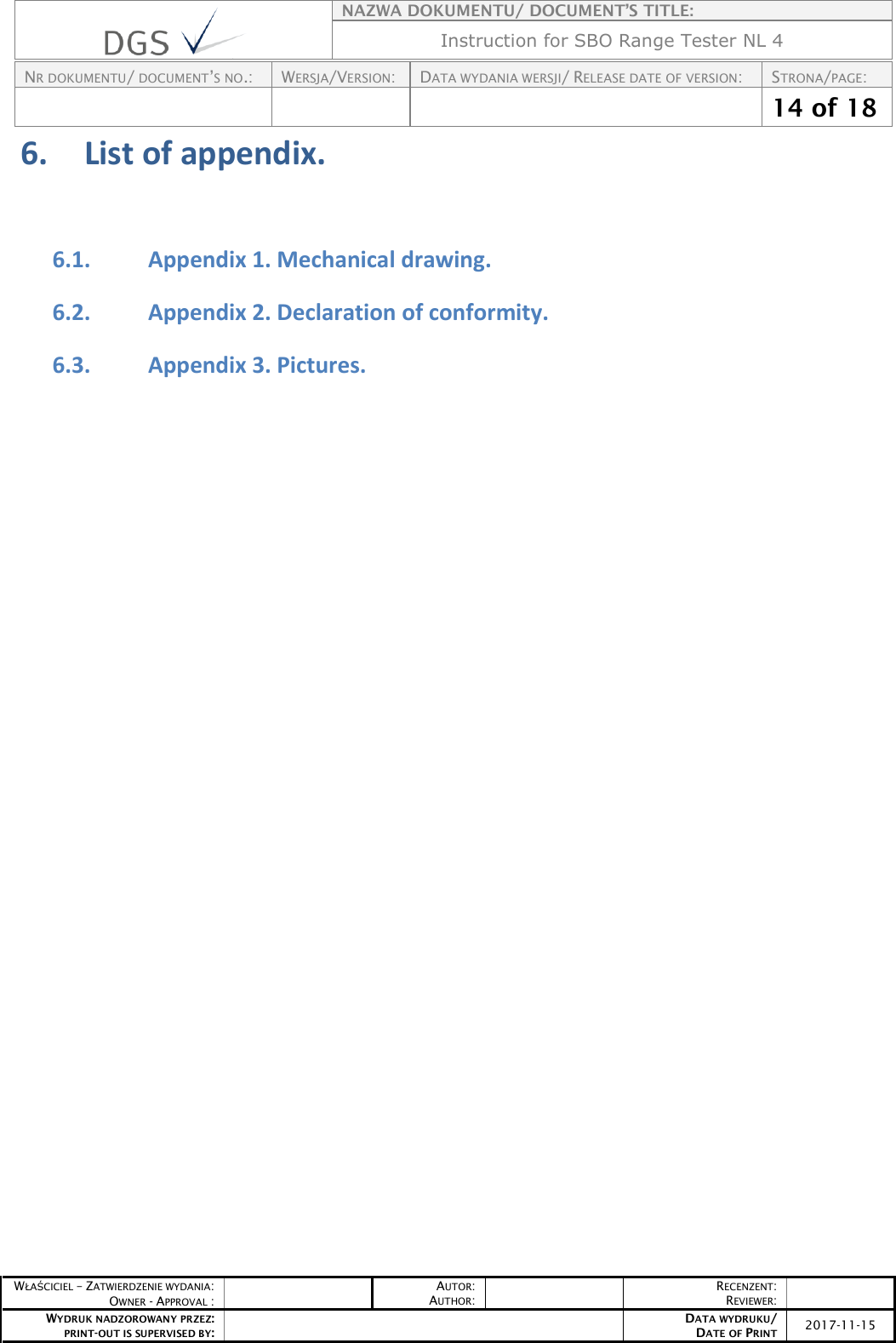

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 14 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 6. List of appendix. 6.1. Appendix 1. Mechanical drawing. 6.2. Appendix 2. Declaration of conformity. 6.3. Appendix 3. Pictures.

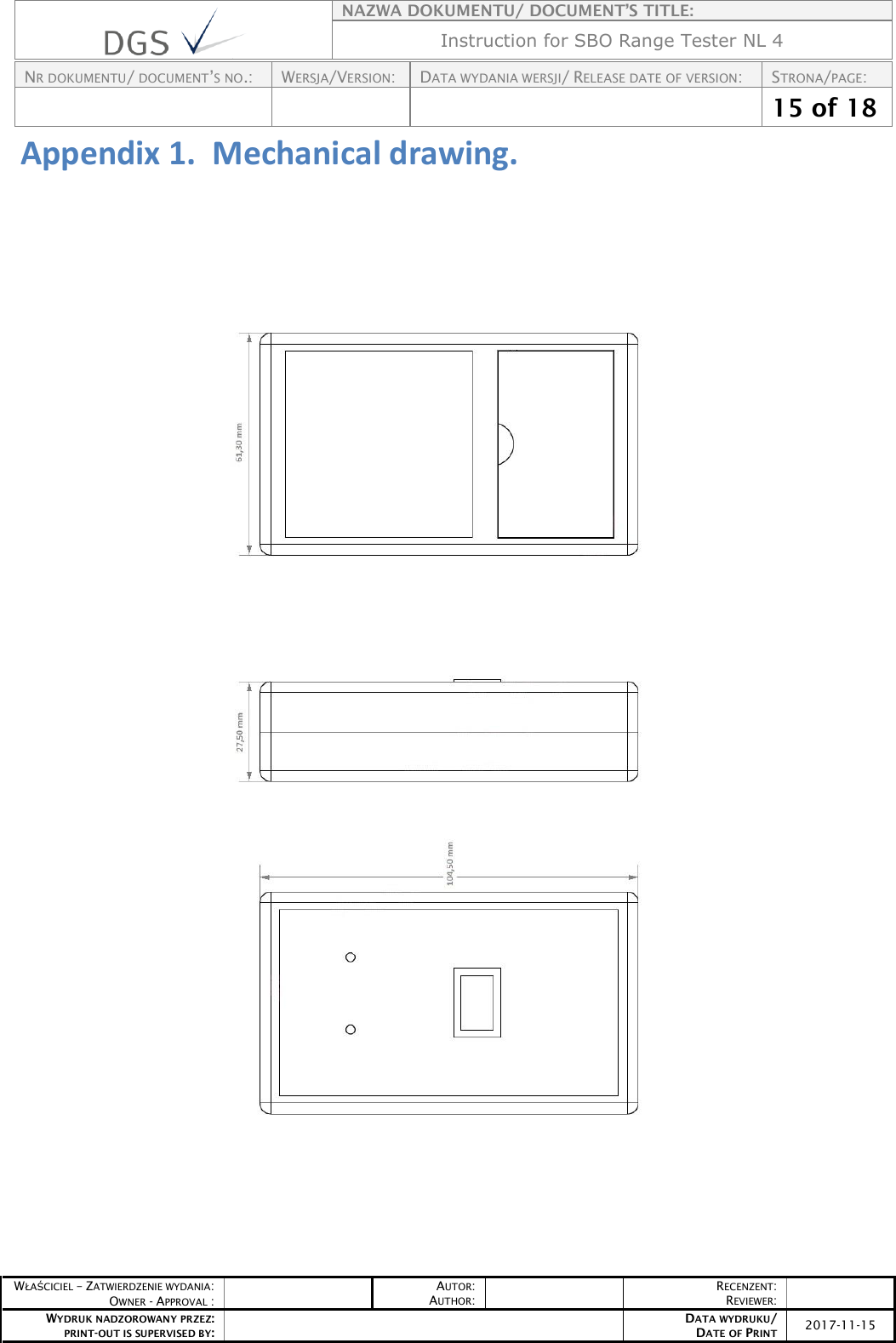

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 15 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 Appendix 1. Mechanical drawing.

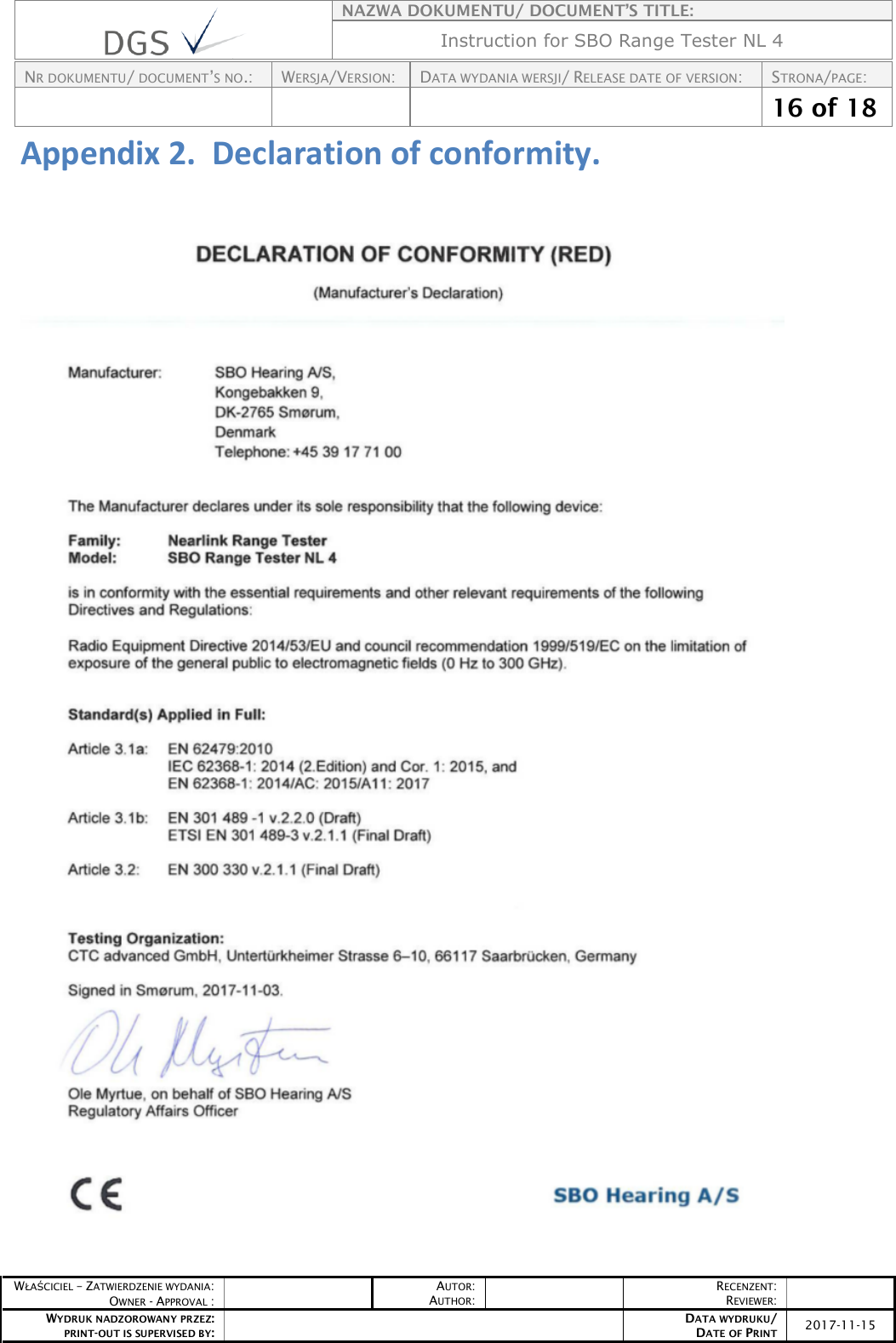

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 16 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 Appendix 2. Declaration of conformity.

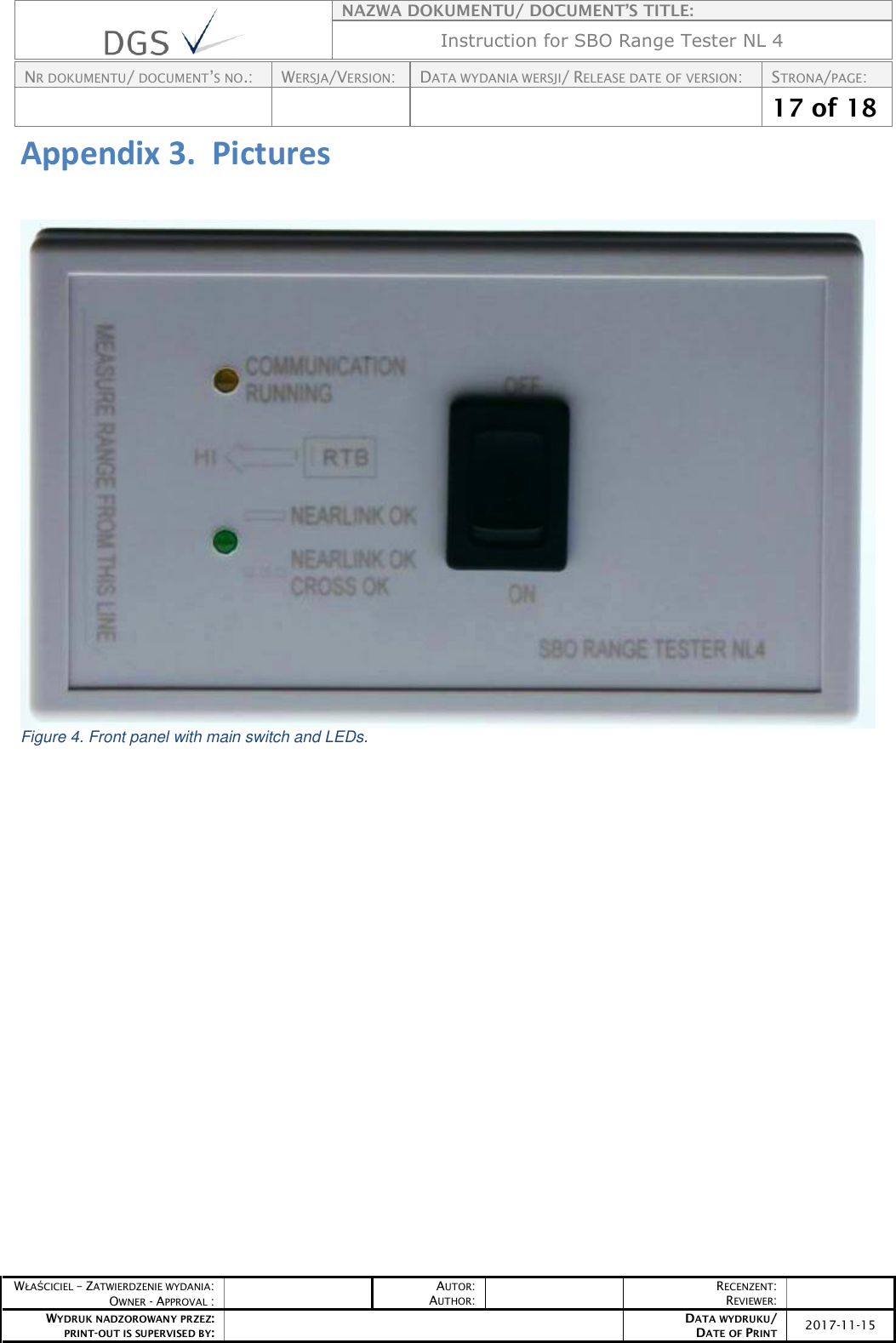

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 17 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 Appendix 3. Pictures Figure 4. Front panel with main switch and LEDs.

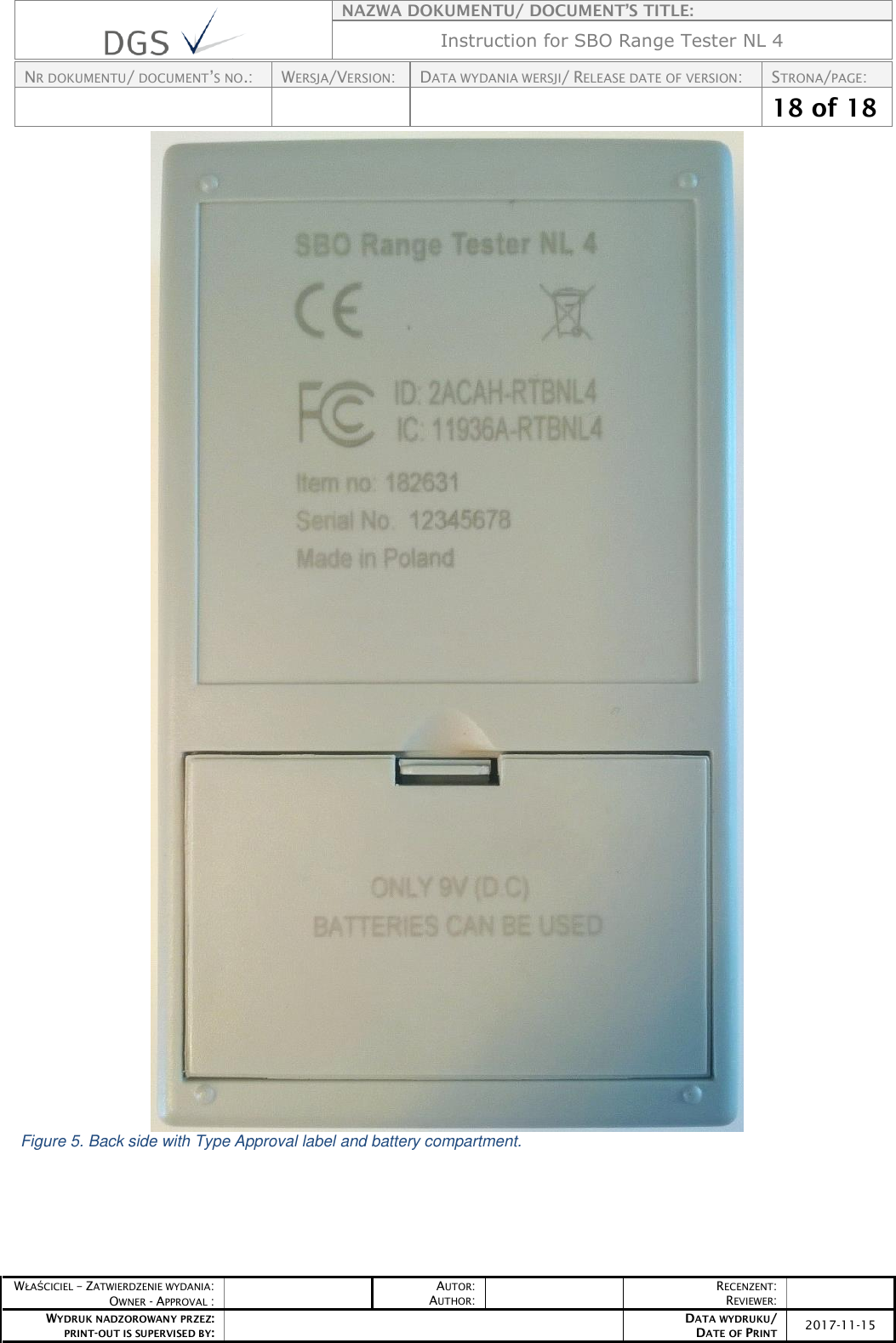

NAZWA DOKUMENTU/ DOCUMENT’S TITLE: Instruction for SBO Range Tester NL 4 NR DOKUMENTU/ DOCUMENT’S NO.: WERSJA/VERSION: DATA WYDANIA WERSJI/ RELEASE DATE OF VERSION: STRONA/PAGE: 18 of 18 WŁAŚCICIEL – ZATWIERDZENIE WYDANIA: OWNER - APPROVAL : AUTOR: AUTHOR: RECENZENT: REVIEWER: WYDRUK NADZOROWANY PRZEZ: PRINT-OUT IS SUPERVISED BY: DATA WYDRUKU/ DATE OF PRINT 2017-11-15 Figure 5. Back side with Type Approval label and battery compartment.
