Introduction to this booklet
This booklet guides you on how to use and maintain your new
TV Adapter. Please read the booklet carefully, including the
Warning section. This will help you to get the most out of your new
TV Adapter.
If you have additional questions about the use of your TV Adapter,
please contact your hearing care professional.
About Installation Daily use Warnings Additionals
For your convenience, this booklet contains a navigation bar to help
you navigate easily through the different sections.
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are registered trademarks of Dolby Laboratories.
Intended use
The TV Adapter is intended as a wireless transmitter of sound from a
TV or from other electronic audio devices to hearing aids.
The TV Adapter is intended to be used by children (> 36 months)
and adults together with their hearing solution.
Table of content
About
Package content 6
TV Adapter overview 8
Installation
Installation 10
Placing the TV Adapter 11
Connecting the TV Adapter to a power outlet 12
Connecting the TV Adapter to the TV 14
Connecting using TOSLINK 16
Connecting using RCA 18
Connecting using mini jack Adapter 20
Connecting using SCART 22
Pairing the TV Adapter with your hearing aids 24
Daily use
Start TV sound using your hearing aids 26
Turn off TV sound using your hearing aids 27
Volume control using your hearing aids 28
Start TV sound using the hearing aid Remote Control 30
Turn off TV sound using your Remote Control 31
Volume control using your Remote Control 32
Mute using your Remote Control 33
Start TV sound using the Oticon ON App 34
Turn off TV sound using the Oticon ON App 35
Volume control using the Oticon ON App 36
Mute using the Oticon ON App 37
More than one user 38
Removing a user/clear pairings 39
Cleaning and maintenance 40
Warnings
Warnings 42
Additionals
Technical information 44
International warranty 47
TV Adapter 3.0
Instructions for use
6 About Installation Daily use Warnings Additionals
Package content

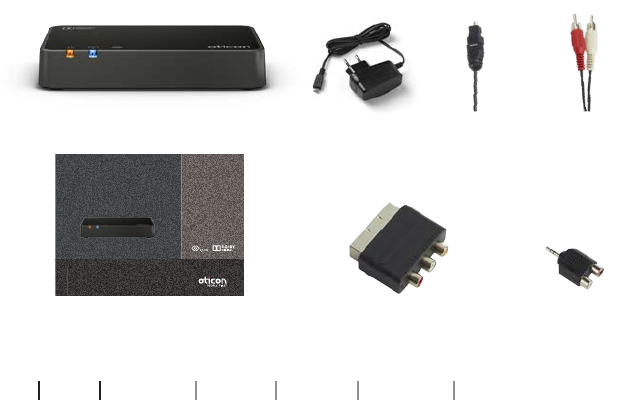

The TV Adapter box consists of the following elements:
TV Adapter Power supply RCA cable
TOSLINK
SCART Adapter Mini jack AdapterThis guide
(Installation guide and Instructions for use)
About
OUT
IN
R
L
POWER
8 9
About Installation Daily use Warnings Additionals
TV Adapter overview

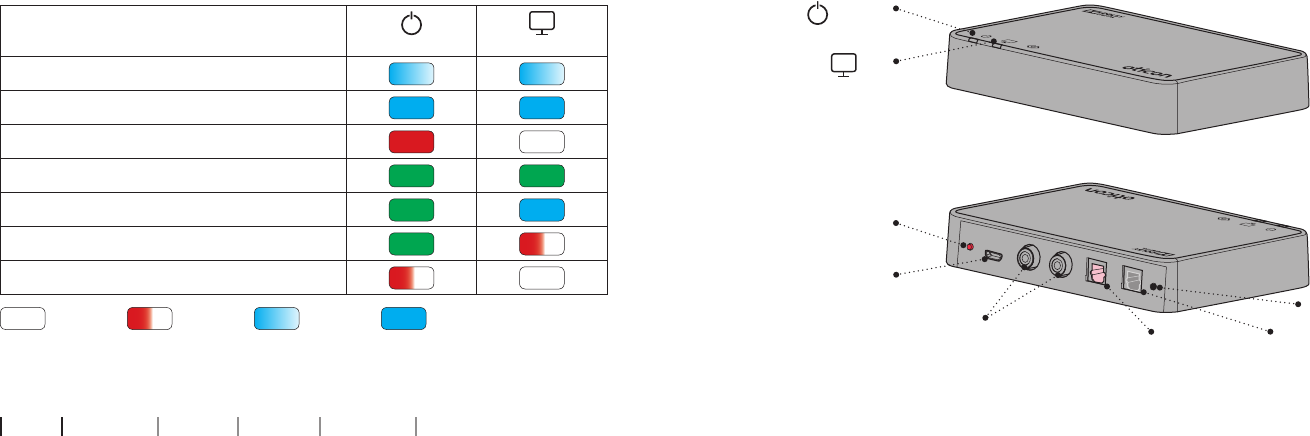

Mode Power indicator TV indicator
Power on, not paired to any hearing aids
Pairing complete (steady light 30 secs)
Power on, not streaming
RCA inserted and streaming
TOSLINK inserted and streaming (digital)
TOSLINK inserted and streaming (invalid signal)*
Fault condition *
No light
* Try other input connection
** Contact your hearing care professional
Blinking Fading Steady
Back
Power supply
Front
TV
TOSLINK in
Mode
TOSLINK out
RCA left and right
Power
Setup
More information: www.oticon.com
10 11
About Installation Daily use Warnings Additionals
Installation
Using the TV Adapter for the first time
Before you can use your hearing aids with your TV, the TV Adapt-
er must be connected to a power outlet, connected to the TV and
paired with your hearing aids.
This is a step-by-step guide on how to install the TV Adapter.
All parts needed for the installation are included in the package.
Placing the TV Adapter

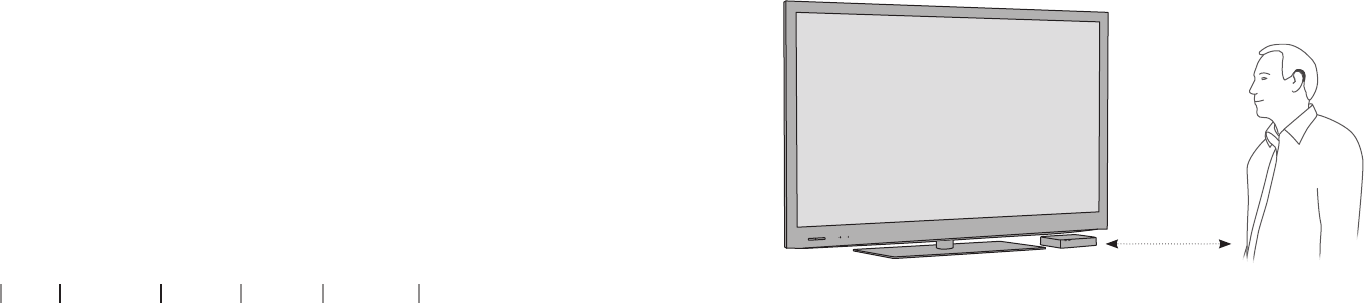

Place the TV adapter close to the TV - horizontally, with free line of
sight to the hearing aids.
Installation
TUO
IN
POWER R
L
1 3
12 13
About Installation Daily use Warnings Additionals
Connecting the TV Adapter to a power outlet
Start by connecting the TV Adapter to a power outlet.
Use the power supply from box 1

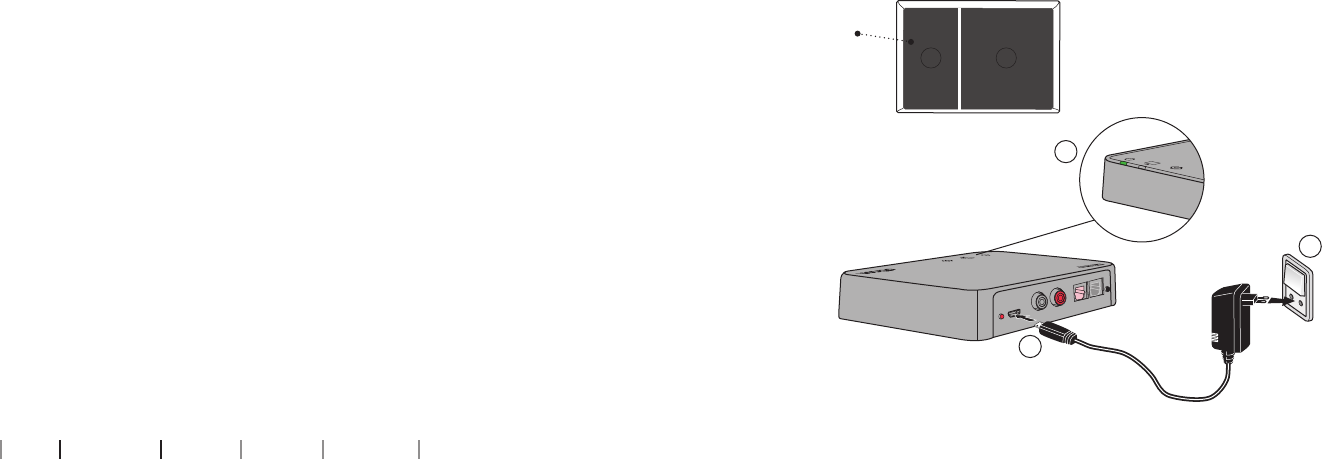

1. Plug the power cord into the “power” connector on the TV Adapter (A).
2. Plug the power supply into the mains wall socket (B).
3. Check that the power is turned on; after a few seconds both indicators
will fade blue to indicate that pairing with your hearing aids is needed.
See page 24.
Box 1
B
C
A
L
TUO
IN
R
1 3
2
1 3
L
TUO
IN
R
L
R
Audio
Out
L
TUO
IN
R
1 3
L
R
Audio
Out
L
TUO
IN
R
1 3
14 15
About Installation Daily use Warnings Additionals

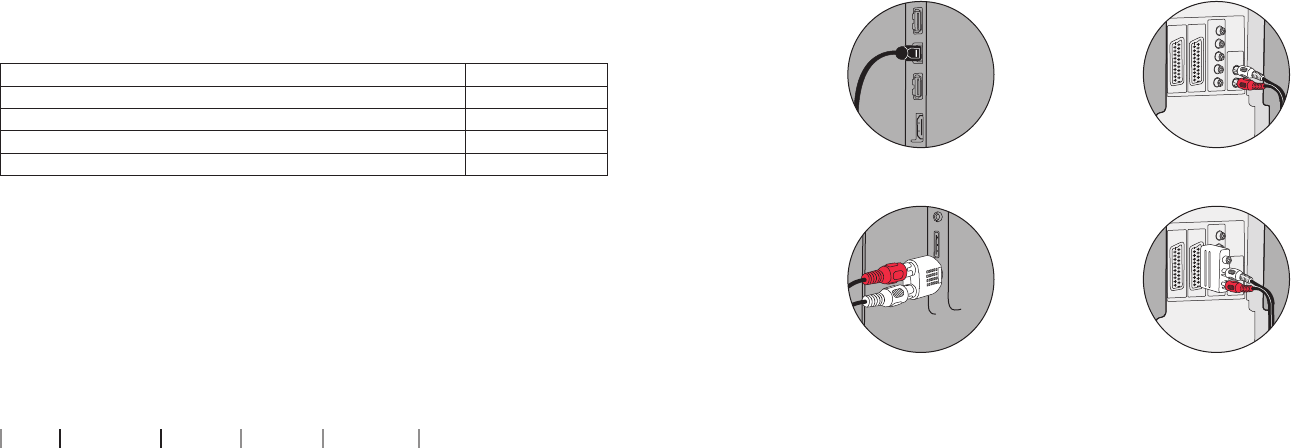

Connecting the TV Adapter to the TV
You can connect the TV Adapter to the TV in four different ways.
Connection Page
TOSLINK. Either digital stereo (PCM) or Dolby® Digital * 16
RCA audio output L+R 18
Mini jack audio output (typically headphone output) 20
SCART audio output (L+R) 22
*Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.
We recommend using TOSLINK.
Please see the following pages for a solution which fits your TV.
RCA (p. 18)
SCART (p. 22)
TOSLINK (p. 16)
Mini jack (p. 20)
More information: www.oticon.com
L
TUO
IN
R
1 3
2
L
TUO
IN
R
1 3
2
16 17
About Installation Daily use Warnings Additionals
Connecting using TOSLINK

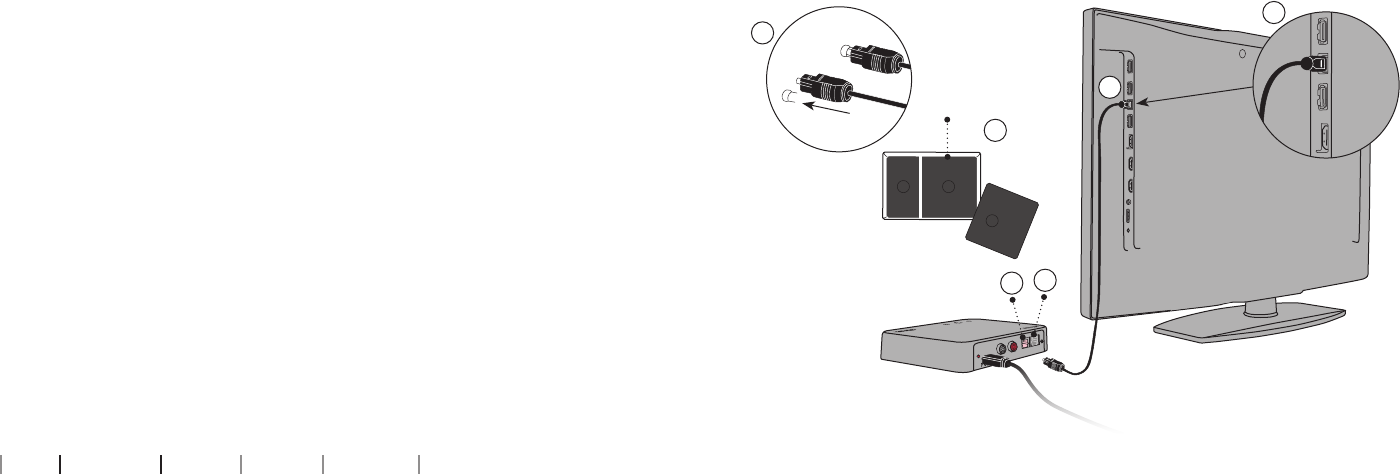

1. Use the TOSLINK cable from box no. 3 (A).
2. Remove the plastic cap from the TOSLINK cable. (B)
3. Connect the TOSLINK cable to the TOSLINK output on your TV/home
theater system (C).
4. Connect the TOSLINK cable to the pink TOSLINK input (D) on the
TV Adapter.
5. The TOSLINK output (E) may be used to connect other TOSLINK devices
such as external Dolby Decoders and surround sound systems.
6. Refer to page 24 for pairing of the TV Adapter with your Hearing Aid.
Please note: It may be necessary to configure your TV, DVD player
or home theater system so that the correct audio output is
available on the TOSLINK output.
Box 3
B
C
C
A
DE
L
TUO
IN
R
1 2
L
R
Audio
Out
L
TUO
IN
R
1 3
L
R
Audio
Out
18 19
About Installation Daily use Warnings Additionals
Connecting using RCA

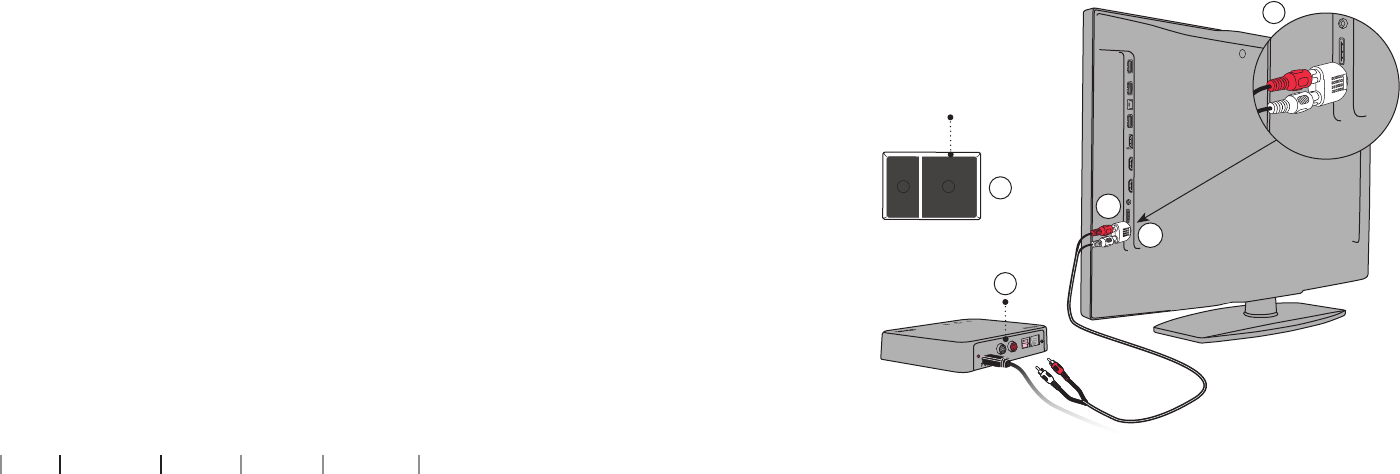

1. Use the RCA cable from box no. 2 (A).

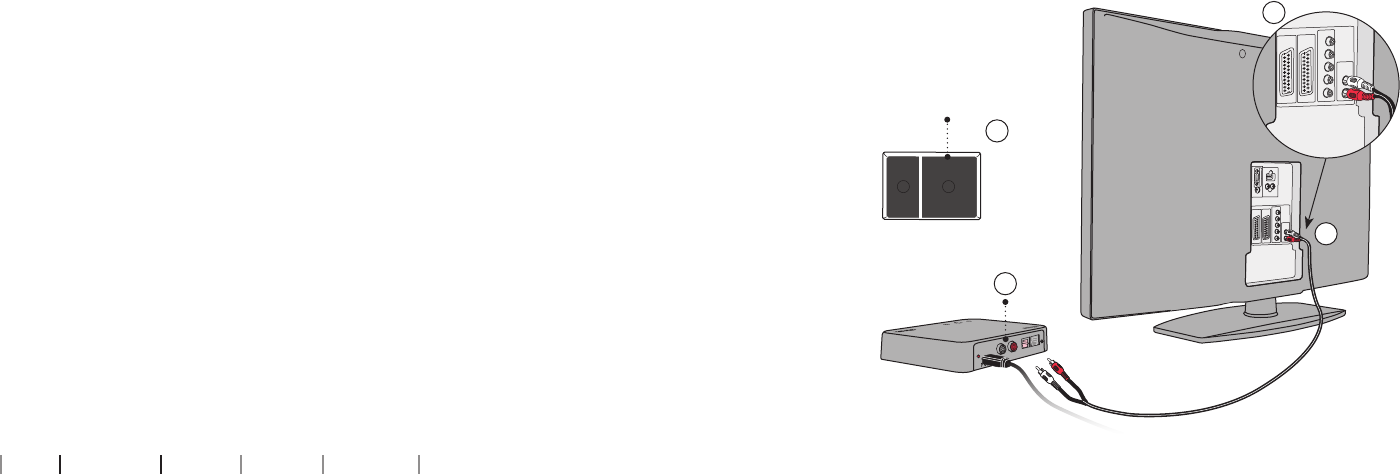

2. Connect the RCA cable to the RCA output on your TV (B) or home theater
system. (Typically marked “L – R AUDIO OUT” and found on the TV back or
bottom panel.)
3. Connect the RCA cable to the RCA connectors (C) on the back of the TV
Adapter.
4. Refer to page 24 for pairing of hearing aids with the TV Adapter.
Please note: It may be necessary to configure your TV so that the
correct audio output is available on the RCA output.
B
C
C
A
Box 2
L
TUO
IN
R
1 2
L
TUO
IN
R
1 3
20 21
About Installation Daily use Warnings Additionals
Connecting using mini jack Adapter
1. Use the mini jack Adapter from box no. 2 (A).
2. Connect the RCA cable to the mini jack Adapter (B1).
3. Connect the mini jack to the TV, this is typically the headphone output
(B2).
4. Connect the RCA connectors to the TV Adapter RCA input (C).
5. Refer to page 24 for pairing of the TV Adapter with your hearing aids.
Please note: The TV speakers may be muted when connecting to
the headphone output, and sound only heard through the Hearing
Aids/TV Adapter.
B
B1
B2
Box 2
A
D
1 2
L
TUO
IN
R
L
R
Audio
Out
1 3
L
TUO
IN
R
L
R
Audio
Out
22 23
About Installation Daily use Warnings Additionals
Box 2
Connecting using SCART

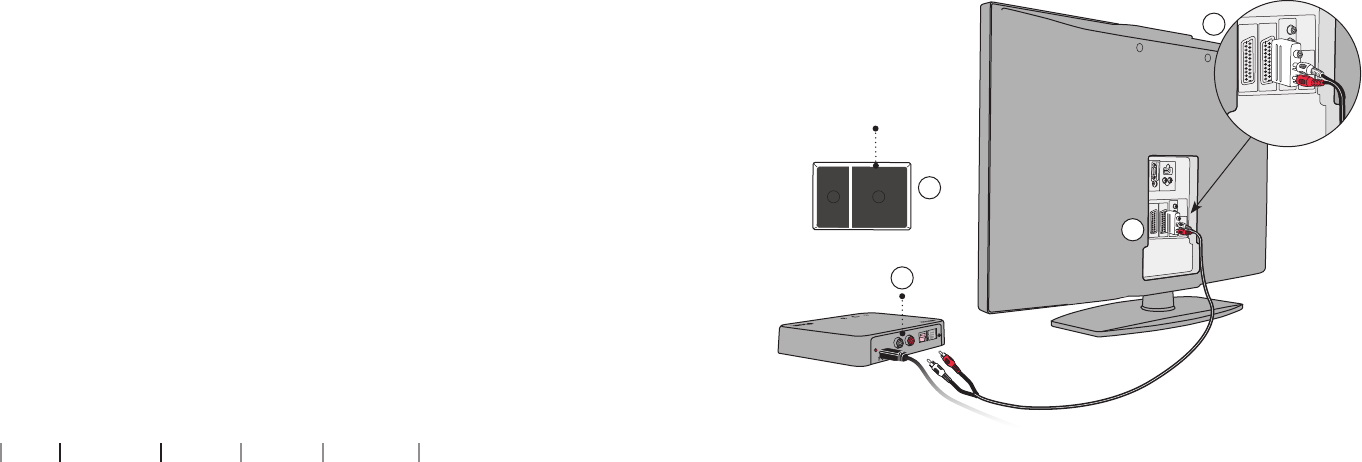

1. Use the SCART Adapter from box no. 2 (A).
2. Connect the RCA cable to the red and white terminals on the SCART
Adapter (B).
3. Connect the SCART Adapter to the SCART output on your TV (C).
4. Connect the RCA connectors to the TV Adapter RCA input (D).
5. Refer to page 24 for pairing of the TV Adapter with your Hearing Aids.
Please note: The audio output on the SCART connector can be
dependent on the source selected on the TV. For example some TVs
will only make TV sound available on the SCART output (i.e. not e.g.
sound from a connected DVD player).
B
C
A
D
24 25
About Installation Daily use Warnings Additionals
Pairing the TV Adapter with your hearing aids
Before using the TV adapter, it must be paired with your hearing
aids.
Pairing is only required once, and takes around 20-60 seconds.
IMPORTANT NOTICE
Please refer to your hearing aid‘s instructions for use for details on the
functionality of your specific hearing aid solution.

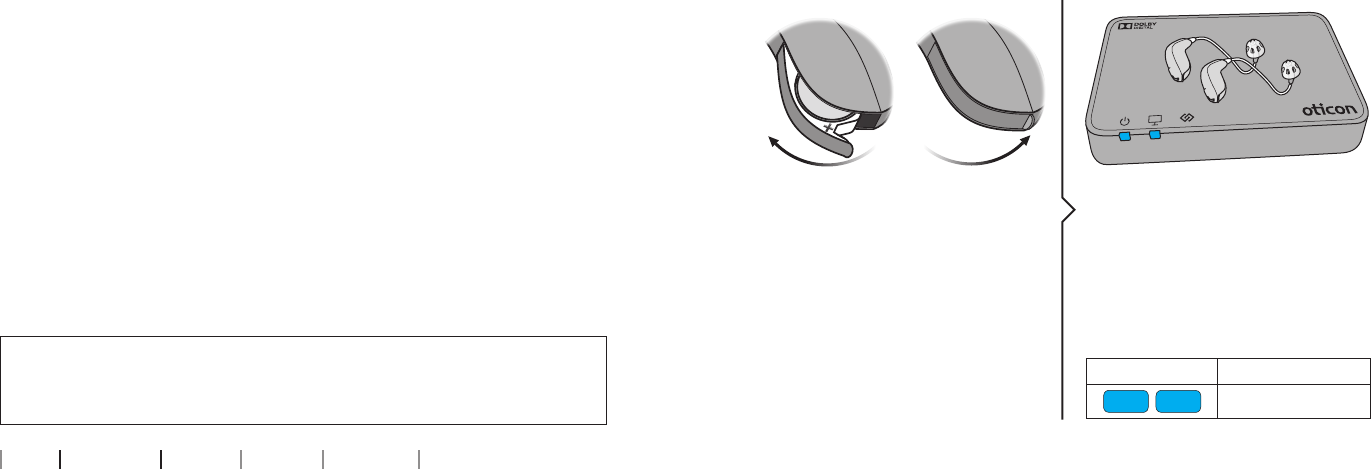

Make sure the TV Adapter is
powered on.
Open and close the battery door on
both your hearing aids.
Place both hearing aids close to, or
on top of the TV Adapter.
Pairing is completed when the
power indicator and the TV indica-
tor is blue for about 30 secs.
TV Adapter Description
Pairing completed
Note: This TV Adapter can be paired to as many hearing aids as you like. All users will be able to hear the
same sound. Please see page 38 for more details.
P2 TVP1
Change program
26 27
About Installation Daily use Warnings Additionals
Turn o TV sound using your hearing aids
To stop the sound from the TV simply change to the desired
program in your hearing aids.

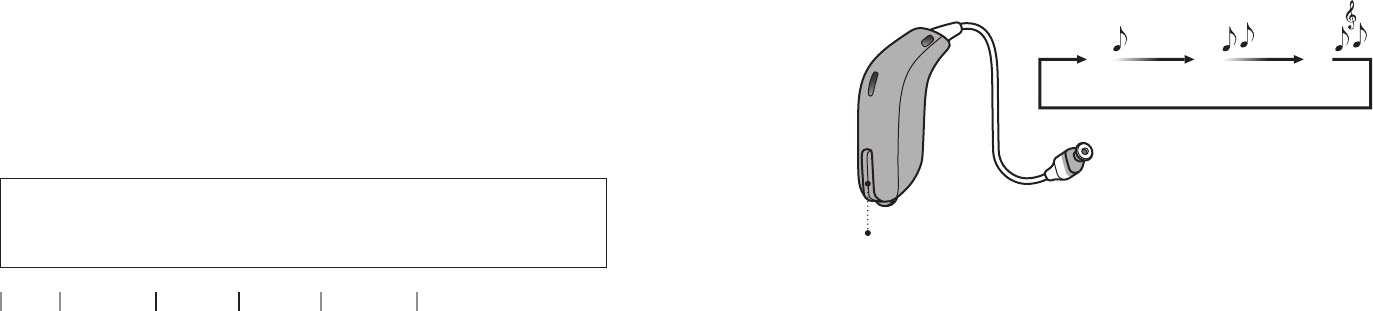

Start TV sound using your hearing aids
Once a TV Adapter has been paired with your hearing aids, it will be
available as a program in your hearing aids. To listen to TV simply
press and hold the program switch on your hearing aids to change
programs.
The program cycle will depend on the programs already
available in your hearing aids.
The TV program indicator - which is different from hearing aid pro-
gram indicators - will be heard once the TV program is selected.
IMPORTANT NOTICE
Please refer to your hearing aid‘s instructions for use for details on the
functionality of your specific hearing aid solution.
Daily use
28 29
About Installation Daily use Warnings Additionals

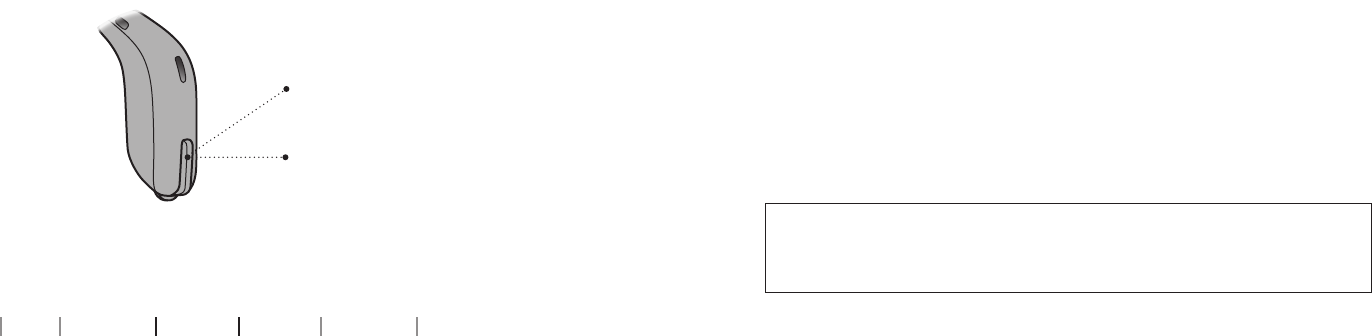

Volume control using your hearing aids
Use the volume button on your hearing aid to adjust the TV
volume level in both hearing aids. Adjust the volume by pressing up
or down briefly. Press briefly repeatedly for further adjustments.
Note: The TV volume in the hearing aids is normally not affected by volume adjustments from the TV
Remote Control.
IMPORTANT NOTICE
Please refer to your hearing aid‘s instructions for use for details on the
functionality of your specific hearing aid solution.
A short press on the RIGHT
hearing aid increases the volume.
A short press on the LEFT
hearing aid decreases the
volume
P2 TVP1
30 31
About Installation Daily use Warnings Additionals
Start TV sound using the hearing aid Remote
Control
The Remote Control is an optional accessory to your wireless
hearing aids.
Once a TV Adapter has been paired to your hearing aids it will be

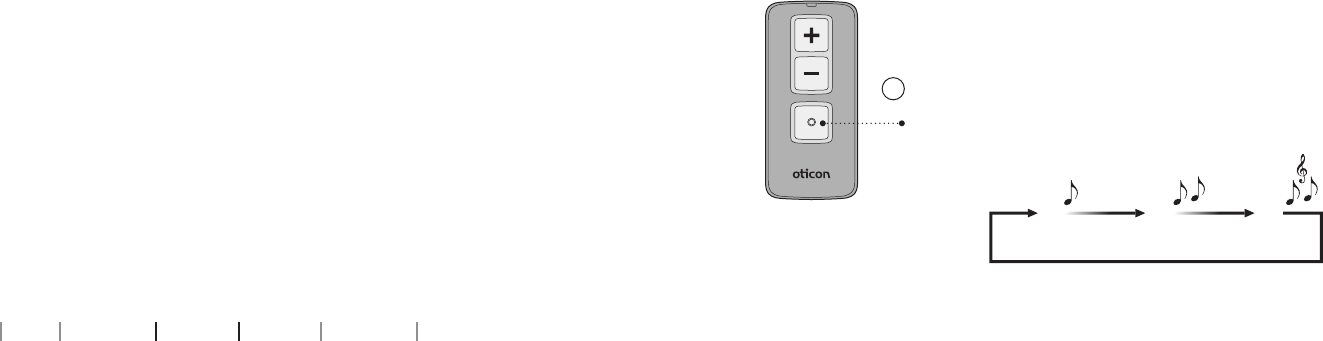

available as a program. To listen to TV simply press the
program selector and change program (A).
The program cycle will depend on the programs already
available in your hearing aids.
The TV program indicator - which is different from program indica-
tors - will be heard once the TV program is selected.
Turn o TV sound using your Remote Control
To stop the sound from the TV simply change to the desired
program in your hearing aids.
More information: www.oticon.com
Change program
A
32 33
About Installation Daily use Warnings Additionals
Volume control using your Remote Control

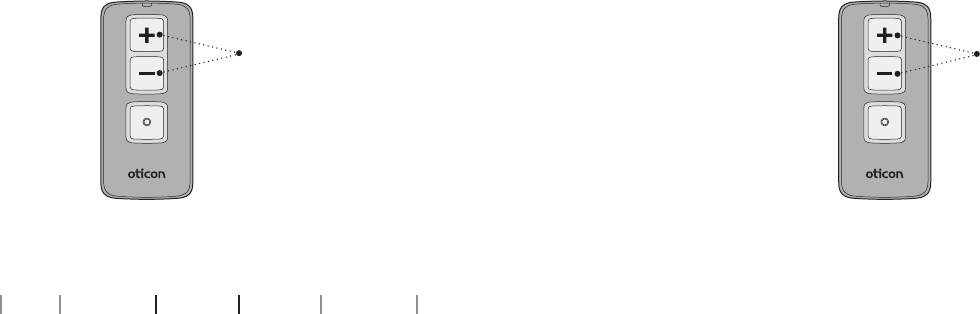

Use the volume buttons on your remote to adjust the TV volume
level in both hearing aids.
Note: The TV volume in the hearing aids is normally not affected by volume adjustments from the
TV Remote Control.
Adjust the volume by pressing
up or down briefly. Repeat the
brief press for further adjust-
ments.
Mute using your Remote Control
While watching TV you can switch off the microphones in your
hearing aids, so that only the sound from the TV is heard.
Note: The mute and volume functions are optinal and can be customized by your hearing care professional.
Press and hold the volume down button
for approx 3 seconds until the surrounding
sound is muted. You will hear a confirmation
beep indicating that the microphones in the
hearing aids are now muted.
To unmute simply press volume up or down
briefly.
34 35
About Installation Daily use Warnings Additionals
Start TV sound using the Oticon ON App
The Oticon ON App is an optional accessory to your wireless
hearing aids. The app works with iPhone®, iPad®, iPod touch®, and
Android™ devices. iPhone, iPad, and iPod touch are trademarks of
Apple Inc., registered in the U.S. and other countries. Android is a
trademark of Google Inc. For information on compatibility, please
visit www.oticon.com.

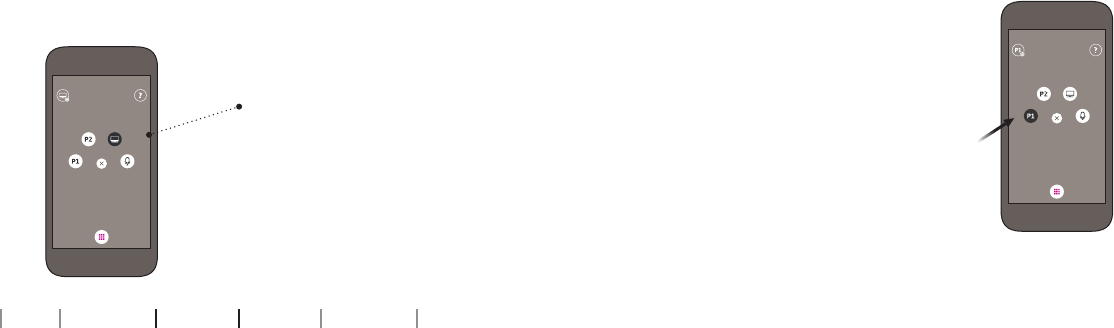

Turn o TV sound using the Oticon ON App
To stop the sound from the TV simply change to the wanted
program in your hearing aids.
Once a TV Adapter has been paired to
your hearing aids it will be available
as a program in your hearing aids and
visible as a source in the Oticon ON
App. To listen to TV simply select the
TV source from the app.
P1
00
36 37
About Installation Daily use Warnings Additionals

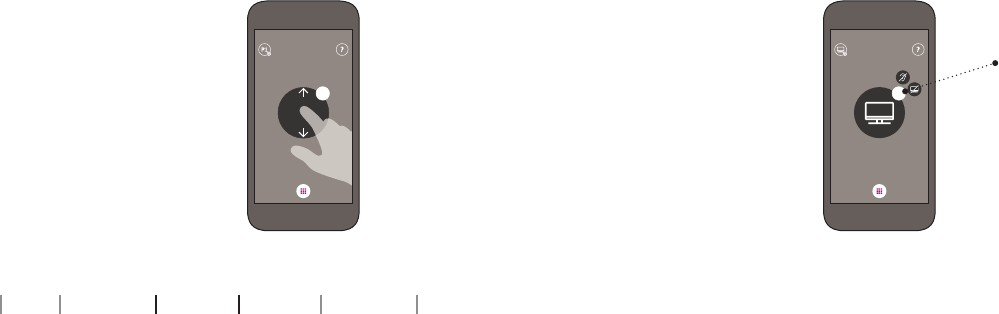

Volume control using the Oticon ON App
Swipe your finger up or down to adjust the volume.
Mute using the Oticon ON App
While watching TV you can switch off the microphones in your
hearing aids, so that only the sound from the TV is heard.
Press the volume indicator to mute
the surrounding sounds. You will hear
a confirmation beep indicating that
the microphones in the hearing aids
are now muted.
To unmute simply press the volume
indicator again, or swipe your finger
up or down to adjust the volume.
OUT
IN
R
L
POWER
38 39
About Installation Daily use Warnings Additionals
More than one user
An unlimited number of hearing aid users can listen to the sound
from one TV Adapter.
Pair the hearing aids to the TV Adapter as described on page 24.
Removing a user/clear pairings
To remove a user from your TV Adapter perform a system reset and
re-pair the required hearing aids.
1. Reset system: Press and hold the setup button for more than 5 seconds
2. Indicators fade blue to indicate no pairings
3. Re-pair the required instruments (see page 24)
TV Adapter Description
No pairings
Fading
Setup
40 About Installation Daily use Warnings Additionals
Cleaning and maintenance
Use a soft, dry cloth to clean the TV Adapter.
IMPORTANT NOTICE
The TV Adapter must never be washed or immersed in water or other
liquids.
42 43
About Installation Daily use Warnings Additionals
You should familiarize yourself fully
with the following general warn-
ings and the entire contents of this
booklet before using your TV Adapter
to ensure personal safety and correct
use. Consult your hearing care
professional if you experience
unexpected operations or events
with your TV Adapter.
Choking hazards and risk of
swallowing small parts
• Your TV Adapter and its parts
should be kept out of reach of
children and anyone who might
swallow these items or otherwise
cause injury to themselves. If small
parts are swallowed, see a doctor
immediately.
Explosives
• The power source in your TV
Adapter has insufficient energy
to cause fire in normal usage
conditions. The TV Adapter has not
been tested for compliance with
international standards concerning
explosive environments. We
recommend not to use your TV
Adapter in areas where there is a
danger of explosions.
Interference
• Your TV Adapter has been thor-
oughly tested for interference
according to the most stringent
international standards. However,
interference with your TV adapter
and other devices may occur, (e.g.
some mobile telephones, citizens
band devices and other wireless
devices). If this occurs, increase the
distance between the TV adapter
and the interfering device.
Connection to external equipment
• The safety of the use of the TV
Adapter with an auxiliary input
cable is determined by the external
signal source. When the input cable
is connected to equipment plugged
into a wall outlet, this equipment
must comply with IEC-60065,
IEC-60601 or equivalent safety
standards.
Warnings
Warnings
44 45
About Installation Daily use Warnings Additionals
Technical information
Model name TVA3
Operating conditions Temperature: +5°C to +40°C
Humidity: 15% to 93%, non-condensing
Atmospheric pressure: 700 hPa to 1060 hPa
Storage and transportation
conditions Temperature and humidity shall not exceed the below
limits for extended periods during transportation and
storage:
Temperature: -25 °C to +70 °C
Humidity: 15% to 93%, non-condensing
The TV Adapter contains a wireless transmitter using 2.4 GHz technology.
The emission power from the TV Adapter is max. 17.1 dBm EIRP.
The TV Adapter complies with international standards concerning electromag-
netic compatibility and human exposure.
Due to the limited space available on the TV Adapter relevant approval markings
can be found in this document.
USA and Canada
This device is certified under:
FCC ID: 2ACAHTVA3
IC: 11936A-TVA3
The device complies with Part 15 of the FCC Rules and with Industry Canada’s
license-exempt RSSs.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Additionals
46 47
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the manufacturer or an experienced radio/TV technician for help.
To comply with FCC RF exposure requirements, the device and the antenna for
this device must be installed to ensure a minimum separation distance of 20 cm
or more from a person’s body. Other operating configurations should be avoided.
International warranty
Your TV adapter is covered by an
international limited warranty issued
by the manufacturer for a period of
12 months from the date of delivery.
This limited warranty covers manu-
facturing and material defects in the
device itself, but not in accessories
such as e.g. batteries, cables, power
supplies, etc. Problems arising from
improper/incorrect handling or care,
excessive use, accidents, repairs
made by an unauthorized party, expo-
sure to corrosive conditions, damage
due to foreign objects entering the
device or incorrect adjustments are
NOT covered by the limited warranty
and may void it. The above warranty
does not affect any legal rights that
you might have under applicable
national legislation governing sale
of consumer goods. Your hearing
care professional may have issued
a warranty that goes beyond the
clauses of this limited warranty.
Please consult him/her for further
information.
If you need service
Take your TV adapter to your hearing
care professional, who may be able
to sort out minor problems and
adjustments immediately.
About Installation Daily use Warnings Additionals
48 About Installation Daily use Warnings Additionals
The manufacturer declares that this
TV adapter is in compliance with the
essential requirements and other
relevant provisions of Directive
1999/5/EC.
Declaration of Conformity is available
at the manufacturer.
SBO Hearing A/S
Kongebakken 9
DK-2765 Smørum
Denmark
www.sbohearing.com
Waste from electronic
equipment must be
handled according to
local regulations. E2831
168366US / 06.06.2016
168366US / 06.06.2016
0000168366000001
