Users Manual
WIFI module specification
Confidential Page 1 sur 5
17/10/2012 14:21:00
SDW-WIFI_1 user manual
For C_IV3 machine
WIFI module specification
Confidential Page 2 sur 5
17/10/2012 14:21:00
1Versions ............................................................................................................................ 3
2User manual ..................................................................................................................... 4
3Installation ........................................................................................
3.1Connection to the machine .......................................................
3.2Connection to the WIFI router ................................................................................... 4
WIFI module specification
Confidential Page 3 sur 5
17/10/2012 14:21:00
1 Versions
Version Date Editor Owner Modifications
0.1 11/09/2012 S. Abdo SDATAWAY Initial draft
WIFI module specification
Confidential Page 4 sur 5
17/10/2012 14:21:00
2 User manual
This product is aimed to be connected into C_IV3 beverage professional machine in order to
enable sending data over WIFI.
3 Installation
3.1 Connection to the machine
The module must be fixed inside the machine and must be connected through:

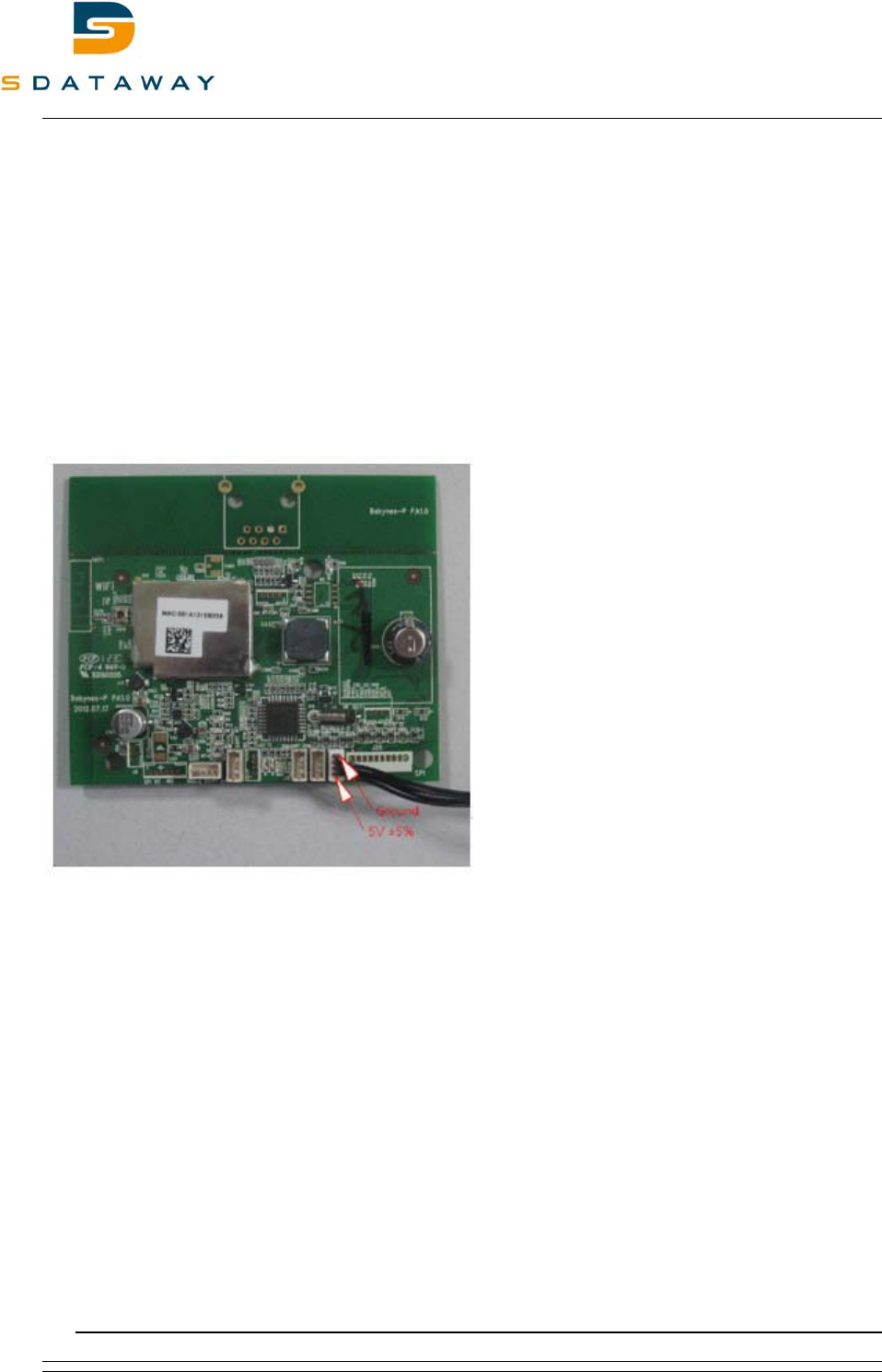

- 5V power supply capable of providing a peak of 1A, using the connector shown in the
picture below.
- All other connectors are not used.
3.2 Connection to the WIFI router
Following steps must be followed to establish a connection between the module and the user
WIFI router:
1- Connect the board as shown in 3.1 and power on the machine
2- Make sure your router is ON and connected to Internet
3- Make sure you have your SSID and password for your WIFI network
4- Using your computer or mobile device (with WIFI capability), open your WIFI
configuration tool and browse available SSID.
5- You will find the SSID provided by the module
6- Connect to this SSID. No password is required. In case of static IP address, you will
need to disable this functionality on your computer before connecting to the module.
7- Follow the steps as it will be shown, you will be asked to select your own SSID and
enter your password. In case you select “Static IP address” instead of DHCP, you will
need to enter all values shown in the window.
8- Once all fields are filled, the module will try to connect to your router and will provide
you with a confirmation.
WIFI module specification
Confidential Page 5 sur 5
17/10/2012 14:21:00
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the
Following two conditions(1)This device may not cause harmful interference,and
(2)this device must accept any interference received,including interference that
May cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
Responsible for compliance could void the user’s authority to operate this equipment.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
Environment .This equipment should be installed and operated with minimum distance 20cm
Between the radiator& your body.

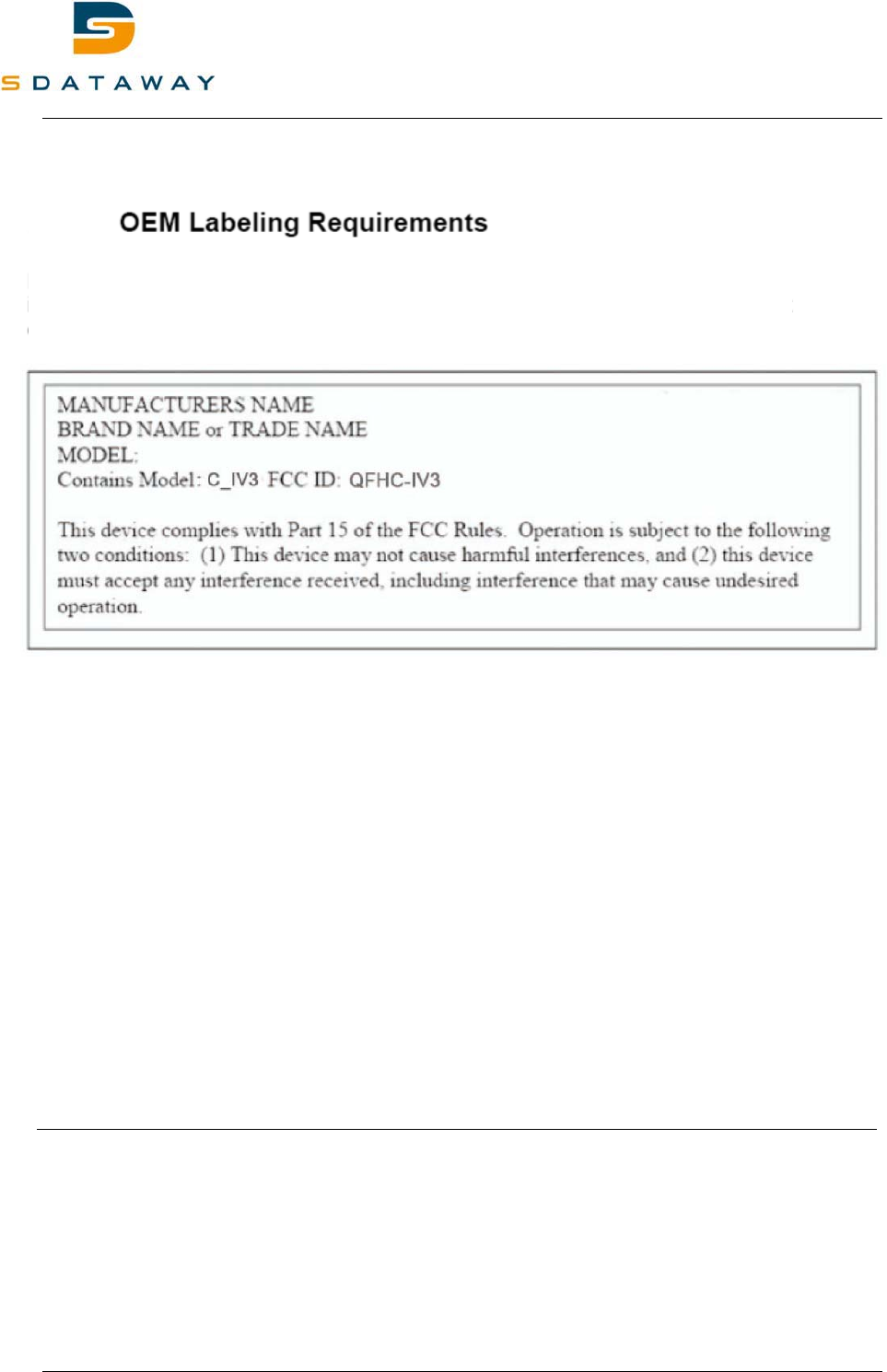

this label
:C_IV3 QFHC-IV3
NOTICE: The OEM must make sure that FCC labeling requirements are met. This
includes a clearly visible exterior label on the outside of the final product housing
that diplays the contents shown in this label.
