PUSH PLATE SWITCHES - WIRELESS AND HARDWIRED

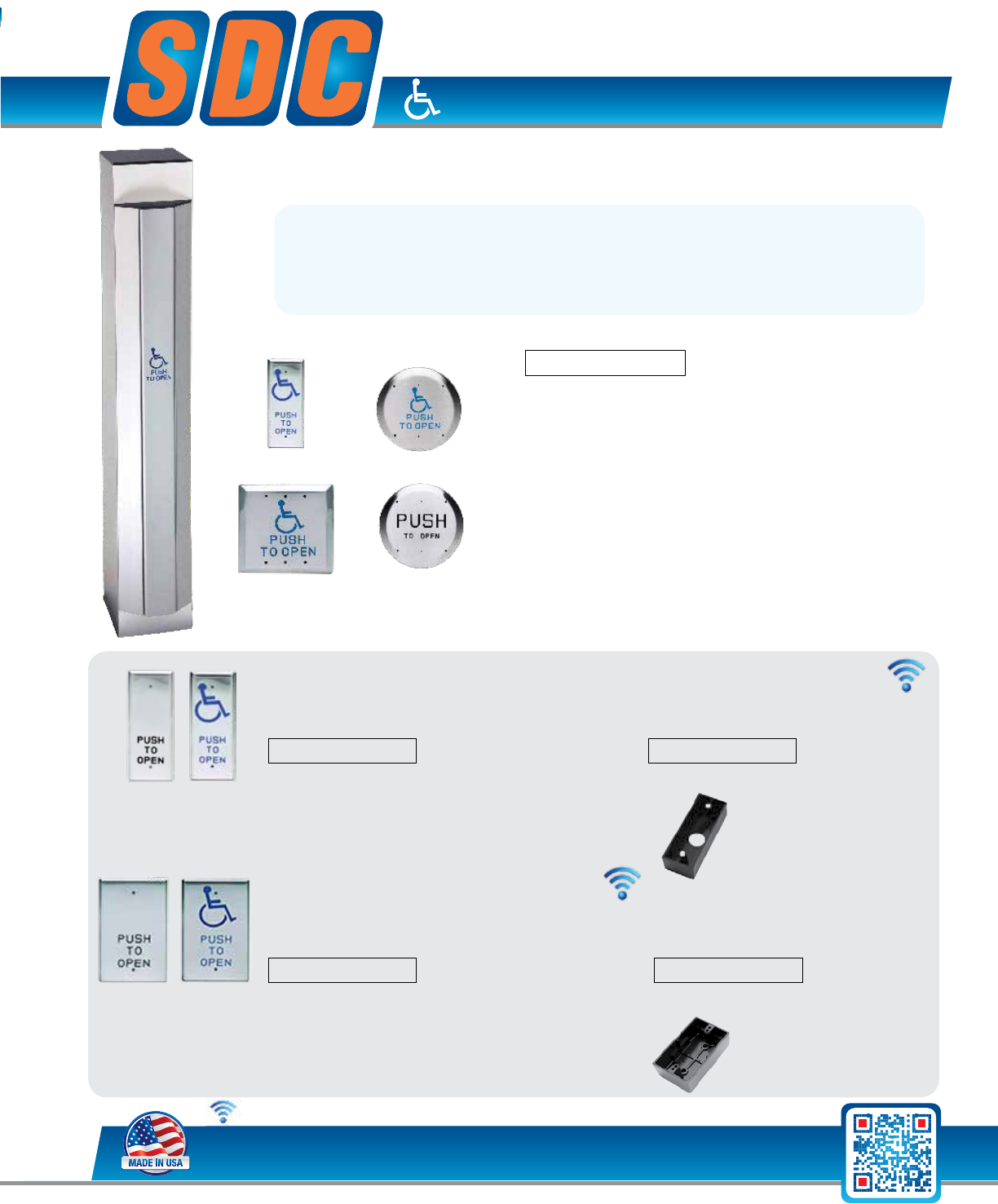

Features
Mounting Plate: Heavy Duty 1/8” (3.2mm) mounting plate
Faceplate: Heavy 18 Gauge (1.02mm),
630/US32D Satin Stainless Steel Standard
Legends: Bold debossing or engraving with black or
blue infill
Contacts: SPDT or DPDT, 15 Amps @ 125/250VAC;
UL 1054, CSA Listed
Depth: [Narrow & (1) Gang] SPDT-7/8” deep,
DPDT-1-3/8” deep,
[4 ½”, & 6” square/ round] SPDT-3/4” deep,
DPDT-1-5/32 deep
482O1U Push to Open, black infill, SPDT
482A1U Push to Open, blue infill, SPDT
484O1U Push to Open, black infill, DPDT
484A1U Push to Open, blue infill, DPDT
Models
400-1B Narrow Mullion Surface Box,
1-3/4” x 4-9/16” x 1-3/4” O.D.
Accessories
1-11/16” Narrow Mullion Push Plate Switch – Recessed, Surface Box or Bollard Mount
482O2U Push to Open, black infill, SPDT
482A2U Push to Open, blue infill, SPDT
484O2U Push to Open, black infill, DPDT
484A2U Push to Open, blue infill, DPDT
Models
480-2SB Surface mount box
2 3/4” x 4 1/2” x 1 5/8” O.D.
Accessories
2¾” x 4½” Single (1) Gang Push Plate Switch
• Pressing any part of the push plate (2 ¾” x 4 ½”) causes switch actuation
• Surface Box or Bollard Mount • Depth: SPDT - ¾” deep; DPDT - 1 ½” deep
For Handicap Access, Automatic Door Activation & Request-to-Exit Applications
• Door Opener Activation • Access Control Request-to-Exit (RTE)
• Wireless Versatillity • Automatic Door Sequencer Activation
• Designed to flush-mount directly into narrow jamb
• Requires narrow mullion prep
V 628 Aluminum (standard)
X 710 Dark Anodized Aluminum
= can be used with wireless transmitter and receiver
482O6U Push to Open, black infill, SPDT
482A6U Push to Open, blue infill, SPDT
484O6U Push to Open, black infill, DPDT
484A6U Push to Open, blue infill, DPDT
Models
480-6SBB Surface mount box, 2-gang
Battery Compartment,
4 1/2” x 4 1/2” x 1 3/4” O.D.
Accessories

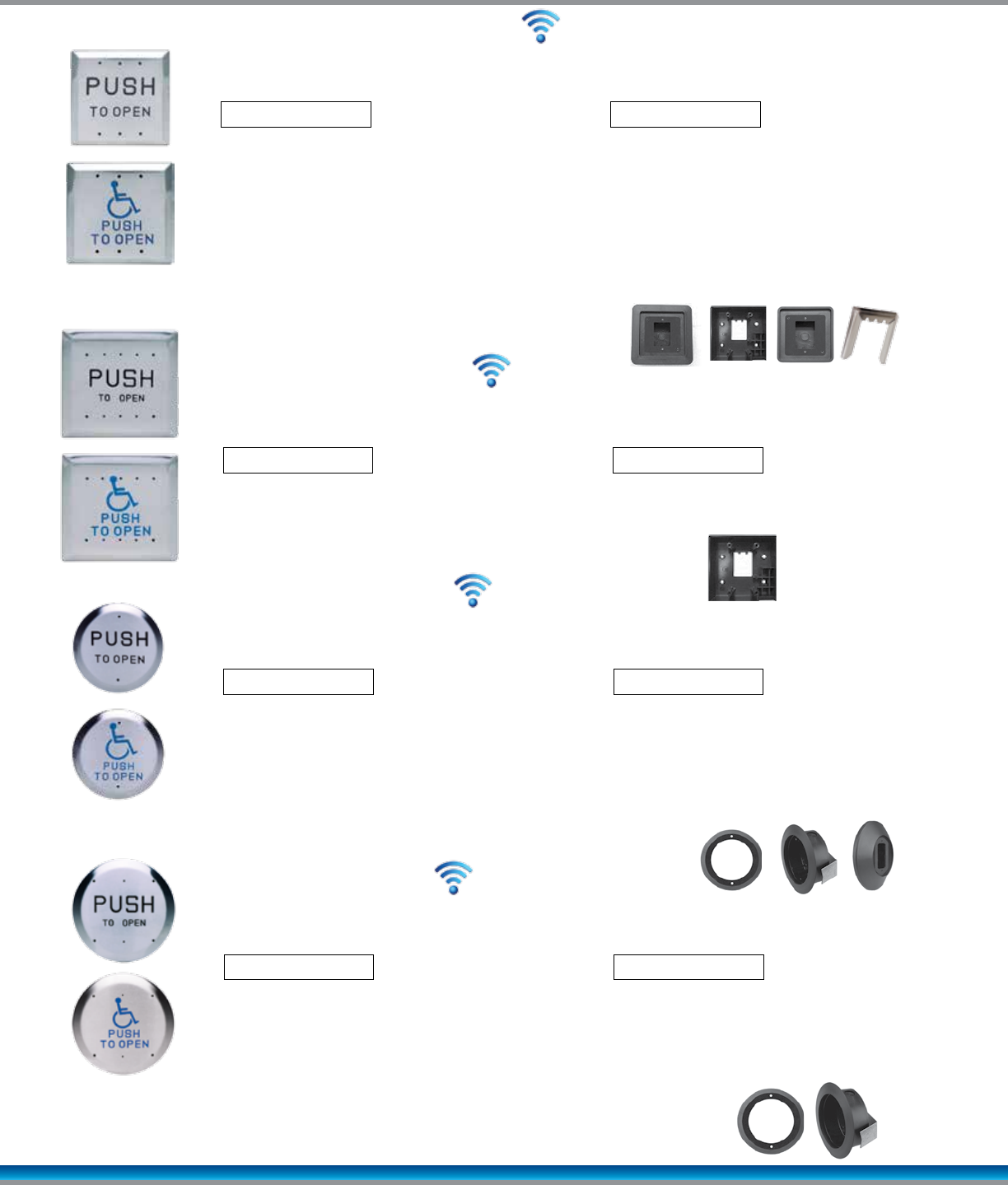

6” x 6” Square Push Plate Switch
• Pressing any part of the push plates 6” x 6” active area causes switch actuation
• 1 Gang or 2 gang recessed or Surface Box Mount • Depth: SPDT ⅝” deep; DPDT 1 ½” deep
482O4RU Push to Open, black infill, SPDT
482A4RU Push to Open, blue infill, SPDT
484O4RU Push to Open, black infill, DPDT
484A4RU Push to Open, blue infill, DPDT
Models
480-4RSB Surface box,
5” Dia., 2 1/8” O.D.
480-4RG 4” round gasket
480-4RFB Recessed Mount Box, 5 7/8”
overall diameter with trim ring
480-4RRB Surface Escutcheon, 7 7/8” Dia.,
1 9/16” overall height
Accessories
4 ½” Round Push Plate Switch
• Pressing any part of the push plates 4” ½ active area causes switch actuation
• 1 Gang or 2 gang recessed or Surface Box Mount • Depth: SPDT ⅝” deep; DPDT 1 ½” deep
482O6RU Push to Open, black infill, SPDT
482A6RU Push to Open, blue infill, SPDT
484O6RU Push to Open, black infill, DPDT
484A6RU Push to Open, blue infill, DPDT
Models
480-6RSB Surface box Round,
6 7/16” Dia., 2 1/8” O.D.
480-6RG 6” round gasket
480-6RFB Recessed Flush Escutcheon,
7 3/4” overall diameter with trim
ring
Accessories
6” Round Push Plate Switch
• Pressing any part of the push plates 6” active area causes switch actuation
• 1 Gang or 2 gang recessed or Surface Box Mount • Depth: SPDT ⅝” deep; DPDT 1 ½” deep
482O4U Push to Open, black infill, SPDT
482A4U Push to Open, blue infill, SPDT
484O4U Push to Open, black infill, DPDT
484A4U Push to Open, blue infill, DPDT
Models
480-4FB Square Flush Recessed box,
1-gang,
6 3/4” x 6 3/4” x 1 7/8” O.D.
480-4SBB Surface mount box,
4-1/2” x 4-1/2” x 1 3/4” O.D. with
Battery compartment for wireless
480-4SB Surface mount box,
4-1/2” x 4-1/2” x 1 7/8” O.D.
480-4SE 3-sided stainless shrout for
exterior applications,
4-11/16” x 4-7/8” x 1/2”
Accessories
4 ½” x 4 ½” Square Push Plate Switches
• Pressing any part of the push plates 4 ½” x 4 ½” active area causes switch actuation
• 1 Gang or 2 gang recessed or Surface Box Mount • Depth: SPDT ⅝” deep; DPDT 1 ½” deep
continued on next page
482AA9 Push to Open, blue infill, SPDT

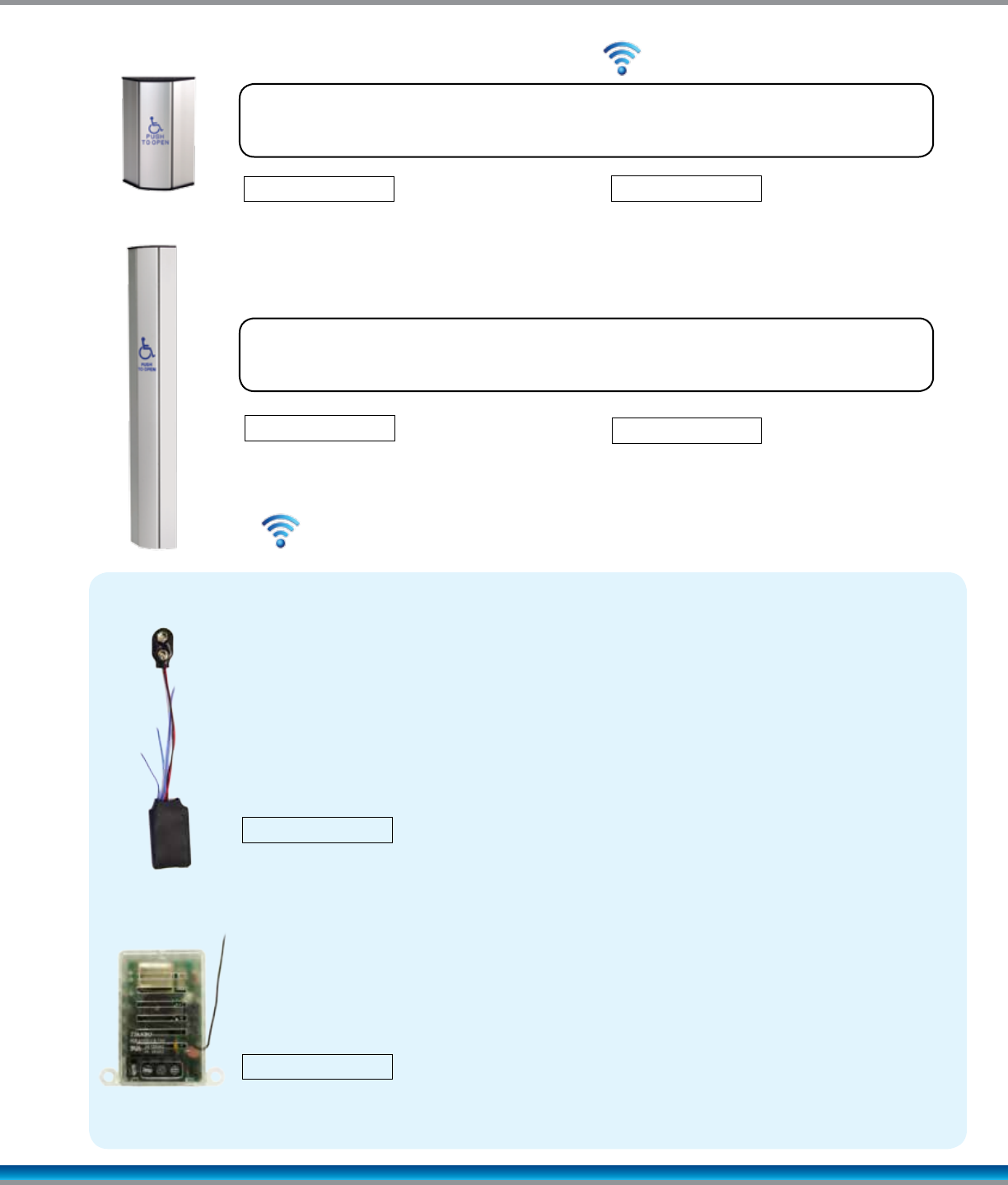

9” x 6” Ingress-R.E.X Touch Panel Column
Fully Active 22-1/2 Sq. Inch Actuation Area
Recommended Centerline mounting height 34" to 48"
Material: Sturdy 1/8" extrusion with architectural finish
Overall Size: 9" h x 6" w x 1-1/2" d (229 x 152 x 38mm)
Active Area: 9" h x 2-1/2" w (229 x 63.5mm)
482AA36 Push to Open, blue infill, SPDT
484AA36 Push to Open, blue infill, DPDT
V 628 Aluminum (standard)
X 710 Dark Anodized Aluminum, white infill
36” x 6” Ingress-R.E.X Touch Panel Column Fully
Active 90 Sq. Inch Actuation Area
Recommended mounting height is 3" from floor
Material: Sturdy 1/8" extrusion with architectural finish
Overall Size: 36" h x 6" w x 1-1/2" d (914 x 152 x 38mm)
Active Area: 36" h x 2-1/2" w (914 x 63.5mm)
INGRESS-R.E.X TOUCH PANEL COLUMN
Models Finish
Models Finish
V 628 Aluminum (standard)
X 710 Dark Anodized Aluminum, white infill
WIRELESS TRANSMITTER & RECEIVER
= can be used with wireless transmitter and receiver
For Remote Control Versatility for Touch Panel Column and Push Plate Switches.
75 foot wireless range. less barriers.
433MHz Micro Transmitter
• Requires a non-metallic surface box or standard bollard cap (non-metallic)
• Pre-Wired for quick installation
• Antenna magnifies signal
• Voltage Input: 9V Battery (included)
• Trigger Input: Momentary, N.O.Dry Contact
• Temperature: -20F — 100F
• Dimensions: 1-9/64” x 15/16” x 7/32” (29 x 49 x 6mm)
• Works with 400RC433
400W1-433 433MHz Micro Transmitter
Models
433MHz 1 Channel Nano Receiver
Designed to control automatic door or electrified locking harware with code-hopping technology for increased security.
• Carrier Frequency: 433.92 MHz • Power Supply: 12/24 VAC/DC
• Relay Numbers: 1 • Contacts: C-NO
• Temperature: -4F — 158F • Dimensions: 1-1/4” x2” x 3/4” Deep (32 x 51 x 19mm)
• Works with 400W1-433
400RC433 433MHz 1 Channel Receiver
Models
SECURITY DOOR CONTROLS
www.sdcsecurity.com service@sdcsecurity.com
[t] 800.413.8783 805.494.0622
801 Avenida Acaso, Camarillo CA 93012 • PO Box 3670, Camarillo CA 93011-3670
sdcsecurity.com service@sdcsecurity.com
Price & Installation
sdcsecurity.com
service@sdcsecurity.com
SECURITY DOOR CONTROLS
© 2016 Security Door Controls LIT-Bollards_Push_Plate_Switches 02/16
M:\Marketing Files\In-House Pubs\Datasheets\Exit Switches\Bollards.indd

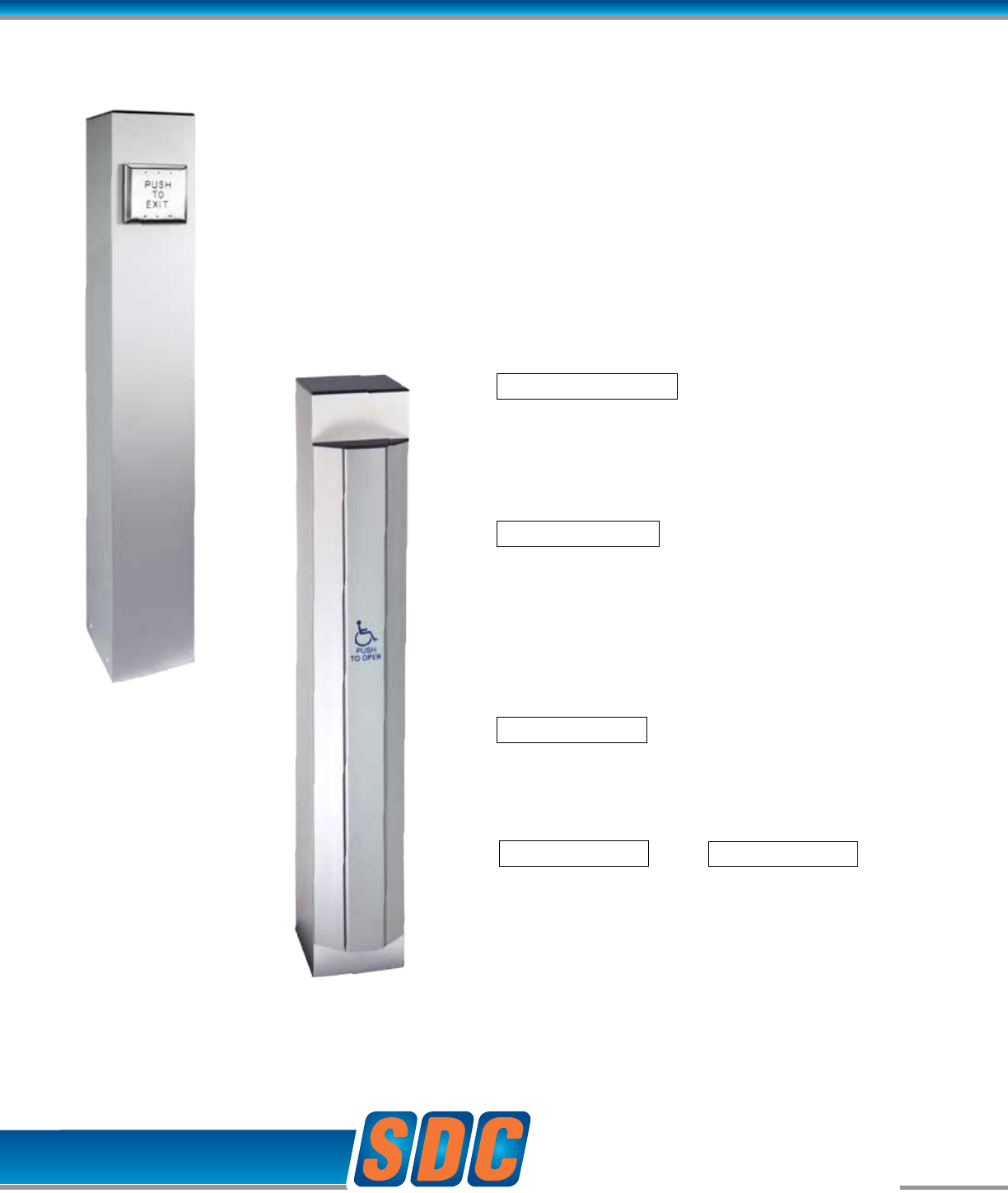

BOLLARD POST
WITH PUSH PLATE OR TOUCH PANEL
Alternative to wall mounted access control or switches for entry doors.
Bollard post provide visibility and meet accessibility guidelines.
Practical solution for surface mount or in-ground installation.
Application
Features
• For use with Push Plates, Touch Panel Columns & Exit Switches
• 6” square with 1/8” walls
• Black HDPE mortised removable cap with secure transmitter
mount
• Standard single gang prep located at 36” from nished oor
• Surface mount (42”) or In-Ground mount (54”)
• For Use With Push Plates, Touch Panel
Columns & Exit Switches
• 6” square with 1/8” walls
• 42” surface mount or 54” in-ground
S and D prep
P prep
Models
BPS6 42" surface mount, 6" square post
BPG6 54" in-ground, 6" square post
S1-gang prep
D2-gang prep
PTouch Panel prep
ANarrow Mullion Prep
Prep
V 628 Aluminum (standard)
X 710 Dark Anodized Aluminum
Finish
