SDC Price List #18 Book SDCPrice List18.3
User Manual: SDC SDC Price Book Price Book
Open the PDF directly: View PDF .
Page Count: 108 [warning: Documents this large are best viewed by clicking the View PDF Link!]
- Table of Contents
- EMLock® Magnetic Locks GK
- EMLock® Magnetic Locks
- EMLock® Magnetic Locks
- Reusable Heavy Duty Drill Fixture G LIST
- Universal Header Bracket GK
- Aluminum Spacer Bracket & Concrete Filled Frame Plate - Pre-Drilled & Tapped GK
- Armature Mounting Plate GK
- Door Coordinator Lock Mounting Kit GK
- Filler Plates GK
- Angle Brackets GK
- 350 Narrow Line EMLock® GK
- Excel™ Series Value Engineered Magnetic Locks
- Top Jamb Mounting Kit GK
- Excel™ Architectural Series GK
- Retrofit Kit for Discontinued Locknetics 390+ PLUS GK
- Glass Door Armature Mounting Kit GK
- Mounting Brackets and Filler Plates GK LIST
- Hi/Shear Concealed EMLock® OK
- Hi/Shear Semi-Concealed & Surface Mount EMLock® OK
- Gate EMLock® GK
- Excel™ E300 Architectural Series Micro Cabinet Lock GK
- EP17624 Explosion Proof EMLock® GK
- 1591 MORTISE EMLock® for Sliding Doors GK
- ExitCheck® Delayed Egress EMLock® GKK
- ExitCheck® Mini Delayed Egress EMLock® GKK
- 101 ExitCheck® Wall Mount Delayed Egress - NFPA 101 Locking Arrangements GKK
- Local and Remote Controls and Annunciators
- 15 Series Electric Strike FK
- 25 Series Electric Strike
- 30 Series Rim Mount Electric Strikes FK
- 45 Series Electric Strike
- UniFLEX™ SPEC 55 Series Electric Strike, Grade 1 Heavy Duty - Factory tested 2500 lbs
- UniFLEX™ Universal Strike — Multi Application Pack
- Latch and Deadbolt Monitoring Strike Kits DK
- ELECTRA MOD™ Major Brand Locks Electrified by SDC LEK
- ELECTRA MOD™ Major Brand Locks Electrified by SDC LEK
- ELECTRA PRO™ SDC' Z7200 Series Heavy Duty Cylindrical Locksets LEK
- SELECTRIC™ PRO Z7800 Electric Lockset LSK
- SELECTRIC™ MOD 7800 Series Locksets LSK
- SK-L90 Field Electrification Kit for Schlage L9000
- SK-88 Field Electrification Kit for Yale 8805
- SK-82 Field Electrification Kit for Sargent 8206
- 7500 Series HiTower® LK
- SPECTRA™ S6000 Touch Bar Exit Devices - RIM and SURFACE VERTICAL XK
- Device Trim XK
- SPECTRA™ S6000 Touch Bar Exit Devices - MORTISE XK
- Exit Check® - Delayed Egress All-In-One Device XK
- Exit Device - Delayed Egress XK
- Exit Devices - Alarmed Exit XK
- HiTower Pro® S6303FH Electrified Mortise Exit Device XK
- Exit Device - Electrified Mortise XK
- Exit Device - Electric Dogging XK
- Exit Device - Electric Latch Retraction/Dogging XK
- QUIET DUO™ LR100 700mA Dual Latch Retraction / Dogging Kit XK
- QUIET DUO™ IP100 12V PoE-Capable Latch Retraction / Dogging Kit XK
- SPACESAVER® Mortise Bolt Locks Fit 1-3/4" Frames AK
- SPACESAVER® Mortise Bolt Locks FOR WOOD FRAMES AK
- Mechanical Release SPACESAVER® Mortise Bolt Locks AK
- Heavy Duty SPACESAVER® Mortise Bolt Locks AK
- Conventional Mortise Bolt Locks AK
- Surface Mount Bolt Locks AK
- Paniclok Exit Device Release AK
- Gate Locks AK
- Programmable Cabinet Lock AK
- Cabinet Lock AK
- IP Pro™ Series IP-based Access Control JEK
- 918/918W Indoor EntryCheck™ JK
- 920/920P/920PW Indoor/Outdoor EntryCheck™ JK
- 923/923P/923PW Narrow INDOOR/OUTDOOR EntryCheck™ JK
- 921P/924P INDOOR/OUTDOOR 2-PIECE EntryCheck™ JK
- 925/925P/925PW INDOOR/OUTDOOR Shroud EntryCheck™ JK
- E77 EntryCheck™ Standalone Electronic Lockset - SDC Rim Exit Device
- SureExit® Sense Bar DKK
- EXIT MECHANICAL SWITCH DK
- EXIT MECHANICAL SWITCH - OUTDOOR WEATHER RESISTANCE DK
- Exit Device Switch Kits DK
- Exit Switches CK
- Exit Switches continued CK
- KEY SWITCHES CK
- Passive Infrared Egress Control V
- Time Delay Relay CK
- Auto EntryControl™ XK
- Dual Switch Bollard Post - CBC compliant CK
- Bollard Post CK
- 480 Series Push Plate Switches - Wireless and Hardwired CK
- Emergency Door Release V
- Communicating Bathroom Controls CK
- Concealed Power Transfer Device
- Power Transfer Loops V
- Power Supplies/Controllers & Battery Standby NK
- 621 Access Control Power Supplies NK
- UME Universal Module Enclosure NK
- Multiple Output & Door Control Module NK
- DC Regulated Power Supplies V
- Transformers V
- Power Supply Capacity Chart
- WRC SERIES 2-Channel Wireless Transmitter and Receiver CK
- Mini Consoles WK
- Modular Control Consoles WK
- Desk Switch Compact Box DK
- EA100 Exit Annunciators
- Sirens and Buzzers CK
- Wall Mount Indicator CK
- 101 Series Annunciators
- EH Series Magnetic Door Holder & Releasing Device V
- WRC SERIES 2-Channel Wireless Transmitter and Receiver CK
- Passive Infrared Egress Control V
- Time Delay Relay CK
- Timer CK
- Door Position Sensors V
- UME Universal Module Enclosure NK
- Emergency Access Panel CK
- Communicationg Bathroom EMLocks®
- COMMUNICATING BATHROOM for Selectric® or Electra® Locks
- COMMUNICATING BATHROOM for HiTower® Locks or Electric Strikes
- 2 DOOR INTERLOCK "A"
- 2 DOOR MANTRAP "B"
- 2 DOOR MANTRAP "C"

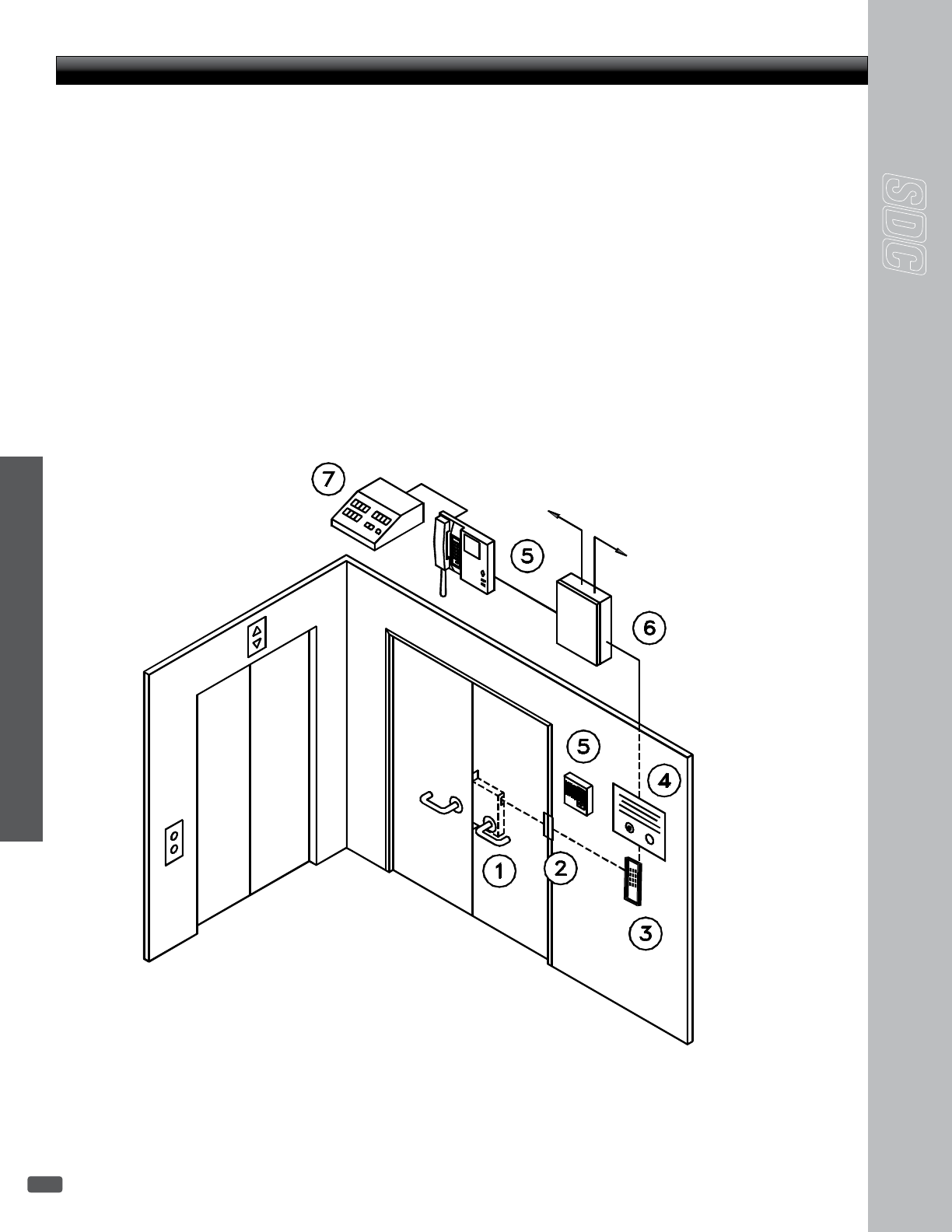

- ELEVATOR LOBBY DOOR SYSTEM
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
1
P.O. Box 3670, Camarillo, CA 93011 • Phone: (800) 413-8783 (805)494-0622 • www.SDCsecurity.com • service@sdcsecurity.com
Electric & Mechanical
Access Control Hardware
Price List 18
.3
P
RICES
V
ALID
S
TARTING
F
EBRUARY
1
ST
, 2017
The Lock Behind Your System
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
2
Table of Contents
Magnetic Locks
7 .................. 1511/12/13, 1571/72/73, 1581/82 EMLock®
8 .....................EMLock® Top Jamb + Glass Door Mounts
9 ................... EMLock® Modular Upgrade Kits EZ Series
9 ................................... Reusable Heavy Duty Drill Fixture
10 ............................................. Universal Header Bracket
10 ............................................. Aluminum Spacer Bracket
10 ...............................................Armature Mounting Plate
10 .............................Door Coordinator Lock Mounting Kit
11 .....................................................................Filler Plates
11 ...............................................................Angle Brackets
12 ............................................350 Narrow Line EMLock®
13 .............................. E6200, E1200, E600 Excel™ Series
13 ....................Top Jamb Mounting Kit for Excel™ Series
13 .....Retrofit Kit for Discontinued Locknetics 390+ PLUS
13 .. Glass Door Armature Mounting Kit for Excel™ Series
13 Mounting Brackets and Filler Plates for Excel™ Series
14 ............. 1561/62/65/66 Hi/Shear Concealed EMLock®
15 .......1562SC / 1563SCHDB / 1561S / 1561TJ Hi/Shear
................... Semi-Concealed & Surface Mount EMLock®
16 .......................................... 1575 / 1576 Gate EMLock®
17 ................................. E300 Excel™ Micro Cabinet Lock
17 ............................. EP17624 Explosion Proof EMLock®
17 ..................... 1591 Mortise EMLock® for Sliding Doors
DeLayeD egress Locks
18 ........ 1511S / T ExitCheck® Delayed Egress EMLock®
20 ......1581S ExitCheck® Mini Delayed Egress EMLock®
21 ................101 ExitCheck® Wall Mount Delayed Egress
22 ..............Local and Remote Controls and Annunciators
eLectric strikes
23 .................................................15 Series Electric Strike
23 .................................................25 Series Electric Strike
23 ............................ 30 Series Rim Mount Electric Strikes
24 .................................................45 Series Electric Strike
25 ........................................ 45F Fire Rated Electric Strike
26 .............................. 55 Series UniFLEX™ Electric Strike
27 ................... 55 ABC UniFLEX™ Multi Application Pack
27 .. MS Series Latch and Deadbolt Monitoring Strike Kits
eLectrifieD Locksets
28 ...................................... 7200 Series ELECTRA MOD™
29 .......................... 7200 Series Distributor Supplied Lock
30 ................ Z7200 Series ELECTRA PRO™ Heavy Duty
...........................................................Cylindrical Locksets
31 ..................Z7800 SELECTRIC™ PRO Electric Lockset
32 ................... 7800 SELECTRIC™ MOD Series Locksets
33 ........SK-L90 Field Electrification Kit for Schlage L9000
33 ..................SK-88 Field Electrification Kit for Yale 8805
33 ............ SK-82 Field Electrification Kit for Sargent 8206
34 .................................................. 7500 Series HiTower®
exit Devices
36 ............... S6000 SPECTRA™ Touch Bar Exit Devices -
....................... 6100 RIM and 6200 SURFACE VERTICAL
37 .................................................................... Device Trim
38 ............... S6000 SPECTRA™ Touch Bar Exit Devices -
.................................................................. 6300 MORTISE
40 ..............................................S6000-101 Exit Check® -
.....................................Delayed Egress All-In-One Device
42 ........................S6000 DE Exit Device - Delayed Egress
43 ......................... S6000 A/B Exit Devices - Alarmed Exit
44 .................. S6303FH HiTower Pro® Electrified Mortise
......................................................................... Exit Device
45 ......................... S6300 Exit Device - Electrified Mortise
46 ........................ S6000 G Exit Device - Electric Dogging
47 ............................. S6000 E Exit Device - Electric Latch
............................................................Retraction/Dogging
49 ...................... LR100 QUIET DUO™ 700mA Dual Latch
.................................................... Retraction / Dogging Kit
54 .............. IP100 QUIET DUO™ 12V PoE-Capable Latch
.................................................... Retraction / Dogging Kit
BoLt Locks
56 ............................FS23MIV / 1091 / 1291 / 1490 / 2490
..................................SPACESAVER® Mortise Bolt Locks
56 .............................. 1091 / 1190 / 1291SPACESAVER®
.........................Mortise Bolt Locks FOR WOOD FRAMES
57 ........1091 / 1290 Mechanical Release SPACESAVER®
57 ..................... 1190 / 2090 Heavy Duty SPACESAVER®
58 110 / 210 / 160 / 260 Conventional Mortise Bolt Locks
58 ............................. 180 / 280 Surface Mount Bolt Locks
59 ...........................PB2090 Paniclok Exit Device Release
59 ........................................... GL160 / GL260 Gate Locks
60 ..................................295 Programmable Cabinet Lock
60 ...........................................................290 Cabinet Lock
access controL
61 ................... IP Pro™ Series IP-based Access Control
64 ............................................. 918 / 918W EntryCheck™
65 .............................. 920 / 920P / 920PW EntryCheck™
65 ...................923 / 923P / 923PW Narrow EntryCheck™
66 ............................. 921P / 924P 2-PIECE EntryCheck™
66 ...................925 / 925P / 925PW Shroud EntryCheck™
67 ..... E75 EntryCheck™ Standalone Electronic Lockset -
...........................................................................SDC Lock
68 ..... E76 EntryCheck™ Standalone Electronic Lockset -
..............................................................SDC Mortise Lock
69 ..... E77 EntryCheck™ Standalone Electronic Lockset -
......................................................... SDC Rim Exit Device
egress controL
70 ....................................... PSB560 SureExit® Sense Bar
71 ................................... MSB550 Mechanical Switch Bar
71 . MSB550W Weather Resistant Mechanical Switch Bar
72 ................................ 500 Series Exit Device Switch Kits
key & exit switches
73 ............................. 410 / 420 / 423 Series Exit Switches
74 ...........430 / 440 / 450 / 463 / 474 Series Exit Switches
75 ...................................... 700 / 800 Series Key Switches
76 ............. MD-31 Series Passive Infrared Egress Control
76 ..................................................10TD Time Delay Relay
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
3
Table of Contents
Over 200 Access
Hardware products
available for next business
day shipping.
East & West coast warehouses
reduced time-in-transit
• SDC - Camarillo, CA
• SDC - Baltimore, MD
A
B
Dealers & Installers:
Contact SDC to nd out
rst hand which products
your SDC distributor can
expedite.
Some products in this price book are protected by one
or more of the following U.S. Patents. Foreign Patents
are not shown: 4,021,065; 4,099,752; 4,596,411;
4,609,910; 4,623,178; 4,623,181; 4,634,155; 4,641,867;
4,826,223; 4,986,581; 5,000,497; 5,006,723; 5,033,779;
5,141,271; 5,376,910; 5,429,399; 5,525,880; 5,564,228;
5,876,073; 6,363,363; 6,363,763; 7,540,542; 7,614,669;
7,698,918
aDa coMpLiant
77 .......................................................Auto EntryControl™
78 ................... Dual Switch Bollard Post - CBC compliant
78 ................................................................... Bollard Post
78 .............. 400 Series Wireless Transmitter and Receiver
79 .................................... 480 Series Push Plate Switches
82 .............................. 491 / 492 Emergency Door Release
82 .... CB400 / CB700
Series Communicating Bathroom Controls
83 ......................................CBP- Communicating Bathroom Package
power transfer Devices
84 ............................................ PTH Power Transfer Hinge
85 ............................ PTM / PT-5 Power Transfer Devices
85 ................................PT-2 / PT-3 Power Transfer Loops
power suppLy & Door controLers
86 .................602 / 631 / 632 / 634 / 636 Power Supplies/
........................................... Controllers & Battery Standby
87 ............................. 621 Access Control Power Supplies
87 ................................. UME Universal Module Enclosure
88 ........UR-1 / UR2-4 / UR4-8 Universal Control Modules
88 ............. FB-4 / ACM / CR4 / PB Door Control Modules
88 ...........................................PSM / EMC Output Module
89 ................. TR12 / TR24 DC Regulated Power Supplies
89 .....................................TP1220 / TP2440 Transformers
90 ........................................Power Supply Capacity Chart
reMote controLs
92 .............WRC SeriesWireless Transmitter and Receiver
92 .....................................................DTMO Mini Consoles
93 ..........................TCC / RCC Modular Control Consoles
93 ............................15 Series Desk Switch Compact Box
annunciators
94 ............................................EA Series Door Prop Alarm
94 ............................................... EA100 Exit Annunciators
95 ..................................... 400 Series Sirens and Buzzers
95 ....................................400 Series Wall Mount Indicator
95 ................................................101 Series Annunciators
accessories
96 .........EH Series Magnetic Door Hold & Release Device
98 ............WRC Series Wireless Transmitter and Receiver
98 ........................ MD-31 Passive Infrared Egress Control
98 ..................................................10TD Time Delay Relay
98 ......................................................................14-2 Timer
99 ...................... DPS + MC Series Door Position Sensors
99 ................................. UME Universal Module Enclosure
99 .............................................. Emergency Access Panel
systeM Design soLutions
100 .......................Communicationg Bathroom EMLocks®
101 ... Communicationg Bathroom Selectric® or Electra®
102 ...
Communicationg Bathroom HiTower® or Electric Strike
103 ......................................................2-Door Interlock ‘A’
104 ......................................................2-Door Mantrap ‘B’
105 ..................................................... 2-Door Interlock ‘C’
106 ................................................Elevator Lobby System
107 ..................................................................Quick Index
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
4
Security Door Controls (SDC) warrants that all new products sold
by us are free from defects in material and workmanship and fit for
the purpose intended by SDC when properly installed in accordance
with the appropriate factory instructions and template for a period,
from the date of shipment as follows:
Lifetime: EMLock Series electromagnetic locks and Exit Check
Series Delayed Egress Electromagnetic Locks, excluding Exit Check
delayed egress PC board assemblies, purchased since January
1, 2006 are warranted for the life of the product. Excel Series
Electromagnetic Locks and 600 Series power supplies purchased
since January 1, 2012 are warranted for the life of the product.
5 Years: All other SDC products, including Exit Check electronic PC
Board Assemblies are warranted for 5 years
The extent of our liability for breach of warranty, when such is
shown to our satisfaction, shall be limited to a functionally equiva-
lent replacement, or repair of such product, or part thereof at SDC’s
sole discretion, when returned, delivery prepaid to SDC. We shall
not, except to the extent this limitation may be precluded by law, be
liable for inconvenience, labor costs, lost profit, damages to other
property, injury or any other consequential or punitive damages
resulting directly or indirectly from any product defect or breach of
this warranty.
This warranty is limited to the original purchaser, is not transferable
and shall not apply to changes of Oil Rubbed Bronze (613/US10B)
finish, which is a living finish designed to change appearance
through daily use, lamps, LED’s, maintenance, wear and tear caused
by normal use, altered product, abuse or negligence.
LIMITED WARRANTY
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES OF FITNESS AND MERCHANTABILITY.
Warranty & Sales Policy
Mobile
Resource
20 Product
Categories
Video
Library
Document
Library
System
Library
Social
Links
Print &
Share
For Sales Calls, Onsite Installation,
Dealers, Speciers, & Engineers
Access Control Equipment
Electric & Mechanical Locking Devices
Video Demos for Sales, Installations,
Product & System Application
PDF Datasheets, 3-Part Specs,
Instructions, Templates & Cad
Cross Brand Compatible Riser &
Point-To-Point System Wiring
Latest News thru LinkedIn,
Facebook, Twitter & YouTube
Print via WiFi or Bluetooth,
Share Media Via Text or Email
BASIC COMPONENT CONSIDERATIONS
FOR A SINGLE DOOR SYSTEM
1. LOCKING DEVICE
Electromechanical Bolt Lock
Electromagnetic Lock
Electric Strike
Electric Mortise Lock
Electrical Cylindrical Lock
Delayed Egress Lock
2. ACCESS CONTROL
Card Reader
Digital Keypad
Key Switch
3. EXIT SWITCH
Push Switch
Motion Detector
Request to Exit Push Bar®
4. REMOTE CONTROL
Desk Switch
Control/Monitoring Panel
(lock status sensors required)
5. POWER SUPPLY AND DOOR CONTROL MODULE(S)
A 600 series power supply and time delay modules provide
delayed re-locking, interface capability with alarm systems and
access control components plus system documentation.
FIRE
ALARM
PANEL
115 VAC
Left Hand
Reverse Bevel
“LHR, LR”
Right Hand
Reverse Bevel
“RHR, RR”
(Outside)
Right Hand
“RH”
(Outside)
Left Hand
“LH”
DOOR HANDS
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
5
SALES POLICY
TERMS: A minimum purchase of $3,500.00 annually is required to
maintain an open account with Security Door Controls.
RETURNED GOODS: Any defects or errors for which we are responsible
will be promptly rectified. Approval for return of merchandise must be
requested of us, and when granted the return authorization number must
be displayed on all packages returned. Material found suitable for resale
without reconditioning will be credited to customer’s account less a han-
dling and reprocessing charge of 35% of the net material value. Further
charges will be assessed on material requiring rework to return it to sale-
able condition. Obsolete products will not be accepted for return. Custom
products, special finish, options, size or pre-assembly configuration are
considered special and are not returnable for credit. Incoming transporta-
tion charges are to be prepaid by the Buyer. Credits for material returned
will have 2% deducted to cover the cash discount allowance on the original
invoice.
ADDITIONAL TERMS: 2% - TEN (10) DAYS. Net thirty (30) days from
date of invoice. Interest at 1-1/2% per month will be charged on unpaid
balances beyond thirty (30) days. Orders received from 60+ day accounts
will not be entered until account is current. It is understood that you may
use your normal purchase order or other order forms in placing orders.
However any such forms shall be used for convenience only and any
terms or provisions which may be contained therein inconsistent with,
or in addition to, those contained in our then current Acknowledgment
to Customer form or other terms or provisions contained herein shall
have no force or effect whatsoever. Custom material or wiring diagrams
requires 50% deposit. At SDC’s discretion, orders in excess of $1500 net
will be acknowledged by product category and department, and shipped
on an “as ready” basis unless customer purchase order specifically states
“Do not ship before _________,” and “No partial shipments.”
PRICES: Prices are subject to change without notice. No prices are guar-
anteed. All shipments will be made at prices prevailing at time of ship-
ment. Errors or omissions in pricing are subject to correction.
PRICING POLICY: Shipments must be accepted within sixty (60) days
after receipt of the order. Contracts extending beyond this period are sub-
ject to prices in effect at the time of shipment.
MINIMUM ORDER: Our minimum net invoice charge is $250.
ACCEPTANCE: We reserve the right to decline an order, in whole or in
part, when the price, quantity or assortment of goods is not satisfactory
to us.
CHANGE IN ORDERS: A charge of $20.00 will be applied to each change
on any order after said original order has been previously acknowledged
by SDC, plus a cost incurred by manufacturing at point of change.
CANCELLATIONS: A charge of $40.00 will apply in addition to any cost
incurred by us for any cancellation made after our acknowledgment is
issued. Custom architectural housings are non-cancelable. Orders for
custom architectural housings, custom parts, special and optional plated
finishes are non-cancelable.
FREIGHT: All goods are invoiced EXW (EXWorks) SECURITY DOOR
CONTROLS. When delivered to the transportation company the ship-
ments become the property of the purchaser, who assumes the risk of
loss or damage in transit. All ground shipments will be made by United
Parcel Service (UPS).
BACK CHARGES: We are not responsible for, do not authorize, and will
not accept any charges for the cost of any labor or material incurred
by anyone other than Security Door Controls for any installation, repair,
service or replacement unless incurred with our prior written consent and
agreement.
PRODUCT CHANGES: SDC reserves the right to modify, change, or dis-
continue any components as required.
SHORTAGES/ DISCREPANCIES: Claims must be made within ten
(10) days after receipt of material. (The original invoice number will be
required).
TEMPLATES: It shall be the customer’s responsibility to check all tem-
plates requested from SDC for suitability for proper door and frame
preparation. Direct requests from the door and frame supplier will not
release this customer of this responsibility.
ARBITRATION AND GOVERNING LAW: In the event of a dispute or
controversy, or differences, which may arise between parties, any claim
shall be settled by arbitration. The arbitration shall take place in California
under the rules of the American Arbitration Association. The validity,
interpretation, and performance of this agreement shall be controlled by
and construed under the laws of the state of California, United States of
America.
ACCEPTANCE: We reserve the right to decline an order, in whole or in
part, when the price, quantity, or assortment of goods is not satisfactory
to us.
Security, Life-Safety and Access Control. They demand the best, in
planning, products and operation. So it’s only good sense to work
with a complete product package, and to begin with an expertly
prepared, custom engineered design package from SDC. Detailed to
your needs, one entrance or a complex multi-entrance system.
Every professional in the field knows all too well the usual problems.
Wiring specs and wiring diagrams don’t match up, components are
improperly planned out or missing, projects slow down and costs
start escalating.
Security Door Controls is prepared to assist you with a complete
System Design Folder which eliminates any problems with compo-
nent compatibility, system operation or wiring installation.
We provide what your particular job requires in electrical drafts,
instructions and data. It offers a great advantage for you, with time
saved, a faster, easier, better job in every way.
General instructions. Job name. Supplier. SDC reference number
and drawing numbers for easy reference when technical support is
needed. System operation: a detailed outline of the complete oper-
ation. A full list of components with individual instruction data for
each, conduit layout indicating quantity and gauge of wires. Point-
to-point wire diagrams of all component connections.
All necessary data is a matter of record. In short, whatever that job
requires in equipment, technical understanding or assistance, at
the office or in the field, will be detailed in your SDC System Design
Folder.
*SDC fees vary according to requirements.
Engineering services are available for special system design and
documentation.
All requests must be submitted in writing with all detailed require-
ments before final quotation. Any alterations or omissions must also
be submitted in writing and are subject to additional quotation.
SDC assumes no responsibility for information exchanged by
telephone regarding estimates or product suitability for verbally
expressed systems. Email requests will speed up the process and
eliminate misunderstandings.
A non-cancelable purchase order for engineering is required before
any engineering may proceed.
CUSTOM SYSTEM DESIGN
ENGINEERING POLICY
NOTE: SDC complete sales policy as stated in our price book prevails at all times.
Warranty & Sales Policy
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
6
Magnetic Locks
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
7
Magnetic Locks
EMLock® Magnetic Locks GK
Distributor
Discount Code
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
Single: 11" L x 2.75" H x 1.562" D
(279.4 x 69.9 x 39.7 mm)
Double: 22" L x 2.75" H x 1.562" D
(558.8 x 69.9 x 39.7 mm)
Voltage: 12/24VDC Voltage Sensing Input
Single: 125mA @ 24VDC; 250mA @ 12VDC
Double: 250mA @ 24VDC; 500mA @ 12VDC
1570 Series Grade 1
1200 lb / 544 Kg Holding Force
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
Single: 8.75" L x 2.125" H x 1.25" D
(222.2 x 54 x 31.8 mm)
Double: 17.5" L x 2.125" H x 1.25" D
(444.5 x 54 x 31.8 mm)
Voltage: 12/24VDC Voltage Sensing Input
Single: 220mA @ 24VDC; 440mA @ 12VDC
Double: 440mA @ 24VDC; 880mA @ 12VDC
1580 Series Grade 1
650 lb / 295 Kg Holding Force
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
Voltage: 12/24VDC Voltage Sensing Input
Single: 350mA @ 24VDC; 670mA @ 12VDC
Double: 700mA @ 24VDC; 1.34A @12VDC
1510 Series Grade 1
1650 lb / 748 Kg Holding Force
Single: 11" L x 2.75" H x 1.562" D
(279.4 x 69.9 x 39.7 mm)
Double: 22" L x 2.75" H x 1.562" D
(558.8 x 69.9 x 39.7 mm)
GWXT Auxiliary Locks
CVXJ Burglary Resistant Electrically Operated Door Lock
UL10C Positive Pressure Compliant
UBC Classified in accordance with
Uniform Building Code standard 7-2
“Fire Test for Door Assemblies”
3 Watt Power Saver
EMLock®
Lifetime Warranty ANSI/BHMA A156.23
Grade 1
CSFM
3774-0324:100
MEA
City of New York
768-80-SA
EMLOCK® MODELS GK LIST
1650lb / 748 kg Holding Force, Automatic Voltage Sensing Input
1511 Single EmLock®466.00
1512 Double EmLock®932.00
1513 Single EmLock®, split armature for pair of doors 523.00
1200lb / 544 kg Holding Force, Automatic Voltage Sensing Input
1571 Single EmLock®435.00
1572 Double EmLock®880.00
1573 Single EmLock®, split armature for pair of doors 492.00
650lb / 295 kg Holding Force, Automatic Voltage Sensing Input
1581 Single EmLock®363.00
1582 Double EmLock®715.00
Distributor
Discount Code
SPECIFY FINISH Add to List
Anodized Finishes (Architectural Housing: Add 20.00 per foot to base) Single EmLock
Double
Emlock
V628 Aluminum (standard) N/C N/C
Y335 Black 83.00 125.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
XDark Bronze Powder Coat Painted (313/613 Equal) 83.00 125.00
CBrass Powder Coat Painted 83.00 125.00
Plated Finishes - Special order, no cancellation, no returns
P625 Bright Chrome 197.00 228.00
Q626 Dull Chrome 197.00 228.00
Architectural Housing add $30 per foot to above Single Unit Price.
1511
1512
1513
1572
1581
1582
1573
1571
1575U
see page 16
1576
see page 16
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
8
Magnetic Locks
See Modular Program price list when ordering separately for field upgrades. Different part numbers and
pricing apply.
TAdjustable timer. Built in field adj. 0-30 sec. relock delay.
Specify one for single or double EmLocks® (not available with 1580 series)
67.00
DDoor position sensor. Indicates door open and door closed.
Specify two for double EMLocks® (not available with 1513 and 1573)
SPDT Dry, 250 mA @ 30VDC.
42.00
BMagnetic bond sensor. Indicates locked with full holding power and unlocked, low holding power,
low voltage, tampering and obstruction between armature and magnetic core.
Specify (2) for double EmLocks® (Not available with 1513 and 1573)
• 1510 & 1570 Series: SPDT Dry, 250 mA @ 30VDC.
• 1580 Series: SPST N.O., Dry, 250 mA @ 30VDC.
63.00
LBi-color status LED indicator. Field selectable Red and Green. (Not installed in lock.)
Indicates lock energized when wired to lock input.
Indicates de-energized/unlocked or “Enter/Go” when wired to built-in TD Module
Indicates energized and de-energized or “Enter/Go” when wired to access control auxiliary output.
Indicates door is closed and locked and door is unlocked when wired to Bond Sensor.
17.00
AAnti-tamper sensor. Indicates access cover removal.
SPDT Dry, 1 Amp @ 30VDC
52.00
EMLock® Magnetic Locks
SPECIFY OPTIONS List
SPECIFY TOP JAMB MOUNTING KIT GK LIST
SPECIFY GLASS DOOR MOUNTING KIT GK List
Kits for 1200lb and 1650 lb Locks Kits for 650lb Locks
TJ1 Single TJ81 Single 125.00
TJ2 Double TJ82 Double 203.00
Kits for 1511, 1571, 1581 Kits for 1512, 1572, 1582
HDB1 Single 187.00 HDB2 Double, 2 single kits 373.00
• Universal glass door kits are compatible with lock models, except 1513 and 1573
• Field adjustable for 1/2", 5/8" and 3/4" all glass Herculite doors
Add to List
Anodized Finishes Single Top
Jamb
Double Top
Jamb
V 628 Aluminum (std) N/C Y Black Anodized 83.00 166.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
X Dark Bronze Powder Coat Painted C Brass Powder Coat Painted 83.00 166.00
Plated Finishes - Special order, no cancellation, no returns Add to List
P 625 Bright Chrome Q 626 Dull Chrome 197.00 228.00
Add to List
Anodized Finishes Single Double
V 628 Aluminum (std) N/C Y Black Anodized 83.00 166.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
X Dark Bronze Powder Coat Painted C Brass Powder Coat Painted 83.00 166.00
Plated Finishes - Special order, no cancellation, no returns
P 625 Bright Chrome Q 626 Dull Chrome 104.00 207.00
Distributor
Discount Code
Distributor
Discount Code
Field Install
• Monitoring outputs
• Timers
• Top jamb “Z” kit
• Glass door kits
Interlocking Quick Mount Assembly
Field Upgrade without Removing from the Frame
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
9
Magnetic Locks
Retrofit Kit for Discontinued Locknetics 390+ PLUS GK LIST
1511-390AMP Retrofit Kit includes lock mounting plate with self-tapping & drilling screws and
Armature assembly, utilizes existing 390+ thru-bolt hole. 52.00
Enables replacement of Locknetics 390+ PLUS with SDC's 1511 and 1571 (ordered separately)
1511-390AMP
Distributor
Discount Code
+
3
4
5
6
7
8
Field Installed Modular Upgrade Kits
EZ-T-10 Adjustable Timer Input Module:
Specify (1) for single or double
EmLocks® (not available with
1580 series)
67.00 EZ-A Anti-Tamper Switch Module:
Indicates cover plate removal.
52.00
EZ-D-10 1510, 1570 Door Position
Sensor Module: Specify (2)
for double EMLocks®
(not available with 1513 and 1573)
42.00 EZ-1510W Holding Force Module: Replace a
1200lb wire core (1570 series) with
this 1650lb wire core. Specify (2
for double EmLocks®
52.00
EZ-D-80 1580 Door Position Sensor Module:
Specify (2) for double EmLocks®
42.00 EZ-1570W Energy Saver Module: Save on
power supply and long term energy
costs by replacing 8.4 Watt, 1650lb coil
with 3 Watt, 1200lb holding force coil.
Specify (2) for double EmLocks®
52.00
EZ-B-10 1510, 1570 Magnetic Bond Sensor
Module: Specify (2) for double
EmLocks® (Not available
with 1513,1573)
63.00 EZ-B-80 1580 Magnetic Bond Sensor
Module (SPST):
Specify (2) for double EmLocks®
63.00
Ordered separately for field upgrade without removing the lock from the frame
For complete details contact SDC to request the Modular Upgrade Kit datasheet or download from the
SDC website: www.sdcsecurity.com/docLibrary.aspx All available through shipQuick Inventory
1511-DF Heavy duty drill fixture for 1571 and 1511 156.00
1581-DF Heavy duty drill fixture for 1580 156.00
Reusable Heavy Duty Drill Fixture G LIST
BN-PT Blind Nut Placement Tool 125.00
BN-50 Blind Nuts, 10/32, 50 Pack 52.00
Distributor
Discount Code
+
3
4
5
6
7
8
EMLock® Magnetic Locks
SPECIFY ARCHITECTURAL HOUSINGS GK Add to List
Single Door Housing
30 30" Lock housing 414.00
36 36" Lock housing 414.00
40 40" Lock housing 414.00
48 48" Lock housing 414.00
CH Custom length. Specify exact length POA
Double Door Housing
60 60" Lock housing 673.00
72 72" Lock housing 673.00
84 84" Lock housing 673.00
96 96" Lock housing 673.00
CH Custom length. Specify exact length POA
Full Width Housings - Appear as part of the frame to provide a superior architectural appearance.
Vertical Housings - Side jamb mount, aprovides 2,400 or 3,300 lbs. of holding force.
Compatible with Models: 1511, 1512, 1571, 1572 with or without HDB kits.
Specify housings with your EMLocks®.
1572VV82 Vertical Housing for 1572 EMLock, 82" length, for 84" opening - INCLUDES 1582 lock 1552.00
1512VV82 Vertical Housing for 1512 EMLock, 82" length, for 84" opening - INCLUDES 1512 lock 1605.00
CV Custom length. Specify exact length POA
See page 7 for special finish designation and finish price
Vertical Housing EMLock GK LIST
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
10
Magnetic Locks
Armature Mounting Plate GK LIST
Aluminum Spacer Bracket & Concrete Filled Frame Plate - Pre-Drilled & Tapped GK LIST
Universal Header Bracket GK LIST
4.5" FRAME
4" FRAME
Machined
Wire Chase
Holes Pre-drilled & Countersunk
For Frame Mounting
Pre-drilled and Tapped
Lock Mounting Holes
UB11V Bracket for 1511, 1513, 1571. 1" x 1" x 11" 67.00
UB12V Bracket for 1512, 1572. 1" x 1" x 22" 133.00
See special finishes 7
MODEL
AR11Y Armature mounting plate (Black)
Specify two for models 1512, 1572
63.00
AR11YD Armature mounting plate (black) with door sensor
Specify two for models 1512, 1572
104.00
UF11V Bracket for 1511, 1513, 1571, 1573. 1/2" x 1-1/2" x 11" 94.00
UF12V Bracket for 1512 and 1572. 1/2" x 1-1/2" x 22" 116.00
UF81V Bracket for 1581. 1/2" x 1-1/4" x 8-3/4" 75.00
UF82V Bracket for 1582. 1/2" x 1-1/4" x 17-1/2" 104.00
UF11V
AR11Y
Aluminum
frame with
1/2" blade stop
ALUMINUM FRAME
WITH 1/2'' BLADE STOP
0.7796 in
Hollow metal
concrete lled
frame
Wood
Or
Metal
Door
Armature
Mounting Plate
Glass Door
Top Rail
Glass
Armature
Mounting Plate
Door Coordinator Lock Mounting Kit GK LIST
DC-1 Door coordinator mounting bracket for single models 1511 and 1571. 125.00
DC-2 Door coordinator mounting bracket for double models 1512 and 1572. 228.00
Distributor
Discount Code
Distributor
Discount Code
Distributor
Discount Code
Door
Coordinator
SDC Door
Coordinator
Bracket
Door
Coordinator
SDC Door
Coordinator
Bracket
DC-1
DC-2
The AR Mounting plate provides a solution for mounting the EmLock® armature to the top rail of aluminum, glass,
wood and hollow metal doors that do not permit the use of thru bolts. Dimension: 8 1/2" x 3"
Used in lieu of angle brackets, the Universal Header Bracket provides a faster mounting solution, saving time and labor costs
for several EmLock® models. Reduce potential for mis-sized and misaligned mounting holes, broken taps, removal of broken taps.
Combined with interlocking E-Z mount assembly, save up to a half day's labor with the installation of 12 locks.
FEATURES
• Solid 1" bar provides higher security and superior aesthetics.
• Machined wire chase provides concealed and secure wiring
• Multiple pre-drilled and tapped mounting holes to
accommodate the use of several different locks on either
4" or 4.5" aluminum frames
APPLICATION
• Aluminum frames with blade stop - lowers EmLock® below blade stop
• Concrete filled hollow metal frames - provides multiple points for concealed wire entry
FEATURES
• Pre-drilled and tapped specifically for 1510, 1570, 1580 EmLock
• Machined wire chase provides multiple points for concealed wire entry from concrete filled frames.
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
11
Magnetic Locks
Filler Plates GK
SPECIFY FINISH Add to List
Angle Brackets GK
ANGLE BRACKETS: Used as extension on shallow door
frames to provide adequate mounting surface.
See Figure 1C.
FOR 8-3/4" (222mm) SINGLE EMLOCK MODELS GK
1581, 101V81S, 101V81T
PART # A x B LIST
AB01 1" x 1" (25 x 25mm) 40.00
AB02 1" x 1-1/2" (25 x 38mm) 42.00
AB03 1-1/2" x 1-1/2" (38 x 38mm) 44.00
AB04 2" x 1-1/2" (51 x 38mm) 46.00
FOR 11" (279mm) SINGLE EMLOCK MODELS
1511 1571 1511S 101V71S
1513 1573 1511T 101V71T
PART # A x B LIST
AB11 1" x 1" (25 x 25mm) 42.00
AB12 1" x 1-1/2" (25 x 38mm) 44.00
AB13 1-1/2" x 1-1/2" (38 x 38mm) 46.00
AB14 2" x 1-1/2" (51 x 38mm) 48.00
FOR 17-1/2" (445mm) DOUBLE EMLOCK MODEL
1582
PART # A x B LIST
AB30 1" x 1" (25 x 25mm) 52.00
AB31 1" x 1-1/2" (25 x 38mm) 56.00
AB32 1-1/2" x 1-1/2" (38 x 38mm) 61.00
AB33 2" x 1-1/2" (51 x 38mm) 65.00
FOR 22" (559mm) DOUBLE EMLOCK MODELS
1512 1572
PART # A x B LIST
AB21 1" x 1" (25 x 25mm) 52.00
AB22 1" x 1-1/2" (25 x 38mm) 56.00
AB23 1-1/2" x 1-1/2" (38 x 38mm) 61.00
AB24 2" x 1-1/2" (51 x 38mm) 65.00
2"
2 5/16"
59mm
51mm
59mm
51mm
59mm
51mm
2"
B
A
A
B
2 5/16"
2"
2 5/16"
59mm
51mm
59mm
51mm
2"
B
A
A
B
2 5/16"
2"
2 5/16"
59mm
51mm
59mm
51mm
2"
B
A
A
B
2 5/16"
2"
2 5/16"
FILLER PLATES: For extension of the stop to provide a
proper mounting surface on the underside of the header.
See Figure 1B.
FOR 8-3/4" (222mm) SINGLE EMLOCK MODELS GK
1581, 101V81S, 101V81T
PART # A x B LIST
FP01 1/8" x 1-1/4" (3 x 32mm) 32.00
FP02 1/4" x 1-1/4" (6 x 32mm) 34.00
FP03 3/8" x 1-1/4" (10 x 32mm) 36.00
FP04 1/2" x 1-1/4" (13 x 32mm) 38.00
FP05 5/8" x 1-1/4" (16 x 32mm) 38.00
FOR 11" (279mm) SINGLE EMLOCK MODELS
1511 1571 1511S 101V71S
1513 1573 1511T 101V71T
PART # A x B LIST
FP11 1/8" x 1-1/4" (3 x 32mm) 35.00
FP12 1/4" x 1-1/4" (6 x 32mm) 36.00
FP13 3/8" x 1-1/4" (10 x 32mm) 36.00
FP14 1/2" x 1-1/4" (13 x 32mm) 40.00
FP15 5/8" x 1-1/4" (16 x 32mm) 42.00
FOR 17-1/2" (445mm) DOUBLE EMLOCK MODEL
1582
PART # A x B LIST
FP30 1/8" x 1-1/4" (3 x 32mm) 40.00
FP31 1/4" x 1-1/4" (6 x 32mm) 42.00
FP32 3/8" x 1-1/4" (10 x 32mm) 44.00
FP33 1/2" x 1-1/4" (13 x 32mm) 46.00
FP34 5/8" x 1-1/4" (16 x 32mm) 48.00
FOR 22" (559mm) DOUBLE EMLOCK MODELS
1512 1572
PART # A x B LIST
FP21 1/8" x 1-1/4" (3 x 32mm) 40.00
FP22 1/4" x 1-1/4" (6 x 32mm) 42.00
FP23 3/8" x 1-1/4" (10 x 32mm) 44.00
FP24 1/2" x 1-1/4" (13 x 32mm) 46.00
FP25 5/8" x 1-1/4" (16 x 32mm) 48.00
Distributor
Discount Code Distributor
Discount Code
Single EmLock Double EmLock
V 628 Aluminum (standard) N/C N/C
Y 335 Black Anodized 32.00 63.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
X Dark Bronze Powder Coat Painted 32.00 63.00
C Brass Powder Coat Painted 32.00 63.00
Plated Finishes - Special order, no cancellation, no returns
P 625 Bright Chrome Q 626 Dull Chrome 32.00 63.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
12
Magnetic Locks
MODEL DESCRIPTION LIST
350V Single Narrow Line Magnetic Lock, 628 Aluminum, specify 2 for pair of doors with
mullion, Retrofits Locknetics MagForce 350+ & 350+/DSM/MBS/L1 389.00
350 SINGLE SPECIFICATIONS
Holding Power 1200 Lbs.
Input Voltage Dual 12/24 VDC
Current 309mA @ 24VDC / 560mA @ 12VDC
Magnetic
Bond Sensor
1-SPDT output
250mA max. @ 12/24VDC
Door
Status Sensor
1-SPDT output
250mA max. @ 12/24VDC
LED Indicator Green-Secure, Red-Unlocked
Dimensions 12-1/ 2"L x 2-1/8H x 1-11/16W
(318 x 54 x 43mm)
352 DOUBLE SPECIFICATIONS
Holding Power 1200 Lbs. per door leaf
Input Voltage Dual 12/24 VDC
Current 618mA @ 24VDC / 1120mA @ 12VDC
2 Magnetic
Bond Sensors
SPDT outputs
250mA max. @ 12/24VDC
2 Door
Status Sensors
SPDT outputs
250mA max. @ 12/24VDC
2 LED Indicators Green-Secure, Red-Unlocked
Dimensions 25"L x 2-1/8H x 1-11/16W
(635 x 54 x 43mm)
Top Jamb Mounting Kit GK LIST
Glass Door Mounting Kit GK LIST
TJ350 Single 135.00
TJ352 Double 239.00
HDB350 Single 180.00 HDB352 Double, 2 single kits 373.00
• Field adjustable for 1/2", 5/8" and 3/4" all glass Herculite doors
350 Narrow Line EMLock® GK
350V
352V
350 EMLock
Conventional
Maglock
350 EMLock
Conventional
Maglock
Conventional
Maglock
Magnetic Lock
Height Comparison
350 EMLock
INTERLOCKING QUICK MOUNT
ASSEMBLY
352V Double Narrow Line Magnetic Lock, 628 Aluminum, for pair of doors without
mullion, Retrofits Locknetics MagForce 352+ & 352+/DSM/MBS/L2 777.00
Distributor
Discount Code
Distributor
Discount Code
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
13
Magnetic Locks
Used for the extension of a narrow frame header mounting surface, the bracket provides additional surface area
for proper lock mounting
E6A E600 adjustable angle bracket. 9-7/8" L x 1-1/4" H x 2-1/4" D (250 x 32 x 57mm) 26.00
E12L E1200 angle bracket. 10-1/2" L x 1-1/2" H x 1" D (266 x 38 x 19mm)
Field cut for E600 26.00
E6200
Used where the frame stop does not provide enough mounting surface, the filler bar provides enough additional
surface area for proper lock mounting.
E12F01 E1200 stop filler plates. 5/8" H x 3/4" D x 10-1/2" L (16 x 19 x 266mm)
Field cut for E600. 21.00
E12F02 E1200 stop filler plates. 3/4" H x 3/4" D x 10-1/2" L (19 x 19 x 266mm)
Field cut for E600. 21.00
Excel™ Series Value Engineered Magnetic Locks
Excel™ Architectural Series GK LIST
MODELS
E1200 1200 lb / 545 kg with door status, locked status and LED 275.00
E600 600 lb / 272 kg with door status, locked status and LED 228.00
E300 300 lb / 136 kg with locked status 176.00
Mounting Brackets and Filler Plates GK LIST
E6A
E12L
Top Jamb Mounting Kit for Inswing Doors GK LIST
E12Z Top jamb kit for E1200 88.00
E6Z Top jamb kit for E600 88.00
Glass Door Armature Mounting Kit GK LIST
E12U Glass door kit for E1200 125.00
E6U Glass door kit for E600 125.00
E1200
E600
E12F01
E12F02
The Excel™ product line is designed for system integrators, distributors, installers and building owners presently using
low cost import or private label brand access control hardware.
Excel™ Industrial Series GK LIST
MODEL
E6200 1200 lb / 545 kg with SPDT door status, SPDT magnetic bond sensor 440.00
• Retrofits popular competitive brands
• Magnetic Bond Sensor and door status standard
• Epoxy sealed electronics, tamper resistant
and weatherized for indoor and outdoor use
(retrofits M62j)
• Stainless steel machine screws and blind nuts
• 10 ft [3.05m] jacketed, stranded conductor cable
• Dual voltage 250/150 mA @ 12/24VDC
• Architectural stainless steel housing, US32D/630
E12Z/E6Z
Field adjustable
E12U/E6U
Field adjustable
to glass thickness
Top Jamb Mounting Kit GK LIST
TJ62 Top jamb kit for E6200 125.00
Distributor
Discount Code
Distributor
Discount Code
Distributor
Discount Code
Retrofit Kit for Discontinued Locknetics 390+ PLUS GK LIST
E1200-390MP Retrofit Kit Includes lock mounting plate that retrofits existing 390+ mounting holes.
Existing 390+ armature may be used. 37.00
Enables replacement of Locknetics 390+ PLUS with SDC's E1200 (ordered separately)
E1200-390MP
Retrofit Kit
Distributor
Discount Code
Distributor
Discount Code
Distributor
Discount Code
Distributor
Discount Code
• Door status, lock status and Bi-color LED
• Interlocking quick mount assembly
• Self drilling and tapping mounting screws
and machine screws
• Adjustable mounting bracket
• Wire access chamber with terminal block
• Dual voltage 12/24VDC
• 628 Clear anodized aluminum
E300
see page 17
Glass Door Armature Mounting Kit GK LIST
E1200-DF Heavy Duty Drill Fixture for E1200 156.00
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
14
Magnetic Locks
1561
FEATURES
• Door static and relock sensor, detects door
is closed, at rest and aligned before relocking
• Automatic voltage sensing input
• Lateral and vertical alignment adjustment
• Floating armature with alloy steel shear tabs
ELECTRICAL SPECIFICATIONS
• 1561 and 1562: 650/350 mA @ 12/24VDC
Auto-Sensing
• 1565 and 1566: 800/400 mA @ 12/24VDC
Auto-Sensing
2,000 Lbs. Holding Force, 8" x 1-1/2" Lock
1561ITCM 1-5/8" depth, integrated electronics for 1-3/4" to 2" frames 792.00
1562ITCM 1-1/4" depth, with external electronics, for 1-1/4" to 1-3/4" frames 792.00
2,700 Lbs. Holding Force, 10-7/16" x 1-1/2" Lock
1565ITC 1-5/8" depth, integrated electronics, for 1-3/4" to 2" frames 860.00
1566ITC 1-1/4" depth, external electronics, for 1-1/4" to 1-1/2" frames 860.00
Hi/Shear Concealed EMLock® OK
CONCEALED HI/SHEAR EMLOCK LIST
OPTIONS
ADD ONS Add to List
HTR
WDRB
FTC Mounting kit for field prepared horizontal mounting in hollow metal doors with flush edge. N/C
HTC Mounting kit for 1-15/16" deep herculite channels N/C
HTR Herculite top rail armature adjustment bracket for leading edge adjustments. 352.00
BA
Bond sensor indicates proper armature contact and reduced holding power due to
improper armature contact or tampering.
SPDT 0.25 Amp maximum (not available on 1562 and 1566)
114.0 0
DPS Door position switch indicates door open or closed.
SPDT 0.25 Amp maximum. 52.00
L3 External LED status indicator, mounts separately through the frame and may be used to
indicate lock is energized or wired to BAS bond sensor for door status. 17.00
WDRB Wood door reinforcement box for 1565 and 1566 42.00
WDRBM Wood door reinforcement box for 1561 and 1562 42.00
1566
GWXT Auxiliary Locks CVXJ Burglary Resistant
Electrically Operated Door Lock
UL10C Positive Pressure Compliant
UBC Classified in accordance with
Uniform Building Code standard 7-2
“Fire Test for Door Assemblies”
1565
EMLock®
Lifetime Warranty
1562
Distributor
Discount Code
ITC Standard mounting armature kit for aluminum and hollow metal
doors with 7/8" to 1-1/8" deep top channels, wood doors and factory
prepared hollow metal flush edge doors.
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
15
Magnetic Locks
2,000 Lbs. Holding Force, 8" x 1-1/2" x 1-1/4" Lock
1562SC 1-1/4" depth, with external electronics, for 1-1/4" to 1-3/4
For Hollow metal frames
932.00
1562SCHDB1/2 1-1/4" depth, with external electronics, for 1-1/4" to 1-3/4" frames
For 1/2" Herculite full glass doors
1,155.00
1562SCHDB3/4 1-1/4" depth, with external electronics, for 1-1/4" to 1-3/4" frames
For 3/4" Herculite full glass doors.
1,115.00
2,000 Lbs. Holding Force, 8" x 1-3/4" x 1-3/4" Lock
For Hollow metal frames and wood or hollow metal doors
1561S Surface mount for the push side of the door with integrated electronics 1098.00
1561TJ Surface top jamb mount for the pull side of the door with integrated elec-
tronics
1098.00
Hi/Shear Semi-Concealed & Surface Mount EMLock® OK
SEMI-CONCEALED HI/SHEAR EMLOCKS LIST
SURFACE MOUNT HI/SHEAR EMLOCKS LIST
STANDARD FINISH Add to List
OPTIONS Add to List
1561TJ
ANSI/BHMA A156.23
Grade 1
CSFM
3774-0324:100
MEA
City of New York
768-80-SA
EMLock®
Lifetime Warranty
BA
Bond sensor indicates proper armature contact and reduced holding power due to
improper armature contact or tampering.
SPDT 0.25 Amp maximum)
114.0 0
DPS Door position switch indicates door open or closed.
SPDT 0.25 Amp maximum. 52.00
L3 External LED status indicator, mounts separately through the frame and may be used to
indicate lock is energized or wired to BAS bond sensor for door status. 17.00
1561S
1562SC
1562SCHDB
V 628 Anodized Aluminum N/C
Y Black Anodized 63.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than
conventional paint)
X Dark Bronze Powder Coat Painted 83.00
C Brass Powder Coat Painted 63.00
Plated Finishes - Special order, no cancellation, no returns
P 625 Bright Chrome Q 626 Dull Chrome 197.00
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
16
Magnetic Locks
Distributor
Discount Code
Gate EMLock® GK LIST
MODEL DESCRIPTION
1575U Single EMLock® with magnetic bond and door status sensors 451.00
1576U Single EMLock® face drilled mounting with magnetic bond and door status sensors 451.00
MODEL DESCRIPTION
For sliding gate applications
1576-BK Mounting Bracket for 1576 83.00
1576-AB Armature Mounting Bracket for 1576 83.00
For swinging gate or top jamb door application
1575-BK Mounting Bracket for 1575 104.00
1576-MP Lock Mounting Plate for 1576 57.00
1576-ZB Lock Mounting Bracket for 1576 (Includes 1576-MP) 166.00
ACCESSORIES Add to List
1575U
1576
1576-BK
1576-MP
1576-AB
1576-ZB
Distributor
Discount Code
SPECIFICATIONS
Holding Power 1200 Lbs.
Dual Voltage 450 / 225 mA @ 12/24VDC
Sensor Magnetic Bond Sensor and Door
Position Sensor Standard
Cable 3 Ft. cable
Finish Brushed stainless steel housing
Conduit Fitting 1/2" x 3/4"
Dimensions 8-11/16" L x 2-1/2" H x 1-5/8" D
1575-BK
1576U FOR SWINGING GATES 1576U FOR SLIDING GATES
1576-ZB
1576-AB
1576-BK
1576-ZB
1576-AB
1576-BK
1576U TOP JAMB MOUNT
FOR INSWING DOORS
1576-ZB
FRAME
DOOR
1576-ZB
FRAME
DOOR
1575U FOR SWINGING GATES
1575-BK
1575U
FOR OUTSWING DOORS
1576-ZB
FRAME
DOOR
59mm
51mm
59mm
51mm
2"
B
A
A
B
2 5/16"
2"
2 5/16"
1576-ZB
FRAME
DOOR
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
17
Magnetic Locks
MODEL
E300 300 lb / 136 kg with door status, locked status and LED 176.00
Excel™ E300 Architectural Series Micro Cabinet Lock GK LIST
Distributor
Discount Code
• Lock status
• Interlocking quick mount assembly
• Self drilling and tapping mounting
screws and machine screws
• Adjustable mounting bracket
• Wire access chamber with
terminal block
• Dual voltage 12/24VDC
• 628 Clear anodized aluminum
EP17624
EP17624TJ
includes Top Jamb
Mounting Bracket
SPECIFICATIONS
Holding Force 600 lbs
Input Voltage 24 VDC
Current 250mA @ 24VDC
DIMENSIONS
EP17624 lock 10.5"L x 2"H x 1.75"D
EP17624TJ lock 10.5"L x 2.25"H x 1.75"D
Armature 7.125"L x 1.75"H x 0.75"D
Door Status Sensor SPDT contact, 100mA max.
@ 30VDC max
MODEL DESCRIPTION LIST
EP17624 Single Explosion Proof Magnetic Lock, side conduit location,
628 Aluminum, for use on push-side of door, conduit on side block 2484.00
EP17624TJ Single Explosion Proof Magnetic Lock, top conduit location,
628 Aluminum, includes Top Jamb mounting bracket, for use on pull-side of door, conduit on top 2588.00
This unit is intended to be used in the following atmospheres: Acetone, Ammonium Hydroxide, ATSM fuel C, Benzene, Methyl-Ethylketone, Diethyl-Ether, 2-Nitropropane, Ethyl-Acetate, Furfural,
Normal Hexane, Methyl Alcohol. Operating temperature for the magnetic lock will not exceed 185° F (85° C). Maximum ambient temperature is not to exceed 104° F (40° C). For supply connec-
tions, use a suitable wire with a minimum insulation temperature rating of 167° F (75° C). This unit must be connected to a NEC (National Electric Code, NFPA 70) Class 2 Supply Circuit rated for
24 VDC with a minimum current output of 0.5 amperes and output power of 12 watts. A UL Listed SDC 600 Series Power Controller is recommended.
EP17624 Explosion Proof EMLock® GK
Distributor
Discount Code
1591 MORTISE EMLock® for Sliding Doors GK LIST
MODEL
1591U Single EMLock® for sliding doors 363.00
LAB Surface mount armature angle bracket for 1591 on sliding doors 57.00
AMP Armature mounting plate for leading edge of door 47.00
DPS Door position sensor for 1591 EMLock®57.00
BR64XL Rectifier for less leads 26.00
1591
ACCESSORIES Add to List
Distributor
Discount Code
Holding Power 850lbs.
Selectable Voltage: 12VDC @ 700 mA, 24VDC @ 350 mA
Finish: U 630 Stainless Steel
Dimensions: 10"L x 1-7/16"H x 1-1/4"D
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
18
Delayed Egress Locks
& Controllers
Tandem: Master: 11" L x 2 3/4" H x 2 5/8" D
(279 L x 70 H x 67 D)
Slave: 11" L x 2 3/4" H x 2 5/8" D
(279 L x 70 H x 67 D mm)
Armature: 7 3/8" L x 2 3/8" H x 9/16" D
(187 L x 60 H x 14 D mm)
Sign: 13" L x 4 1/2" H
(330 L x 114 H mm)
Single: 11" L x 2 3/4" H x 2 5/8" D
(279 L x 70 H x 67 D mm)
Armature: 7 3/8" L x 2 3/8" H x 9/16" D
187 L x 60 H x 14 D mm)
Sign: 13" L x 4 1/2" H
(330 L x 114 H mm)
Request to Exit: Normally open, dry
Fire Alarm Release: Alarm panel
closed dry contact. Opening of contact
releases lock.
ExitCheck® Delayed Egress EMLock® GKK
Distributor
Discount Code
DELAYED EGRESS OPERATION
NA NFPA 101, IBC and IFC Compliant
Field selectable: 15 or 30 second exit delay; 1 or 2 second nuisance delay
Field selectable automatic or manual power-up after emergency release
N/C
NC IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant
Fixed 15 exit delay, 0/1 second nuisance delay
Calif. Building Code OSHPD/Manual Power Up
N/C
ND IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant
Fixed 15 exit delay, 0/1 second nuisance delay
N/C
NH IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant
Fixed 30 exit delay, 0/1 second nuisance delay
N/C
BC BOCA National Building Code and Chicago Building Compliant
15 second fixed exit delay, 0 second nuisance delay, auto reset 30 seconds after door closure
N/C
BD BOCA National Building Code
15 second fixed exit delay, 0/1 second nuisance delay, auto reset 30 seconds after door closure
N/C
BH BOCA National Building Code
30 second fixed exit delay, 0/1 second nuisance delay, auto reset 30 seconds after door closure
N/C
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
1511T
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
Voltage: Auto Voltage Sensing
12/24VDC ± 10%
Standard 1,650 lbs holding force:
820/450 mA @ 12/24VDC
Energy Saver E Option 1,200 lbs. Holding
Force: 400/275 mA @ 12/24VDC
1511S
Voltage: Auto Voltage Sensing
12/24VDC ± 10%
Standard 1,650 lbs holding force:
1500/850 mA @ 12/24VDC
Energy Saver E Option 1,200 lbs. Holding
Force: 650/400 mA @ 12/24VDC
CONTROL INPUTS
MONITORING OUTPUTS
Alarm Output:
SPDT Dry, 1 Amp @ 30VDC
Lock Secure / Unlocked Output:
SPDT Dry, 1 Amp @ 30VDC
DPS Door Position Status: (option)
SPDT Dry, 250 mA @ 30VDC
BAS Magnetic Bond Status: (option)
SPDT Dry, 250 mA @ 30VDC
ATS Anti-Tamper Sensor: (option)
SPDT Dry, 1 Amp @ 30VDC
1,650 lbs. Holding Force Standard
830/450 mA @ 12/24VDC (single)
1,200 lbs. Energy Saver Option E
380/225 mA @ 12/24VDC (single)
Control more locks with fewer
power supplies
Save on electricity consumption and
power supply investment.
• Voice & Digital Display Standard
• Energy Saver Optional
TMTM
“Security Industry Finest”
ISC Expo
TANDEM MODEL
For use with pairs of doors equipped with Exit
Sense Bars, surface mounted vertical rod exit
devices and concealed vertical rod exit devices
with surface mounted triggers and strikes.
Activating either door unlocks both doors.
SINGLE MODEL
For use with single doors equipped with Exit
Sense Bars, surface vertical rod, concealed
vertical rod, mortise and rim mount exit devices,
mortise locksets and cylindrical locksets.
FIELD SELECTABLE ACTUATION
• Door Movement
• Exit Sense Bar
• Exit Device Switch Kit (See page XX)
• Latch Monitoring Strike (See page XX)
1511S / T
VOICE & DIGITAL Annunciation
The ExitCheck® 1511S series incorporates
an alternating 85 db tone and voice
message with a digital countdown
display and sign that provides clear and
comprehensive instructions for persons
without prior knowledge of door operation.
This is especially significant for those who are
blind or hearing impaired.
1511T
1511S
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
19
Delayed Egress Locks
& Controllers
OPTIONS Add to List
SPECIFY MODEL LIST
SPECIFY OPERATION
SPECIFY FINISH Add to List
SPECIFY BUILT-IN RESET & CONTROL
KBuilt in key switch. Provides 1-30 second timed bypass, sustained bypass and alarm reset (std) N/C
PBuilt in reset push switch. Available with NFPA (NC or ND) only. N/C
LLess key or push switch (no price deduction) N/C
EEnergy Saver, 1200 lbs holding force, low power consumption, electrical specs page XX N/C
DDoor position status. Provides remote monitoring of the door open or closed status and
indicates the door has actually been opened for egress after alarm activation. Specify 2 for
tandem
42.00
BMagnetic bond alert sensor. Indicates locked or unlocked, reduced holding power,
tampering or foreign material between the electromagnet and armature.
Specify 2 for tandem
63.00
AAnti-tamper switch. Detects attempt to remove the access cover. Specify 2 for tandem 52.00
101-1A
101-4AM
702R
Controls & Annunciators
See page 22
1511S
Anodized Finishes Single Tandem
V628 Aluminum (standard) N/C N/C
Y335 Black Anodized 83.00 125.00
Plated Finishes - Special order, no cancellation, no returns
P625 Bright Chrome Q626 Dull Chrome 197.00 228.00
920
ANSI/BHMA A156.24
Grade 1
CSFM
3774-0324:103
FWAX Special Locking Arrangements
GWXT Auxiliary Locks
UL10C Positive Pressure Compliant
UBC Classified in accordance with
Uniform Building Code standard 7-2
“Fire Test for Door Assemblies”
• Voice & Digital
Display Standard
• Field Selectable Voice
with Tone or
Tone only
• Energy Saver Optional
ExitCheck® Delayed Egress EMLock® GKK
101-SP
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
XDark Bronze Powder Coat Painted CBrass Powder Coat Painted 83.00 125.00
1511S Single - 1,650 lbs., voice, tone and digital countdown annunciator. 1,211.00
1511T Tandem - 1,650 lbs., voice, tone and digital countdown annunciator. 2029.00
Distributor
Discount Code
Specify NA, NC, ND, BC, BD - see codes and description on page 18
If no Code is specified - NA is the SDC STA N DARD OPERATIONS MODE for this product
101-SPSN
EA100
ADD-ONS Add to List
VI Spanish, or English and Spanish, or English and French verbal announcement 104.00
VIC Custom verbal announcement (10 piece purchase minimum) POA
RRX Reset on REX - No Charge when ordered WITH a Delayed Egress lock
Allows the REX input to reset after an unauthorized egress alarm.
Not available for NC operation.
Replacement Chip (if ordered separately from DE lock) 52.00
101-SP External 15 watt speaker connects directly to 1511S or 1511T for enhanced decibels on
site or remote voice message annunciation. Speaker driver may be provided by others for
extreme decibel requirements.
38.00
101-SPSN Remote Single Gang Annunciator with speaker and 80db tone. Duplicates ExitCheck
alternating voice message and tone.
100.00
EA100 Multi-Mode Exit Annunciator Bar interfaces with Delayed Egress devices for forced entry or
unauthorized exit signaling. Highly visible from any angle, due to multi color LED lights with
rolling signal. See also page XX
182.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
20
Delayed Egress Locks
& Controllers
1581S Single Mini Delayed Egress Lock 650 lbs. holding force. Current: 320/500 mA @
24VDC/12VDC 932.00
Specify 2 for pairs of doors
Remote reset control required. See below.
Lock size 10" L x 2" H x 2.375" D
SPECIFY OPERATION
SPECIFY FINISH Add to List
SPECIFY OPTIONS Add to List
TANDEM CABLE FOR PAIR OF DOORS LIST
SPECIFY RESET AND CONTROL DEVICE LIST
ExitCheck® Mini Delayed Egress EMLock® GKK LIST
Anodized Finishes
V628 Clear Anodized Aluminum (standard) N/C
Y335 Black Anodized 83.00
Plated Finishes. Special order, no cancellations or returns
P625 Bright Chrome 197.00 Q626 Dull Chrome 197.00
DDoor position status 63.00
BMagnetic bond sensor (Not an output. Low Holding Force. Put unit into alarm.) 104.00
Select Reset Station for NC and ND functions
918 EntryCheck™ digital keypad, 500 user codes
Keyless Reset / manual power up / bypass
166.00
728 Key switch, 2 keys, 1 gang
Reset / manual power up / sustained bypass
63.00
728L3 Key switch, 2 keys, 1 gang, LED status indicator
Reset / manual power up / sustained bypass
87.00
702R Separate wall mount reset key switch assembly
MO SPDT dry contact, 6 Amp @ 30VDC max.
Accepts standard 1-1/8'' to 1-1/4'' (Mortise key cylinder not
included)
114.0 0
101-1AK Key switch assembly, 2 gang, LED status indicator, less cylinder
Reset / manual power up / sustained bypass
332.00
101-4AM Four station remote annunciator 332.00
Required when using two locks on a pair of doors, cables enable slave operation.
1581S-TC-3 Cable kit for connecting two locks through the frame header 32.00
1581S-TC-10 Cable kit for connecting wiring for two locks in a remote junction box 42.00
918
728 702R
101-4AM
101-1AK
1581S
ANSI/BHMA A156.24
Grade 1 CSFM
3774-0324:103
FWAX Special Locking
Arrangements
GWXT Auxiliary Locks
Powder Coat Finishes
(a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
X
Dark Bronze Powder Coat
Painted (313/613 Equal) 83.00 C
605 Bright Brass Powder
Coat Painted 83.00
D
606 Dull Brass Powder Coat
Painted 83.00
Distributor
Discount Code
Specify ND, NC, NH, BC, BD, BH - see codes and description on page 18
If no Code is specified - ND is the SDC STA N DARD OPERATIONS MODE for this product
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
21
Delayed Egress Locks
& Controllers
101-DE
101-KDE
101-DE
with DEC-J
101-1AK
DEC-J
SHD-J
with 101-DE
101 ExitCheck® Wall Mount Delayed Egress - NFPA 101 Locking Arrangements GKK
DELAYED EGRESS CONTROLLER (1 PER OPENING, SINGLE OR PAIRS) LIST
OPTIONAL MONITORING Add to List
OPTIONAL HARDWARE Add to List
MAGNETIC LOCK WITH INTEGRATED ACTIVATION SENSOR LIST
STANDARD FEATURES INCLUDE: 12/24VDC voltage sensing input, delay electronics packaged on a 3-gang wall plate for recessed
wall mounting or surface wall mounting with optional junction box. Features include: std. 15 or 30 second switchable exit delay (NA), 1 or 2
second nuisance delay. Keypad for violation reset, momentary bypass and on-off; Voice Annunciation and digital countdown display with
door open indicator. Status and remote control inputs are standard.
12VDC / 24VDC @ 200 mA Max.
• Doors WITH latch assemblies are sensor activated and do not require power transfer or trigger switch in exit
device. Where preferred a trigger switch may be added to the exit device for manual activation in lieu of door
movement activation.
• Doors WITHOUT latches require a non-latching Request-to-Exit Bar PSB560 Sure Exit® or MSB550 Switch Bar
(see XX). Also compatible with standard EMLocks (see XX.)
101-DE Wall mount controller with keypad control and reset, 200 mA @ 12/24 VDC - NA standard 823.00
101-KDE Wall mount controller with both key switch and keypad control and reset, 200 mA @ 12/24 VDC
order with optional Mortise Cylinder
CYL-6KDQ 6 pin, 1.125” Mortise Cylinder, Keyed Different add 32.00
CYL-6KAQ 6 pin, 1.125” Mortise Cylinder, Keyed Alike add 32.00
932.00
BMagnetic bond sensor, indicates locked with full holding force, low holding force, unlocked,
tampering and obstructions.
(1581DE SPST only)
63.00
DDoor position sensor, indicates door open and door closed. Commonly used to verify
egress after alarm and exit delay activation.
(D) Door position sensor not available with 1581, 1575 and 1576
42.00
101-1AK Outdoor reset with LED and Audible annunciator. 2-gang outdoor box required
(Interior 101-DE and 1575 or 1576 outdoor magnetic lock required)
332.00
DEC-J 3 Gang Interior surface mount box for 101-DE 94.00
SHD-J Shroud for surface mount box DEC-J outdoor use 63.00
V628 Clear Anodized Aluminum (Standard) N/C
YBlack Anodized Single 83.00
Specify 2 for pair of doors
1511DEV Single, 1650 lbs holding force, 670/350 mA @12/24 VDC 523.00
1571DEV Single, 1200 lbs holding force Energy Saver, 250/125 mA @12/24 VDC 497.00
1581DEV Single, 650 lbs holding force, 440/220 mA @12/24 VDC 414.00
Outdoor Locks
1575DEU Single outdoor magnetic lock with magnetic bond sensor 497.00
1576DEU Single face drilled outdoor magnetic lock with magnetic bond sensor 497.00
1576DE-ZB Inswing mounting bracket for 1576DEU 156.00
TMTM
“Security Industry Finest”
ISC Expo
Mounting Kits & Angle Brackets - See page 11
Powder Coat Finishes
(a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
XDark Bronze Powder Coat Painted (313/613 Equal) Single 83.00
Specify NA, NC, ND, BC, BD - see codes and description on page 18
If no Code is specified - NA is the SDC STA N DARD OPERATIONS MODE for this product
Proprietary Verbal Exit Instructions with Alarm Tone and 3/4" Digital Countdown Display
SHD-J
End View
Distributor
Discount Code
MAGNETIC LOCK FINISH Add to List
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
22
Delayed Egress Locks
& Controllers
Local and Remote Controls and Annunciators LIST
101-SP
101-1AK
707R
702R
708R
101-4AM
101-1A
101-PAM
920
920 Keyless Reset and Bypass or Momentary Authorized Access 500 User Codes
Heavy Cast Vandal Resistant Housing
182.00
702R Separate wall mount reset key switch assembly
MO SPDT dry contact, 6 Amp @ 30VDC max.
Accepts standard 1-1/8'' to 1-1/4'' (Mortise key cylinder not included)
114.0 0
707R Remote reset key switch with dual function for Bypass (authorized egress) and reset
(2) MO SPDT dry contact, 6Amp @ 30VDC max
Accepts standard 1-1/8'' to 1-1/4'' mortise key cylinder. (Mortise key cylinder not included)
156.00
708R Remote reset key switch for bypass (on/off) and reset
(1) Maintain (1) MO, SPDT dry contact, 6Amp @ 30VDC max
Accepts standard 1-1/8'' to 1-1/4'' mortise key cylinder. (Mortise key cylinder not included)
156.00
101-1A Remote or local single door annunciator with audible alarm and tricolor LED, 1 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
109.00
101-4AM Remote four door annunciator with audible alarm mute button. Four tricolor LEDs, 2 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
332.00
101-1AK Remote or local single door annunciator with 2 function key switch for on/off, reset,
audible alarm and tricolor LED, 2 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
Accepts standard 1-1/8'' to 1-1/4'' mortise key cylinder.
(Mortise key cylinder not included)
332.00
101-PAM Remote single door annunciator with 3 push button switches for momentary
access. On/off and audible alarm mute button with tricolor LED, 2 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
Recommended for remote installation only
332.00
101-SP External 15 watt speaker connects directly to 1511S or 1511T for enhanced decibels
onsite or remote voice message annunciation. Speaker driver may be provided by others
for extreme decibel requirements.
38.00
101-SPSN
101-SPSN Remote Single Gang Annunciator with speaker and 80db tone. Duplicates ExitCheck alternat-
ing voice message and tone.
100.00
918
918 Keyless Reset and Bypass or Momentary Authorized Access 500 User Codes
Keypad tamper lockout; Indoor blue backlit, moisture resistant keypad
166.00
order with optional Mortise Cylinder
CYL-6KDQ 6 pin, 1.125” Mortise Cylinder, Keyed Different add 32.00
CYL-6KAQ 6 pin, 1.125” Mortise Cylinder, Keyed Alike add 32.00
order with optional Mortise Cylinder
CYL-6KDQ 6 pin, 1.125” Mortise Cylinder, Keyed Different add 32.00
CYL-6KAQ 6 pin, 1.125” Mortise Cylinder, Keyed Alike add 32.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
23
Electric Strikes
15 Series Electric Strike FK LIST
25 Series Electric Strike LIST
• For 5/8'' latch or 3/4" latch with 1/8" gap
• Choice of failsafe or failsecure
• 4.875" (124mm) radius corner
• All stainless steel parts
• 630 Satin stainless steel face plate
The SDC 25 Series electric strike is designed for use with locksets having 5/8” (15mm) throw
latchbolt. The compact low profile design with an internally mounted solenoid and factory supplied
mounting tabs enable quick and easy installation where jamb space is limited.
• For 1/2" latch or 5/8" latch with
1/8" door gap
• Latch bolt monitor standard
• Failsecure
• Field reversible for failsafe operation
• Compatible with 5/8" latchbolts
• All stainless steel parts
• 630 Stainless steel standard finish
MODEL
25-4U 4.875" (124mm) Square corner 125.00
RMB Buzzer 12/24V AC/DC operation 40.00 BR64XL Rectier for AC operation 26.00
MODEL
15-4F12U Failsafe, 12VDC 88.00 15-4S12U Failsecure, 12VDC 88.00
15-4F24U Failsafe, 24VDC 88.00 15-4S24U Failsecure, 24VDC 88.00
RMB Buzzer 12/24V AC/DC operation 42.00 BR64XL Rectifier for AC operation 26.00
Distributor
Discount Code
Not recommended for wood application
Not recommended for wood application
Input 200mA @ 12VDC, 150mA @ 24VDC
Dimensions 1-1/4” W x 4-7/8” H x 1-1/2” D
SPECIFICATIONS
Dual Voltage 200/100 mA @ 12/24VDC
Latch Status SPDT, 3 Amp @ 30VDC
Dimensions 1-1/4” W x 4-7/8” H x 1-1/2” D
SPECIFICATIONS
30 Series Rim Mount Electric Strikes FK
SPECIFY MODEL LIST
SPECIFY FINISH Add to List
OPTIONS Add to List
30-4
Stainless steel electric strike for rim mount exit devices. Strike is non-handed, fail secure is standard with fail safe optional.
Standard finish is stainless steel 630 (U). Check template to ensure compatibility.
30-4-12 Stainless steel electric strike designed for rim-type exit devices 12VDC@ 0.51Amp 699.00
30-4-24 Stainless steel electric strike designed for rim-type exit devices 24VDC@ 0.25Amp 699.00
U630 Dull Stainless Steel (Standard) N/C
FS Failsafe operation 37.00 BR64XL Rectifier 26.00
LCBMA-30 Latch & locking cam monitor 223.00
Distributor
Discount Code
Not Compatible with SDC S6000
See S6000 Electric Trim page 36
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
24
Electric Strikes
The SDC 45 Series electric strike is designed for use with locksets having up to ¾" latchbolts.
The compact low profile design with an internally mounted solenoid and mounting tabs enable quick
and easy installation where jamb space is limited. UL Listing pending
• For 5/8'' latch or 3/4" latch with 1/8" gap
• Latch bolt monitor standard
• Keeper closed and deadlocked standard
• Field selectable failsecure - failsafe
• Field selectable voltage, 12/24V AC/DC
• 1/4" Horizontal alignment adjustment
• Low profile, 1-3/16" deep
• Plug-in wire connectors
• Mounting tabs
• All stainless steel parts with durable die
cast body for corrosion resistance
• Fewer moving parts for maximum life
• 630 stainless steel standard
• ANSI A156.31 compliant
SPECIFY LIP EXTENSION KIT for 45 Series only Add to List
LE1 1" Lip Extension Kit 32.00
LE2 2" Lip Extension Kit (Includes two 1" extensions) 63.00
LE3 3" Lip Extension Kit (Includes three 1" extensions) 94.00
LE3
LE2
LE1
45 Series Electric Strike LIST
SPECIFY FINISH Add to List
OPTIONS Add to List
MODEL
45-A Included: One 4.875" square corner faceplate. Stainless steel finish standard*
One 4.875" radius corner faceplate. Aluminum finish standard*
One 7.9375" radius corner faceplate. Aluminum finish standard*
187.00
45-4S 4.875" x 1.25" (124x32mm) square corner faceplate. Stainless steel finish standard* 158.00
45-4R 4.875" x 1.25" (124x32mm) radius corner faceplate. Aluminum finish standard* 162.00
45-6R 6.875" x 1.25" (175x32mm) radius corner faceplate. Aluminum finish standard* 166.00
45-7R 7.937" x 1.438" (202x36.5mm) radius corner faceplate. Aluminum finish standard* 171.00
Square Corner Faceplate
U630 Dull stainless Steel (std) N/C
H613 Oil Rubbed Bronze 26.00
D606 Dull Brass 26.00
Radius Corner Faceplate
V628 Dull Aluminum (std) N/C
Y335 Black Anodized 26.00
45-A Special Finish 78.00
45-6R
45-4S
KKeeper open/closed status 40.00 RMB Buzzer 12/24V AC/DC operation 42.00
45-4R
45-7R
45-A
SPECIFY MODEL List
Dual Voltage 280/140mA @ 12/24V DC, 170/85mA @ 12/24V AC
Latch Status SPDT, Dry 3Amp @ 30V (standard)
Keeper Closed/Deadlocked
SPDT, Dry 3Amp @ 30V (standard)
Keeper Open Closed Status
SPDT, Dry 3Amp @ 30V (optional - K option)
SPECIFICATIONS
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
25
Electric Strikes
The 45F fire-rated Grade 1 strike is specially designed with a durable, stainless steel die cast body. It is
engineered with corrosion resistant components with fewer moving parts for maximum life. The standard
unit includes monitoring outputs, field-selectablevoltage, and field-adjustable operation (fail-secure or fail-
safe.) Designed for use with cylindrical and mortise locksets with 9/16” - 3/4” throw latch bolts.
• ANSI/BHMA A156.31, Grade 1
• Centerline Electric Strike
• For 9/16” or 3/4” latch with 1/8” door gap
• Latch bolt monitor standard
• Keeper closed & deadlocked standard
• Field selectable fail-secure - failsafe
• Field selectable voltage 12/24V AC/DC
• ¼” Horizontal alignment adjustment
• Static strength 1500lbs.
• Low profile, 1-3/16” deep
45F Fire Rated Electric Strike LIST
SPECIFY FINISH Add to List
OPTIONS Add to List
MODEL
45F-4SU Included: One 4.875" square corner faceplate. Stainless steel finish standard* 399.00
For additional Plates contact factory
Square Corner Faceplate
U630 Dull stainless Steel (std) N/C
H613 Oil Rubbed Bronze 26.00
D606 Dull Brass 26.00
KKeeper open/closed status 40.00 RMB Buzzer 12/24V AC/DC operation 42.00
SPECIFY MODEL List
Dual Voltage 280/140mA @ 12/24V DC, 170/85mA @ 12/24V AC
Latch Status SPDT, Dry 3Amp @ 30V (standard)
Keeper Closed/Deadlocked
SPDT, Dry 3Amp @ 30V (standard)
Keeper Open Closed Status
SPDT, Dry 3Amp @ 30V (optional - K option)
SPECIFICATIONS
• All stainless steel parts with durable die cast
body for corrosion resistance
• Plug-in wire connectors
• Mounting tabs
• Non-handed
• Fewer moving parts for maximum life
• 630 stainless steel standard
• UL Listed 1034 Burglary Resistant
• UL 10C, 3 Hr Fire Rated (Fail-Secure only)
• U.S. Patent #7,540,542 B2
BP10254
40WH
NEW
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
26
Electric Strikes
Lockset compatibility: For locksets not listed below, see UniFLEX™ 55 Series datasheet, page 5, faceplate dimension
Deadbolt Application: 55-D, 55-E and 55-F, door will not close with deadbolt extended
MODEL Application
55-A Compatible with all cylindrical locksets (Grade1 or equivalent) 435.00
55-B Mortise locksets and exit mortise devices with or without a deadlatch located below the
latchbolt. Accurate, Arrow, Best, Corbin Russwin, Dorma, Falcon, Marks, Sargent, Yale. 456.00
55-C Mortise locksets and mortise exit devices with or without a deadlatch located above the
latchbolt. SDC, Schlage, Baldwin, Hager 456.00
55-D Mortise locksets with a deadbolt and deadlatch located below the latchbolt.
Accurate, Arrow, Best, Corbin Russwin, Dorma, Falcon, Marks, Sargent, Yale. 477.00
55-E Mortise lockset with deadbolt and no deadlatch feature. Baldwin. 477.00
55-F Mortise locksets with a deadbolt and a deadlatch located above the latchbolt.
SDC, Schlage, Hager. 477.00
UniFLEX™ SPEC 55 Series Electric Strike, Grade 1 Heavy Duty - Factory tested 2500 lbs
SPECIFY FINISH Add to List
SPECIFY MODEL List
STANDARD ANSI 4-7/8” STRIKE PREP - NO CENTERLINE RELOCATION REQUIRED.
One strike with choice of interchangeable faceplates for cylindrical and mortise locksets with or without deadbolts.
Designed for new and retrofit hollow metal frame installations. *Frame face modification required.
FEATURES
• Up to ¾” Latchbolt and 1” Deadbolt
• Field Reversible, Failsafe/Failsecure
• 1/8” Horizontal alignment adjustment
• Dual Voltage 12/24VDC
• Exceeds 1,000,000 cycles
• Factory tested 2500 lbs static strength
• UL tested 1500 lb Static strength
• 70 ft-lb Dynamic strength
• ANSI/BHMA A156.31 Grade 1
• Internal Solenoid, No Heat in Keeper
• All parts stainless steel
• Non-handed
U630 Dull Stainless Steel (std) N/C
G612 Dull Bronze P625 Bright Chrome 42.00
D606 Dull brass H613 Oil Rubbed Bronze Q626 Dull Chrome 42.00
Warnock Hersey Tested according to:
UL 10C, 3 Hr Fire Rated, 4’ x 8’ single door
NFPA-252
CM
55-A
55-D
55-E
55-B
UL 1034
Burglary-Resistant
BP10254
40WH
SPECIFY MONITORING OPTIONS Add to List
LBM/LCM available with 55-A, 55-B, 55-C; LBM/LCM/DBM available with 55-D, 55-E, 55-F
LBM Latchbolt Monitor. Signals the door is closed and latched or unlatched and open.
Non-handed. 63.00
LBM/LCM Door Secure Monitor. Signals door is closed latched and the keeper is deadlocked. Also
signals the door is unlatched or unlocked. Non-handed. 125.00
DBM-L Deadbolt Monitor, Left Hand (Available with LCM and LBM. For D, E & F funtions only) 63.00
DBM-R Deadbolt Monitor, Right Hand (Available with LCM and LBM. For D, E & F funtions only) 63.00
CAN4-S104 (ULC-S104)
(Fail-Secure only).
ACCESSORIES Add to List
55-A, 55-B,
55-C:
LBM
LBM/LCM
55-D, 55-E, 55-F:
LBM
LBM/LCM
LBM/LCM/DBM
Monitoring Configurations
A B or C D or E F
RMB Buzzer, 12/24V. Indicates strike is energized 42.00
BR64XL Wire Lead Rectifier. Converts AC to DC 26.00
LT tri-Color LED, red or green or amber. Indicates strike energized per field wiring 32.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
27
Electric Strikes
UniFLEX™ Universal Strike — Multi Application Pack LIST
MODEL APPLICATION
55-ABC Universal Strike for cylindrical locks, mortise locks without deadbolts and mortise exit
devices including: SDC, Accurate, Arrow, Baldwin, Best, Corbin Russwin, Dorma, Falcon,
Hager, Marks, Sargent, Schlage, Yale.
477.00
Lockset compatibility: For locksets not listed, see UniFLEX™ 55 Series datasheet, page 5, faceplate
dimension
APPLICATION
• Adaptable to all 55-A, 55-B, 55C
applications.
• Strike body and 5 faceplates
• For new and retrofit installation
• No relocation of the centerline.
• Non-handed
OPERATION
After releasing the latchbolt, the keeper
returns to the locked position.
Finish: 630 Dull Stainless Steel
AB C
B
A
C
Latch and Deadbolt Monitoring Strike Kits DK LIST
Distributor
Discount Code
Provides latch and or deadbolt position sta-
tus. Compatible with deadbolts, cylindrical
locks, mortise locks, and mortise locks with
latch and deadbolt. Strike plates shown
provided by others. 5 Amp @ 30 VAC/DC
MS-12 Cylindrical latch monitor 2-3/4" SPDT 135.00
MS-12D Cylindrical latch monitor 2-3/4" DPDT 166.00
MS-14 Cylindrical latch monitor 4-7/8" SPDT 135.00
MS-14D Cylindrical latch monitor 4-7/8" DPDT 166.00
MS-16 Mortise lock latch monitor SPDT 135.00
MS-16D Mortise lock latch monitor DPDT 166.00
MS-16
MS-14
MS-12 MS-20
MS-18 Mortise lock deadbolt monitor SPDT 135.00
MS-18D Mortise lock deadbolt monitor DPDT 176.00
MS-20* Mortise lock latch and deadbolt monitor
SPDT
166.00
MS-20D* Mortise lock latch and deadbolt monitor
DPDT
223.00
*MS-20 and MS-20D are handed but reversible
Strikeplates NOT INCLUDED
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
28
Electrified Locksets
ELECTRA MOD™ Major Brand Locks Electrified by SDC LEK
SDC’s Electra™ Mod Locksets ensure that the door stays latched even when unlocked, maintaining fire door integrity. The Electra™ Mod
locksets comply with all national building and fire life safety code requirements for use on fire rated doors, including high-rise stairwell and
elevator lobby doors where the use of electric strikes and magnetic locks is prohibited.
• Outside lever normally locked,
turning inside lever provides
uninhibited egress
• Request-to-exit output optional
with all locksets
• Dual Voltage 12 and 24VDC
• Choice of failsafe or failsecure
operating mode
Distributor
Discount Code
Schlage Sargent Best Yale Dorma
SPECIFICATIONS
Voltage Dual 12/24VDC Input
Current 600/300mA @ 12/24VD
Optional REX Output SPDT 3 Amps @ 30VDC
Latchbolt 1/2" throw
Backset 2-3/4"
Strike 4-7/8" ANSI A115.2
Door Thickness 1-5/8" to 2-1/8"
FEATURES
Athens
Augusta
B
Rhodes
Pacific Beach
Sparta
Monroe
J
Omega
P
Tubular
L
15
16
14
Schlage Failsafe and Failsecure electrified locksets provided by SDC
SDC Failsafe SDC Failsecure Trim Type
ZS7250ATHQ ZS7252ATHQ Athens 704.00
ZS7250SPAQ ZS7252SPAQ Sparta 704.00
ZS7250RHOQ ZS7252RHOQ Rhodes 704.00
ZS7250TLRQ ZS7252TLRQ Tubular 704.00
ZS7250OMEQ ZS7252OMEQ Omega 704.00
Sargent Failsafe and Failsecure electrified locksets provided by SDC
SDC Failsafe SDC Failsecure Trim Type
ZD7250BQ ZD7252BQ B808.00
ZD7250JQ ZD7252JQ J808.00
ZD7250LQ ZD7252LQ L808.00
ZD7250PQ ZD7252PQ P808.00
Yale Failsafe and Failsecure electrified locksets provided by SDC
SDC Failsafe SDC Failsecure Trim Type
ZP7250AUQ ZP7252AUQ Augusta 721.00
ZP7250MOQ ZP7252MOQ Monroe 721.00
ZP7250PBQ ZP7252PBQ Pacific Beach 721.00
Best Failsafe and Failsecure electrified locksets provided by SDC
SDC Failsafe SDC Failsecure Trim Type
ZT725014Q ZT725214Q 14 854.00
ZT725015Q ZT725215Q 15 854.00
ZT725016Q ZT725216Q 16 854.00
REX Option Request-to-exit output, SPDT, 3 Amps @ 30VDC 120.00
SDC SUPPLIED MECHANICAL LOCKSET LIST
®
®
®
®
In Stock: Following SDC electrified locksets are in stock at both SDC east and west coast wharehouses
for shipment by the next business day.
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
29
Electrified Locksets
HOW TO
ORDER
DISTIBUTOR SUPPLIED MECHANICAL LOCKSET SDC FACTORY ELECTRIFIED LIST
Failsafe Failsecure
Schlage S7250 S7252 167.00
Yale P7250 P7252 167.00
Best T7250 T7252 167.00
Sargent D7250 D7252 167.00
Dorma U7250 U7252 167.00
Hager H7250 H7252 167.00
REX Option Request-to-exit output, SPDT, 3 Amps @ 30VDC 120.00
Distributors to supply SDC with cylindrical lock for modification. SDC returns modified lock to distributor
SSchlage ND80PD PYale 5405LN 167.00
TBest 93K7D DSargent 10G04 167.00
U Dorma C880 HHager 3480 167.00
ELECTRA MOD™ Major Brand Locks Electrified by SDC LEK
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
30
Electrified Locksets
Dual Voltage 600/300 mA @ 12/24VDC
Certification Exceeds ANSI A156-2-
4000 Grade 1
Latchbolt 0.5625"
ELECTRA PRO™ SDC' Z7200 Series Heavy Duty Cylindrical Locksets LEK
SPECIFY MODEL LIST
SPECIFY FINISH Add to List
OPTIONAL CYLINDER and I-CORES Add to List
OPTIONAL LATCH AND BACKSET ASSEMBLIES
OPTIONAL STRIKE PLATES
SPECIFY LEVER TRIM
Electra Pro™ Locks
Z7250 SDC Failsafe, with Latch Status Output Z7252 SDC Failsecure, with Latch Status Output 435.00
SDC Lever Trim
GGalaxy EEclipse N/C
G5 Galaxy, I-Core prep E5 Eclipse, I-Core prep 26.00
G5 and E5 I-Core prep without I-Core
Q626 Dull Chrome (standard) N/C
C605 Bright Brass 52.00 H613 Oil Rubbed Bronze 52.00
D606 Dull Brass 52.00 P625 Bright Chrome 52.00
Electra Pro™ Z7250G
I-CORE
Function: 7200 Series Locksets are locked on the outside and unlocked from the exterior by an access control or mechanical key.
The inside lever is always operable for uninhibited egress.
Latch Status Output: Standard with all SDC brand Z7200 locksets. SPDT, 3 Amps @ 30VDC
Electra Pro™ Z7250E
SDC Conventional Cylinders (Schlage 'C' Keyway Standard)
6PKA 6 PIN Keyed alike N/C 6PKD 6 PIN Keyed different (standard) N/C
[IC] Interchangeable Core (Best 'A' Keyway Standard)
IC7P-KA 7 pin I-Core, small format, keyed alike 52.00 IC7P-KD7 pin I-Core, small format, keyed different 52.00
B1 2-3/4" Backset latchbolt (Standard) N/C
ST1 ANSI 1-1/4” x 4-7/8” (Standard) N/C ST2 T-Strike with dust box, 1-1/8” x 2-3/4”
MUST BE SPECIFIED
N/C
G Galaxy
E Eclipse
E5 Eclipse, I-Core prep
G5 Galaxy, I-Core prep
SPECIFICATIONS
FEATURES
• Choice of failsecure or failsafe mode
• Dual 12/24 VDC
• Latch Status Output: Z7200 standard
• 'C' type keyway, BEST IC core optional
• Independent lever power return springs
• Power Regulator Module included
3773-0324:104
CSFM
Electrically Controlled Single Point Locks &
Latches, 3 Hr A Label Fire Doors
Backset 2.75
Strike 4.875 strike ANSI A115.2
Door Thickness 1-5/8" to 2-1/8"
OPTIONAL CYLINDER and I-CORES Add to List
RRequest-to-exit output, operates on activation of inside lever, SPDT 0.1A @ 30VDC 120.00
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
31
Electrified Locksets
Specify voltage for Z7835 function only. Leave blank for all other functions which are 12/24VDC, field selectable
12 12VDC 24 24VDC N/C
SPECIFY FUNCTION AND MODE LIST
SPECIFY HAND
VOLTAGE - Z7835 ONLY
OPTIONS AND ACCESSORIES Add to List
SPECIFY FINISH Add to List
SELECTRIC™ PRO Z7800 Electric Lockset LSK
* Less Trim With SDC Trim
Z7830 Locked both sides, failsafe. Field reversible to failsecure mode. 306.00 735.00
Z7850 Locked outside only, failsafe. Field reversible to failsecure mode. 306.00 735.00
Z7832 Locked both sides, failsecure. Field reversible to failsafe mode. 306.00 735.00
Z7852 Locked outside only, failsecure. Field reversible to failsafe mode. 306.00 735.00
Z7835 Locked outside and/or inside. Outside failsecure, inside failsafe 466.00 849.00
LLeft hand LR Left hand reversed All hands are field reversible N/C
RRight hand RR Right hand reversed without disassembly (exeption Z7835) N/C
SPECIFY LEVER TRIM Add to List
GGalaxy with rose N/C GE Galaxy with escutcheon 104.00
EEclipse with rose N/C EE Eclipse with escutcheon 104.00
NNova with rose N/C NE Nova with escutcheon 104.00
07 Schlage equal with SDC B rose N/C 07E Schlage equal with SDC escutcheon 104.00
Optional Outputs
RRequest-to-exit. Indicates inside lever operation for access control request-to-exit input, alarm
shunt, remote annunciation or CCTV activation, SPDT 5 Amp @ 30VDC 83.00
DDoor position status output. Indicates door open and door closed. SPDT 5 Amp @ 30VDC. 83.00
SLatched & locked status output. Indicates door latched and locked and door unlocked.
SPDT 5 Amp @ 30VDC 104.00
Optional Cable and Connectors
CC1-5 5ft. Cable and connectors for locks without optional outputs 47.00
CC3-5 5ft. Cable and connectors for locks with optional outputs 63.00
Optional Key Cylinders 1 required for 7850/7852 2 required for 7830/7832 32.00
CYL-6KDQ 6 pin, 1.125" keyed different, 626 Dull Chrome 32.00
CYL-6KAQ 6 pin, 1.125" keyed alike, 626 Dull Chrome 32.00
Power Transfer Hinge
UL listed, 4.5", five knuckle hinge. Special finish available
PTH-4Q Four wire, dull chrome 156.00
PTH-10Q Ten wire, dull chrome 202.00
PTH-2+4Q 6-wire Electric Hinge 1-pair 16 Amp inrush, 4 Amp continuous;2-pair 1 Amp @ 12/24V 182.00
SELECTRIC® Pro Locksets incorporate an SDC manufactured Grade 1 Heavy Duty mortise lockset and vandal resistant clutch
mechanism. Proprietary to SDC, SELECTRIC® Pro locksets. All operational attributes are field selectable. In addition, SELECTRIC® Pro
locksets retrofit many other mechanical lock brands making them fully compatible with new and retrofit applications.
FIELD SELECTABLE ATTRIBUTES
• Selectable mode, failsafe or failsecure
• Selectable function, locked outside only or both sides
• Selectable voltage, 12 or 24VDC
• Selectable handing
PTH
UL 10B Listed for 3Hr
Fire Rated Doors
See page XX
Q626 Dull Chrome (standard) N/C
C605 Bright Brass 52.00 G612 Dull Bronze 52.00 S629 Bright Stainless Steel 52.00
D606 Dull Brass 52.00 H613 Oil Rubbed Bronze 52.00 U 630 Dull Stainless Steel 52.00
F611 Bright Bronze 52.00 P625 Bright Chrome 52.00
Electrically Controlled
Single Point Locks or
Latches
3 Hr A Label Fire
Rated Doors 3773-0324:104
CSFM 768-80-SA
MEA
City of New York
G
E
N
GE
EE
NE
Schlage
Equal Schlage
Equal
07E07
SDC Supplied Electrified Lock (Mortise cylinder not included). SDC Brand 7800 lockset. Clutch for lever trim
vandal resistance. * Less trim - compatible with Schlage trim
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
32
Electrified Locksets
768-80-SA
MEA
City of New York
SPECIFY BRAND MODEL LIST
SELECTRIC™ MOD 7800 Series Locksets LSK
SPECIFY HAND
SPECIFY FINISH Add to List
OPTIONS AND ACCESSORIES Add to List
SPECIFY FUNCTION & ELECTRICAL MODE Add to List
Distributors supply SDC with the mortise lock body and armored front (less trim) for modification. SDC returns the modified lock
body. Upon installation, two lever return spring cages (supplied by distributor) are required for proper operation.
A Falcon - LM561/MA581 N Arrow - B12 UDorma - M9000 166.00
D Sargent - 8204 PYale - 8805 VMarks - 5EW 166.00
H Hager - 3880 SSchlage - L9080 WCal Royal - M8080 166.00
I Corbin/Russwin - ML2055 TBest - 35HEW/45H XPDQ - MR148 166.00
7830 Locked both sides, failsafe 7832 Locked both sides, failsecure 63.00
7850 Locked outside only, failsafe 7852 Locked outside only, failsecure N/C
LLeft hand LR Left hand reversed RRight hand RR Right hand reversed N/C
PTH
UL 10B Listed for 3Hr
Fire Rated Doors
See page 80
Electrified lock chassis, less trim, provided by SDC factory are special order, no cancellation, no return.
ZS Schlage ZN Arrow ZD Sargent ZT Best POA
ZA Falcon ZP Yale ZI Corbin Russwin
Optional Outputs
RRequest-To-Exit.
Indicates inside lever operation for access control request-to-exit input, alarm shunt,
remote annunciation or CCTV activation, SPDT 5 Amp @ 30VDC
Available with A, D, I, N, P, S, T, U, V and ZS only.
125.00
DDoor Position Status Output
Indicates door open and door closed. SPDT 5 Amp @ 30VDC
Available with locks S and ZS only.
83.00
SLatched & Locked Status Output
Indicates door latched and locked or door unlocked. SPDT 5 Amp @ 30VDC
Available with locks S and SZ only.
104.00
LLatchbolt status. Indicates door latched and unlatched status. SPDT 5 Amp @ 30VDC
Available with locks A, D, I, N, P, S, T, U, V and ZS only.
104.00
Consult factory for recent updates of option availability with any model
Optional Cable and Connectors
CC1-5 5ft. Cable and connectors for locks without optional outputs 47.00
CC3-5 5ft. Cable and connectors for locks with optional outputs 63.00
Optional Key Cylinders 1 required for 7850/7852 2 required for 7830/7832
CYL-6KDQ 6 pin, 1.125" keyed different, 626 Dull Chrome 32.00
CYL-6KAQ 6 pin, 1.125" keyed alike, 626 Dull Chrome 32.00
3773-0324:104
CSFM
NOTE: All locks supplied less cylinder
Sargent
MarksCal Royal
PDQ Yale Corbin Russwin Best
Electrically Controlled
Single Point Locks or Latches
3 Hr A Label Fire Rated Doors Q626 Dull Chrome (standard) N/C
C 605 Bright Brass 52.00 G612 Dull Bronze 52.00 S629 Bri ght Sta teel 52.00
D 606 Dull Brass 52.00 H613 Oil Rubbed Bronze 52.00 U 630 Dull Stainless Steel 52.00
F611 Bright Bronze 52.00 P625 Bright Chrome 52.00
Schlage S and ZS only
• Field selectable failsafe / failsecure • Field selectable function without removing cover
Distributor
Discount Code
Note: Two locking hubs required for 7830 & 7832
Send the brand lockset of your choice to SDC for electrification. When factory authorized, distributors may take advantage
of SDC’s mechanical lock inventory to expedite orders. SDC stocks Schlage, Corbin Russwin, Yale, Best and Sargent
mechanical locks that may be electrified and charged to an order. Meanwhile, distributors may then send replacement
mechanical locks to SDC for credit and SDC inventory replenishment.
FEATURES SCHLAGE S AND ZS ONLY FEATURES ALL OTHER BRANDS
• Field selectable failsafe/failsecure
• Field selectable voltage, 12/24VDC
• Field selectable function and handing without removing cover
• Field selectable voltage, 12/24VDC
• Field selectable function and handing
based on brand capability
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
33
Electrified Locksets
SK-L90 Field Electrification Kit for Schlage L9000 LIST
SK-L90 Field Electrification Kit for Schlage L9000 Series 125.00
SK-L90-SC Field Electrification Kit for Schlage L9080 (includes Springcage) 141.00
S7800-REX Request-To-Exit kit for Schlage L9000 Series 125.00
SK-88 Field Electrification Kit for Yale 8805 LIST
SK-88 Field Electrification Kit for Yale 8805 125.00
LM-88 Field Latch Kit for Yale 8805 104.00
SK-82 Field Electrification Kit for Sargent 8206 LIST
SK-82 Field Electrification Kit for Sargent 8204 125.00
LM-82 Field Latch Kit for Sargent 8204 104.00
Door Core Drill Guide LZK LIST
The SDC 7000-DG Laser Guided Wire Raceway Drill Fixture enables wire raceway preparation through particle filled and solid wood
doors. The door core wire raceway permits the installation and wiring of electrified locksets, exit devices and electric hinges.
The Laser Guided Wire Raceway Drill Fixture is easy to use without previous experience. The kit allows for drilling from the hinge
side without removing the door from the frame.
The 7000-DGK Kit includes: Laser Guided Door Core, Raceway Fixture, 1/4" x 6" Pilot Drill Bit, 3/8" x 50" Door Raceway
Drill Bit (Custom designed evacuator drill bit tool sharpened with 1' extra long flutes),
Fiberglass Wire Running Kit (Flexible acrylic end connection, Brass hook end for pulling, Brass eye end for pushing), Door
Wedge, Kit Carry Case
7000-DGK Laser door core drill guide Kit 621.00
7000-DB3/8 3/8" x 50" evacuator drill bit 78.00
7000-PD 1/4 X 6 1/4" x 6" pilot drill bit 25.00
Target Line
Laser beam
Drill Guide
1/4 x 6" Pilot Drill Bit
3/8" x 50" Evacuator Drill Bit - Custom Designed for Door Raceways Extra Long 1 Ft. Flute
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
34
Electrified Locksets
HiTower® – Electric Frame Actuator Controlled Locksets
The HiTower utilizes SDC’s original concept of utilizing an electric frame
actuator to control a mechanical lock in the door, eliminating the cost and labor
associated with a power transfer hinge and wires through the door.
HiTower® Z7500
• SDC brand Grade 1 Heavy Duty lockset
• Field selectable function,
Locked outside only or both sides
HiTower® CONVERSIONS
Distributors provide a new mechanical
lock brand of choice to the factory for
conversion to an electric frame actuator
controlled lockset.
Electrically Controlled Single
Point Locks or Latches
3 Hr A Label Fire Rated Doors
768-80-SA
MEA
City of New York
3773-0324:104
CSFM
7530 Locked both sides. Unlocked by access control, remote control and key from either side, failsafe
7550 Locked outside only. Unlocked by access control, remote control, outside key and inside lever, failsafe
7560 Locked both sides. Unlocked by access control, remote control and key from either side, failsecure
7570 Locked outside only. Unlocked by access control, remote control, outside key and inside lever, failsecure
SPECIFY SOURCE OF MORTISE LOCK
7500 Series HiTower® LK
SPECIFY FUNCTION
SPECIFY HAND
ACTUATOR VOLTAGE AND FRAME SIZE see page 33 for pricing
Z7500
HiTower® Pro - SDC supplied mortise lock and electric frame actuator, complete with lever trim (Cylinder not included)
ZSDC lockset ZR SDC Retrofit lockset, replaces discontinued 5000/6000 series
ZY SDC retrofit lockset replaces SDC modifications of discontinued manufacturer models: Falcon-LM581;
Sargent-7704/7705; Corbin-9557L/2257; Russwin- 7059L; Arrow-1600EW; Yale-8705; Almet-5007; Best-35HEW
LLeft hand LR Left hand reversed
RRight hand RR Right hand reversed
A115VAC 0.2 Amps D115VAC 0.2 Amps G115VAC 0.2 Amps
B24VAC 0.5 Amps E24VAC 0.5 Amps H24VAC 0.5 Amps
C24VDC 0.5 Amps F24VDC 0.5 Amps J24VDC 0.5 Amps
+ Fail Secure Actuator Available with Z or S lockset only. Special strike preparation required for S7560/7570.
Failsafe actuator for
1-3/4" to 2" face frames Extra Narrow failsafe actuator
for 1-1/4" to 1-1/2" face frames +Failsecure actuator
for 2" face frames
07E07
HiTower® Mod - Distributors supply SDC with the mortise lock body and armored front (less trim) for modification.
SDC returns the modified lock body with an electric actuator. Upon installation, two lever return spring cages (supplied
by distributor) are required for proper operation.
AFalcon* LM-561/MA581 PYale 8805
DSargent 8204 RSchlage Retro L9080 (replaces 5000 series)
HHager 3880 SSchlage L9080
ICorbin/Russwin 2057 TBest 35 HEW and 45H
NArrow B12 UDorma M9000
OYale 7130F-L5 Exit device VMarks 5EW
HiTower® Mod - SDC supplied Schlage mortise lock and electric frame actuator, less lever trim
ZS Schlage L9080
*All Falcon locks must be supplied with 0201000-000 face plate, less hub locking bar
G
E
N
GE
EE
NE
Distributor
Discount Code
O7550
Yale Conversion
SDC S6303FH
SPECIFY FINISH add to list
SPECIFY LEVER TRIM FOR Z, ZR & ZY add to list
GGalaxy with rose N/C GE Galaxy with escutcheon 104.00
EEclipse with rose N/C EE Eclipse with escutcheon 104.00
NNova with rose N/C NE Nova with escutcheon 104.00
07 Schlage style with SDC B rose N/C 07E Schlage style with SDC escutcheon 104.00
Q626 Dull Chrome (standard)
C605 Bright Brass 52.00 G612 Dull Bronze 50.00 S629 Bright Stainless Steel 52.00
D606 Dull Brass 52.00 H613 Oil Rubbed Bronze 52.00 U 630 Dull Stainless Steel 52.00
F611 Bright Bronze 52.00 P625 Bright Chrome 52.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
35
Electrified Locksets
PRICING BY SOURCE AND FUNCTION LK LIST
Sources A, D, I, N, O, P, S, T (see previous page)
Distributor supplied - Major brand mechanical lock for modification, SDC supplied Electric frame actuator
SOURCE/FUNCTION
A, D, H, I, N, P, S, T, U, V 7530 Failsafe, locked both sides 497.00
A, D, H, I, N, O, P, S, T, U, V 7550 Failsafe, locked outside only 461.00
S7560 Failsecure , locked both sides (5.75" Strike plate) 647.00
S7570 Failsecure, locked outside only (5.75" Strike plate) 637.00
Extra Narrow Failsafe Frame Actuator
(Actuator type D, E, F only page XX) For 1-1/4" to 1-1/2" frames. Special strike prep required.
125.00
Not available with failsecure 7560 and 7570
Source ZS (see previous page). Special order, no returns, no cancellation
SDC supplied - Schlage L mortise lock and electric frame actuator, less lever trim
SOURCE/FUNCTION
ZS7530 Schlage Failsafe, locked both sides POA
ZS7550 Schlage Failsafe, locked outside only POA
Sources Z, ZR, ZY: SDC supplied - SDC lever trim, mortise lock and electric frame actuator.
Schlage style lever trim 07 and 12 POA, consult factory for minimum qty.
SOURCE/FUNCTION
Z7530 SDC Failsafe, locked both sides with rose trim 730.00
Z7550 SDC Failsafe, locked outside only with rose trim 720.00
Z7560 SDC Failsecure, locked Both sides with rose trim 885.00
Z7570 SDC Failsecure, locked outside only with rose trim 875.00
ZY7530 SDC (Replaces discontinued lock models, see 21 for details)
Failsafe, locked both sides with rose trim
730.00
ZY7550 SDC (Replaces discontinued lock models, see 21 for details)
Failsafe, locked outside only with rose trim
699.00
ZR7530 SDC (Replaces 5000 series) Failsafe, locked both sides with rose trim 834.00
ZR7550 SDC (Replaces 5000 series) Failsafe, locked outside only with rose trim 823.00
ZR7560 SDC (Replaces 6000 series) Failsecure, locked both sides with rose trim 885.00
ZR7570 SDC (Replaces 6000 series) Failsecure, locked outside only with rose trim 875.00
Extra Narrow Failsafe Frame Actuator
(Actuator type D, E, F, only page XX) For 1-1/4" to 1-1/2" frames.
Special strike prep required. Not available with ZR or failsecure 7560 and 7570
Add 125.00
Rose Trim N/C
Escutcheon trim Add 104.00
HiTower® PRO
HiTower® MOD
HiTower® MOD
Distributor
Discount Code
Source R (see previous page)
Distributor supplied - Schlage L9080 mechanical lock for modification. SDC supplied Electric frame actuator
SOURCE/FUNCTION
R7530 (Replaces 5000 series) Failsafe, locked both sides 549.00
R7550 (Replaces 5000 series) Failsafe, locked outside only 518.00
HiTower® MOD
OPTIONS AND ACCESSORIES Add to List
Lock status and wire harness
LLatch status switch, SPDT, 5 Amps
@ 30VDC 63.00
SLatch and deadlock status, 3 Amps
@ 30VDC 104.00
SC-10 Socket connectors with 10 ft.
cable, power wiring only 63.00
SC-10-5 Socket connectors with 10 ft. cable
for power and options 80.00
Special Strikes
SSP Special retrofit strike plate 125.00 Specify extended lip strike in writing POA
Electrical back boxes for frame actuators with conduit knockouts:
(Recommended for new construction)
7500EB-S For standard actuator in 1-3/4" or 2" face frame 32.00
7500EB-N For narrow actuator in 1-1/4" or 1-1/2" face frame 32.00
Optional Key Cylinders
CYL-6KDQ 6 pin, 1.125" keyed different, 626 Dull Chrome 32.00
CYL-6KAQ 6 pin, 1.125" keyed alike, 626 Dull Chrome 32.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
36
Exit Devices
SPECTRA™ S6000 Touch Bar Exit Devices - RIM and SURFACE VERTICAL XK
SDC S6000 Spectra™ Series panic and fire rated exit devices are available in rim mount, mortise and surface
vertical rod configurations. Spectra Class mechanical exit devices are UL listed and ANSI A156.3 Grade 1 compliant
and comply with all national and state building and fire life safety codes.
S6200 SVR Surface Vertical Rod
Panic & Fire Rated Exit Devices ANSI / BHMA Grade 1
• ANSI/BHMA A156.3-2001 Grade 1 Compliant
• CA Title 19 Compliant
• Meets/Exceeds ADA requirements
• UBC 97, Standard 7.2
S6200-LBR SVR
Distributor
Discount Code
SPECTRA SERIES EXIT DEVICE LIST
S61 Rim mount exit device 621.00
S62 Surface vertical 932.00
SPECIFY FUNCTION
01 Exit Only, No Trim N/C
02 Dummy Pull or Lever (opens when dogged) N/C
03 Entrance by trim when latch is released by key N/C
08 Lever with key locks/unlocks lever N/C
14 Lever trim always active N/C
SPECIFY PANIC OR FIRE RATED Add to List
PPanic exit device
Mechanical Dogging STD; See part # CD for optional key cylinder dogging
N/C
FFire exit device
Mechanical dogging not available
114.0 0
SPECIFY HAND
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
SPECIFY FINISH Add to List
U 630 Dull Stainless Steel N/C
SPECIFY LENGTH Add to List
36 For 36" Door N/C 42 For 42" Door 21.00 48 For 48" Door 42.00
SPECIFY OPTIONS Add to List
RRequest-To-Exit Output, SPDT 83.00 LLatch Status Output, SPDT 83.00
For 62 Series devices only:
LBR Less Bottom Rod,
for Panic Devices N/C LBRF Less Bottom Rod,
for Fire Rated devices N/C
S6100 Rim Mount
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
37
Exit Devices
Device Trim XK
Distributor
Discount Code
Optinal Door Strikes LIST
SPECIFY TRIM FUNCTION Add to List
Dummy Trim EK02, GK02, SP02 N/C
Key Retracts
Latchbolt
EK03, GK03, SP03 N/C
Key Locks/Unlocks
Lever
EK08, GK08 N/C
No Cylinder Lever
Always Active
EK14, GK14 N/C
SPECIFY TRIM FINISH Add to List
U 630 Dull Stainless Steel N/C
OPTIONS Add to List
CD Keyed dogging (Specify key cylinder separately)
(not available with (F) fire exit device) 21.00
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome,
incl. straight and clover cam 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome,
incl. straight and clover cam 32.00
RIM-CYL-KA 6-pin Rim Cylinder, Keyed Alike, Specially for 03 Function
Specifically For Trim EK03, GK03 and SP03 34.00
SPECIFY TRIM RIM AND VERTICAL ROD Add to List
Standard Trim
EK Eclipse GK Galaxy 233.00
SP Saturn 104.00
Standard Active and Dummy Trim
EK Eclipse
GK Galaxy
SP Saturn
EKE03 Eclipse style electric trim less mortise cylinder, Stainless Steel Finish 699.00
GKE03 Galaxy style electric trim less mortise cylinder, Stainless Steel Finish 699.00
Electric Trim Options
LS Locked/unlocked status, SPDT 3 Amp contact 83.00
EKE Eclipse
GKE Galaxy
ELECTRIC TRIM OPTIONS FOR SDC 6000 SERIES Add to List
ST1MP
For 6100P
ST1MF
For 6100F
Optional
for mullion
application
Projection: 7/8” (22.5mm)
71.00
ST2DF
Optional for pairs
of doors with rim
mount device.
KR90F
Standard Key
Removable Mullion
For Panic Exit and Fire Exit
Rim Mount Devices
Length: 8ft
Material: 2" 11 Gauge Steel Tube
Finish: Primer gray
Projection: 1-15/16” (49mm)
673.00
50.00
Removable Mullion LIST
FEATURES
• Failsecure, field reversible to failsafe
• 4 ft cable and connectors
• 600/300 mA @ 12/24VDC
• Rim cylinder required for 03
functions
• 1 key cylinder required for CD
option
• Mortise cylinder required for 08
functions and GKE03, EKE03
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
38
Exit Devices
SPECTRA SERIES EXIT DEVICE LIST
S63 Mortise [03 Lever Trim included] 1139.0 0
SPECIFY FUNCTION
01 Exit Only, No Trim N/C
02 Dummy Pull or Lever (opens when dogged) N/C
03 Entrance by trim when latch is released by key N/C
08 Lever with key locks/unlocks lever N/C
14 Lever trim always active N/C
SPECIFY PANIC OR FIRE RATED Add to List
PPanic exit device
Mechanical Dogging STD; See part # CD for optional key cylinder dogging
N/C
FFire exit device
Mechanical dogging not available
114.0 0
SPECIFY HAND
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
SPECIFY FINISH Add to List
U 630 Dull Stainless Steel N/C
SPECIFY LENGTH Add to List
36 For 36" Door N/C 42 For 42" Door 21.00 48 For 48" Door 42.00
SPECIFY OPTIONS Add to List
RRequest-To-Exit Output, SPDT 83.00 LLatch Status Output, SPDT 83.00
SPECIFY TRIM
EE Eclipse Escutheon GE Galaxy Escutheon N/C
S6300 Mortise
EE
GE
SPECTRA™ S6000 Touch Bar Exit Devices - MORTISE XK
Distributor
Discount Code
TRIM CYLINDER OPTIONS Add to List
CD Keyed dogging (Specify key cylinder separately)
(not available with (F) fire exit device) 21.00
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 32.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
39
Exit Devices
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
40
Exit Devices
Exit Check® - Delayed Egress All-In-One Device XK
Distributor
Discount Code
SPECIFY FUNCTION
01 Exit Only 02 Dummy 03 Nightlatch N/C
SPECIFY DEVICE LIST
S61 Rim mount exit device 621.00
S62 Surface Vertical - ROD GUARDS SUGGESTED 932.00
S63 Mortise [03 Lever Trim included] - specify: EE/GE Eclipse Escutheon/Galaxy Escutheon 1139.00
S68 Concealed Vertical 1035.00
SPECIFY PANIC OR FIRE RATED Add to List
PPanic N/C FFire 114.00
Rim Mount
SPECIFY HAND (Mortise Only)
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
U 630 Dull Stainless Steel N/C
SPECIFY FINISH
SPECIFY LENGTH Add to List
36 For 36" Door (standard) N/C 42 For 42" Door 21.00 48 For 48" Door 42.00
The Exit Check® All-In-One Device integrates our premium Spectra™ bar with SDCs innovative delayed egress electronics.
When unauthorized egress is innitiated by depressing the push pad of the S6000-101, an audible alarm will sound and an ir-
reversible delay period of 15 seconds will begin. After the delay period has expired, the device unlocks, permitting egress until
the device is reset. In a life safety emergencty, the device will immediatly unlock upon loss of power or when powered by a fire
control supervised power supply. Door contact included for anti tailgate and door prop.
APPLICATION INCLUDE:
• Restricting the egress of wandering patients for their own safety
• Restricting the egress of commercial center patrons for security application needs
• Controlling pedestrian traffic in transportation facilities, including airport jetways and tarmacs
• Reducing shoplifting and employee theft
Single: 24VDC @ 540 mA Pair: 24VDC @ 790 mA
Vertical Rod Mortise Concealed
Vertical Rod
FWAX
SPECIAL LOCKING
ARRANGEMENTS
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
41
Exit Devices
SPECIFY DELAYED EGRESS Add to List
SPECIFY POWER TRANSFER (For the entire line of Power Transfer, see page 84 and page 85) LIST
PTM-10AL (10) Cond.,5 Amp @ 12/24V AC/
DV, Alum US28
371.00 PTH-10Q (10) Cond.,1 Amp @ 12/24V
per pair, 4.5” x 4.5”
202.00
PT-5 UL Listed Concealed Power
Transfer Device, less wires
63.00 PT-3V Armored flex conduit, less
wires, with wire junction box
47.00
SPECIFY POWER SUPPLY (For the entire line of Power Suplies, see page 86) LIST
602RF 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box 270.00
631RF 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box 363.00
EK
GK
PTH x 5
Ft Cable
PTM Series
600 Series
Power Supply
602RF
(shown)
SPECIFY OPERATION
101 Electrification of master exit device and integrated controller with key switch control and
reset, less cylinder
1398.00
DES For pair of doors, additional exit device equipped with delayed egress mechanism, less
integrated controller. Must be ordered together with 101 device.
518.00
EKE
GKE
PT5 PT-3V
NC IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant
Fixed 15 exit delay, 1 or 2 second nuisance delay
Calif. Building Code OSHPD/Manual Power Up
N/C
ND IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant
Fixed 15 exit delay, 1 or 2 second nuisance delay
N/C
BC BOCA National Building Code and Chicago Building Compliant
15 second fixed exit delay, 0 second nuisance delay, auto reset 30 seconds after door closure
N/C
BD BOCA National Building Code
15 second fixed exit delay, 1 or 2 second nuisance delay, auto reset 30 seconds after
door closure
N/C
Note: 600 series Power Supply required with S6000-101 for UL listing
Exit Check® - Delayed Egress All-In-One Device XK
Distributor
Discount Code
SPECIFY TRIM (optional) Add to List
EK03U Eclipse Escutheon GK03U Galaxy Escutheon 233.00
EKE03U Eclipse style electric trim less mortise cylinder, Stainless Steel Finish 699.00
GKE03U Galaxy style electric trim less mortise cylinder, Stainless Steel Finish 699.00
Electric Trim
• Failsecure, field reversible to failsafe
• 4 ft cable and connectors
• 600/300 mA @ 12/24VDC
Mechanical Trim (less cylinder)
4 to 10
conductors
PUSH UNTIL ALARM
SOUNDS. DOOR CAN BE
OPENED IN 15 SECONDS
2
conductors
4
conductors
2
conductors
J-Box
2 to 10
conductors
602RF
Power
Supply
AC Mains
2 to 10
conductors
PUSH UNTIL ALARM
SOUNDS. DOOR CAN BE
OPENED IN 15 SECONDS
Power Transfer
Device or Hinge
DPS
(optional)
2
conductors
2
conductors
3
conductors
Single Door Pair of Doors
S6100-101 RIM DEVICE S6200-101 SURFACE
VERTICAL ROD DEVICE
DPS
(optional)
DPS
(optional)
FACP
Power Transfer
Device or Hinge
Power Transfer
Device or Hinge
631RF
Power
Supply
AC Mains
2
conductors
3
conductors
FACP
S61000-101 Rim Device
Single Door Application
S62000-101 Surface
Vertical Rod Device
Double Door Application
If no Code is specified - ND is the SDC STA N DARD OPERATIONS MODE for this product
S6200-101 S6200-DES
S6100-101
TRIM OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 32.00
RIM-CYL-KA Rim Cylinder for 03 Function, keyed alike -
see page 37 for more info
34.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
42
Exit Devices
EE Eclipse Escutheon GE Galaxy Escutheon N/C
NA IBC, IFC, NFPA compliant, Field Selectable 15 to 30 second Exit Delay, 1 or 2 Nuisance Delay N/C
NC IBC, IFC, NFPA 101, NFPA 1-UFC, UBC, SBC compliant, Fixed 15 second Exit Delay, 0/1 Nuisance Delay,
Calif. Building Code OSHPD/Manual Power Up
N/C
ND IBC, IFC, NFPA 101, NFPA 1-UFC, UBC, SBC compliant, Fixed 15 second Exit Delay, 0/1 Nuisance Delay N/C
BC BOCA National Building Code/City of Chicago Compliant, Fixed 15 second Exit Delay, 0 Nuisance Delay,
Auto Reset 30 seconds
N/C
BD BOCA National Building Code, Fixed 15 second Exit Delay, 0/1 Nuisance Delay, Auto Reset 30 seconds N/C
SPECIFY CONTROLER
Vertical Rod
Exit Device - Delayed Egress XK
Distributor
Discount Code
SPECIFY FUNCTION Add to List
01 Exit Only 02 Dummy 03 Nightlatch N/C
SPECIFY DEVICE LIST
S61 Rim mount exit device 621.00
S62 Surface vertical 932.00
S63 Mortise [03 Lever Trim included] - specify: EE/GE Eclipse Escutheon/Galaxy Escutheon 1139.00
SPECIFY PANIC OR FIRE RATED
PPanic N/C FFire 114.00
Mortise
SPECIFY HAND (Mortise Only)
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
U 630 Dull Stainless Steel N/C
SPECIFY FINISH
SPECIFY LENGTH
36 For 36" Door N/C 42 For 42" Door 21.00 48 For 48" Door 42.00
SPECIFY TRIM (Mortise Only)
EE
GE
Delay electronics packaged on a 3-gang wall plate for recessed wall mounting or surface wall mounting
with optional junction box. Features include: 15 second exit delay, 1 or 2 second nuisance delay, code
dependent exit delay and nuisance times. Keypad for violation reset, momentary bypass and on-off; Voice
Annunciation and digital countdown display with door open indicator. Status and remote control inputs are
standard Single: 24VDC @ 430 mA Tandem: 24VDC @ 680 mA
SPECIFY OPERATION
DE Electrification of master exit device and wall mount controller with keypad control and reset 1294.00
KDE Electrification of master exit device and wall mount controller with both keypad and key
switch control and reset, less cylinder - order cylinder seperte:
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome add 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome add 32.00
1398.00
DES For pair of doors, additional exit device equipped with delayed egress mechanism, less
controller. Must be ordered together with DE and device.
518.00
See page for features
DEC-J 3 Gang Interior - 101-DEC 94.00 SHD-J Shroud for outdoor Use DEC-J 94.00
SPECIFY OPTIONS FOR CONTROLER LIST
101-DE with SHD-J
DEC-J
101-KDE
Specify Trim for S61
and S62 - See page 35
Rim Mount
If no Code is specified - NA is the SDC STA N DARD OPERATIONS MODE for this product
TRIM OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 32.00
RIM-CYL-KA Rim Cylinder for 03 Function, keyed alike
- see page 37 for more info
34.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
43
Exit Devices
• LED (field selectable Active or Off) Bypass - No LED
• Armed - Blinks every 4 seconds (Green when armed,
Red when in alarm mode
• Low Battery Alert – Siren will beep every 45 seconds.
• 15 or 60 second arming delay
• Remote status output
• Field selectable alarm modes include:
› Continuous alarm with manual key reset
› Alarm automatically rearms 2 minutes after
door closes and may be retriggered.
May be manually rearmed by key before
automatically rearmed.
Options
AR6 6 or 10 minute alarm with auto rearm
and manual key reset.
AR20 20 minute alarm with auto rearm
and manual key reset
AD1 1 second arming delay
Exit Devices - Alarmed Exit XK
Distributor
Discount Code
SPECIFY EXIT ALARM
AExit Alarm, 9V Battery Powered 414.00
BExit Alarm with 12/24V AC/DC input (9V battery provides power backup) 456.00
Vertical Rod
SPECIFY FUNCTION Add to List
01 Exit Only 03 Nightlatch N/C
SPECIFY DEVICE LIST
S61 Rim mount exit device 621.00
S62 Surface vertical 932.00
S63 Mortise [03 Lever Trim included] - specify: EE/GE Eclipse Escutheon/Galaxy Escutheon 1139.0 0
SPECIFY PANIC OR FIRE RATED
PPanic N/C FFire 114.00
Rim Mount
Mortise
SPECIFY HAND (Mortise Only)
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
SPECIFY FINISH
U 630 Dull Stainless Steel N/C
SPECIFY LENGTH
36 For 36" Door N/C 42 For 42" Door 21.00 48 For 48" Door 42.00
SPECIFY TRIM (Mortise Only)
EE Eclipse Escutheon GE Galaxy Escutheon N/C
SPECIFY POWER TRANSFER (For the entire line of Power Transfer, see page 84 and page 85) LIST
PTM-2AL Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DV, Aluminum Powder Coat, US28 equivalent
371.00
PTH-4Q Four (4) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair, 4.5” x 4.5” standard weight, 626 Dull Chrome
156.00
SPECIFY POWER SUPPLY (For the entire line of Power Suplies, see page 86) LIST
602RF 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box 270.00
631RF 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box 363.00
EE
GE
PTH x 5 Ft Cable
PTM Series
600 Series Power Supply
602RF (shown)
TRIM OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 32.00
RIM-CYL-KA Rim Cylinder for 03 Function, keyed alike
- see page 37 for more info
34.00
Specify Trim for
S61 and S62 -
See page 35
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
44
Exit Devices
HiTower Pro® S6303FH Electrified Mortise Exit Device XK
EE03 Eclipse
GE03 Galaxy
See SDC power
supplies with fire
command interface
for emergency release
of exit device
G03 Galaxy
E03 Eclipse
SPECIFY HEAD COVER & PUSH PAD FINISH
Push bar base finish anodized aluminum
U 630 Dull Stainless Steel (std) N/C
SPECIFY LENGTH
36 For 36" Door (std) N/C
42 For 42" Door 42.00 48 For 48" Door 83.00
SPECIFY HAND
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
ACTUATOR VOLTAGE AND FRAME SIZE Add to List
A115VAC 0.2 Amp N/C D115VAC 0.2 Amp 125.00
B24VAC 0.5 Amp N/C E24VAC 0.5 Amp 125.00
C24VDC 0.5 Amp N/C F24VDC 0.5 Amp 125.00
Failsafe actuator for 1-3/4" to 2" face frames Narrow failsafe actuator for 1-1/4" to 1-1/2" face frames
SPECTRA SERIES EXIT DEVICE LIST
S6303FH Fire rated mortise exit device with electric frame actuator, key retracts latch 1920.00
OPTIONAL STATUS OUTPUTS
LLatch position status output, SPDT, 3 Amp 63.00
SLatch & deadlocked status output, SPDT, 3 Amp 104.00
SC10 Socket connectors with 10ft. cable, power wiring only 63.00
SC10-5 Socket connectors with 10ft. cable for power and options 80.00
SPECIFY TRIM
EE03 Eclipse x Escutcheon GE03 Galaxy x Escutcheon NE03 Nova x Escutcheon N/C
E03 Eclipse G03 Galaxy N03 Nova N/C
SPECIFY TRIM FINISH
U 630 Dull Stainless Steel (std) N/C
NE03 Nova
N03 Nova
Distributor
Discount Code
Electric Frame Actuator Controlled Exit Device
FEATURES
• Fire rated exit device
• Failsafe, unlocks by access control, power
loss or signal from fire command center
• For use with fire rated exit and stairwell doors
• Door stays latched even when unlocked
• All wiring maintained in the strike jamb
• Complies with all national codes
• No power transfer hinge
TRIM OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 32.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
45
Exit Devices
Failsafe actuator for 1-3/4" to 2" face frames Narrow failsafe actuator for 1-1/4" to 1-1/2" face frames
SPECIFY FUNCTION Add to List
01 Exit Only 03 Nightlatch N/C
SPECIFY DEVICE LIST
S63 Mortise [03 Lever Trim included] - specify: EE/GE Eclipse Escutheon/Galaxy Escutheon 1139.0 0
SPECIFY PANIC OR FIRE RATED
PPanic N/C FFire 114.00
SPECIFY HAND (Mortise Only)
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
SPECIFY FINISH
U 630 Dull Stainless Steel N/C
SPECIFY LENGTH
36 For 36" Door N/C 42 For 42" Door 21.00 48 For 48" Door 42.00
SPECIFY TRIM
EE Eclipse Escutcheon GE Galaxy Escutcheon N/C
SPECIFY FAILSAFE OR FAILSECURE
MF Failsafe Electric Mortise Exit Device 207.00
MS Failsecure Electric Mortise Exit Device 207.00
Exit Device - Electrified Mortise XK
Distributor
Discount Code
Remains latched when unlocked for fire door integrity. Failsafe (F) fire rated device for stairwell doors,
power loss or signal from fire command center releases failsafe device immediatly. Complies with
national building and fire codes
Voltage: 12/24VDC @ 600/300 mA
EE
GE
PTH x 5 Ft Cable
PTM Series
SPECIFY POWER SUPPLY (For the entire line of Power Suplies, see page 86) LIST
602RF 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box 270.00
631RF 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box 363.00
SPECIFY POWER TRANSFER (For the entire line of Power Transfer, see page 84 and page 85) LIST
PTM-2AL Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DV, Aluminum Powder Coat, US28 equivalent
371.00
PTH-4Q Four (4) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair, 4.5” x 4.5” standard weight, 626 Dull Chrome
156.00
SPECIFY OPTIONS LIST
DDoor Position, MC-4 Door Contact 52.00
LLatch Position Status Output 83.00
RRequest-To-Exit Output 83.00
600 Series Power Supply
602RF (shown)
TRIM OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 32.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
46
Exit Devices
SPECIFY ELECTRIC DOGGING
When energized by optional built-in (KS) or remote switch, manual depressing the pushpad
causes the pushpad and latch to remain retracted (unlocked) providing push-pull door
operation. When de-energized or signaled by a fire alarm, the pushpad and latch are released.
Voltage: 12/24VDC @ 170/100 mA
GElectric Dogging 466.00
Vertical Rod
Exit Device - Electric Dogging XK
Distributor
Discount Code
SPECIFY FUNCTION Add to List
01 Exit Only 02 Dummy 03 Nightlatch N/C
SPECIFY DEVICE LIST
S61 Rim mount exit device 621.00
S62 Surface vertical 932.00
S63 Mortise [03 Lever Trim included] - specify: EE/GE Eclipse Escutheon/Galaxy Escutheon 1139.00
SPECIFY PANIC OR FIRE RATED
PPanic N/C FFire 114.00
Rim Mount
Mortise
SPECIFY HAND (Mortise Only)
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
SPECIFY FINISH
U 630 Dull Stainless Steel N/C
SPECIFY LENGTH
36 For 36" Door N/C 42 For 42" Door 21.00 48 For 48" Door 42.00
SPECIFY TRIM (Mortise Only)
EE Eclipse Escutheon GE Galaxy Escutheon N/C
SPECIFY POWER TRANSFER (For the entire line of Power Transfer, see page 84 and page 85) LIST
PTM-2AL Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DV, Aluminum Powder Coat, US28 equivalent
371.00
PTH-4Q Four (4) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair, 4.5” x 4.5” standard weight, 626 Dull Chrome
156.00
SPECIFY POWER SUPPLY (For the entire line of Power Suplies, see page 86) LIST
602RF 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box 270.00
631RF 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box 363.00
EE
GE
PTH x 5 Ft Cable
PTM Series
Options
KS Built-in key switch 83.00
L1 Dogged Status Indicator, less cylinder, green = dogged (unlocked) 38.00
600 Series Power Supply
602RF (shown)
TRIM OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 32.00
RIM-CYL-KA Rim Cylinder for 03 Function, keyed alike
- see page 37 for more info
34.00
Specify Trim for S61
and S62 - See page 35
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
47
Exit Devices
Momentary or maintained latch bolt and push pad retraction, with simultaneous dogging.
Automatic re-triggering of latch retraction
Voltage: 24VDC @ 700 mA activation, 200 mA continuous
Vertical Rod
Exit Device - Electric Latch Retraction/Dogging XK
Distributor
Discount Code
SPECIFY FUNCTION Add to List
01 Exit Only 02 Dummy 03 Nightlatch N/C
SPECIFY DEVICE LIST
S61 Rim mount exit device 621.00
S62 Surface vertical 932.00
S63 Mortise [03 Lever Trim included] - specify: EE/GE Eclipse Escutheon/Galaxy Escutheon 1139.00
SPECIFY PANIC OR FIRE RATED
PPanic N/C FFire 114.00
Rim Mount
Mortise
SPECIFY HAND (Mortise Only)
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
SPECIFY FINISH
U 630 Dull Stainless Steel N/C
SPECIFY LENGTH
36 For 36" Door N/C 42 For 42" Door 21.00 48 For 48" Door 42.00
SPECIFY ELECTRIC LATCH RETRACTION
EDual Electric Latch Retraction and Dogging 725.00
EM External Module Dual Electric Latch Retraction/Dogging 777.00
SPECIFY POWER TRANSFER (For the entire line of Power Transfer, see page 84 and page 85) LIST
PTM-2AL Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DV, Aluminum Powder Coat, US28 equivalent
371.00
PTM-10AL Ten (10) Conductor Power Transfer Device: Ten (10) 24 Ga. wire
1 Amp @ 12/24V AC/DC, Aluminum Powder Coat, US28 equivalent
371.00
PTH-4Q Four (4) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair, 4.5” x 4.5” standard weight, 626 Dull Chrome
156.00
PTH-10Q Ten (10) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair, 4.5” x 4.5” standard weight, 626 Dull Chrome
202.00
SPECIFY TRIM (Mortise Only)
EE Eclipse Escutheon GE Galaxy Escutheon N/C
SPECIFY POWER SUPPLY (For the entire line of Power Suplies, see page 86) LIST
602RF 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box 270.00
631RF 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box 363.00
EMC Sequencer Module (For other Modules and pairs of doors see page 84)156.00
EE
GE
PTH x 5 Ft Cable
PTM Series
EM
E
SDC 600 Series
Power Supply
600 Series Power Supply
602RF (shown)
Specify Trim for S61
and S62 - See page 35 TRIM OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 32.00
RIM-CYL-KA Rim Cylinder for 03 Function, keyed alike
- see page 37 for more info
34.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
48
Exit Devices
RIM DEVICES STANDARD STRIKES SURFACE / Standard VERTICAL ROD DEVICES Strike
REMOVABLE MULLION List
EXIT DEVICE STRIKES XK
ST1P
Standard for
S6100P
ST1MP
For 6100P
ST3F
Standard for
S6300F
ST1MF
For 6100F
ST3P
Standard for
S6300P
ST1F
Standard for
S6100F
ST2P
Standard top
strike for
S6200P
ST28P
Standard floor
strike for
S6200P
ST2F
Standard top
strike for
S6200F
ST2DF
Optional for pairs
of doors with rim
mount device.
KR90F
Standard Key
Removable Mullion
Less Key Cylinder
For Panic Exit and
Fire Exit Rim Mount
Devices.
Length: 8ft
Material: 2" 11 Gauge
Steel Tube
Finish: Primer gray
ST28F
Standard floor
strike for
S6200F
Optional for
mullion
application
For use on
1-3/4” stan-
dard or 2-1/4”
thick single
door , and
2-1/4” double
door with
overlapping
astragal and
coordinator
Projection: 13/16” (21mm)
Projection: 13/16” (21mm)
Projection: 29/32” (23mm)
Projection: 1-1/8” (29mm)
Projection: 1-15/16” (49mm)
Mortise: 2-1/4” (57mm)
Projection: 7/8” (22.5mm)
Rim Strikes List Top Strikes List Bottom (Floor) Strikes List
Optional Mullion Strike List
Optional Threshold Strikes List
ST28T
Optional floor
strike for using
threshold
openings
Projection: 3/8” (9.5mm)
15.00
673.00
50.00
71.00
MORTISE STRIKE List OPTIONAL DOUBLE DOOR STRIKE List
Distributor
Discount Code
RIM-CYL-KA 34.00
Rim Cylinder, keyed alike
- see page 37 for more info
OPTIONAL CYLINDER List
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
49
Exit Devices
Distributor
Discount Code
QUIET DUO™ LR100 700mA Dual Latch Retraction / Dogging Kit XK
SDC Factory Installed Kits are UL Listed and Field Retrofit Kits are UL Classified
For use with 3Hr fire rated and non-fire rated mechanical exit devices.
Only 700mA inrush / 200mA continuous @ 24VDC provides simultaneous latch retraction,
dogging with pushpad depression unless specified otherwise.
Distributor
Discount Code
CSFM, MEA
Listed
LR100 Series
SDC 600 Series
Power Supply
LR100EM
Series
Rim Device Surface Vertical
Device
Concealed Vertical
Device
Mortise Device
DEVICE
DEVICE
END RAIL
END RAIL
33”
32”
18” TYP TOUCH PAD
11-1/4”
8-1/2”
29-1/4”
28”
LR100VD
LR100VD-EM
Standard Opening Width 36"
32" Opening (36" Device Modified for 32" Opening)
DEVICE
DEVICE
END RAIL
END RAIL
33”
32”
18” TYP TOUCH PAD
11-1/4”
8-1/2”
29-1/4”
28”
LR100VD
LR100VD-EM
Measurements above are example only - all devices vary
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
50
Exit Devices
Design Hardware Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100DHK 625.00 LR100DH 675.00
Models
Rim Mount 1000R
Surface Vertical Rod 1000V
Corbin Russwin ED Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100CRK 625.00 LR100CR 675.00
30"
LR100CRK-EM
675.00 LR100CR-EM 725.00
42" - 48"
LR100CRK-42/48
625.00
LR100CR-42/48
675.00
Models
Rim Mount ED5200 / ED4200
Surface Vertical Rod ED5400
Concealed Vertical Rod ED4800 / ED5800
Options
LRCR1L Latch Status Kit 104.00
LRCR1R REX Status Kit 104.00
Dorma Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100DAK 625.00 LR100DA 675.00
Models
Rim Mount 9300 / F9300
Surface Vertical Rod 9400 / F9400
Detex Exit Device
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100DXK 625.00 LR100DX 675.00
Models
Rim Mount 10 / 40 Series
Surface Vertical Rod 20 / 50 Series
Concealed Vertical Rod 80 / 81 / 62 / 63 Series
Options
LRDX1R REX Status Kit 104.00
Arrow 1000 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" - 48" LR100AWK 625.00 LR100AW 675.00
Models
Rim Mount S1250
Surface Vertical Rod S1150
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"
LR100AWK-ED910
625.00
LR100AW-ED910
675.00
Models
Rim Mount ED910
Cal-Royal Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100CAK 625.00 LR100CA 675.00
Models
Rim Mount 7700 / F7700
Surface Vertical Rod 7760 / F7760
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"
LR100CAK-9800
625.00 LR100CA-9800 675.00
Models
Rim Mount GLS9800
Concealed Vertical Rod GLSCVR9800
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"
LR100CAK-EM
675.00 LR100CA-EM 725.00
Models
Rim Mount 2200 / F2200 / 9800 / F9800
Surface Vertical Rod 2260 / F2260 / 9860 / F9860
QUIET DUO™ LR100: Product Compatibility
* Note: Retracts only the latch ‡ use with EM version ONLY
Adams Rite Exit Device
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" LR100ARK 625.00 LR100AR 675.00
30"
LR100ARK-EM
675.00 LR100AR-EM 725.00
Models
Rim Mount 8700 ‡ / 8800 / 3700
Surface Vertical Rod 8100 / 8200 / 3100
Concealed Vertical Rod 8500 / 8600 / 3600
Options
LRAR1R REX Status Kit 104.00
Falcon 24/25 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100FRK 625.00 LR100FR 675.00
Models
Rim Mount 25-R / F-25-R / 24-R / F-24-R
Surface Vertical Rod 25-V / F-25-V / 24-V / F-24-V
Concealed Vertical Rod 25-C / F-25-C / 24-C / F-24-C
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
51
Exit Devices
Hager 4500 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" LR100HK 625.00 LR100H 675.00
30" LR100HK-EM 675.00 LR100H-EM 725.00
Options
LRH1L Latch Status Kit 104.00
LRH1R Pushpad/Dogging Status or REX
Status Kit
104.00
Models
Rim Mount 4501 - Rim
Surface Vertical Rod 4501 - SVR
Marshall Best Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100MBSK 625.00 LR100MBS 675.00
30”
LR100MBSK-EM
675.00
LR100MBS-EM
725.00
Models
Rim Mount Q1100/QF1100
Surface Vertical Rod Q1200/QF1200
IDC (International Door Closers)
8000 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" LR100IDCK 625.00 LR100IDC 675.00
30"
LR100IDCK-EM
675.00
LR100IDC-EM
725.00
Models
Rim Mount 8610 / 8810 / 8510 / 8710
Surface Vertical Rod 8630 / 8830 / 8530 / 8730
Mortise 8620 / 8820
Concealed Vertical Rod 8650 / 8850 / 8550 / 8750
Options
LRIDC1L Latch Status Kit 104.00
LRIDC1R Pushpad/Dogging Status or REX
Status Kit
104.00
PDQ Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" - 48” LR100PDQK 625.00 LR100PDQ 675.00
Models
Rim Mount 6200R
Surface Vertical Rod 6200V
Pamex Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" LR100PAK 625.00 LR100PA 675.00
30"
LR100PAK-EM
675.00
LR100PA-EM
725.00
Models
Rim Mount EF9000
Surface Vertical Rod EF9000V
Concealed Vertical Rod EF9020V
QUIET DUO™ LR100: Product Compatibility
Jackson 2000 Series Exit Devices ** 1A Inrush
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100JAK** 750.00 LR100JA** 675.00
Models
Rim Mount 2095
Concealed Vertical Rod (Top Latch) 2085
Concealed Vertical Rod (Top Bolt) 2086
Marks Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100MDK 625.00 LR100MD 675.00
Models
Rim Mount M9900
Surface Vertical Rod M9900VR
Parts Provided: 628 Finish Only
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100DMK 625.00 LR100DM 675.00
Models
Rim Mount 1590
Concealed Vertical Rod 1490
Falcon Dor-O-Matic Exit Devices ** 1A Inrush
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100FAK** 625.00 LR100FA** 675.00
30"
LR100FAK-EM**
675.00 LR100FA-EM** 725.00
Models
Rim Mount 1790
Concealed Vertical Rod 1690
First Choice Exit Devices ** 1A Inrush
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100FCK** 625.00 LR100FC** 675.00
30"
LR100FCK-EM**
675.00 LR100FC-EM** 725.00
Models
Rim Mount 3700
Concealed Vertical Rod 3600
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
52
Exit Devices
Stanley K2 QED Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" LR100K2K 625.00 LR100K2 675.00
30"
LR100K2K-EM
675.00 LR100K2-EM 725.00
Models
Rim Mount QED111
Surface Vertical Rod QED114
Concealed Vertical Rod QED124
Options
LRK2R Latch Status and REX Status or
Pushpad/Dogging Status Kit
104.00
Tell Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100TEK 625.00 LR100TE 675.00
Models
Rim Mount 9500
Surface Vertical Rod 9400
TownSteel ED1100 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100TSK 625.00 LR100TS 675.00
30"
LR100TSK-EM
675.00 LR100TS-EM 725.00
Models
Rim Mount ED1100
Surface Vertical Rod ED1200
Concealed Vertical Rod ED1300
Options
LRTS1R REX Status or Pushpad/Dogging
Status Kit
104.00
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"
LR100TSK-55/56
675.00
LR100TS-55/56
725.00
Models
Rim Mount ED5500
Surface Vertical Rod ED5600
Options
LRTS2R REX Status or Pushpad/Dogging
Status Kit for ED5500
104.00
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"
LR100TSK-65/67
675.00
LR100TS-65/67
725.00
Models
Rim Mount ED6500
Concealed Vertical Rod ED6700
QUIET DUO™ LR100: Product Compatibility
SDC 6000 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"-48" LR100SDCK 625.00 LR100SDC 675.00
30"
LR100SDCK-EM
675.00 LR100SDC-EM 725.00
Options
LRSDC1L Latch Status Kit 104.00
LRSDC1R Pushpad/Dogging Status or REX
Status Kit
104.00
Models
Rim Mount S6100
Surface Vertical Rod S6200
Mortise S6300
Concealed Vertical Rod S6800
Sargent Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" LR100SGK 625.00 LR100SG 675.00
30"
LR100SGK-EM
675.00 LR100SG-EM 725.00
Models
Rim Mount 8500 / 8800
Surface Vertical Rod 8700
Concealed Vertical Rod 8400 / 8600
Mortise 8300 / 8900
Options
LRSG2R Pushpad/Dogging Status or REX
Status Kit
104.00
PHI (Precision Hardware) Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100PDK 625.00 LR100PD 675.00
Options
LRP1L Latch Status Kit for PHI Rim 2000
Series
104.00
LRP2L Latch Status Kit for PHI Vertical
Rod 2000 Series
104.00
LRP1R REX Status or Pushpad/Dogging
Status for PHI 2000 Series
104.00
Models
Rim Mount 2100 / 2400
Surface Vertical Rod 2200 LBR
Concealed Vertical Rod 2800 LBR / 2600
Rim Mount 5100
Surface Vertical Rod 5200 LBR
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
53
Exit Devices
Options
LRVD1L Latch Status Kit 104.00
LRVD2R REX Status or Pushpad/Dogging
Status Kit
104.00
Von Duprin 22 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" - 48" LR100VDK-22 625.00 LR100VD-22 675.00
30"
LR100VDK-22-EM
675.00
LR100VD-22-EM
725.00
Models
Rim Mount 22
Surface Vertical Rod 2227
Note: Please check SDCsecurity.com
regularly for new releases
in this product line
* Note: Retracts only the latch
Yale 7000 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100YDK 625.00 LR100YD 675.00
30"
LR100YDK-EM
675.00 LR100YD-EM 725.00
42" - 48"
LR100YDK-42/48
625.00
LR100YD-42/48-EM
675.00
Options
LRY1L Latch Status Kit 104.00
LRY1R REX Status Kit 104.00
Models
Rim Mount 7100 / 7100-2 / 7200
Surface Vertical Rod 7110 / 7210
Concealed Vertical Rod 7120 / 7220
Von Duprin 98/99 and 33/35 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" LR100VDK 625.00 LR100VD 675.00
30"
LR100VDK-EM
675.00 LR100VD-EM 725.00
Models
Rim Mount 98 / 99 33A / 35A
Surface Vertical Rod 9827 / 9927 3327A / 3527A
Concealed Vertical Rod 9847 / 9947 3347A / 3547A
Mortise 9875 / 9975
Three Point latching 9857 / 9957
Options
LRVD1L Latch Status Kit for Von Duprin
98/99 Series
104.00
LRVD2L Latch Status Kit for Von Duprin
33/35 Series
104.00
LRVD1R REX Status or Pushpad/Dogging
Status Kit for Von Duprin 98/99
and Von Duprin 33/35 Series
104.00
602RF 1 Amp Power Supply, UL Listed 294, for 1 or 2 exit devices 270.00
632RF 2 Amp Power Supply, UL Listed 294 for 3 or 4 exit devices 414.00
EMC 2 Station Automatic Door Sequence; Each EMC provides interface and sequencing for two
single or one double automatic door. 156.00
PTH-4Q 4-wire Electric Hinge, 1 Amp max. UL 10B 156.00
PTH-4QDPS 4-wire, Electric Hinge 1 Amp max. UL 10B. With concealed Door Status Contact 207.00
PTH-2+4Q 6-wire Electric Hinge 1-pair 16 Amp inrush, 4 Amp continuous; 2-pair 1 Amp @ 12/24V 182.00
PTH-10Q Te n ( 10 ) Co nd uc t or Po w er Tr an sf e r H in g e, 1 A m p @ 12 / 24 V p er p ai r 202.00
PT-5 Concealed mortise power transfer device, UL 10B Fire Door Accessory 63.00
PT-3V Stainless steel door loop with surface wire junction 47.00
PTM-2AL Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DC, Aluminum Powder Coat, US28 equivalent
371.00
PTM-2BZ Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DC, Dark Brown Powder Coat, US10B equivalent
371.00
PTM-10AL Ten (10) Conductor Power Transfer Device: Ten (10) 24 Ga. wire
1 Amp @ 12/24V AC/DC, Aluminum Powder Coat, US28 equivalent
371.00
PTM-10BZ Ten (10) Conductor Power Transfer Device: Ten (10) 24 Ga. wire
1 Amp @ 12/24V AC/DC, Dark Brown Powder Coat, US10B equivalent
371.00
400U-L2 Two LEDs. Specify lens color. Standard Finish, on 1 Gang plate 47.00
400NU-L2 Two LEDs. Specify lens color. Standard Finish, on narrow plate 47.00
ACCESSORIES List
602RF
see page 39
PTH-4Q
see page 39
PTM
see page 39
400NU-L2
see page 39
QUIET DUO™ LR100: Product Compatibility
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
54
Exit Devices
Distributor
Discount Code
QUIET DUO™ IP100 12V PoE-Capable Latch Retraction / Dogging Kit XK
SDCs IP100 Power over Ethernet Capable Electric Latch Retraction Kit enables electric
access control and dogging of mechanical exit devices. When energized the motor retracts
the exit device latch and pulls the pushpad into the dogged (depressed)* position enabling
momentary or sustained push and pull operation of the door. 12VDR @ 700/110 mA
The latch retraction mechanism may be activated by an access control, remote control device or
building automation system. The exit device always provides uninhibited egress.
* Except where noted for latch retraction only
Distributor
Discount Code
CSFM, MEA
Listed
IP100 Series
Models
Rim Mount 8700 / 8800 / 3700
* Note: Retracts only the latch
Adams Rite Exit Device
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" IP100ARK 625.00 IP100AR 675.00
Options
LRCR1L Latch Status Kit 104.00
LRCR1R REX Status Kit 104.00
Corbin Russwin ED Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" IP100CRK 625.00 IP100CR 675.00
* Note: Retracts only the latch
Models
Rim Mount ED5200 / ED4200
Falcon 24/25 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" IP100FRK 625.00 IP100FR 675.00
Models
Rim Mount 25-R / F-25-R / 24-R / F-24-R
Hager 4500 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" IP100HK 625.00 IP100H 675.00
Options
LRH1L Latch Status Kit 104.00
LRH1R Pushpad/Dogging Status or REX Status Kit 104.00
Models
Rim Mount 4501 - Rim
Surface Vertical Rod 4501 - SVR
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
55
Exit Devices
SDC 6000 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"-48" IP100SDCK 625.00 IP100SDC 675.00
Options
LRSDC1L Latch Status Kit 104.00
LRSDC1R Pushpad/Dogging Status or REX Status Kit 104.00
Models
Rim Mount S6100
Surface Vertical Rod S6200
* Note: Retracts only the latch
Options
LRY1L Latch Status Kit 104.00
LRY1R REX Status Kit 104.00
Yale 7000 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" IP100YDK 625.00 IP100YD 675.00
Models
Rim Mount 7100 / 7102 / 7200
Sargent Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" IP100SGK 625.00 IP100SG 675.00
30" IP100SGK-EM 675.00 IP100SG-EM 725.00
Models
Rim Mount 8800
Surface Vertical Rod 8700
Options
LRSG1R REX Status Kit 104.00
* Note: Retracts only the latch
Von Duprin 98/99 and 33/35 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" IP100VDK 625.00 IP100VD 675.00
42" - 48"
IP100VDK-42/48
625.00 IP100VD-42/48 675.00
Models
Rim Mount 98 / 99 33A / 35A
Surface Vertical Rod 9827 / 9927 3327A / 3527A
Options
LRVD1L Latch Status Kit for Von Duprin 98/99 Series 104.00
LRVD2L Latch Status Kit for Von Duprin 33/35 Series 104.00
LRVD1R REX Status or Pushpad/Dogging Status Kit
for Von Duprin 98/99 and 33/35 Series
104.00
* Note: Retracts only the latch
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
56
Electric Bolt Locks
V 628 Aluminum Finish (standard) N/C
Y335 Black 38.00
SPACESAVER® Mortise Bolt Locks Fit 1-3/4" Frames AK LIST
Distributor
Discount Code
FS23MIV Dual failsafe 373.00
1091AIV Failsafe 363.00
1091ADLIV Dead locking, failsafe 430.00
1291AHV Failsecure 430.00
1490AIV Fits 1-1/2" frame (non UL), failsafe 430.00
2490AHV Failsecure. Fits 1-1/2" frame (non UL), failsecure 508.00
1091A
1091ADL
1291A
Plated Architectural Finishes
Special order - no cancellations, no return
C605 Bright Brass 81.00
D606 Dull Brass 81.00 P625 Bright Chrome 81.00
F611 Bright Bronze 81.00 Q626 Dull Chrome 81.00
G612 Satin Bronze 81.00 U630 Stainless Steel 81.00
H613 Oil Rubbed Bronze 81.00
Dimensions: 8"L x 1-1/2"W x 1-5/8"D
FS/1090/1490 Dual Voltage Coil: 900/450 mA @ 12/24 VDC
1290/2490 Dual Voltage Coil: 900/450 mA @ 12/24 VDC 3773-0324:001
CSFM
Auxiliary Locks
UL10C Positive Pressure Compliant
UBC Classified in accordance with Uniform Building
Code standard 7-2 “Fire Test for Door Assemblies”
BBolt position sensor, SPDT 57.00
DDoor position sensor, SPDT 57.00
OPTIONS Add to List
FS23M
SPECIFY MODEL List
SPECIFY FINISH Add to List
SPACESAVER® Mortise Bolt Locks FOR WOOD FRAMES AK LIST
Distributor
Discount Code
V 628 Aluminum Finish (standard) N/C
Y335 Black 38.00
1091AIWD Failsafe 12/24VDC, with 8-1/2” x 1-1/2” x 1/8” faceplate 443.00
1091ADLWDI Failsafe Deadlocking 12/24VDC, with 8-1/2” x 1-1/2” x 1/8” faceplate 510.00
1190AWD Failsafe Heavy Duty 24VDC, Stainless Steel Finish ONLY 510.00
1291AHWD Failsecure 12/24VDC, with 9” x 1-1/2” x 1/8” faceplate 510.00
Plated Architectural Finishes
Special order - no cancellations, no return
C605 Bright Brass 81.00
D606 Dull Brass 81.00 P625 Bright Chrome 81.00
F611 Bright Bronze 81.00 Q626 Dull Chrome 81.00
G612 Satin Bronze 81.00 U630 Stainless Steel 81.00
H613 Oil Rubbed Bronze 81.00
BBolt position sensor, SPDT 57.00
DDoor position sensor, SPDT 57.00
OPTIONS Add to List
SPECIFY MODEL List
SPECIFY FINISH Add to List
1091AIWD
1091ADLWDI
1190AWD
1291AHWD
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
57
Electric Bolt Locks
1190AU Failsafe 430.00
2090AU Failsecure 534.00
Standard Finish: U 630 Dull Stainless Steel
Specialty Lock Applications available by request
Distributor
Discount Code
1190A Failsafe: 0.7Amp @ 24VDC
2090A Failsecure: 2.5 Amp In rush, 0.4 Amp seated @ 24VDC
OPTION Add to List
BBolt position sensor, SPDT 57.00
DDoor position sensor, SPDT 57.00
Auxiliary Locks
UL10C Positive Pressure Compliant
UBC Classified in accordance with Uniform Building
Code standard 7-2 “Fire Test for Door Assemblies”
Heavy Duty SPACESAVER® Mortise Bolt Locks AK LIST
Distributor
Discount Code
1190A
Distributor
Discount Code
1091ADMR/1091ADDMR Failsafe: 12/24 VDC @ 0.9/0.45 mA (max)
1291ADMR/1291ADDMR Failsecure: 12/24 VDC @ 0.9/0.45 mA (max)
OPTION Add to List
BBolt position sensor, SPDT 57.00
DDoor position sensor, SPDT 57.00
Mechanical Release SPACESAVER® Mortise Bolt Locks AK LIST
Distributor
Discount Code
Standard Finish: V 628 Clear Anodized Aluminium
Specialty Lock Applications available by request
KEY CYLINDER OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 32.00
1091ADMR
1091ADMR Failsafe, Single Mechanical Release 650.00
1291ADMR Failsecure, Single Mechanical Release 650.00
1091ADDMR Failsafe, Double Mechanical Release 850.00
1291ADDMR Failsecure, Double Mechanical Release 850.00
Mortise Cylinders Not Included, order separately
1091ADDMR
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
58
Electric Bolt Locks
180/280
Surface Mount Bolt Locks AK LIST
Dimensions: 6" L x 2" W x 2" H
180 Dual Voltage Coil: 900/450 mA @ 12/24 VDC
280 Dual Voltage Coil: 900/450 mA @ 12/24 VDC
LOCK
LOCK
STRIKE
END VIEW
STRIKE
LOCK
LOCK
STRIKE
END VIEW
STRIKE
Surface Mount
Outswing Door
MODEL
180AIV Surface mount, failsafe, with auto relock, Aluminum standard 270.00
280AHV Surface mount, failsecure with auto relock, Aluminum standard 270.00
SPECIFY ADD-ON Add to List
DExternal recessed magnetic (3/4”, SPDT, 30VDC, 50mA) MC-4 50.00
Top Jamb
Inswing or Sliding
Door
Distributor
Discount Code
110
210
160
260
5" depth required
110IV 2-3/4” x 1-1/4” Face plate, less auto relock switch, failsafe
V 628 Aluminum (standard)
187.00
210HV 2-3/4” x 1-1/4” Face plate, less auto relock switch, failsecure
V 628 Aluminum (standard)
187.00
160IV 4-7/8” x 1-1/4” Face plate with auto relock switch, failsafe
V 628 Aluminum (standard)
249.00
260HV 4-7/8” x 1-1/4” Face plate with auto relock switch, failsecure
V 628 Aluminum (standard)
249.00
Conventional Mortise Bolt Locks AK LIST
110/160 Dual Voltage Coil: 900/450 mA @ 12/24 VDC
210/260 Dual Voltage Coil: 900/450 mA @ 12/24 VDC
Mortise strike standard.
Distributor
Discount Code
MC-4 External recessed magnetic (3/4”, SPDT, 30VDC, 50mA) 50.00
SPECIFY ADD-ON Add to List
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
59
Electric Bolt Locks
PD2090A
MODEL
PD2090ALCU LH/RHR failsecure 534.00
PD2090ARCU RH/LHR failsecure 534.00
Standard Finish: U 630 Dull stainless steel
Auxiliary Locks
Paniclok Exit Device Release AK LIST
Gate Locks AK LIST
GL163A
GL263A
Designed for outdoor installation on swinging or sliding gates, Black Finish. Specify swinging or sliding gate
12/24VDC 900/450 mA 12/24 VDC 900/450 mA
GL160AI Failsafe 854.00 GL260AH Failsecure 854.00
GL163AI Key switch, failsafe 916.00 GL263AH Key switch, failsecure 916.00
GL260MRAH Mechanical key unlock, failsecure 958.00
Key cylinder not included
DGate position sensor SPDT for gate lock (GL series) 83.00
BBolt position sensor, SPDT for gate lock 83.00
BR64XL Rectifier for AC operation 26.00
OPTIONS Add to List
REPLACEMENT SOLENOIDS HK
Go to http://sdcsecurity.com/Solenoids for solenoid replacement information
Distributor
Discount Code
Distributor
Discount Code
Distributor
Discount Code
For Dor-O-Matic and Kawneer Exit Device
Voltage: 24VDC, 2.5 A Inrush, .4A seated
SPECIFY HAND - for convenience, eld reversible
RH Right hand LH Left hand N/C
KEY CYLINDER OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 32.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
60
Electric Bolt Locks
• For drawers, cabinets or display cases with swinging or sliding doors
• Failsecure (field reversible for failsafe)
Dual Voltage: 12/24VDC @ 250mA/130mA
Dimensions: 3.25” L x 1.125” W x 1.125” D
Finish: Black
MODEL
290 Micro cabinet lock 105.00
290LS Micro cabinet lock with locked status switch 130.00
Cabinet Lock AK LIST
Programmable Cabinet Lock AK LIST
SDC's 295 Battery Powered Keyless Cabinet Lock provides an easy, economical solution for
security and keyless access control for a wide variety of cabinet doors, drawers, storage lockers and
more. Quickly and easily add/delete up to 30 individual user PIN codes with programmable keypad.
Powered by 2 x AAA batteries, the need for low voltage wiring is eliminated. 2 Programmable
Application Modes.
Dimensions: 5.5”H x 1.4”W x 0.85”D - 1.25”D w/Dial (40 x 35.5 x 21.5mm - 32mm w/Dial)
MODEL
295 Programmable cabinet lock 156.00
Distributor
Discount Code
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
61
Access Control
IP Pro™ Series IP-based Access Control JEK LIST
Distributor
Discount Code
IP Pro Controller board
FEATURES
• Controls one door directly, with
multi-door expansion capabilities
• Password protected built-in web
server or FREE downloadable
'Grid' software
• Two Ethernet Ports allow for
interfacing with additional IP
devices like cameras additional
door controllers, etc.
• Entry & exit reader capability
• Supports industry standard
proximity, smart card, and
multi-technology readers
(Wiegand output)
• Compliant with PoE+ standard
• 15,000 users (up to 2 credentials
per user)
• Internet Explorer, Firefox and
Google Chrome browser support
• Batch card enrollment
• 250 User groups/Time Zones/Door
Groups
• Audit Trail – Up to 5,000 events
may be exported as a .csv file
from web server, unlimited events
from PC software interface
• Anti-tailgating
• Door Status Monitoring Input
• Request-to-Exit (REX) Input
• Lock Relay Output
PoE
+
EMBEDDED
software managed
via web browser
or Download FREE
SOFTWARE
for full Grid Access
IP Pro Controller/Door Station
Voltage 12 VDC Input
Current Consumption 250mA (max)
Operating Temperature 14°F – 122°F (Indoor use only)
Dimensions 5.375” x 3.5” x 0.875” board only
9.25” x 6.5” x 2.1875”
w/ ABS plastic enclosure
Weight 1lb
Relay Output Type Form C (SPDT) x 2
IP Pro Splitter
Input Voltage 44 - 57 VDC
Input Power 30W max
Output Power 24W max
Output Current 2A @ 12V
Relay Output Type Form C (SPDT) x 2
Relay Contact Rating Main (Lock) – 5A @ 30VDC
Auxiliary – 1A @ 30VDC
Connections Digital Inputs: 4 dry contact inputs
Ethernet: RJ45
RS-485 Terminal Bus
Reader Power – 12VDC
Reader Data – Wiegand (26bit to 37bit)
Reader LED Control – Red & Green
Two Solid State outputs (100mA max)
IP Pro Injector
PoE+ Output Pin
Assignment and
Polarity
4/5 (+), 7/8 (–)
Output Power Voltage 55VDC
User Port Power 30Watts (Guaranteed)
Input Power 0.8A @ 100-240VAC
SPECIFICATIONS
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
62
Access Control
IP Pro SplitterIP Pro Injector IP Pro Controller enclosure
IPRW
IP Pro Door Station Expansion board
IP Pro Controller board
Pro
TM
Controller
Pro
TM
Controller
Pro
TM
Controller
CAT5eCAT5e
Pro
TM
Controller
Pro
TM
Door Expansion Station
RS485
CAT5e CAT5e
Browser Access
The IP Pro Line of IP-based Access Controllers allows expansion
from one Standalone door up to a 100-door “Grid.” The Choice is yours!
It’s like having a local area network for your doors
without all the headaches of an enterprise system.
IPDCE IPDCE IPDCE IPDCE
IPDSE
IP Pro™ Components LIST
IPDCE IP Pro Controller, board plus enclosure 675.00
IPI-30 IP Pro Injector, 30W PoE+ 192.00
IPS-12 IP Pro Splitter, 12VDC PoE+ 226.00
IP Pro™ Door Station LIST
IPDSE IP Pro Door Station Expansion, board plus enclosure 575.00
IP Pro™ Starter Kit LIST
IPPRO-SKE IP Pro Starter Kit, including Controller board, Splitter, Injector
plus Controller enclosure
1116.00
IPPRO-SK IP Pro Starter Kit, including Controller board, Splitter, Injector 1090.00
Prox Reader LIST
IPRW Wiegand Reader - PROX, Surface Mount, HID compatible (125 kHz) 196.00
IPRW300 Wiegand Reader - PROX, Mullion Mount, HID compatible (125 kHz)
includes Black and White Cover
196.00
IPRW500 Wiegand Reader - PROX, Single Gang Box or Surface Mount, HID
compatible (125 kHz) includes Black and White Cover
225.00
IPRW300
CARDS, KEY FOBS and TAGS see page 67
IPRW500
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
63
Access Control
PLUS features include:
IP Pro™ Series IP-based Access Control JEK LIST
Distributor
Discount Code
• Intuitive & easy to use software; similar look &
feel to the IP Pro™ web browser interface
• Free, single PC software for up to 100 doors
• Congure & manage all your IP ProTM con-
trollers from a single interface – No enterprise
headaches
• Wizard & quick start buttons for common tasks
• Automated management reporting
• E-mail alert notications
• Utilizes the scalability of Microsoft SQL server
• Save more energy the more doors you add
PLUS Hardware is used by the installer to
set up controllers, doors and user profiles
PLUS Manage is used by system administrators to
facilitate database changes required on a day-to-day basis,
and offers various reporting tools
PLUS Server is used by system administrators to perform
specialized tasks, such as database backups, firmware updates,
importing/exporting users
Live System events can be monitored from either module!
• Create, view, & edit users
• Add access & holiday schedules
• Generate user & event reports
• Enable & edit IPPro controllers
• Enable & edit door settings
• Create event lters
• Enable e-mail notications
• Perform manual or schedule automatic backups
• Import/Export Users
• Perform IPPro rmware updates
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
64
Access Control
918/918W INDOOR EntryCheck™ JK LIST
Distributor
Discount Code
SPECIFY FINISH Add to List
U630 Brushed Stainless Steel
(standard)
N/C H613 Oil Rubbed Bronze 63.00
C605 Bright Brass 63.00 P625 Bright Chrome 63.00
D606 Dull Brass 63.00
TR12 Plug in power supply (optional)
120 VAC primary, Output: 12VDC @ 1Amp, Secondary screw terminals with ground terminal
75.00
OPTIONS Add to List
S
T
A
N
D
A
L
O
N
E
Keypad
900-PS Privacy & Rain Shroud for stand alone digital keypads 918.
Ensure protection from rain and security from spying eyes.
100.00
ACCESSORIES Add to List
900-PS with
918 Keypad
918 Stand alone digital indoor keypad 166.00
918W Indoor digital keypad, Wiegand output 166.00
500 user codes, 1 to 6 digits in length, 4 outputs, 2 relay and 2 solid state outputs timed
or latching (on/off). Assign entry PIN’s to relays 1 and/or 2. Tactile keys with selectable
audible volume for key depression or output activation. LED Status: Access, lockout.
Timed anti-passback. Keypad tamper lockout. Request-to-Exit/Enter input. Indoor blue
backlit, moisture resistant keypad. Thick S.S. faceplate 3/32” (2mm).
D
A
T
A
Wiegand
T
R
A
N
S
F
E
R
918
918W
Keypad
Voltage 12/24 VAC/DC — 5-16 VDC for Wiegand
Current 30mA typical, 150mA maximum - 60mA max for Wiegand
Outputs (918) Relay 1 - SPDT 5 Amps @ 30VDC, Relay 2 - SPDT 2 Amps @ 30VDC,
Switch to Common Outputs 3 & 4 – 100mA @ 30VDC
Dimensions 3"W x 4-3/4"H x 1-1/2"D (1/4” Wall projection)
ELECTRICAL SPECIFICATIONS
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
65
Access Control
920/920P/920PW INDOOR/OUTDOOR EntryCheck™ JK LIST
920 Stand alone digital keypad 182.00
920P Stand alone digital keypad with Prox Reader 404.00
920PW Digital keypad with Prox Reader, Wiegand output 404.00
The 920 Series EntryCheck™ stand-alone digital keypad is designed to control
access of a single entry point with up to 500 users. Each user is assigned a personal
identification number (PIN). Keypad entry of a valid one to six digit code activates one
or both of the output relays which releases an electric door lock. Heavy Cast Vandal
Resistant Housing. Heavy Cast Metal Blue Backlit Keys.
920
S
T
A
N
D
A
L
O
N
E
Keypad
920P
S
T
A
N
D
A
L
O
N
E
Proximity
S
T
A
N
D
A
L
O
N
E
Keypad
CARDS, KEY FOBS and TAGS see page 65
920PW
Proximity
Keypad
D
A
T
A
Wiegand
T
R
A
N
S
F
E
R
Distributor
Discount Code
Voltage 12/24 VAC/DC — 5-16 VDC for Wiegand (920PW)
Current 30mA typical, 150mA maximum - 60mA max for Wiegand
Outputs (920/920P) Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC
Switch to Common Outputs 3 & 4 – 100mA @ 30VDC
Operating Temperature -20°F to + 130°F (-30°C to + 54°C)
Operating Humidity 5% to 95% non-condensing
Housing 3"W x 5-3/4"H x 1-7/16"D
ELECTRICAL SPECIFICATIONS
923/923P/923PW Narrow INDOOR/OUTDOOR EntryCheck™ JK LIST
Distributor
Discount Code
The 923 Series EntryCheck™ narrow stand-alone digital keypad is designed
to control access of a single entry point with up to 500 users. Each user is
assigned a personal identification number (PIN). Keypad entry of a valid one
to six digit code activates one or both of the output relays which releases an
electric door lock. Heavy Cast Vandal Resistant Housing. Heavy Cast Metal
Blue Backlit Keys.
923 Stand alone digital keypad, narrow 207.00
923P Stand alone digital keypad, narrow, with Prox Reader 492.00
923PW Digital keypad, narrow, with Prox Reader, Wiegand output 492.00
S
T
A
N
D
A
L
O
N
E
Proximity
S
T
A
N
D
A
L
O
N
E
Keypad
S
T
A
N
D
A
L
O
N
E
Keypad
CARDS, KEY FOBS and TAGS see page 65
923
923P
D
A
T
A
Wiegand
T
R
A
N
S
F
E
R
Proximity
Keypad
923PW
Voltage 12/24 VAC/DC — 5-16 VDC for Wiegand
Current 30mA typical, 150mA maximum - 60mA max
for Wiegand
Outputs (923/923P) Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC
Switch to Common Outputs 3 & 4 – 100mA @ 30VDC
Operating Temperature -20°F to + 130°F (-30°C to + 54°C)
Operating Humidity 5% to 95% non-condensing
Housing 1-3/4"W x 7-5/16"H x 1-3/8"D
ELECTRICAL SPECIFICATIONS
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
66
Access Control
921P/924P INDOOR/OUTDOOR 2-PIECE EntryCheck™ JK LIST
Distributor
Discount Code
921P Stand alone, surface mount digital keypad, with Prox Reader and Controller 596.00
924P Stand alone, surface mount digital keypad, narrow, with Prox Reader and Controller 621.00
S
T
A
N
D
A
L
O
N
E
Keypad
S
T
A
N
D
A
L
O
N
E
Proximity
924P921P
CARDS, KEY FOBS and TAGS see page 65
ELECTRICAL SPECIFICATIONS
The 921P and the 924P EntryCheck™ stand-alone digital keypad with Prox Reader
and Controller (2-piece configuration) are designed to control access of a single entry
point with up to 500 users. Each user is assigned a personal identification number
(PIN). Keypad entry of a valid one to six digit code activates one or both of the output
relays which releases an electric door lock. Heavy Cast Vandal Resistant Housing.
Heavy Cast Metal Blue Backlit Keys.
Voltage 12/24 VAC/DC
Current 60mA typical, 150mA maximum
Outputs Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC
Switch to Common Outputs 3 & 4 – 100mA @ 30VDC
Operating Temperature -20°F to + 130°F (-30°C to + 54°C)
Operating Humidity 5% to 95% non-condensing
Housing 921P: 3"W x 5-3/4"H x 1-7/16"D
924P: 1-3/4"W x 7-5/16"H x 1-3/8"D
925/925P/925PW INDOOR/OUTDOOR Shroud EntryCheck™ JK LIST
Distributor
Discount Code
925 Stand alone digital keypad with privacy shroud 281.00
925P Stand alone digital keypad with Prox Reader and privacy shroud 504.00
925PW Digital keypad with Prox Reader, Wiegand output, and privacy shroud 504.00
The 925 Series EntryCheck™ elevates the robustness of the indoor/outdoor 920 keypad
with a heavy metal privacy and rain shroud. Perfect for post mount applications.
925
S
T
A
N
D
A
L
O
N
E
Keypad
925P
S
T
A
N
D
A
L
O
N
E
Proximity
S
T
A
N
D
A
L
O
N
E
Keypad
925PW
D
A
T
A
Wiegand
T
R
A
N
S
F
E
R
CARDS, KEY FOBS and TAGS see page 67
Proximity
Keypad
Voltage 12/24 VAC/DC — 5-16 VDC for Wiegand (925PW)
Current 30mA typical, 150mA maximum - 60mA max
for Wiegand
Outputs (925/925P) Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC
Switch to Common Outputs 3 & 4 – 100mA @ 30VDC
Operating Temperature -20°F to + 130°F (-30°C to + 54°C)
Operating Humidity 5% to 95% non-condensing
Shroud Dimension 4-1/16"W x 6-1/8"H x 2-5/8"D
ELECTRICAL SPECIFICATIONS (KEYPAD)
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
67
Access Control
E75 EntryCheck™ LIST
E70 EntryCheck™ Standalone Electronic Lockset Series MMK LIST
SPECIFY LEVER LOCKSET FINISH Add to List
SPECIFY LEVER HANDLE Add to List
SPECIFY KEYPAD FINISH Add to List
Q626 Dull Chrome (standard) BBlack N/C
Q626 Dull Chrome (standard) N/C
P625 Bright Chrome C605 Bright Brass 52.00
Distributor
Discount Code
E75K Digital Keypad only, cylindrical lockset 710.00
E75P Digital Keypad with Prox Reader, cylindrical lockset 910.00
E75PS Digital Keypad with Prox Reader and Software, cylindrical lockset 1200.00
The E70 EntryCheck™ Series is a standalone electronic battery powered solution, providing controlled access
for basic and multi-level high security requirements. The E70 series lockset is keypad programmable, and
combines multiple access technology with efficient motorized locksets.
KEYPAD FEATURES
• Keypad
Programmable
• 3,000 Users,
32 Temporary
• 4 to 6 Digit PIN
Codes
• 3 Passage Mode
Option
• 32 Access Groups,
Schedules
• 32 Holidays
• 4 Authority Levels
• Keypad Tamper
Lockout
• Mechanical Key
Override
• Battery Powered
(4AA)
• Blue Backlit Cast
Metal Keys
• Weather & Vandal
Resistant
G1 Galaxy E1 Eclipse N/C
G5 Galaxy, I-Core prep E5 Eclipse, I-Core prep 25.00
G5 and E5 I-Core prep without I-Core
G1 Galaxy E1 Eclipse E5 Eclipse, I-Core prep
G5 Galaxy, I-Core prep
E75 series can be retrofitted to existing prep for cylindrical locks.
E75 EntryCheck™ Standalone Electronic Lockset - SDC Lock
HID1326-25 Proximity Card, HID compatible, 25 cards 166.00
HID1326-100 Proximity Card, HID compatible, 100 cards 663.00
HID1346-10 Proximity Key Fob, HID compatible, 10 key fobs 135.00
HID1346-100 Proximity Key Fob, HID compatible, 100 key fobs 1325.00
PTAG-10 Proximity Disc Tag, HID compadible, 10 tags 75.00
PTAG-25 Proximity Disc Tag, HID compadible, 25 tags 180.00
Cards, Key FOBS and Tags MV List
Distributor
Discount Code
Prox Disc Tag
Prox Card
Prox Key Fob
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
68
Access Control
E76 EntryCheck™ LIST
E76K Digital Keypad only, with mortise lock 1000.00
E76P Digital Keypad with Prox Reader, with mortise lock 1200.00
E76PS Digital Keypad with Prox Reader and Software, with mortise lock 1490.00
E76 EntryCheck™ Standalone Electronic Lockset-SDC Mortise Lock
SPECIFY LOCK HAND
SPECIFY LOCK FINISH Add to List
LLeft hand LR Left hand reversed All hands are field reversible N/C
RRight hand RR Right hand reversed without disassembly N/C
SPECIFY LOCK LEVER TRIM Add to List
GGalaxy with rose N/C GE Galaxy with escutcheon 104.00
EEclipse with rose N/C EE Eclipse with escutcheon 104.00
NNova with rose N/C NE Nova with escutcheon 104.00
07 Schlage equal with SDC B rose N/C 07E Schlage equal with SDC escutcheon 104.00
Q626 Dull Chrome (standard) N/C
C605 Bright Brass 52.00 G612 Dull Bronze 52.00 S629 Bright Stainless Steel 52.00
D606 Dull Brass 52.00 H613 Oil Rubbed Bronze 52.00 U630 Dull Stainless Steel 52.00
F611 Bright Bronze 52.00 P625 Bright Chrome 52.00
SPECIFY KEYPAD FINISH Add to List
Q626 Dull Chrome (standard) BBlack N/C
Schlage
Equal Schlage
Equal
07E
07
EEE
GGE
NNE
Distributor
Discount Code
HID1326-25 Proximity Card, HID compatible, 25 cards 166.00
HID1326-100 Proximity Card, HID compatible, 100 cards 663.00
HID1346-10 Proximity Key Fob, HID compatible, 10 key fobs 135.00
HID1346-100 Proximity Key Fob, HID compatible, 100 key fobs 1325.00
PTAG-10 Proximity Disc Tag, HID compadible, 10 tags 75.00
PTAG-25 Proximity Disc Tag, HID compadible, 25 tags 180.00
Cards, Key FOBS and Tags MV List
Distributor
Discount Code
Prox Disc Tag
Prox Card
Prox Key Fob
KEY CYLINDER OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 32.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
69
Access Control
E77 EntryCheck™ LIST
E77K Digital Keypad only, with SDC S6100 Exit Device 1400.00
E77P Digital Keypad with Prox Reader, with SDC S6100 Exit Device 1600.00
E77PS Digital Keypad with Prox Reader and Software, with SDC S6100 Exit Device 1890.00
E77 EntryCheck™ Standalone Electronic Lockset - SDC Rim Exit Device
SPECIFY KEYPAD FINISH Add to List
Q626 Dull Chrome (standard) BBlack N/C
SPECIFY SPECTRA SERIES EXIT DEVICE Add to List
M61 Rim mount exit device N/C
S6100 Rim Mount
EK Eclipse style electric trim less mortise cylinder, Stainless Steel Finish N/C
GK Galaxy style electric trim less mortise cylinder, Stainless Steel Finish N/C
EK Eclipse
GK Galaxy
SPECIFY ELECTRIC TRIM List
SPECIFY PANIC OR FIRE RATE Add to List
PPanic exit device
Mechanical Dogging STD; See part # CD for optional key cylinder dogging
N/C
FFire exit device
Mechanical dogging not available
110.00
SPECIFY EXIT DEVICE FINISH Add to List
U630 Dull Stainless Steel N/C
SPECIFY EXIT DEVICE LENGTH Add to List
36 For 36" Door N/C 42 For 42" Door 20.00 48 For 48" Door 40.00
HID1326-25 Proximity Card, HID compatible, 25 cards 166.00
HID1326-100 Proximity Card, HID compatible, 100 cards 663.00
HID1346-10 Proximity Key Fob, HID compatible, 10 key fobs 135.00
HID1346-100 Proximity Key Fob, HID compatible, 100 key fobs 1325.00
PTAG-10 Proximity Disc Tag, HID compadible, 10 tags 75.00
PTAG-25 Proximity Disc Tag, HID compadible, 25 tags 180.00
Cards, Key FOBS and Tags MV List
Distributor
Discount Code
Prox Disc Tag
Prox Card
Prox Key Fob
KEY CYLINDER OPTIONS for Electric Trim Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 32.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
70
Egress Controls
SureExit® Sense Bar DKK
ACCESSORIES LIST
Distributor
Discount Code
3. Mount
2. Apply Adhesive
1. Assemble kit
Standard Installation
with standard mounting hardware
PT-2U
(Included
with bar)
PT3
500GL-KIT One glass door mounting kit with adhesive for eight to ten bars 244.00
500GL-MB One glass door mounting kit without adhesive 135.00
500-SK Shim kit used to raise bar from door. Recommended for wood or hollow metal doors with
uneven mounting surface.
25.00
Power Transfer:
PT-3V Stainless steel armored loop with aluminum surface wire junction box 47.00
500GL Kit Glass Mount
Installation
STANDARD FEATURES
Actuation: Pressure Sense Technology; Tri-Failsafe
Voltage: 12/24VDC Voltage Sense Input
Current: 20 mA at Rest, 115 mA Active
Lock Output: SPDT, 3 Amp @ 30VDC
Alarm Shunt/Status Output: SPDT, 3 Amp @ 30VDC
Accessories Include:
10 ft. cable and connector; PT-2U Armored Power Transfer Loop
Standard length, 36"
MODEL FINISH LIST PRICE
PSB560V 628 Aluminum Anodized 363.00
PSB560Y Black Anodized 363.00
PSB560S 629 Bright Stainless Steel 492.00
PSB560U 630 Brushed Stainless Steel 492.00
Bars for wide doors
42 Bar for 42" Door. May be field cut. N/C
48 Bar for 48" Door. May be field cut
Ex: PSB560V-42
N/C
3773-0324:105
CSFM
Listed 4J82
Access Control System Units
Burglary Resistant Electronic
Locking Mechanism
TMTM
“Security Industry Finest”
ISC Expo
PUSH TO EXIT
Field Applied Sign
with green letters
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
71
Egress Controls
EXIT MECHANICAL SWITCH DK
Distributor
Discount Code
STANDARD FEATURES
Actuation: 1/8” total bar movement for mechanical switch actuation
Contact: SPDT, 5 Amp @ 30VDC (2nd switch optional)
Accessories include: PT-2U Power Transfer Loop
Standard length, 36"
MODEL FINISH LIST PRICE
MSB550V 628 Aluminum Anodized 225.00
MSB550Y 335 Black Anodized 233.00
MSB550S 629 Bright Stainless Steel 373.00
MSB550U 630 Brushed Stainless Steel 373.00
2 SPDT Contacts
Add "2" for 2nd mechanical switch for dual-failsafe
redundant operation; alarm shunt; or monitoring
output. Ex: MSB550-2V
ADD 30.00
Bars for wide doors
42 Bar for 42" Door. May be field cut. N/C
48 Bar for 48" Door. May be field cut
Ex: MSB550V42
N/C
3773-0324:106
CSFM
Listed 4J82
Access Control System Units
Burglary Resistant Electronic
Locking Mechanism
PUSH TO EXIT
Field Applied Sign
with green letters
EXIT MECHANICAL SWITCH - OUTDOOR WEATHER RESISTANCE DK
Distributor
Discount Code
STANDARD FEATURES
OUTDOOR, WEATHER RESISTANCE
Water Sealed Switches
Actuation: 1/8” total bar movement for mechanical switch actuation
Contact: SPDT, 5 Amp @ 30VDC (2nd switch included)
Accessories include: PT-3V Power Transfer Loop, 2 SPDT
Contacts included
Standard length, 36"
MODEL FINISH LIST PRICE
MSB550-2VW 628 Aluminum Anodized 363.00
MSB550-2YW 335 Black Anodized 363.00
Bars for wide doors
42 Bar for 42" Door. May be field cut. N/C
48 Bar for 48" Door. May be field cut
Ex: MSB550-2VW42
N/C
PUSH TO EXIT
Field Applied Sign
with green letters
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
72
Egress Controls
Exit Device Switch Kits DK
SWITCH KITS LIST
Distributor
Discount Code
527518 519514512 528
Switch Kits are field installed in the inactive hinge pad of an exit device to provide instantaneous release of
EmLocks for egress. All kits include a SPDT Switch Assembly with wire leads. 5 Amp @ 30VDC.
APPLICATION
• Activation of delayed egress locks
• Electromagnetic Lock Release
• Request-to-Exit
• Alarm Shunt or Alarm Activation
MODEL MAKE & MODEL TO BE MODIFIED
510 Von Duprin 33, 35, 98, 99 156.00
510-2 Von Duprin 33, 35, 98, 99 DPDT 192.00
511 Von Duprin 55 156.00
512 Von Duprin 88 156.00
514 Dor-O-Matic 990, 1090, 1990, 2090 156.00
515 Sargent 9300, 9400, 9500 156.00
516 Sargent 9600, 9700, 9800, 9900 156.00
517 Adams Rite 8300, 8400, 8700, 8800 156.00
518 Precision Series 1100 156.00
518A Precision Apex Series (2100 - 2800) 156.00
519 Jackson 1095 156.00
519-2 Jackson 1095 DPDT 192.00
520 Corbin 3000 156.00
521 Corbin 7000 156.00
525 Monarch 18 and 19 156.00
525-2 Monarch 18 and 19 192.00
526 Corbin ED8200 156.00
527 Sargent 80, Arrow S3800/S1250 156.00
527-2 Sargent 80 DPDT 192.00
528 Sargent 20/60 and Yale 2100 156.00
531 Yale 7000 (Dogging mechanism
required) Corbin 4000/5000
156.00
535 Kawneer Mid Panel Line Dor-O-Matic
1390
156.00
536 Jackson 1295 156.00
539 Cal Royal 9800 Series 156.00
542 Hager 4700 156.00
590 Dor-O-Matic 1690 156.00
NOTE: Consult factory for Exit Device Switch Kits not shown. Modification of any kind to a UL Listed device may void UL Listing.
MODEL MAKE & MODEL TO BE MODIFIED
525 517516 511510
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
73
Key & Exit Switches
Exit Switches CK
410 SERIES - 1-3/4" X 1" EXIT SWITCH OPTIONS - SEE PAGE 74 LIST
420 SERIES - 2" EXIT SWITCH OPTIONS - SEE PAGE 74 LIST
413MN
412N
413N
414N
1¾" x 1" Button - Green and Red Illuminated Lens included - Dull Stainless Steel finish
Narrow Contact Sign
412NU Momentary SPDT PUSH TO EXIT 73.00
413NU Integrated electronic timer, adj. 1-60 sec.
12/24VDC, 2A DPDT Contact
PUSH TO EXIT 140.00
413PNU Integrated pneumatic timer, adj. 1-180 sec.
12/24VDC, SPDT 3 Amp Contact
PUSH TO EXIT 332.00
414NU Momentary DPDT PUSH TO EXIT 88.00
415NU AA (On/Off) DPDT NONE 109.00
2" Button, Green and Red Illuminated Lens included - Dull Stainless Steel Finish
1 Gang Contact Sign
422U Momentary SPDT PUSH TO EXIT 73.00
422AU Momentary SPDT
2” Button - Blue illuminated lens only
Symbol 73.00
423U Integrated electronic timer, adj. 1-60 sec
12/24VDC, 2A DPDT Contact
PUSH TO EXIT 140.00
423PU Integrated pneumatic timer, adj. 1-180 sec.
12/24VDC, SPDT 3 Amp Contact
PUSH TO EXIT 332.00
423AU Integrated 1-60 sec Timer
12/24VDC, 2A DPDT Contact
2” Button - Blue illuminated lens only
Symbol 140.00
424U Momentary DPDT PUSH TO EXIT 109.00
425U AA (On/Off) DPDT NONE 109.00
Code Compliant Manual Releasing Devices and Sensors
423M and 413MN exit switches USED TOGETHER WITH the MD31D PIR sensor comply with manual releasing device
and sensor device requirements for Access-Controlled Egress Doors per:
IBC International Code 1008.1.3.4 NFPA 101 7.2.1.62 BOCA National Building Code 1017.4.5
IFC International Code 1008.1.3.4 NFPA 1 15.5.3.2 SBCCI Standard Building Code 1012.7
Code Compliant Manual Release Device
Code Compliant Features: Fixed 30 second timer, re-triggerable; Failsafe - lock releases when power to switch is
interrupted; Sign - PUSH TO EXIT; CSFM Listed;:
1¾”x1” Button, Green Illuminated Lens - Dull Stainless Steel Finish, Specify R for optional red lens
Narrow Contact Sign
413MNU Integrated Fixed 30 sec. Timer
12/24VDC, 2 Amp Contact
PUSH TO EXIT 145.00
2" Button, Green Illuminated Lens - Dull Stainless Steel Finish, Specify R for optional red lens
1 Gang Contact Sign
423MU Integrated Fixed 30 sec. Timer
12/24VDC, 2 Amp Contact
PUSH TO EXIT 145.00
Code Compliant Egress Sensor
Code Compliant Features: PIR egress sensor with failsafe mode - lock releases when power to PIR
sensor is interrupted. UL listed 294 Access Control System Units
Model Color
MD-31DOW White PIR Egress Sensor V235.00
MD-31DB Black PIR Egress Sensor V235.00
Input: 12 or 24 VAC/DC @ 26mA max.
Contact: 2 SPDT Dry, 2 Amp @ 30VDC (38.1 H x 148.8 W x 38.1 D mm)
Operating Temp: -20° F to 120° F (-29° C to 49° C)
Dimensions: 1.5" H x 6.25" W x 1.5" D
422
423
424
422A
423A
423M
MD-31DOW
MD-31DB
RETROFIT BACK BOX
BB1D Single Gang 2.25" w x 3.75" h x 2.75" D 13.00
BB1D
Distributor
Discount Code
CODE COMPLIANT MANUAL RELEASE DEVICES LIST
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
74
Key & Exit Switches
Stainless Steel Button - 1/4" Thick Aluminum Plate - Security Screws - Plated Finish Not Available
1 Gang Narrow Contact Sign
451V 451NV AA (On/Off) SPDT None 156.00
452V 452NV Momentary SPDT None 156.00
453PV 453PNV Integrated Pneumatic Timer
ADJ. 1-180 sec. SPDT contact
None 440.00
463 SERIES - VANDAL RESISTANT STAINLESS STEEL EXIT SWITCH LIST
Piezoelectric Stainless Steel Button - No moving parts - Integrated Time Delay - Red and Green Status Indicators
2mm Stainless Steel - Security Screws - Plated Finish Not Available
1 Gang Narrow Contact Sign
463U 463NU Integrated 1-30 Sec Timer
12/24VDC, NO/NC 2A Contact
PUSH TO EXIT 135.00
2-5/8" Mushroom, Red Button Standard, Dull Stainless Steel Finish, Specify G For Optional Green Button
1 Gang 2 Gang Contact Sign
441U AA (On/Off) DPST None 197.00
442U Momentary DPST EXIT 197.00
443U Momentary with Timer Module 1-60 sec.
12/24V AC/DC SPDT 2A Contact
EXIT 285.00
444U Momentary 2-DPST EXIT 218.00
446U Momentary DPST EXIT 130.00
1.5" Mushroom, Green Button Standard, Dull Stainless Steel Finish, Specify R For Optional Red Button
1 Gang Narrow 2 Gang Contact Sign
431CU 431CNU AA (On/Off) NC SPST none 114.00
431OU 431ONU AA (On/Off) NO SPST none 114.00
432CU 432CNU Momentary NC SPST EXIT 114.00
432OU 432ONU Momentary NO SPST EXIT 114.00
432KUR 432KNUR Latching/ key reset DPST, Red none 223.00
433U Momentary with Timer Module 1-60 sec.
12/24V AC/DC SPDT 2A Contact
EXIT 213.00
434U 434NU Momentary DPST EXIT 140.00
435U 435NU AA (On/Off) DPST none 140.00
430 SERIES - 1-1/2" MUSHROOM EXIT SWITCH - FOR OPTIONS SEE BELOW LIST
440 SERIES - 2-5/8" MUSHROOM EXIT & PANIC SWITCHES - FOR OPTIONS SEE BELOW LIST
450 SERIES - VANDAL RESISTANT ALUMINUM EXIT SWITCH LIST
470 SERIES – SANITARY, NO TOUCH, WAVE-TO-EXIT SWITCH LIST
Special Finish
450 / 460 / 470 Special finish is not available
Designate special finish suffix from below in lieu of U (stainless steel) in part number.
430 430N
441 - 444 446
451
452
453
451N
452N
453N
463
474
C 605 Bright Brass D 606 Dull Brass 42.00
P 625 Bright Chrome H 613 Oil Rubbed Bronze 42.00
Options for 410, 420, 430, 440 Series
L1G 1 Green LED 21.00 LT Tricolor LED - Red, Green, Amber 32.00
L1R 1 Red LED 21.00 EAdd Exit sign To AA Function Switch Only 11.00
L2 1 Red and 1 Green LED 32.00 BNo Exit sign (None) with Momentary Switch N/C
463N
474D
• IR Sensor, 4” read range, Red, Green illuminated LED status.
Control electric locks, strikes and automatic door operators.
• Entry/exit for sanitary environments including: bathrooms,
hospitals, schools, cleanrooms, food processing, labs, or offices.
Output: DPDT 3 Amp Dry Contact
Input: 25mA (standby); 55mA (active) @ 12/24VDC
Faceplate: 20ga stainless steel
Contact Sign
474U DPDT No Touch Exit 78.00
474DU DPDT No Touch Exit 135.00
OPTIONS AND FINISHES FOR 410,420, 430, AND 440 SERIES Add to List
Exit Switches continued CK
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
75
Key & Exit Switches
KEY SWITCHES CK
6 AMP KEY SWITCH ASSEMBLIES
SPECIFY FINISH Add to List
OPTIONS Add to List
10TD
700T-SN-L2
Key Cylinder sold separately: MO - Momentary AA - Alternate Action (on-off)
Key switch assemblies compatible with 1" to 1.375" U.S. standard and interchangable core mortise cylinders (not included).
700-L2
700 700N 700T
800 800N
20 Gauge Stainless Steel Faceplate Contacts
1 Gang Narrow List 2 Gang List
701 701N 99.00 701T 125.00 AA SPDT
702 702N 99.00 702T 125.00 MO SPDT
704 704N 176.00 704T 197.00 1-60 Timer SPDT
705 705N 114.00 705T 135.00 AA DPDT
706 706N 109.00 706T 130.00 MO DPDT
707 707N 130.00 707T 151.00 2 MO SPDT
708 708N 135.00 708T 156.00 1 MO SPDT & 1 AA SPDT
709 709N 145.00 709T 166.00 2 AA SPDT
710 710N 197.00 710T 223.00 1-60 Timer & AA SPDT
711 711N 151.00 711T 171.00 2 MO DPDT
712 712N 151.00 712T 171.00 1 MO DPDT & 1 AA DPDT
713 713N 151.00 713T 171.00 2 AA DPDT
U630 Dull Stainless Steel (Standard For All Key Switches Except The 800AL) N/C
AL 628 Anodized Aluminum (Standard For The 800AL Key Switch Only) N/C
Plated finishes, special order, no cancellation, no return
C605 Bright Brass 42.00 H613 Oil Rubbed Bronze 42.00
D606 Dull Brass 42.00 P625 Bright Chrome 42.00
10TD Mini timer, adj. 1-60 second
12/24VDC, SPDT
88.00 LT One tricolor LED.
Red, green and amber
32.00
CYL-KD 1 1/8" Key cylinder with 2 keys
(keyed differently)
32.00 ATS Anti-tamper sensor, SPDT 32.00
L1 One LED. Specify red or green 21.00 RMB Buzzer, 12 or 24VDC, 20mA 42.00
L2 Two LEDs. Red, and green 32.00 SN 85 db siren, 4V-25VDC, 15mA 52.00
1/4" Thick Aluminum Plate Contacts
1 Gang Narrow List
801AL 801ALN 145.00 AA SPDT
802AL 802ALN 145.00 MO SPDT
804AL 804ALN 223.00 1-60 Timer SPDT
805AL 805ALN 166.00 AA DPDT
806AL 806ALN 166.00 MO DPDT
807AL 807ALN 187.00 2 MO SPDT
808AL 808ALN 187.00 1 MO SPDT & 1 AA SPDT
809AL 809ALN 187.00 2 AA SPDT
810AL 810ALN 264.00 1-60 Timer & AA SPDT
811AL 811ALN 213.00 2 MO DPDT
812AL 812ALN 213.00 1 MO DPDT & 1 AA DPDT
813AL 813ALN 213.00 2 AA DPDT
See Options below
BB1D
Distributor
Discount Code
RETROFIT BACK BOX
BB1D Single Gang 2.25" w x 3.75" h x 2.75" D 13.00
KEY CYLINDER OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 32.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
76
Key & Exit Switches
Passive Infrared Egress Control V LIST
Distributor Discount
Code
MD-31DOW Motion detector with time delay, white 235.00
MD-31DB Motion detector with time delay , black 235.00
Time Delay Relay CK List
Distributor Discount
Code
Time Delay Relays
10TD Time delay relay module with adjustable 1-60 second relock delay.
Input: 12/24V AC/DC Output: SPDT, dry contact
Voltage: 2 Amps @ 30 VDC (resistive) Size: 2-1/4"x 1-1/2" x 3/4"
88.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
77
ADA Compliant
SPECIFY MODEL LIST
Model Description
AUTO Auto EntryControl™
Single Swing Door Operator 2270.00
OPERATION Add to List
Operation Description
1PUSH arm plus standard spindle N/C
2PULL arm plus standard spindle N/C
3One PUSH arm plus spindle,
one PULL arm plus spindle 270.00
DOOR OPENING Add to List
Width Description
36 for 36” Door Opening N/C
42 for 42” Door Opening N/C
48 for 48” Door Opening N/C
COLOR Add to List
Color Description
VAluminum N/C
XDark Bronze Powder Coat POA
Width Description
72 for 72” Double Door opening N/C
84 for 84” Double Door opening N/C
96 for 96” Double Door opening N/C
SPECIFY MODEL LIST
Model Description
AUTO Auto EntryControl™
Double Swing Door Operator 4599.00
OPERATION Add to List
Operation Description
1Two PUSH arm plus standard spindle N/C
2Two PULL arm plus standard spindle N/C
3One PULL arm plus spindle,
one DOUBLE EGRESS arm plus spindle 401.00
DOOR OPENING Add to List
SINGLE DOOR OPENING DOUBLE DOOR OPENING (SPECIAL ORDER)
COLOR Add to List
Color Description
VAluminum N/C
XDark Bronze Powder Coat POA
ACCESSORIES V LIST
AUTO-IR Door-mounted Presence Sensor and Door Re-Activator -
48 inches, length field-adjustable
340.00
Distributor
Discount Code
SP20 20mm Spindle 75.00
SP35 35mm Spindle 75.00
OPTIONAL SPINDLES List
SP50 50mm Spindle 75.00
SP80 80mm Spindle 90.00
OPTIONAL ARM EXTENSIONS FOR REVEAL GREATER THAN 8 INCHES List
AUTO-AEV Arm Extension for PUSH arm - Aluminum 100.00
AUTO-AEX Arm Extension for PUSH arm - Dark Bronze Powder Coat 140.00
Auto EntryControl™ XK
Auto EntryControl’s™ non-pivot drive and combination of belt, gear and pulley requires less torque, requires less power, absorbs more abuse, and is qui-
eter than other automatic door openers while complying with all US and Canadian ADA requirements. On-board diagnostics simplifies troubleshooting for
ease of installation and all Auto EntryControl’s™ can be easily configured for surface mounted push/pull or overhead concealed applications.
• ADA Compliant
• Complies with ANSI A 156.19
• UL - Certied for use as re
door operators (3 hour rating)
• Self-Tunning, Self-Learning
• Minimum 5 seconds from close
to open
• Stays open for 5 seconds
• 130 degree of opening
• Push or Pull (In door, Out
swing)
• Activation: Knowing Act
• Optional Safety Device
• Input Power: 1A, 100W
• Non-Handed
• Extremely Quiet Operation
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
78
ADA Compliant
Dual Switch Bollard Post - CBC compliant CK
Distributor
Discount Code
Model Description
CBC482A4U 42" surface mount, 6" square post, with high and low 4-1/2” SPDT switch plates 667.00
CBC484A4U 42” surface mount, 6” square post, with high and low 4-1/2” DPDT switch plates 717.00
SPECIFY MODEL LIST
• California CBC Section 11B 404.3 code
compliant bollard and switch plates
• Black HDPE mortised removable cap with secure
transmitter mount
• Two 4-1/2” Push to Open blue infill push
plates, located at 7” and 36" centerline from floor
• 6” square post with 1/8” walls
• Surface mount (42")
NEW
Model Description
BPS6 42" surface mount, 6" square post 404.00
BPG6 54" in-ground, 6" square post 404.00
• For use with Push Plates, Touch Panel
Columns & Exit Switches
• Black HDPE mortised removable cap with
secure transmitter mount
• Standard single gang prep located at 36" from
finished floor
• 6” square with 1/8” walls
• Surface mount (42") or In-Ground mount (54")
SPECIFY FINISH Add to List
V 628 Aluminum (standard) X 710 Dark Anodized Aluminum N/C
SPECIFY PREP Add to List
S1-gang prep N/C
D2-gang prep N/C
PTouch Panel prep N/C
ANarrow Mullion Prep N/C
Bollard Post CK
Distributor
Discount Code
SPECIFY MODEL LIST
400 Series Wireless Transmitter and Receiver CK LIST
Distributor
Discount Code
433MHz Micro Transmitter
• Requires a non-metalic surface box or
standard bollard cap (non-metalic).
Works with 400RC433
• Pre-Wired for quick installation
• Antenna magnifies signal
Voltage Input: 9V Battery (included)
Trigger Input: Momentary, N.O.Dry Contact
Temperature: -20F — 100F
Dimensions: 1-9/64” x 15/16” x 7/32” (29 x 49 x 6mm)
Model Description
400W1-433 433MHz Micro Transmitter 75.00
For Remote Control Versatility for Touch Panel Column and Push Plate Switches
433MHz 1 Channel Nano Receiver
• Designed to control automatic closing and anti-burglar systems. Works with 400W1-433.
Carrier Frequency: 433.92 MHz Power Supply: 12/24 VAC/DC
Relay Numbers: 1 Contacts: C-NO
Temperature: -4F — 158F Dimensions: 1-1/4” x 2” x 3/4” Deep (32 x 51 x 19mm)
Model Description
400RC433 433MHz 1 Channel Reciever 88.00
Push Plate and
Touch Panel NOT
INCLUDED
see page 80 for
ordering info
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
79
ADA Compliant
• Door Opener Activation
• Automatic Door Activation
• Access Control Request-to-Exit (RTE)
• Door Sequencer Activation
480 Series Push Plate Switches - Wireless and Hardwired CK LIST
Distributor
Discount Code
= can be used with wireless
transmitter and receiver
SPECIFICATIONS
Mounting
Plate Heavy Duty 1/8” (3.2mm) mounting plate
Faceplate Heavy 18 Gauge (1.02mm), 630/US32D Satin Stainless Steel Standard
Legends Bold debossing or engraving with black, blue or white infill
Contacts SPDT or DPDT, 15 Amps @ 125/250VAC; UL 1054, CSA Listed
Depth [Narrow & (1) Gang] SPDT-7/8” deep, DPDT-1-3/8” deep,
[4 ½”, & 6” square/ round] SPDT-3/4” deep, DPDT-1-5/32
1-11/16” Narrow Mullion Push Plate Switch – Recessed, Surface Box or Bollard Mount
SPDT Model Description DPDT Model Description
482O1U Push to Open, black infil 65.00 484O1U Push to Open, black infil 90.00
482A1U Push to Open, blue infill 65.00 484A1U Push to Open, blue infill 90.00
400-1B Narrow Mullion Surface Box, 1-3/4" x 4-9/16" x 1-3/4" O.D. 19.00
2¾” x 4½” Single (1) Gang Push Plate Switch
• Pressing any part of the push plate (2 ¾” x 4 ½”) causes switch actuation
• Recessed, Surface Box or Bollard Mount • Depth: SPDT - ¾” deep; DPDT - 1 ½” deep
SPDT Model Description DPDT Model Description
482O2U Push to Open, black infill 77.00 484O2U Push to Open, black infill 102.00
482A2U Push to Open, blue infill 77.00 484A2U Push to Open, blue infill 102.00
480-2SB Surface mount box, 2 3/4” x 4 1/2” x 1 5/8” O.D. 29.00
4 ½” x 4 ½” Square Push Plate Switches
• Pressing any part of the push plates 4” ½” x 4 ½” active area causes switch actuation
• 1 Gang or 2 gang recessed or Surface Box Mount • Depth: SPDT ⅝” deep; DPDT 1 ½” deep
SPDT Model Description DPDT Model Description
482O4U Push to Open, black infill 85.00 484O4U Push to Open, black infil 110.0 0
482A4U Push to Open, blue infill 85.00 484A4U Push to Open, blue infill 110.0 0
480-4FB Square Flush Recessed box, 1-gang, 6 3/4” x 6 3/4” x 1 7/8” O.D. 63.00
480-4SBB Surface mount box, 4-1/2” x 4-1/2” x 1 3/4” O.D. with Battery compartment for wireless 33.00
480-4SB Surface mount box, 4-1/2” x 4-1/2” x 1 7/8” O.D. 63.00
480-4SE 3-sided stainless shrout for exterior applications, 4-11/16" x 4-7/8" x 12" 38.00
6” x 6” Square Push Plate Switch
• Pressing any part of the push plates 6” x 6” active area causes switch actuation
• 1 Gang or 2 gang recessed or Surface Box Mount • Depth: SPDT ⅝” deep; DPDT 1 ½” deep
SPDT Model Description DPDT Model Description
482O6U Push to Open, black infil 90.00 484O6U Push to Open, black infil 114.0 0
482A6U Push to Open, blue infill 90.00 484A6U Push to Open, blue infill 114.00
480-6SBB Surface mount box, 2-gang Battery Compartment, 4 1/2” x 4 1/2” x 1 3/4” O.D. 33.00
For Handicap Access, Automatic Door
Activation & Request-to-Exit Applications
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
80
ADA Compliant
4 ½” Round Push Plate Switch
• Pressing any part of the push plates 4” ½ active area causes switch actuation
• 1 Gang or 2 gang recessed or Surface Box Mount • Depth: SPDT ⅝” deep; DPDT 1 ½” deep
SPDT Model Description DPDT Model Description
482O4RU Push to Open, black infil 85.00 484O4RU Push to Open, black infil 110.00
482A4RU Push to Open, blue infill 85.00 484A4RU Push to Open, blue infill 110.00
480-4RSB Surface box, 5” Dia., 2 1/8” O.D. 56.00 480-4RFB Black Flush Escutcheon, 5 7/8”
overall diameter with trim ring
63.00
480-4RG 4" round gasket 15.00 480-4RRB Surface Escutcheon, 7 7/8”
Dia., 1 9/16” overall height
63.00
6” Round Push Plate Switch
• Pressing any part of the push plates 6” active area causes switch actuation
• 1 Gang or 2 gang recessed or Surface Box Mount • Depth: SPDT ⅝” deep; DPDT 1 ½” deep
SPDT Model Description DPDT Model Description
482O6RU Push to Open, black infil 90.00 484O6RU Push to Open, black infil 114.00
482A6RU Push to Open, blue infill 90.00 484A6RU Push to Open, blue infill 114.00
480-6RSB Surface box Round,
6 7/16” Dia., 2 1/8” O.D.
56.00 480-6RFB Recessed Flush Escutcheon, 7
3/4” overall diameter with trim ring
63.00
480-6RG 6" round gasket 15.00
480 Series Push Plate Switches - Wireless and Hardwired (continued) CK LIST
Distributor
Discount Code
36" X 6" INGRESS-R.E.X TOUCH PANEL COLUMN List
9" X 6" INGRESS-R.E.X TOUCH PANEL COLUMN List
SPDT Model Description
482AA9 Push to Open 292.00
Fully Active 22-1/2 Sq. Inch Actuation Area
Recommended Centerline mounting height 34" to 48"
Material: Sturdy 1/8" extrusion with architectural finish
Overall Size: 9" h x 6" w x 1-1/2" d (229 x 152 x 38mm)
Active Area: 9" h x 2-1/2" w (229 x 63.5mm)
Applications
• Wireless & Hardwire
• ADA Ingress/R.E.X/Egress Door Opener Activation
• Access Control Request-to-Exit (REX)
• Door Opener Activation
• Automatic Door Activation or Lock Release
• Automatic Door & Exit Device Sequencer Activation
Features
• Surface wall mount or bollard mount
• Sleek Architectural prole
• No square edges to snag, wide sloping sides deects
impact movement naturally to activate column
• Deects impact from wheeled carts and conveyances
• Impact & Vandal resistant design, inhibits prying, tampering
• Weather Resistant, no gaps for water or ice penetration
• Choice of SPDT or DPDT, 15 Amps @ 125/250VAC
SPDT Model Description DPDT Model Description
482AA36 Push to Open 404.00 484AA36 Push to Open 430.00
SPECIFY FINISH Add to List
V 628 Aluminum (standard), blue infill N/C X 613 Dark Bronze, white infill 24.00
SPECIFY FINISH Add to List
V 628 Aluminum (standard), blue infill X 613 Dark Bronze, white infill N/C
Fully Active 90 Sq. Inch Actuation Area
Recommended mounting height is 3" from floor
Material: Sturdy 1/8" extrusion with architectural finish
Overall Size: 36" h x 6" w x 1-1/2" d (914 x 152 x 38mm)
Active Area: 36" h x 2-1/2" w (914 x 63.5mm)
= can be used with wireless
transmitter and receiver
480 Series Touch Panel Column - Wireless & Hardwire CK
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
81
ADA Compliant
480 Series Wireless Push Plate Switch Kits CK LIST
Distributor
Discount Code
Wireless 4 ½” Push Plate Switches
Includes: two Round or Square Push Plate Switches with matching surface mount back box, two wireless transmit-
ters (400W1-433, 9V batteries included), and one wireless nano receiver (400RC433)
SPDT Model Description
482S-KIT SQUARE 4-1/2 Push Plate Switches (2), Push to Open, blue infill, Square Surface
Mount Back Boxes (2), Wireless Transmitters (2) and Wireless Receiver (1)
520.00
482R-KIT ROUND 4-1/2 Push Plate Switches (2), Push to Open, blue infill, Round Surface
Mount Back Boxes (2), Wireless Transmitters (2) and Wireless Receiver (1)
474.00
NEW
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
82
Egress Controls
491
CB401-A
CB402-A
SDC 490 series emergency door release stations include 2-SPDT contacts for release of all doors on the
same circuit and remote annunciation. A built-in local alarm is standard.
491 Blue break glass station, emergency door release, 2-SPDT 10 Amp contacts with
built-in local alarm (12/24V), 2 replacement glass included. Single gang box mounted
191.00
491-GL4 Four replacement glass plates for 491 21.00
491-BB Blue surface mount box for 491 63.00
492 Blue pull station, emergency door release, 2-SPDT 10 Amp contacts with built-in local
alarm (12/24V), 2 replacement glass rods included. Single gang box mounted.
156.00
492-GL4 Four replacement glass rods for 492 21.00
492-BB Blue surface mount box for 492 42.00
EmLock®
CB401-AU Communicating bath switch, 630 Stainless Steel finish. 83.00
CB401-B Emergency access switch, red. 2 Required 83.00
CB701 Emergency key switch, red 156.00
Electrified Lockset, HiTower® , or Strike Application
CB402-A Communicating bath switch, U 630 Stainless Steel finish. 83.00
CB402-B Emergency access switch, red. 2 Required 83.00
CB702 Emergency key switch, red 156.00
Reference page 102 for system operation and component requirements
CB401-B
CB402-B
492
CSFM Listed
Emergency Door Release V LIST
Distributor
Discount Code
Communicating Bathroom Controls CK LIST
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
83
Egress Controls
CBP - Communicating Bathroom Package CK LIST
Distributor
Discount Code
Mortise Lock Option
CBP-ME-78 Communicating bath package with Eclipse style mortise Lock
(Z7850LQDE)
2,659.00
CBP-MG-78 Communicating bath package with Galaxy style mortise Lock
(Z7850LQDG)
2,659.00
Cylindrical Lock Option
CBP-CE-72 Communicating bath package with Eclipse style cylindrical Lock
(Z7250EQ)
1893.00
CBP-CG-72 Communicating bath package with Galaxy style cylindrical Lock
(Z7250GQ)
1893.00
EmLock© Option
CBP-EM-81 Communicating bath package with 650lb EMLock locking device
(1581VD)
1,521.00
CBP-EM-71 Communicating bath package with 1200lb EMLock locking device
(1571VD)
1,665.00
CBP-EM-11 Communicating bath package with 1650lb EMLock locking device
(1511VD)
1,727.00
FROM FIRE
PANEL
110 VAC INPUT
POWER
SUPPLY
NEW
• (2) Electrified Locking Devices
(Mortise, Cylindrical or ElectroMagnetic)
• (1) 1.5 Amp Power Supply with Universal Relay Module
(631RFXUR1)
• (2) Emergency Access Push Button Switches
(CB400-B)
• (1) System Activation Push Button Switch
(CB400-A)
• (2) Build-in Latch or Door Position Status Sensors
(DPS , L)
• (2) Power Transfer Hinges*
*(not required for EMLocks)
(PTH)
Package Components:
Every Shared Bathroom Package also includes a Riser Diagram, Components List, Method of Operation and Wiring
Diagram to help you determine the materials and installation costs to complete your project bid.
CB400-A
CB400-B
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
84
Power Transfer Devices
PTH Series Power Transfer Hinge LZK LIST
Distributor
Discount Code
SPECIFY FINISH
FEATURES
• 5' Ft Cable
• UL10B Listed for 3 Hour Fire Rated Doors
• 800,000 cycles. 8 times UL test criteria
• Wire Replacement Warranty
Power Transfer Hinge Application
Installed in the center hinge position of the door, PTH Power
Transfer Hinges provide the concealed wires required to trans-
fer power from the frame to electric hardware in the door for
control and monitoring capability.
Dull Chrome finish is standard as specified by suffix Q.
To specify special finish, designate finish suffix below in lieu of Q.
C 605 Bright brass H 613 Oil rubbed bronze P 625 Bright Chrome N/C
PTH-4Q Four (4) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair
4.5” x 4.5” standard weight, 626 Dull Chrome
150.00
PTH-4Q-DPS Four (4) Conductor Power Transfer Hinge with Door Status Contact
1 Amp @ 12/24V per pair
Door Status Contact: 250 mA @ 30VDC
4.5” x 4.5” standard weight, 626 Dull Chrome
207.00
PTH-10Q Ten (10) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair
4.5” x 4.5” standard weight, 626 Dull Chrome
202.00
PTH-10Q-DPS Ten (10) Conductor Power Transfer Hinge with Door Status Contact
1 Amp @ 12/24V per pair
Door Status Contact: 250 mA @ 30VDC
4.5” x 4.5” standard weight, 626 Dull Chrome
259.00
FOR ELECTRIC LATCH RETRACTION EXIT DEVICES AND OTHER HIGH INRUSH DEVICES
PTH-2+4Q 16 Amp Inrush, 6 conductor power transfer hinge
1-pair 16 Amp inrush, 4 Amp continuous; 2-pair 1 Amp @ 12/24V
4.5” x 4.5” standard weight, 626 Dull Chrome
182.00
PTH-2+4QDPS 16 Amp Inrush, 6 conductor power transfer hinge, with door status contact
1-pair 16 Amp inrush, 4 Amp continuous; 2-pair 1 Amp @ 12/24V
Concealed Door Position Contact, 250 mA @ 30VDC
4.5” x 4.5” standard weight, 626 Dull Chrome
233.00
Special Order Sizes and Heavy Weight Hinges POA
PTH x 5 Ft Cable
F
10B Listed
for 3hr Fire
Rated Door
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
85
Pwer Transfer Devices
PTM-2AL Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DV
Aluminum Powder Coat, US28 equivalent
371.00
PTM-2BZ Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DV
Dark Brown Powder Coat, US10B equivalent
371.00
PTM-10AL Ten (10) Conductor Power Transfer Device: Ten (10) 24 Ga. wire
1 Amp @ 12/24V AC/DC
Aluminum Powder Coat, US28 equivalent
371.00
PTM-10BZ Ten (10) Conductor Power Transfer Device: Ten (10) 24 Ga. wire
1 Amp @ 12/24V AC/DC
Dark Brown Powder Coat, US10B equivalent
371.00
Miscellaneous Fire
Door Accessories
UL 10C 3 Hr Fire Rated
Classied per UBC 7-2
PTM Heavy Duty Series Electric Power Transfer Device LZK LIST
Distributor
Discount Code
Power Transfer Loops V LIST
Concealed Power Transfer Device LIST
Distributor
Discount Code
PT-5 UL Listed Concealed Power Transfer Device, for use with all high and low current applications 63.00
Also recommended for use with Von Duprin* EL 33 and 99 series and other high inrush devices
*Von Duprin is a registered trademark of Ingersol Rand and Von Duprin. Not intended as endorsement.
PT5
Miscellaneous Fire
Door Accessory
PT-2U Armored flex conduit, less wires, 18" long, 1/4" I.D. 20.00
PT-3V Armored flex conduit, less wires, with wire junction box,
20” long, 1/4” I.D.
47.00
PT-3/8V Armored flex conduit, less wires, with wire junction box,
20” long, 3/8” I.D.
63.00
PT-2U PT-3V
Door Core Drill Guide LZK LIST
The SDC 7000-DG Laser Guided Wire Raceway Drill Fixture enables wire raceway preparation through particle filled and solid wood
doors. The door core wire raceway permits the installation and wiring of electrified locksets, exit devices and electric hinges.
The Laser Guided Wire Raceway Drill Fixture is easy to use without previous experience. The kit allows for drilling from the hinge
side without removing the door from the frame.
The 7000-DGK Kit includes: Laser Guided Door Core, Raceway Fixture, 1/4" x 6" Pilot Drill Bit, 3/8" x 50" Door Raceway
Drill Bit (Custom designed evacuator drill bit tool sharpened with 1' extra long flutes),
Fiberglass Wire Running Kit (Flexible acrylic end connection, Brass hook end for pulling, Brass eye end for pushing), Door
Wedge, Kit Carry Case
7000-DGK Laser door core drill guide Kit 621.00
7000-DB3/8 3/8" x 50" evacuator drill bit 78.00
7000-PD 1/4 X 6 1/4" x 6" pilot drill bit 25.00
Target Line
Laser beam
Drill Guide
1/4 x 6" Pilot Drill Bit
3/8" x 50" Evacuator Drill Bit - Custom Designed for Door Raceways Extra Long 1 Ft. Flute
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
86
Power Supply & Door Controllers
Distributor
Discount Code
Power Supplies/Controllers & Battery Standby NK
FIELD SELECTABLE 12VDC OR 24VDC OUTPUTS LIST
DUAL 12VDC AND 24VDC OUTPUT CAPABILITY Add to List
OPTIONS Add to List
632RFL
632RF(A)(L) Access Control Systems Unit ALVY
632RF(A)(L), 634RF and 636RF UL listed as:
General Purpose QQFU/QQFU7 Power Supply
BATTERIES SOLD SEPARATELY
602RFL 1 Amp, class 2 output, less box 218.00
602RF 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box 270.00
602RFA 1 Amp, class 2 output, 16" W x 14" H x 6.5" D box 383.00
631RFL 1.5 Amp, class 2 output, less box 270.00
631RF 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box 363.00
631RFA 1.5 Amp, class 2 output, 16" W x 14" H x 6.5" D box 435.00
632RFL 2 Amp, class 2 output, less box 321.00
632RF 2 Amp, class 2 output, 12" W x 12" H x 3.75" D box 414.00
632RFA 2 Amp, class 2 output, 16" W x 14" H x 6.5" D box 477.00
634RF 4 Amp, field select one 4 Amp output, or two 2 Amp class 2 outputs 621.00
636RF 6 Amp, field select one 6 Amp output, or three 2 Amp class 2 outputs 725.00
12VR 500mA, 12VDC regulated and filtered output module
With the power supply output set at 24VDC for locking devices and components, the
addition of the 12VR provides a separate 12VDC 500 mA output for access controls or
other 12VDC devices
52.00
MR Manual reset switch for Fire/Emergency release
(not available on 631RF)
38.00
PS-1 System On-Off push switch inside power supply enclosure 38.00
PS-1A System On-Off push switch on enclosure cover 38.00
14-2 7 day - skip a day programmable timer. Automatically unlocks and locks all doors or
specific doors on programmed days only.
249.00
PC 6 ft. power cord. Recommended for 1 Amp and 1.5 Amp, eliminating the need for
AC conduit
38.00
KL Key lock cover 38.00
220V/230V 230VAC, 50/60Hz N/C
• Input, output and battery LED status indicators
• Thermal and short circuit protection with
auto reset
• Battery charger
• Low battery disconnect
STANDARD FEATURES:
• Modular design
• Filtered and regulated output
• Field selectable 12/24VDC
• Fire/Emergency release input
• Field selectable manual reset input (n/a with 631RF(A))
602RF / 631RF
632RF
with optional power cord
and 2 - CR4 modules
631RFA
632RFA
634RF
636RF
12VR
631RFL
602RFL
Distributor
Discount Code
602RF(A)(L) and 631RF(A)(L) tested according to UL Standard 1481,
listing includes:
Access Control Systems Unit ALVY Burglar Alarm Systems Power Supply APHV
Releasing Device Accessory SYSW Fire and Burgular Alarm Power Supply URTZ
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
87
Power Supply & Door Controllers
621 Access Control Power Supplies NK
• 12VDC or 24VDC field selectable output
• 1 Amp maximum, filtered and regulated output
1 power limited or lock control relay output
1 power limited unswitched access control output
• Two control inputs
1 lock control trigger input, normally open (NO)
1 supervised emergency release input
(latching w/reset or non-latching)
• Short circuit and thermal overload protection
• Battery charger output
• Automatically switched to battery back-up when AC fails
• Board equipped with AC input, DC output and battery
status LED indicator
• Enclosure equipped with AC input, DC output
and battery status LED indicator
Dimensions
Power Supply Board: 3.95" W x 3" H x 1.625" D
Enclosure: 7.25" W x 8.375" H x 3.625" D
MODEL LIST
621PJ Power supply module and cabinet, door mount LED system status indicator
UL Listed 24VAC, 40 VA plug-in transformer
202.00
621J Power supply module, cabinet with door mounted LED system status indicator 182.00
621P Power supply module, retrofit mounting hardware includes flush mount standoffs
or Velcro. UL Listed 24VAC, 40 VA plug-in transformer
145.00
621B Power supply module only, retrofit mounting hardware includes flush mount standoffs
or Velcro
125.00
621B 621P
621PJ
FEATURES
2 Control Relays Standard
BATTERIES
RB12V4 12V/4Ah Battery. 621PJ accommodates two. 42.00
RB12V7 12V/7Ah Battery. 621PJ accommodates one. 63.00
RB12V4
4 Amp Hour
RB12V7
7 Amp Hour
621J
Distributor
Discount Code
621P-UME
UME Single module enclosure
32.00
Universal Module Enclosure for single modules
Universal mounting standoffs will accomodate
FB-4, UR-1, 12VR, ACM-1, PB-16, PB-8, PSM, 621B, or LR100EM boards.
Box Dimensions: 5-5/8”H x 7-11/16”W x 3-3/8”D
UME Universal Module Enclosure NK
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
88
Power Supply & Door Controllers
Modules may be ordered with or without power supplies. Different function modules may be used in
the same power supply or cabinet. Contacts: 2.5 Amps inductive, 5 Amps resistive @ 30VDC unless
specified otherwise.
Multiple Output & Door Control Module NK
UNIVERSAL CONTROLLER & MANTRAP MODULES LIST
DOOR CONTROL MODULES LIST
BATTERIES LIST
EXIT DEVICE SEQUENCER LIST
UR4-8
CR4
FB-4
PB-8
ACM-1
FB-4 Fused terminal board. 4 individually fused outputs 42.00
ACM-1 Access Control Module. One SPDT voltage output, one SPDT status output,
eight trigger inputs, (3N/C, 3N/O), LED status indicator.
94.00
CR4 Control Board with four relays. Four fused SPDT field selectable wet or dry outputs,
four non-fused SPDT outputs, 2 Amps @ 30VDC, four dry contact trigger inputs.
171.00
PB-8 Power booster for high inrush electric panic devices and locks. 1 Amp
continuous @ 24VDC, 8 Amp surge output.
125.00
PB-16 Power booster for high inrush electric panic devices and locks. 1 Amp
continuous @ 24VDC, 16 Amp surge output.
156.00
UR-1 Universal Controller for up to 2 doors. 12 Selectable Relay & System Logic Modes.
2 form "A" SPST, N.O. Inputs, 2 form "C" SPST outputs 5 Amps, 12/24 @ 120/175mA.
100.00
UR2-4 Universal Controller for 2 doors. Field select TD, LR, TD/LR, mantrap A, B, C
interlock. Two fused SPDT outputs, 5 Amp @ 30VDC.
Two SPDT outputs, 5 Amp @ 30VDC. Two inputs per station, four auxiliary inputs.
228.00
UR4-8 Universal Controller for 4 doors. Field select TD, LR, CR, TD/LR, mantrap A, B
interlock. Four fused SPDT outputs, 5 Amp @ 30VDC.
Four SPDT outputs, 5 Amp @ 30VDC. Two inputs per station, four auxiliary inputs.
321.00
Cabinet Control Module Capacity
Number of
Batteries ACM-1 CR CR-4 FB-4 LR PB UR PSM
12x12 0-224244201
3-412122201
16x14 0-248448621
3-626224411
RB12V4 12V/4Ah Battery. Specify in pairs for 24V. 600RF accommodates four. 42.00
RB12V7 12V/7Ah Battery. Specify in pairs for 24V. 600RFA accommodates six 63.00
EMC Sequencer Module required for pair of doors and automatic doors. 12/24 VDC
For use with SDC 602RF and 632RF Power Supplies.
156.00
RB12V4
4 Amp Hour
RB12V7
7 Amp Hour
TMTM
“Security Industry Finest”
ISC Expo
POWER SUPPLY MONITORING LIST
PSM Power Supply Monitoring Module
For remote monitoring of power supply AC input, DC output and battery backup
On/Off status. 2 SPDT Relay Outputs, 1 Amp @ 12/24VDC
228.00
PSM
Distributor
Discount Code
UR-1
UR2-4
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
89
Power Supply & Door Controllers
DC Regulated Power Supplies V LIST
Transformers V LIST
TR12 1 Amp 12VDC Regulated Plug-In Power Supply 75.00
• Thermal overload protection
• LED Power status indicator
• Secondary connection: Screw terminals
• Primary Input: 120VAC
• UL Listed, Class 2
TR24 1 Amp 24VDC Regulated Plug-In Power Supply 77.00
• Thermal overload protection
• Secondary connection: 6ft wire leads
• Primary Input: 120VAC
• UL Listed, Class 2
TP1220 1.6 Amp 12VAC Plug-In Transformer 21.00
• Thermal overload protection
• Secondary connection: Screw terminals
• Thermal overload protection
• Primary Input: 120VAC
• UL Listed, Class 2
TP2440 1.6 Amp 24VAC Plug-In Transformers 38.00
• Thermal overload protection
• Secondary connection: Screw terminals
• Thermal overload protection
• Primary Input: 120VAC
• UL Listed, Class 2
BR64XL Bridge Rectifier, 6” wire leads. Converts AC transformer output to DC 26.00
Distributor
Discount Code
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
90
Power Supply & Door Controllers
Power Supply Capacity Chart
EMLOCK
ELECTROMAGNETIC LOCKS VOLTS AMPS
602RF
621
1 AMP
631RF
631RFA
1.5 AMP
632RF
632RFA
2 AMP
634RF
4 AMP
636RF
6 AMP
1511 SINGLE 12VDC
24VDC
.70A
.35A
1
2
2
4
2
5
5
11
8
17
1512 DOUBLE 12VDC
24VDC
1.40A
.70A
0
1
1
2
1
2
3
5
4
8
1561, 1562 12VDC
24VDC
.65A
.35A
1
2
2
4
3
5
6
11
9
17
1565, 1566 12VDC
24VDC
.80A
.40A
1
2
1
3
2
5
5
10
7
15
1571 ENERGY SAVER 12VDC
24VDC
.25A
.125A
4
8
6
12
8
16
16
31
24
48
1572 ENERGY SAVER 12VDC
24VDC
.50A
.25A
2
4
3
6
4
8
8
16
12
24
1575, 1576 12VDC
24VDC
.45A
.225A
2
4
3
6
4
8
8
16
12
24
1581 SINGLE 12VDC
24VDC
.44A
.22A
2
4
3
6
4
6
9
18
13
27
1582 DOUBLE 12VDC
24VDC
.88A
.44A
1
2
1
3
2
4
4
9
6
13
EXIT CHECK INTEGRATED DELAYED EGRESS EMLOCKS
1581S 12VDC
24VDC
.50A
.32A
2
3
3
4
4
6
8
11
12
18
1511S 12VDC
24VDC
.83A
.45A
1
2
1
3
2
4
4
8
6
12
1511T 12VDC
24VDC
1.56A
.92A
0
1
0
1
1
2
2
4
3
6
1511S With (E) Energy Saver Option 12VDC
24VDC
.40A
.275A
2
3
3
5
5
7
10
14
15
21
1511T With (E) Energy Saver Option 12VDC
24VDC
.65A
.40A
1
2
2
3
4
5
6
10
9
15
EXIT CHECK EMLOCK WITH WALL MOUNT CONTROLLER
101-DE x 1511DE 12VDC
24VDC
.85A
.53A
1
1
1
2
2
3
4
7
7
11
ENERGY SAVER
101-DE x 1571DE
12VDC
24VDC
.43A
.31A
2
3
3
4
4
6
9
12
13
19
101-DE x 1581DE 12VDC
24VDC
.62A
.40A
1
2
2
3
3
5
6
10
9
15
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
91
Power Supply & Door Controllers
Power Supply Capacity Chart ( continued )
HITOWER ELECTRIC LOCKS VOLTS AMPS
602RF
621
1 AMP
631RF
631RFA
1.5 AMP
632RF
632RFA
2 AMP
634RF
4 AMP
636RF
6 AMP
7200 12VDC
24VDC
.60A
.30A
1
2
2
5
3
6
6
13
10
21
7500 FAIL SAFE 24VDC .50A 2 3 4 8 12
7500 FAIL SECURE 24VDC .80A 1 1 3 5 7
7800 12VDC
24VDC
.60A
.30A
1
2
2
5
3
6
6
13
10
20
SPACESAVER ELECTRIC BOLT LOCKS
100,1000, FS 12VDC
24VDC
.90A
.45A
1
2
1
3
2
4
4
8
6
12
1100 24VDC .50A 2 3 4 8 12
1200 12VDC
24VDC
.90A
.45A
1
2
1
3
2
4
4
8
6
12
2000 24VDC
2.5A
InRush
.4A Cont.
1
1X-PB
*2
1XPB-8
*4
2XPB-8
*6
3XPB-8
*8
4XPB-8
ELECTRIC STRIKES
15 12VDC .20A 4 7 10 20 30
25 12VDC
24VDC
.30A
.15A
3
6
5
10
6
13
13
26
20
40
30 12VDC
24VDC
.51A
.25A
1
4
2
6
3
8
7
16
11
24
45 12VDC
24VDC
.28A
.14A
3
6
5
10
6
13
13
26
20
40
EXIT DEVICES
E Electric Latch Retraction 24VDC .7A 1 2 4 8 12
with 1 EMC Sequencer 1 2
with 2 EMC Sequencers 4
B Exit Alarm 12VDC
24VDC
.100A
.100A
10
10
M Electric Mortise Device 12VDC
24VDC
.6A
.3A
1
3
2
5
3
6
6
13
10
20
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
92
Remote Controls
Model Description
WRC-2B 433MHz 2-Button Pendant Wireless Transmitter 50.00
SDC’s WRC Series 2-Channel wireless transmitter/receiver solution is specically designed to be
used as a receptionist button or remote release for single or dual door access control applications.
• Operates with 400WRC-R2
• Frequency: 433.92MHz
• Housing: Keychain type
• Voltage: 6VDC
• Battery Replacement: – CR2016 Button Cell 3V
Lithium battery (x 2)
• Transmitting distance: 160 feet (no obstructions)
• Activation: Hold “A” or “B” button for 1 sec.
Model Description
WRC-R2 433MHz 2-Channel Wireless Receiver 81.00
• Size with housing (approx.): 2.5” H x 1.75” W x 1.2” D
• Frequency: 433.92MHz
• Environmental: Indoor
• Operating Temperature: -22°F – 140°F
• Input Voltage: 24VDC
• Current consumption: 9mA @24VDC (standby); 46mA
(max)
• Relay Outputs: Two (2) Dry, Form C (SPDT)
• Contact rating: 10A@30VDC (resistive)
• Wiring connections: 12”, 8-wire pigtail
• Transmitter coding capacity: 30 (xed code)
• Transmitter programming using onboard learning
button and status LED
NEW
WRC SERIES 2-Channel Wireless Transmitter and Receiver CK LIST
433MHZ 2-BUTTON PENDANT TRANSMITTER LIST
433MHZ 2-CHANNEL RECEIVER LIST
Mini Consoles WK LIST
Mini Consoles provide control for one or two doors. Momentary or maintained push button switches with Bi-Color LED indicators.
Dimensions: 4-1/8" W x 3-1/8" H x 6-1/4" L Color: Beige
Contacts: 5 Amp @ 30VDC Power: 24VDC @ 0.02 Amp required for each LED
DTMO-1 One momentary switch and one LED 207.00
DTMO-2 Two momentary switches and two LEDs 259.00
DTMOMA-2 One momentary, one maintained switch and two LEDs 311.00
DTMA-2 Two maintained switches and two LEDs 259.00
DTMO-2 DTMO-1
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
93
Remote Controls
Modular Control Consoles WK LIST
SPECIFY SWITCH AND INDICATOR PANELS Add to List
CABINETS Add to List
CAB7 Black cabinet for one RCC
7"H x 20-1/2"W x 14-1/2"D
596.00
CAB12 Black cabinet for two RCC
12-1/2"H x 20-1/2"W x 14-1/2"D
803.00
TCC Slope front desk top console
12 stations maximum when using 2 control panels. Base unit, less panel.
Color: black sides and beige top
Dimensions: 10-1/4"W x 4-3/4"H x 9-5/8"D
311.00
RCC Rack mount console.
24 stations maximum when using three control panels. (Maximum is 20
stations with "E" panel)
Base unit, less panels.
Color: Beige
Dimensions: 19"W x 5-1/4"H x 6"D
673.00
Chassis less switches and light panels.
TCC AL8 AL4E
RCC AL8 AL8 AL4E
Rocker Switch Rating: 3 Amp @ 30VDC Power Required per LED: 24VDC @ 0.02 Amp
AL4 Four momentary switches with LEDs 518.00
BL4 Four maintained switches with LEDs 518.00
CL4 Four momentary/off/maintained switches with LEDs 518.00
DL4 Four momentary/off/momentary switches with LEDs 518.00
AL8 Eight momentary switches with LEDs 880.00
BL8 Eight maintained switches with LEDs 880.00
CL8 Eight momentary/off/maintained switches with LEDs 880.00
DL8 Eight momentary/off/momentary switches with LEDs 880.00
AL4E Four momentary switches with LEDs, alarm, reset push button and key lock 621.00
BL4E Four maintained switches with LEDs, alarm reset push button and key lock 621.00
CL4E Four momentary/off/maintained switches with LEDs, alarm, reset push button
and key lock
621.00
DL4E Four momentary/off/momentary switches with LEDs, alarm, reset push button
and key lock
621.00
EA Panel with alarm, reset push button and key lock 259.00
FA Blank panel 47.00
FA
EA
Distributor
Discount Code
Desk Switch Compact Box DK LIST
15-2
15-1 AA, SPDT push switch, 6 Amp @ 30VAC/DC 114.00
15-2 MO, SPDT push switch, 10 Amp @ 30VAC/DC 78.00
15-3 AA, SPDT toggle switch, 6 Amp @ 30VAC/DC 135.00
15-2-3 (1) MO push switch and (1) AA (on/off) toggle SPDT, 6 Amp @ 30VAC/DC 192.00
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
94
Annunciators
DOOR PROP ALARM CK List
Distributor
Discount Code
Improve security with a cost-effective door prop alarm. All SDC door prop alarms feature audible sirens with adjustable timer settings,
two outputs, bypass status indicator light, and vandal-resistant aluminum construction. Available to install in single gang or double gang
enclosures, SDC door prop alarms also offer optional Keylock and Mortise Cylinder Reset/Bypass Switches.
• Adjustable Timed Delay
• Exit Alarm on Door Opening
• Automatic or Manual Alarm Reset
• Output Relays
• Integral Tri-color LED Status Indicator
• Optional Key Reset/Bypass Switch
• Compact Universal Mounting
• 85dB Piezo Buzzer Alarm
Model Description
EA-SN Door Prop Alarm, Single Gang w/ integral Status LED & Audible Alarm 220.00
EA-728V Double Gang w/ integral Status LED, Audible Alarm & Keylock Switch for Reset/Bypass 280.00
EA-708V Double Gang w/ integral Status LED, Audible Alarm & Mortise Key Cylinder Switch for
Reset/Bypass, Cylinder not included
310.00
EA-SN EA-708
EA-728
NEW
EA100 Exit Annunciators LIST
EA100 Highly visible Annunciator Bar with multiple color LED light featuring rolling signals. 182.00
The SDC Exit AnnunciatorTM is a highly visible multi-color signal device, that interfaces with
Delayed Egress or standard EMLocks, plus many other manufactures electromagnetic locks. and
can be used as a wall, ceiling, or frame mount indicator.
Brand Compatibility
Stand Alone Multi-Mount
Frame
Mount
Wall
Mount
Ceiling
Mount
Airport - Alarmed Exit Laboratory - Clean Room
Nurse Care -
Wandering Patient Retail - Alarmed Exit
Typical Application
FEATURES
• Easy to install
• Suitable for retrofit or new construction
• Multi color LED technology
• Externally selectable color modes of Red,
Green, Blue, White, Yellow and Purple
• Externally selectable Solid
or Flashing Modes
SPECIFICATIONS
Dimensions 8-5/8" x 1-1/2" x 3/4"
Electrical 12/24 VDC @ 160mA
LED Output Long Life
SDC Schlage RCI Securitron
Rofu Secolarm Dynalock Door King
Includes
optional
Illuminating
Hood for
greater side-
visibility
KEY CYLINDER OPTIONS for EA-708 Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 32.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
95
Annunciators
Sirens and Buzzers CK LIST
400-SN 400-RMB
Standard Finish 630 Stainless Steel
400U-RMB Buzzer on 1 gang plate. Specify 12/24VDC, 20mA max 47.00
400NU-RMB Buzzer on narrow plate. Specify 12/24VDC, 20mA max 47.00
400U-SN Siren on 1 gang plate, 3 - 28VDC, 18mA max 57.00
400NU-SN Siren on narrow plate, 3 - 28VDC, 18mA max 57.00
Distributor
Discount Code
Wall Mount Indicator CK LIST
400U-L2
Standard Finish 630 Stainless Steel
400U-L2 Two LEDs. Specify lens color. Standard Finish, on 1 gang plate 47.00
400NU-L2 Two LEDs. Specify lens color. Standard Finish, on narrow plate 47.00
400U-L3 Three LEDs. Specify lens color. Standard Finish 57.00
400U-LT1 One tricolor LED. Red, Green and Amber. Standard Finish 47.00
400U-LT2 Two tricolor LED. Red, Green and Amber. Standard Finish 57.00
Distributor Discount
Code
400NU-L2
101-SP
101-1AK
101-4AM
101-1A
101-PAM
101-1A Remote or local single door annunciator with audible alarm and tricolor LED, 1 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
109.00
101-4AM Remote four door annunciator with audible alarm mute button. Four tricolor LEDs, 2 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
332.00
101-1AK Remote or local single door annunciator with 2 function key switch for on/off, reset,
audible alarm and tricolor LED, 2 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
Accepts standard 1-1/8'' to 1-1/4'' mortise key cylinder.
(Mortise key cylinder not included)
332.00
101-PAM Remote single door annunciator with 3 push button switches for momentary
access. On/off and audible alarm mute button with tricolor LED, 2 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
Recommended for remote installation only
332.00
101-SP External 15 watt speaker connects directly to 1511S or 1511T for enhanced decibels
onsite or remote voice message annunciation. Speaker driver may be provided by others
for extreme decibel requirements.
38.00
101-SPSN 101-SPSN Remote Single Gang Annunciator with speaker and 80db tone. Duplicates ExitCheck alternat-
ing voice message and tone.
100.00
101 Series Annunciators LIST
KEY CYLINDER OPTIONS for 101-1AK Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 32.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 32.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
96
Accessories
EH Series Magnetic Door Holder & Releasing Device V
SDC EH Series Magnetic Door Holders, are designed to hold
doors open and release the door by remote switch or fire life
safety command center activation. Primary application includes
holding and releasing of fire rated doors that are required to
provide a barrier for fire and smoke in an emergency or the
convenience of door closure by remote control.
SPECIFY MODEL LIST
Model Description
EH10 Flush Mount 135.00
EH20 Semi-Flush Mount 104.00
EH30 Surface Mount 151.00
EH40 Floor Mount, Single 195.00
EH42 Floor Mount, Double 244.00
Performance Data
Model Voltage DC/mA AC/mA Terminals LB. KG.
1224 12V 40 38 C&L 30 13.6
24V 40 36 C&H 30 13.6
24120 24V 20 19 C&L 40 18.1
120V — 20 C&H 35 15.8
24220 24V 20 19 C&L 40 18.1
220V — 15 C&H 25 11.3
HIGH HOLDING FORCE / SPECIAL APPLICATIONS
Model Voltage DC/mA AC/mA Terminals LB. KG.
1224 24V 85 81 C&L 75 34.0
24120 120V — 100 C&L 110 49.8
To obtain performance values in high holding force table above apply high listed voltage
to low voltage terminals (C & L). NOTE: This configuration can only be applied to models
1224 & 24120.
SPECIFY VOLTAGE Add to List
Voltage Description
1224 12/24VAC/DC N/C
24120 24VAC/DC/120VAC N/C
24220 24VAC/DC/220VAC N/C
SPECIFY FINISH Add to List
Finish Description
AChrome Powder Coat N/C
P625 Chrome Plated P.O. A .
C605 Brass Plated 21.00
Example: EH20 24120A
CSFM
Distributor
Discount Code
SPECIFICATIONS
Materials Zinc alloy
Voltage Standard dual voltage AC or DC inputs of
12&24V, 24&120V, 24&220V models
Holding
Force
Typical holding force of 25-40
pounds; field selectable high holding force
Mount Single or double floor, surface, flush,
and recessed mount
Total
Projection
Flush mount: 2-11/32” (60mm)
Semi-Flush mount: 3-1/16” (78mm)
Surface mount: 4-5/8” (117mm)
Floor mount (single door): 5” (127mm)
Floor mount (double door): 9-5/8” (244mm)
Fasteners Hardware package, mounting bracket
EH10 Flush
EH20 Semi-Flush
EH30 Surface
EH40 Floor, single
EH42 Floor, double
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
97
Accessories
EH Series Magnetic Door Holder & Releasing Device Accessories V
EXTENSION RODS LIST
Model Description
EHRO2 1/2" Extension Rod 21.00
EHR1 1" Extension Rod 21.00
EHR15 1-1/2" Extension Rod 25.00
EHR2 2" Extension Rod 32.00
EHR3 3" Extention Rod 32.00
EHR4 4" Extension Rod 42.00
EHR5 5" Extension Rod 52.00
EHR02 EHR1 EHR15
EHR2 EHR3
EHR4
EHR5
EHR1
1"
EHR02
.5" 3"
4"
1.5"
1.5"
2"
EHR3
4"
EHR4
5"
EHR5
EHRA4
EHRA15
EHR15 EHR2
Extension Rod Applications
Fig. A
Refer to Figure A to determine correct rod length for each individual openings installation and adjustability
requirements
EHRA15
EHRA4
ADJUSTABLE EXTENTION ROD LIST
Model Description
EHRA15 1-1/2" Adjustable Extension Rod 25.00
EHRA4 4" Adjustable Extension Rod 42.00
SPECIFY FINISH Add to List
Finish Description
AChrome Powder Coat N/C
P625 Chrome Plated P.O. A .
C605 Brass Plated 13.00
OPTIONS & ACCESSORIES LIST
Model Description
EHBB
Surface Back Box
2-25/32" x 4-7/8" x 1-1/2" (71mm x 124mm x 38mm)
Supplied with EH30, EH40, EH42
42.00
EHCP Catch Disk Only
Replacement for the catch plate assembly 32.00
EHSBA Catch Plate Assembly 52.00
EHDF Drilling Fixture
Attach to door for quick and accurate hole location 207.00
EHW Extention Wrenches
Used to tighten extension rods to catch plate assembly 6.00
SPECIFY FINISH FOR SURFACE BACK BOX EHBB Add to List
Finish Description
AChrome Powder Coat N/C
P625 Chrome Plated P.O. A .
C605 Brass Plated 38.00
EHBB
EHCP
EHDF
EHW
Distributor
Discount Code
How To Determine Extension Rod & Adjustable Rod Length
Extensions Rod Application: Refer to Fig. A for Aligned Catch Plate and Door Holder
Adjustable Rod Application: Refer to Fig. B for Misaligned Catch Plate and Door Holder
1. Hold door open at desired position.
2. Measure distance between door and wall.
3. Subtract below dimension indicated for door holder style
Flush Mount: Subtract 3” (76mm) from measured distance to determine minimum rod length.
Recessed Mount: Subtract 2-3/8” (60mm) from measured distance to determine minimum rod length.
Surface Mount: Subtract 4-5/8” (76mm) from measured distance to determine minimum rod length.
5”
[127mm]
EXTENSION
to calculate extension lenght:
subtract 3” (117mm) from wall
to door at desired angle
WALL
DOOR
EXAMPLE:
5” overall distance
use EHR2 (2” extension)
90
0
MIS-ALIGNMENT EHR1
EHRA4
8”
[203mm]
5”
[127mm]
EXTENSION
to calculate extension lenght:
subtract 3” (117mm) from wall
to door at desired angle
WALL
DOOR
EXAMPLE:
5” overall distance
use EHR2 (2” extension)
90
0
MIS-ALIGNMENT EHR1
EHRA4
8”
[203mm]
Fig. A
Fig. B
EHSBA
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
98
Accessories
Model Description
WRC-2B 433MHz 2-Button Pendant Wireless Transmitter 50.00
SDC’s WRC Series 2-Channel wireless transmitter/receiver solution is specically designed to be
used as a receptionist button or remote release for single or dual door access control applications.
• Operates with 400WRC-R2
• Frequency: 433.92MHz
• Housing: Keychain type
• Voltage: 6VDC
• Battery Replacement: – CR2016 Button Cell 3V
Lithium battery (x 2)
• Transmitting distance: 160 feet (no obstructions)
• Activation: Hold “A” or “B” button for 1 sec.
Model Description
WRC-R2 433MHz 2-Channel Wireless Receiver 81.00
• Size with housing (approx.): 2.5” H x 1.75” W x 1.2” D
• Frequency: 433.92MHz
• Environmental: Indoor
• Operating Temperature: -22°F – 140°F
• Input Voltage: 24VDC
• Current consumption: 9mA @24VDC (standby); 46mA
(max)
• Relay Outputs: Two (2) Dry, Form C (SPDT)
• Contact rating: 10A@30VDC (resistive)
• Wiring connections: 12”, 8-wire pigtail
• Transmitter coding capacity: 30 (xed code)
• Transmitter programming using onboard learning
button and status LED
NEW
WRC SERIES 2-Channel Wireless Transmitter and Receiver CK LIST
433MHZ 2-BUTTON PENDANT TRANSMITTER LIST
433MHZ 2-CHANNEL RECEIVER LIST
Passive Infrared Egress Control V LIST
Distributor Discount
Code
MD-31DOW Motion detector with time delay, white 235.00
MD-31DB Motion detector with time delay , black 235.00
14-2 7 day programmable timer with memory battery back-up capability
Output: 1 SPDT, dry contact
Voltage: 16 Amps @ 30 VAC/DC
Specify 12V AC/DC or 24 AC/DC
249.00
Timer CK LIST
Distributor Discount
Code
Time Delay Relay CK List
Distributor Discount
Code
Time Delay Relays
10TD Time delay relay module with adjustable 1-60 second relock delay.
Input: 12/24V AC/DC Output: SPDT, dry contact
Voltage: 2 Amps @ 30 VDC (resistive) Size: 2-1/4"x 1-1/2" x 3/4"
88.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
99
Accessories
MC-4M
Door Position Sensors V LIST
Distributor
Discount Code
DPS-11
DPS-11-2
MC-4
DPS-11 Adjustable ball type SPDT 5 Amp 47.00
DPS-11-2 Adjustable ball type 2 SPDT 5 Amp 68.00
MC-4 Recessed magnetic (3/4”, SPDT, 30VDC, 50mA) 50.00
MC-4PAK Recessed magnetic (3/4", SPDT, 30VDC, 50mA) - 10 pack 311.00
MC-4M Recessed magnetic mounted on 1-1/4" x 4-7/8" plate 88.00
MC-7 Biased high security recessed magnetic (1", SPDT, 30VDC, 50mA) 68.00
Emergency Access Panel CK LIST
APB1000A Emergency access panel for lobby door system.
Mushroom button with key reset and siren
363.00
Distributor
Discount Code
UME Single module enclosure
32.00
Universal Module Enclosure for single modules
Universal mounting standoffs will accomodate
FB-4, UR-1, 12VR, ACM-1, PB-16, PB-8, PSM, 621B, or LR100EM boards.
Box Dimensions: 5-5/8”H x 7-11/16”W x 3-3/8”D
UME Universal Module Enclosure NK
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
100
FROM FIRE PANEL
110 VAC INPUT
POWER
SUPPLY
Communicationg Bathroom EMLocks®
APPLICATION
Single hospital bathroom shared by two patient rooms.
SYSTEM OPERATION
Both doors must be closed to lock.
Activating CB401A (B) locks both doors.
Activating CB401A (B) again unlocks both doors.
When doors are locked, activating either CB401B (C) emergency release will unlock both doors.
Both doors will unlock automatically via signal from fire panel.
SYSTEM COMPONENTS
(A) Fail Safe locks with door position switch.
Example: 1511-DPS
(B) CB401A System activation push switch.
(C) CB401B Emergency release push switch to be mount-
ed above each door. CB701B key switch optional.
(D) 631RFxUR1 Power Supply with Fire Panel Tie-In.
Communicating Bathrooms, Mantraps & Interlocks
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
101
APPLICATION
Single hospital bathroom shared by two patient rooms.
SYSTEM OPERATION
Both doors must be closed to lock.
Activating CB402A (B) locks both doors.
When doors are locked, turning either inside door lever unlocks both doors.
When doors are locked, activating either CB402B (C) emergency release will
unlock both doors.
Both doors will unlock automatically via signal from fire panel.
FROM FIRE
PANEL
110 VAC INPUT
POWER
SUPPLY
CB401-A
CB402-A
CB401-B
CB402-B
COMMUNICATING BATHROOM for Selectric® or Electra® Locks
UR1
SYSTEM COMPONENTS
(A) Fail Safe locks with door position switch
or REX. Examples: 7850-RD or 7250
(B) CB402A System activation push switch.
(C) CB402B Emergency release push switch
to be mounted above each door. CB702B
key switch optional.
(D) PTH-4-DPS
(E) 631RFxUR1 Power Supply with Fire Panel
Tie-In.
Communicating Bathrooms, Mantraps & Interlocks
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
102
APPLICATION
Single hospital bathroom shared by two patient rooms.
SYSTEM OPERATION
Both doors must be closed to lock.
Activating CB402A (B) locks both doors.
When doors are locked, turning either inside door lever unlocks both doors.
When doors are locked, activating either CB402B (C) emergency release will unlock both doors.
Both doors will unlock automatically via signal from fire panel.
SYSTEM COMPONENTS
(A) Fail Safe locks with latch bolt monitoring.
Examples: 7550-L or 45-4SU
(B) CB402A System activation push switch.
(C) CB402B Emergency release push switch to be mounted above each door. CB702B key switch optional.
(D) 631RFxUR1 Power Supply with Fire Panel Tie-In.
A
A
C
C
B
D
FROM FIRE PANEL
110 VAC INPUT
POWER SUPPLY
CB401-A
CB402-A
CB401-B
CB402-B
COMMUNICATING BATHROOM for HiTower® Locks or Electric Strikes
UR1
Communicating Bathrooms, Mantraps & Interlocks
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
103
APPLICATIONS
Darkrooms, laboratories, clean rooms, x-ray or other treatment rooms, light and air trap rooms and more.
OPERATION
All doors remain closed and unlocked. Opening either door
causes the second door to lock until the opened door returns
to the closed position. A key switch is provided for system
activation and deactivation.
SYSTEM COMPONENTS SHOWN
(A) 631RFA-UR2-4 Power Supply
(B) 1511-DPS EmLock
(C) 701 System On-Off Key Switch
ALTERNATE “B” COMPONENTS
Refer to literature for lock specifications.
EmLocks Electric Strikes HiTower Bolt Locks
1581-DPS ◆55-A-LBM 7530-L FS23M-D
1565-DPS ◆55-B-LBM 7830-DS 1190A-D
1511-DPS-TJ ◆55-C-LBM ◆ 7560-L 1091A-D
◆ Indicates Fail Secure
NOTES: Consult factory for 3 and 4 door interlocks. Operation and configurations shown may be altered for specific job
application needs. Consult factory for more information. Component changes may require system design/schematic chang-
es. Consult factory.
FIRE ALARM PANEL
(For Fire Safety
Application Only)
115VAC
DOOR LAYOUT 1
2 DOOR INTERLOCK "A"
3 and 4 Door Interlock Available
Communicating Bathrooms, Mantraps & Interlocks
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
104
APPLICATIONS
Laboratories, clean rooms, money counting rooms, restricted dark rooms, computer rooms and more.
OPERATION
Both doors are normally closed and locked. Unlocking either door causes the other to be incapable of being unlocked. A key
switch (D) is provided for system activation and deactivation. Doors are accessed by Digital Keypad (C).
FIRE ALARM PANEL
(For Fire Safety
Application Only)
115VAC
DOOR LAYOUT 1
2 DOOR MANTRAP "B"
3 and 4 Door Mantrap Available
SYSTEM COMPONENTS SHOWN
(A) 631RFA-UR2-4
(B) 1511-DPS-BAS or 1511-BAS
(C) 918 Digital Entry Momentary Access
(D) 701 Key Switch ON-OFF
ALTERNATE “B” COMPONENTS/LOCKING DEVICE
Refer to literature for lock specifications.
EmLocks Electric Strikes HiTower Bolt Locks
1565-DPS-BA ◆ 55-A-LCM-LBM 7530-S FS23M-BD
1511-DPS-BAS-TJI ◆ 55-B-LCM-LBM ◆ 7560-S 1190A-BD
7830-DS
◆ Indicates Fail Secure
ALTERNATE “C” COMPONENTS/ACCESS CONTROL - Refer to literature for switch specifications.
Key Switch Desk Switch Keypad Card & Keypad Reader
702 15-2 918 920P
702N 920 923P
802
802N
ALTERNATE “D” COMPONENTS/ON-OFF SWITCH - Refer to literature for switch specifications.
Desk Switch Push Switch
15-1 ON-OFF 425 ON-OFF
NOTES: Consult factory for 3 and 4 door mantraps. Operation and configurations shown may be altered for specific job
application needs. Consult factory for more information. Component changes may require system design/schematic
changes. Consult factory. Consult factory for Control and Monitoring Panel applications.
Communicating Bathrooms, Mantraps & Interlocks
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
105
APPLICATIONS
Laboratories, clean rooms, money counting rooms, restricted dark rooms, computer rooms and more.
OPERATION
Door 1 is locked, Door 2 remains unlocked. When Door 1 is unlocked, Door 2 locks. When Door 2 is opened, Door 1 cannot
be unlocked. A key switch (D) is provided for system activation and deactivation. Door 1 is accessed by Digital Keypad.
FIRE ALARM PANEL
(For Fire Safety
Application Only)
115VAC
DOOR LAYOUT 1
2 DOOR INTERLOCK "C"
3 and 4 Door Mantrap Available
SYSTEM COMPONENTS SHOWN
(A) 631RFA-UR2-4 Power Supply
(B) 1511-DPS-BAS EmLock
(C) 918 Digital Entry Momentary Access
(D) 701 Key Switch ON-OFF
ALTERNATE “B” COMPONENTS/LOCKING DEVICE
Refer to literature for lock specifications.
EmLocks Electric Strikes HiTower Bolt Locks
1565-DPS-BA ◆ 55-A-LCM-LBM 7530-S FS23M-BD
1511-DPS-BAS-TJI ◆ 55-B-LCM-LBM 7830-DS 1190A-BD
◆ 7560-S
◆ Indicates Fail Secure
ALTERNATE “C” COMPONENTS/ACCESS CONTROL - Refer to literature for switch specifications.
Key Switch Desk Switch Keypad Card & Keypad Reader
702 15-2 918 920P
702N 920 923P
802
802N
ALTERNATE “D” COMPONENTS/ON-OFF SWITCH - Refer to literature for switch specifications.
Desk Switch Push Switch
15-1 ON-OFF 425 ON-OFF
NOTES: Consult factory for 3 and 4 door interlocks. Operation and configurations shown may be altered for specific
job application needs. Consult factory for more information. Component changes may require system design/schematic
changes. Consult factory. Consult factory for Control and Monitoring Panel applications.
Communicating Bathrooms, Mantraps & Interlocks
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
106
TO FIRE PANEL
115VAC
POWER
SYSTEM COMPONENTS SHOWN
(1) SDC-Z 7850 HiTower Lock
(2) SDC-PTH-4 Power Transfer Hinge
(3) 920P Stand Alone Proximity Reader
(4) SDC-APB 1000 Sign with Release Push Switch and Alarm
(5) Intercom/CCTV by others
(6) SDC-631RF Power Supply
(7) SDC-DTMO-1, RCC or TCC Door Control Console and Annunciator
NOTE: All system field wiring is to be installed in accordance with all local building codes and the approval of the local
authority having jurisdiction. All wiring is to be done by a licensed Access Control or Fire and Life Safety specialist.
OPERATION
Many high-rise building tenants that occupy a complete floor may have a problem when it comes to securing their elevator
lobby doors. These doors lead through office space to the emergency exit stairwell doors. People must have free access to
the stairwell at all times. This leaves some companies vulnerable to transient traffic, theft and loss of proprietary information.
SDC manufactures a lobby door security system which meets both fire life safety and security needs.
The elevator lobby doors are normally closed and locked by SDC Model Z7850 Fail-Safe lockset. The intercom system pro-
vides two-way communication to the security desk. When a call is placed from the elevator lobby, the security desk personnel
can momentarily release the SDCZ7850 lockset by using the SDC Desk Console (Model DTMO-1). If there is no response from
the security desk personnel, the person in the elevator lobby can depress the red exit palm push button switch on the Alarm
Panel Sign (SDC Model APB-1000). When the red exit switch is activated, the SDC Model Z7850 lock will immediately release
and an alarm will sound in the elevator lobby and the security desk console.
An authorized person can reset the lockset, turn off the alarm and return the system to the normal secured operation by using
the built-in Key Reset on the red exit palm push button switch. Personnel may always obtain access to the offices by use of
an access control system. Egress from the office to the lobby is accomplished by rotating the inside lever.
A SDC Series 600 Power Supply will provide 24VDC power to the locks, Security Desk Console and alarm. The emergency
control relay within the power supply will turn off the system power when activated by a building fire alarm device. The SDC
Model Z7850 lockset will release immediately when power is removed.
ELEVATOR LOBBY DOOR SYSTEM
Communicating Bathrooms, Mantraps & Interlocks
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com Price List Effective February 1, 2017
107
INDEX Quick Reference
110 58
210 58
260 58
280 58
295 60
918 64
921 66
923 65
924 66
1511 7
1561 14
1562 14
1571 7
101-1A 22
101-1AK /
101-4AM 22
101-DE /
101-KDE 21
101-PAM 22
1091A 56
10TD 76
1190A 57
1291A 56
12VR 86
14-2 98
1490A 56
15-1 93
15-2 / 15-3 93
15-4 23
1511-DF 9
1511DE 21
1511S 19
1511T 19
1512 / 1513 7
1561S / 1561TJ 15
1562SC /
1562SCHDB 15
1565 / 1566 14
1571DE 7
1572 / 1573 7
1575DEU 21
1575U 16
1576-MP 16
1576-ZB 16
1576AB /
1576-BK 16
1576DEU 21
1576U 16
1581 / 1582 7
1581-DF 21
1581DE 21
1581S 20
1583V 7
1591U 17
180A 58
2090A 57
2490A 56
25-4U 23
290 / 290LS 60
30-4 23
350V / 352V 12
400U-L2 95
400U-RMB /
400U-SN 95
412 / 413 / 422 /
423 / 424 / 425 73
413MN / 423M 73
431 / 432 / 433 /
434 / 435 74
441 / 442 / 443 /
444 / 446 74
45-4 / 45-6 / 45-7 24
451 / 452 / 453P 74
45A 24
463 / 474 74
491 / 492 82
510 thru 590 72
55 A thru F 26
55-ABC 27
602RF 86
621P 87
631RF / 632RF /
634RF / 636RF 86
7000-DB1/4 33
7000-DB3/8 33
7000-DGK 33
701 thru 713 75
702R / 708R 22
7250 / 7252
D, H, P, S, T 30
7500EB 35
7550 A thru V 35
7850 / 7852
A thru X 31
801AL thru 813AL 75
920/921 65
AB Angle
Brackets 11
ACM-1 88
AL4 / AL8 93
APB1000A 99
AR11Y 10
BBID 73
BL4 / BL8 93
BPS6S / BPG6S 78
BR64 89
CB401-AU /
CB401-B 82
CB701 82
CC1-5 / CC3-5 31
CL4 / CL8 93
CR4 88
DBM 26
DC-1 10
DL4 / DL8 93
DPS-11 99
DTMA / DTMO 92
E1200 / E600 /
E6200 13
E300 17
E75 / E76 / E77 67
EA100 94
EH10 / EH20 /
EH30 / EH40 /
EH42
96
EKE03 35
EMC 88
EP17624 /
EP17624TJ 17
EZ-A / EZ-B /
EZ-D / EZ-T 9
EZ-B 9
EZ-D 9
EZ-T 9
FB-4 88
FP Filler Plates/
AB Angle
Brackets
11
FS23M 56
GKE03 35
GL160A / GL260A 4
HID1326-25 65
IP100 54
IPPRO 63
IPRW 62
LR100 49
MC-4 95
MC-7 95
MD-31 76
MS-12 / MS-14 /
MS-16 / MS-20 27
MSB550 71
PB-16 / PB-8 88
PD2090A 59
PSB560 70
PT-2U 85
PT-3V 85
PT-5 85
PTH 84
PTM 85
RB12V4 / RB12V7 88
RCC 93
S6100 / S6200 /
S6300 36
S6100-101 40
S6303FH 44
SC-10 44
SK-82 / SK-88 33
SK-L90 33
TCC 93
TJ1 / TJ2 8
TJ81 /TJ82 8
TP1220 / TP2440 89
TR-12 / TR-24 89
UB11 / UB12 10
UF11 / UF12 10
UF81 / UF82 10
UR-1 / UR2-4 /
UR4-8 88
Z7250 / Z7252 30
Z7550 35
ZA7850 31
ZD7250 28
ZR7550 35
ZS7250 28
ZT7550 35
ZT7850 31
ZY7550 35
Item Code Page Item Code Page Item Code Page Item Code Page
shipQUICK
Over 100 SDC products are
available for shipment the next
business day from the SDC
warehouse nearest you. Visit us
at www.SDCsecurity.com and
download your copy of the shipQUICK inventory
so you know first hand which products SDC can
expedite for you.
QUALITY
SDC practices quality
management based on
continued improvement of
daily operations, product
quality and customer
satisfaction.
www.sdcsecurity.com service@sdcsecurity.com
Tel: (805) 494 0622 (800) 413 8783
© Copyright 2017, Security Door Controls rev. 08.18.17
801 Avenida Acaso, Camarillo, CA 93012
P.O. Box 3670, Camarillo, CA 93011-3670
®
INNOVATION
SDC has been awarded scores of patents for:
• Electrified Cylindrical Locksets
• Electrified Mortise Locksets
• Actuator Controlled Locksets
• Electromagnetic Locks
• Magnetic Shear Locks
• Delayed Egress Locks
• Request-to-Exit Bars
LEADERSHIP
SDC has earned twelve SIA New Product
Achievement and Security Industry Finest
Awards since 1997. In addition, SDC has
received numerous SIA New Product
Showcase certificates of recognition for
Commitment to Innovation and Excellence
in New Product Development.
Security Door Controls
Available for iPad, iPhone & Android
SDCSecurity.com/FreeApp
Free!
Electric & Mechanical
Access Control Hardware
Price List 18
SDC’s Commitment to Quality
PROJECTS
• NASA Kennedy Space Center, FL
• King Khalid International Airport, Saudi Arabia
• J. Paul Getty Museum, Los Angeles
• Chek Lap KOK Airport, Hong Kong
• Bank of America, U.S.A.
• Kuala Lumpur International Airport, Malaysia
• Smithsonian Institute, Washington D.C.
• California State Capital, East End Project
• Duke Energy Nuclear Plants, N. & S. Carolina
• Dallas/Forth Worth International Airport, Texas
• Museum of Modern Art, New York
• Exxon, U.S.A.
• Chase Manhattan Bank, U.S.A
• JFK International Airport; NY
the lock behind the system
