SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
1
Electric & Mechanical
Access Control Hardware
Price List 19
P
RICES
V
ALID
S
TARTING
J
ANUARY
14 , 2019
The Lock Behind Your System
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
2
Table of Contents
Magnetic Locks

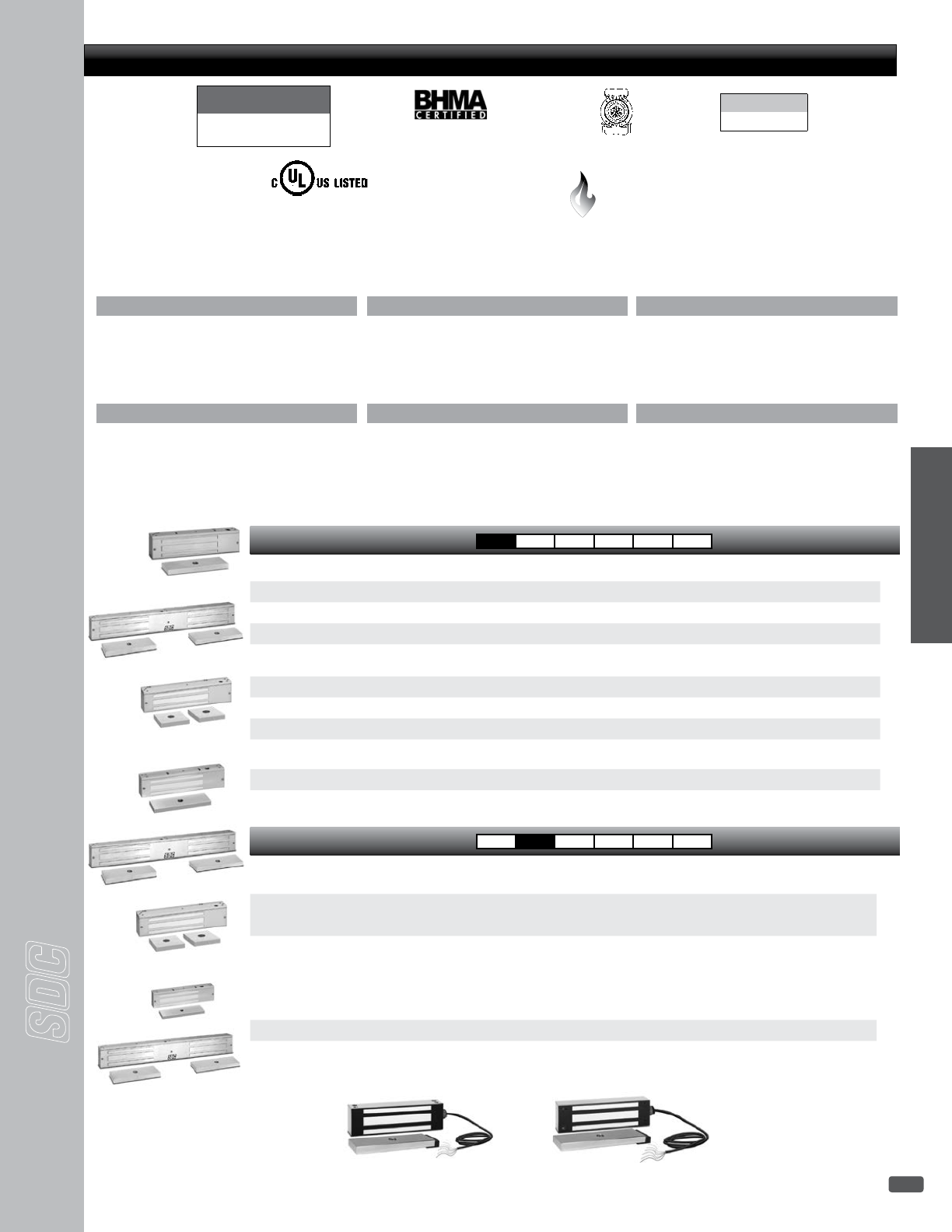

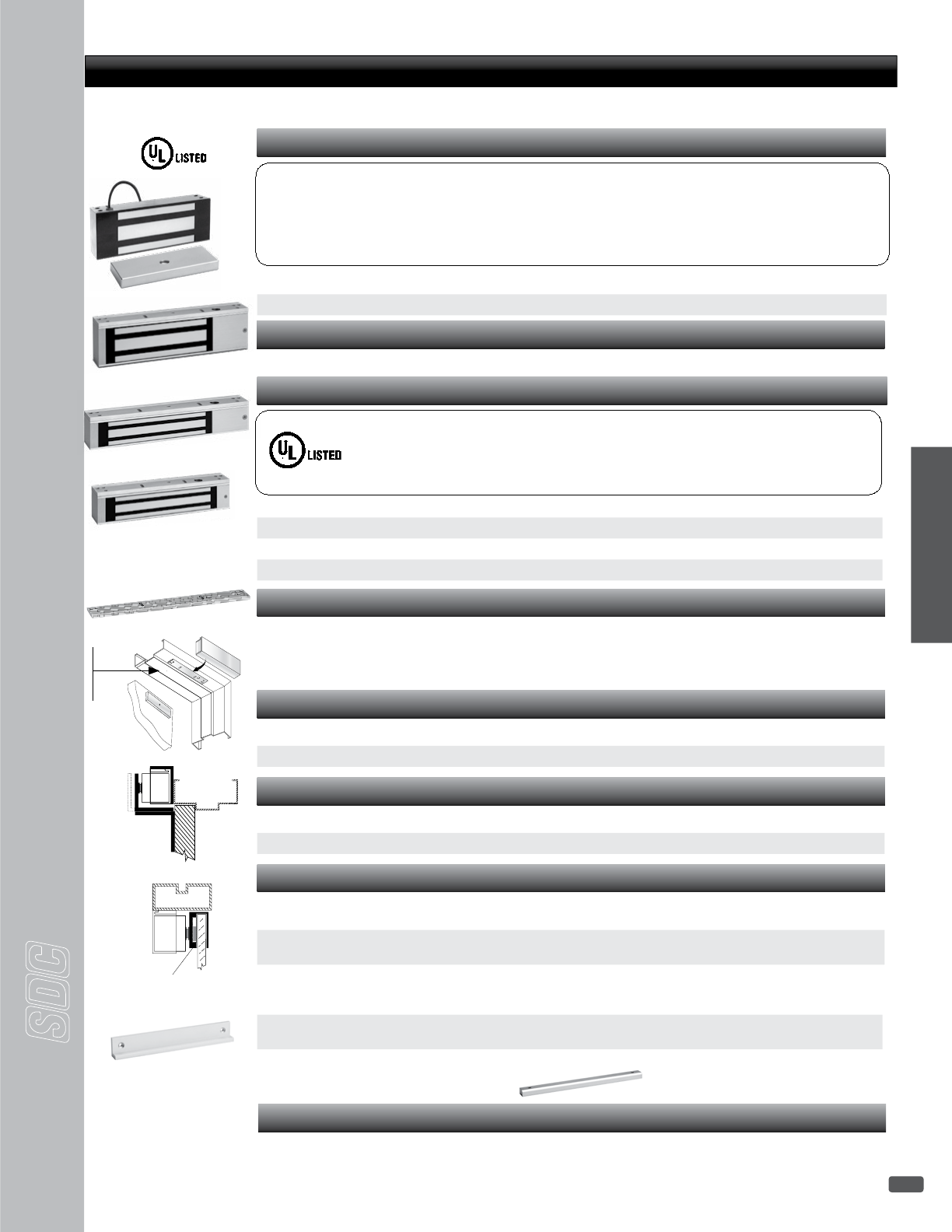

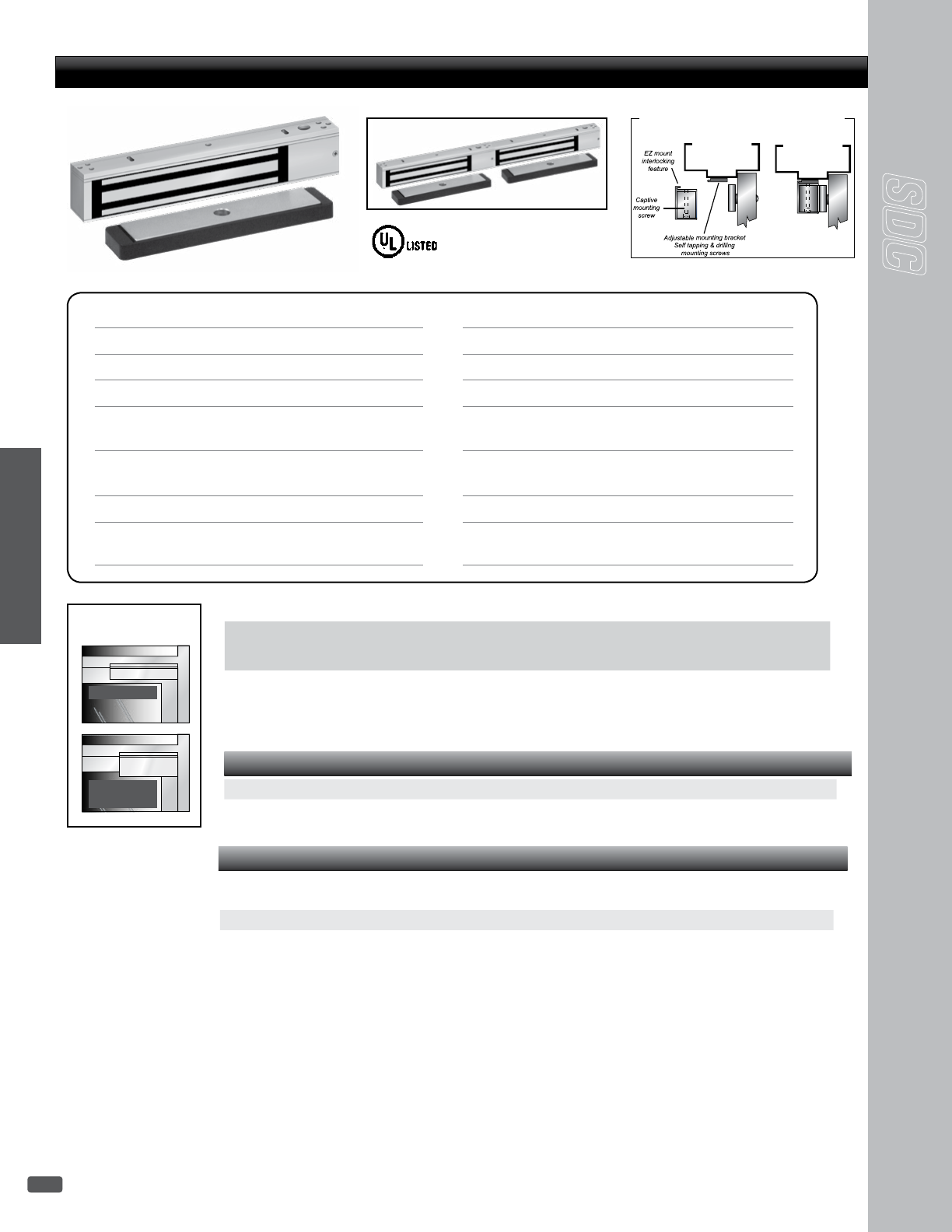

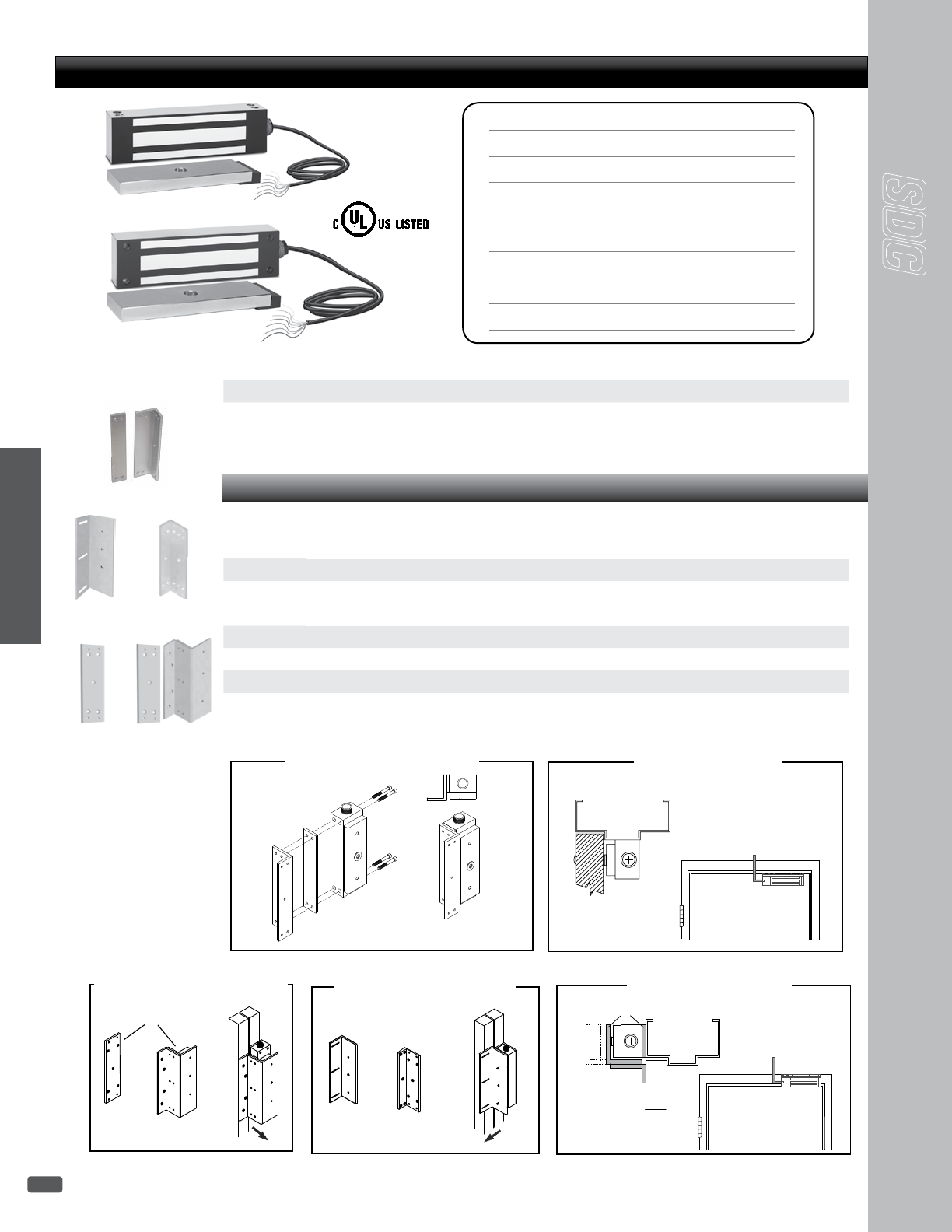

7 .................. 1511/12/13, 1571/72/73, 1581/82 EMLock®
8 .....................EMLock® Top Jamb + Glass Door Mounts
9 ................... EMLock® Modular Upgrade Kits EZ Series
9 ................................... Reusable Heavy Duty Drill Fixture
10 ............................................. Universal Header Bracket
10 ............................................. Aluminum Spacer Bracket
10 ...............................................Armature Mounting Plate
10 .............................Door Coordinator Lock Mounting Kit
11 .....................................................................Filler Plates

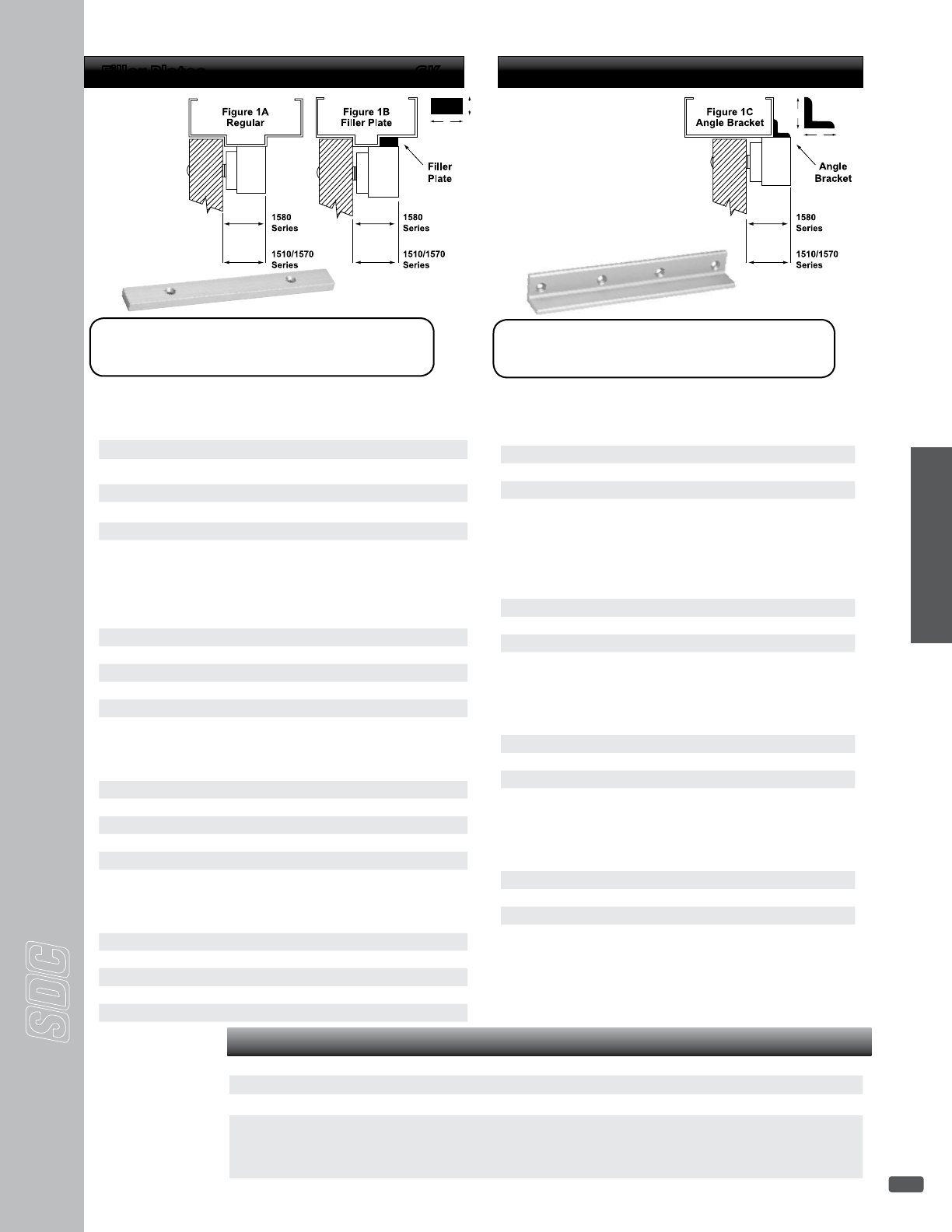

11 ...............................................................Angle Brackets
12 ............................................350 Narrow Line EMLock®
13 .............................. E6200, E1200, E600 Excel™ Series
13 ....................Top Jamb Mounting Kit for Excel™ Series
13 .....Retrofit Kit for Discontinued Locknetics 390+ PLUS
13 .. Glass Door Armature Mounting Kit for Excel™ Series
13 Mounting Brackets and Filler Plates for Excel™ Series
14 ............. 1561/62/65/66 Hi/Shear Concealed EMLock®
14 .......1562SC / 1563SCHDB / 1561S / 1561TJ Hi/Shear
................... Semi-Concealed & Surface Mount EMLock®
16 .......................................... 1575 / 1576 Gate EMLock®

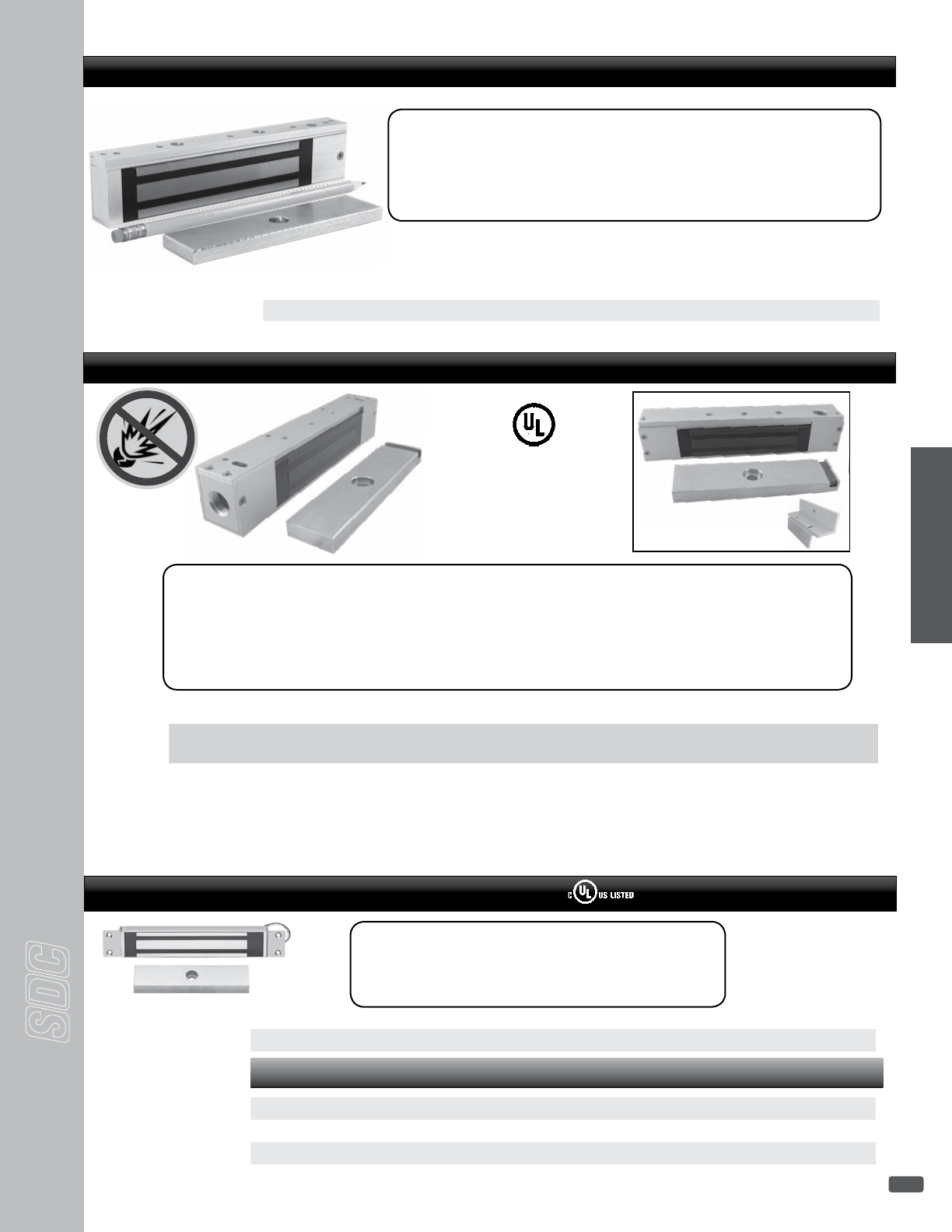

17 ................................. E300 Excel™ Micro Cabinet Lock
17 ............................. EP17624 Explosion Proof EMLock®
17 ..................... 1591 Mortise EMLock® for Sliding Doors
DeLayeD egress Locks

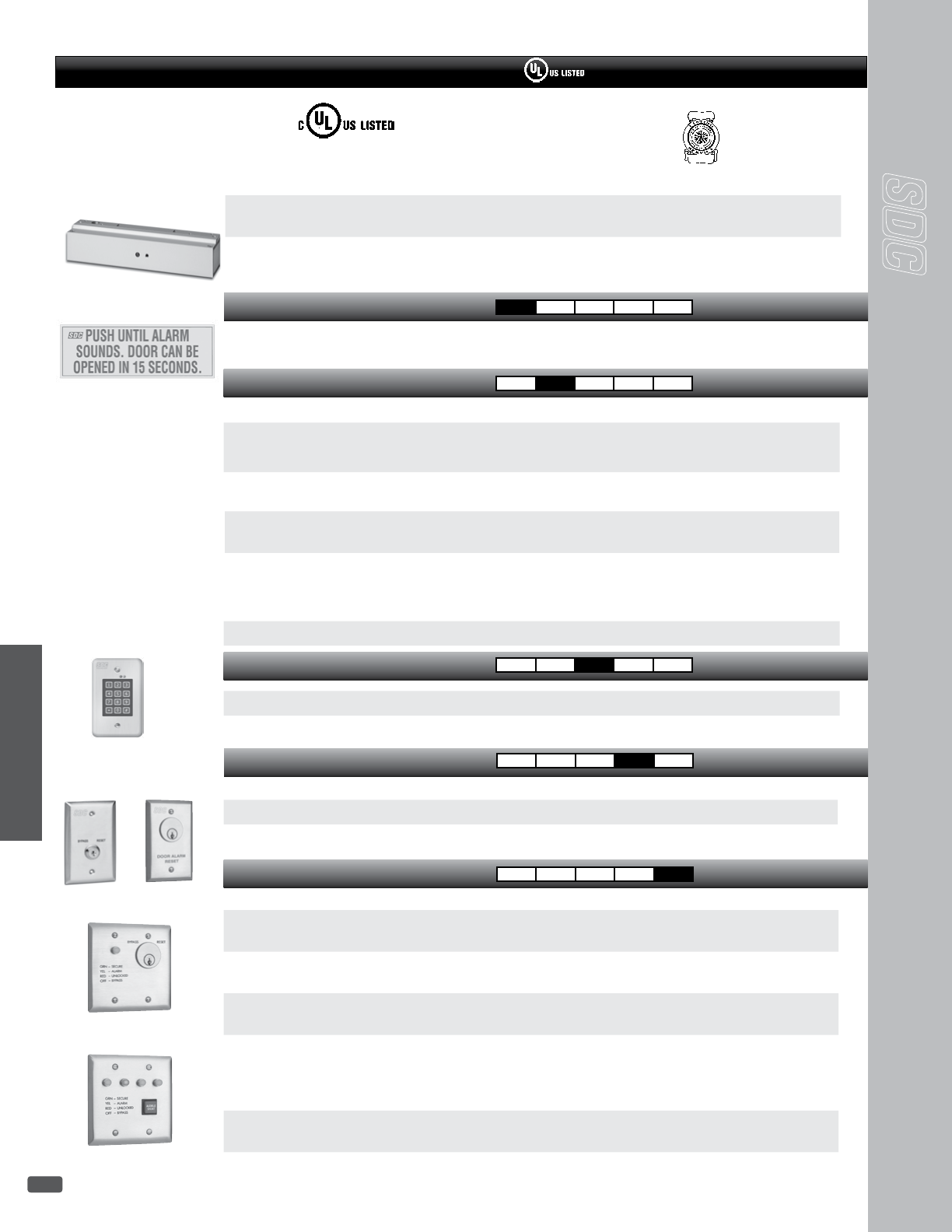

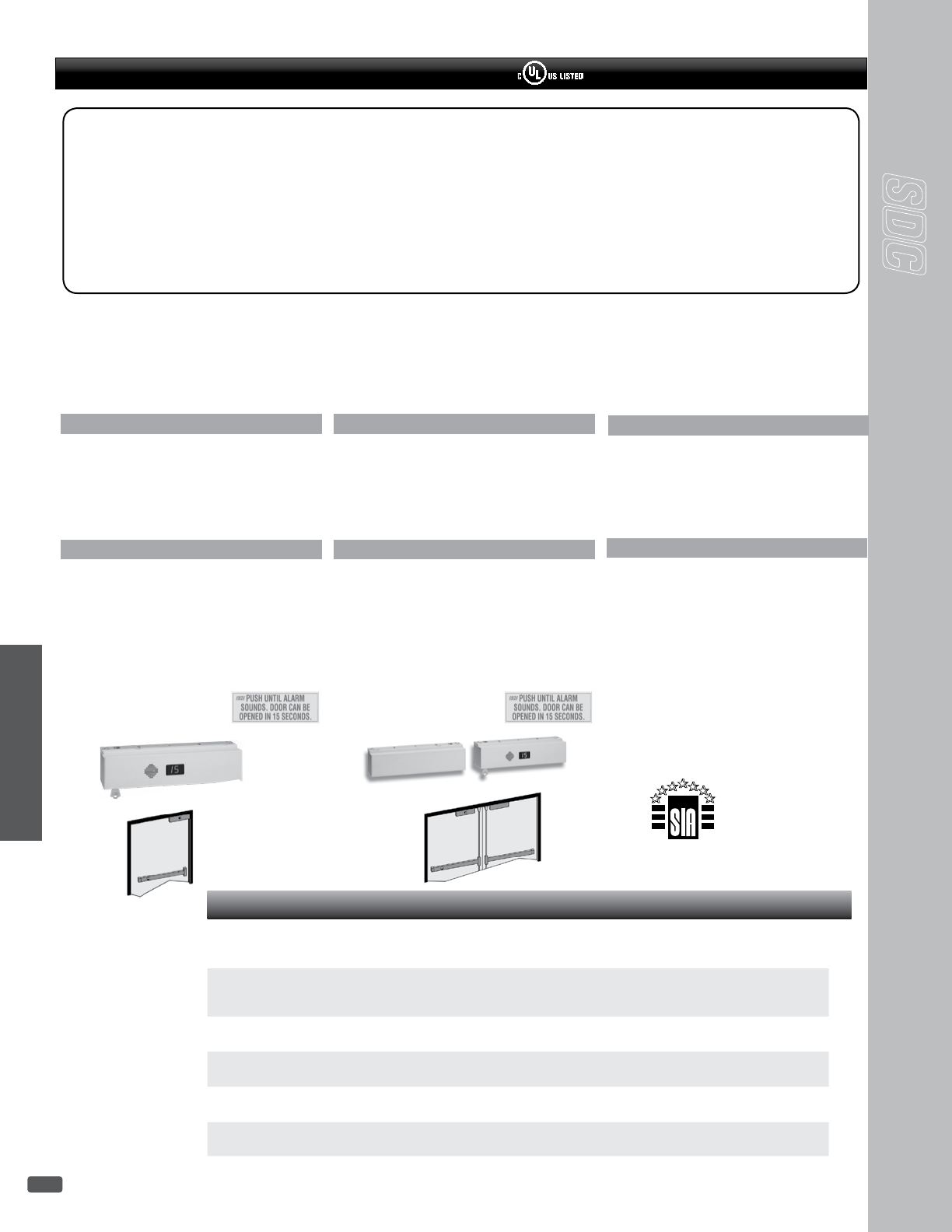

18 ........ 1511S / T ExitCheck® Delayed Egress EMLock®
20 ......1581S ExitCheck® Mini Delayed Egress EMLock®
21 ................101 ExitCheck® Wall Mount Delayed Egress

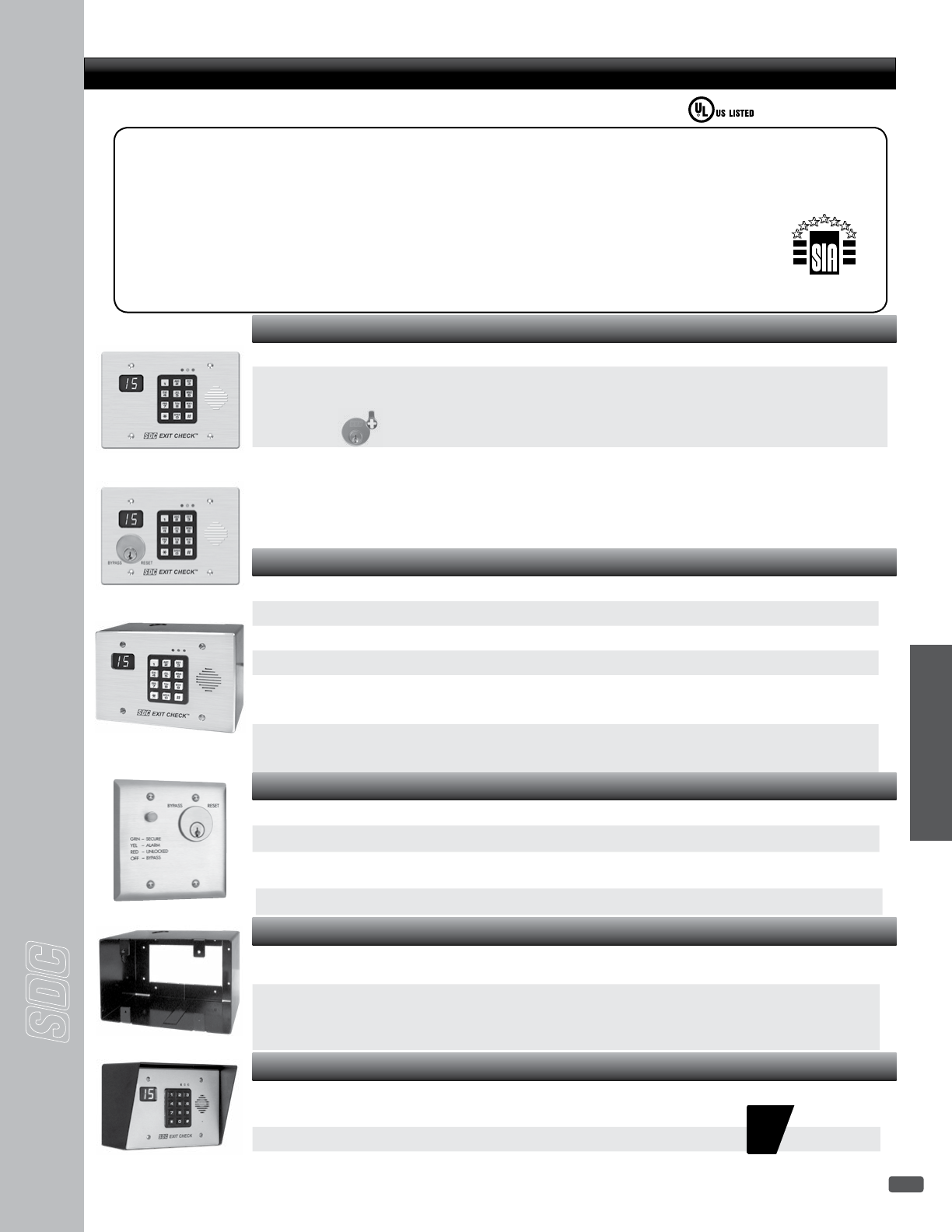

22 ..............Local and Remote Controls and Annunciators
eLectric strikes

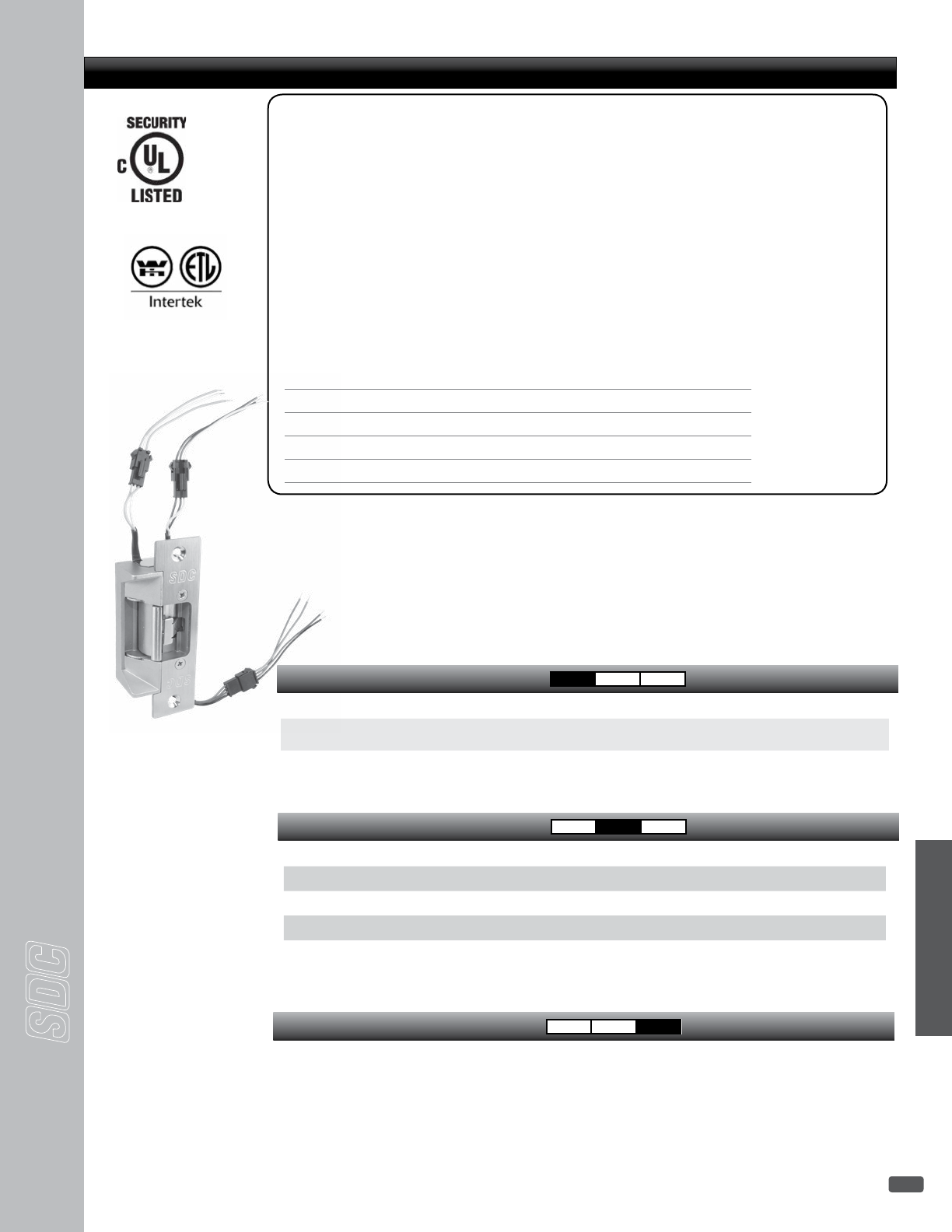

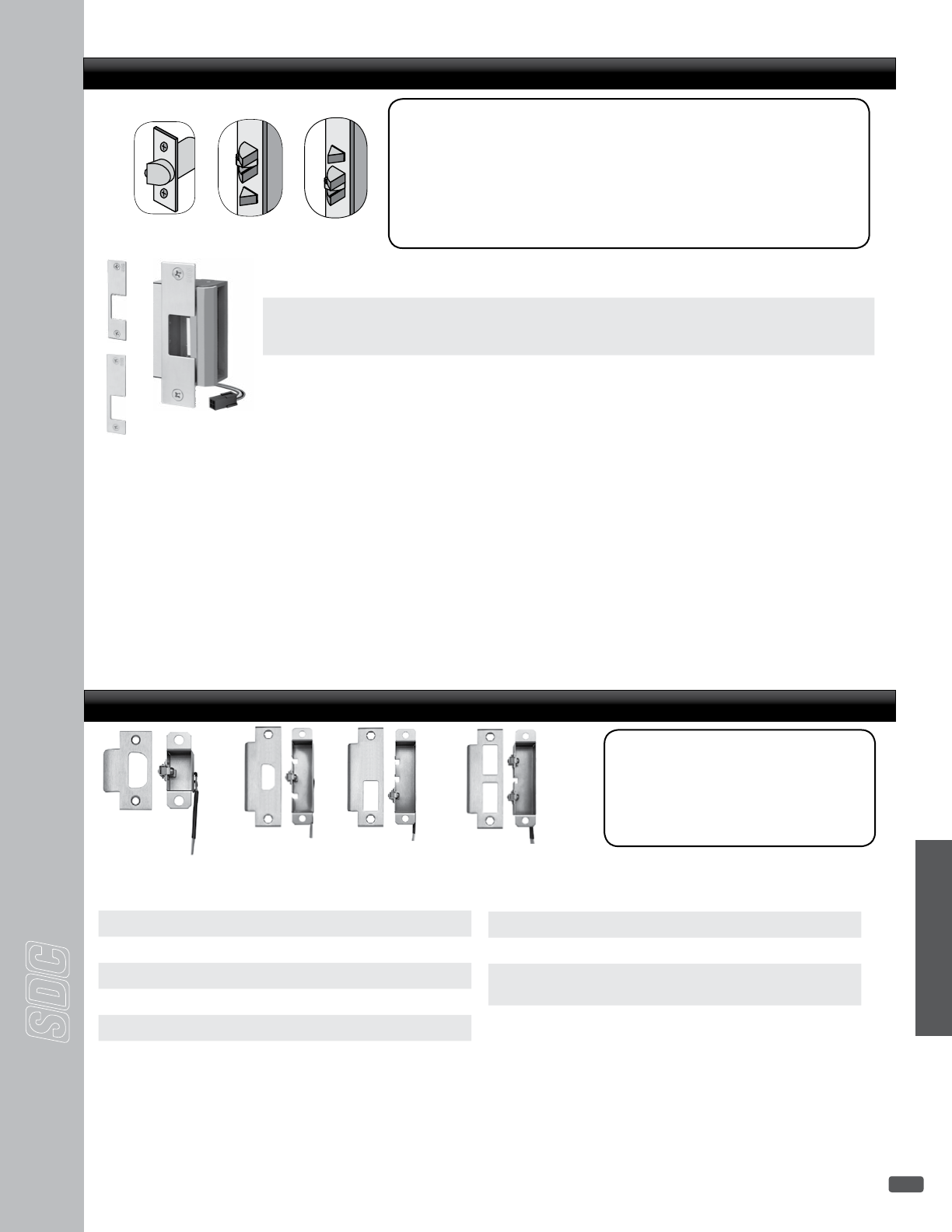

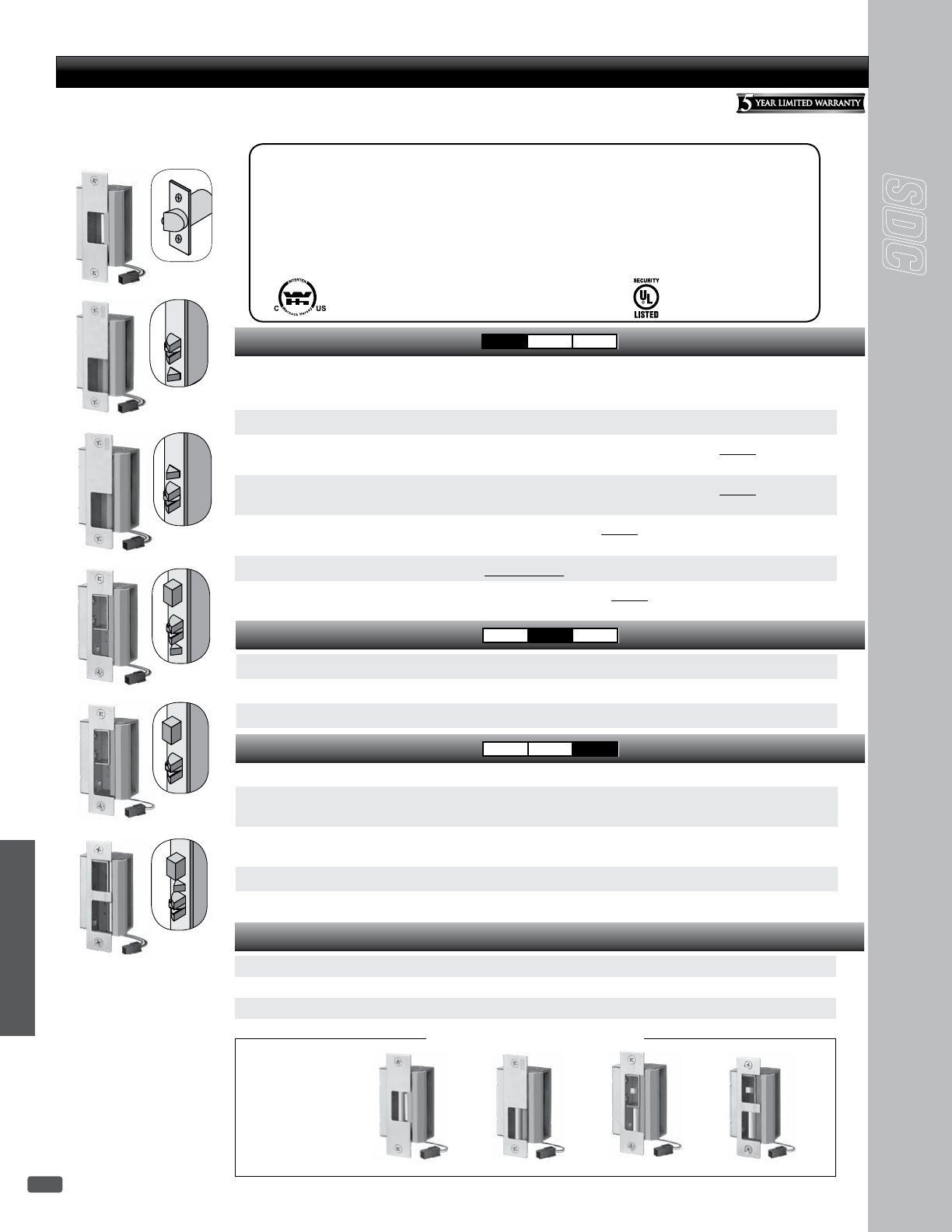

23 .................................................15 Series Electric Strike
23 .................................................25 Series Electric Strike
23 ............................ 30 Series Rim Mount Electric Strikes
24 .................................................45 Series Electric Strike
25 ........................................ 45F Fire Rated Electric Strike
26 .............................. 55 Series UniFLEX™ Electric Strike
27 ................... 55 ABC UniFLEX™ Multi Application Pack
27 .. MS Series Latch and Deadbolt Monitoring Strike Kits
eLectrifieD Locksets
28 ...................................... 7200 Series ELECTRA MOD™
29 .......................... 7200 Series Distributor Supplied Lock
30 ................ Z7200 Series ELECTRA PRO™ Heavy Duty
...........................................................Cylindrical Locksets
31 ........................MLR Z7600 Motorized Latch Retraction
................................................................. Mortise Lockset

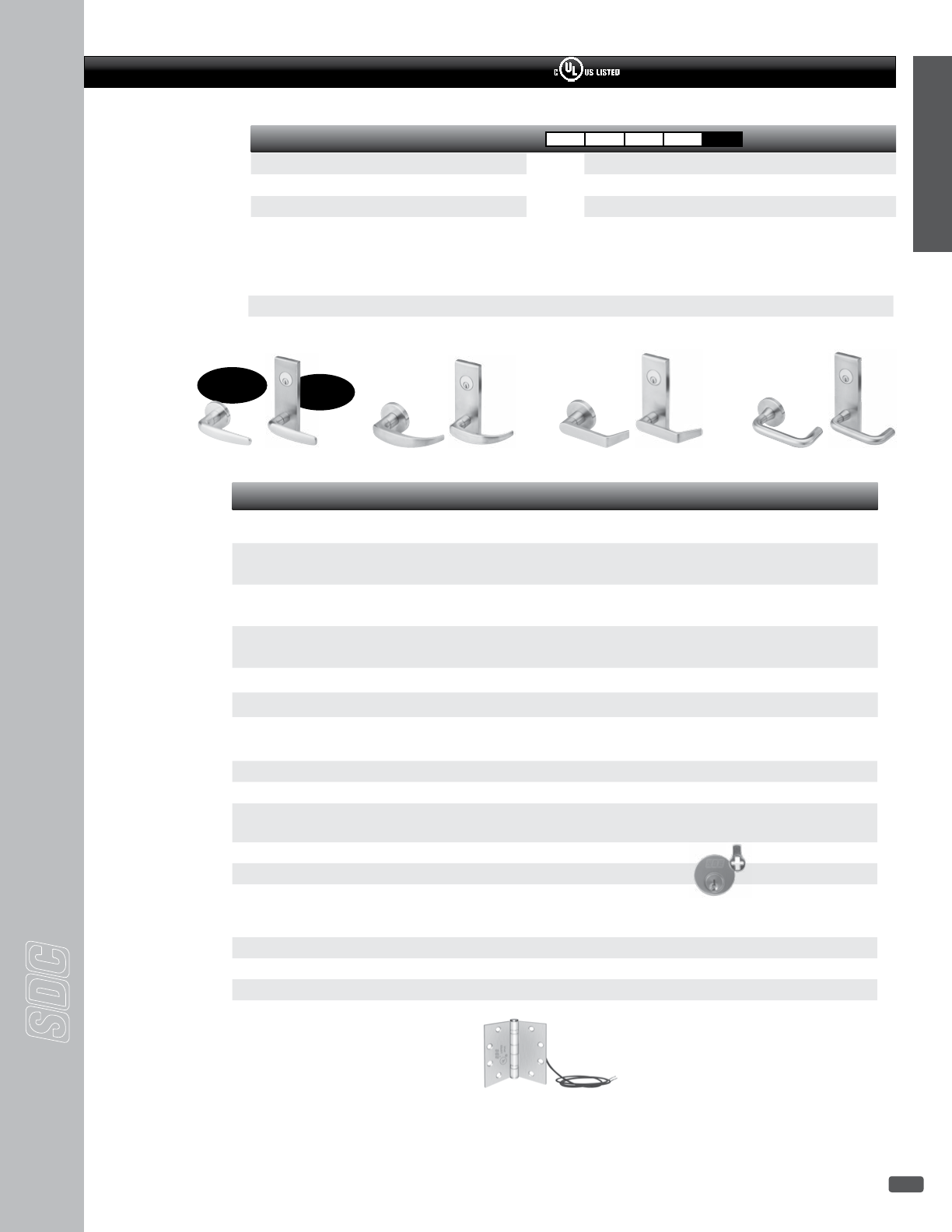

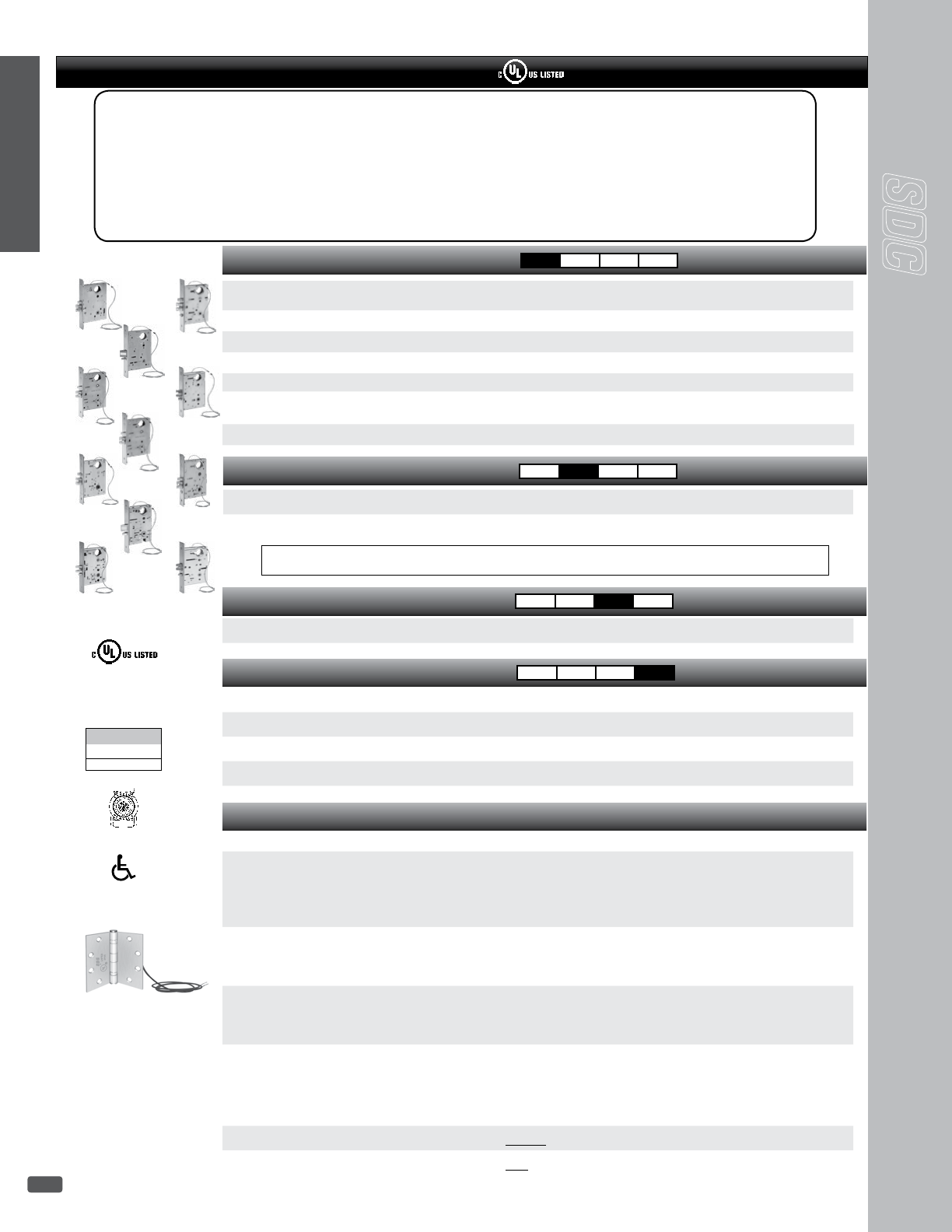

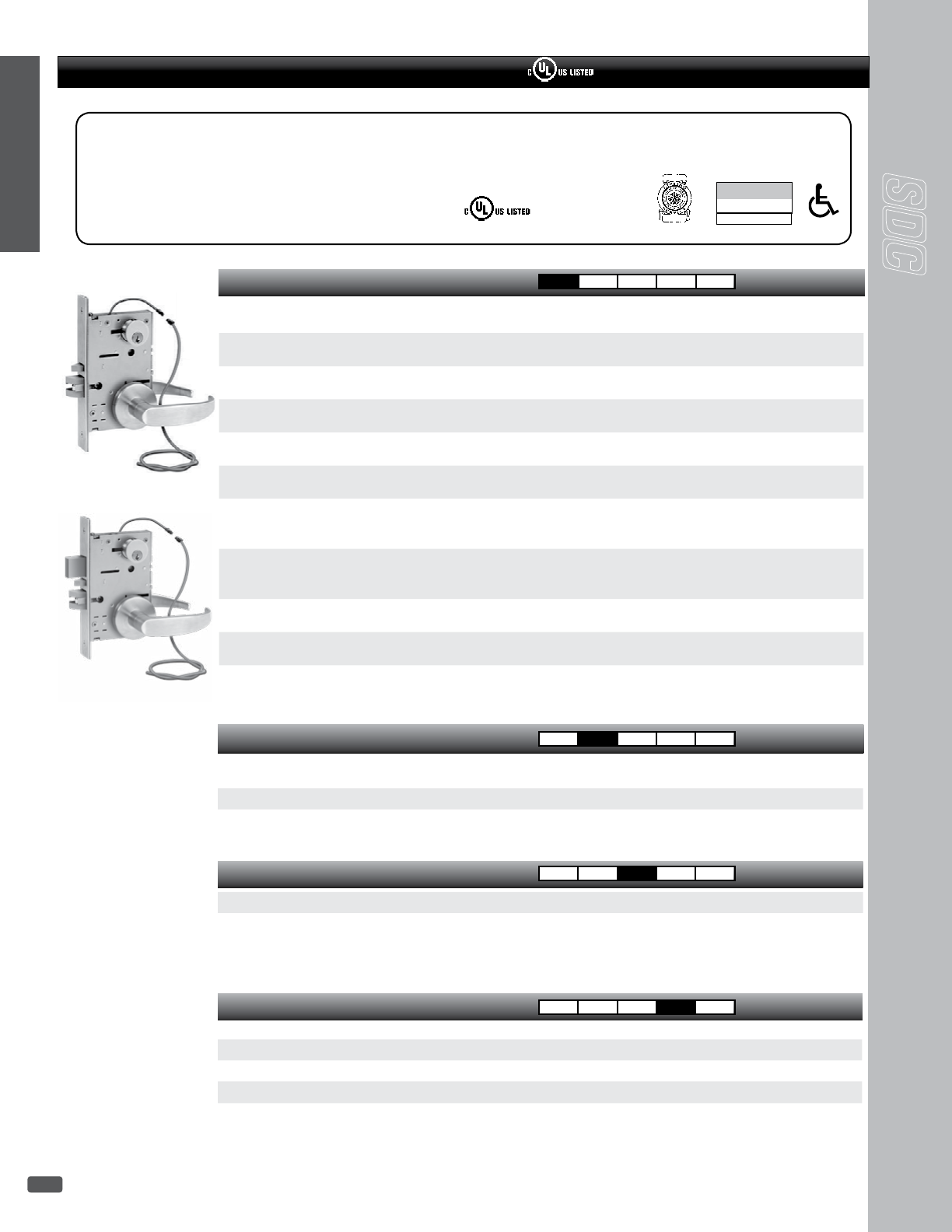

32 ..................Z7800 SELECTRIC™ PRO Electric Lockset
34 ................... 7800 SELECTRIC™ MOD Series Locksets

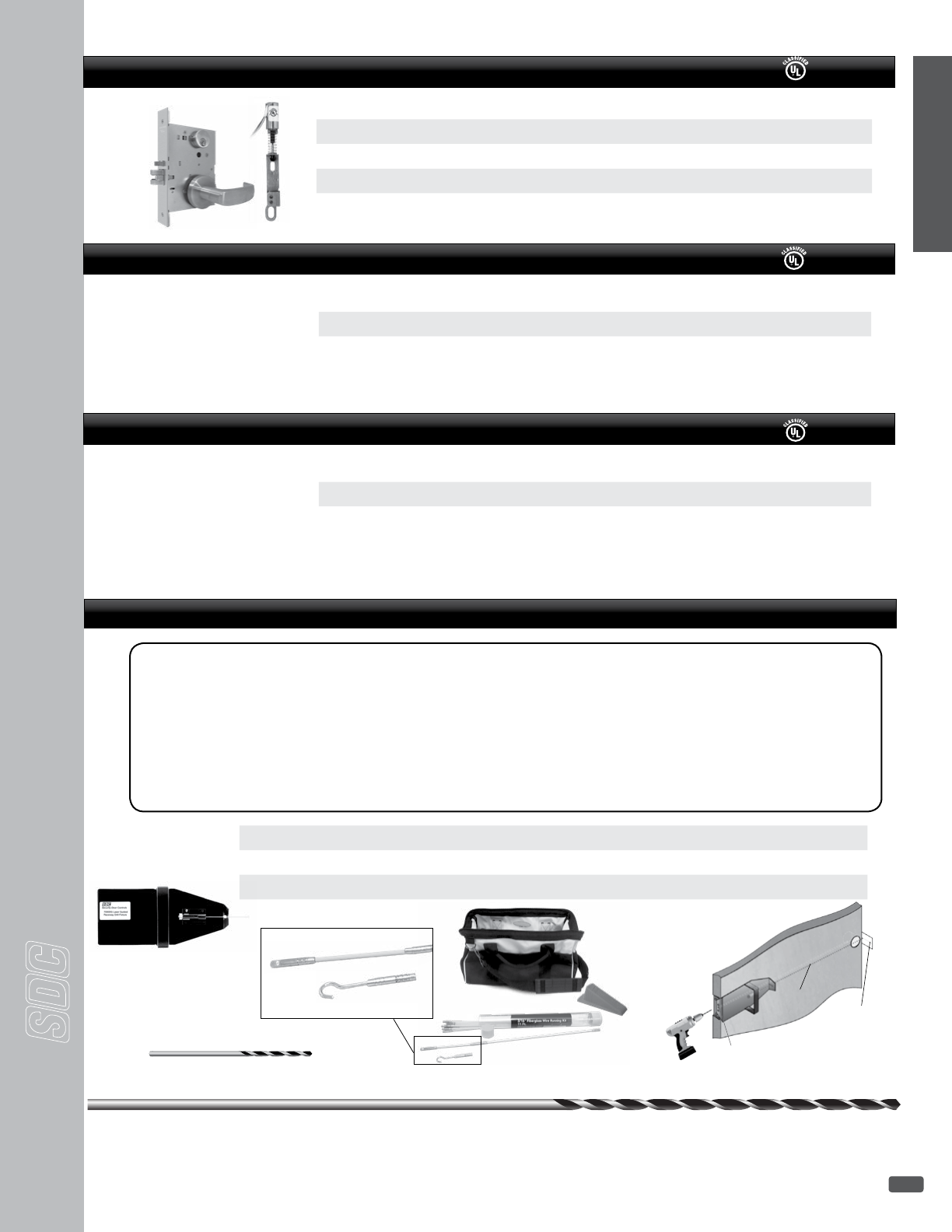

35 ........SK-L90 Field Electrification Kit for Schlage L9000
35 ..................SK-88 Field Electrification Kit for Yale 8805
35 ............ SK-82 Field Electrification Kit for Sargent 8206
37 ...................................................7500 Series HiTower®
exit Devices

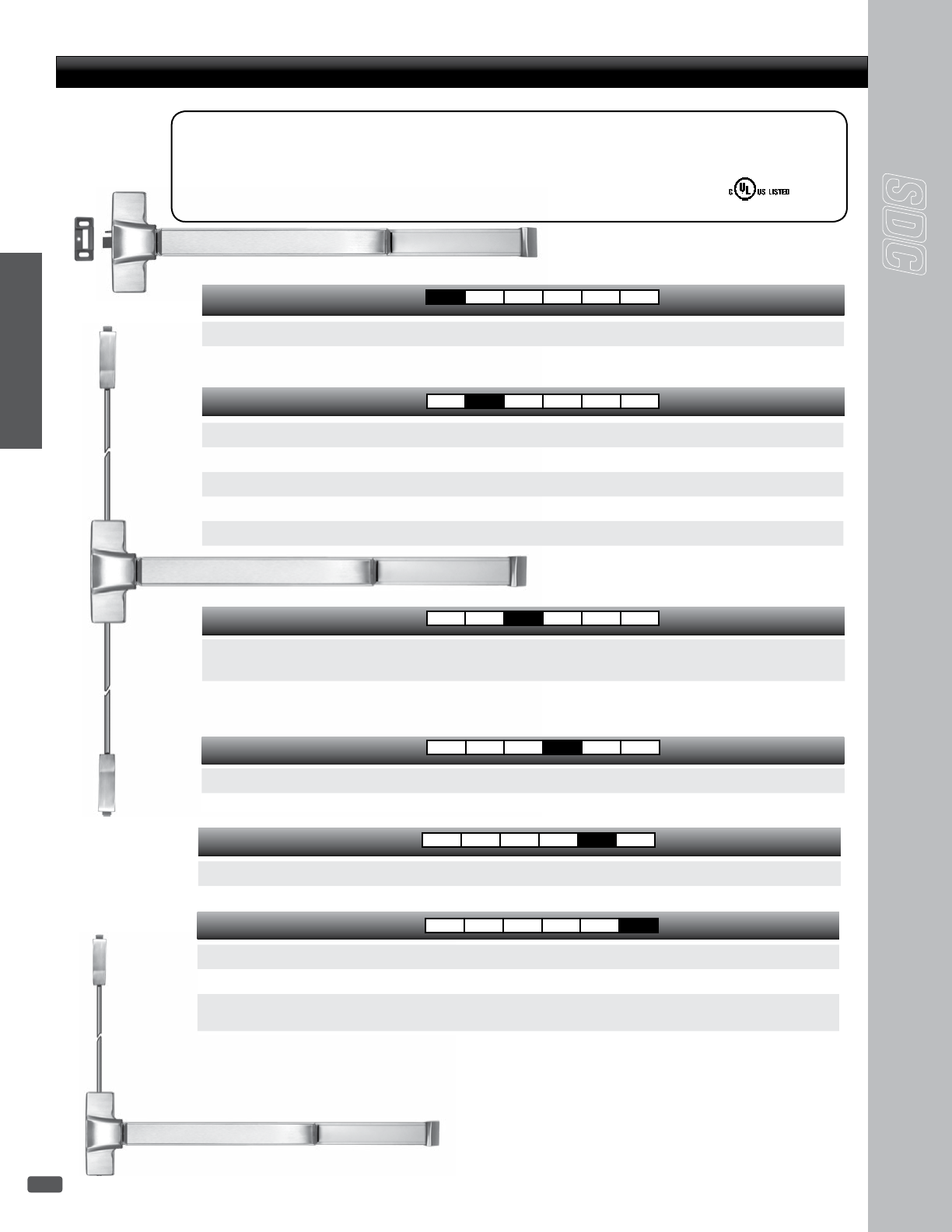

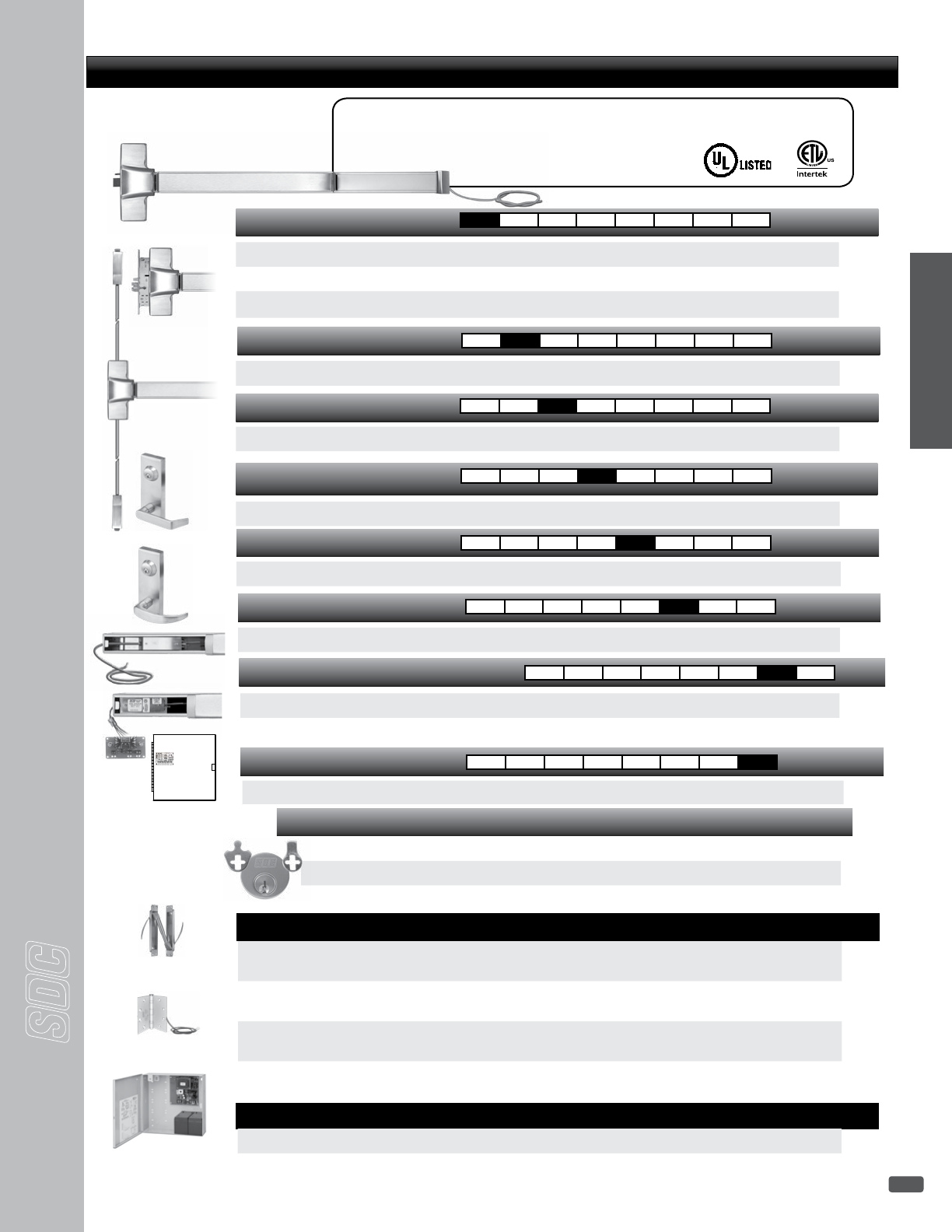

38 ............... S6000 SPECTRA™ Touch Bar Exit Devices -
....................... 6100 RIM and 6200 SURFACE VERTICAL
39 .................................................................... Device Trim
40 ............... S6000 SPECTRA™ Touch Bar Exit Devices -
.................................................................. 6300 MORTISE
42 ..............................................S6000-101 Exit Check® -
.....................................Delayed Egress All-In-One Device
44 ........................S6000 DE Exit Device - Delayed Egress
45 ......................... S6000 A/B Exit Devices - Alarmed Exit
46 .................. S6303FH HiTower Pro® Electrified Mortise
......................................................................... Exit Device
47 ......................... S6300 Exit Device - Electrified Mortise
48 ........................ S6000 G Exit Device - Electric Dogging
49 ............................. S6000 E Exit Device - Electric Latch
............................................................Retraction/Dogging
50 ......................................................... Exit Device Strikes

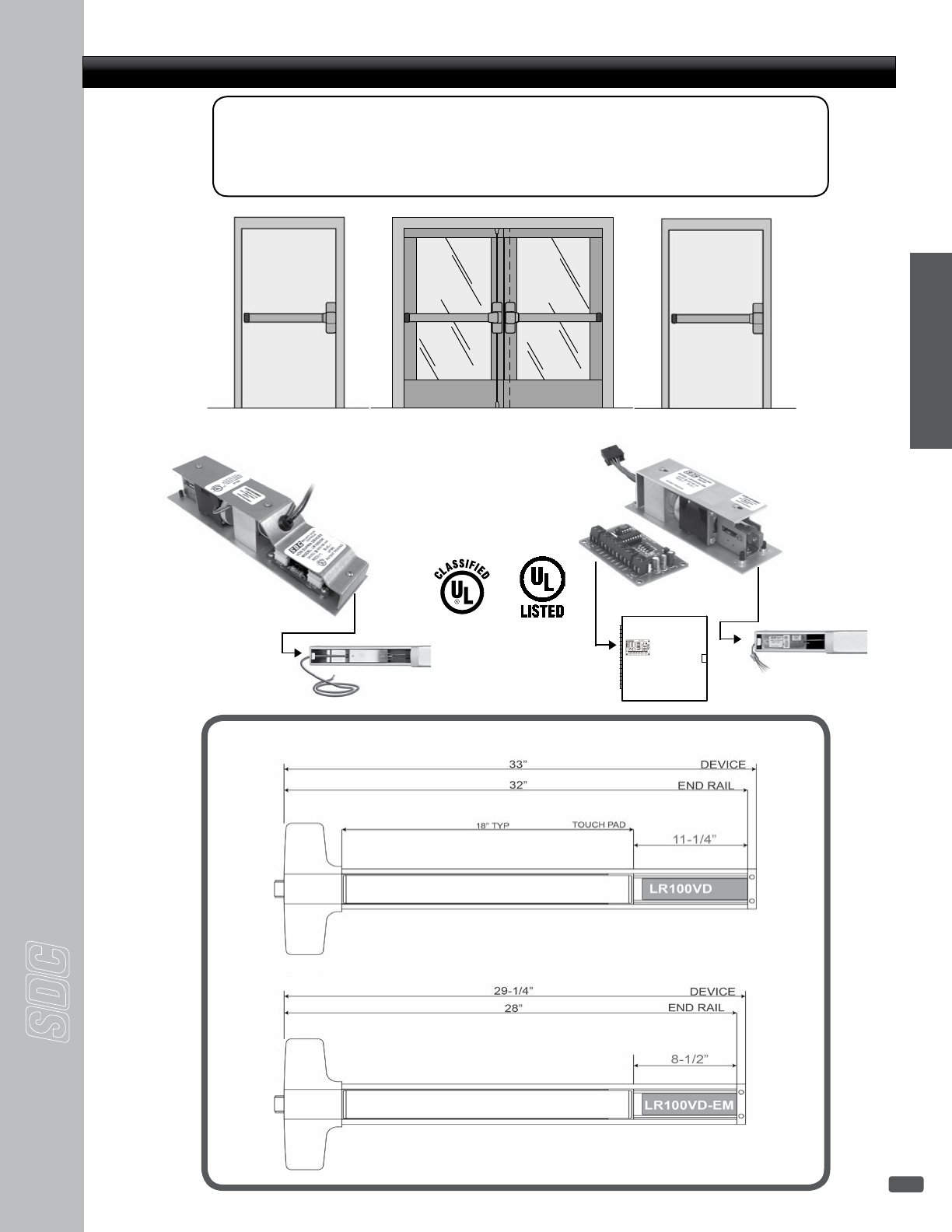

51 ...................... LR100 QUIET DUO™ 700mA Dual Latch
.................................................... Retraction / Dogging Kit
57 .............. IP100 QUIET DUO™ 12V PoE-Capable Latch
.................................................... Retraction / Dogging Kit
BoLt Locks

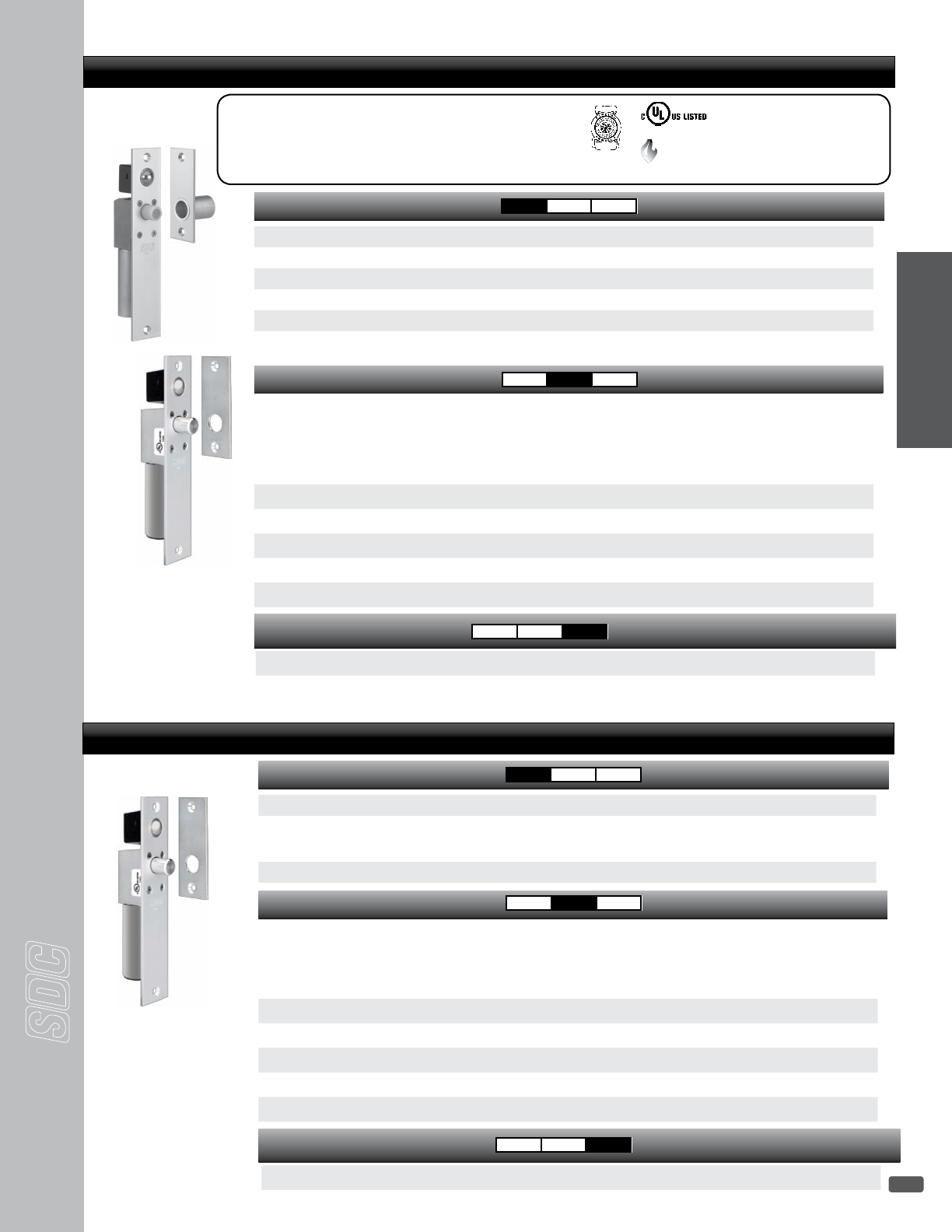

59 ............................FS23MIV / 1091 / 1291 / 1490 / 2490
..................................SPACESAVER® Mortise Bolt Locks
59 .............................. 1091 / 1190 / 1291SPACESAVER®
.........................Mortise Bolt Locks FOR WOOD FRAMES
60 ........1091 / 1290 Mechanical Release SPACESAVER®
60 ..................... 1190 / 2090 Heavy Duty SPACESAVER®

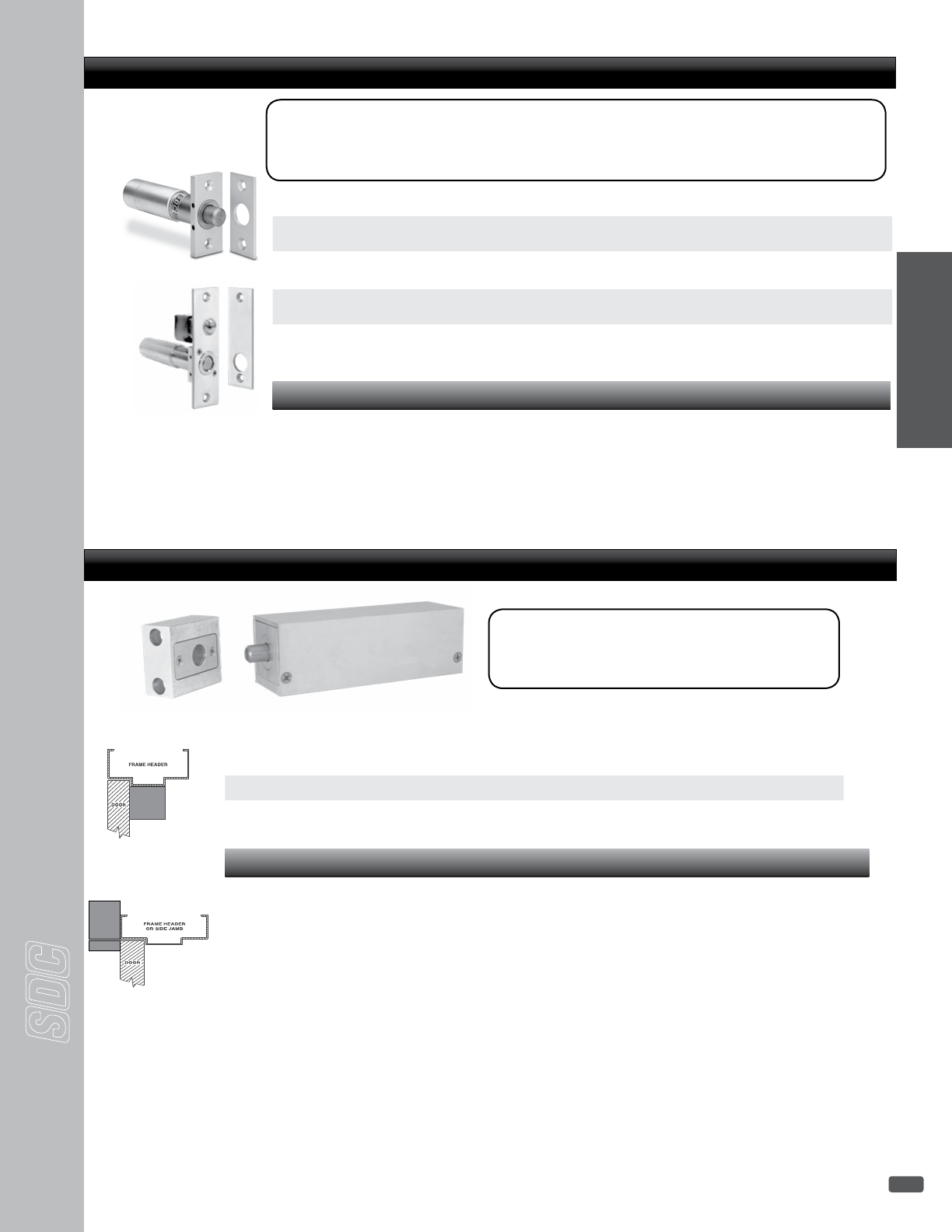

61 ............................... 110 / 210 / 160 / 260 Conventional
.............................................................Mortise Bolt Locks
61 ............................. 180 / 280 Surface Mount Bolt Locks

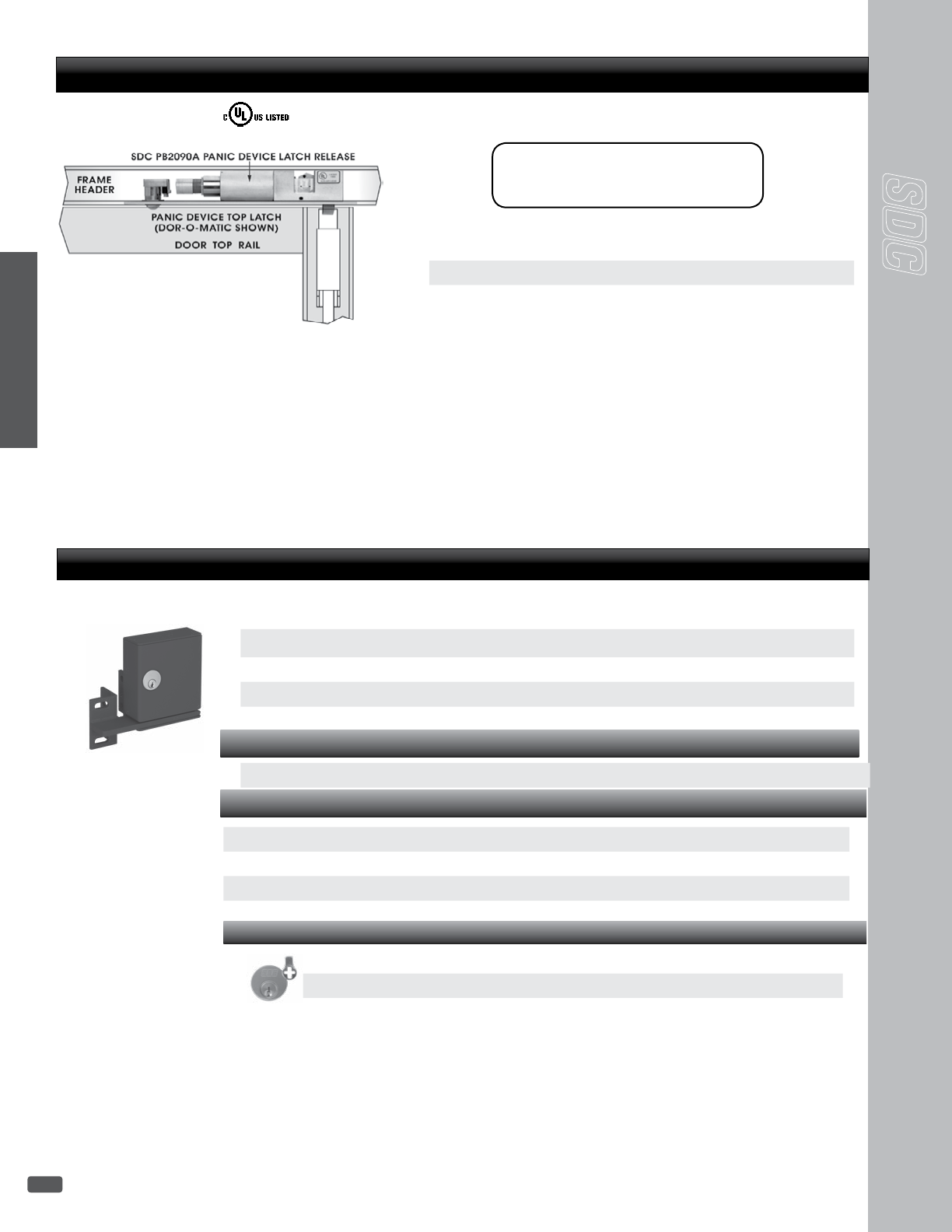

62 ...........................PD2090 Paniclok Exit Device Release
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
3
Table of Contents
62 ........................................... GL160 / GL260 Gate Locks

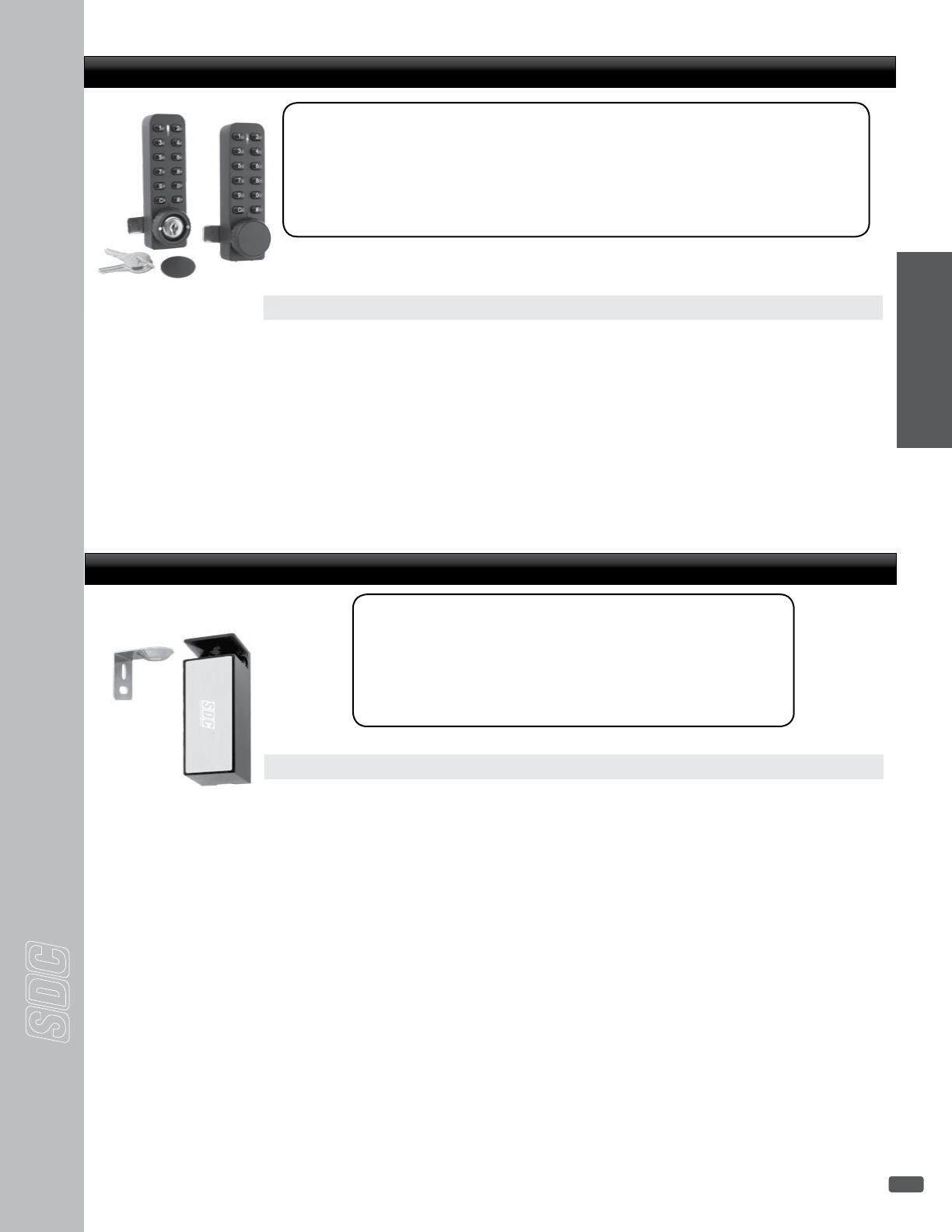

63 ..................................295 Programmable Cabinet Lock
63 ...........................................................290 Cabinet Lock
access controL

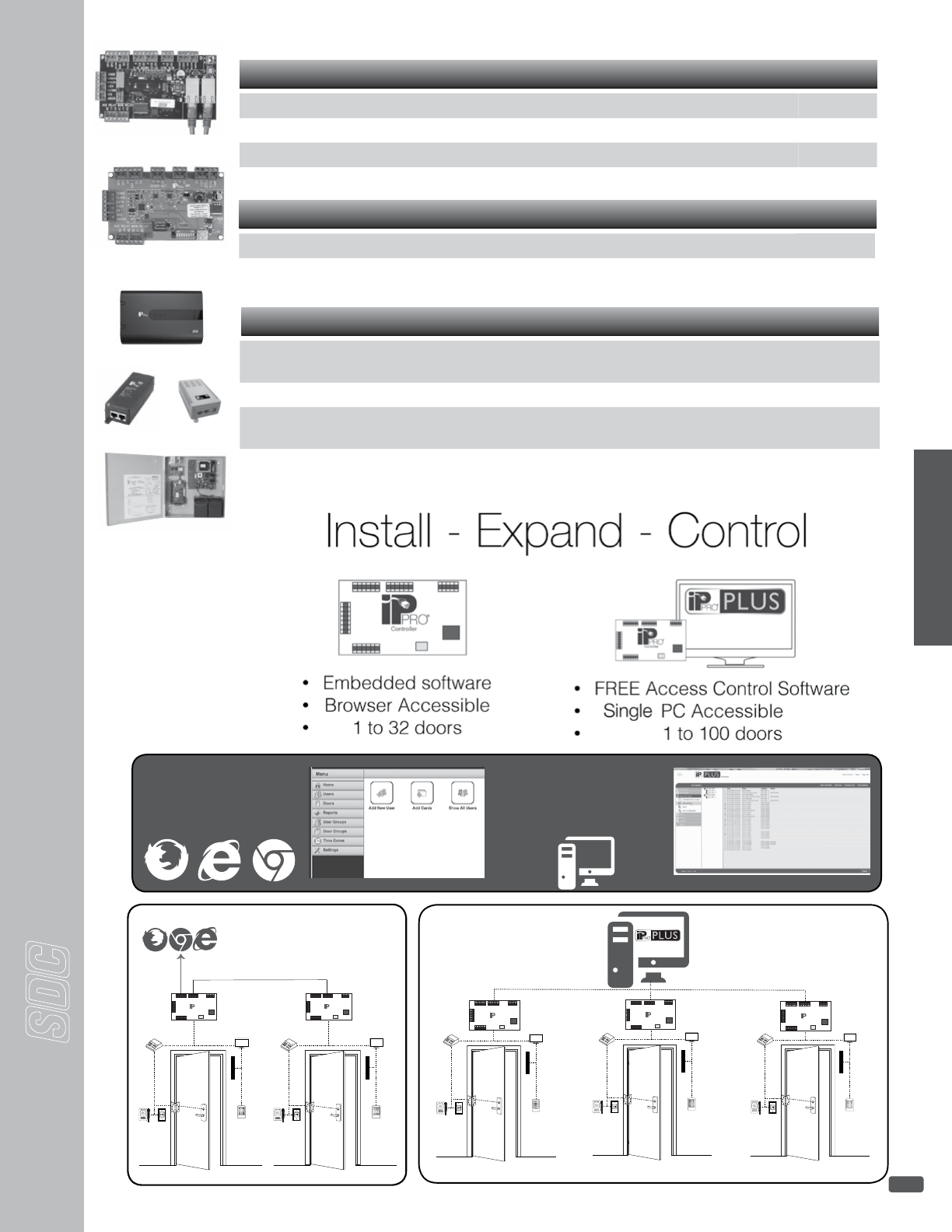

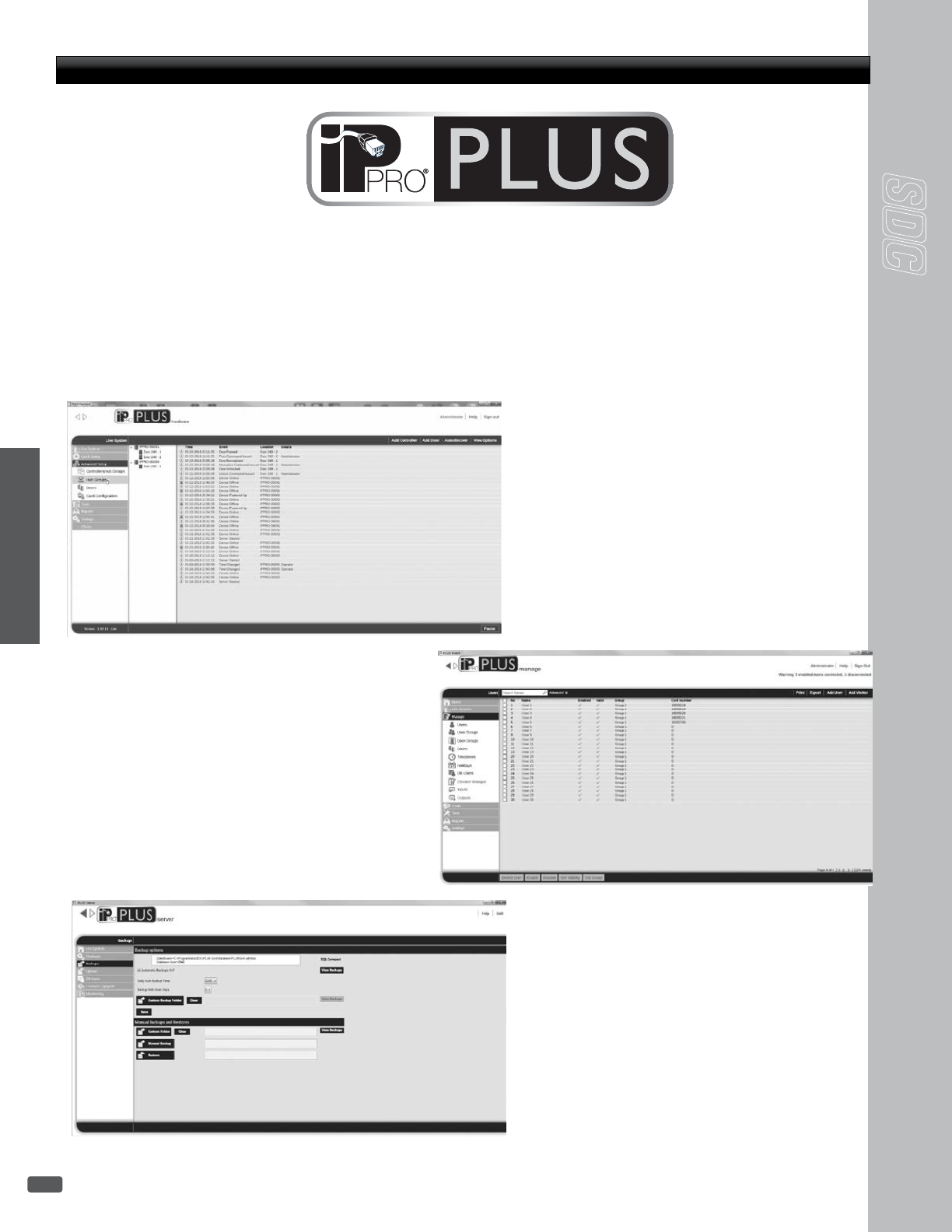

67 ................... IP Pro™ Series IP-based Access Control

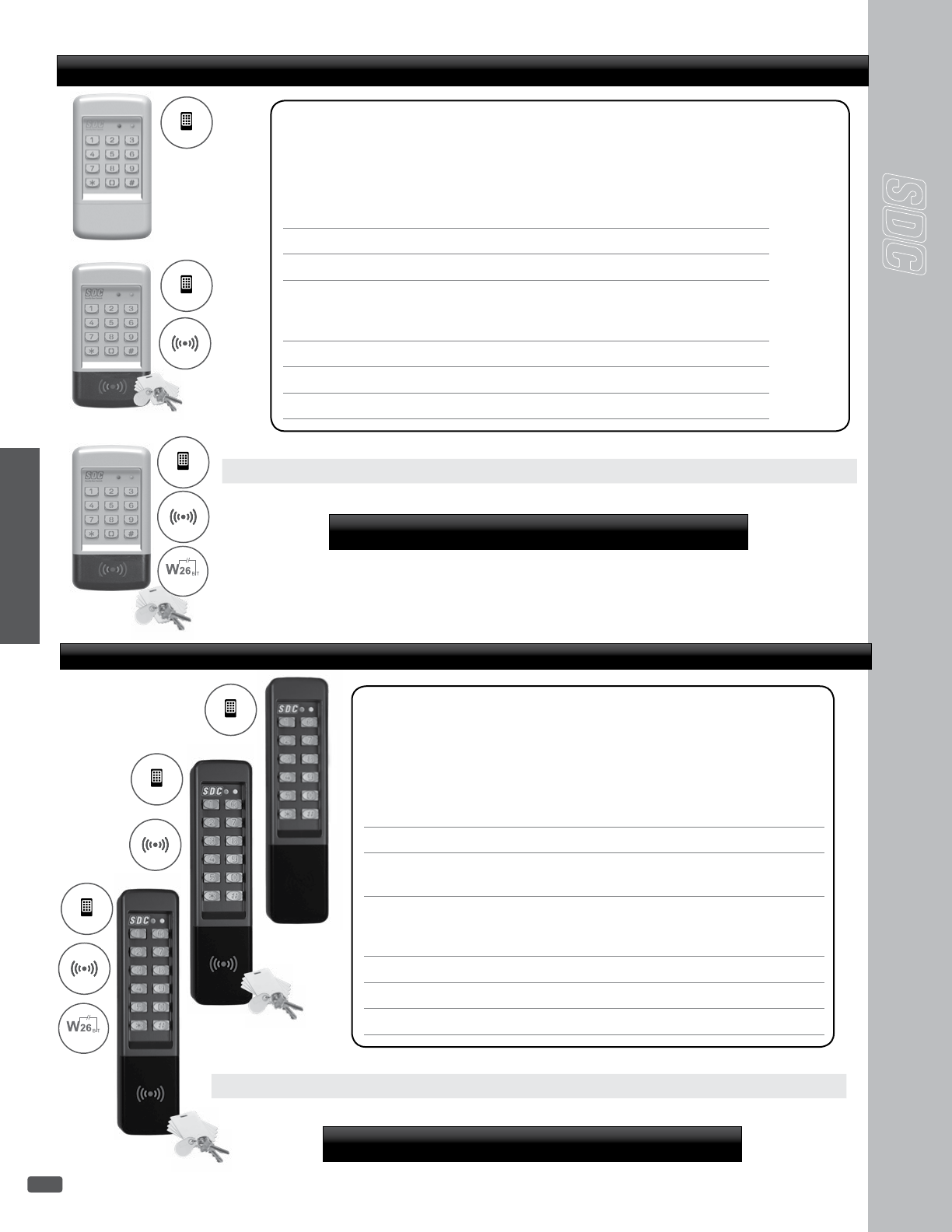

69 ............................................. 918 / 918W EntryCheck™
70 .............................. 920 / 920P / 920PW EntryCheck™
70 ...................923 / 923P / 923PW Narrow EntryCheck™
71 ............................. 921P / 924P 2-PIECE EntryCheck™
71 ...................925 / 925P / 925PW Shroud EntryCheck™

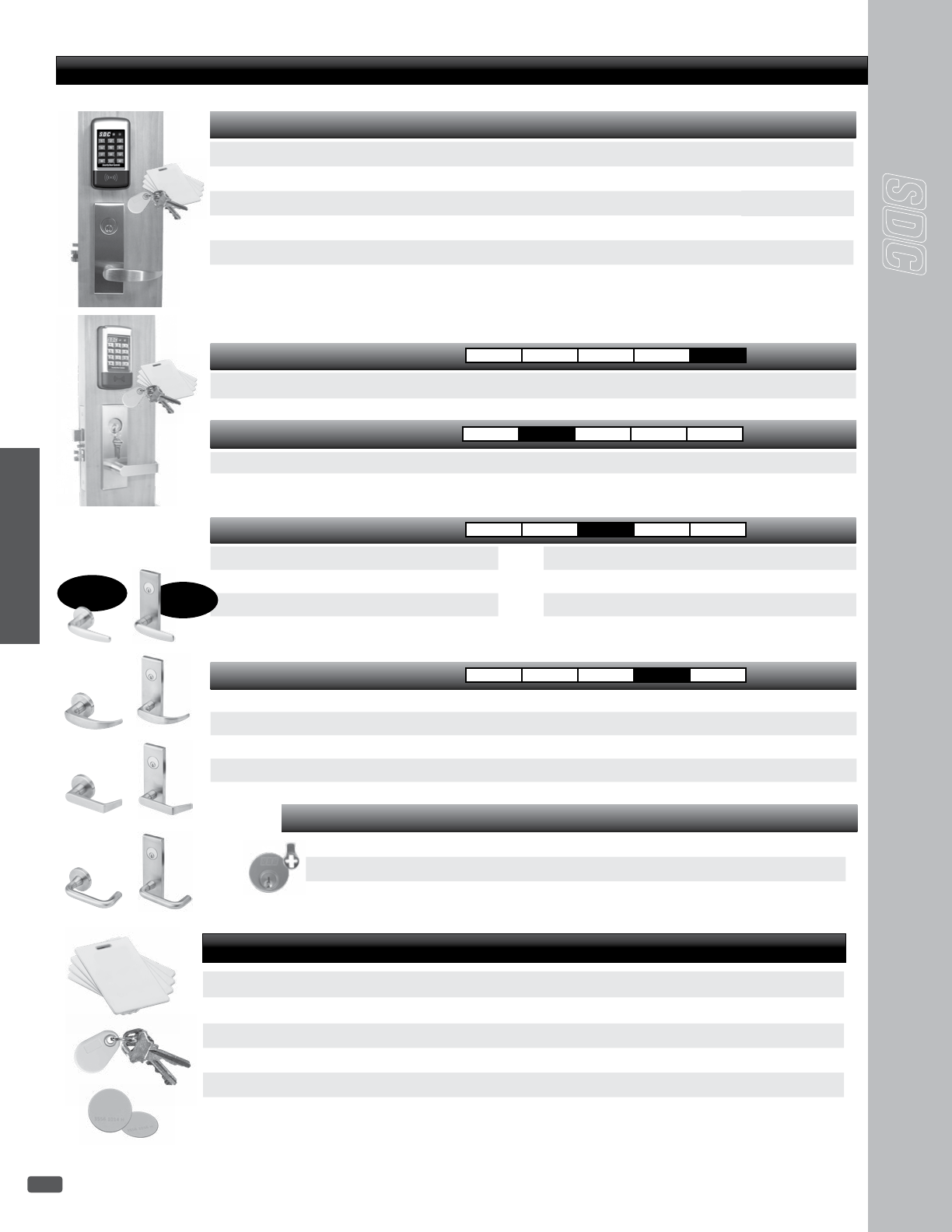

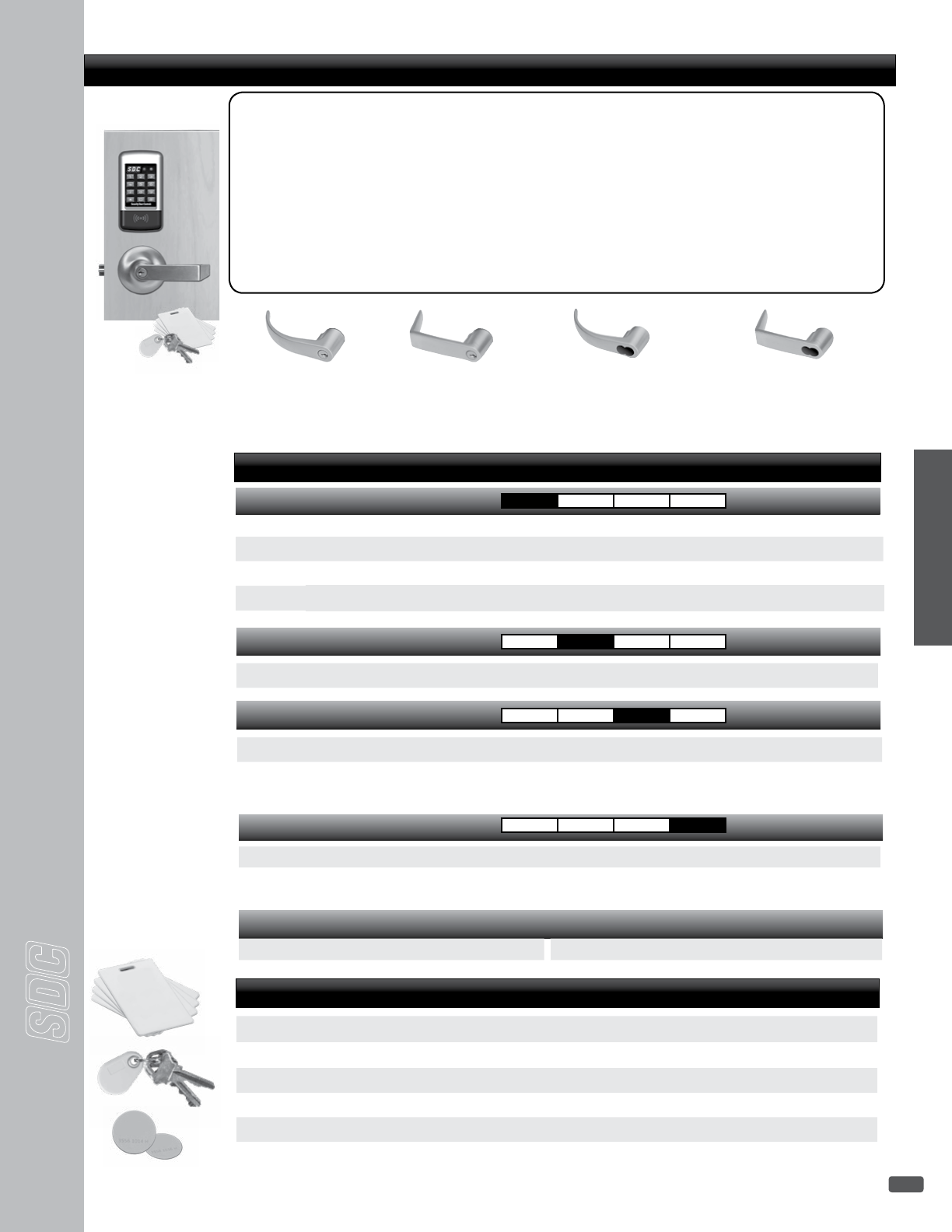

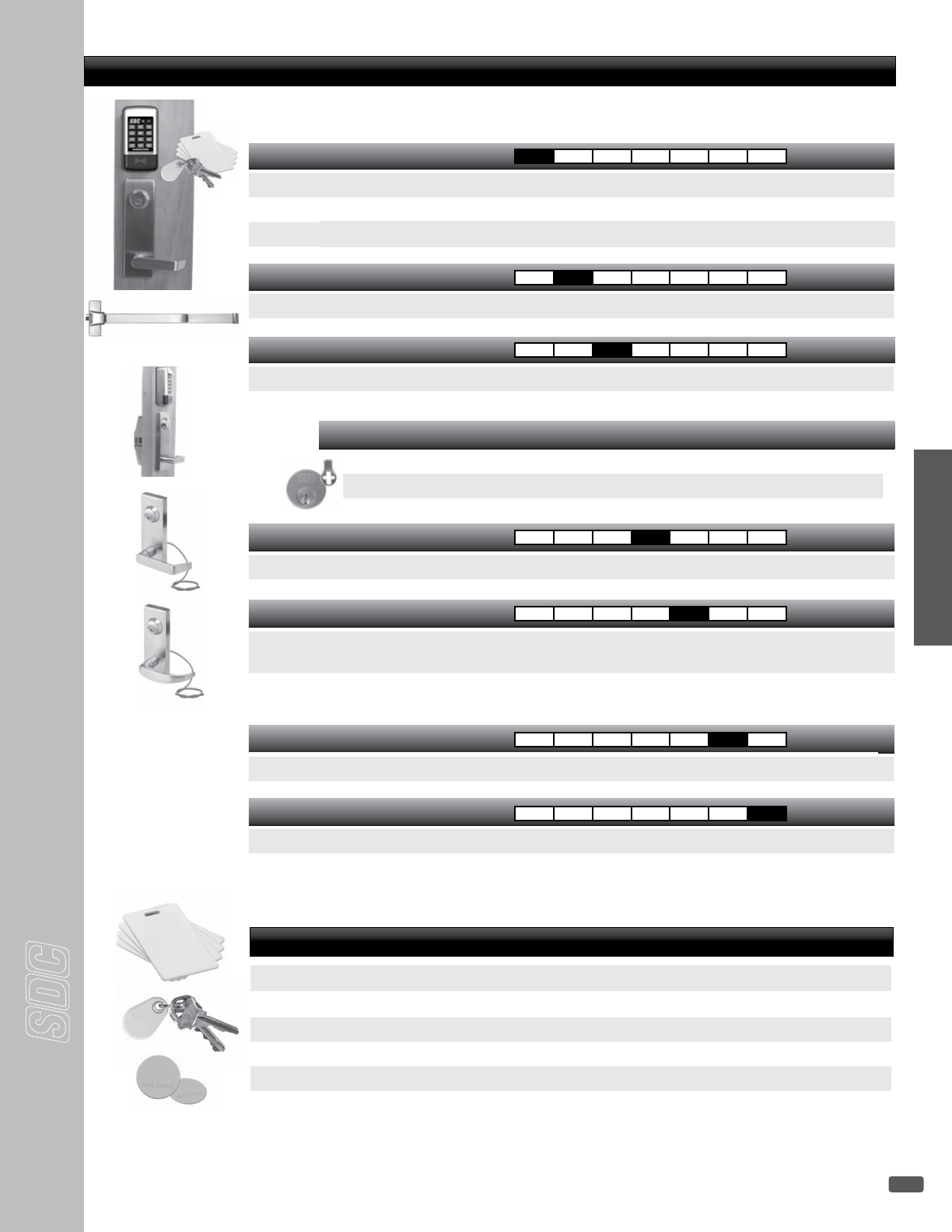

73 ..... E75 EntryCheck™ Standalone Electronic Lockset -
...........................................................................SDC Lock
74 ................................................ E76/E76+ EntryCheck™
......... Standalone Electronic Lockset - SDC Mortise Lock
75 ..... E77 EntryCheck™ Standalone Electronic Lockset -
......................................................... SDC Rim Exit Device
egress controL
76 ....................................... PSB560 SureExit® Sense Bar
77 ................................... MSB550 Mechanical Switch Bar
77 . MSB550W Weather Resistant Mechanical Switch Bar
78 ................................ 500 Series Exit Device Switch Kits
key & exit switches
79 ............................. 410 / 420 / 423 Series Exit Switches
80 ...........430 / 440 / 450 / 463 / 474 Series Exit Switches
81 ...................................... 700 / 800 Series Key Switches

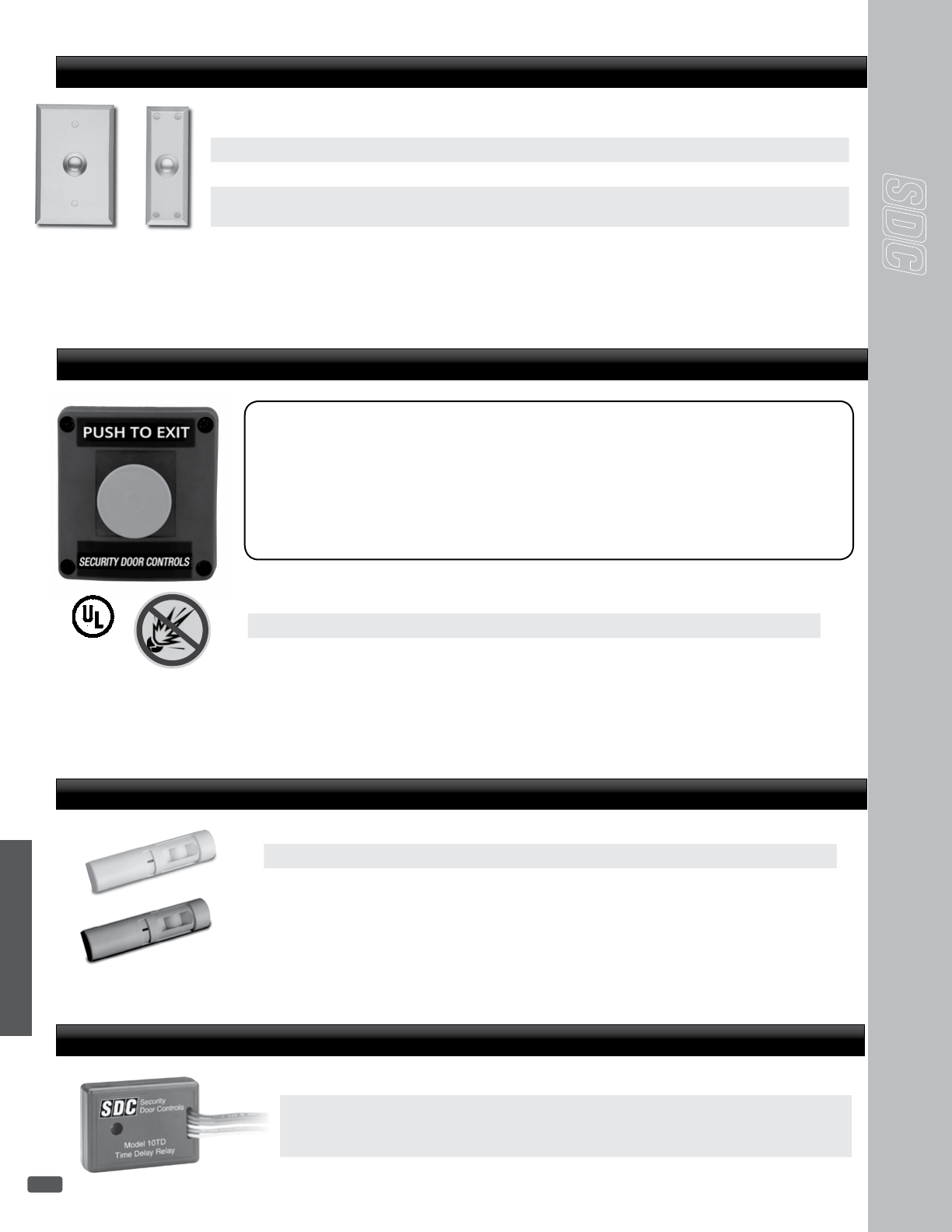

82 ............. MD-31 Series Passive Infrared Egress Control
82 ..................................................10TD Time Delay Relay
aDa coMpLiant

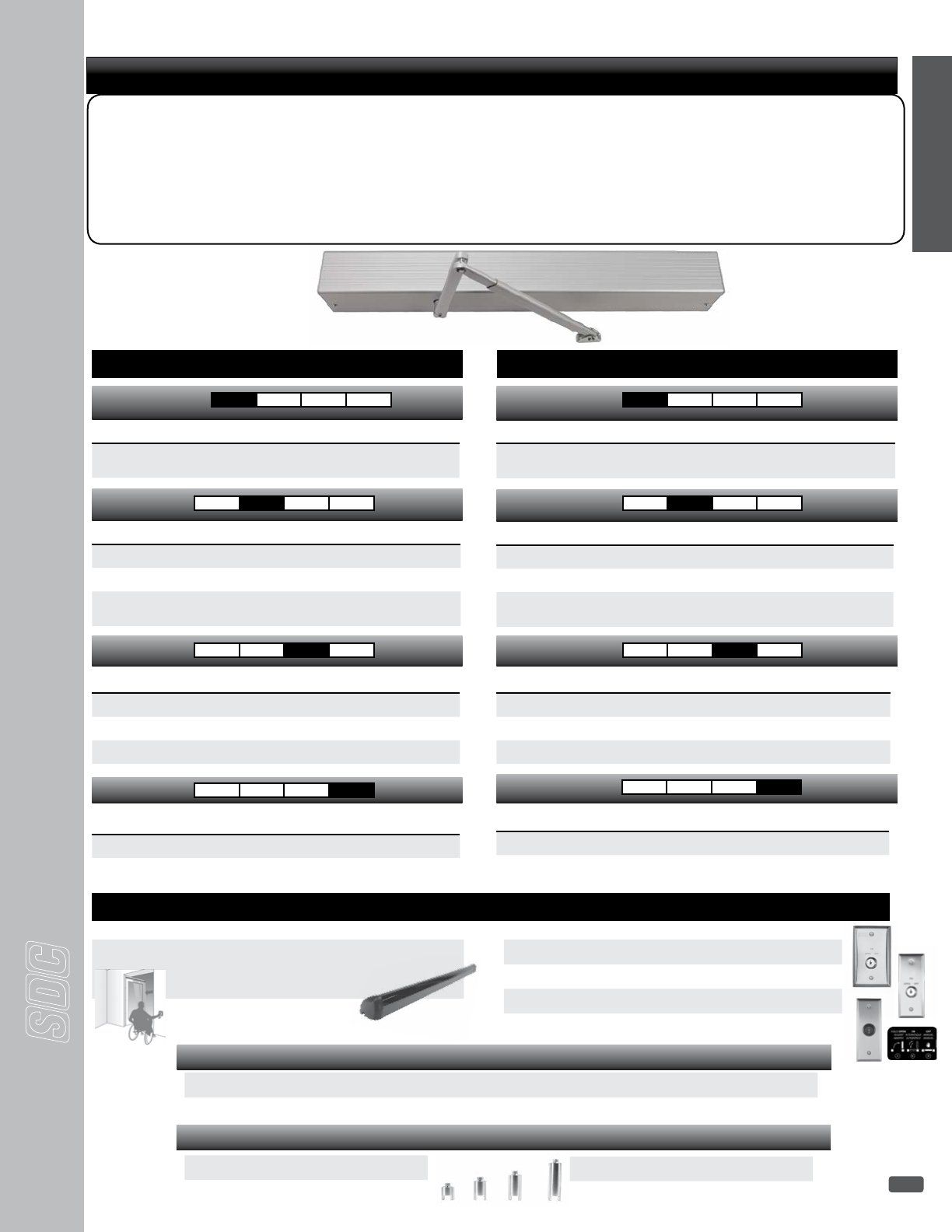

83 .......................................................Auto EntryControl™
84 ................... Dual Switch Bollard Post - CBC compliant
84 ................................................................... Bollard Post
84 .............. 400 Series Wireless Transmitter and Receiver

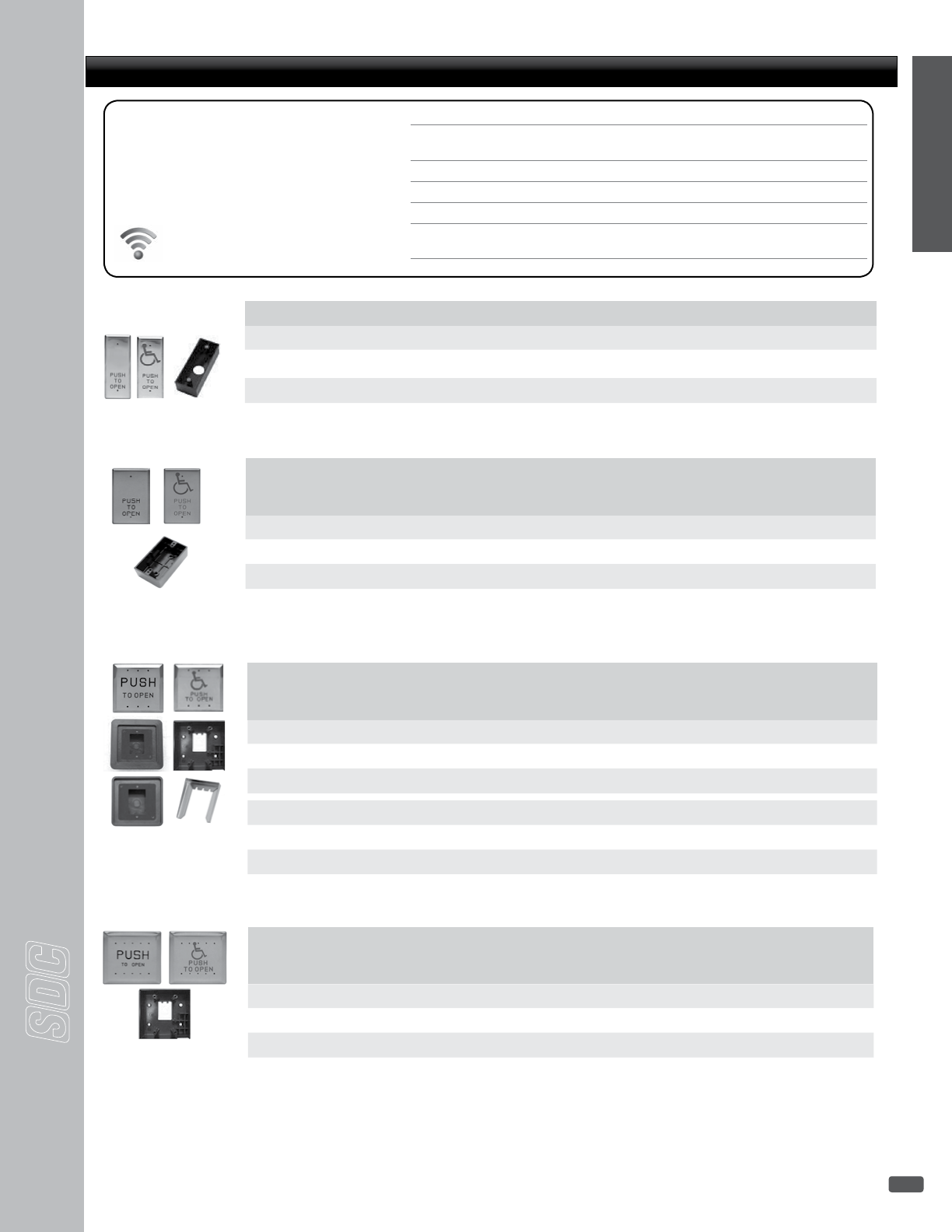

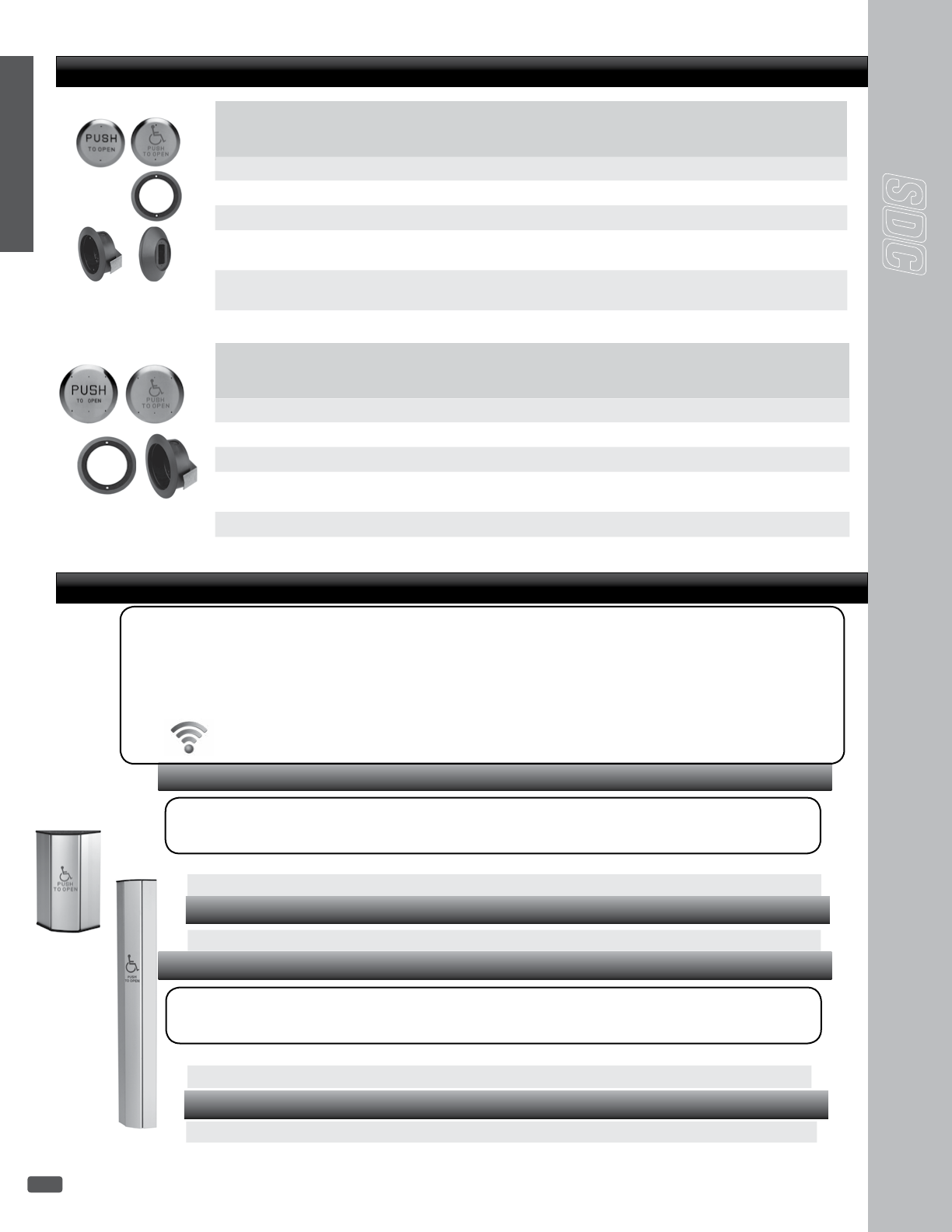

85 .................................... 480 Series Push Plate Switches
86 ................................... 480 Series Touch Panel Column
87 480 Series Wireless Push Plate Switch Kit
87 480 Series CBC High-Low Compliant Wireless
.........................................................Push Plate Switch Kit

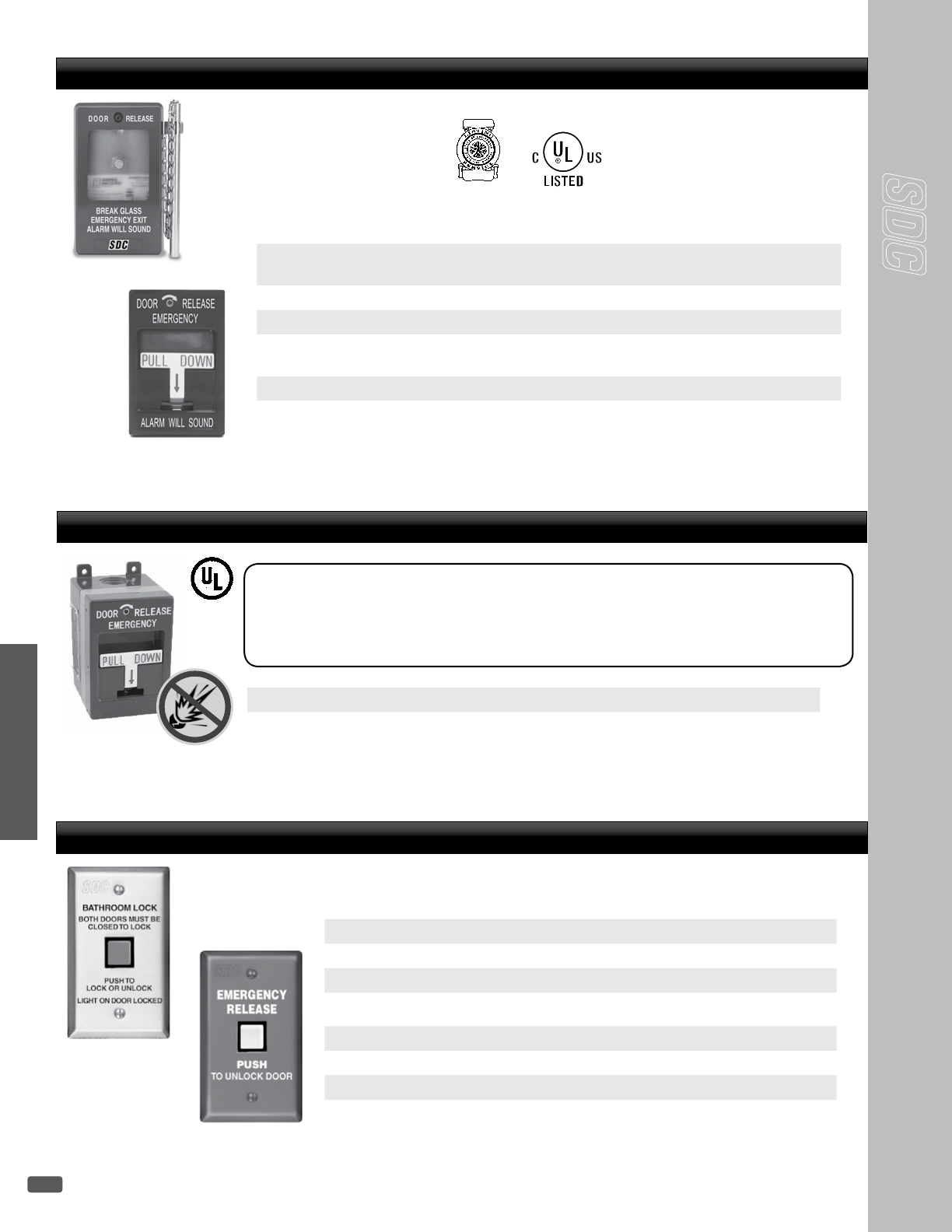

88 .............................. 491 / 492 Emergency Door Release
88 ................................EP493 Explosion Proff Pull Station

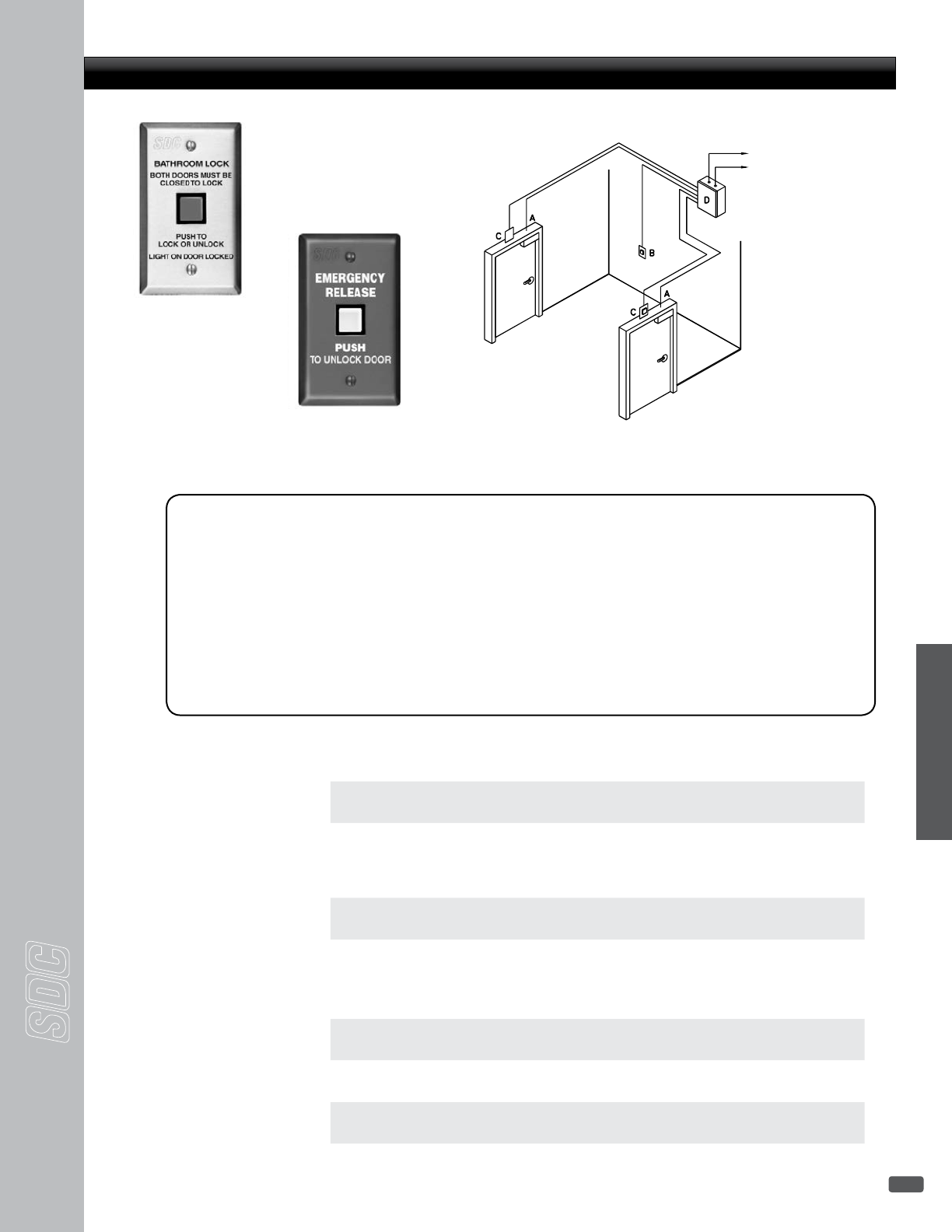

88 .... CB400 / CB700
Series Communicating Bathroom Controls
89
.....................................CBP- Communicating Bathroom Package
power transfer Devices

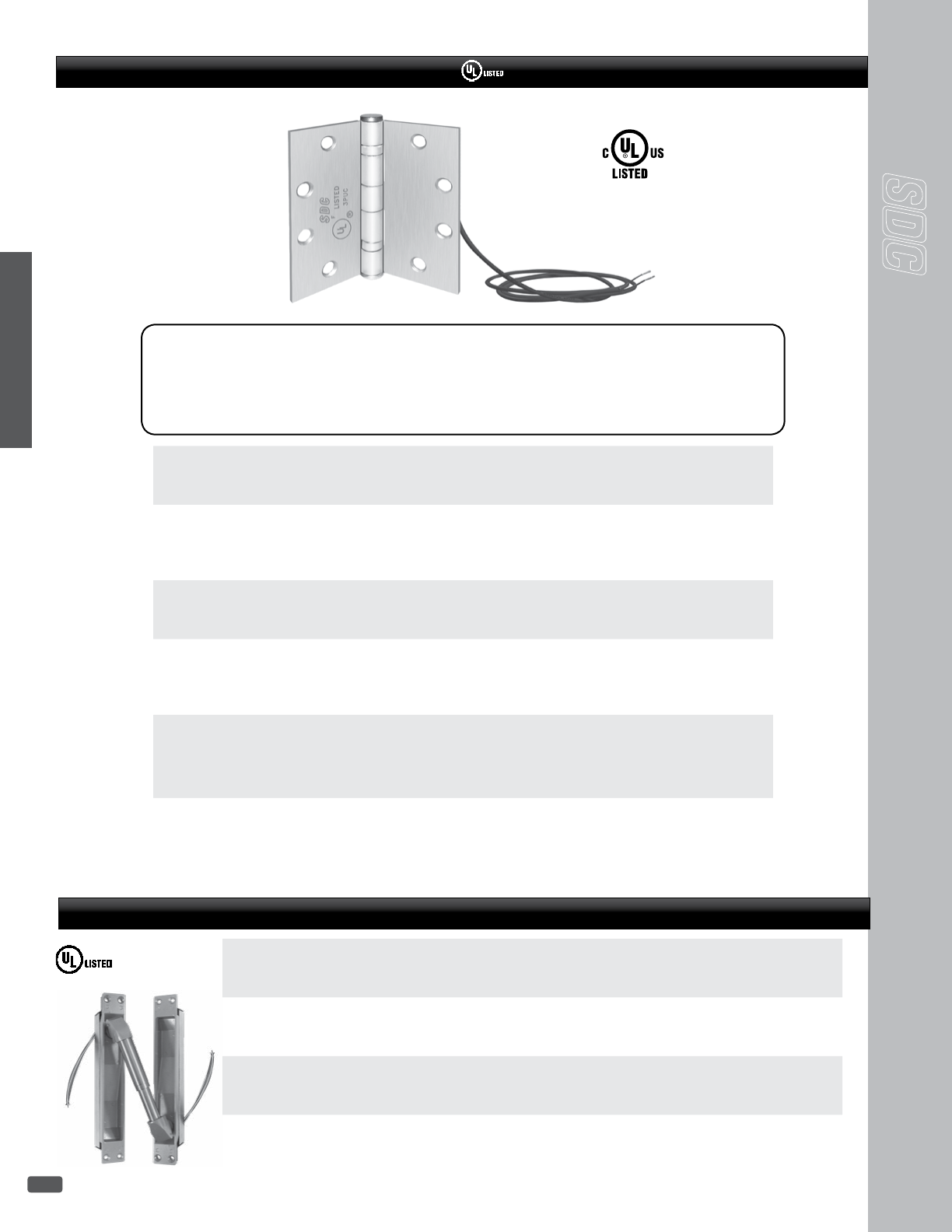

90 ............................................ PTH Power Transfer Hinge
90 ............................ PTM / PT-5 Power Transfer Devices
91 ........................... WPT Wireless Power Transfer Device
91 ................................PT-2 / PT-3 Power Transfer Loops
92 ..........................................................Door Core Drill Kit
power suppLy & Door controLers

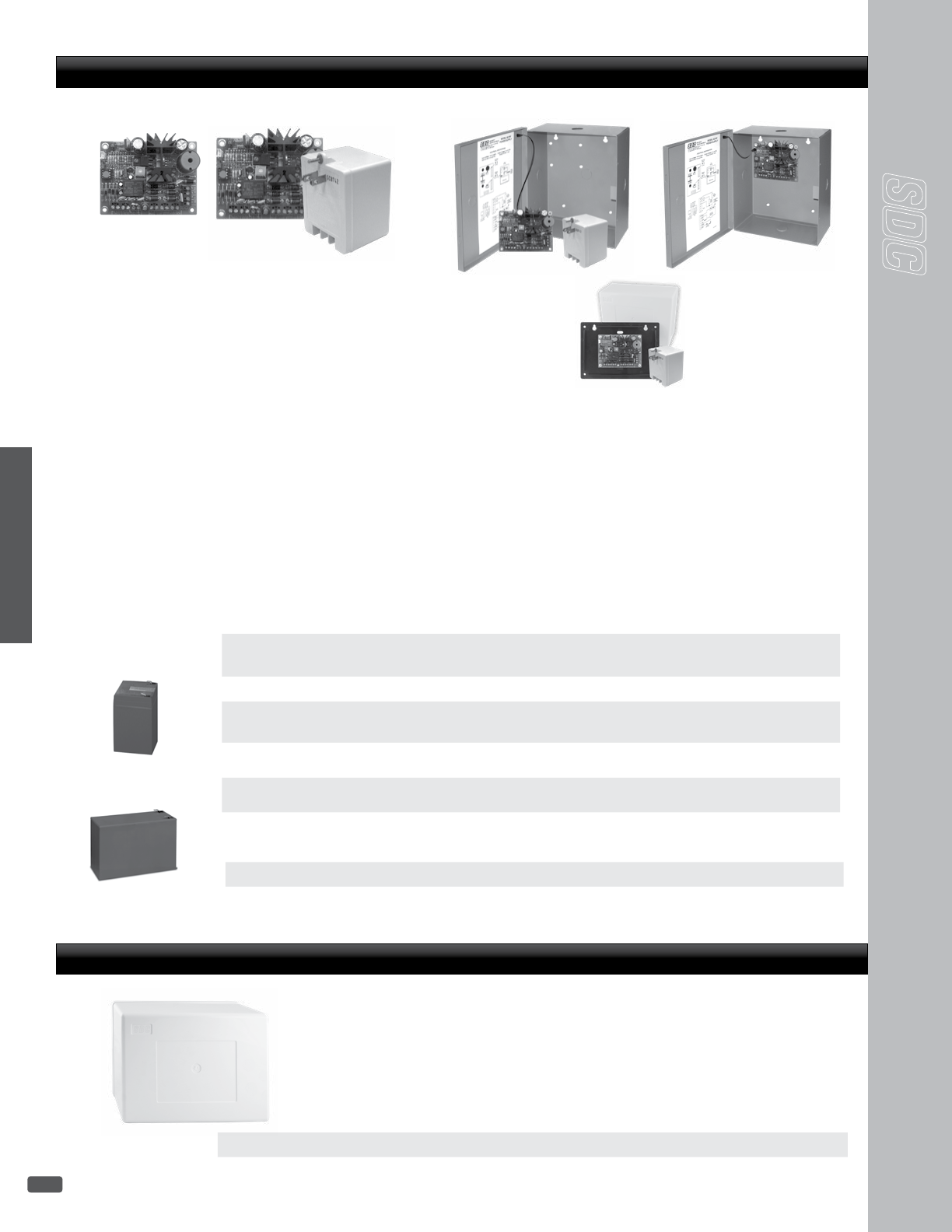

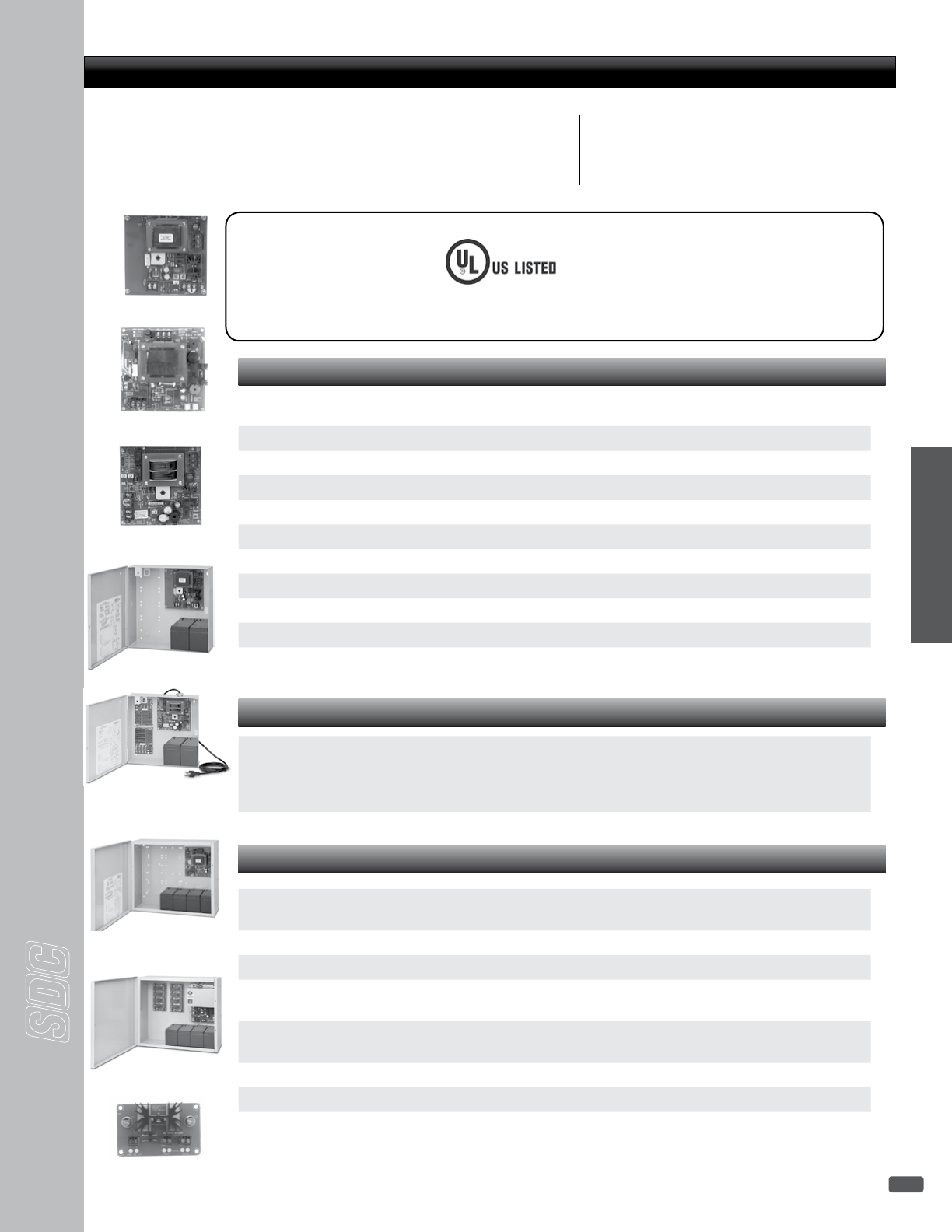

93 .................602 / 631 / 632 / 634 / 636 Power Supplies/
........................................... Controllers & Battery Standby
94 ............................. 621 Access Control Power Supplies
94 ................................. UME Universal Module Enclosure
95 ........UR-1 / UR2-4 / UR4-8 Universal Control Modules
95 ............. FB-4 / ACM / CR4 / PB Door Control Modules
95 ...........................................PSM / EMC Output Module
96 ................. TR12 / TR24 DC Regulated Power Supplies

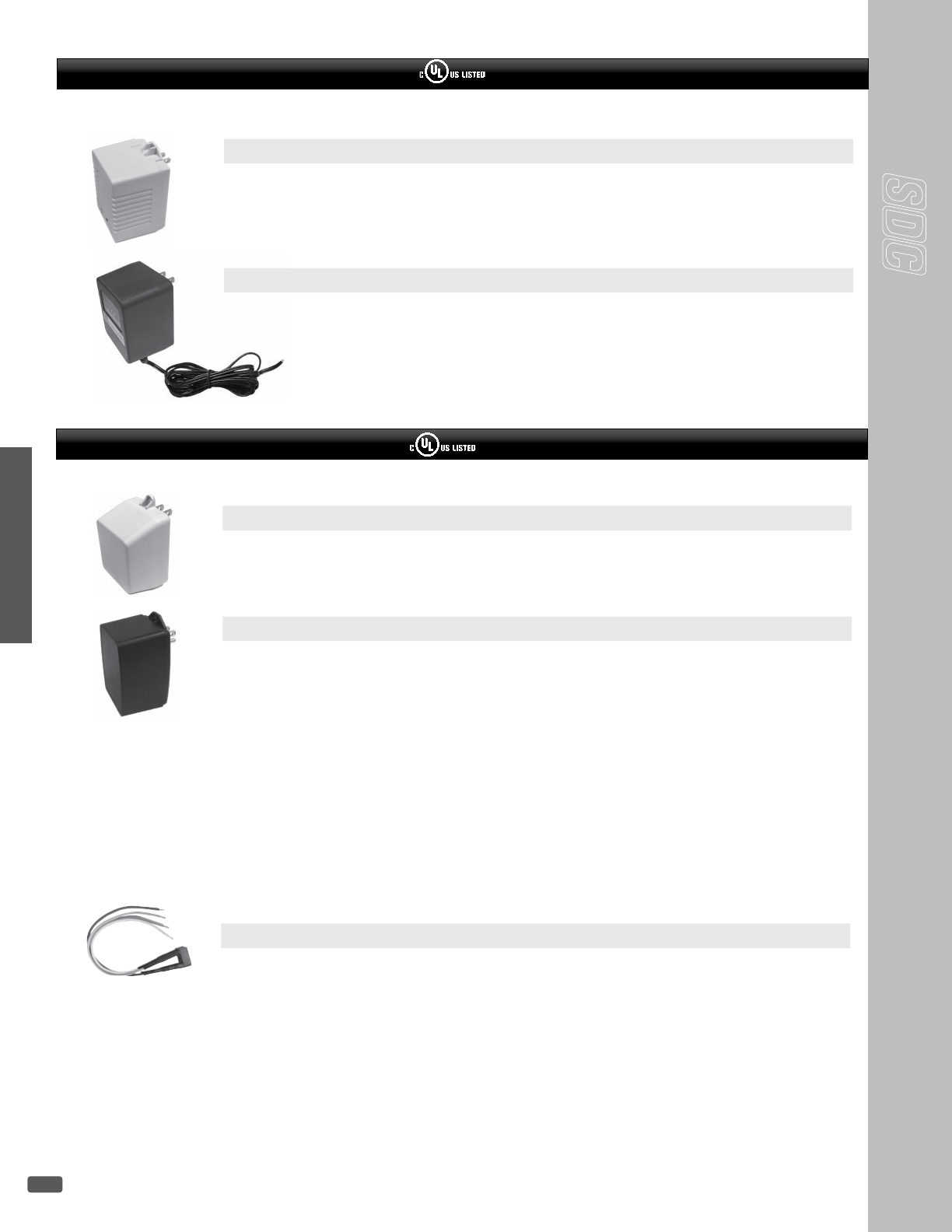

96 .....................................TP1220 / TP2440 Transformers
reMote controLs

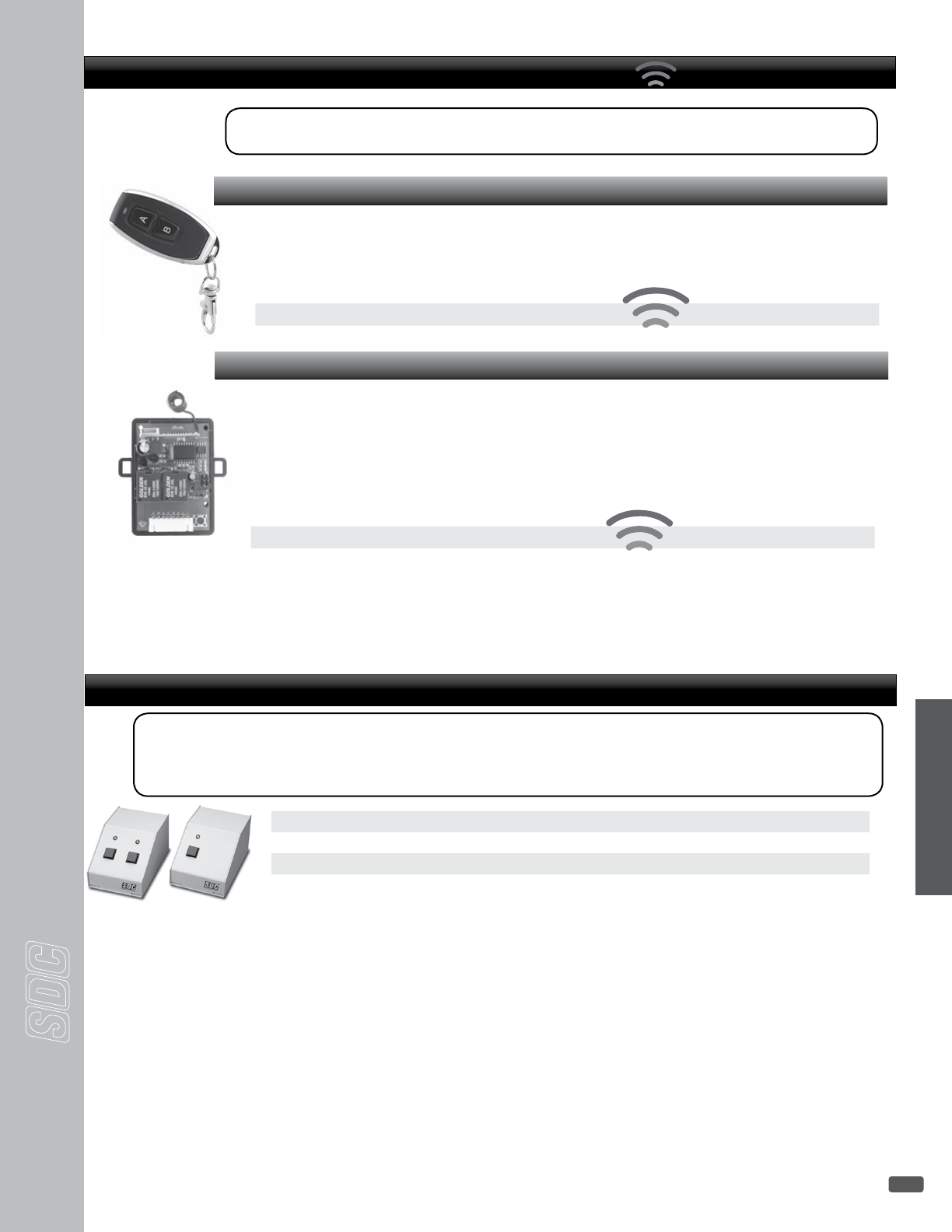

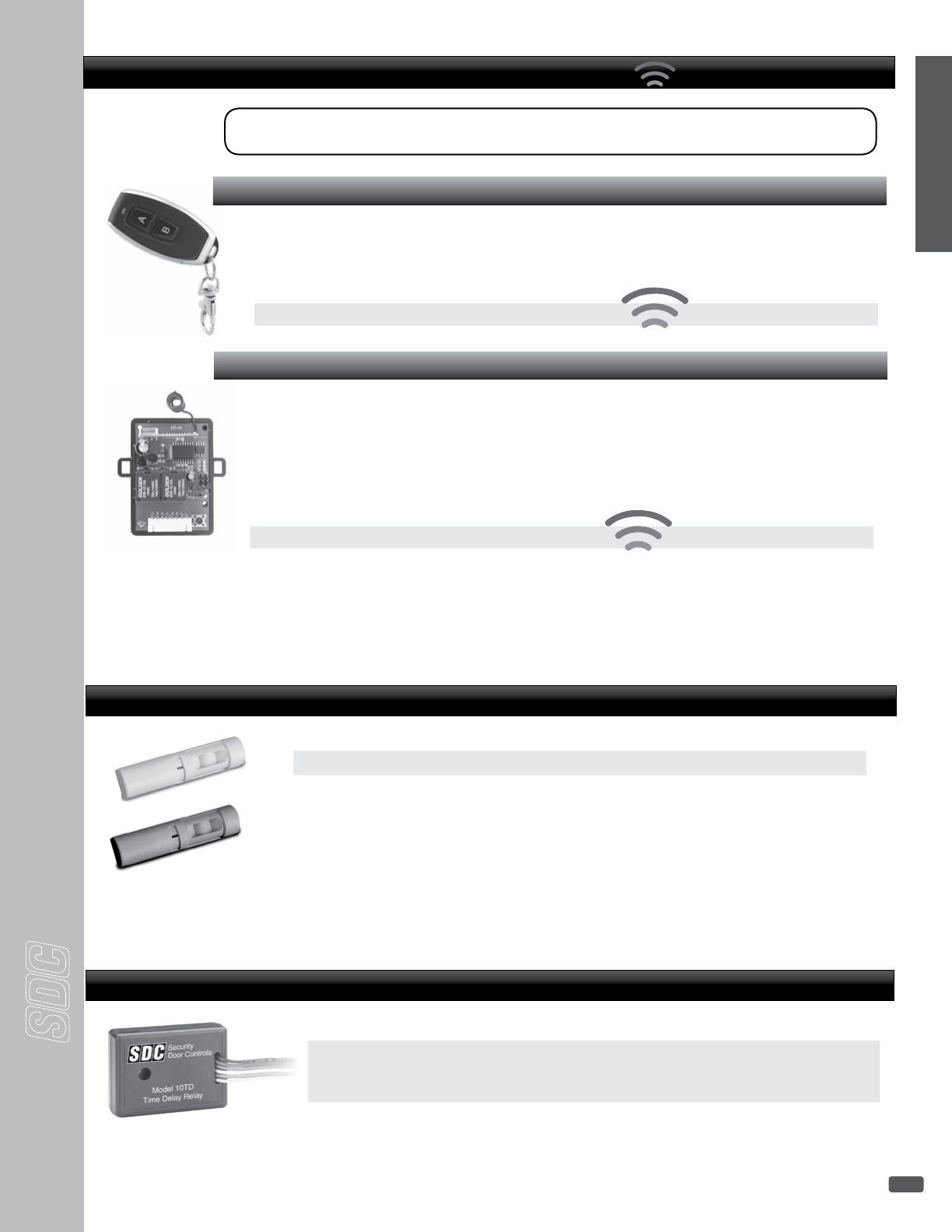

97 .............WRC SeriesWireless Transmitter and Receiver
97 .....................................................DTMO Mini Consoles

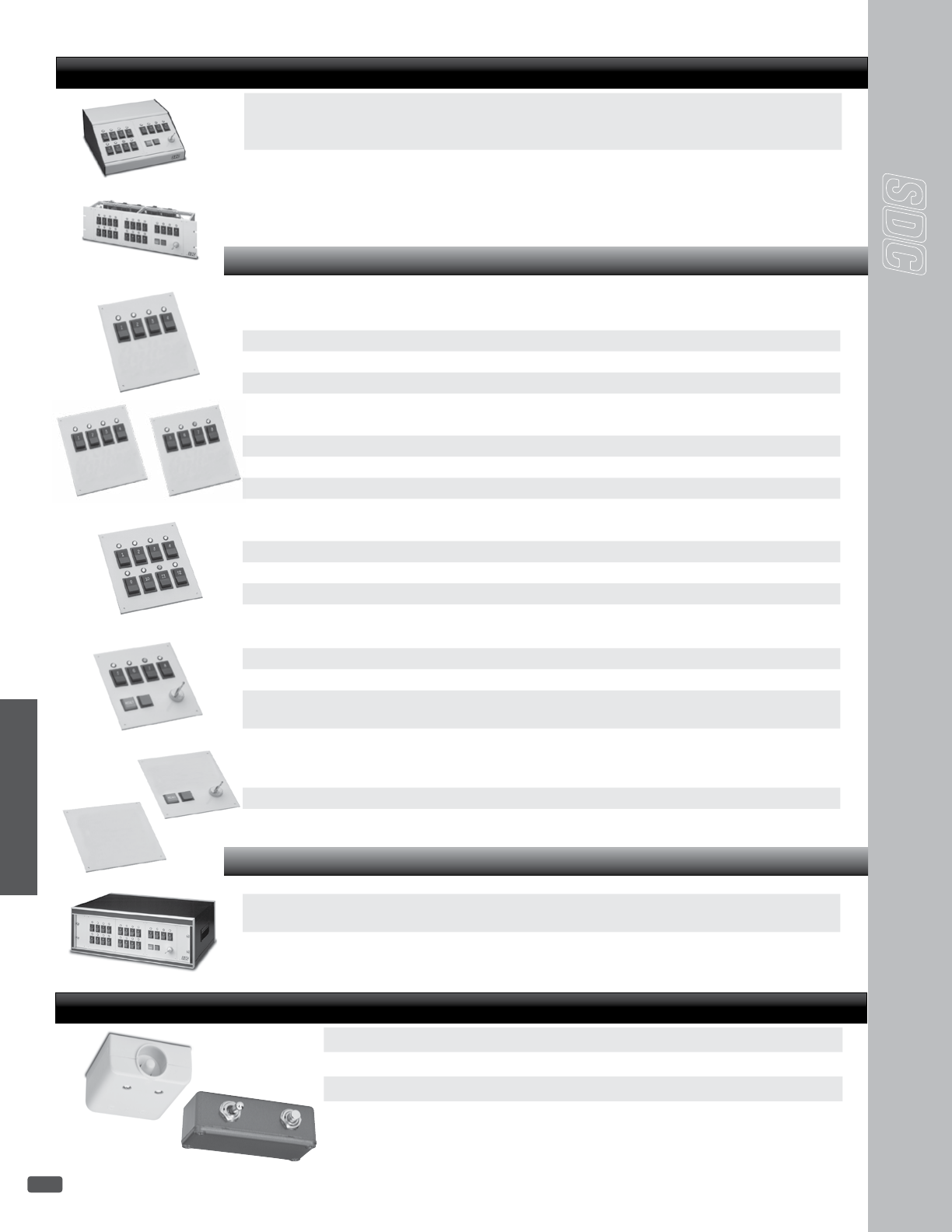

98 ..........................TCC / RCC Modular Control Consoles
98 ............................15 Series Desk Switch Compact Box
annunciators

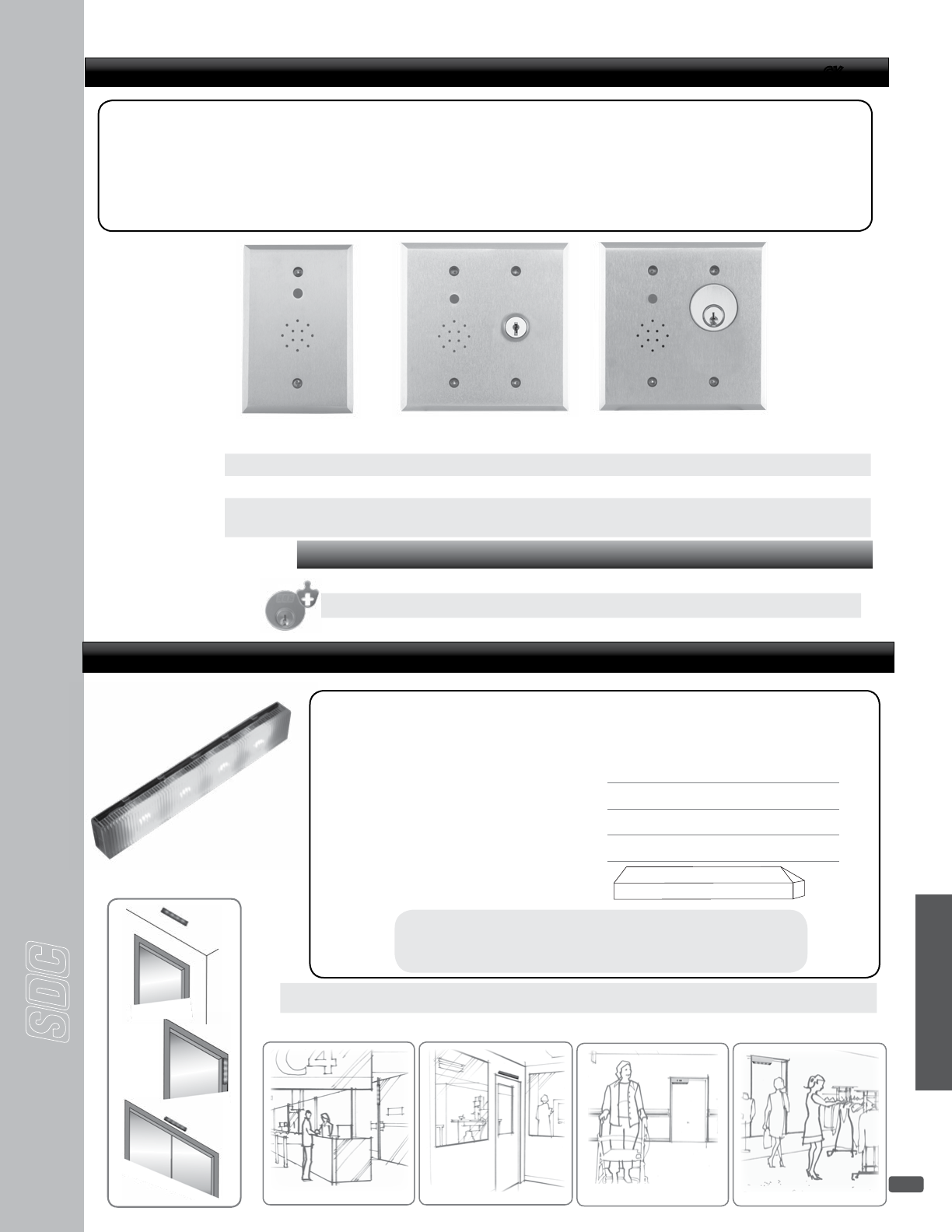

99 ............................................EA Series Door Prop Alarm
99 ............................................... EA100 Exit Annunciators
100 ................................... 400 Series Sirens and Buzzers
100 ..................................400 Series Wall Mount Indicator
100 ..............................................101 Series Annunciators
accessories

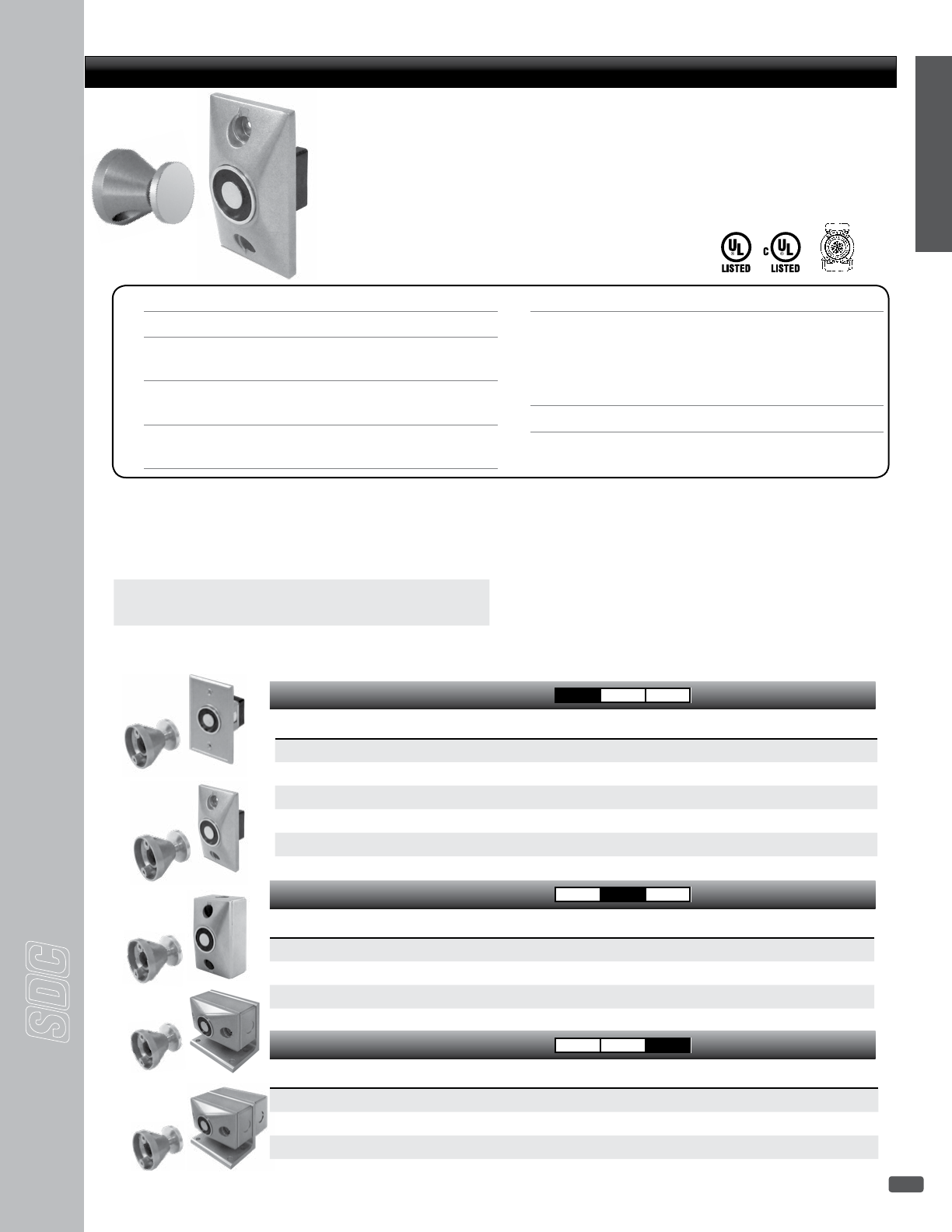

101 .......EH Series Magnetic Door Hold & Release Device
103 ..........WRC Series Wireless Transmitter and Receiver
103 ...................... MD-31 Passive Infrared Egress Control
103 ................................................10TD Time Delay Relay
104 .................... DPS + MC Series Door Position Sensors
104 ....... EP-MC Explosion Proof Magnetic Door Contact
104 ............................... UME Universal Module Enclosure
104 ............................................ Emergency Access Panel
saLes poLicies anD inDex
4 ..............................................................Limited Warranty
6 ......................................................................Sales Policy
106 ..................................................................Quick Index
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
4
Security Door Controls (SDC) warrants that all new products sold
by us are free from defects in material and workmanship and fit for
the purpose intended by SDC when properly installed in accordance
with the appropriate factory instructions and template for a period,
from the date of shipment as follows:
Lifetime: EMLock Series electromagnetic locks and Exit Check
Series Delayed Egress Electromagnetic Locks, excluding Exit Check
delayed egress PC board assemblies, purchased since January
1, 2006 are warranted for the life of the product. Excel Series
Electromagnetic Locks and 600 Series power supplies purchased
since January 1, 2012 are warranted for the life of the product.
5 Years: All other SDC products, including Exit Check electronic PC
Board Assemblies are warranted for 5 years
The extent of our liability for breach of warranty, when such is
shown to our satisfaction, shall be limited to a functionally equiva-
lent replacement, or repair of such product, or part thereof at SDC’s
sole discretion, when returned, delivery prepaid to SDC. We shall
not, except to the extent this limitation may be precluded by law, be
liable for inconvenience, labor costs, lost profit, damages to other
property, injury or any other consequential or punitive damages
resulting directly or indirectly from any product defect or breach of
this warranty.
This warranty is limited to the original purchaser, is not transferable
and shall not apply to changes of Oil Rubbed Bronze (613/US10B)
finish, which is a living finish designed to change appearance
through daily use, lamps, LED’s, maintenance, wear and tear caused
by normal use, altered product, abuse or negligence.
LIMITED WARRANTY
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES OF FITNESS AND MERCHANTABILITY.
Warranty & Sales Policy

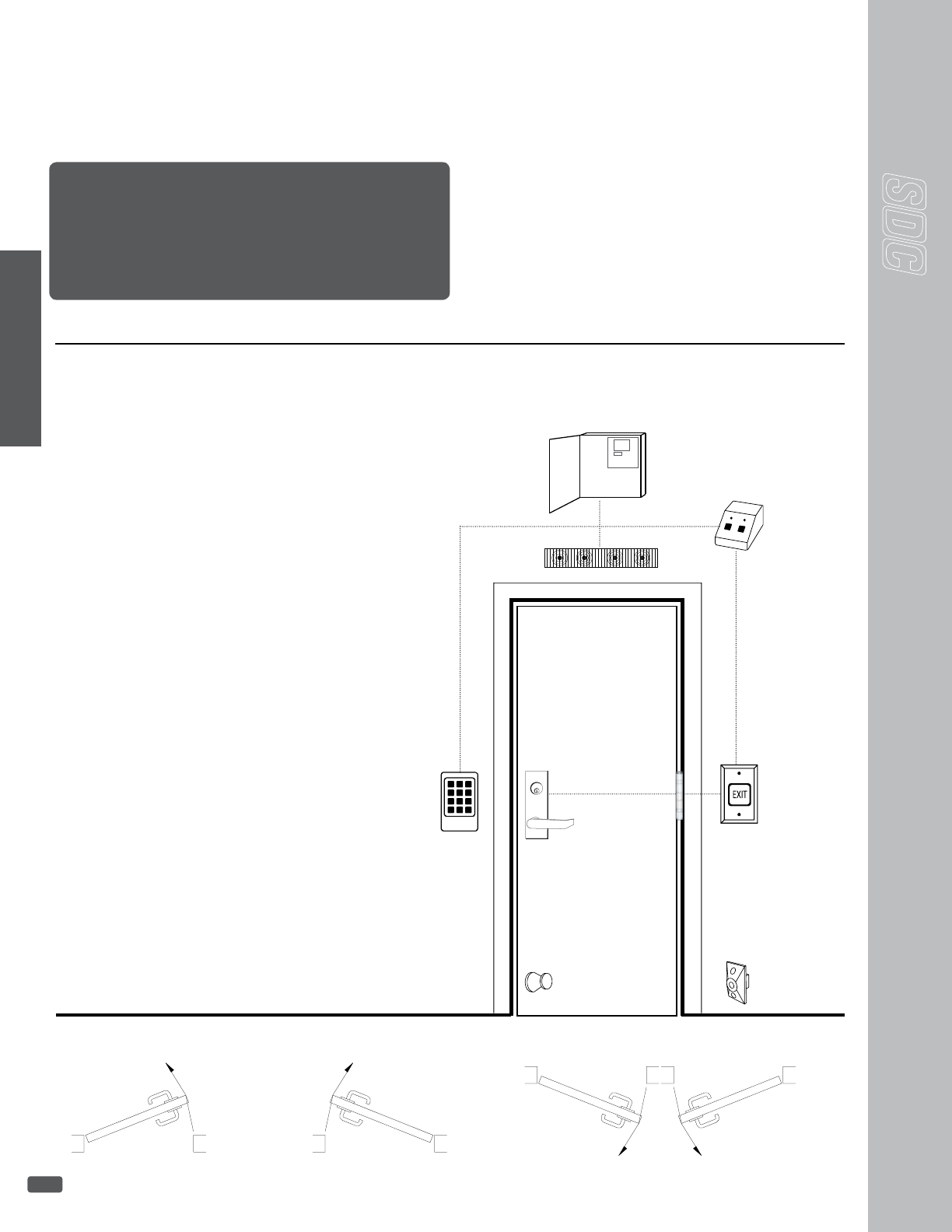

BASIC COMPONENT CONSIDERATIONS FOR A SINGLE DOOR SYSTEM
Left Hand
Reverse Bevel
“LHR, LR”
Right Hand
Reverse Bevel
“RHR, RR”
(Outside)
Right Hand
“RH”
(Outside)
Left Hand
“LH”
DOOR HANDS
5
7
4
1
23
6
8
1 LOCKING DEVICES
2 ACCESS CONTROLS
3 EGRESS CONTROLS
4 POWER TRANSFER DEVICES
5 POWER SUPPLY & DOOR CONTROLS
6 REMOTE CONTROLS
7 ANNUNCIATORS
8 ACCESSORIES & MISC
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
5
Warranty & Sales Policy
A
B
Dealers & Installers: Contact
SDC to nd out rst hand
which products your SDC
distributor can expedite.
Some products in this price book are protected by one
or more of the following U.S. Patents. Foreign Patents
are not shown: 4,021,065; 4,099,752; 4,596,411;
4,609,910; 4,623,178; 4,623,181; 4,634,155; 4,641,867;
4,826,223; 4,986,581; 5,000,497; 5,006,723; 5,033,779;
5,141,271; 5,376,910; 5,429,399; 5,525,880; 5,564,228;
5,876,073; 6,363,363; 6,363,763; 7,540,542; 7,614,669;
7,698,918
East & West coast warehouses
reduced time-in-transit
• SDC - Camarillo, CA
• SDC - Baltimore, MD
Over 200 Access
Hardware products
available for next
business day shipping.
Security Door Controls Retrot Made Easy!
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
6
SALES POLICY
TERMS: A minimum purchase of $5,000.00 annually is required to
maintain an open account with Security Door Controls.
RETURNED GOODS: Any defects or errors for which we are responsible
will be promptly rectified. Approval for return of merchandise must be
requested of us, and when granted the return authorization number must
be displayed on all packages returned. Material found suitable for resale
without reconditioning will be credited to customer’s account less a han-
dling and reprocessing charge of 35% of the net material value. Further
charges will be assessed on material requiring rework to return it to sale-
able condition. Obsolete products will not be accepted for return. Custom
products, special finish, options, size or pre-assembly configuration are
considered special and are not returnable for credit. Incoming transporta-
tion charges are to be prepaid by the Buyer. Credits for material returned
will have 2% deducted to cover the cash discount allowance on the original
invoice. Products that have been installed may not be returned for
credit.
ADDITIONAL TERMS: 2% - TEN (10) DAYS. Net thirty (30) days from
date of invoice. Interest at 1-1/2% per month will be charged on unpaid
balances beyond thirty (30) days. Orders received from 60+ day accounts
will not be entered until account is current. It is understood that you may
use your normal purchase order or other order forms in placing orders.
However any such forms shall be used for convenience only and any
terms or provisions which may be contained therein inconsistent with,
or in addition to, those contained in our then current Acknowledgment
to Customer form or other terms or provisions contained herein shall
have no force or effect whatsoever. Custom material or wiring diagrams
requires 50% deposit. At SDC’s discretion, orders in excess of $1500 net
will be acknowledged by product category and department, and shipped
on an “as ready” basis unless customer purchase order specifically states
“Do not ship before _________,” and “No partial shipments.”
PRICES: Prices are subject to change without notice. No prices are guar-
anteed. All shipments will be made at prices prevailing at time of ship-
ment. Errors or omissions in pricing are subject to correction.
PRICING POLICY: Shipments must be accepted within sixty (60) days
after receipt of the order. Contracts extending beyond this period are sub-
ject to prices in effect at the time of shipment.
MINIMUM ORDER: Our minimum net invoice charge is $250.
ACCEPTANCE: We reserve the right to decline an order, in whole or in
part, when the price, quantity or assortment of goods is not satisfactory
to us.
FREIGHT: All goods are invoiced EXW (EXWorks) SECURITY DOOR
CONTROLS. When delivered to the transportation company the ship-
ments become the property of the purchaser, who assumes the risk of
loss or damage in transit. All ground shipments will be made by United
Parcel Service (UPS).
BACK CHARGES: We are not responsible for, do not authorize, and will
not accept any charges for the cost of any labor or material incurred
by anyone other than Security Door Controls for any installation, repair,
service or replacement unless incurred with our prior written consent and
agreement.
PRODUCT CHANGES: SDC reserves the right to modify, change, or dis-
continue any components as required.
SHORTAGES/ DISCREPANCIES: Claims must be made within ten
(10) days after receipt of material. (The original invoice number will be
required).
TEMPLATES: It shall be the customer’s responsibility to check all tem-
plates requested from SDC for suitability for proper door and frame
preparation. Direct requests from the door and frame supplier will not
release this customer of this responsibility.
ARBITRATION AND GOVERNING LAW: In the event of a dispute or
controversy, or differences, which may arise between parties, any claim
shall be settled by arbitration. The arbitration shall take place in California
under the rules of the American Arbitration Association. The validity,
interpretation, and performance of this agreement shall be controlled by
and construed under the laws of the state of California, United States of
America.
Security, Life-Safety and Access Control. They demand the best, in
planning, products and operation. So it’s only good sense to work
with a complete product package, and to begin with an expertly
prepared, custom engineered design package from SDC. Detailed to
your needs, one entrance or a complex multi-entrance system.
Every professional in the field knows all too well the usual problems.
Wiring specs and wiring diagrams don’t match up, components are
improperly planned out or missing, projects slow down and costs
start escalating.
Security Door Controls is prepared to assist you with a complete
System Design Folder which eliminates any problems with compo-
nent compatibility, system operation or wiring installation.
We provide what your particular job requires in electrical drafts,
instructions and data. It offers a great advantage for you, with time
saved, a faster, easier, better job in every way.
General instructions. Job name. Supplier. SDC reference number
and drawing numbers for easy reference when technical support is
needed. System operation: a detailed outline of the complete oper-
ation. A full list of components with individual instruction data for
each, conduit layout indicating quantity and gauge of wires. Point-
to-point wire diagrams of all component connections.
All necessary data is a matter of record. In short, whatever that job
requires in equipment, technical understanding or assistance, at
the office or in the field, will be detailed in your SDC System Design
Folder.
*SDC fees vary according to requirements.
Engineering services are available for special system design and
documentation.
All requests must be submitted in writing with all detailed require-
ments before final quotation. Any alterations or omissions must also
be submitted in writing and are subject to additional quotation.
SDC assumes no responsibility for information exchanged by
telephone regarding estimates or product suitability for verbally
expressed systems. Email requests will speed up the process and
eliminate misunderstandings.
A non-cancelable purchase order for engineering is required before
any engineering may proceed.
CUSTOM SYSTEM DESIGN
ENGINEERING POLICY
NOTE: SDC complete sales policy as stated in our price book prevails at all times.
Warranty & Sales Policy
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
7

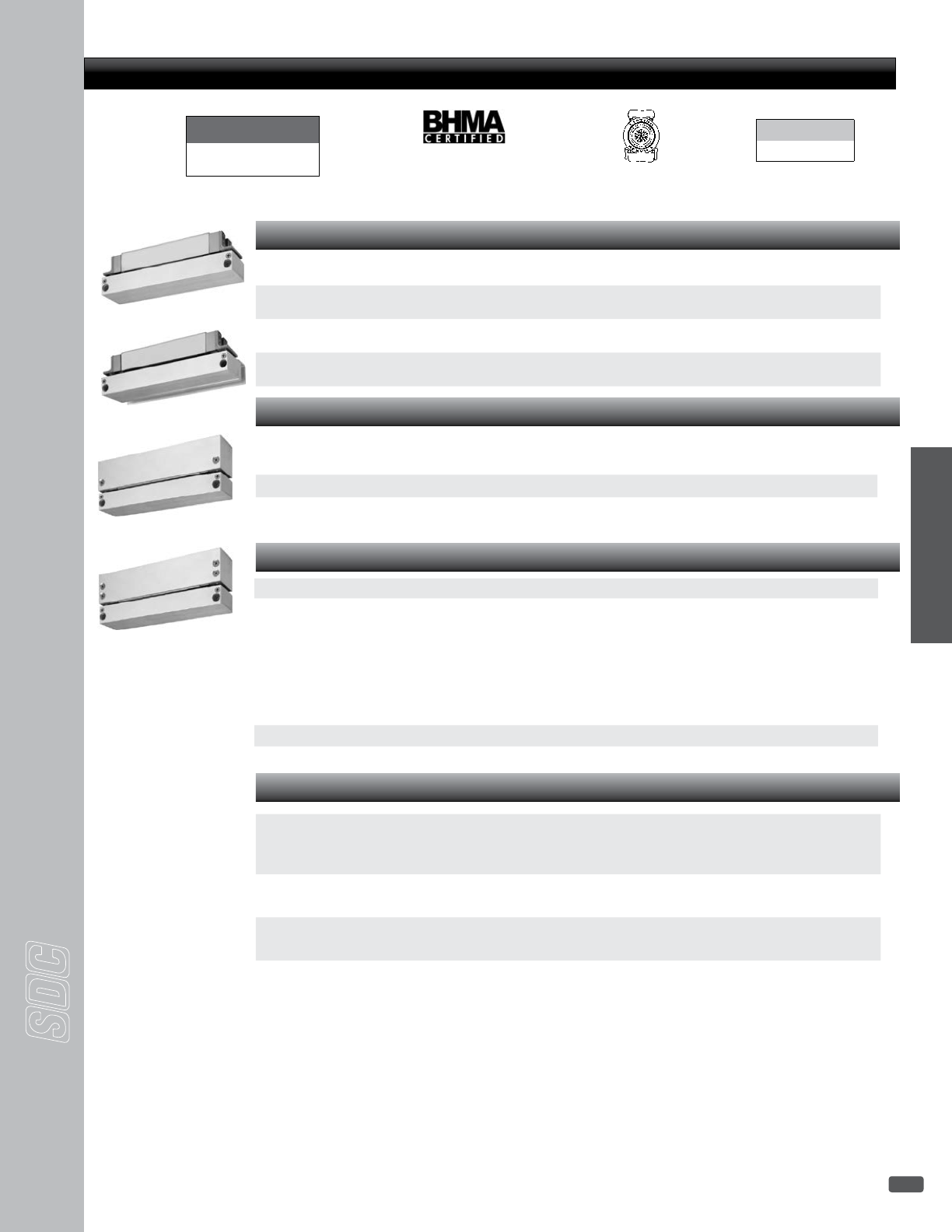

Magnetic Locks
EMLock® Magnetic Locks GK
Distributor
Discount Code
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
Single: 11" L x 2.75" H x 1.562" D
(279.4 x 69.9 x 39.7 mm)
Double: 22" L x 2.75" H x 1.562" D
(558.8 x 69.9 x 39.7 mm)
Voltage: 12/24VDC Voltage Sensing Input
Single: 125mA @ 24VDC; 250mA @ 12VDC
Double: 250mA @ 24VDC; 500mA @ 12VDC
1570 Series Grade 1
1200 lb / 544 Kg Holding Force
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
Single: 8.75" L x 2.125" H x 1.25" D
(222.2 x 54 x 31.8 mm)
Double: 17.5" L x 2.125" H x 1.25" D
(444.5 x 54 x 31.8 mm)
Voltage: 12/24VDC Voltage Sensing Input
Single: 220mA @ 24VDC; 440mA @ 12VDC
Double: 440mA @ 24VDC; 880mA @ 12VDC
1580 Series Grade 1
650 lb / 295 Kg Holding Force
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
Voltage: 12/24VDC Voltage Sensing Input
Single: 350mA @ 24VDC; 670mA @ 12VDC
Double: 700mA @ 24VDC; 1.34A @12VDC
1510 Series Grade 1
1650 lb / 748 Kg Holding Force
Single: 11" L x 2.75" H x 1.562" D
(279.4 x 69.9 x 39.7 mm)
Double: 22" L x 2.75" H x 1.562" D
(558.8 x 69.9 x 39.7 mm)
GWXT Auxiliary Locks
CVXJ Burglary Resistant Electrically Operated Door Lock
UL10C Positive Pressure Compliant
UBC Classified in accordance with
Uniform Building Code standard 7-2
“Fire Test for Door Assemblies”
3 Watt Power Saver
EMLock®
Lifetime Warranty ANSI/BHMA A156.23
Grade 1
CSFM
3774-0324:100
MEA
City of New York
768-80-SA
EMLOCK® MODELS GK LIST
1650lb / 748 kg Holding Force, Automatic Voltage Sensing Input
1511 Single EmLock®480.00
1512 Double EmLock®960.00
1513 Single EmLock®, split armature for pair of doors 539.00
1200lb / 544 kg Holding Force, Automatic Voltage Sensing Input
1571 Single EmLock®449.00
1572 Double EmLock®907.00
1573 Single EmLock®, split armature for pair of doors 507.00
650lb / 295 kg Holding Force, Automatic Voltage Sensing Input
1581 Single EmLock®374.00
1582 Double EmLock®737.00
Distributor
Discount Code
SPECIFY FINISH Add to List
Anodized Finishes (Architectural Housing: Add 21.00 per foot to base) Single EmLock
Double
Emlock
V628 Aluminum (standard) N/C N/C
Y335 Black 86.00 129.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
XDark Bronze Powder Coat Painted (313/613 Equal) 86.00 129.00
CBrass Powder Coat Painted 86.00 129.00
Plated Finishes - Special order, no cancellation, no returns
P625 Bright Chrome 203.00 235.00
Q626 Dull Chrome 203.00 235.00
Architectural Housing add $30 per foot to above Single Unit Price.
1511
1512
1513
1572
1581
1582
1573
1571
1575U
see page 16
1576U
see page 16
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
8

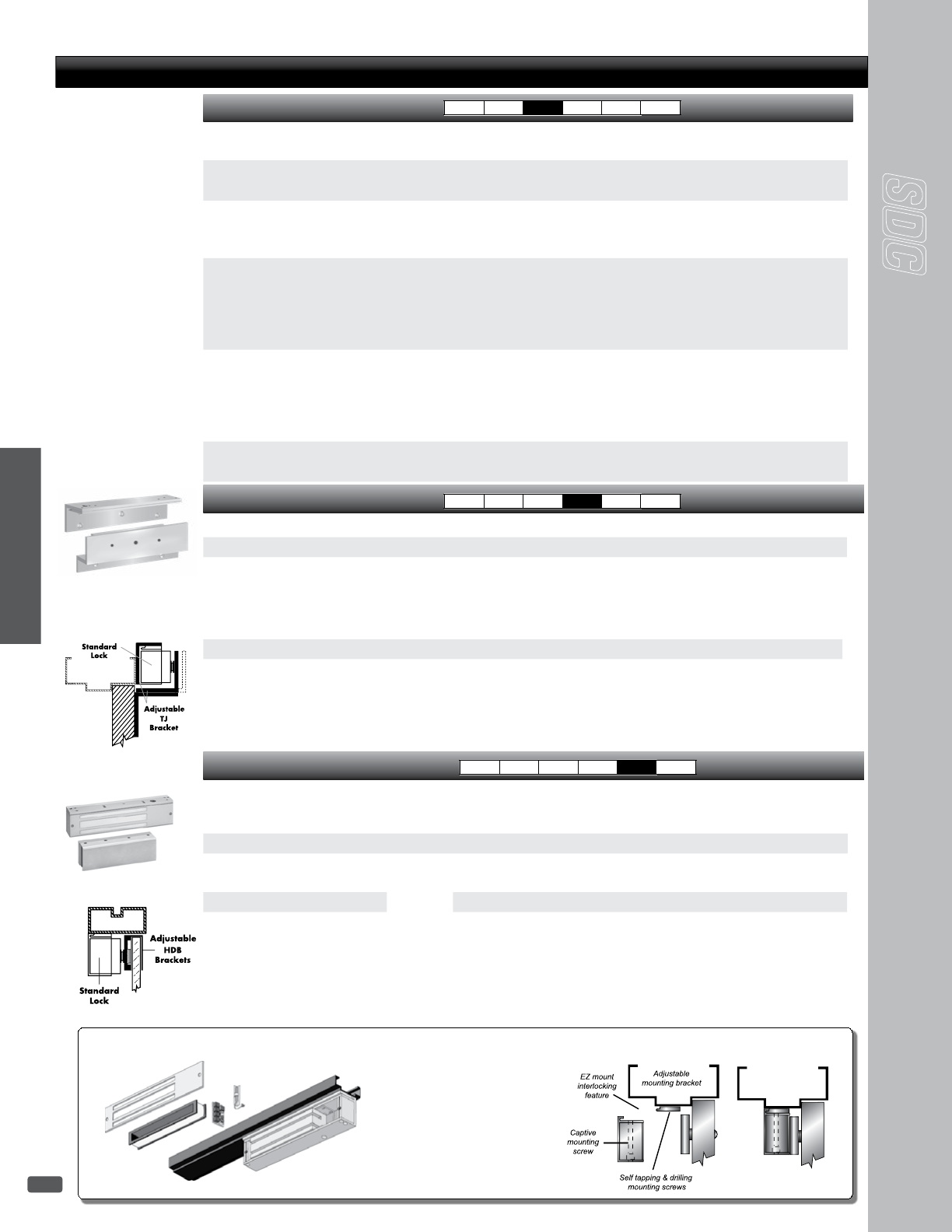

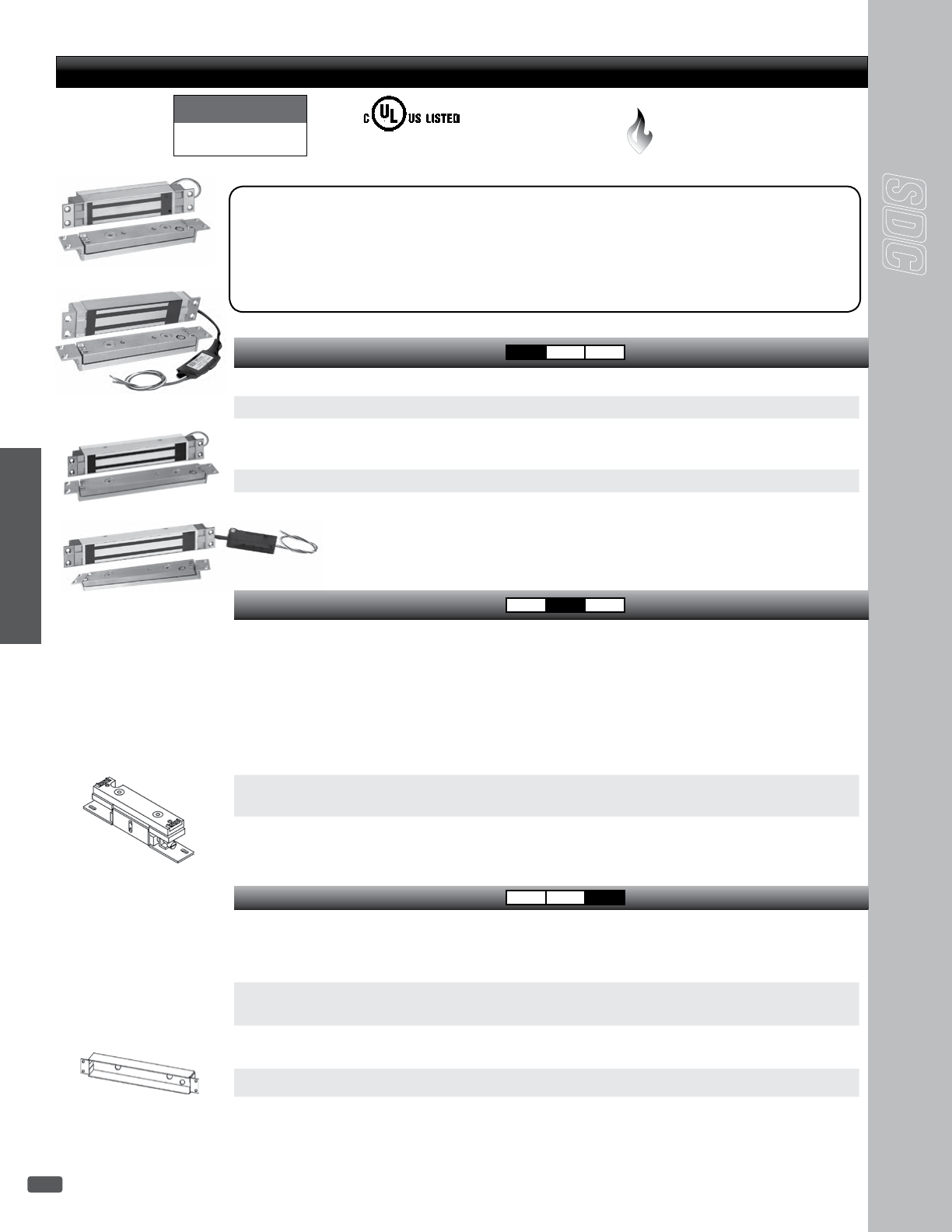

Magnetic Locks
See Modular Program price list when ordering separately for field upgrades. Different part numbers and
pricing apply.
TAdjustable timer. Built in field adj. 0-30 sec. relock delay.
Specify one for single or double EmLocks® (not available with 1580 series)
70.00
DDoor position sensor. Indicates door open and door closed.
Specify two for double EMLocks® (not available with 1513 and 1573)
SPDT Dry, 250 mA @ 30VDC.
44.00
BMagnetic bond sensor. Indicates locked with full holding power and unlocked, low holding power,
low voltage, tampering and obstruction between armature and magnetic core.
Specify (2) for double EmLocks® (Not available with 1513 and 1573)
• 1510 & 1570 Series: SPDT Dry, 250 mA @ 30VDC.
• 1580 Series: SPST N.O., Dry, 250 mA @ 30VDC.
65.00
LBi-color status LED indicator. Field selectable Red and Green. (Not installed in lock.)
Indicates lock energized when wired to lock input.
Indicates de-energized/unlocked or “Enter/Go” when wired to built-in TD Module
Indicates energized and de-energized or “Enter/Go” when wired to access control auxiliary output.
Indicates door is closed and locked and door is unlocked when wired to Bond Sensor.
18.00
AAnti-tamper sensor. Indicates access cover removal.
SPDT Dry, 1 Amp @ 30VDC
54.00
EMLock® Magnetic Locks
SPECIFY OPTIONS List
SPECIFY TOP JAMB MOUNTING KIT GK LIST
SPECIFY GLASS DOOR MOUNTING KIT GK List
Kits for 1200lb and 1650 lb Locks Kits for 650lb Locks
TJ1 Single TJ81 Single 129.00
TJ2 Double TJ82 Double 210.00
Kits for 1511, 1571, 1581 Kits for 1512, 1572, 1582
HDB1 Single 193.00 HDB2 Double, 2 single kits 385.00
• Universal glass door kits are compatible with lock models, except 1513 and 1573
• Field adjustable for 1/2", 5/8" and 3/4" all glass Herculite doors
Add to List
Anodized Finishes Single Top
Jamb
Double Top
Jamb
V 628 Aluminum (std) N/C Y Black Anodized 86.00 171.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
X Dark Bronze Powder Coat Painted C Brass Powder Coat Painted 86.00 171.00
Plated Finishes - Special order, no cancellation, no returns Add to List
P 625 Bright Chrome Q 626 Dull Chrome 203.00 235.00
Add to List
Anodized Finishes Single Double
V 628 Aluminum (std) N/C Y Black Anodized 86.00 171.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
X Dark Bronze Powder Coat Painted C Brass Powder Coat Painted 86.00 171.00
Plated Finishes - Special order, no cancellation, no returns
P 625 Bright Chrome Q 626 Dull Chrome 108.00 214.00
Distributor
Discount Code
Distributor
Discount Code
Field Install
• Monitoring outputs
• Timers
• Top jamb “Z” kit
• Glass door kits
Interlocking Quick Mount Assembly
Field Upgrade without Removing from the Frame
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
9

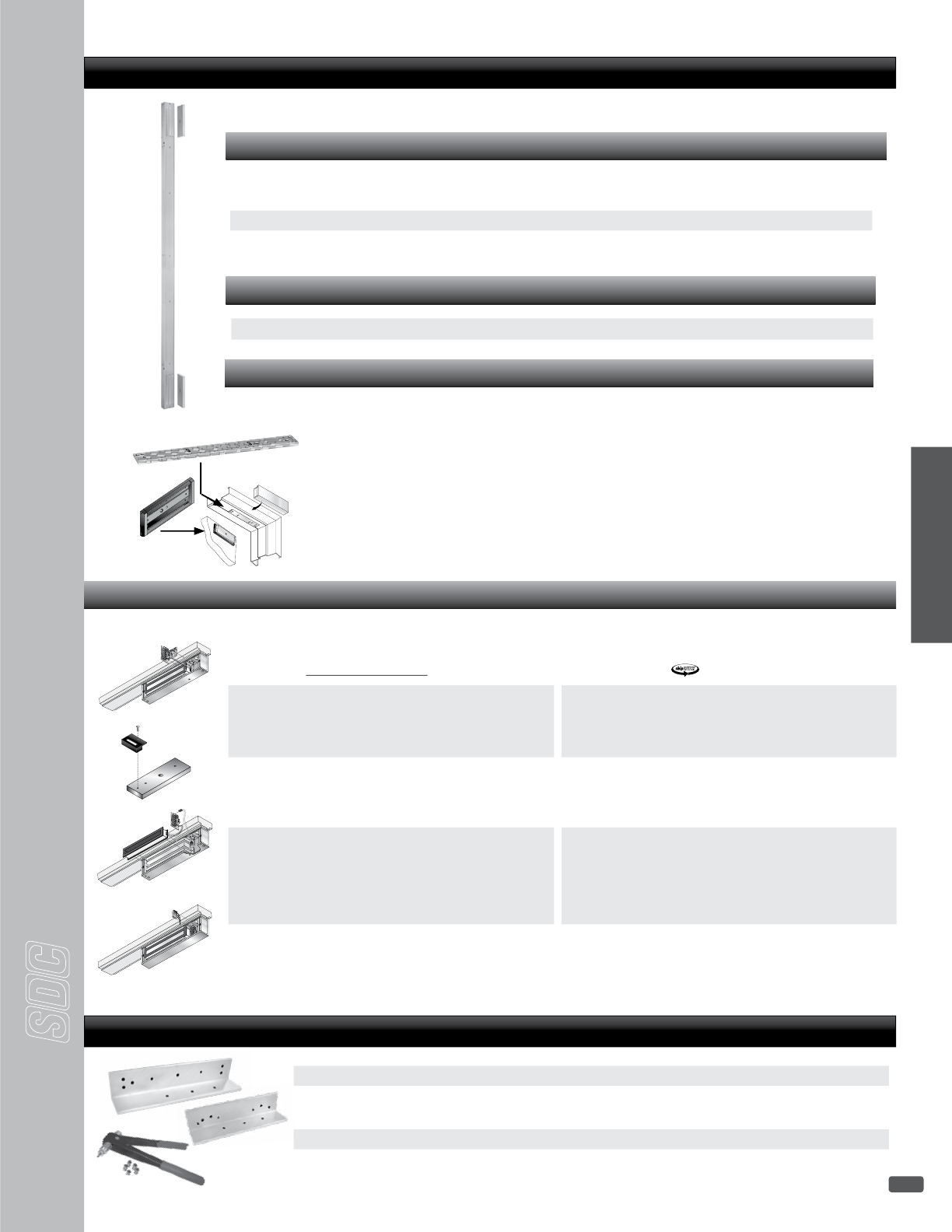

Magnetic Locks
Retrofit Kit for Discontinued Locknetics 390+ PLUS GK LIST
1511-390AMP Retrofit Kit includes lock mounting plate with self-tapping & drilling screws and
Armature assembly, utilizes existing 390+ thru-bolt hole. 54.00
Enables replacement of Locknetics 390+ PLUS with SDC's 1511 and 1571 (ordered separately)
1511-390AMP
Distributor
Discount Code
+
3
4
5
6
7
8
Field Installed Modular Upgrade Kits
EZ-T-10 Adjustable Timer Input Module:
Specify (1) for single or double
EmLocks® (not available with
1580 series)
70.00 EZ-A Anti-Tamper Switch Module:
Indicates cover plate removal.
54.00
EZ-D-10 1510, 1570 Door Position
Sensor Module: Specify (2)
for double EMLocks®
(not available with 1513 and 1573)
44.00 EZ-1510W Holding Force Module: Replace a
1200lb wire core (1570 series) with
this 1650lb wire core. Specify (2
for double EmLocks®
54.00
EZ-D-80 1580 Door Position Sensor Module:
Specify (2) for double EmLocks®
44.00 EZ-1570W Energy Saver Module: Save on
power supply and long term energy
costs by replacing 8.4 Watt, 1650lb coil
with 3 Watt, 1200lb holding force coil.
Specify (2) for double EmLocks®
54.00
EZ-B-10 1510, 1570 Magnetic Bond Sensor
Module: Specify (2) for double
EmLocks® (Not available
with 1513,1573)
65.00 EZ-B-80 1580 Magnetic Bond Sensor
Module (SPST):
Specify (2) for double EmLocks®
65.00
Ordered separately for field upgrade without removing the lock from the frame
For complete details contact SDC to request the Modular Upgrade Kit datasheet or download from the
SDC website: www.sdcsecurity.com All available through shipQuick Inventory
1511-DF Heavy duty drill fixture for 1571 and 1511 161.00
1581-DF Heavy duty drill fixture for 1580 161.00
Reusable Heavy Duty Drill Fixture G LIST
BN-PT Blind Nut Placement Tool 129.00
BN-50 Blind Nuts, 10/32, 50 Pack 54.00
Distributor
Discount Code
+
3
4
6
7
8
EMLock® Magnetic Locks
Vertical Housing EMLock GK LIST
Vertical Housings - Side jamb mount, aprovides 2,400 or 3,300 lbs. of holding force.
1572VV82 Vertical Housing for 1572 EMLock, 82" length, for 84" opening - INCLUDES EMLock 1599.00
1512VV82 Vertical Housing for 1512 EMLock, 82" length, for 84" opening - INCLUDES EMLock 1654.00
See page 7 for special finish designation and finish price
Distributor
Discount Code
CV Custom length - any length OVER 82”. Specify exact length 1200.00
Custom Length (1512 or 1572) Add to List
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
10
Magnetic Locks
Armature Mounting Plate GK LIST
Aluminum Spacer Bracket & Concrete Filled Frame Plate - Pre-Drilled & Tapped GK LIST
Universal Header Bracket GK LIST
4.5" FRAME
4" FRAME
Machined
Wire Chase
Holes Pre-drilled & Countersunk
For Frame Mounting
Pre-drilled and Tapped
Lock Mounting Holes
UB11V Bracket for 1511, 1513, 1571. 1" x 1" x 11" 70.00
UB12V Bracket for 1512, 1572. 1" x 1" x 22" 137.00
See special finishes page 7
MODEL
AR11Y Armature mounting plate (Black)
Specify one for models 1511, 1571, two for models 1512, 1572
65.00
AR11YD Armature mounting plate (black) with door sensor
Specify one for models 1511, 1571, two for models 1512, 1572
108.00
UF11V Bracket for 1511, 1513, 1571, 1573. 1/2" x 1-1/2" x 11" 97.00
UF12V Bracket for 1512 and 1572. 1/2" x 1-1/2" x 22" 120.00
UF81V Bracket for 1581. 1/2" x 1-1/4" x 8-3/4" 78.00
UF82V Bracket for 1582. 1/2" x 1-1/4" x 17-1/2" 108.00
UF11V
AR11Y
Aluminum
frame with
1/2" blade stop
ALUMINUM FRAME
WITH 1/2'' BLADE STOP
0.7796 in
Hollow metal
concrete lled
frame
Wood
Or
Metal
Door
Armature
Mounting Plate
Glass Door
Top Rail
Glass
Armature
Mounting Plate
Door Coordinator Lock Mounting Kit GK LIST
DC-1 Door coordinator mounting bracket for single models 1511 and 1571. 129.00
DC-2 Door coordinator mounting bracket for double models 1512 and 1572. 235.00
Distributor
Discount Code
Distributor
Discount Code
Distributor
Discount Code
Door
Coordinator
SDC Door
Coordinator
Bracket
Door
Coordinator
SDC Door
Coordinator
Bracket
DC-1
DC-2
The AR Mounting plate provides a solution for mounting the EmLock® armature to the top rail of aluminum, glass,
wood and hollow metal doors that do not permit the use of thru bolts. Dimension: 8 1/2" x 3"
Used in lieu of angle brackets, the Universal Header Bracket provides a faster mounting solution, saving time and labor costs
for several EmLock® models. Reduce potential for mis-sized and misaligned mounting holes, broken taps, removal of broken taps.
Combined with interlocking E-Z mount assembly, save up to a half day's labor with the installation of 12 locks.
FEATURES
• Solid 1" bar provides higher security and superior aesthetics.
• Machined wire chase provides concealed and secure wiring
• Multiple pre-drilled and tapped mounting holes to
accommodate the use of several different locks on either
4" or 4.5" aluminum frames
APPLICATION
• Aluminum frames with blade stop - lowers EmLock® below blade stop
• Concrete filled hollow metal frames - provides multiple points for concealed wire entry
FEATURES
• Pre-drilled and tapped specifically for 1510, 1570, 1580 EmLock
• Machined wire chase provides multiple points for concealed wire entry from concrete filled frames.
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
11
Magnetic Locks
Filler Plates GK
SPECIFY FINISH Add to List
Angle Brackets GK
ANGLE BRACKETS: Used as extension on shallow door
frames to provide adequate mounting surface.
See Figure 1C.
FOR 8-3/4" (222mm) SINGLE EMLOCK MODELS GK
1581, 1581DEV
PART # A x B LIST
AB01 1" x 1" (25 x 25mm) 42.00
AB02 1" x 1-1/2" (25 x 38mm) 44.00
AB03 1-1/2" x 1-1/2" (38 x 38mm) 46.00
AB04 2" x 1-1/2" (51 x 38mm) 48.00
FOR 11" (279mm) SINGLE EMLOCK MODELS
1511 1571 1511S 1511DEV 1581S
1513 1573 1511T 1571DEV
PART # A x B LIST
AB11 1" x 1" (25 x 25mm) 44.00
AB12 1" x 1-1/2" (25 x 38mm) 46.00
AB13 1-1/2" x 1-1/2" (38 x 38mm) 48.00
AB14 2" x 1-1/2" (51 x 38mm) 50.00
FOR 17-1/2" (445mm) DOUBLE EMLOCK MODEL
1582
PART # A x B LIST
AB30 1" x 1" (25 x 25mm) 54.00
AB31 1" x 1-1/2" (25 x 38mm) 58.00
AB32 1-1/2" x 1-1/2" (38 x 38mm) 63.00
AB33 2" x 1-1/2" (51 x 38mm) 67.00
FOR 22" (559mm) DOUBLE EMLOCK MODELS
1512 1572
PART # A x B LIST
AB21 1" x 1" (25 x 25mm) 54.00
AB22 1" x 1-1/2" (25 x 38mm) 58.00
AB23 1-1/2" x 1-1/2" (38 x 38mm) 63.00
AB24 2" x 1-1/2" (51 x 38mm) 67.00
2"
2 5/16"
59mm
51mm
59mm
51mm
59mm
51mm
2"
B
A
A
B
2 5/16"
2"
2 5/16"
59mm
51mm
59mm
51mm
2"
B
A
A
B
2 5/16"
2"
2 5/16"
59mm
51mm
59mm
51mm
2"
B
A
A
B
2 5/16"
2"
2 5/16"
FILLER PLATES: For extension of the stop to provide a
proper mounting surface on the underside of the header.
See Figure 1B.
FOR 8-3/4" (222mm) SINGLE EMLOCK MODELS GK
1581, 1581DEV
PART # A x B LIST
FP01 1/8" x 1-1/4" (3 x 32mm) 33.00
FP02 1/4" x 1-1/4" (6 x 32mm) 36.00
FP03 3/8" x 1-1/4" (10 x 32mm) 38.00
FP04 1/2" x 1-1/4" (13 x 32mm) 40.00
FP05 5/8" x 1-1/4" (16 x 32mm) 40.00
FOR 11" (279mm) SINGLE EMLOCK MODELS
1511 1571 1511S 1511DEV 1581S
1513 1573 1511T 1571DEV
PART # A x B LIST
FP11 1/8" x 1-1/4" (3 x 32mm) 37.00
FP12 1/4" x 1-1/4" (6 x 32mm) 38.00
FP13 3/8" x 1-1/4" (10 x 32mm) 38.00
FP14 1/2" x 1-1/4" (13 x 32mm) 42.00
FP15 5/8" x 1-1/4" (16 x 32mm) 44.00
FOR 17-1/2" (445mm) DOUBLE EMLOCK MODEL
1582
PART # A x B LIST
FP30 1/8" x 1-1/4" (3 x 32mm) 42.00
FP31 1/4" x 1-1/4" (6 x 32mm) 44.00
FP32 3/8" x 1-1/4" (10 x 32mm) 46.00
FP33 1/2" x 1-1/4" (13 x 32mm) 48.00
FP34 5/8" x 1-1/4" (16 x 32mm) 50.00
FOR 22" (559mm) DOUBLE EMLOCK MODELS
1512 1572
PART # A x B LIST
FP21 1/8" x 1-1/4" (3 x 32mm) 42.00
FP22 1/4" x 1-1/4" (6 x 32mm) 44.00
FP23 3/8" x 1-1/4" (10 x 32mm) 46.00
FP24 1/2" x 1-1/4" (13 x 32mm) 48.00
FP25 5/8" x 1-1/4" (16 x 32mm) 50.00
Distributor
Discount Code Distributor
Discount Code
Single EmLock Double EmLock
V 628 Aluminum (standard) N/C N/C
Y 335 Black Anodized 33.00 65.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
X Dark Bronze Powder Coat Painted 33.00 65.00
C Brass Powder Coat Painted 33.00 65.00
Plated Finishes - Special order, no cancellation, no returns
P 625 Bright Chrome Q 626 Dull Chrome 33.00 65.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
12
Magnetic Locks
MODEL DESCRIPTION LIST
350V Single Narrow Line Magnetic Lock, 628 Aluminum, specify 2 for pair of doors with
mullion, Retrofits Locknetics MagForce 350+ & 350+/DSM/MBS/L1 401.00
350 SINGLE SPECIFICATIONS
Holding Power 1200 Lbs.
Input Voltage Dual 12/24 VDC
Current 309mA @ 24VDC / 560mA @ 12VDC
Magnetic
Bond Sensor
1-SPDT output
250mA max. @ 12/24VDC
Door
Status Sensor
1-SPDT output
250mA max. @ 12/24VDC
LED Indicator Green-Secure, Red-Unlocked
Dimensions 12-1/ 2"L x 2-1/8H x 1-11/16W
(318 x 54 x 43mm)
352 DOUBLE SPECIFICATIONS
Holding Power 1200 Lbs. per door leaf
Input Voltage Dual 12/24 VDC
Current 618mA @ 24VDC / 1120mA @ 12VDC
2 Magnetic
Bond Sensors
SPDT outputs
250mA max. @ 12/24VDC
2 Door
Status Sensors
SPDT outputs
250mA max. @ 12/24VDC
2 LED Indicators Green-Secure, Red-Unlocked
Dimensions 25"L x 2-1/8H x 1-11/16W
(635 x 54 x 43mm)
Top Jamb Mounting Kit GK LIST
Glass Door Mounting Kit GK LIST
TJ350 Single 140.00
TJ352 Double 247.00
HDB350 Single 193.00 HDB352 Double, 2 single kits 385.00
• Field adjustable for 1/2", 5/8" and 3/4" all glass Herculite doors
350 Narrow Line EMLock® GK
350V
352V
350 EMLock
Conventional
Maglock
350 EMLock
Conventional
Maglock
Convention-
al Maglock
Magnetic Lock
Height Comparison
350 EMLock
INTERLOCKING QUICK MOUNT
ASSEMBLY
352V Double Narrow Line Magnetic Lock, 628 Aluminum, for pair of doors without
mullion, Retrofits Locknetics MagForce 352+ & 352+/DSM/MBS/L2 801.00
Distributor
Discount Code
Distributor
Discount Code
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
13
Magnetic Locks
Used for the extension of a narrow frame header mounting surface, the bracket provides additional surface area
for proper lock mounting
E12L E1200 angle bracket. 10-1/2" L x 1-1/2" H x 1" D (266 x 38 x 19mm)
Field cut for E600 27.00
E6200
Used where the frame stop does not provide enough mounting surface, the filler bar provides enough additional
surface area for proper lock mounting.
E12F01 E1200 stop filler plates. 5/8" H x 3/4" D x 10-1/2" L (16 x 19 x 266mm)
Field cut for E600. 22.00
E12F02 E1200 stop filler plates. 3/4" H x 3/4" D x 10-1/2" L (19 x 19 x 266mm)
Field cut for E600. 22.00
Excel™ Series Value Engineered Magnetic Locks
Excel™ Architectural Series GK LIST
MODELS
E1200 1200 lb / 545 kg with door status, locked status and LED 284.00
E600 600 lb / 272 kg with door status, locked status and LED 235.00
E300 300 lb / 136 kg with locked status 182.00
Mounting Brackets and Filler Plates GK LIST
E12L
Top Jamb Mounting Kit for Inswing Doors GK LIST
E12Z Top jamb kit for E1200 91.00
E6Z Top jamb kit for E600 91.00
Glass Door Armature Mounting Kit GK LIST
E12U Glass door kit for E1200 129.00
E6U Glass door kit for E600 129.00
E1200
E600
E12F01
E12F02
The Excel™ product line is designed for system integrators, distributors, installers and building owners presently using
low cost import or private label brand access control hardware.
Excel™ Industrial Series GK LIST
MODEL
E6200 1200 lb / 545 kg with SPDT door status, SPDT magnetic bond sensor 454.00
• Retrofits popular competitive brands
• Magnetic Bond Sensor and door status standard
• Epoxy sealed electronics, tamper resistant
and weatherized for indoor and outdoor use
(retrofits M62j)
• Stainless steel machine screws and blind nuts
• 10 ft [3.05m] jacketed, stranded conductor cable
• Dual voltage 250/150 mA @ 12/24VDC
• Architectural stainless steel housing, US32D/630
E12Z/E6Z
Field adjustable
E12U/E6U
Field adjustable
to glass thickness
Top Jamb Mounting Kit GK LIST
TJ62 Top jamb kit for E6200 129.00
Distributor
Discount Code
Distributor
Discount Code
Distributor
Discount Code
Retrofit Kit for Discontinued Locknetics 390+ PLUS GK LIST
E1200-390MP Retrofit Kit Includes lock mounting plate that retrofits existing 390+ mounting holes.
Existing 390+ armature may be used. 39.00
Enables replacement of Locknetics 390+ PLUS with SDC's E1200 (ordered separately)
E1200-390MP
Retrofit Kit
Distributor
Discount Code
Distributor
Discount Code
Distributor
Discount Code
Distributor
Discount Code
• Door status, lock status and Bi-color LED
• Interlocking quick mount assembly
• Self drilling and tapping mounting screws
and machine screws
• Adjustable mounting bracket
• Wire access chamber with terminal block
• Dual voltage 12/24VDC
• 628 Clear anodized aluminum
E300
see page 17
Glass Door Armature Mounting Kit GK LIST
E1200-DF Heavy Duty Drill Fixture for E1200 161.00
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
14
Magnetic Locks
1561
FEATURES
• Door static and relock sensor, detects door
is closed, at rest and aligned before relocking
• Automatic voltage sensing input
• Lateral and vertical alignment adjustment
• Floating armature with alloy steel shear tabs
ELECTRICAL SPECIFICATIONS
• 1561 and 1562: 650/350 mA @ 12/24VDC
Auto-Sensing
• 1565 and 1566: 800/400 mA @ 12/24VDC
Auto-Sensing
2,000 Lbs. Holding Force, 8" x 1-1/2" Lock
1561 1-5/8" depth, integrated electronics for 1-3/4" to 2" frames 816.00
1562 1-1/4" depth, with external electronics, for 1-1/4" to 1-3/4" frames 816.00
2,700 Lbs. Holding Force, 10-7/16" x 1-1/2" Lock
1565 1-5/8" depth, integrated electronics, for 1-3/4" to 2" frames 886.00
1566 1-1/4" depth, external electronics, for 1-1/4" to 1-1/2" frames 886.00
Hi/Shear Concealed EMLock® OK
CONCEALED HI/SHEAR EMLOCK LIST
SPECIFY ARMATURE
ADD ONS Add to List
HTR
WDRB
ITC
ITCM
Standard mounting armature kit for aluminum and hollow metal doors with 7/8" to 1-1/8"
deep top channels, wood doors and factory prepared hollow metal flush edge doors.
N/C
FTC
FTCM
Mounting kit for field prepared horizontal mounting in hollow metal doors with flush edge. N/C
HTC
HTCM
Mounting kit for 1-15/16" deep herculite channels N/C
HTR
HTRM Herculite top rail armature adjustment bracket for leading edge adjustments. 363.00
BA
Bond sensor indicates proper armature contact and reduced holding power due to
improper armature contact or tampering.
SPDT 0.25 Amp maximum (not available on 1562 and 1566)
118.00
DPS Door position switch indicates door open or closed.
SPDT 0.25 Amp maximum. 54.00
L3 External LED status indicator, mounts separately through the frame and may be used to
indicate lock is energized or wired to BAS bond sensor for door status. 18.00
WDRB Wood door reinforcement box for 1565 and 1566 44.00
WDRBM Wood door reinforcement box for 1561 and 1562 44.00
1566
GWXT Auxiliary Locks CVXJ Burglary Resistant
Electrically Operated Door Lock
UL10C Positive Pressure Compliant
UBC Classified in accordance with
Uniform Building Code standard 7-2
“Fire Test for Door Assemblies”
1565
EMLock®
Lifetime Warranty
1562
Distributor
Discount Code
Armature supplied with lock. Specify type required:
1565/1566 ITC, FTC or HTC
1561/1562 ITCM, FTCM or HTCM
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
15
Magnetic Locks
2,000 Lbs. Holding Force, 8" x 1-1/2" x 1-1/4" Lock
1562SC 1-1/4" depth, with external electronics, for 1-1/4" to 1-3/4
For Hollow metal frames
960.00
1562SCHDB1/2 1-1/4" depth, with external electronics, for 1-1/4" to 1-3/4" frames
For 1/2" Herculite full glass doors
1,190.00
1562SCHDB3/4 1-1/4" depth, with external electronics, for 1-1/4" to 1-3/4" frames
For 3/4" Herculite full glass doors.
1,190.00
2,000 Lbs. Holding Force, 8" x 1-3/4" x 1-3/4" Lock
For Hollow metal frames and wood or hollow metal doors
1561S Surface mount for the push side of the door with integrated electronics 1,131.00
1561TJ Surface top jamb mount for the pull side of the door with integrated elec-
tronics
1,131.00
Hi/Shear Semi-Concealed & Surface Mount EMLock® OK
SEMI-CONCEALED HI/SHEAR EMLOCKS LIST
SURFACE MOUNT HI/SHEAR EMLOCKS LIST
STANDARD FINISH Add to List
OPTIONS Add to List
1561TJ
ANSI/BHMA A156.23
Grade 1
CSFM
3774-0324:100
MEA
City of New York
768-80-SA
EMLock®
Lifetime Warranty
BA
Bond sensor indicates proper armature contact and reduced holding power due to
improper armature contact or tampering.
SPDT 0.25 Amp maximum)
118.00
DPS Door position switch indicates door open or closed.
SPDT 0.25 Amp maximum. 54.00
L3 External LED status indicator, mounts separately through the frame and may be used to
indicate lock is energized or wired to BAS bond sensor for door status. 18.00
1561S
1562SC
1562SCHDB
V 628 Anodized Aluminum N/C
Y Black Anodized 65.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than
conventional paint)
X Dark Bronze Powder Coat Painted 86.00
C Brass Powder Coat Painted 65.00
Plated Finishes - Special order, no cancellation, no returns
P 625 Bright Chrome Q 626 Dull Chrome 203.00
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
16
Magnetic Locks
Distributor
Discount Code
Gate EMLock® GK LIST
MODEL DESCRIPTION
1575U Single EMLock® with magnetic bond and door status sensors 465.00
1576U Single EMLock® face drilled mounting with magnetic bond and door status sensors 465.00
MODEL DESCRIPTION
For sliding gate applications
1576-BK Mounting Bracket for 1576 86.00
1576-AB Armature Mounting Bracket for 1576 86.00
For swinging gate or top jamb door application
1575-BK Mounting Bracket for 1575 108.00
1576-MP Lock Mounting Plate for 1576 59.00
1576-ZB Lock Mounting Bracket for 1576 (Includes 1576-MP) 171.00
ACCESSORIES Add to List
1575U
1576U
1576-BK
1576-MP
1576-AB
1576-ZB
Distributor
Discount Code
SPECIFICATIONS
Holding Power 1200 Lbs.
Dual Voltage 450 / 225 mA @ 12/24VDC
Sensor Magnetic Bond Sensor and Door
Position Sensor Standard
Cable 3 Ft. cable
Finish Brushed stainless steel housing
Conduit Fitting 1/2" x 3/4"
Dimensions 8-11/16" L x 2-1/2" H x 1-5/8" D
1576U FOR SWINGING GATES 1576U FOR SLIDING GATES
1576-ZB
1576-AB
1576-BK
1576-ZB
1576-AB
1576-BK
1576U TOP JAMB MOUNT
FOR INSWING DOORS
1576-ZB
FRAME
DOOR
1576-ZB
FRAME
DOOR
1575U FOR SWINGING GATES
1575-BK
1575U
FOR OUTSWING DOORS
1576-ZB
FRAME
DOOR
59mm
51mm
59mm
51mm
2"
B
A
A
B
2 5/16"
2"
2 5/16"
1576-ZB
FRAME
DOOR
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
17
Magnetic Locks
MODEL
E300 300 lb / 136 kg with door status, locked status and LED 182.00
Excel™ E300 Architectural Series Micro Cabinet Lock GK LIST
Distributor
Discount Code
• Lock status
• Interlocking quick mount assembly
• Self drilling and tapping mounting
screws and machine screws
• Adjustable mounting bracket
• Wire access chamber with
terminal block
• Dual voltage 12/24VDC
• 628 Clear anodized aluminum
EP17624
EP17624TJ
includes Top Jamb
Mounting Bracket
SPECIFICATIONS
Holding Force 600 lbs
Input Voltage 24 VDC
Current 250mA @ 24VDC
DIMENSIONS
EP17624 lock 10.5"L x 2"H x 1.75"D
EP17624TJ lock 10.5"L x 2.25"H x 1.75"D
Armature 7.125"L x 1.75"H x 0.75"D
Door Status Sensor SPDT contact, 100mA max.
@ 30VDC max
MODEL DESCRIPTION LIST

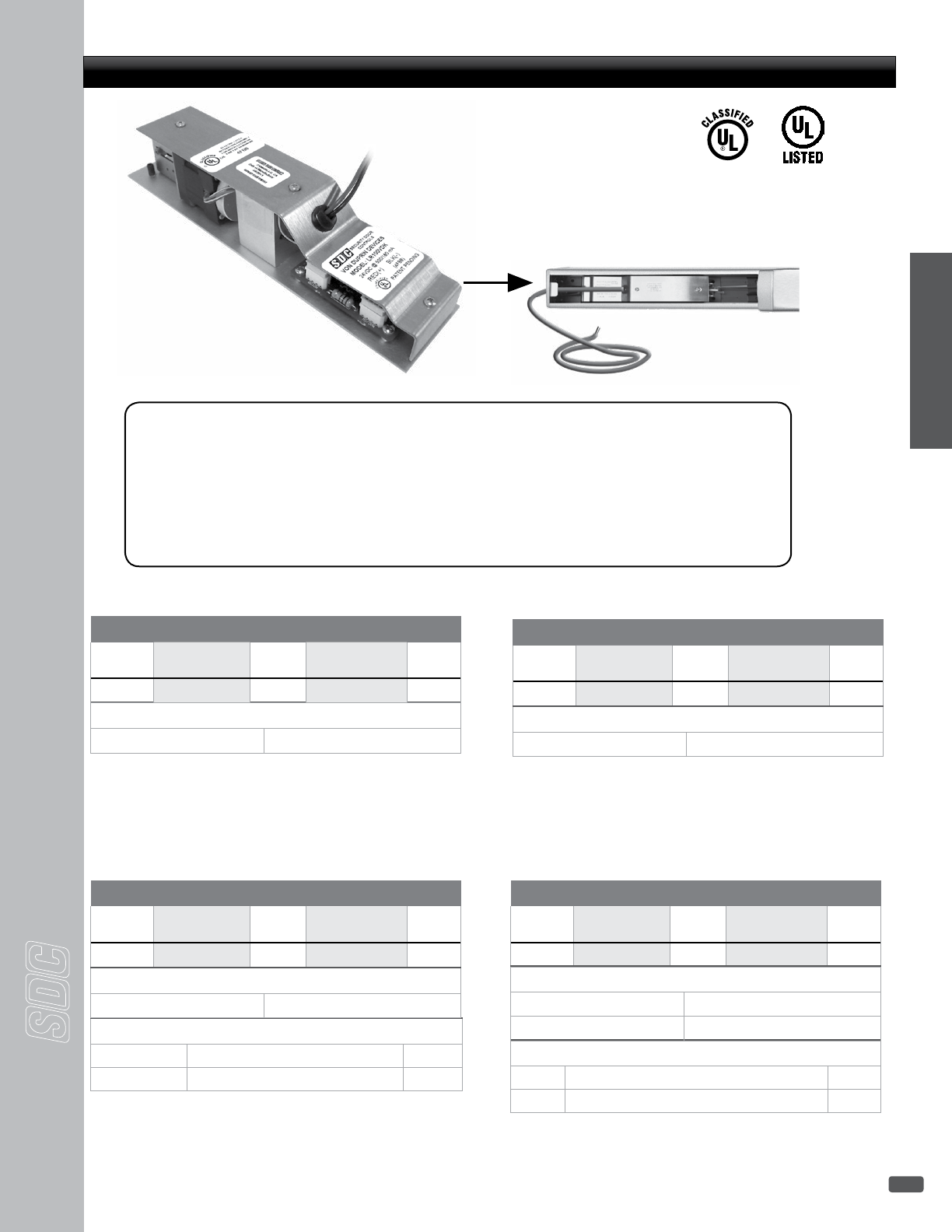

EP17624 Single Explosion Proof Magnetic Lock, side conduit location,
628 Aluminum, for use on push-side of door, conduit on side block 2,559.00
EP17624TJ Single Explosion Proof Magnetic Lock, top conduit location,
628 Aluminum, includes Top Jamb mounting bracket, for use on pull-side of door, conduit on top 2,666.00
This unit is intended to be used in the following atmospheres: Acetone, Ammonium Hydroxide, ATSM fuel C, Benzene, Methyl-Ethylketone, Diethyl-Ether, 2-Nitropropane, Ethyl-Acetate, Furfural,
Normal Hexane, Methyl Alcohol. Operating temperature for the magnetic lock will not exceed 185° F (85° C). Maximum ambient temperature is not to exceed 104° F (40° C). For supply connec-
tions, use a suitable wire with a minimum insulation temperature rating of 167° F (75° C). This unit must be connected to a NEC (National Electric Code, NFPA 70) Class 2 Supply Circuit rated for
24 VDC with a minimum current output of 0.5 amperes and output power of 12 watts. A UL Listed SDC 600 Series Power Controller is recommended.
EP17624 Explosion Proof EMLock® GK
Distributor
Discount Code
1591 MORTISE EMLock® for Sliding Doors GK LIST
MODEL
1591U Single EMLock® for sliding doors 374.00
LAB Surface mount armature angle bracket for 1591 on sliding doors 59.00
AMP Armature mounting plate for leading edge of door 49.00
DPS Door position sensor for 1591 EMLock®59.00
BR64XL Rectifier 27.00
1591
ACCESSORIES Add to List
Distributor
Discount Code
Holding Power 850lbs.
Selectable Voltage: 12VDC @ 800 mA, 24VDC @ 400 mA
Finish: U 630 Stainless Steel
Dimensions: 10"L x 1-7/16"H x 1-1/4"D
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
18
Delayed Egress Locks
& Controllers
Tandem: Master: 11" L x 2 3/4" H x 2 5/8" D
(279 L x 70 H x 67 D)
Slave: 11" L x 2 3/4" H x 2 5/8" D
(279 L x 70 H x 67 D mm)
Armature: 7 3/8" L x 2 3/8" H x 9/16" D
(187 L x 60 H x 14 D mm)
Sign: 13" L x 4 1/2" H
(330 L x 114 H mm)
Single: 11" L x 2 3/4" H x 2 5/8" D
(279 L x 70 H x 67 D mm)
Armature: 7 3/8" L x 2 3/8" H x 9/16" D
187 L x 60 H x 14 D mm)
Sign: 13" L x 4 1/2" H
(330 L x 114 H mm)
Request to Exit: Normally open, dry
Fire Alarm Release: Alarm panel
closed dry contact. Opening of contact
releases lock.
ExitCheck® Delayed Egress EMLock® GKK
Distributor
Discount Code
DELAYED EGRESS OPERATION
NA NFPA 101, IBC and IFC Compliant
Field selectable: 15 or 30 second exit delay; 1 or 2 second nuisance delay
Field selectable automatic or manual power-up after emergency release
N/C
NC IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant
Fixed 15 exit delay, 0/1 second nuisance delay
Calif. Building Code OSHPD/Manual Power Up
N/C
ND IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant
Fixed 15 exit delay, 0/1 second nuisance delay
N/C
NH IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant
Fixed 30 exit delay, 0/1 second nuisance delay
N/C
BC BOCA National Building Code and Chicago Building Compliant
15 second fixed exit delay, 0 second nuisance delay, auto reset 30 seconds after door closure
N/C
BD BOCA National Building Code
15 second fixed exit delay, 0/1 second nuisance delay, auto reset 30 seconds after door closure
N/C
BH BOCA National Building Code
30 second fixed exit delay, 0/1 second nuisance delay, auto reset 30 seconds after door closure
N/C
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
1511T
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
Voltage: Auto Voltage Sensing
12/24VDC ± 10%
Standard 1,650 lbs holding force:
820/450 mA @ 12/24VDC
Energy Saver E Option 1,200 lbs. Holding
Force: 400/275 mA @ 12/24VDC
1511S
Voltage: Auto Voltage Sensing
12/24VDC ± 10%
Standard 1,650 lbs holding force:
1500/850 mA @ 12/24VDC
Energy Saver E Option 1,200 lbs. Holding
Force: 650/400 mA @ 12/24VDC
CONTROL INPUTS
MONITORING OUTPUTS
Alarm Output:
SPDT Dry, 1 Amp @ 30VDC
Lock Secure / Unlocked Output:
SPDT Dry, 1 Amp @ 30VDC
DPS Door Position Status: (option)
SPDT Dry, 250 mA @ 30VDC
BAS Magnetic Bond Status: (option)
SPDT Dry, 250 mA @ 30VDC
ATS Anti-Tamper Sensor: (option)
SPDT Dry, 1 Amp @ 30VDC
1,650 lbs. Holding Force Standard
830/450 mA @ 12/24VDC (single)
1,200 lbs. Energy Saver Option E
380/225 mA @ 12/24VDC (single)
Control more locks with fewer
power supplies
Save on electricity consumption and
power supply investment.
• Voice & Digital Display Standard
• Energy Saver Optional
TMTM
“Security Industry Finest”
ISC Expo
TANDEM MODEL
For use with pairs of doors equipped with Exit
Sense Bars, surface mounted vertical rod exit
devices and concealed vertical rod exit devices
with surface mounted triggers and strikes.
Activating either door unlocks both doors.
SINGLE MODEL
For use with single doors equipped with Exit
Sense Bars, surface vertical rod, concealed
vertical rod, mortise and rim mount exit devices,
mortise locksets and cylindrical locksets.
FIELD SELECTABLE ACTUATION
• Door Movement
• Exit Sense Bar
• Exit Device Switch Kit (See page 78)
• Latch Monitoring Strike (See page 27)
1511S / T
VOICE & DIGITAL Annunciation
The ExitCheck® 1511S series incorporates
an alternating 85 db tone and voice
message with a digital countdown
display and sign that provides clear and
comprehensive instructions for persons
without prior knowledge of door operation.
This is especially significant for those who are
blind or hearing impaired.
1511T
1511S
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
19
Delayed Egress Locks
& Controllers
OPTIONS Add to List
SPECIFY MODEL LIST
SPECIFY OPERATION
SPECIFY FINISH Add to List
SPECIFY BUILT-IN RESET & CONTROL
KBuilt in key switch. Provides 1-30 second timed bypass, sustained bypass and alarm reset (std) N/C
PBuilt in reset push switch. Available with NFPA (NC or ND) only. N/C
LLess key or push switch (no price deduction) N/C
EEnergy Saver, 1200 lbs holding force, low power consumption, electrical specs page 18 N/C
DDoor position status. Provides remote monitoring of the door open or closed status and
indicates the door has actually been opened for egress after alarm activation. Specify 2 for
tandem
44.00
BMagnetic bond alert sensor. Indicates locked or unlocked, reduced holding power,
tampering or foreign material between the electromagnet and armature.
Specify 2 for tandem
65.00
AAnti-tamper switch. Detects attempt to remove the access cover. Specify 2 for tandem 54.00
101-1A
101-4AM
702R
Controls & Annunciators
See page 22
1511S
Anodized Finishes Single Tandem
V628 Aluminum (standard) N/C N/C
Y335 Black Anodized 86.00 129.00
Plated Finishes - Special order, no cancellation, no returns
P625 Bright Chrome Q626 Dull Chrome 203.00 235.00
920
ANSI/BHMA A156.24
Grade 1
CSFM
3774-0324:103
FWAX Special Locking Arrangements
GWXT Auxiliary Locks
UL10C Positive Pressure Compliant
UBC Classified in accordance with
Uniform Building Code standard 7-2
“Fire Test for Door Assemblies”
• Voice & Digital
Display Standard
• Field Selectable Voice
with Tone or
Tone only
• Energy Saver Optional
ExitCheck® Delayed Egress EMLock® GKK
101-SP
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
XDark Bronze Powder Coat Painted CBrass Powder Coat Painted 86.00 129.00

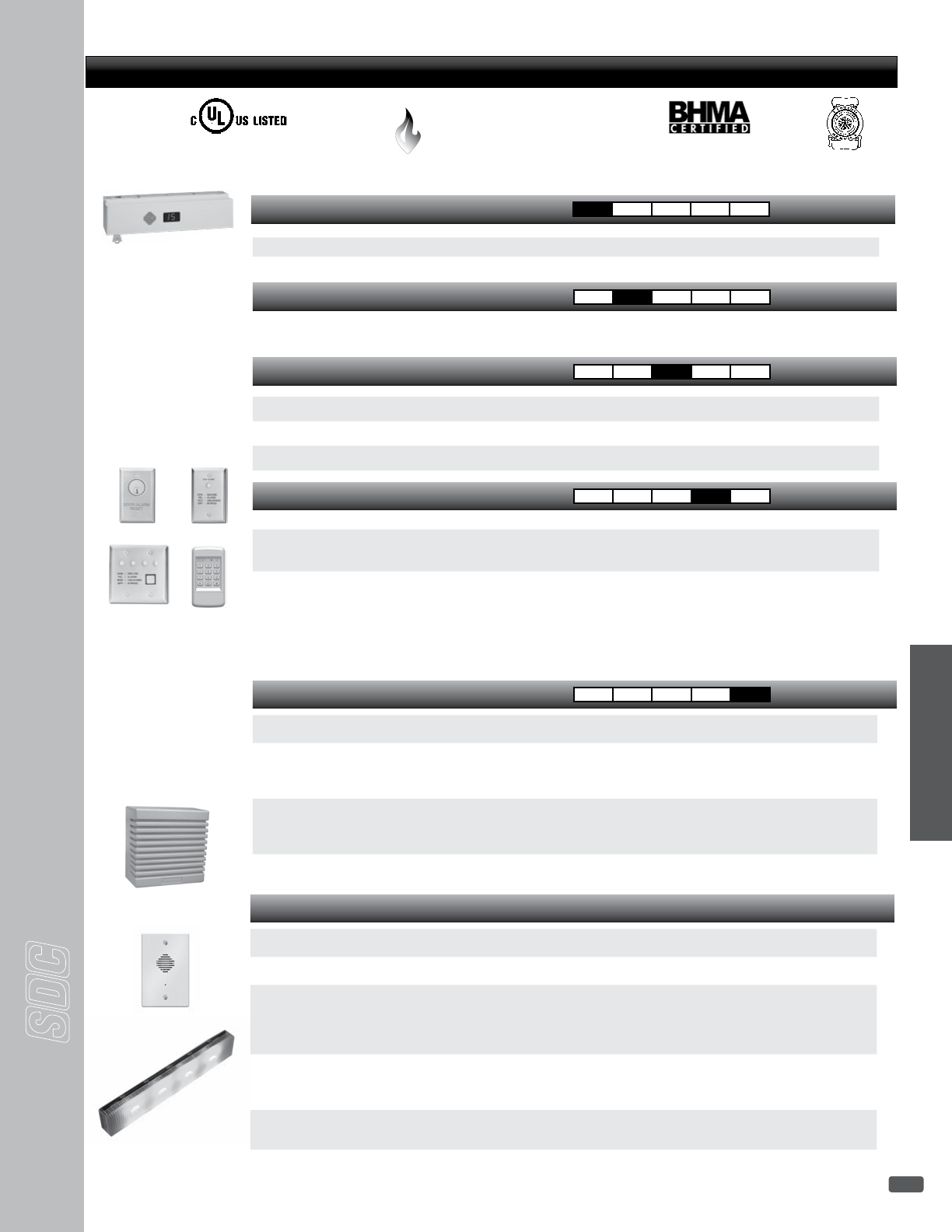

1511S Single - 1,650 lbs., voice, tone and digital countdown annunciator. 1,248.00
1511T Tandem - 1,650 lbs., voice, tone and digital countdown annunciator. 2,090.00
Distributor
Discount Code
Specify NA, NC, ND, BC, BD - see codes and description on page 18
If no Code is specified - NA is the SDC STA N DARD OPERATIONS MODE for this product
101-SPSN
EA100
ADD-ONS Add to List
VI Spanish, or English and Spanish, or English and French verbal announcement 108.00
VIC Custom verbal announcement (10 piece purchase minimum) 2000.00
RRX Reset on REX - No Charge when ordered WITH a Delayed Egress lock
Allows the REX input to reset after an unauthorized egress alarm.
Not available for NC operation.
Replacement Chip (if ordered separately from DE lock) 54.00
101-SP External 15 watt speaker connects directly to 1511S or 1511T for enhanced decibels on
site or remote voice message annunciation. Speaker driver may be provided by others for
extreme decibel requirements.
40.00
101-SPSN Remote Single Gang Annunciator with speaker and 80db tone. Duplicates ExitCheck
alternating voice message and tone.
103.00
EA100 Multi-Mode Exit Annunciator Bar interfaces with Delayed Egress devices for forced entry
or unauthorized exit signaling. Highly visible from any angle, due to multi color LED lights
with rolling signal. See also page 99
188.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
20
Delayed Egress Locks
& Controllers
1581S Single Mini Delayed Egress Lock 650 lbs. holding force. Current: 320/500 mA @
24VDC/12VDC 960.00
Specify 2 for pairs of doors
Remote reset control required. See below.
Lock size 10" L x 2" H x 2.375" D
SPECIFY OPERATION
SPECIFY FINISH Add to List
SPECIFY OPTIONS Add to List
TANDEM CABLE FOR PAIR OF DOORS LIST
SPECIFY RESET AND CONTROL DEVICE LIST
ExitCheck® Mini Delayed Egress EMLock® GKK LIST
Anodized Finishes
V628 Clear Anodized Aluminum (standard) N/C
Y335 Black Anodized 86.00
Plated Finishes. Special order, no cancellations or returns
P625 Bright Chrome 203.00 Q626 Dull Chrome 203.00
DDoor position status 65.00
BMagnetic bond sensor (Not an output. Low Holding Force. Put unit into alarm.) 108.00
Select Reset Station for NC and ND functions

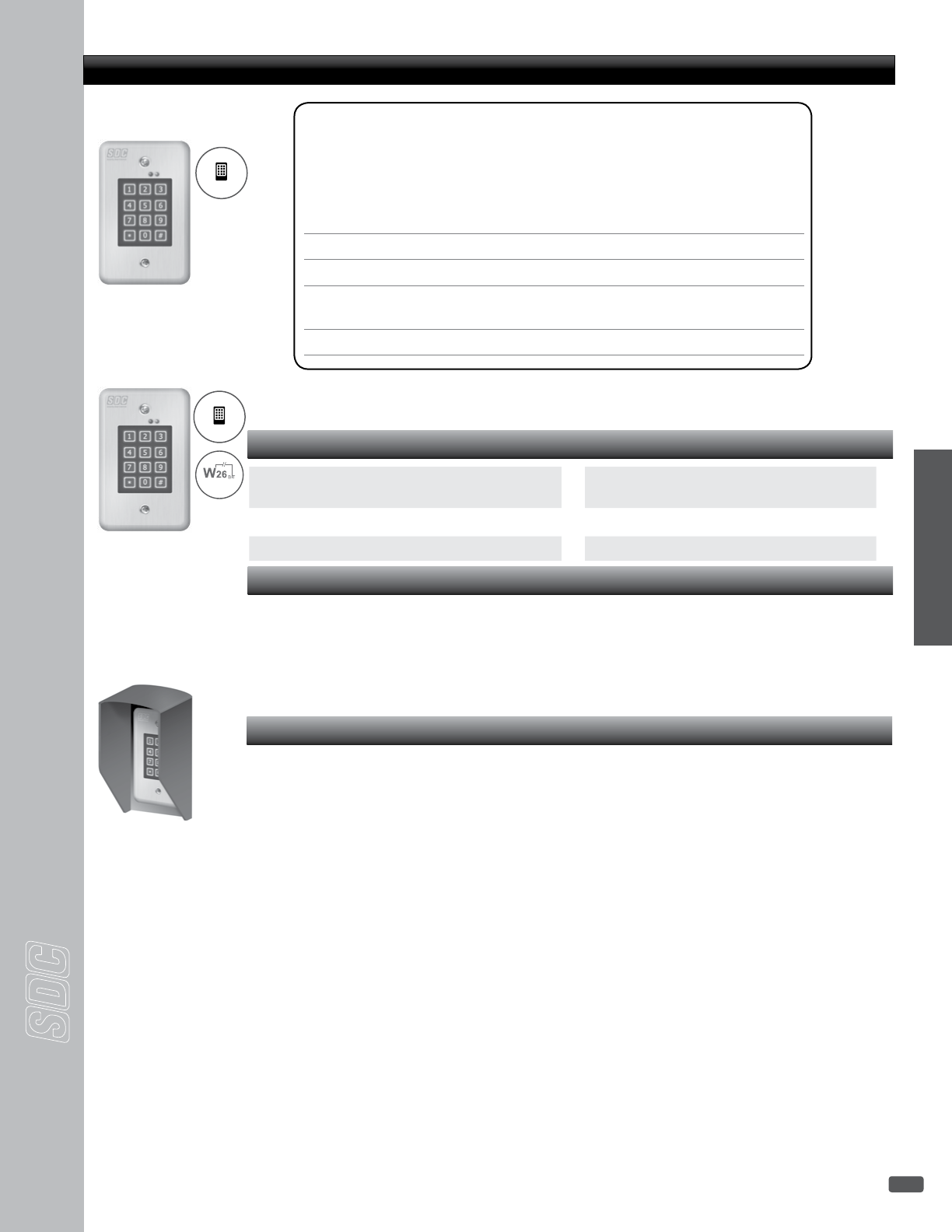

918 EntryCheck™ digital keypad, 500 user codes
Keyless Reset / manual power up / bypass
171.00
728 Key switch, 2 keys, 1 gang
Reset / manual power up / sustained bypass
65.00
728L3 Key switch, 2 keys, 1 gang, LED status indicator
Reset / manual power up / sustained bypass
90.00
702R Separate wall mount reset key switch assembly
MO SPDT dry contact, 6 Amp @ 30VDC max.
Accepts standard 1-1/8'' to 1-1/4'' (Mortise key cylinder not
included)
118.00
101-1AK Key switch assembly, 2 gang, LED status indicator, less cylinder
Reset / manual power up / sustained bypass
342.00
101-4AM Four station remote annunciator 342.00
Required when using two locks on a pair of doors, cables enable slave operation.
1581S-TC-3 Cable kit for connecting two locks through the frame header 33.00
1581S-TC-10 Cable kit for connecting wiring for two locks in a remote junction box 44.00
918
728 702R
101-4AM
101-1AK
1581S
ANSI/BHMA A156.24
Grade 1 CSFM
3774-0324:103
FWAX Special Locking
Arrangements
GWXT Auxiliary Locks
Powder Coat Finishes
(a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
X
Dark Bronze Powder Coat
Painted (313/613 Equal) 86.00 C
605 Bright Brass Powder
Coat Painted 86.00
D
606 Dull Brass Powder Coat
Painted 86.00
Distributor
Discount Code
Specify ND, NC, NH, BC, BD, BH - see codes and description on page 18
If no Code is specified - ND is the SDC STA N DARD OPERATIONS MODE for this product
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
21
Delayed Egress Locks
& Controllers
101-DE
101-KDE
101-DE
with DEC-J
101-1AK
DEC-J
SHD-J
with 101-DE
101 ExitCheck® Wall Mount Delayed Egress - NFPA 101 Locking Arrangements GKK
DELAYED EGRESS CONTROLLER (1 PER OPENING, SINGLE OR PAIRS) LIST
OPTIONAL MONITORING Add to List
OPTIONAL HARDWARE Add to List
MAGNETIC LOCK WITH INTEGRATED ACTIVATION SENSOR LIST
STANDARD FEATURES INCLUDE: 12/24VDC voltage sensing input, delay electronics packaged on a 3-gang wall plate for recessed wall mounting or surface
wall mounting with optional junction box. Features include: std. 15 or 30 second switchable exit delay (NA), 1 or 2 second nuisance delay. Keypad for violation
reset, momentary bypass and on-off; Voice Annunciation and digital countdown display with door open indicator. Status and remote control inputs are standard.
12VDC / 24VDC @ 200 mA Max.
• Doors WITH latch assemblies are sensor activated and do not require power transfer or trigger switch in exit
device. Where preferred a trigger switch may be added to the exit device for manual activation in lieu of door
movement activation.
• Doors WITHOUT latches require a non-latching Request-to-Exit Bar PSB560 Sure Exit® or MSB550 Switch Bar
(see page 77). Also compatible with standard EMLocks (see page 7.)
101-DE Wall mount controller with keypad control and reset, 200 mA @ 12/24 VDC - NA standard 848.00
101-KDE Wall mount controller with both key switch and keypad control and reset, 200 mA @ 12/24 VDC
order with optional Mortise Cylinder
CYL-6KDQ 6 pin, 1.125” Mortise Cylinder, Keyed Different add 33.00
CYL-6KAQ 6 pin, 1.125” Mortise Cylinder, Keyed Alike add 33.00
960.00
BMagnetic bond sensor, indicates locked with full holding force, low holding force, unlocked,
tampering and obstructions. (1581DE SPST only)
65.00
DDoor position sensor, indicates door open and door closed. Commonly used to verify
egress after alarm and exit delay activation.
(D) Door position sensor not available with 1581, 1575 and 1576
44.00
101-1AK Outdoor reset with LED and Audible annunciator. 2-gang outdoor box required
(Interior 101-DE and 1575 or 1576 outdoor magnetic lock required)
342.00
DEC-J 3 Gang Interior surface mount box for 101-DE 97.00
SHD-J Shroud for surface mount box DEC-J outdoor use 65.00
V628 Clear Anodized Aluminum (Standard) N/C
YBlack Anodized Single 86.00
Specify 2 for pair of doors
1511DEV Single, 1650 lbs holding force, 670/350 mA @12/24 VDC 539.00
1571DEV Single, 1200 lbs holding force Energy Saver, 250/125 mA @12/24 VDC 512.00
1581DEV Single, 650 lbs holding force, 440/220 mA @12/24 VDC 427.00
Outdoor Locks
1575DEU Single outdoor magnetic lock with magnetic bond sensor 512.00
1576DEU Single face drilled outdoor magnetic lock with magnetic bond sensor 512.00
1576DE-ZB Inswing mounting bracket for 1576DEU 161.00
TMTM
“Security Industry Finest”
ISC Expo
Mounting Kits & Angle Brackets - See page 11
Powder Coat Finishes
(a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
XDark Bronze Powder Coat Painted (313/613 Equal) Single 86.00
Specify NA, NC, ND, BC, BD - see codes and description on page 18
If no Code is specified - NA is the SDC STA N DARD OPERATIONS MODE for this product
Proprietary Verbal Exit Instructions with Alarm Tone and 3/4" Digital Countdown Display
SHD-J
End View
Distributor
Discount Code
MAGNETIC LOCK FINISH Add to List
Optional Add-On:
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
22
Delayed Egress Locks
& Controllers

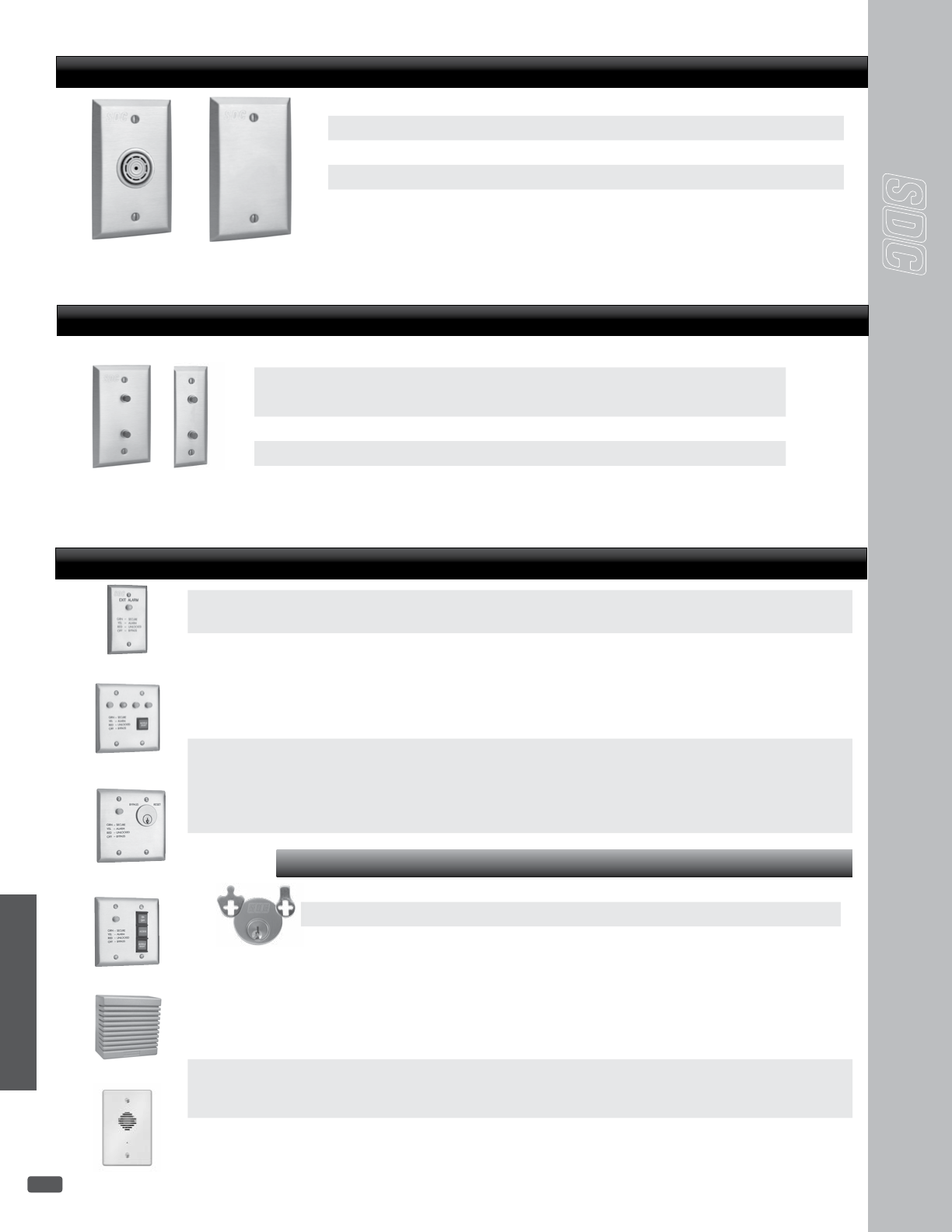

Local and Remote Controls and Annunciators LIST
101-SP
101-1AK
707R
702R
708R
101-4AM
101-1A
101-PAM
920
920 Keyless Reset and Bypass or Momentary Authorized Access 500 User Codes
Heavy Cast Vandal Resistant Housing
188.00
702R Separate wall mount reset key switch assembly
MO SPDT dry contact, 6 Amp @ 30VDC max.
Accepts standard 1-1/8'' to 1-1/4'' (Mortise key cylinder not included)
118.00
707R Remote reset key switch with dual function for Bypass (authorized egress) and reset
(2) MO SPDT dry contact, 6Amp @ 30VDC max
Accepts standard 1-1/8'' to 1-1/4'' mortise key cylinder. (Mortise key cylinder not included)
161.00
708R Remote reset key switch for bypass (on/off) and reset
(1) Maintain (1) MO, SPDT dry contact, 6Amp @ 30VDC max
Accepts standard 1-1/8'' to 1-1/4'' mortise key cylinder. (Mortise key cylinder not included)
161.00
101-1A Remote or local single door annunciator with audible alarm and tricolor LED, 1 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
113.00
101-4AM Remote four door annunciator with audible alarm mute button. Four tricolor LEDs, 2 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
342.00
101-1AK Remote or local single door annunciator with 2 function key switch for on/off, reset,
audible alarm and tricolor LED, 2 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
Accepts standard 1-1/8'' to 1-1/4'' mortise key cylinder.
(Mortise key cylinder not included)
342.00
101-PAM Remote single door annunciator with 3 push button switches for momentary
access. On/off and audible alarm mute button with tricolor LED, 2 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
Recommended for remote installation only
342.00
101-SP External 15 watt speaker connects directly to 1511S or 1511T for enhanced decibels
onsite or remote voice message annunciation. Speaker driver may be provided by others
for extreme decibel requirements.
40.00
101-SPSN
101-SPSN Remote Single Gang Annunciator with speaker and 80db tone. Duplicates ExitCheck alternat-
ing voice message and tone.
103.00
918
918 Keyless Reset and Bypass or Momentary Authorized Access 500 User Codes
Keypad tamper lockout; Indoor blue backlit, moisture resistant keypad
171.00
order with optional Mortise Cylinder
CYL-6KDQ 6 pin, 1.125” Mortise Cylinder, Keyed Different add 33.00
CYL-6KAQ 6 pin, 1.125” Mortise Cylinder, Keyed Alike add 33.00
order with optional Mortise Cylinder
CYL-6KDQ 6 pin, 1.125” Mortise Cylinder, Keyed Different add 33.00
CYL-6KAQ 6 pin, 1.125” Mortise Cylinder, Keyed Alike add 33.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
23

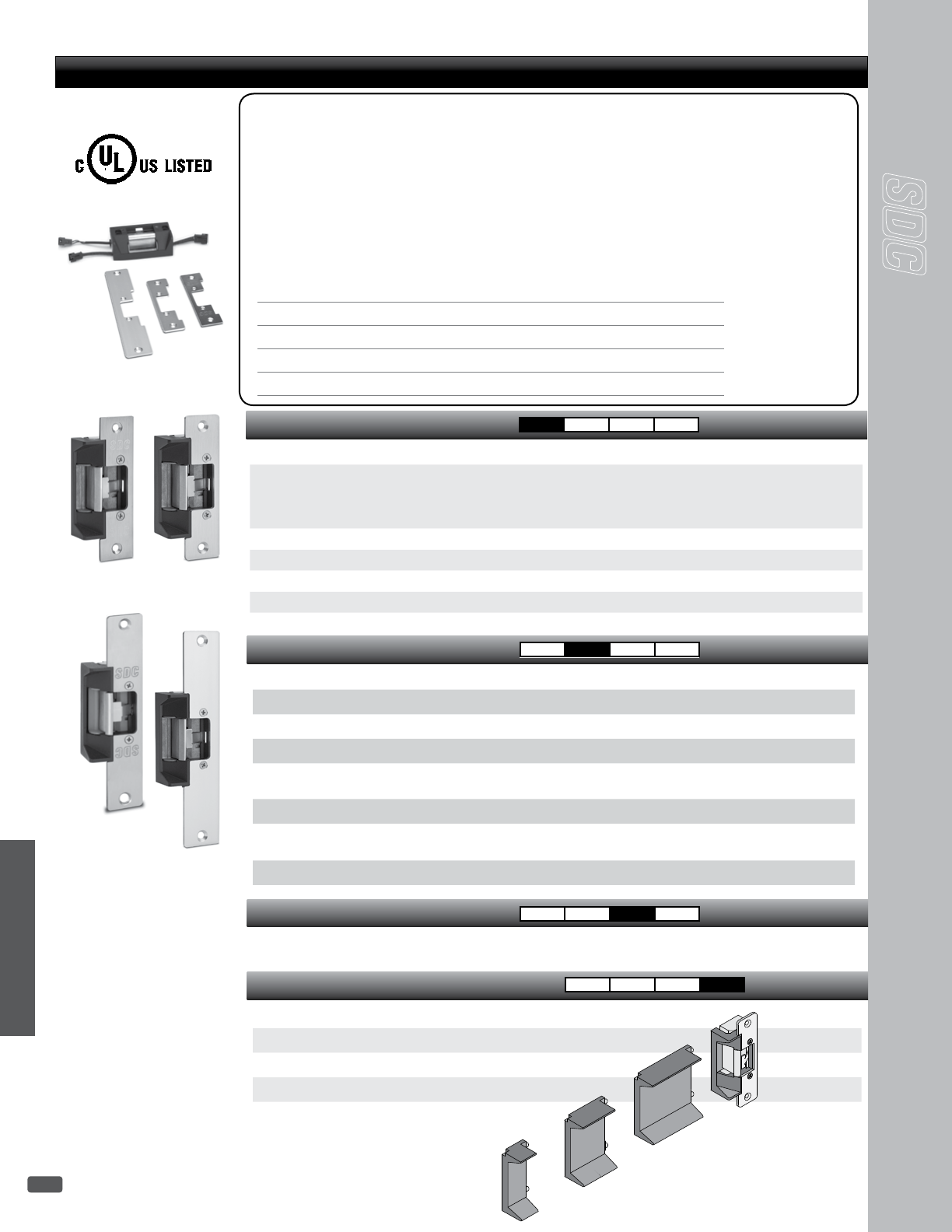

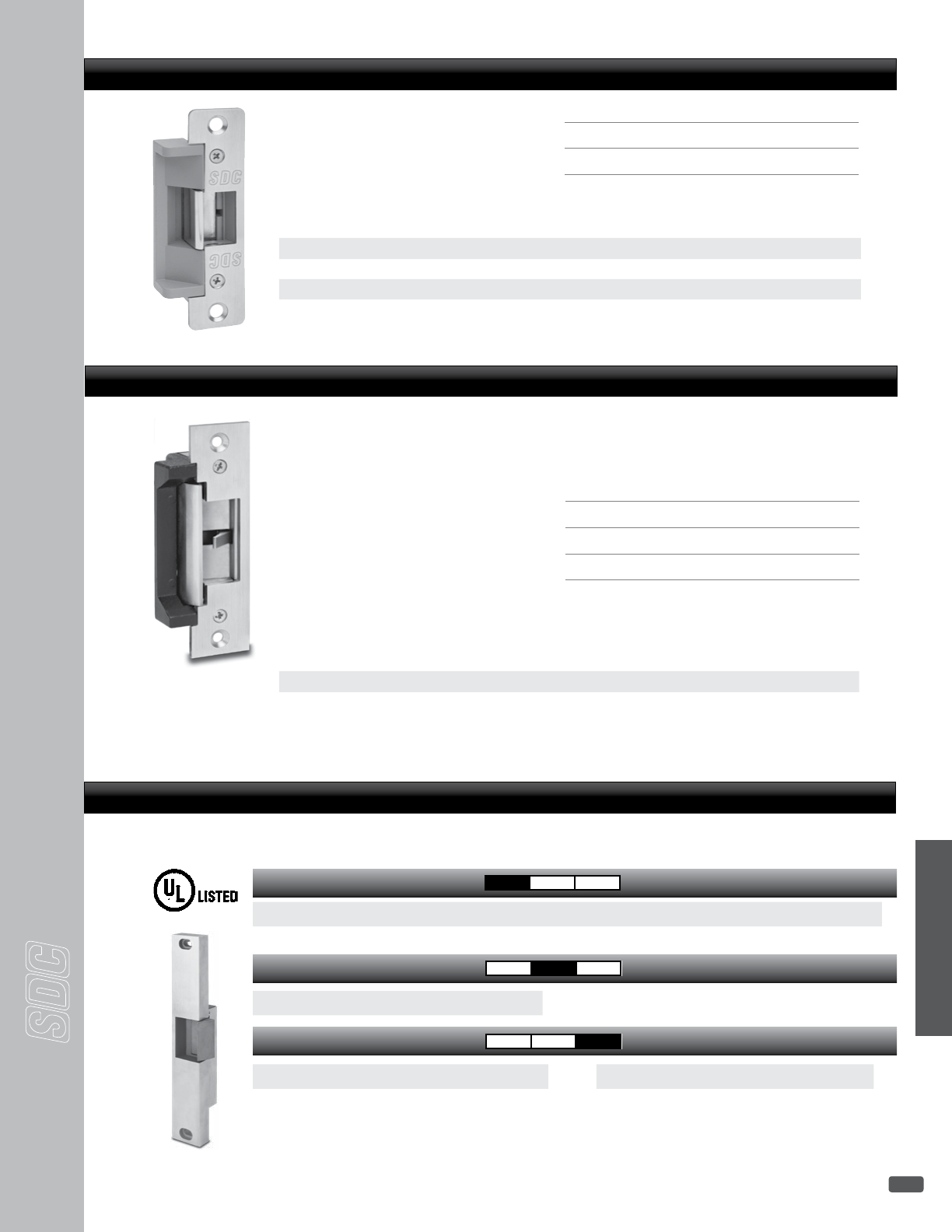

Electric Strikes
15 Series Electric Strike FK LIST
25 Series Electric Strike LIST
• For 5/8'' latch or 3/4" latch with 1/8" gap
• Choice of failsafe or failsecure
• 4.875" (124mm) radius corner
• All stainless steel parts
• 630 Satin stainless steel face plate
The SDC 25 Series electric strike is designed for use with locksets having 5/8” (15mm) throw
latchbolt. The compact low profile design with an internally mounted solenoid and factory supplied
mounting tabs enable quick and easy installation where jamb space is limited.
• For 1/2" latch or 5/8" latch with
1/8" door gap
• Latch bolt monitor standard
• Failsecure
• Field reversible for failsafe operation
• Compatible with 5/8" latchbolts
• All stainless steel parts
• 630 Stainless steel standard finish
MODEL
25-4U 4.875" (124mm) Square corner 129.00
RMB Buzzer 12/24V AC/DC operation 42.00 BR64XL Rectier for AC operation 27.00
MODEL
15-4F12U Failsafe, 12VDC 91.00 15-4S12U Failsecure, 12VDC 91.00
15-4F24U Failsafe, 24VDC 91.00 15-4S24U Failsecure, 24VDC 91.00
RMB Buzzer 12/24V AC/DC operation 44.00 BR64XL Rectifier for AC operation 27.00
Distributor
Discount Code
Not recommended for wood application
Not recommended for wood application
Input 200mA @ 12VDC, 150mA @ 24VDC
Dimensions 1-1/4” W x 4-7/8” H x 1-1/2” D
SPECIFICATIONS
Dual Voltage 200/100 mA @ 12/24VDC
Latch Status SPDT, 3 Amp @ 30VDC
Dimensions 1-1/4” W x 4-7/8” H x 1-1/2” D
SPECIFICATIONS
30 Series Rim Mount Electric Strikes FK
SPECIFY MODEL LIST
SPECIFY FINISH Add to List
OPTIONS Add to List
30-4
Stainless steel electric strike for rim mount exit devices. Strike is non-handed, fail secure is standard with fail safe optional.
Standard finish is stainless steel 630 (U). Check template to ensure compatibility.
30-4-12 Stainless steel electric strike designed for rim-type exit devices 12VDC@ 0.51Amp 720.00
30-4-24 Stainless steel electric strike designed for rim-type exit devices 24VDC@ 0.25Amp 720.00
U630 Dull Stainless Steel (Standard) N/C
FS Failsafe operation 39.00 BR64XL Rectifier 27.00
LCBMA-30 Latch & locking cam monitor 230.00
Distributor
Discount Code
Not Compatible with SDC S6000
See S6000 Electric Trim page 39
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
24
Electric Strikes
The SDC 45 Series electric strike is designed for use with locksets having up to ¾" latchbolts.
The compact low profile design with an internally mounted solenoid and mounting tabs enable quick
and easy installation where jamb space is limited. UL Listing pending
• For 5/8'' latch or 3/4" latch with 1/8" gap
• Latch bolt monitor standard
• Keeper closed and deadlocked standard
• Field selectable failsecure - failsafe
• Field selectable voltage, 12/24V AC/DC
• 1/4" Horizontal alignment adjustment
• Low profile, 1-3/16" deep
• Plug-in wire connectors
• Mounting tabs
• All stainless steel parts with durable die
cast body for corrosion resistance
• Fewer moving parts for maximum life
• 630 stainless steel standard
• ANSI A156.31 compliant
SPECIFY LIP EXTENSION for 45 Series only Add to List
LE1 1" Lip Extension Kit 33.00
LE2 2" Lip Extension Kit (Includes two 1" extensions) 65.00
LE3 3" Lip Extension Kit (Includes three 1" extensions) 97.00
LE3
LE2
LE1
45 Series Electric Strike LIST
SPECIFY FINISH Add to List
OPTIONS Add to List
MODEL
45-A Included: One 4.875" square corner faceplate. Stainless steel finish standard*
One 4.875" radius corner faceplate. Aluminum finish standard*
One 7.9375" radius corner faceplate. Aluminum finish standard*
193.00
45-4S 4.875" x 1.25" (124x32mm) square corner faceplate. Stainless steel finish standard* 163.00
45-4R 4.875" x 1.25" (124x32mm) radius corner faceplate. Aluminum finish standard* 167.00
45-6R 6.875" x 1.25" (175x32mm) radius corner faceplate. Aluminum finish standard* 171.00
45-7R 7.937" x 1.438" (202x36.5mm) radius corner faceplate. Aluminum finish standard* 177.00
Square Corner Faceplate
U630 Dull stainless Steel (std) N/C
H613 Oil Rubbed Bronze 27.00
D606 Dull Brass 27.00
Radius Corner Faceplate
V628 Dull Aluminum (std) N/C
Y335 Black Anodized 27.00
45-A Special Finish 81.00
45-6R
45-4S
KKeeper open/closed status 42.00 RMB Buzzer 12/24V AC/DC operation 44.00
45-4R
45-7R
45-A
SPECIFY MODEL List
Dual Voltage 280/140mA @ 12/24V DC, 170/85mA @ 12/24V AC
Latch Status SPDT, Dry 3Amp @ 30V (standard)
Keeper Closed/Deadlocked
SPDT, Dry 3Amp @ 30V (standard)
Keeper Open Closed Status
SPDT, Dry 3Amp @ 30V (optional - K option)
SPECIFICATIONS
Factory Installed Only
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
25
Electric Strikes
The 45F fire-rated Grade 1 strike is specially designed with a durable, stainless steel die cast body. It is
engineered with corrosion resistant components with fewer moving parts for maximum life. The standard
unit includes monitoring outputs, field-selectablevoltage, and field-adjustable operation (fail-secure or fail-
safe.) Designed for use with cylindrical and mortise locksets with 9/16” - 3/4” throw latch bolts.
• ANSI/BHMA A156.31, Grade 1
• Centerline Electric Strike
• For 9/16” or 3/4” latch with 1/8” door gap
• Latch bolt monitor standard
• Keeper closed & deadlocked standard
• Field selectable fail-secure - failsafe
• Field selectable voltage 12/24V AC/DC
• ¼” Horizontal alignment adjustment
• Static strength 1500lbs.
• Low profile, 1-3/16” deep
45F Fire Rated Electric Strike LIST
SPECIFY FINISH Add to List
OPTIONS Add to List
MODEL
45F-4SU Included: One 4.875" square corner faceplate. Stainless steel finish standard* 411.00
For additional Plates contact factory
Square Corner Faceplate
U630 Dull stainless Steel (std) N/C
H613 Oil Rubbed Bronze 27.00
D606 Dull Brass 27.00
KKeeper open/closed status 42.00 RMB Buzzer 12/24V AC/DC operation 44.00
SPECIFY MODEL List
Dual Voltage 280/140mA @ 12/24V DC, 170/85mA @ 12/24V AC
Latch Status SPDT, Dry 3Amp @ 30V (standard)
Keeper Closed/Deadlocked
SPDT, Dry 3Amp @ 30V (standard)
Keeper Open Closed Status
SPDT, Dry 3Amp @ 30V (optional - K option)
SPECIFICATIONS
• All stainless steel parts with durable die cast
body for corrosion resistance
• Plug-in wire connectors
• Mounting tabs
• Non-handed
• Fewer moving parts for maximum life
• 630 stainless steel standard
• UL Listed 1034 Burglary Resistant
• UL 10C, 3 Hr Fire Rated (Fail-Secure only)
• U.S. Patent #7,540,542 B2
BP10254
40WH
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
26
Electric Strikes
Lockset compatibility: For locksets not listed below, see UniFLEX™ 55 Series datasheet, page 5, faceplate dimension
Deadbolt Application: 55-D, 55-E and 55-F, door will not close with deadbolt extended
MODEL Application
55-A Compatible with all cylindrical locksets (Grade1 or equivalent) 449.00
55-B Mortise locksets and exit mortise devices with or without a deadlatch located below the
latchbolt. Accurate, Arrow, Best, Corbin Russwin, Dorma, Falcon, Marks, Sargent, Yale. 470.00
55-C Mortise locksets and mortise exit devices with or without a deadlatch located above the
latchbolt. SDC, Schlage, Baldwin, Hager 470.00
55-D Mortise locksets with a deadbolt and deadlatch located below the latchbolt.
Accurate, Arrow, Best, Corbin Russwin, Dorma, Falcon, Marks, Sargent, Yale. 492.00
55-E Mortise lockset with deadbolt and no deadlatch feature. Baldwin. 492.00
55-F Mortise locksets with a deadbolt and a deadlatch located above the latchbolt.
SDC, Schlage, Hager. 492.00
UniFLEX™ SPEC 55 Series Electric Strike, Grade 1 Heavy Duty - Factory tested 2500 lbs
SPECIFY FINISH Add to List
SPECIFY MODEL List
STANDARD ANSI 4-7/8” STRIKE PREP - NO CENTERLINE RELOCATION REQUIRED.
One strike with choice of interchangeable faceplates for cylindrical and mortise locksets with or without deadbolts.
Designed for new and retrofit hollow metal frame installations. *Frame face modification required.
FEATURES
• Up to ¾” Latchbolt and 1” Deadbolt
• Field Reversible, Failsafe/Failsecure
• 1/8” Horizontal alignment adjustment
• Dual Voltage 12/24VDC
• Exceeds 1,000,000 cycles
• Factory tested 2500 lbs static strength
• UL tested 1500 lb Static strength
• 70 ft-lb Dynamic strength
• ANSI/BHMA A156.31 Grade 1
• Internal Solenoid, No Heat in Keeper
• All parts stainless steel
• Non-handed
U630 Dull Stainless Steel (std) N/C
G612 Dull Bronze P625 Bright Chrome 44.00
D606 Dull brass H613 Oil Rubbed Bronze Q626 Dull Chrome 44.00
Warnock Hersey Tested according to:
UL 10C, 3 Hr Fire Rated, 4’ x 8’ single door
NFPA-252
CM
55-A
55-D
55-F
55-E
55-C
55-B
UL 1034
Burglary-Resistant
BP10254
40WH
SPECIFY MONITORING OPTIONS Add to List
LBM/LCM available with 55-A, 55-B, 55-C; LBM/LCM/DBM available with 55-D, 55-E, 55-F
LBM Latchbolt Monitor. Signals the door is closed and latched or unlatched and open.
Non-handed. 65.00
LBM/LCM Door Secure Monitor. Signals door is closed latched and the keeper is deadlocked. Also
signals the door is unlatched or unlocked. Non-handed. 129.00
DBM-L Deadbolt Monitor, Left Hand (Available with LCM and LBM. For D, E & F funtions only) 65.00
DBM-R Deadbolt Monitor, Right Hand (Available with LCM and LBM. For D, E & F funtions only) 65.00
CAN4-S104 (ULC-S104)
(Fail-Secure only).
ACCESSORIES Add to List
55-A, 55-B,
55-C:
LBM
LBM/LCM
55-D, 55-E, 55-F:
LBM
LBM/LCM
LBM/LCM/DBM
Monitoring Configurations
A B or C D or E F
RMB Buzzer, 12/24V. Indicates strike is energized 44.00
BR64XL Wire Lead Rectifier. Converts AC to DC 27.00
LT tri-Color LED, red or green or amber. Indicates strike energized per field wiring 33.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
27
Electric Strikes
UniFLEX™ Universal Strike — Multi Application Pack LIST
MODEL APPLICATION
55-ABC Universal Strike for cylindrical locks, mortise locks without deadbolts and mortise exit
devices including: SDC, Accurate, Arrow, Baldwin, Best, Corbin Russwin, Dorma, Falcon,
Hager, Marks, Sargent, Schlage, Yale.
492.00
Lockset compatibility: For locksets not listed, see UniFLEX™ 55 Series datasheet, page 5, faceplate
dimension
APPLICATION
• Adaptable to all 55-A, 55-B, 55C
applications.
• Strike body and 5 faceplates
• For new and retrofit installation
• No relocation of the centerline.
• Non-handed
OPERATION
After releasing the latchbolt, the keeper
returns to the locked position.
Finish: 630 Dull Stainless Steel
AB C
B
A
C
Latch and Deadbolt Monitoring Strike Kits DK LIST
Distributor
Discount Code
Provides latch and or deadbolt position sta-
tus. Compatible with deadbolts, cylindrical
locks, mortise locks, and mortise locks with
latch and deadbolt. Strike plates shown
provided by others. 5 Amp @ 30 VAC/DC
MS-12 Cylindrical latch monitor 2-3/4" SPDT 140.00
MS-12D Cylindrical latch monitor 2-3/4" DPDT 171.00
MS-14 Cylindrical latch monitor 4-7/8" SPDT 140.00
MS-14D Cylindrical latch monitor 4-7/8" DPDT 171.00
MS-16 Mortise lock latch monitor SPDT 140.00
MS-16D Mortise lock latch monitor DPDT 171.00
MS-16
MS-14
MS-12 MS-20
MS-18 Mortise lock deadbolt monitor SPDT 140.00
MS-18D Mortise lock deadbolt monitor DPDT 182.00
MS-20* Mortise lock latch and deadbolt monitor
SPDT
171.00
MS-20D* Mortise lock latch and deadbolt monitor
DPDT
230.00
*MS-20 and MS-20D are handed but reversible
Strikeplates NOT INCLUDED
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
28

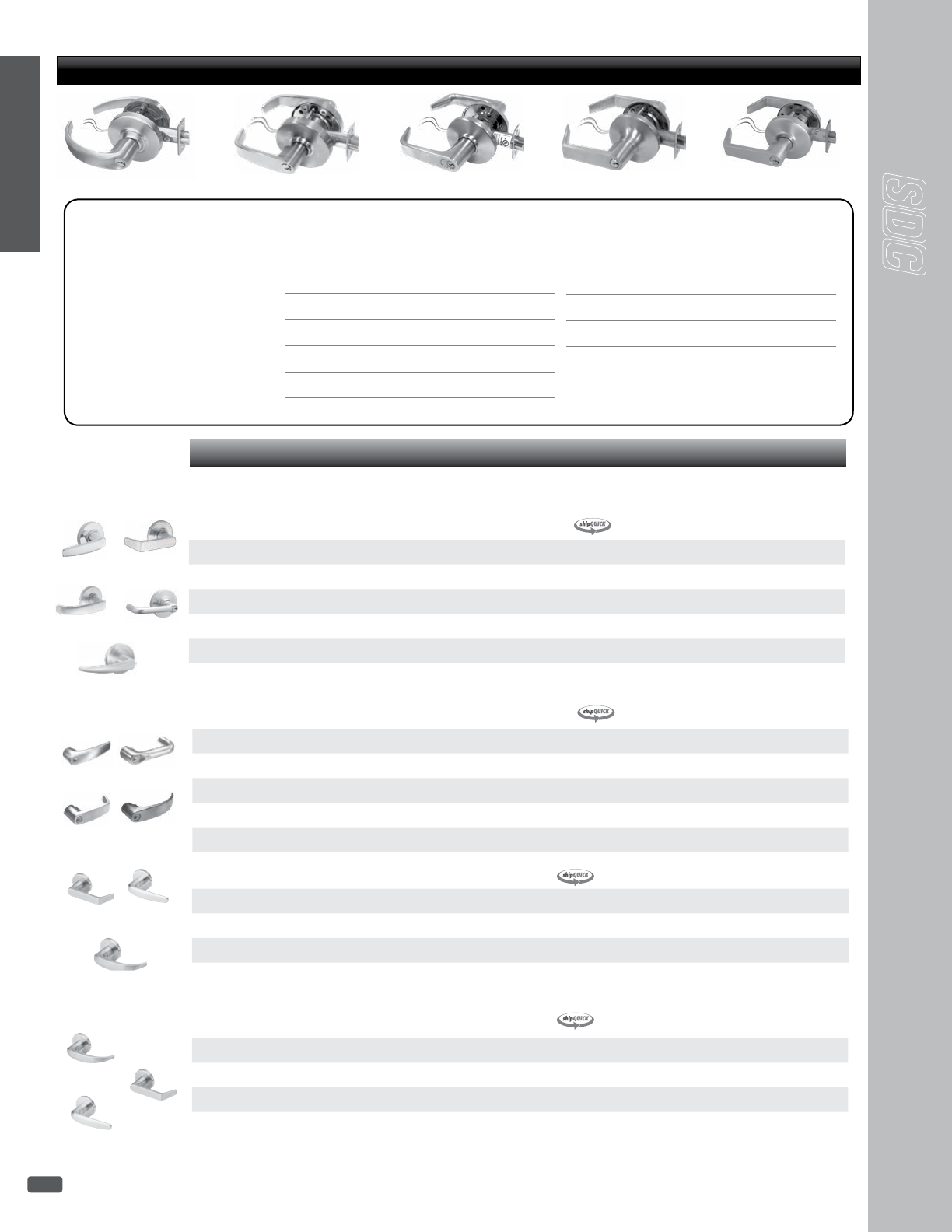

Electrified Locksets
ELECTRA MOD™ Major Brand Locks Electrified by SDC LEK
SDC’s Electra™ Mod Locksets ensure that the door stays latched even when unlocked, maintaining fire door integrity. The Electra™ Mod
locksets comply with all national building and fire life safety code requirements for use on fire rated doors, including high-rise stairwell and
elevator lobby doors where the use of electric strikes and magnetic locks is prohibited.
• Outside lever normally locked,
turning inside lever provides
uninhibited egress
• Request-to-exit output optional
with all locksets
• Dual Voltage 12 and 24VDC
• Choice of failsafe or failsecure
operating mode
Distributor
Discount Code
Schlage Sargent Best Yale Dorma
SPECIFICATIONS
Voltage Dual 12/24VDC Input
Current 600/300mA @ 12/24VD
Optional REX Output SPDT 3 Amps @ 30VDC
Latchbolt 1/2" throw
Backset 2-3/4"
Strike 4-7/8" ANSI A115.2
Door Thickness 1-5/8" to 2-1/8"
FEATURES
Athens
Augusta
B
Rhodes
Pacific Beach
Sparta
Monroe
J
Omega
P
Tubular
L
15
16
14
Schlage Failsafe and Failsecure electrified locksets provided by SDC
SDC Failsafe SDC Failsecure Trim Type
ZS7250ATHQ ZS7252ATHQ Athens 726.00
ZS7250SPAQ ZS7252SPAQ Sparta 726.00
ZS7250RHOQ ZS7252RHOQ Rhodes 726.00
ZS7250TLRQ ZS7252TLRQ Tubular 726.00
ZS7250OMEQ ZS7252OMEQ Omega 726.00
Sargent Failsafe and Failsecure electrified locksets provided by SDC
SDC Failsafe SDC Failsecure Trim Type
ZD7250BQ ZD7252BQ B833.00
ZD7250JQ ZD7252JQ J833.00
ZD7250LQ ZD7252LQ L833.00
ZD7250PQ ZD7252PQ P833.00
Yale Failsafe and Failsecure electrified locksets provided by SDC
SDC Failsafe SDC Failsecure Trim Type
ZP7250AUQ ZP7252AUQ Augusta 743.00
ZP7250MOQ ZP7252MOQ Monroe 743.00
ZP7250PBQ ZP7252PBQ Pacific Beach 743.00
Best Failsafe and Failsecure electrified locksets provided by SDC
SDC Failsafe SDC Failsecure Trim Type
ZT725014Q ZT725214Q 14 880.00
ZT725015Q ZT725215Q 15 880.00
ZT725016Q ZT725216Q 16 880.00
REX Option Request-to-exit output, SPDT, 3 Amps @ 30VDC 124.00
SDC SUPPLIED MECHANICAL LOCKSET LIST
®
®
®
®
In Stock: Following SDC electrified locksets are in stock at both SDC east and west coast warehouses
for shipment by the next business day.
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
29
Electrified Locksets
HOW TO
ORDER
DISTIBUTOR SUPPLIED MECHANICAL LOCKSET SDC FACTORY ELECTRIFIED LIST
Failsafe Failsecure
Schlage S7250 S7252 173.00
Yale P7250 P7252 173.00
Best T7250 T7252 173.00
Sargent D7250 D7252 173.00
Dorma U7250 U7252 173.00
Hager H7250 H7252 173.00
REX Option Request-to-exit output, SPDT, 3 Amps @ 30VDC 124.00
Distributors to supply SDC with cylindrical lock for modification. SDC returns modified lock to distributor
SSchlage ND80PD PYale 5405LN 173.00
TBest 93K7D DSargent 10G04 173.00
U Dorma C880 H Hager 3480 173.00
ELECTRA MOD™ Major Brand Locks Electrified by SDC LEK
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
30
Electrified Locksets
Dual Voltage 600/300 mA @ 12/24VDC
Certification Exceeds ANSI A156-2-
4000 Grade 1
Latchbolt 0.5625"
ELECTRA PRO™ SDC' Z7200 Series Heavy Duty Cylindrical Locksets LEK
SPECIFY MODEL LIST
SPECIFY FINISH Add to List
OPTIONS Add to List
OPTIONAL LATCH AND BACKSET ASSEMBLIES
OPTIONAL STRIKE PLATES
SPECIFY LEVER TRIM
Electra Pro™ Locks
Z7250 SDC Failsafe, with Latch Status Output Z7252 SDC Failsecure, with Latch Status Output 449.00
SDC Lever Trim
GGalaxy EEclipse N/C
G5 Galaxy, I-Core prep E5 Eclipse, I-Core prep 27.00
G5 and E5 I-Core prep without I-Core
Q626 Dull Chrome (standard) N/C
C605 Bright Brass 54.00 H613 Oil Rubbed Bronze 54.00
D606 Dull Brass 54.00 P625 Bright Chrome 54.00
Electra Pro™ Z7250G
I-CORE
Function: 7200 Series Locksets are locked on the outside and unlocked from the exterior by an access control or mechanical key.
The inside lever is always operable for uninhibited egress.
Latch Status Output: Standard with all SDC brand Z7200 locksets. SPDT, 3 Amps @ 30VDC
Electra Pro™ Z7250E
SDC Conventional Cylinders (Schlage 'C' Keyway Standard)
6PKA 6 PIN Keyed alike N/C 6PKD 6 PIN Keyed different (standard) N/C
[IC] Interchangeable Core (Best 'A' Keyway Standard) - requires E5 or G5 lever trim
IC7P-KA 7 pin I-Core, small format, keyed alike 54.00 IC7P-KD7 pin I-Core, small format, keyed different 54.00
B1 2-3/4" Backset latchbolt (Standard) N/C B2 2-3/8” Backset latchbolt (Optional) 25.00
ST1 ANSI 1-1/4” x 4-7/8” (Standard) N/C ST2 T-Strike with dust box, 1-1/8” x 2-3/4”
MUST BE SPECIFIED
N/C
G Galaxy
E Eclipse
E5 Eclipse, I-Core prep
G5 Galaxy, I-Core prep
SPECIFICATIONS
FEATURES
• Choice of failsecure or failsafe mode
• Dual 12/24 VDC
• Latch Status Output: Z7200 standard
• 'C' type keyway, BEST IC core optional
• Independent lever power return springs
• Power Regulator Module included
3773-0324:104
CSFM
Electrically Controlled Single Point Locks &
Latches, 3 Hr A Label Fire Doors
Backset 2.75
Strike 4.875 strike ANSI A115.2
Door Thickness 1-5/8" to 2-1/8"
OPTIONAL CYLINDER and I-CORES Add to List
RRequest-to-exit output, operates on activation of inside lever, SPDT 0.1A @ 30VDC 124.00
NOTE: REX Output Replaces Latch Status Output
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
31
Electrified Locksets
Optional Key Cylinders 1 required for 7652 2 required for 7632 33.00
CYL-6KDQ 6 pin, 1.125" keyed different, 626 Dull Chrome 33.00
CYL-6KAQ 6 pin, 1.125" keyed alike, 626 Dull Chrome 33.00
Power Transfer Hinge
UL listed, 4.5” x 4.5", five knuckle hinge.
PTH-4Q Four wire, dull chrome 161.00
PTH-10Q Ten wire, dull chrome 207.00
PTH-2+4Q 6-wire Electric Hinge 1-pair 16 Amp inrush, 4 Amp continuous;2-pair 1 Amp @ 12/24V 188.00
Q626 Dull Chrome (standard) N/C
C605 Bright Brass 54.00 G612 Dull Bronze 54.00 S629 Bright Stainless Steel 54.00
D606 Dull Brass 54.00 H613 Oil Rubbed Bronze 54.00 U 630 Dull Stainless Steel 54.00
F611 Bright Bronze 54.00 P625 Bright Chrome 54.00
SPECIFY FUNCTION AND MODE LIST
SPECIFY HAND
OPTIONS AND ACCESSORIES Add to List
SPECIFY FINISH Add to List

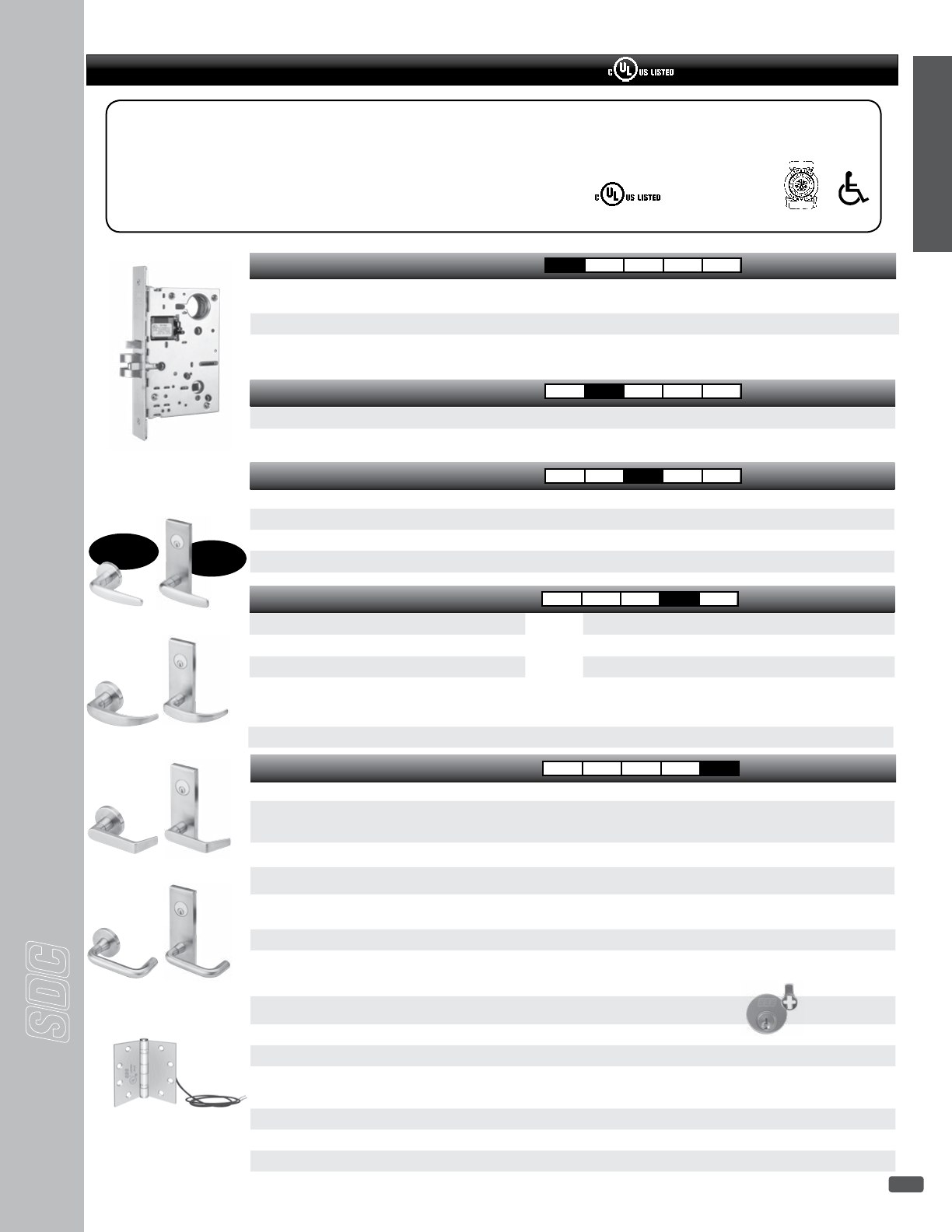

MLR Z7600 Motorized Latch Retraction Mortise Lockset LSK
* Less Trim With SDC Trim
Z7632 Locked both sides, failsecure 678.00 1,045.00
Z7652 Locked outside only, failsecure 678.00 1,045.00
LLeft hand LR Left hand reversed All hands are field reversible N/C
RRight hand RR Right hand reversed N/C
SPECIFY LEVER TRIM Add to List
GGalaxy with rose N/C GE Galaxy with escutcheon 108.00
EEclipse with rose N/C EE Eclipse with escutcheon 108.00
NNova with rose N/C NE Nova with escutcheon 108.00
07 Schlage equal with SDC B rose N/C 07E Schlage equal with SDC escutcheon 108.00
Optional Outputs
RRequest-to-exit. Indicates inside lever operation for access control request-to-exit input, alarm
shunt, remote annunciation or CCTV activation, SPDT 5 Amp @ 30VDC 86.00
DDoor position status output. (MC-4 Door Contact) 52.00
LM Latchbolt Status SPDT 5 Amp @ 30VDC 86.00
MLR Locksets incorporate an SDC manufactured Grade 1 Heavy Duty mortise lockset and vandal resistant clutch mechanism. All
operational attributes are field selectable. 620 mA inrush, 160 mA holding @ 24VDC.
Patent Pending
FIELD SELECTABLE ATTRIBUTES
• Selectable function, locked outside only or both sides
• Selectable handing
PTH
UL 10B Listed for 3Hr
Fire Rated Doors
Electrically Controlled
Single Point Locks or
Latches
3 Hr A Label Fire
Rated Doors 3773-0324:104
CSFM
G
E
N
GE
EE
NE
Schlage
Equal Schlage
Equal
07E07
SDC Supplied Electrified Lock (Mortise cylinder not included). SDC Brand lockset. Clutch for lever trim vandal
resistance. * Less trim - compatible with Schlage trim
Distributor
Discount Code
Optional Cable and Connectors
CC1-5 5ft. Cable and connectors for locks without optional outputs 49.00
CC3-5 5ft. Cable and connectors for locks with optional outputs 65.00
Single Trim Option (add to List)
STM Single side trim mount adapter 150.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
32
Electrified Locksets

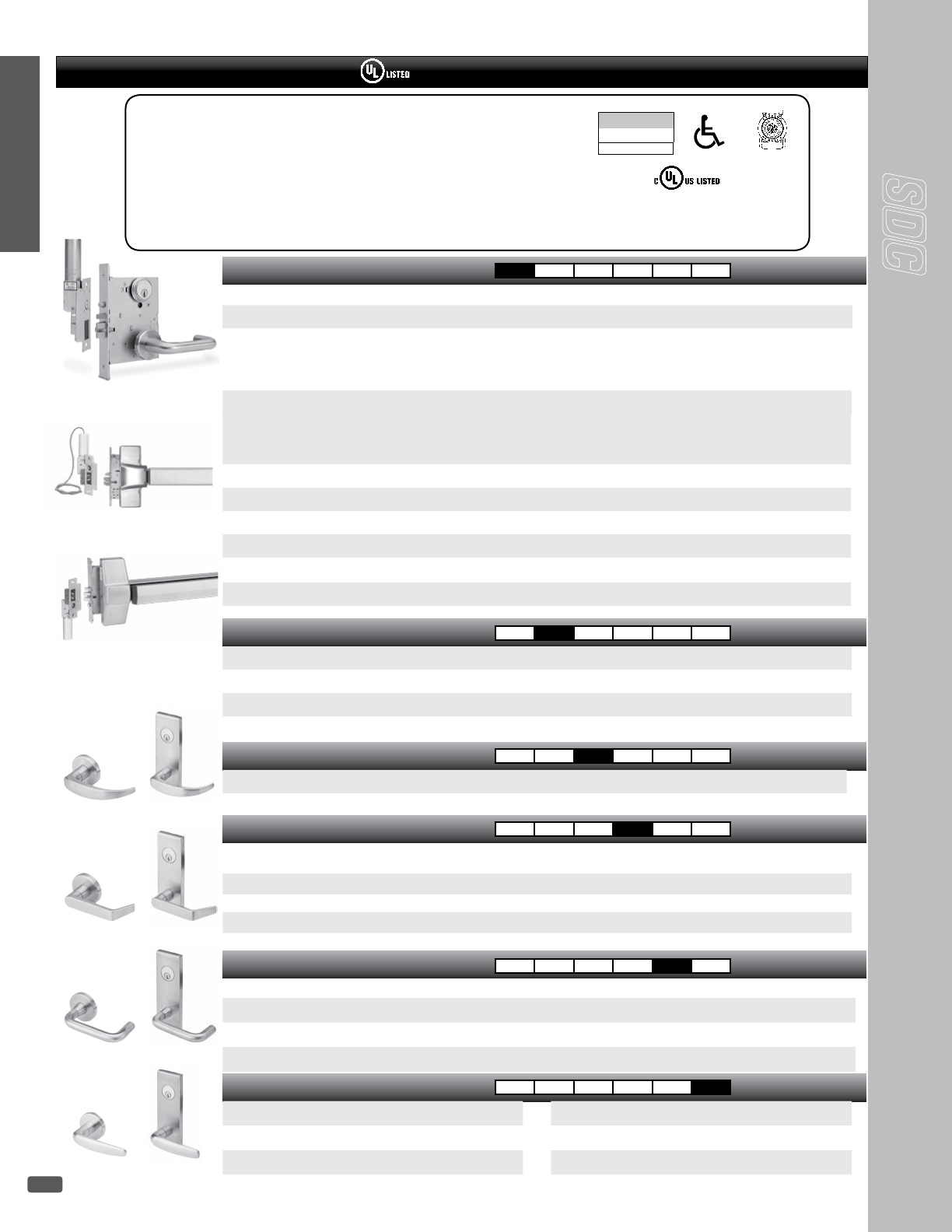

SELECTRIC™ PRO Z7800 Electric Lockset LSK
SELECTRIC® Pro Locksets incorporate an SDC manufactured Grade 1 Heavy Duty mortise lockset and vandal resistant clutch
mechanism. Proprietary to SDC, SELECTRIC® Pro locksets. All operational attributes are field selectable. In addition, SELECTRIC® Pro
locksets retrofit many other mechanical lock brands making them fully compatible with new and retrofit applications.
FIELD SELECTABLE ATTRIBUTES (SEE DATASHEET FOR SPECIFIC MODELS)
• Selectable mode, failsafe or failsecure
• Selectable function, locked outside only or both sides
• Selectable voltage, 12 or 24VDC
• Selectable handing
Electrically Controlled
Single Point Locks or
Latches
3 Hr A Label Fire
Rated Doors 3773-0324:104
CSFM 768-80-SA
MEA
City of New York
Distributor
Discount Code
Z7830/Z7832
Z7850/Z7852
Z7835
Z7870/Z7872
Z7880/Z7882
Specify voltage for Z7835/7870/7872/7880/7882 function only.
Leave blank for all other functions which are 12/24VDC, field selectable
E12VDC C24VDC N/C
SPECIFY FUNCTION AND MODE LIST
SPECIFY HAND
VOLTAGE - Z7835/7870/7872/7880/7882 ONLY
SPECIFY FINISH Add to List
* Less Trim With SDC Trim
Z7830 Locked both sides, failsafe. Field reversible to failsecure mode. 316.00 758.00
Z7832 Locked both sides, failsecure. Field reversible to failsafe mode. 316.00 758.00
Z7850 Locked outside only, failsafe. Field reversible to failsecure mode. 316.00 758.00
Z7852 Locked outside only, failsecure. Field reversible to failsafe mode. 316.00 758.00
Z7835 Locked outside and/or inside. Outside failsecure, inside failsafe 480.00 875.00
Z7870 Locked outside only, failsafe with manual deadbolt for High Security
Applications
419.00 861.00
Z7872 Locked outside only, failsecure with manual deadbolt for High Security
Applications
419.00 861.00
Z7880 Locked outside only, failsafe with manual deadbolt for Privacy Feature 419.00 861.00
Z7882 Locked outside only, failsecure with manual deadbolt for Privacy Feature 419.00 861.00
LLeft hand LR Left hand reversed All hands are field reversible N/C
RRight hand RR Right hand reversed without disassembly (exeption Z7835) N/C
Q626 Dull Chrome (standard) N/C
C605 Bright Brass 54.00 G612 Dull Bronze 54.00 S629 Bright Stainless Steel 54.00
D606 Dull Brass 54.00 H613 Oil Rubbed Bronze 54.00 U 630 Dull Stainless Steel 54.00
F611 Bright Bronze 54.00 P625 Bright Chrome 54.00
SDC Supplied Electrified Lock (Mortise cylinder not included). SDC Brand 7800 lockset. Clutch for lever trim
vandal resistance. * Less trim - compatible with Schlage trim
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
33
Electrified Locksets
PTH
UL 10B Listed for 3Hr
Fire Rated Doors
See page 90
SELECTRIC™ PRO Z7800 Electric Lockset LSK
Distributor
Discount Code
OPTIONS AND ACCESSORIES Add to List
Optional Outputs
RRequest-to-exit. Indicates inside lever operation for access control request-to-exit input, alarm
shunt, remote annunciation or CCTV activation, SPDT 5 Amp @ 30VDC 86.00
DDoor position status output. Indicates door open and door closed. SPDT 5 Amp @ 30VDC.
(7830/7832/7850/7852/7835 only) 86.00
SLatched & locked status output. Indicates door latched and locked and door unlocked.
SPDT 5 Amp @ 30VDC. (7830/7832/7850/7852/7835 only) 108.00
LLatch Status (7870/7872/7880/7882 only), SPDT 5Amp@30VDC 86.00
BDeadbolt Status (7870/7872/7880/7882 only), SPDT 5Amp@30VDC 86.00
Optional Cable and Connectors
CC1-5 5ft. Cable and connectors for locks without optional outputs 49.00
CC3-5 5ft. Cable and connectors for locks with optional outputs 65.00
Optional Key Cylinders 1 required for 7850/7852/7870/7872/7880/7882 2 required for 7830/7832/7835
CYL-6KDQ 6 pin, 1.125" keyed different, 626 Dull Chrome 33.00
CYL-6KAQ 6 pin, 1.125" keyed alike, 626 Dull Chrome 33.00
Power Transfer Hinge
UL listed, 4.5” x 4.5", five knuckle hinge.
PTH-4Q Four wire, dull chrome 161.00
PTH-10Q Ten wire, dull chrome 207.00
PTH-2+4Q 6-wire Electric Hinge 1-pair 16 Amp inrush, 4 Amp continuous;2-pair 1 Amp @ 12/24V 188.00
SPECIFY LEVER TRIM Add to List
GGalaxy with rose N/C GE Galaxy with escutcheon 108.00
EEclipse with rose N/C EE Eclipse with escutcheon 108.00
NNova with rose N/C NE Nova with escutcheon 108.00
07 Schlage equal with SDC B rose N/C 07E Schlage equal with SDC escutcheon 108.00
G E NGE EE NE
Schlage
Equal Schlage
Equal
07E07
Single Trim Option (add to List)
STM Single side trim mount adapter 150.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
34
Electrified Locksets
768-80-SA
MEA
City of New York
SPECIFY BRAND MODEL LIST
SELECTRIC™ MOD 7800 Series Locksets LSK
SPECIFY HAND
SPECIFY FINISH Add to List
OPTIONS AND ACCESSORIES Add to List
SPECIFY FUNCTION & ELECTRICAL MODE Add to List
Distributors supply SDC with the mortise lock body and armored front (less trim) for modification. SDC returns the modified lock
body. Upon installation, two lever return spring cages (supplied by distributor) are required for proper operation.
A Falcon - LM561/MA581 N Arrow - B12 UDorma - M9000 171.00
D Sargent - 8204 PYale - 8805 VMarks - 5EW 171.00
H Hager - 3880 SSchlage - L9080 WCal Royal - M8080 171.00
I Corbin/Russwin - ML2055 TBest - 35HEW/45H XPDQ - MR148 171.00
7830 Locked both sides, failsafe 7832 Locked both sides, failsecure 65.00
7850 Locked outside only, failsafe 7852 Locked outside only, failsecure N/C
LLeft hand LR Left hand reversed RRight hand RR Right hand reversed N/C
PTH
UL 10B Listed for 3Hr
Fire Rated Doors
See page 90
Electrified lock chassis, less trim, provided by SDC factory are special order, no cancellation, no return.
ZS Schlage 675.00
Optional Outputs
RRequest-To-Exit.
Indicates inside lever operation for access control request-to-exit input, alarm shunt,
remote annunciation or CCTV activation, SPDT 5 Amp @ 30VDC
Available with A, D, I, N, P, S, T, U, V and ZS only.
129.00
DDoor Position Status Output
Indicates door open and door closed. SPDT 5 Amp @ 30VDC
Available with locks S and ZS only.
86.00
SLatched & Locked Status Output
Indicates door latched and locked or door unlocked. SPDT 5 Amp @ 30VDC
Available with locks S and SZ only.
108.00
LLatchbolt status. Indicates door latched and unlatched status. SPDT 5 Amp @ 30VDC
Available with locks A, D, I, N, P, S, T, U, V and ZS only.
108.00
Consult factory for recent updates of option availability with any model
Optional Cable and Connectors
CC1-5 5ft. Cable and connectors for locks without optional outputs 49.00
CC3-5 5ft. Cable and connectors for locks with optional outputs 65.00
3773-0324:104
CSFM
NOTE: Locks supplied less cylinder
Sargent
MarksCal Royal
PDQ Yale Corbin Russwin Best
Electrically Controlled
Single Point Locks or Latches
3 Hr A Label Fire Rated Doors Q626 Dull Chrome (standard) N/C
C 605 Bright Brass 54.00 G612 Dull Bronze 54.00 S629 Bri ght Sta teel 54.00
D 606 Dull Brass 54.00 H613 Oil Rubbed Bronze 54.00 U 630 Dull Stainless Steel 54.00
F611 Bright Bronze 54.00 P625 Bright Chrome 54.00
Schlage S and ZS only
• Field selectable failsafe / failsecure • Field selectable function without removing cover
Distributor
Discount Code
Note: Two locking hubs required for 7830 & 7832
Send the brand lockset of your choice to SDC for electrification. When factory authorized, distributors may take advantage
of SDC’s mechanical lock inventory to expedite orders. SDC stocks Schlage, Corbin Russwin, Yale, Best and Sargent
mechanical locks that may be electrified and charged to an order. Meanwhile, distributors may then send replacement
mechanical locks to SDC for credit and SDC inventory replenishment.
FEATURES SCHLAGE S AND ZS ONLY FEATURES ALL OTHER BRANDS
• Field selectable failsafe/failsecure
• Field selectable voltage, 12/24VDC
• Field selectable function and handing without removing cover
• Field selectable voltage, 12/24VDC
• Field selectable function and handing
based on brand capability
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
35
Electrified Locksets
SK-L90 Field Electrification Kit for Schlage L9000 LIST
SK-L90 Field Electrification Kit for Schlage L9000 Series 129.00
SK-L90-SC Field Electrification Kit for Schlage L9080 (includes Springcage) 146.00
S7800-REX Request-To-Exit kit for Schlage L9000 Series 129.00
SK-88 Field Electrification Kit for Yale 8805 LIST
SK-88 Field Electrification Kit for Yale 8805 129.00
LM-88 Field Latch Kit for Yale 8805 108.00
SK-82 Field Electrification Kit for Sargent 8206 LIST
SK-82 Field Electrification Kit for Sargent 8204 129.00
LM-82 Field Latch Kit for Sargent 8204 108.00

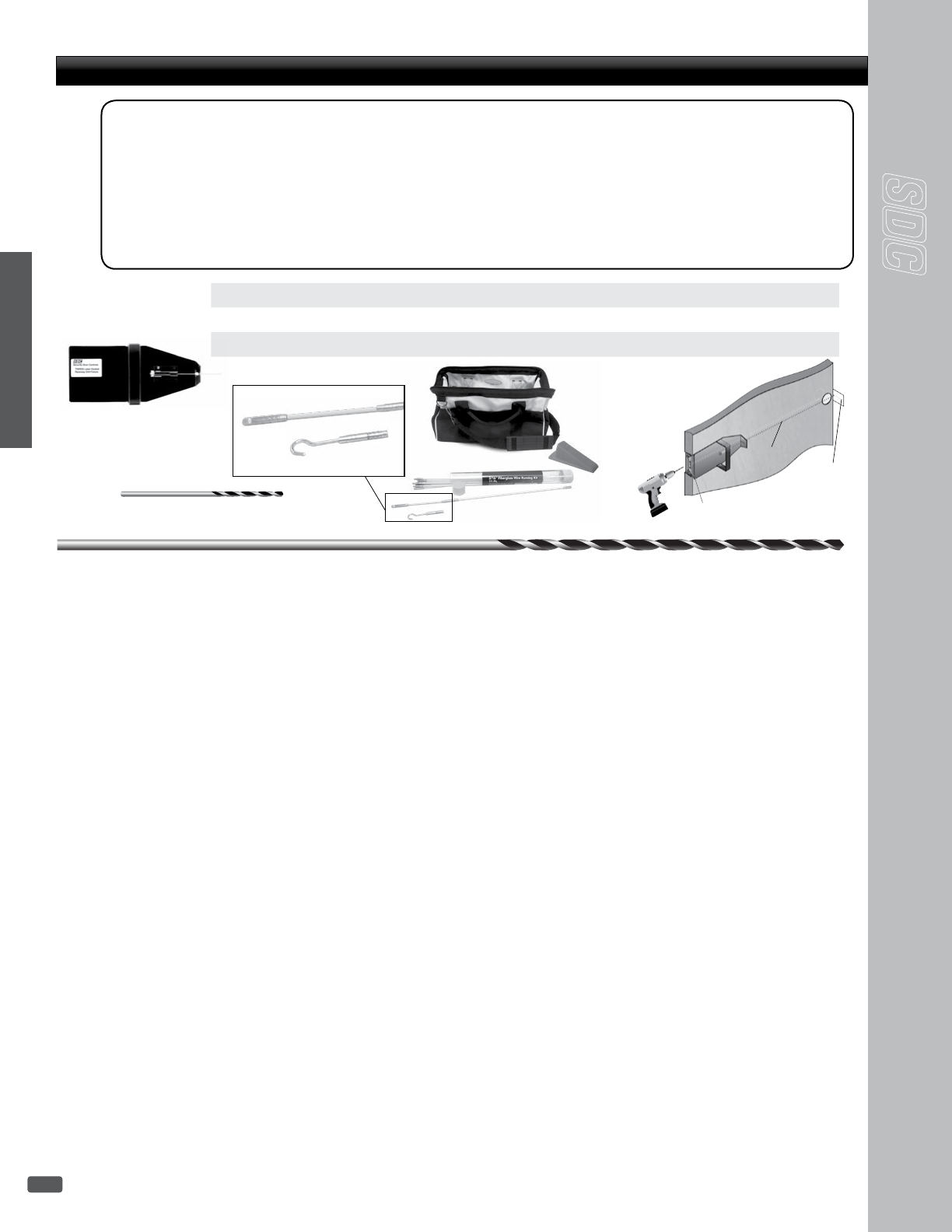

Door Core Drill Guide LZK LIST
The SDC 7000-DG Laser Guided Wire Raceway Drill Fixture enables wire raceway preparation through particle filled and solid wood
doors. The door core wire raceway permits the installation and wiring of electrified locksets, exit devices and electric hinges.
The Laser Guided Wire Raceway Drill Fixture is easy to use without previous experience. The kit allows for drilling from the hinge
side without removing the door from the frame.
The 7000-DGK Kit includes: Laser Guided Door Core, Raceway Fixture, 1/4" x 6" Pilot Drill Bit, 3/8" x 50" Door Raceway
Drill Bit (Custom designed evacuator drill bit tool sharpened with 1' extra long flutes),
Fiberglass Wire Running Kit (Flexible acrylic end connection, Brass hook end for pulling, Brass eye end for pushing), Door
Wedge, Kit Carry Case
7000-DGK Laser door core drill guide Kit 640.00
7000-DB3/8 3/8" x 50" evacuator drill bit 81.00
7000-PD 1/4 X 6 1/4" x 6" pilot drill bit 26.00
Target Line
Laser beam
Drill Guide
1/4 x 6" Pilot Drill Bit
3/8" x 50" Evacuator Drill Bit - Custom Designed for Door Raceways Extra Long 1 Ft. Flute
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
36
Electrified Locksets
HiTower® – Electric Frame Actuator Controlled Locksets
The HiTower utilizes SDC’s original concept of utilizing an electric frame
actuator to control a mechanical lock in the door, eliminating the cost and labor
associated with a power transfer hinge and wires through the door.
HiTower® Z7500
• SDC brand Grade 1 Heavy Duty lockset
• Field selectable function,
Locked outside only or both sides
HiTower® CONVERSIONS
Distributors provide a new mechanical
lock brand of choice to the factory for
conversion to an electric frame actuator
controlled lockset.
Electrically Controlled Single
Point Locks or Latches
3 Hr A Label Fire Rated Doors
768-80-SA
MEA
City of New York
3773-0324:104
CSFM
7530 Locked both sides. Unlocked by access control, remote control and key from either side, failsafe
7550 Locked outside only. Unlocked by access control, remote control, outside key and inside lever, failsafe
7560 Locked both sides. Unlocked by access control, remote control and key from either side, failsecure
7570 Locked outside only. Unlocked by access control, remote control, outside key and inside lever, failsecure
SPECIFY SOURCE OF MORTISE LOCK
7500 Series HiTower® LK
SPECIFY FUNCTION
SPECIFY HAND
ACTUATOR VOLTAGE AND FRAME SIZE see page 37 for pricing
Z7500
HiTower® Pro - SDC supplied mortise lock and electric frame actuator, complete with lever trim (Cylinder not included)
ZSDC lockset ZR SDC Retrofit lockset, replaces discontinued 5000/6000 series
ZY SDC retrofit lockset replaces SDC modifications of discontinued manufacturer models: Falcon-LM581;
Sargent-7704/7705; Corbin-9557L/2257; Russwin- 7059L; Arrow-1600EW; Yale-8705; Almet-5007; Best-35HEW
LLeft hand LR Left hand reversed
RRight hand RR Right hand reversed
A115VAC 0.2 Amps D115VAC 0.2 Amps G115VAC 0.2 Amps
B24VAC 0.5 Amps E24VAC 0.5 Amps H24VAC 0.5 Amps
C24VDC 0.5 Amps F24VDC 0.5 Amps J24VDC 0.5 Amps
+ Fail Secure Actuator Available with Z or S lockset only. Special strike preparation required for S7560/7570.
Failsafe actuator for
1-3/4" to 2" face frames Extra Narrow failsafe actuator
for 1-1/4" to 1-1/2" face frames +Failsecure actuator
for 2" face frames
07E07
HiTower® Mod - Distributors supply SDC with the mortise lock body and armored front (less trim) for modification.
SDC returns the modified lock body with an electric actuator. Upon installation, two lever return spring cages (supplied
by distributor) are required for proper operation.
AFalcon* LM-561/MA581 PYale 8805
DSargent 8204 RSchlage Retro L9080 (replaces 5000 series)
HHager 3880 SSchlage L9080
ICorbin/Russwin 2057 TBest 35 HEW and 45H
NArrow B12 UDorma M9000
OYale 7130F-L5 Exit device VMarks 5EW
HiTower® Mod - SDC supplied Schlage mortise lock and electric frame actuator, less lever trim
ZS Schlage L9080
*All Falcon locks must be supplied with 0201000-000 face plate, less hub locking bar
G
E
N
GE
EE
NE
Distributor
Discount Code
O7550
Yale Conversion
SDC S6303FH
SPECIFY FINISH add to list
SPECIFY LEVER TRIM FOR Z, ZR & ZY add to list
GGalaxy with rose N/C GE Galaxy with escutcheon 108.00
EEclipse with rose N/C EE Eclipse with escutcheon 108.00
NNova with rose N/C NE Nova with escutcheon 108.00
07 Schlage style with SDC B rose N/C 07E Schlage style with SDC escutcheon 108.00
Q626 Dull Chrome (standard)
C605 Bright Brass 54.00 G612 Dull Bronze 54.00 S629 Bright Stainless Steel 54.00
D606 Dull Brass 54.00 H613 Oil Rubbed Bronze 54.00 U 630 Dull Stainless Steel 54.00
F611 Bright Bronze 54.00 P625 Bright Chrome 54.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
37
Electrified Locksets
PRICING BY SOURCE AND FUNCTION LK LIST
Sources A, D, I, N, O, P, S, T (see page 36)
Distributor supplied - Major brand mechanical lock for modification, SDC supplied Electric frame actuator
SOURCE/FUNCTION
A, D, H, I, N, P, S, T, U, V 7530 Failsafe, locked both sides 512.00
A, D, H, I, N, O, P, S, T, U, V 7550 Failsafe, locked outside only 475.00
S7560 Failsecure , locked both sides (5.75" Strike plate) 667.00
S7570 Failsecure, locked outside only (5.75" Strike plate) 657.00
Extra Narrow Failsafe Frame Actuator
(Actuator type D, E, F only page 36) For 1-1/4" to 1-1/2" frames. Special strike prep required.
129.00
Not available with failsecure 7560 and 7570
Source ZS (see page 36). Special order, no returns, no cancellation
SDC supplied - Schlage L mortise lock and electric frame actuator, less lever trim
SOURCE/FUNCTION
ZS7530 Schlage Failsafe, locked both sides 1850.00
ZS7550 Schlage Failsafe, locked outside only 1850.00
Sources Z, ZR, ZY: SDC supplied - SDC lever trim, mortise lock and electric frame actuator.
SOURCE/FUNCTION
Z7530 SDC Failsafe, locked both sides with rose trim 752.00
Z7550 SDC Failsafe, locked outside only with rose trim 742.00
Z7560 SDC Failsecure, locked Both sides with rose trim 912.00
Z7570 SDC Failsecure, locked outside only with rose trim 902.00
ZY7530 SDC (Replaces discontinued lock models, see page 36 for details)
Failsafe, locked both sides with rose trim
752.00
ZY7550 SDC (Replaces discontinued lock models, see page 36 for details)
Failsafe, locked outside only with rose trim
742.00
ZR7530 SDC (Replaces 5000 series) Failsafe, locked both sides with rose trim 860.00
ZR7550 SDC (Replaces 5000 series) Failsafe, locked outside only with rose trim 848.00
ZR7560 SDC (Replaces 6000 series) Failsecure, locked both sides with rose trim 912.00
ZR7570 SDC (Replaces 6000 series) Failsecure, locked outside only with rose trim 902.00
Extra Narrow Failsafe Frame Actuator
(Actuator type D, E, F, only page 36) For 1-1/4" to 1-1/2" frames.
Special strike prep required. Not available with ZR or failsecure 7560 and 7570
Add 129.00
Rose Trim N/C
Escutcheon trim Add 108.00
HiTower® PRO
HiTower® MOD
HiTower® MOD
Distributor
Discount Code
Source R (see page 36)
Distributor supplied - Schlage L9080 mechanical lock for modification. SDC supplied Electric frame actuator
SOURCE/FUNCTION
R7530 (Replaces 5000 series) Failsafe, locked both sides 566.00
R7550 (Replaces 5000 series) Failsafe, locked outside only 534.00
HiTower® MOD
OPTIONS AND ACCESSORIES Add to List
Lock status and wire harness
LLatch status switch, SPDT, 5 Amps
@ 30VDC 65.00
SLatch and deadlock status, 3 Amps
@ 30VDC 108.00
SC-10 Socket connectors with 10 ft.
cable, power wiring only 65.00
SC-10-5 Socket connectors with 10 ft. cable
for power and options 83.00
Special Strikes
SSP Special retrofit strike plate 129.00 Specify extended lip strike in writing POA
Electrical back boxes for frame actuators with conduit knockouts:
(Recommended for new construction)
7500EB-S For standard actuator in 1-3/4" or 2" face frame 33.00
7500EB-N For narrow actuator in 1-1/4" or 1-1/2" face frame 33.00
Optional Key Cylinders
CYL-6KDQ 6 pin, 1.125" keyed different, 626 Dull Chrome 33.00
CYL-6KAQ 6 pin, 1.125" keyed alike, 626 Dull Chrome 33.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
38
Exit Devices

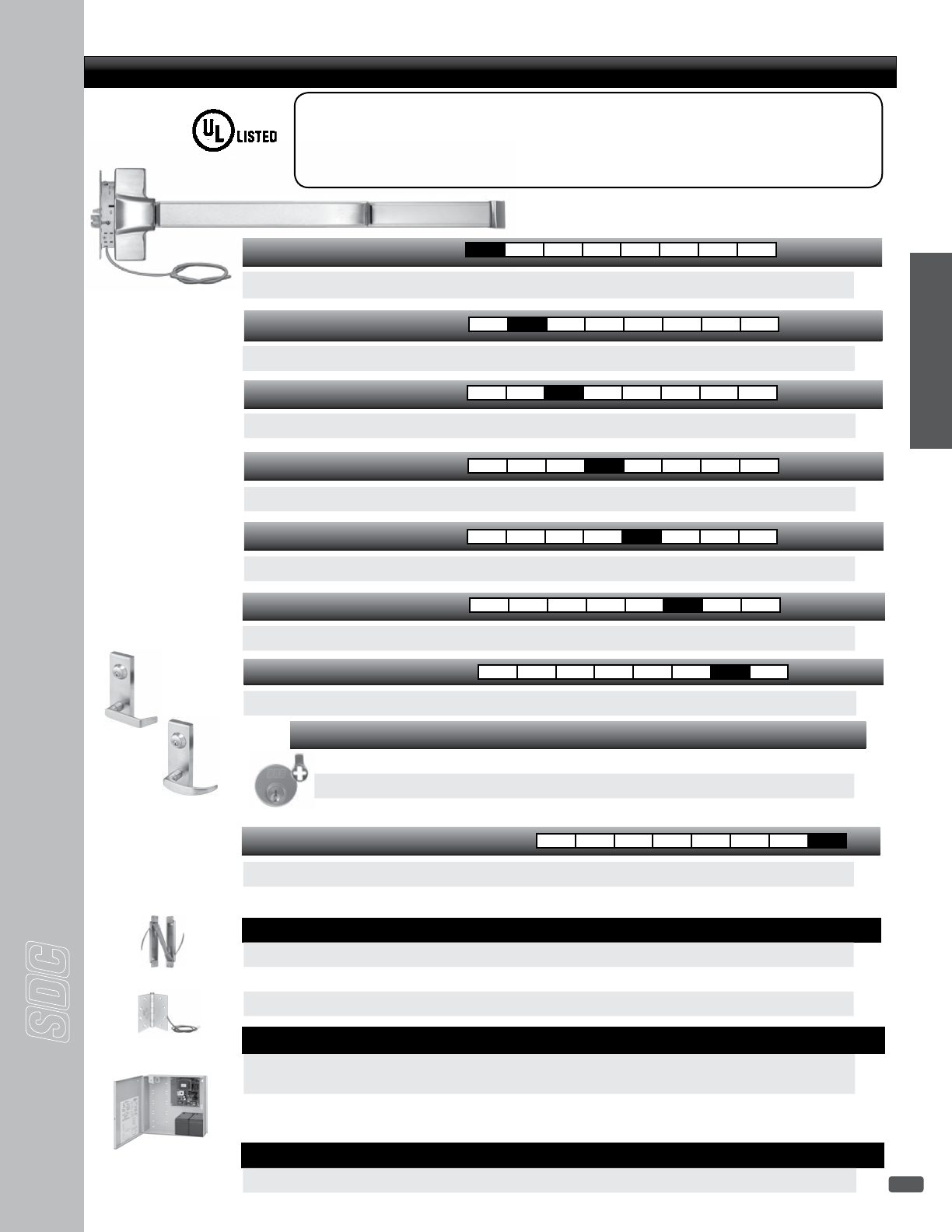

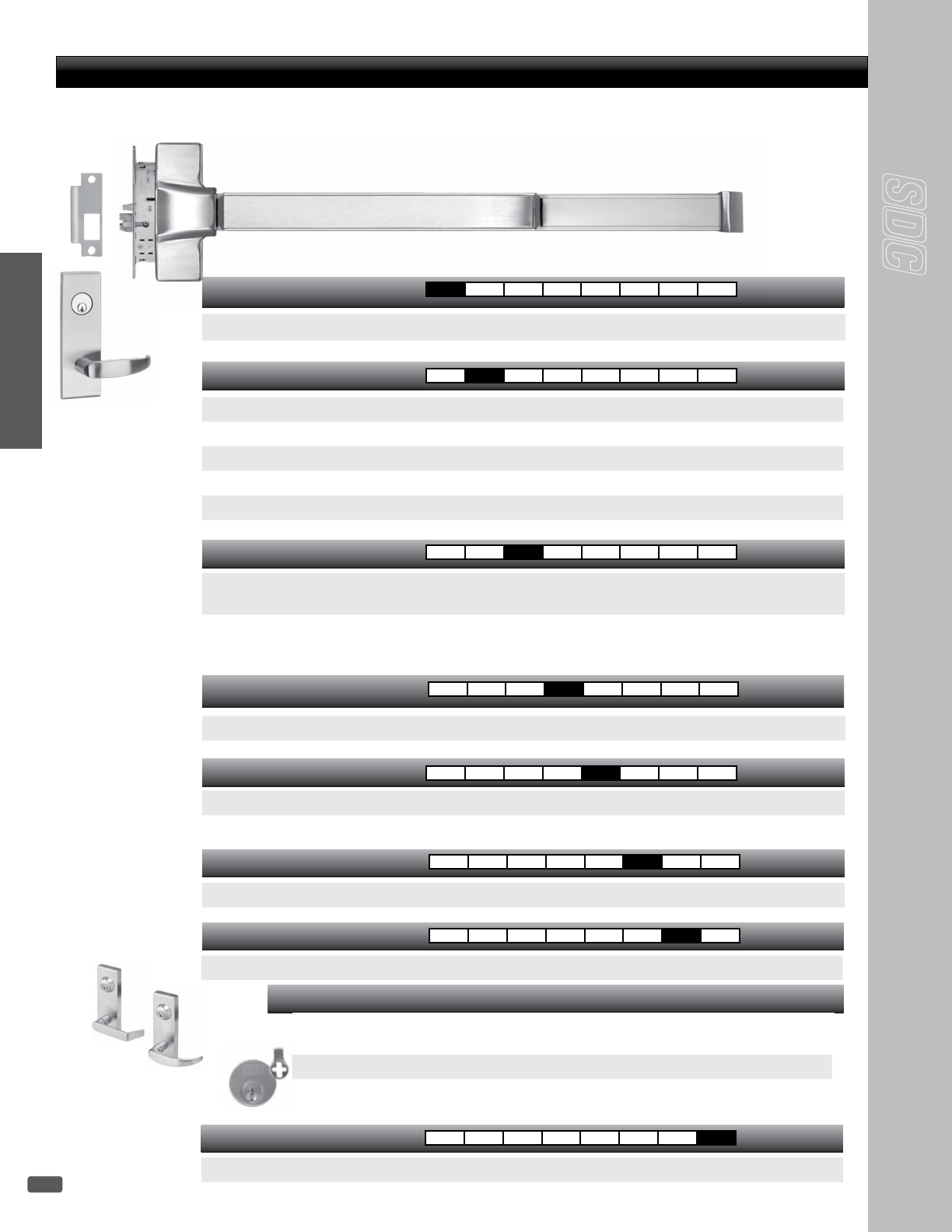

SPECTRA™ S6000 Touch Bar Exit Devices - RIM and SURFACE VERTICAL XK
SDC S6000 Spectra™ Series panic and fire rated exit devices are available in rim mount, mortise and surface
vertical rod configurations. Spectra Class mechanical exit devices are UL listed and ANSI A156.3 Grade 1 compliant
and comply with all national and state building and fire life safety codes.
S6200 SVR Surface Vertical Rod
Panic & Fire Rated Exit Devices ANSI / BHMA Grade 1
• ANSI/BHMA A156.3-2001 Grade 1 Compliant
• CA Title 19 Compliant
• Meets/Exceeds ADA requirements
• UBC 97, Standard 7.2
S6200-LBR SVR
Distributor
Discount Code
SPECTRA SERIES EXIT DEVICE LIST
S61 Rim mount exit device 640.00
S62 Surface vertical 960.00
SPECIFY FUNCTION
01 Exit Only, No Trim N/C
02 Dummy Pull or Lever (opens when dogged) N/C
03 Entrance by trim when latch is released by key N/C
08 Lever with key locks/unlocks lever N/C
14 Lever trim always active N/C
SPECIFY PANIC OR FIRE RATED Add to List
PPanic exit device
Mechanical Dogging STD; See part # CD for optional key cylinder dogging
N/C
FFire exit device
Mechanical dogging not available
118.00
S6100 Rim Mount
SPECIFY OPTIONS Add to List
RRequest-To-Exit Output, SPDT 86.00 LLatch Status Output, SPDT 86.00
For 62 Series devices only:
LBR Less Bottom Rod,
for Panic Devices N/C LBRF Less Bottom Rod,
for Fire Rated devices N/C
SPECIFY LENGTH Add to List
36 For 36" Door N/C 42 For 42" Door 22.00 48 For 48" Door 44.00
SPECIFY FINISH Add to List
U 630 Dull Stainless Steel N/C
CD Keyed dogging (Specify key cylinder separately)
(not available with (F) fire exit device) 22.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
39
Exit Devices

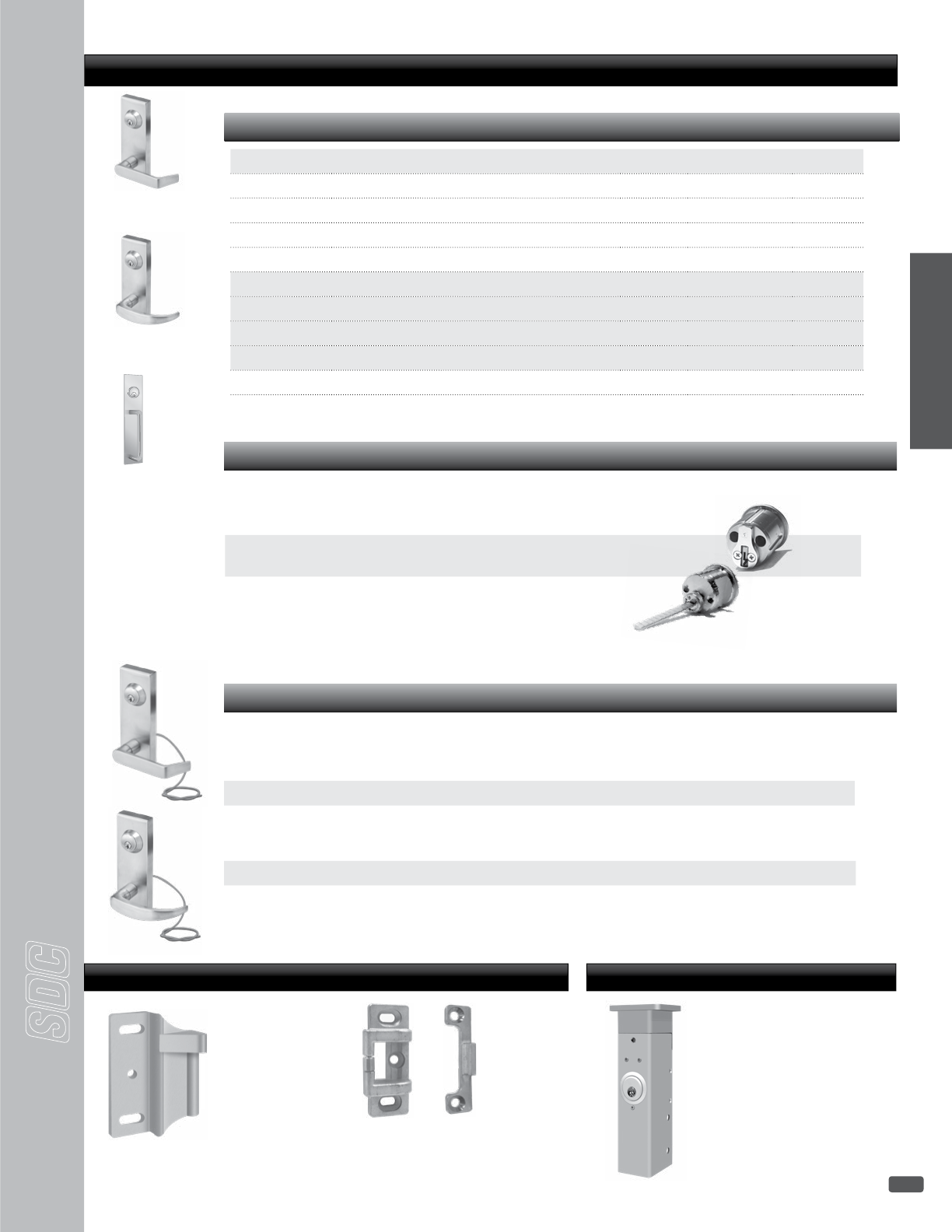

Device Trim XK
Distributor
Discount Code
Optinal Door Strikes LIST
OPTIONAL CYLINDERS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome,
incl. straight cam 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome,
incl. straight cam 33.00
RIM-CYL-KA 6-pin Rim Cylinder, Keyed Alike, Specially for 03 Function
Specifically For Trim EK03, GK03 and SP03 36.00
SPECIFY LEVER TRIM Add to List
Standard Active and Dummy Trim
Eclipse
Galaxy
Saturn
EKE03 Eclipse style electric trim less mortise cylinder, Stainless Steel Finish 720.00
GKE03 Galaxy style electric trim less mortise cylinder, Stainless Steel Finish 720.00
Electric Trim Options
LS Locked/unlocked status, SPDT 3 Amp contact 86.00
EKE03 Eclipse
GKE03 Galaxy
ELECTRIC TRIM OPTIONS FOR SDC 6000 SERIES Add to List
ST1MP
For 6100P
ST1MF
For 6100F
Optional
for mullion
application
Projection: 7/8” (22.5mm)
74.00
ST2DF
Optional for pairs
of doors with rim
mount device.
KR90F
Standard Key
Removable Mullion
For Panic Exit and Fire Exit
Rim Mount Devices
Length: 8ft
Material: 2" 11 Gauge Steel Tube
Finish: Primer gray
Projection: 1-15/16” (49mm)
694.00
52.00
Removable Mullion LIST
FEATURES
• Failsecure, field reversible to failsafe
• 4 ft cable and connectors
• 600/300 mA @ 12/24VDC
• Rim cylinder required for 03
functions
• 1 key cylinder required for CD
option
• Mortise cylinder required for 08
functions and GKE03, EKE03
Trim Type Function Finish Part # Price
Eclipse Dummy Trim 630 EK02U 240.00
Key Retracts Latchbolt 630 EK03U 240.00
Key Locks/Unlocks Lever 630 EK08U 240.00
No Cylinder, Lever Always Active 630 EK14U 240.00
Galaxy Dummy Trim 630 GK02U 240.00
Key Retracts Latchbolt 630 GK03U 240.00
Key Locks/Unlocks Lever 630 GK08U 240.00
No Cylinder, Lever Always Active 630 GK14U 240.00
Saturn Dummy Trim 630 SP02U 108.00
Key Retracts Latchbolt 630 SP03U 108.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
40
Exit Devices
SPECTRA SERIES EXIT DEVICE LIST
S63 Mortise [03 Lever Trim included] 1,174.00
SPECIFY FUNCTION
01 Exit Only, No Trim N/C
02 Dummy Pull or Lever (opens when dogged) N/C
03 Entrance by trim when latch is released by key N/C
08 Lever with key locks/unlocks lever N/C
14 Lever trim always active N/C
SPECIFY PANIC OR FIRE RATED Add to List
PPanic exit device
Mechanical Dogging STD; See part # CD for optional key cylinder dogging
N/C
FFire exit device
Mechanical dogging not available
118.00
SPECIFY HAND
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
SPECIFY FINISH Add to List
U 630 Dull Stainless Steel N/C
SPECIFY LENGTH Add to List
36 For 36" Door N/C 42 For 42" Door 22.00 48 For 48" Door 44.00
SPECIFY OPTIONS Add to List
RRequest-To-Exit Output, SPDT 86.00 LLatch Status Output, SPDT 86.00
SPECIFY TRIM
EE Eclipse Escutheon GE Galaxy Escutheon N/C
S6300 Mortise
EE
GE

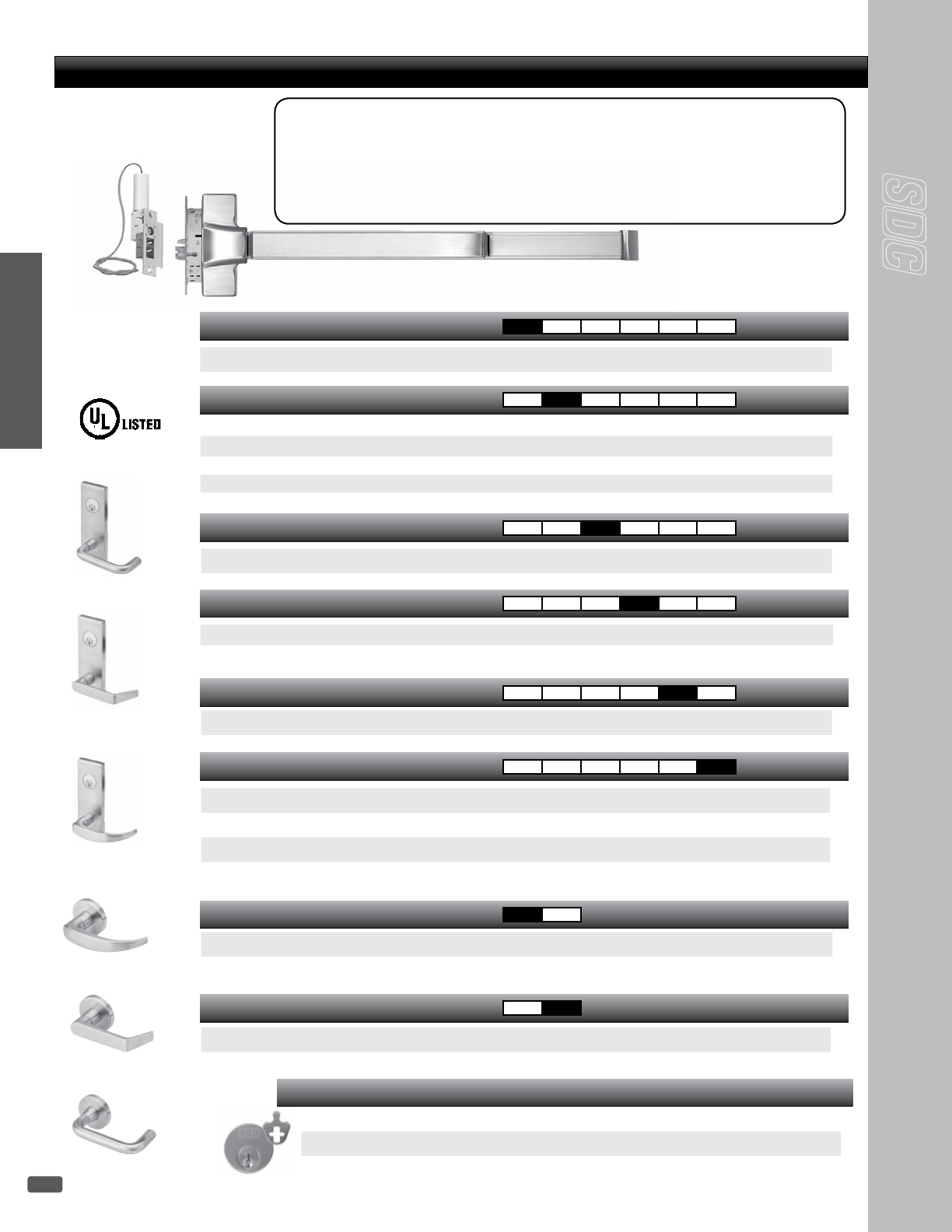

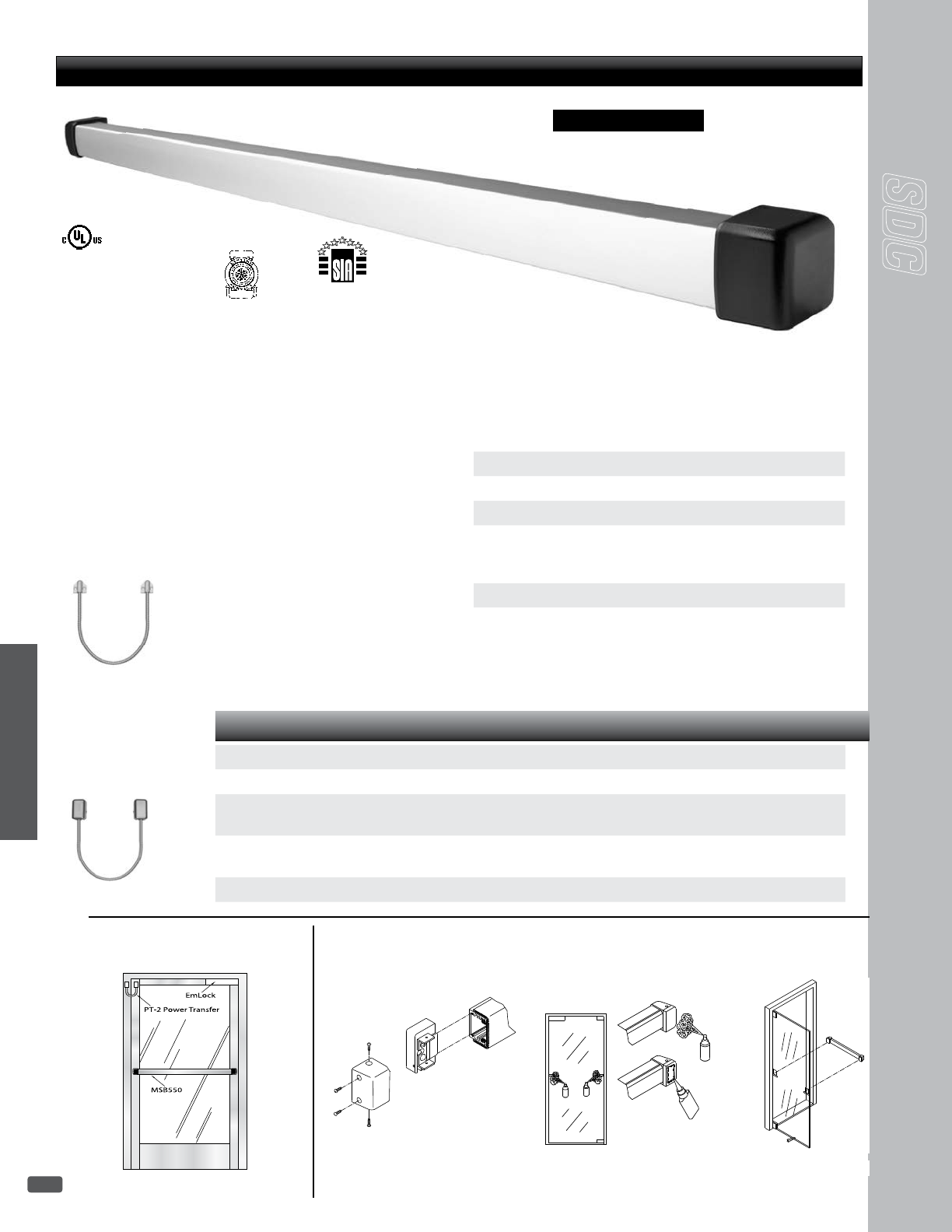

SPECTRA™ S6000 Touch Bar Exit Devices - MORTISE XK
Distributor
Discount Code
TRIM CYLINDER OPTIONS Add to List
CD Keyed dogging (Specify key cylinder separately)
(not available with (F) fire exit device) 22.00
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 33.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
41
Exit Devices
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
42
Exit Devices

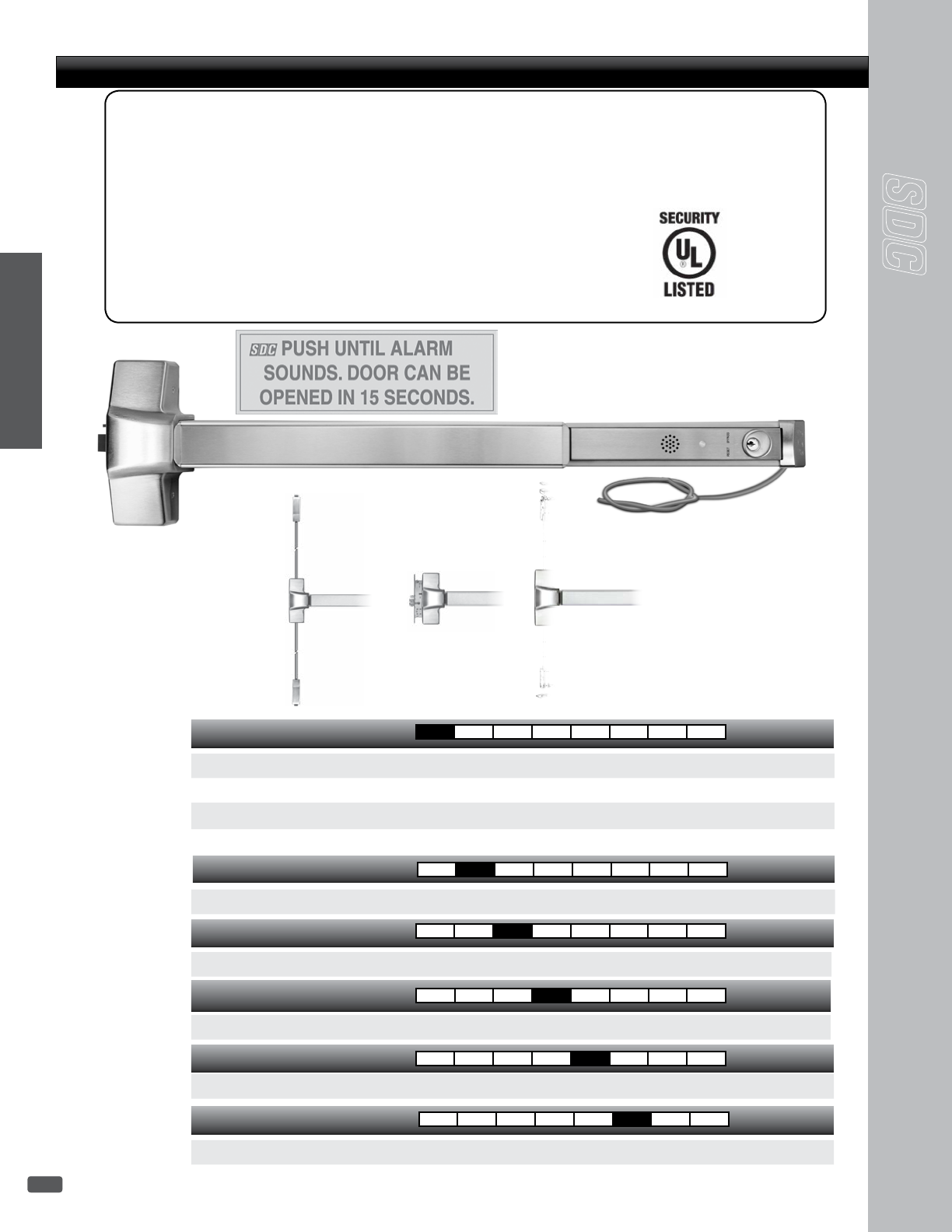

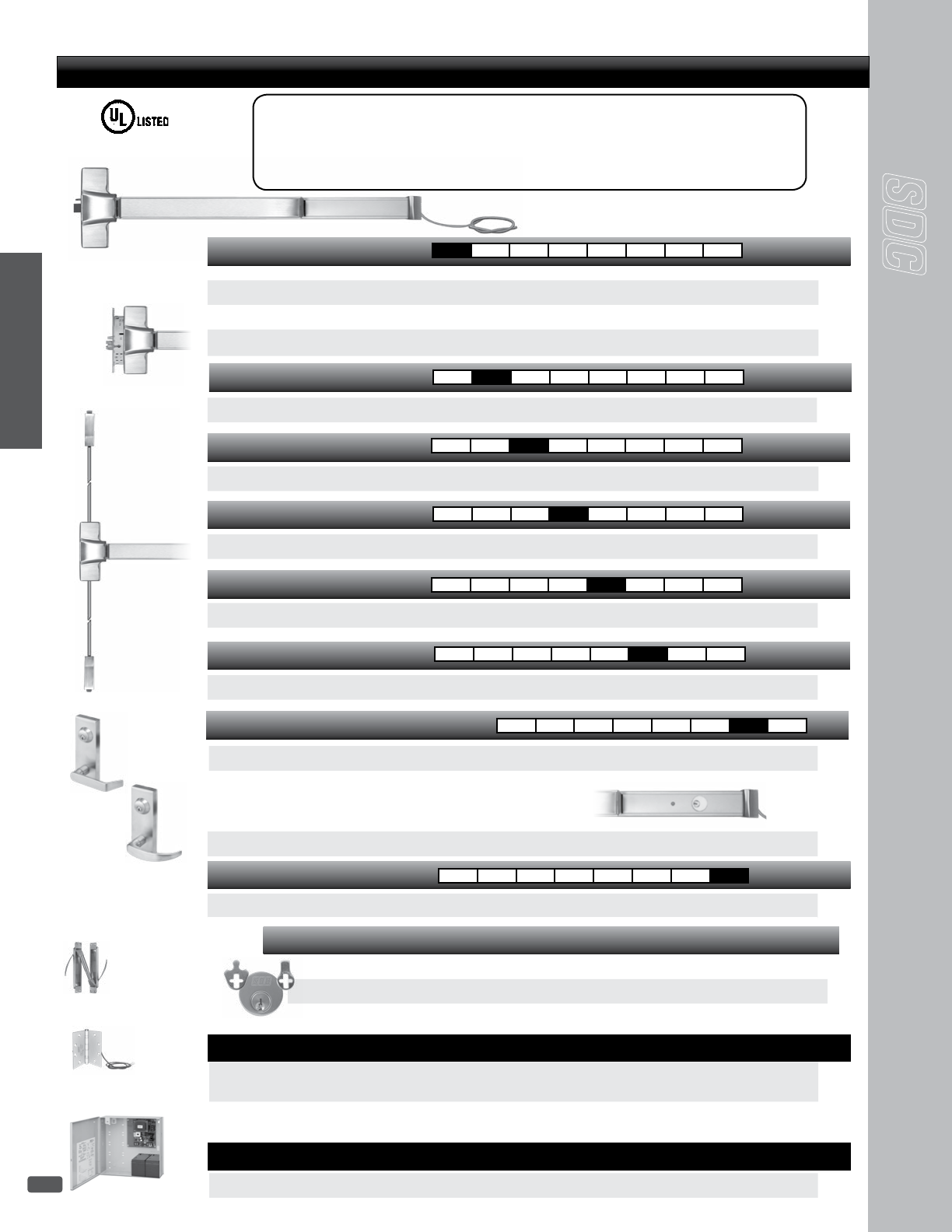

Exit Check® - Delayed Egress All-In-One Device XK
Distributor
Discount Code
SPECIFY FUNCTION
01 Exit Only 02 Dummy 03 Nightlatch N/C
SPECIFY DEVICE LIST
S61 Rim mount exit device 640.00
S62 Surface Vertical - ROD GUARDS SUGGESTED 960.00
S63 Mortise [03 Lever Trim included] - specify: EE/GE Eclipse Escutheon/Galaxy Escutheon 1,174.00
S68 Concealed Vertical 1,067.00
SPECIFY PANIC OR FIRE RATED Add to List
PPanic N/C FFire 118.0 0
Rim Mount
SPECIFY HAND (Mortise Only)
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
U 630 Dull Stainless Steel N/C
SPECIFY FINISH
SPECIFY LENGTH Add to List
36 For 36" Door (standard) N/C 42 For 42" Door 22.00 48 For 48" Door 44.00
The Exit Check® All-In-One Device integrates our premium Spectra™ bar with SDCs innovative delayed egress electronics.
When unauthorized egress is innitiated by depressing the push pad of the S6000-101, an audible alarm will sound and an ir-
reversible delay period of 15 seconds will begin. After the delay period has expired, the device unlocks, permitting egress until
the device is reset. In a life safety emergencty, the device will immediatly unlock upon loss of power or when powered by a fire
control supervised power supply. Door contact included for anti tailgate and door prop.
APPLICATION INCLUDE:
• Restricting the egress of wandering patients for their own safety
• Restricting the egress of commercial center patrons for security application needs
• Controlling pedestrian traffic in transportation facilities, including airport jetways and tarmacs
• Reducing shoplifting and employee theft
Single: 24VDC @ 540 mA Pair: 24VDC @ 790 mA
Vertical Rod Mortise Concealed
Vertical Rod
FWAX
SPECIAL LOCKING
ARRANGEMENTS
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
43
Exit Devices
SPECIFY DELAYED EGRESS Add to List
SPECIFY POWER TRANSFER (For the entire line of Power Transfer, see page 90 and page 91) LIST
PTM-10AL (10) Cond.,5 Amp @ 12/24V AC/
DV, Alum US28
383.00 PTH-10Q (10) Cond.,1 Amp @ 12/24V
per pair, 4.5” x 4.5”
209.00
PT-5 UL Listed Concealed Power
Transfer Device, less wires
65.00 PT-3V Armored flex conduit, less
wires, with wire junction box
49.00
SPECIFY POWER SUPPLY (For the entire line of Power Suplies, see page 93) LIST
602RF 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box 279.00
631RF 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box 374.00
EK
GK
PTH x 5
Ft Cable
PTM Series
600 Series
Power Supply
602RF
(shown)
SPECIFY OPERATION
101 Electrification of master exit device and integrated controller with key switch control and
reset, less cylinder
1,440.00
DES For pair of doors, additional exit device equipped with delayed egress mechanism, less
integrated controller. Must be ordered together with 101 device.
534.00
EKE
GKE
PT5 PT-3V
NC IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant
Fixed 15 exit delay, 1 or 2 second nuisance delay
Calif. Building Code OSHPD/Manual Power Up
N/C
ND IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant
Fixed 15 exit delay, 1 or 2 second nuisance delay
N/C
BC BOCA National Building Code and Chicago Building Compliant
15 second fixed exit delay, 0 second nuisance delay, auto reset 30 seconds after door closure
N/C
BD BOCA National Building Code
15 second fixed exit delay, 1 or 2 second nuisance delay, auto reset 30 seconds after
door closure
N/C
Note: 600 series Power Supply required with S6000-101 for UL listing

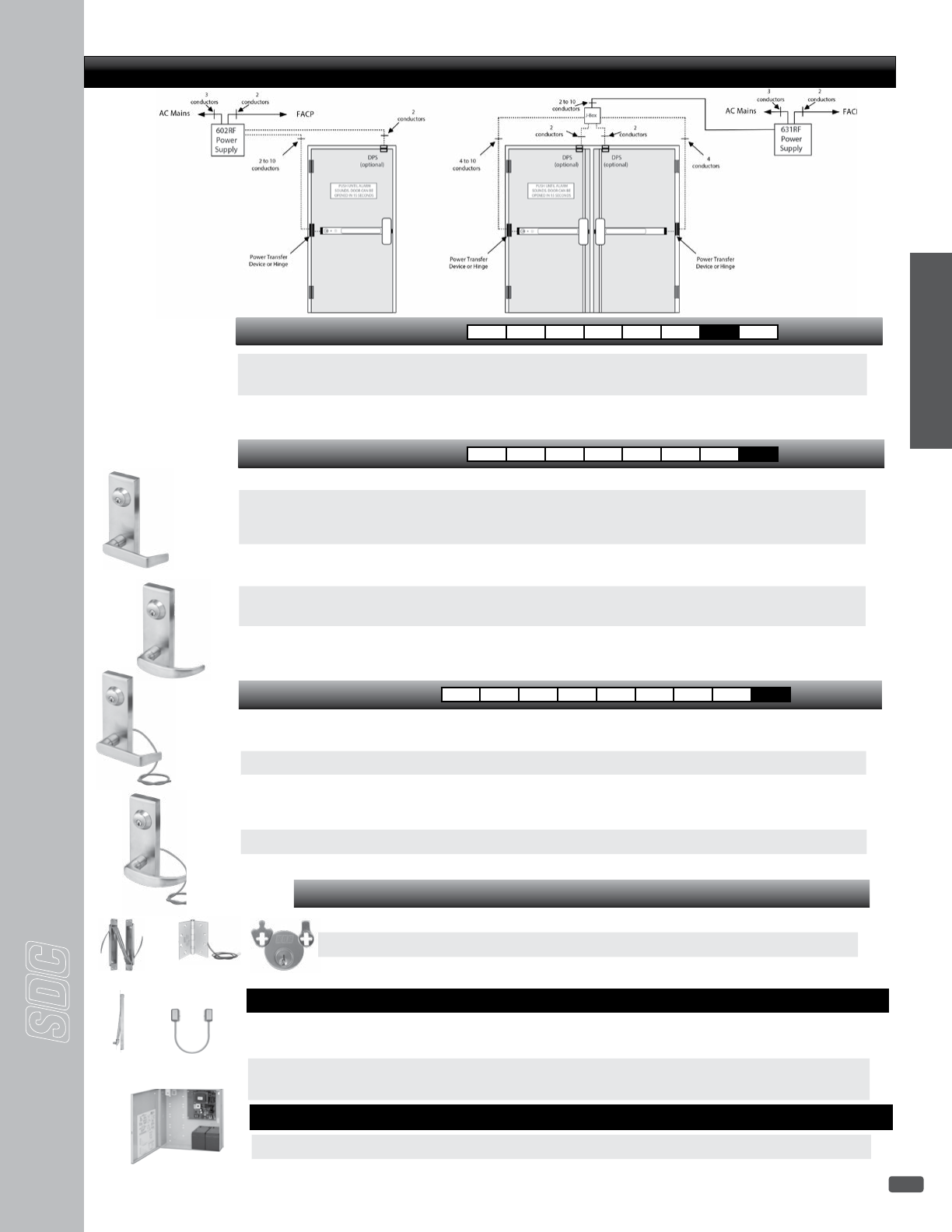

Exit Check® - Delayed Egress All-In-One Device XK
Distributor
Discount Code
SPECIFY TRIM (optional) Add to List
EK03U Eclipse Escutheon GK03U Galaxy Escutheon 240.00
EKE03U Eclipse style electric trim less mortise cylinder, Stainless Steel Finish 720.00
GKE03U Galaxy style electric trim less mortise cylinder, Stainless Steel Finish 720.00
Electric Trim
• Failsecure, field reversible to failsafe
• 4 ft cable and connectors
• 600/300 mA @ 12/24VDC
FOR S61 RIM, S62 SURFACE AND S68 CONCEALED VERTICAL ONLY
Mechanical Trim (less cylinder)
S61000-101 Rim Device
Single Door Application
S62000-101 Surface
Vertical Rod Device
Double Door Application
If no Code is specified - ND is the SDC STA N DARD OPERATIONS MODE for this product
S6200-101 S6200-DES
S6100-101
TRIM OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 33.00
RIM-CYL-KA Rim Cylinder for 03 Function, keyed alike -
see page 39 for more info
36.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
44
Exit Devices
EE Eclipse Escutheon GE Galaxy Escutheon N/C
NA IBC, IFC, NFPA compliant, Field Selectable 15 to 30 second Exit Delay, 1 or 2 Nuisance Delay N/C
NC IBC, IFC, NFPA 101, NFPA 1-UFC, UBC, SBC compliant, Fixed 15 second Exit Delay, 0/1 Nuisance Delay,
Calif. Building Code OSHPD/Manual Power Up
N/C
ND IBC, IFC, NFPA 101, NFPA 1-UFC, UBC, SBC compliant, Fixed 15 second Exit Delay, 0/1 Nuisance Delay N/C
BC BOCA National Building Code/City of Chicago Compliant, Fixed 15 second Exit Delay, 0 Nuisance Delay,
Auto Reset 30 seconds
N/C
BD BOCA National Building Code, Fixed 15 second Exit Delay, 0/1 Nuisance Delay, Auto Reset 30 seconds N/C
SPECIFY CONTROLER
Vertical Rod

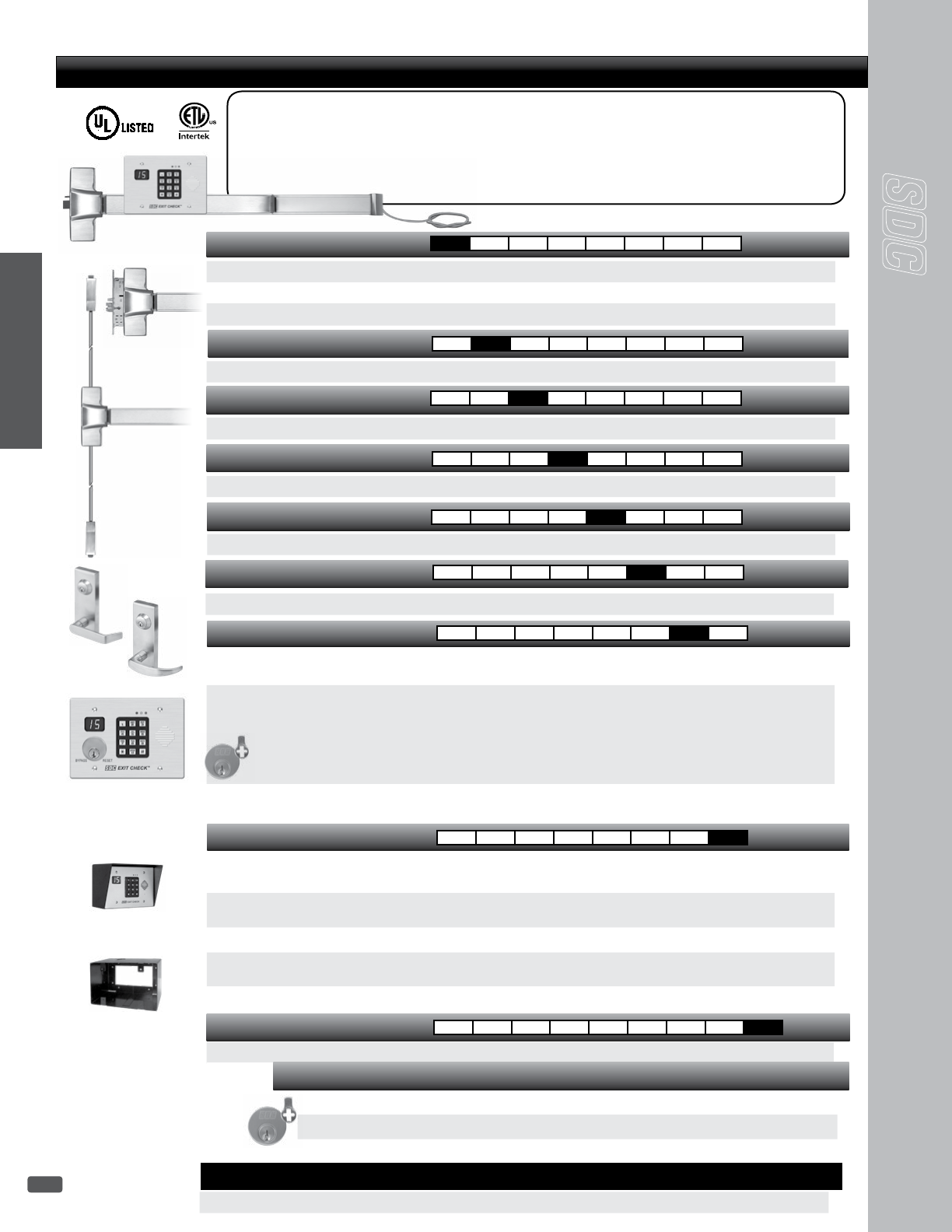

Exit Device - Delayed Egress XK
Distributor
Discount Code
SPECIFY FUNCTION Add to List
01 Exit Only 02 Dummy 03 Nightlatch N/C
SPECIFY DEVICE LIST
S61 Rim mount exit device 640.00
S62 Surface vertical 960.00
S63 Mortise [03 Lever Trim included] - specify: EE/GE Eclipse Escutheon/Galaxy Escutheon 1,174.00
SPECIFY PANIC OR FIRE RATED
PPanic N/C FFire 118.0 0
Mortise
SPECIFY HAND (Mortise Only)
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
U 630 Dull Stainless Steel N/C
SPECIFY FINISH
SPECIFY LENGTH
36 For 36" Door N/C 42 For 42" Door 22.00 48 For 48" Door 44.00
SPECIFY TRIM (Mortise Only)
EE
GE
Delay electronics packaged on a 3-gang wall plate for recessed wall mounting or surface wall mounting
with optional junction box. Features include: 15 second exit delay, 1 or 2 second nuisance delay, code
dependent exit delay and nuisance times. Keypad for violation reset, momentary bypass and on-off; Voice
Annunciation and digital countdown display with door open indicator. Status and remote control inputs are
standard Single: 24VDC @ 430 mA Tandem: 24VDC @ 680 mA
SPECIFY OPERATION
DE Electrification of master exit device and wall mount controller with keypad control and reset 1,333.00
KDE Electrification of master exit device and wall mount controller with both keypad and key
switch control and reset, less cylinder - order cylinder seperte:
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome add 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome add 33.00
1,440.00
DES For pair of doors, additional exit device equipped with delayed egress mechanism, less
controller. Must be ordered together with DE and device.
534.00
See page for features
DEC-J 3 Gang Interior - 101-DEC 97.00 SHD-J Shroud for outdoor Use DEC-J 97.00
SPECIFY OPTIONS FOR CONTROLER LIST
101-DE with SHD-J
DEC-J
101-KDE
Specify Trim for
S61 and S62 -
See page 39
Rim Mount
If no Code is specified - NA is the SDC STA N DARD OPERATIONS MODE for this product
TRIM OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 33.00
RIM-CYL-KA Rim Cylinder for 03 Function, keyed alike
- see page 39 for more info
36.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
45
Exit Devices
• LED (field selectable Active or Off) Bypass - No LED
• Armed - Blinks every 4 seconds (Green when armed,
Red when in alarm mode
• Low Battery Alert – Siren will beep every 45 seconds.
• 15 or 60 second arming delay
• Remote status output
• Field selectable alarm modes include:
› Continuous alarm with manual key reset
› Alarm automatically rearms 2 minutes after
door closes and may be retriggered.
May be manually rearmed by key before
automatically rearmed.
Options
AR6 6 or 10 minute alarm with auto rearm
and manual key reset.
AR20 20 minute alarm with auto rearm
and manual key reset
AD1 1 second arming delay

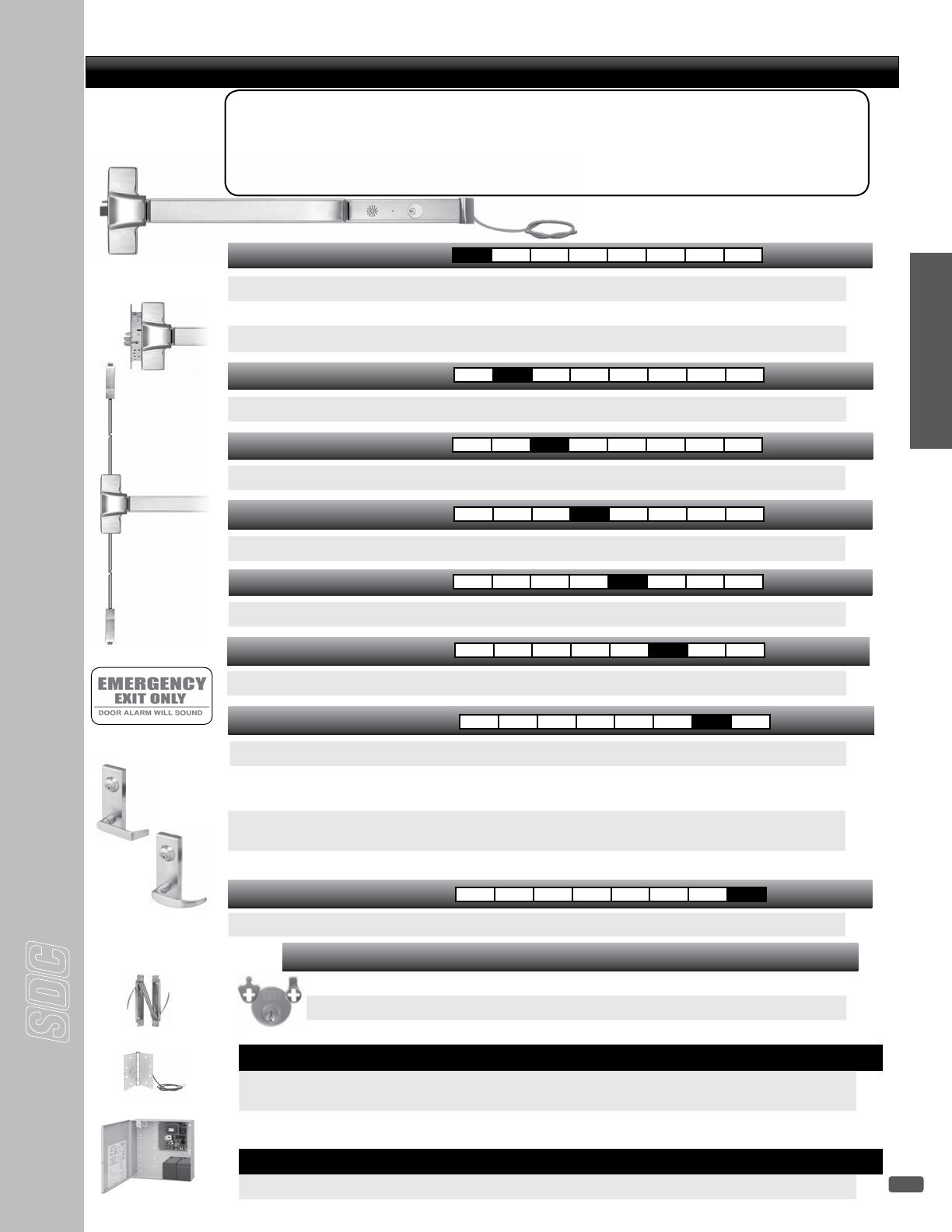

Exit Devices - Alarmed Exit XK
Distributor
Discount Code
SPECIFY EXIT ALARM
AExit Alarm, 9V Battery Powered 427.00
BExit Alarm with 12/24V AC/DC input (9V battery provides power backup) 470.00
Vertical Rod
SPECIFY FUNCTION Add to List
01 Exit Only 03 Nightlatch N/C
SPECIFY DEVICE LIST
S61 Rim mount exit device 640.00
S62 Surface vertical 960.00
S63 Mortise [03 Lever Trim included] - specify: EE/GE Eclipse Escutheon/Galaxy Escutheon 1,174.00
SPECIFY PANIC OR FIRE RATED
PPanic N/C FFire 118.0 0
Rim Mount
Mortise
SPECIFY HAND (Mortise Only)
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
SPECIFY FINISH
U 630 Dull Stainless Steel N/C
SPECIFY LENGTH
36 For 36" Door N/C 42 For 42" Door 22.00 48 For 48" Door 44.00
SPECIFY TRIM (Mortise Only)
EE Eclipse Escutheon GE Galaxy Escutheon N/C
SPECIFY POWER TRANSFER (For the entire line of Power Transfer, see page 90 and page 91) LIST
PTM-2AL Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DV, Aluminum Powder Coat, US28 equivalent
383.00
PTH-4Q Four (4) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair, 4.5” x 4.5” standard weight, 626 Dull Chrome
161.00
SPECIFY POWER SUPPLY (For the entire line of Power Suplies, see page 93) LIST
602RF 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box 279.00
631RF 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box 374.00
EE
GE
PTH x 5 Ft Cable
PTM Series
600 Series Power Supply
602RF (shown)
TRIM OPTIONS (NOTE: use Clover Cam for S63) Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 33.00
RIM-CYL-KA Rim Cylinder for 03 Function, keyed alike
- see page 39 for more info
36.00
Specify Trim for
S61 and S62 -
See page 35
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
46
Exit Devices
HiTower Pro® S6303FH Electrified Mortise Exit Device XK
EE03 Eclipse
GE03 Galaxy
See SDC power
supplies with fire
command interface
for emergency release
of exit device
G03 Galaxy
E03 Eclipse
SPECIFY FINISH
U 630 Dull Stainless Steel (std) N/C
SPECIFY LENGTH
36 For 36" Door (std) N/C
42 For 42" Door 21.00 48 For 48" Door 42.00
SPECIFY HAND
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
ACTUATOR VOLTAGE AND FRAME SIZE Add to List
A115VAC 0.2 Amp N/C D115VAC 0.2 Amp 129.00
B24VAC 0.5 Amp N/C E24VAC 0.5 Amp 129.00
C24VDC 0.5 Amp N/C F24VDC 0.5 Amp 129.00
Failsafe actuator for 1-3/4" to 2" face frames Narrow failsafe actuator for 1-1/4" to 1-1/2" face frames
SPECTRA SERIES EXIT DEVICE LIST
S6303FH Fire rated mortise exit device with electric frame actuator, key retracts latch 1,978.00
OPTIONAL STATUS OUTPUTS
LLatch position status output, SPDT, 3 Amp 65.00
SLatch & deadlocked status output, SPDT, 3 Amp 108.00
SC10 Socket connectors with 10ft. cable, power wiring only 65.00
SC10-5 Socket connectors with 10ft. cable for power and options 83.00
SPECIFY TRIM
EE03 Eclipse x Escutcheon GE03 Galaxy x Escutcheon NE03 Nova x Escutcheon N/C
E03 Eclipse G03 Galaxy N03 Nova N/C
SPECIFY TRIM FINISH
U 630 Dull Stainless Steel (std) N/C
NE03 Nova
N03 Nova
Distributor
Discount Code
Electric Frame Actuator Controlled Exit Device
FEATURES
• Fire rated exit device
• Failsafe, unlocks by access control, power
loss or signal from fire command center
• For use with fire rated exit and stairwell doors
• Door stays latched even when unlocked
• All wiring maintained in the strike jamb
• Complies with all national codes
• No power transfer hinge
TRIM OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 33.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
47
Exit Devices
SPECIFY FUNCTION Add to List
01 Exit Only 03 Nightlatch N/C
SPECIFY DEVICE LIST
S63 Mortise [03 Lever Trim included] - specify: EE/GE Eclipse Escutheon/Galaxy Escutheon 1,174.00
SPECIFY PANIC OR FIRE RATED
PPanic N/C FFire 118.0 0
SPECIFY HAND (Mortise Only)
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
SPECIFY FINISH
U 630 Dull Stainless Steel N/C
SPECIFY LENGTH
36 For 36" Door N/C 42 For 42" Door 22.00 48 For 48" Door 44.00
SPECIFY TRIM
EE Eclipse Escutcheon GE Galaxy Escutcheon N/C
SPECIFY FAILSAFE OR FAILSECURE
MF Failsafe Electric Mortise Exit Device 214.00
MS Failsecure Electric Mortise Exit Device 214.00
Exit Device - Electrified Mortise XK
Distributor
Discount Code
Remains latched when unlocked for fire door integrity. Failsafe (F) fire rated device for stairwell doors,
power loss or signal from fire command center releases failsafe device immediatly. Complies with
national building and fire codes
Voltage: 12/24VDC @ 600/300 mA
EE
GE
PTH x 5 Ft Cable
PTM Series
SPECIFY POWER SUPPLY (For the entire line of Power Suplies, see page 93) LIST
602RF 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box 279.00
631RF 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box 374.00
SPECIFY POWER TRANSFER (For the entire line of Power Transfer, see page 90 and page 91) LIST
PTM-2AL Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DV, Aluminum Powder Coat, US28 equivalent
383.00
PTH-4Q Four (4) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair, 4.5” x 4.5” standard weight, 626 Dull Chrome
161.00
SPECIFY OPTIONS LIST
DDoor Position, MC-4 Door Contact 54.00
LLatch Position Status Output 86.00
RRequest-To-Exit Output 86.00
600 Series Power Supply
602RF (shown)
TRIM OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 33.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
48
Exit Devices
SPECIFY ELECTRIC DOGGING
When energized by optional built-in (KS) or remote switch, manual depressing the pushpad
causes the pushpad and latch to remain retracted (unlocked) providing push-pull door
operation. When de-energized or signaled by a fire alarm, the pushpad and latch are released.
Voltage: 12/24VDC @ 170/100 mA
GElectric Dogging 470.00
Vertical Rod
Exit Device - Electric Dogging XK
Distributor
Discount Code
SPECIFY FUNCTION Add to List
01 Exit Only 02 Dummy 03 Nightlatch N/C
SPECIFY DEVICE LIST
S61 Rim mount exit device 640.00
S62 Surface vertical 960.00
S63 Mortise [03 Lever Trim included] - specify: EE/GE Eclipse Escutheon/Galaxy Escutheon 1,174.00
SPECIFY PANIC OR FIRE RATED
PPanic N/C FFire 118.0 0
Rim Mount
Mortise
SPECIFY HAND (Mortise Only)
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
SPECIFY FINISH
U 630 Dull Stainless Steel N/C
SPECIFY LENGTH
36 For 36" Door N/C 42 For 42" Door 22.00 48 For 48" Door 44.00
SPECIFY TRIM (Mortise Only)
EE Eclipse Escutheon GE Galaxy Escutheon N/C
SPECIFY POWER TRANSFER (For the entire line of Power Transfer, see page 90 and page 91) LIST
PTM-2AL Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DV, Aluminum Powder Coat, US28 equivalent
383.00
PTH-4Q Four (4) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair, 4.5” x 4.5” standard weight, 626 Dull Chrome
161.00
SPECIFY POWER SUPPLY (For the entire line of Power Suplies, see page 93) LIST
602RF 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box 279.00
631RF 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box 374.00
EE
GE
PTH x 5 Ft Cable
PTM Series
Options
KS Built-in key switch 86.00
L1 Dogged Status Indicator, less cylinder, green = dogged (unlocked) 40.00
600 Series Power Supply
602RF (shown)
TRIM OPTIONS (NOTE: use Clover Cam for S63) Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 33.00
RIM-CYL-KA Rim Cylinder for 03 Function, keyed alike
- see page 39 for more info
36.00
Specify Trim for S61
and S62 - See page 39
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
49
Exit Devices
Momentary or maintained latch bolt and push pad retraction, with simultaneous dogging.
Automatic re-triggering of latch retraction
Voltage: 24VDC @ 700 mA activation, 200 mA continuous
Vertical Rod
Exit Device - Electric Latch Retraction/Dogging XK
Distributor
Discount Code
SPECIFY FUNCTION Add to List
01 Exit Only 02 Dummy 03 Nightlatch N/C
SPECIFY DEVICE LIST
S61 Rim mount exit device 640.00
S62 Surface vertical 960.00
S63 Mortise [03 Lever Trim included] - specify: EE/GE Eclipse Escutheon/Galaxy Escutheon 1,174.00
SPECIFY PANIC OR FIRE RATED
PPanic N/C FFire 118.0 0
Rim Mount
Mortise
SPECIFY HAND (Mortise Only)
RR Right hand reverse bevel, RHRB LR Left hand reverse bevel, LHRB N/C
SPECIFY FINISH
U 630 Dull Stainless Steel N/C
SPECIFY LENGTH
36 For 36" Door N/C 42 For 42" Door 22.00 48 For 48" Door 44.00
SPECIFY ELECTRIC LATCH RETRACTION
EDual Electric Latch Retraction and Dogging 747.00
EM External Module Dual Electric Latch Retraction/Dogging 801.00
SPECIFY POWER TRANSFER (For the entire line of Power Transfer, see page 90 and page 91) LIST
PTM-2AL Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DV, Aluminum Powder Coat, US28 equivalent
383.00
PTM-10AL Ten (10) Conductor Power Transfer Device: Ten (10) 24 Ga. wire
1 Amp @ 12/24V AC/DC, Aluminum Powder Coat, US28 equivalent
383.00
PTH-4Q Four (4) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair, 4.5” x 4.5” standard weight, 626 Dull Chrome
161.00
PTH-10Q Ten (10) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair, 4.5” x 4.5” standard weight, 626 Dull Chrome
209.00
SPECIFY TRIM (Mortise Only)
EE Eclipse Escutheon GE Galaxy Escutheon N/C
SPECIFY POWER SUPPLY (For the entire line of Power Suplies, see page 93) LIST
602RF 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box 279.00
631RF 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box 374.00
EMC Sequencer Module (For other Modules and pairs of doors see page 95)161.00
EE
GE
PTH x 5 Ft Cable
PTM Series
EM
E
SDC 600 Series
Power Supply
600 Series Power Supply
602RF (shown)
Specify Trim for S61
and S62 - See page 39 TRIM OPTIONS (NOTE: use Clover Cam for S63) Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 33.00
RIM-CYL-KA Rim Cylinder for 03 Function, keyed alike
- see page 39 for more info
36.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
50
Exit Devices

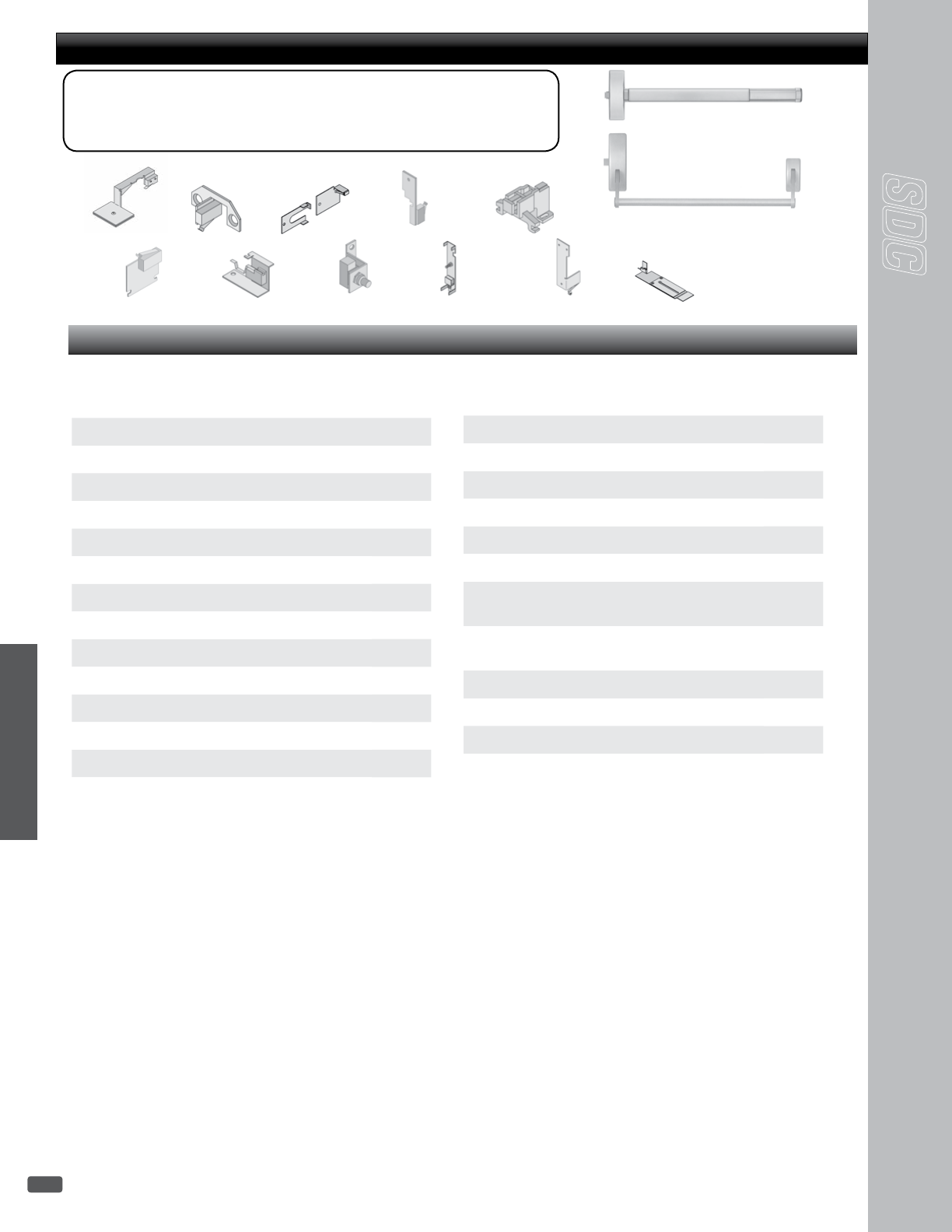

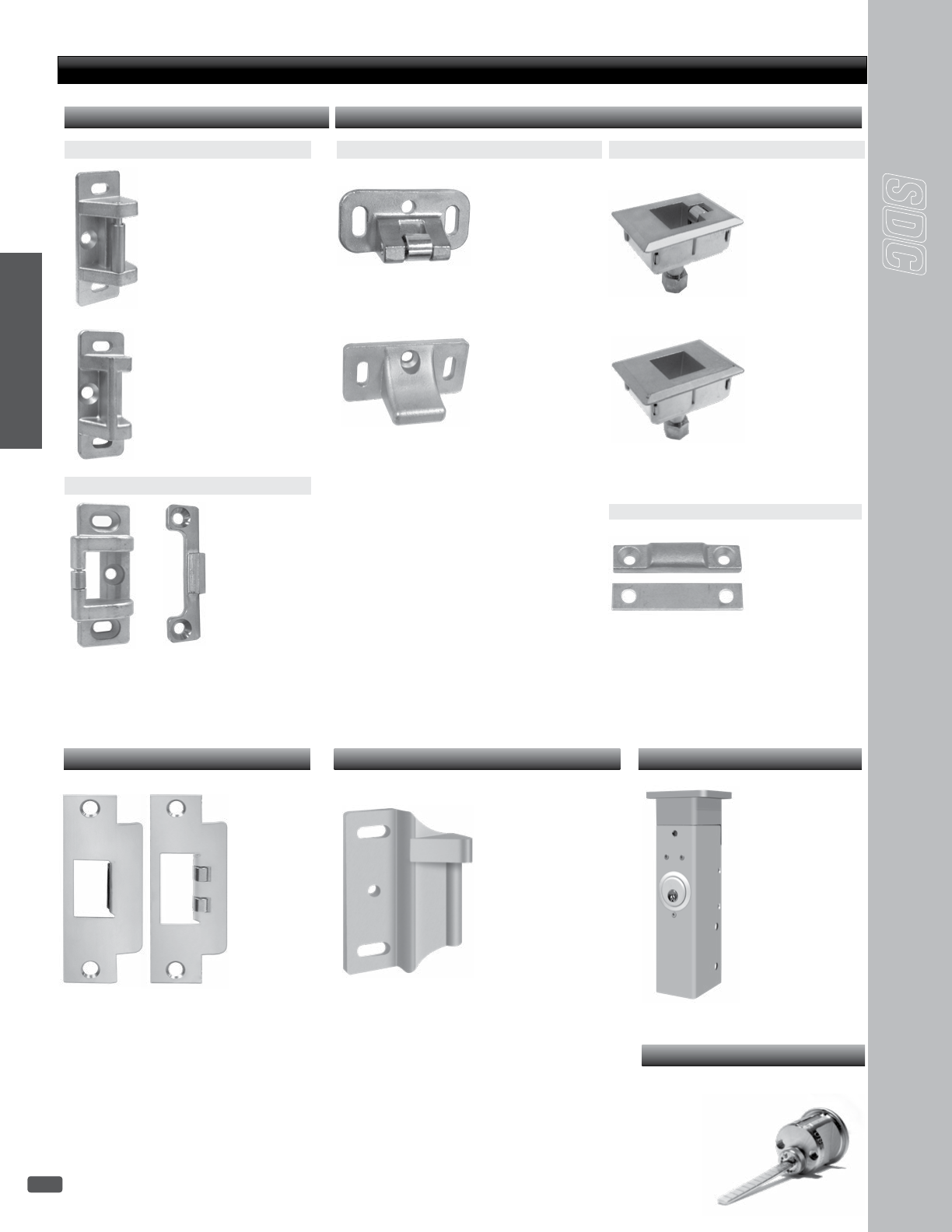

RIM DEVICES STANDARD STRIKES SURFACE / Standard VERTICAL ROD DEVICES Strike
REMOVABLE MULLION List
EXIT DEVICE STRIKES XK
ST1P
Standard for
S6100P
ST1MP
For 6100P
ST3F
Standard for
S6300F
ST1MF
For 6100F
ST3P
Standard for
S6300P
ST1F
Standard for
S6100F
ST2P
Standard top
strike for
S6200P
ST28P
Standard floor
strike for
S6200P
ST2F
Standard top
strike for
S6200F
ST2DF
Optional for
pairs of doors
with rim mount
device.
KR90F
Standard Key
Removable Mullion
Less Key Cylinder
For Panic Exit and
Fire Exit Rim Mount
Devices.
Length: 8ft
Material: 2" 11 Gauge
Steel Tube
Finish: Primer gray
ST28F
Standard floor
strike for
S6200F
Optional for
mullion
application
For use
on 1-3/4”
standard or
2-1/4” thick
single door
, and 2-1/4”
double door
with overlap-
ping astragal
and coordi-
nator
Projection: 13/16” (21mm)
Projection: 13/16” (21mm)
Projection: 29/32” (23mm)
Projection: 1-1/8” (29mm)
Projection: 1-15/16” (49mm)
Mortise: 2-1/4” (57mm)
Projection: 7/8” (22.5mm)
Rim Strikes List Top Strikes List Bottom (Floor) Strikes List
Optional Mullion Strike List
Optional Threshold Strikes List
ST28T
Optional floor
strike for using
threshold
openings
Projection: 3/8” (9.5mm)
22.00 20.00 22.00
20.00 33.00
16.00
694.00
52.00
22.00
74.00
20.00
MORTISE STRIKE List OPTIONAL DOUBLE DOOR STRIKE List
Distributor
Discount Code
RIM-CYL-KA 36.00
Rim Cylinder, keyed alike
- see page 39 for more info
OPTIONAL CYLINDER List
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
51
Exit Devices
Distributor
Discount Code
QUIET DUO™ LR100 700mA Dual Latch Retraction / Dogging Kit XK
SDC Factory Installed Kits are UL Listed and Field Retrofit Kits are UL Classified
For use with 3Hr fire rated and non-fire rated mechanical exit devices.
Only 700mA inrush / 200mA continuous @ 24VDC provides simultaneous latch retraction,
dogging with pushpad depression unless specified otherwise.
Distributor
Discount Code
CSFM, MEA
Listed
LR100 Series
SDC 600 Series
Power Supply
LR100EM
Series
Rim Device Surface Vertical
Device
Concealed Vertical
Device
Mortise Device
Standard Opening Width 36"
32" Opening (36" Device Modified for 32" Opening)
Measurements above are example only - all devices vary
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
52
Exit Devices
Design Hardware Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100DHK 650.00 LR100DH 702.00
Models
Rim Mount 1000R
Surface Vertical Rod 1000V
Corbin Russwin ED Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100CRK 650.00 LR100CR 702.00
30"
LR100CRK-EM
702.00 LR100CR-EM 754.00
42" - 48"
LR100CRK-42/48
650.00
LR100CR-42/48
702.00
Models
Rim Mount ED5200 / ED4200
Surface Vertical Rod ED5400
Concealed Vertical Rod ED4800 / ED5800
Options
LRCR1L Latch Status Kit 108.00
LRCR1R REX Status Kit 108.00
Detex Exit Device
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100DXK 650.00 LR100DX 702.00
Models
Rim Mount 10 / 40 Series
Surface Vertical Rod 20 / 50 Series
Concealed Vertical Rod 80 / 81 / 62 / 63 Series
Options
LRDX1R REX Status Kit 108.00
Arrow 1000 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" - 48" LR100AWK 650.00 LR100AW 702.00
Models
Rim Mount S1250
Surface Vertical Rod S1150
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"
LR100AWK-ED910
650.00
LR100AW-ED910
702.00
Models
Rim Mount ED910
QUIET DUO™ LR100: Product Compatibility
* Note: Retracts only the latch ‡ use with EM version ONLY
Adams Rite Exit Device
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" LR100ARK 650.00 LR100AR 702.00
30"
LR100ARK-EM
702.00 LR100AR-EM 754.00
Models
Rim Mount 8700 ‡ / 8800 / 3700
Surface Vertical Rod 8100 / 8200 / 3100
Concealed Vertical Rod 8500 / 8600 / 3600
Options
LRAR1R REX Status Kit 108.00
Cal-Royal Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100CAK 650.00 LR100CA 702.00
Models
Rim Mount 7700 / F7700
Surface Vertical Rod 7760 / F7760
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"
LR100CAK-9800
650.00 LR100CA-9800 702.00
Models
Rim Mount GLS9800
Concealed Vertical Rod GLSCVR9800
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"
LR100CAK-EM
702.00 LR100CA-EM 754.00
Models
Rim Mount 2200 / F2200 / 9800 / F9800
Surface Vertical Rod 2260 / F2260 / 9860 / F9860
Options
LRCA2R REX Status Kit
for 7700 / F700 / 7760 / F7760
108.00
LRCA1R REX Status Kit
for 9800 / GLSCR9800 Series
108.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
53
Exit Devices
Dorma Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100DAK 650.00 LR100DA 702.00
Models
Rim Mount 9300 / F9300
Surface Vertical Rod 9400 / F9400
Falcon 24/25 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100FRK 650.00 LR100FR 702.00
Models
Rim Mount 25-R / F-25-R / 24-R / F-24-R
Surface Vertical Rod 25-V / F-25-V / 24-V / F-24-V
Concealed Vertical Rod 25-C / F-25-C / 24-C / F-24-C
Options
LRFR1R REX Status Kit 108.00
Hager 4500 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" LR100HK 650.00 LR100H 702.00
30" LR100HK-EM 702.00 LR100H-EM 754.00
Options
LRH1L Latch Status Kit 108.00
LRH1R Pushpad/Dogging Status or REX
Status Kit
108.00
Models
Rim Mount 4501 - Rim
Surface Vertical Rod 4501 - SVR
IDC (International Door Closers)
8000 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" LR100IDCK 650.00 LR100IDC 702.00
30"
LR100IDCK-EM
702.00
LR100IDC-EM
754.00
Models
Rim Mount 8610 / 8810 / 8510 / 8710
Surface Vertical Rod 8630 / 8830 / 8530 / 8730
Mortise 8620 / 8820
Concealed Vertical Rod 8650 / 8850 / 8550 / 8750
Options
LRIDC1L Latch Status Kit 108.00
LRIDC1R Pushpad/Dogging Status or REX
Status Kit
108.00
QUIET DUO™ LR100: Product Compatibility
Jackson 2000 Series Exit Devices ** 1A Inrush
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100JAK** 780.00 LR100JA** 702.00
Models
Rim Mount 2095
Concealed Vertical Rod (Top Latch) 2085
Concealed Vertical Rod (Top Bolt) 2086
Parts Provided: 628 Finish Only
Marks Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100MDK 650.00 LR100MD 702.00
Models
Rim Mount M9900
Surface Vertical Rod M9900VR
Options
LRMD1R Pushpad/Dogging Status or REX
Status Kit for M9900RIM
108.00
First Choice Exit Devices ** 1A Inrush
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100FCK** 650.00 LR100FC** 702.00
30"
LR100FCK-EM**
702.00 LR100FC-EM** 754.00
Models
Rim Mount 3700
Concealed Vertical Rod 3600
Options
LRFC1R REX Status Kit 108.00
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100DMK 650.00 LR100DM 702.00
Models
Rim Mount 1590
Concealed Vertical Rod 1490
Falcon Dor-O-Matic Exit Devices ** 1A Inrush
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100FAK** 650.00 LR100FA** 702.00
30"
LR100FAK-EM**
702.00 LR100FA-EM** 754.00
Models
Rim Mount 1790
Concealed Vertical Rod 1690
Options
LRFA1R REX Status Kit 108.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
54
Exit Devices
Stanley K2 QED Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" LR100K2K 650.00 LR100K2 702.00
30"
LR100K2K-EM
702.00 LR100K2-EM 754.00
Models
Rim Mount QED111
Surface Vertical Rod QED114
Concealed Vertical Rod QED124
Options
LRK2R Latch Status and REX Status or
Pushpad/Dogging Status Kit
108.00
QUIET DUO™ LR100: Product Compatibility
SDC 6000 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"-48" LR100SDCK 650.00 LR100SDC 702.00
30"
LR100SDCK-EM
702.00 LR100SDC-EM 754.00
Options
LRSDC1L Latch Status Kit 108.00
LRSDC1R Pushpad/Dogging Status or REX
Status Kit
108.00
Models
Rim Mount S6100
Surface Vertical Rod S6200
Mortise S6300
Concealed Vertical Rod S6800
Sargent Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" LR100SGK 650.00 LR100SG 702.00
30"
LR100SGK-EM
702.00 LR100SG-EM 754.00
Models
Rim Mount 8500 / 8800
Surface Vertical Rod 8700
Concealed Vertical Rod 8400 / 8600
Mortise 8300 / 8900
Options
LRSG2R Pushpad/Dogging Status or REX
Status Kit
108.00
PHI (Precision Hardware) Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100PDK 650.00 LR100PD 702.00
Options
LRP1L Latch Status Kit for PHI Rim 2000
Series
108.00
LRP2L Latch Status Kit for PHI Vertical
Rod 2000 Series
108.00
LRP1R REX Status or Pushpad/Dogging
Status for PHI 2000 Series
108.00
Models
Rim Mount 2100 / 2400
Surface Vertical Rod 2200 LBR
Concealed Vertical Rod 2800 LBR / 2600
Rim Mount 5100
Surface Vertical Rod 5200 LBR
PDQ Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" - 48” LR100PDQK 650.00 LR100PDQ 702.00
Models
Rim Mount 6200R
Surface Vertical Rod 6200V
Pamex Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" LR100PAK 650.00 LR100PA 702.00
30"
LR100PAK-EM
702.00
LR100PA-EM
754.00
Models
Rim Mount EF9000
Surface Vertical Rod EF9000V
Concealed Vertical Rod EF9020V
Marshall Best Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100MBSK 650.00 LR100MBS 702.00
30”
LR100MBSK-EM
702.00
LR100MBS-EM
754.00
Models
Rim Mount Q1100/QF1100
Surface Vertical Rod Q1200/QF1200
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
55
Exit Devices
Tell Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100TEK 650.00 LR100TE 702.00
Models
Rim Mount 9500
Surface Vertical Rod 9400
TownSteel ED1100 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100TSK 650.00 LR100TS 702.00
30"
LR100TSK-EM
702.00 LR100TS-EM 754.00
Models
Rim Mount ED1100
Surface Vertical Rod ED1200
Concealed Vertical Rod ED1300
Options
LRTS1R REX Status or Pushpad/Dogging
Status Kit
108.00
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"
LR100TSK-55/56
702.00
LR100TS-55/56
754.00
Models
Rim Mount ED5500
Surface Vertical Rod ED5600
Options
LRTS2R REX Status or Pushpad/Dogging
Status Kit for ED5500
108.00
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"
LR100TSK-65/67
702.00
LR100TS-65/67
754.00
Models
Rim Mount ED6500
Concealed Vertical Rod ED6700
Options
LRVD1L Latch Status Kit 108.00
LRVD2R REX Status or Pushpad/Dogging
Status Kit
108.00
Von Duprin 22 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" - 48" LR100VDK-22 650.00 LR100VD-22 702.00
30"
LR100VDK-22-EM
702.00
LR100VD-22-EM
754.00
Models
Rim Mount 22
Surface Vertical Rod 2227
Note: Please check SDCsecurity.com
regularly for new releases
in this product line * Note: Retracts only the latch
Yale 7000 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" LR100YDK 650.00 LR100YD 702.00
30"
LR100YDK-EM
702.00 LR100YD-EM 754.00
42" - 48"
LR100YDK-42/48
650.00
LR100YD-42/48-EM
702.00
Options
LRY1L Latch Status Kit 108.00
LRY1R REX Status Kit 108.00
Models
Rim Mount 7100 / 7100-2 / 7200
Surface Vertical Rod 7110 / 7210
Concealed Vertical Rod 7120 / 7220
Von Duprin 98/99 and 33/35 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" LR100VDK 650.00 LR100VD 702.00
30"
LR100VDK-EM
702.00 LR100VD-EM 754.00
Models
Rim Mount 98 / 99 33A / 35A
Surface Vertical Rod 9827 / 9927 3327A / 3527A
Concealed Vertical Rod 9847 / 9947 3347A / 3547A
Mortise 9875 / 9975
Options
LRVD1L Latch Status Kit for Von Duprin
98/99 Series
108.00
LRVD2L Latch Status Kit for Von Duprin
33/35 Series
108.00
LRVD1R REX Status or Pushpad/Dogging
Status Kit for Von Duprin 98/99
and Von Duprin 33/35 Series
108.00
QUIET DUO™ LR100: Product Compatibility
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
56

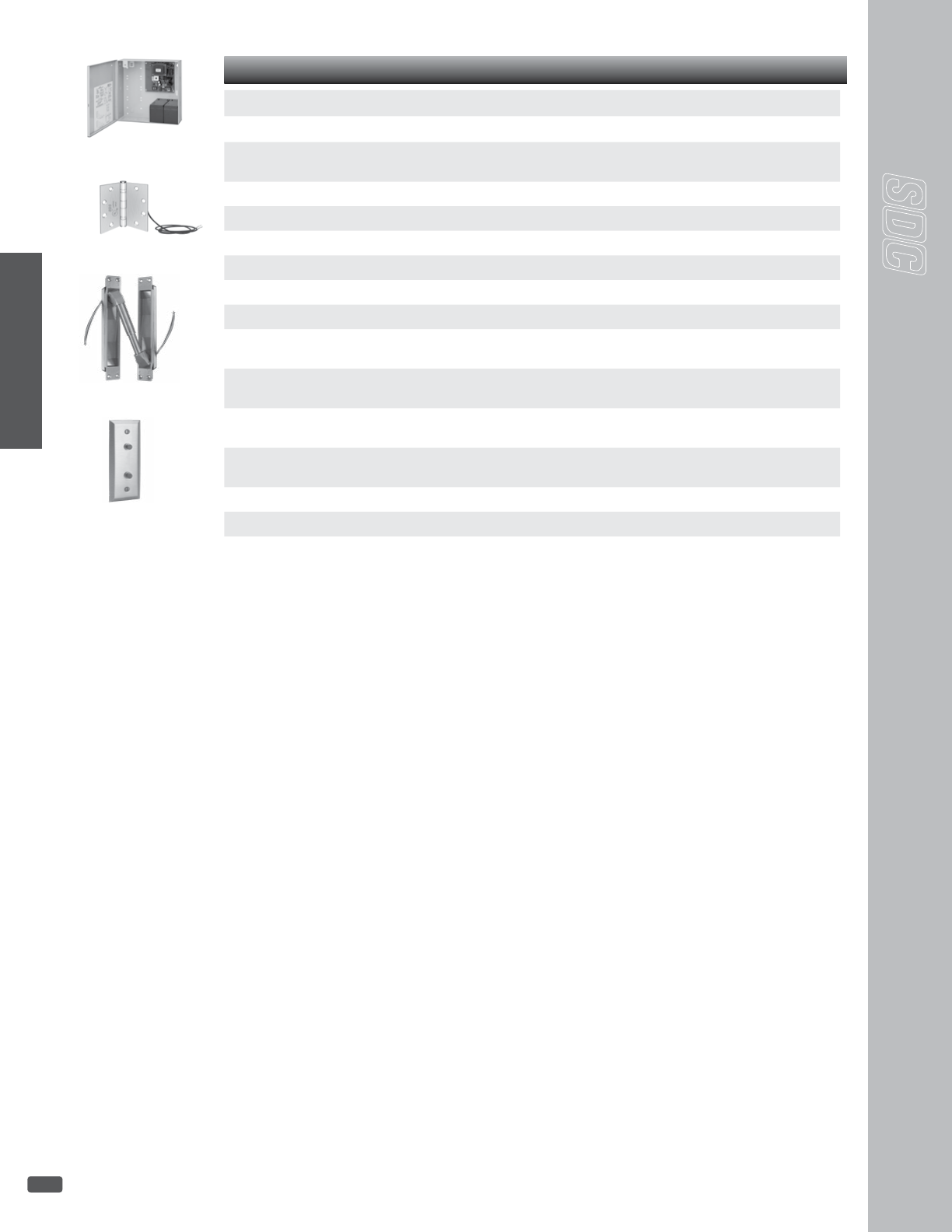

Exit Devices
602RF 1 Amp Power Supply, UL Listed 294, for 1 or 2 exit devices 279.00
632RF 2 Amp Power Supply, UL Listed 294 for 3 or 4 exit devices 427.00
EMC 2 Station Automatic Door Sequence; Each EMC provides interface and sequencing for
two single or one double automatic door. 161.00
PTH-4Q 4-wire Electric Hinge, 1 Amp max. UL 10B 161.00
PTH-4QDPS 4-wire, Electric Hinge 1 Amp max. UL 10B. With concealed Door Status Contact 214.00
PTH-2+4Q 6-wire Electric Hinge 1-pair 16 Amp inrush, 4 Amp continuous; 2-pair 1 Amp @ 12/24V 188.00
PTH-10Q Te n ( 10 ) Co nd uc t or Po w er Tr an sf e r H in g e, 1 A m p @ 12 / 24 V p er p ai r 209.00
PT-5 Concealed mortise power transfer device, UL 10B Fire Door Accessory 65.00
PT-3V Stainless steel door loop with surface wire junction 49.00
PTM-2AL Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DC, Aluminum Powder Coat, US28 equivalent
383.00
PTM-2BZ Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DC, Dark Brown Powder Coat, US10B equivalent
383.00
PTM-10AL Ten (10) Conductor Power Transfer Device: Ten (10) 24 Ga. wire
1 Amp @ 12/24V AC/DC, Aluminum Powder Coat, US28 equivalent
383.00
PTM-10BZ Ten (10) Conductor Power Transfer Device: Ten (10) 24 Ga. wire
1 Amp @ 12/24V AC/DC, Dark Brown Powder Coat, US10B equivalent
383.00
400U-L2 Two LEDs. Specify lens color. Standard Finish, on 1 Gang plate 49.00
400NU-L2 Two LEDs. Specify lens color. Standard Finish, on narrow plate 49.00
ACCESSORIES List
602RF
see page 93
PTH-4Q
see page 90
PTM
see page 90
400NU-L2
see page 100
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
57
Exit Devices
Distributor
Discount Code
QUIET DUO™ IP100 12V PoE-Capable Latch Retraction / Dogging Kit XK
SDCs IP100 Power over Ethernet Capable Electric Latch Retraction Kit enables electric
access control and dogging of mechanical exit devices. When energized the motor retracts
the exit device latch and pulls the pushpad into the dogged (depressed)* position enabling
momentary or sustained push and pull operation of the door. 12VDC @ 700/110 mA
The latch retraction mechanism may be activated by an access control, remote control device or
building automation system. The exit device always provides uninhibited egress.
* Except where noted for latch retraction only
Distributor
Discount Code
CSFM, MEA
Listed
IP100 Series
Models
Rim Mount 8700 / 8800 / 3700
* Note: Retracts only the latch
Adams Rite Exit Device
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" IP100ARK 650.00 IP100AR 702.00
Options
LRCR1L Latch Status Kit 108.00
LRCR1R REX Status Kit 108.00
Corbin Russwin ED Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" IP100CRK 650.00 IP100CR 702.00
* Note: Retracts only the latch
Models
Rim Mount ED5200 / ED4200
Falcon 24/25 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" IP100FRK 650.00 IP100FR 702.00
Models
Rim Mount 25-R / F-25-R / 24-R / F-24-R
Hager 4500 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" IP100HK 650.00 IP100H 702.00
Options
LRH1L Latch Status Kit 108.00
LRH1R Pushpad/Dogging Status or REX Status Kit 108.00
Models
Rim Mount 4501 - Rim
Surface Vertical Rod 4501 - SVR
Continued on next page
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
58
Exit Devices
SDC 6000 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"-48" IP100SDCK 650.00 IP100SDC 702.00
Options
LRSDC1L Latch Status Kit 108.00
LRSDC1R Pushpad/Dogging Status or REX Status Kit 108.00
Models
Rim Mount S6100
Surface Vertical Rod S6200
* Note: Retracts only the latch
Options
LRY1L Latch Status Kit 108.00
LRY1R REX Status Kit 108.00
Yale 7000 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" IP100YDK 650.00 IP100YD 702.00
Models
Rim Mount 7100 / 7102 / 7200
Sargent Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36"- 48" IP100SGK 650.00 IP100SG 702.00
30" IP100SGK-EM 702.00 IP100SG-EM 754.00
Models
Rim Mount 8800
Surface Vertical Rod 8700
Options
LRSG1R REX Status Kit 108.00
* Note: Retracts only the latch
Von Duprin 98/99 and 33/35 Series Exit Devices
Opening
for
Field
Retrofit Kit LIST Factory Installed LIST
36" IP100VDK 650.00 IP100VD 702.00
42" - 48"
IP100VDK-42/48
650.00 IP100VD-42/48 702.00
Models
Rim Mount 98 / 99 33A / 35A
Surface Vertical Rod 9827 / 9927 3327A / 3527A
Options
LRVD1L Latch Status Kit for Von Duprin 98/99 Series 108.00
LRVD2L Latch Status Kit for Von Duprin 33/35 Series 108.00
LRVD1R REX Status or Pushpad/Dogging Status Kit
for Von Duprin 98/99 and 33/35 Series
108.00
* Note: Retracts only the latch
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
59
Electric Bolt Locks
V 628 Aluminum Finish (standard) N/C
Y335 Black 40.00
SPACESAVER® Mortise Bolt Locks Fit 1-3/4" Frames AK LIST
Distributor
Discount Code
FS23MIV Dual failsafe 385.00
1091AIV Failsafe 374.00
1091ADLIV Dead locking, failsafe 443.00
1291AHV Failsecure 443.00
1490AIV Fits 1-1/2" frame (non UL), failsafe 443.00
2490AHV Failsecure. Fits 1-1/2" frame (non UL), failsecure 524.00
1091A
1091ADL
1291A
Plated Architectural Finishes
Special order - no cancellations, no return
C605 Bright Brass 84.00
D606 Dull Brass 84.00 P625 Bright Chrome 84.00
F611 Bright Bronze 84.00 Q626 Dull Chrome 84.00
G612 Satin Bronze 84.00 U630 Stainless Steel 84.00
H613 Oil Rubbed Bronze 84.00
Dimensions: 8"L x 1-1/2"W x 1-5/8"D
FS/1090/1490 Dual Voltage Coil: 900/450 mA @ 12/24 VDC
1290/2490 Dual Voltage Coil: 900/450 mA @ 12/24 VDC 3773-0324:001
CSFM
Auxiliary Locks
UL10C Positive Pressure Compliant
UBC Classified in accordance with Uniform Building
Code standard 7-2 “Fire Test for Door Assemblies”
BBolt position sensor, SPDT 59.00
DDoor position sensor, SPDT 59.00
OPTIONS Add to List
FS23M
SPECIFY MODEL List
SPECIFY FINISH Add to List
SPACESAVER® Mortise Bolt Locks FOR WOOD FRAMES AK LIST
Distributor
Discount Code
V 628 Aluminum Finish (standard) N/C
Y335 Black 40.00
1091AIWD Failsafe 12/24VDC, with 8-1/2” x 1-1/2” x 1/8” faceplate 457.00
1091ADLWDI Failsafe Deadlocking 12/24VDC, with 8-1/2” x 1-1/2” x 1/8” faceplate 526.00
1190AWD Failsafe Heavy Duty 24VDC, Stainless Steel Finish ONLY 526.00
1291AHWD Failsecure 12/24VDC, with 9” x 1-1/2” x 1/8” faceplate 526.00
Plated Architectural Finishes
Special order - no cancellations, no return
C605 Bright Brass 84.00
D606 Dull Brass 84.00 P625 Bright Chrome 84.00
F611 Bright Bronze 84.00 Q626 Dull Chrome 84.00
G612 Satin Bronze 84.00 U630 Stainless Steel 84.00
H613 Oil Rubbed Bronze 84.00
BBolt position sensor, SPDT 59.00
DDoor position sensor, SPDT 59.00
OPTIONS Add to List
SPECIFY MODEL List
SPECIFY FINISH Add to List
1091AIWD
1091ADLWDI
1190AWD
1291AHWD
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
60

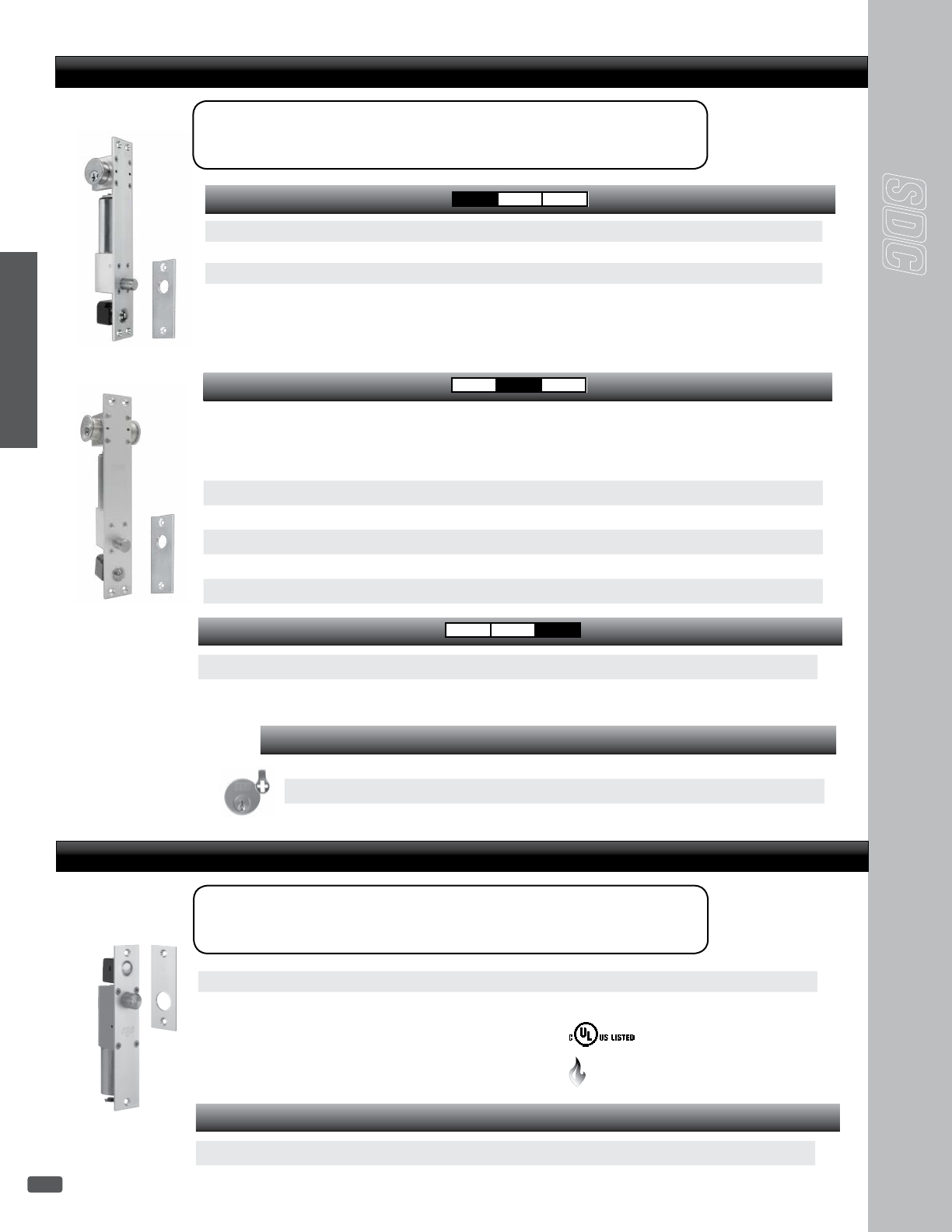

Electric Bolt Locks
1190AU Failsafe 443.00
2090AU Failsecure 551.00
Standard Finish: U 630 Dull Stainless Steel
Specialty Lock Applications available by request
Distributor
Discount Code
1190A Failsafe: 0.7Amp @ 24VDC
2090A Failsecure: 2.5 Amp In rush, 0.4 Amp seated @ 24VDC
OPTION Add to List
BBolt position sensor, SPDT 59.00
DDoor position sensor, SPDT 59.00
Auxiliary Locks
UL10C Positive Pressure Compliant
UBC Classified in accordance with Uniform Building
Code standard 7-2 “Fire Test for Door Assemblies”
Heavy Duty SPACESAVER® Mortise Bolt Locks AK LIST
Distributor
Discount Code
1190A
1091ADMR/1091ADDMR Failsafe: 12/24 VDC @ 0.9/0.45 mA (max)
1291ADMR/1291ADDMR Failsecure: 12/24 VDC @ 0.9/0.45 mA (max)
OPTION Add to List
BBolt position sensor, SPDT 59.00
DDoor position sensor, SPDT 59.00
Mechanical Release SPACESAVER® Mortise Bolt Locks AK LIST
Distributor
Discount Code
Specialty Lock Applications available by request
KEY CYLINDER OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 33.00
1091ADMR
1091ADMR Failsafe, Single Mechanical Release - door or jamb mount 670.00
1291ADMR Failsecure, Single Mechanical Release - door or jamb mount 670.00
1091ADDMR Failsafe, Double Mechanical Release - door mount only 876.00
1291ADDMR Failsecure, Double Mechanical Release - door mount only 876.00
Mortise Cylinders Not Included, order separately
1091ADDMR
V 628 Aluminum Finish (standard) N/C
Y335 Black 40.00
Plated Architectural Finishes
Special order - no cancellations, no return
C605 Bright Brass 84.00
D606 Dull Brass 84.00 P625 Bright Chrome 84.00
F611 Bright Bronze 84.00 Q626 Dull Chrome 84.00
G612 Satin Bronze 84.00 U630 Stainless Steel 84.00
H613 Oil Rubbed Bronze 84.00
SPECIFY FINISH Add to List
SPECIFY MODEL List
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
61
Electric Bolt Locks
180/280
Surface Mount Bolt Locks AK LIST
Dimensions: 6" L x 2" W x 2" H
180 Dual Voltage Coil: 900/450 mA @ 12/24 VDC
280 Dual Voltage Coil: 900/450 mA @ 12/24 VDC
LOCK
LOCK
STRIKE
END VIEW
STRIKE
LOCK
LOCK
STRIKE
END VIEW
STRIKE
Surface Mount
Outswing Door
MODEL
180AIV Surface mount, failsafe, with auto relock, Aluminum standard 279.00
280AHV Surface mount, failsecure with auto relock, Aluminum standard 279.00
SPECIFY ADD-ON Add to List
DExternal recessed magnetic (3/4”, SPDT, 30VDC, 50mA) MC-4 52.00
Top Jamb
Inswing or Sliding
Door
Distributor
Discount Code
110
210
160
260
5" depth required
110IV 2-3/4” x 1-1/4” Face plate, less auto relock switch, failsafe
V 628 Aluminum (standard)
193.00
210HV 2-3/4” x 1-1/4” Face plate, less auto relock switch, failsecure
V 628 Aluminum (standard)
193.00
160IV 4-7/8” x 1-1/4” Face plate with auto relock switch, failsafe
V 628 Aluminum (standard)
257.00
260HV 4-7/8” x 1-1/4” Face plate with auto relock switch, failsecure
V 628 Aluminum (standard)
257.00
Conventional Mortise Bolt Locks AK LIST
110/160 Dual Voltage Coil: 900/450 mA @ 12/24 VDC
210/260 Dual Voltage Coil: 900/450 mA @ 12/24 VDC
Mortise strike standard.
Not for use in wood frames.
Distributor
Discount Code
MC-4 External recessed magnetic (3/4”, SPDT, 30VDC, 50mA) 52.00
SPECIFY ADD-ON Add to List
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
62
Electric Bolt Locks
PD2090A
MODEL
PD2090ALCU LH/RHR failsecure 551.00
PD2090ARCU RH/LHR failsecure 551.00
Standard Finish: U 630 Dull stainless steel
Auxiliary Locks
Paniclok Exit Device Release AK LIST
Gate Locks AK LIST
GL163A
GL263A
Designed for outdoor installation on swinging or sliding gates, Black Finish. Specify swinging or sliding gate
12/24VDC 900/450 mA 12/24 VDC 900/450 mA
GL160AI Failsafe 880.00 GL260AH Failsecure 880.00
GL163AI Key switch, failsafe 944.00 GL263AH Key switch, failsecure 944.00
GL260MRAH Mechanical key unlock, failsecure 987.00
Key cylinder not included
DGate position sensor SPDT for gate lock (GL series) 86.00
BBolt position sensor, SPDT for gate lock 86.00
BR64XL Rectifier for AC operation 27.00
OPTIONS Add to List
Distributor
Discount Code
Distributor
Discount Code
For Dor-O-Matic and Kawneer Exit Device
Voltage: 24VDC, 2.5 A Inrush, .4A seated
SPECIFY HAND - for convenience, eld reversible
RH Right hand LH Left hand N/C
KEY CYLINDER OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 33.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
63
Electric Bolt Locks
• For drawers, cabinets or display cases with swinging or sliding doors
• Failsecure (field reversible for failsafe)
Dual Voltage: 12/24VDC @ 250mA/130mA
Dimensions: 3.25” L x 1.125” W x 1.125” D
Finish: Black
MODEL
290 Micro cabinet lock 109.00
290LS Micro cabinet lock with locked status switch 134.00
Cabinet Lock AK LIST
Programmable Cabinet Lock AK LIST
SDC's 295 Battery Powered Keyless Cabinet Lock provides an easy, economical solution for
security and keyless access control for a wide variety of cabinet doors, drawers, storage lockers and
more. Quickly and easily add/delete up to 30 individual user PIN codes with programmable keypad.
Powered by 2 x AAA batteries, the need for low voltage wiring is eliminated. 2 Programmable
Application Modes.
Dimensions: 5.5”H x 1.4”W x 0.85”D - 1.25”D w/Dial (40 x 35.5 x 21.5mm - 32mm w/Dial)
MODEL
295 Programmable cabinet lock 161.00
Distributor
Discount Code
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
64

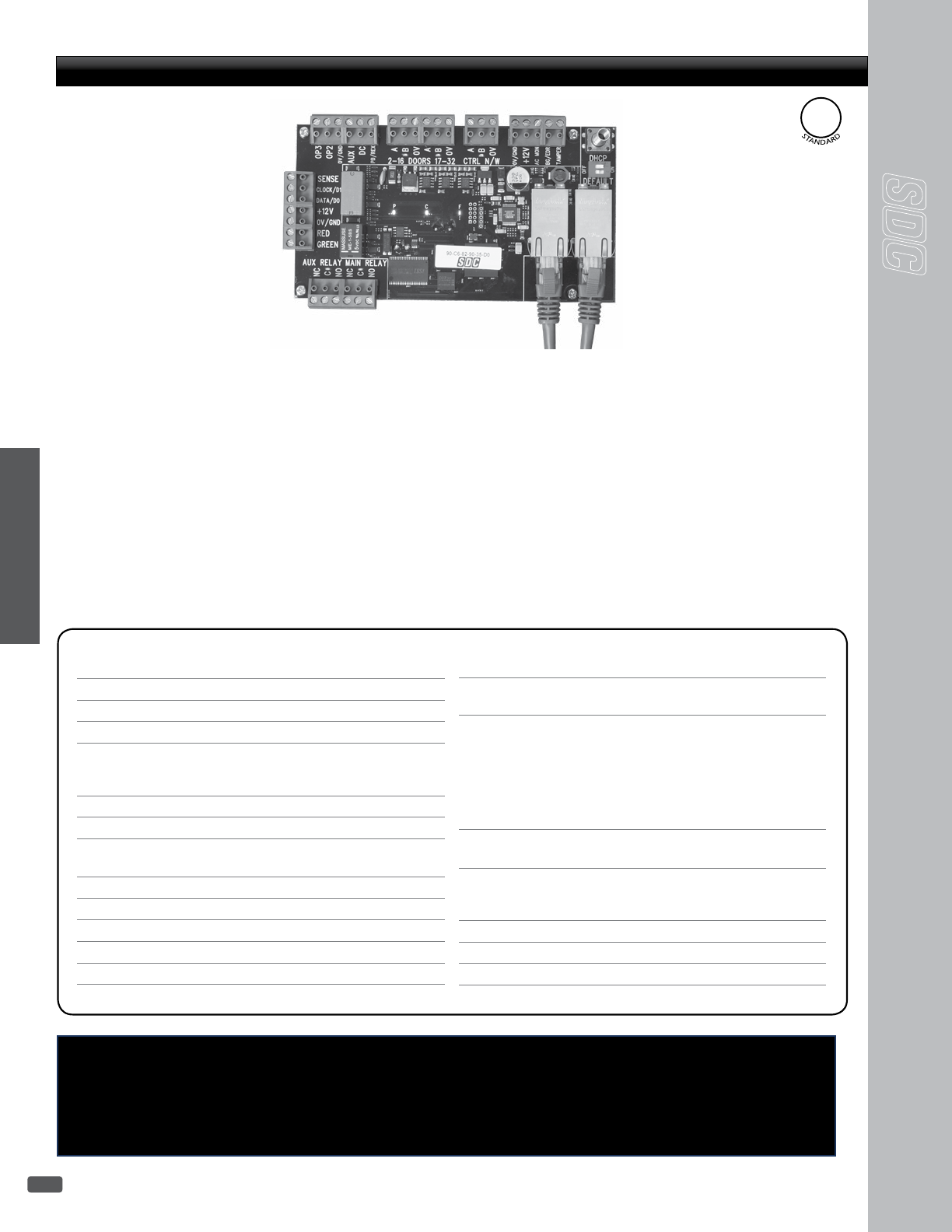

Access Control
IP Pro™ Series IP-based Access Control JEK LIST
Distributor
Discount Code
IP Pro Controller board
FEATURES
• Controls one door directly, with multi-door expansion capabil-
ities
• Password protected built-in web server or FREE downloadable
'Grid' software
• Two Ethernet Ports allow for interfacing with additional IP devices
like cameras additional door controllers, etc.
• Entry & exit reader capability
• Supports industry standard proximity, smart card, and
multi-technology readers (Wiegand output)
• Compliant with PoE+ standard
• Internet Explorer, Firefox and Google Chrome browser support
• 15,000 users (up to 2 credentials per user)
• Batch card enrollment
• 250 User groups/Time Zones/Door Groups
• Audit Trail – Up to 5,000 events may be exported as a .csv file
from web server, unlimited events from PC software interface
• Anti-tailgating
• Door Status Monitoring Input
• Request-to-Exit (REX) Input
• Lock Relay Output
PoE
+
IP Pro Controller/Door Station
Voltage 12 VDC Input
Current Consumption 250mA (max)
Operating Temperature 14°F – 122°F (Indoor use only)
Dimensions 5.375” x 3.5” x 0.875” board only
9.25” x 6.5” x 2.1875”
w/ ABS plastic enclosure
Weight 1lb
Relay Output Type Form C (SPDT) x 2
IP Pro Splitter
Input Voltage 44 - 57 VDC
Input Power 30W max
Output Power 24W max
Output Current 2A @ 12V
Relay Output Type Form C (SPDT) x 2
Relay Contact Rating Main (Lock) – 5A @ 30VDC
Auxiliary – 1A @ 30VDC
Connections Digital Inputs: 4 dry contact inputs
Ethernet: RJ45
RS-485 Terminal Bus
Reader Power – 12VDC
Reader Data – Wiegand (26bit to 37bit)
Reader LED Control – Red & Green
Two Solid State outputs (100mA max)
IP Pro Injector
PoE+ Output Pin
Assignment and
Polarity
4/5 (+), 7/8 (–)
Output Power Voltage 55VDC
User Port Power 30Watts (Guaranteed)
Input Power 0.8A @ 100-240VAC
SPECIFICATIONS
The IP Pro Line of IP-based Access Controllers allows expansion
from one Standalone door up to a 100-door “Grid.” The Choice is yours!
It’s like having a local area network for your doors
without all the headaches of an enterprise system.
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
65
Access Control
EMBEDDED
software managed
via web browser
or Download FREE
SOFTWARE
for full Grid Access
IP Pro Splitter
IP Pro Injector
IP Pro Controller enclosure
IP Pro Door Station
Expansion board
IP Pro Controller board
Pro
TM
Controller
Pro
TM
Controller
Pro
TM
Controller
CAT5eCAT5e
Pro
TM
Controller
Pro
TM
Door Expansion Station
RS485
CAT5e CAT5e
Browser Access
IPDCE IPDCE IPDCE IPDCE
IPDSE
IP Pro™ Components LIST
IPDCE IP Pro Controller, board plus enclosure 696.00
IPI-30 IP Pro Injector, 30W PoE+ 198.00
IPS-12 IP Pro Splitter, 12VDC PoE+ 233.00
IP Pro™ Door Station LIST
IPDSE IP Pro Door Station Expansion, board plus enclosure 593.00
IP Pro™ Kit LIST
IPPRO-SKE IP Pro Starter Kit, including Controller board, Splitter, Injector
plus Controller enclosure
1,150.00
IPPRO-SK IP Pro Starter Kit, including Controller board, Splitter, Injector 1,123.00
602RFx12VRxIPDC 1 Amp, class 2 output power, 12/24 VDC dual output, IPDC Controller
board, 12” W x 12” H x 3.75” D box
1,027.00
602RFx12VRxIPDS 1 Amp, class 2 output power, 12/24 VDC dual output, IPDS Door
Station board, 12” W x 12” H x 3.75” D box
921.00
602RFx12VRxIPDC
shown with optional batteries
See batteries on page 95
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
66
Access Control
PLUS features include:
IP Pro™ Series IP-based Access Control JEK LIST
Distributor
Discount Code
• Intuitive & easy to use software; similar look &
feel to the IP Pro™ web browser interface
• Free, single PC software for up to 100 doors
• Congure & manage all your IP ProTM con-
trollers from a single interface – No enterprise
headaches
• Wizard & quick start buttons for common tasks
• Automated management reporting
• E-mail alert notications
• Utilizes the scalability of Microsoft SQL server
• Save more energy the more doors you add
PLUS Hardware is used by the installer to
set up controllers, doors and user profiles
PLUS Manage is used by system administrators to
facilitate database changes required on a day-to-day basis,
and offers various reporting tools
PLUS Server is used by system administrators to perform
specialized tasks, such as database backups, firmware updates,
importing/exporting users
Live System events can be monitored from either module!
• Create, view, & edit users
• Add access & holiday schedules
• Generate user & event reports
• Enable & edit IPPro controllers
• Enable & edit door settings
• Create event lters
• Enable e-mail notications
• Perform manual or schedule automatic backups
• Import/Export Users
• Perform IPPro rmware updates
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
67

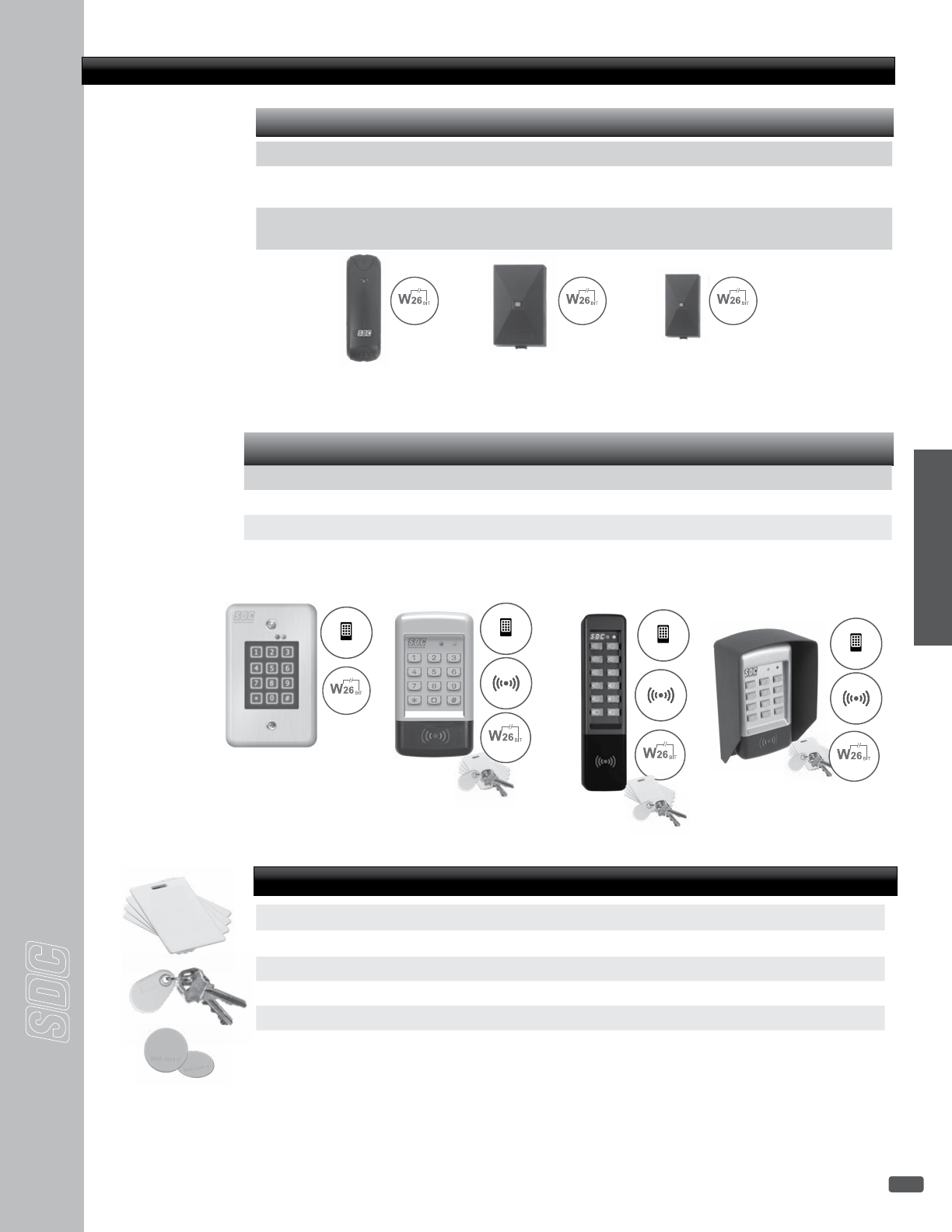

Access Control
IPRW
Prox Reader LIST
IPRW Wiegand Reader - PROX, Surface Mount, HID compatible (125 kHz) 202.00
IPRW300 Wiegand Reader - PROX, Mullion Mount, HID compatible (125 kHz)
includes Black and White Cover
202.00
IPRW500 Wiegand Reader - PROX, Single Gang Box or Surface Mount, HID
compatible (125 kHz) includes Black and White Cover
232.00
IPRW300
IPRW500
IP-based Access Control - Prox and Wiegand Readers JEK LIST
Distributor
Discount Code
Wiegand Reader LIST
918W Indoor digital keypad, Wiegand output 171.00
920PW Digital keypad with Prox Reader, Wiegand output 417.00
923PW Digital keypad, narrow, with Prox Reader, Wiegand output 507.00
925PW Digital keypad with Prox Reader, Wiegand output, and privacy shroud 520.00
D
A
T
A
Wiegand
T
R
A
N
S
F
E
R
918W
Keypad
920PW
Proximity
Keypad
D
A
T
A
Wiegand
T
R
A
N
S
F
E
R
D
A
T
A
Wiegand
T
R
A
N
S
F
E
R
Proximity
Keypad
923PW
HID1326-25 Proximity Card, HID compatible, 25 cards 171.00
HID1326-100 Proximity Card, HID compatible, 100 cards 683.00
HID1346-10 Proximity Key Fob, HID compatible, 10 key fobs 140.00
HID1346-100 Proximity Key Fob, HID compatible, 100 key fobs 1,365.00
PTAG-10 Proximity Disc Tag, HID compadible, 10 tags 78.00
PTAG-25 Proximity Disc Tag, HID compadible, 25 tags 186.00
Cards, Key FOBS and Tags MV List
Distributor
Discount Code
Prox Disc Tag
Prox Card
Prox Key Fob
D
A
T
A
Wiegand
T
R
A
N
S
F
E
R
D
A
T
A
Wiegand
T
R
A
N
S
F
E
R
D
A
T
A
Wiegand
T
R
A
N
S
F
E
R
925PW
D
A
T
A
Wiegand
T
R
A
N
S
F
E
R
Proximity
Keypad
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
68
Access Control
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
69
Access Control
918/918W INDOOR EntryCheck™ JK LIST
Distributor
Discount Code
SPECIFY FINISH Add to List
U630 Brushed Stainless Steel
(standard)
N/C H613 Oil Rubbed Bronze 65.00
C605 Bright Brass 65.00 P625 Bright Chrome 65.00
D606 Dull Brass 65.00
TR12 Plug in power supply (optional)
120 VAC primary, Output: 12VDC @ 1Amp, Secondary screw terminals
78.00
OPTIONS Add to List
S
T
A
N
D
A
L
O
N
E
Keypad
900-PS Privacy & Rain Shroud for stand alone digital keypads 918.
Ensure protection from rain and security from spying eyes.
103.00
ACCESSORIES Add to List
900-PS with
918 Keypad
918 Stand alone digital indoor keypad 171.00
918W Indoor digital keypad, Wiegand output 171.00
500 user codes, 1 to 6 digits in length, 4 outputs, 2 relay and 2 solid state outputs timed
or latching (on/off). Assign entry PIN’s to relays 1 and/or 2. Tactile keys with selectable
audible volume for key depression or output activation. LED Status: Access, lockout.
Timed anti-passback. Keypad tamper lockout. Request-to-Exit/Enter input. Indoor blue
backlit, moisture resistant keypad. Thick S.S. faceplate 3/32” (2mm).
D
A
T
A
Wiegand
T
R
A
N
S
F
E
R
918
918W
Keypad
Voltage 12/24 VAC/DC — 5-16 VDC for Wiegand
Current 30mA typical, 150mA maximum - 60mA max for Wiegand
Outputs (918) Relay 1 - SPDT 5 Amps @ 30VDC, Relay 2 - SPDT 2 Amps @ 30VDC,
Switch to Common Outputs 3 & 4 – 100mA @ 30VDC
Dimensions 3"W x 4-3/4"H x 1-1/2"D (1/4” Wall projection)
ELECTRICAL SPECIFICATIONS
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
70
Access Control
920/920P/920PW INDOOR/OUTDOOR EntryCheck™ JK LIST
920 Stand alone digital keypad 188.00
920P Stand alone digital keypad with Prox Reader 417.00
920PW Digital keypad with Prox Reader, Wiegand output 417.00
The 920 Series EntryCheck™ stand-alone digital keypad is designed to control access of a single
entry point with up to 500 users with a PIN Code and/or HID compadible credentials. Each user
is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code
activates one or both of the output relays which releases an electric door lock. Heavy Cast Vandal
Resistant Housing. Heavy Cast Metal Blue Backlit Keys.
920
S
T
A
N
D
A
L
O
N
E
Keypad
920P
S
T
A
N
D
A
L
O
N
E
Proximity
S
T
A
N
D
A
L
O
N
E
Keypad
920PW
Proximity
Keypad
D
A
T
A
Wiegand
T
R
A
N
S
F
E
R
Distributor
Discount Code
Voltage 12/24 VAC/DC — 5-16 VDC for Wiegand (920PW)
Current 30mA typical, 150mA maximum - 60mA max for Wiegand
Outputs (920/920P) Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC
Switch to Common Outputs 3 & 4 – 100mA @ 30VDC
Operating Temperature -20°F to + 130°F (-30°C to + 54°C)
Operating Humidity 5% to 95% non-condensing
Housing 3"W x 5-3/4"H x 1-7/16"D
ELECTRICAL SPECIFICATIONS
923/923P/923PW Narrow INDOOR/OUTDOOR EntryCheck™ JK LIST
Distributor
Discount Code
The 923 Series EntryCheck™ narrow stand-alone digital keypad is designed
to control access of a single entry point with up to 500 users with a PIN Code
and/or HID compadible credentials. Each user is assigned a personal identifi-
cation number (PIN). Keypad entry of a valid one to six digit code activates one
or both of the output relays which releases an electric door lock. Heavy Cast
Vandal Resistant Housing. Heavy Cast Metal Blue Backlit Keys.
923 Stand alone digital keypad, narrow 214.00
923P Stand alone digital keypad, narrow, with Prox Reader 507.00
923PW Digital keypad, narrow, with Prox Reader, Wiegand output 507.00
S
T
A
N
D
A
L
O
N
E
Proximity
S
T
A
N
D
A
L
O
N
E
Keypad
S
T
A
N
D
A
L
O
N
E
Keypad
923
923P
D
A
T
A
Wiegand
T
R
A
N
S
F
E
R
Proximity
Keypad
923PW
Voltage 12/24 VAC/DC — 5-16 VDC for Wiegand
Current 30mA typical, 150mA maximum - 60mA max
for Wiegand
Outputs (923/923P) Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC
Switch to Common Outputs 3 & 4 – 100mA @ 30VDC
Operating Temperature -20°F to + 130°F (-30°C to + 54°C)
Operating Humidity 5% to 95% non-condensing
Housing 1-3/4"W x 7-5/16"H x 1-3/8"D
ELECTRICAL SPECIFICATIONS
CARDS, KEY FOBS and TAGS see bottom of page 71
CARDS, KEY FOBS and TAGS see bottom of page 71
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
71
Access Control
921P/924P INDOOR/OUTDOOR 2-PIECE EntryCheck™ JK LIST
Distributor
Discount Code
921P Stand alone, surface mount digital keypad, with Prox Reader and Controller 614.00
924P Stand alone, surface mount digital keypad, narrow, with Prox Reader and Controller 640.00
S
T
A
N
D
A
L
O
N
E
Keypad
S
T
A
N
D
A
L
O
N
E
Proximity
924P921P
ELECTRICAL SPECIFICATIONS
The 921P and the 924P EntryCheck™ stand-alone digital keypad with Prox Reader and
Controller (2-piece configuration) are designed to control access of a single entry point
with up to 500 users with a PIN Code and/or HID compadible credentials. Each user is
assigned a personal identification number (PIN). Keypad entry of a valid one to six digit
code activates one or both of the output relays which releases an electric door lock.
Heavy Cast Vandal Resistant Housing. Heavy Cast Metal Blue Backlit Keys.
Voltage 12/24 VAC/DC
Current 60mA typical, 150mA maximum
Outputs Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC
Switch to Common Outputs 3 & 4 – 100mA @ 30VDC
Operating Temperature -20°F to + 130°F (-30°C to + 54°C)
Operating Humidity 5% to 95% non-condensing
Housing 921P: 3"W x 5-3/4"H x 1-7/16"D
924P: 1-3/4"W x 7-5/16"H x 1-3/8"D
925/925P/925PW INDOOR/OUTDOOR Shroud EntryCheck™ JK LIST
Distributor
Discount Code
925 Stand alone digital keypad with privacy shroud 290.00
925P Stand alone digital keypad with Prox Reader and privacy shroud 520.00
925PW Digital keypad with Prox Reader, Wiegand output, and privacy shroud 520.00
The 925 Series EntryCheck™ elevates the robustness of the indoor/outdoor 920 keypad with a heavy
metal privacy and rain shroud. Perfect for post mount applications.
925
S
T
A
N
D
A
L
O
N
E
Keypad
925P
S
T
A
N
D
A
L
O
N
E
Proximity
S
T
A
N
D
A
L
O
N
E
Keypad
925PW
D
A
T
A
Wiegand
T
R
A
N
S
F
E
R
Proximity
Keypad
Voltage 12/24 VAC/DC — 5-16 VDC for Wiegand (925PW)
Current 30mA typical, 150mA maximum - 60mA max
for Wiegand
Outputs (925/925P) Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC
Switch to Common Outputs 3 & 4 – 100mA @ 30VDC
Operating Temperature -20°F to + 130°F (-30°C to + 54°C)
Operating Humidity 5% to 95% non-condensing
Shroud Dimension 4-1/16"W x 6-1/8"H x 2-5/8"D
ELECTRICAL SPECIFICATIONS (KEYPAD)
Post
mount
by
others
HID1326-25 Proximity Card, HID compatible, 25 cards 171.00
HID1326-100 Proximity Card, HID compatible, 100 cards 683.00
HID1346-10 Proximity Key Fob, HID compatible, 10 key fobs 140.00
HID1346-100 Proximity Key Fob, HID compatible, 100 key fobs 1,365.00
PTAG-10 Proximity Disc Tag, HID compadible, 10 tags 78.00
PTAG-25 Proximity Disc Tag, HID compadible, 25 tags 186.00
Cards, Key FOBS and Tags MV List
Prox Disc Tag
Prox Card
Prox Key Fob
CARDS, KEY
FOBS and TAGS
see bottom of
page 71
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
72
Access Control

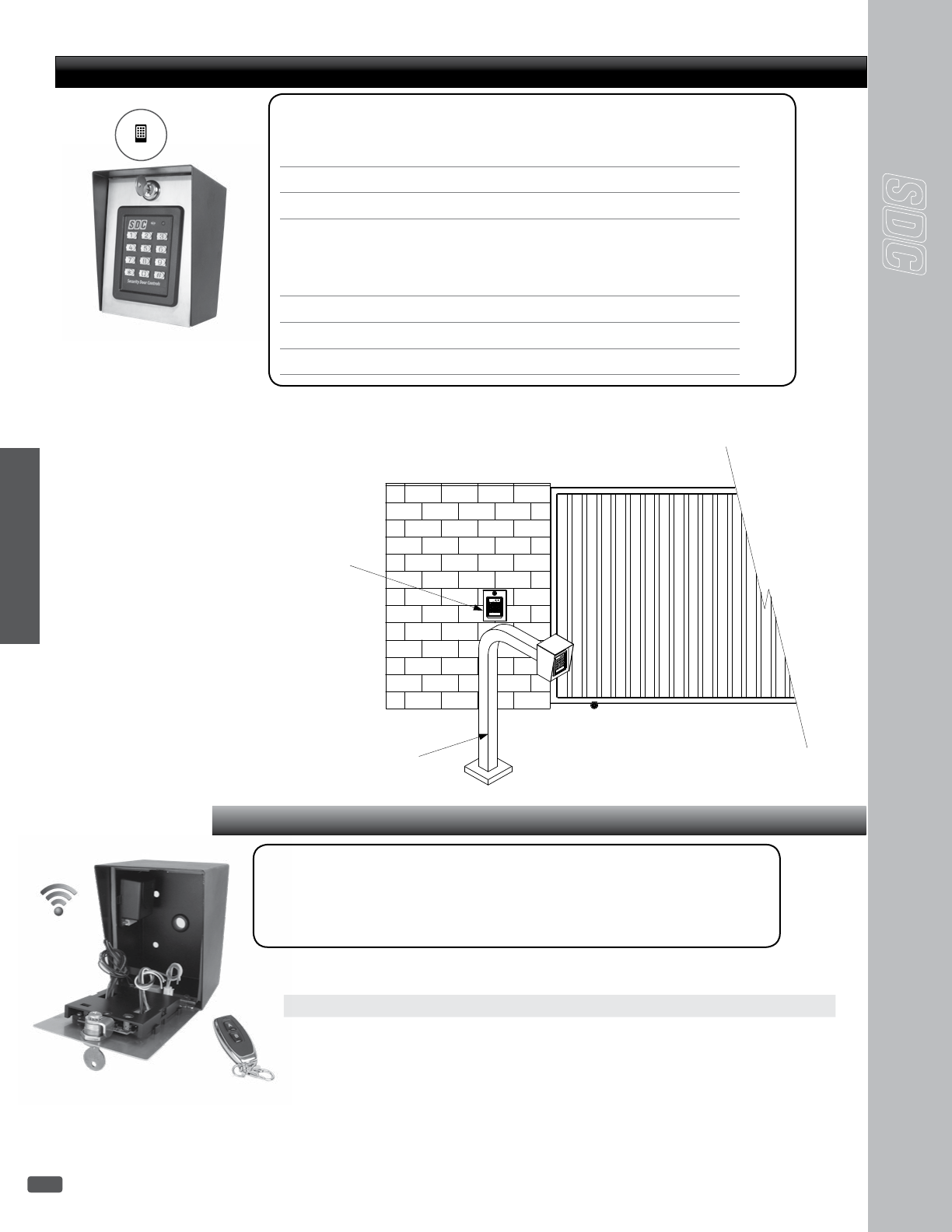

926 OUTDOOR Shroud EntryCheck™ JK LIST
Distributor
Discount Code
926 Outdoor Keypad for surface wall or pedestal post mount 258.00
The 926 Series EntryCheck™ elevates the robustness of the indoor/outdoor 920 keypad
with a heavy metal privacy and rain shroud. Perfect for post mount applications.
926
S
T
A
N
D
A
L
O
N
E
Keypad
Voltage 12/24 VAC/DC
Current 30mA typical, 150mA maximum
Outputs Main Relay: Form “C” 5 Amps @ 28 Volts max
Auxiliary Relay: Form “C” 2 Amp @ 28 Volts max
Type: Solid state outputs (Outputs #3 & #4)
Short-to-common 100 mA @ 24 VDC maximum
Operating Temperature -4°F to 140°F (-20°C to 60°C)
Operating Humidity 5% to 95% non-condensing
Dimension 4-3/4”W x 6-3/8”H x 4-1/2”D
ELECTRICAL SPECIFICATIONS (KEYPAD)
POST
MOUNT
SURFACE
MOUNT
ACCESSORIES LIST
WRC-2B 433MHz 2-Button Pendant Wireless Transmitter 52.00
WRC-R2 433MHz 2-Channel Wireless Receiver 84.00
926 with WRC Wireless Receiver
and Pendant Transmitter
The perfect companion for the 926 EntryCheck is SDC’s WRC Series 2-Channel wireless
transmitter/receiver solution. Specifically designed to be used as a remote release for single
or dual door access control applications. Receiver has the capacity to learn up to 30 fixed
transmitter codes using the onboard learning button and status LED.
The WRC-R2 Receiver fits perfectly inside the 926 housing.
Post mount
by others
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
73
Access Control
E75 EntryCheck™ LIST
E70 EntryCheck™ Standalone Electronic Lockset Series MMK LIST
SPECIFY LEVER LOCKSET FINISH Add to List
SPECIFY LEVER HANDLE Add to List
SPECIFY KEYPAD FINISH Add to List
Q626 Dull Chrome (standard) BBlack N/C
Q626 Dull Chrome (standard) N/C
P625 Bright Chrome C605 Bright Brass 54.00
Distributor
Discount Code
E75K Digital Keypad only, cylindrical lockset 732.00
E75P Digital Keypad with Prox Reader, cylindrical lockset 938.00
E75PS Digital Keypad with Prox Reader and Software, cylindrical lockset 1,236.00
The E70 EntryCheck™ Series is a standalone electronic battery powered solution, providing controlled access
for basic and multi-level high security requirements. The E70 series lockset is keypad programmable, and
combines multiple access technology with efficient motorized locksets.
KEYPAD FEATURES
• Keypad
Programmable
• 3,000 Users,
32 Temporary
• 4 to 6 Digit PIN
Codes
• 3 Passage Mode
Option
• 32 Access Groups,
Schedules
• 32 Holidays
• 4 Authority Levels
• Keypad Tamper
Lockout
• Mechanical Key
Override
• Battery Powered
(4AA)
• Blue Backlit Cast
Metal Keys
• Weather & Vandal
Resistant
G1 Galaxy E1 Eclipse N/C
G5 Galaxy, I-Core prep E5 Eclipse, I-Core prep 26.00
G5 and E5 I-Core prep without I-Core
G1 Galaxy E1 Eclipse E5 Eclipse, I-Core prep
G5 Galaxy, I-Core prep
E75 series can be retrofitted to existing prep for cylindrical locks.
E75 EntryCheck™ Standalone Electronic Lockset - SDC Lock
HID1326-25 Proximity Card, HID compatible, 25 cards 171.00
HID1326-100 Proximity Card, HID compatible, 100 cards 683.00
HID1346-10 Proximity Key Fob, HID compatible, 10 key fobs 140.00
HID1346-100 Proximity Key Fob, HID compatible, 100 key fobs 1,365.00
PTAG-10 Proximity Disc Tag, HID compadible, 10 tags 78.00
PTAG-25 Proximity Disc Tag, HID compadible, 25 tags 186.00
Cards, Key FOBS and Tags MV List
Distributor
Discount Code
Prox Disc Tag
Prox Card
Prox Key Fob
OPTIONAL LATCH AND BACKSET ASSEMBLIES
B1 2-3/4" Backset latchbolt (Standard) N/C B2 2-3/8” Backset latchbolt (Optional) 25.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
74
Access Control
E76 EntryCheck™ - SELECT Mortise Only or Mortise with Deadbolt and Keypad combo LIST
E76K Mortise lock and Digital Keypad only 1,030.00
E76P Mortise lock and Digital Keypad with Prox Reader 1,236.00
E76PS Mortise lock and Digital Keypad with Prox Reader and Software 1,535.00
E76+K Mortise lock with Deadbolt and Digital Keypad only 1,236.00
E76+P Mortise lock with Deadbolt and Digital Keypad with Prox Reader 1,442.00
E76+PS Mortise lock with Deadbolt and Digital Keypad with Prox Reader and Software 1,648.00
E76 EntryCheck™ Standalone Electronic Lockset-SDC Mortise Lock
SPECIFY LOCK HAND
SPECIFY LOCK FINISH Add to List
LLeft hand LR Left hand reversed All hands are field reversible N/C
RRight hand RR Right hand reversed without disassembly N/C
SPECIFY LOCK LEVER TRIM Add to List
GGalaxy with rose N/C GE Galaxy with escutcheon 108.00
EEclipse with rose N/C EE Eclipse with escutcheon 108.00
NNova with rose N/C NE Nova with escutcheon 108.00
07 Schlage equal with SDC B rose N/C 07E Schlage equal with SDC escutcheon 108.00
Q626 Dull Chrome (standard) N/C
C605 Bright Brass 54.00 G612 Dull Bronze 54.00 S629 Bright Stainless Steel 54.00
D606 Dull Brass 54.00 H613 Oil Rubbed Bronze 54.00 U630 Dull Stainless Steel 54.00
F611 Bright Bronze 54.00 P625 Bright Chrome 54.00
SPECIFY KEYPAD FINISH Add to List
Q626 Dull Chrome (standard) BBlack N/C
Schlage
Equal Schlage
Equal
07E
07
EEE
GGE
NNE
HID1326-25 Proximity Card, HID compatible, 25 cards 171.00
HID1326-100 Proximity Card, HID compatible, 100 cards 683.00
HID1346-10 Proximity Key Fob, HID compatible, 10 key fobs 140.00
HID1346-100 Proximity Key Fob, HID compatible, 100 key fobs 1,365.00
PTAG-10 Proximity Disc Tag, HID compadible, 10 tags 78.00
PTAG-25 Proximity Disc Tag, HID compadible, 25 tags 186.00
Cards, Key FOBS and Tags MV List
Distributor
Discount Code
Prox Disc Tag
Prox Card
Prox Key Fob
KEY CYLINDER OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 33.00
E76
E76+
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
75
Access Control
E77 EntryCheck™ LIST
E77K Digital Keypad only, with SDC S6100 Exit Device 1,442.00
E77P Digital Keypad with Prox Reader, with SDC S6100 Exit Device 1,648.00
E77PS Digital Keypad with Prox Reader and Software, with SDC S6100 Exit Device 1,947.00
E77 EntryCheck™ Standalone Electronic Lockset - SDC Rim Exit Device
SPECIFY KEYPAD FINISH Add to List
Q626 Dull Chrome (standard) BBlack N/C
SPECIFY SPECTRA SERIES EXIT DEVICE Add to List
M61 Rim mount exit device N/C
S6100 Rim Mount
EK Eclipse style electric trim less mortise cylinder, Stainless Steel Finish N/C
GK Galaxy style electric trim less mortise cylinder, Stainless Steel Finish N/C
EK Eclipse
GK Galaxy
SPECIFY ELECTRIC TRIM List
SPECIFY PANIC OR FIRE RATE Add to List
PPanic exit device
Mechanical Dogging STD; See part # CD for optional key cylinder dogging
N/C
FFire exit device
Mechanical dogging not available
114.0 0
SPECIFY EXIT DEVICE FINISH Add to List
U630 Dull Stainless Steel N/C
SPECIFY EXIT DEVICE LENGTH Add to List
36 For 36" Door N/C 42 For 42" Door 21.00 48 For 48" Door 42.00
HID1326-25 Proximity Card, HID compatible, 25 cards 171.00
HID1326-100 Proximity Card, HID compatible, 100 cards 683.00
HID1346-10 Proximity Key Fob, HID compatible, 10 key fobs 140.00
HID1346-100 Proximity Key Fob, HID compatible, 100 key fobs 1,365.00
PTAG-10 Proximity Disc Tag, HID compadible, 10 tags 78.00
PTAG-25 Proximity Disc Tag, HID compadible, 25 tags 186.00
Cards, Key FOBS and Tags MV List
Distributor
Discount Code
Prox Disc Tag
Prox Card
Prox Key Fob
KEY CYLINDER OPTIONS for Electric Trim Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 33.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
76
Egress Controls
SureExit® Sense Bar DKK
ACCESSORIES LIST
Distributor
Discount Code
3. Mount
2. Apply Adhesive
1. Assemble kit
Standard Installation
with standard mounting hardware
PT-2U
(Included
with bar)
PT3
500GL-KIT One glass door mounting kit with adhesive for eight to ten bars 252.00
500GL-MB One glass door mounting kit without adhesive 140.00
500-SK Shim kit used to raise bar from door. Recommended for wood or hollow metal doors with
uneven mounting surface.
26.00
Power Transfer:
PT-3V Stainless steel armored loop with aluminum surface wire junction box 49.00
500GL Kit Glass Mount
Installation
STANDARD FEATURES
Actuation: Pressure Sense Technology; Tri-Failsafe
Voltage: 12/24VDC Voltage Sense Input
Current: 20 mA at Rest, 115 mA Active
Lock Output: SPDT, 3 Amp @ 30VDC
Alarm Shunt/Status Output: SPDT, 3 Amp @ 30VDC
Accessories Include:
10 ft. cable and connector; PT-2U Armored Power Transfer Loop
Standard length, 36"
MODEL FINISH LIST PRICE
PSB560V 628 Aluminum Anodized 374.00
PSB560Y Black Anodized 374.00
PSB560S 629 Bright Stainless Steel 507.00
PSB560U 630 Brushed Stainless Steel 507.00
Bars for wide doors
42 Bar for 42" Door. May be field cut. N/C
48 Bar for 48" Door. May be field cut
Ex: PSB560V-42
N/C
3773-0324:105
CSFM
Listed 4J82
Access Control System Units
Burglary Resistant Electronic
Locking Mechanism
TMTM
“Security Industry Finest”
ISC Expo
PUSH TO EXIT
Field Applied Sign
with green letters
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
77

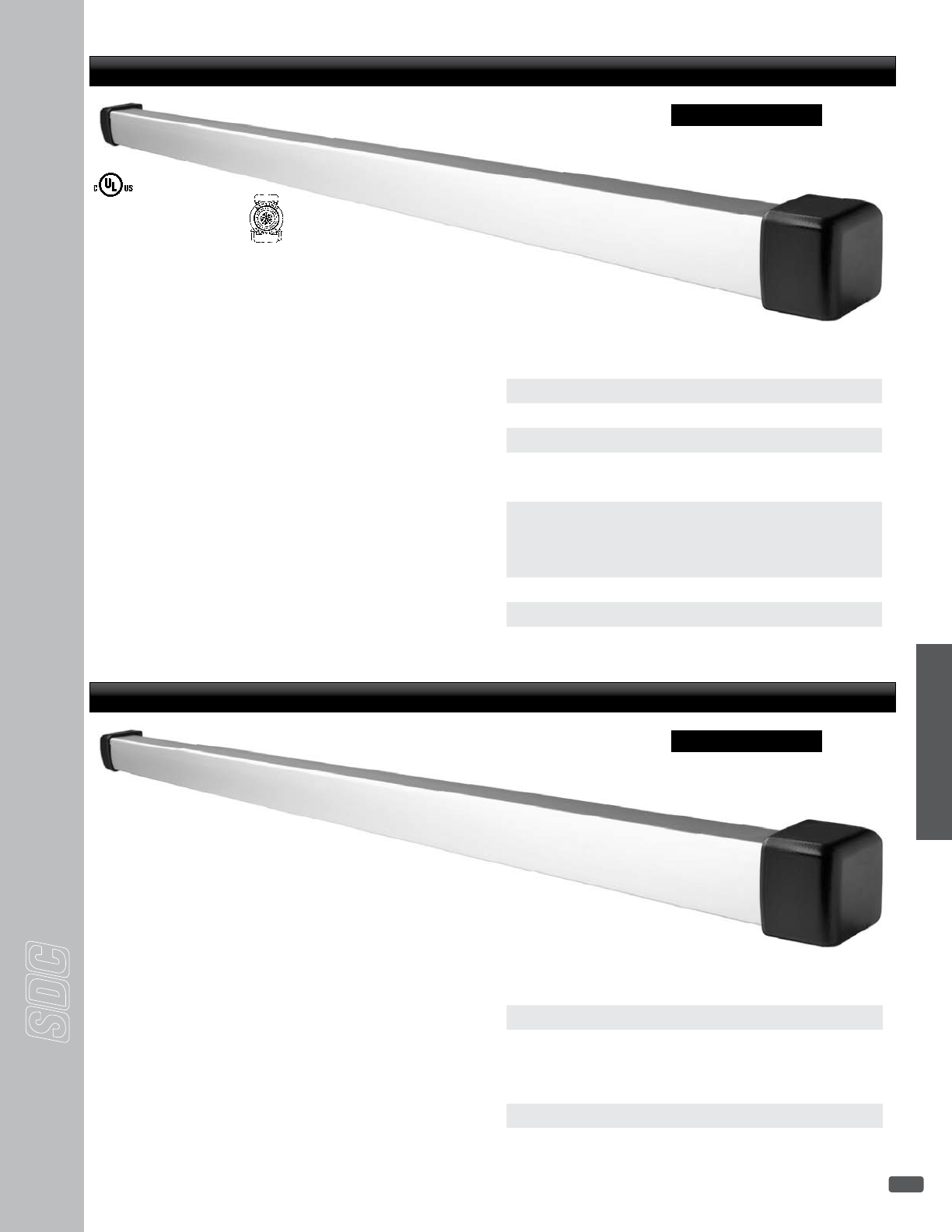

Egress Controls
EXIT MECHANICAL SWITCH DK
Distributor
Discount Code
STANDARD FEATURES
Actuation: 1/8” total bar movement for mechanical switch actuation
Contact: SPDT, 5 Amp @ 30VDC (2nd switch optional)
Accessories include: PT-2U Power Transfer Loop
Standard length, 36"
MODEL FINISH LIST PRICE
MSB550V 628 Aluminum Anodized 232.00
MSB550Y 335 Black Anodized 240.00
MSB550S 629 Bright Stainless Steel 385.00
MSB550U 630 Brushed Stainless Steel 385.00
2 SPDT Contacts
Add "2" for 2nd mechanical switch for dual-failsafe
redundant operation; alarm shunt; or monitoring
output. Ex: MSB550-2V
ADD 31.00
Bars for wide doors
42 Bar for 42" Door. May be field cut. N/C
48 Bar for 48" Door. May be field cut
Ex: MSB550V42
N/C
3773-0324:106
CSFM
Listed 4J82
Access Control System Units
Burglary Resistant Electronic
Locking Mechanism
PUSH TO EXIT
Field Applied Sign
with green letters
EXIT MECHANICAL SWITCH - OUTDOOR WEATHER RESISTANCE DK
Distributor
Discount Code
STANDARD FEATURES
OUTDOOR, WEATHER RESISTANCE
Water Sealed Switches
Actuation: 1/8” total bar movement for mechanical switch actuation
Contact: SPDT, 5 Amp @ 30VDC (2nd switch included)
Accessories include: PT-3V Power Transfer Loop, 2 SPDT
Contacts included
Standard length, 36"
MODEL FINISH LIST PRICE
MSB550-2VW 628 Aluminum Anodized 374.00
MSB550-2YW 335 Black Anodized 374.00
Bars for wide doors
42 Bar for 42" Door. May be field cut. N/C
48 Bar for 48" Door. May be field cut
Ex: MSB550-2VW42
N/C
PUSH TO EXIT
Field Applied Sign
with green letters
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
78
Egress Controls
Exit Device Switch Kits DK
SWITCH KITS LIST
Distributor
Discount Code
527518 519514512 528
Switch Kits are field installed in the inactive hinge pad of an exit device to provide instantaneous release of
EmLocks for egress. All kits include a SPDT Switch Assembly with wire leads. 5 Amp @ 30VDC.
APPLICATION
• Activation of delayed egress locks
• Electromagnetic Lock Release
• Request-to-Exit
• Alarm Shunt or Alarm Activation
MODEL MAKE & MODEL TO BE MODIFIED
510 Von Duprin 33, 35, 98, 99 161.00
510-2 Von Duprin 33, 35, 98, 99 DPDT 198.00
511 Von Duprin 55 161.00
512 Von Duprin 88 161.00
514 Dor-O-Matic 990, 1090, 1990, 2090 161.00
515 Sargent 9300, 9400, 9500 161.00
516 Sargent 9600, 9700, 9800, 9900 161.00
517 Adams Rite 8300, 8400, 8700, 8800 161.00
518 Precision Series 1100 161.00
518A Precision Apex Series (2100 - 2800) 161.00
519 Jackson 1095 161.00
519-2 Jackson 1095 DPDT 198.00
520 Corbin 3000 161.00
521 Corbin 7000 161.00
525 Monarch 18 and 19 161.00
525-2 Monarch 18 and 19 198.00
526 Corbin ED8200 161.00
527 Sargent 80, Arrow S3800/S1250 161.00
527-2 Sargent 80 DPDT 198.00
528 Sargent 20/60 and Yale 2100 161.00
531 Yale 7000 (Dogging mechanism
required) Corbin 4000/5000
161.00
535 Kawneer Mid Panel Line Dor-O-Matic
1390
161.00
536 Jackson 1295 161.00
539 Cal Royal 9800 Series 161.00
542 Hager 4700 161.00
590 Dor-O-Matic 1690 161.00
NOTE: Consult factory for Exit Device Switch Kits not shown. Modification of any kind to a UL Listed device may void UL Listing.
MODEL MAKE & MODEL TO BE MODIFIED
525 517516 511510
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
79

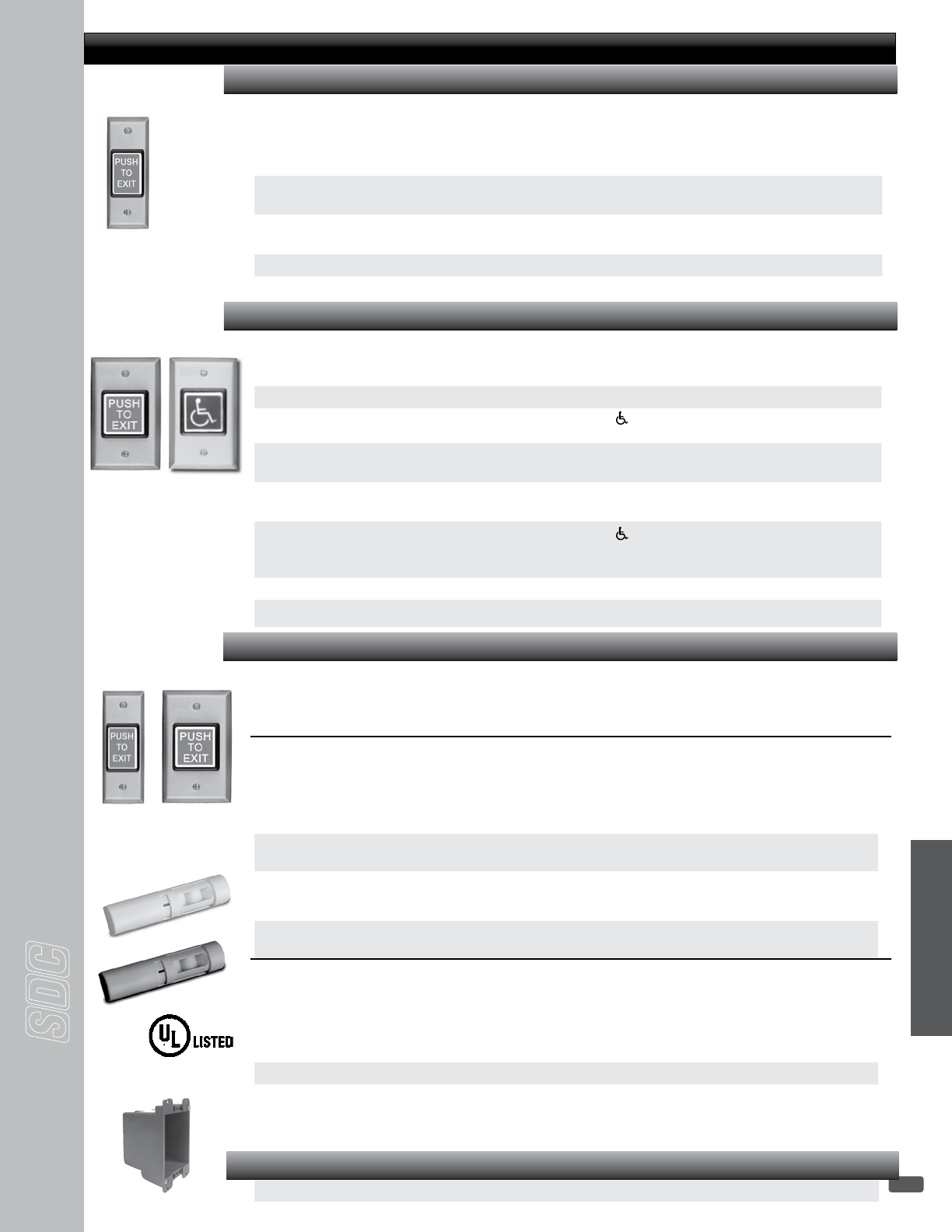

Key & Exit Switches
Exit Switches CK
410 SERIES - 1-3/4" X 1" EXIT SWITCH OPTIONS - SEE PAGE 80 LIST
420 SERIES - 2" EXIT SWITCH OPTIONS - SEE PAGE 80 LIST
413MN
412N
413N
414N
1¾" x 1" Button - Green and Red Illuminated Lens included - Dull Stainless Steel finish
NOTE: AA Models Are Not Illuminated
Narrow Contact Sign
412NU Momentary SPDT PUSH TO EXIT 76.00
413NU Integrated electronic timer, adj. 1-60 sec.
12/24VDC, 2A DPDT Contact
PUSH TO EXIT 145.00
413PNU Integrated pneumatic timer, adj. 1-180 sec.
12/24VDC, SPDT 3 Amp Contact
PUSH TO EXIT 342.00
414NU Momentary DPDT PUSH TO EXIT 91.00
415NU AA (On/Off) DPDT NONE 113.00
2" Button, Green and Red Illuminated Lens included - Dull Stainless Steel Finish
NOTE: AA Models Are Not Illuminated
1 Gang Contact Sign
422U Momentary SPDT PUSH TO EXIT 76.00
422AU Momentary SPDT
2” Button - Blue illuminated lens only
Symbol 76.00
423U Integrated electronic timer, adj. 1-60 sec
12/24VDC, 2A DPDT Contact
PUSH TO EXIT 145.00
423PU Integrated pneumatic timer, adj. 1-180 sec.
12/24VDC, SPDT 3 Amp Contact
PUSH TO EXIT 342.00
423AU Integrated 1-60 sec Timer
12/24VDC, 2A DPDT Contact
2” Button - Blue illuminated lens only
Symbol 145.00
424U Momentary DPDT PUSH TO EXIT 113.00
425U AA (On/Off) DPDT NONE 113.00
Code Compliant Manual Releasing Devices and Sensors
423M and 413MN exit switches USED TOGETHER WITH the MD31D PIR sensor comply with manual releasing device
and sensor device requirements for Access-Controlled Egress Doors per:
IBC International Code 1008.1.3.4 NFPA 101 7.2.1.62 BOCA National Building Code 1017.4.5
IFC International Code 1008.1.3.4 NFPA 1 15.5.3.2 SBCCI Standard Building Code 1012.7
Code Compliant Manual Release Device
Code Compliant Features: Fixed 30 second timer, re-triggerable; Failsafe - lock releases when power to switch is
interrupted; Sign - PUSH TO EXIT; CSFM Listed;:
1¾”x1” Button, Green Illuminated Lens - Dull Stainless Steel Finish, Specify R for optional red lens
Narrow Contact Sign
413MNU Integrated Fixed 30 sec. Timer
12/24VDC, 2 Amp Contact
PUSH TO EXIT 150.00
2" Button, Green Illuminated Lens - Dull Stainless Steel Finish, Specify R for optional red lens
1 Gang Contact Sign
423MU Integrated Fixed 30 sec. Timer
12/24VDC, 2 Amp Contact
PUSH TO EXIT 150.00
Code Compliant Egress Sensor
Code Compliant Features: PIR egress sensor with failsafe mode - lock releases when power to PIR
sensor is interrupted. UL listed 294 Access Control System Units
Model Color
MD-31DOW White PIR Egress Sensor V243.00
MD-31DB Black PIR Egress Sensor V243.00
Input: 12 or 24 VAC/DC @ 26mA max.
Contact: 2 SPDT Dry, 2 Amp @ 30VDC (38.1 H x 148.8 W x 38.1 D mm)
Operating Temp: -20° F to 120° F (-29° C to 49° C)
Dimensions: 1.5" H x 6.25" W x 1.5" D
422
423
424
422A
423A
423M
MD-31DOW
MD-31DB
RETROFIT BACK BOX
BB1D Single Gang 2.25" w x 3.75" h x 2.75" D 14.00
BB1D
Distributor
Discount Code
CODE COMPLIANT MANUAL RELEASE DEVICES LIST
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
80

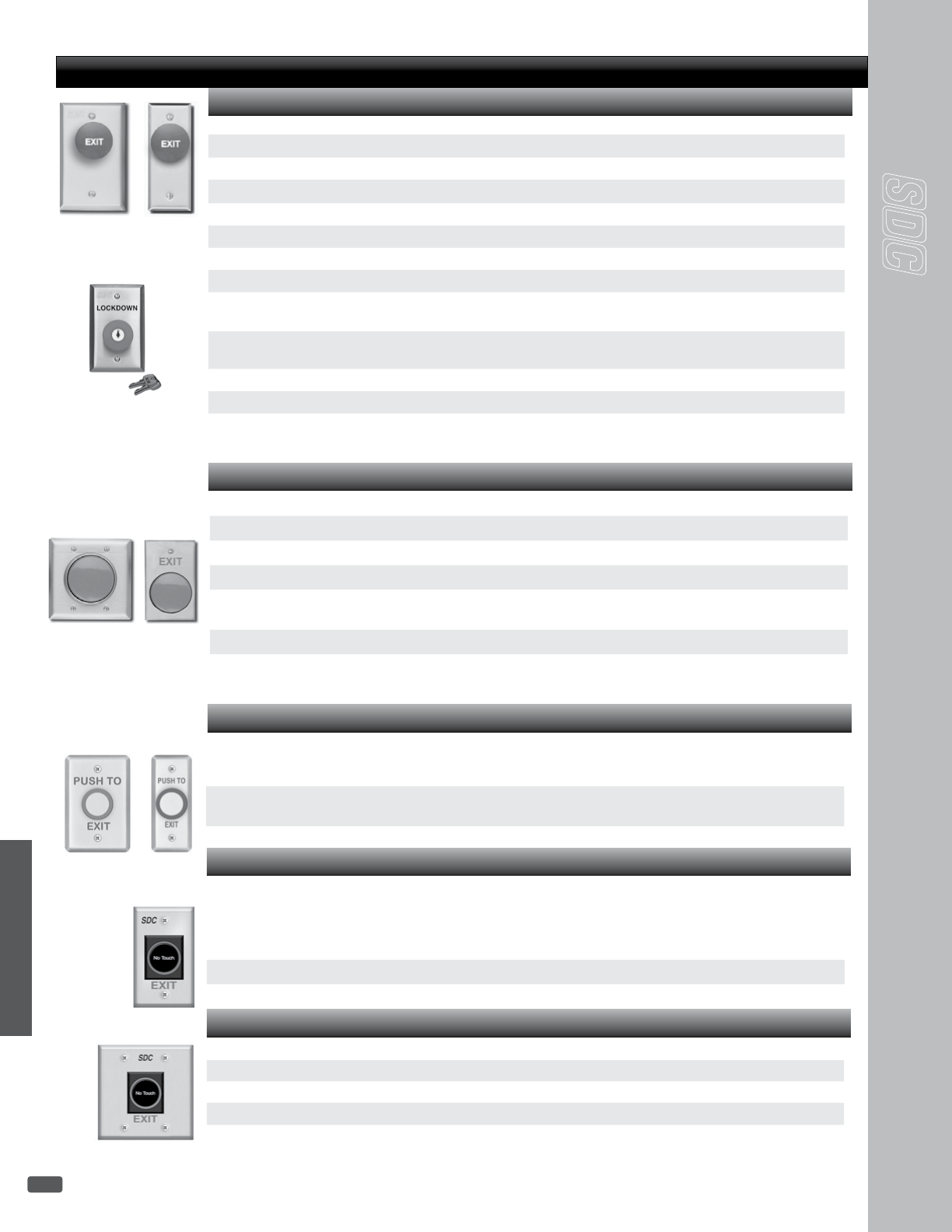

Key & Exit Switches
463 SERIES - VANDAL RESISTANT STAINLESS STEEL EXIT SWITCH LIST
Capacitive Stainless Steel Button - No moving parts - Integrated Time Delay - Red and Green Status Indicators
2mm Stainless Steel - Security Screws - Plated Finish Not Available
1 Gang Narrow Contact Sign
463U 463NU Integrated 1-40 Sec Timer
12/24VDC,SPDT 1A Contact
PUSH TO EXIT 140.00
2-5/8" Mushroom, Red Button Standard, Dull Stainless Steel Finish, Specify G For Optional Green Button
1 Gang 2 Gang Contact Sign
441U AA (On/Off) DPST None 203.00
442U Momentary DPST EXIT 203.00
443U Momentary with Timer Module 1-60 sec.
12/24V AC/DC SPDT 2A Contact
EXIT 294.00
444U Momentary 2-DPST EXIT 225.00
446U Momentary DPST EXIT 134.00
1.5" Mushroom, Green Button Standard, Dull Stainless Steel Finish, Specify R For Optional Red Button
1 Gang Narrow 2 Gang Contact Sign
431CU 431CNU AA (On/Off) NC SPST none 118.00
431OU 431ONU AA (On/Off) NO SPST none 118.00
432CU 432CNU Momentary NC SPST EXIT 118.0 0
432OU 432ONU Momentary NO SPST EXIT 118.0 0
432KUR 432KNUR Latching/ key reset DPST, Red none 230.00
432KLDUR Lockdown, DPST, Key Reset LOCKDOWN 247.00
432KLDURL2 Lockdown, DPST ,Key Reset,
1 Red and 1 Green LED
LOCKDOWN 280.00
433U Momentary with Timer Module 1-60 sec.
12/24V AC/DC SPDT 2A Contact
EXIT 220.00
434U 434NU Momentary DPST EXIT 145.00
435U 435NU AA (On/Off) DPST none 145.00
430 SERIES - 1-1/2" MUSHROOM EXIT SWITCH - FOR OPTIONS SEE BELOW LIST
440 SERIES - 2-5/8" MUSHROOM EXIT & PANIC SWITCHES - FOR OPTIONS SEE BELOW LIST
470 SERIES – SANITARY, NO TOUCH, WAVE-TO-EXIT SWITCH LIST
Special Finish
450 / 460 / 470 Special finish is not available
Designate special finish suffix from below in lieu of U (stainless steel) in part number.
430 430N
441 - 444 446
463
474
C 605 Bright Brass D 606 Dull Brass 44.00
P 625 Bright Chrome H 613 Oil Rubbed Bronze 44.00
Options for 410, 420, 430, 440 Series
L1G 1 Green LED 22.00 LT Tricolor LED - Red, Green, Amber 33.00
L1R 1 Red LED 22.00 EAdd Exit sign To AA Function Switch Only 12.00
L2 1 Red and 1 Green LED 33.00 BNo Exit sign (None) with Momentary Switch N/C
463N
474D
• IR Sensor, 4” read range, Red, Green illuminated LED status.
Control electric locks, strikes and automatic door operators.
• Entry/exit for sanitary environments including: bathrooms,
hospitals, schools, cleanrooms, food processing, labs, or offices.
Output: DPDT 3 Amp Dry Contact
Input: 25mA (standby); 55mA (active) @ 12/24VDC
Faceplate: 20ga stainless steel
Contact Sign
474U DPDT No Touch Exit 81.00
474DU DPDT No Touch Exit 140.00
OPTIONS AND FINISHES FOR 410,420, 430, AND 440 SERIES Add to List
Exit Switches continued CK
Distributor
Discount Code
432KLD
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
81
Key & Exit Switches
KEY SWITCHES CK
6 AMP KEY SWITCH ASSEMBLIES
SPECIFY FINISH Add to List
OPTIONS Add to List
10TD
700T-SN-L2
Key Cylinder sold separately: MO - Momentary AA - Alternate Action (on-off)
Key switch assemblies compatible with 1" to 1.375" U.S. standard and interchangable core mortise cylinders (not included).
700-L2
700 700N 700T
800 800N
20 Gauge Stainless Steel Faceplate Contacts
1 Gang Narrow List 2 Gang List
701 701N 102.00 701T 129.00 AA SPDT
702 702N 102.00 702T 129.00 MO SPDT
704 704N 182.00 704T 203.00 1-60 Timer SPDT
705 705N 118.00 705T 140.00 AA DPDT
706 706N 113.00 706T 134.00 MO DPDT
707 707N 134.00 707T 156.00 2 MO SPDT
708 708N 140.00 708T 161.00 1 MO SPDT & 1 AA SPDT
709 709N 150.00 709T 171.00 2 AA SPDT
710 710N 203.00 710T 230.00 1-60 Timer & AA SPDT
711 711N 156.00 711T 177.00 2 MO DPDT
712 712N 156.00 712T 177.00 1 MO DPDT & 1 AA DPDT
713 713N 156.00 713T 177.00 2 AA DPDT
U630 Dull Stainless Steel (Standard For All Key Switches Except The 800AL) N/C
AL 628 Anodized Aluminum (Standard For The 800AL Key Switch Only) N/C
Plated finishes, special order, no cancellation, no return
C605 Bright Brass 44.00 H613 Oil Rubbed Bronze 44.00
D606 Dull Brass 44.00 P625 Bright Chrome 44.00
10TD Mini timer, adj. 1-60 second
12/24VDC, SPDT
91.00 LT One tricolor LED.
Red, green and amber
33.00
CYL-KD 1 1/8" Key cylinder with 2 keys
(keyed differently)
33.00 ATS Anti-tamper sensor, SPDT 33.00
L1 One LED. Specify red or green 22.00 RMB Buzzer, 12 or 24VDC, 20mA 44.00
L2 Two LEDs. Red, and green 33.00 SN 85 db siren, 4V-25VDC, 15mA 54.00
1/4" Thick Aluminum Plate Contacts
1 Gang Narrow List
801AL 801ALN 150.00 AA SPDT
802AL 802ALN 150.00 MO SPDT
804AL 804ALN 230.00 1-60 Timer SPDT
805AL 805ALN 171.00 AA DPDT
806AL 806ALN 171.00 MO DPDT
807AL 807ALN 193.00 2 MO SPDT
808AL 808ALN 193.00 1 MO SPDT & 1 AA SPDT
809AL 809ALN 193.00 2 AA SPDT
810AL 810ALN 272.00 1-60 Timer & AA SPDT
811AL 811ALN 220.00 2 MO DPDT
812AL 812ALN 220.00 1 MO DPDT & 1 AA DPDT
813AL 813ALN 220.00 2 AA DPDT
See Options below
BB1D
Distributor
Discount Code
RETROFIT BACK BOX
BB1D Single Gang 2.25" w x 3.75" h x 2.75" D 14.00
KEY CYLINDER OPTIONS Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 33.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
82
Key & Exit Switches
Passive Infrared Egress Control V LIST
Distributor Discount
Code
MD-31DOW Motion detector with time delay, white 243.00
MD-31DB Motion detector with time delay , black 243.00
Time Delay Relay CK List
Distributor Discount
Code
Time Delay Relays
10TD Time delay relay module with adjustable 1-60 second relock delay.
Input: 12/24V AC/DC Output: SPDT, dry contact
Voltage: 2 Amps @ 30 VDC (resistive) Size: 2-1/4"x 1-1/2" x 3/4"
91.00
Explosion Proof Exit Switch LIST
Distributor Discount
Code
EP499 Explosion Proof Exit Switch (specify Green or Red Button) 2,447.00
SPECIFICATIONS
Contact 1 N.O. and 1 N.C., momentary
IIEC Rating DC60V 5A DC-13
Operating
Temperature -50° C to 60° C
DIMENSIONS 3.95 W X 4.21 H X 4.16” D
Class I, Zone 1, AEx de IIC T6...T4 Gb / Ex de
IIC T6...T4 Gb X
Zone 21, AEx tb IIC T85°C...T135°C Db IP66 /
Ex tb IIC T85°C...T135°C Db IP66 X
Class I, Division 2, Groups A, B, C, D
Class II, Division 2, Groups E, F, G
Class III
UL50, 50E, 508, UL60079-0, -1, -7, -31
Type 3, 4, 4X, 12, 13
Stainless Steel Button - 1/4" Thick Aluminum Plate - Security Screws - Plated Finish Not Available
1 Gang Narrow Contact Sign
451V 451NV AA (On/Off) SPDT None 161.00
452V 452NV Momentary SPDT None 161.00
453PV 453PNV Integrated Pneumatic Timer
ADJ. 1-180 sec. SPDT contact
None 454.00
451
452
453
451N
452N
453N
450 SERIES - Vandal Resistant ALUMINUM Exit Switch LIST
Distributor Discount
Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
83
ADA Compliant
SPECIFY MODEL LIST
Model Description
AUTO Auto EntryControl™
Single Swing Door Operator 2,339.00
OPERATION Add to List
Operation Description
1PUSH arm plus standard spindle N/C
2PULL arm plus standard spindle N/C
3One PUSH arm plus spindle,
one PULL arm plus spindle 279.00
DOOR OPENING
Add to List
Width Description
36 for 36” Door Opening N/C
42 for 42” Door Opening N/C
48 for 48” Door Opening N/C
COLOR Add to List
Color Description
VAluminum N/C
XDark Bronze Powder Coat 295.00
Width Description
72 for 72” Double Door opening 200.00
84 for 84” Double Door opening 200.00
96 for 96” Double Door opening 200.00
SPECIFY MODEL LIST
Model Description
AUTO Auto EntryControl™
Double Swing Door Operator 4,737.00
OPERATION Add to List
Operation Description
1Two PUSH arm plus standard spindle N/C
2Two PULL arm plus standard spindle N/C
3One PULL arm plus spindle,
one DOUBLE EGRESS arm plus spindle 414.00
DOOR OPENING
Add to List
SINGLE DOOR OPENING DOUBLE DOOR OPENING (SPECIAL ORDER)
COLOR Add to List
Color Description
VAluminum N/C
XDark Bronze Powder Coat 526.00
AUTO-IR Door-mounted Presence Sensor and
Door Re-Activator -
48 inches, length field-adjustable
351.00

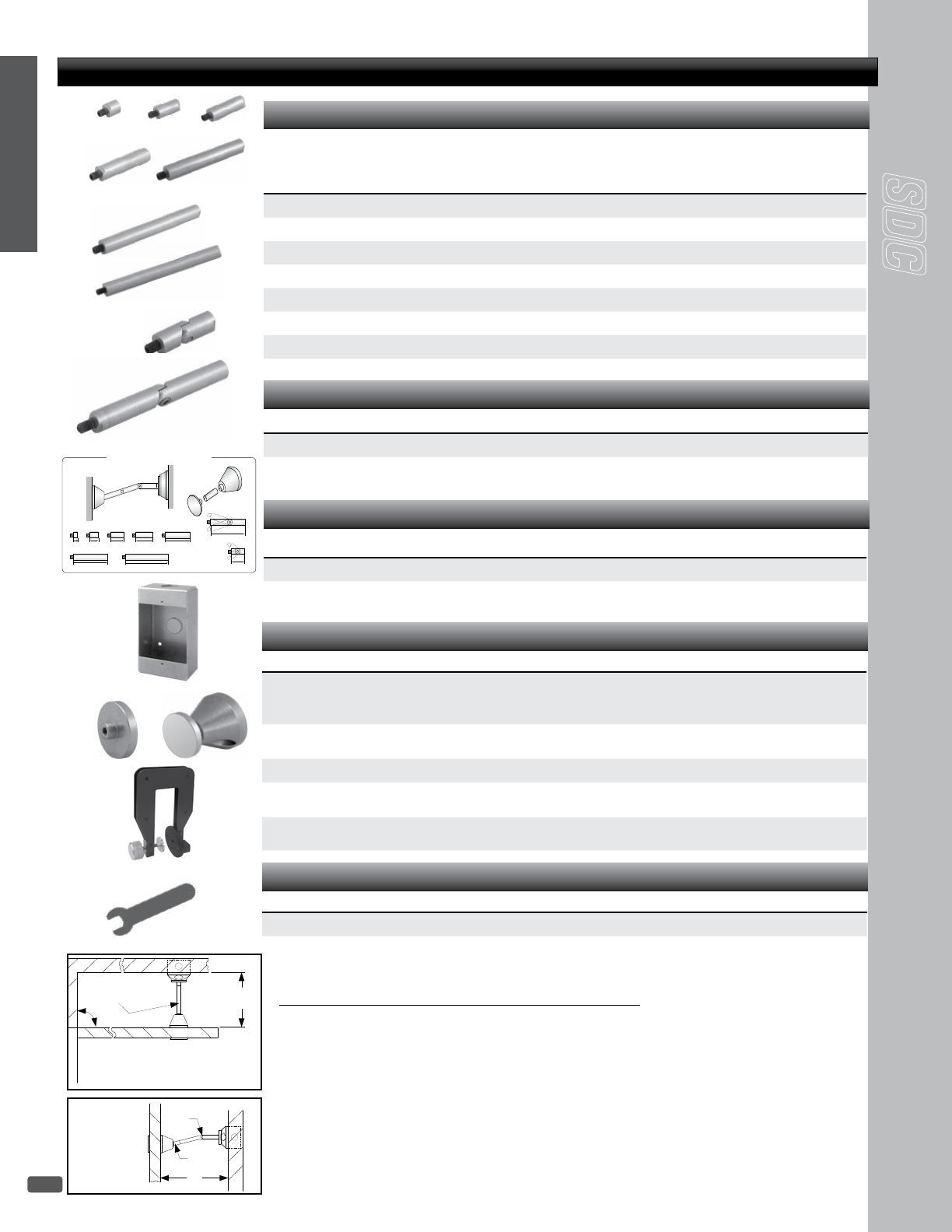

ACCESSORIES V LIST
Distributor
Discount Code
SP20 20mm Spindle 78.00
SP35 35mm Spindle 78.00
OPTIONAL SPINDLES List
SP50 50mm Spindle 78.00
SP80 80mm Spindle 93.00
OPTIONAL ARM EXTENSIONS FOR REVEAL GREATER THAN 8 INCHES List
AUTO-AEV Arm Extension for PUSH arm - Aluminum 103.00
AUTO-AEX Arm Extension for PUSH arm - Dark Bronze Powder Coat 145.00
Auto EntryControl™ XK
Auto EntryControl’s™ non-pivot drive and combination of belt, gear and pulley requires less torque, requires less power, absorbs more abuse, and is qui-
eter than other automatic door openers while complying with all US and Canadian ADA requirements. On-board diagnostics simplifies troubleshooting for
ease of installation and all Auto EntryControl’s™ can be easily configured for surface mounted push/pull or overhead concealed applications.
• ADA Compliant
• Complies with ANSI A 156.19
• UL - Certied for use as re
door operators (3 hour rating)
• Self-Tunning, Self-Learning
• Minimum 5 seconds from close
to open
• Stays open for 5 seconds
• 130 degree of opening
• Push or Pull (In door, Out swing)
• Activation: Knowing Act
• Optional Safety Device
• 24V, 1Amp+ Output
• Input Power: 1A, 100W
• Non-Handed
• Extremely Quiet Operation
Distributor
Discount Code
AUTO-KS Single gang key lock switch 186.00
AUTO-KSN Narrow key lock switch 186.00
AUTO-RKR Narrow rocker Switch 99.00
• Ensure the mechanical door stops are at their maximum position as shown.
• Apply 120 VAC Main power to the control
o Place the On-O-Hold switch to the Hold Open position
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
84
ADA Compliant
Dual Switch Bollard Post - CBC compliant CK
Distributor
Discount Code
Model Description
CBC482A4U 42" surface mount, 6" square post, with high and low 4-1/2” SPDT switch plates 688.00
CBC484A4U 42” surface mount, 6” square post, with high and low 4-1/2” DPDT switch plates 739.00
SPECIFY MODEL LIST
• California CBC Section 11B 404.3 code
compliant bollard and switch plates
• Black HDPE mortised removable cap with secure
transmitter mount
• Two 4-1/2” Push to Open blue infill push
plates, located at 7” and 36" centerline from floor
• 6” square post with 1/8” walls
• Surface mount (42")
Model Description
BPS6 42" surface mount, 6" square post 417.00
BPG6 54" in-ground, 6" square post 417.00
• For use with Push Plates, Touch Panel
Columns & Exit Switches
• Black HDPE mortised removable cap with
secure transmitter mount
• Standard single gang prep located at 36" from
finished floor
• 6” square with 1/8” walls
• Surface mount (42") or In-Ground mount (54")
SPECIFY FINISH Add to List
V 628 Aluminum (standard) X 710 Dark Anodized Aluminum N/C
SPECIFY PREP Add to List
S1-gang prep N/C
D2-gang prep N/C
PTouch Panel prep N/C
ANarrow Mullion Prep N/C
Bollard Post CK
Distributor
Discount Code
SPECIFY MODEL LIST
400 Series Wireless Transmitter and Receiver CK LIST
Distributor
Discount Code
433MHz Micro Transmitter
• Requires a non-metalic surface box or
standard bollard cap (non-metalic).
Works with 400RC433
• Pre-Wired for quick installation
• Antenna magnifies signal
Voltage Input: 9V Battery (included)
Trigger Input: Momentary, N.O.Dry Contact
Temperature: -20F — 100F
Dimensions: 1-9/64” x 15/16” x 7/32” (29 x 49 x 6mm)
Model Description
400W1-433 433MHz Micro Transmitter 136.00
For Remote Control Versatility for Touch Panel Column and Push Plate Switches
433MHz 1 Channel Nano Receiver
• Designed to control automatic closing and anti-burglar systems. Works with 400W1-433.
Carrier Frequency: 433.92 MHz Power Supply: 12/24 VAC/DC
Relay Numbers: 1 Contacts: C-NO
Temperature: -4F — 158F Dimensions: 1-1/4” x 2” x 3/4” Deep (32 x 51 x 19mm)
Model Description
400RC433 433MHz 1 Channel Reciever 168.00
Push Plate and
Touch Panel NOT
INCLUDED
see page 86 for
ordering info
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
85
ADA Compliant
• Door Opener Activation
• Automatic Door Activation
• Access Control Request-to-Exit (RTE)
• Door Sequencer Activation
480 Series Push Plate Switches - Wireless and Hardwired CK LIST
Distributor
Discount Code
= can be used with wireless
transmitter and receiver
SPECIFICATIONS
Mounting
Plate Heavy Duty 1/8” (3.2mm) mounting plate
Faceplate Heavy 18 Gauge (1.02mm), 630/US32D Satin Stainless Steel Standard
Legends Bold debossing or engraving with black, blue or white infill
Contacts SPDT or DPDT, 15 Amps @ 125/250VAC; UL 1054, CSA Listed
Depth [Narrow & (1) Gang] SPDT-7/8” deep, DPDT-1-3/8” deep,
[4 ½”, & 6” square/ round] SPDT-3/4” deep, DPDT-1-5/32
1-11/16” Narrow Mullion Push Plate Switch – Recessed, Surface Box or Bollard Mount
SPDT Model Description DPDT Model Description
482O1U Push to Open, black infil 67.00 484O1U Push to Open, black infil 93.00
482A1U Push to Open, blue infill 67.00 484A1U Push to Open, blue infill 93.00
400-1B Narrow Mullion Surface Box, 1-3/4" x 4-9/16" x 1-3/4" O.D. 20.00
2¾” x 4½” Single (1) Gang Push Plate Switch
• Pressing any part of the push plate (2 ¾” x 4 ½”) causes switch actuation
• Recessed, Surface Box or Bollard Mount • Depth: SPDT - ¾” deep; DPDT - 1 ½” deep
SPDT Model Description DPDT Model Description
482O2U Push to Open, black infill 80.00 484O2U Push to Open, black infill 106.00
482A2U Push to Open, blue infill 80.00 484A2U Push to Open, blue infill 106.00
480-2SB Surface mount box, 2 3/4” x 4 1/2” x 1 5/8” O.D. 30.00
4 ½” x 4 ½” Square Push Plate Switches
• Pressing any part of the push plates 4” ½” x 4 ½” active area causes switch actuation
• 1 Gang or 2 gang recessed or Surface Box Mount • Depth: SPDT ⅝” deep; DPDT 1 ½” deep
SPDT Model Description DPDT Model Description
482O4U Push to Open, black infill 88.00 484O4U Push to Open, black infil 114.00
482A4U Push to Open, blue infill 88.00 484A4U Push to Open, blue infill 114.00
480-4FB Square Flush Recessed box, 1-gang, 6 3/4” x 6 3/4” x 1 7/8” O.D. 65.00
480-4SBB Surface mount box, 4-1/2” x 4-1/2” x 1 3/4” O.D. with Battery compartment for wireless 34.00
480-4SB Surface mount box, 4-1/2” x 4-1/2” x 1 7/8” O.D. 65.00
480-4SE 3-sided stainless shroud for exterior applications, 4-11/16" x 4-7/8" x 12" 40.00
6” x 6” Square Push Plate Switch
• Pressing any part of the push plates 6” x 6” active area causes switch actuation
• 1 Gang or 2 gang recessed or Surface Box Mount • Depth: SPDT ⅝” deep; DPDT 1 ½” deep
SPDT Model Description DPDT Model Description
482O6U Push to Open, black infil 93.00 484O6U Push to Open, black infil 118.0 0
482A6U Push to Open, blue infill 93.00 484A6U Push to Open, blue infill 118.00
480-6SBB Surface mount box, 2-gang Battery Compartment, 4 1/2” x 4 1/2” x 1 3/4” O.D. 34.00
For Handicap Access, Automatic Door
Activation & Request-to-Exit Applications
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
86
ADA Compliant
4 ½” Round Push Plate Switch
• Pressing any part of the push plates 4” ½ active area causes switch actuation
• 1 Gang or 2 gang recessed or Surface Box Mount • Depth: SPDT ⅝” deep; DPDT 1 ½” deep
SPDT Model Description DPDT Model Description
482O4RU Push to Open, black infil 88.00 484O4RU Push to Open, black infil 114.00
482A4RU Push to Open, blue infill 88.00 484A4RU Push to Open, blue infill 114.0 0
480-4RSB Surface box, 5” Dia., 2 1/8” O.D. 58.00 480-4RFB Black Flush Escutcheon, 5 7/8”
overall diameter with trim ring
65.00
480-4RG 4" round gasket 16.00 480-4RRB Surface Escutcheon, 7 7/8”
Dia., 1 9/16” overall height
65.00
6” Round Push Plate Switch
• Pressing any part of the push plates 6” active area causes switch actuation
• 1 Gang or 2 gang recessed or Surface Box Mount • Depth: SPDT ⅝” deep; DPDT 1 ½” deep
SPDT Model Description DPDT Model Description
482O6RU Push to Open, black infil 93.00 484O6RU Push to Open, black infil 118.00
482A6RU Push to Open, blue infill 93.00 484A6RU Push to Open, blue infill 118.0 0
480-6RSB Surface box Round,
6 7/16” Dia., 2 1/8” O.D.
58.00 480-6RFB Recessed Flush Escutcheon, 7
3/4” overall diameter with trim ring
65.00
480-6RG 6" round gasket 17.00
480 Series Push Plate Switches - Wireless and Hardwired (continued) CK LIST
Distributor
Discount Code
36" X 6" INGRESS-R.E.X TOUCH PANEL COLUMN List
9" X 6" INGRESS-R.E.X TOUCH PANEL COLUMN List
SPDT Model Description
482AA9 Push to Open 298.00
Fully Active 22-1/2 Sq. Inch Actuation Area
Recommended Centerline mounting height 34" to 48"
Material: Sturdy 1/8" extrusion with architectural finish
Overall Size: 9" h x 6" w x 1-1/2" d (229 x 152 x 38mm)
Active Area: 9" h x 2-1/2" w (229 x 63.5mm)
Applications
• Wireless & Hardwire
• ADA Ingress/R.E.X/Egress Door Opener Activation
• Access Control Request-to-Exit (REX)
• Door Opener Activation
• Automatic Door Activation or Lock Release
• Automatic Door & Exit Device Sequencer Activation
Features
• Surface wall mount or bollard mount
• Sleek Architectural prole
• No square edges to snag, wide sloping sides deects
impact movement naturally to activate column
• Deects impact from wheeled carts and conveyances
• Impact & Vandal resistant design, inhibits prying, tampering
• Weather Resistant, no gaps for water or ice penetration
• Choice of SPDT or DPDT, 15 Amps @ 125/250VAC
SPDT Model Description DPDT Model Description
482AA36 Push to Open 417.00 484AA36 Push to Open 443.00
SPECIFY FINISH Add to List
V 628 Aluminum (standard), blue infill N/C X 613 Dark Bronze, white infill 25.00
SPECIFY FINISH Add to List
V 628 Aluminum (standard), blue infill X 613 Dark Bronze, white infill N/C
Fully Active 90 Sq. Inch Actuation Area
Recommended mounting height is 3" from floor
Material: Sturdy 1/8" extrusion with architectural finish
Overall Size: 36" h x 6" w x 1-1/2" d (914 x 152 x 38mm)
Active Area: 36" h x 2-1/2" w (914 x 63.5mm)
= can be used with wireless
transmitter and receiver
480 Series Touch Panel Column - Wireless & Hardwire CK
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
87
ADA Compliant
480 Series Wireless Push Plate Switch Kits CK LIST
Distributor
Discount Code
Wireless 4 ½” Push Plate Switches
Includes: two Round or Square Push Plate Switches with matching surface mount back box, two wireless transmit-
ters (400W1-433, 9V batteries included), and one wireless nano receiver (400RC433)
SPDT Model Description
482S-KIT SQUARE 4-1/2 Push Plate Switches (2), Push to Open, blue infill, Square Surface
Mount Back Boxes (2), Wireless Transmitters (2) and Wireless Receiver (1)
489.00
482R-KIT ROUND 4-1/2 Push Plate Switches (2), Push to Open, blue infill, Round Surface
Mount Back Boxes (2), Wireless Transmitters (2) and Wireless Receiver (1)
536.00
480 Series CBC High-Low Compliant Wireless Push Plate Switch Kits CK LIST
Distributor
Discount Code
Wireless 4 ½” Push Plate Switche Kit for Calif. Building Code Compliance
Includes: four Square Push Plate Switches with matching surface mount back box, four wireless transmitters (400W1-
433, 9V batteries included), and one wireless nano receiver (400RC433)
SPDT Model Description
482S-CBCKIT SQUARE 4-1/2 Push Plate Switches (4), Push to Open, blue infill, Square Surface
Mount Back Boxes (4), Wireless Transmitters (4) and Wireless Receiver (1)
886.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
88
Egress Controls
491
CB401-A
CB402-A
SDC 490 series emergency door release stations include 2-SPDT contacts for release of all doors on the
same circuit and remote annunciation. A built-in local alarm is standard.
491 Blue break glass station, emergency door release, 2-SPDT 10 Amp contacts with
built-in local alarm (12/24V), 2 replacement glass included. Single gang box mounted
197.00
491-GL4 Four replacement glass plates for 491 22.00
491-BB Blue surface mount box for 491 65.00
492 Blue pull station, emergency door release, 2-SPDT 10 Amp contacts with built-in local
alarm (12/24V), 2 replacement glass rods included. Single gang box mounted.
161.00
492-GL4 Four replacement glass rods for 492 22.00
492-BB Blue surface mount box for 492 44.00
EmLock®
CB401-AU Communicating bath switch, 630 Stainless Steel finish. 124.00
CB401-B Emergency access switch, red. 2 Required 129.00
CB701 Emergency key switch, red 161.00
Electrified Lockset, HiTower® , or Strike Application
CB402-A Communicating bath switch, U 630 Stainless Steel finish. 124.00
CB402-B Emergency access switch, red. 2 Required 129.00
CB702 Emergency key switch, red 161.00
CB401-B
CB402-B
492
CSFM Listed
Emergency Door Release V LIST
Distributor
Discount Code
Communicating Bathroom Controls CK LIST
Distributor
Discount Code
Explosion Proof Pull Station LIST
Distributor Discount
Code
EP493 Explosion Proof Pull Station 850.00
SPECIFICATIONS
Contact DPDT
Contact rating 10 amps @ 125/250 VAC
Wire AWG 12 to 22 AWG
Wireing Terminal Black Connection
Class I, Group B, C, D
Class II, Group E, F, G
Class III
Type 4X (outdoor)
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
89
Egress Controls
CBP - Communicating Bathroom Package CK LIST
Distributor
Discount Code
Mortise Lock Option
CBP-ME-78 Communicating bath package with Eclipse style mortise Lock
(Z7850LQDE)
2,781.00
CBP-MG-78 Communicating bath package with Galaxy style mortise Lock
(Z7850LQDG)
2,781.00
Cylindrical Lock Option
CBP-CE-72 Communicating bath package with Eclipse style cylindrical Lock
(Z7250EQ)
1,994.00
CBP-CG-72 Communicating bath package with Galaxy style cylindrical Lock
(Z7250GQ)
1,994.00
EmLock© Option
CBP-EM-81 Communicating bath package with 650lb EMLock locking device
(1581VD)
1,609.00
CBP-EM-71 Communicating bath package with 1200lb EMLock locking device
(1571VD)
1,760.00
CBP-EM-11 Communicating bath package with 1650lb EMLock locking device
(1511VD)
1,824.00
FROM FIRE
PANEL
110 VAC INPUT
POWER
SUPPLY
• (2) Electrified Locking Devices
(Mortise, Cylindrical or ElectroMagnetic)
• (1) 1.5 Amp Power Supply with Universal Relay Module
(631RFXUR1)
• (2) Emergency Access Push Button Switches
(CB400-B)
• (1) System Activation Push Button Switch
(CB400-A)
• (2) Build-in Latch or Door Position Status Sensors
(DPS , L)
• (2) Power Transfer Hinges*
*(not required for EMLocks)
(PTH)
Package Components:
Every Shared Bathroom Package also includes a Riser Diagram, Components List, Method of Operation and Wiring
Diagram to help you determine the materials and installation costs to complete your project bid.
CB400-A
CB400-B
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
90
Power Transfer Devices
PTH Series Power Transfer Hinge LZK LIST
Distributor
Discount Code
FEATURES
• 5' Ft Cable
• UL10B Listed for 3 Hour Fire Rated Doors
• 800,000 cycles. 8 times UL test criteria
• Wire Replacement Warranty
Power Transfer Hinge Application
Installed in the center hinge position of the door, PTH Power
Transfer Hinges provide the concealed wires required to trans-
fer power from the frame to electric hardware in the door for
control and monitoring capability.
PTH-4Q Four (4) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair
4.5” x 4.5” standard weight, 626 Dull Chrome
161.00
PTH-4Q-DPS Four (4) Conductor Power Transfer Hinge with Door Status Contact
1 Amp @ 12/24V per pair
Door Status Contact: 250 mA @ 30VDC
4.5” x 4.5” standard weight, 626 Dull Chrome
214.00
PTH-10Q Ten (10) Conductor Power Transfer Hinge
1 Amp @ 12/24V per pair
4.5” x 4.5” standard weight, 626 Dull Chrome
209.00
PTH-10Q-DPS Ten (10) Conductor Power Transfer Hinge with Door Status Contact
1 Amp @ 12/24V per pair
Door Status Contact: 250 mA @ 30VDC
4.5” x 4.5” standard weight, 626 Dull Chrome
267.00
FOR ELECTRIC LATCH RETRACTION EXIT DEVICES AND OTHER HIGH INRUSH DEVICES
PTH-2+4Q 16 Amp Inrush, 6 conductor power transfer hinge
1-pair 16 Amp inrush, 4 Amp continuous; 2-pair 1 Amp @ 12/24V
4.5” x 4.5” standard weight, 626 Dull Chrome
188.00
PTH-2+4QDPS 16 Amp Inrush, 6 conductor power transfer hinge, with door status contact
1-pair 16 Amp inrush, 4 Amp continuous; 2-pair 1 Amp @ 12/24V
Concealed Door Position Contact, 250 mA @ 30VDC
4.5” x 4.5” standard weight, 626 Dull Chrome
242.00
PTH x 5 Ft Cable
F
10B Listed
for 3hr Fire
Rated Door
PTM-2AL Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DV
Aluminum Powder Coat, US28 equivalent
383.00
PTM-2BZ Two (2) Conductor Power Transfer Device: Two (2) 18 Ga. wires
5 Amp @ 12/24V AC/DV
Dark Brown Powder Coat, US10B equivalent
383.00
PTM-10AL Ten (10) Conductor Power Transfer Device: Ten (10) 24 Ga. wire
1 Amp @ 12/24V AC/DC
Aluminum Powder Coat, US28 equivalent
383.00
PTM-10BZ Ten (10) Conductor Power Transfer Device: Ten (10) 24 Ga. wire
1 Amp @ 12/24V AC/DC
Dark Brown Powder Coat, US10B equivalent
383.00
Miscellaneous Fire
Door Accessories
UL 10C 3 Hr Fire Rated
Classied per UBC 7-2
PTM Heavy Duty Series Electric Power Transfer Device LZK LIST
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
91
Pwer Transfer Devices
NEW
WPT Wireless Power Transfer Device 450.00
WPT Wireless Electric Power Transfer Device LZK LIST
Distributor
Discount Code
Concealed Power Transfer Device LIST
PT-5 UL Listed Concealed Power Transfer Device, for use with all high and low current applications 65.00
Also recommended for use with Von Duprin* EL 33 and 99 series and other high inrush devices
*Von Duprin is a registered trademark of Ingersol Rand and Von Duprin. Not intended as endorsement.
PT5
Miscellaneous Fire
Door Accessory
Power Transfer Loops V LIST
Distributor
Discount Code
PT-2U Armored flex conduit, less wires, 18" long, 1/4" I.D. 21.00
PT-3V Armored flex conduit, less wires, with wire junction box,
20” long, 1/4” I.D.
49.00
PT-3/8V Armored flex conduit, less wires, with wire junction box,
20” long, 3/8” I.D.
65.00
PT-2U PT-3V
FEATURES
• Output: 600 mA @12VDC/ 300 mA @24VDC
• Max Input: 600 mA @24VDC
• Max Door Gap: 0.275”; horizontal <0.08”, vertical <0.08” with door gap 0.196
• Bi-Color LED @ Frame Side
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
92
Power Transfer Devices
Door Core Drill Guide LZK LIST
The SDC 7000-DG Laser Guided Wire Raceway Drill Fixture enables wire raceway preparation through particle filled and solid wood
doors. The door core wire raceway permits the installation and wiring of electrified locksets, exit devices and electric hinges.
The Laser Guided Wire Raceway Drill Fixture is easy to use without previous experience. The kit allows for drilling from the hinge
side without removing the door from the frame.
The 7000-DGK Kit includes: Laser Guided Door Core, Raceway Fixture, 1/4" x 6" Pilot Drill Bit, 3/8" x 50" Door Raceway
Drill Bit (Custom designed evacuator drill bit tool sharpened with 1' extra long flutes),
Fiberglass Wire Running Kit (Flexible acrylic end connection, Brass hook end for pulling, Brass eye end for pushing), Door
Wedge, Kit Carry Case
7000-DGK Laser door core drill guide Kit 640.00
7000-DB3/8 3/8" x 50" evacuator drill bit 81.00
7000-PD 1/4 X 6 1/4" x 6" pilot drill bit 26.00
Target Line
Laser beam
Drill Guide
1/4 x 6" Pilot Drill Bit
3/8" x 50" Evacuator Drill Bit - Custom Designed for Door Raceways Extra Long 1 Ft. Flute
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
93
Power Supply & Door Controllers
Distributor
Discount Code
Power Supplies/Controllers & Battery Standby NK
FIELD SELECTABLE 12VDC OR 24VDC OUTPUTS LIST
DUAL 12VDC AND 24VDC OUTPUT CAPABILITY Add to List
OPTIONS Add to List
632RFL
632RF(A)(L) Access Control Systems Unit ALVY
632RF(A)(L), 634RF and 636RF UL listed as:
General Purpose QQFU/QQFU7 Power Supply
BATTERIES SOLD SEPARATELY
602RFL 1 Amp, class 2 output, less box 225.00
602RF 1 Amp, class 2 output, 12" W x 12" H x 3.75" D box 279.00
602RFA 1 Amp, class 2 output, 16" W x 14" H x 6.5" D box 395.00
631RFL 1.5 Amp, class 2 output, less box 279.00
631RF 1.5 Amp, class 2 output, 12" W x 12" H x 3.75" D box 374.00
631RFA 1.5 Amp, class 2 output, 16" W x 14" H x 6.5" D box 449.00
632RFL 2 Amp, class 2 output, less box 331.00
632RF 2 Amp, class 2 output, 12" W x 12" H x 3.75" D box 427.00
632RFA 2 Amp, class 2 output, 16" W x 14" H x 6.5" D box 492.00
634RF 4 Amp, field select one 4 Amp output, or two 2 Amp class 2 outputs 640.00
636RF 6 Amp, field select one 6 Amp output, or three 2 Amp class 2 outputs 747.00
12VR 500mA, 12VDC regulated and filtered output module
With the power supply output set at 24VDC for locking devices and components, the
addition of the 12VR provides a separate 12VDC 500 mA output for access controls or
other 12VDC devices
54.00
MR Manual reset switch for Fire/Emergency release
(not available on 631RF)
40.00
PS-1 System On-Off push switch inside power supply enclosure 40.00
PS-1A System On-Off push switch on enclosure cover 40.00
14-2 7 day - skip a day programmable timer. Automatically unlocks and locks all doors or
specific doors on programmed days only.
257.00
PC 6 ft. power cord. Recommended for 1 Amp and 1.5 Amp, eliminating the need for
AC conduit
40.00
KL Key lock cover 40.00
220V/230V 230VAC, 50/60Hz N/C
• Input, output and battery LED status indicators
• Thermal and short circuit protection with
auto reset
• Battery charger
• Low battery disconnect
STANDARD FEATURES:
• Modular design
• Filtered and regulated output
• Field selectable 12/24VDC
• Fire/Emergency release input
• Field selectable manual reset input (n/a with 631RF(A))
602RF / 631RF
632RF
with optional power cord
and 2 - CR4 modules
631RFA
632RFA
634RF
636RF
12VR
631RFL
602RFL
Distributor
Discount Code
602RF(A)(L) and 631RF(A)(L) tested according to UL Standard 1481,
listing includes:
Access Control Systems Unit ALVY Burglar Alarm Systems Power Supply APHV
Releasing Device Accessory SYSW Fire and Burgular Alarm Power Supply URTZ
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
94
Power Supply & Door Controllers
621 Access Control Power Supplies NK
• 12VDC or 24VDC field selectable output
• 1 Amp maximum, filtered and regulated output
1 power limited or lock control relay output
1 power limited unswitched access control output
• Two control inputs
1 lock control trigger input, normally open (NO)
1 supervised emergency release input
(latching w/reset or non-latching)
• Short circuit and thermal overload protection
• Battery charger output
• Automatically switched to battery back-up when AC fails
• Board equipped with AC input, DC output and battery
status LED indicator
• Enclosure equipped with AC input, DC output
and battery status LED indicator
Dimensions
Power Supply Board: 3.95" W x 3" H x 1.625" D
Enclosure: 7.25" W x 8.375" H x 3.625" D
MODEL LIST
621PJ Power supply module and cabinet, door mount LED system status indicator
UL Listed 24VAC, 40 VA plug-in transformer
209.00
621J Power supply module, cabinet with door mounted LED system status indicator 188.00
621P Power supply module, retrofit mounting hardware includes flush mount standoffs
or Velcro. UL Listed 24VAC, 40 VA plug-in transformer
150.00
621B Power supply module only, retrofit mounting hardware includes flush mount standoffs
or Velcro
129.00
621P-UME Power supply module,Universal Module Enclosure. UL Listed 24VAC, 40 VA plug-in
transformer
185.00
621B 621P
621PJ
FEATURES
2 Control Relays Standard
BATTERIES
RB12V4 12V/4Ah Battery. 621PJ accommodates two. 44.00
RB12V7 12V/7Ah Battery. 621PJ accommodates one. 65.00
RB12V4
4 Amp Hour
RB12V7
7 Amp Hour
621J
Distributor
Discount Code
621P-UME
UME Single module enclosure
33.00
Universal Module Enclosure for single modules
Universal mounting standoffs will accomodate
FB-4, UR-1, 12VR, ACM-1, PB-16, PB-8, PSM, 621B, or LR100EM boards.
Box Dimensions: 5-5/8”H x 7-11/16”W x 3-3/8”D
UME Universal Module Enclosure NK
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
95
Power Supply & Door Controllers
Modules may be ordered with or without power supplies. Different function modules may be used in
the same power supply or cabinet. Contacts: 2.5 Amps inductive, 5 Amps resistive @ 30VDC unless
specified otherwise.
Multiple Output & Door Control Module NK
UNIVERSAL CONTROLLER & MANTRAP MODULES LIST
DOOR CONTROL MODULES LIST
BATTERIES LIST
EXIT DEVICE SEQUENCER LIST
UR4-8
CR4
FB-4
PB-8
ACM-1
FB-4 Fused terminal board. 4 individually fused outputs 44.00
ACM-1 Access Control Module. One SPDT voltage output, one SPDT status output,
eight trigger inputs, (3N/C, 3N/O), LED status indicator.
97.00
CR4 Control Board with four relays. Four fused SPDT field selectable wet or dry outputs,
four non-fused SPDT outputs, 2 Amps @ 30VDC, four dry contact trigger inputs.
177.00
PB-8 Power booster for high inrush electric panic devices and locks. 1 Amp
continuous @ 24VDC, 8 Amp surge output.
129.00
PB-16 Power booster for high inrush electric panic devices and locks. 1 Amp
continuous @ 24VDC, 16 Amp surge output.
161.00
UR-1 Universal Controller for up to 2 doors. 12 Selectable Relay & System Logic Modes.
2 form "A" SPST, N.O. Inputs, 2 form "C" SPST outputs 5 Amps, 12/24 @ 120/175mA.
103.00
UR2-4 Universal Controller for 2 doors. Field select TD, LR, TD/LR, mantrap A, B, C
interlock. Two fused SPDT outputs, 5 Amp @ 30VDC.
Two SPDT outputs, 5 Amp @ 30VDC. Two inputs per station, four auxiliary inputs.
235.00
UR4-8 Universal Controller for 4 doors. Field select TD, LR, CR, TD/LR, mantrap A, B, C
interlock. Four fused SPDT outputs, 5 Amp @ 30VDC.
Four SPDT outputs, 5 Amp @ 30VDC. Two inputs per station, four auxiliary inputs.
331.00
Cabinet Control Module Capacity
Number of
Batteries ACM-1 CR CR-4 FB-4 LR PB UR PSM
12x12 0-224244201
3-412122201
16x14 0-248448621
RB12V4 12V/4Ah Battery. Specify in pairs for 24V. 600RF accommodates four. 44.00
RB12V7 12V/7Ah Battery. Specify in pairs for 24V. 600RFA accommodates six 65.00
EMC Sequencer Module required for pair of doors and automatic doors. 12/24 VDC
For use with SDC 602RF and 632RF Power Supplies.
161.00
RB12V4
4 Amp Hour
RB12V7
7 Amp Hour
TMTM
“Security Industry Finest”
ISC Expo
POWER SUPPLY MONITORING LIST
PSM Power Supply Monitoring Module
For remote monitoring of power supply AC input, DC output and battery backup
On/Off status. 2 SPDT Relay Outputs, 1 Amp @ 12/24VDC
235.00
PSM
Distributor
Discount Code
UR-1
UR2-4
Consult Our Online Wire And Voltage Calculator at
http://www.sdcsecurity.com/toolbox.htm
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
96
Power Supply & Door Controllers
DC Regulated Power Supplies V LIST
Transformers V LIST
TR12 1 Amp 12VDC Regulated Plug-In Power Supply 78.00
• Thermal overload protection
• LED Power status indicator
• Secondary connection: Screw terminals
• Primary Input: 120VAC
• UL Listed, Class 2
TR24 1 Amp 24VDC Regulated Plug-In Power Supply 80.00
• Thermal overload protection
• Secondary connection: 6ft wire leads
• Primary Input: 120VAC
• UL Listed, Class 2
TP1220 1.6 Amp 12VAC Plug-In Transformer 22.00
• Thermal overload protection
• Secondary connection: Screw terminals
• Thermal overload protection
• Primary Input: 120VAC
• UL Listed, Class 2
TP2440 1.6 Amp 24VAC Plug-In Transformers 40.00
• Thermal overload protection
• Secondary connection: Screw terminals
• Thermal overload protection
• Primary Input: 120VAC
• UL Listed, Class 2
BR64XL Bridge Rectifier, 6” wire leads. Converts AC transformer output to DC 27.00
Distributor
Discount Code
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
97
Remote Controls
Model Description
WRC-2B 433MHz 2-Button Pendant Wireless Transmitter 52.00
SDC’s WRC Series 2-Channel wireless transmitter/receiver solution is specically designed to be
used as a receptionist button or remote release for single or dual door access control applications.
• Operates with 400WRC-R2
• Frequency: 433.92MHz
• Housing: Keychain type
• Voltage: 6VDC
• Battery Replacement: – CR2016 Button Cell 3V
Lithium battery (x 2)
• Transmitting distance: 160 feet (no obstructions)
• Activation: Hold “A” or “B” button for 1 sec.
Model Description
WRC-R2 433MHz 2-Channel Wireless Receiver 84.00
• Size with housing (approx.): 2.5” H x 1.75” W x 1.2” D
• Frequency: 433.92MHz
• Environmental: Indoor
• Operating Temperature: -22°F – 140°F
• Input Voltage: 24VDC
• Current consumption: 9mA @24VDC (standby); 46mA
(max)
• Relay Outputs: Two (2) Dry, Form C (SPDT)
• Contact rating: 10A@30VDC (resistive)
• Wiring connections: 12”, 8-wire pigtail
• Transmitter coding capacity: 30 (xed code)
• Transmitter programming using onboard learning
button and status LED
WRC SERIES 2-Channel Wireless Transmitter and Receiver CK LIST
433MHZ 2-BUTTON PENDANT TRANSMITTER LIST
433MHZ 2-CHANNEL RECEIVER LIST
Mini Consoles WK LIST
Mini Consoles provide control for one or two doors. Momentary or maintained push button switches with Bi-Color LED indicators.
Dimensions: 4-1/8" W x 3-1/8" H x 6-1/4" L Color: Beige
Contacts: 5 Amp @ 30VDC Power: 24VDC @ 0.02 Amp required for each LED
DTMO-1 One momentary switch and one LED 258.00
DTMO-2 Two momentary switches and two LEDs 284.00
DTMOMA-2 One momentary, one maintained switch and two LEDs 361.00
DTMA-2 Two maintained switches and two LEDs 284.00
DTMO-2 DTMO-1
Distributor
Discount Code
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
98
Remote Controls
Modular Control Consoles WK LIST
SPECIFY SWITCH AND INDICATOR PANELS Add to List
OPTIONAL DESKTOP CABINETS Add to List
CAB7 Black cabinet for one RCC
7"H x 20-1/2"W x 14-1/2"D
614.00
CAB12 Black cabinet for two RCC
12-1/2"H x 20-1/2"W x 14-1/2"D
828.00
TCC Slope front desk top console
12 stations maximum when using 2 control panels. Base unit, less panel.
Color: black sides and beige top Dimensions: 10-1/4"W x 4-3/4"H x 9-5/8"D
321.00
RCC Rack mount console.
24 stations maximum when using three control panels. (Maximum is 20
stations with "E" panel) Base unit, less panels.
Color: Beige Dimensions: 19"W x 5-1/4"H x 6"D
694.00
Chassis less switches and light panels.
TCC AL8 AL4E
RCC AL8 AL8 AL4E
Rocker Switch Rating: 3 Amp @ 30VDC Power Required per LED: 24VDC @ 0.02 Amp
AL4 Four momentary switches with LEDs (Numbered 1-4) 534.00
BL4 Four maintained switches with LEDs (Numbered 1-4) 534.00
CL4 Four momentary/off/maintained switches with LEDs (Numbered 1-4) 534.00
DL4 Four momentary/off/momentary switches with LEDs (Numbered 1-4) 534.00
AL8-2 Eight momentary switches with LEDs on 2 panels 1,108.00
BL8-2 Eight maintained switches with LEDs on 2 panels 1,108.00
CL8-2 Eight momentary/off/maintained switches with LEDs on 2 panels 1,108.00
DL8-2 Eight momentary/off/momentary switches with LEDs on 2 panels 1,108.00
AL8 Eight momentary switches with LEDs on same panel 1,005.00
BL8 Eight maintained switches with LEDs on same panel 1,005.00
CL8 Eight momentary/off/maintained switches with LEDs on same panel 1,005.00
DL8 Eight momentary/off/momentary switches with LEDs on same panel 1,005.00
AL4E Four momentary switches with LEDs, alarm, reset push button and key lock 696.00
BL4E Four maintained switches with LEDs, alarm reset push button and key lock 696.00
CL4E Four momentary/off/maintained switches with LEDs, alarm, reset push button
and key lock
696.00
DL4E Four momentary/off/momentary switches with LEDs, alarm, reset push button
and key lock
696.00
EA Panel with alarm, reset push button and key lock 309.00
FA Blank panel 49.00
FA
EA
Distributor
Discount Code
Desk Switch Compact Box DK LIST
15-2
15-1 AA, SPDT push switch, 6 Amp @ 30VAC/DC 118.00
15-2 MO, SPDT push switch, 10 Amp @ 30VAC/DC 81.00
15-3 AA, SPDT toggle switch, 6 Amp @ 30VAC/DC 140.00
15-2-3 (1) MO push switch and (1) AA (on/off) toggle SPDT, 6 Amp @ 30VAC/DC 198.00
Distributor
Discount Code
AL4/BL4/
CL4/DL4
AL8-2/BL8-2/CL8-2/DL8-2
AL8/BL8/CL8/DL8
AL4E/BL4E/CL4E/DL4E
NOTE: (2) Panels are required for TCC; (3) Panels are required for RCC.
15-2-3
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
99
Annunciators
DOOR PROP ALARM CK List
Distributor
Discount Code
Improve security with a cost-effective door prop alarm. All SDC door prop alarms feature audible sirens with adjustable timer
settings, two outputs, bypass status indicator light, and vandal-resistant aluminum construction. Available to install in single gang or
double gang enclosures, SDC door prop alarms also offer optional Keylock and Mortise Cylinder Reset/Bypass Switches.
• Adjustable Timed Delay
• Exit Alarm on Door Opening
• Automatic or Manual Alarm Reset
• Output Relays
• Integral Tri-color LED Status Indicator
• Optional Key Reset/Bypass Switch
• Compact Universal Mounting
• 85dB Piezo Buzzer Alarm
Model Description
EA-SN Door Prop Alarm, Single Gang w/ integral Status LED & Audible Alarm 227.00
EA-728V Double Gang w/ integral Status LED, Audible Alarm & Keylock Switch for Reset/Bypass 289.00
EA-708V Double Gang w/ integral Status LED, Audible Alarm & Mortise Key Cylinder Switch for
Reset/Bypass, Cylinder not included
320.00
EA-SN EA-708
EA-728
EA100 Exit Annunciators LIST
EA100 Highly visible Annunciator Bar with multiple color LED light featuring rolling signals. 188.00
The SDC Exit AnnunciatorTM is a highly visible multi-color signal device, that interfaces with
Delayed Egress or standard EMLocks, plus many other manufactures electromagnetic locks. and
can be used as a wall, ceiling, or frame mount indicator.
Brand Compatibility
Stand Alone Multi-Mount
Frame
Mount
Wall
Mount
Ceiling
Mount
Airport - Alarmed Exit Laboratory - Clean Room
Nurse Care -
Wandering Patient Retail - Alarmed Exit
Typical Application
FEATURES
• Easy to install
• Suitable for retrofit or new construction
• Multi color LED technology
• Externally selectable color modes of Red,
Green, Blue, White, Yellow and Purple
• Externally selectable Solid
or Flashing Modes
SPECIFICATIONS
Dimensions 8-5/8" x 1-1/2" x 3/4"
Electrical 12/24 VDC @ 160mA
LED Output Long Life
SDC Schlage RCI Securitron
Rofu Secolarm Dynalock Door King
Includes
optional
Illuminating
Cover for
greater side-
visibility
KEY CYLINDER OPTIONS for EA-708 Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 33.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
100
Annunciators
Sirens and Buzzers CK LIST
400-SN 400-RMB
Standard Finish 630 Stainless Steel
400U-RMB Buzzer on 1 gang plate. Specify 12/24VDC, 20mA max 49.00
400NU-RMB Buzzer on narrow plate. Specify 12/24VDC, 20mA max 49.00
400U-SN Siren on 1 gang plate, 3 - 28VDC, 18mA max 59.00
400NU-SN Siren on narrow plate, 3 - 28VDC, 18mA max 59.00
Distributor
Discount Code
Wall Mount Indicator CK LIST
400U-L2
Standard Finish 630 Stainless Steel
400U-L2 Two LEDs. Specify lens color. Standard Finish, on 1 gang plate 49.00
400NU-L2 Two LEDs. Specify lens color. Standard Finish, on narrow plate 49.00
400U-L3 Three LEDs. Specify lens color. Standard Finish 59.00
400U-LT1 One tricolor LED. Red, Green and Amber. Standard Finish 49.00
400U-LT2 Two tricolor LED. Red, Green and Amber. Standard Finish 59.00
Distributor Discount
Code
400NU-L2
101-SP
101-1AK
101-4AM
101-1A
101-PAM
101-1A Remote or local single door annunciator with audible alarm and tricolor LED, 1 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
113.00
101-4AM Remote four door annunciator with audible alarm mute button. Four tricolor LEDs, 2 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
342.00
101-1AK Remote or local single door annunciator with 2 function key switch for on/off, reset,
audible alarm and tricolor LED, 2 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
Accepts standard 1-1/8'' to 1-1/4'' mortise key cylinder.
(Mortise key cylinder not included)
342.00
101-PAM Remote single door annunciator with 3 push button switches for momentary
access. On/off and audible alarm mute button with tricolor LED, 2 Gang
Green - Secure Amber - Egress initiated Red - Door unlocked
Recommended for remote installation only
361.00
101-SP External 15 watt speaker connects directly to 1511S or 1511T for enhanced decibels
onsite or remote voice message annunciation. Speaker driver may be provided by others
for extreme decibel requirements.
40.00
101-SPSN 101-SPSN Remote Single Gang Annunciator with speaker and 80db tone. Duplicates ExitCheck alternat-
ing voice message and tone.
103.00
101 Series Annunciators LIST
KEY CYLINDER OPTIONS for 101-1AK Add to List
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome 33.00
CYL-6KAQ 6 pin, 1.125" mortise cylinder, keyed alike, dull chrome 33.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
101
Accessories
EH Series Magnetic Door Holder & Releasing Device V
SDC EH Series Magnetic Door Holders, are designed to hold
doors open and release the door by remote switch or fire life
safety command center activation. Primary application includes
holding and releasing of fire rated doors that are required to
provide a barrier for fire and smoke in an emergency or the
convenience of door closure by remote control.
SPECIFY MODEL LIST
Model Description
EH10 Flush Mount 140.00
EH20 Semi-Flush Mount 108.00
EH30 Surface Mount 156.00
EH40 Floor Mount, Single 201.00
EH42 Floor Mount, Double 252.00
Performance Data
Model Voltage DC/mA AC/mA Terminals LB. KG.
1224
12V 40 38 C&L 30 13.6
24V 40 36 C&H 30 13.6
24120
24V 20 19 C&L 40 18.1
120V — 20 C&H 35 15.8
24220
24V 20 19 C&L 40 18.1
220V — 15 C&H 25 11.3
HIGH HOLDING FORCE / SPECIAL APPLICATIONS
Model Voltage DC/mA AC/mA Terminals LB. KG.
1224 24V 85 81 C&L 75 34.0
24120 120V — 100 C&L 110 49.8
To obtain performance values in high holding force table above apply high listed voltage
to low voltage terminals (C & L). NOTE: This configuration can only be applied to models
1224 & 24120.
SPECIFY VOLTAGE Add to List
Voltage Description
1224 12/24VAC/DC N/C
24120 24VAC/DC/120VAC N/C
24220 24VAC/DC/220VAC N/C
SPECIFY FINISH Add to List
Finish Description
AChrome Powder Coat N/C
C605 Brass Plated 22.00
Example: EH20 24120A
CSFM
Distributor
Discount Code
SPECIFICATIONS
Materials Zinc alloy
Voltage Standard dual voltage AC or DC inputs of
12&24V, 24&120V, 24&220V models
Holding
Force
Typical holding force of 25-40
pounds; field selectable high holding force
Mount Single or double floor, surface, flush,
and recessed mount
Total
Projection
Flush mount: 2-11/32” (60mm)
Semi-Flush mount: 3-1/16” (78mm)
Surface mount: 4-5/8” (117mm)
Floor mount (single door): 5” (127mm)
Floor mount (double door): 9-5/8” (244mm)
Fasteners Hardware package, mounting bracket
EH10 Flush
EH20 Semi-Flush
EH30 Surface
EH40 Floor, single
EH42 Floor, double
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
102
Accessories
EH Series Magnetic Door Holder & Releasing Device Accessories V
EXTENSION RODS LIST
Model Description
EHRO2 1/2" Extension Rod 22.00
EHR1 1" Extension Rod 22.00
EHR15 1-1/2" Extension Rod 26.00
EHR2 2" Extension Rod 33.00
EHR3 3" Extention Rod 33.00
EHR4 4" Extension Rod 44.00
EHR5 5" Extension Rod 54.00
EHR02 EHR1 EHR15
EHR2 EHR3
EHR4
EHR5
EHR1
1"
EHR02
.5" 3"
4"
1.5"
1.5"
2"
EHR3
4"
EHR4
5"
EHR5
EHRA4
EHRA15
EHR15 EHR2
Extension Rod Applications
Fig. A
Refer to Figure A to determine correct rod length for each individual openings installation and adjustability
requirements
EHRA15
EHRA4
ADJUSTABLE EXTENTION ROD LIST
Model Description
EHRA15 1-1/2" Adjustable Extension Rod 26.00
EHRA4 4" Adjustable Extension Rod 44.00
SPECIFY FINISH Add to List
Finish Description
AChrome Powder Coat N/C
C605 Brass Plated 14.00
OPTIONS & ACCESSORIES LIST
Model Description
EHBB
Surface Back Box
2-25/32" x 4-7/8" x 1-1/2" (71mm x 124mm x 38mm)
Supplied with EH30, EH40, EH42
44.00
EHCP Catch Disk Only
Replacement for the catch plate assembly 33.00
EHSBA Catch Plate Assembly 54.00
EHDF Drilling Fixture
Attach to door for quick and accurate hole location 214.00
EHW Extention Wrenches
Used to tighten extension rods to catch plate assembly 7.00
SPECIFY FINISH FOR SURFACE BACK BOX EHBB Add to List
Finish Description
AChrome Powder Coat N/C
C605 Brass Plated 40.00
EHBB
EHCP
EHDF
EHW
Distributor
Discount Code
How To Determine Extension Rod & Adjustable Rod Length
Extensions Rod Application: Refer to Fig. A for Aligned Catch Plate and Door Holder
Adjustable Rod Application: Refer to Fig. B for Misaligned Catch Plate and Door Holder
1. Hold door open at desired position.
2. Measure distance between door and wall.
3. Subtract below dimension indicated for door holder style
Flush Mount: Subtract 3” (76mm) from measured distance to determine minimum rod length.
Recessed Mount: Subtract 2-3/8” (60mm) from measured distance to determine minimum rod length.
Surface Mount: Subtract 4-5/8” (76mm) from measured distance to determine minimum rod length.
5”
[127mm]
EXTENSION
to calculate extension lenght:
subtract 3” (117mm) from wall
to door at desired angle
WALL
DOOR
EXAMPLE:
5” overall distance
use EHR2 (2” extension)
90
0
MIS-ALIGNMENT EHR1
EHRA4
8”
[203mm]
5”
[127mm]
EXTENSION
to calculate extension lenght:
subtract 3” (117mm) from wall
to door at desired angle
WALL
DOOR
EXAMPLE:
5” overall distance
use EHR2 (2” extension)
90
0
MIS-ALIGNMENT EHR1
EHRA4
8”
[203mm]
Fig. A
Fig. B
EHSBA
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
103
Accessories
Model Description
WRC-2B 433MHz 2-Button Pendant Wireless Transmitter 52.00
SDC’s WRC Series 2-Channel wireless transmitter/receiver solution is specically designed to be
used as a receptionist button or remote release for single or dual door access control applications.
• Operates with 400WRC-R2
• Frequency: 433.92MHz
• Housing: Keychain type
• Voltage: 6VDC
• Battery Replacement: – CR2016 Button Cell 3V
Lithium battery (x 2)
• Transmitting distance: 160 feet (no obstructions)
• Activation: Hold “A” or “B” button for 1 sec.
Model Description
WRC-R2 433MHz 2-Channel Wireless Receiver 84.00
• Size with housing (approx.): 2.5” H x 1.75” W x 1.2” D
• Frequency: 433.92MHz
• Environmental: Indoor
• Operating Temperature: -22°F – 140°F
• Input Voltage: 24VDC
• Current consumption: 9mA @24VDC (standby); 46mA
(max)
• Relay Outputs: Two (2) Dry, Form C (SPDT)
• Contact rating: 10A@30VDC (resistive)
• Wiring connections: 12”, 8-wire pigtail
• Transmitter coding capacity: 30 (xed code)
• Transmitter programming using onboard learning
button and status LED
WRC SERIES 2-Channel Wireless Transmitter and Receiver CK LIST
433MHZ 2-BUTTON PENDANT TRANSMITTER LIST
433MHZ 2-CHANNEL RECEIVER LIST
Passive Infrared Egress Control V LIST
Distributor Discount
Code
MD-31DOW Motion detector with time delay, white 243.00
MD-31DB Motion detector with time delay , black 243.00
Time Delay Relay CK List
Distributor Discount
Code
Time Delay Relays
10TD Time delay relay module with adjustable 1-60 second relock delay.
Input: 12/24V AC/DC Output: SPDT, dry contact
Voltage: 2 Amps @ 30 VDC (resistive) Size: 2-1/4"x 1-1/2" x 3/4"
91.00
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
104
Accessories
MC-4M
Door Position Sensors V LIST
Distributor
Discount Code
DPS-11
DPS-11-2
MC-4
DPS-11 Adjustable ball type SPDT 5 Amp 49.00
DPS-11-2 Adjustable ball type 2 SPDT 5 Amp 71.00
MC-4 Recessed magnetic (3/4”, SPDT, 30VDC, 50mA) 52.00
MC-4PAK Recessed magnetic (3/4", SPDT, 30VDC, 50mA) - 10 pack 321.00
MC-4M Recessed magnetic mounted on 1-1/4" x 4-7/8" plate 91.00
MC-4-2 Recessed magnetic (3/4”, DPDT, 30VDC, 50mA) 67.00
MC-7 Biased high security recessed magnetic (1", SPDT, 30VDC, 50mA) 71.00
Emergency Access Panel CK LIST
APB1000A Emergency access panel for lobby door system.
Mushroom button with key reset and siren
374.00
Distributor
Discount Code
UME Single module enclosure
33.00
Universal Module Enclosure for single modules
Universal mounting standoffs will accomodate
FB-4, UR-1, 12VR, ACM-1, PB-16, PB-8, PSM, 621B, or LR100EM boards.
Box Dimensions: 5-5/8”H x 7-11/16”W x 3-3/8”D
UME Universal Module Enclosure NK
Explosion Proof Magnetic Door Contact V LIST
Distributor
Discount Code
EP-MC Explosion Proof Door Contact 515.00
Specically designed for applications where ammable vapors are cause for
concern, like clean room, chemical plant, or renery environments.
UL listed for use in hazardous locations CLASS I, Division 1 & 2, Group C,D;
CLASS II, Division 1 & 2, Group E, F and G; Class III, Division 1 & 2
• Explosion Proof Die Cast Aluminum • Hermetically Seales Reed Switch
Encapsulated in Polyutherane
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
105
Accessories
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
106
101-1A 22
101-1AK / 101-4AM 22
101-DE / 101-KDE 21
101-PAM 22
1091A 59
10TD 82
110 61
1190A 60
1291A 59
12VR 93
1490A 59
15-1 98
15-2 / 15-3 98
15-4 23
1511 / 1512 / 1513 7
1511-DF 9
1511DE 21
1511S / 1511T 18
1561 / 1562 14
1561S / 1561TJ 15
1562SC / 1562SCHDB 15
1565 / 1566 14
1571 / 1572 / 1573 7
1571DE 21
1575DEU 21
1575U / 1576U 16
1576-MP 16
1576-ZB 16
1576AB / 1576-BK 16
1576DEU 21
1581 / 1582 7
1581-DF 7
1581DE 21
1581S 20
1591U 17
180A 61
2090A 60
210 61
2490A 59
25-4U 23
260 61
280 61
290 63
295 63
30-4 23
350V / 352V 12
400U-L2 100
400U-RMB / 400U-SN 100
412 / 413 / 422 / 423 / 424 / 425 79
413MN / 423M 79
431 / 432 / 433 / 434 / 435 80
441 / 442 / 443 / 444 / 446 80
45-4 / 45-6 / 45-7 24
451 / 452 / 453P 82
45A 24
463 / 474 80
480 85
491 / 492 88
510 thru 590 78
55 A thru F 26
55-ABC 27
602RF 93
621P 94
631RF / 632RF / 634RF / 636RF 93
7000-DB3/8 35
7000-DGK 35
7000-PD1/4 35
701 thru 713 81
702R / 708R 22
7250 / 7252 D, H, P, S, T 29
7500EB 37
7550 A thru V 37
7850 / 7852 A thru X 34
801AL thru 813AL 81
918 69
920 / 923 70
921 / 925 71
923 70
926 72
AB Angle Brackets 11
ACM-1 95
AL4 / AL8 98
Part Number (starts with...) Page Part Number (starts with...) Page
INDEX Quick Reference
SECURITY DOOR CONTROLS
801 Avenida Acaso
•
Camarillo, CA 93012
Email: Service@sdcsecurity.com
•
www.sdcsecurity.com
107
INDEX Quick Reference
APB1000A 104
AR11Y 10
AUTO 83
BBID 79
BL4 / BL8 98
BPS6S / BPG6S 84
BR64 96
CB401-AU / CB401-B 88
CB701 88
CC1-5 / CC3-5 33
CL4 / CL8 98
CR4 95
DBM 26
DC-1 10
DL4 / DL8 98
DPS-11 104
DTMA / DTMO 97
E1200 / E600 / E6200 13
E300 17
E75 / E76 / E77 73
EA100 / EA-SN 99
EH10 / EH20 / EH30 / EH40 / EH42 101
EKE03 39
EMC 95
EP-MC 104
EP17624 / EP17624TJ 17
EP493 88
EP499 82
EZ-A / EZ-B / EZ-D / EZ-T 9
FB-4 95
FP Filler Plates/ AB Angle Brackets 11
FS23M 59
GKE03 39
GL160A / GL260A 62
HDB1 / HDB2 8
HID1326-25 67
IP100 57
IPDCE / IPDSE 65
IPRW 67
LR100 51
MC-4 104
MC-7 104
MD-31 82
MS-12 / MS-14 / MS-16 / MS-20 27
MSB550 77
PB-16 / PB-8 95
PD2090A 62
PSB560 76
PT-2U / PT-3V / PT-5 91
PTH 90
PTM 90
RB12V4 / RB12V7 95
RCC 98
S6100 / S6200 38
S6100-101 42
S6300 40
S6303FH 46
SC-10 46
SK-82 / SK-88 / SK-L90 35
T7550 37
T7850 34
TCC 98
TJ1 / TJ2 8
TJ81 /TJ82 8
TP1220 / TP2440 96
TR-12 / TR-24 96
UB11 / UB12 10
UF11 / UF12 10
UF81 / UF82 10
UR-1 / UR2-4 / UR4-8 95
WPT 91
WRC 97
Z7250 / Z7252 30
Z7550 37
Z7632 / Z7652 31
ZR7550 37
ZS7250 28
ZS7850 34
ZT7250 28
ZY7550 36
Part Number (starts with...) Page Part Number (starts with...) Page
shipQUICK
Over 200 SDC products are
available for shipment the next
business day from the SDC
warehouse nearest you. Visit us
at www.SDCsecurity.com and
download your copy of the shipQUICK inventory
so you know first hand which products SDC can
expedite for you.
QUALITY
SDC practices quality
management based on
continued improvement of
daily operations, product
quality and customer satisfaction.
www.sdcsecurity.com service@sdcsecurity.com
Tel: (805) 494 0622 (800) 413 8783
© Copyright 2019, Security Door Controls 11/16/18
801 Avenida Acaso, Camarillo, CA 93012
P.O. Box 3670, Camarillo, CA 93011-3670
®
INNOVATION
SDC has been awarded scores of patents for:
• Electrified Cylindrical Locksets
• Electrified Mortise Locksets
• Actuator Controlled Locksets
• Electromagnetic Locks
• Magnetic Shear Locks
• Delayed Egress Locks
• Request-to-Exit Bars
LEADERSHIP
SDC has earned twelve SIA New Product
Achievement and Security Industry Finest
Awards since 1997. In addition, SDC has
received numerous SIA New Product
Showcase certificates of recognition for
Commitment to Innovation and Excellence
in New Product Development.
Electric & Mechanical
Access Control Hardware
Price List 19
