SECURITY DOOR CONTROLS
www.sdcsecurity.com service@sdcsecurity.com
[t] 800.413.8783 805.494.0622
801 Avenida Acaso, Camarillo CA 93012 • PO Box 3670, Camarillo CA 93011-3670
sdcsecurity.com service@sdcsecurity.com
Price & Installation
sdcsecurity.com
service@sdcsecurity.com
SECURITY DOOR CONTROLS

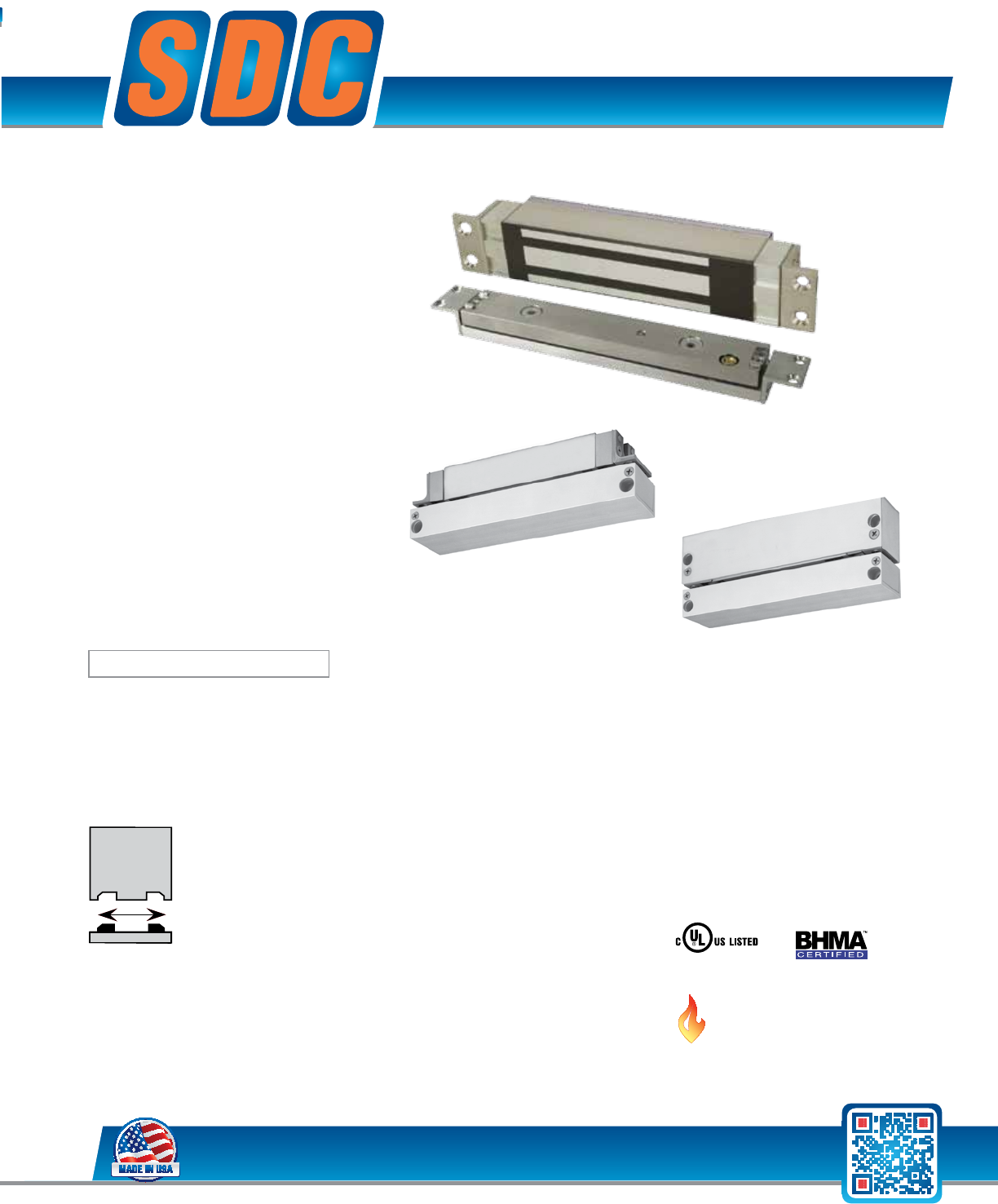

Hi/Shear® Magnetic Door Locks
Hi/Shear® Magnetic Lock Features
SDC Hi/Shear® magnetic lock utilizes
several of the most innovative and unique
design attributes. The Hi/Shear is the
magnetic lock that gives those who want
a better shear lock all the latest features.
The SDC Hi/Shear® is a totally
concealed, high security, failsafe locking
mechanism with superior appearance.
The patented Hi/Shear® electromagnetic
lock design incorporates a “floating”
armature assembly and special alloy
steel locking “tabs” on both the lock
and armature assemblies, that may be
adjusted both vertically and laterally to
compensate for wide door gaps and
warped or misaligned doors.
Hi/Shear® magnetic locks are ideal for
use on commercial grade hollow metal
and wood doors and metal frames and
Herculite doors with top rails.
Auxiliary Locks
Door Static and Alignment Sensor
The door static sensor ensures that
the door is at rest and aligned, before
the magnet is permitted to energize,
eliminating potential for lock misalignment.
Lateral Alignment Adjustment
Lateral adjustment of shear tabs
to compensate for
warped or misaligned
doors, permitting
accurate locking.
Vertical Alignment Adjustment
Vertical adjustment of the armature
compensates for wide door gaps.
Floating” Assembly
A unique “floating” action makes for
easier armature lift when the magnet
is energized and provides the ability to
overcome wide door gaps.
2000 or 2700 Lbs Holding Force
2000 or 2700lbs. of holding force
without current inrush or high operating
temperature normally associated with
shear locks.
Alloy Steel Shear “Tabs” on Lock
and Armature
Alloy shear tabs are used on both
the lock and the armature to ensure
continued high holding force. There is
no profiling of the soft armature steel
that may be prone to wear and reduced
holding force.
Advanced Electronic Circuitry
Advanced electronic circuitry that
incorporates door static, positioning
and timed relock sensor and automatic
voltage sensing for 12/24VDC input.
Quieter Operation
Noise dampeners greatly reduce the
noise associated with locking and
unlocking of other shear locks on the market.
Semi-Concealed
Surface Mount
Concealed
UL10C Positive Pressure Compliant
UBC Classified in accordance with Uniform Building Code
standard 7-2 “Fire Test for Door Assemblies”
Adjustable Tabs
Be Safe. Be Secure. Be Certified
Hi/Shear® Electromagnetic Lock
Protected by one or more of the following patents:
4,826,223 4,986,581 5,000,497 5,006,723 5,003,779
Auto voltage sensing Lateral
adjustment of
alloy steel
shear tabs
Innovative
oating assembly
Vertical adjustment
of oating armature
Noise dampeners
for quieter operation
Integrated electronic control (1561/1565)

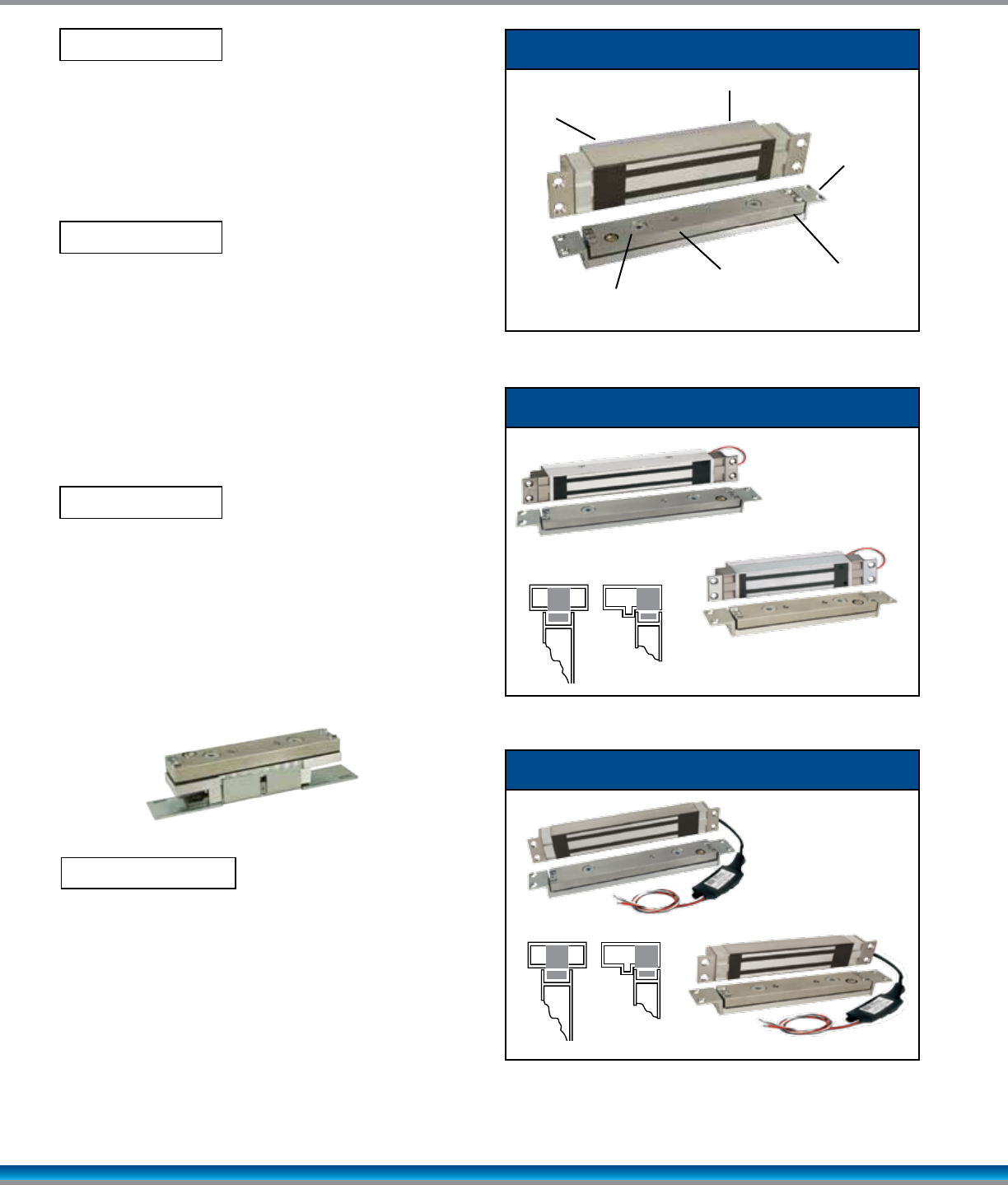

Specifications
Concealed Hi/Shear®
2000 Lbs Holding Force, 8" x 1-1/2" Lock
1561 Integrated electronics, 1⅝" depth for 1¾" to 2" frames
1562 External electronics, 1¼" depth for 1¼" to 1½" frames
2700 Lbs Holding Force, 10-7/16" x 1-1/2" Lock
1565 Integrated electronics, 1⅝" depth for 1¾" to 2" frames
1566 External electronics, 1¼" depth for 1¼" to 1½" frames
Armature supplied with lock. Specify type required:
1565/1566 ITC, FTC or HTC
1561/1562 ITCM, FTCM or HTCM
ITC
ITCM
Standard mounting armature kit for aluminum and hollow
metal doors with ⅞" to 1⅛" deep top channels, wood doors
and factory prepared hollow metal flush edge doors.
FTC
FTCM
Mounting kit for field prepared horizontal mounting in hollow
metal doors with flush edge.
HTC
HTCM
Mounting kit for 1-15/16" deep Herculite channels
BA Bond sensor indicates proper armature contact or reduced
holding power due to improper armature contact or
tampering. SPDT 0.25Amp (not available on 1562/1566)
DPS Door position switch indicates door open or closed.
SPDT 0.25 Amp maximum.
HTR Herculite top rail armature adjustment bracket for leading
edge adjustments for 1565 and 1566
HTRM Herculite top rail armature adjustment bracket for leading
edge adjustments for 1561 and 1562
WDRB Wood door reinforcement box for 1565 and 1566
WDRBM Wood door reinforcement box for 1561 and 1562
Options
Specify Armature
Automatic Voltage Sensing Input
1561/1562 650/350mA @ 12/24VDC
1565/1566 800/400mA @ 12/24VDC
Lock Body Dimensions
1561 8"L x 1-1/2"W x 1-5/8"D (203.2 x 38.1 x 41.3mm)
1562 8"L x 1-1/2"W x 1-1/4"D (203.2 x 38.1 x 31.7mm)
1565 10-7/16"L x 1-1/2"W x 1-5/8"D (265.1 x 38.1 x 41.3mm)
1566 10-7/16"L x 1-1/2"W x 1-1/4"D (265.1 x 38.1 x 31.7mm)
Armature Assembly Dimensions
1561/1562 8"L x 1-1/2"W x 7/8"D (203.2 x 38.1 x 22.2mm)
1565/1566 11"L x 1-1/2"W x 7/8"D (279.4 x 38.1 x 22.2mm)
1565 2700lbs.
1561 2000lbs.
Hi/Shear® with integrated electronics
for standard 1¾ - 2" frames
Hi/Shear® with external electronics
for narrow 1¼ - 1½" frames
1566 2700lbs.
1562 2000lbs.
Hi/Shear® Innovative Design
HTR
HTRM
BA Bond sensor indicates proper armature contact or reduced
holding power due to improper armature contact or tampering.
SPDT 0.25Amp (not available on 1562 / 1566)
DPS Door position switch indicates door open or closed.
SPDT 0.25 Amp maximum.
Options
Specifications
Automatic Voltage Sensing Input
1561/1562 650/350mA @ 12/24VDC
Lock Body Dimensions
Mortise 8"L x 1-1/2"W x 1-1/4"D (203.2 x 38.1 x 31.7mm)
Surface 8"L x 1-3/4"W x 1-3/4"D (203.2 x 44.4 x 44.4mm)
Armature Assembly Dimensions
Surface 8"L x 1-3/4"W x 1"D (203.2 x 44.4 x 25.4mm)
Finish 628 Anodized Aluminum
Surface mount congurations incorporate the innovative 2000 lb holding
force Hi/Shear® electromagnetic lock in a compact housing smaller than
many mini surface mount direct pull magnetic locks. The surface mount
design also provides the advantage of mounting the Hi/Shear® on the
secure side of the door opening, eliminating potential for tampering.
1561S Surface mounted to the push side of an out-swing door. For
metal door and frame, glass door with top rail and metal
frame, or wood door and frame
1561TJ Surface mounted to the pull side of an in-swing door. For
metal door and frame, glass door with top rail and metal
frame, or wood door and frame. This mounting configuration
eliminates the need for cumbersome and unsightly top jamb
Z brackets normally associated with pull side mounted of
magnetic locks
The semi-concealed conguration incorporates the innovative 2000 lb
Hi/Shear® concealed electromagnetic lock with a surface mounted
armature assembly. The semi-concealed design also provides the
advantage of mounting the Hi/Shear® on the secure side of the door
opening, eliminating potential for tampering.
1562SC Semi-concealed mounted to the push side of an out-swing
door. The mortise magnet is concealed in the frame and the
armature is surface mounted on the door. For metal door
and frame, glass door with top rail and metal frame, or wood
door and metal frame.
1562SCHDB 1/2 Semi-concealed mounted to the push side of an
out-swing glass door. The mortise magnet is concealed in
the frame and the armature is surface mounted on the ½"
glass door where no top rail is present utilizing the Herculite
door bracket.
1562SCHDB 3/4 Semi-concealed mounted to the push side of an
out-swing glass door. The mortise magnet is concealed in
the frame and the armature is surface mounted on the ¾"
glass door where no top rail is present utilizing the Herculite
door bracket.

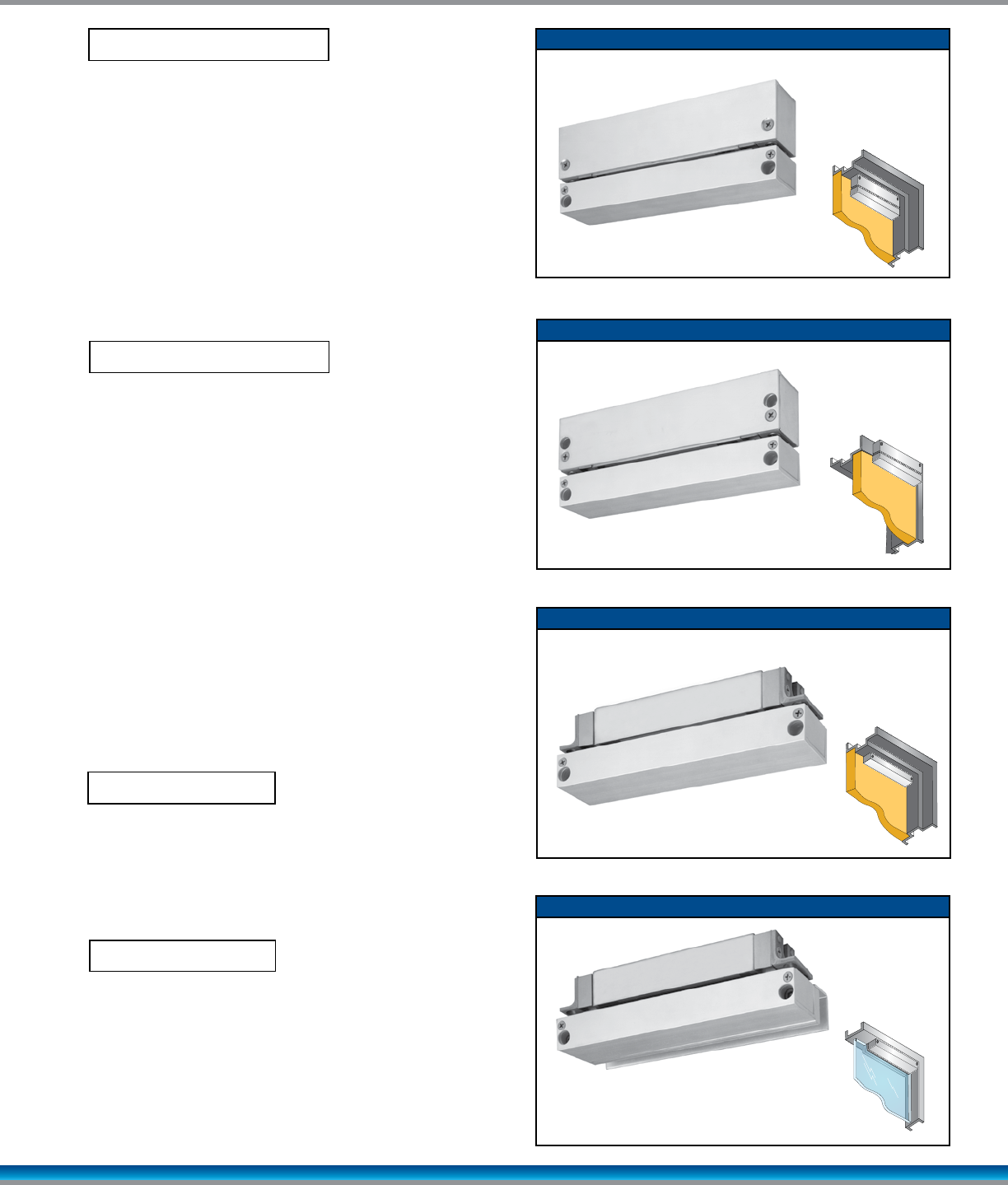

Surface Mount Hi/Shear®
Semi-Concealed Hi/Shear®
1561S Surface Mount
1561TJ Top Jamb Mount
1562SC Semi-Concealed
1562SCHDB Semi-Concealed Glass Mount
SECURITY DOOR CONTROLS
www.sdcsecurity.com service@sdcsecurity.com
[t] 800.413.8783 805.494.0622
801 Avenida Acaso, Camarillo CA 93012 • PO Box 3670, Camarillo CA 93011-3670
sdcsecurity.com service@sdcsecurity.com
Price & Installation
sdcsecurity.com
service@sdcsecurity.com
SECURITY DOOR CONTROLS
© 2013 Security Door Controls LIT- ShearLocks 5/13
