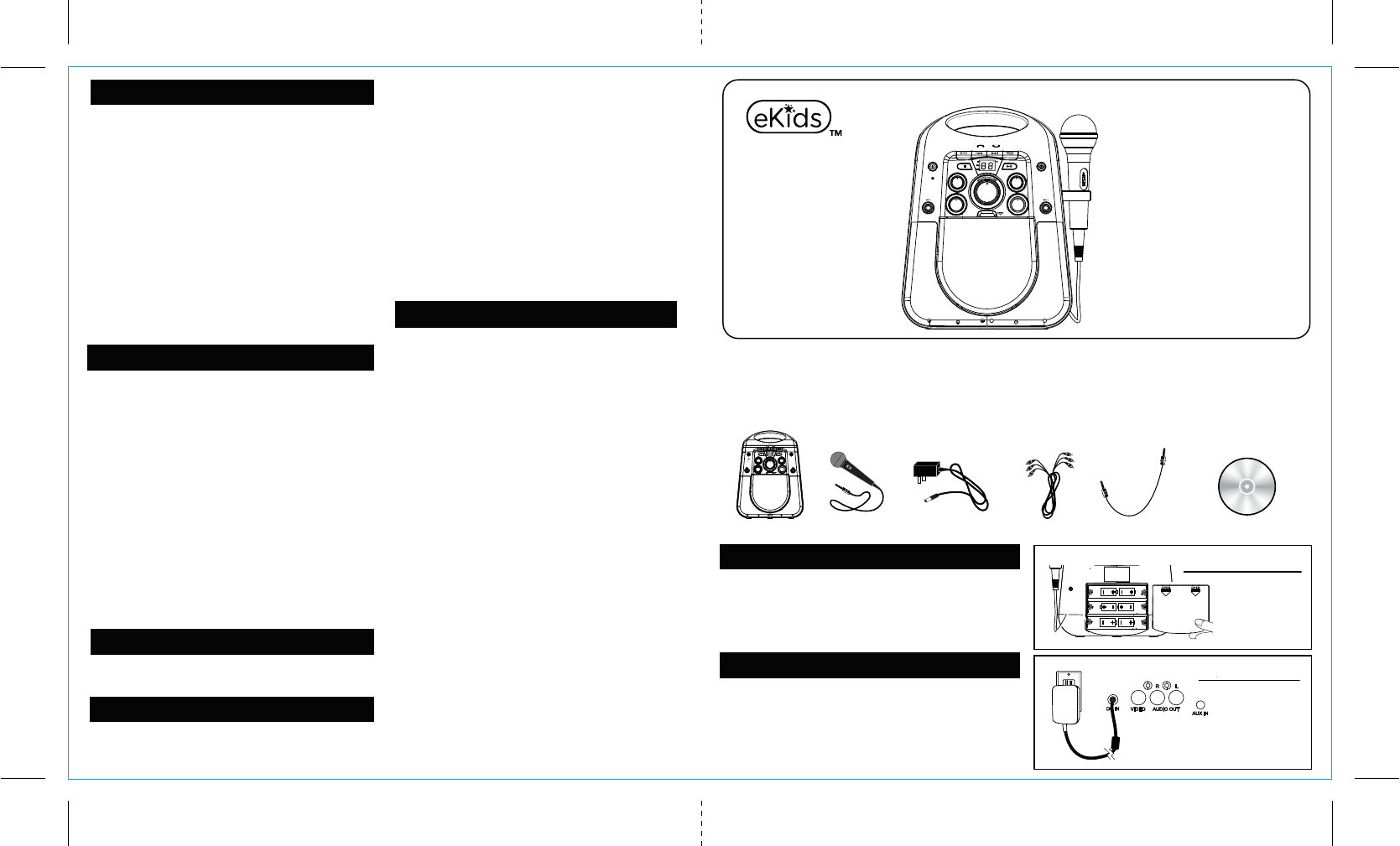

SDI Technologies 672 CD+G KARAOKE User Manual XX 672 IB 052517

SDI Technologies Inc. CD+G KARAOKE XX 672 IB 052517

User Manual

Battery Installation
Installing the Batteries
1. Open the battery compartment door located on the back of
the unit.
2. Insert 6 new C batteries in the battery compartment. Make
sure batteries match the + and – as indicated in the
battery compartment diagram.
3. Replace battery compartment door.
For questions or comments regarding this or other eKids products,
please call our toll-free number: 1-888-TOP-TOYS
Please also visit our website: www.ekids.com
Questions or Comments
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the user's
authority to operate the equipment.
CAN ICES-3 (B)/NMB-3(B)
FCC Information
Important Message to Customers
Thank you for purchasing one of our many top-quality electronic products. Please take a moment to read through these
instructions to help you understand the safe and proper way to use this toy to extend its usability.
Keep these instructions for future reference as they contain important information.
eKids warrants this product to be free from defects in workmanship
and materials, under normal use and conditions, for a period of one
(1) year from the date of original purchase.
Should this product fail to function in a satisfactory manner, it is best
to first return it to the store where it was originally purchased. Should
this fail to resolve the matter and service still be required by reason
of any defect or malfunction during the warranty period, eKids will
repair or, at its discretion, replace this product without charge. This
decision is subject to verification of the defect or malfunction upon
delivery of this product to the Factory Service Center authorized by
Customer Service. If service is required, please call Customer
Service at 1-888-TOP-TOYS (867-8697) to obtain a Return Authoriza-
tion Number and shipping instructions. A copy of the sales receipt is
required to validate in-warranty coverage.
Disclaimer of Warranty
NOTE: This warranty is valid only if the product is used for the
purpose for which it was designed. It does not cover (i) products
which have been damaged by negligence or willful actions, misuse
or accident, or which have been modified or repaired by unautho-
rized persons; (ii) cracked or broken cabinets, or units damaged by
excessive heat; (iii) damage to digital media players, CD’s or tape
cassettes (if applicable); (iv) the cost of shipping this product to the
Factory Service Center and its return to the owner.
This warranty is valid only in the United States of America and does
not extend to owners of the product other than to the original
purchaser. In no event will eKids or any of its affiliates, contractors,
resellers, their officers, directors, shareholders, members or agents
be liable to you or any third party for any consequential or incidental
damages, any lost profits, actual, exemplary or punitive damages.
(Some states do not allow limitations on implied warranties or
exclusion of consequential damages, so these restrictions may not
apply to you.) This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.
Your acknowledgement and agreement to fully and completely abide
by the above mentioned disclaimer of warranty is contractually
binding to you upon your transfer of currency (money order, cashier's
check, or credit card) for purchase of your eKids product.
© 2017 eKids LLC.
Questions? Visit www.ekids.com
or call 1-888-TOP-TOYS
1299 Main Street Rahway NJ 07065
Printed in China 672_050217-A
Limited One Year Warranty
Model: SN-672
CD+G Karaoke
672 IB_Front side Size: 357 x 201 mm Color: Black May 16,2017
If the unit is experiencing a fuzzy or distorted sound, check the
batteries. They are most likely weak and need to be replaced with 6
brand new “C” batteries.
Troubleshooting
What’s Included:
Karaoke Player Microphone AC/DC Adapter RCA Cable Audio Cable Sample CDG Disc
For Safety & Best Performance:
• Only use the recommended/supplied batteries or equivalent.
• Use alkaline batteries for longer life.
• Do not mix old and new batteries, and do not mix alkaline,
carbon-zinc or rechargeable nickel-cadmium batteries.
• Insert batteries with proper polarity (+/–) as indicated.
• Remove exhausted batteries from product.
• Recharge rechargeable batteries under adult supervision.
• Do not attempt to recharge non-rechargeable batteries.
• Do not open batteries or heat them beyond normal ambient tempera-
tures.
• To prevent battery leakage or damage remove batteries from a
product if it will not be used for a month or longer.
• Use extreme caution handling leaking batteries (avoid direct contact
with eyes and skin). If battery leakage comes in contact with eyes,
IMMEDIATELY flush the eye with lukewarm and gently flowing water
for at least 30 minutes. If skin contact occurs, wash skin with clear
water for at least 15 minutes. Seek medical attention if any
symptoms occur.
• Store in cool, dry, ventilated area away from hazardous or combusti-
ble material.
• Do not dispose of batteries in the household trash or fire.
Follow applicable laws and local regulations for the disposal and
transportation of batteries.
Battery Use Cautions & Tips
Using AC Power
This unit also works on AC Power. Plug the small end of the
power adapter (included) into the DC-IN jack on the back of
the unit, and plug the power adapter into the household AC
outlet.
Using AC Power
U
X
A
C
D
G
T
B
V
C
O
I
L
M
H
C
O
E
V
C
A
END TALK
U
X
A
C
D
G
T
B
V
C
O
I
L
M
H
C
O
E
V
C
A
END TALK
RESET
RESET
TEST
TEST
ML-672
JJ-672
IC Statement
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept
any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de license. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in
section 2.5 of RSS 102 and compliance with RSS-102 RF exposure,
users can obtain Canadian information on RF exposure and
compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation
dans la section 2.5 de RSS 102 et la conformité à l'exposition de
RSS-102 rf, utilisateurs peut obtenir l'information canadienne sur
l'exposition et la conformité de rf.
FCC ID: EMO672
IC: 986B-672
SN-670
JJ-670
CDG Mode
Pairing Your Device Via Bluetooth
This unit has an AUX-IN jack, through this jack other audio
sources (MP3 players, etc) can be connected to this unit and
be amplified.
1. Turn on the unit and set the Mode Selector Dial to AUX.
“AU” will glow solid on the LED screen.
2. Connect one end of the included audio cable into the
AUX-IN jack and the other end to the headphone jack of
your audio device.
3. Press PLAY on your audio device to start playback.
Control/navigate tracks from your audio device, too.
AUX Mode

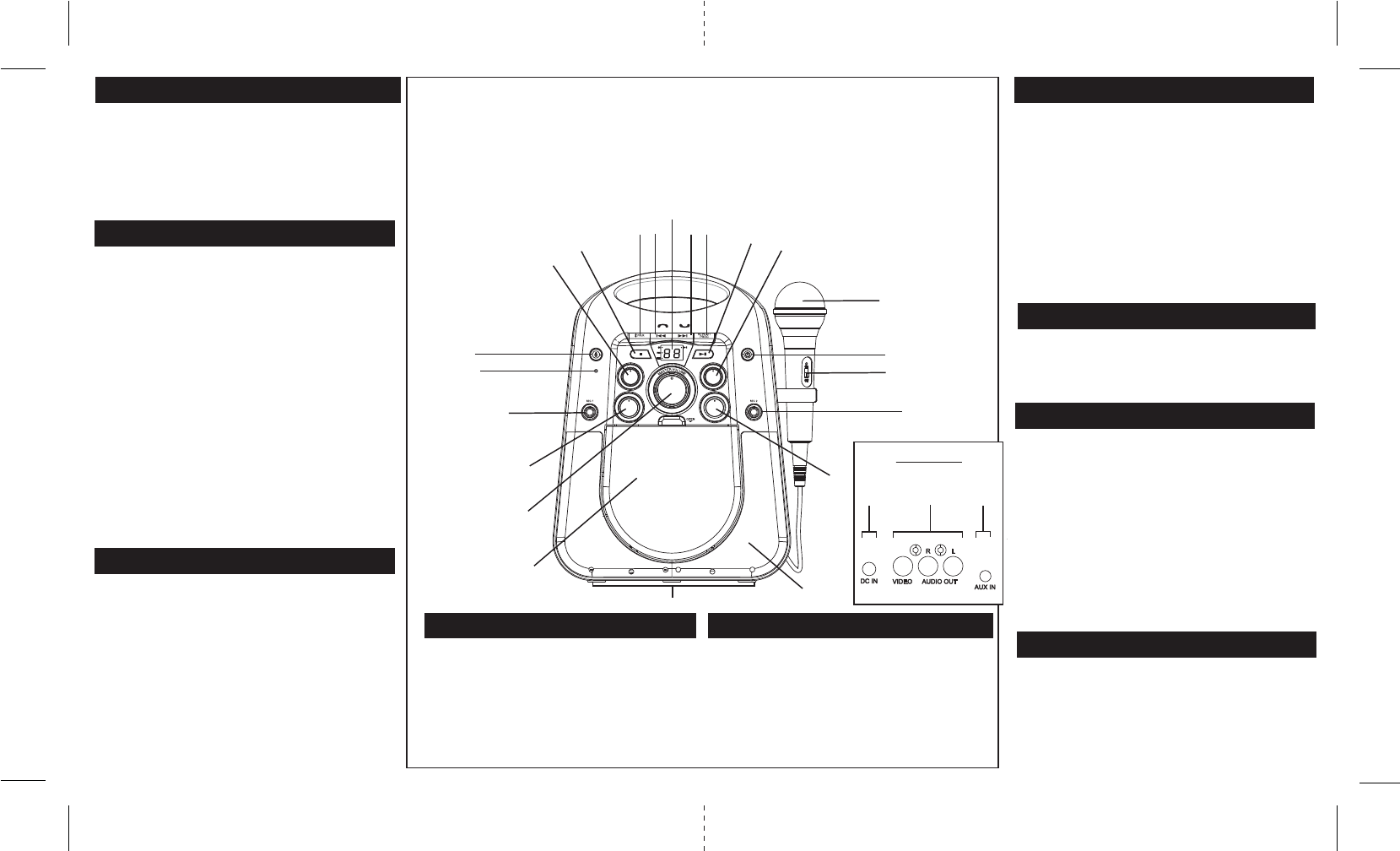

2. Bluetooth Pairing Button
3. Previous Track/End Call
672 IB_Back side Size: 357 x 201 mm Color: Black
1. Voice Control Button
4. Next Track/Answer Call
5. Program/Repeat Button
6. Play/Pause (CDG)
7. Microphone
8. Power On/Off
9. Microphone On/Off
10. AVC Rotary Dial
11. Microphone Input (x2)
12.
Voice Control Button
Speakerphone
The unit is equipped with a speakerphone function that allows
you to answer and end phone calls when connected via
Bluetooth. This function can be used while in BT mode.
1. When your smartphone receives an incoming call, you will
hear it ring through the speaker. Press the Next Track/
Answer Call Button (4) to accept the call, and speak into the
Speakerphone/ Voice Control Microphone (21).
2. To end the call, press the Previous Track/ End Call
Button (3).
13.
14.
15.
16.
17.
1
2
12
18. Microphone Volume
19. Mode Selector Dial
20. Stop Button (CDG)
346
5
7
8
9
10
11
AUX Input
Color LEDs
Echo Rotary Dial
LED Screen + Indicators
Speaker
Master Volume
13
14
15
16
17
18
19
21. Speakerphone/Voice
Control Microphone
20
21
Make sure your Bluetooth device is fully charged. Turn on your
Bluetooth device and turn on Bluetooth mode (check in
Options or Settings).
• Turn on the unit and set the Mode Selector Dial (19) to BT
mode. Press and hold the Bluetooth Pairing Button (2) for 3
seconds. A tone will sound and the LED screen will flash ‘bt’
as the speaker enters pairing mode.
“Karaoke 672_mdy”” should appear on your device’s screen.
If “Not Connected” or similar message appears, select
“Karaoke 672_mdy” to connect. If your device asks for a
passcode, enter ‘1234’.
• Once paired, a confirmation tone will sound and ‘bt” will glow
solid on the LED screen. Put your Bluetooth device in Play
mode to stream audio to the speaker. Use your Bluetooth
device OR the Play/Pause, Previous Track, and Next Track
buttons on the unit to control audio functions.
• Use your favorite karaoke apps while in BT mode, too!
When the unit is in BT mode, you can access Siri or Google
Assistant using Voice Control.
• Press and hold the Voice Control Button (1) for 3 seconds to
activate Siri or Google Assistant via your paired smartphone.
When you hear a confirmation tone, speak Voice Control
Microphone (21) to make your voice commands.
Connect the included microphone to either of the two input jacks
(11) on the unit. Turn on the unit and choose Bluetooth, AUX, or
CDG modes using the Mode Selector (19).
1. Slide the switch on the Microphone to ON. Now you can sing
along to your favorite music in either CD, Bluetooth, or AUX
modes, and hear your voice through the speaker!
2. When not in use, slide the Microphone switch to OFF. Unlock
the removable slots on the side of the unit to store your
microphone, as shown in the image on the right.
Using the Microphone
Vocal Effects
Use the AVC Rotary Dial (10) or the Echo Rotary Dial
(14) to add vocal effects while you sing! Make sure your
microphone is connected to the unit and the microphone
switch is turned ON.
AVC Rotary Dial:
Spin the dial as you sing to create the ideal sound mix!
Echo Rotary Dial:
Spin the dial as you sing to add an echo effect to your
voice!
22. DC Power Input
23. A/V Input
22 23
Back of Unit
Repeat/Program Button
To repeat a track on your CD, press the Program/Repeat Button
(5) on the unit. The “Repeat” LED Indicator will blink. Press
again to cancel the play mode.
You can also program up to 20 tracks of the CD in a desired
order. With CD playback stopped, press the Program/Repeat
button once.The "PROG" LED indicator blinks, and the LED
display shows the program number.
Press the Previous Track (3) and Next Track (4) Buttons to
select a track number. When the desired track number is
displayed, press the Program/Repeat Button to confirm entry.
Repeat these steps until all desired tracks are entered. To begin
programmed playback, press the Play/Pause Button (6). To
cancel programmed playback, press the STOP button twice.
This unit plays CD, CDR, and CDG formats. To play a CD or
CDR, turn on the unit and set the Mode Selector (19) to CDG.
• Open the disc compartment on the front of the unit and insert
the disc face up. Close the compartment door.
• Use the controls to play/pause (6), stop (20), or navigate tracks
(3-4).
To play a CDG disc on your television:
• Connect the included RCA cable (white and red connectors)
to the RCA audio output jacks located at rear of the unit (23).
• Connect the other end of the audio cable to the RCA audio
input jack of a TV set.
• Connect the RCA video cable (yellow connector) to the RCA
video output jack located at rear of the unit (23).
• Connect the other end of the video cable to the RCA video
input jack of a TV set, and make sure your television is set to
the corresponding input.
• Turn on the unit and set the Mode Selector (19) to CDG.
• Insert a CDG disc into the unit and press the Play/Pause
Button (6). Now you can follow the lyrics on the screen and
sing along through the microphone!
• Use the Previous Track (3) and Next Track (4) buttons to
navigate tracks on the CDG.
Melody App
The Voice Control Button can also be used to activate Melody,
which lets you use voice commands to play any music from
iHeartRadio* or Spotify* To use this feature:
• Download the Melody app on your smartphone using the
App Store or Google Play.
• Open the app and sign into your iHeartRadio and/or Spotify
account within the Melody app.
• With the unit in BT mode, tap the Voice Control Button (1) to
activate the Melody app via your paired smartphone.
• Once you hear a confirmation tone, speak into the Voice
Control Microphone (21) to make your voice commands.
• If music is playing, tap the Voice Control Button once to
Pause. Double tap the Voice Control Button to make a new
voice command.
*iHeartRadio not available in Canada
*Spotify Premium account required
24. CD Compartment
24
U
X
A
C
D
G
T
B
V
C
O
I
L
M
H
C
O
E
V
C
A
END TALK
11

Navigation menu
