Introduction
1
P2
Thank you for purchasing the iHome iBN17. This product is designed to provide high quality wireless sound for your
iPad, iPhone, iPod, computer, PDA or other Bluetooth audio device.
Along with the included Quick Bluetooth Connection Guide this instruction booklet explains the basic operation and
care of the unit. Please read them carefully and keep for future reference.
This unit features NFC (near field communication) technology which allows you to wirelessly
connect your NFC–enabled device to instantly ‘pair and play’. See your device’s user manual
for details on how to interact with NFC devices.
If your Bluetooth device does not support NFC, you can pair it manually with this unit.
Maintenance
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective
material should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as
benzene, thinner or similar materials can damage the surface of the unit.
2QDID:B021180
iBN17
FCC Information
This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
P3
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This Device complies with RSS-210 of the IC Rules; Operation is subject to the following two conditions:
(1) This device may not cause interference and
(2) This device must accept any interference received, including interference that may cause undesired operation
• Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAN ICES-3 (B)/NMB-3(B)
IC Statement
This device complies with Industry Canada RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio RSS-210. L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can
obtain Canadian information on RF exposure and compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102
rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf.
FCC ID:EMOIBN17
IC:986B-IBN17
iBN17
Table of Contents
3
Meet Your iBN17................................................................................................................ 4
Charging the Unit................................................................................................................ 5
Using Bluetooth: Pairing and Playing Your Device Using NFC ...................................................... 6
Using Bluetooth:Pairing Your Device ........................................................................................ 7
Pairing with a Different Device ............................................................................................... 8
Playing Audio Via Bluetooth................................................................................................... 8
Playing Audio Via Aux In & Out ............................................................................................. 9
Internal Rechargeable Lithium-ion Battery................................................................................ 10
Consumer Product Safety Guide.......................................................................................11-12
Troubleshooting................................................................................................................. 13
Warranty......................................................................................................................... 14
P4
iBN17
4
Included
• iBN17 unit
• Combination cable
Micro USB to USB/3.5 mm audio cable
P5
Combination cable
iBN17 system

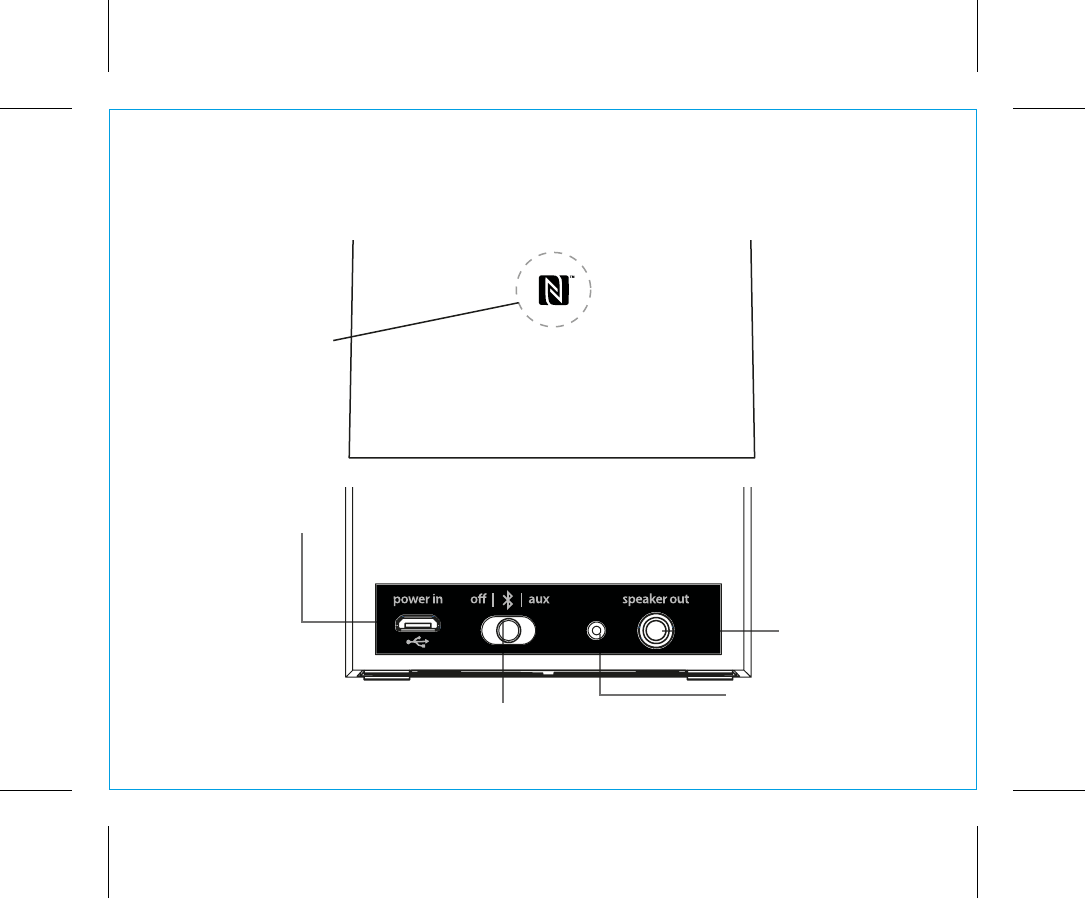

Meet Your iBN17
iBN17
5
Power Off/Bluetooth/Aux Switch
Aux-out Jack
P6
Power/Charging/Pairing
Indicator Light
Micro USB Charging/
Audio-in Port
Back
Top Panel
NFC Antenna Area
Charging the Unit
CHARGE UNIT BEFORE USE
1. Connect the micro USB plug to the micro USB charging port on the back of the unit.
2. Connect the standard USB plug end of the cable to a power USB port on a computer or other USB
charging device. For first time use, charge unit for about 8 hours.
3. The Power/Charging/Pairing Indicator Light on the back of the unit glows red steadily while the
unit is charging and turns OFF once the unit is fully charged. If unit is not powered on when micro
USB plug is connected, the red light glows steadily to indicate unit is charging.
6
Using the iBN17
P7
NOTE: When the unit is on and not connected to a power source, the Power/Charging/Pairing
Indicator Light flashing red means the battery needs charging.

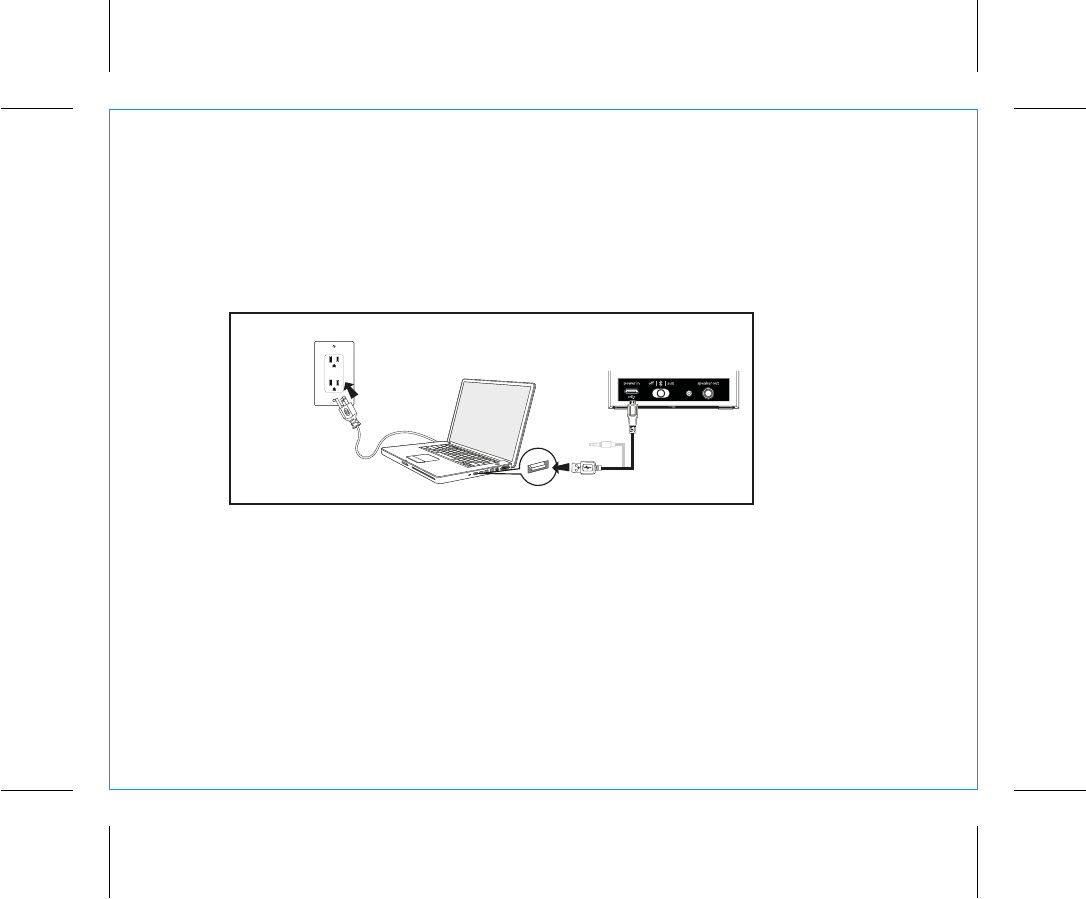

iHome iBN17 USB port
Charge via computer USB port, USB AC adaptor or other powered USB port
Computer connected
to working outlet
Computer USB port
7
Using the iBN17
P8
Using Bluetooth:
Pairing and Playing Your Device Using NFC
This unit features wireless NFC pairing, which allows playing NFC–enabled devices to pair and play
instantly. For pairing non-NFC devices, please see the following section “Pairing Your Device Manually”.
1. Turn on your Bluetooth–enabled/NFC–enabled device and turn on NFC capability
(typically under Settings) as described in the device’s user manual.
2. Place your NFC–enabled device in play mode.
3. Move the iBN17’s Power Off/Bluetooh/Aux Switch to the
Bluetooth position (center).

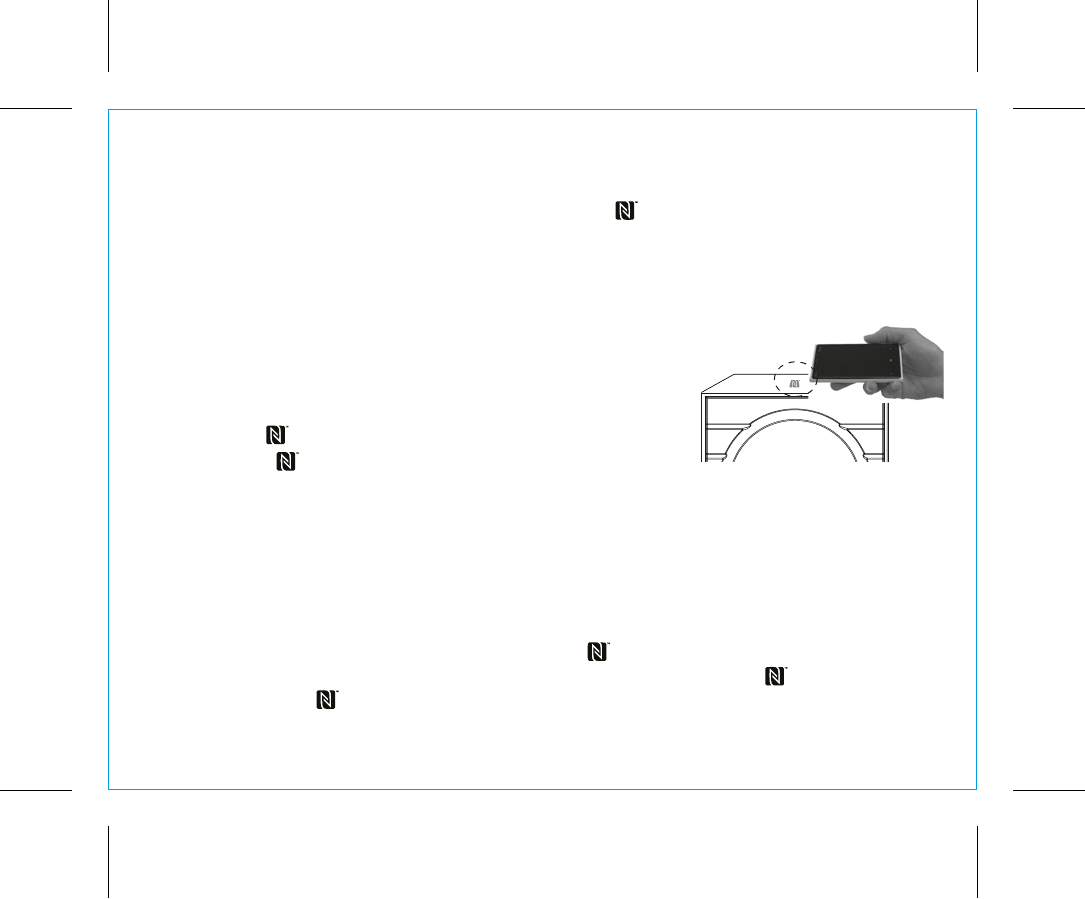

4. Touch the area of your playing NFC device
against the antenna area on top of the unit. The unit will
enter automatic pairing mode, tones will sound and the light will flash blue and red while the unit
attempts to pair. If prompted, accept Bluetooth pairing. “iHome iBN17” should appear on your
device’s menu.
Once paired with a device, the blue indicator light will glow steadily, your music will
play through the unit.
5.
Use the controls on your device to play or pause audio, navigate tracks and adjust volume.
6. When done listening, move the Power Off/Bluetooh/Aux Switch to OFF position to turn the unit OFF.
Remember to turn off your audio device, too.
NOTE: To unlink your device, simply touch it again on the antenna area on top of the unit. Similarly,
to switch between music playing from two paired NFC devices, touch the area of the desired
device to the antenna area on top of the unit.
To pair a device manually, please see the following “Pairing Your Device Manually” section.
8
Using the iBN17
P9
Using Bluetooth: Pairing Your Device
1. Turn on your Bluetooth-enabled device and turn on Bluetooth capability as described in the device’s
user manual.
2. Move the Power Off/Bluetooth/Aux Switch on the unit to the Bluetooth position (center). The unit will
turn on and attempt to auto link to a previously paired device for 10 seconds, indicated by a tone
and the Power/Charging/Pairing Indicator Light on the back of the unit flashing blue. If a linked
device is found, the indicator will glow solid blue.
3. If no linked device is found, the unit will enter pairing mode, indicated by a tone and the
Power/Charging/Pairing Indicator Light on the back of the unit will flash blue and red while the unit
attempts to pair. NOTE: If the unit is charging while pairing is attempted, the light will continue to glow
red (it will not blink blue and red). “iHome iBN17” should appear on your device’s menu. If “Not
Connected” or similar appears on your display, tap on the “iBN17” to begin pairing. If your device
asks for a password, enter 1234 on the keyboard of your device. If no device is paired within 2
minutes, a tone will sound and the unit will revert to auto link mode. To retry pairing, move the Power
Off/Bluetooth/Aux Switch to the OFF position (left) then move it back to the Bluetooth position
(center).
4.
Once paired with a device, the
Power/Charging/Pairing Indicator Light on the back of the unit
will
glow blue steadily. There should be an indication on your device that pairing is complete. On some
devices, you must then select “Use as Audio Device” or similar on the device’s Bluetooth menu. Once
paired, your device should link to the iBN17 whenever within range.
Pairing with a Different Device
When you power ON the speaker, it will automatically link with the previously paired Bluetooth device as
long as that device is still within range (approx. 30 feet). So, to pair with a different device you must turn
off the Bluetooth capability of the already paired device.
Playing Audio Via Bluetooth
1. Move the Power Off/Bluetooth/Aux Switch to the Bluetooth position (center) to listen to audio
streamed wirelessly from your paired iPad, iPhone, iPod or other Bluetooth device.
The Power/Charging/Pairing Indicator Light on the back of the unit will flash blue and a tone will
sound as the unit searches for a previously paired device, and then turn solid blue once a previously
paired device is detected.
2. Use the controls on your device to play or pause audio, navigate tracks and control volume from your
Bluetooth device.
3. When done listening, move the Power Off/Bluetooth/Aux Switch to the OFF position (left) to turn
the unit off.
9
P10
11
Internal Rechargeable Lithium-ion Battery
This device uses an internal rechargeable lithium-ion battery that should last the lifetime of the device. If you
suspect your battery may be dead, try charging it several times. If the battery does not recharge, please contact
us for repair information.
WARNING/DISPOSAL OF UNIT
Please do NOT attempt to change the battery yourself. If the battery has died and you do not want us to replace
your battery, you should follow the disposal instructions below:
• Never dispose of used batteries/electronics with ordinary solid wastes, since they contain toxic substances.
• Always dispose of used batteries/electronics in accordance with the prevailing community regulations that apply
to the disposal of batteries/electronics. If there are no local regulations concerning battery/electronics disposal,
please dispose of the device in a waste bin for electronic devices.
• Many electronics retailers now recycle batteries and other electronic components at no charge. Check to see
which ones in your area do so.
CAUTION
The battery used in this device may present a risk of fire, explosion or chemical burn if
mistreated
• Never use or charge the battery if it appears to be leaking, discolored, deformed, or in any way abnormal.
• Never disassemble the unit or attempt to remove battery as that could cause leakage of alkaline solution or other
electrolytic substance.
• Always confirm that the temperature is 5°C – 35° C (41° - 95° Fahrenheit) before you charge the battery.
Leakage or deterioration of the battery may occur if this warning is not heeded.
• Never expose the battery to any liquid.
• Never expose the battery to excessive heat such as direct sunlight or fire. Never use the battery pack in an
unventilated vehicle where excessive internal temperatures may be encountered.
• Always keep the battery out of the reach of infants and small children.
P12
When used in the directed manner, this unit has been designed and manufactured to ensure your personal
safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety
and operating instructions carefully before installation and use, and keep these instructions handy for future
reference. Take special note of all warnings listed in these instructions and on the unit.
1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl,
kitchen sink, laundry tub, swimming pool or in a wet basement.
2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper
ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block
ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or
cabinet, which may impede the flow of air through the ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or
other appliances (including amplifiers) that produce heat.
4. Power Sources – The unit should be connected to a power supply only of the type described in the
operating instructions or as marked on the appliance.
5. Power-Cable Protection – Power supply cables should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them.
6. Cleaning – The unit should be cleaned only using a warm damp cloth. Do not use solvents, etc.
7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled
into any openings or vents located on the product.
Consumer Product Safety Guide
12
IMPORTANT SAFETY INSTRUCTIONS
P13
13
8. Attachments – Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the
antenna or cable system during a lightning storm or when it is left unattended and unused for long
periods of time. This will prevent damage to the product due to lightning and power-line surges.
10. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as
this can result in a risk of fire or electric shock.
11. Damage Requiring Service – The unit should be serviced by qualified service personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.
12. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month
or longer, make sure to charge the unit before storing and periodically during storage to maintain
battery
13. Servicing – The user should not attempt to service the unit beyond those methods described in the
user’s operating instructions. Service methods not covered in the operating instructions should be
referred to qualified service personnel.
Questions? Visit www.ihome.com
or call 1-800-288-2792 Toll Free
P14
Unit doesn’t respond (no power)
• Make sure unit is completely charged.
• Check that all connections are correct and properly plugged in.
• Make sure your device is properly paired with the iBN17.
• Make sure the Power Off/Bluetooth/Aux Switch switch is not in the OFF (left) position.
Trouble pairing device/computer with iBN17
Bluetooth implementation varies depending on your device’s hardware and operating system. Please see
our website for updates on pairing.
• When you power ON the speaker, it will automatically link with the last previously paired Bluetooth
device if the device is still within range (approx. 30 feet). To pair with a different device you must turn
off Bluetooth capability on the already paired device, or take it out of range.
• If your device does not auto-link when within range, re-pair the device. To do so, first delete the iBN17
from your Bluetooth devices menu. Move the Power Off/Bluetooth/Aux Switch on the unit to the
Bluetooth position (center) to begin pairing (see page 4 for pairing details).
• Make sure your device is working properly. Check your device’s manual for details on Bluetooth pairing
and linking.
For further information and to see the latest instructions, visit www.ihome.com/support
14
Troubleshooting
P15
Limited 1 Year Warranty
iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in
workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase.
Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased.
Should this fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty
period, SDI will repair or, at its discretion, replace this product without charge. This decision is subject to verification of the defect
or malfunction upon delivery of this product to the Factory Service Center authorized by SDI Customer Service. The product must
include proof of purchase, including date of purchase. An out-of-warranty fee for service will be charged for units that are
received without proof of purchase.
Before returning this product for service, please first replace the batteries (if applicable) with fresh ones, as exhausted or defective
batteries are the most common cause of problems encountered.
If service is still required:
1. Call SDI Customer Service at 1-800-288-2792 for Return Authorization and for the address of the Factory Service Center.
2. Remove the batteries (if applicable) and pack the unit in a well padded, heavy corrugated box. SDI is not responsible for
damage that occurs during shipping to the Factory Service Center.
3. Enclose a photocopy of your sales receipt, credit card statement, or other proof of the date of purchase, if within the warranty
period. Also include your name and address information, a brief description for why the unit is being returned, and the return
authorization number. No unit can be processed without a return authorization number.
4. Write the return authorization number on the side of the shipping package and send the unit prepaid and insured to the
Factory Service Center address authorized by SDI Customer Service.
Disclaimer of Warranty
NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products
which have been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by
unauthorized persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players,
CD’s or tape cassettes (if applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the owner.
This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original
purchaser. In no event will SDI or any of its affiliates, contractors, resellers, their officers, directors,
shareholders, members or agents be liable to you or any third party for any consequential or incidental damages, any lost profits,
actual, exemplary or punitive damages. (Some states do not allow limitations on implied warranties or exclusion of consequential
damages, so these restrictions may not apply to you.) This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Your acknowledgement and agreement to fully and completely abide by the above mentioned disclaimer of warranty is
contractually binding to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase of your SDI
product.
© 2014 SDI Technologies, Inc. All rights reserved
Questions? Visit www.ihomeaudio.com
or call 1-800-288-2792 Toll Free
iBN17-140530-A(EN) Printed in China
P16

Navigation menu
