Introduction
Thank you for purchasing the iHome iBT16. This product is designed to provide high quality wireless
sound for your iPad, iPhone, iPod, computer, PDA or other Bluetooth audio device.
Along with the included Quick Bluetooth Connection Guide this instruction booklet explains the basic
operation and care of the unit. Please read them carefully and keep for future reference.
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other
protective material should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents,
such as benzene, thinner or similar materials can damage the surface of the unit.
P2
Maintenance
iBT16
FCC Information
P3
FCC ID: EMOIBT16
IC: 986B-IBT16
• Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada
This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be
co-located or operating in conjunction with any other antenna or transmitter.
This Device complies with RSS-102 of the IC Rules; Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF
exposure, users can obtain Canadian information on RF exposure and compliance.
QDID:B020340
iBT16
Table of Contents
Meet Your iBT16........................................................................................................... 1-2
Charging the Unit.............................................................................................................3
Using Bluetooth:Pairing Your Device.....................................................................................4
Playing Audio Via Bluetooth................................................................................................5
Playing Audio Via Aux.......................................................................................................6
Internal Rechargeable Lithium-ion Battery ...............................................................................7
Consumer Product Safety Guide....................................................................................... 8-9
Troubleshooting..............................................................................................................10
Warranty......................................................................................................................11
P4

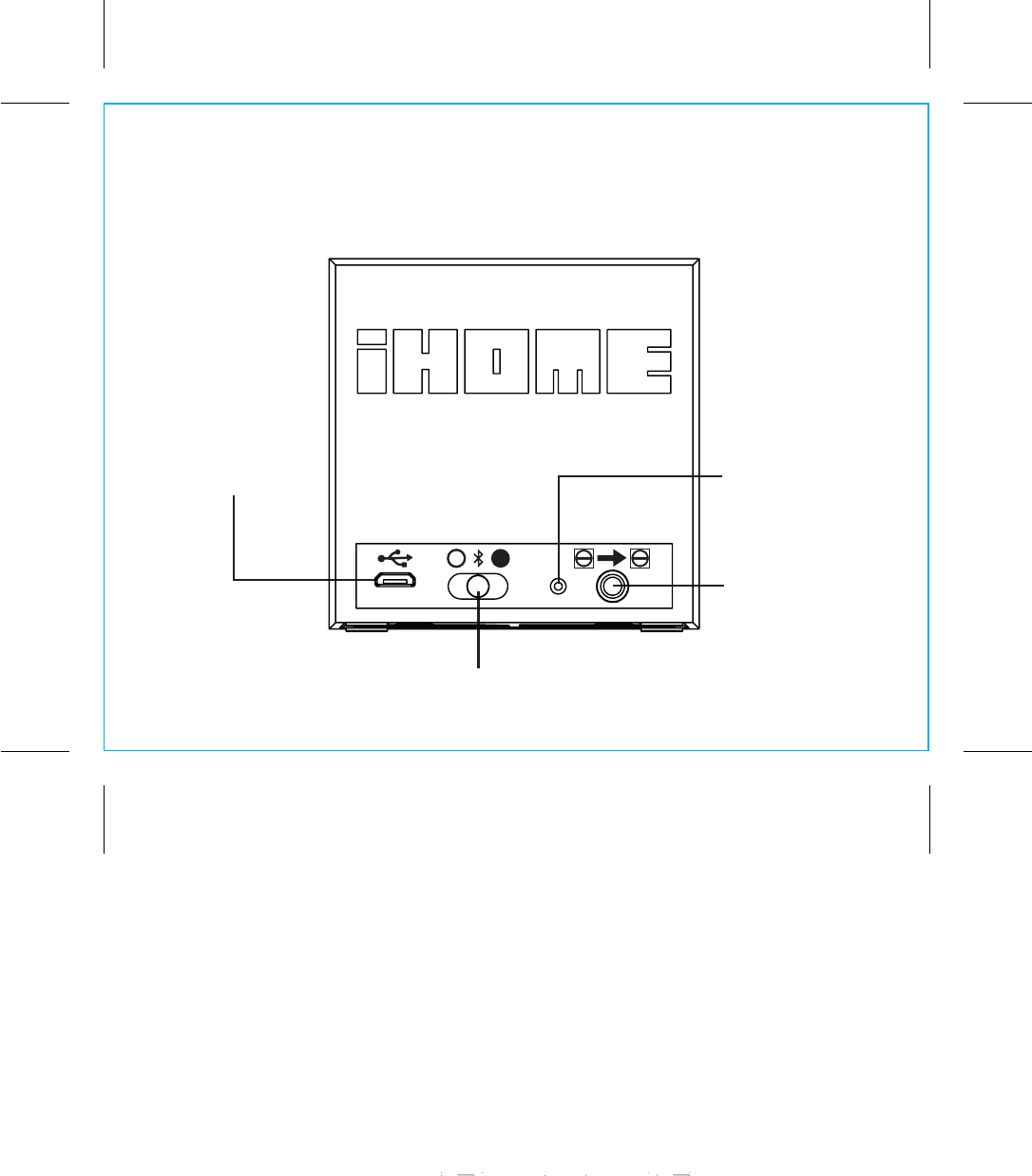

Meet Your iBT16
iBT16
1
Power Off/Bluetooth/Aux Switch
Aux-out Jack
P5
Power/Charging/Pairing
Indicator Light
Micro USB Charging/
Audio-in Port
Back
iBT16
2

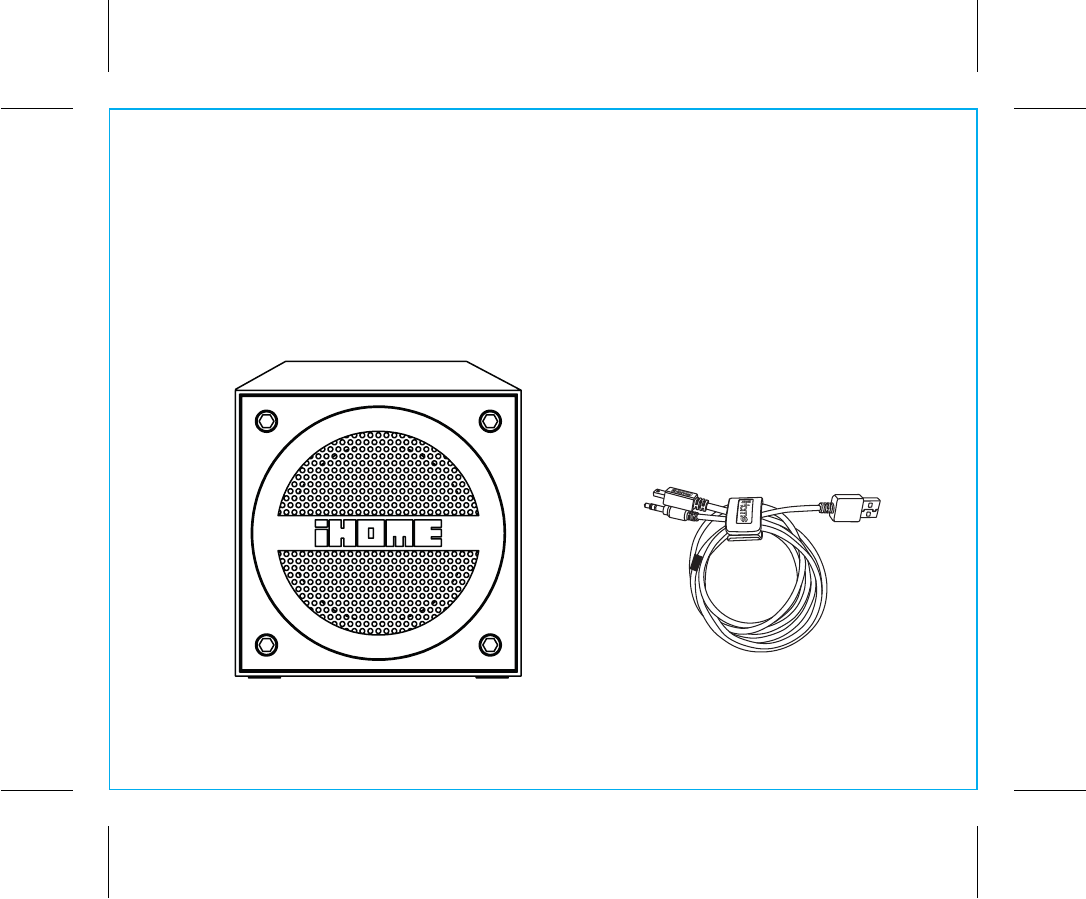

Included
• iBT16 system
• Micro USB to USB/3.5 mm audio cable
P6
iBT16
Using the
Charging the Unit

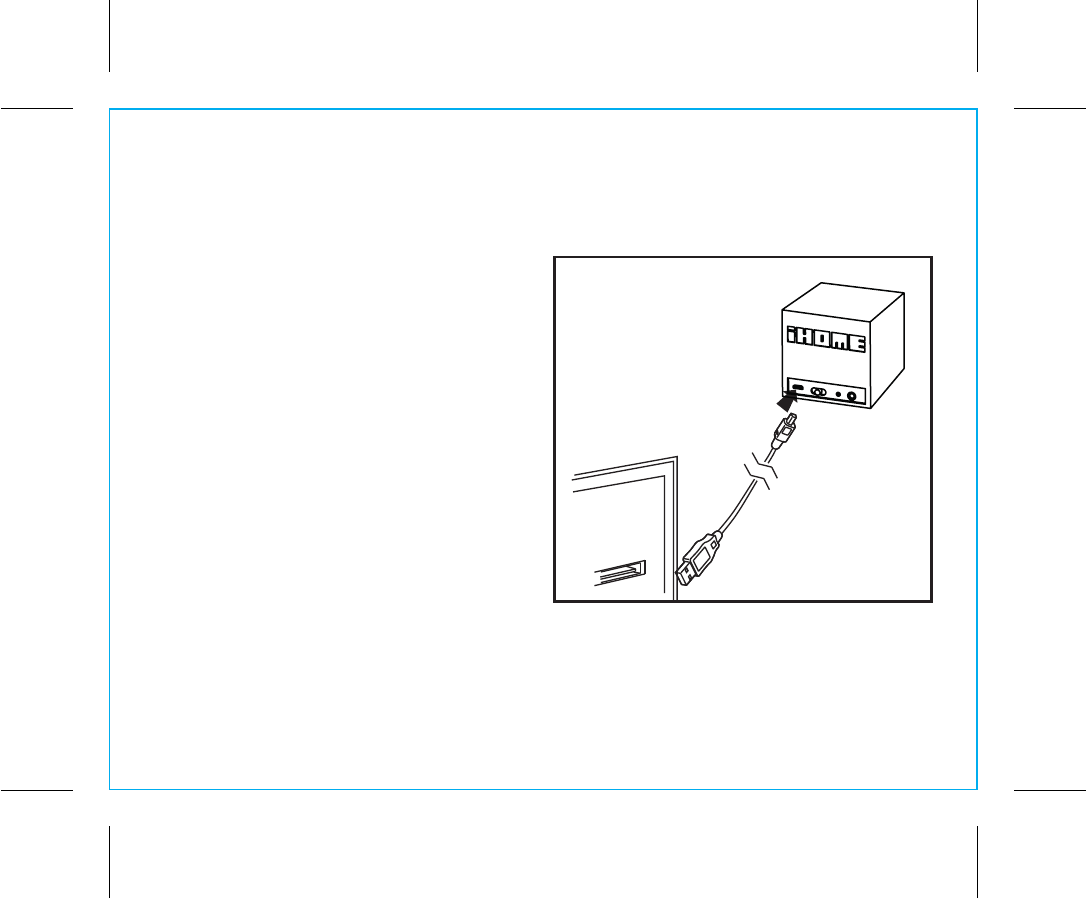

1. Connect the micro USB plug to the micro USB

charging port on the back of the unit.
2. Connect the standard USB plug end of the
cable to a power USB port on a computer or
other USB charging device. For first time use,
charge unit for about 8 hours.
3. The Power/Charging/Pairing Indicator Light
on the back of the unit glows red steadily
while the unit is charging and turns OFF
once the unit is fully charged. If unit is not
powered on when micro USB plug is
connected, the red light glows steadily to
indicate unit is charging.
3
P7
NOTE: When the unit is on and not connected to a
power source, the Power/Charging/Pairing Indicator
Light flashing red means the battery needs charging.
USB 2.0
iBT16
Using the
4
Using Bluetooth: Pairing Your Device
P8
1. Turn on your Bluetooth-enabled device and turn on Bluetooth capability as described in the device’s
user manual.
2. Move the Power OFF/Bluetooth/Aux Switch on the unit to the Bluetooth position (center). The unit
will turn on and attempt to auto link to a previously paired device for 10 seconds, indicated by a 3
note tone and the Power/Charging/Pairing Indicator Light on the back of the unit flashing blue. If
a linked device is found, the indicator will glow solid blue.
3. If no linked device is found, the unit will enter pairing mode, indicated by a 2 note tone and the
Power/Charging/Pairing Indicator Light on the back of the unit will flash blue and red while the unit
attempts to pair. NOTE: If the unit is charging while pairing is attempted, the light will continue to
glow red (it will not blink blue and red). “iBT16” should appear on your device’s menu. If “Not
Connected” or similar appears on your display, tap on the “iBT16” to begin pairing. If your device
asks for a password, enter 1234 on the keyboard of your device. If no device is paired within 2
minutes, a tone will sound and the unit will revert to auto link mode. To retry pairing, move the Power
OFF/Bluetooth/Aux Switch to the OFF position (left) then move it back to the Bluetooth position
(center).
4.
Once paired with a device, the
Power/Charging/Pairing Indicator Light on the back of the unit
will
glow blue steadily. There should be an indication on your device that pairing is complete. On some
devices, you must then select “Use as Audio Device” or similar on the device’s Bluetooth menu. Once
paired, your device should link to the iBT16 whenever within range.
5
Playing Audio Via Bluetooth
Pairing with a Different Device
iBT16
Using the
P9
1. Move the Power OFF/Bluetooth/Aux Switch to the Bluetooth position (center) to listen to
audio streamed wirelessly from your paired iPad, iPhone, iPod or other Bluetooth device.
The Power/Charging/Pairing Indicator Light on the back of the unit will flash blue and a 3
note tone will sound as the unit searches for a previously paired device, and then turn solid
blue once a previously paired device is detected.
2. Use the controls on your device to play or pause audio, navigate tracks and control volume
from your Bluetooth device.
3. When done listening, move the Power OFF/Bluetooth/Aux Switch to the OFF position (left)
to turn the unit off.
1. When you power ON the speaker, it will automatically link with the previously paired
Bluetooth device as long as that device is still within range (approx. 30 feet). So, to pair with
a different device you must turn off the Bluetooth capability of the already paired device.
iBT16
Using the
Playing Audio via Aux In
Playing Audio via Aux Out
6
P10
1. Move the Power OFF/Bluetooth/Aux Switch to the Aux position (right) to listen to audio via aux in.
The Power/Charging/Pairing Indicator Light on the back of the unit will glow blue.
2. Connect the micro USB plug to the micro USB charging port on the back of the unit and connect the
3.5 mm audio plug to the headphone or line-out jack on your audio device.
3. Power on the audio device and use the controls on the device to play or pause audio, navigate tracks
and control volume.
4. When done listening, move the Power OFF/Bluetooth/Aux Switch to the OFF position (left) to turn
the unit off. Remember to turn off your audio device, too.
You can connect the unit to an external speaker via the Aux-out jack located on the back of the unit to
expand the audio playing in Bluetooth or Aux-in modes.
1. Connect a 3.5 mm audio cable plug to the Aux-out jack on back of the unit and connect the other
end to the line-in jack on your external speaker. Note that the aux output signal is mono.
2. Move the Power OFF/Bluetooth/Aux Switch to the Bluetooth position (center) or Aux position (right)
to listen to audio via the selected mode.
3. Power on the audio device and use the controls on the device to play or pause audio, navigate tracks
and control volume.
4. When done listening, move the Power OFF/Bluetooth/Aux Switch to the OFF position (left) to turn
the unit off. Remember to turn off your audio device, too.
Consumer Product Safety Guide
8
When used in the directed manner, this unit has been designed and manufactured to ensure your personal
safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety
and operating instructions carefully before installation and use, and keep these instructions handy for future
reference. Take special note of all warnings listed in these instructions and on the unit.
1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl,
kitchen sink, laundry tub, swimming pool or in a wet basement.
2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper
ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block
ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or
cabinet, which may impede the flow of air through the ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or
other appliances (including amplifiers) that produce heat.
4. Power Sources – The unit should be connected to a power supply only of the type described in the
operating instructions or as marked on the appliance.
5. Power-Cable Protection – Power supply cables should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them. It is always best to have a clear area
from where the cable exits the unit to where it is plugged into an AC socket.
6. Cleaning – The unit should be cleaned only using a warm damp cloth. Do not use solvents, etc.
7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled
into any openings or vents located on the product.
IMPORTANT SAFETY INSTRUCTIONS
P12
9
8. Attachments – Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the
antenna or cable system during a lightning storm or when it is left unattended and unused for long
periods of time. This will prevent damage to the product due to lightning and power-line surges.
10. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as
this can result in a risk of fire or electric shock.
11. Damage Requiring Service – The unit should be serviced by qualified service personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.
12. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month
or longer, the power cable should be unplugged from the unit to prevent damage or corrosion.
13. Servicing – The user should not attempt to service the unit beyond those methods described in the
user’s operating instructions. Service methods not covered in the operating instructions should be
referred to qualified service personnel.
Questions? Visit www.ihomeaudio.com
or call 1-800-288-2792 Toll Free
P13
Unit doesn’t respond (no power)
• Make sure unit is completely charged.
• Check that all connections are correct and properly plugged in.
• Make sure your device is properly paired with the iBT16.
• Make sure the Power OFF/Bluetooth/Aux Switch switch is not in the OFF (left) position.
Trouble pairing device/computer with iBT16
Bluetooth implementation varies depending on your device’s hardware and operating system. Please see
our website for updates on pairing.
• When you power ON the speaker, it will automatically link with the last previously paired Bluetooth
device if the device is still within range (approx. 30 feet). To pair with a different device you must turn
off Bluetooth capability on the already paired device, or take it out of range.
• If your device does not auto-link when within range, re-pair the device. To do so, first delete the iBT16
from your Bluetooth devices menu. Move the Power OFF/Bluetooth/Aux Switch on the unit to the
Bluetooth position (center) to begin pairing (see page 4 for pairing details).
• Make sure your device is working properly. Check your device’s manual for details on Bluetooth pairing
and linking.
10
Troubleshooting
P14
For further information and to see the latest instructions, visit www.ihomeaudio.com/support
