User Manual
Model: iBT38
instruction manual
Bluetooth Wireless
FM Clock Radio
with USB Charging
Questions? Contact Customer Service at 1-800-288-2792
iBT38
Introduction
Thank you for purchasing the iHome iBT38. This product is designed to provide high quality wireless
sound for your iPad, iPhone, iPod or other Bluetooth audio device.
This instruction booklet explains the basic operation and care of the unit. Please read it carefully and keep
for future reference.
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other
protective material should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents,
such as benzene, thinner or similar materials can damage the surface of the unit.
1
Maintenance
iBT38
Table of Contents
2
Meet Your iBT38 ..............................................................................................................4
The Display/Setting Up the Unit ..........................................................................................5
Setting the Clock .............................................................................................................6
Setting and Using the Alarm/Previewing the Alarm and Turning the Alarm On/Off ................... 6- 7
FM Radio/Setting and Using FM Presets...............................................................................8
Using FM Radio in Other Countries......................................................................................9
ZZZ (Snooze)/Display Dimmer Button/Sleep Mode ...............................................................9
Pairing Your Device Via Bluetooth .....................................................................................10
Playing Audio Via Bluetooth..............................................................................................11
Using the Speakerphone feature........................................................................................11
Playing Audio Via Aux-in .................................................................................................12
Charging Devices via USB Port .........................................................................................13
Replacing/Installing Backup Batteries.................................................................................13
Consumer Product Safety Guide................................................................................... 15-16
Troubleshooting..............................................................................................................14
FCC Information.............................................................................................................17
Warranty......................................................................................................................18
iBT38
3

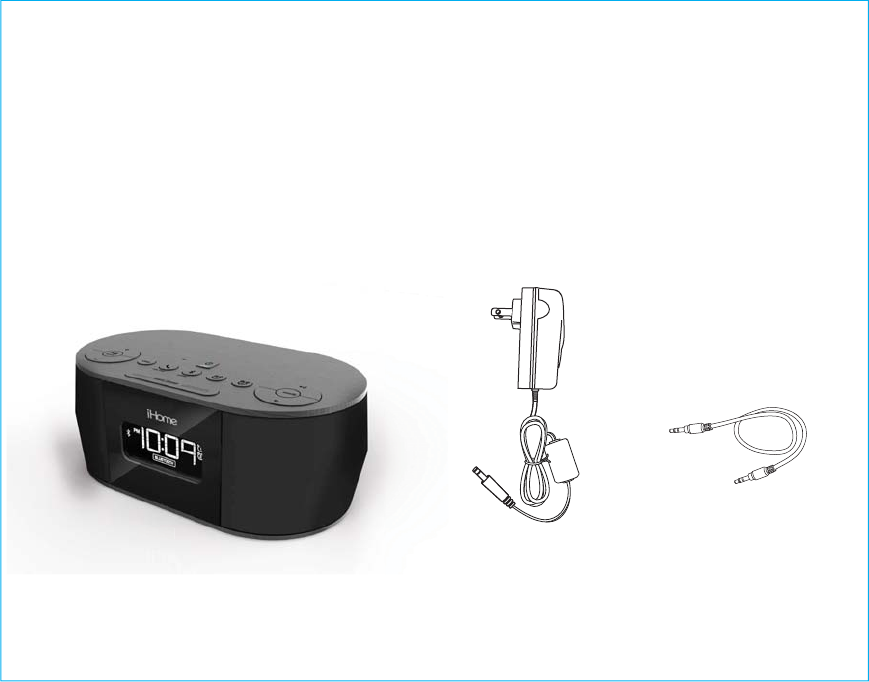

Included
• iBT38 system
• 100V-240V universal AC adaptor
• Stereo audio cable
power adaptor
Stereo
audio cable
iBT38
iB
B
iB
iB
iB
iB
T3
T3
T3
T
T
8
8
8
8
iBT38
Meet Your iBT38
Top
4
Backup Battery Compartment
Bottom Back
Bluetooth
Pairing Button
Talk/End
Call Button
Mode Button
Volume Up/
Volume Down Buttons
Snooze/Display Dimmer Button
Microphone Alarm 1 Button
Alarm 2 Button
Sleep Button
Power Button
Plus/Minus
Settings
Buttons
Play/Pause and
Presets Button
DC Jack USB Charging Port Time Set Button
Aux-in Jack
FM Antenna
DC 9V, 1.66A
snooze | dimmer
The Display
Setting Up the Unit
Connect the included AC adaptor to the DC jack located on
the back of the unit and connect the other end to a working
wall outlet. Extend FM antenna.
CR2450 3V battery is included for battery backup. Install it in
the backup battery compartment located on the bottom of the
unit before using the unit. See page 14 for more on installing
and replacing backup batteries.
5
Alarm Active Indicator
Aux-in Mode IndicatorSleep Mode Indicator
Bluetooth
Pairing
Indicator
PM/AM Indicators
Mode/Wake to
Alarm Source Indicators:
Bluetooth device, Radio, Tone
Time/Radio Frequency Display
Low Backup
Battery Indicator
Using the iBT38
FM antenna
RESET
RESET
TEST
TEST
6
Setting the Clock
1. Press and hold the Time Set Button located on the back of the unit for 2 seconds
until the clock display flashes and a beep sounds.
2. Press the – or + Buttons to adjust the clock to the current time (hold for rapid
setting). Make sure you set the correct AM/PM time. The AM and PM indicators
appear to the left of the display.
3. To toggle the clock display between standard 12 hour time and 24 hour (“military”) time display,
press the Alarm or Alarm Button while the display is flashing during time setting.
4. Press the Time Set Button to confirm the time and exit clock setting mode. 2 beeps will confirm
clock setting is complete.
Setting and Using the Alarm
This unit features dual alarms which can be set to different times and alarm sources. Each is set in the
same way. Instructions are given as “Alarm Button”; use Alarm Button or Alarm Button to set
respective alarms.
Note: Each step must be completed while display is flashing or step will time-out with any changes
saved.
1. Press and hold the Alarm Button for 2 seconds until the time display and alarm icon flash. A beep
sounds.
2. Press the – or + Buttons to adjust the alarm time to the desired time (hold for rapid setting).
Make sure you set the correct AM/PM alarm time. The AM and PM indicators appear to the left of
the display.
3. Press the Alarm Button to confirm the alarm time setting. The wake-to source will flash.
Using the iBT38
7
Setting and Using the Alarm (Continued)
4. Press the – or + Buttons to select the desired wake to alarm source: Bluetooth, radio or tone.
Wake to Bluetooth: You will wake to the currently linked Bluetooth device. If no device is
detected, the alarm will default to current Tone.
Wake to Radio: Press the Alarm Button to confirm. Press the Presets Button to select an FM preset
to wake to, or press the – or + Buttons to tune in a desired wake to station.
Wake to Tone: Press the Alarm Button to confirm. Press the – or + Buttons as needed to listen to
and to select one of the four built-in wake-to tones (1 - 4).
5. Press the Alarm Button to confirm the alarm source. The volume display will flash.
6. Press the or Buttons to adjust the alarm volume. Note that the alarm volume setting is stored
separately from other volume settings.
7. Press the Alarm Button to confirm the alarm settings and exit alarm setting mode. 2 beeps will confirm
alarm setting is complete. The alarm icon will remain on the display, indicating the alarm is armed.
Previewing the Alarm and Turning the Alarm On/Off
1. Press and release the Alarm Button to view the current alarm time.
2. Press and release the Alarm Button as needed to toggle the alarm ON and OFF, indicated by the alarm
icon and a beep.
Using the iBT38
FM Radio
1. Press and release the Mode Button as needed until the FM indicator icon and
current FM radio frequency appear on the display.
2. Press the – or + Buttons to tune the radio to the desired station (hold to scan for the next clear
station). Extend the FM antenna for best reception.
3. Press the or Buttons to adjust the volume on the unit.
4. When you are through listening, press the Button to turn the unit off.
Setting and Using FM Presets
The unit allows you to store up to 6 FM radio station presets
1. Press and release the Mode Button as needed until the FM indicator icon appears on the display.
2. Press and release the Presets Button as needed until the preset number (P1- P6) you wish to set is
displayed, then press and hold the Presets Button to enter setting mode.
3. Press the – or + Buttons to tune the radio to the desired station (hold to scan for the next clear
station).
4. Press and release the Presets Button. 2 beeps will sound to confirm the preset has been assigned.
Repeat steps 2 - 4 until you have set up to 6 preset stations.
5. To listen to a preset FM station at any time, follow steps 1 - 2 to turn on FM radio mode and cycle to
the desired preset.
8
Using the iBT38
Using FM Radio in Other Countries
Different areas of the world use different FM frequency steps and ranges. By default, this unit is set to
USA frequency steps. To use the radio outside the USA:
1. Make sure unit is OFF.
2. Press and hold the Mode Button until “USA” appears in the display.
3. Press and release – or + Buttons to cycle to your location: Europe, Japan, Australia, China or USA.
4. Press the Mode Button again to exit frequency setting mode. 2 beeps will confirm setting.
Snooze/Display Dimmer Button
1. To program Snooze, press and hold the Snooze/Display Dimmer Button during normal operation
(when no alarm is sounding).
2. Press the – or + Buttons to select the desired snooze time (between 01 and 29 minutes).
3. Press and release the Snooze/Display Dimmer Button to confirm Snooze setting. 2 beeps will sound.
4. While the alarm is sounding, press and release the Snooze/Display Dimmer Button to temporarily
silence the alarm for the set duration (9 minutes is the default). Snooze can be used several times during
alarm.
5. To adjust the brightness of the display, press and release the Snooze/Display Dimmer Button during
normal operation (when no alarm is sounding) to cycle through the brightness display settings.
Sleep Mode
This unit allows you to sleep to the current sound source for a set time before turning the unit off.
1. To set Sleep time, press and release the Sleep Button as needed to cycle to the desired sleep
duration:120, 90, 60, 30 or 15 minutes or OFF (turns the unit off).
2. Press the or Buttons to adjust the sleep volume on the unit. Note that the sleep volume setting is
stored separately from other volume settings.
9
Using the iBT38
Whenever AC power is connected, the iBT38 will attempt to autolink to a previously paired device. If no
device is paired, the iBT38 will automatically enter pairing mode for 2 minutes. You can manually initiate
pairing without turning on the iBT38 by following steps 1-3 below.
1. Make sure your Bluetooth device is fully charged. Turn on your Bluetooth device and
make it “discoverable” by turning on Bluetooth mode (check in Options or Settings) .
2.
Press and hold the Pairing Button on top of the iBT38 for 2 seconds. The iBT38
will beep and the BT icon will flash on the display, indicating the iBT38 is in
pairing mode.
3. “iHome iBT38” should appear in your device’s Bluetooth menu. If “Not Paired”, “Not Connected” or similar
message appears, select “iHome iBT38” to connect it. If prompted for a passcode, enter “1234” on your
device’s keypad.
Using the iBT38
10
g
4. If pairing is successful, 2 beeps will sound and the BT icon will appear solid, indicating the iBT38 is
ready to play music. There should also be an indication on your device. If no device is successfully paired
within 2 minutes the iBT38 will default to previous mode. Once the iBT38 is paired to a device, it will
attempt to autolink when the device is within range (about 33 feet).
Pairing Your Device Via Bluetooth
For iPhone
iHome iBT38 iHome iBT38
iHome iBT38 iHome iBT38
For other
Playing Audio Via Bluetooth
1. Press the Button to turn the unit ON.
2. Press and release the Mode Button as needed until the BT icon appears on the display.
3. Press the Presets Button on the unit to play audio from your linked Bluetooth device.
4. Press the – or + Buttons to go to the previous or next track.
5. Press the or Buttons to adjust the volume on the unit.
6. When done listening, press the Button to turn the unit off.
Using the Speakerphone feature
NOTE: The unit must be powered on and linked to a Bluetooth phone to receive a call.
1. When a call is received, playing music is muted to hear the ring tone. “Call” will
flash on the display.
Press the Talk/End Button to answer the call; press and hold the Talk/End Button to ignore
the call. For call waiting function, press the Talk/End Button to place a currently active call on
hold and answer a new call; press the Talk/End Button to switch between the calls.
2. When a call is completed, press the Talk/End Button to end the call and resume previous
function.
11
Using the iBT38
12
Playing Audio via Aux-In
1. Connect one end of the included standard stereo 3.5mm audio cable into the aux-in jack on
the back of the unit and the other end into the headphone or output jack of your audio device.
2. Press the Button on the unit to turn it on.
3. Press and release the Mode Button as needed until the AUX indicator icon appears on the display.
4. Place your audio device in play mode. Navigate tracks and adjust output volume on the device.
5. Press the or Buttons to adjust the volume on the unit.
6. When done listening, press the Button to turn the unit off. Remember to turn off your audio device,
too.
Using the iBT38
Mobile Phone Game Devices iPod Laptop
PC/Tablet MP3/MP4
DC 9V, 1.66A
.
66A
13
Charging Devices via USB Port
1. Connect the standard size end of a USB cable (not included) to the
USB Port on back of the unit and connect the other end to the charging
port on your device.
2. Monitor the charging on your device. Some devices use a proprietary
charging method and will not charge using the USB Port. If this
happens, you must charge your device using the charger that came
with it.
Replacing and Installing Clock Backup Batteries
The unit comes with 1 CR2450 back-up battery installed to provide
continuous alarm operation and clock settings in the event of a power failure.
Remove the battery pull tab before use. When the Battery Low
Icon located on the lower right of the display is flashing, it is time to replace
the back-up battery. The battery compartment is located on the bottom of the
unit.
1. Please make sure the AC adaptor is connected, otherwise all settings
may be lost during battery replacement.
2. Use a Phillips screwdriver to remove the battery compartment cover
located on the bottom of the unit.
3. Remove exhausted battery. Insert 1 CR2450 battery checking that the +
side is facing you. Replace the compartment door. Do not over tighten.
Note: Make sure you dispose of battery properly (see your local regulations).
WARNING: Lithium batteries can explode or cause burns if disassembled, shorted, recharged, exposed to water, fire,or
high temperatures. Do not place loose batteries in a pocket, purse, or other container containing metalobjects, mix with
used or other battery types, or store with hazardous or combustible materials. Store incool, dry, ventilated area. Follow
applicable laws and regulations for transport and disposal.
Using the iBT38
NOTE: Unit must be plugged
into working outlet to
charge devices
Replacing Backup Battery
Unit doesn’t respond (no sound)
• Check that all connections are correct and properly plugged in.
• Make sure your device is properly paired with the iBT38.
• Make sure the Power is ON.
• Make sure volume is up on your Bluetooth device and on unit.
Unit doesn’t respond (locked up or frozen)
• The unit may need to be reset. To do so, unplug the unit from power source and remove the
backup batteries. Let unit stand for 2 minutes. Re-install backup batteries and connect unit to power
source. You will need to reset the clock, radio, and any other settings.
Trouble pairing device/computer with iBT38
Bluetooth implementation varies depending on your device’s hardware and operating system. Please see
our website for updates on pairing.
• When you power ON the unit, it will automatically link with the last previously paired Bluetooth
device if the device is still within range (about 33 feet).
• Make sure your device is working properly. Check your device’s manual for details on Bluetooth
pairing and linking.
14
Troubleshooting
For further information and to see the latest instructions, visit www.ihome.com/support
When used in the directed manner, this unit has been designed and manufactured to ensure your personal
safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety
and operating instructions carefully before installation and use, and keep these instructions handy for future
reference. Take special note of all warnings listed in these instructions and on the unit.
1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl,
kitchen sink, laundry tub, swimming pool or in a wet basement.
2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper
ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block
ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or
cabinet, which may impede the flow of air through the ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or
other appliances (including amplifiers) that produce heat.
4. Power Sources – The unit should be connected to a power supply only of the type described in the
operating instructions or as marked on the appliance. Only use the AC adapter that came with the
unit.
5. Power-Cable Protection – Power supply cables should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them. It is always best to have a clear area
from where the cable exits the unit to where it is plugged into an AC socket.
6. Cleaning – The unit should be cleaned only using a warm damp cloth. Do not use solvents, etc.
7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled
into any openings or vents located on the product.
Consumer Product Safety Guide
15
IMPORTANT SAFETY INSTRUCTIONS
16
8. Attachments – Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the
antenna or cable system during a lightning storm or when it is left unattended and unused for long
periods of time. This will prevent damage to the product due to lightning and power-line surges.
10. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as
this can result in a risk of fire or electric shock.
11. Damage Requiring Service – The unit should be serviced by qualified service personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.
12. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month
or longer, the backup batteries should be removed from the unit to prevent damage or corrosion.
13. Servicing – The user should not attempt to service the unit beyond those methods described in the
user’s operating instructions. Service methods not covered in the operating instructions should be
referred to qualified service personnel.
Questions? Visit www.ihome.com
or call 1-800-288-2792 Toll Free
iBT38
17
FCC ID: EMOIBT38
IC: 986B-IBT38
*KIRGXGZOUT/* *
FCC Information
This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
• Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAN ICES-3 (B)/NMB-3(B)
IC Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de license. L'exploitation est autorisée
aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can
obtain Canadian information on RF exposure and compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102
rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf.
Limited 1 Year Warranty
iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from
defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date
of original purchase.
Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally
purchased. Should this fail to resolve the matter and service still be required by reason of any defect or malfunction
during the warranty period, SDI will repair or, at its discretion, replace this product without charge. This decision is
subject to verification of the defect or malfunction upon delivery of this product to the Factory Service Center authorized
by Customer Service.
If service is required, please call Customer Service at 1-800-288-2792 to obtain a Return Authorization Number and
shipping instructions.
Disclaimer of Warranty
NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover
(i) products which have been damaged by negligence or willful actions, misuse or accident, or which have been
modified or repaired by unauthorized persons; (ii) cracked or broken cabinets, or units damaged by excessive heat;
(iii) damage to digital media players, CD’s or tape cassettes (if applicable); (iv) the cost of shipping this product to the
Factory Service Center and its return to the owner.
This warranty is valid only in the United States of America and does not extend to owners of the product other than
to the original purchaser. In no event will SDI or any of its affiliates, contractors, resellers, their officers, directors,
shareholders, members or agents be liable to you or any third party for any consequential or incidental damages, any
lost profits, actual, exemplary or punitive damages. (Some states do not allow limitations on implied warranties or
exclusion of consequential damages, so these restrictions may not apply to you.) This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.
Your acknowledgment and agreement to fully and completely abide by the above mentioned disclaimer of warranty
is contractually binding to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase
of your SDI product.
© 2016 SDI Technologies, Inc. All rights reserved
Questions? Visit www.ihome.com
or call 1-800-288-2792 Toll Free
iBT38-3152016 - A Printed in China
