Bluetooth Wireless Boombox
with FM Radio and
USB Charging
iBT44
Introduction
Thank you for purchasing the iHome iBT44. This product is designed to provide high quality wireless
sound for your Bluetooth audio device.
Along with the included Quick Bluetooth Connection Guide this instruction booklet explains the basic
operation and care of the unit. Please read them carefully and keep for future reference.
Maintenance
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other
protective material should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents,
such as benzene, thinner or similar materials can damage the surface of the unit.
P2
FCC Information
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be
co-located or operating in conjunction with any other antenna or transmitter.
This Device complies with RSS-210 of the IC Rules; Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.
iBT44
P3
FCC ID: EMOIBT44
IC: 986B-IBT44
QDID:B019566
• Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada
This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
iBT44
Table of Contents
Meet Your iBT44........................................................................................................... 1-2
Setting Up the Unit......................................................................................................... 3-4
Using Bluetooth:Pairing Your Device .....................................................................................5
Playing Audio Via Bluetooth................................................................................................6
Playing Audio Via Aux-in/FM Radio.....................................................................................7
Using FM Radio in Other Countries/Charging Devices via USB Port ..........................................8
The Remote Control .................................................................................................... 9 -10
Consumer Product Safety Guide................................................................................... 11-12
Troubleshooting..............................................................................................................13
Warranty......................................................................................................................13
P4
iBT44
1

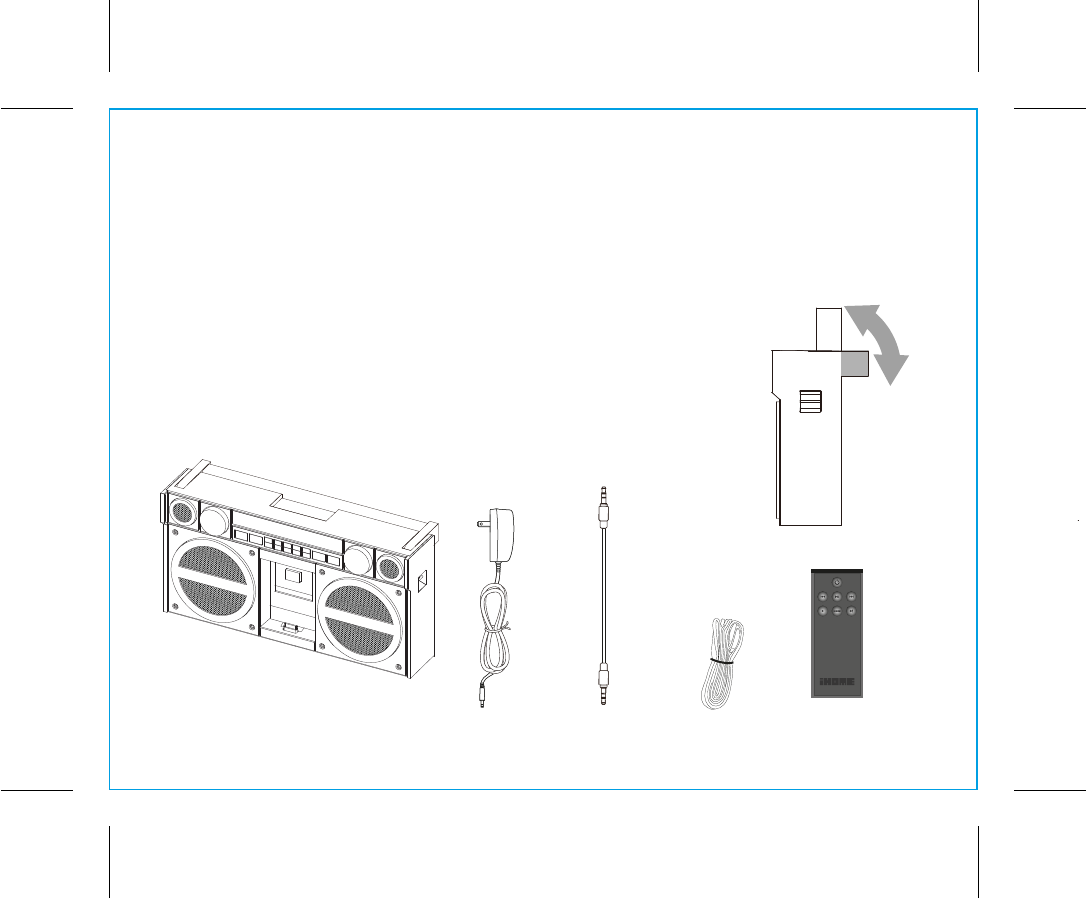

Included
• iBT44 system
• 3.5mm stereo audio cable
• Shoulder strap
• Remote control
• 100V-240V universal AC adaptor
P5
power adaptor
IBT44 System
3.5mm
audio cable
shoulder strap remote control
The handle of the unit can be placed
in two positions, upright for carrying,
or back for general use or tilt-back
play.
Meet Your iBT44
iBT44
2
P6

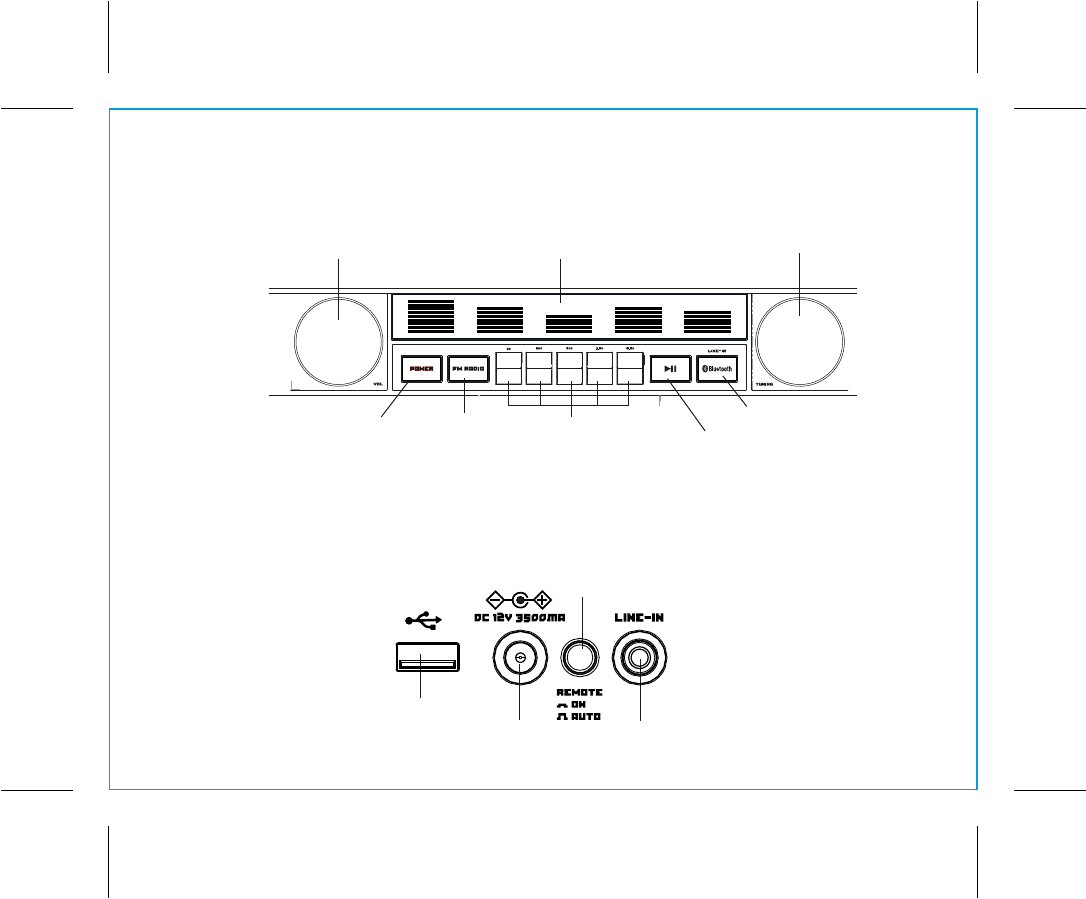

Back
Front Volume Knob Tuning Knob
Play/Pause Button
Bluetooth/Line-in Button
Power Button FM Radio Button Graphic Equalizer
Buttons
Press top of each to raise,
bottom to lower for best sound
Display
Remote Button
In Auto mode, will disable remote
when operating on batteries to save
battery life. Press in (ON) to activate
remote during battery operation.
DC Jack
USB Port
Line-in Jack
iBT44
Using the
3
P7
Setting Up the Unit
This unit can be operated using the included
AC adaptor or with 6 “D” batteries for portable
use (not included).

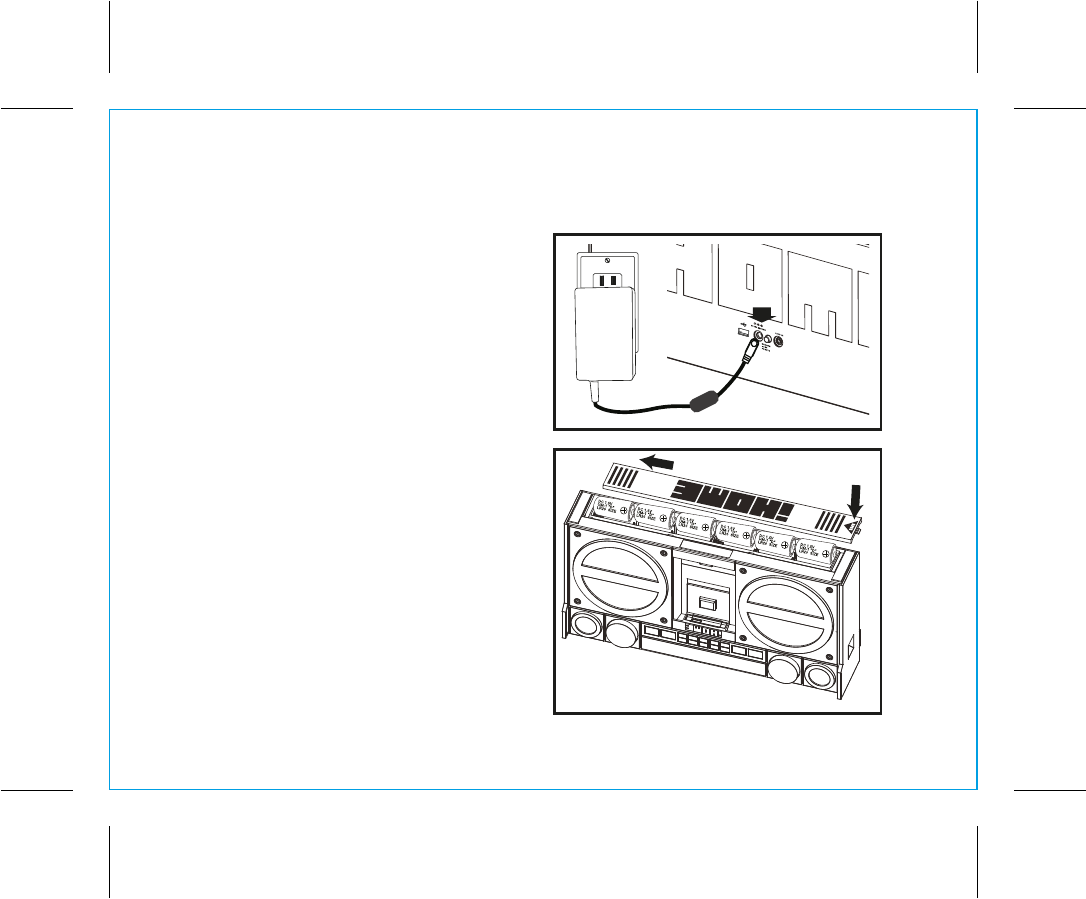

For AC operation, place unit on a stable
surface. Plug the power adaptor into the DC
jack on back of the unit and the other end into
a wall socket. The USB port can charge
devices while connected to AC power
For battery operation, place unit upside down
to access the battery compartment. Press down
directly on arrow with thumb and slide the
battery compartment cover to release it. If
replacing existing batteries, remove and
dispose of properly. Insert 6 fresh “D” alkaline
batteries with polarity (+ or –) as shown.
Replace battery compartment door.
Note: unit will not charge USB devices while
operating on batteries.
RESET
RESET
TEST
TEST
iBT44
Using the
4
P8
Setting Up the Unit

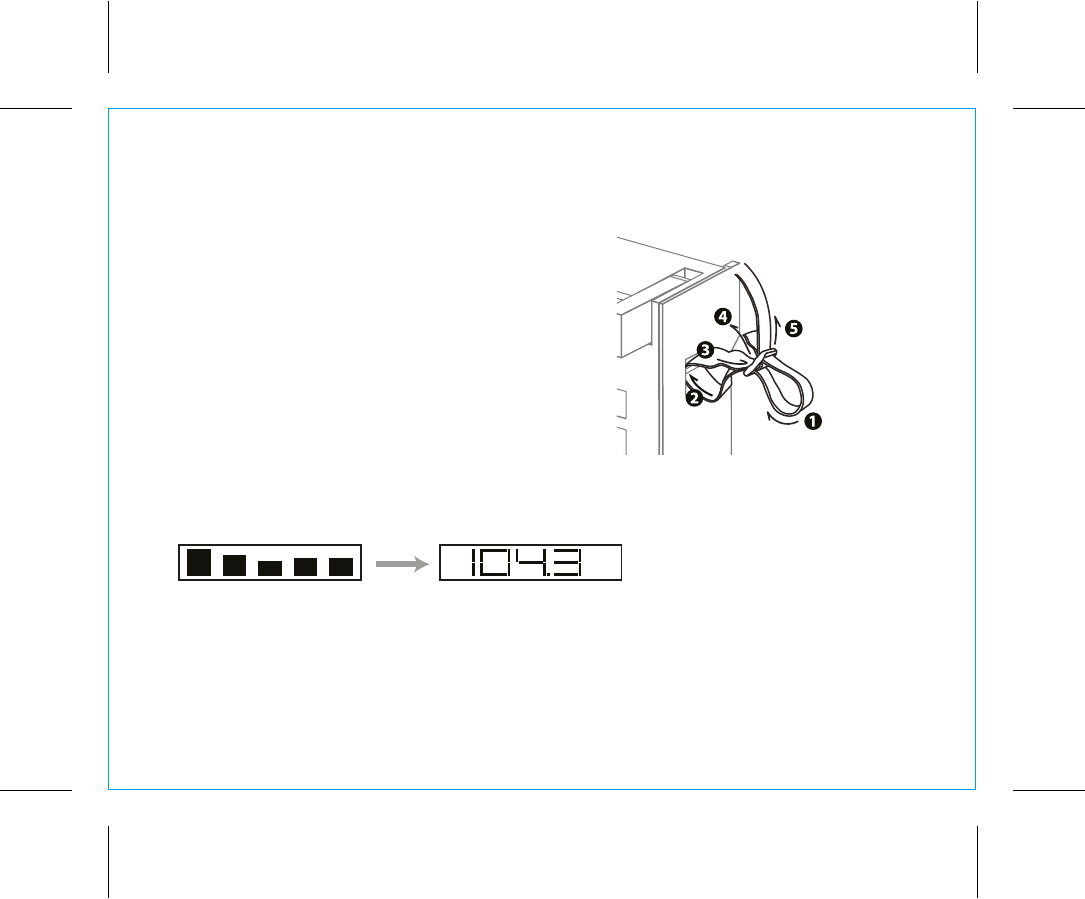

Installing and adjusting the carry strap
Insert the folded end of the strap under the strap pin
and pull up, then thread this end through the strap
adjuster slide. Pull on strap adjuster to adjust for
proper fit and comfort.
Make sure the strap is securely fastened. Repeat on
opposite end of unit.
The Display
By default, the display shows the five bands of the
graphic equalizer as the frequencies change during
audio playback.
The display will change to show changes in volume,
EQ, mode, FM tuning, Bluetooth pairing, etc.
EQ display FM display
iBT44
Using the
5
P9

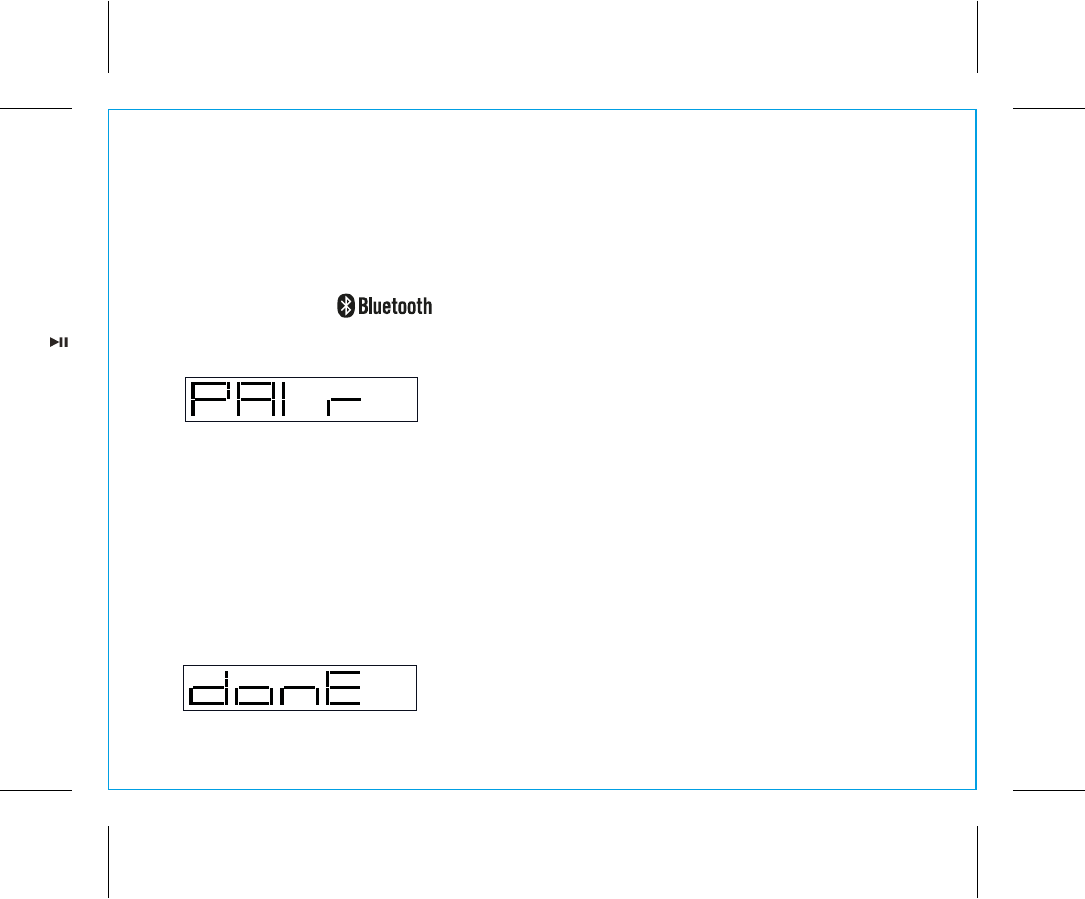

Using Bluetooth: Pairing Your Device
1. Turn on your Bluetooth-enabled device and turn on Bluetooth capability as described in the device’s
user manual.
2. Press the Power Button to turn the unit ON (pairing is available in any mode).
3. Press and hold the Button on the unit for 2 seconds to begin
pairing the unit with your device. “PAIR” will flash on the display, and the button will flash blue,
indicating pairing attempt.
“iHome iBT44” should appear on your device’s menu. If “Not Paired”, “Not Connected” or similar
message appears, select “iHome iBT44” on the device to connect it. If your device asks for a
password, enter 1234 on the keyboard of your device. If no device is paired within 2 minutes, a
tone will sound and the unit will revert to its previous mode. To retry pairing, turn the Power/Mode
Dial to the OFF position (left) then follow steps 2 & 3 again.
4.
Once paired with a device, the
PAIR indicator on the display will stop flashing then “DONE” will
appear briefly. The Bluetooth Button will flash twice then glow solid blue.
On some devices, you must
then select “Use as Audio Device” or similar on the device’s Bluetooth menu. Once paired, your device
should link to the iBT44 whenever within range (about 30 feet).
6
iBT44
Using the
P10
Pairing with a Different Device
When you power ON the speaker, it will automatically link with the previously paired Bluetooth device
as long as that device is still within range (about 30 feet). To pair with a different device you must turn
off the Bluetooth capability of the already paired device.
Playing Audio Via Bluetooth
1. Press the Power Button to turn on the unit in the last active mode. If needed, press the
Button to enter Bluetooth mode. The blue light on the Bluetooth Button will flash and a tone will sound
as the unit searches for a previously paired device, and then turn solid blue once a previously paired
device is detected.
2. Press the Play Pause Button on the unit to play audio from your linked Bluetooth device. While
audio is playing, press to pause play, and again to resume play.
3. Use the controls on your device to navigate tracks, etc.
4. Turn the Volume Knob to control the system volume.
5. When done listening, press the Power Button to turn the unit off. Remember to tun off your audio
device, too.
TIP: In Bluetooth mode, turn the Tuning Knob to adjust the brightness on the display.
iBT44
Using the
7
Playing Audio via Line-In
1. Connect one end of the standard stereo 3.5mm audio cable (included) into the line-in jack on
the back of the unit and the other end into the headphone or output jack of your audio device.
2. Press the Power Button to turn on the unit in the last active mode. Press the Button as
needed to enter Line-in mode.
3. Power on the audio device and use the controls on the device to play or pause audio and navigate
tracks.
4. Turn the Volume Knob to control the system volume.
5. When done listening, press the Power Button to turn the unit off. Remember to turn off your audio
device, too.
FM Radio
1. Press the FM Radio Button to turn on the unit in FM radio mode.
2. Turn the Tuning Knob on the unit to tune in the desired station
3. The unit has an external telescoping FM radio antenna; extend it gently and adjust it for best FM
reception.
4. Turn the Volume Dial to control the system volume.
5. When done listening, press the Power Button to turn the unit off.
P11
iBT44
Using the
8
Using FM Radio in Other Countries
Different areas of the world use different FM frequency steps and ranges. By default, this unit is set
to USA frequency steps. To use the radio outside the USA:
1. Press and hold the FM Radio Button for 5 seconds until “USA” appears in the display.
2. Turn the Tuning Knob to select to your location: Europe, Japan, Australia, China or USA.
3. Press the FM Radio Button to exit frequency setting mode.
Charging Devices via USB Port
1. Connect the standard size end of a USB cable (not included) to the USB Port on back of the unit and
connect the other end to the charging port on your device.
2. Monitor the charging on your device. Some devices use a proprietary charging method and will not
charge using the USB Port. If this happens, you must charge your device using the charger that came
with it.
P12
SRS WOW®, which features TruBass®, significantly improves the playback quality of audio, delivering a dynamic 3D
entertainment experience with deep, rich bass and high frequency clarity for crisp detail.
is a registered trademarks of SRS Labs, Inc. TruBass technology is incorporated under license from SRS Labs, Inc.
P13
The Remote Control
The unit comes with a magnetized remote control which fits into a slot on the top of the unit. The remote
comes with one CR2032 battery already installed. Remove the battery tab to use the remote.
iBT44
Using the
9

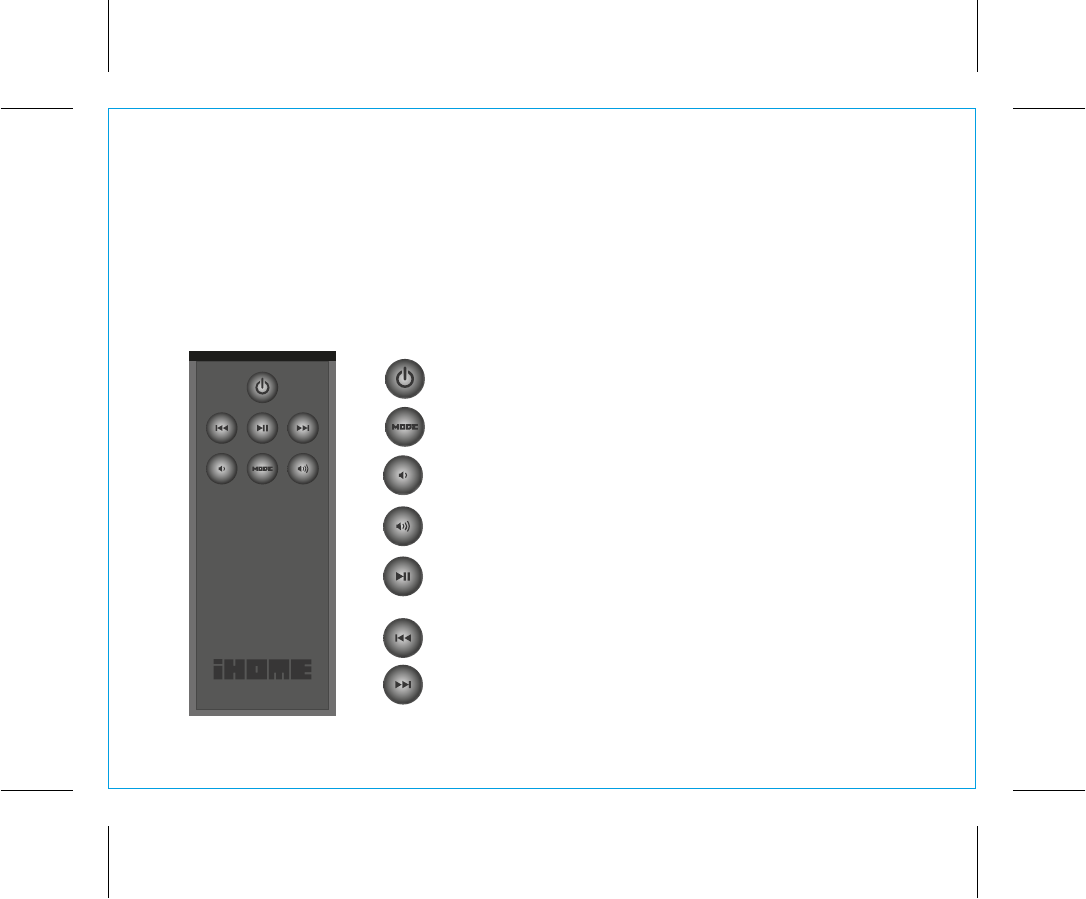

Play/Pause Button
• Switches linked Bluetooth device
between Play and Pause modes
Track Buttons
• Skip to next or previous track
• HOLD to scan reverse or forward
within a track
Power Button
• Turns unit ON or OFF.
Lower/Raise Volume
• Raises or lowers volume of the unit
Mode Button
• Cycle through modes:
Bluetooth, FM radio and Line-in
P14
10
The Remote Control (continued)
When the range of the remote seems reduced or if it ceases to work properly, it’s time to replace
the battery.
iBT44
Using the
Battery compartment
cover

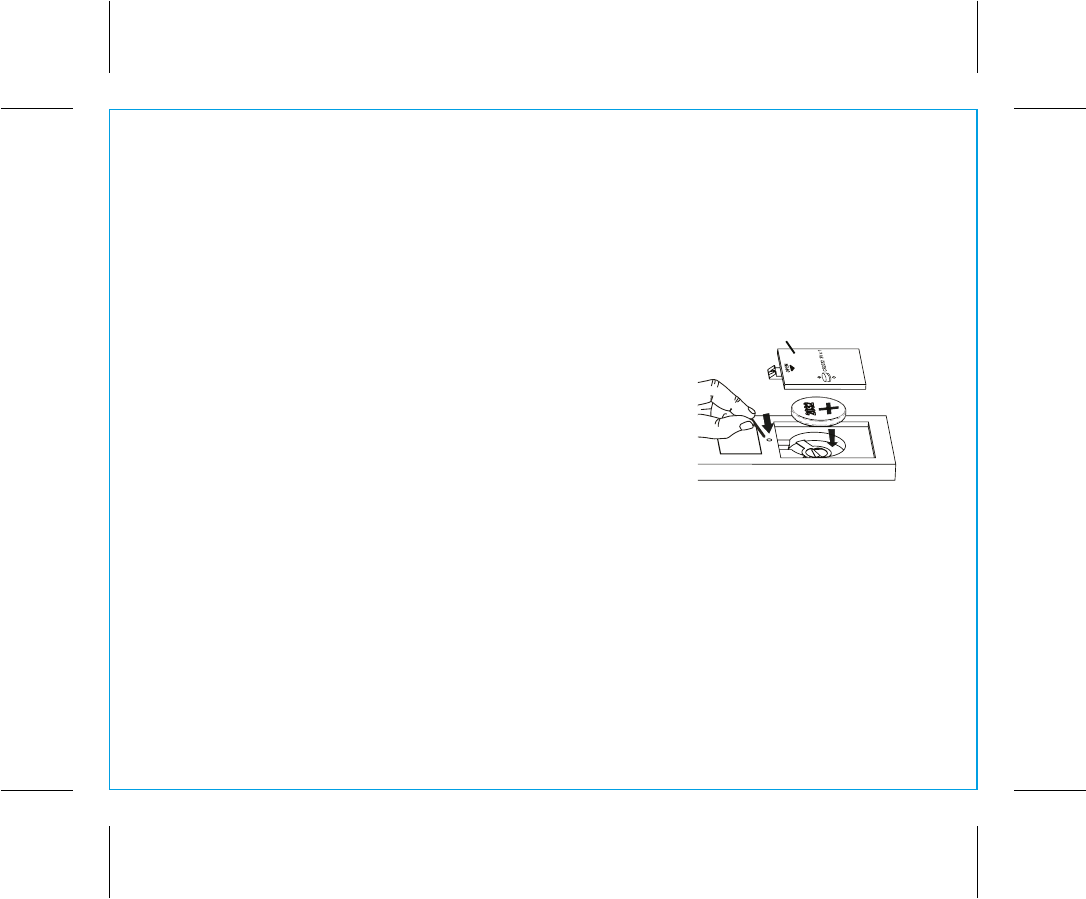

1. Press point of a pin or paperclip firmly into the hole by
the battery compartment cover on the rear of the remote
control to release the cover.
2. Slide battery compartment cover off (remove old battery
if replacing).
3. Place new CR2032 in battery well as shown (make
sure + side is facing up).
4. Replace battery compartment cover.
WARNING: Lithium batteries can explode or cause
burns if disassembled, shorted, recharged, exposed to
water, fire, or high temperatures. Do not place loose
batteries in a pocket, purse, or other container contain-
ing metal objects, mix with used or other battery types,
or store with hazardous or combustible materials. Store
in cool, dry, ventilated area. Follow applicable laws
and regulations for transport and disposal.
Consumer Product Safety Guide
11
When used in the directed manner, this unit has been designed and manufactured to ensure your personal
safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety
and operating instructions carefully before installation and use, and keep these instructions handy for future
reference. Take special note of all warnings listed in these instructions and on the unit.
1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl,
kitchen sink, laundry tub, swimming pool or in a wet basement.
2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper
ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block
ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or
cabinet, which may impede the flow of air through the ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or
other appliances (including amplifiers) that produce heat.
4. Power Sources – The unit should be connected to a power supply only of the type described in the
operating instructions or as marked on the appliance.
5. Power-Cable Protection – Power supply cables should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them. It is always best to have a clear area
from where the cable exits the unit to where it is plugged into an AC socket.
6. Cleaning – The unit should be cleaned only using a warm damp cloth. Do not use solvents, etc.
7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled
into any openings or vents located on the product.
IMPORTANT SAFETY INSTRUCTIONS
P15
12
8. Attachments – Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the
antenna or cable system during a lightning storm or when it is left unattended and unused for long
periods of time. This will prevent damage to the product due to lightning and power-line surges.
10. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as
this can result in a risk of fire or electric shock.
11. Damage Requiring Service – The unit should be serviced by qualified service personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.
12. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month
or longer, the power cable should be unplugged from the unit to prevent damage or corrosion.
13. Servicing – The user should not attempt to service the unit beyond those methods described in the
user’s operating instructions. Service methods not covered in the operating instructions should be
referred to qualified service personnel.
Questions? Visit www.ihomeaudio.com
or call 1-800-288-2792 Toll Free
P16
P17
Unit doesn’t respond (no power)
• Make sure unit is connected to AC power OR has 6 fresh “D” batteries.
• Check that all connections are correct and properly plugged in.
• Make sure your device is properly paired with the iBT44.
• Make sure the Remote Button on the back of unit is pressed in while operating on batteries
to control using the remote.
Unit doesn’t respond (locked up or frozen)
The unit may need to be reset. To do so, ??????
A long beep will sound, indicating the unit has been reset.
Trouble pairing device/computer with iBT44
Bluetooth implementation varies depending on your device’s hardware and operating system. Please see
our website for updates on pairing.
• When you power ON the speaker, it will automatically link with the last previously paired Bluetooth
device if the device is still within range (approx. 30 feet). To pair with a different device you must turn
off Bluetooth capability on the already paired device, or take it out of range.
• Make sure your device is working properly. Check your device’s manual for details on Bluetooth pairing
and linking.
13
Troubleshooting
For further information and to see the latest instructions, visit www.ihomeaudio.com/support
Limited 1 Year Warranty
iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in
workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase.
Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased.
Should this fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty
period, SDI will repair or, at its discretion, replace this product without charge. This decision is subject to verification of the defect
or malfunction upon delivery of this product to the Factory Service Center authorized by SDI Customer Service. The product must
include proof of purchase, including date of purchase. An out-of-warranty fee for service will be charged for units that are
received without proof of purchase.
Before returning this product for service, please first replace the batteries (if applicable) with fresh ones, as exhausted or defective
batteries are the most common cause of problems encountered.
If service is still required:
1. Call SDI Customer Service at 1-800-288-2792 for Return Authorization and for the address of the Factory Service Center.
2. Remove the batteries (if applicable) and pack the unit in a well padded, heavy corrugated box. SDI is not responsible for
damage that occurs during shipping to the Factory Service Center.
3. Enclose a photocopy of your sales receipt, credit card statement, or other proof of the date of purchase, if within the warranty
period. Also include your name and address information, a brief description for why the unit is being returned, and the return
authorization number. No unit can be processed without a return authorization number.
4. Write the return authorization number on the side of the shipping package and send the unit prepaid and insured to the
Factory Service Center address authorized by SDI Customer Service.
Disclaimer of Warranty
NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products
which have been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by
unauthorized persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players,
CD’s or tape cassettes (if applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the owner.
This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original
purchaser. In no event will SDI or any of its affiliates, contractors, resellers, their officers, directors,
shareholders, members or agents be liable to you or any third party for any consequential or incidental damages, any lost profits,
actual, exemplary or punitive damages. (Some states do not allow limitations on implied warranties or exclusion of consequential
damages, so these restrictions may not apply to you.) This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Your acknowledgement and agreement to fully and completely abide by the above mentioned disclaimer of warranty is
contractually binding to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase of your SDI
product.
© 2013 SDI Technologies, Inc. All rights reserved
Questions? Visit www.ihomeaudio.com
or call 1-800-288-2792 Toll Free
iBT44-011512-A Printed in China
P18
iBT44
FCC ID: EMOIBT44
IC: 986B-IBT44
QDID:B019566
• Avertissement : Tout changement ou modification apporté à cet appareil sans le consentement expresse de la partie
responsable pour la conformité peut annuler le droit de l'utilisateur d'utiliser cet appareil.
• REMARQUE : Cet équipement a été testé et jugé conforme aux limitations pour un appareil numérique de Classe B, selon
la Section 15 de la règlementation FCC.
Ces limites sont conçues pour offrir une protection raisonnable contre les interférences nocives d'une installation résidentielle.
Cet équipement génère, utilise et peut émettre des fréquences radio et, s'il n'est pas installé et utilisé selon les instructions, peut
causer des interférences nuisibles aux communications radio.
Cependant, il n'y a aucune garantie qu'une interférence ne prendra pas place dans une installation particulière. Si cet
équipement ne cause pas d'interférence nocive à la réception de la radio ou du téléviseur, ce qui peut être déterminé en
allumant et fermant l'équipement, l'utilisateur est encouragé à tenter de corriger l'interférence en utilisant l'un ou l'autre des
moyens suivants :
• Réorientez ou resituez l'antenne de réception.
• Augmentez la séparation entre l'équipement et le récepteur.
• Branchez l'équipement dans une prise d'un circuit différent que celui dans lequel est branché le récepteur.
• Consultez le marchand ou un technicien expérimenté en radio/téléviseur pour obtenir de l'aide.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada
Cet appareil est conforme à la section 15 des règlements de la FCC, son utilisation est soumise aux deux conditions
suivantes : (1) Cet appareil ne doit pas causer d'interférences nuisibles et (2) cet appareil doit accepter toute interférence
reçue, y compris les interférences qui peuvent causer un mauvais fonctionnement.
Information FCC
Déclaration de la FCC relative à l'exposition aux radiations
Cet équipement est conforme aux limites d'exposition aux radiations de la FCC RF fixées pour un
environnement non contrôlé. Ce transmetteur ne doit pas être installé ou utilisé en conjonction avec
une autre antenne ou un autre transmetteur.
Cet appareil est conforme à la norme RSS-210 de la règlementation d'Industrie Canada ; son utilisation est soumise aux deux
conditions suivantes :
(1) Cet appareil ne doit pas causer d'interférences nuisibles
(2) Ce dispositif doit accepter toute interférence reçue, incluant l'interférence causée par une opération non désirée.
Jan 14 2013
