SDI Technologies IBT52 Portable USB Bluetooth Receiver User Manual iBT52 IB 04 16 2013
SDI Technologies Inc. Portable USB Bluetooth Receiver iBT52 IB 04 16 2013
User Manual
(Front)
iBT52
Instruction manual

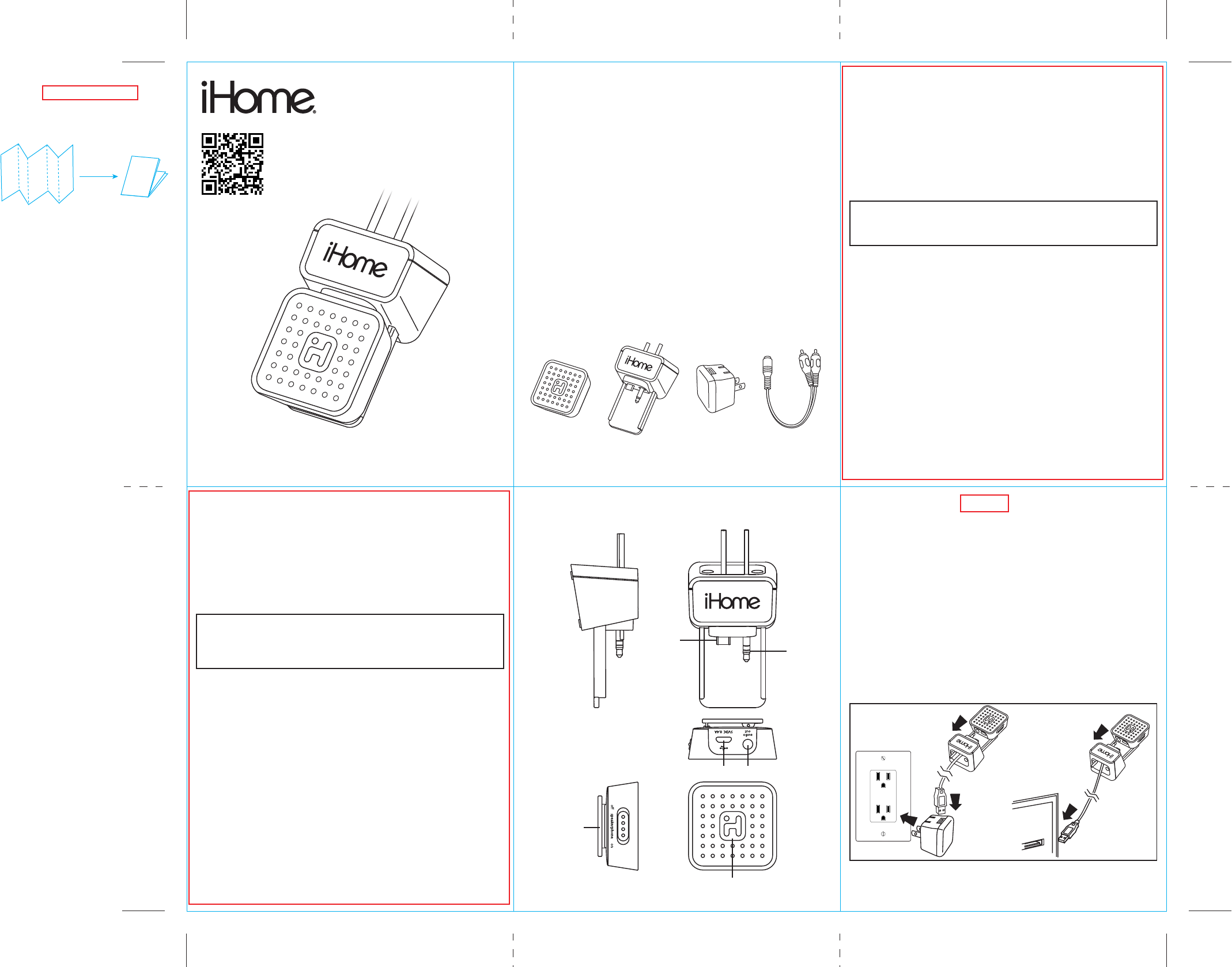

Meet Your iBT52
iBT52 Home Docking Station
iBT52 Bluetooth Receiver
Introduction
Thank you for purchasing the iHome iBT52. This product is designed to provide
high quality wireless sound and speakerphone capability to audio devices
equipped with line-in jacks, and to headphones.
Along with the included Quick Bluetooth Connection Guide this instruction booklet
explains the basic operation and care of the unit. Please read them carefully and
keep for future reference.
Maintenance
• Keep unit away from sources of excessive heat.
• Clean your unit with a soft cloth moistened only with mild soap and water.
Stronger cleaning agents, such as thinner or similar materials can damage the
surface of the unit.
Incl
uded
• iBT52 Bluetooth receiver system
(Bluetooth Receiver + docking station with USB + audio cable)
• iBT52 Home Docking Station (with attached Aux + Micro USB cable)
• USB Wall Adaptor
Using the USB Wall Adaptor
1. Gently connect the Bluetooth Receiver to the Docking Station’s micro USB plug
and audio plug by sliding the Receiver onto the plugs.
2. Connect the standard USB plug of the Docking Station into the USB Wall
Adaptor.
3. Plug the USB Wall Adaptor into a working wall outlet. For first time use, charge
unit for about 3 hours.
Using other USB Power Source
1. Gently connect the Bluetooth Receiver to the Docking Station’s micro USB plug
and audio plug by sliding the Receiver onto the plugs.
2. Connect the standard USB plug of the Docking Station into a power USB port
on a computer or other USB charging device. For first time use, charge unit for
about 3 hours.
The iH Button/ Indicator Light on the front of the Bluetooth Receiver glows red
steadily while the unit is charging and turns OFF once the unit is fully charged.
If unit is not powered on is connected to USB power, the red light glows
steadily to indicate unit is charging.
NOTE: When the unit is on and not connected to a power source, the iH Button/
Indicator Light flashing red means the battery needs charging.
Portable USB
Bluetooth Receiver
Top
Front
FrontSide
Side
Micro USB Charging Port Aux-out Jack
Micro USB
Plug Audio Plug
Sport Clip
Backlit Pairing/Operation
Button with Indicator Light
iBT52 IB (Eng) US ver.
Size: 300mm x 260mm
Printing color: 1C +1C (Black)
Apr 16, 2013
This device complies with Part 15 of the FCC Rules, operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC Information
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This Device complies with RSS-102 of the IC Rules; Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
• Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
• NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada
FCC ID: EMOIBT52
IC: 986B-IBT52
Cet appareil répond aux exigences du paragraphe 15 de la loi de la Commission
Fédérale sur les Communications. L’utilisation de cet appareil doit répondre aux
deux conditions suivantes: (1) Cet appareil ne doit pas provoquer d’interférences
nuisibles, et (2) cet appareil doit accepter toutes les interférences reçues, y compris
les interférences pouvant provoquer un fonctionnement non désiré.
Information FCC
FDéclaration de la FCC sur l’exposition aux radiations
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5
de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir
l'information canadienne sur l'exposition et la conformité de rf.
Avertissement : Tout changement ou modification apporté à cet appareil sans le
consentement expresse de la partie responsable pour la conformité peut annuler le droit
de l'utilisateur d'utiliser cet appareil.
Remarque : Cet équipement a été testé et jugé conforme aux limitations pour un appareil
numérique de Classe B, selon la Section 15 de la règlementation FCC.
Ces limites sont conçues pour fournir une protection raisonnable contre les interférences
nuisibles dans une installation résidentielle. Cet équipement génère, utilise et peut
émettre des fréquences radio et, s'il n'est pas installé et utilisé selon les instructions, peut
causer des interférences nuisibles aux communications radio.
Cependant, il n'existe aucune garantie que des interférences ne se produiront pas dans
une installation particulière. Si cet équipement produit des interférences nuisibles sur la
réception de la radio ou de la télévision, ce que vous pouvez facilement constater en
éteignant et en rallumant l'équipement, nous vous encourageons à prendre l'une ou
plusieurs des mesures correctives suivantes :
• Réorienter ou déplacer l’antenne réceptrice,
• Éloigner davantage l'appareil du récepteur.
• Branchez l’équipement sur une prise ou un circuit auquel le récepteur n’est pas
branché.
• Consultez votre revendeur ou un technicien radio/télévision qualifié pour plus
d’informations.
ppareils digitaux de Classe B compatible avec l’ICES-003 Canadien.
FCC ID: EMOIBT52
IC: 986B-IBT52
USB 2.0
Using the USB Wall Adaptor Using the USB Power Source
(Front)
Using Bluetooth: Pairing Your Device
1. Turn on your Bluetooth-enabled device and turn on Bluetooth capability as
described in the device’s user manual.
2. Move the Power On/Off Switch on the Bluetooth Receiver to the ON position
(right). The unit will turn on and attempt to auto link to the last 2 previously
paired devices for 10 seconds each, indicated by a 3 note tone and the iH
Button/ Indicator Light on the front of the Receiver flashing blue. If a linked
device is found, the indicator will flash blue twice every 7 seconds.
3. If no linked device is found, the unit will enter pairing mode, indicated by the
iH Button/ Indicator Light on the front of the Receiver flashing blue and red
while the unit attempts to pair. NOTE: If the unit is charging while pairing is
attempted, the light will continue to blink blue and red. “iHome iBT52” should
appear on your device’s menu. If “Not Paired”, “Not Connected” or similar
appears on your display, select “iHome iBT52” to complete pairing. If your
device asks for a password, enter 0000 on the keyboard of your device. If no
device is paired within 2 minutes, a tone will sound and the unit will revert to
auto link mode. To retry pairing, move the Power On/Off Switch to the OFF
position (left) then move it back to the Bluetooth position (center).
4. Once paired with a device, the iH Button/ Indicator Light on the front of the
Receiver will flash blue twice every 7 seconds. There should be an indication
on your device that pairing is complete. On some devices, you must then select
“Use as Audio Device” or similar on the device’s Bluetooth menu. Once paired,
your device should link to the iBT52 whenever within range.
Pairing with a Different Device
1. When you power ON the Receiver, it will automatically link with the last
previously paired Bluetooth device as long as that device is still within range
(about 30 feet). So, to pair with a different device you must turn off the
Bluetooth capability of the already paired device.
Connecting Audio Source to Bluetooth Receiver
1. Connect the audio cable on the Docking Station to your desired speaker or
audio device’s line in jack. For portable use, connect headphones or an audio
cable connected to a speaker or audio device to the Aux-out Jack on the
Bluetooth Receiver (receiver must be charged).
2. Move the Power On/Off Switch to the ON position (right) to listen to audio
streamed wirelessly from your paired iPad, iPhone, iPod or other Bluetooth
device.
The iH Button/ Indicator Light on the Receiver will flash blue as the unit
searches for a previously paired device, and then flash blue twice every 7
seconds once a previously paired device is detected.
3. Press the iH Button to play or pause tracks. Use the controls on your device to
navigate tracks and control volume from your Bluetooth device.
4. When done listening, move the Power On/Off Switch to the OFF position (left)
to turn the unit off.

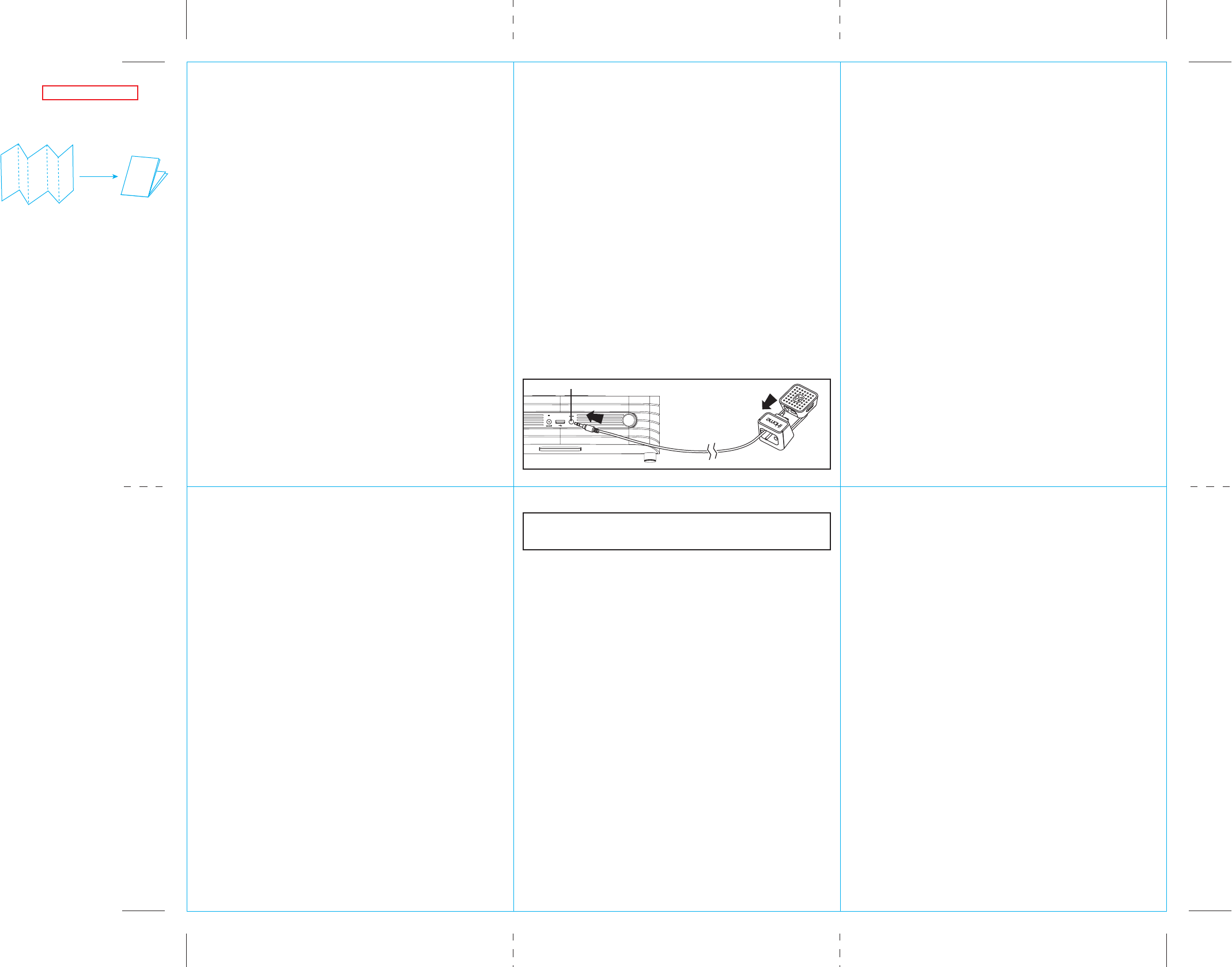

Connecting Receiver to Speaker Using Aux Out
While the Bluetooth Receiver is docked in the Docking Station, you can connect
the Docking Station to any external speaker or audio device with a speaker and
aux/line-in jack via the Aux-out cable attached to the Docking Station. You can
also connect the Bluetooth Receiver directly by connecting a standard 3.5mm
stereo audio cable to the Aux-out jack on the Bluetooth Receiver and the other end
into the desired Line-in jack.
1. Connect a 3.5 mm audio cable plug to the Aux-out jack on back of the unit
and connect the other end to the line-in jack on your external speaker. Note that
the aux output signal is stereo.
2. Move the Power On/Off Switch to the ON position (right) to listen to audio via
the selected mode.
3. Power on the audio device and use the controls on the device to navigate
tracks and control volume. Press the iH Button to play or pause tracks.
4. When done listening, move the Power On/Off Switch to the OFF position (left)
to turn the unit off. Remember to turn off your audio device, too.
Using with a Paired Phone
Pair your Bluetooth-capable phone as described under Pairing. While the
Bluetooth Receiver is connected to an audio device such as a speaker or
earphones, you can use the device as speakerphone.
Answering Calls Press and release the iH Button to answer a call.
The LED flashes blue quickly while the phone is ringing and turns solid blue during
the call.
Ending Calls Press and release the iH Button to end a call.
The LED returns to standard mode (flashes twice every 7 seconds).
Rejecting Calls Press and hold the iH Button for 1 second to reject a call.
The LED flashes blue quickly while the phone is ringing then returns to standard
mode (flashes twice every 7 seconds).
Voice Dialling Press and hold the iH Button for 3 seconds, then say the voice tag
at the beep
Make sure to record voice tag into phone before attempting voice dial function.
Only available on
paired phones that have voice dial capability (see your phone’s user guide).
Redial Press and release the iH Button twice to redial the last number called.
Call Waiting Press and release the iH Button to place a current call on hold and
answer a new call.
Press and hold the iH Button for 1 second to ignore a new call and
stay with the current call.
Press and release the iH Button twice to hang up on a current call
and answer a new call.
Troubleshooting
Unit doesn’t respond (no power)
• Make sure unit is completely charged.
• Check that all connections are correct and properly plugged in.
• Make sure your device is properly paired with the iBT52.
• Make sure the Power On/Off Switch switch is not in the OFF (left) position.
Resetting the iBT52
If the unit becomes “locked up” or unresponsive, you may need to reset it. To do
so, press and hold the iH Button for 6 seconds then rapidly press and release it
twice (2x) . 2 long beeps indicate unit has been reset.
Trouble pairing device/computer with iBT52
Bluetooth implementation varies depending on your device’s hardware and
operating system. Please see our website for updates on pairing.
• When you power ON the Receiver, it will automatically link with the last
previously paired Bluetooth device if the device is still within range (about 30
feet). To pair with a different device you must turn off Bluetooth capability on the
already paired device, or take it out of range.
• If your device does not auto-link when within range, re-pair the device. To do
so, first delete the iBT52 from your Bluetooth devices menu. Move the Power
On/Off Switch on the unit to the OFF position then back to ON to begin
pairing (see Pairing Your Device for pairing details).
• Make sure your device is working properly. Check your device’s manual for
details on Bluetooth pairing and linking.
For further information and to see the latest instructions,
visit www.ihomeaudio.com/support
Internal Rechargeable Lithium-ion Battery
WARNING/DISPOSAL OF UNIT
Please do NOT attempt to change the battery yourself. If the battery has died and
you do not want us to replace your battery, you should follow the disposal
instructions below:
• Never dispose of used batteries/electronics with ordinary solid wastes, since
they contain toxic substances.
• Always dispose of used batteries/electronics in accordance with the prevailing
community regulations that apply to the disposal of batteries/electronics. If there
are no local regulations concerning battery/electronics disposal, please
dispose of the device in a waste bin for electronic devices.
• Many electronics retailers now recycle batteries and other electronic
components at no charge. Check to see which ones in your area do so.
CAUTION
The battery used in this device may present a risk of fire, explosion or chemical
burn if mistreated
• Never use or charge the battery if it appears to be leaking, discolored,
deformed, or in any way abnormal.
• Never disassemble the unit or attempt to remove battery as that could cause
leakage of alkaline solution or other electrolytic substance.
• Always confirm that the temperature is 5°C – 35° C (41° - 95° Fahrenheit)
before you charge the battery. Leakage or deterioration of the battery may
occur if this warning is not heeded.
• Never expose the battery to any liquid.
• Never expose the battery to excessive heat such as direct sunlight or fire. Never
use the battery pack in an unventilated vehicle where excessive internal
temperatures may be encountered.
• Always keep the battery out of the reach of infants and small children.
Consumer Product Safety Guide
IMPORTANT SAFETY INSTRUCTIONS
When used in the directed manner, this unit has been designed and manufactured
to ensure your personal safety. However, improper use can result in potential
electrical shock or fire hazards. Please read all safety and operating instructions
carefully before installation and use, and keep these instructions handy for future
reference. Take special note of all warnings listed in these instructions and on the
unit.
1. Water and Moisture – The unit should not be used near water. For example:
near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a
wet basement.
2. Ventilation – The unit should be situated so that its location or position does
not interfere with its proper ventilation. For example, it should not be situated
on a bed, sofa, rug or similar surface that may block ventilation openings.
Also, it should not be placed in a built-in installation, such as a bookcase or
cabinet, which may impede the flow of air through the ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators,
heat registers, stoves or other appliances (including amplifiers) that produce
heat.
4. Power Sources – The unit should be connected to a power supply only of the
type described in the operating instructions or as marked on the appliance.
5. Power-Cable Protection – Power supply cables should be routed so that they
are not likely to be walked on or pinched by items placed upon or against
them. It is always best to have a clear area from where the cable exits the
unit to where it is plugged into an AC socket.
6. Cleaning – The unit should be cleaned only using a warm damp cloth. Do not
use solvents, etc.
7. Objects and Liquid Entry – Care should be taken so that objects do not fall
and liquids are not spilled into any openings or vents located on the product.
This device uses an internal rechargeable lithium-ion battery that should last the
lifetime of the device. If you suspect your battery may be dead, try charging it several
times. If the battery does not recharge, please contact us for repair information.
iBT52-041613-EN Printed in China
© 2013 SDI Technologies, Inc. All rights reserved
Questions? Visit www.ihomeintl.com
iBT52 IB (Eng) US ver.
Size: 300mm x 260mm
Printing color: 1C +1C (Black)
Apr 16, 2013
usb
charging
DC 12V
2.5A
Aux-in
