User Manual
Color Changing Rechargeable
Bluetooth Speaker
with Speakerphone
instruction manual
Model: iBT76
CHARGE
BEFORE
USE
Introduction
Thank you for purchasing the iHome iBT76. This product is designed to
provide high quality wireless sound for your iPad, iPhone, iPod, computer,
PDA or other Bluetooth audio device.
This instruction booklet explains the basic operation and care of the unit.
Please read it carefully and keep for future reference.
Maintenance
• Place the unit on a level surface away from sources of direct sunlight or
excessive heat.
• Protect your furniture when placing your unit on a natural wood and
lacquered finish. A cloth or other protective material should be placed
between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water.
Stronger cleaning agents, such as thinner or similar materials can damage
the surface of the unit.
iBT76
1
iBT76

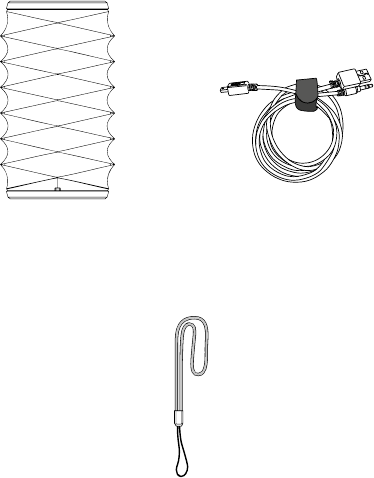

What’s Included
• iBT76 speaker
• Combination micro USB to USB charging cable/audio in cable
• Carry strap
iBT76
2
Carry strap
Combination
micro USB to USB cable/audio cable
iBT76
Front
Microphone
Back
Bluetooth/
Speakerphone
Button
Color Mode Button
(press and hold for
Battery Review)
Lower/Raise Volume
Buttons
Charging/
Aux-in
USB port
Carry Strap
Channel
Meet Your iBT76
Bottom
Top
Power On/O
Switch
Charging/Bluetooth
Status Indicator
Light
Carry Strap
Channel
(lantern mode)
3
Getting Started: Carry Strap
The iBT76 has two channels to attach the
included carry strap, one on the bottom to hang
the unit like a lantern, and one on the lower back
of the unit. To attach the carry strap, form a small
loop in one end of the carry strap. Insert this loop
through the desired channel, then pull the
loop back through the larger loop formed in the
carry strap to tighten.
Charging the Unit
CHARGE UNIT BEFORE USE/KEEP UNIT OFF FOR FASTER CHARGING
1. Connect the micro USB plug on the included combination cable to the
micro USB Charging/Aux-in USB Port on the side of the unit.
2. Connect the standard USB plug end of the cable to a power USB port
on a computer, a USB AC adaptor or other USB charging device. For
first time use, charge unit for about 4 hours. The status indicator LED
on top of the unit turns solid red while charging and turns o once unit
is fully charged.
iBT76
4
Charge via computer USB port, USB AC adaptor or other powered USB port
iHome iBT76 USB port
Computer USB port
Computer
connected to
working outlet
iHome iBT76 USB port
USB AC adaptor
(not included)
USB AC adaptor
connected to working outlet
OR
3. To review the charging status of the unit while it is charging, press and
hold the Color Mode Button. The cabinet lights will flash green from
bottom to top for 12 seconds to show unit is charging.
Reviewing Battery Charge Level
(Charger is Disconnected and unit is ON)
1. Press and hold the Color Mode Button when unit is ON but not
charging (micro USB cable not connected) to enter Battery Review
Mode. The cabinet lights will blink and built-in voice will announce the
current battery level.
5
TIP: On some iOS (Apple)
devices, you can view the iBT76
battery status on your device’s
screen. When device is paired
and connected, look for a
vertical battery icon next to the
Bluetooth icon on the upper
right corner of the
device’s screen.
LowVery Low
RED GREEN
Good High
iBT76
Pairing Your Device
Pairing is the set-up process to introduce your Bluetooth-capable device to
the iBT76. Once your device is paired, the iBT76 can recognize it and you can
play your audio through it.
1. Turn on your Bluetooth device and make it “discoverable”
by turning on Bluetooth mode (check in Options or
Settings).
2. Slide the Power On/O Switch to ON to turn on the
iBT76. The first time the unit is powered on, it will enter
auto-pairing mode: the unit will beep and the Bluetooth
status indicator light on top of the unit will flash quickly
while the unit attempts to pair. (If Color Mode is on, the
cabinet lights will flash blue and red.) “iHome iBT76”
should appear in your device’s Bluetooth menu. Select
“iHome iBT76” on device to begin/complete pairing. If
prompted for a passcode, enter “1234” on your device’s
keypad. 1 beep will sound and the Bluetooth status
indicator light will appear solid blue (in Color Mode,
cabinet will flash blue twice), indicating the iBT76 is
paired and ready to play music. There should also be an
indication on your device. If no device is successfully
paired within 3 minutes the iBT76 will default to previous
mode.
3. To pair with a dierent device or at a dierent time, make
sure unit is powered on, then press and hold the
Bluetooth/Speakerphone Button for 2 seconds. Select
“iHome iBT80” on device to pair.
Once the iBT76 is paired to a device, it will attempt to
autolink when the device is within range (about 33 feet).
6
Using the iBT76
o on
iHome iBT76
Playing Audio Via Bluetooth
1. Slide the Power On/O Switch to ON to turn on the unit. The Bluetooth status
indicator will glow solid blue when a linked device is in range and detected. You
can then listen to audio streamed wirelessly from your paired Bluetooth device.
2. Use controls on your Bluetooth device to play, pause and navigate tracks.
3. Press the – or + Button to adjust the iBT76 volume. You can also adjust volume
on your device.
4. When done listening, slide the Power On/O Switch to OFF to turn the unit OFF.
Remember to turn o your device, too.
Speakerphone Operation
NOTE: The unit must be powered on and linked to a Bluetooth phone to receive a
call.
1. When a call is received, playing music is muted to hear the ring tone and the
cabinet lights flash green. Press the Bluetooth/Speakerphone Button to
answer the call, or press and hold to reject the call. For call waiting function,
press the button again to answer a second call, and once more to return to the
original call. Press and hold to end the current call and return to a remaining
call.
2. When a call is completed, press the Bluetooth/Speakerphone Button to end
the call and resume previous function.
7
Using the iBT76

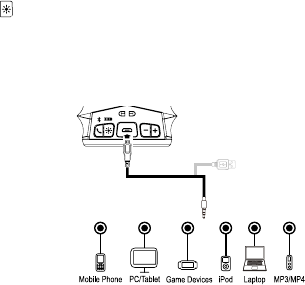

Playing Audio via Aux In
1. Connect micro USB charging/audio cable to the Charging/Aux-in USB Port on
the side of the unit and connect the 3.5mm audio plug end to the headphone or
line-out jack on your audio device.
2. Slide the Power On/O Switch to ON to turn the unit ON.
3. Power on the audio device and use the controls on the device to play or pause
audio and to navigate tracks.
4. Press the – or + Button to adjust the system volume. You can also adjust
volume on your device.
5. When done listening, slide the Power On/O Switch to OFF to turn the unit OFF.
Remember to turn o your device, too.
Using Color Modes
There are six color modes, which you cycle through in this order:
a. Slow Fade (colors slowly fade from one into the next
b. Fast Change (colors change rapidly)
c. One Color (select a favorite color)
d. Pulse to Music (lights flash to the beat of the music)
e. Preset Pulsing (each light array pulses through its own preset pattern of colors)
f. O (no display)
1. Slide the Power On/O Switch to ON to turn the unit ON.
2. Press the Color Mode Button repeatedly to cycle to the desired color mode.
For One Color mode, first cycle to Fast Change mode and press the Color Mode
Button when the desired color appears. For Pulse to Music, make sure the
volume on your connected Bluetooth device is above 30%.
3. When done, slide the Power On/O Switch to OFF to turn the unit OFF.
8
Using the iBT76
8
Unit doesn’t respond (no power)
• Make sure unit is completely charged.
• Check that all connections are correct and properly plugged in.
• Make sure your device is properly paired with the iBT76.
• Make sure the unit is on
Unit doesn’t respond (locked up/ “frozen”)
If the unit does not respond, try resetting the unit. Press and hold both the
+ and – Buttons at the same time for about 10 seconds. Note that doing so
will clear settings, and any Bluetooth devices will need to be re-paired.
Trouble pairing device with iBT76
Bluetooth implementation varies depending on your device’s hardware and
operating system. Please see our website for updates on pairing.
• When you power ON the speaker, it will automatically link with the last
previously paired Bluetooth device if the device is still within range
(about 33 feet). To pair with a dierent device you must turn o
Bluetooth capability on the already paired device, or take it out of range.
• If your device does not auto-link when within range, re-pair the device. To
do so, first delete the iBT76 from your Bluetooth device’s menu.
• Make sure your device is working properly. Check your device’s manual
for details on Bluetooth pairing and linking.
For further information and to see the latest instructions, visit
www.ihome.com/support
9
Troubleshooting
10
Internal Rechargeable Lithium-ion Battery
This device uses an internal rechargeable lithium-ion battery that should
last the lifetime of the device. If you suspect your battery may be dead,
try charging it several times. If the battery does not recharge, please
contact Customer Service at -1-800-288-2792.
WARNING/DISPOSAL OF UNIT
Please do NOT attempt to change the battery yourself. Doing so may
damage the unit and will void the warranty. When disposing of unit, follow
the disposal instructions below:
• Never dispose of used batteries/electronics with ordinary solid wastes,
since they contain toxic substances.
• Always dispose of used batteries/electronics in accordance with the
prevailing community regulations that apply to the disposal of
batteries/electronics. If there are no local regulations concerning
battery/electronics disposal, please dispose of the device in a waste bin
for electronic devices.
• Many electronics retailers now recycle batteries and other electronic
components at no charge. Check to see which ones in your area do so.
CAUTION
The battery used in this device may present a risk of fire, explosion or
chemical burn if mistreated
• Never use or charge the battery if it appears to be leaking, discolored,
deformed, or in any way abnormal.
• Never disassemble the unit or attempt to remove battery as that could
cause leakage of alkaline solution or other electrolytic substance.
• Always confirm that the temperature is 5°C – 35° C (41° - 95° Fahrenheit)
before you charge the battery. Leakage or deterioration of the battery
may occur if this warning is not heeded.
• Never expose the battery to any liquid.
• Never expose the battery to excessive heat such as direct sunlight or fire.
Never use the battery pack in an unventilated vehicle where excessive
internal temperatures may be encountered.
• Always keep the battery out of the reach of infants and small children.
11
FCC Information
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.
• Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
• NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAN ICES-3 (B)/NMB-3(B)
Canada Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5 of
RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian
information on RF exposure and compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la
section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut
obtenir l'information canadienne sur l'exposition et la conformité de rf.
iBT76
FCC ID:EMOIBT80
IC:986B-IBT80
This device complies with Part 15 of the FCC Rules, operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Consumer Product Safety Guide
IMPORTANT SAFETY INSTRUCTIONS
When used in the directed manner, this unit has been designed and
manufactured to ensure your personal safety. However, improper use can
result in potential electrical shock or fire hazards. Please read all safety and
operating instructions carefully before installation and use, and keep these
instructions handy for future reference. Take special note of all warnings
listed in these instructions and on the unit.
1. Water and Moisture – The unit should not be used near water. For example:
near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a
wet basement.
2. Ventilation – The unit should be situated so that its location or position does
not interfere with its proper ventilation. For example, it should not be situated
on a bed, sofa, rug or similar surface that may block ventilation openings.
Also, it should not be placed in a built-in installation, such as a bookcase or
cabinet, which may impede the flow of air through the ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators,
heat registers, stoves or other appliances (including amplifiers) that produce
heat.
4. Power Sources – The unit should be connected to a power supply only of the
type described in the operating instructions or as marked on the appliance.
Only use the AC adapter that came with the unit.
5. Power-Cable Protection – Power supply cables should be routed so that they
are not likely to be walked on or pinched by items placed upon or against
them. It is always best to have a clear area from where the cable exits the unit
to where it is plugged into an AC socket.
6. Cleaning – The unit should be cleaned only as recommended. See the
Maintenance section of this manual for cleaning instructions.
7. Objects and Liquid Entry – Care should be taken so that objects do not fall
and liquids are not spilled into any openings or vents located on the product.
8. Attachments – Do not use attachments not recommended by the product
manufacturer.
9. Lightning and Power Surge Protection – Unplug the unit from the wall socket
and disconnect the antenna or cable system during a lightning storm or when
it is left unattended and unused for long periods of time. This will prevent
damage to the product due to lightning and power-line surges.
10. Overloading – Do not overload wall sockets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or electric shock.
11. Damage Requiring Service – The unit should be serviced by qualified service
personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate
normally.
12. Periods of Nonuse – If the unit is to be left unused for an extended period of
time, such as a month or longer, charge the unit fully before storage
13. Servicing – The user should not attempt to service the unit beyond those
methods described in the user’s operating instructions. Service methods not
covered in the operating instructions should be referred to qualified service
personnel.
14. Magnetic Interference: This product’s speakers contain powerful magnets
which could cause interference or damage to sensitive equipment such as
hard drives, CRT televisions and monitors, as well as medical, scientific, and
navigational devices. Keep this unit away from these products at all times.
12
iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI),
warrants this product to be free from defects in workmanship and materials,
under normal use and conditions, for a period of one (1) year from the date of
original purchase.
Should this product fail to function in a satisfactory manner, it is best to first
return it to the store where it was originally purchased. Should this fail to resolve
the matter and service still be required by reason of any defect or malfunction
during the warranty period, SDI will repair or, at its discretion, replace this
product without charge. This decision is subject to verification of the defect or
malfunction upon delivery of this product to the Factory Service Center
authorized by Customer Service.
If service is required, please call Customer Service at 1-800-288-2792 to obtain
a Return Authorization Number and shipping instructions.
Disclaimer of Warranty
NOTE: This warranty is valid only if the product is used for the purpose for which
it was designed. It does not cover (i) products which have been damaged by
negligence or willful actions, misuse or accident, or which have been modified or
repaired by unauthorized persons; (ii) cracked or broken cabinets, or units
damaged by excessive heat; (iii) damage to digital media players, CD’s or tape
cassettes (if applicable); (iv) the cost of shipping this product to the Factory
Service Center and its return to the owner.
This warranty is valid only in the United States of America and does not extend
to owners of the product other than to the original purchaser. In no event will SDI
or any of its affiliates, contractors, resellers, their officers, directors,
shareholders, members or agents be liable to you or any third party for any
consequential or incidental damages, any lost profits, actual, exemplary or
punitive damages. (Some states do not allow limitations on implied warranties or
exclusion of consequential damages, so these restrictions may not apply to you.)
This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
Your acknowledgment and agreement to fully and completely abide by the above
mentioned disclaimer of warranty is contractually binding to you upon your
transfer of currency (money order, cashier's check, or credit card) for purchase of
your SDI product.
© 2016 SDI Technologies, Inc. All rights reserved
Questions? Visit www.ihome.com
or call 1-800-288-2792 Toll Free
iBT76-160614-A Printed in China
LIMITED 1 YEAR WARRANTY
