SDI Technologies IBT97 Bluetooth Wireless FM Clock Radio with USB Charging User Manual iBT97 IB 0227
SDI Technologies Inc. Bluetooth Wireless FM Clock Radio with USB Charging iBT97 IB 0227
User manual
iBT97
instruction manual
iBT97 IB
Size: 153mm x 120mm
Printing color: Black
Feb. 27, 13. P1

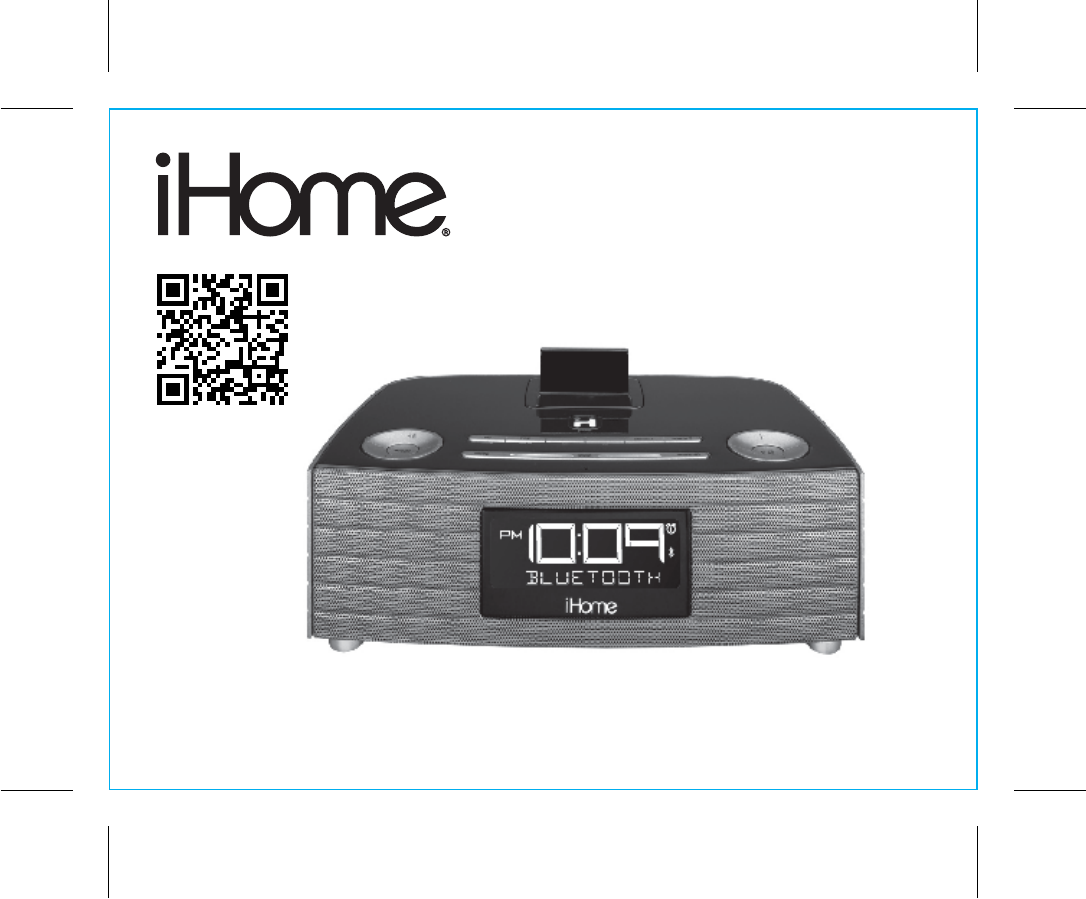

Bluetooth Wireless
FM Clock Radio
with USB Charging
iBT97
Introduction
Thank you for purchasing the iHome iBT97. This product is designed to provide high quality wireless
sound for your iPad, iPhone, iPod, computer, or other Bluetooth audio device.
Along with the included Quick Bluetooth Connection Guide this instruction booklet explains the basic
operation and care of the unit. Please read them carefully and keep for future reference.
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other
protective material should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents,
such as benzene, thinner or similar materials can damage the surface of the unit.
P2
Maintenance
iBT97
FCC Information
P3
FCC ID: EMOIBT97
IC: 986B-IBT97
• Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter
must not be co-located or operating in conjunction with any other antenna or transmitter.
This Device complies with RSS-210 of the IC Rules; Operation is subject to the following two conditions:
(1) This device may not cause interference and
(2) This device must accept any interference received, including interference that may cause undesired operation
iBT97
Table of Contents
Meet Your iBT97........................................................................................................... 1-3
The Display/Setting Up the Unit ..........................................................................................4
Setting the Clock/ FM Radio..............................................................................................5
Setting and Using FM Presets..............................................................................................6
Setting and Using the Alarm ............................................................................................ 7-8
Previewing and Turning Alarm Off/Setting Gentle Wake Timer ................................................8
Snooze/Dimmer Button/Sleep and Nap Modes ..................................................................9
Using Bluetooth: Pairing Your Device..................................................................................10
Playing Audio Via Bluetooth/Using the Speakerphone...........................................................11
Playing Audio Via Aux-in/Charging Devices via USB Port .....................................................12
Using FM Radio in Other Countries....................................................................................13
Replacing and Installing Clock Backup Battery ....................................................................14
Troubleshooting..............................................................................................................15
Consumer Product Safety Guide................................................................................... 15-16
Warranty......................................................................................................................17
P4
iBT97
1
P5
Included
• iBT97 system
• 100V-240V universal AC adaptor
• 3.5mm audio cable
• Backrest
power adaptor audio cable backrest
iBT97
A removable backrest is included with the unit
for best stability when resting a device on top
of the unit in either portrait or landscape
orientation.
1. To remove the flat rubberized rest, press
down on the front of the rest and remove it.
2. To place the backrest, gently slide the front
tabs into place.
1 2
iBT97
P6
Meet Your iBT97
Top
Nap/Clock
Set Button
Mode Button
Power Button
Talk Button
End Button
Plus/Minus
Settings Buttons
Volume Up Button
EQ/Pairing Button
Volume Down Button
Play/Pause and
Presets Button
Wakeup/alarm Skip
Button
Sleep Button Snooze/Dimmer
Button Microphone
Alarm 1 & Alarm 2
Buttons
Backrest/Landscape insert
DC Jack USB Charging Port Aux-in Jack
iBT97
P7
Meet Your iBT97
Back
Bottom
3
usb
charging
DC 12V
2.5A
FM Antenna
Backup Battery
Compartment
iBT97
Using the
Setting Up the Unit
The Display
Connect the included AC adaptor to the DC jack
located on the back of the unit and connect the
other end to a working wall outlet.
4
P8
Alarm Active Indicator
Bluetooth Indicator
PM/AM
Indicators
Date, Alarm time, Mode Indicator: Radio, Bluetooth, Aux-in
Time Display
Low Backup
Battery Indicator
usb
charging
DC 12V
2.5A
RESET
RESET
TEST
TEST
iBT97
Using the
5
Setting the Clock
FM Radio
P9
1. Press and hold the Nap/Clock Set Button for 2 seconds until the clock display flashes and unit beeps.
2. Press the – or + Buttons to adjust the clock to the current time (hold for rapid setting).
Make sure you set the correct AM/PM time. The AM and PM indicators appear to the left of the
display. To toggle the clock display between standard 12 hour time and 24 hour (“military”) time
display, press the Alarm 1 or Alarm 2 Button during time setting.
3. Press the Nap/Clock Set Button again to confirm the time. The year will flash. Press the – or +
Buttons to adjust the display to the current year (hold for rapid setting).
4. Press the Nap/Clock Set Button to confirm the year. The date will flash. Press the – or + Buttons
to adjust the display to the current month and date (hold for rapid setting).
5. Press the Nap/Clock Set Button to confirm the time and exit clock setting mode. 2 beeps will confirm
clock setting is complete.
1. Press and release the Mode Button as needed until the current FM radio station appears on the
display.
2. Press the – or + Buttons to tune the radio to the desired station (hold for 2 seconds to search for
the next clear station). Extend the FM antenna for best reception.
(Continued on next page)
3. Press the or Buttons to adjust the volume on the unit. To adjust the tone, press and release the EQ
Button as needed to cycle to Treble, Bass or Balance, then press the – or + Buttons to adjust for
best sound.
4. When you are through listening, press the Button to turn the unit off.
6
Setting and Using FM Presets
FM Radio (cont’d)
iBT97
Using the
P10
The unit allows you to store up to 6 FM radio station presets
1. Press and release the Mode Button as needed until the current FM radio station appears on the
display.
2. Press and release the /Presets Button as needed until the preset number (P1- P6) you wish to sets
is displayed, then press and hold the /Presets Button to enter setting mode. One beep will sound.
3. Press the – or + Buttons to tune the radio to the desired station (hold to scan for the next clear
station).
4. Press and release the /Presets Button to confirm. 2 beeps will sound to confirm the preset has been
assigned. Continue steps 3 -5 until you have set up to 6 preset stations.
5. To listen to a preset FM station at any time, press and release the Mode Button as needed to turn on
FM radio mode then press and release the /Presets Button as needed to cycle to the desired
preset.
iBT97
Using the
Setting and Using the Alarms
7
P11
This unit has 2 separate alarms, each set the same way. Below we explain how to set alarm 1.
To set alarm 2, follow the same steps using the Alarm 2 Button.
1. Press and hold the Alarm 1 Button for 2 seconds until the alarm time flashes at the bottom of the display.
2. Press the – or + Buttons to adjust the display to the desired alarm time (hold for rapid setting).
Make sure you set the correct AM/PM alarm time. The AM and PM indicators appear to the right of
the alarm time display.
3. Press the Alarm 1 Button to confirm the alarm time setting. The alarm schedule display will flash.
4. Press the – or + Buttons to select the desired wake schedule: wake 7 days = every day of the week,
wake weekdays = Monday through Friday, wake weekends = Saturday and Sunday.
5. Press the Alarm 1 Button to confirm the alarm schedule setting. The wake-to source display will flash.
6. Press the – or + Buttons to select the desired wake to alarm source: Bluetooth (BT), radio, tone or
buzzer.
Wake to Bluetooth (BT): You will wake to the currently linked Bluetooth device. If no device is
detected, the alarm will default to current Tone.
Wake to Radio: Press the Alarm 1 Button to confirm radio mode selection. Press the /Presets Button
to select an FM preset to wake to, or press the – or + Buttons to tune in a desired
wake to station.
Wake to Tone: Press the Alarm 1 Button to confirm tone mode selection. Press the – or + Buttons to
select one of four built in tones (Tone 1 - Tone 4) to wake to.
Wake to Buzzer: You will wake to the buzzer alarm.
7. Press the Alarm 1 Button to confirm the wake-to source setting. The alarm volume display will flash.
(Continued on next page)
iBT97
Using the
8
P12
Setting and Using the Alarms (cont’d)
8. Press the – or + Buttons to adjust the alarm volume on the unit. Note that the alarm volume setting
is stored separately from other volume settings.
9. Press the Alarm 1 Button to confirm the alarm settings and exit alarm setting mode. 2 beeps will confirm
alarm setting is complete. The alarm icon will remain on the display, indicating the alarm is armed.
Previewing the Alarm and Turning the Alarm On/Off
1. Press and release the Alarm Button to view the current alarm time and wake-to source.
2. While preview is active (within 5 seconds), press and release the Alarm Button as needed to toggle
the alarm ON and OFF, indicated by the alarm icon and a beep.
Alarm Skip
If Alarm 1 or Alarm 2 is active, press and release the Wakeup/Alarm Skip Button to skip the next
pending alarm time. The display will show “ALM 1 SKIP” or “ALM 2 SKIP” until the specified alarm time is
passed, then alarm skip is deactivated and the unit returns to normal alarm function.
Setting the Gentle Wake Timer
This unit has an adjustable gentle wake feature which gradually increases the volume of the alarm
or nap source from 0 up to the set wake volume over time (the default duration is 1 minute). You
can adjust the duration of the gradual volume increase from 1 - 10 minutes.
1. To set Gentle Wake duration, press and hold the Wakeup Button for 2 seconds until the Gentle Wake
duration time flashes on the display
2. Press the – or + Buttons to adjust the gentle wake time from 01 to 10 minutes.
3. Press and release the Wakeup Button to confirm settings. 2 beeps will confirm gentle wake duration
setting. NOTE: The gentle wake duration does not effect the overall alarm cycle, which lasts for 1 hour.
iBT97
Using the
Snooze/Dimmer Button
9
P13
1. To program Snooze, press and hold the Snooze/Dimmer Button during normal operation (when no
alarm is sounding).
2. Press the – or + Buttons to select the desired snooze time (between 1 and 29 minutes).
3. Press and release the Snooze/Dimmer Button to confirm Snooze setting.
4. While the alarm is sounding, press and release the Snooze/Dimmer Button to temporarily silence the
alarm for the set duration (9 minutes is the default). Snooze can be used several times during alarm.
5. To adjust the brightness of the display, press and release the Snooze/Dimmer Button during normal
operation (when no alarm is sounding) to cycle through the brightness display settings.
Sleep and Nap Modes
This unit allows you to sleep or nap to the current sound source.
1. To set Sleep time, press and release the Sleep Button as needed to cycle to the desired sleep
duration:
120, 90, 60, 30 or 15 minutes or OFF (turns the unit off).
2. Press the or Buttons to adjust the sleep volume on the unit. Note that the sleep volume setting
is stored separately from other volume settings.
3. To set Nap time, press and release the Nap Button as needed to cycle to the desired nap duration:
120, 90, 60, 45, 30, 20,15, 10 or 5 minutes or OFF (turns the nap alarm off).
Using Bluetooth: Pairing Your Device
1. Turn on your Bluetooth-enabled device and turn on Bluetooth capability as described in the device’s
user manual.
2. Press the Button to turn the unit ON.
3. Press and release the Mode Button as needed until the Bluetooth indicator icon appears on the
display.
4. Press and hold the EQ/Pairing Button on the top of the unit for 2 seconds to begin pairing the unit
with your device. The Bluetooth icon will flash on the display, indicating pairing attempt. “iHome
iBT97” should appear on your device’s menu. If “Not Paired”, “Not Connected” or similar message
appears on your device, select “iHome iBT97” on the device to connect it. If your device asks for a
password, enter 1234 on the keyboard of your device. If no device is paired within 2 minutes, a tone
will sound and the unit will revert to its previous mode. To retry pairing, turn the unit OFF then back
ON, then follow steps 2 - 4 again.
5.
Once paired with a device, the
Bluetooth indicator on the display will stop flashing then the Bluetooth
icon will remain.
On some devices, you must then select “Use as Audio Device” or similar on the
device’s Bluetooth menu. Once paired, your device should link to the iBT97 whenever within range.
Pairing with a Different Device
When you power ON the speaker, it will automatically link with the previously paired Bluetooth device
as long as that device is still within range (about 30 feet). To pair with a different device follow steps
1- 4 above.
iBT97
Using the
10
P14
Playing Audio Via Bluetooth
1. Press and release the Mode Button as needed until the Bluetooth indicator icon appears on the
display.
2. Press the Play Pause Button on the unit to play audio from your linked Bluetooth device.
3. Press the – or + Buttons to go to the previous or next track (hold to scan within a track).
4. Press the or Buttons to adjust the volume on the unit. To adjust the tone, press and release
the EQ Button as needed to cycle to Treble, Bass or Balance, then press the – or + Buttons to
adjust for best sound.
5. When done listening, press the Button to turn the unit off. Remember to tun off your audio
device, too.
Using the Speakerphone
NOTE: The unit does NOT have to be powered on to receive a call. A Bluetooth phone must be linked.
1. When a call is received, playing music is muted to hear the ring tone. Press the green Talk Button to
answer the call, or press the red End Button to ignore it.
2. When the call is completed, press the End Button to end the call and resume previous
function.
Call waiting: Press the Talk Button to put the current call on hold and answer
a new one.
Press again to return to the previous call/toggle between calls.
Redial: Press the Talk Button twice (2X) to dial the last called number.
iBT97
Using the
11
P15
usb
charging
DC 12V
2.5A
Playing Audio via Aux-In
1. Connect one end of the included standard stereo 3.5mm audio cable into the aux-in jack on the
back of the unit and the other end into the headphone or output jack of your audio device.
2. Press the Button on the unit to turn it on.
3. Press and release the Mode Button as needed until the AUX indicator icon appears on the display.
5. Press the or Buttons to adjust the volume on the unit.
6. When done listening, press the Button to turn the unit off. Remember to tun off your audio device,
too.
iBT97
Using the
12
P16
Charging Devices via USB Port
1. Connect the standard size end of a USB cable (not
included) to the USB Port on back of the unit and connect
the other end to the charging port on your device.
2. Monitor the charging on your device. Some devices use a
proprietary charging method and will not charge using the
USB Port. If this happens, you must charge your device
using the charger that came with it.
NOTE: unit must be plugged into working outlet to charge devices
Using FM Radio in Other Countries
Different areas of the world use different FM frequency steps and ranges. By default, this unit is set
to USA frequency steps. To use the radio outside the USA:
1. Make sure unit is OFF. Press and hold the Mode Button for 5 seconds until “USA” appears in the
display.
2. Press and release – or + Buttons to cycle to your location: Europe, Japan, Australia, China or
USA.
3. Press the Mode Button again to exit frequency setting mode.
iBT97
Using the
13
P17
Replacing and Installing Clock Backup Battery
Note: The CR2450 lithium battery is included in the unit. Please pull out the battery pull tab before you
use the unit.
This model is equipped with a battery backup circuit that will maintain the time and alarm time settings in
the event of a temporary power interruption. The battery backup circuit will also operate the buzzer alarm
to wake you up at the selected wake up time even if the power is out. The battery backup circuit requires
one CR2450 lithium battery, included.
When the backup battery is getting weak the Low Backup Battery Indicator will begin flashing in the
display. When you see this flashing indicator you should replace the backup battery as soon as possible.
Purchase a replacement CR2450 battery, available wherever batteries are sold, and follow steps 1 - 3
below to install the replacement battery.
To replace the backup battery:
IMPORTANT: When replacing the backup battery be sure to have the
unit connected to the AC outlet to maintain all of your settings,
otherwise it will be necessary to reset the time and alarm time after the
battery is replaced.
1. Remove battery cover located on the bottom of the unit and
remove the exhausted CR2450 battery.
2. Insert a fresh CR2450 battery in the backup battery compartment
with the “+” side facing up, as illustrated.
3. Replace the battery compartment cover Confirm that the backup
battery indicator is not flashing in the display.
Note: Make sure you dispose of battery properly (see your local regulations)
iBT97
Using the
14
P18
Unit doesn’t respond (no power)
• Check that all connections are correct and properly plugged in.
• Make sure your device is properly paired with the iBT97.
• Make sure the Power is ON.
Unit doesn’t respond (locked up or frozen)
The unit may need to be reset. To do so, disconnect the unit from AC power and remove the
backup battery. Let unit sit for 3-5 minutes. Re-install backup battery and reconnect to AC power.
Trouble pairing device/computer with iBT97
Bluetooth implementation varies depending on your device’s hardware and operating system. Please see
our website for updates on pairing.
• When you power ON the unit, it will automatically link with the last previously paired Bluetooth
device if the device is still within range (about. 30 feet). To pair with a different device you must turn
off Bluetooth capability on the already paired device, or take it out of range.
• Make sure your device is working properly. Check your device’s manual for details on Bluetooth pairing
and linking.
15
Troubleshooting
P19
For further information and to see the latest instructions, visit www.ihomeaudio.com/support
Consumer Product Safety Guide
16
When used in the directed manner, this unit has been designed and manufactured to ensure your personal
safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety
and operating instructions carefully before installation and use, and keep these instructions handy for future
reference. Take special note of all warnings listed in these instructions and on the unit.
1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl,
kitchen sink, laundry tub, swimming pool or in a wet basement.
2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper
ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block
ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or
cabinet, which may impede the flow of air through the ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or
other appliances (including amplifiers) that produce heat.
4. Power Sources – The unit should be connected to a power supply only of the type described in the
operating instructions or as marked on the appliance.
5. Power-Cable Protection – Power supply cables should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them. It is always best to have a clear area
from where the cable exits the unit to where it is plugged into an AC socket.
6. Cleaning – The unit should be cleaned only using a warm damp cloth. Do not use solvents, etc.
7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled
into any openings or vents located on the product.
IMPORTANT SAFETY INSTRUCTIONS
P20
17
8. Attachments – Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the
antenna or cable system during a lightning storm or when it is left unattended and unused for long
periods of time. This will prevent damage to the product due to lightning and power-line surges.
10. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as
this can result in a risk of fire or electric shock.
11. Damage Requiring Service – The unit should be serviced by qualified service personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.
12. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month
or longer, the power cable should be unplugged from the unit to prevent damage or corrosion.
13. Servicing – The user should not attempt to service the unit beyond those methods described in the
user’s operating instructions. Service methods not covered in the operating instructions should be
referred to qualified service personnel.
Questions? Visit www.ihomeaudio.com
or call 1–877–446–6301 Toll Free
P21
Limited 1 Year Warranty
iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in
workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase.
Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased.
Should this fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty period,
SDI will repair or, at its discretion, replace this product without charge. This decision is subject to verification of the defect or malfunction
upon delivery of this product to the Factory Service Center authorized by SDI Customer Service. The product must include proof of
purchase, including date of purchase. An out-of-warranty fee for service will be charged for units that are received without proof of
purchase.
Before returning this product for service, please first replace the batteries (if applicable) with fresh ones, as exhausted or defective
batteries are the most common cause of problems encountered.
If service is still required:
1. Call SDI Customer Service at 1-877-446-6301 for Return Authorization and for the address of the Factory Service Center.
2. Remove the batteries (if applicable) and pack the unit in a well padded, heavy corrugated box. SDI is not responsible for damage
that occurs during shipping to the Factory Service Center.
3. Enclose a photocopy of your sales receipt, credit card statement, or other proof of the date of purchase, if within the warranty
period. Also include your name and address information, a brief description for why the unit is being returned, and the return authorization
number. No unit can be processed without a return authorization number.
4. Write the return authorization number on the side of the shipping package and send the unit prepaid and insured to the Factory
Service Center address authorized by SDI Customer Service.
Disclaimer of Warranty
NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products which
have been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by unauthorized
persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players, CD’s or tape
cassettes (if applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the owner.
This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original
purchaser. In no event will SDI or any of its affiliates, contractors, resellers, their officers, directors,
shareholders, members or agents be liable to you or any third party for any consequential or incidental damages, any lost profits,
actual, exemplary or punitive damages. (Some states do not allow limitations on implied warranties or exclusion of consequential
damages, so these restrictions may not apply to you.) This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
Your acknowledgement and agreement to fully and completely abide by the above mentioned disclaimer of warranty is contractually
binding to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase of your SDI product.
© 2013 SDI Technologies, Inc. All rights reserved
Questions? Visit www.ihomeaudio.com
or call 1-877-446-6301 Toll Free
iBT97 - 011713 - A Printed in China
P22
