SDI Technologies IDM15 Bluetooth Wireless Speaker User Manual iDM15 IB English
SDI Technologies Inc. Bluetooth Wireless Speaker iDM15 IB English
User Manual
Model: iDM15
iDM15 (for US & Canada)
IB (English)
Size: 153mm x 120mm
Printing color: Black
Date: Apr 21, 2011 P1

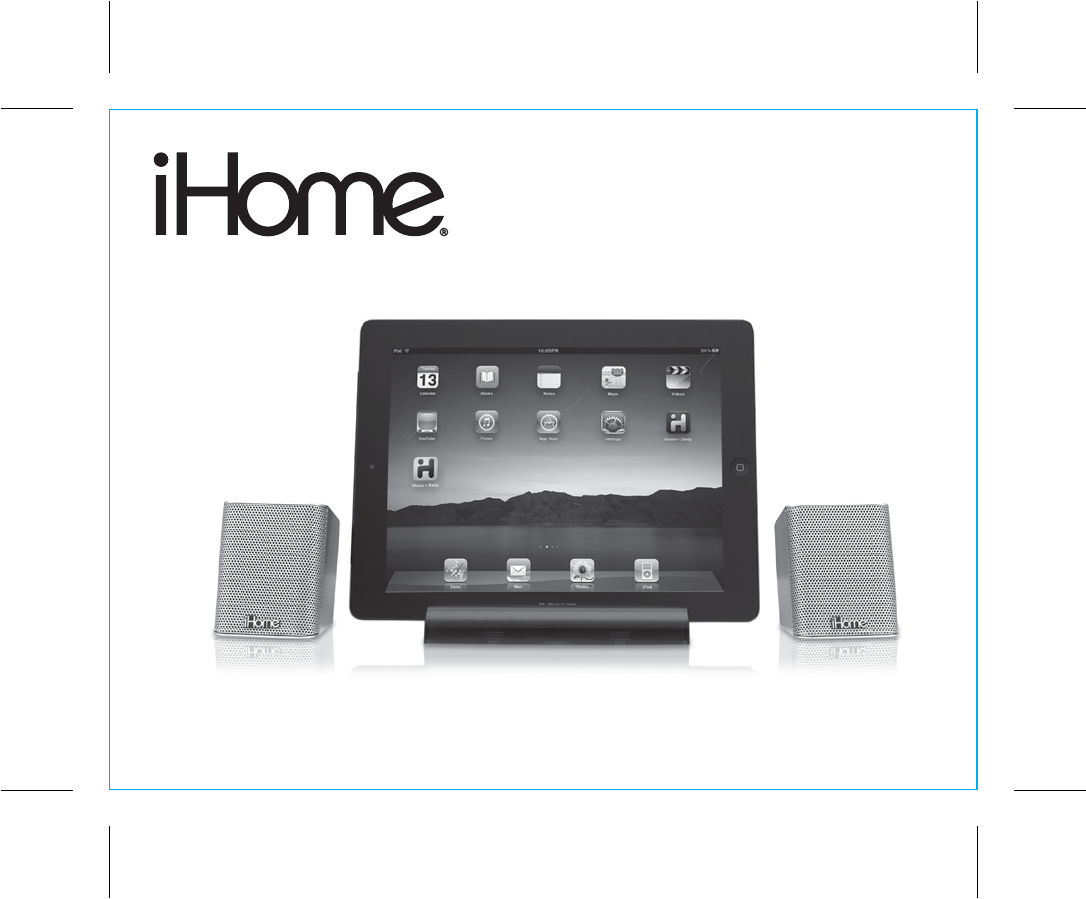

portable rechargeable
Bluetooth stereo speaker
Questions? Visit www.ihomeaudio.com
Table of Contents
Meet Your iDM15 ..............................................................................................1-2
Charging the Unit................................................................................................. 3
Using Bluetooth:Pairing Your Device ......................................................................... 4
Playing Audio Via Bluetooth.................................................................................... 5
Playing Audio Via Aux........................................................................................... 5
Using the Speakerphone / Troubleshooting .............................................................. 6
Consumer Product Safety Guide.............................................................................. 7
Introduction
Thank you for purchasing the iHome iDM15. This product is designed to provide high quality
wireless sound for your iPad, iPhone, iPod, computer, PDA or other Bluetooth audio device.
Along with the included Quick Bluetooth Connection Guide,this instruction booklet explains the
basic operation and care of the unit. Please read them carefully and keep for future reference.
Maintenance
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth
or other protective material should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning
agents, such as Benzene, thinner or similar materials can damage the surface of the unit.
P2
FCC Information
This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These limits
provide reasonable protection against radio and TV interference in a residential area.
However, your equipment might cause TV or radio interference even when it is operating properly. To eliminate
interference you can try one or more of the following corrective measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the radio or TV.
• Use outlets on different electrical circuits for the equipment and the radio or TV.
• Consult your dealer or an experienced radio/television technician if the problem still exists.
Modifying or tampering with your system’s internal components can cause a malfunction and might invalidate the system’s
warranty and void your FCC authorization to operate it.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies with Part 15 of the FCC Rules, operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
P3
FCC ID:EMOIDM15 IC:986B-IDM15

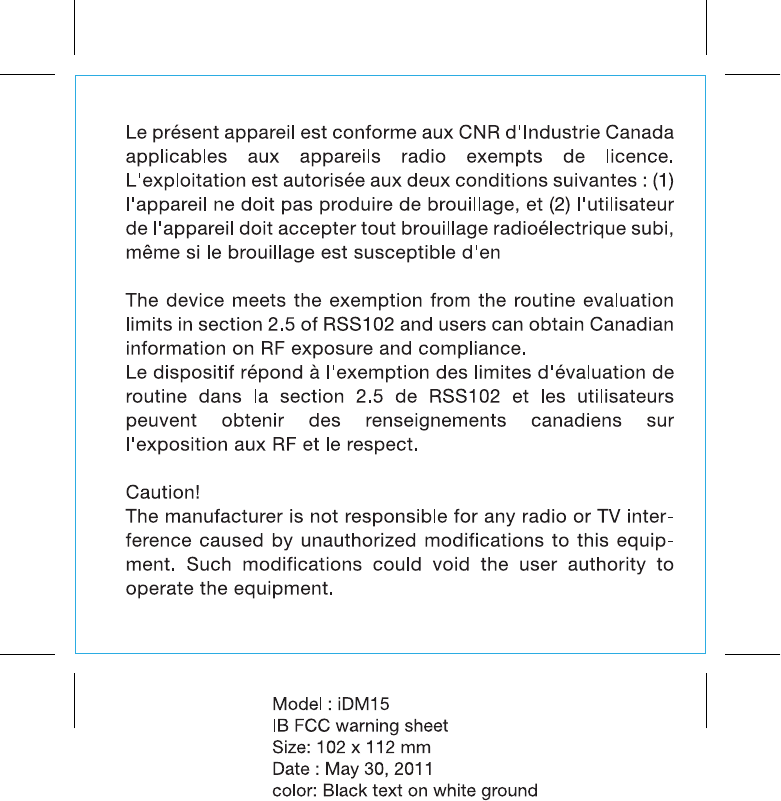

FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This Device complies with RSS-210 of the IC Rules; Operation is subject to the following two conditions:
(1) This device may not cause interference and
(2) This device must accept any interference received, including interference that may cause undesired
operation
Internal Rechargeable Lithium-ion Battery
This device uses an internal rechargeable lithium-ion battery that should last the lifetime of the device. If you
suspect your battery may be dead, try charging it several times. If the battery does not recharge, please contact
us for repair information.
WARNING/DISPOSAL OF UNIT
Please do NOT attempt to change the battery yourself. If the battery has died and you do not want us to replace your
battery, you should follow the disposal instructions below:
• Never dispose of used batteries/electronics with ordinary solid wastes, since they contain toxic substances.
• Always dispose of used batteries/electronics in accordance with the prevailing community regulations that apply
to the disposal of batteries/electronics. If there are no local regulations concerning battery/electronics disposal,
please dispose of the device in a waste bin for electronic devices.
• Many electronics retailers now recycle batteries and other electronic components at no charge. Check to see
which ones in your area do so.
CAUTION
The battery used in this device may present a risk of fire, explosion or chemical burn if
mistreated
• Never use or charge the battery if it appears to be leaking, discolored, deformed, or in any way abnormal.
• Never disassemble the unit or attempt to remove battery as that could cause leakage of alkaline solution or other
electrolytic substance.
• Always confirm that the temperature is 5°C – 35° C (41° - 95° Fahrenheit) before you charge the battery.
Leakage or deterioration of the battery may occur if this warning is not heeded.
• Never expose the battery to any liquid.
• Never expose the battery to excessive heat such as direct sunlight or fire. Never use the battery pack in an
unventilated vehicle where excessive internal temperatures may be encountered.
• Always keep the battery out of the reach of infants and small children.
P4
Meet Your iDM15
1
Power/Charging/Pairing
Indicator Light
Travel/Aux/Bluetooth Switch
Micro USB Charging/
Audio in Port
Line-out to Left Speaker
Line-in from Right Speaker
Pairing/Speakerphone
Button
Power
Button
Volume Down
Button
Volume Up
Button
Built-in
Microphone
Top/Front
Right Speaker
Right Speaker
Left Speaker
Rear of Speakers
P5
Meet Your iDM15
P6
2
Included
Setup
• iDM15 system (2 x speakers)
• Plastic case/iPad stand
• Micro USB to USB/3.5 mm audio cable
• 15 inch 3.5 mm audio cable
Place stand on a flat, stable surface.
Dock iPad/iPad 2 into groove. For best
stability,dock iPad in landscape mode.
The unit includes a travel case that doubles as
an iPad stand.
To use as a stand:
a. Remove top and both speakers from case.
b. Remove cables from top.
c. Place case top on stable surface with logo
facing upwards.
d. Turn case over and slide the side with the
slot onto the tab on the the top/stand.
Charging the Unit
1. Connect the micro USB plug to the micro
USB charging port on the back of the Right
speaker.
2. Connect the standard USB plug end of the
cable to a power USB port on a computer
or other USB charging device. For first
time use, charge unit for about 8 hours.
3. A blue light flashes while the unit is
charging and glows steadily when unit is
fully charged. If unit is not powered on
when micro USB plug is connected, the
blue light flashes once to indicate unit is
charging.
P7
NOTE: When unit is on and not
connected to power source, flashing
red light indicates battery needs charg-
ing.
USB 2.0
insert iDM15 art
3
Using Bluetooth: Pairing Your Device
NOTE: See the iDM15 Bluetooth Connection Guide for complete pairing details.
1. Move the Travel/Aux/Bluetooth Switch on the back of the right speaker to the Bluetooth
position (right).
2. Press and release the Button to turn on the unit (release when green light appears).
3. Turn on Bluetooth capability on your device and make it discoverable (see your device’s
instructions to add or setup a Bluetooth device).
4. Press and hold the Bluetooth/Speakerphone Button on the iDM15 until a blue light flashes
on the button and the unit beeps twice to indicate pairing attempt. The blue light will flash
while the unit attempts to pair. If your device asks for a password, enter 1234 on the
keyboard of your device.If no device is paired within 3 minutes, the Button will glow red
for 2 seconds and the unit will power off. If this occurs, retry steps 2-4.
5. Once paired with a device, the blue light will glow steadily, then turn green. There should
be an indication on your device that pairing is complete. On some devices, you must then
select “use as a stereo audio device” or similiar on the device’s Bluetooth menu. Once
paired, your device should link to the iDM15 whenever within range.
P8
4
Playing Audio via Aux
Playing Audio Via Bluetooth
1. Move the Travel/Aux/Bluetooth Switch to the Bluetooth position to listen to audio streamed
wirelessly from your paired iPad, iPhone, iPod or other Bluetooth device.
2. Press and release the Button to turn on the unit. The amber light will flash as the unit
searches for a previously paired device, and then turn green when a previously paired
device is detected.
3. Press and release the Bluetooth/Speakerphone Button to play or pause audio from your
Bluetooth device. NOTE: Play/Pause only works in Bluetooth mode. It does not control aux
line-in devices.
4. Use the Volume +/- Buttons to adjust volume.
5. When done listening, press the Button to turn the unit off.
1. Move the Travel/Aux/Bluetooth Switch to the Aux position to listen to audio via aux
line-in.
2. Connect the micro USB plug to the micro USB charging port on the back of the right
speaker and connect the 3.5 mm audio plug to the headphone or line-out jack on your
audio device.
3. Press and release the Button to turn on the unit (release when green light appears).
4. Use the Volume +/- Buttons to adjust volume. You may wish to adjust the volume on your
audio device, too.
5. When done listening, press and release the Button to turn the unit off. Remember to turn
off your audio device, too.
P9
5
Unit doesn’t respond (no power)
Make sure unit is completely charged. Check that all connections are
correct and properly plugged in. Make sure your device is properly paired with the iDM15.
Trouble pairing device/computer with iDM15
Bluetooth implementation varies depending on your computer’s hardware and operating system.
Please see our website for updates on pairing.
• Make sure you have the latest firmware for your iPad, iPhone or iPod
(update via iTunes if needed).
• Make sure your device is working properly. Check your device’s manual for details on
Bluetooth pairing and linking.
For further information and to see the latest instructions, visit
www.ihomeaudio.com/support
Troubleshooting
Using the Speakerphone
1. Move the Travel/Aux/Bluetooth Switch to the Bluetooth position to use the speakers as a
speakerphone for a linked Bluetooth-capable phone during an incoming or active call. The
right speaker is muted during a speakerphone call; only the left speaker has audio.
2. Connect the micro USB plug to the micro USB charging port on the back of the unit and
connect the 3.5 mm audio plug to the headphone or line-out jack on your audio device.
Speakerphone cannot operate unless both speakers are connected.
3. Press and release the Button to turn on the unit (release when green light appears).
4. Use the Volume +/- Buttons to adjust volume. You may wish to adjust the volume on your
audio device, too.
5. When the call is completed, press the Button or Bluetooth/Speakerphone Button to end the
call and resume previous function.
P10
6
Consumer Product Safety Guide
7
When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper
use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and
use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit.
1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry tub,
swimming pool or in a wet basement.
2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it
should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings. Also, it should not be placed in
a built-in installation, such as a bookcase or cabinet, which may impede the flow of air through the ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including
amplifiers) that produce heat.
4. Power Sources – The unit should be connected to a power supply only of the type described in the operating instructions or as
marked on the appliance.
5. Power-Cable Protection – Power supply cables should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them. It is always best to have a clear area from where the cable exits the unit to where it is plugged into
an AC socket.
6. Cleaning – The unit should be cleaned only using a warm damp cloth. Do not use solvents, etc.
7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents
located on the product.
8. Attachments – Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during
a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to
lightning and power-line surges.
10. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result in a risk of fire
or electric shock.
11. Damage Requiring Service – The unit should be serviced by qualified service personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.
12. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month or longer, the power cable
should be unplugged from the unit to prevent damage or corrosion.
13. Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating instructions.
Service methods not covered in the operating instructions should be referred to qualified service personnel.
Questions? Visit www.ihomeaudio.com
or call 1-800-288-2792 Toll Free
IMPORTANT SAFETY INSTRUCTIONS
P11
Limited 90 Day Warranty
iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI Technologies), warrants this product to be free from
defects in workmanship and materials, under normal use and conditions, for a period of 90 days from the date of original purchase.
Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased.
Should this fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty period,
SDI Technologies will repair or, at its discretion, replace this product without charge (except for a $15.00 charge for handling,
packing, return UPS/postage, and insurance). This decision is subject to verification of the defect or malfunction upon delivery of this
product to the Factory Service Center listed below. The product must include proof of purchase, including date of purchase. The fee
for service without proof of purchase is $40.00.
Before returning this product for service, please first replace the batteries (if applicable) with fresh ones, as exhausted or defective
batteries are the most common cause of problems encountered.
If service is still required:
1. Remove the batteries (if applicable) and pack the unit in a well padded, heavy corrugated box.
2.
Enclose a photocopy of your sales receipt, credit card statement, or other proof of the date of purchase, if within the warranty period.
3.
Enclose a check or money order payable to the order of SDI Technologies, for the sum of $15.00 ($40.00 without proof of purchase).
4. Send the unit prepaid and insured, to the Factory Service Center listed below.
Consumer Repair Department
SDI Technologies Inc.
1330 Goodyear Drive
El Paso, TX 79936-6420
Disclaimer of Warranty
NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products which
have been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by unauthorized
persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players, CD’s or tape
cassettes (if applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the owner.
This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original
purchaser. In no event will SDI Technologies or any of its affiliates, contractors, resellers, their officers, directors, shareholders, members
or agents be liable to you or any third party for any consequential or incidental damages, any lost profits, actual, exemplary or
punitive damages. (Some states do not allow limitations on implied warranties or exclusion of consequential damages, so these
restrictions may not apply to you.) This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
Your acknowledgement and agreement to fully and completely abide by the above mentioned disclaimer of warranty is contractually
binding to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase of your SDI Technologies
product. © 2011 SDI Technologies, Inc. All rights reserved
Questions? Visit www.ihomeaudio.com or call 1-800-288-2792 Toll Free.
iDM15-042611-A Printed in China
P12
