SDI Technologies Inc. Aromatherapy Speaker with Lighting iZABT50 ib 707
User Manual
Model: iZABT50
Instruction manual - US English
Size: 102 x 150 mm
Date: June 29, 2017
Mat’l: 100gsm paper (WF)
Color: Black text on white background
Cover
Warranty
Model iZABT50
Aromatherapy Speaker with Lighting
QUESTIONS? visit www.ihome.com
AROMA
1
1. iZABT50 speaker
3. AC adapter
2. remote control
4. 3 aroma pads 5. 5mL essential oil bottle
LAVENDER
100% Pure Es
sential Oil
5ml
Ingredients:
Lavendula Hybrida Oil
Best Before:
Caution: Keep out of the
reach of children and pets.
Avoid contact with eyes
and mucous membranes.
Do not ingest or use during
pregnancy. May irritate
sensitive skin. For external
use only. Any adverse reaction,
seek medical attention.
EXP202000628
D062801001
WELCOME
Thank you for choosing the iZABT50 Zenergy Aroma from iHome. This
user guide will get you up and running quickly. For more information
about this and other iHome products, please visit www.ihome.com .
Please read this guide and all safety information prior to use.
GETTING STARTED
This unit ships with the following items. Please check to see that all
items are present.
1. iZABT50 aromatherapy speaker
2. Remote control with battery
3. 100-240V Universal AC power adapter
4. 3 replaceable aroma pads
5. 1 5ml bottle of 100% pure lavender essential oil
FEATURES & FUNCTIONS
Sound Therapy
Mode Button
2
FRONT PANEL
BACK PANEL
Light Therapy
Mode Button
Power Button
Aromatherapy tray
Timer Button
Timer Duration
indicators
Bluetooth/Call/
Play/Pause Button
Volume/Brightness
Buttons
Bluetooth status indicator
DC Jack
Aromatherapy
Mode Button
Aroma Fan
Indicator
aromatherapy
sleep duration volume
(brightness)6090 30
3 x replaceable aroma pads
Some features and functions work dierently when accessed directly
on the unit from when accessed from the remote control.
REMOTE CONTROL
Your Remote comes with one CR2032 battery which
must be installed. When the range of the remote seems
reduced or if it ceases to work properly,
it’s time to replace the battery.
1. Press point of a pin or paperclip firmly into the hole
by the battery compartment cover on the rear of the
remote control to release the cover.
2. Slide battery compartment cover o. (Remove old
battery if replacing.)
3. Place new CR2032 in battery well as shown
(make sure + side is facing upwards).
4. Replace battery cover.
3
INSTALLING/REPLACING THE REMOTE CONTROL BATTERY
Power Button
• Press to turn unit ON or OFF
Aromatherapy Fan Button
• Press to turn fan on high, low or OFF
Light Therapy Mode Button
• Press to cycle through light therapy modes
Sound Therapy Mode Button
• Press to cycle through sound therapy modes
Play/Pause Button
• Press to play or pause Bluetooth audio
Track Buttons
• Press to skip to previous or next track
Volume Adjust Buttons
• Press to raise or lower sound therapy or
Bluetooth audio volume
Light Therapy Brightness Buttons
• Press to adjust brightness up or down
Timer Button
• Press to sleep to current mode(s) for
30, 60 or 90 minutes (or turn timer OFF)
4

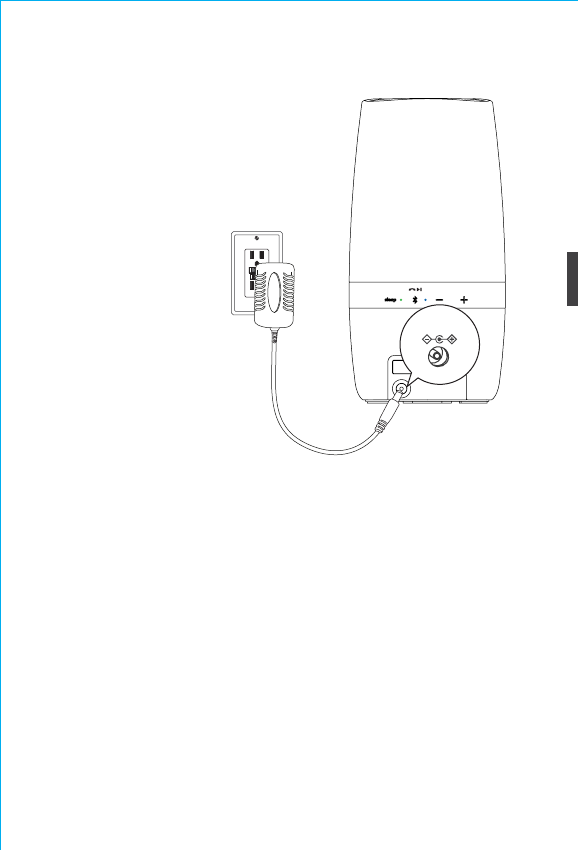

CONNECTING THE IZABT50
Plug the include AC adapter into
the DC jack on the back of the unit
and connect the plug to a working
outlet not controlled by a light
switch.
aromatherapy
sleep duration volume
(brightness)6090 30
DC 5V 2A
AROMATHERAPY MODE
This unit comes with an Aromatherapy chamber located on the back. Load
the aroma tray with a replaceable aroma pad and add drops of essential
oils. When the fan is turned on you will relaxing aromas to help you sleep
and feel great.
CAUTION ABOUT INCLUDED 100% PURE LAVENDER ESSENTIAL OIL:
• Keep out of the reach of children and pets.
• Combustible Liquid. Keep away from flames and hot surfaces-No smoking
and store in a cool well-ventilated place.
• Avoid contact with eyes and mucous membranes.
• Not for topical use.
• May irritate sensitive skin.
• Do not ingest or use during pregnancy.
• For external aromatherapy use only.
• Any adverse reaction or ingestion, seek medical attention or call Poison
Control Center immediately.
• Store in a cool, dark location, protected from sunlight and heat sources.
5
LOADING THE AROMA TRAY
1. Pull out the aroma tray located
on the back of the unit.
2. Place a replaceable aroma pad
into the aroma tray.
3. Place 3-4 drops of your
preferred essential oil on the pad.
4. Replace tray in unit.
RUNNING THE AROMATHERAPY FAN
1. Press and release the Power Button to turn on the iZABT50.
2. Press and release the Aromatherapy Button to turn on the aroma
therapy fan at high setting. Press again to turn fan to low, and once again
to turn the aroma fan OFF. CAUTION: DO NOT RUN FAN UNATTENDED
6
LIGHT THERAPY MODE
Circadian rhythms, or our internal clocks, are linked to changing wavelengths
of light throughout the day. Color Light Therapy simulates these wavelengths,
triggering subtle biological responses that can help improve sleep, energy,
and mood. Light Therapy mode includes 4 separate Light Therapy patterns to
help you feel great.
1. Press the Light Therapy Button to access Light Therapy mode. Continue
to press as needed to cycle to each mode:
Candle
Breath
Calm
Energy
Aurora
Glow
Favorite Color
O
Candle
Breath
Calm
Energy
Aurora
Glow
Favorite Color
O
Provides the ambiance of a calming LED candle eect to
enhance any home environment
Inhale and hold with the amber light and exhale with the
red, matching your breath to this timed pattern can lower
your heart rate and calm your mind
Red-toned lights calm the mind at night and stimulate the
production of melatonin, helping to prepare the body for
sleep
Swirling blue-toned lights inhibit melatonin, increase
morning alertness, and energize the mind
A swirling spectrum of colors creates a beautiful
atmosphere for day or night mood lighting
A gentle fading spectrum of solid colors creates a
beautiful atmosphere for day or night mood lighting
Select the current color
Turn Light Therapy OFF
LIGHT & SOUND THERAPY MODES
2. Press the – and + Buttons to adjust the intensity of the light to suit your
mood and room conditions
3. Press and hold the Light Therapy Button for 2 seconds to exit light
therapy mode. Press the Light Therapy Mode Button again to resume
mode at the last used light pattern.
(not recommended for sleep)
(not recommended for sleep)
SOUND THERAPY MODE
Distracting noises or a racing mind can make it hard to sleep at night or
focus during the day. Sound Therapy uses specially recorded and
engineered sounds to cancel out these distractions and allow your mind to
calm. Sound Therapy mode includes 6 separate Sound Therapy presets to
help you feel great.
1. Press the Sound Therapy Button to access Sound Therapy mode.
Continue to press to cycle to each mode:
2. Press and release the – or + Volume Buttons to adjust speaker
volume.
3. Press and hold the Sound Therapy Button for 2 seconds to exit sound
therapy mode. Press the Sound Therapy Button again to resume at the
last used sound preset.
7
Zen
Ocean
Storm
Nature
White Noise
Heart Beat
O
A tonal melody in frequencies that mimic the Delta
brainwaves of a mind in meditation or healing
Authentic, digitally recorded ocean sounds
Authentic, digitally recorded storm and rainfall sounds
Authentic, digitally recorded springtime woodland sounds
A low-toned noise frequency, like a fan, which helps to
mue background noises to promote relaxation and sleep
Listening to a relaxed hear beat encourages your own
heart beat to slow to match it, alleviating stress
Turn Sound Therapy OFF
8
PAIRING
Pairing establishes a unique communication connection between the unit and
your Bluetooth device. Once paired, you will be able to stream audio
wirelessly to the iZABT50.
1. Turn on your Bluetooth device and make it
“discoverable” by turning on Bluetooth mode
(check in Options or Settings).
2. Press and release the Power Button to turn
on the iZABT50.
3. Press and hold the
Bluetooth
Button (located
on back of the unit) for 2 seconds. 2 beep tones
will sound and the indicator light by the
Bluetooth button will flash blue while the unit
attempts to pair. “iHome iZABT50” should
appear on your device’s menu. Select “iHome
iZABT50” on device to begin/complete pairing. If
your device asks for a password, enter 1234 on
the keyboard of your device. A tone will sound
and the blue indicator will glow solid. If no
device is paired within 3 minutes, the unit will
revert to its previous state.
The next time you power on the unit it will
automatically link with the previously paired device
as long as that device is still within range (about 33
feet). To clear/reset Bluetooth, press and hold the
Bluetooth button for 10 seconds until you hear a
long beep. Note: Reset is disabled in Sound Therapy
mode.
iHome iZABT50
BLUETOOTH MODE
9
PLAYING AUDIO VIA BLUETOOTH
1. Press and release the Power Button to turn on the iZABT50.
2. Press and release the Call/Play/Pause Button to play or pause
audio. Press 2x to skip to the next song, press 3x to return to the start of
the current track or go to the previous track (depending on where you are
in the track).
3. Press and release the – or + Volume Buttons to adjust speaker volume.
You can also adjust the output volume on your Bluetooth device.
4. When done listening, press and release the Power Button to power o the
unit.
USING THE SPEAKERPHONE
Unit must be powered ON and paired with a Bluetooth-enabled phone to use
the speakerphone feature. When a call is received, current audio is paused.
Speakerphone cannot be accessed via remote control.
Press and release the Call/Play/Pause Button to answer a call.
Press and hold to ignore or end a call.
Timer mode lets you sleep to any combination of light and sound therapy
or Bluetooth audio for the set timer duration. The light and sound levels
will be gradually decreased over time until the unit shuts o.
Press the Sleep Timer Button as needed to cycle to the desired duration:
90, 60, 30 minutes (and O) shown by the lit sleep indicators on the back
of the unit. Timer mode is inactive when no sleep timer indicator is lit.
10
TIMER MODE
• Place the unit on a level surface away from sources of direct sunlight or
excessive heat.
• Protect your furniture when placing your unit on a natural wood and
lacquered finish. A cloth or other protective material should be placed
between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water.
Stronger cleaning agents such as thinner or similar materials can damage
the surface of the unit.
11
MAINTENANCE
TROUBLESHOOTING
SYMPTOM POSSIBLE SOLUTION
Unit won’t turn
on
Device does not
respond to the
unit and/or
device is playing
but no sound
comes out/
unit doesn’t
respond
AC adapter isn't
plugged into a working
wall socket or not
properly connected
Unit is not properly
connected to power
source and/or Power
Button is not
ON/device is paused
Plug the AC adaptor into a
working wall socket and plug the
AC cable into the DC jack on the
unit. Make sure any associated
wall switch that controls the
outlet is ON.
Check that the unit is ON. Try
adjusting volume on unit and
audio device. Also try pressing
the Play/Pause Button.
Make sure unit is properly paired
to your device (check that iHome
iZABT50 appears in the
Bluetooth menu).
Erratic
performance
No sound
Sound
distorted
External interference
Volume is too low
Volume is too high
Sound source is
distorted
Move unit away from potential
sources of external interference such
as computers, modems, wireless
devices (routers) or fluorescent light.
Turn volume up on unit and/or your
device
Turn volume down on unit and your
device
If the original sound file (MP3) is old
or of poor quality, distortion and
noise are easily noticed with
high-power speakers. Try upgrading
file from a trusted source such as
iTunes.
No aroma Essential oils are
depleted
Remove the aroma tray, replenish
the essential oil on the aroma pad,
reload the tray, and reactivate the
aroma fan.
12
13
FCC INFORMATION
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.
• Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
• NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAN ICES-3 (B)/NMB-3(B)
Canada Statement
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject
to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5 of
RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian
information on RF exposure and compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section
2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir
iZABT50
FCC ID:EMOIZABT50
IC:986B-IZABT50
This device complies with Part 15 of the FCC Rules, operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
IMPORTANT SAFETY TIPS
14
When used in the directed manner, this unit has been designed and manufactured
to ensure your personal safety. However, improper use can result in potential
electrical shock or fire hazards. Please read all safety and operating instructions
carefully before installation and use, and keep these instructions handy for future
reference. Take special note of all warnings listed in these instructions and on the
unit.
1. Water and Moisture – The unit should not be used near water. For example: near a
bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet
basement.
2. Ventilation – The unit should be situated so that its location or position does not
interfere with its proper ventilation. For example, it should not be situated on a
bed, sofa, rug or similar surface that may block ventilation openings. Also, it
should not be placed in a built-in installation, such as a bookcase or cabinet, which
may impede the flow of air through the ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators, heat
registers, stoves or other appliances (including amplifiers) that produce heat.
4. Power Sources – The unit should be connected to a power supply only of the type
described in the operating instructions or as marked on the appliance. Only use
the AC adapter that came with the unit.
5. Power-Cable Protection – Power supply cables should be routed so that they are
not likely to be walked on or pinched by items placed upon or against them. It is
always best to have a clear area from where the cable exits the unit to where it is
plugged into an AC socket.
6. Cleaning – The unit should be cleaned only as recommended. See the
Maintenance section of this manual for cleaning instructions.
7. Objects and Liquid Entry – Care should be taken so that objects do not fall and
liquids are not spilled into any openings or vents located on the product.
8. Attachments – Do not use attachments not recommended by the product
manufacturer.
9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and
disconnect the antenna or cable system during a lightning storm or when it is left
unattended and unused for long periods of time. This will prevent damage to the
product due to lightning and power-line surges.
10. Overloading – Do not overload wall sockets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or electric shock.
11. Damage Requiring Service – The unit should be serviced by qualified service
personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.
12. Periods of Non-use – If the unit is to be left unused for an extended period of time,
such as a month or longer, charge the unit fully before storage
13. Servicing – The user should not attempt to service the unit beyond those methods
described in the user’s operating instructions. Service methods not covered in the
operating instructions should be referred to qualified service personnel.
14. Magnetic Interference: This product’s speakers contain powerful magnets which
could cause interference or damage to sensitive equipment such as hard drives,
CRT televisions and monitors, as well as medical, scientific, and navigational
devices. Keep this unit away from these products at all times.
iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI),
warrants this product to be free from defects in workmanship and materials, under
normal use and conditions, for a period of one (1) year from the date of original
purchase.
Should this product fail to function in a satisfactory manner, it is best to first return
it to the store where it was originally purchased. Should this fail to resolve the
matter and service still be required by reason of any defect or malfunction during
the warranty period, SDI will repair or, at its discretion, replace this product
without charge. This decision is subject to verification of the defect or malfunction
upon delivery of this product to the Factory Service Center authorized by
Customer Service.
If service is required, please call Customer Service at 1-800-288-2792 to obtain a
Return Authorization Number and shipping instructions. A copy of the sales
receipt is required to validate in-warranty coverage.
Disclaimer of Warranty
NOTE: This warranty is valid only if the product is used for the purpose for which
it was designed. It does not cover (i) products which have been damaged by
negligence or willful actions, misuse or accident, or which have been modified or
repaired by unauthorized persons; (ii) cracked or broken cabinets, or units
damaged by excessive heat; (iii) damage to digital media players, CD’s or tape
cassettes (if applicable); (iv) the cost of shipping this product to the Factory
Service Center and its return to the owner.
This warranty is valid only in the United States of America and does not extend to
owners of the product other than to the original purchaser. In no event will SDI or
any of its aliates, contractors, resellers, their ocers, directors,
shareholders, members or agents be liable to you or any third party for any
consequential or incidental damages, any lost profits, actual, exemplary or punitive
damages. (Some states do not allow limitations on implied warranties or exclusion
of consequential damages, so these restrictions may not apply to you.) This
warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Your acknowledgment and agreement to fully and completely abide by the above
mentioned disclaimer of warranty is contractually binding to you upon your
transfer of currency (money order, cashier's check, or credit card) for purchase of
your SDI product.
© 2017 SDI Technologies, Inc. All rights reserved
Questions? Visit www.ihome.com
or call 1-800-288-2792 Toll Free
iZABT50-170626-A (EN) Printed in China
LIMITED 1 YEAR WARRANTY
