SDI Technologies SIB62 Bluetooth FM Clock Radio with USB Charging User Manual Si B62 IB 606

SDI Technologies Inc. Bluetooth FM Clock Radio with USB Charging Si B62 IB 606

User Manual

Si-B62
instruction manual
Si-B62 Eng IB
Size: 153mm x 120mm
Printing color: Black
June 6, 2014 P1

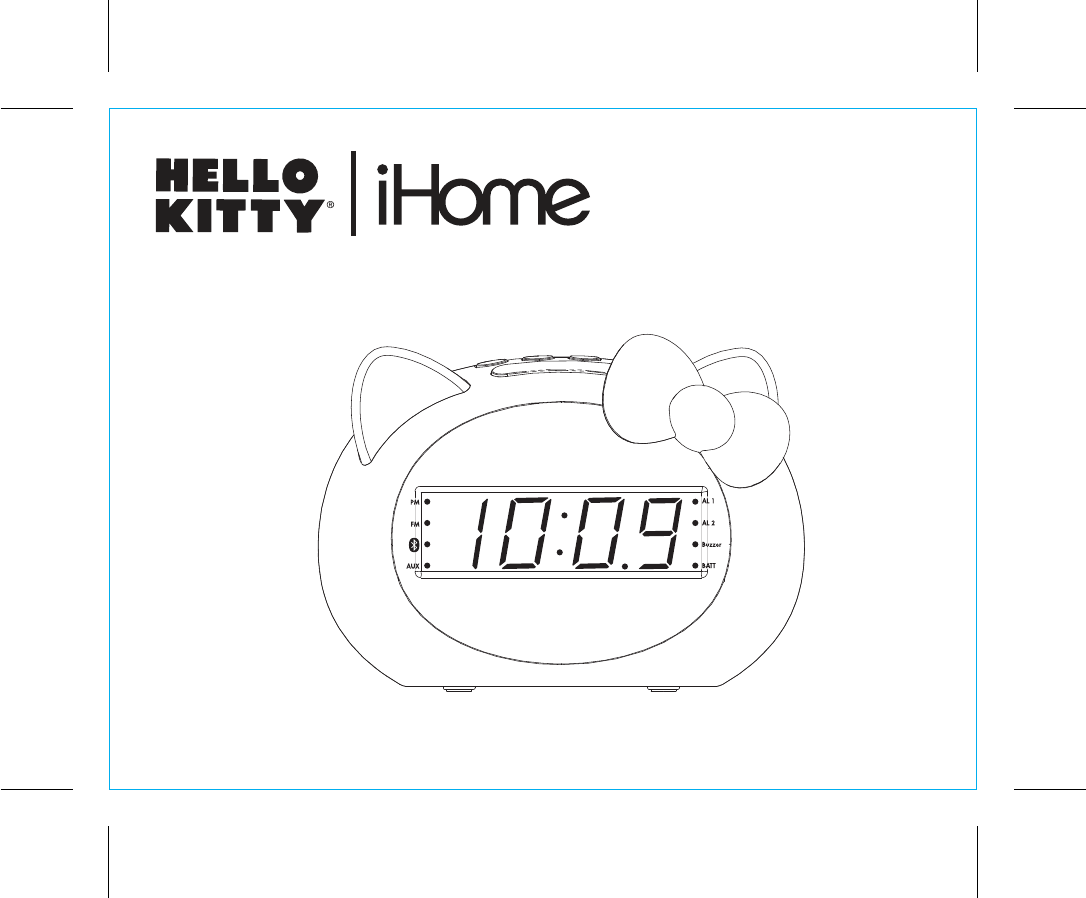

Bluetooth
FM Clock Radio
with USB Charging
Si-B62
Introduction
Thank you for purchasing the iHome Si-B62. This product is designed to provide high quality wireless sound
from your iPad, iPhone, iPod or other Bluetooth audio device.
Along with the included Quick Bluetooth Connection Guide this instruction booklet explains the basic
operation and care of the unit. Please read them carefully and keep for future reference.
Maintenance
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other
protective material should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents,
such as thinner or similar materials can damage the surface of the unit.
P2
1
Si-B62
P3
2
FCC ID: EMOSIB62
IC: 986B-SIB62
QDID:B020022
FCC Information
This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
• Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAN ICES-3 (B)/NMB-3(B)
IC Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée
aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can
obtain Canadian information on RF exposure and compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102
rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf.
6/06/2014
Si-B62
Table of Contents
Meet Your Si-B62 ....................................................................................................................5
The Display/Setting Up the Unit .................................................................................................6
Replacing and Installing Clock Backup Batteries ............................................................................7
Setting the Clock/ FM Radio.....................................................................................................8
Setting and Using FM Presets.....................................................................................................9
Setting and Using the Alarms ...................................................................................................10
Previewing Alarms and Turning Alarms On/Off ..........................................................................10
Snooze/Dimmer Button/Sleep Mode .......................................................................................11
Using Bluetooth: Pairing Your Device ........................................................................................12
Pairing Your Device Using Standard Bluetooth.............................................................................13
Pairing with a Different Device .................................................................................................13
Playing Audio Via Bluetooth/Playing Audio Via Aux-in..................................................................14
Charging Devices via USB Port ...............................................................................................15
Troubleshooting.....................................................................................................................16
Consumer Product Safety Guide...............................................................................................17
Warranty.............................................................................................................................18
P4 P5
Included
• Si-B62 unit
• 100V-240V universal AC adaptor
• 12 inch audio cable
AC adaptor 12 inch audio cable
Si-B62
Si-B62
4
3
P6
Meet Your Si-B62
Top
Bottom
Power/Mode Button
Pairing Button
Clock/Preset button
Volume Up/Alarm 1 Button
Tuning Up Button
Tuning down Button Volume Down/Alarm 2 Button
Sleep Button
Snooze/
Dimmer Button
Back
Si-B62
5
DC Jack
USB Charging Port
Aux-in Jack
Using the Si-B62
The Display
Setting Up the Unit
Connect the included AC adaptor to the DC jack
located on the back of the unit and connect the
other end to a working wall outlet. To turn unit on
press and release the Button.
6
P7
Bluetooth Pairing
Indicator
AUX-IN Indicator
Alarm Buzzer Indicator
Battery Low Indicator
PM Indicator
Radio FM Indicator Alarm 2 Indicator
Alarm 1 Indicator
DC 5.5V 1.8A
DC 5.5V 1.8A
Using the Si-B62
P8
7
Replacing and Installing Clock Backup Batteries
Note: 2 AAA batteries are included with the unit. Install them before using the unit.
This model is equipped with a battery backup circuit that will maintain the time and alarm time settings in the event of
a temporary power interruption (the display is NOT maintained). The battery backup circuit will also operate the
buzzer alarm to wake you up at the selected wake up time even if the power is out. When the backup batteries are
getting weak the Low Backup Battery Indicator will appear solid on the display. When you see this flashing indicator
you should replace the backup batteries as soon as possible. Note: We recommend alkaline batteries for best
performance.
To install/replace the backup batteries:
IMPORTANT: When replacing the backup batteries be sure to have the unit connected to the AC outlet to maintain all of your
settings, otherwise it will be necessary to reset the time and alarm time after the batteries are replaced.
1. Slide and remove the battery door located on the bottom of the unit.
If replacing batteries, remove the exhausted batteries.
2. Insert 2 fresh AAA batteries in the backup battery compartment.
Make sure the polarity of the batteries (“+” or “-” nodes) matches the
illustration.
3. Slide and close the battery compartment door. Confirm that the
backup battery indicator is not flashing in the display.
Note: Make sure you dispose of batteries properly (see your local
regulations)
Battery Warning
• Do not heat above 75ºC (167ºF) • Do not expose contents to water
• Do not open batteries • Do not dispose of in fire
• Do not install backwards
Setting the Clock
1. When unit power off press and hold the Clock/Presets Button for 2 seconds until the hour display
flashes and a beep sounds.
2. Press the – or + Buttons to adjust the clock to the current hour. Make sure you set the correct AM/PM
time. The PM indicator appears to the left of the display (there is no AM indicator).
3. Press the Clock/Presets Button to confirm the hour. The minutes display will flash.
4. Press the – or + Buttons to adjust the clock to the current minute setting.
5. Press the Clock/Presets Button to confirm the time and exit clock setting mode. 2 beeps will confirm
clock setting is complete.
FM Radio
Extend the FM antenna for best reception.
1. Press and release the Power/Mode Button as needed until the FM indicator icon and current FM
radio frequency appear on the display.
2. Press the – or + Buttons to tune the radio to the desired station (hold to scan for the next clear station).
3. Press the or Buttons to adjust the volume on the unit.
4. When you are through listening, press and hold the Power/Mode Button to turn the unit off.
Using the Si-B62
8
P9
Using the Si-B62 Using the Si-B62
Using Bluetooth Pairing Your Device
1. Turn on your Bluetooth-enabled device and turn on Bluetooth capability as described in the device’s user
manual.
2. Press and release the Power/Mode Button as needed until “bt” appears on the display and the red
indicator next to the Bluetooth icon flashes.
3. Press and hold the Pairing Button until bt flashes on the display and a beep sounds, indicating
pairing attempt. “HelloKittySi-B62” should appear on your device’s menu. If “Not Paired”, “Not
Connected” or similar message appears, select “HelloKittySi-B62” on the device to connect it. If your
device asks for a password, enter 1234 on the keyboard of your device. If no device is paired within
3 minutes, and the unit will revert to its previous mode. To retry pairing, turn the unit OFF then back ON,
then follow step 3 again.
4.
Once paired with a device, the
Bluetooth indicator on the display will appear solid as BT music playing
and the BT indicator will appear 1 flash/5 sec as no BT music playing.
On some devices, you must then
select “Use as Audio Device” or similar on the device’s Bluetooth menu. Once paired, your device should
link to the Si-B62 whenever within range (about 30 feet).
Pairing with a Different Device
When you power ON the unit, it will automatically link with the previously paired Bluetooth device as long
as that device is still within range (about 30 feet). To pair with a different device follow steps 1-2.
13
P14
11
P12
Snooze/Dimmer Button
1. While the alarm is sounding, press and release the Snooze/Dimmer Button to temporarily silence the
alarm for 9 minutes. Snooze can be used several times during alarm.
2. To adjust the brightness of the display from high to low, press and release the Snooze/Dimmer Button
during normal operation (when no alarm is sounding).
Sleep Mode
This unit allows you to sleep or nap to the current sound source.
When unit power on to set Sleep time, press and release the Sleep Button as needed to cycle to the desired
sleep
duration:120, 90, 60, 45, 30, 15, 10 minutes or OFF (turns the sleep mode off).
Using the Si-B62
14
P15
Using the Si-B62
Charging Devices via USB Port
1. Connect the standard size end of a USB cable (not included) to the USB Port on back of the unit and
connect the other end to the charging port on your device.
2. Monitor the charging on your device. Some devices use a proprietary charging method and will not
charge using the USB Port. If this happens, you must charge your device using the charger that came
with it.
NOTE: unit must be plugged into
working outlet to charge
devices
P16
15
DC 5.5V 1.8A
Playing Audio Via Bluetooth
1. Press and release the Power/Mode Button as needed until the Bluetooth indicator icon appears on the
display.
2. Adjust the volume output on your device to at least 50%. Press the Button on the unit to play
audio from your linked Bluetooth device.
3. Press the or Buttons to adjust the volume on the unit.
4. When done listening, press and hold the Power/Mode Button to turn the unit off.
Playing Audio via Aux-In
1. Connect one end of the included standard stereo 3.5mm audio cable into the aux-in jack on the
back of the unit and the other end into the headphone or output jack of your audio device.
2. Press and release the Power/Mode Button as needed until the AUX indicator icon appears on the
display.
3. Power on your device and place in play mode. Adjust the volume output on the device to at least 50%.
4. Press the or Buttons to adjust the volume on the unit.
5. When done listening, press and hold the Power/Mode Button to turn the unit off. Remember to turn
off your audio device, too.
Unit doesn’t respond
• Check that all connections are correct and properly plugged in.
• Only use the AC adaptor that came with the unit
• Make sure your device is properly paired with the Si-B62.
• Make sure the Power is ON.
Unit doesn’t respond (locked up or frozen)
• The unit may need to be reset. To do so, unplug the unit from power source and remove the
backup batteries. Let unit stand for 2 minutes. Re-install backup batteries and connect unit to power
source. You will need to reset the clock, radio, and any other settings.
Trouble pairing device with Si-B62
Bluetooth implementation varies depending on your device’s hardware and operating system. Please see
www.ihome.com/support for updates on pairing.
• When you power ON the unit, it will automatically link with the last previously paired Bluetooth
device if the device is still within range (about 30 feet). When device is out of range, the Bluetooth icon
will appear for 2 minutes as the unit attempts to relink.To pair with a different device you must turn
off Bluetooth capability on the already paired device, or take it out of range.
• Make sure your device is working properly. Check your device’s manual for details on Bluetooth pairing
and linking.
For further information and to see the latest instructions, visit www.ihome.com/support
16
Troubleshooting
P17
Consumer Product Safety Guide
17
When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result
in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these
instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit.
1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry tub, swimming
pool or in a wet basement.
2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not
be situated on a bed, sofa, rug or similar surface that may block ventilation openings. Also, it should not be placed in a built-in installation,
such as a bookcase or cabinet, which may impede the flow of air through the ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that
produce heat.
4. Power Sources – The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the
appliance. Only use the AC adapter that came with the unit.
5. Power-Cable Protection – Power supply cables should be routed so that they are not likely to be walked on or pinched by items placed upon
or against them. It is always best to have a clear area from where the cable exits the unit to where it is plugged into an AC socket.
6. Cleaning – The unit should be cleaned only using a warm damp cloth. Do not use solvents, etc.
7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on
the product.
8. Attachments – Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during a lightning storm
or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges.
10. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
11. Damage Requiring Service – The unit should be serviced by qualified service personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.
12. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month or longer, the backup batteries should be
removed from the unit to prevent damage or corrosion.
13. Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating instructions. Service methods
not covered in the operating instructions should be referred to qualified service personnel.
Questions? Visit www.ihome.com
or call 1-800-288-2792 Toll Free
IMPORTANT SAFETY INSTRUCTIONS
P18
Limited 1 Year Warranty
Si-B62 - 140429 - A Printed in China
P19
iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship
and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase.
Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased. Should
this fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty period, SDI will repair
or, at its discretion, replace this product without charge. This decision is subject to verification of the defect or malfunction upon delivery
of this product to the Factory Service Center authorized by SDI Customer Service. The product must include proof of purchase, including
date of purchase. An out-of-warranty fee for service will be charged for units that are received without proof of purchase.
Before returning this product for service, please first replace the batteries (if applicable) with fresh ones, as exhausted or defective batteries
are the most common cause of problems encountered.
If service is still required:
1. Call SDI Customer Service at 1-800-288-2792 for Return Authorization and for the address of the Factory Service Center.
2. Remove the batteries (if applicable) and pack the unit in a well padded, heavy corrugated box. SDI is not responsible for damage
that occurs during shipping to the Factory Service Center.
3. Enclose a photocopy of your sales receipt, credit card statement, or other proof of the date of purchase, if within the warranty period.
Also include your name and address information, a brief description for why the unit is being returned, and the return authorization
number. No unit can be processed without a return authorization number.
4. Write the return authorization number on the side of the shipping package and send the unit prepaid and insured to the Factory
Service Center address authorized by SDI Customer Service.
Disclaimer of Warranty
NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products which
have been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by unauthorized
persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players, CD’s or tape cassettes
(if applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the owner.
This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original purchaser.
In no event will SDI or any of its affiliates, contractors, resellers, their officers, directors,
shareholders, members or agents be liable to you or any third party for any consequential or incidental damages, any lost profits, actual,
exemplary or punitive damages. (Some states do not allow limitations on implied warranties or exclusion of consequential damages, so
these restrictions may not apply to you.) This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
Your acknowledgment and agreement to fully and completely abide by the above mentioned disclaimer of warranty is contractually binding
to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase of your SDI product.
© 2014 SDI Technologies, Inc. All rights reserved
Questions? Visit www.ihome.com
or call 1-800-288-2792 Toll Free

Navigation menu
