SDMC TECHNOLOGY STB-1HD Play STB User Manual Smart TV Box
Shenzhen SDMC Technology Co., Ltd Play STB Smart TV Box
User Manual
DV6819 Quick Reference Guide V1.0
Smart TV Box
Quick Reference Guide
Please do read user manual before you operate the TV box.
~ 1 ~
DV6819 Quick Reference Guide V1.0
Safety instruction
Please keep the product in horizontal position. Do not put any heavy stuff on the top of the TV
box.
Please use the provided power adapter. Do not use the damaged power cable and plug.
Please avoid to plug power adapter with wet hands.
Please do not disassemble, modify machine by yourself to avoid any shock and damage to
the TV box.
Please keep the machine away from the heat source to avoid to damage the machine; The TV
box, it should be put in a well ventilation place.
Please keep the TV box away from damp and dusty environment to avoid fire and electric
shock.
Please prompt shut down and unplug power adapter when the machine emitting smoke or
having special smell.
Please unplug the power adapter when long time not using the TV box.
Accessory List

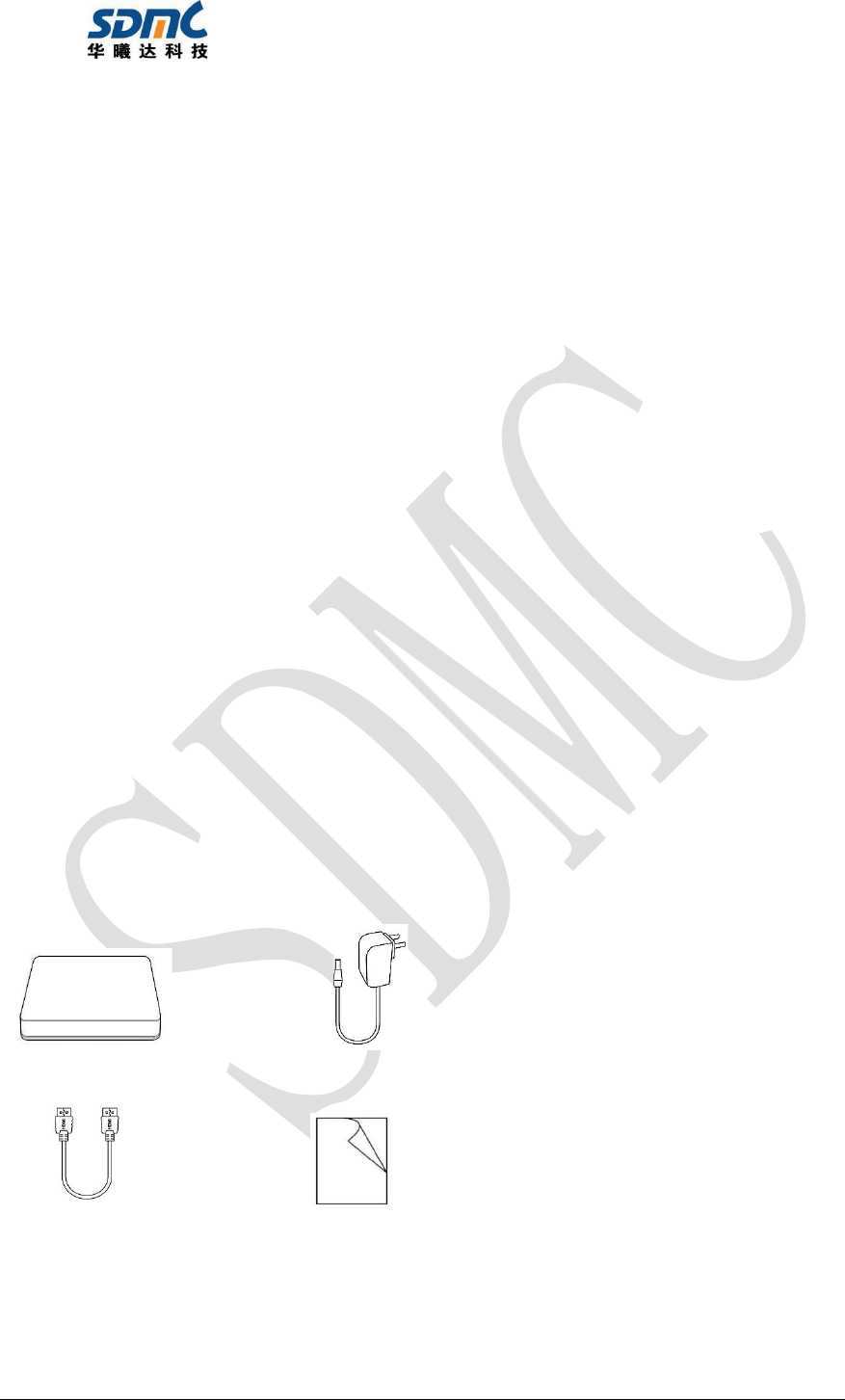

Open the gift box to check below accessories:
TV Box x1 Power Adapter x1
HDMI Cable x1 User Manual x1
~ 2 ~
DV6819 Quick Reference Guide V1.0
Hardware

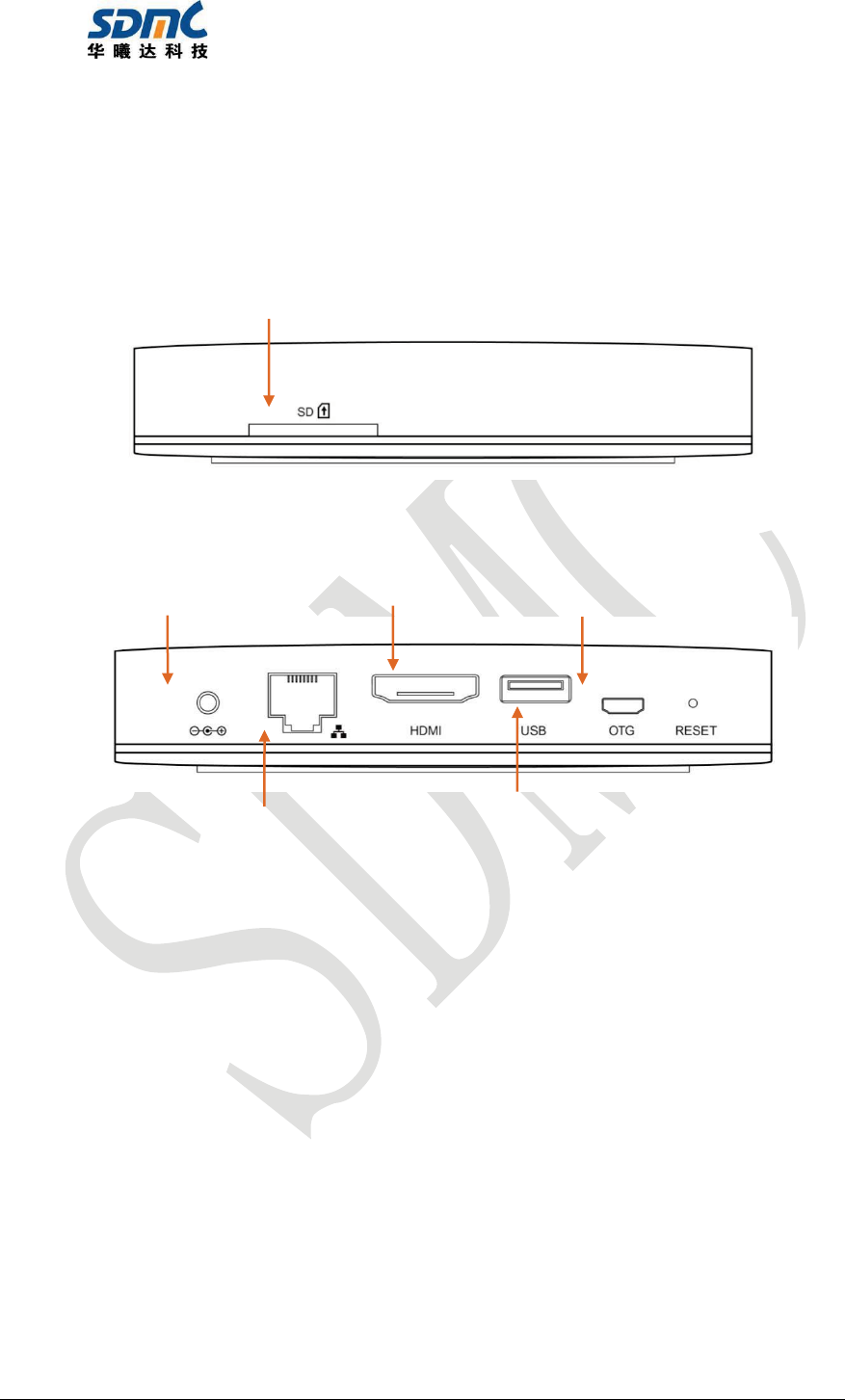

zSide Panel
zRear Panel
SD Card
HDMI out
p
ut
Ethernet USB
DC in Micro USB
~ 3 ~
DV6819 Quick Reference Guide V1.0
System Connection

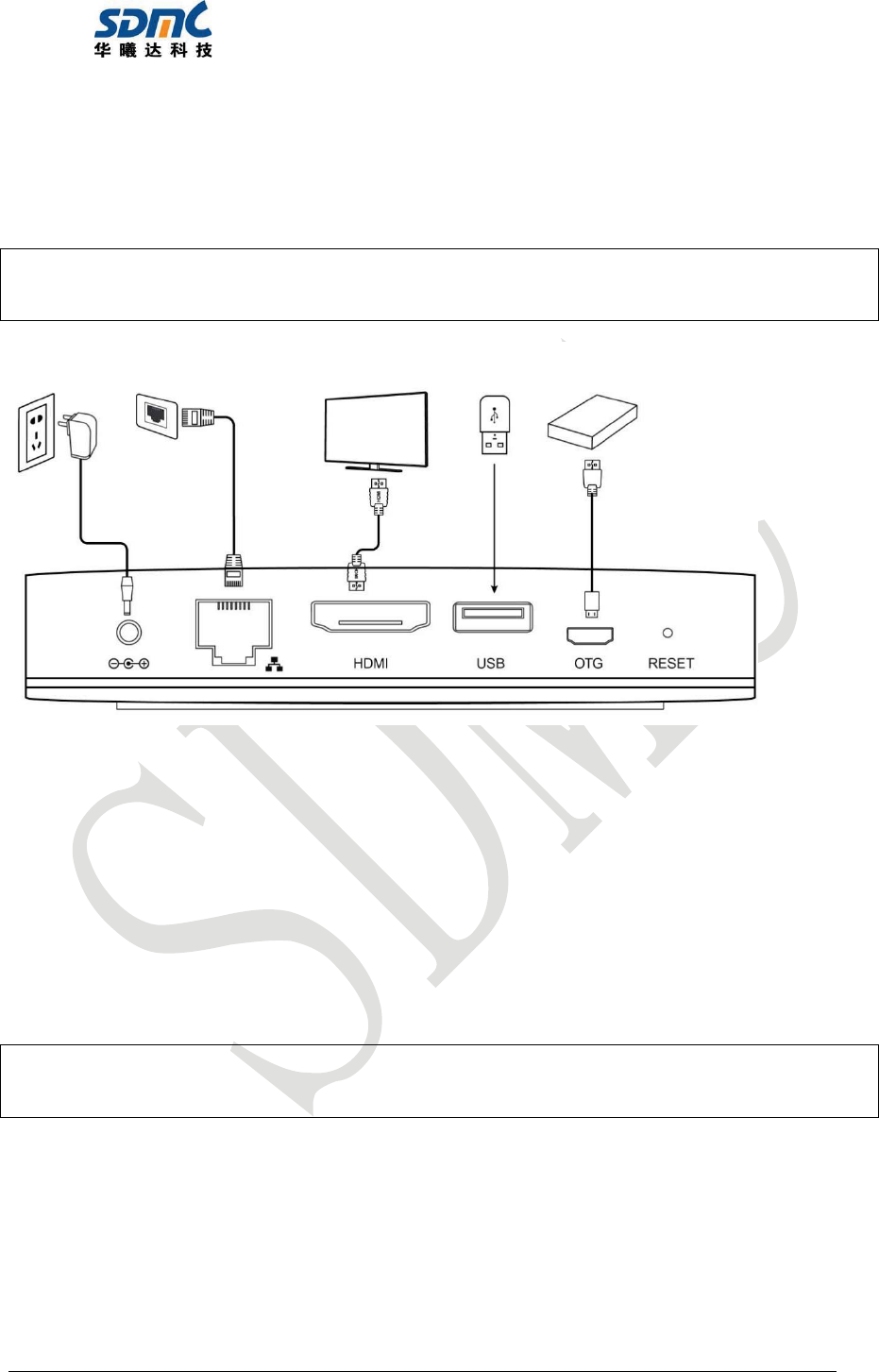

Please refer to below pictures and instructions to connect TV, Power, Network and other devices.
Note: Before connecting please shut down all the equipment to be connected (such as
this machine and TV power)
Step1 Connection with TV
Connect HDMI cable to HDMI port of the TV box and TV set
Step2 Connection with network
Plug the Ethernet cable to LAN port of the TV box, the other side to LAN port of router or Ethernet
port of home broadband network.
Step3 Connection with Power
Connect the power adapter to the TV box. After power in on, it can start automatically.
Note: Before powering on, Please switch the signal input of the TV to correct
source.
Tips: The TV box support Wi-Fi, enter Settings interface Wi-Fi operation
TV
Power Input Internet Connection USB Stora
g
e Devices
~ 4 ~
DV6819 Quick Reference Guide
V1.0
Technical Specifications
CPU ARM Dual Cortex-A9 1.5GHz
Android OS Android 4.2
Video output HDMI
Video format H.264, MPGE, MKV, MP4 and other video formats
Audio format AAC, WAV, MP3 and other audio formats
Photo format JPG, BMP, PNG and other photo formats
Network
Wi-Fi 2.4G 802.11a/b/g/n
RJ45 Interface 10M/100M adaptive
Operation temperature Temperature: 0ć~40ć; Humidity: <95%
Power
Input: AC100-240V 50/60Hz
Output: DC 5V2A
Power consumption Work: <8W; Standby: <0.5W;
~ 5 ~
Wi-Fi 2.4G 802.11b/g/n
DV6819 Quick Reference Guide
V1.0
Troubleshooting
Issue Possible reason Solution
After turned on,
without any display
The power cord Doesn’t
connect or socket without
electricity
Connected power plug, ensure normal
voltage electrical outlet
TV with images
without Voice
Audio cable is not connected Re-connect the Audio cable
TV Box in MUTE state Please press mute button to restore
volume
Audio setting is abnormal
Please enter the audio and video Settings
menu, select the appropriate sound
channel and language
Volume is too low Turn up the volume
Fail to connect the
network
Cable connect is abnormal Please reconnect internet
Wi-Fi closed or the signal is
too weak
Please restart the Wi-Fi or adjust the
position of this machine
Controller failure
Remote control is not in the
correct direction
Please aim at the front panel's ' SENSOR',
then try again
Remote control is with low
battery Please change the batteries
Remote control is broken Please send it to the local maintenance
station for checking
~ 6 ~
DV6819 Quick Reference Guide
V1.0
FCC STATEMENT˖
˖
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
The antenna(s) used for this transmitter must be installed to provide a separation distance of at
least 20 cm from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.
~ 7 ~
DV6819 Quick Reference Guide
V1.0
