The XLW-210x WiFi module board is a WiFi module board which integrates MCU and
802.11b/g/n 2.4GHz RF transceiver on board with RF circuit having been calibrated, customers
can design main board with desired function and interface circuits and assemble it with the
XLW-210x WiFi module board, enable simple, easy, and low cost Wi-Fi connection capability.
Key Features
2.4GHz, IEEE 802.11b/g/n
Integrated PCB antenna
Supports operation in Infrastructure /Ad-Hoc (IBSS)/vitual AP mode ,and IPHONE/
IPAD/Android device can connect it directly.
Integrated powerful MCU running TCP/IP protocol.
Supports 1 UART interfaces.
Supports 3 GPIO interface, max up to 5 GPIOs option (some GPIOs multiplexed with
function interfaces above)
Supports TCP, UDP, ICMP, IGMP, IPv4, DHCP, BOOTP, ARP, DNS, SMTP, SNTP, uPnP, PPPoE
and HTTP in software
Max outdoor rage up to 250meter(820ft), line of sight
Single operating voltage: 3.3V typical
Board Size: 15 mm x 29 mm
Applications
Serial to WiFi
Intelligent home system
Seanywell XLW-210x
HongKong Seanywell Co., Ltd IEEE 802.11b/g/n WiFi Module
Datasheet V1.00
WiFi Remote Control/Monitor
Wearable, handheld devices, health/medical care equipment.
WiFi Toy
TCP/IP and WLAN Offload Co-processor
WiFi Internet Radio
WiFi Network Camera
WiFi RFID
M2M Communications
Product Specification
Features Specifications
RF Transceiver 802.11b/g/n, 2.4Ghz
Code Size 4MB Flash
Data Rate
IEEE 802.11b: 1, 2, 5.5 and 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
IEEE 802.11n: 6.5M-65Mbps
Radio
Frequency Range 2.412 ~ 2.484 GHz
Number of Selectable
Sub-channels
Up to 14 channels. Profiles available include USA, Canada, Europe, Spain,
France, Japan, China, Taiwan and “Other” (multiple countries)
Modulations
802.11b: DSSS with DBPSK, DQPSK and CCK
802.11g: DSSS with DBPSK, DQPSK and CCK
OFDM with BPSK, QPSK, 16QAM and 64QAM
Antenna Integrated PCB antenna
RF receiver sensitivity
802.11b 1M bps: -97 dBm
802.11g 54M bps: -15 dBm
802.11n MCS7:-75dBm
RF Maximum Output Power
802.11b: 17dBm
802.11n: 16dBm
Security 802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)
WiFi Power Saving
Supports 3 WiFi power saving modes in normal operation of Infrastructure
mode with auto-wakeup timer for upcoming Beacon frame reception.
Typical Power Saving Mode
Fast Power Saving Mode
Maximum Power Saving Mode
I/O
Functions
Function interface 1 UART
General Purpose I/O 5 GPIOs (some GPIOs multiplexed with function interfaces)
Operating Voltage 3.3V typical
Average
Power
Consumpti
WLAN mode, data
transfer
90mA typical
STA mode ，Shallow 5mA
Seanywell XLW-210x
HongKong Seanywell Co., Ltd IEEE 802.11b/g/n WiFi Module
Datasheet V1.00
on sleep
Deep Sleep Mode 10uA（only Wakened by GPIO PIN)
Operating Temperature -20°C to +70°C
Board Size 15 mm x 29 mm
Board Dimension

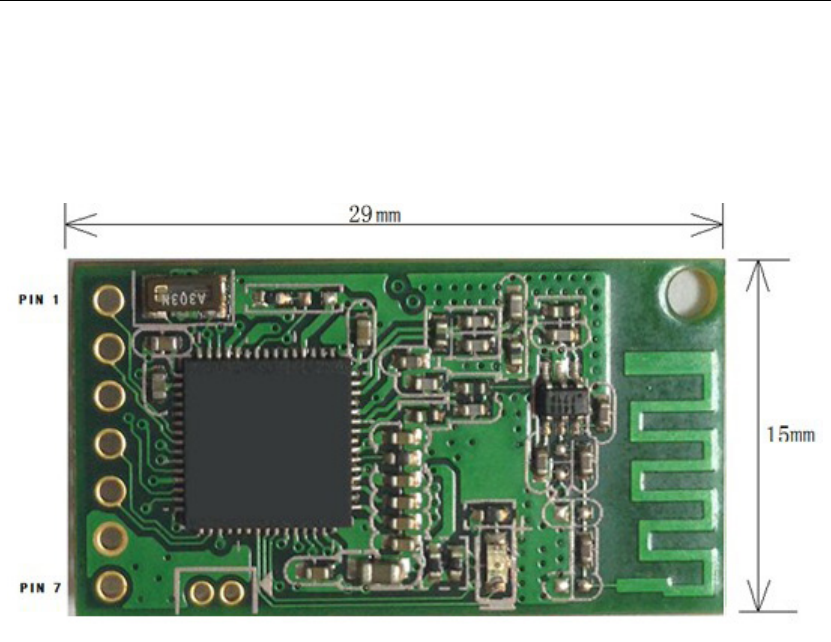

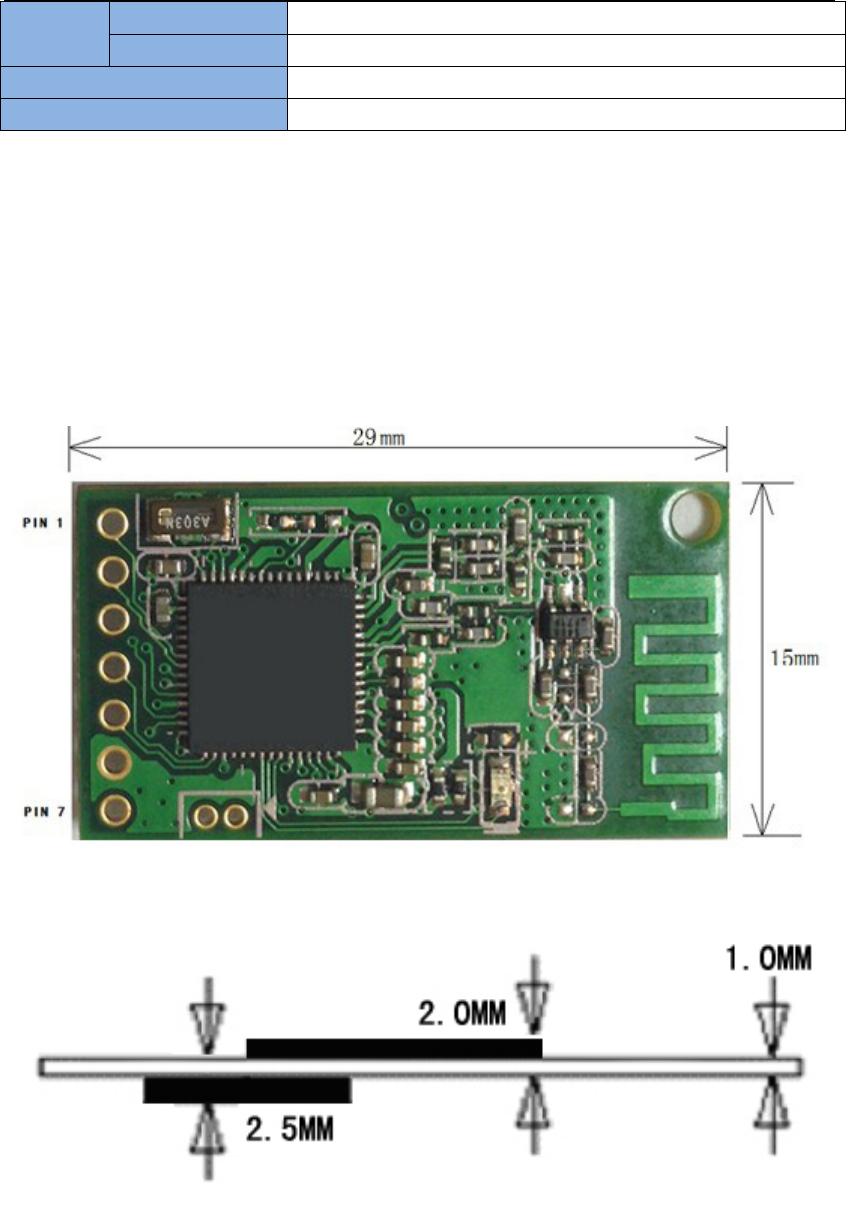

Below shows the XLW-210x wifi module dimension, the connector is male header connector
with pin pitch of 2.0 mm. The XLW-210x wifi module have an integrated PCB antenna which
requires the host PCB to maintain that area keep-out for best antenna peformance. Also, when
mounting on the host PCB of user's system, the module's PCB antenna should be on the edge of
host PCB and faced outward.
Connectors and Pin Assignment

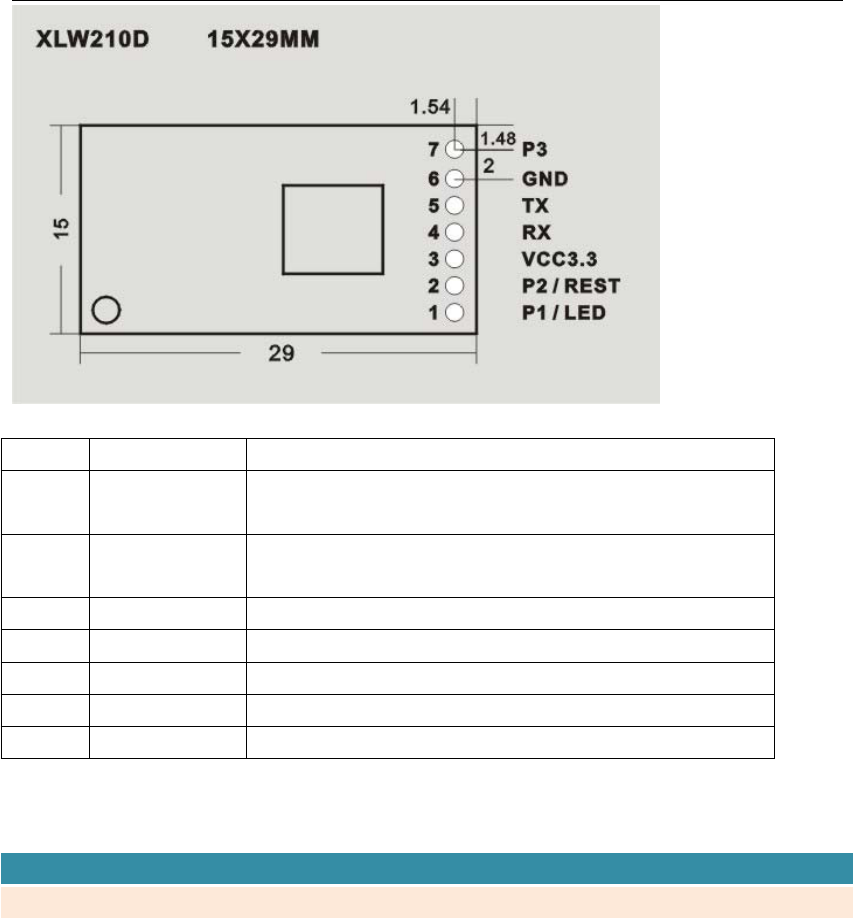

Below shows pin define of XLW-210x wifi module. The pin 4 to pin 5 is usually used for Uart to
WiFi transfer, and pin 1、2topin7isusuallyusedforGPIO.
Seanywell XLW-210x
HongKong Seanywell Co., Ltd IEEE 802.11b/g/n WiFi Module
Datasheet V1.00
Pin No. Pin Name Pin Description
1P1/LED
STATUS
GPIO P1，the default is module LED status light
2P2/RESETGPIOP2，The default is to restore factory setting, active
low
3 VCC33 3.3v power supply
4 RXD UART interface, can reset as GPIO interface
5 TXD UART interface, can reset as GPIO interface
6GND Ground
7P3 GPIOP3，suspension if not in use
Revision History
Revision Date Description
1.0 2012 / 5 / 30 Initial release.
