●Be sure to read this user manual before using the VOSSOR.
●Please keep this manual as it may be useful later.
SFK411
Bluetooth Rear-View Mirror Handsfree Kit
Features
1
I
Caller ID display
You can have a conversation without noise and feedback.
I
Excellent voice tone
VOSSOR can be used as a handsfree unit or a headset as
the situation demands.
I
Supports handsfree & headset profile
You can identify the Caller ID of an incoming call.
Part description
Front
A/T
End
Send button
Firmware upgrade outlet
(Only use for A/S center)
DC jack outlet
Blue LED
Power switch
Caller ID display
Volume down
Holder
Reference MIC
Speaker
2
Back
MIC
Audio Transfer button
Earphone outlet
Volume up
Battery sunvisor clip
Included Accessories
VOSSOR
A/T
Battery
(rechargeable Li-ion)
Cigar lighter adapter Link cable User guide/
Warranty card
Contents
Preparation
Features ······················································1
Part description············································2
Button functions···········································3
How to use
Reference
Configuration ···············································4
·
Charging battery with Cigar lighter adapter
····4
·Setting up VOSSOR ···································5
·Setting up Battery ·······································5
·Using earphone(option) ····························5
·Options for power supply·····························6
·Power on ·······················································7
·Power off ·······················································7
·Speaker Volume control ································7
·Microphone Volume control···························7
·Speaker mute ················································7
Pairing with a Bluetooth mobile phone ·············8
Using VOSSOR················································9
·Last number/Voice dialing ·····························9
·Answering a call ············································9
·Rejecting a call ··············································9
·Transferring audio ·········································9
·Call Waiting ···················································9
Troubleshooting··············································10
Precautions·····················································11
Specifications ·················································12

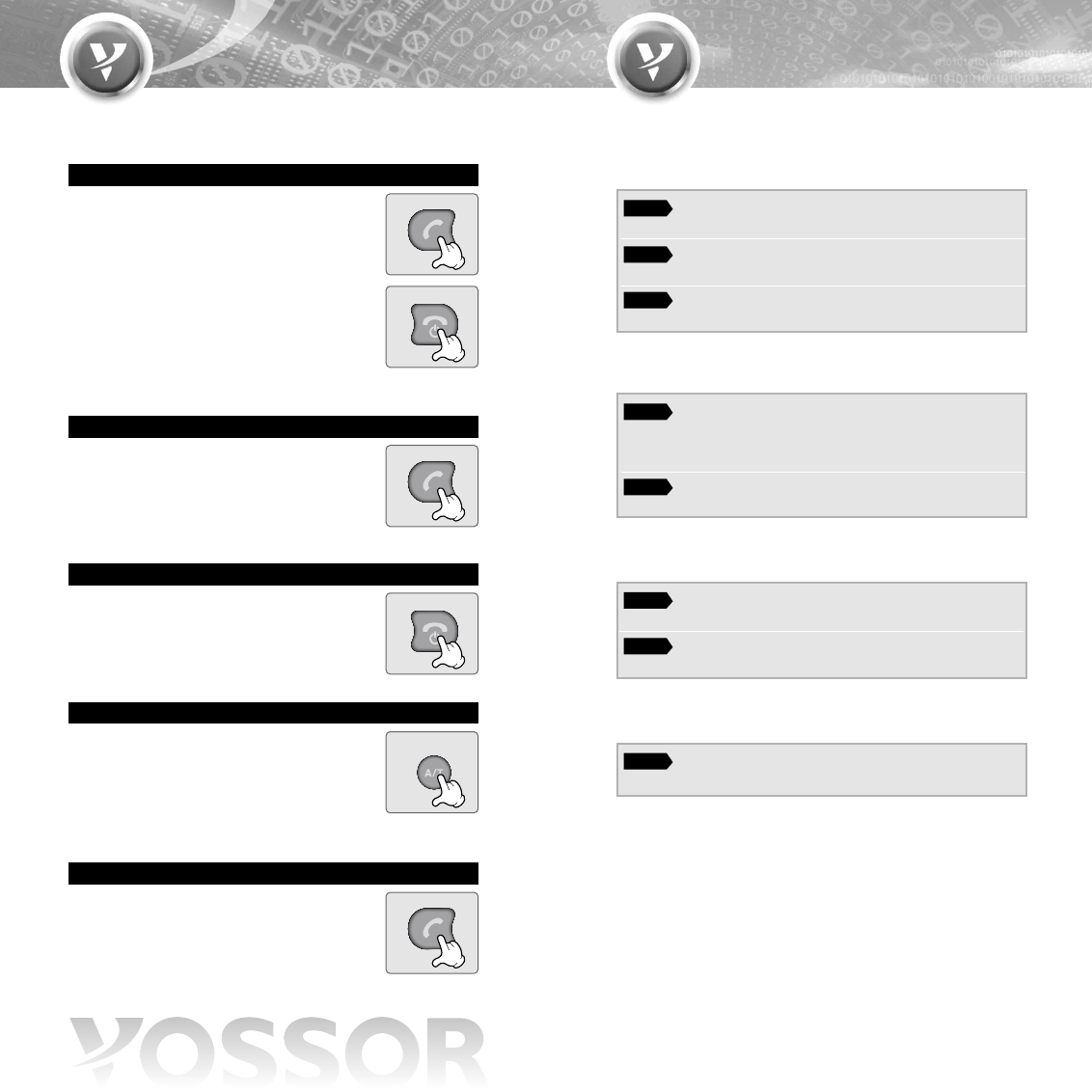

Function
4
Button functions Configuration
3
VOSSOR
Status
Supporting profile
Handsfree Headset
Pairing mode Y Y
Last number called Y Y
Answering a call Ringing Y Y
Rejecting a call Ringing Y N
Ending a call Talking Y Y
Volume increase Y Y
Volume decrease
Microphone Volume
control
YY
YY
Power on Y Y
Power off Y Y
Transferring audio
(Handset -> VOSSOR)
Talking Y Press
Transferring audio
(VOSSOR
->
Handset) Talking Y Consult with
your phone
manual
Voice dialing
(Only when user's
mobile phone
supports this
function.)
YN
How to use
button
Press
Press
Press
Press
Press
Press
Switch
Switch
Press
Press
Press and Hold
Press and Hold
Press +
Connect the Cigar lighter
adapter to a power outlet.
1
Connect the Cigar lighter
adapter to VOSSOR.
2
First,
The battery is not charged when it is first delivered to the user.
Charge the battery with the provided charger before using VOSSOR.
For the best results, fully charge the battery prior to initial use.
�
It takes about 4 hours to fully charge the battery.
Charging the battery with Cigar lighter adapter
I
External Battery LED Indication
I
Charger Connected
1. LED-Red Off : Done or suspend
On : Charge-in-progress
2. LED-Green On : Full
3. LED-Yellow On : Medium
4. LED-Red On : Low
LED - Green/Yellow/Red (all 2,3,4 On) : Full
LED Indicator
1. LED-Red Off : Not under charging status
2. LED-Green Off : Medium
3. LED-Yellow Off : Low
4. LED-Red Off : Discharged
6
Configuration
5

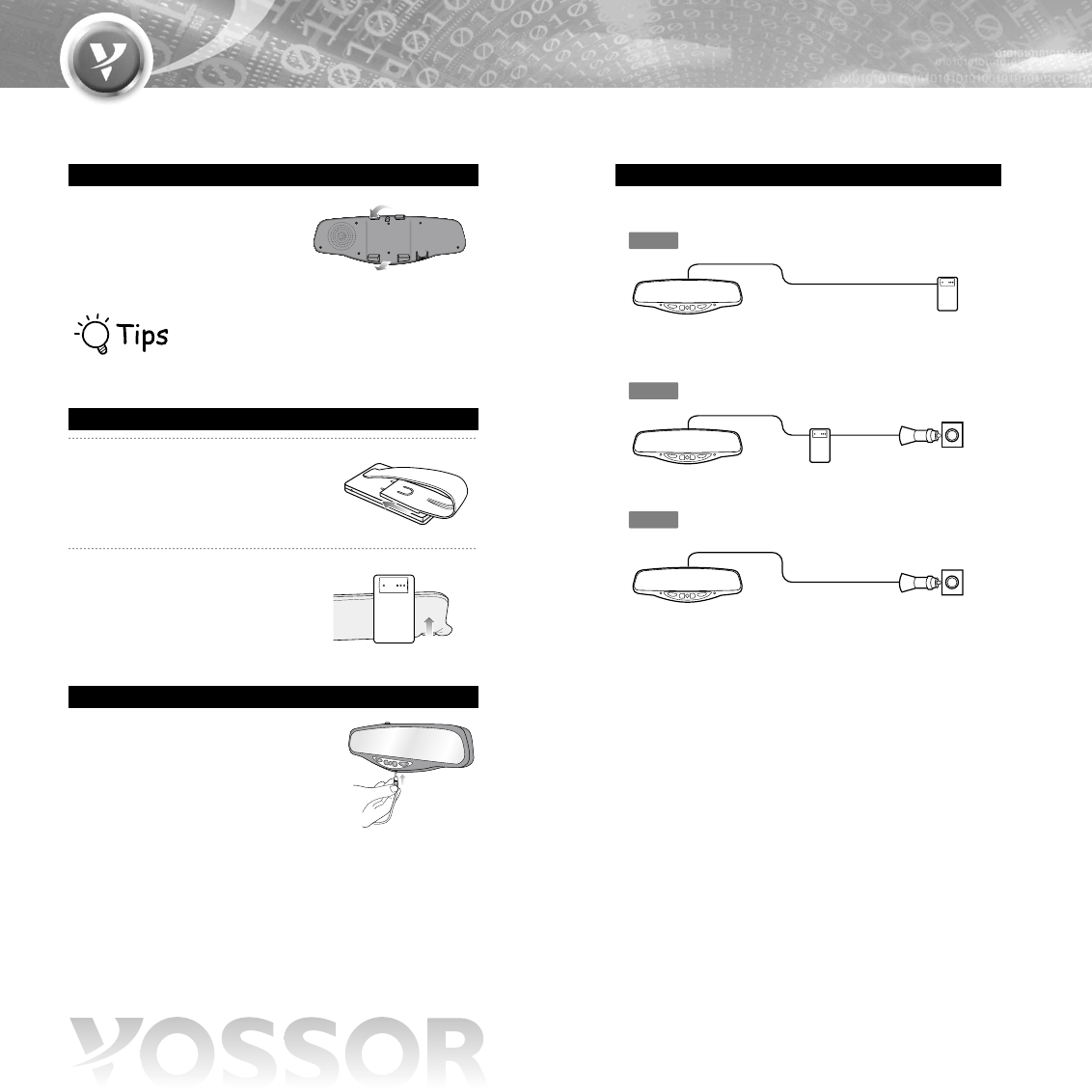

First, place the upper holder of
VOSSOR to the top side of the
rear-view mirror in your car.
Push VOSSOR closely to the mirror
and place the lower holder of VOSSOR
to fit completely.
Place VOSSOR in the center of the rear-view mirror in
your car. If not, the sound could be diminished.
Setting up VOSSOR
You can have a private conversation
with the earphone.
For this function, please make the
speaker mute by double clicking the
Audio Transfer button(A/T).
Please refer to the Page 7 for Speaker
mute.
Using the earphone(Option)
Put the enclosed battery clip
in the groove on the lower side
of the battery.
1
Fix the battery
using the enclosed clip.
2
Setting up the Battery
You can select an option out of as below;
The first time you use VOSSOR, please fully recharge the battery first.
Option1 VOSSOR+Battery
Option2 VOSSOR+Battery+Cigar lighter adapter
Option3 VOSSOR+Cigar lighter adapter
Options for power supply
8
Configuration
Pairing with a Bluetooth
mobile phone
7

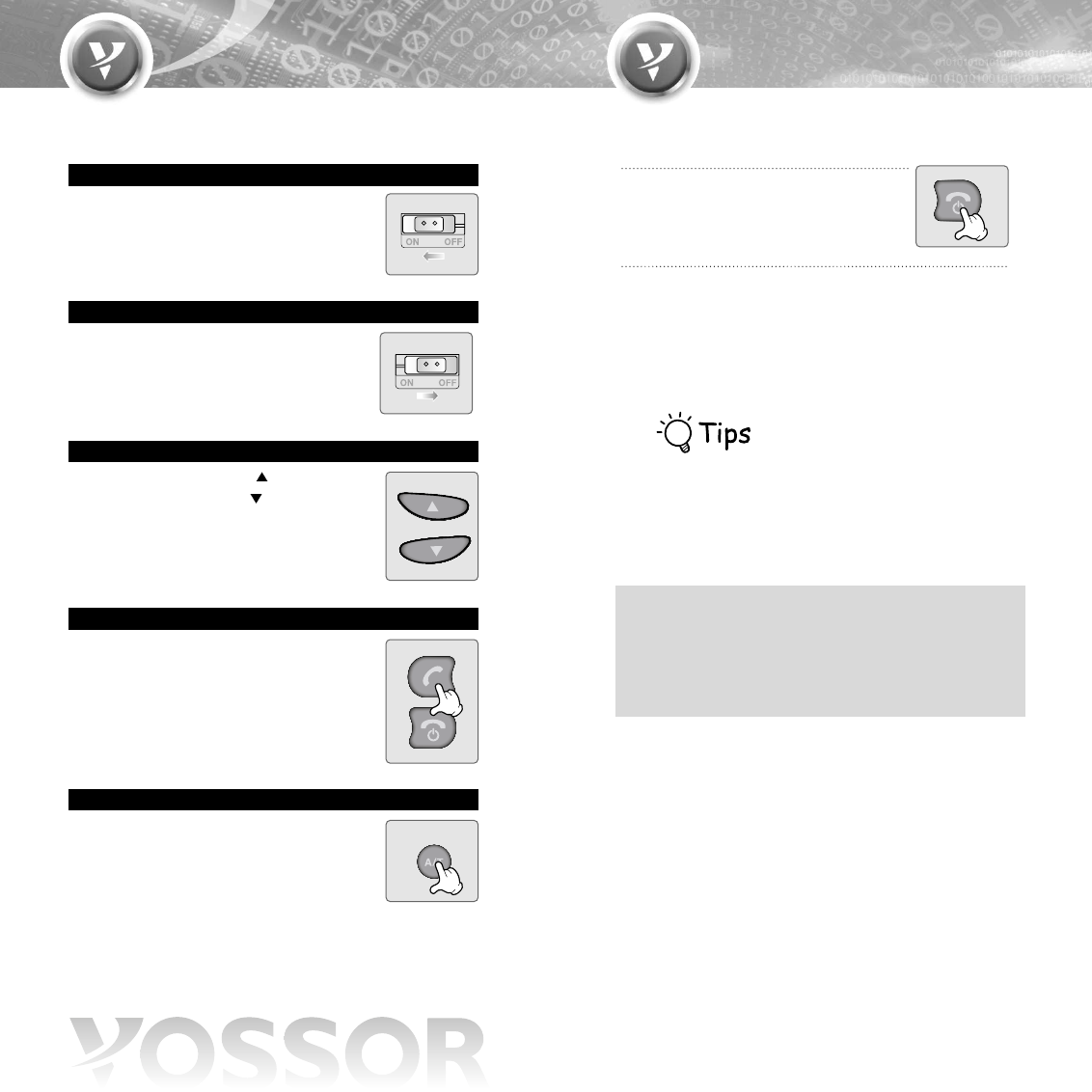

Turn on the Power switch.
Power on
Turn off the Power switch
Power off
●●For higher volume, press button .
●●For lower volume, press button.
Speaker Volume control
In order to increase the volume of the
microphone, press SEND and END button
simultaneously until you hear the "beep"
sound.
●Repeat four times to go back to initial stage.
Microphone Volume control
Double click the Audio Transfer button.
●The speaker will mute after the beep sound is heard.
(The sound will still be heard through the earphones.)
●To cancel the mute function, double click the Audio
Transfer button.
Speaker mute
Press the END button for more than
2 seconds.
The blue LED will flash once a second
with a melody.
1
From the handset, search for and register VOSSOR.
Please refer to the user’s manual of the handset.
Enter "0000" when a pincode(or passcode) is requested.
when the pairing is completed, the blue LED of VOSSOR flashes
every 4~5 seconds with a melody. If it flashes once a second,
please try again from the beginning.
2
After pairing the Bluetooth mobile phone with VOSSOR,
you can use it as a handsfree unit.
I
Pairing can be done with up to a maximum of 3 handsets.
I
• VOSSOR stores up to 3 different phones in memory.
• Keep in mind that the latest phone number removes the earliest one when
the memory is full.
• Priority is given to the most recently paired handset.
• If you want to change the handset priority, try to connect VOSSOR from
the handset.
• If the latest paired handset supports handsfree profile, VOSSOR is
connected automatically to the handset when the power is on.
Once your phone is paired with VOSSOR, it will automatically
recognize VOSSOR.
10
Using Troubleshooting
9
You can have a conversation with VOSSOR
and use it as a handsfree unit.
Press SEND button.
You can re-dial the latest number by pressing this button.
(In the case of some handsets, voice dialing initiates)
You can activate the voice dialing by holding this button.
(If the handset supports this function)
Ending a call
You can activate the voice dialing by holding this button.
Last number/Voice dialing
VOSSOR plays a melody and the blue LED flashes when
a handset rings.
Press SEND button to answer a call.
You can have a conversation through VOSSOR.
Answering a call
Press END button to reject a call.
Rejecting a call
Handset
��
VOSSOR : Press Audio Transfer
button of VOSSOR while you are talking.
It can be transferred to VOSSOR without ending a call.
VOSSOR
��
Handset : Press Audio Transfer
button of VOSSOR while you are talking.
It can be transferred to the handset without ending a call.
Transferring audio
To receive a second call while answering the
first call, press Send Button of the Vossor.
To get back to the first call, just press Send Button again.
Call Waiting
Whether the battery of
VOSSOR is fully charged.
Charge the battery.
VOSSOR does not turn on.
Check
Whether the Power cable is
inserted properly.
Insert cable again.
Check
Whether the Power switch is
turned on.
Turn on Power switch.
Check
Whether the handset
supports handsfree profile.
In order to have a conversation
through VOSSOR, a Bluetooth
handset that supports handsfree
profile is required.
Can not have a conversation through VOSSOR.
Check
Whether the battery of
VOSSOR is low.
Charge the battery.
Check
Whether the power of
VOSSOR is turned on.
Turn on the Power switch or
insert the Power cable.
Can not pair VOSSOR with the Bluetooth device.
Check
Whether the Bluetooth device
is paired with VOSSOR.
Turn on the Power switch.
Check
Whether the volume status is
at lower level.
Press the Volume up button.
No sound from the speaker.
Check
12

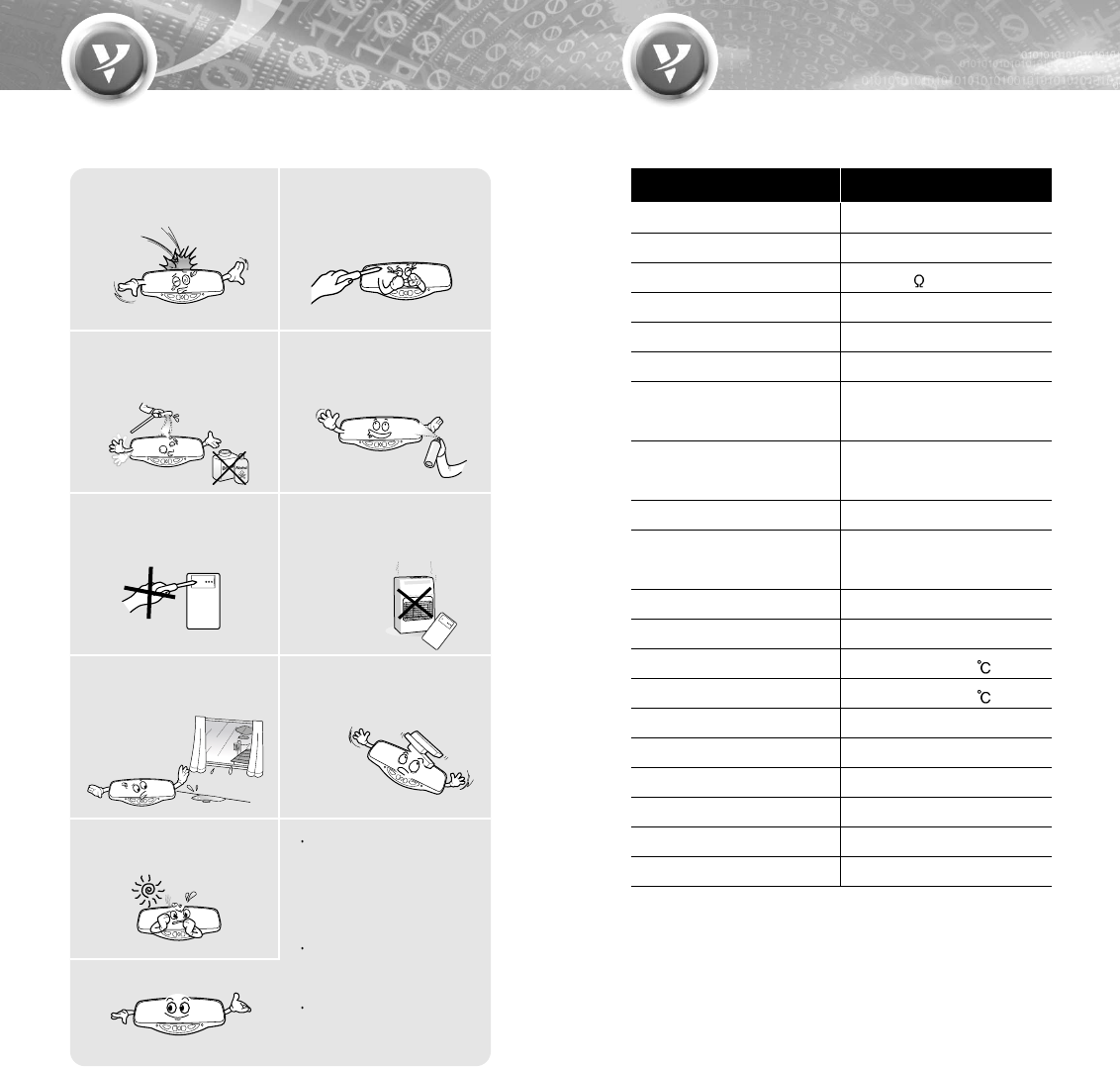

Precautions
Specifications
11
Ear Phone Interface Ear Phone Type
Battery 3.7V, 2000mA Li-Ion
Speaker 4 / 1W(Normal)
MIC -47 +/- 1.5dB
Power Consumption Max 250mA
Cigar Lighter Jack OUT : 5V/600mA
Frequency range 2400MHz to 2483.5MHz
(USA, Europe)
Modulation Method GFSK, 1Mbps, 0.5BT
Gaussian
Transmission Power Typ. 1.0dBm
Hopping 1600 hops/sec,
1MHz channel space
RX. Sensitivity Typ. -83.0dBm
Built in Memory Flash memory(4MBit)
Operating Temperature -20~70
Storage Temperature -40~80
Noise suppression <52dB
Echo Cancellation Up to 18dB
Supported Profile Headset and Handsfree
Security Level Level 3
Standby Time 200 hours
Talking Time 10 hours
Function Description
Do not drop the unit from
high places. Do not modify, repair nor
take apart at discretion.
Do not expose directly to
the water, alcohol,
benzene, etc. for cleaning.
Do not expose directly
to flammables.
Do not disassemble the battery.
∙It may cause an explosion.
Do not place nor keep the
unit near the flammables.
∙
It may cause an explosion.
Keep the device away from
humidity & dust. Do not place heavy
objects on the device.
Keep away from direct light
or heat. Changes or modifications
not expressly approved by
the party responsible for
compliance could void the
user's authority to operate
the equipment.
The device may explode if
the battery is replaced
incorrectly.
Dispose the used batteries
according to the
instructions.
Memo
Several studies have shown that cell phone usage while driving creates a
distraction to the driver which may increase the likelihood of an accident. This
distraction potential is not eliminated by the use of a handsfree kit. handsfree kits
have not been shown to be safer than hand-held phones with respect to driver
distraction. When using the phone while driving, keep conversations short and
resist any temptation to make notes or read documents. Before answering calls
consider your circumstances. Pull off the road and park before making or
answering calls when driving conditions require (e.g. bad weather, high traffic
density, presence of children in the car, difficult junctions or manoeuvres.)
Abide by local laws.
Please check if the state and local laws where you live restrict the use of mobile
phones while driving. It is the owner's responsibility to use this product in
compliance with the laws of the place where you live.
Notes
