1. Introduction

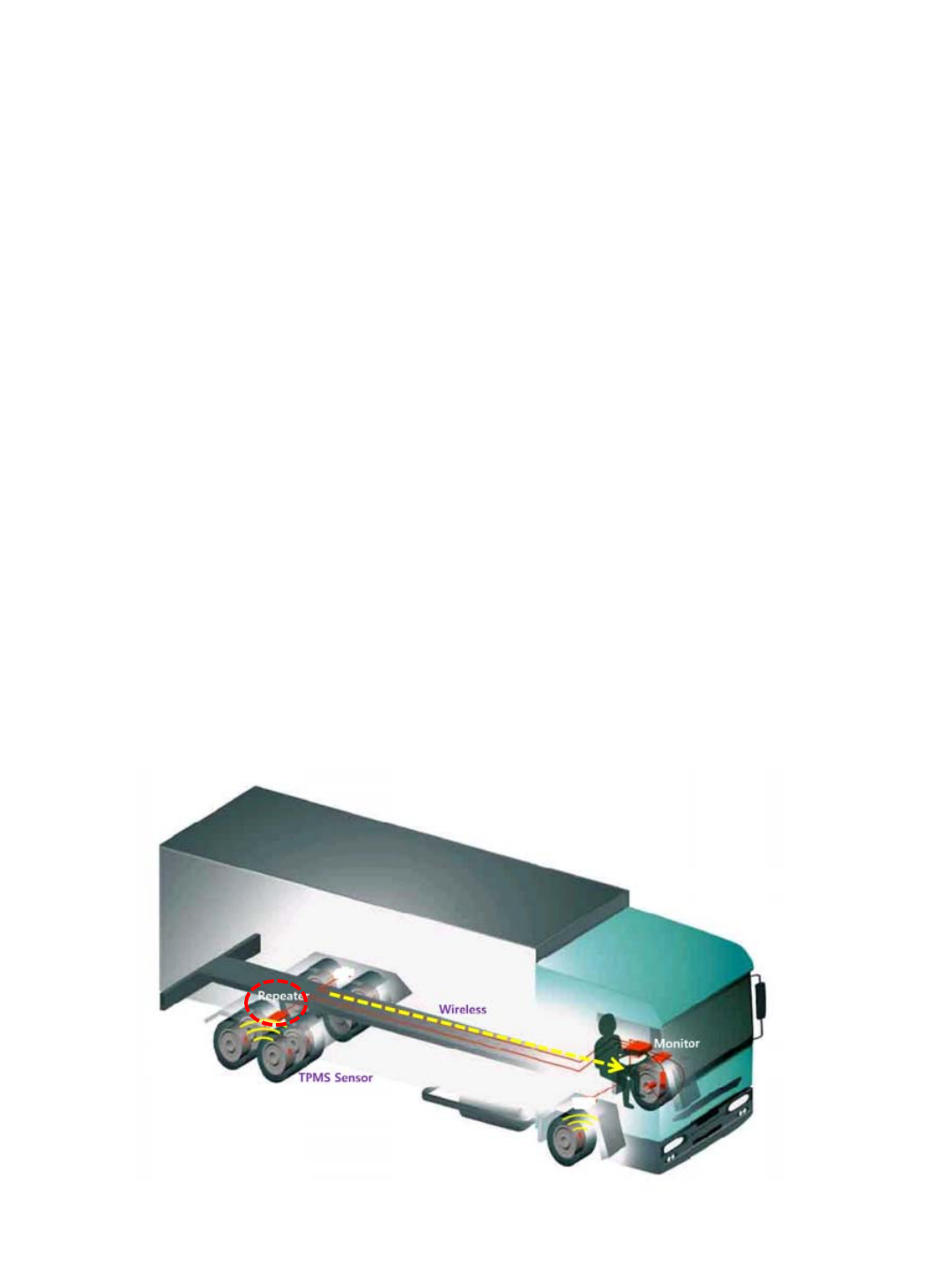

TP2-Repeater is device to relay TPM(Tire Pressure Monitoring) information
from TPM Sensor, Which is installed in each tires, to Monitor through
433.92MHz of RF
2 Specification
2
.
Specification
○ Frequency : 433.92MHz
○ Output Power : EN300 200
○Operating temperature : -20℃ ~85℃
○
Operating voltage: DC 24V
○
○ SIZE (L × H × W) : 116mm × 41mm × 103mm
○ Weight : 137g
3. Installation of REPEATER
○ Mounting of tire pressure sensor
○ TP2-Repater install in vehicle back wheel frame middle, so fixed it to NUT
○ TP2-Repater power line is connected to ignition of vehicle
○ Plug in the Monitor to cigarette socket and turn on the key to ACC mode
