HW211-SG Reader/Writer Unit and HW211R-SG Reader/Writer Unit
INSTRUCTION MANUAL
Foreword
Thank you for purchasing the HW211-SG/HW211R-SG Reader/Writer Unit.
This manual describes basic precautions and basic handling procedures for the Reader/Writer Unit.
Read this manual thoroughly before using the Reader/Writer Unit, and make sure that you use the unit correctly.
Caution!
Please be forewarned that this company will not accept any responsibility whatsoever for any financial
damage, lost revenue, or any claims from a third party arising from the use of this product or included
products.
The specifications of this product may change without notice due to improvements to the product.
This product is extremely sensitive to static electricity. Take care because contact with static electricity that
has built-up on your clothing or your person may damage the product.
Before touching this product, touch a metal object or take other measures to discharge any static electricity.
Alternatively, use a neutralization tool (earth strap, etc.) whenever you are handling the product.

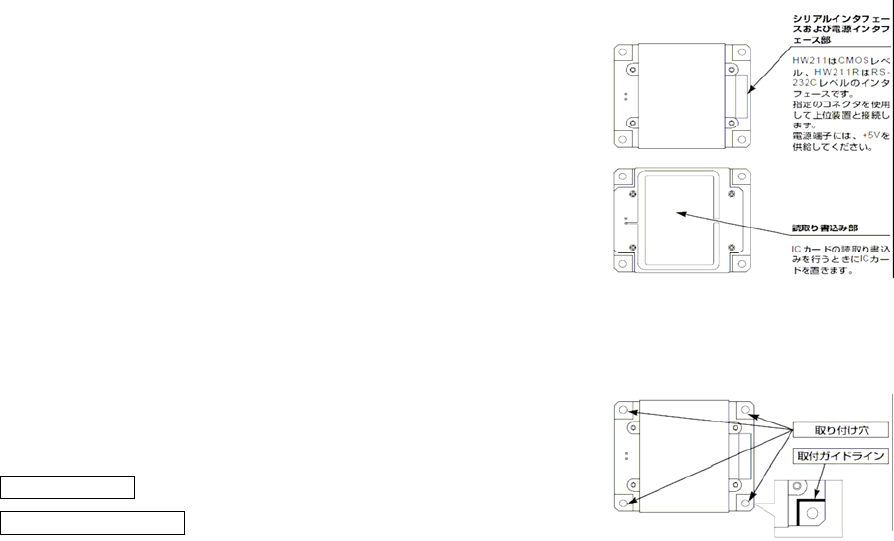

NAMES AND FUNCTIONS OF COMPONENT PARTS
Serial Interface and Power Interface Unit
HW211-SG is a CMOS level interface and HW211R-SG is a RS-232C level
interface. Use the specified connector to connect to the higher-level device.
Supply +5V power to the power terminals.
Reading and Writing Unit
Place the IC card on this unit when reading from and writing to the IC card.
HANDLING PROCEDURES
Attaching the Unit
Securely tighten the screws to affix the Reader/Writer Unit to the mounting
area (chassis, etc.).
1) Attachment Hole
2) Attachment Guide Line
1/3
User Manual (User Manual(HW211)英文.doc
Installation Cautions
- Make the cable that connects the Reader/Writer Unit to the higher-level device as short as possible.
- Do not install any metal on the upper surface of the antenna of the Reader/Writer Unit.
- If there is any metal next to the Reader/Writer Unit, communication properties may be degraded.
- Do not install the Reader/Writer Unit in an environment where there are large amounts of noise, such as
near a switching power supply.
- When you are attaching a bracket, make sure you attach it so that it does not protrude past the attachment
guide line.
BEFORE YOU DECIDE THE UNIT IS MALFUNCTIONING
If you cannot get the Reader/Writer Unit to operate at all, or if the unit occasionally malfunctions, check again that
the base plate, etc. are properly connected before contacting your supplier.
SPECIFICATIONS
Outer Dimensions: Approx. 55 mm (W) × 65 mm (D) × 8 mm (H); (excluding protrusions)
Serial Interface Unit
Signal Level:
HW211-SG CMOS Level
HW211R-SG RS-232C Level
Synchronization: Asynchronous Communication
Transmission Speeds: 1200/2400/4800/9600/19200/38400/115200 bps
Connector:
HW211-SG DF3Z-10P-2V (51)
HW211R-SG DF3Z-8P-2V (51)
Manufactured by Hirose Electric Co. Ltd. (Gold-Plated Contacts)
Weight: Approx. 40 g
Power Supply: DC5V ± 5%
HW211-SG: MAX 160 mA
HW211R-SG: MAX 200 mA
Operating Temperature/Humidity:
-20°C to +60°C, 35% to 85%; (non-condensing)
This product, designed for use in Japan, is a strategic product regulated under Japanese
Law. If you plan to export or take this product out of Japan, please obtain permission
from the Japanese Government.
2/3
User Manual (User Manual(HW211)英文.doc
3/3
*************************************************************************************
FCC Part 15 and RSS-210:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Following statement is applicable for final product(Game Machine), which mount the
Reader/Writer Unit(HW211-SG/HW211R-SG) inside.
FCC Part 15 Subpart B Class A:
NOTICE
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his or her own
expense.
ICES-003
This class A digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe A est comforme a la norme NMB-003 du Canada.
*************************************************************************************
