SEGI JMA510SS CAR Alarm transmitter User Manual MA510
SEGI LIMITED CAR Alarm transmitter MA510
SEGI >
User manual
CM3000
CM3000
INSTALLATION GUIDE
CM3000
YOUNG SHIN Electronics Co., Ltd.
www.MAGICAR.com
FCC ID : VA5JMA510SS
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
CAUTION :
Changes or modifications not expressly approved by the party
responsible for compliance could void the user s authority to
operate this device. This dvice can't co-locate with other transmitters
INSTALLATION GUIDE
Compustar A Controllers
and should be installed and operated with a minimum distance
of 20 cm from the antenna to end user.
Page 2
TABLE OF CONTENTS
ᵄWiring Diagram
ᵄInstallation of FM or SS Antennas and RPS
ᵄOption Programming for Four Button Remote
ᵄOption Programming for Six Button(ONE WAY) Remotes
ᵄRemote - Pager Programming Menu Options
Page 4
Page 5
Page 6
Page 7
Page 7
ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ
ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ
ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ
ᴍᴍᴍᴍᴍᴍ
ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ
Under normal circumstances, Reservation Mode is cancelled
when a door or hatchback opens. Please verify if the opening of any door or
hatchback cancels Reservation Mode. If any of the doors or hatchback is not
monitored by CompuStar because of improper installation or a faulty dome light switch,
do not use the CompuStar and take your vehicle to the dealer immediately for repair.
Do not set Reservation Mode when the window(s) are open or if there is anyone
inside of the vehicle including animals.
This system requires no specific maintenance. Your remote-pager is powered by a single
AA battery that will last approximately one month under normal use depending on the
make and model of your vehicle. There is a battery icon in the lower right corner of the
CompuGLO LCD indicating remaining battery life. When the battery weakens, the
operating range will be reduced and the CompuGLO LCD will dim. Contact your
authorized CompuStar dealer if you have additional questions.
System Maintenance
Page 4
Important!

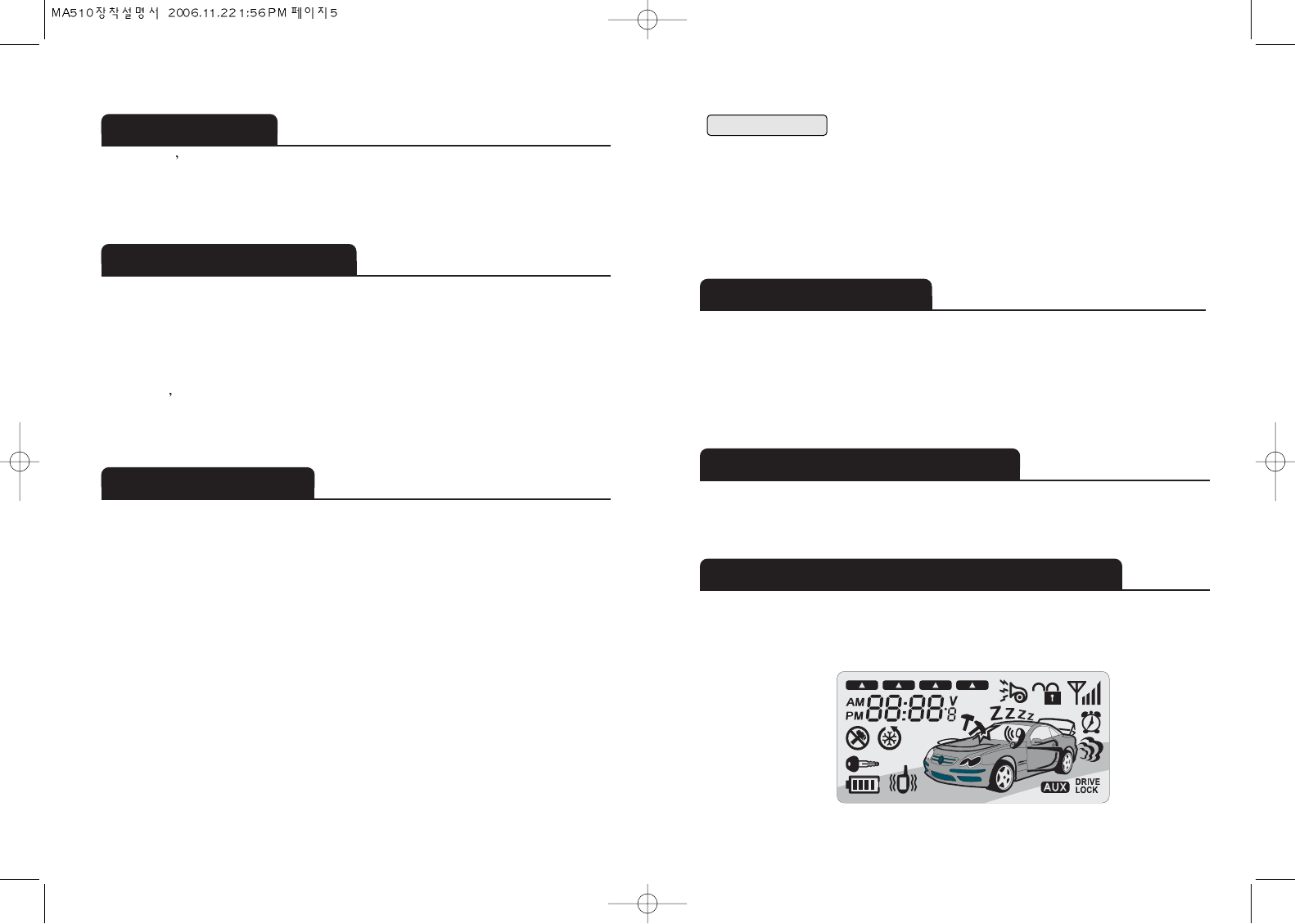

The model name, 2WSSR, stands for Two Way Spread Spectrum Remote with
Liquid Crystal Display. This 5-channel transmitter that allows you to activate multiple
functions by pressing a combination of 4 buttons on the unit in order to transmit signals.
REMOTE-PAGER : 2WSSR w/LCD
The remote-pager comes with CompuGLO which is a unique color LCD display that
visually tells the vehicle owner the security status of your car at all times. There are
differing icons that will appear on your CompuGLO LCD indicating what your vehicle is
currently doing.
CompuGLO color LCD
(Liquid Crystal Display)
The product s warranty is automatically void if its date code or serial number is defaced,
missing or altered. This warranty will not be valid unless you have completed the regis
tration card and mailed it to Firstech, Inc., within 10 days after the purchase to the
address listed on the registration card.
Your Warranty
Congratulations on the purchase of your high-tech vehicle security system and remote
auto-starter. This system has been designed to provide years of trouble-free operation.
Due to the complexity of the system, it must only be installed by an authorized
CompuStar dealer for full warranty and technical support. Installation of this product by
anyone other than an authorized dealer voids the warranty.
The owner s guide should help you to get the most out of your system. Please take
time to read it thoroughly prior to using this system. Additional replacement copies of this
manual are available for downloading at www.compustar.org.
Important Information
Please take these safety precautions under the following conditions:
1. Servicing the vehicle
When servicing (i.e. changing the oil, washing your car) your automobile, the CompuStar
system should be in Valet Mode. There is a safety shutdown switch under the hood that
deactivates the remote starter function if the hood is open. However, if the switch has
been damaged or the switch has been installed improperly, the vehicle may start when
Button II is pressed for 2 seconds even if the hood is open.
2. Loaning your vehicle to others
Whenever you loan your vehicle to an individual who is not familiar with Compustar,
please put the vehicle in Valet mode. This will prevent the vehicle loaner from accidental-
ly activating the CompuStar auto-security system.
3. For manual transmission vehicles
If the Compustar 2WSSR is installed in a manual transmission vehicle, extra precautions
are required because the Compustar does not monitor the gear shift :
Safety Information
Page 3
Page 6
Page 5
Shock
Turbo
Timer
Passive
Indicates if the Shock Sensor is on or off. See page 12.
Indicate if Turbo Mode is on or off. See page 17.
Indicates if Timer Start Mode is on or off. See page 16.
Indicates if Passive Arming Mode is on or off. See page 17.
Icon Explanation
Indicates that the second stage shock sensor has been triggered.
If the icon appears continuously, you are in mute(vibration) mode. If the
icon blinks, the first stage shock sensor has been triggered. See page 15.
Indicates if you are in Valet Mode. See page 15.
Indicates if your car parking lights are flashing.
Indicates that your car siren is turned on or off when you lock or
unlock the vehicle.
Indicates that someone is paging you from your vehicle.
Displays if your car is locked or unlocked.
Indicates if your remote-pager is transmitting signals to the controller unit.
Displays remaining battery life.
Displays if your door is open.
Displays if your vehicle has auto-started properly or ignition on.
Displays if your trunk is open.
Remote-Pager Button Functions
1
2
3
4
5
6
7
8
9
10
11
12
13
I
II
III
IV
I
-
II
-
III
-
IV
-
( I+ II)
( I+ III)
( II+III)
(II+ IV)
(III+IV)
( I + III)
-
14
15
16
17
1/2 sec
1/2 sec
1/2 sec
1/2 sec
2 sec
2 sec
2 sec
2 sec
1/2 sec
1/2 sec
1/2 sec
1/2 sec
1/2 sec
2 sec
Alarm Mode - on/off, RPS - on/off
Auxiliary Option 1
Auxiliary Option 2
Query Function
Alarm Mode - on/off, RPS - on/off
Auto-start Function - on/off
Trunk Release - on/off
Panic Mode
Car Siren for Lock/ Unlock-on/off
Valet Mode - on/off
Passive Arming - on/off
Timer Start Mode - on/off
Turbo Mode - on/off
On
Off
Off
Off
Off
On
Off
Shock Sensor – on/off.
( II + III)
-
2 sec Mute mode (Vibration only) – on/off.
( I + II)
-
2 sec Programming Menu 1
( I + III)
-
2 sec Programming Menu 2
Button
Channel
Press for
Function
Factory
Setting
Note :
"
( )
"means simultaneously pressing the buttons
"
( )
-
" means simultaneously pressing the buttons for 2 seconds.
The user can activate differing functions of CompuStar 2WSSR system by pressing
one or two buttons simultaneously (ex.(
I
+
IV
) ) located on the antenna side of your
Compu Star remote-pager.
Page 8
(
-
)
Output for Parking Lights : Some vehicles, such
as Jeep, have negative Parking lights.
An Aux output is a 5sec pulse that can be changed to Latch.
See Programming Options.
Starter Kill supplies a negative 250mA output when the system is armed.
Dome Light Supervision : Dome light is turned on for one minute
after unlock. If you program Dome Lghts Rearm option, the
Violet wire of CN2 supplies a ground pulse before Lock.
The Dome Light Rearm Option is to simulate opening the door
and pressing the factory lock button for factory arming.
The sequence for the Rearm pulse : pulse when armed (locked).
The sequence for the Disarm pulse : a pulse when disarmed(unlocked).
Installation of FM or SS Antennas and RPS
Installation of FM or SS Antennas and RPS.
The antennas have been calibrated for
horizontal installation at the left-top corner
of the windshield. Different installation
may adversely affect the
transmitting distance.
RPS

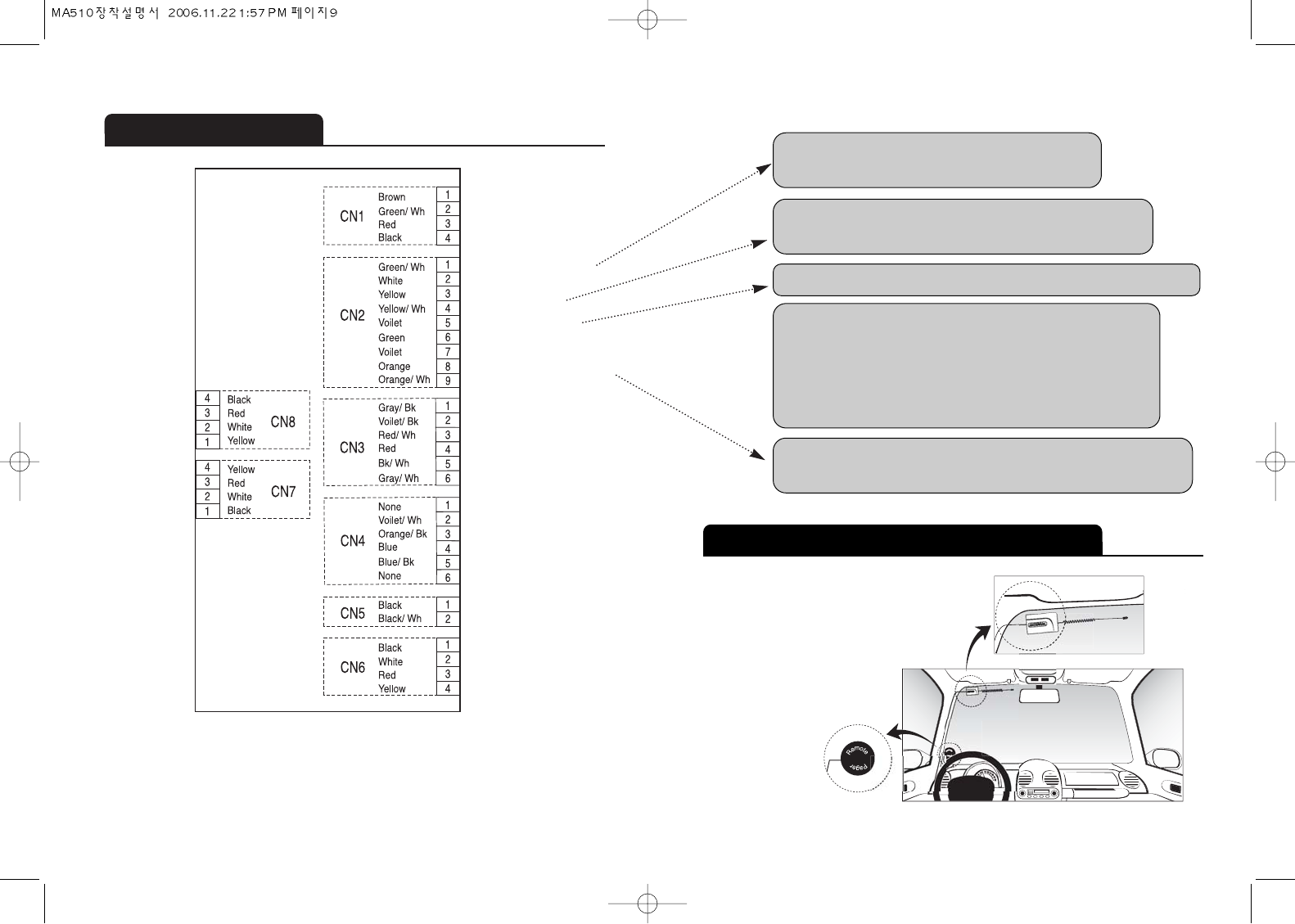

Wiring Diagram
Page 7
(-)
(+)
Tx Antenna Date Cable
Rx Antenna Data Cable
LED (-)
(+)
RPS Sensor
(-)
(+) Siren Output
(+) Parking Light
12V Constant
Ground
(-) 250mA Parking Light
(-) 250mA Horn Output
(-) 250mA Aux1
(-) 250mA Aux2
(-) 250mA Starter Kill
(+) Ignition Sensing Input
(-) 250mA Dome Light Output
(-) 250mA Rearm Output
(-) 250mA Disarm Output
(-) Hood Pin Sensing
(-) Trunk Pin Sensing
(-) Door Pin Sensing
(+) Door Pin Sensing
(-) Optional Trigger 2nd Stage
(-) Optional Trigger 1st Stage
(+)
(-) 250mA Trunk Output
(-) 250mA 2nd Pulse Unlock
(-)250mA Unlock Output
(-) 250mA Lock Output
(-)
(-) LED
(+) LED
(-)
2nd Stage Dual-Shock
(+)
1st Stage Dual-Shock
ḟ
ḟ
Page 10
Programming
Programming Menu 1
Programming Menu 2
Option Selection
Factory Setting
Option Selection
Default Setting Selection
6 Button Remote
(Trunk+Start)-
(Trunk+Stop)-
(Stop)-
Lock
Unlock
(Start)-
4 Button Remote
(I+II)-
(I+IV)-
(IV)
( I )
( II )
( III )
Option Programming for Six Button
(ONE WAY)
Remotes
.
The procedures will be same as the 4 button remotes except the use of the
different buttons.
Feature
Door Lock / Unlock Pulse Duration
Driver’s Priority Unlock
Double Pulse Unlock
Dome Light Factory Rearm
0.8 sec
OFF
OFF
OFF
2.5 sec
ON
ON
ON
Factory Default
Setting - Button I
Optional
Setting - Button II
Remote-Pager Programming Menu Options
Programming Menu #1 ( Door Lock Options )
1- 1
1- 2
1- 3
1- 4
1- 5
1- 6
1- 7
Note
1- 4 This feature unlocks the driverᴗs side door lock with the first unlock pulse.
A second unlock pulse is need to unlock the rest of the car doors.
Page 9
ᵉ
If you hear a long chirp, you are going out of programming mode,
please go back to Step 1.
ᵉ
If you want to change more options, go back to Step 1.
Option Programming for Four Button Remotes
Step1:
For programming menu 1 : Press Buttons (
I+II
) for 2 seconds.
For programming menu 2 : Press Buttons (
I+IV
) for 2 seconds.
The car will chirp once indicating that you are in programming mode.
Step2:
Within a 2 seconds after pressing (
I+II
) or (
I+IV
), press Button
IV
the
number of times to go to the option number you want to change.
You will hear a chirp and see the parking lights flash each
time when you press Button
IV
.
Step3:
Wait a few seconds. You will hear a number of chirps and see a
number of parking light flashes corresponding to the option num
ber you want to change. If the number of chirps or flashes is not
what you want, go back to Step 1.
Step4:
Press Button I for the default factory settings and your car will
respond by one chirp and one flash. Press Button
II
for the
optional setting and your car will respond by two chirps and two
parking light flashes.
Resetting the Programming Options to the factory default settings.
Step1
:
Press Buttons (
I+II
) simultaneously or Buttons (
I+III
) simultaneously
for 2 seconds. Step 1 is confirmed by a car chirp and a one-time
flashing of the parking light.
Step2
:
Press Button
III
three times. This is confirmed by a car chirp and
parking light flash each time you press Button
III
. A few second later,
your car will chirp and parking light flash three times rapidly.
Your car is now set to all of the original factory default settings.
Page 12
Panic Mode
IV for 2 seconds
1.5 minutes
Starter-Kill
Activated immediately
N/A
Button
Siren
Installation required
Starter Kill
Ignition Kill
Anti-Jacking Mode
IV for 2 seconds
1.5 minutes
Ignition-Kill
N/A
Activated immediately if key is not on.
If key is on, activated in 30 seconds after
pressing the Button
IV
2- 5 With this option, the doors will lock after the ignition is turned on and unlock
when the ignition is turned off.
2- 6 & 2- 7
You can program the duration between 1 to 99 seconds.
You can program the “Latch Mode” also.
Setting
Contents
2-9
Off
Pluse
Latch
Pluse
Latch
On
2-6
2-7
off
on
off
on
1-99,
Latch
1-99,
Latch
2-9 If you need more than 2 Aux outputs, you can interface the CM 3000 with
Channel Expander for 7 Aux outputs. If you take this Channel Expander option
and you turn on the Passive setting of the 2WFMR, the four buttons of the
2WFMR operate these 7 outputs instead of normal button functions such as
arm/disarm or start/stop. Refer to the manual of the Channel Expander.
2-10
If you take the Channel Expander option of 2-9, the Passive setting of the
remote will change the button functions to operate of the Channel Expander.
The Passive setting of the remote will no longer work as the Passive Arming
function. Therefore, if you need both Channel Expander and Passive Arming
function, you need to choose this option.
In order for this feature to operate, the installer must use the
2nd Unlock Wire (Or/Bk wire of Connector 4). Isolate the driverᴗs door actuator
from the rest of the other doors. Call us for the technical support if you are not
sure about this.
Programming Menu #2 (Security Options)
Note
2-4 With this option, Panic mode becomes Anti-Jacking mode.
The differences between Panic mode and Anti-Jacking mode are :
Important!
Feature
Passive Locking, too
No Passve Locking
Remote
controller
OFF
OFF
0.5 Sec
0.5 Sec
30 Sec
ON
ON
Latch
Latch
60 Sec
Factory Default
Setting - Button I
Optional
Setting - Button
II
Programming
Method
2- 3
2- 4
2- 5
2- 6
2- 7
2- 8
Passive Arming
Anti-jacking
Ignition Controlled Door Lock
Aux 1 Output
Aux 2 Output
Siren Duration
Feature
Non using of Channel
Expander module
When Option 2-9 is on
Non using of Passive
Mode with remote
Using of Channel
Expander module
Using of Passive
Mode with remote
Channel Expander
Passive Arming with the
Channnel Expander
Option
Programmer
(CM3 -Series)
OFF ON
Programming
Method
2- 9
2 - 10
Page 11
Page 14Page 13
Adjusting the Car Siren Volume:
In order to decrease the chirping volume of the siren, cut the loop located on
the siren.
Adjusting the Shock Sensor Sensitivity:
In order to the shock sensor sensitivity, turn the screw located on the
sensor clockwise. In order to decrease the sensitivity, turn the screw located
on the sensor counter-clockwise. Turning the screw just a small amount can
make a big difference so make sure you recheck the sensitivity after each adjust-
ment.
Setting
AUX No.
2-9
On
Access to passive mode through a remote
Non setting of passive mode
Setting of passive mode
Button
II
Button
III
All outputs are connecting with
Channel Expander through AUX1.
Button
I
Button
II
Button
II
Button
III
AUX 1,
AUX 2
Button
III
Button
IV
Button
II-
Button
III-
Button
IV-
off
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
Output
