Safety Information
Please take these safety precautions under the following conditions:
1. Servicing the vehicle
When servicing (i.e. changing the oil, washing your car) your automobile, the
MAGICAR system should be in Valet Mode. There is a safety shutdown switch
under the hood that deactivates the remote starter function if the hood is open.
However, if the switch has been damaged or the switch has been installed
improperly, the vehicle may start when Button II is pressed for 2 seconds even if
the hood is open.
2. Loaning your vehicle to others
Whenever you loan your vehicle to an individual who is not familiar with Compustar,
please put the vehicle in Valet mode. This will prevent the vehicle loaner from
accidentally activating the MAGICAR auto-security system.
3. For manual transmission vehicles
If the MAGICAR 2W9000Pro,2W9000Pro-2nd is installed in a manual transmission
vehicle, extra precautions are required because the MAGICAR does not monitor
the gear shift:
This equipment has been tested and found to comply with the limits for a digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residental installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, whitch can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to witch the
receiver is connected.
--consult the dealer or an experienced radio/TV technician for help.
Page 4
4. Color LCD Page 5
The remote-pager comes with GLO which is a unique color LCD display
that visually tells the vehicle owner the security status of your car at all times.
There are differing icons that will appear on your GLO LCD indicating what
your vehicle is currently doing.
Color LCD
Page 5Page 4
Description of Remote Appearance
Rear
The model name, 2W9000Pro, 2W9000Pro -2nd stands for
2 Way FM 4 Button
Remote.
2W9000Pro-2nd
2W9000Pro
Important!
Under normal circumstances, Reservation Mode is cancelled
when a door or hatchback opens. Please verify if the opening of any door
or hatchback cancels Reservation Mode. If any of the doors or hatchback is
not monitored by MAGICAR because of improper installation or a faulty dome
light switch, do not use the MAGICAR and take your vehicle to the dealer
immediately for repair. Do not set Reservation Mode when the window(s) are
open or if there is anyone inside of the vehicle including animals.
Remote-Pager : 2W9000Pro/ 2W9000Pro2nd w/LCD
The model name, 2W9000Pro, 2W9000Pro -2nd stands for
Two Way Frequency
Modulation Remote with Liquid Crystal Display
.
This transmitter that allows you to activate multiple functions by pressing a
combination of 4 buttons on the unit in order to transmit signals.
ff
rr
Page 7
Remote-Pager Button Functions
1
2
3
4
5
6
7
8
9
10
11
1/2 sec
1/2 sec
1/2 sec
II
III
IV
II
-
I , I
-
(I + II)
1/2 sec
1/2 sec
1/2 sec
1/2 sec
2 sec
2 sec
2 sec
Alarm Mode - on/off, RPS - on/off,
Siren Off, Starter Kill (Anti-Grind) -
on/off
AUX 1
AUX 2
Query Function
Trunk Release
Auto-start Function – on/off
Panic, Press Ito shut off Siren.
Siren Chirps – on/off
Valet Mode – on/off
Passive Arming – on/off
Timer Start Mode – on/off
Turbo Mode - on/off (2W9000Pro)
2nd Car-on/off (2W9000Pro-2nd)
Shock Sensor – on/off
Button
PressedFor
Function
12
13
14
15
(I + III)
(II + III)
(II + IV)
(III + IV)
(I + III)
-
(I + II)
-
(I + IV)
-
1/2 sec
1/2 sec
2 sec
2 sec
2 sec
Programming Menu 1 - Installer Only
Programming Menu 2 - Installer Only
Note : ""
Represents pressing the button for 2 seconds.
"
( )
"
Represents simultaneously pressing the buttons.
"
( )
"
Represents simultaneously pressing the buttons for 2 seconds.
Page 6
LCD Icons
Indicates that someone is paging you from your vehicle.
Display if your car is lock or unlcok
Indicates that your remote-pager is transmitting signals to the
controller unit.
Indicates if Vibrator is on or off.
Indicates if RPS is on or off.
Displays remaining battery life.
1. Time Clock.
2. Remainder of the engine running time.
Indicates if Timer Mode is on or off.
Indicates if Turbo Start Mode is on or off. ( 2W9000Pro )
Indicates if Passive Arming Mode is on or off.
2nd Vehicle - on/off. ( 2W9000Pro-2nd )
Indicates that the Shock Sensor has been triggered.
Indicates that Shock sensor is turned on or off.
Icon Explanation
Indicates if you are in Valet Mode.
Indicates if your car parking lights are flashing.
Indicates that your car siren is turned on or off when you lock
or unlock the vehicle.
Displays if your door is open.
Displays if your vehicle has auto-started properly or ignition on.
Icon Explanation
Displays if your trunk is open.
Displays if your Hood is open.
III
-
IV
-
Page 8
More Button Functions

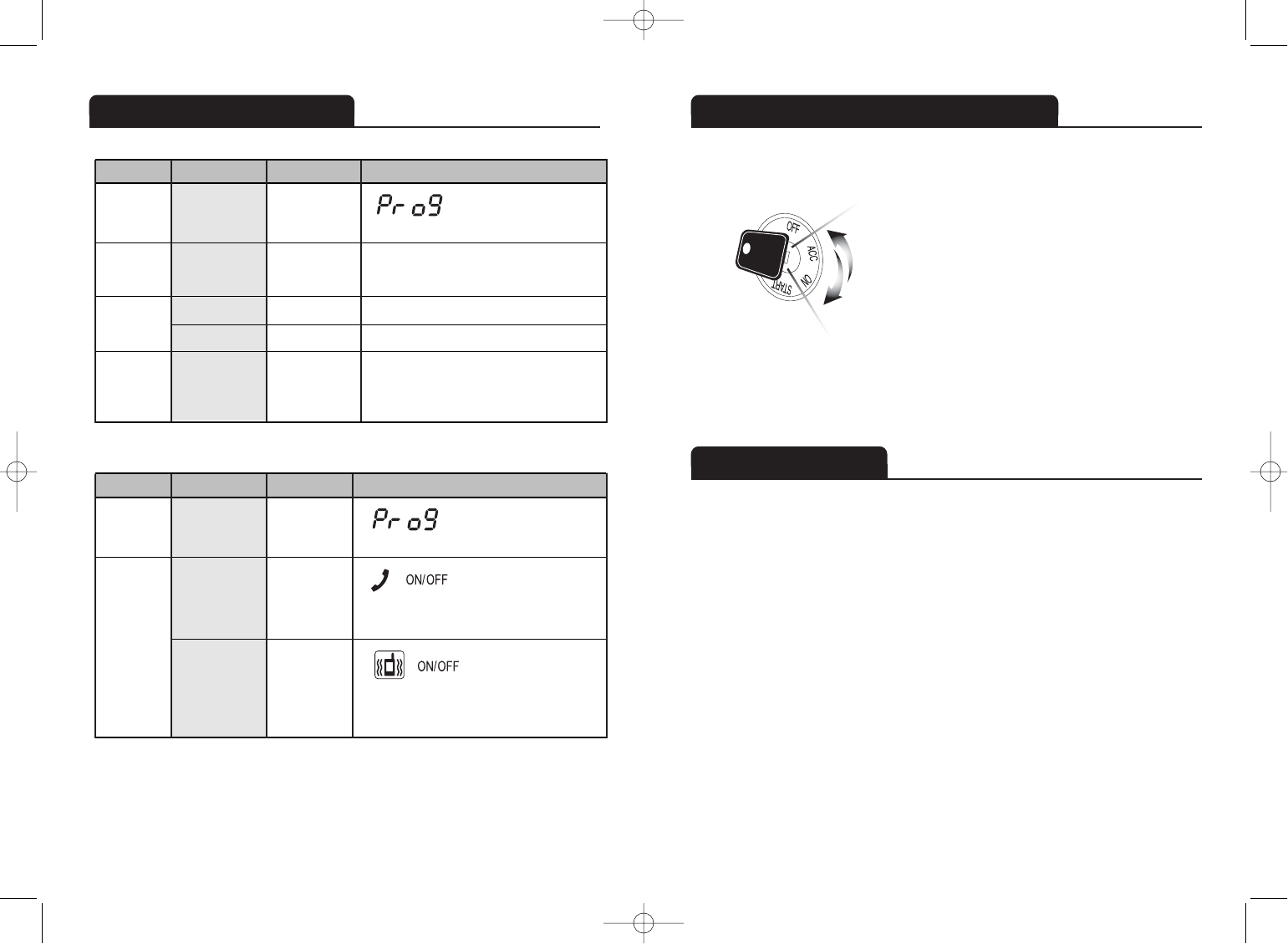

(1) Time Setting
Beep sound for confirmation
STEP 1
(II+III)
-
2 sec
Button
PressedFor
Function
Time setting is on.
The numbers flash. Beep Sound.
STEP 2
(I)
(II+III)
-
1/2 sec
Change time.
Change minutes.
Time setting is off. Beep sound.
You may continue for motion
option.
STEP 3
STEP 4
(I)
(II)
1/2 sec
1/2 sec
2 sec
Page 9
(2) RPS & Vibrator on or off
Note :
The step 2 has to be completed within 15 seconds.
Beep sound for confirmation
STEP 1
(II+III)
-
2 sec
Button
PressedFor
Function
STEP 2
RPS on or off, beep sound for
confirmation.
Vibrator on or off, beep sound for
confirmation.
(III)
(IV)
1/2 sec
1/2 sec
Remote-Pager Learn Routine
If you replace or add additional remotes, you can program up to three remotes,
please perform the following procedure:
Step1 :

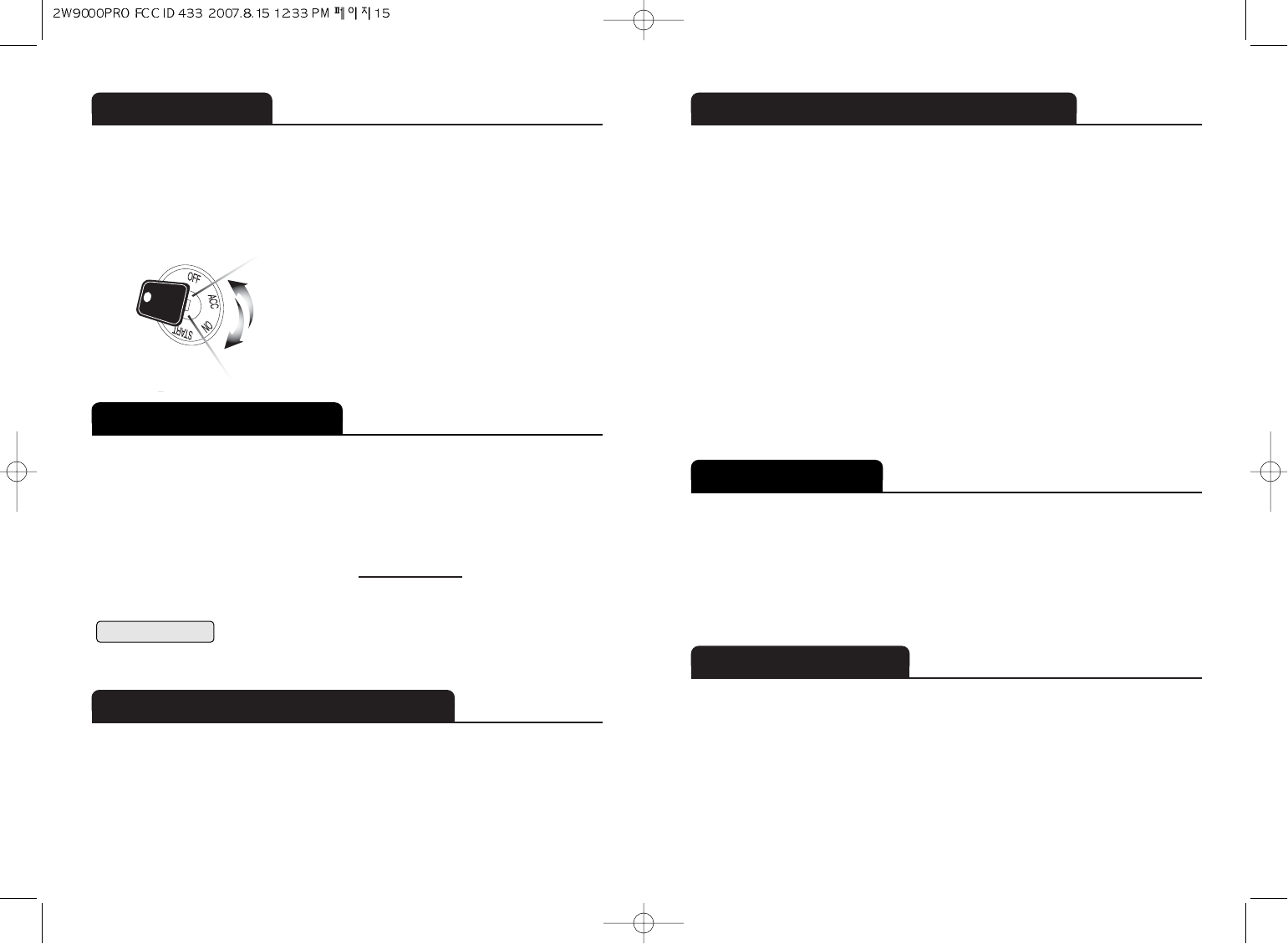

Activate Valet/Programming mode by manually turning the ignition
on and off five times
(between Acc and On)
with car key within a 10 second period.
The parking light will flash once with successful
completion of this step.
Alarm Mode
You can arm or disarm alarm mode by pressing Button
i
for a 1/2 second.
Press Buttons
HiKiiI
for a 1/2second to make your car siren mute when arming or
disarming your vehicle. Keep in mind that your car siren will still activate for all
other modes (i.e. panic, alarm, shock sensor) regardless of whether or not your car
siren is in mute mode. The car siren will be mute only when arming or disarming
your vehicle. In alarm mode, the
starter kill function
(this maybe an optional
feature provided by your installer) is activated.
This feature disengages the starter mechanism on your car that prevents you
from starting your car even with a manual key when your vehicleŖs alarm mode is
activated.
Note :
If you lose your remote after you have armed the vehicle, use your key
to open the vehicle. The siren will go off. Turn on and off ignition 5 times
with your key to shut off the siren and turn the system into valet mode.
Cancel the valet mode with remote later. See Valet mode.
Note :
(Siren duration is 30 to 60 sec depending on the options set at the time
of initial installation.)
Step2
:
Within a 10 second period after cycling the ignition for the 5th time,
press button I. The car parking lights will flash once to confirm
that the transmitter has been programmed. Continue program the
additional remotes. The parking lights will flash two times when
the programming mode is expired.
Page 10 Page 11
Continuation Mode:(Automatic transmission only)
While your vehicle is running with your key, if you press button
ii@
for 2 seconds,
you are now in the continuation mode. Your engine will continue running for the
preset time even if you take your key from the ignition.
This is for your quick stop at, for example, a grocery store.
Diagnosing problems with Auto-Start
If there is a problem in auto-starting your car, you will hear three chirps when you
attempt to auto-start the car. Wait for 2 seconds and the cause for the error will
be indicated by the number of times parking lights flash.
Shows the remainder of the engine running time.
1
2
3
4
5
6
7
Error Number (# of times
parking lights flash) Error Reason
Engine On
Key On
Door Open
Trunk Open
Brake On
Hood Open
Reservation Off (Manual Transmission Only)
Press Buttons
HiKiiiI@
fo
r 2 seconds to activate or deactivate the dual stage shock
sensor. The dual stage shock sensor will activate in 30 seconds after the MAGICAR
alarm mode is armed. When the dual shock sensor is engaged, the remote-pager
security alerts will be triggered by the following:
Light impact to your vehicle will activate the
first stage shock sensor
and the car siren will chirp 4 times in addition to the parking lights
flashing 4 times. The remote pager unit will beep and the hammer icon
shows up a couple of times
Heavy impact to your vehicle will activate the
second stage shock
sensor
and the car siren will chirp for 30 to 60 seconds and the parking
lights will flash for 30 to 60 seconds. The remote-pager will be notified
audibly and a hammer icon will blink in the GLO LCD.
Press Button
I
for a 1/2 second to turn off the second stage shock
sensor sirens and flashing lights.
Press Button
ii@
for 2 seconds to auto-start an automatic transmission engine.
Remember that a manual key in the ignition is required to drive the car.
In addition, the
anti-grind circuit
(this maybe an optional feature provided by
your installer) prevents you from re-cranking the starter on a remote-started vehicle.
Press Button
ii
for 2 seconds in order to turn off an auto-started car.
For manual transmission vehicles, please use reservation mode.
The engine will run 15 or 25 minutes (25 or 45 min for diesel) depending on preset
options at the time of installation and then shut off. If your remote-pager has a
problem starting the vehicle, CompuStar will try 2 additional times.
If the engine does not start after the third attempt, please call your authorized
CompuStar dealer.
Auto-Start Function
Dual Stage Shock Sensor
Reservation Mode
(manual transmission only)
In order to auto-start your manual transmission car, you must first set theMAGICAR
system to Reservation Mode before leaving your vehicle. The purpose
of Reservation Mode is to leave the transmission gear in the neutral position when
you leave your vehicle. Reservation mode is intended for use in MANUAL
TRANSMISSIONS ONLY and NOT FOR AUTOMATIC TRANSMISSIONS.
Reservation Mode must be engaged each and every time you leave your manual
transmission car in order to auto-start the vehicle.
Note :
The system is not recommended for vehicles with removable tops.
Important Requirements to activate Reservation Mode
ႫThe transmission must be in the NEUTRAL position.
ႫThe vehicle windows must be rolled up.
ႫDo not set the reservation mode with people in the vehicle.
ႫDo not auto-start the car with people in the vehicle.
Page 12 Page 13
Important!
If you try to auto-start the vehicle when reservation mode
has not been set or turned on, the auto-start feature will not work.
When you press the auto-start button, the remote beeps three times,
the car parking lights will flash three times and the siren chirps three times.
A couple of seconds later, the cause for the error will be indicated by the number
of times parking lights flash. See Page 13 for error messages.
Activating Reservation Mode
(Manual Transmission only)
Step1 :
After arriving at your destination, and BEFORE TURNING
YOUR ENGINE OFF, place the transmission in the Neutral position.
Step2 :
Remove your foot from the foot brake.
Step3 :
Activate the parking brake.
Step4 :
Remove the key from the ignition. The engine will remain running.
Step5 :
Exit the vehicle and close the door within two minutes after
activating the parking brake. The engine will shut off and reservation
mode for the remote starter is now complete.
Your vehicle is now ready for auto-starting. However, the reservation mode will
be cancelled if the door is opened or the MAGICAR system is put in Valet mode
after the reservation has been set. Once cancelled, you will have to start the
vehicle with the manual key and repeat the above 5 steps if you want to restore
reservation mode.
If you do not want to set reservation mode, shut off the engine before you exit the
vehicle. The engine will shut off for the following reasons:
ႫYou did not activate the parking brake or press the foot brake when you
turned the manual key to the off position.
ႫYou released the parking brake while the engine was running.
ႫYou entered Valet Mode after the Reservation Mode has been completed.
Error Messages
If there is a problem in auto-starting your car, you will hear three chirps when you
attempt to auto-start the car. Wait for 2 seconds and the cause for the error will be
indicated by the number of times parking lights flash.
Canceling Reservation Mode
Error Reason
Engine On
Key On
Door Open
Trunk Open
Brake On
Hood Open
Reservation Off (Manual Transmission Only)
1
2
3
4
5
6
7
Error Number
(# of times parking lights flash)
Trunk Release
Press Button
III
for 2 seconds in order to unlock and release your trunk door.
Note that the trunk release function will not only release the trunk but will unlock
all the doors as well.
Query Function allows the owner to visually monitor the status of your car by
looking at the remote-pager GLO LCD icons. Press Button
IV
for a 1/2
second to activate the Query Function.
Query Function
Panic Mode
Press Button
IV
for 2 seconds to enter Panic Mode. In this mode, the car will arm
if not armed already and the siren will activate and the parking lights will flash.
In order to disengage Panic Mode, press Button
I
for 1/2 second.
Then, press Button
I
for a 1/2 second to unlock/disarm your vehicle.
If Anti-Jacking option has been programmed (ask your dealer if you like
to have this option) and the Ignition-Kill has been installed , the Panic
Mode works as Anti-Jacking if the car key in the ignition. In Anti-Jacking
mode is activated while key is in the ignition,
a)Siren will go off for 1.5 minutes, and b) Ignition-Kill will be activated after
the first 30 seconds. That is to give warning to the hijacker for the first
30 seconds and then to disconnect the ignition to stop the vehicle
Page 15Page 14
The only feature operating in valet mode is the keyless entry function.
Valet Mode is very useful when loaning your vehicle or having it serviced.
In order to enter Valet mode, press Buttons
HiKiiiI
simultaneously for a 1/2 second.
In order to manually enter Valet Mode, insert your car key into the ignition and turn
the ignition on and off
(between ACC and ON)
five times within 10 seconds.
Valet Mode
You can exit Valet Mode only by pressing Buttons
HiKiiiI
simultaneously for a 1/2 second.
Timer Start Mode
In Timer Start Mode, your car automatically starts every 1.5 or 3.0 hours
depending on preset options during the time of installation for a 24-hour period.
This mode is deleted automatically after 24 hours or once you start your car with
either your manual key or remote-pager. In order to enter Timer Start Mode,
press Buttons
(II+IV)
simultaneously for a 1/2 second.
Also, note that Timer Start Mode becomes
Cold Start Mode
once an
optional temperature sensor is installed.
Important!
Timer Start Mode should be used only in open areas.
Never start and run the vehicle in an enclosed space such
as a garage or carport.
Safety Shut Down Features
MAGICAR 2W9000Pro, 2W9000Pro-2nd system has several shut down safety
features. The following actions will shut down the engine or prevent the car from
auto-starting : Opening of the car engine hood, Pressing of the brake or
Valet mode
is turned on.
The optional RPS is a feature that allows an individual to page the owner of a
vehicle by simply tapping on the front windshield of the car. RPS is automatically
turned on upon activating alarm mode (pressing Button I for a 1/2 second) on the
2W9000Pro 2W9000Pro, 2W9000Pro-2nd .
The RPS module can be activated by tapping a manual key producing a
high-frequency vibration. This high-frequency vibration is detected and your
remote-pager will beep and a telephone icon will appear on theGLO LCD indicating
that someone is paging you from your vehicle.
Press Button
I, II, III
or
IV
for a 1/2 second to deactivate the RPS visual and
audible paging alerts.
RPS (Remote Paging System)
OPTIONAL PROGRAMMABLE FEATURES
These additional programmable features can be programmed to the MAGICAR
system by your authorized MAGICAR dealer.
Ignition Lock
This programmable option enables your vehicle to automatically lock the doors
When the brake pedal is pressed after starting the vehicle with a key.
In addition, the vehicle will automatically unlock the doors upon pulling the key out
from the ignition. However, if the emergency brake wire was installed, the vehicle
will unlock upon the emergency brake is set if the engine is still running with the
key. This option must be chosen at the time of installation.
You can turn this function on or off by pressing Buttons
(II+III)
for a 1/2 second.
When set to passive arming, your security system will arm automatically 30
seconds after all the car doors are closed. There are two types of passive arming
that can be programmed by your MAGICAR dealership: (1) passive arming with
passive lock and (2) passive arming with active lock.
Passive Arming
Optional Auxiliary 1 & Auxiliary 2
The auxiliary system is an optional car feature that can be tailored for your vehicle
by your local authorized MAGICAR dealership. For example, you can customize
your car to have remote power control of your windows, radio, and sunroof in
addition to the rooftop on your convertible car.
Page 17
OPTIONAL INSTALLATION FEATURES
The MAGICAR 2W9000Pro, 2W9000Pro-2nd remote-pager has additional features and
expansion possibilities that require additional parts and labor.
Cold Start Mode
If the optional temperature sensor has been installed,
Timer Start
Mode becomes Cold Start Mode, Under this mode, your car automatically starts if
the temperature of the inside of the vehicle goes below the preset temperature.
The minimum interval between the starts will be 1.5 or 3.0 hours depending on
preset options during the time of installation. Cold Start Mode is activated or
deactivated by pressing Buttons
HiiKivI
for a 1/2 second.
Passive locking means the door will lock when the system passively arms.
In the default factory setting, the system is armed and locked actively, which means
the system will only arm/lock when the remote-pager is utilized.
Note:
1. If you select both Auto Arming and Passive Arming, Auto
Arming takes priority over Passive Arming.
2. If you select Passive Arming with Active Lock in the
programming option, you are also selecting Auto Arming
without Auto Lock.
Consult your installer.
Page 16
Turbo Mode
If this optional Turbo Mode has been programmed at the time of installation,
you can turn this feature on and off by pressing Buttons
(III+IV)
for a 1/2 second.
Under this mode, engine continues running for 2 minutes after key has been taken
out from the ignition if emergency brake was on when the key is taken out.
To utilize this mode, the emergency brake sensing wire has to be connected to the
emergency brake wire of the vehicle. Consult the authorized dealer for this mode.
2nd Car Mode
The Remote-Pager is able to operate 2nd vehicle.
Press buttons
III&IV
simultaneously for 1/2 second. If this mode is turned to
2nd Car, the Remote-Pager will not communicate with the 1st vehicle.
To Exit 2nd Car press button
III&IV
simultaneously again.
(Consult your Authorized Dealer)
