WIRELESS MICROPHONE
SYSTEM
INSTRUCTION
MANUAL
RAW-86HC(D)/88HC(D)
ON
OFF
ON
OFF
![](/img.php?id=360321&img=bg2.png)
CAUTION:
WARNING: To reduce the risk of fire or electrical shock, do not expose this appliance to
rain or moisture.
DETAILED SAFETY INSTRUCTIONS:
All the safety and operation instructions shouldbe read before the appliance is operated.
SAFETY INSTRUCTIONS
Retain Instructions:
The safety and operating instructions should be retained for futurereference.
Heed Warnings:
All warnings on the appliance and in the operating instructions should be adhered to.
Follow instructions:
All operation and user instructions should be followed.
Water and Moisture:
The appliance should not be used near water ( e.g. near a bathtub,washbowl,kitchen sink,
laundry tub,in a wet basement,or near a swimming pool etc. )
Heat:
The appliance should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliance ( including amplifiers ) that produce heat.
Power source:
The appliance should be connected to a power supply only of the type described in the
operating instructions or as maked on the appliance.
Grounding or Polarization:
Precautions should be taken so that the grounding or polarization means of an appliance is
not defeated.
Power-Cord Protection:
Power supply cords should be routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular attention to cords and plugs,
convenience receptacles and the point where they exit from the appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol, wherever it appears, alerts you to important operating and
maintenance instructions in the accompanying literature. Read the manual.
This symbol, wherever it appear, alerts you to the presence of uninsulated
dangerous voltage inside the enclosure - voltage that be sufficient tomay
constitute a risk of shock.
The appliance should be situated so that its location or position does not interfere with its
proper ventilaton. For example,the appliance should not be situated on a bed,sofe rug,or
similar surface that may block the ventilation openings:or placed in a built - in installation,
such as bookcase or cabinet that may impede the flow of air through the ventilation
openings.
Cleaning:
The appliance should be cleaned only as recommended by the manufacturer.
To reduce the risk of electrical shock, do not remove the cover ( or back ) .No
user serviceableparts inside; refer servicing to qualified personnel.
Ventilation:

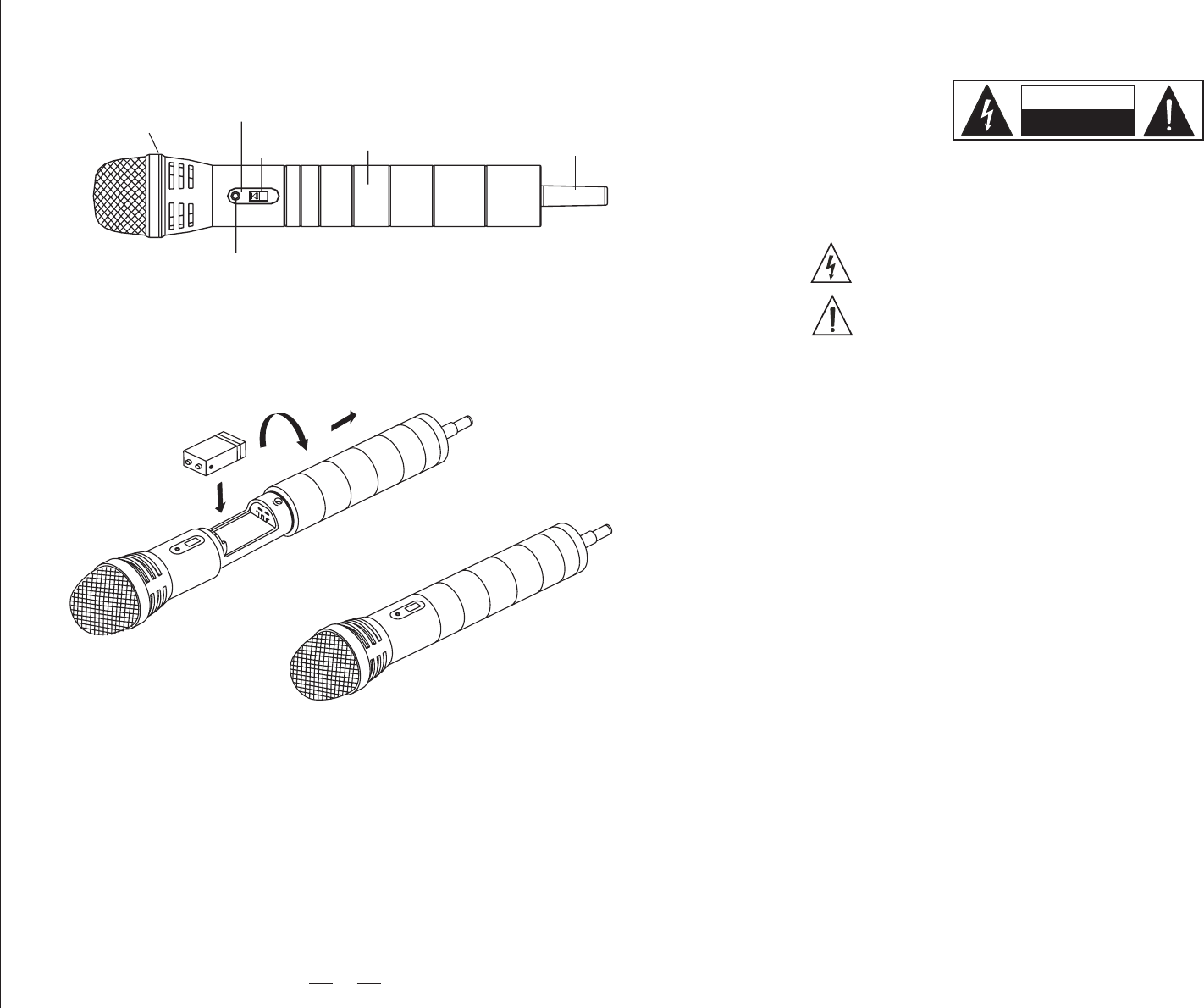

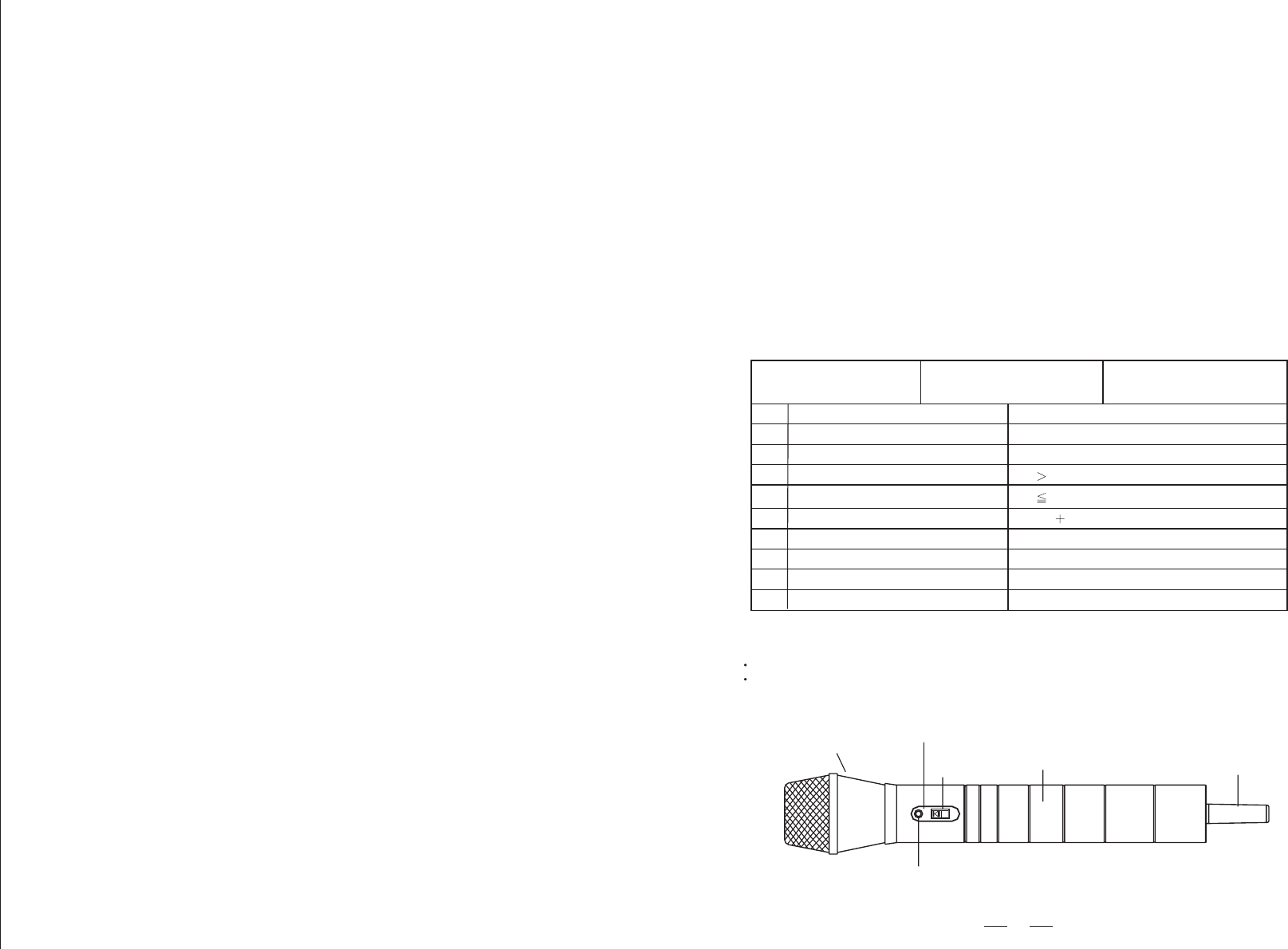

GRILLE HOLDER
SWITCH COVER
SWITCH
POWER LED LIGHT
TUBE
2
AW-88HC(D)
BATTERY INGORMATION:
NOTE: Make sure the power switch is in the "OFF" position when changing or installing new bat-
tery. Average life on an alkaline battery is 6-8 hours. Be sure to use good quality long life
9V alkaline battery only.
1. This microphone has a 3-level power switch design.
2. In using first turn on the receiver and then the transmitter.
3. New battery the power light is in "OFF".
The light is "ON". It indicates the ba needs to be replaced.
4. Remember to turn the switch "OFF".
When the microphone is not in use in order to save power. In "STAND
set the switch to the center.
ttery
-BY"
ANTENNA
CH
ON
OFF
![](/img.php?id=360321&img=bg3.png)
MODEL: AW-86HC(D)
AW-88HC(D) DATE: 30,07,2002 TESTER: J.H.LIN
NO.
1
2
3
5
4
7
6
9
8Dimensions
Weight
Carrier Frequency Range
Power Source
Tone Osc.Frequency
RF Power Output
Spurious Emission
Tatol Harmonic Distortion
Current
ELECTRIC PARAMETER
350g(0.77 lb)
290mm/11.4"
UHF 790-865 Mhz
45dBc
DC 9V
30mA
1%
10mW (TYPE)
32.768KHz
SPECIFICATION
INSTRUTION:
3.
TRANSMITTER PERFORMANCE SPECIFICATION:
SPECIFICATION
1. After operation the microphone must be switched off as well. Otherwise the batteries will soon be
exhausted. in order to avoid untune consumption of the inner battery: if pilot lamp of the wireless
microphone (1)remains lighted, it means that the battery has no more power: (2)the lamp must
flash only for the time of the switching -on; this indicates that the microphone works well.
2. INSTALL BATTERY:
PLS. make sure the positive/negative before you replacement batteries.
We congratulate you for the choice of this excellent professional apparatus microphone which
will give you outstanding results at the high fidelity. the microphone suit for school speech,
meeting speech, teachers and performer on the stage. to avoid of problem like wireless
microphone.
When switches the power switch to "on" position, then the power indicator lights, indicate the
apparatus is on.
When switches the power switch to "off"position, then the power indicator lights, indicate the
apparatus is off.
FEATURES:
"STAND-BY" funciton.
Steel net based to prevent from rolling.
1
AW-86HC(D)
ON
OFF
Non-use Periods:
The power cord of the appliance should be unplugged from the outlet when left unused for
a long period of time.
Object and Liquid Entry:
Care should be taken so that objects do not fall and liquids are not spilled into the enclosure
through openings.
Damage Requiring Service:
The appliance should be serviced by qualified service personnel when:
-The power supply cord or the plug has been damaged; or
-Objects have fallen,or liquid has been spilled into the appliance; or
-The appliance has been exposed to rain; or
-The appliance dose not appear to operate normally or exhibits a marked change in
performance; or
-The appliance has been dropped, or the enclosure damaged.
Servicing:
The user should not attempt to service the appliance beyond that is describedin the
Instructions.All other servicing should be referred to qualifield service personnel.Operating
GRILLE HOLDER
SWITCH COVER
SWITCH
POWER LED LIGHT
TUBE ANTENNA
Caution:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
