SENA TECHNOLOGIES IW01 ZIGBEE SERIAL MODULE User Manual USERS MANUAL
Sena Technologies,Inc. ZIGBEE SERIAL MODULE USERS MANUAL
USERS MANUAL
1 ProBee-ZE20S Series User Guide Rev.0.1
ZigBee OEM Module
ProBee-ZE20S Series
User Guide
Sena Technologies, Inc.
Rev 0.1
2 ProBee-ZE20S Series User Guide Rev.0.1
ProBee-ZE20S Series User Guide
Firmware version PTv1.X
Copyright
Copyright 2010 Sena Technologies, Inc. All rights reserved.
Sena Technologies reserves the right to make changes and improvements to its product without providing
notice.
Trademark
ProBee™ is a trademark of Sena Technologies, Inc.
Windows® is a registered trademark of Microsoft Corporation.
Ethernet® is a registered trademark of XEROX Corporation.
Notice to Users
When a system failure may cause serious consequences, protecting life and property against such
consequences with a backup system or safety device is essential. The user agrees that protection against
consequences resulting from system failure is the user's responsibility.
This device is not approved for life-support or medical systems.
Changes or modifications to this device not explicitly approved by Sena Technologies will void the user's
authority to operate this device.
Technical Support
Email: support@sena.com
Website: http://www.sena.com
3 ProBee-ZE20S Series User Guide Rev.0.1
Contents
1 INTRODUCTION ....................................................................................................... 9
1.1 About This Document ..................................................................................................................... 9
1.2 Overview ......................................................................................................................................... 9
2 GETTING STARTED ............................................................................................... 11
2.1 Hardware Installation .................................................................................................................... 11
2.1.1 Development Board Layout ................................................................................................... 11
2.1.2 Antenna Installation ............................................................................................................... 12
2.1.3 Module Installation on the Development Board .................................................................... 12
2.1.4 Serial/USB Cable Installation ................................................................................................ 13
2.1.5 Powering Development Board ............................................................................................... 14

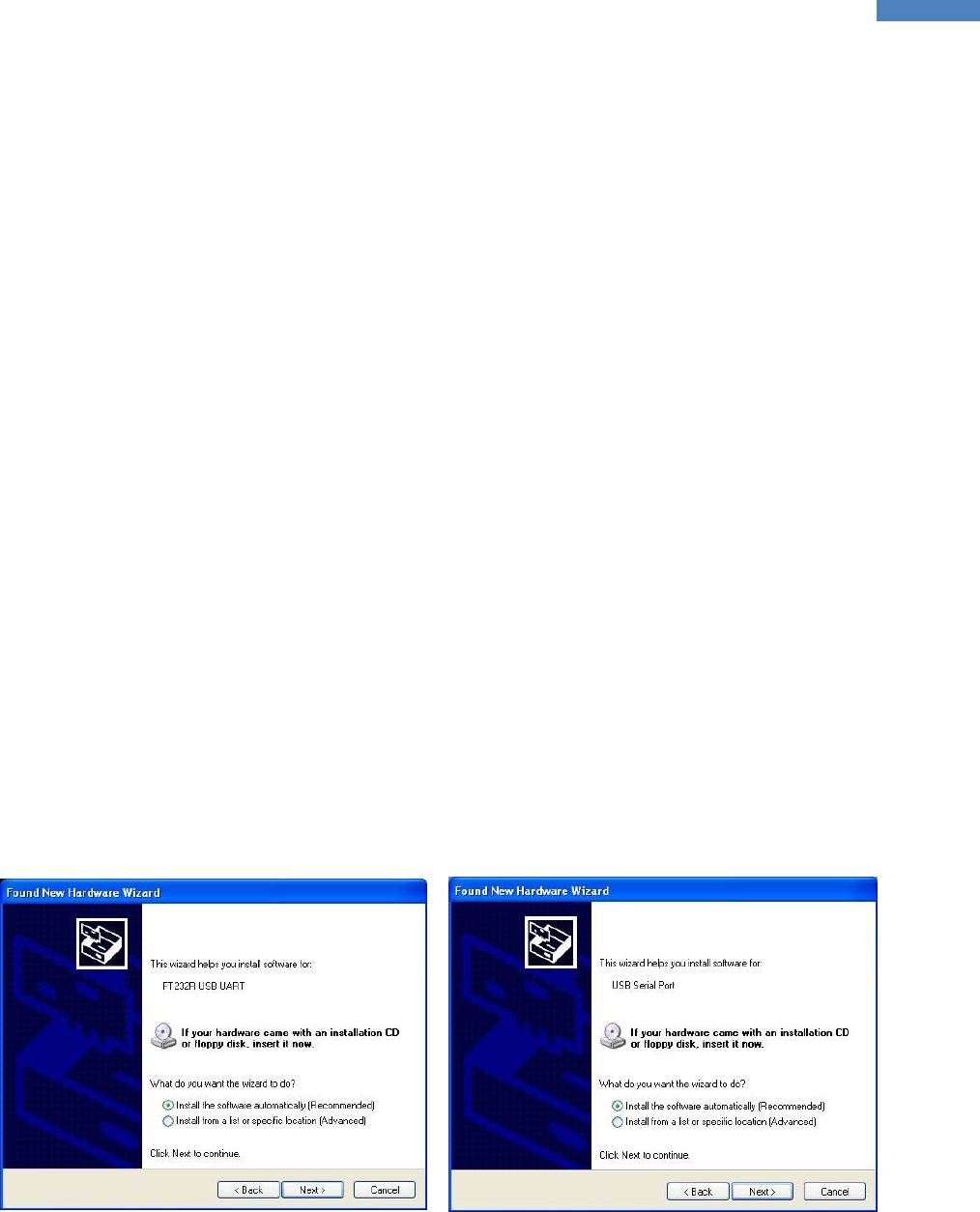

2.1.6 USB Driver Installation .......................................................................................................... 14

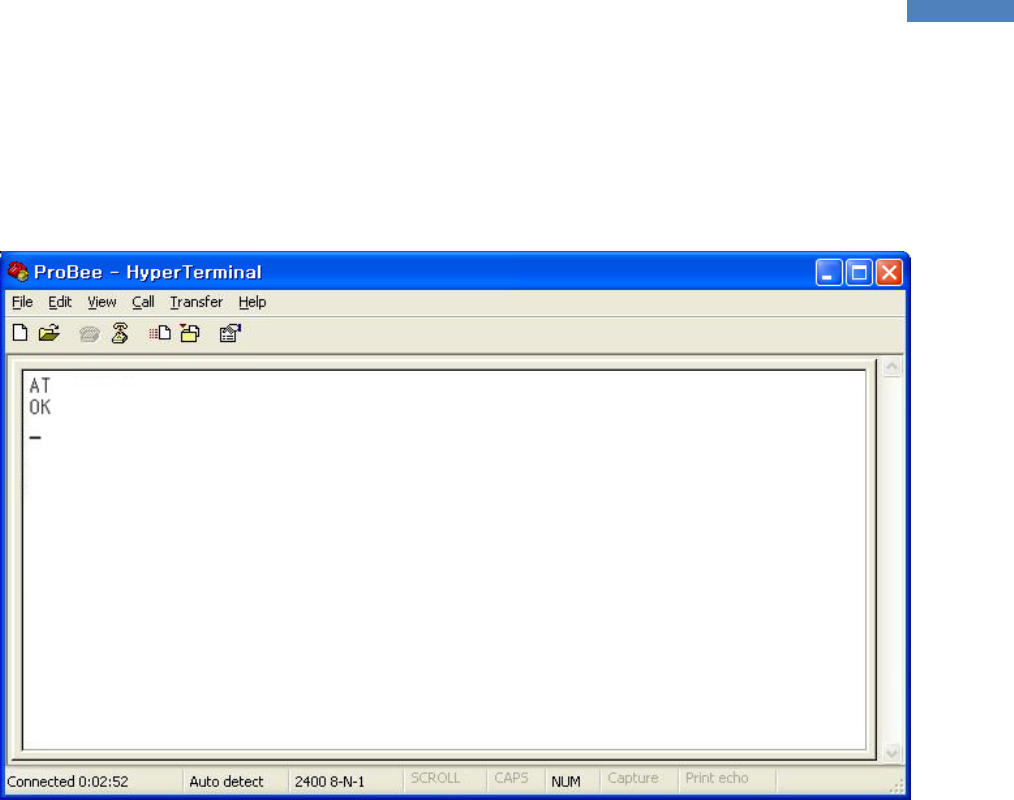

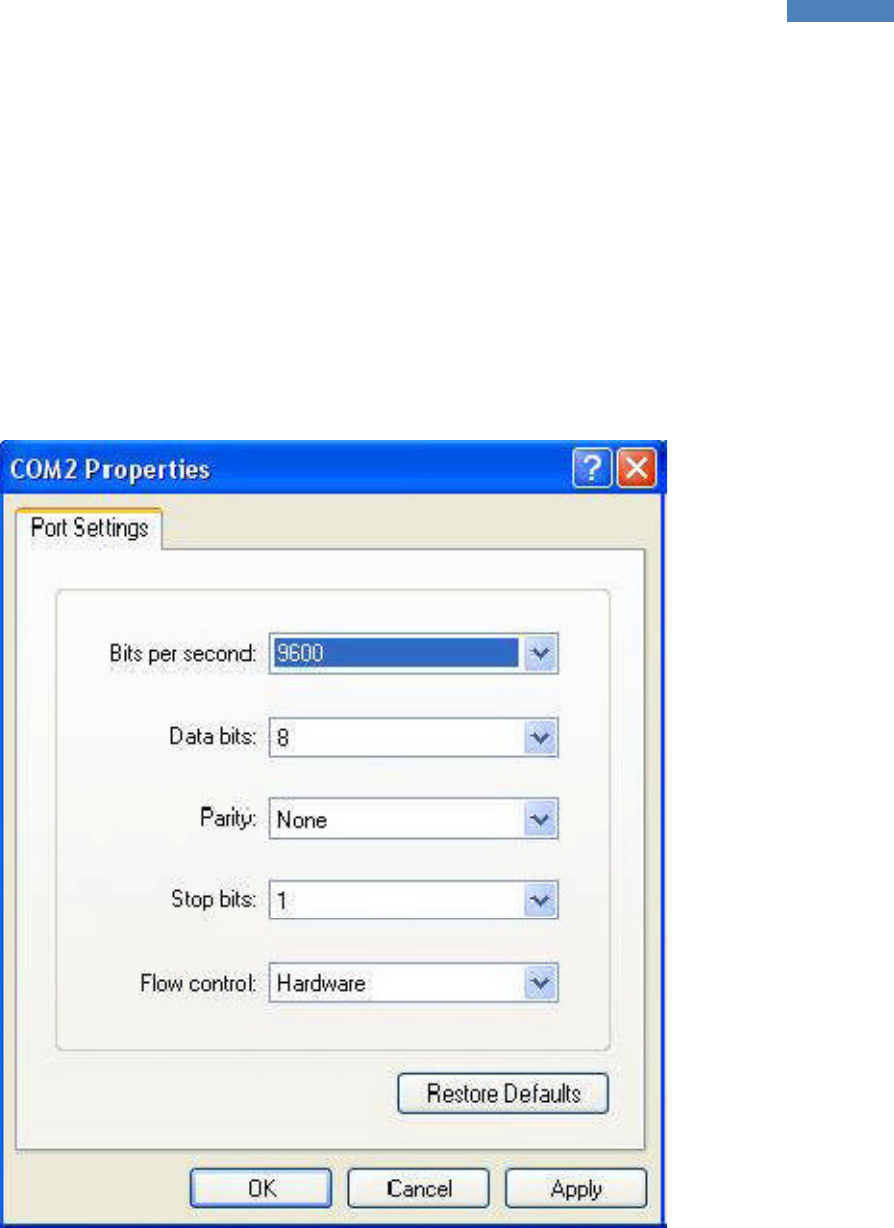

2.2 Using Terminal Software for AT Commands ................................................................................. 15

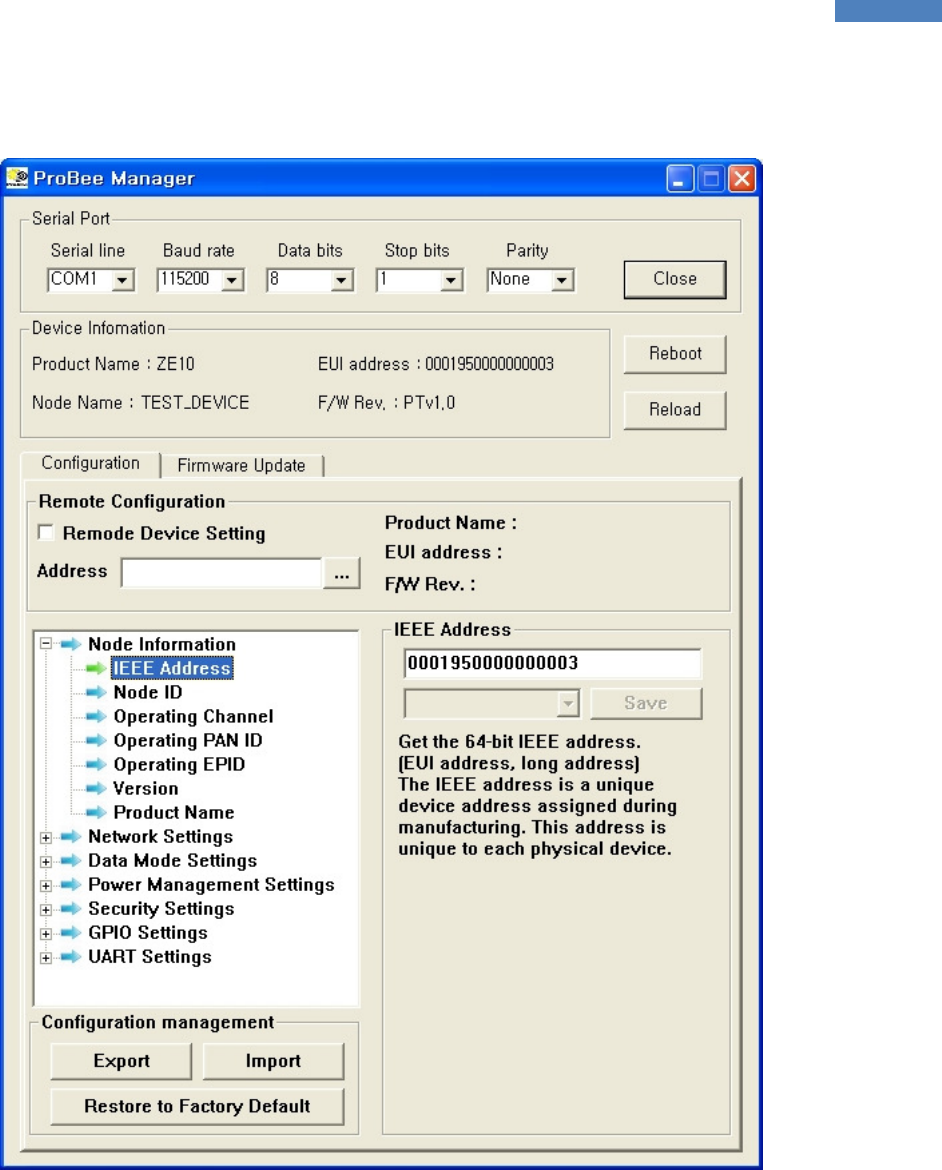

2.3 Using ProBee Manager for Configuration .................................................................................... 17
3 ZIGBEE NETWORK CONFIGURATION ................................................................. 18
3.1 Setting up ZE20S as a Coordinator .............................................................................................. 18
3.1.1 Node Type Selection for Coordinator .................................................................................... 19
3.1.2 Channel Mask Configuration for Coordinator ........................................................................ 19
3.1.3 PAN ID Configuration for Coordinator ................................................................................... 20
3.1.4 Permit Joining ........................................................................................................................ 20
3.2 Setting up ZE20S as a Router ...................................................................................................... 21
3.2.1 Node Type Selection for Router ............................................................................................ 21
3.2.2 Channel Mask Configuration for Router ................................................................................ 22
3.2.3 PAN ID Configuration for Router ........................................................................................... 22
3.2.4 Permit Joining ........................................................................................................................ 22
3.3 Setting up ZE20S as an End Device ............................................................................................ 23
3.4 Setting up ZE20S as a Sleepy End Device .................................................................................. 23
3.5 ZigBee Security ............................................................................................................................ 25
3.5.1 Security Level ........................................................................................................................ 26
3.5.2 Link Key ................................................................................................................................. 26
3.5.3 Network Key .......................................................................................................................... 26
3.5.4 Update Key ............................................................................................................................ 26
4 DATA TRANSMISSION........................................................................................... 27
4.1 Command Mode ........................................................................................................................... 27
4.1.1 Unicast ................................................................................................................................... 27
4 ProBee-ZE20S Series User Guide Rev.0.1
4.1.2 Multicast ................................................................................................................................ 27
4.1.3 Broadcast .............................................................................................................................. 28
4.1.4 Sending Binary Data ............................................................................................................. 28
4.1.5 Display Incoming Message ................................................................................................... 28
4.2 Data Mode .................................................................................................................................... 29
4.2.1 Unicast Data Mode ................................................................................................................ 29
4.2.2 Multicast Data Mode .............................................................................................................. 31
4.2.3 Broadcast Data Mode ............................................................................................................ 33
5 DIGITAL AND ANALOG I/O.................................................................................... 35
5.1 GPIO Configuration ...................................................................................................................... 35
5.2 I/O Sampling ................................................................................................................................. 36
5.2.1 Queried Sampling .................................................................................................................. 36
5.2.2 Periodic Sampling ................................................................................................................. 38
5.2.3 Change Detection Sampling .................................................................................................. 38
5.2.4 GPIO Remote Control ........................................................................................................... 39
6 WORKING WITH DEVELOPMENT KIT ................................................................. 40
6.1 Development Kit Contents ............................................................................................................ 40
6.2 Development Board Features ....................................................................................................... 40
6.3 Development Board Hardware Descriptions ................................................................................ 41
6.3.1 Power .................................................................................................................................... 41
6.3.2 RS232 Port ............................................................................................................................ 42
6.3.3 USB Port ................................................................................................................................ 42
6.3.4 ZE20S GPIO Interface .......................................................................................................... 42
6.3.5 LEDs (CR12-19) .................................................................................................................... 43
6.3.6 Button Switches (SW10-17) .................................................................................................. 43
6.3.7 Variable Resistors (VR1, VR2) .............................................................................................. 43
6.3.8 Temperature Sensor .............................................................................................................. 43
6.3.9 Light Sensor .......................................................................................................................... 43

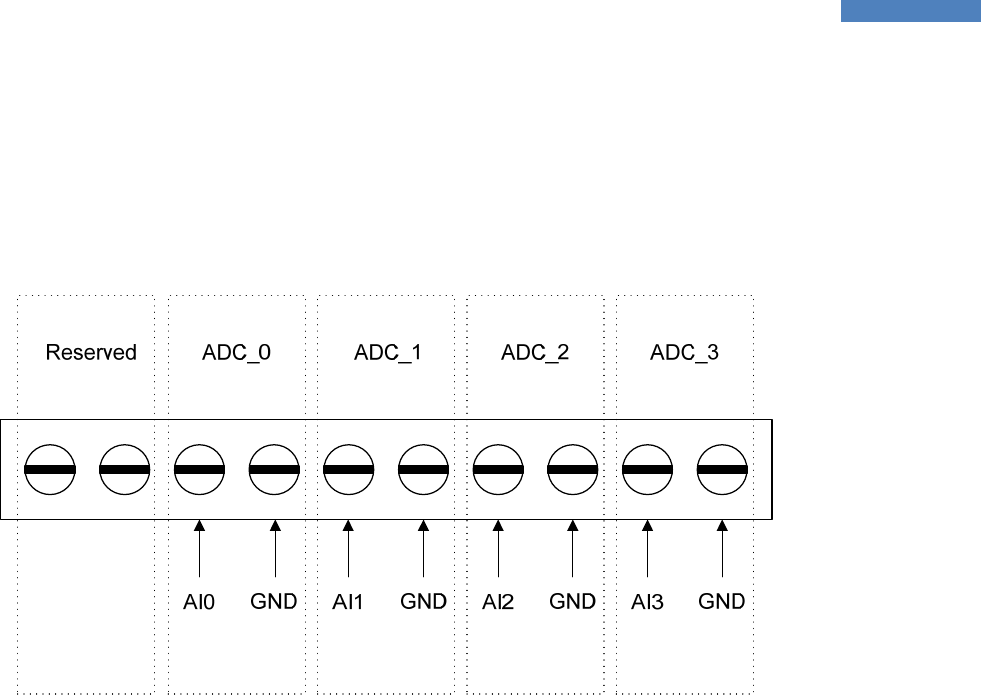

6.3.10 Terminal Block ....................................................................................................................... 44
6.4 Configuration Example #1: 1 Coordinator, 1 Router and 1 End-Device ....................................... 44
6.4.1 Coordinator Configuration ..................................................................................................... 45
6.4.2 Router Configuration ............................................................................................................. 45
6.4.3 End-device Configuration ...................................................................................................... 46
6.4.4 Monitoring the Sensors ......................................................................................................... 46
6.5 Configuration Example #2: 1 Coordinator and 2 End-Devices ..................................................... 46
6.5.1 Coordinator Configuration ..................................................................................................... 47
6.5.2 End-devices Configuration ....................................................................................................
47
6.5.3 Turning on/off the LEDs ......................................................................................................... 48
5 ProBee-ZE20S Series User Guide Rev.0.1
7 AT COMMAND REFERENCE ................................................................................. 49
7.1 Command Line Format ................................................................................................................. 49
7.2 Standard AT Commands ............................................................................................................... 49
7.2.1 AT .......................................................................................................................................... 49
7.2.2 ATB ........................................................................................................................................ 49
7.2.3 ATD ........................................................................................................................................ 49
7.2.4 ATE ........................................................................................................................................ 50
7.2.5 ATM ....................................................................................................................................... 50
7.2.6 ATO ........................................................................................................................................ 50
7.2.7 ATR ........................................................................................................................................ 50
7.2.8 ATS ........................................................................................................................................ 50
7.2.9 ATZ ........................................................................................................................................ 50
7.2.10 AT&F ...................................................................................................................................... 50
7.2.11 +++ ........................................................................................................................................ 51
7.3 Node Specific Information ............................................................................................................ 51
7.3.1 AT+LONGADDR or AT+LA .................................................................................................... 51
7.3.2 AT+SHORTADDR or AT+SA ................................................................................................. 51
7.3.3 AT+ADDRDISCOVERY or AT+AD ........................................................................................ 51
7.3.4 AT+OPCH or AT+OC ............................................................................................................. 51
7.3.5 AT+OPPANID or AT+OI ......................................................................................................... 52
7.3.6 AT+OPEPID or AT+OE .......................................................................................................... 52
7.3.7 AT+VERSION or AT+VR ....................................................................................................... 52
7.3.8 AT+PRODUCTNAME or AT+PN ........................................................................................... 52
7.4 Network Specific Parameters ....................................................................................................... 52
7.4.1 AT+CHMASK or AT+CM ....................................................................................................... 52
7.4.2 AT+PANID or AT+PI .............................................................................................................. 53
7.4.3 AT+EPID or AT+EI ................................................................................................................. 53
7.4.4 AT+GROUPID or AT+GI ........................................................................................................ 53
7.4.5 AT+POWER or AT+PW ......................................................................................................... 53
7.4.6 AT+STACK or AT+ZS ............................................................................................................ 53
7.4.7 AT+NODENAME or AT+NN .................................................................................................. 54
7.5 Network Formation and Join ......................................................................................................... 54
7.5.1 AT+ASCAN or AT+AS ........................................................................................................... 54
7.5.2 AT+ESCAN or AT+ES ........................................................................................................... 54
7.5.3 AT+DSCAN or AT+DS ........................................................................................................... 54
7.5.4 AT+NODETYPE or AT+NT .................................................................................................... 55
7.5.5 AT+PERMIT or AT+PJ ........................................................................................................... 55
7.5.6 AT+LEAVE or AT+LV ............................................................................................................. 55
7.6 End-device .................................................................................................................................... 55
6 ProBee-ZE20S Series User Guide Rev.0.1
7.6.1 AT+SLEEP or AT+SM ............................................................................................................ 55
7.6.2 AT+PARENTLA or AT+PL ..................................................................................................... 55
7.6.3 AT+PARENTSA or AT+PS ..................................................................................................... 56
7.6.4 AT+CHILDTABLE or AT+CT .................................................................................................. 56
7.7 Data Transmission and Reception ................................................................................................ 56
7.7.1 AT+DESTLA or AT+DL .......................................................................................................... 56
7.7.2 AT+DESTGROUPID or AT+DG ............................................................................................. 56
7.7.3 AT+SINKINFO or AT+SI ........................................................................................................ 56
7.7.4 AT+MAXPAYLOAD or AT+MP ............................................................................................... 57
7.7.5 AT+TRASNSMITMODE or AT+TM ........................................................................................ 57
7.7.6 AT+UNICAST or AT+UC ....................................................................................................... 57
7.7.7 AT+MULTICAST or AT+MC ................................................................................................... 57
7.7.8 AT+BROADCAST or AT+BC ................................................................................................. 57
7.7.9 AT+REMOTE or AT+RC ........................................................................................................ 57
7.8 UART ............................................................................................................................................ 58
7.8.1 AT+BAUDRATE or AT+UB .................................................................................................... 58
7.8.2 AT+DATABIT or AT+UD ......................................................................................................... 58
7.8.3 AT+PARITY or AT+UP ........................................................................................................... 58
7.8.4 AT+STOPBIT or AT+US ........................................................................................................ 58
7.8.5 AT+FLOWCTRL or AT+UF .................................................................................................... 59
7.9 Security ......................................................................................................................................... 59
7.9.1 AT+SECURITY or AT+SE ...................................................................................................... 59
7.9.2 AT+LINKKEY or AT+LK ......................................................................................................... 59
7.9.3 AT+NWKKEY or AT+NK ........................................................................................................ 59
7.9.4 AT+UPDATEKEY or AT+UK .................................................................................................. 59
7.10 GPIO ............................................................................................................................................. 60
7.10.1 AT+GPIO or AT+IO ................................................................................................................ 60
7.10.2 AT+DIO .................................................................................................................................. 60
7.10.3 AT+AI ..................................................................................................................................... 60
7.10.4 AT+ SOURCELA or AT+SL ................................................................................................... 60
7.11 Firmware Upload and Help ........................................................................................................... 61
7.11.1 AT+BOOTLOAD or AT+BL .................................................................................................... 61
7.11.2 AT+HELP or AT+HP .............................................................................................................. 61
8 AT COMMAND EXAMPLES ................................................................................... 62
8.1 Network configuration ................................................................................................................... 62
8.1.1 Coordinator ............................................................................................................................ 62
8.1.2 Router .................................................................................................................................... 62
8.1.3 End-device ............................................................................................................................. 62
8.1.4 Sleepy End-device ................................................................................................................ 62
7 ProBee-ZE20S Series User Guide Rev.0.1
8.1.5 Specifying Network ................................................................................................................ 62
8.2 Data Transmission ........................................................................................................................ 63
8.2.1 Command Mode .................................................................................................................... 63
8.2.2 Data Mode ............................................................................................................................. 63
8.3 UART Settings .............................................................................................................................. 64
8.4 Security ......................................................................................................................................... 65
8.5 GPIO ............................................................................................................................................. 65
8.6 Firmware Upload .......................................................................................................................... 65
8.6.1 Local Node ............................................................................................................................ 65
8.6.2 Remote Node ........................................................................................................................ 66
8.6.3 Clone ..................................................................................................................................... 66
9 S-REGISTERS ........................................................................................................ 67
9.1 Display Options ............................................................................................................................. 67
9.1.1 S11......................................................................................................................................... 67
9.1.2 S12 ........................................................................................................................................ 68
9.1.3 S13 ........................................................................................................................................ 68
9.1.4 S14 ........................................................................................................................................ 68
9.2 Network Settings ........................................................................................................................... 68
9.2.1 S21 ........................................................................................................................................ 68
9.2.2 S22 ........................................................................................................................................ 69
9.2.3 S23 ........................................................................................................................................ 69
9.3 Data Transmissions ...................................................................................................................... 69
9.3.1 S31 ........................................................................................................................................ 69
9.3.2 S32 ........................................................................................................................................ 69
9.3.3 S33 ........................................................................................................................................ 70
9.3.4 S34 ........................................................................................................................................ 70
9.3.5 S35 ........................................................................................................................................ 70
9.3.6 S36 ........................................................................................................................................ 71
9.3.7 S37 ........................................................................................................................................ 71
9.3.8 S38 ........................................................................................................................................ 71
9.3.9 S39 ........................................................................................................................................ 71
9.4 GPIO ............................................................................................................................................. 72
9.4.1 S41 ........................................................................................................................................ 72
9.4.2 S42 ........................................................................................................................................ 72
9.4.3 S43 ........................................................................................................................................ 72
9.4.4 S44 ........................................................................................................................................ 72
9.4.5 S45 ........................................................................................................................................ 73
9.5 End Device ................................................................................................................................... 73
9.5.1 S51 ........................................................................................................................................ 73
8 ProBee-ZE20S Series User Guide Rev.0.1
9.5.2 S52 ........................................................................................................................................ 73
9.5.3 S53 ........................................................................................................................................ 73
9.5.4 S54 ........................................................................................................................................ 74
9.5.5 S55 ........................................................................................................................................ 74
9.5.6 S56 ........................................................................................................................................ 74
9.6 Sink ............................................................................................................................................... 75
9.6.1 S61 ........................................................................................................................................ 75
9.6.2 S62 ........................................................................................................................................ 75

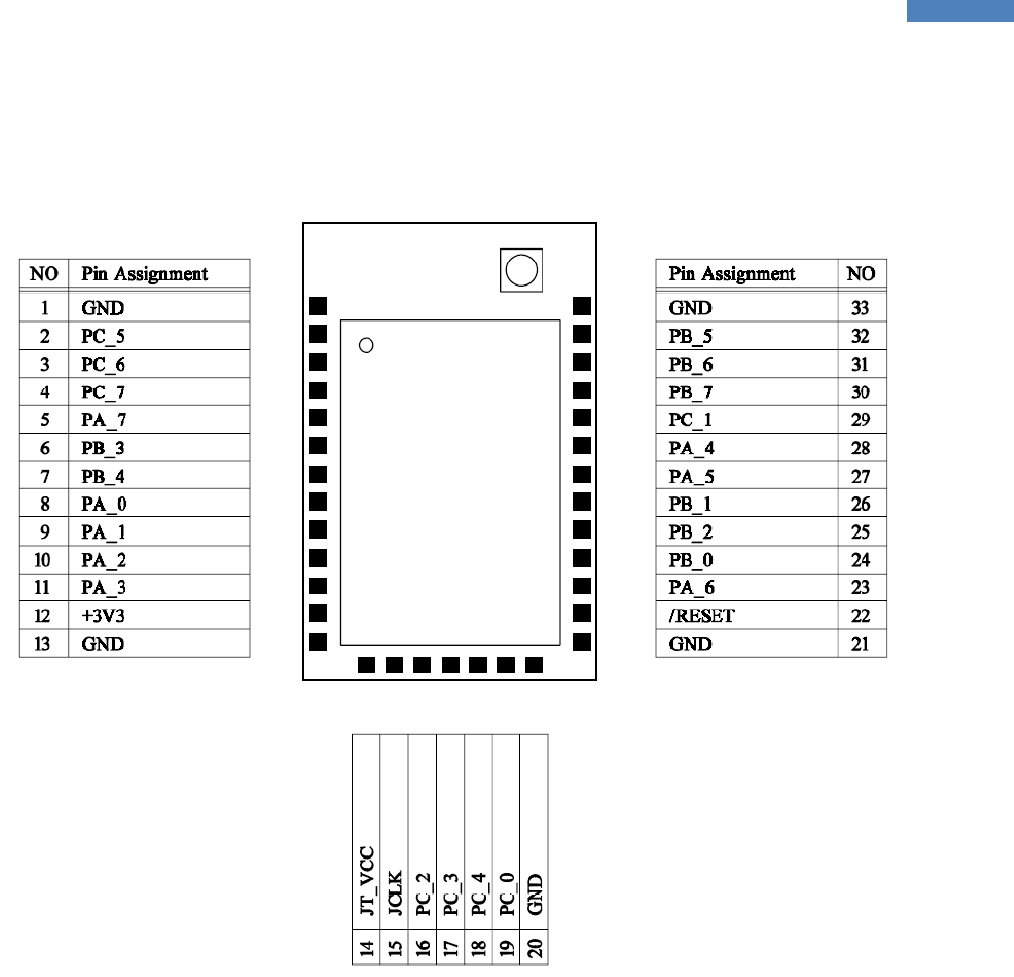

10 PIN ASSIGNMENTS ............................................................................................ 76

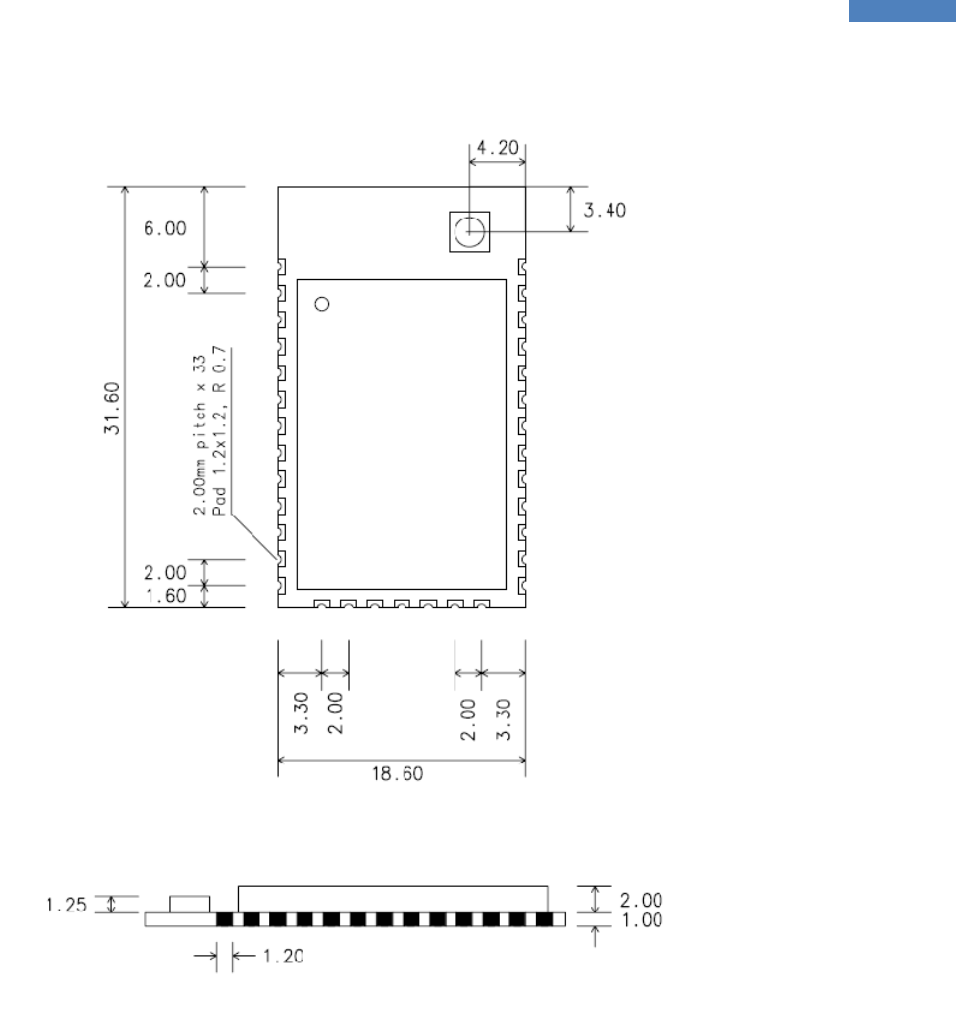

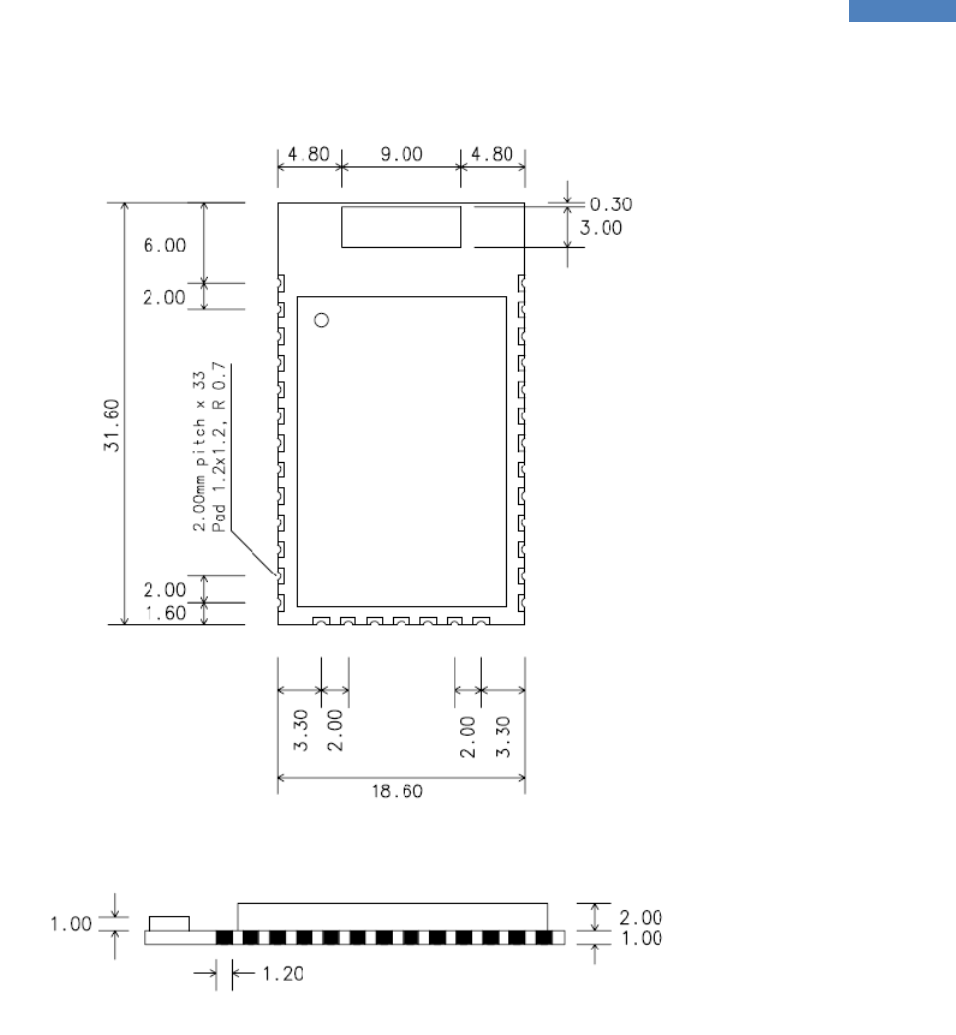

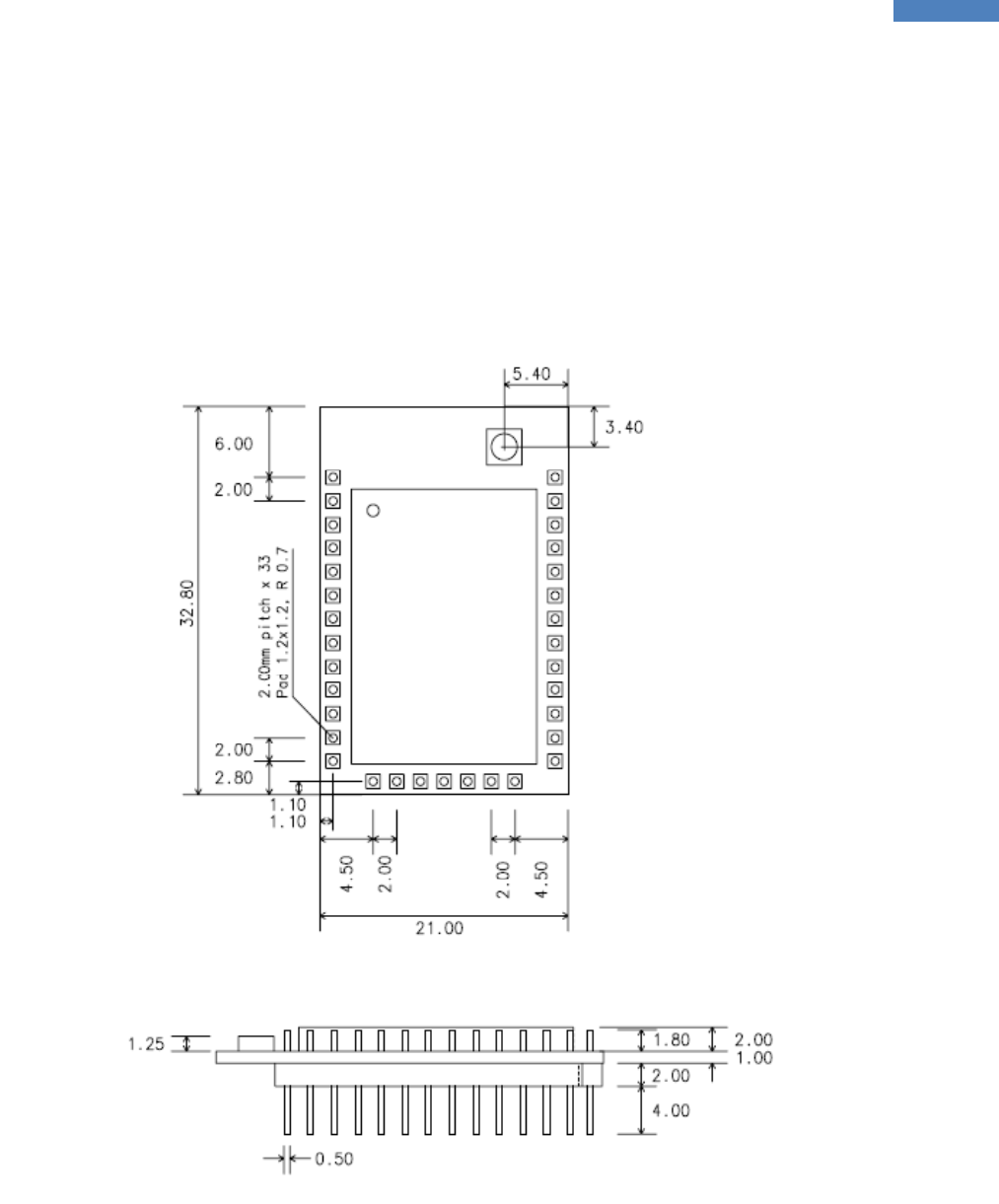

11 MECHANICAL DRAWINGS ................................................................................. 78
12 WARRANTY ......................................................................................................... 83
12.1 GENERAL WARRANTY POLICY ................................................................................................. 83
12.2 LIMITATION OF LIABILITY ........................................................................................................... 83
12.3 HARDWARE PRODUCT WARRANTY DETAILS ......................................................................... 83
12.4 SOFTWARE PRODUCT WARRANTY DETAILS ......................................................................... 84
12.5 THIRD-PARTY SOFTWARE PRODUCT WARRANTY DETAILS ................................................ 84
13 REGULATORY INFORMATION ........................................................................... 85
13.1 FCC .............................................................................................................................................. 85
13.2 CE ................................................................................................................................................. 85
13.3 TELEC .......................................................................................................................................... 86
13.4 KCC .............................................................................................................................................. 86
13.5 ZigBee Alliance ............................................................................................................................. 86
14 RF INFORMATION .............................................................................................. 87
9 ProBee-ZE20S Series User Guide Rev.0.1
1 Introduction
1.1 About This Document
This document provides an introduction on configuration and operation of the ProBee-ZE20S ZigBee
OEM module. This document assumes the user is using the ZE20S starter kit for evaluation hence the
pictures and configuration examples shown in this document are all based on the ZE20S starter kit.
This document does not provide full detail of the hardware specifications. Please refer to the ProBee-
ZE20S data sheet for further references on the hardware design.
1.2 Overview
The ProBee-ZE20S is an all-in-one ZigBee OEM module with integrated ZigBee core and radio/antenna
circuits together with high level software library. Using the ZE20S, OEM manufacturers can easily and
cost-effectively integrate ZigBee functionality into target products in timely manner.
The ZE20S OEM module is designed to meet specific requirements of low cost and low power wireless
applications such as home automation or smart energy by adopting the ZigBee technology. The ZE20S is
based on the Ember EM250 ZigBee core and fully certified under the latest ZigBee Pro standard for the
maximum compatibility.
Despite of its low cost and low power consumptions, the ZE20S provides high performance and robust
data transfer capability for wide range of applications. The ZE20S can transfer data at up to 250 kbps and
reach up to 1.6 km (0.99 miles) outdoor line-of-sight.
Key Features
• Integrated 2.4GHz, IEEE 802.15.4-compliant transceiver
• ZigBee Pro Certified
• ZigBee core: Ember EM357
• Transmit Power: +8dBm (max.)
• Receiver Sensitivity: -100dBm @1% BER
• TX current : 33mA (typ.) / 45mA (max. boost mode) @3.3V
• RX current: 28mA (typ.) / 31ma (max. boost mode) @3.3V
• Sleep Current: ≤ 1uA
• Working Distance: 400m outdoor, 40m indoor
• Various Antenna/Connector Options: Dipole 1/3/5dBi, RPSMA, U.FL, Chip
• Full UART Signals Support: UART_TXD/RXD, RTS/CTS, DTR/DSR
• 6 Analog Inputs
• 22 Digital Inputs/Outputs
• RoHS Compliant
10 ProBee-ZE20S Series User Guide Rev.0.1
Applications
• Advanced Metering Infrastructure
• Home Area Networks (HAN)
• Neighborhood Area Networks (NAN)
• Home Automation
• Advanced lighting, entertainment, and climate control systems
• Service-based monitoring, security, and awareness systems
• Commercial Building Automation
• Climate & lighting control systems
• Industrial and Domestic Applications
Model despription
Model name Interface Connector
Antenna
Type1 Type2 Type3
ProBee-ZE20SDU DIP, pin U.FL 5dBi dipole 3dBi dipole 1dBi stub
ProBee-ZE20SDS DIP, pin RPSMA 5dBi dipole 3dBi dipole 1dBi stub
ProBee-ZE20SDC DIP, pin CHIP 0dBi Chip
ProBee-ZE20SSU SMD, pad U.FL 5dBi dipole 3dBi dipole 1dBi stub
ProBee-ZE20SSC SMD, pad CHIP 0dBi Chip
11 ProBee-ZE20S Series User Guide Rev.0.1
2 Getting Started
Creating a ZigBee network using the ZE20S modules consists of the following steps:
• Install the ZE20S module on the development board
• Create a ZigBee network by configuring a ZE20S module as the coordinator
• Configure ZE20S modules as routers. This step is optional since the coordinator works as a
router too.
• Configure ZE20S modules as end devices
• Transmit data between ZE20S devices
This chapter describes how to install the ZE20S modules on to the development boards and how to use
terminal software programs to access the ZE20S modules using AT commands for configurations and
operations. The rest of the steps including ZigBee network creation, coordinator/router/end-device
configurations and data transmissions are described in the following chapters. The more detailed
information on the development kit and the configuration examples are also provided in the later chapter.
2.1 Hardware Installation
2.1.1 Development Board Layout
Figure 2-1 shows the layout of the development board. The development board provides the interface
between the ZE20S and the external serial port or USB port together with input/output terminals for
convenient tests.
TBD
Figure 2-1 Development Board Layout
12 ProBee-ZE20S Series User Guide Rev.0.1
2.1.2 Antenna Installation
The ZE20S starter kit includes the several antennas for evaluation purposes. You can try different
antennas for testing purpose and select the appropriate antenna for the actual applications. Figure 2-2
shows how to install the RP-SMA dipole antenna to the ZE20S module.
TBD
Figure 2-2 RP-SMA Dipole Antenna Installation
2.1.3 Module Installation on the Development Board
Once the antenna is installed on the ZE20S module, the ZE20S module can be installed on the
development board.
TBD
Figure 2-3 ZE20S Installation on the Development Board
13 ProBee-ZE20S Series User Guide Rev.0.1
2.1.4 Serial/USB Cable Installation
After the ZE20S is securely installed on the development board, please connect the included serial cable
between the development board and your computer so AT commands can be sent from the computer to
the ZE20S module. The serial port of the development board is DB9 male as a DTE terminal, and the
serial cable included is a cross-over cable for DTE-DTE connection. To use the serial port, the HOST
(SW2) switch should be set to UART.
TBD
Figure 2-4 Serial Cable Installation
In case the serial port is not available for the computer, you can use the USB port of the development
board instead. In this case, the internal USB-RS232 converter of the development board will convert the
USB signal to the RS232 signal and vice versa. To use the USB port, the HOST (SW2) switch should be
set to USB and the software driver for the USB in the CD should be installed on the computer. For the
USB driver installation, please refer to the section 2.1.6.
TBD
Figure 2-5 USB Cable Installation
14 ProBee-ZE20S Series User Guide Rev.0.1
2.1.5 Powering Development Board
Once all the installations are completed, please plug in the power connector using the included DC power
adapter. The RS_PWR, USB_PWR and BATT_EN jumpers should be all OPEN to use the DC power
adapter. Alternatively, the development board can be powered using batteries, or from the USB port or
through the RS232 port pin 9. In these cases, the power source jumpers should be set accordingly. For
details about the power source jumper settings, please refer to the section 6.3.1 Power.
TBD
Figure 2-6 Plugging DC Power Adapter
2.1.6 USB Driver Installation
In case the USB interface is used for the communication between the development board and the
computer, the corresponding software driver needs to be installed on the computer. Windows XP and later
versions already include the USB driver. When Windows asks for the location of the USB driver, you can
select the option to “install the software automatically” as shown in Figure 2-7. You can also choose to
install the driver from the CD included if the driver is not installed correctly for some reason.
Figure 2-7 USB Driver Installation
15 ProBee-ZE20S Series User Guide Rev.0.1
2.2 Using Terminal Software for AT Commands
Once the hardware installation is complete, the ZE20S unit is ready to communicate with the computer
using the AT commands using a terminal emulation software. You can use any kind of terminal emulation
software. This document assumes HyperTerminal is used. If you are using Windows Vista or 7,
HyperTerminal is no longer included in the Windows so you need to download HyperTerminal from the
Internet. For more details on HyperTerminal, please refer to Microsoft web page.
Once the HyperTerminal is installed, launch HyperTerminal and select the serial port that is connected to
the ZE20S development board and enter the serial settings to use. The default serial settings of the
ZE20S are 9600 bps, 8 data bit, none parity, 1 stop bit, hardware flow control.
Figure 2-8 HyperTerminal Serial Settings
16 ProBee-ZE20S Series User Guide Rev.0.1
To display the AT commands that are being typed, you need to enable the local echo option on the
HyperTerminal. To enable this option, Go to File->Properties->Settings->ASCII setup and select the
“Echo typed characters locally” option. To verify the connection, type AT and press the Enter key. If the
AT command is accepted by the ZE20S, OK string will be displayed on the screen.
Figure 2-9 Testing AT Command on HyperTerminal
17 ProBee-ZE20S Series User Guide Rev.0.1
2.3 Using ProBee Manager for Configuration
Figure 2-10 ProBee Manager
It is possible to set or get the configurations of the ZE20S using ProBee Manager. This PC utility helps
that a user can configure several setting values easily without a terminal program and upload the
firmware file to local and/or remote node.
18 ProBee-ZE20S Series User Guide Rev.0.1
3 ZigBee Network Configuration
A ZigBee Network consists of a coordinator, routers and end devices. A minimal ZigBee network consists
of one coordinator and multiple end devices which directly connect to the coordinator. For larger ZigBee
networks, routers are required to provide redundant routings to form mesh networks.
• ZigBee Coordinator: The coordinator forms the root of the network tree and might bridge to
other networks. There is exactly one ZigBee coordinator in each network since the coordinator
starts the ZigBee network itself. It also stores information about the network, including acting as
the Trust Center & repository for security keys.
• ZigBee Router: The routers are able to route messages between other devices. Since the
coordinator provides the routing functionality too, the routers are optional to form a ZigBee
network.
• ZigBee End Device: The end device contains just enough functionality to talk to the parent node
which is either the coordinator or a router. It cannot relay data from other devices.
• ZigBee Sleepy End Device: The sleepy end device is the same with normal end device except it
can stay in the sleep mode much longer. This relationship allows the end device to sleep
significant amount of the time and achieve the long battery life.
The ZE20S can be configured to work either as a coordinator, a router or an end device. Once the
operation mode of the ZE20S is selected, corresponding parameters need to be set up appropriately. This
chapter explains how to configure the ZE20S operation mode and other parameters related to the ZigBee
network itself.
Table 3-1 ZigBee Node Types
Node Type Recommendation when to use ZE20S
Coordinator It should be selected when it is first time to establish the network.
Router It is recommended when there is a network already and it needs to be expanded. A
router is suitable for fast and stable data transmissions and receptions.
End Device It is recommended when it doesn’t need to expand the network anymore and there
are enough nodes as parents. An end-device consumes less power than a router.
Sleepy End Device It is recommended when the data transmissions occur rarely and in very small
quantities. A sleepy end device can lose data if sleep duration is too long, but it is
possible to consume extremely low power as low as 2uA.
3.1 Setting up ZE20S as a Coordinator
A coordinator relays messages and can act as a parent to other nodes. Every personal area network
(PAN) must be started by a node acting as the coordinator. This device is normally always powered on.
To set up the ZE20S to work as the coordinator, please follow the steps as below
19 ProBee-ZE20S Series User Guide Rev.0.1
• Configure the ZE20S node type as the coordinator
• Optionally, select the channel mask. Otherwise, the ZE20S will use the default channel mask.
• Optionally, set up the PAN ID and/or the extended PAN ID. Otherwise, the ZE20S will generate
the PAN ID and/or the extended PAN ID automatically.
• Permit joining when other router or end device tries to join the ZigBee network.
3.1.1 Node Type Selection for Coordinator
The ZE20S module can be configured as a ZigBee coordinator by the AT command as below:
AT+NODETYPE=n or AT+NT=n
Where n is 0 = none, 1 = coordinator, 2 = router, 3 = end-device, 4 = sleepy end-device
After the operation mode is selected, ATZ command should be performed to reset the unit to have the
change applied.
Example)
AT+NODETYPE=1<CR> # Set node type as the coordinator
OK<CR> # Response
ATZ<CR> # Apply the change
OK<CR> # Response
3.1.2 Channel Mask Configuration for Coordinator
When the ZigBee coordinator starts, it scans predefined frequency channels to find the best frequency
channel to use without causing interference with other wireless devices. The user is able to specify the
channels to use with the AT command as below:
AT+CHMASK=n
Where n = channel mask to use. Default = 0x03FFF000
This value has a 32-bit hexadecimal unsigned integer. Each bit represents whether a channel will be used
or not. For example, to use a channel between 12 and 15, the 12, 13, 14 and 15 bits of the channel mask
should be 1 and all other bits should be 0. The default setting is 0x3FFF000 which means that all the
channels from 12 to 25 can be used. The ZE20S supports only the channels between 12 and 25, so 0~11
bits and 26~31 bits should be 0. Table 3-2 shows the bit mask for each channel.
20 ProBee-ZE20S Series User Guide Rev.0.1
Table 3-2 Channel Bitmask
Channel 12 13 14 15 16 17 18
Bit mask 00001000 00002000 00004000 00008000 00010000 00020000 00040000
Channel 19 20 21 22 23 24 25
Bit mask 00080000 00100000 00200000 00400000 00800000 01000000 02000000
3.1.3 PAN ID Configuration for Coordinator
Every ZigBee network should be assigned a PAN ID to identify the network. If the PAN ID is 0000, the
ZE20S will generate a random 16-bit PAN ID to start the ZigBee network. Otherwise, the user can enter
the PAN ID using the AT command as below:
AT+PANID=xxxx
Where xxxx is PAN ID to use. For example, 12AB. Default setting is 0000
When choosing a PAN ID, the user needs to make sure that there is no ZigBee network using the same
PAN ID. If the PAN ID is already used by another ZigBee network, the PAN ID is unavailable and the user
should choose a new PAN ID. In order to avoid this, PAN ID auto-generation is strongly recommended.
The user can also assign the 64-bit extended PAN ID to the ZE20S using the AT command below. If the
extended PAN ID is 0000000000000000, the ZE20S uses its IEEE address as the extended PAN ID. The
extended PAN ID cannot be shared with other ZigBee networks either.
AT+EPID=xxx
…
xxx
Where xxx
…
xxx is EPID to use. For example, 0123456789ABCDEF. Default setting is 000
…
000.
3.1.4 Permit Joining
When a router or an end device tries to join the ZigBee network, there should be at least one coordinator
or router which is permitting joining. If there is no router in the ZigBee network yet, the coordinator should
permit joining. The ZE20S provides three ways to permit joining are as follows:
• Permanently permitting by configuration
• Transiently permitting by AT command
• Transiently permitting by digital input signal
If joining is permanently permitted, any device can join anytime. Since this will allow even an unidentified
device to join the network anytime, this mode should be selected with extra caution. The AT command to
permit joining permanently is as follows:
AT+PERMIT=255 or AT+PJ=255
21 ProBee-ZE20S Series User Guide Rev.0.1
The user can permit joining for a moment at need. The AT command to permit joining is
AT+PERMIT=n or AT+PJ=n
Where n is the duration to permit in seconds ranging 1~254 seconds.
The user can also configure the ZE20S to permit joining when the digital input GPIO0 is active. The AT
command to enable this functionality is as follows:
AT+GPIO0=5 or AT+IO0=5
When the ZE20S detects falling edge of the GPIO0, the ZE20S permits joining for the duration that is
configured in S-register 22 (S22). The AT command to change the duration is as follows:
ATS22=n
Where n is the duration to permit in seconds ranging 1~254 seconds. Default is 60.
S22 value determines the time that the device will allow other devices to join to it. If set to 255, the device
will always permit other nodes joining. If the user reboots the coordinator (or a router), the device allows
other nodes to join the network for the period defined by S-register 22.
Note: When a device that has joined a network reboots, the device is able to join the network regardless
of permitting. But, after the device has joined other network, rejoining the previous network should be
permitted by the coordinator or a router.
3.2 Setting up ZE20S as a Router
A router is a full-function routing device that relays messages and can act as a parent to other nodes.
These devices must be always powered on.
To configure the ZE20S as a ZigBee router, please follow the steps below.
• Configure the ZE20S node type as a router.
• Optionally, select the channel mask. Otherwise, the ZE20S will use the default channel mask.
• Optionally, set up the PAN ID and/or the extended PAN ID. Otherwise, the ZE20S will scan and
join the ZigBee network found automatically.
• Permit joining when other router or end device tries to join the ZigBee network.
3.2.1 Node Type Selection for Router
The ZE20S module can be configured as a ZigBee router by the AT command as below:
AT+NODETYPE=n or AT+NT=n
Where n is 0 = none, 1 = coordinator, 2 = router, 3 = end-device, 4 = sleepy end-device
22 ProBee-ZE20S Series User Guide Rev.0.1
After the operation mode is selected, ATZ command should be performed to reset the unit to have the
change applied.
Example)
AT+NODETYPE=2<CR> # Select router mode
OK<CR> # Response
ATZ<CR> # Apply the change
OK<CR> # Response
3.2.2 Channel Mask Configuration for Router
When the ZE20S as a ZigBee router or a ZigBee end device tries to join, it scans all the channels
configured by channel mask to find the ZigBee network to join. The channel mask of router or end device
should include the channel on which the coordinator is operating. For example, we assume that the
coordinator of the network to join is operating on channel 12. The router or end device trying to join
should has a channel mask of which 12th bit is 1
3.2.3 PAN ID Configuration for Router
The PAN ID of a ZigBee router or a ZigBee end device should be the same with the PAN ID of the ZigBee
coordinator. If the coordinator is using a randomly generated PAN ID, the user can get the operating PAN
ID by running the AT command below on the coordinator:
AT+OPPANID
If the PAN ID of a ZigBee router or a ZigBee end device is 0000, the PAN ID is ignored. After checking the
PAN ID, the ZE20S trying to join compares the extended PAN ID to make sure whether the network is the
right network to join. If the extended PAN ID is the same with its configured extended PAN ID, it will try to
join the network. Otherwise, it will try to find another network. The user can get the operating extended
PAN ID by running the AT command below on the coordinator:
AT+OPEPID
If the extended PAN ID of a ZigBee router or a ZigBee end device is 0000000000000000, the extended
PAN ID is ignored
3.2.4 Permit Joining
The ZigBee router is configured and works the same way with the coordinator to permit joining of other
nodes. Please refer to the section 3.1.4 Permit Joining for the configuration.
23 ProBee-ZE20S Series User Guide Rev.0.1
3.3 Setting up ZE20S as an End Device
An end device is a leaf node which communicates only with its parent node and will not relay messages
directly. To configure the ZE20S as a ZigBee end device, please follow the steps below.
• Configure the ZE20S node as an end device
• Optionally, select the channel mask. Otherwise, the ZE20S will use the default channel mask.
• Optionally, set up the PAN ID and/or the extended PAN ID. Otherwise, the ZE20S will scan and
join the ZigBee network found automatically.
• Configure the poll timeout and the poll period
Please refer to the section 3.2 Setting up ZE20S as a Router for the AT commands regarding the node
type selection through the PAN ID configurations.
When an end device joins the network, the power LED blinks periodically if GPIO1 is set to specific
functionality. The end device belongs to a parent node which is either the coordinator or a router, and the
parent node registers the end device to its internal child table for message relaying. This table is
maintained as long as the end device polls the parent node periodically within the poll timeout value of the
parent node. If the end device does not poll for the poll timeout value of the parent node, the parent node
removes the end device from its child table and does not relay the message any more. Hence, the poll
period of the end device should be equal or shorter than the poll timeout of the parent node to avoid
accidental removal of the end device from the parent node’s child table.
The ZE20S poll interval can be configured by setting the S-registers using the AT commands as below.
ATS51=n, where n is poll timeout in seconds and the default is 60.
ATS56=n, where n is poll period in seconds and the default is 5.

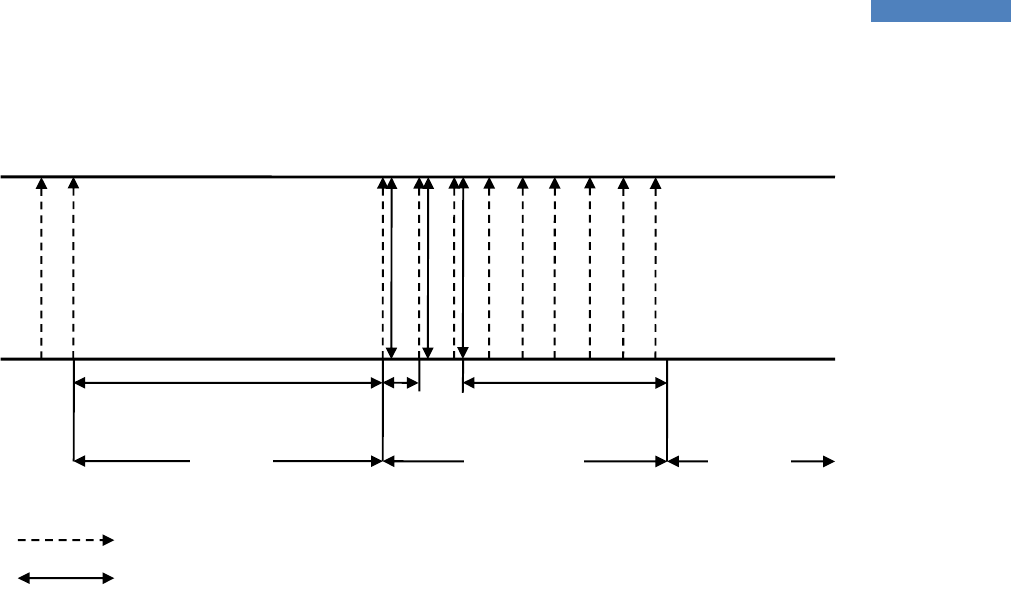

End device polls the parent node at poll period defined by S56 periodically. It is for the connection to the
parent node and data transmission with other nodes in the network.
Even though the end device needs to poll the parent node continuously, it does not go into the sleep
mode and it can send and receive messages any time unlike the sleepy end device.
3.4 Setting up ZE20S as a Sleepy End Device
A sleepy end device can turn off radio to save power. To configure the ZE20S as a ZigBee sleepy end
device, please follow the steps below.
• Configure the ZE20S node as a sleepy end device.
• Optionally, select the channel mask. Otherwise, the ZE20S will use the default channel mask.
• Optionally, set up the PAN ID and/or the extended PAN ID. Otherwise, the ZE20S will scan and
24 ProBee-ZE20S Series User Guide Rev.0.1
join the ZigBee network found automatically.
• Configure the settings for sleep interval.
Please refer to the section 3.2 Setting up ZE20S as a Router for the AT commands regarding the node
type selection through the PAN ID configurations.
One of the unique features of the ZigBee device is its extreme low power consumption which is mainly
achieved by its efficient sleep and wake-up mechanism. While ZigBee coordinator and routers are
required to be in operation always, ZigBee sleepy end devices can be configured to be in the sleep mode
most of the time and only wake up at pre-configured time interval for data transmission before it goes into
the sleep mode again. The ZE20S sleep interval can be configured by setting the S-registers using the AT
commands as below.
ATS51=n, where n is poll timeout in seconds and the default is 60.
This value is for a parent node. If an end device does not send a poll request to its parent coordinator or
router within the poll timeout, the end device is removed from the child table. Unlike the non-sleepy end
device, sleepy end device does not use S51 as the poll period. Instead, it uses S53 as the sleep duration
which works similar to the poll period, except it goes to sleep mode.
ATS53=n, where n is sleep duration in quarter seconds and the default is 8.
The ZE20S sleeps at sleep duration and turns off radio.
ATS52=n, where n is poll period in milliseconds and the default is 100.
Sleepy end device wakes up from the sleep mode if S53 timer expires or GPIO0 interrupt is generated or
serial data is received. Once the sleepy end device wakes up, it polls the parent node at poll period
defined by S52 until it goes to sleep mode again. Since the sleepy end device exchanges data with the
parent node only by polling, S52 poll period is usually configured as around 100 ms.
ATS54=n, where n is standby timeout in seconds and the default is 5.
If there is no RF data or serial data for S54 seconds, the sleepy end device goes to sleep mode again. If
any serial or RF data is sent or received, the timer will reset and the sleepy end device waits for another
S54 seconds before it goes to sleep mode again.
ATS55=n, where n is rejoin timeout and the default is 10.
When the connection to the parent node is broken for S55 in seconds, the child node tries to rejoin the
current network.
25 ProBee-ZE20S Series User Guide Rev.0.1
Figure 3-1 Sleep Interval and Wake-up Timing
The sleepy end device can also wake up from the sleep mode by GPIO0 interrupt or incoming serial data.
Once it wakes up, it also polls with the parent node at S52 interval and goes into sleep mode after S54
time elapses after the last data exchange.
Note: If the sleepy end device wakes up by incoming serial data, the integrity of the first incoming byte is
not guaranteed. It is strongly recommended to wake up the sleepy end device by using GPIO0 first before
sending the serial data or use higher level serial data protocol to check the data integrity.
3.5 ZigBee Security
Security is a major concern in the ZigBee architecture. Although ZigBee uses the basic security elements
in IEEE 802.15.4 (e.g., AES encryption & CCM security modes), the ZE20S increase the security level
with:
• 128 bit AES encryption algorithms
• Strong, NIST-approved security
• Defined Key Types (Link, Network)
• Defined Key setup and maintenance
• CCM (Unified/Simpler mode of operation)
• Trust Centers
Poll Request
Data Exchange
Parent Node
Sleepy End Device
Sleep Wake-Up Sleep
S53 S52 S54
26 ProBee-ZE20S Series User Guide Rev.0.1
3.5.1 Security Level
In order to use security in the application, a user should set security level using the AT command below.
Set 1 defines both Authentication and Encryption at the network layer. Set 0 defines no security. Disabling
security in the application is not ZigBee compliant. All nodes in the network should have the same
security level setup. The security level is configured using the AT command below.
AT+SECURITY=n, where n is encryption level. (0=disable, 1=enable)
3.5.2 Link Key
The trust center (normally coordinator in network) requests link key before a device is trying to join
network. If link key the device has is wrong, joining process will be denied. Hence, all nodes in the
network should have the same link key setup before joining the network.
AT+LINKKEY=xxx
…
xxx, where xxx
…
xxx is 128-bit hexadecimal trust center link key. Default is FFF
…
FF.
3.5.3 Network Key
It is the network-wide key used to secure transmissions at the Network Layer. The network key encrypts
all transmissions at the Network Layer. The network key only needs to be set up for the coordinator.
AT+NWKKEY=xxx
…
xxx, where xxx
…
xxx is 128-bit hexadecimal network key. Default is FFF
…
FF.
3.5.4 Update Key
A trust center can update the Network Key to help minimize the risk associated with a particular instance
of the network key being compromised. Key updates are broadcast by the trust center throughout the
network, encrypted using the current network key. Devices that hear the broadcast will not immediately
use the key, but simply store it. Later, a key switch is broadcast by the trust center to tell all nodes to start
using the new key. At a minimum, the trust center should allow adequate time for the broadcast of the
new key to propagate throughout the network before switching.
AT+UPDATEKEY<CR>
27 ProBee-ZE20S Series User Guide Rev.0.1
4 Data Transmission
The ZE20S supports three different types of data transmissions: unicast, multicast and broadcast. Unicast
is to transmit data to a specific ZigBee device. Multicast is to transmit data to a group of ZigBee devices
that are assigned a specific group ID. Broadcast is to transmit data to all ZigBee devices (or specific type
of ZigBee nodes if specified) in the network.
There are also two different methods to transmit data to other device as below:
• Command mode: It sends only one packet up to allowed payload length by a form of command.
• Data mode: It is possible to send data consecutively until leave the data mode using “+++”.
4.1 Command Mode
4.1.1 Unicast
Unicast transmissions are sent from a source device to a destination device. The destination device can
be any ZigBee device in the ZigBee network. To specify the destination device, the ZigBee address of the
destination device should be known.
There are two different ZigBee addresses assigned to each ZigBee device. The 64-bit address is a
unique device address assigned during manufacturing. The 64-bit address is also called IEEE address or
extended address. The 16-bit address is assigned to the device when it joins a ZigBee network. The
ZE20S can send unicast messages based on either 16-bit address or 64-bit address. The AT command
for the unicast transmissions is as below:
AT+UNICAST=<node_id>,<MSG><CR>
Where <node_id> = 16-bit or 64-bit address, <MSG> = data to transmit
The maximum payload of the message is 90 bytes (or 72 bytes under security enabled). If the message
length exceeds the maximum payload, the message cannot transmit and the error message will be
presented.
4.1.2 Multicast
Multicast transmissions are sent from a source device to destination devices with the specific group ID.
The group ID is assigned to the devices using the AT+GROUPID command. The AT command for the
multicast transmissions is as below.
AT+MULTICAST=<group_id>,<MSG><CR>
Where <group_id> = group ID, <MSG> = data to transmit
The data transmission range can be set using the AT commands below. Please refer to the 9 S-Registers
for more details.
28 ProBee-ZE20S Series User Guide Rev.0.1
ATS36=n, where n is the radius.
ATS37=n, where n is the number of hops through nonmembers.
4.1.3 Broadcast
Broadcast transmissions are sent from a source device to all devices in the ZigBee network. The AT
command for the broadcast transmissions is as below.
AT+BROADCAST=<MSG><CR>
Where <MSG> = data to transmit
The user can also specify the transmit range by changing the S35 register value as below. Please refer to
the 9 S-Registers for more details.
ATS35=n, where n is the broadcast range.
ATS36=n, where n is the radius.
4.1.4 Sending Binary Data
There are some characters, e.g. carriage return, line feed and back space, that are not allowed or have
special meanings in command mode. In order to transmit these characters in command mode, these
characters must be encoded in a command line. The special characters encoding table is shown in Table
4-1.
Table 4-1 Special Characters Encoding Table
HEX Abbreviation Glyph Encoded Description
00 NULL - \00 Null character
0D CR - \0D Carriage return
0A LF - \0A Line feed
08 BS - \08 Backspace
09 HT - \09 Horizontal Tab
7F DEL - \7F Delete
5C - \ \5C Control character for binary encoding
For example, when sending abc<CR> with AT+BROADCAST command, the command should be as
follows:
AT+BROADCAST=abc\0D<CR>
4.1.5 Display Incoming Message
S11 register determines whether incoming message will be presented or not in the command mode. In
29 ProBee-ZE20S Series User Guide Rev.0.1
the data mode, on the other hand, incoming data is always displayed. To change the S11 register, please
use the AT command as below:
ATS11=<value><CR>,
where <value> = 0 to hide incoming message, 1 to show incoming message.
If user wants to display incoming message in command mode, S11 should be enabled. It is presented by
a form of +<IEEE address>|<MSG><CR>.
When displaying incoming messages in command mode, some characters are encoded in the same way
with sending binary data as in Table 4-1. For example, when receiving abc<CR> from
0001950000000001, the displaying message is as follows:
+0001950000000001| abc\0D<CR>
4.2 Data Mode
If the data is too long to send using the command mode, Data Mode can be used instead. Once the
ZE20S enters a Data Mode session, the ZE20S can send data continuously to a specific node or current
network until the data mode is escaped. The data is packetized and transmitted at every inter-character
timeout. This data link to the designated device is maintained until the escape command “+++” is entered.
To return to the last data mode after the ZE20S is escaped by “+++”, use the AT command as below.
ATO<CR>
4.2.1 Unicast Data Mode
Unicast data mode can be used for continuous data transmission to a particular node. Unicast data mode
can be entered using either ATD or AT+TRANSMITMODE=1 (or 4). If ATD command is used, the device
will enter the unicast data mode immediately until escaped using “+++” or reset by ATZ. If the device is
reset, it will not enter the unicast data mode in this case.
On the other hand, if AT+TRANSMITMODE=1 (or 4) is used to enter the unicast data mode, the device
enters the unicast data mode again whenever the device is reset. To disable the unicast data mode,
escape the data mode first by using “+++” string and use AT+TRANSMITMODE=0 and reset the device to
apply the setting permanently.
AT commands used for the unicast data mode are as below.
AT+DESTLA=<value>
Set the destination address, where <value> is 64-bit IEEE address of destination node for unicast data
mode.
30 ProBee-ZE20S Series User Guide Rev.0.1
ATD<CR>
Set unicast data mode to the preconfigured destination IEEE address without reset.
ATD<value><CR>
Set unicast data mode and <value> can be either 16-bit node ID or 64-bit IEEE address of remote node.
AT+TRANSMITMODE=1<CR>
Set the transmit mode to unicast to a destination IEEE address. The device should be reset to apply the
mode.
AT+TRANSMITMODE=4<CR>
Set the transmit mode to unicast to a sink node. A sink node is determined if s-register 61 is set. The
device should be reset to apply the mode.
Example)
AT+DESTLA=00019500002FDC40<CR> # Set the destination IEEE address
OK<CR> # Response
ATD<CR> # Enter the unicast mode using destination IEEE address
OK<CR> # Response
Send unicast msg # Put the unicast message
+++ # Leave data mode
OK<CR> # Response
ATD0000<CR> # Enter the unicast mode using 16-bit node ID
OK<CR> # Response
Send unicast msg # Put the unicast message
+++ # Leave data mode
OK<CR> # Response
ATD00019500002FDC40<CR> # Enter the unicast mode using 64-bit IEEE address
OK<CR> # Response
Send unicast msg # Put the unicast message
+++ # Leave data mode
OK<CR> # Response
AT+DESTLA=00019500002FDC40<CR> # Set the destination IEEE address
OK<CR> # Response
31 ProBee-ZE20S Series User Guide Rev.0.1
AT+TRANSMITMODE=1<CR> # Set transmit mode to destination IEEE address
OK<CR> # Response
ATZ<CR> # Apply to change
OK<CR> # Response
Send unicast msg # Put the unicast message
+++ # Leave data mode
OK<CR> # Response
AT+TRANSMITMODE=4<CR> # Set transmit mode to sink node in the network
OK<CR> # Response
ATZ<CR> # Apply to change
OK<CR> # Response
Send unicast msg # Put the unicast message
+++ # Leave data mode
OK<CR> # Response
4.2.2 Multicast Data Mode
Multicast data mode can be used for continuous data transmission to a particular group of multiple
devices. Every ZE20S belongs to a certain group by predetermined group ID when form or join the
network.
Multicast data mode can be entered using either ATM or AT+TRANSMITMODE=2. If ATD command is
used, the device will enter the multicast data mode immediately until escaped using “+++” or reset by ATZ.
If the device is reset, it will not enter the multicast data mode in this case.
On the other hand, if AT+TRANSMITMODE=2 is used to enter the multicast data mode, the device enters
the multicast data mode again whenever the device is reset. To disable the multicast data mode, escape
the data mode first by using “+++” string and use AT+TRANSMITMODE=0 and reset the device to apply
the setting permanently.
AT commands used for the multicast data mode are as below.
AT+GROUPID=<value>, where <value> is 16-bit group ID for multicast data mode.
Set Group ID of the device. The device will receive the multicast data sent to this Group ID.
AT+DESTGROUPID=<value>, where <value> is 16-bit destination group ID for multicast data mode.
Set destination Group ID of the device.
32 ProBee-ZE20S Series User Guide Rev.0.1
ATM<CR>
Set multicast data mode to preconfigured destination group ID without reset.
ATM<value><CR>
Set multicast data mode and <value> can be 16-bit group ID.
AT+TRANSMITMODE=2<CR>
Set the transmit mode to multicast mode. The device should be reset to apply the mode.
ATS36=n, where n is the radius.
ATS37=n, where n is the number of hops through nonmembers.
Set data relay and forwarding options. Please refer to the 9 S-Registers for more details.
Example)
AT+DESTGROUPID=0001<CR> # Set the destination group ID
OK<CR> # Response
ATM<CR> # Enter the multicast mode using destination group ID
OK<CR> # Response
Send multicast msg # Put the multicast message
+++ # Leave data mode
OK<CR> # Response
ATM0001<CR> # Enter the multicast mode using 16-bit group ID
OK<CR> # Response
OK<CR> # Response
Send multicast msg # Put the multicast message
+++ # Leave data mode
OK<CR> # Response
AT+DESTGROUPID=0001<CR> # Set the destination group ID
OK<CR> # Response
AT+TRANSMITMODE=2<CR> # Set transmit mode to destination group ID
OK<CR> # Response
ATZ<CR> # Apply to change
OK<CR> # Response
Send multicast msg # Put the multicast message
+++ # Leave data mode
33 ProBee-ZE20S Series User Guide Rev.0.1
OK<CR> # Response
4.2.3 Broadcast Data Mode
Broadcast data mode can be used for continuous data transmission to all devices in the current network.
The destination address or group ID of the remote nodes is not necessary for broadcast data mode. The
transmit range is determined by the S-register 35.
Broadcast data mode can be entered using either ATB or AT+TRANSMITMODE=3. If ATB command is
used, the device will enter the broadcast data mode immediately until escaped using “+++” or reset by
ATZ. If the device is reset, it will not enter the broadcast data mode in this case.
On the other hand, if AT+TRANSMITMODE=3 is used to enter the broadcast data mode, the device
enters the broadcast data mode again whenever the device is reset. To disable the broadcast data mode,
escape the data mode first by using “+++” string and use AT+TRANSMITMODE=0 and reset the device to
apply the setting permanently.
AT commands used for the broadcast data mode are as below.
ATB<CR>
Set broadcast data mode.
AT+TRANSMITMODE=3<CR>
Set the transmit mode to broadcast. It should be reset to apply the mode.
ATS35=n, where n is the broadcast range.
ATS36=n, where n is the radius.
Set data transmission range. Please refer to the chapter 9 S-Registers for more details.
Example)
ATS35=2<CR> # Set broadcast range to all nodes in the network
OK<CR> # Response
ATB<CR> # Enter the broadcast mode
OK<CR> # Response
Send broadcast msg # Put the broadcast message
+++ # Leave data mode
OK<CR> # Response
AT+TRANSMITMODE=3<CR> # Set transmit mode to current network
34 ProBee-ZE20S Series User Guide Rev.0.1
OK<CR> # Response
ATZ<CR> # Apply to change
OK<CR> # Response
Send broadcast msg # Put the broadcast message
+++ # Leave data mode
OK<CR> # Response
35 ProBee-ZE20S Series User Guide Rev.0.1
5 Digital and Analog I/O
5.1 GPIO Configuration
The ZE20S module has total 14 I/O pins. Among these pins, I/O pin 6 is assigned to factory reset only
and the user can use the rest 13 pins for general purpose inputs and outputs. The I/O pin assignments
are shown in Table 5-1. As shown in Table 5-1, some pins provide special functions built into the firmware.
Table 5-2 describes the special functions tied to the specific pins.
Table 5-1 Default I/O Pin Assignments (ZE20S)
Pin Number GPIO Number Special Functions AI Enable
The AT command below can be used to change the GPIO settings.
AT+GPIO=<values><CR> or AT+GPIO<number>=<value><CR>
Where, <values> is a number between 0~5 as explained below:
0 Disabled (unmonitored digital input)
1 Digital input, monitored
2 Digital output, default low
3 Digital output, default high
4 Analog input, single ended (only valid for GPIO3~6)
5 Reserved for pin-specific alternate functionalities (See Table 5-2)
36 ProBee-ZE20S Series User Guide Rev.0.1
Table 5-2 Special GPIO Pins
Function GPIO# Type Description
Factory_reset
/ Bootloader DI
This input is dedicated for the factory reset button. If user wants to
restore the ZE20S device settings to factory default, this input needs
to be pressed for more than two seconds. It will be applied after the
input released again. If this input is pressed while the ZE20S starts,
the local node enters bootloader menu and it is possible to upload the
firmware.
Permit_joining
/ Wake-up DI
This input (falling edge, i.e. High to Low change) is used to permit
joining or interrupt sleeping. This function is activated when GPIO0 is
set to 5. The functions depend on the node type of the ZE20S. If the
node is set to coordinator or router, this input works to permit other
nodes joining for S-register 22 value. If the node is set to sleepy end-
device, it is used for wake-up signal when the node is sleeping.
Power LED DO
If GPIO1 is set to 5, this output turns ON (High) when power is
supplied. If the node is set to an end-device, it will blink periodically.
Please refer to 9 S-Registers for S14 regarding the management of
the LED status.
Status LED DO
If GPIO2 is set to 5, this output turns ON (High) when the device joins
a network, blinks when joining is permitted, and turns OFF (Low)
when leaves the network. Please refer to 9 S-Registers for S14
regarding the management of the LED status.
UART_CTS DI
This input is used for UART CTS if GPIO8 is set to 5. It should be
enabled when CTS flow control is used.
UART_RTS DO
This output is used for UART RTS if GPIO9 is set to 5. It should be
enabled when RTS flow control is used.
UART_DTR DO This output is used for UART DTR if GPIO10 is set to 5.
UATR_DSR DI This input is used for UART DSR if GPIO11 is set to 5.
5.2 I/O Sampling
The I/O status can be monitored and controlled using the local or remote AT commands. Also the ZE20S
can be configured to sample the I/O status and send to a remote device periodically or at specific events.
5.2.1 Queried Sampling
The I/O status can be monitored and controlled using the AT commands either locally or remotely. To read
the digital I/O line values, the AT+DIO command can be used as below. Return value is a combination of
0 (Low) and 1 (High) if the pins are configured as digital I/O lines. If the pins are configured as analog
inputs, the corresponding return values are shown as *.
37 ProBee-ZE20S Series User Guide Rev.0.1
AT+DIO?<CR> or AT+DIO<number>?<CR>
Where <number> is the specific IO number to read ranges 0~12
AT+DIO command can also be used to set the digital output lines.
AT+DIO=<value><CR> or AT+DIO<number>=<value><CR>
Where <number> is the specific IO number to read ranges 0~12, and the <values> is a combination of 0
or 1, 0 = Low, 1 = High
The analog input values can be read using the AT+AI command. Return value is a combination of 16-bit
hexadecimal integer between 0~2EE0(0~1200mV) or D120-FFFF(-1200~-1mV) which unit value
corresponds to 0.1 mv. To convert the hexadecimal value to the actual voltage, please use the formula
below. If the pins are configured as digital I/Os, the corresponding return values are shown as *.
AT+AI?<CR> or AT+AI<number>?<CR>
Where <number> is the specific IO number to read ranges 0~2
If the Value is between 0 ~ 2EE0, Voltage (mV) = Value * 0.1
If the Value is between D120 ~ FFFF, Voltage (mV) = (Value – 65536) * 0.1
Example)
AT+DIO?<CR>
10001**011100 Å DIO 0, 4, 8, 9, 10 are ON. Pins 5, 6 are configured as
analog inputs
OK
AT+DIO0=0<CR>
OK
AT+DIO?<CR>
00001**011100 Å DIO 0, 4, 8, 9, 10 are ON. Pins 5, 6 are configured as
analog inputs
OK
AT+AIO?<CR>
****,****,192A,13E8 Å AI 2, 3 are used. (GPIO5, 6) The others are
configured as DIO.
OK
To get/set the I/O values of the remote devices, remote AT commands can be used as below.
AT+REMOTE=<node ID or IEEE address of a remote node>,<AT command><CR>
38 ProBee-ZE20S Series User Guide Rev.0.1
Example)
AT+REMOTE=00019500000F3BA1,AT+DIO?<CR>
10001**011100
OK
5.2.2 Periodic Sampling
The ZE20S can be configured to send its I/O status to a remote device at a periodic rate. To configure this
way, please use the AT commands below:
AT+DESTLA=<IEEE address><CR>
Where <IEEE address> is the long address of a remote node to send sampled GPIO values of local node.
ATS42=<value><CR>
Where <value> is the GPIO sampling period in seconds. If set to 0, GPIO monitoring is disabled.
ATS43=<value><CR>
Where <value> is the GPIO monitoring node. If set to 0, the monitoring node is selected by AT+DESTLA.
If set to is 1, the sink node is set as the monitoring node.
ATZ<CR>
Reset the device to apply the changes
Also the ZE20S can be configured to display periodic sampling data coming from the other nodes. To
enable this feature, please use the AT command below:
ATS11=<value><CR>, where <value> determines whether incoming message will be presented or not. If
a user wants to display incoming message in command mode, S11 should be enabled.
If this feature is enabled, incoming message will display in the form of:
++<IEEE address>|<GPIO value><CR>.
5.2.3 Change Detection Sampling
The ZE20S module can take an I/O sample and transmit it to a remote device immediately whenever a
monitored digital I/O pin changes state. It is possible to configure it with periodic sampling simultaneously.
To configure this way, please use the AT commands below:
AT+DESTLA=<IEEE address><CR>
Where <IEEE address> is the long address of a remote node to send sampled GPIO values of local node.
39 ProBee-ZE20S Series User Guide Rev.0.1
ATS44=<value><CR>
Set GPIO change detection sampling mode. If <value> is set to 0, GPIO sampling is disabled.
ATZ<CR>
Reset the device to apply the changes
5.2.4 GPIO Remote Control
The ZE20S module supports that a node can change the digital output status of a remote node by
switching local digital input pin and the local node should be possible to monitor the GPIO status. To
configure this way, please use the AT commands below:
AT+SOURCELA=<IEEE address><CR>
Where <IEEE address> is the long address of a specific source node for changing the status of digital
output pin. If this address is set to “FFFFFFFFFFFFFFFF”, a local node allows that any node can control
the GPIO status.
ATS45=<value><CR>
Set GPIO remote control mode. If <value> is set to 0, GPIO control is disabled.
40 ProBee-ZE20S Series User Guide Rev.0.1
6 Working with Development Kit
The ZE20S development kit provides a quick and easy way to be familiar with the ZE20S and test its
functionalities before you build your own PCB board to carry the ZE20S. It is always recommended to
start with the ZE20S development kit before your own design.
6.1 Development Kit Contents
The development kit consists of ZE20S modules and development boards to carry them. The
development board provides RS232 and USB interface to interface with computers and/or your target
devices. It also provides terminals for digital inputs/outputs and analog inputs. It also provides on/off
switches and LEDs to simulate and verify digital inputs/outputs. It also has temperature and light sensor
so you can test more practical applications. Below is the list of the items included in the package.
• ProBee ZE20S ZigBee OEM Module w/ Chip Antenna (1)
• ProBee ZE20S ZigBee OEM Module w/ U.FL Connector (1)
• ProBee ZE20S ZigBee OEM Module w/ RPSMA Connector (1)
• 3 dBi Dipole Antenna, RP-SMA Plug, Right-hand Thread (2)
• 12cm U.FL to RPSMA Cable, Right-Hand Thread (1)
• Development Boards (3)
• DC Power Adapters (3)
• RS232 Serial Cable (3)
• USB Cable (3)
6.2 Development Board Features
The development board is designed to provide convenient access to the ZE20S interface pins. The
development board provides external interfaces as below. Also Figure 6-1 shows the layout of those
interfaces of the development board.
• RS232 Interface
• USB Interface
• 3 Pre-defined Digital Inputs: Permit Joining, Factory Default Reset, Hardware Reset
• 8 User Configurable Digital Inputs
• 8 Digital Outputs with LEDs (Active High)
• 4 Analog Inputs
• Temperature Sensor
• Light Sensor
41 ProBee-ZE20S Series User Guide Rev.0.1
TBD
Figure 6-1 Development Board Layout
6.3 Development Board Hardware Descriptions
6.3.1 Power
There are four ways to supply power to the development board:
• 5V Power Port
• USB Port
• AA Batteries
• RS232 Port, 5V through 9th Pin
The RS_PWR, USB_PWR and BATT_EN jumpers MUST be configured properly according to the way.
Table 6-1 shows jumpers configuration
Table 6-1 Jumpers Configuration
RS_PWR USB_PWR BATT_EN
5V Power Port Open Open Open
USB Port Open Close Open
AA Batteries Open Open Close
RS232 Port Close Open Open
42 ProBee-ZE20S Series User Guide Rev.0.1
6.3.2 RS232 Port
The development board has an RS232 interface for UART communication. The UART_TXD, UART_RXD,
UART_DSR (GPIO_11), UART_DTR (GPIO_10), UART_CTS (GPIO_8) and UART_RTS (GPIO_9) pins
of the ZE20S are connected with the RS232 port. To enable the RS232 port, the HOST (SW2) switch
should be set to UART.
In addition to the data communication via RS232 port, the RS232 port is capable of supplying power to
the development board. In order to use this feature, supply 5V power via the 9th pin of the DB9 socket.
6.3.3 USB Port
The development board also has a USB interface for UART communication. To use the USB port, the
HOST (SW2) switch should be set to USB and the software driver should be installed on the host
computer. The installation CD contains the software.
6.3.4 ZE20S GPIO Interface
The development board’s external GPIO interfaces as well as functional buttons such as factory default
reset switches are internally routed to the ZE20S GPIO pins. Table 6-2 summarizes the development
board’s interfaces and their corresponding GPIO pin numbers of the ZE20S.
Table 6-2 Development Board GPIO Interface Allocation
ZE20S
Pin Number
Name
Description
Digital Output with LED(CR12) Display (Active High)
Digital Input with Button Switch (SW10, Active Low or Active High)
Digital Output with LED(CR13) Display (Active High)
Digital Input with Switch (SW11, Active Low or Active High)
Permit Joining Switch (SW9)
Factory Default Reset Switch (SW8)
Digital Output with LED(CR14) Display (Active High)
Digital Input with Button Switch (SW12, Active Low or Active High)
Analog Input with Variable Register (VR1)
Digital Output with LED(CR15) Display (Active High)
Digital Input with Button Switch (SW13, Active Low or Active High)
Analog Input with Variable Register (VR2)
Hardware Reset Switch
Digital Output with LED(CR16) Display (Active High)
Digital Input with Button Switch (SW14, Active Low or Active High)
Analog Input with Temperature Sensor (U6)
Digital Output with LED(CR17) Display (Active High)
43 ProBee-ZE20S Series User Guide Rev.0.1
Digital Input with Button Switch (SW15, Active Low or Active High)
Analog Input with Light Sensor (U7)
Digital Output with LED(CR19) Display (Active High)
Digital Input with Button Switch (SW17, Active Low or Active High)
UART DSR Input
UART DTR Output
UART Data Input
UART Data Output
UART CTS Input
UART RTS Output
Digital Output with LED(CR18) Display (Active High)
Digital Input with Button Switch (SW16, Active Low or Active High)
6.3.5 LEDs (CR)
The development board has 8 LEDs for digital output. To enable the LEDs, the GPIO_OUT (SW?) switch
should be set to LED_ON. The LEDs are turned on when the related GPIO pins of the ZE20S are high.
6.3.6 Button Switches (SW)
The development board has 8 button switches for digital input. The switches can be configured as active
high or active low with the GPIO_IN (SW?) switch.
6.3.7 Variable Resistors (VR)
There are two variable resistors for analog inputs on the development board. The analog inputs can be
read with the GPIO_? and GPIO_?. To enable the variable resistors, the ADC_0 and ADC_1 switches
should be placed to VR_? and VR_?.
6.3.8 Temperature Sensor
The GPIO_? of the ZE20S is routed to the temperature sensor. The relationship between temperature
and analog input is as follows:
Temperature(°C) ={ Volt(mV) -600(mV)} * 0.1(℃/mV)
6.3.9 Light Sensor
The GPIO_? of the ZE20S is routed to the light sensor. Approximately, the relationship between
illumination and analog input is as follows:
Illumination(Lux) = Volt(mV) * 0.25(Lux/mV)
44 ProBee-ZE20S Series User Guide Rev.0.1
6.3.10 Terminal Block
The development board has a terminal block for external analog inputs. Figure 6-2 shows the layout of
the terminal block. To use external analog inputs instead of the variable resistors, temperature sensor or
light sensor, the ADC_0 (SW?), ADC_1 (SW?), ADC_2 (SW?) or ADC_3 (SW?) should be placed on
EXT_?, EXT_?, EXT_?, or EXT_?.
Figure 6-2 Terminal Block for External Anlalog Inputs
6.4 Configuration Example #1: 1 Coordinator, 1 Router and 1 End-Device
Here is the example configuration to help to start with the ZE20S and the development kit. The goal of
this example is to provide hardware configuration and AT commands for the scenario as below:
• One ZE20S module acts as a coordinator and it is connected to a host computer via USB cable.
• One ZE20S module acts as a router and it sends temperature sensor, light sensor and digital
inputs to the coordinator every second.
• One ZE20S module acts as a sleepy end device and it sends temperature sensor, light sensor
and digital inputs to the coordinator every second.
TBD
Figure 6-3 Example #1: 1 Coordinator, 1 Router and 1 End Device
45 ProBee-ZE20S Series User Guide Rev.0.1
6.4.1 Coordinator Configuration
Hardware configuration for the coordinator is as follows:
• Set the HOST switch to USB
• Close the USB_PWR jumper and open the RS_PWR and BATT_PWR jumpers.
• Connect a USB cable between a host computer and the coordinator
The AT commands for the coordinator are as follows:
AT+NODETYPE=1
OK
AT+PANID=7772
OK
ATS11=1
OK
AT+LONGADDR
0001950000000001
OK
ATZ
OK
6.4.2 Router Configuration
Hardware configuration for the coordinator is as follows:
• Set the ADC_2 and ADC_3 switch to TEMP_SENS and LIGHT_SENS
The AT commands for the router are as follows:
AT+NODETYPE=2
OK
AT+PANID=7772
OK
ATS42=1
OK
AT+DESTLA=0001950000000001
OK
AT+GPIO=1111144111111
OK
ATZ
OK
46 ProBee-ZE20S Series User Guide Rev.0.1
6.4.3 End-device Configuration
Hardware configuration for the end device is as follows:
• Set the ADC_2 and ADC_3 switch to TEMP_SENS and LIGHT_SENS
The AT commands for coordinator configuration is as follows:
AT+NODETYPE=4
OK
AT+PANID=7772
OK
ATS42=1
OK
AT+DESTLA=0001950000000001
OK
AT+GPIO=1111144111111
OK
ATZ
OK
6.4.4 Monitoring the Sensors
Once the configurations are done and the system is running, the terminal (computer) connected to the
coordinator will print out the incoming data as follows:
++0001950000000002|10000**000000|****,****,233E,006A
++0001950000000003|10000**000000|****,****,2254,0B23
++0001950000000002|10000**000000|****,****,2235,004E
++0001950000000003|10000**000000|****,****,226C,0B8B
6.5 Configuration Example #2: 1 Coordinator and 2 End-Devices
Here is another example assuming different system configurations. This example can be described as
follows:
• One ZE20S module acts as a coordinator and it is connected to a host computer via serial cable.
• Two ZE20S modules act as end devices.
• Turn on/off the LEDs of the end devices remotely through the coordinator
47 ProBee-ZE20S Series User Guide Rev.0.1
TBD
Figure 6-4 Example #2: 1 Coordinator and 2 End Devices
6.5.1 Coordinator Configuration
Hardware configuration for the coordinator is as follows:
• Set the HOST switch to UART
• Connect a serial cable between a host computer and the coordinator
The AT commands for coordinator configuration is as follows:
AT+NODETYPE=1
OK
AT+PANID=7772
OK
ATZ
OK
6.5.2 End-devices Configuration
Hardware configuration for the coordinator is as follows:
• Set the GPIO_OUT switch to LED_ON
The AT commands for the end devices are as follows:
AT+NODETYPE=4
OK
AT+PANID=7772
OK
AT+GPIO=3333333333333
OK
48 ProBee-ZE20S Series User Guide Rev.0.1
AT+LONGADDR
0001950000000003
OK
ATZ
OK
6.5.3 Turning on/off the LEDs
The AT commands to control the LEDs are as follows:
AT+REMOTE=0001950000000003,AT+DIO=0000000000000
OK
AT+REMOTE=0001950000000003,AT+DIO=1111111111111
OK
49 ProBee-ZE20S Series User Guide Rev.0.1
7 AT Command Reference
7.1 Command Line Format
Each command line is composed of a prefix, body and terminator. Only “AT” can be used for the prefix.
The body is a string of characters. The terminator is <CR> or <NL>. A command can be one of the
followings:
• Read a configuration parameter:
AT<Command>?<CR>
• Do something:
AT<Command><CR>
• Write a configuration parameter:
AT<Command>=<Parameter 1>,<Parameter 2>,<Parameter 3>,…<CR>
Commands denoted with a “+” character are extended AT commands.
S-registers are supported. Multiple commands in the same command line are not supported.
7.2 Standard AT Commands
7.2.1 AT
Description Check the state of the connection between host and ProBee device.
Execute AT<CR>
Response OK<CR>
7.2.2 ATB
Description Enter the broadcast data mode. Every data is packetized at intervals of inter character
timeout (S12) and transmit range is determined by broadcast range(S35).
Execute ATB<CR>
Response OK<CR>
7.2.3 ATD
Description
Enter the unicast data mode to specific node. If there’s no argument after the
command, it will connect to the preconfigured destination IEEE address. Successful
transmission guarantees successful reception and every data is packetized at intervals
of inter character timeout(S12).
Execute ATD<CR> ATD<nodeID><CR> ATD<IEEE><CR>
Response OK<CR> or ERROR<CR>
50 ProBee-ZE20S Series User Guide Rev.0.1
7.2.4 ATE
Description Echo(1) or No Echo(0).
Execute ATE<number><CR>
Response OK<CR>
7.2.5 ATM
Description
Enter the multicast mode. If there’s no argument after the command, it will connect to
the preconfigured destination group ID. Every data is packetized at intervals of inter
character timeout(S12).
Execute ATM<CR> ATM<groupID><CR>
Response OK<CR>
7.2.6 ATO
Description Return to data mode.
Execute ATO<CR>
Response
7.2.7 ATR
Description Response(1) or No Response(0).
Execute ATR<number><CR>
Response OK<CR>
7.2.8 ATS
Description Get/Set the S-registers.
Execute ATS<CR> ATS<number>?<CR> ATS<number>=<value><CR>
Response List of the S-register and
description
<value><CR>
OK<CR> OK<CR> or ERROR<CR>
7.2.9 ATZ
Description Reset the node.
Execute ATZ<CR>
Response OK<CR>
7.2.10 AT&F
Description Factory reset.
Execute AT&F<CR>
Response OK<CR>
51 ProBee-ZE20S Series User Guide Rev.0.1
7.2.11 +++
Description Interrupt data mode. “+++” must be entered within 500ms.
Execute +++
Response OK<CR>
7.3 Node Specific Information
7.3.1 AT+LONGADDR or AT+LA
Description
Get the 64-bit IEEE address. (EUI address, long address) The IEEE address is a
unique device address assigned during manufacturing. This address is unique to each
physical device.
Execute AT+LONGADDR?<CR>
Response <IEEE address><CR>
OK<CR>
7.3.2 AT+SHORTADDR or AT+SA
Description
Get the 16-bit Node ID. (network address, short address) The node ID of “0000” is
reserved for the coordinator. All other devices receive a randomly generated address
from the router or coordinator device that allows the join. This value can change if an
address conflict is detected where two devices are found to have the same address or
a device leaves the network and later joins.
Execute AT+SHORTADDR?<CR>
Response <node ID><CR>
OK<CR>
7.3.3 AT+ADDRDISCOVERY or AT+AD
Description Get the corresponding address of a node whose long or short address is known.
Execute AT+ADDRDISCOVERY=<IEEE><CR> AT+ADDRDISCOVERY=<nodeID><CR>
Response <node ID><CR>
OK<CR>
<IEEE address><CR>
OK<CR>
7.3.4 AT+OPCH or AT+OC
Description
Get the operating channel number used for transmitting and receiving between RF
modules. Uses 802.15.4 channel numbers. A value of “0” means the device has not
joined a PAN and is not operating on any channel.
Execute AT+OPCH?<CR>
Response <value><CR>
OK<CR>
52 ProBee-ZE20S Series User Guide Rev.0.1
7.3.5 AT+OPPANID or AT+OI
Description
Get the operating 16-bit PAN ID. If PAN ID is set specific value not 0s, operating PAN
ID will equal designated PAN ID. A value of “FFFF” means the device is not joined a
network.
Execute AT+OPPANID?<CR>
Response <value><CR>
OK<CR>
7.3.6 AT+OPEPID or AT+OE
Description Get the operating 64-bit extended PAN ID. A value of “FFFFFFFFFFFFFFFF” means
the device is not joined a network.
Execute AT+OPEPID?<CR>
Response <value><CR>
OK<CR>
7.3.7 AT+VERSION or AT+VR
Description Get firmware version of the module. The firmware version returns a form of “PTvx.x”.
Execute AT+VERSION?<CR>
Response <value><CR>
OK<CR>
7.3.8 AT+PRODUCTNAME or AT+PN
Description Get the product name. It can be used to distinguish among different hardware
platforms.
Execute AT+PRODUCTNAME?<CR>
Response <value><CR>
OK<CR>
7.4 Network Specific Parameters
7.4.1 AT+CHMASK or AT+CM
Description
Get/Set the channel mask to use. Bits set as 1 indicate that this particular channel can
be used. Bits set as 0 indicate that this particular channel should not be used. For
example, a channel mask value of 0x00000001 indicates that only channel 0 should be
used. Valid channels range from 12 to 25 inclusive. (14 channels are available.) This
translates to a channel mask value of “0x03FFF000”.
Execute AT+CHMASK?<CR> AT+CHMASK=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 03FFF000
53 ProBee-ZE20S Series User Guide Rev.0.1
Range 00001000 - 03FFF000
7.4.2 AT+PANID or AT+PI
Description
Get/Set the 16-bit PAN ID. If it is set to 0s, the coordinator will select a random 16-bit
hexadecimal number as PAN ID, and the router/end-device will join any existing
network if it is allowed.
Execute AT+PANID?<CR> AT+PANID=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 0000
Range 0000 – FFFF
7.4.3 AT+EPID or AT+EI
Description Get/Set the 64-bit extended PAN ID. If the node is a coordinator and the EPID is set to
0s, it will take the rearranged IEEE address as random number.
Execute AT+EPID?<CR> AT+EPID=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 0000000000000000
Range 0000000000000000 - FFFFFFFFFFFFFFFF
7.4.4 AT+GROUPID or AT+GI
Description Get/Set the 16-bit Group ID. It is used for multicast data reception.
Execute AT+GROUPID?<CR> AT+GROUPID=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 0000
Range 0000 - FFFF
7.4.5 AT+POWER or AT+PW
Description Get/Set the TX power at which the RF module transmits conducted power.
Execute AT+POWER?<CR> AT+POWER=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 3
Range -43 - 3
7.4.6 AT+STACK or AT+ZS
Description Get/Set the ZigBee stack profile value. This value must be set the same on all devices
54 ProBee-ZE20S Series User Guide Rev.0.1
that should join the same network. (0: Network specific, 1: ZigBee, 2: ZigBee Pro)
Execute AT+STACK?<CR> AT+STACK=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 0
Range 0 - 2
7.4.7 AT+NODENAME or AT+NN
Description Get/Set the node name. It can be used to make a clear distinction role or functionality
of local node from others.
Execute AT+NODENAME?<CR> AT+NODENAME=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default ProBee-ZE
Range Up to 16 characters
7.5 Network Formation and Join
7.5.1 AT+ASCAN or AT+AS
Description Perform a scanning for existing network. It can take up to 5 seconds.
(CAUTION: It is possible to cause a link error if a node is a parent of an end-device.)
Execute AT+ASCAN<CR> AT+ASCAN=<channel mask><CR>
Response
<channel>|<PAN ID>|<EPID>|<joinable>|<stack profile>
List of the existing networks …
OK<CR>
7.5.2 AT+ESCAN or AT+ES
Description Perform a scanning for energy level of all channels. It can take up to 5 seconds.
(CAUTION: It is possible to cause a link error if a node is a parent of an end-device.)
Execute AT+ESCAN<CR> AT+ESCAN=<channel mask><CR>
Response
<channel>|<RSSI >
List of the RSSI for each channel …
OK<CR>
7.5.3 AT+DSCAN or AT+DS
Description
Perform a scanning for existing nodes in the current network. A coordinator or router
can have children nodes and they are presented by “CLDn”. It can be possible to place
some conditions such as scan duration, node type and node name in order. The
information of local node is presented by “*”.
Execute AT+DSCAN<CR> or
55 ProBee-ZE20S Series User Guide Rev.0.1
AT+DSCAN=<scan duration><CR> or
AT+DSCAN=<scan duration>,<node type><CR> or
AT+DSCAN=<scan duration>,<node type>,<node name><CR>
Response
<node type>|<IEEE address>|<node ID>|<version>|<product name>|<node name>
List of the existing nodes and information…
OK<CR>
Range Scan duration: 1 – 10
Node type: 0 – 4 (Zero indicates all node types.)
7.5.4 AT+NODETYPE or AT+NT
Description Get/Set the node type. (0: none, 1: coordinator, 2: router, 3: end-device, 4: sleepy end-
device)
Execute AT+NODETYPE?<CR> AT+NODETYPE=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 0
Range 0 - 4
7.5.5 AT+PERMIT or AT+PJ
Description Permit other nodes to join the network. (0~254s, 255=continuance) An end-device
cannot perform it.
Execute AT+PERMIT<CR> AT+PERMIT=<value><CR>
Response OK<CR>
Range 0 - 255
7.5.6 AT+LEAVE or AT+LV
Description Leave the current network.
Execute AT+LEAVE<CR>
Response OK<CR>
7.6 End-device
7.6.1 AT+SLEEP or AT+SM
Description Enter the sleep mode immediately if the node is an end-device.
Execute AT+SLEEP<CR>
Response OK<CR>
7.6.2 AT+PARENTLA or AT+PL
Description Get the 64-bit IEEE address of the parent node.
Execute AT+PARENTLA?<CR>
56 ProBee-ZE20S Series User Guide Rev.0.1
Response <IEEE address><CR>
OK<CR>
7.6.3 AT+PARENTSA or AT+PS
Description Get the 16-bit Node ID of the parent node.
Execute AT+PARENTSA?<CR>
Response <node ID><CR>
OK<CR>
7.6.4 AT+CHILDTABLE or AT+CT
Description Get the child table composed of the end-devices.
Execute AT+CHILDTABLE?<CR>
Response
<node type>|<IEEE address>|<node ID>
List of the child nodes…
OK<CR>
7.7 Data Transmission and Reception
7.7.1 AT+DESTLA or AT+DL
Description Get/Set the 64-bit destination IEEE address for unicast data transmission.
Execute AT+DESTLA?<CR> AT+DESTLA=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 0000000000000000
Range 0000000000000000 - FFFFFFFFFFFFFFFF
7.7.2 AT+DESTGROUPID or AT+DG
Description Get/Set the 16-bit destination Group ID for multicast data transmission.
Execute AT+DESTGROUPID?<CR> AT+ DESTGROUPID=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 0000
Range 0000 – FFFF
7.7.3 AT+SINKINFO or AT+SI
Description Get the long and short addresses of sink node. If there is no sink node in the network,
the addresses will be “FFFFFFFFFFFFFFFF” and “FFFF”.
Execute AT+SINKINFO?<CR>
Response <IEEE address>,<nodeID><CR>
OK<CR>
57 ProBee-ZE20S Series User Guide Rev.0.1
7.7.4 AT+MAXPAYLOAD or AT+MP
Description Get the maximum size of the payload that the Application Support sub-layer will
accept. The size depends on the security level in use.
Execute AT+MAXPAYLOAD?<CR>
Response <value><CR>
OK<CR>
7.7.5 AT+TRASNSMITMODE or AT+TM
Description
Get/Set the data transmission mode. This mode is maintained after rebooting. (0:
none, 1: unicast to destination long address, 2: multicast to destination group ID, 3:
broadcast to all nodes, 4: unicast to sink node)
Execute AT+TRANSMITMODE?<CR> AT+TRANSMITMODE=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 0
Range 0 - 4
7.7.6 AT+UNICAST or AT+UC
Description Send unicast message to specific node using long or short address of remote node.
Up to 90 bytes (or 72 bytes when security enabled) are sent to the node at once.
Execute AT+UNICAST=<IEEE>,<data><CR> AT+UNICAST=<nodeID>,<data><CR>
Response OK<CR>
7.7.7 AT+MULTICAST or AT+MC
Description Send multicast message to specific group. Every node belongs to a group after being
booted up if it is designated a group ID.
Execute AT+MULTICAST=<groupID>,<data><CR>
Response OK<CR>
7.7.8 AT+BROADCAST or AT+BC
Description Send broadcast message to the all nodes joining the network. Transmit range is
determined by broadcast range (S35).
Execute AT+BROADCAST=<data><CR>
Response OK<CR>
7.7.9 AT+REMOTE or AT+RC
Description Get/Set the configuration values of remote node using long or short address.
AT+REMOTE<CR> shows the list of possible commands. It is possible to check the
58 ProBee-ZE20S Series User Guide Rev.0.1
available remote command by “AT+REMOTE<CR>”.
Execute AT+REMOTE=<addr>,<cmd>?<CR> AT+REMOTE=<addr>,<cmd>=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
7.8 UART
7.8.1 AT+BAUDRATE or AT+UB
Description Get/Set the serial port speed for communication between the module serial port and
host.
Execute AT+BAUDRATE?<CR> AT+BAUDRATE=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 9600
Range 300 - 230400
7.8.2 AT+DATABIT or AT+UD
Description Get/Set the serial data bit setting on the module.
Execute AT+DATABIT?<CR> AT+DATABIT=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 8
Range 7 - 8
7.8.3 AT+PARITY or AT+UP
Description Get/Set the serial parity setting on the module.
Execute AT+PARITY?<CR> AT+PARITY=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 0
Range 0 - 2
7.8.4 AT+STOPBIT or AT+US
Description Get/Set the serial stop bit setting on the module.
Execute AT+STOPBIT?<CR> AT+STOPBIT=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 1
Range 1 - 2
59 ProBee-ZE20S Series User Guide Rev.0.1
7.8.5 AT+FLOWCTRL or AT+UF
Description Get/Set flow control status. (0: none, 1: software, 2: hardware flow control)
Execute AT+FLOWCTRL?<CR> AT+FLOWCTRL=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 2
Range 0 - 2
7.9 Security
7.9.1 AT+SECURITY or AT+SE
Description Get/Set the security status. (0: turning security off, 1: on) Every node must be under
the same security level in the network.
Execute AT+SECURITY?<CR> AT+SECURITY=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 0
Range 0 - 1
7.9.2 AT+LINKKEY or AT+LK
Description Get/Set the 128-bit link key. (0 or 0s: generate 128-bit random number)
Execute AT+LINKKEY?<CR> AT+LINKKEY=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF
7.9.3 AT+NWKKEY or AT+NK
Description Get/Set the 128-bit network key. (0 or 0s: generate random 128-bit number)
Execute AT+NWKKEY?<CR> AT+NWKKEY=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF
7.9.4 AT+UPDATEKEY or AT+UK
Description
Update the network key with a new generated key. (possible only for coordinator) It is
applied after 30s later because sending too quickly may cause a sleepy end-device to
miss the alternate encryption key and only get the switch key message, which means it
will be unable to change to the new network key.
Execute AT+UPDATEKEY<CR>
60 ProBee-ZE20S Series User Guide Rev.0.1
Response OK<CR> or ERROR<CR>
7.10 GPIO
7.10.1 AT+GPIO or AT+IO
Description Get/Set the configuration status of GPIO individually or all at once. Only GPIO3-6 can
be set 4, others are available 0-3 and 5.
Execute AT+GPIO?<CR> or
AT+GPIO<number>?<CR>
AT+GPIO=<values><CR> or
AT+GPIO<number>=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 5550000055550
Range
GPIO3-6: 0-5, the others: 0-3 and 5
0 Disabled (unmonitored digital input)
1 Digital input, monitored
2 Digital output, default low
3 Digital output, default high
4 Analog input, single ended (only valid for GPIO3~6)
5 Reserved for pin-specific alternate functionalities (See Table 5-2)
7.10.2 AT+DIO
Description
Get/Set the digital IO value individually or all at once. All GPIO pins can be used as
digital IO and it is only possible to set 0 or 1. If there are some pins used analog input,
they are displayed by “*”.
Execute AT+DIO?<CR> or
AT+DIO<number>?<CR>
AT+DIO=<values><CR> or
AT+DIO<number>=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default 0000000000000
Range 0000000000000 - 1111111111111
7.10.3 AT+AI
Description Get the analog input value individually or all at once. GPIO3~6 are possible to set ADC
and it’s read only. If there are some pins used digital IO, they are displayed by “****”.
Execute AT+AI?<CR> AT+AI<number>?<CR>
Response <value>,<value>,<value>,<value><CR>
OK<CR>
<value><CR>
OK<CR>
7.10.4 AT+ SOURCELA or AT+SL
Description Get/Set the 64-bit source IEEE address for GPIO remote control. It is possible to limit
61 ProBee-ZE20S Series User Guide Rev.0.1
on the implementation of this functionality by setting specific address. If set to default
value, “FFFFFFFFFFFFFFFF”, the node allows that any node can control the GPIO
status.
Execute AT+SOURCELA?<CR> AT+SOURCELA=<value><CR>
Response <value><CR>
OK<CR> OK<CR> or ERROR<CR>
Default FFFFFFFFFFFFFFFF
Range 0000000000000000 – FFFFFFFFFFFFFFFF
7.11 Firmware Upload and Help
7.11.1 AT+BOOTLOAD or AT+BL
Description
Start bootloader to upload firmware. (blank: local, 1: passthru, 2: clone)
The device leaves the AT command line and enters the bootloader menu for uploading
new ProBee firmware. There’s no restrict to use local upload but a sleepy end device
cannot upload to remote node over the air. The current UART should be set
115200bps, 8 data bits, no parity, 1 stop bit and none flow control.
Execute AT+BOOTLOAD<CR> AT+BOOTLOAD=<number>,<IEEE><CR>
Response
Bootloader menu
…
Serial upload complete
Please start .ebl upload image ...<CR> or
Start cloning ...<CR>
Bootloader menu
…
Bootload Complete!
7.11.2 AT+HELP or AT+HP
Description Show all the available commands
Execute AT+HELP<CR>
Response
Available AT Commands
…
OK<CR>
62 ProBee-ZE20S Series User Guide Rev.0.1
8 AT Command Examples
8.1 Network configuration
8.1.1 Coordinator
AT+NODETYPE=1<CR> # set node type (coordinator)
OK # Response
ATZ<CR> # Apply the change
OK # Response
8.1.2 Router
AT+NODETYPE=2<CR> # set node type (router)
OK # Response
ATZ<CR> # Apply the change
OK # Response
8.1.3 End-device
AT+NODETYPE=3<CR> # set node type (end-device)
OK # Response
ATZ<CR> # Apply the change
OK # Response
8.1.4 Sleepy End-device
AT+NODETYPE=4<CR> # set node type (sleepy end-device)
OK # Response
ATZ<CR> # Apply the change
OK # Response
8.1.5 Specifying Network
AT+CHMASK=1000<CR> # set 32-bit channel mask (ch: 12)
OK # Response
AT+PANID=0001 <CR> # set 16-bit PAN ID (0001)
OK # Response
AT+EPID=0000000000000001<CR> # set 64-bit extended PAN ID (0000000000000001)
OK # Response
AT+ADDRDISCOVERY=1FEF<CR> # get 64-bit address using 16-bit short address
63 ProBee-ZE20S Series User Guide Rev.0.1
00019500002FDC15
OK # Response
AT+REMOTE=1FEF,AT+LONGADDR<CR> # get 64-bit address of remote node (1FEF)
00019500002FDC15
OK # Response
AT+DSCAN<CR> # get the information of other nodes in the network
ZC* |00019500002FDC40|0000|PTv1.0|ZE20S|ZE20S_COM3
ZR |00019500002FDC15|1FEF|PTv1.0|ZE20S|ZE20S_COM4
CLD0|00019500002FDC17
CLD1|00019500002FDC14
ZED |00019500002FDC17|7E34|PTv1.0|ZS10|ZS10_COM5
SED |00019500002FDC14|F5AC|PTv1.0|ZU10|ZU10_COM6
OK # Response
8.2 Data Transmission
8.2.1 Command Mode
# send unicast message(MSG01) to specific node using 64-bit long
address(0x00019500002FDC15)
AT+UNICAST=00019500002FDC15,MSG01<CR>
OK # Response
# send unicast message(MSG02) to specific node using 16-bit short
address(0x1FEF)
AT+UNICAST=1FEF,MSG02<CR>
OK # Response
# send multicast message(MSG03) to specific group(0001)
AT+MULTICAST=0001,MSG03<CR>
OK # Response
# send broadcast message(MSG04) to current network and the range is
determined by S35.
AT+BROADCAST=MSG04<CR>
OK # Response
8.2.2 Data Mode
ATD<CR> # enter the unicast mode using destination long address
OK # Response
MSG05+++ # send data(MSG05) and leave data mode
ATD0000<CR> # enter the unicast mode using 16-bit short address
64 ProBee-ZE20S Series User Guide Rev.0.1
OK # Response
MSG06+++ # send data(MSG06) and leave data mode
ATD00019500002FDC40<CR> # enter the unicast mode using 64-bit long address
OK # Response
MSG07+++ # send data(MSG07) and leave data mode
ATM<CR> # enter the multicast mode using destination group ID
OK # Response
MSG08+++ # send data(MSG08) and leave data mode
ATM0001<CR> # enter the multicast mode using 16-bit group ID
OK # Response
MSG09+++ # send data(MSG09) and leave data mode
ATB<CR> # enter the broadcast mode
OK # Response
MSG10+++ # send data(MSG10) and leave data mode
AT+TRANSMITMODE=1<CR> # set transmit mode
OK # Response
ATZ<CR> # Apply the change
OK # Response
MSG11+++ # send data(MSG11) and leave data mode
ATO<CR> # return to the current data mode
8.3 UART Settings
AT+BAUDRATE=115200<CR> # set baud rate (115,200bps)
OK # Response
AT+DATABIT=8<CR> # set data bit (8bit)
OK # Response
AT+PARITY=0<CR> # set parity (none)
OK # Response
AT+STOPBIT=1<CR> # set stop bit (1bit)
OK # Response
AT+FLOWCTRL=2<CR> # set flow control (hardware)
OK # Response
ATZ<CR> # Apply the change
OK # Response
65 ProBee-ZE20S Series User Guide Rev.0.1
8.4 Security
AT+SECURITY=1<CR> # set security level (ON)
OK # Response
AT+LINKKEY=5A46…21<CR> # set the 128-bit trust center link key (5A46…21)
ATZ<CR> # Apply the change
OK # Response
AT+NWKKEY=0<CR> # set the 128-bit network key (random key)
OK # Response
AT+UPDATEKEY<CR> # update the changed network key
OK # Response
8.5 GPIO
AT+GPIO=5500044112233<CR> # set GPIO configuration
OK # Response
ATZ<CR> # Apply the change
OK # Response
AT+GPIO0<CR> # check the current GPIO status (GPIO0)
5
OK # Response
AT+DIO<CR> # check the current DIO value
10000**000011
OK # Response
AT+AI<CR> # check the current AI value
****,****,2EE0,2EE0
OK # Response
8.6 Firmware Upload
8.6.1 Local Node
# enter the bootloader menu for uploading firmware. Note that UART of local
node should be set to 115200-8-N-1-N.
AT+BOOTLOAD<CR>
Press Enter…
EM250 Bootloader v20 b09
1. upload ebl
2. run
66 ProBee-ZE20S Series User Guide Rev.0.1
3. ebl info
BL > # press “1” and upload ebl file by X-modem
begin upload
CCCCCCCCCCCCC
Serial upload complete # press “2” or reset after upload is done
8.6.2 Remote Node
# upload firmware to a remote node using 64-bit long address. Note that UART
of local node should be set to 115200-8-N-1-N.
AT+BOOTLOAD=1,00019500002FDC40<CR>
Please start .ebl upload image ...
CCCCCCCCCCCCC # upload ebl file by X-modem
Bootload Complete! # succeed to upload
8.6.3 Clone
# clone the firmware of the local node to a remote node using 64-bit long
address. Note that UART of local node should be set to 115200-8-N-1-N.
AT+BOOTLOAD=2,00019500002FDC40<CR>
Start cloning ...
Bootload Complete! # succeed to upload
67 ProBee-ZE20S Series User Guide Rev.0.1
9 S-Registers
Register number Descriptions
11
12
13
14
21
22
23
31
32
33
34
35
36
37
38
39
41
42
43
44
45
51
52
53
54
55
56
61
62
Display incoming message in command mode
Display command echo
Display command responses
Manage LED status
Inter character timeout
Permit joining timeout
TX power mode
Enable application-ACK
Transmission retries
Transmission timeout
Indirect transmission timeout
Broadcast range
Number of hops for multicast/broadcast
Number of hops of nonmembers for multicast
Receive local message for multicast/broadcast
Receive message by own data mode
GPIO pull-up
GPIO monitoring period
GPIO monitoring node
GPIO change detection sampling
GPIO remote control
Poll timeout for a parent node
Poll period for a sleepy node
Sleep duration
Standby timeout
Rejoin timeout
Poll period for an end-device
Sink advertise period
Many to one route request period
9.1 Display Options
9.1.1 S11
Description Get/Set the display mode. It determines to display incoming message in command
mode
Execute ATS11?<CR> ATS11=<value><CR>
68 ProBee-ZE20S Series User Guide Rev.0.1
Response <value><CR>
OK<CR> OK<CR>
Default 0
Range 0 - 1
9.1.2 S12
Description Get/Set the command echo mode.
Execute ATS12?<CR> ATS12=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 1
Range 0 – 1
9.1.3 S13
Description Get/Set the command responses mode.
Execute ATS13?<CR> ATS13=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 1
Range 0 - 1
9.1.4 S14
Description
Get/Set the LED mode. It causes the LED operation if the device is ZS10 or ZE20S set
GPIO1, 2 to specific functionality.
0: LEDs are always OFF regardless of configuration or status.
1: LEDs are OFF when the node is under sleep status.
2: LEDs always operate by the case.
Execute ATS14?<CR> ATS14=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 1
Range 0 - 2
9.2 Network Settings
9.2.1 S21
Description Get/Set the inter character timeout in milliseconds. It determines to send data packet
after this time.
Execute ATS21?<CR> ATS21=<value><CR>
69 ProBee-ZE20S Series User Guide Rev.0.1
Response <value><CR>
OK<CR> OK<CR>
Default 100
Range 0 - 10000
9.2.2 S22
Description
Get/Set the timeout to permit joining. It determines the time in seconds that the device
will allow other devices to join to it when it starts network but an end-device cannot
perform it. If set to 255, the device will always permit joining.
Execute ATS22?<CR> ATS22=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 60
Range 0 - 255
9.2.3 S23
Description
Get/Set the power boost mode of the module. If enabled, boost mode improves
sensitivity by 1dB and increases output power by 2dB, improving the link margin and
range.
Execute ATS23?<CR> ATS23=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 0
Range 0 – 1
9.3 Data Transmissions
9.3.1 S31
Description
Get/Set the application-ACK mode. If it is enabled, a node retransmits data packet
when it is failed to send. A node sends next packet after receiving ACK from receiver
node. This value must be set the same on the source and destination node for data
transmission.
Execute ATS31?<CR> ATS31=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 1
Range 0 - 1
9.3.2 S32
Description Get/Set the transmission retries. If application-ACK is enabled, a sender tries to
70 ProBee-ZE20S Series User Guide Rev.0.1
retransmit up to this value.
Execute ATS32?<CR> ATS32=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 5
Range 0 – 99
9.3.3 S33
Description Get/Set the transmission timeout in milliseconds. If application-ACK is enabled, a
sender retransmits data packet after this time.
Execute ATS33?<CR> ATS33=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 500
Range 0 – 10000
9.3.4 S34
Description Get/Set the indirect transmission timeout in milliseconds. It is the maximum amount of
time that the MAC will hold a message for indirect transmission to a child.
Execute ATS34?<CR> ATS34=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 7680
Range 0 – 30000
9.3.5 S35
Description
Get/Set the broadcast range. ZigBee specifies three different broadcast addresses that
reach different collections of nodes. Broadcasts are normally sent only to routers.
Broadcasts can also be forwarded to end devices, either all of them or only those that
do not sleep. Broadcasting to end devices is both significantly more resource-
intensive and significantly less reliable than broadcasting to routers.
0: send to all routers
1: send to all non-sleepy nodes
2: send to all nodes in the network
Execute ATS35?<CR> ATS35=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 2
71 ProBee-ZE20S Series User Guide Rev.0.1
Range 0 – 2
9.3.6 S36
Description
Get/Set the maximum number of hops the message will be relayed. The message will
be delivered to all nodes within this number of hops of the sender. A value of zero is
converted to maximum value(30). It is used to multicast/broadcast.
Execute ATS36?<CR> ATS36=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 0
Range 0 – 10
9.3.7 S37
Description
Get/Set the number of hops that the message will be forwarded by devices that are not
members of the group. A value of zero, 7 or greater is treated as infinite. There is no
longer a separate limited multicast API call.
Execute ATS37?<CR> ATS37=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 0
Range 0 – 7
9.3.8 S38
Description Get/Set the receive message mode. If it is enabled, a local node will receive multicast
or broadcast messages from itself.
Execute ATS38?<CR> ATS38=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 0
Range 0 – 1
9.3.9 S39
Description
If S39 is enabled, a local node will only receive the same type of messages with its
transmit mode. For example, if local node’s transmission mode is broadcast mode
(AT+TM=3), it will only receive broadcast messages.
Execute ATS39?<CR> ATS39 =<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 0
72 ProBee-ZE20S Series User Guide Rev.0.1
Range 0 - 1
9.4 GPIO
9.4.1 S41
Description Get/Set the GPIO pull up/down option. If GPIOs are set to DI, it is possible to pull-up or
pull-down with this value. Pull-down = 0, Pull-up = 1.
Execute ATS41?<CR> ATS41=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 0
Range 0 - 1
9.4.2 S42
Description
Get/Set the GPIO monitoring period in seconds. If it is enabled, a node sends GPIO
values to a remote node based on preconfigured destination IEEE address periodically
and it is possible to monitor the GPIO status at the remote node. If set to 0, GPIO
monitoring is disabled.
Execute ATS42?<CR> ATS42=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 0
Range 0 – 10000
9.4.3 S43
Description
Get/Set the GPIO monitoring node. If S43 is 0, the monitoring node is selected by
AT+DESTLA or AT+DL command. If S43 is 1, the sink node is set as the monitoring
node.
Execute ATS43?<CR> ATS43=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 0
Range 0 – 10000
9.4.4 S44
Description
Get/Set the GPIO change detection sampling mode. If it is enabled, a node sends
GPIO values to a remote node based on preconfigured destination IEEE address
immediately when the status of GPIO changes. If set to 0, GPIO monitoring is
disabled.
Execute ATS44?<CR> ATS44=<value><CR>
73 ProBee-ZE20S Series User Guide Rev.0.1
Response <value><CR>
OK<CR> OK<CR>
Default 0
Range 0 – 1
9.4.5 S45
Description
Get/Set the GPIO remote control mode. If any GPIO pin is set to digital input, a node
can control the I/O status of a remote node if the I/O pin of the node is set to digital
output. It is possible to use when GPIO monitoring is enabled.
Execute ATS45?<CR> ATS45=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 0
Range 0 – 1
9.5 End Device
9.5.1 S51
Description
Get/Set the poll timeout for a parent node in seconds. If an end device or a sleepy end
device does not send a poll request to its parent coordinator or router within the poll
timeout, the end device is removed from the child table.
Execute ATS51?<CR> ATS51=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 60
Range 0 – 4177920
9.5.2 S52
Description Get/Set the sleepy end device poll period in milliseconds. Adaptive polling may allow
the sleepy end device to poll more rapidly for a short time when receiving RF data.
Execute ATS52?<CR> ATS52=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 100
Range 0 - 10000
9.5.3 S53
Description
Get/Set the sleep duration in quarter seconds. An end-device sleeps at this time and
turns off radio every sleep cycle. If a node sleeps over poll timeout of parent node, the
device will be removed from the child table.
74 ProBee-ZE20S Series User Guide Rev.0.1
Execute ATS53?<CR> ATS53=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 8
Range 0 – 16711680
9.5.4 S54
Description
Get/Set the standby timeout in seconds. When an end-device wakes up and polls with
the parent node, the node will wait for another data from the ZigBee network or from
the serial port for S54 before it goes to sleep mode again. If any serial or RF data is
sent or received, the timer will reset and wait for next again.
Execute ATS54?<CR> ATS54=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 5
Range 0 – 10000
9.5.5 S55
Description
Get/Set the rejoin timeout. If it is enabled, an end-device tries to rejoin the current
network when contact with the network has been lost for setting value in seconds. The
most common usage case is when an end device can no longer communicate with its
parent and wishes to find a new one.
Execute ATS55?<CR> ATS55=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 10
Range 0 – 10000
9.5.6 S56
Description Get/Set the end device poll period in seconds. Adaptive polling may allow the end
device to poll more rapidly for a short time when receiving RF data.
Execute ATS56?<CR> ATS56=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 5
Range 0 - 10000
75 ProBee-ZE20S Series User Guide Rev.0.1
9.6 Sink
9.6.1 S61
Description
Get/Set the sink node and the sink advertise period in seconds. When a node is
defined as a sink, it can multicast its address to the rest of the network. If set to 0, sink
advertise is disabled.
Execute ATS61?<CR> ATS61=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 0
Range 0 – 10000
9.6.2 S62
Description
Get/Set the period to send Many-to-One Route Reqest. Many-to-One Route Request
(MTOR) creates routes from every node in the network back to this node. It is useful
when this node acts as a sink node.
Execute ATS62?<CR> ATS62=<value><CR>
Response <value><CR>
OK<CR> OK<CR>
Default 0
Range 0 – 10000
76 ProBee-ZE20S Series User Guide Rev.0.1
10 Pin Assignments
Figure 10-1 Pin Assignments
77 ProBee-ZE20S Series User Guide Rev.0.1
Table 10-1 Pin Assignments Table
Pin NAME Default Function Direction Description
1 GND - - Ground
2 PC_5
3 PC_6
4 PC_7
5 PA_7
6 PB_3
7 PB_4
8 PA_0
9 PA_1
10 PA_2
11 PA_3
12 +3V3
13 GND
14 JT_VCC
15 JCLK
16 PC_2
17 PC_3
18 PC_4
19 PC_0
20 GND
21 GND
22 /RESET
23 PA_6
24 PB_0
25 PB_2
26 PB_1
27 PA_5
28 PA_4
29 PC_1
30 PB_7
31 PB_6
32 PB_5
33 GND
78 ProBee-ZE20S Series User Guide Rev.0.1

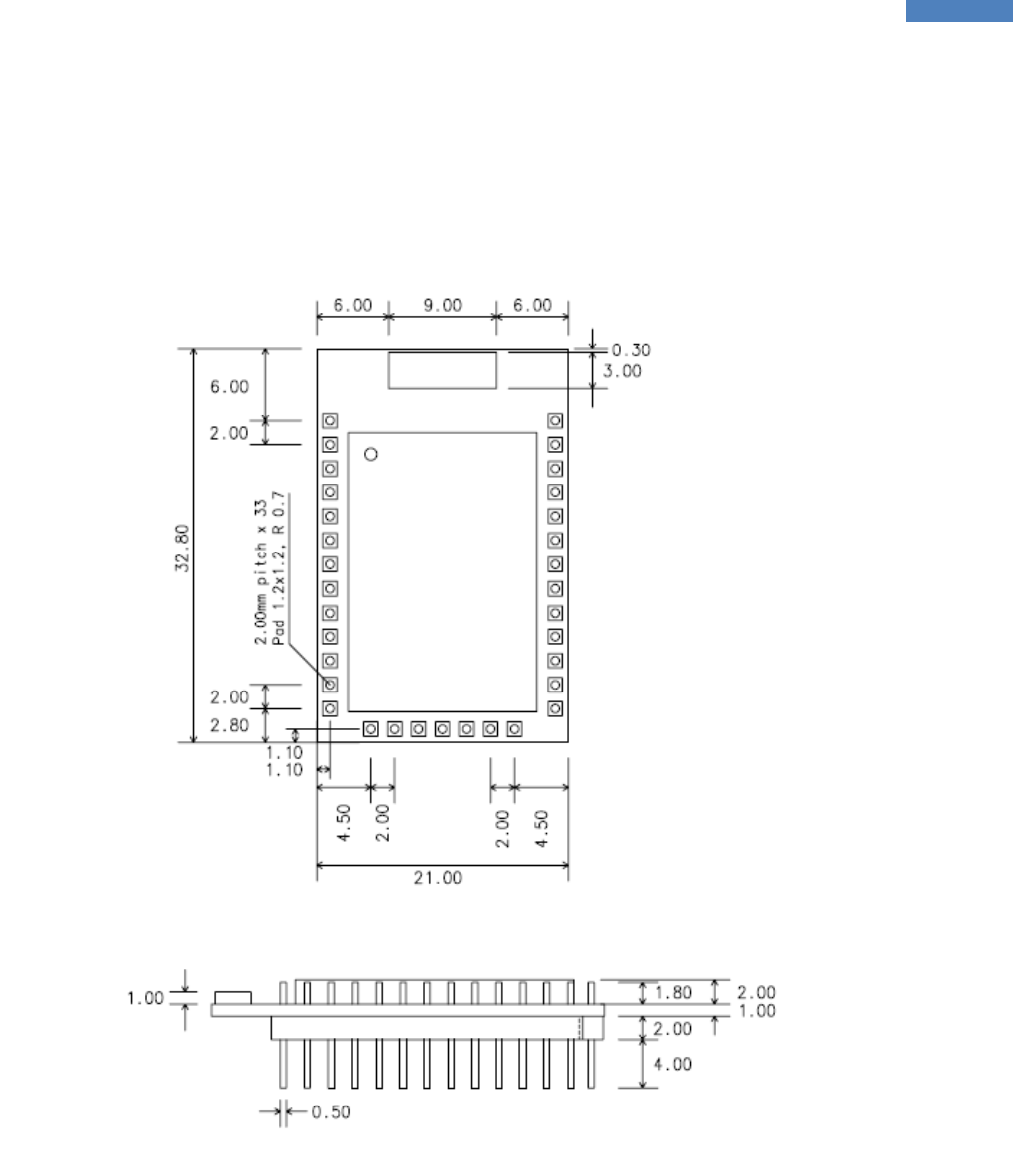

11 Mechanical Drawings

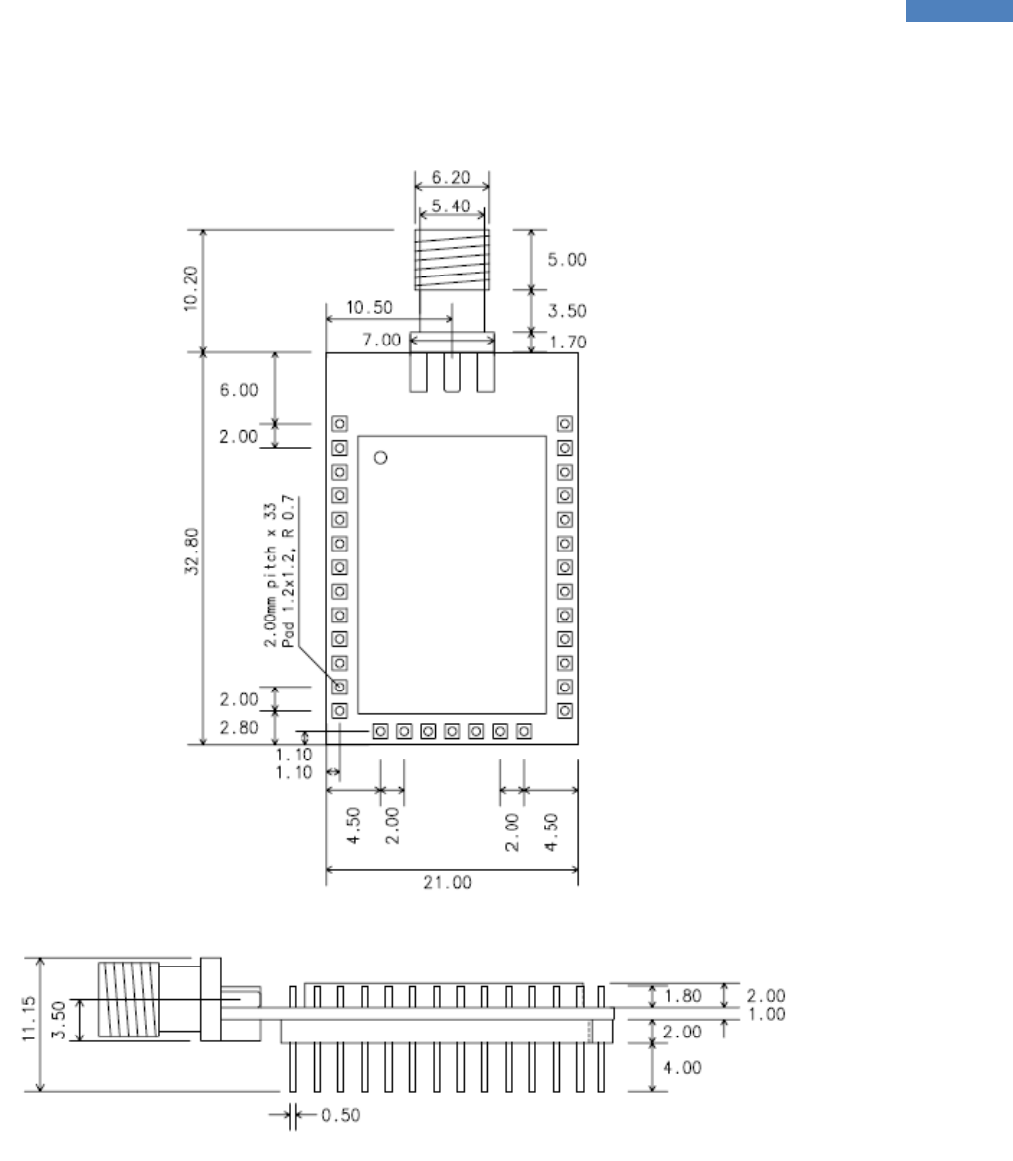

Figure 11-1 ZE20SDU Mechanical Drawings
79 ProBee-ZE20S Series User Guide Rev.0.1
Figure 11-2 ZE20SDC Mechanical Drawings
80 ProBee-ZE20S Series User Guide Rev.0.1
Figure 11-3 ZE20SDS Mechanical Drawings
81 ProBee-ZE20S Series User Guide Rev.0.1
Figure 11-4 ZE20SSU Mechanical Drawings
82 ProBee-ZE20S Series User Guide Rev.0.1
Figure 11-5 ZE20SSC Mechanical Drawings
83 ProBee-ZE20S Series User Guide Rev.0.1
12 Warranty
12.1 GENERAL WARRANTY POLICY
Sena Technologies, Inc. (hereinafter referred to as SENA) warrants that the Product shall conform to and
perform in accordance with published technical specifications and the accompanying written materials,
and shall be free of defects in materials and workmanship, for the period of time herein indicated, such
warranty period commencing upon receipt of the Product.
This warranty is limited to the repair and/or replacement, at SENA’s discretion, of defective or non-
conforming Product, and SENA shall not be responsible for the failure of the Product to perform specified
functions, or any other non- conformance caused by or attributable to: (a) any misapplication or misuse of
the Product; (b) failure of Customer to adhere to any of SENA’s specifications or instructions; (c) neglect
of, abuse of, or accident to, the Product; or (d) any associated or complementary equipment or software
not furnished by SENA.
Limited warranty service may be obtained by delivering the Product to SENA or to the international
distributor it was purchased through and providing proof of purchase or receipt date. Customer agrees to
insure the Product or assume the risk of loss or damage in transit, to prepay shipping charges to SENA,
and to use the original shipping container or equivalent.
12.2 LIMITATION OF LIABILITY
EXCEPT AS EXPRESSLY PROVIDED HEREIN, SENA MAKES NO WARRANTY OF ANY KIND,
EXPRESSED OR IMPLIED, WITH RESPECT TO ANY EQUIPMENT, PARTS OR SERVICES PROVIDED
PURSUANT TO THIS AGREEMENT, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. NEITHER SENA NOR ITS
DEALER SHALL BE LIABLE FOR ANY OTHER DAMAGES, INCLUDING BUT NOT LIMITED TO
DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER IN AN
ACTION IN CONTRACT OR TORT (INCLUDING NEGLIGENCE AND STRICT LIABILITY), SUCH AS,
BUT NOT LIMITED TO, LOSS OF ANTICIPATED PROFITS OR BENEFITS RESULTING FROM, OR
ARISING OUT OF, OR IN CONNECTION WITH THE USE OF FURNISHING OF EQUIPMENT, PARTS
OR SERVICES HEREUNDER OR THE PERFORMANCE, USE OR INABILITY TO USE THE SAME,
EVEN IF SENA OR ITS DEALER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN
NO EVENT WILL SENA OR ITS DEALERS TOTAL LIABILITY EXCEED THE PRICE PAID FOR THE
PRODUCT.
12.3 HARDWARE PRODUCT WARRANTY DETAILS
WARRANTY PERIOD: SENA warranties embedded hardware Product for a period of one (1) year, and
84 ProBee-ZE20S Series User Guide Rev.0.1
external hardware Product for a period of three (3) or five (5) years according to the Product type.
WARRANTY PROCEDURE: Upon return of the hardware Product SENA will, at its option, repair or
replace Product at no additional charge, freight prepaid, except as set forth below. Repair parts and
replacement Product will be furnished on an exchange basis and will be either reconditioned or new. All
replaced Product and parts become the property of SENA. If SENA determines that the Product is not
under warranty, it will, at the Customers option, repair the Product using current SENA standard rates for
parts and labor, and return the Product at no charge in or out of warranty.
WARRANTY EXCLUSIONS: Damages caused by
- Accidents, falls, objects striking the SENA product,
- Operating the Product in environments that exceed SENA's temperature and humidity specifications,
- Power fluctuations, high voltage discharges,
- Improper grounding, incorrect cabling,
- Misuse, negligence by the customer or any other third party,
- Failure to install or operate the product (s) in accordance to their SENA User Manual,
- Failure caused by improper or inadequate maintenance by the customer or any other third party,
- Floods, lightning, earthquakes,
- Water spills,
- Replacement of parts due to normal wear and tear,
- Hardware has been altered in any way,
- Product that has been exposed to repair attempts by a third party without SENA’s written consent,
- Hardware hosting modified SENA Software, or non-SENA Software, unless modifications have been
approved by Sena.
- Battery component capacity degradation due to usage, aging, and with some chemistry, lack of
maintenance.
12.4 SOFTWARE PRODUCT WARRANTY DETAILS
WARRANTY PERIOD: SENA warranties software Product for a period of one (1) year.
WARRANTY COVERAGE: SENA warranty will be limited to providing a software bug fix or a software
patch, at a reasonable time after the user notifies SENA of software non-conformance.
12.5 THIRD-PARTY SOFTWARE PRODUCT WARRANTY DETAILS
The warranty policy of the third-party software is conformed to the policy of the corresponding vendor.
85 ProBee-ZE20S Series User Guide Rev.0.1
13 Regulatory Information
13.1 FCC
FCC Rule: Part 15 Subpart C Section 15.247
FCCID: S7AIW01
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
Including interference that may cause undesired operation
Information to User
This equipment has been tested and found to comply with limits for a Class B digital device, Pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by on or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver-Connect the equipment into an outlet a
circuit different form that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Statement
The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This device and its antenna must not be co-located or operation in conjunction with any other antenna or
transmitter.
Do not
Any changes or modifications to the equipment not expressly approved by the party responsible for
compliance could void user’s authority to operate the equipment.
13.2 CE
CE1177(!)
We, Sena Technologies, Inc., declare that the product(s):
86 ProBee-ZE20S Series User Guide Rev.0.1
• ProBee-ZE20S ZigBee OEM Module
to which this declaration relates is in conformity with the following standard(s) or other normative
document(s)
• EN 60950-1
• ETSI EN 301 489-1
• ETSI EN 301 489-17
• ETSI EN 300 328
Following the provisions of
• EMC DIRECTIVE 1999/5/EC
13.3 TELEC
Technical Regulations for Specified Radio Equipment Article 2, Section 1 (19)
Certification No:
13.4 KC
Type Registration
Certification No: KCC-CRM-SNA-IW01
Basic Model Number: ProBee-ZE20SDU
Series Model Number: ProBee-ZE20SDS, ProBee-ZE20SDC, ProBee-ZE20SSU, ProBee-ZE20SSC
13.5 ZigBee Alliance
87 ProBee-ZE20S Series User Guide Rev.0.1
14 RF Information
Radio Frequency Range
2.405~2.480GHz
Number of Frequency Channel
16 channels
Transmission Method
DSSS (Direct Sequence Spread Spectrum)
Modulation Method
O-QPSK (Offset Quadrate Phase Shift Keying)
Radio Output Power
+8dBm
Receiving Sensitivity
-100dBm
Power Supply
DC3.3V
