SENA TECHNOLOGIES PARANISD1100 BLUETOOTH 422/485 ADAPTOR User Manual Manual Parani SD1100 v1 0
Sena Technologies,Inc. BLUETOOTH 422/485 ADAPTOR Manual Parani SD1100 v1 0
Users Manual
Parani-SD1100
User Guide
Version 1.0.0
2010-04-19
2
User Guide for the Parani-SD1100
Version 1.0.0
Firmware version 1.0.X
Printed in Korea
Copyright
Copyright 2010, Sena Technologies, Inc. All rights reserved.
Sena Technologies reserves the right to make changes and improvements to its product without
providing notice.
Trademark
Parani™ is a trademark of Sena Technologies, Inc.
Windows® is a registered trademark of Microsoft Corporation.
Ethernet® is a registered trademark of XEROX Corporation.
Notice to Users
When a system failure may cause serious consequences, protecting life and property against such
consequences with a backup system or safety device is essential. The user agrees that protection
against consequences resulting from system failure is the user's responsibility.
This device is not approved for life-support or medical systems.
Changes or modifications to this device not explicitly approved by Sena Technologies will void the
user's authority to operate this device.
Precautions and Safety
Electricity
Use only the supplied AC adapter. Use of unauthorized power adapter is not recommended. Electrical
shock may result.
Do not kink or crease the power cable or place heavy objects on the power cable. Fire can result from
damaged power cables.
Do not handle power plug and adapter with wet hands. Electrical shock may result.
Immediately power off the product and unplug the AC adapter if smoke or odors emit from the product
and adapter. Fire can result from improper use.
Immediately power off the product and unplug the AC adapter if water or other liquids are present. Fire
can result from improper use.
Product
Parani-SD meets the RS-422/485. Do not wire with non-standard products. Damage to your products
may result from improper use.
Do not drop or subject the device to impact. Damage to your products may result from improper use.
Keep away from harsh environments including humid, dusty, and smoky areas. Damage to your
products may result from improper use.
Do not use excessive force on the buttons or attempt to disassemble the device. Damage to your
products may result from improper use.
Do not place heavy objects on the product. Damage to your products may result from improper use.
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
3
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired
operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Technical Support
Sena Technologies, Inc.
210 Yangjae-dong, Seocho-gu
Seoul 137-130, Korea
Tel: (+82-2) 573-5422
Fax: (+82-2) 573-7710
E-Mail: support@sena.com
Website: http://www.sena.com
Revision History
Revision Date Name Description
V1.0.0 2010-04-19 Yh Moon Initial Writing
4
Contents
1. Introduction 7
1.1. Overview ....................................................................................................................................7
1.2. Product Specification..................................................................................................................8
2. Configuration 10
2.1. Operation Modes......................................................................................................................10
2.2. LED Indicators.......................................................................................................................... 11
2.3. Serial Ports............................................................................................................................... 11
2.4. Data Bit..................................................................................................................................... 11
2.5. Reset to Factory Defaults.........................................................................................................12
2.6. Dipswitch ..................................................................................................................................12
2.7. Pairing Button...........................................................................................................................13
2.8. Software and Utility ..................................................................................................................14

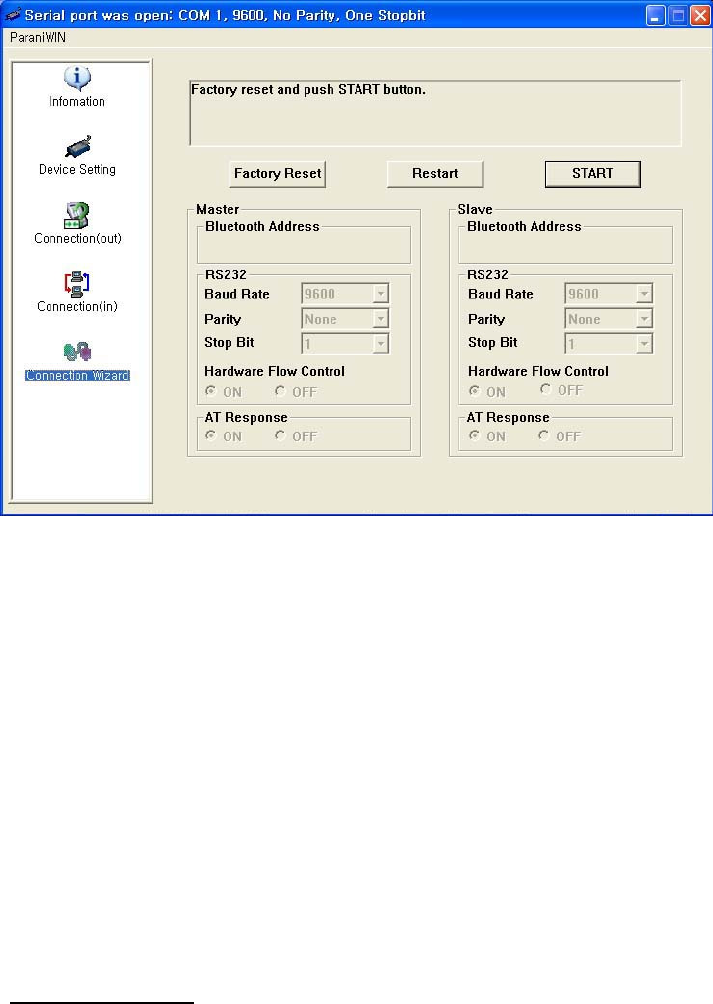

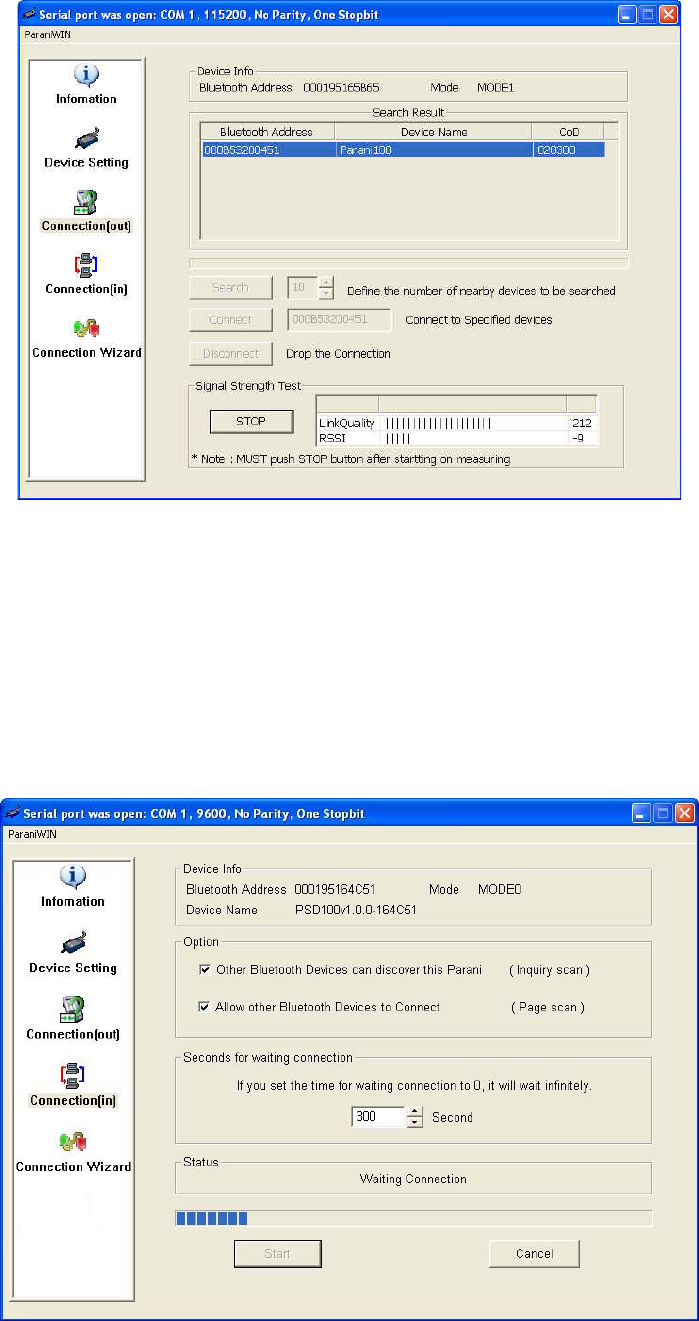

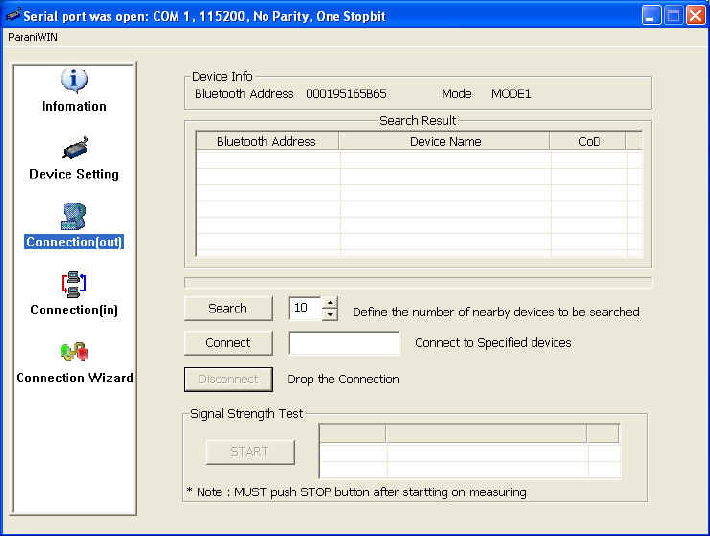

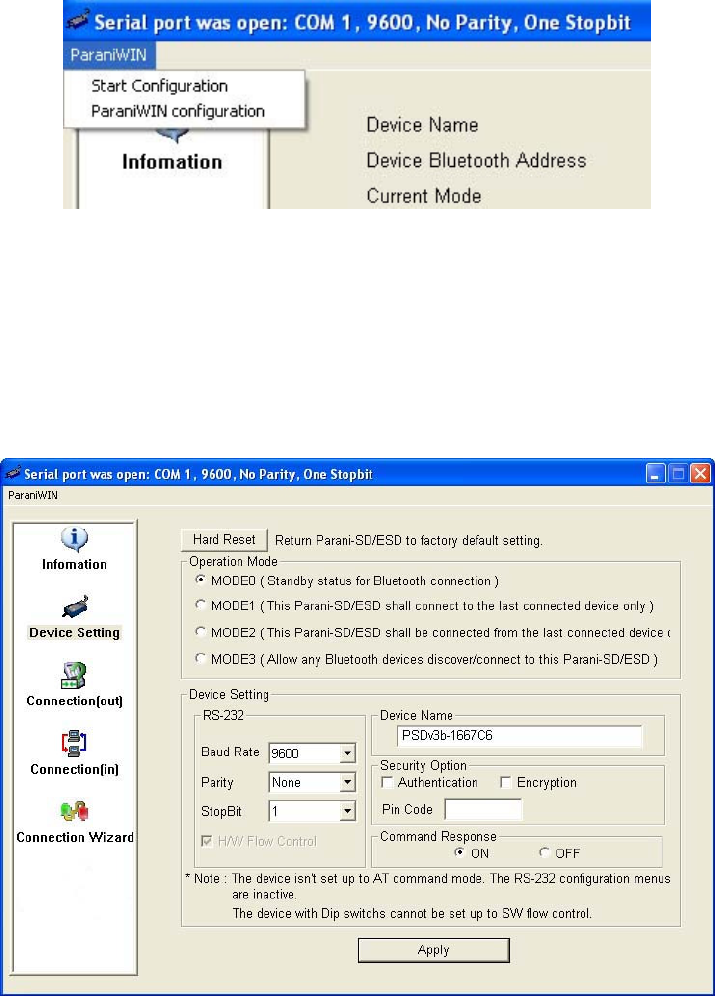

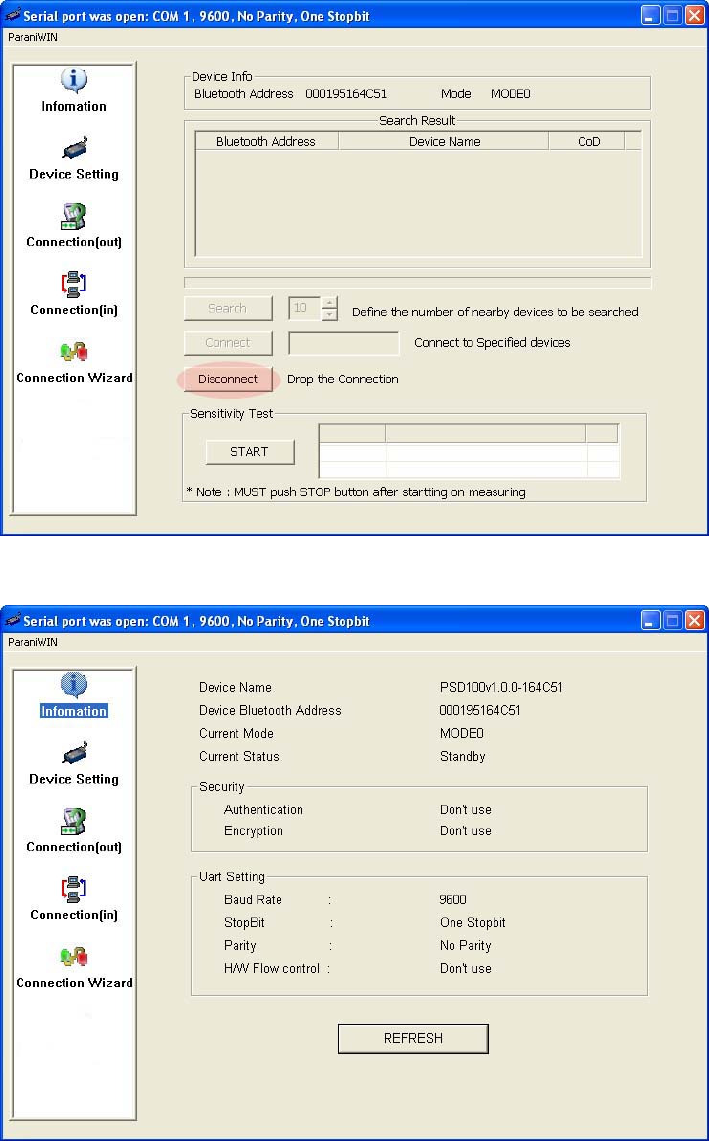

2.9. ParaniWIN ................................................................................................................................14

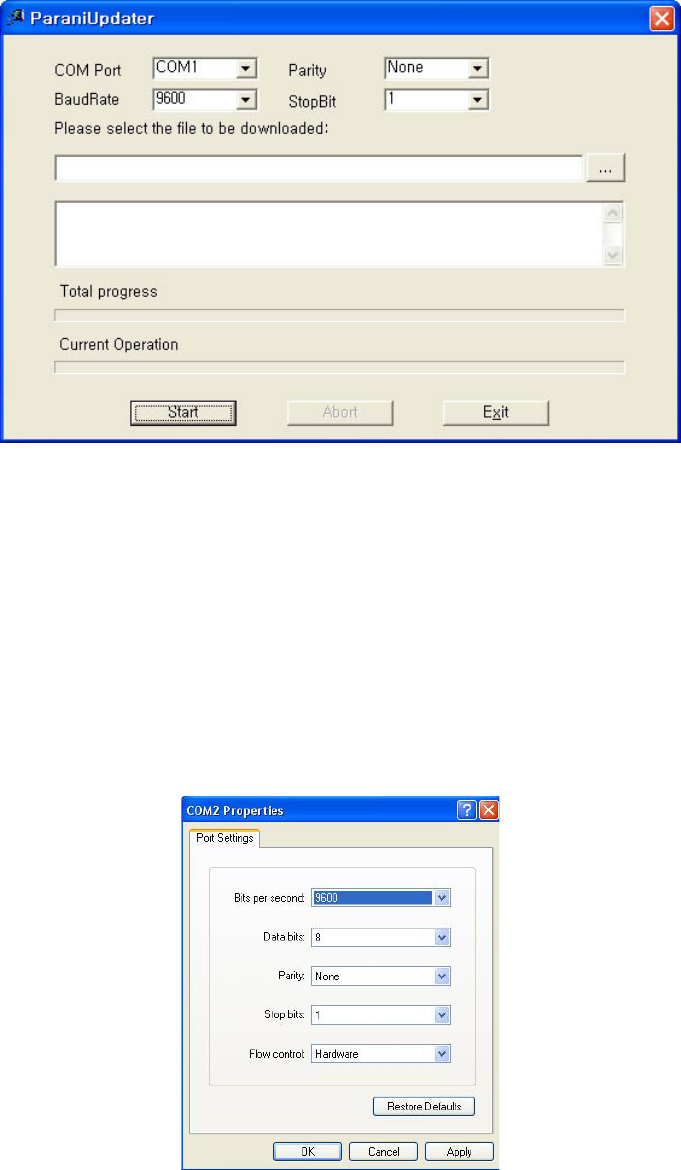

2.10. ParaniUpdater ........................................................................................................................19
2.11. Terminal Program ...................................................................................................................20

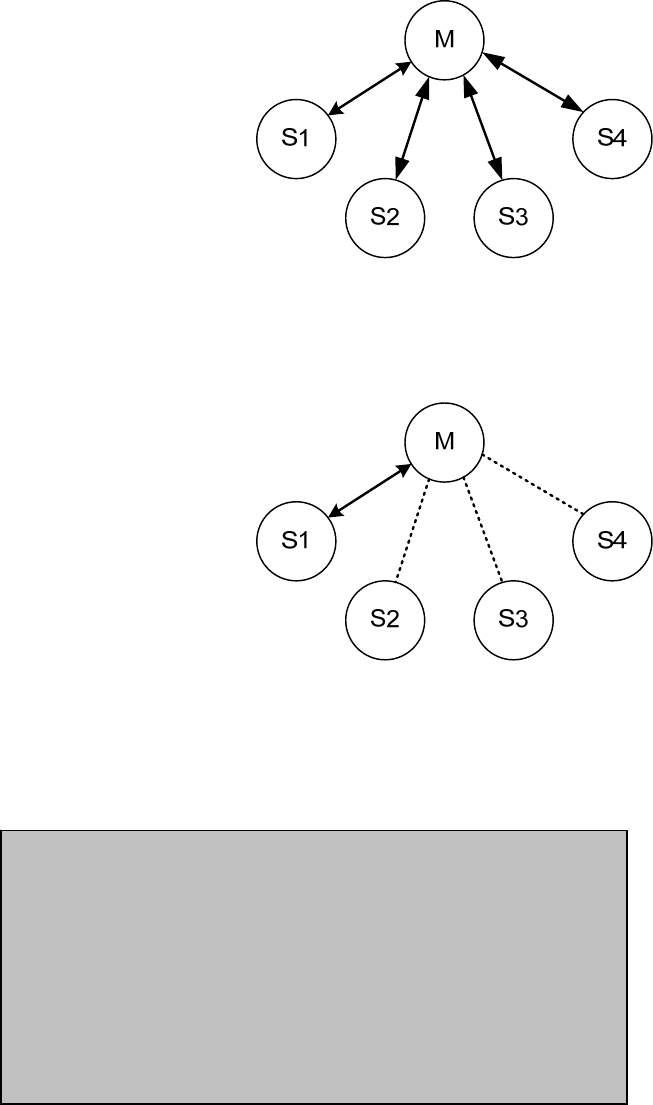

3. Multiple Connection Mode 22
3.1. Overview ..................................................................................................................................22
3.2. Configuration ............................................................................................................................23
3.3. AT Commands..........................................................................................................................24
3.3.1. AT+MULTI,n...................................................................................................................24
3.3.2. AT+MLIST?....................................................................................................................24
3.3.3. ATHx, ATHbdaddr..........................................................................................................24
3.3.4. ATOx, ATObdaddr .........................................................................................................24
3.4. Notes ........................................................................................................................................25
4. RF Information 27
4.1. Radio Frequency Range ..........................................................................................................27
4.2. Number of Frequency Channel ................................................................................................27
4.3. Transmission Method ...............................................................................................................27
4.4. Modulation Method...................................................................................................................27
4.5. Radio Output Power.................................................................................................................27
4.6. Receiving Sensitivity ................................................................................................................27
4.7. Power Supply ...........................................................................................................................27
Appendix A: AT Commands 29
A.1. Terminology..............................................................................................................................29
A.1.1. AT Command.................................................................................................................29
A.1.2. AT Response .................................................................................................................29
A.1.3. Operation Mode.............................................................................................................29
A.1.4. Operation Status............................................................................................................29
A.1.5. Security..........................................................................................................................29
A.1.6. Symbols .........................................................................................................................30
A.2. Command Category.................................................................................................................30
A.3. Command Description .............................................................................................................31
A.3.1. ATZ..............................................................................................................................31
A.3.2. AT&F............................................................................................................................31
A.3.3. AT.................................................................................................................................31
A.3.4. AT+UARTCONFIG,Baudrate,Parity,Stopbit.................................................................31
A.3.5. AT+USEDIP?...............................................................................................................31
A.3.6. AT+BTINFO?...............................................................................................................32
A.3.7. AT+BTINQ?.................................................................................................................32
A.3.8. AT+BTLAST?...............................................................................................................32
A.3.9. AT+BTVER?................................................................................................................32
A.3.10. AT+MLIST?................................................................................................................32
A.3.11. AT+BTMODE,n..........................................................................................................33
A.3.12. AT+MULTI,n...............................................................................................................33
5
A.3.13. +++............................................................................................................................33
A.3.14. AT+SETESC,nn.........................................................................................................33
A.3.15. ATO (ATOx, ATObdaddr) ...........................................................................................34
A.3.16. AT+BTCANCEL.........................................................................................................34
A.3.17. AT+BTSCAN..............................................................................................................34
A.3.18. AT+BTSCAN,n,to.......................................................................................................34
A.3.19. AT+BTSCAN112233445566,to..................................................................................35
A.3.20. ATD............................................................................................................................35
A.3.21. ATD112233445566....................................................................................................35
A.3.22. ATH (ATHx, ATHbdaddr)............................................................................................35
A.3.23. AT+BTKEY=$string....................................................................................................36
A.3.24. AT+BTSD? ................................................................................................................36
A.3.25. AT+BTCSD................................................................................................................36
A.3.26. AT+BTFP,n.................................................................................................................36
A.3.27. AT+BTSEC,Authentication,Encryption......................................................................36
A.3.28. AT+BTNAME=$string................................................................................................37
A.3.29. AT+BTLPM,n.............................................................................................................37
A.3.30. AT+BTRSSI,n (Single Connection Mode Only) .........................................................37
A.3.31. AT&V..........................................................................................................................37
A.3.32. ATSnn? .....................................................................................................................38
A.3.33. ATSnn=mm................................................................................................................38
A.4. Command Validity ....................................................................................................................38
Appendix B: S-Register 40
B.1. S1: Force to Reconnect (default 1)..........................................................................................40
B.2. S3: Stream UART Policy (default 0) ........................................................................................40
B.3. S4: Enable Remote Name Query (default 1)...........................................................................40
B.4. S6: Enable Low Power Mode (default 0) .................................................................................40
B.5. S10: Enable Response Message (default 1) ...........................................................................40
B.6. S11: Enable Escape (default 1) ...............................................................................................40
B.7. S12: Clear Data Buffer When Disconnected (default 1) ..........................................................41
B.8. S13: Enable DCD Signal (default 1) ........................................................................................41
B.9. S14: Enable DTR Transfer (default 1) .....................................................................................41
B.10. S15: Enable Disconnect by DTR (default 0)..........................................................................41
B.11. S22: Faster Connection (default 0) ........................................................................................41
B.12. S23: Intercharacter Timeout Setting (default 0).....................................................................41
B.13. S24: Maximum Number of Inquiry Result (default 15)...........................................................41
B.14. S26: Intercharacter Timeout (default 0) .................................................................................41
B.15. S28: Escape Sequence Character (default 43) .....................................................................42
B.16. S31: Page Timeout (default 20) .............................................................................................42
B.17. S33: Inquiry Timeout (default 30)...........................................................................................42
B.18. S37: Supervision Timeout (default 5) ....................................................................................42
B.19. S43: COD (default 001F00) ...................................................................................................42
B.20. S44: COD Filter (default 0) ....................................................................................................42
B.21. S45: Inquiry Access Code (default 0x9E8B33)......................................................................42
B.22. S46: BD Address of Last Connected Device .........................................................................42
B.23. S48: Low Power Max Interval (default 5000).........................................................................43
B.24. S49: Low Power Min Interval (default 4500)..........................................................................43
B.25. S52: Low Power Timeout (default 5)......................................................................................43
B.26. S54: BD Address of Last Connected Device .........................................................................43
B.27. S55: BD Address of Last Connected Device .........................................................................43
B.28. S56: BD Address of Last Connected Device .........................................................................43
B.29. S57: Slave Disconnect Timeout (default 3) ...........................................................................43
B.30. S58: MAX TX POWER (default 0) .........................................................................................43
B.31. S59: Current Slave in Communication (default 0) .................................................................44
B.32. S60: Reconnect Time Interval (default 5) ..............................................................................44
Appendix C: Trouble Shooting 45
C.1. Data Loss or Malfunctioning ....................................................................................................45
C.1.1. Response Message.......................................................................................................45
6
C.2. Transmission Delay .................................................................................................................45
C.2.1. RF Processing Delay.....................................................................................................45
C.2.2. RF Transmission Environment ......................................................................................45
Appendix D: Warranty 47
D.1. GENERAL WARRANTY POLICY............................................................................................47
D.2. LIMITATION OF LIABILITY......................................................................................................47
D.3. HARDWARE PRODUCT WARRANTY DETAILS....................................................................47
D.4. SOFTWARE PRODUCT WARRANTY DETAILS ....................................................................48
D.5. THIRD-PARTY SOFTWARE PRODUCT WARRANTY DETAILS ...........................................48
7
1. Introduction
1.1. Overview
Parani-SD1100 is a terminal device for wireless serial communication using Bluetooth 2.0+EDR
technology that is an international standard of short range wireless communications. Parani-SD1100
can communicate with other Bluetooth devices; user may connect other Bluetooth devices that
support the Serial Port Profile.
The working distance of Parani-SD1100 with default antenna is 100m
Parani-SD1100 has a compact design, which allows it to be placed conveniently into various devices
or equipment. Its detachable antenna has the ability to optimize the quality and distance of wireless
communications.
Parani-SD1100 supports FHSS (Frequency Hopping Spread Spectrum), which is a technique, native to
Bluetooth that allows the Parani-SD1100 minimize radio interference while decreasing the likelihood of
over-air hijacking. Parani-SD1100 also supports authentication and Bluetooth data encryption.
Parani-SD1100 can be configured and controlled by a set of AT commands. Users can easily configure
Parani-SD1100 on a terminal program, such as HyperTerminal, and configure for wireless
communication without modifying user’s existing serial communication program. User friendly
ParaniWIN can also be used for easy setup on Microsoft Windows.
8
1.2. Product Specification
Parani-SD1100
Serial Interface One male DB9 serial port for data communication
Serial UART speed up to 921.6kbps
Bluetooth v2.0 + EDR
Profile: Serial Port Profile
Class 1
Bluetooth Interface
Working distance:
Stub Antenna (M/N:AN2400-3306RS) Max Gain 1.40dBi
Manufacturer (Cortec Technology Inc.) - 100 meters
Dipole Antenna (M/N:R-AN2400-5801RS) Max Gain 3.17dBi
Manufacturer (Cortec Technology Inc.) - 300 meters
Dipole Antenna (M/N:R-AN2400-1901RS) Max Gain 5.37dBi
Manufacturer (Cortec Technology Inc.) - 600 meters
Configuration ParaniWIN, Modem AT command set
Firmware Update ParaniUpdater
Diagnostic LED Power, Mode, Connect, Serial Rx/Tx
Power Supply voltage: 5V ~ 12V DC
Power consumption: 80mA@5VD Max
Environmental Operating temperature: -20 ~ 70 oC
Storage temperature: -40 ~ 85 oC
Humidity : 90% (Non-condensing)
Physical properties - Dimension (L x W x H)
74 x 31 x 16 (mm)
- Weight
24g
Approvals FCC(A) , CE, MIC, CE, TELEC, SIG, IC
Warranty 3-year limited warranty
9
10
2. Configuration
2.1. Operation Modes
In addition to the serial port configurations the Parani-SD1100 also requires some settings for
Bluetooth. For getting the most out of Parani-SD1100, user should understand the following Bluetooth
connection schemes.
A Bluetooth device can play a role as a master or slave. Master tries to connect itself to other
Bluetooth devices, and slave is waiting to be connected from other Bluetooth devices. A Bluetooth
connection is always made by a pair of master and slave devices. A slave can be in two modes,
Inquiry Scan or Page Scan mode. Inquiry Scan mode is waiting for a packet of inquiry from other
Bluetooth device and Page Scan mode is waiting for a packet of connection from other Bluetooth
device. Every Bluetooth device has its unique address, called BD (Bluetooth Device) address, which is
composed of 12 hexa-decimal numbers.
Parani-SD1100 has 4 operation modes as follows. Each mode can be identified with LED indicators as
illustrated in next section.
Table 2-1 The Parani-SD1100 Operation Modes
Mode Description
Mode0 In this mode, there is no response when power on or software reset, and Parani-SD1100 is
just waiting for AT command input. Neither master nor slave is assigned to Parani-SD1100 in
mode0. User can change the configuration parameters of Parani-SD1100 in this mode.
Parani-SD1100 must be in Mode0, when it is directly controlled by AT commands.
The factory default is set to Mode0.
Mode1 Parani-SD1100 tries to connect the last connected Bluetooth device.
Parani-SD1100 in Mode1 is to be a master and tries to connect the last connected Bluetooth
device. Parani-SD1100 always stores the BD address of the Bluetooth device to which Parani-
SD1100 has connected last. When Parani-SD1100 is initially used or after hardware reset,
there is no BD address stored in Parani-SD1100. In this case, Mode1 will not be able to work
properly. The mode change to Mode1 can be made after Parani-SD1100 succeeds to connect
to one other Bluetooth device. Once changed to Mode1, Parani-SD1100 will try to connect
automatically the last connected Bluetooth device whenever the unit is powered on or software
reset.
Parani-SD1100 in Mode1 cannot be discovered or connected by other Bluetooth devices.
Mode2 Parani-SD1100 is waits for a connection from the last connected Bluetooth device.
Parani-SD1100 in Mode2 is to be a slave and waiting for the connection only from the last
connected Bluetooth device. Just like Mode1, if there is no BD address stored in Parani-
SD1100, the mode change from other operation modes to Mode2 is not work properly. Once
changed to Mode2, Parani-SD1100 will wait for the connection from the last connected
Bluetooth device whenever the unit is powered on or software reset.
Parani-SD1100 in Mode2 cannot be discovered or connected to Bluetooth devices other than
the last connected device.
Mode3 Parani-SD1100 is waiting for the connection from any other Bluetooth devices. In Mode 3 the
Parani-SD1100 is discoverable and can be connected to by other Bluetooth devices.
11
2.2. LED Indicators
RS422/485-Tx and RS422/485-Rx LED will flash accordingly when data is transmitted. For small data
transmissions, it may be hard to recognize the quick flashing action of the LED. Charge Led and Low
battery LED will be off, if you don’t use battery pack.
Table 2-2 The Parani-SD1100 LED Indicators
Indicator Power LED Standby LED Connect LED Indicator
Mode0 Green ┏━━━━━ Red
┏━━━━━
Mode0
Mode1 Green ┏━━━━━ Green (every 1
sec) ┏┓
Mode1
Mode2 Green ┏━━━━━ Green (every 3
sec) ┏┰┓
Mode2
Mode3 Green ┏━━━━━ Green (every 3
sec) ┏┰┓
Mode3
Connected Green ┏━━━━━ Green
┏━━━━━━━
Connected
Indicator Power LED Standby LED Connect LED Indicator
Mode0 Green ┏━━━━━ Red
┏━━━━━
Mode0
Mode1 Green ┏━━━━━ Green (every 1
sec) ┏┓
Mode1
2.3. Serial Ports
The applicable settings for serial ports are as follows.
Table 2-3 The Parani-SD1100 Serial Port Settings
Serial Port Settings Values
Baud rate 1200, 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 230400, 460800,
921600
Data bite 8
Parity No parity, Even parity, Odd parity
Stop bit 1, 2
Hardware Flow Control No Use
The values in box are the factory defaults.
2.4. Data Bit
Parani-SD1100 supports only 8 data bit. In the case of 7 data bit and even/odd parity, use 8 data bit
and none parity. At this time, master and slave are Parani-SD, Parani-ESD or Parani-MSP series. But
7 data bit and none parity is not support.
12
2.5. Reset to Factory Defaults
To set all the configuration settings to its factory default parameters, press the reset button, depicted in
Fig. 3-1. Press and hold (for at least 1 sec) the reset button with a narrow pointed tool like paper clip.
Reset works only when power is on.
2.6. Dipswitch
With the combination of 4 slot dipswitches, RS422/485 select, baud rate 9600 select, 485 echo and
termination on/off control can be set.
ParaniWIN or terminal program should be used to set these speeds. To set a baud rate not shown
below the dipswitches should be in the S/W Config setting. When in the S/W Config setting the baud
rate will go back to 9600 as default.
Table 1 Select by Dipswitches
422 485
Select
Table 2 Termination Select by Dipswitches
Off On
Termination
Table 3 485 Echo Control by Dipswitches
Off On
485 Echo Control
Table 4 Baudrate Settings by Dipswitches
AT Command 9600
Baudrate
13
2.7. Pairing Button
Parani-SD1100 provides Pairing Button for instant configuration without a PC to make an automatic
connection between two Parani-SD1100s. In this example we will refer to the two Parani-SD1100s as
SD1 and SD2. (Only single connection mode)
Step 1. Turn on SD1 and SD2 and reset both of them by pressing Factory Reset Button.
Step 2. Press the Pairing Button of SD1 for 2 seconds until Mode LED blinks 3 times every 3 seconds.
Keep the power ON.
Step 3. Press the Pairing Button of SD2 for 2 seconds until Mode LED blinks 3 times every 3 seconds.
Now press again the Pairing Button for 2 seconds until Mode LED blinks every second.
Step 4. Wait for SD1 & SD2 to connect to each other until the Connect LED’s of SD1 and SD2 blink
every 1 second. It takes about 10 seconds to make a connection. If there are many Bluetooth
devices nearby, it may take longer.
Step 5. Turn SD1 off and on. Mode LED blinks twice in green every 3 seconds.
Step 6. Turn SD2 off and on. Mode LED blinks in green every second.
Step 7. Now SD1 and SD2 are configured to make automatic connection to each other, whenever they
are powered on.
Using a pair of Parani-SD1100 in this fashion is similar to that of using a wireless serial cable.
* Note: When using the pairing buttons, the Command Response option will be deactivated
automatically. The Parani-SD1100 will not send the response messages such as OK, Connect and
Disconnect.
Table 2-8 Pairing Process by Pairing Button
SD1 Status LED SD2 Status LED
1. Factory reset Mode0 Mode LED turns on 1. Factory reset Mode0 Mode LED turns on
2. Push pairing
button
Mode3 Mode LED blinks 3
times every 3 seconds
2. Push pairing
button
Mode3 Mode LED blinks 3
times every 3 seconds
3. Push pairing
button again
Mode1 Mode LED blinks
every second
4. Connected Slave Connect LED blinks
every second
4. Connected Master Connect LED blinks
every second
Using pairing button, users can make a pairing connection between a Parani-SD unit and other
Bluetooth devices.
Step 1. Turn on SD1 and reset it by pressing Factory Reset Button.
Step 2. Press the Pairing Button of SD1 for 2 seconds until Mode LED blinks 3 times every 3 seconds.
Keep the power ON.
Step 3. Users can discover and connect to SD1 by using the software or user interface of other
Bluetooth device that they want to connect from.
Step 4. When they are connected, the Connect LED of SD1 blinks every 1 second.
Step 5. Turn off and on. Mode LED blinks twice in green every 3 seconds.
Step 6. Now SD1 is waiting for a connection from the last connected Bluetooth device. The last
connected Bluetooth device can connect to SD1.
Table 2-9 Pairing Process with other Bluetooth device by Pairing Button
SD1 Status LED Other Bluetooth Device Status
1. Factory reset Mode0 Mode LED turns on
2. Push pairing button Mode3 Mode LED blinks 3 times
every 3 seconds
14
3. Inquiry and connect to SD1
4. Connected Slave Connect LED blinks
every second
4. Connected Master
2.8. Software and Utility
This configuration software and utility for firmware update is included with the product, which also can
be downloaded from http://www.sena.com
Table 2-10 Configuration Software
Software Purpose Operating System
ParaniWIN Configuration MS Windows 98SE or Higher
ParaniUpdater Firmware Update MS Windows 98SE or Higher
2.9. ParaniWIN
ParaniWIN is a program that runs on Microsoft Windows for the configuration of Parani-SD1100. Install
ParaniWIN on your computer. Plug a Parani-SD1100 into the serial port of the computer and turn on
the power. Run ParaniWIN.

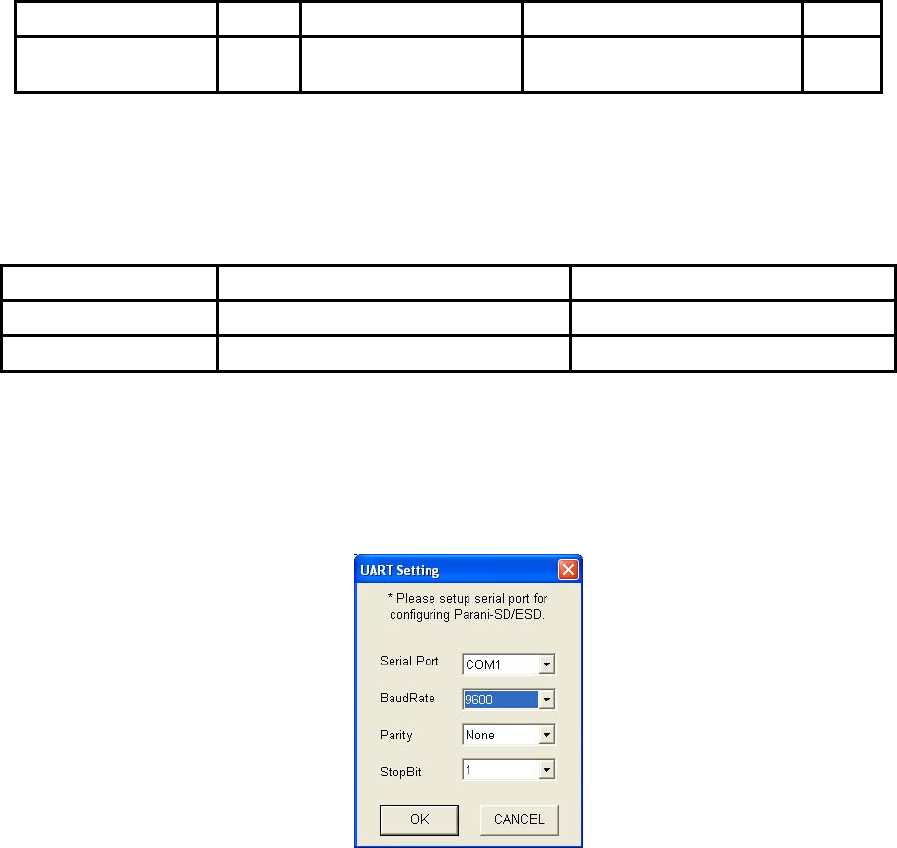

Figure 2-1 Serial Port Setting
Set each option properly and click [Confirm]. If the settings of the Parani-SD1100 are different from the
ParaniWin, an error message will pop up. If the Parani-SD1100 is in the status of connection, warning
message will pop up. Then the current connection can be cancelled by [Disconnect] button on the
main window.
15
Figure 2-3 Main Window
Figure 2-4 Information Window
Serial port settings can be changed by <Start Configuration> and <ParaniWIN Configuration> of
ParaniWIN in the menu bar at upper left corner of the window without re-running the ParaniWIN
program.
16
Figure 2-5 Menu Bar at Upper Left corner of ParaniWIN
When the ParaniWin software is able to access the Parani-SD1100 properly, the icons in the left side
window come will become available for use.
In device configuration window, hardware reset can be executed or operation mode and RS422/485
can be configured as well. Security option also can be configured in this window.
Figure 2-6 Device Setting Window
Parani-SD1100 supports two security options, Authentication and Encryption. If you enable the
Authentication option, you must also enter a Pin Code value. If the authentication is enabled, the
connection, between the Master and Slave device must share the same Pin Code. In case that Parani-
SD1100 connects to another Bluetooth device, that requires authentication, you must know the other
device’s Pin Code. In general, most Bluetooth devices have a pincode of 1234 or 0000. If you check
Encryption option, the Parani-SD1100 will encrypt packets and sent to the device. The Encryption
options works well in case that only one of the devices between Master and Slave use the Encryption
option.
17
Parani-SD1100 has 4 response messages, ‘OK’, ‘ERROR’, ‘CONNECT’, and ‘DISCONNECT’. In
some cases, these responses can affect the host system unexpectedly. To prevent this, user can set
the Command response to ON or OFF.
For Parani-SD1100, hardware flow control can be configured only by dip switch. And parity, stop bit
can be configured only SW config mode. Thus H/W Flow Control option will not work in this case.
When the dipswitch value isn’t ATcommand mode, the Baud Rate menu will be disabled.
Click [Apply] button to apply any changes made to the Parani-SD1100.
Connection(out) icon will show the following window to search and connect other Bluetooth devices.
Figure 2-7 Connection (out) Window
Click [Search] button to search nearby Bluetooth devices. Once several Bluetooth devices has been
found, select one of the devices and click the [Connect] button. The selected Bluetooth device must be
discoverable and connectable. Click [Disconnect] button to cancel the connection.
After the connection has been established, you will be able to test signal strength by pushing the
START button.
18
Figure 2-8 Signal Strength Test
The signal strength test shows LInkQuality and RSSI values. The closer LinkQuality is to 255 and
RSSI is to 0, this means the Parani-SD1100 has a good connection to the connected Bluetooth device.
In general, the wireless connectivity is at its best within 10 meters. You can push the STOP button at
anytime in order to terminate the signal strength test. The signal strength test will continue until the
STOP button is pushed. If you close the ParaniWIN Window without pushing the STOP button, you
must restart Parani-SD1100 to terminate the test.
Connection(in) icon will show the following window, which enables the Parani-SD1100 to wait for a
connection from another Bluetooth device. If the waiting time is set to 0, Parani-SD1100 will continually
wait for connection until [Cancel] button is clicked.
Figure 2-9 Connection (in) Window
19
If the Connection Wizard icon is clicked, an easy to use pairing menu will appear:
Figure 2-10 Connection Wizard Window
In this example we will refer to the two Parani-SD1100s as SD1 and SD2 respectively. To use this
menu, please do the following:
Step 1. Connect SD1 and then push the START button.
Step 2. Disconnect SD1, connect SD2 and then push the Next button after setting up Slave
configuration. At this time, the dip switch value should be ATcmd mode. The flow control setting can
be changed only through dip switch.
Step 3. Disconnect SD2, once again connect SD1 and then push the Finish button. The pairing
configuration should be completed. Make sure that each Parani-SD1100’s connect LED is on. At this
point, when both Parani-SD1100’s restart the connection will be established automatically.
2.10. ParaniUpdater
Parani-SD1100 supports firmware updates. You can download new firmware images for the Parani-
SD1100 at http://www.sena.com. With the ParaniUpdater, you can update the firmware of Parani-
SD1100 by selecting the firmware image file and pushing Start button.
* Note: DO NOT power off Parani-SD1100 while the firmware update is progressing, this may damage
the Parani-SD1100.
20
Figure 2-11 ParaniUpdater Window
2.11. Terminal Program
A terminal program is typically an application that will enable a PC to communicate directly with a
modem. If you are using Windows 98SE or higher version of Windows, HyperTerminal program is
included as part of the operating system. Parani-SD1100 provides some extended AT commands for
configuration of the Parani-SD1100.
This manual will explain the method using HyperTerminal. If you need to install HyperTerminal, click
start>setting>control panel>add/remove programs. For more precise details on HyperTerminal
installations, please refer to Microsoft Windows Help section.
.
Figure 2-12 HyperTerminal
Attach Parani-SD1100 to serial port of host computer and power on the Parani-SD1100. Check Mode
LED. (See 3.2)
21
Make sure that the Connect LED is turned off and the Stanby LED is turned on before attempting to
send any kind of AT commands to the Parani-SD1100. Then launch HyperTerminal, it can usually be
found in start >programs >accessories >communication >HyperTerminal. Select the Serial port that
Parani-SD1100 is connected to.
Select the Serial port setting in the window displayed, please make sure the serial settings in
Hyperterminal are set to the same settings as the Parani-SD1100’s serial settings.
To view the AT commands that are being typed, you will need to enable the local echo option. Go to
File->Properties->Settings->ASCII setup and select the “Echo typed characters locally” option.
For expanded AT commands, please refer to Appendix A. AT commands.
Example of AT commands:
at+btinfo?
00015B446655,SD1100v2.0.0-446655,MODE0,STANDBY,0,0,NoFC
OK
atd 000195000001
OK
CONNECT 000195000001
22
3. Multiple Connection Mode
3.1. Overview
Parani-SD1100 supports multiple connections up to 4 slave units. There are two types of multiple
connection modes: Multi-Drop Mode and Node Switching Mode.
Figure 4-1 Multi-Drop Mode
In Multi-Drop Mode a master unit can connect to maximum 4 slave units at the same time and they
transfer data bi-directionally as in Figure 4-1.
Figure 4-2 Node Switching Mode
In Node Switching Mode, the master unit maintains multiple connections with maximum 4 slave units
but only one connection with one slave unit is active and data is transferred as shown in Figure 4-2.
Active slave is selected by AT commands.
On communication after connecting
+++
OK
ATO1 – Communicating with #1 Slave
+++
OK
ATO000195000003 – Communicating with slave of BD 000195000003
23
3.2. Configuration
All the slaves should be in the status of waiting for connection either in Mode 2 or Mode 3 and the
master unit tries to connect to the slave units. The master unit needs to be configured to work in a
multiple connection mode using AT+MULTI,x command, which makes master reboots after execution.
Table 4-1 AT+MULTI,x
AT+MULTI,0 Single Connection Mode
AT+MULTI,1 Multi-Drop Mode
AT+MULTI,2 Node Switching Mode
Table 4-2 Configuration of a Multiple Connection Mode
Manual Connection Automatic Connection
ATD000195000001
CONNECT000195000001
+++
OK
ATD000195000002
CONNECT000195000002
+++
OK
ATD000195000003
CONNECT000195000003
+++
OK
ATD000195000004
CONNECT000195000004
+++
ATS46=000195000001
OK
ATS54=000195000002
OK
ATS55=000195000003
OK
ATS56=000195000004
OK
AT+MULTI,1 or AT+MULTI,2
OK
AT+BTMODE,1
After rebooted automatically
master tries to connect to
slaves
After input the BD addresses of the slave units into 4 S-registers S46, S54, S55 and S56 and then set
operation mode as MODE1, users can use multiple connection function. If S-registers have available
slaves’ address, AUTO CONNECT message will be displayed following corresponding TASK.
TASK1 OK – AUTO CONNECT
TASK2 OK
TASK3 OK – AUTO CONNECT
TASK4 OK
24
3.3. AT Commands
3.3.1. AT+MULTI,n
Select a multiple connection mode. Refer to Table 4-1 for descriptions.
3.3.2. AT+MLIST?
It shows the current mode, the connection status and the BD addresses of slaves.
3.3.3. ATHx, ATHbdaddr
Using the ATH command, connections with all slaves or only connections with specific slaves can be
disconnected selectively
Table 4-3 ATH
ATH Disconnect all the slaves.
ATHx (ATH1, ATH2, ATH3, ATH4) Disconnect the slave which belongs to the TASK x.
ATHbdaddr (ATH000195000001) Disconnect the slave with specified BD address.
3.3.4. ATOx, ATObdaddr
Using the ATO command, the communication status with the last active slave or a specific slave can
be set to online (only in Node Switching Mode).
Table 4-4 ATO
ATO Communicate with the slave recently communicated.
ATOx (ATO1, ATO2, ATO3, ATO4) Communicate with the slave which belongs to the TASK x.
ATObdaddr (ATO000195000001) Communicate with the slave with specified BDaddress.
at+mlist?
CURRENT MODE: MULTI DROP
TASK1 – 000195000001
TASK2 – 000195000002
TASK3 – DISCONNECT
TASK4 - 000195000004
OK
25
3.4. Notes
When large data exchange occurs in Multi-drop mode without flow-control enabled, the master unit
may experience data loss. It may also experience occasional disconnections and/or system rebooting
especially when bi-directional communication happens. It is strongly recommended to perform
extensive performance test before any real world field applications.
The master unit would try to connect all slave units specified by S-register 46, 54, 55 and 56. If non-
existing or inactive slave addresses are entered in these S-registers, the overall performance will
degrade due to frequent connection trials to non-existing/inactive slaves. It may also force
disconnections for overall performance and outputs disconnect messages repeatedly.
Node-switching mode provides nearly equivalent performance as single connection mode. It is always
recommended to use flow-control for both of Multi-Drop Mode and Node Switching Mode.
26
27
4. RF Information
4.1. Radio Frequency Range
2.402~2.480GHz
4.2. Number of Frequency Channel
79 channels
4.3. Transmission Method
FHSS (Frequency Hopping Spread Spectrum)
4.4. Modulation Method
GFSK (Gaussian-filtered Frequency Shift Keying)
Pi/4 DQPSK (pi/4 rotated Differential Quaternary Phase Shift Keying)
8DPSK (8 phase Differential Phase Shift Keying)
4.5. Radio Output Power
Products Radio Output Power
Parani-SD1100 +13dBm
4.6. Receiving Sensitivity
Products Radio Output Power
Parani-SD1100 -88dBm
4.7. Power Supply
Products Radio Output Power
Parani-SD1100 DC5.0 ~ 12V
28
29
Appendix A: AT Commands
A.1. Terminology
A.1.1. AT Command
AT command set is the HTin fact standardTH HTlanguageTH for controlling HTmodemsTH. The AT command set was
developed by HTHayesTH and is recognized by virtually all HTpersonal computerTH modems. Parani-SD
provides the extended AT command set to control and configure the serial parameters and Bluetooth
connection.
A.1.2. AT Response
Parani-SD replies to AT commands with 4 kinds of message, ‘OK’, ‘ERROR’, ‘CONNECT’ and
‘DISCONNECT’.
A.1.3. Operation Mode
Mode Description
Mode0 Waiting for AT commands
Mode1 Attempting to connect the last connected Bluetooth device
Mode2 Waiting for the connection from the last connected Bluetooth device
Mode3 Waiting for the connection from any other Bluetooth device
A.1.4. Operation Status
Status Description
Standby Waiting for AT commands
Pending Executing tasks
Connect Transmitting data
A.1.5. Security
Security Description
Authentication Pin Code (or Pass key)
Encryption Data encryption
30
A.1.6. Symbols
The symbols are used for the description of command syntax as follows:
Symbols Meaning ASCII Code
Carriage return 0x0D
Line feed 0x0A
Carriage return + Line feed
112233445566 Bluetooth device address
N or m One digit decimal number
to Timeout in seconds
A.2. Command Category
Command Category Index AT Commands
RESET 1
2
ATZ
AT&F
SERIAL PORT 3
4
AT
AT+UARTCONFIG,b,p,s
Information 5
6
7
8
9
10
AT+USEDIP?
AT+BTINFO?
AT+BTINQ?
AT+BTLAST?
AT+BTVER?
AT+MLIST?
Mode 11
12
AT+BTMODE,n
AT+MULTI,n
Status 13
14
15
16
17
18
19
+++
AT+SETESC,nn
ATO
AT+BTCANCEL
AT+BTSCAN
AT+BTSCAN,n,to
AT+BTSCAN112233445566,to
Connection 20
21
22
ATD
ATD112233445566
ATH
Security 23
24
25
26
27
AT+BTKEY=$string
AT+BTSD?
AT+BTCSD
AT+BTFP,n
AT+BTSEC,a,e
BLUETOOTH
Miscellaneous 28
29
30
AT+BTNAME=$string
AT+BTLPM,n
AT+BTRSSI,n
S-REGISTER 31
32
33
AT&V
ATSnn?
ATSnn=mm
31
A.3. Command Description
A.3.1. ATZ
Response OK
Purpose Software Reset
Description This has the same effects as Powercycling the unit.
This command disconnects any connected Bluetooth device, and stops ongoing tasks.
After rebooting, the status will be decided by the preset operation mode.
Some AT commands require the ATZ command be run so that the commands can take
effect.
A.3.2. AT&F
Response OK
Purpose Hardware reset
Description This has the same effect as initialization by pressing the factory reset button.
All parameters are initialized to factory defaults.
A.3.3. AT
Response OK
Purpose Check the connection status with host equipment
Description Check if the connection to host equipment is operating normally. The serial parameters of
Parani-SD must be same as those of host equipment. If not, the Parani-SD will not respond
or ‘ERROR’ message will appear or an abnormal sequence of strings will appear.
A.3.4. AT+UARTCONFIG,Baudrate,Parity,Stopbit
Response OK
Purpose Set Serial parameters
Parameters Baudrate = 1200/2400/9600/14400/19200/38400/57600/115200/230400/460800/ 921600
(Default=9600)
Parity=N/E/O (Default=N)
Stopbit=1/2 (Default=1)
Description The Serial parameters can be set or changed only if SW config mode is selected in dip
switch. The factory default is 9600, N, 1.
To take effect the ATZ command must be used or Powercycle the unit.
Example AT+UARTCONFIG,115200,N,1
A.3.5. AT+USEDIP?
Response m
Purpose Check the Baud rate set by the dip switch
Description m=0: Dip switches are set to ‘S/W Config’
m=1: Please view the dipswitches to view your baud rate.
32
A.3.6. AT+BTINFO?
Response 112233445566,DeviceName,Mode,Status,Auth,Encryp,FlowControl
OK
Purpose Display Bluetooth settings
Description The current Bluetooth settings are displayed including BD address, Device name,
Operation mode, Operation status, Authentication, Data Encryption, and Hardware Flow
Control. The initial value of Device name is ‘PSD1100v2.0.0-445566’. PSD stands for
Parani-SD, v2.0.0 for the version of firmware, and 445566 for the last 6 digits of BD
address.
Mode=MODE0/MODE1/MODE2/MODE3
Status=STANDBY/PENDING/CONNECT
Auth=0/1 (Authentication is not activated when 0)
Encrypt=0/1 (Encryption is not activated when 0)
FlowControl=HWFC/NoFC
Example 000B530011FF,SENA,MODE0,PENDING,1,1,HWFC
A.3.7. AT+BTINQ?
Response 112233445566,FriendlyName,CoD
112233445566,FriendlyName,CoD
112233445566,FriendlyName,CoD
OK
Purpose Search Bluetooth devices nearby
Description The Bluetooth devices in Inquiry scan mode nearby are displayed with their BD addresses,
Device names, and Class of device.
Maximum 15 devices are scanned for 30 seconds. (Default 15 value in S-register 24)
A.3.8. AT+BTLAST?
Response 112233445566
Purpose Display the BD address of the last connected device
Description The Bluetooth device last connected to this Parani-SD is displayed with its BD address.
A.3.9. AT+BTVER?
Response SD1100v2.0.0
OK
Purpose Display device firmware version
Description Display device firmware version
A.3.10. AT+MLIST?
Response CURRENT MODE:SINGLE CONNECTION MODE
OK
Purpose Display the current multiple connection mode and connected slave’s Bluetooth addresses.
Description Display current mode(SINGLE CONNECTION MODE, MULTI-DROP MODE, NODE
SWITCHING MODE) and connected slave Bluetooth address.
Example AT+MLIST?
33
CURRENT MODE: MULTI-DROP MODE
TASK1 – 000195000001
TASK2 – DISCONNECT
TASK3 – DISCONNECT
TASK4 – 000195000004
A.3.11. AT+BTMODE,n
Response OK
Purpose Set operation mode
Parameters n=0: MODE0 (Default)
n=1: MODE1
n=2: MODE2
n=3: MODE3
Description When the operation status is ‘Pending’ currently, change the status to ‘Standby’ with
AT+BTCANCEL prior to this command.
To take effect the ATZ must be executed or Powercycle the unit
Example AT+BTMODE,2
OK
ATZ
A.3.12. AT+MULTI,n
Response OK
Purpose Set multiple connection mode
Parameters n=0: Single Connection Mode (Default)
n=1: Multi-Drop Mode
n=2: Node Switching Mode
Description Set single connection mode, multi-drop mode or node switching mode.
A.3.13. +++
Response OK
Purpose Convert the operation status of ‘Connect’ to ‘Standby’
Description In ‘Connect’ status, data from host is transmitted to the other side Bluetooth device, and
any AT command is not accepted but this command, which is not echoed on the screen.
When Parani-SD encounters a character ‘+’ from host, it stops the data transmission and
waits for next 2 characters. If the next 2 characters aren’t both ‘+’, it restart to transmit data
including the first ‘+’ as well. If not, it converts the operation status to ‘Standby’.
If the data from host includes ‘+++’, it will convert the operation status to ‘Standby’. Notice
that Parani-SD holds data transmission when it encounters ‘+’, until receiving next
character.
‘+’ is an escape sequence character by default, which is changeable by AT+SETESC.
A.3.14. AT+SETESC,nn
Response OK
Purpose Change the escape sequence character
Description Escape sequence character set to ‘+’ by default is changeable.
The parameter nn must be a printable character.
34
Example AT+SETESC,42
A.3.15. ATO (ATOx, ATObdaddr)
Response None
Purpose Convert the operation status of ‘Standby’ to ‘Connect’
Description You can convert the operation status of ‘Standby’ to ‘Connect’ ready to transmit data. In
Node Switching mode, a specific slave can be specified to become an active connection by
specifying the connection number or the Bluetooth address.
Example ATO
ATO3
ATO000195000001
A.3.16. AT+BTCANCEL
Response OK
Purpose Terminate the current task
Description This terminates a current executing task, such as Inquiry scan and Page scan, then
converts the operation status to ‘Standby’
A.3.17. AT+BTSCAN
Response OK
CONNECT 112233445566
Purpose Wait for inquiry and connection from other Bluetooth devices
Description This allows the inquiry and connection from the other Bluetooth devices. The operation
status will be in ‘Pending’ after this command. When connection is made and released, the
operation status is back to ‘Pending’. To convert the operation status to ‘Standby’
AT+BTCANCEL must be used.
This has the same effect as AT+BTSCAN, 3, 0.
When connection is made with other Bluetooth device, response will be ‘CONNECT’ with
its BD address.
A.3.18. AT+BTSCAN,n,to
Response OK
CONNECT 112233445566
or
OK
ERROR
Purpose Wait for inquiry and connection from other Bluetooth devices for a given duration
Parameters n=1: Allows Inquiry scan
n=2: Allows Page scan
n=3: Allows both of Inquiry scan and Page scan
to= Time duration in seconds
Description For the given to, Parani-SD is waiting for the inquiry and connection from other Bluetooth
devices. If the parameter of to is 0, it will wait forever.
When connection is made with other Bluetooth device, response will be ‘CONNECT’ with
its BD address. If there is no connection made within this time duration, response is
‘ERROR’ and the operation status becomes to ‘Standby’.
35
Example AT+BTSCAN,2,30
A.3.19. AT+BTSCAN112233445566,to
Response OK
CONNECT 112233445566
or
OK
ERROR
Purpose Wait for connection by a Bluetooth device with a given BD address
Parameters 112233445566=BD address
to= time duration in seconds
Description Parani-SD will wait to be connected to by the Bluetooth device with the given BD address.
If the parameter of to is 0, it will wait forever.
When connection is made with the Bluetooth device, response will be ‘CONNECT’ with its
BD address. If there is no connection made within this time duration, response is ‘ERROR’
and the operation status becomes ‘Standby’.
Example AT+BTSCAN000B530011FF,30
A.3.20. ATD
Response OK
CONNECT 112233445566
or
OK
ERROR
Purpose Connect to the last connected Bluetooth device
Description Parani-SD saves the BD address of the Bluetooth device most recently connected to.
If it fails to make a connection, response will display an ‘ERROR’.
A.3.21. ATD112233445566
Response OK
CONNECT 112233445566
or
OK
ERROR
Purpose Connect to a specific Bluetooth device with a given BD address
Parameters 112233445566 = BD address
Description Parani-SD attempts to connect to the Bluetooth device with the given BD address. To make
successful connection, the Bluetooth device must be in Page scan mode. This attempt
continues for 5 minutes.
If it fails to make connection, response is ‘ERROR ’.
Example ATD000B530011FF
A.3.22. ATH (ATHx, ATHbdaddr)
Response OK
DISCONNECT
Purpose Release the current connection
36
Description The current Bluetooth connection will be disconnected. It takes about Supervision
Timeout(S37) to detect an abnormal disconnection such as power off and moving out of
service range. In multiple connection modes, a specific connection can be specified to be
disconnected by specifying the connection number or the Bluetooth address
The response message of ‘DISCONNECT’ may be displayed on disconnection depending
on the disconnection condition. You can make it not displayed using S10 register.
Example ATH
ATH3
ATH000195000001
A.3.23. AT+BTKEY=$string
Response OK
Purpose Change pin code
Parameters $string= New pin code (Default=”1234”)
Description Pin code is a string, which allows up to 16 alpha-numeric characters. Based on this pin
code, Parani-SD generates a link key which is used in actual authentication process
Example AT+BTKEY=”apple”
A.3.24. AT+BTSD?
Response 112233445566
OK
Purpose Display a list of Bluetooth devices sharing the same pin code
Description Once a connection is made with a pin code, Parani-SD saves the Bluetooth device with its
link key, generated by the pin code. The connection to a device listed in Parani-SD can be
made automatically without the authentication process. The maximum number kept on the
list is 7.
A.3.25. AT+BTCSD
Response OK
Purpose Clear the list of Bluetooth devices sharing the same pin code
Description This clears the list of Bluetooth devices linked with the same key in flash memory. To take
effect the ATZ command must be used or Powercycle the unit.
A.3.26. AT+BTFP,n
Response OK
Purpose Set generation of link key every time of connection
Parameters n=0: Inactivate (Default)
n=1: Activate
Description If n is set to 1, Parani-SD asks for the pin code every time a connection is made. This can
be used to increase security.
A.3.27. AT+BTSEC,Authentication,Encryption
Response OK
37
Purpose Set authentication and data encryption
Parameters Authentication=0: Inactivate (Default)
Authentication=1: Activate
Encryption=0: Inactivate (Default)
Encryption=1: Activate
Description If the authentication is activated, the pin code must be set by AT+BTKEY command. Data
encryption cannot be used when authentication is not enabled, i.e. Authentication=0 and
Encryption=1 will not work properly.
A.3.28. AT+BTNAME=$string
Response OK
Purpose Change device name
Parameters $string= New device name (Default=”PSDv2.0.0-445566”)
Description Parani-SD can have a user friendly name for easy identification. The name allows up to 30
alpha-numeric characters.
Example AT+BTNAME=”My-Parani-SD”
A.3.29. AT+BTLPM,n
Response OK
Purpose Set low power mode
Parameters n=0: Inactivate (Default)
n=1: Activate
Description During no data transmission, Parani-SD can be in low power mode to save the power. It
takes a few seconds to wake the Parani-SD out of low power mode.
A.3.30. AT+BTRSSI,n (Single Connection Mode Only)
Response OK
0,255,0,0 (repeatedly)
Purpose Test signal strength
Parameters n=0: Stop signal strength test
n=1: Start signal strength test
Description When Bluetooth connection is established, you can use this command in Standby status.
The signal strength will be displayed repeatedly in order of Status, LinkQuality, Status,
RSSI. If the LinkQuality is close to 255 and RSSI is close to 0, the signal strength is in good
standing.
Example +++
AT+BTRSSI,1
OK
0,255,0,0
A.3.31. AT&V
Response S0:m0;S1:m1; …Sn:mn
OK
Purpose Display all the S-registers
38
Description All parameters are stored at S-register in flash memory. These values are sustained until
hardware reset.
A.3.32. ATSnn?
Response value
OK
Purpose Display a given S-register
Parameters nn= Address of S-register
Description A specific S-register will be displayed.
A.3.33. ATSnn=mm
Response OK
Purpose Change S-register value
Parameters nn= Address of S-register
mm= New value of S-register
Description Some S-registers are optimized for the overall performance and protected and cannot be
changed. When users try to change these S-registers, response is ‘ERROR’.
For details of S-register, refer Appendix. B.
Example ATS10=0
A.4. Command Validity
Operation Status
AT Command
Standby Pending Connect
AT ○ ○
ATZ ○ ○
AT&F ○ ○
AT+BINQ? ◎
ATD112233445566 ◎
ATD ◎
AT+BTSCAN ◎
AT+BTSCAN,n,to ◎
AT+BTSCAN112233445566,to ◎
AT+BTCANCEL
○
+++
○
AT+SETESC ◎
ATO ●
ATH ●
39
AT+BTSEC,Auth,Encr ◎
AT+BTLAST? ○ ○
AT+BTMODEn ◎
AT+BTNAME=”Name” ◎
AT+BTKEY=”nnnn” ◎
AT+BTINFO? ○
AT+BTLPM,n ◎
AT+BTSD? ○ ○
AT+BTCSD ◎
AT+BTFP,n ◎
AT+UARTCONFIG,b,p,s ◎
AT+USEDIP? ○ ○
AT+BTVER? ○ ○
AT+BTRSSI,n ●
◎ Valid only when Parani-SD is not connected to other Bluetooth device.
● Valid only when Parani-SD is connected to other Bluetooth device.
40
Appendix B: S-Register
S-registers contain 52 parameters for the Parani-SD Series. These are stored in flash memory and the
values will be saved unless hardware reset is executed. The value of S-register can be accessed and
changed with ATS command. Some S-registers not shown below are set to maximize the performance
of Parani-SD Series. Thus it is not recommended to change these S-registers.
Changing the values of S-register can only be done in the Standby mode. Turn Parani-SD off and on.
B.1. S1: Force to Reconnect (default 1)
S1=0, Parani-SD in Mode1 does not try to reconnect when disconnected.
S1=1, Parani-SD in Mode1 keeps trying to reconnect when disconnected.
B.2. S3: Stream UART Policy (default 0)
S3=0, the priority of UART streaming is throughput.
S3=1, the priority is latency, which minimizes the delay of data transmission. This is useful in case of
transmitting very small data quickly.
When this value is 1, in order to minimize latency, Parani-SD sends the received data immediately.
When this value is 0, the Parani-SD maximizes throughput, the Parani-SD stores received data for a
short time and sends a large data packet. If the packet length is less than 100 bytes, having latency
being the priority is recommended. If the packet length is more than 100 bytes, having throughput as
the priority is recommended. Also, if you want to use high baud rate, throughput priority will be more
effective. Just for reference, the buffer length for receiving data is 2 Kbytes.
B.3. S4: Enable Remote Name Query (default 1)
S4=0, Parani-SD will query only the BD address. This speeds up the inquiry process.
S4=1, Parani-SD will query the BD address, device name and class of device.
When this value is 1, Parani-SD finds not only BD address but also friendly name. When this value is
0, Parani-SD finds only BD address. When set to 0 this will make queries much faster. When using the
pairing button, finding friendly name will be omitted automatically.
B.4. S6: Enable Low Power Mode (default 0)
S6=0, deactivate Low Power Mode.
S6=1, activate Low Power Mode.
This value decides whether Parani-SD works in Low Power Mode or not. When this value is 0, Parani-
SD works only in active power mode. When Parani-SD works in Low Power mode, delay in
transferring data may occur.
B.5. S10: Enable Response Message (default 1)
S10=0, Parani-SD does not send response messages to the host system.
S10=1, Parani-SD sends response messages to host system.
This value decides whether Parani-SD sends response messages such as OK, ERROR, CONNECT,
DISCONNECT or not. When this value is 0, Parani-SD will not send any response messages. If the
response messages conflicts with your host programs or devices that is connected to Parani-SD,
change this value to 0.
B.6. S11: Enable Escape (default 1)
S11=0, Parani-SD does not allow escape sequence characters. The operation status of Connect
cannot be changed to Standby. Since the Parani-SD skips the process of detecting escape
sequence characters, more efficient data transmission can be had.
41
S11=1, Parani-SD allows for the escape sequence character. Whenever it is needed, the Connect
status can be changed to Standby.
B.7. S12: Clear Data Buffer When Disconnected (default 1)
S12=0, Parani-SD does not clear the data buffer received from host system when disconnected.
S12=1, Parani-SD clears the data buffer when disconnected.
B.8. S13: Enable DCD Signal (default 1)
S13=0, DCD signal off
S13=1, DCD signal on
B.9. S14: Enable DTR Transfer (default 1)
S14=0, DTR/DSR signal is transferred in a loop-back fashion.
S14=1, DTR signal is transferred to DSR of remote device.
B.10. S15: Enable Disconnect by DTR (default 0)
S15=0, DTR signal cannot release the connection.
S15=1, The Bluetooth connection can be released when DTR signal is off.
This value decides whether Bluetooth connection is released when DTR signal drops or not. If this
value is 1, you can use DTR signal in order to disconnect Bluetooth connection.
B.11. S22: Faster Connection (default 0)
S22=0, none
S22=1, page scan
S22=2, inquiry scan
S22=3, page/inquiry scan
Connecting time is average 1.5sec faster than normal mode.
B.12. S23: Intercharacter Timeout Setting (default 0)
S23=0 : Not used
S23=1 : 1 x S26
S23=2 : 10 x S26
S23=3 : 100 x S26
B.13. S24: Maximum Number of Inquiry Result (default 15)
The maximum number of inquiry list can be controlled. This value is up to 15.
B.14. S26: Intercharacter Timeout (default 0)
This value describes time interval between characters used to separate the data from serial port. If
there is no more data coming from serial port in this value, data is sent to client.
S23=1 x S26=50 : Timeout-> 50msec
S23=2 x S26=50 : Timeout-> 500msec
S23=3 x S26=3 : Timeout-> 300msec
42
* When 10 bytes data are sent every intercharacter timeout, they are sent separately by 10 bytes at
the optimal value. If the intercharater timeout is set below the optimal value, the date will be put
together and sent by 20, 30, 40 bytes or more.
B.15. S28: Escape Sequence Character (default 43)
The decimal number of the ASCII code of escape sequence character can be controlled. The initial
value is 43, the ASCII code of ‘+’.
B.16. S31: Page Timeout (default 20)
This is the timeout in seconds to attempt connection with the ATD command. After this timeout expires,
the Parani-SD will restart automatically. If this value is 0, Parani-SD will attempt to connect without
restarting
B.17. S33: Inquiry Timeout (default 30)
This is the timeout in seconds to execute inquiry scan.
B.18. S37: Supervision Timeout (default 5)
This is the timeout to presume disconnection, which is set to 5 seconds initially. The smaller the value
becomes, the more quickly Parani-SD can detect an abnormal disconnection. But when the
communication is suspended, it may be regarded as disconnection. This value should be greater than
the Slave Disconnect Timeout(S57). (Slave unit depends on the value of master unit.)
B.19. S43: COD (default 001F00)
This value describes the sort of the bluetooth device and is editable.
B.20. S44: COD Filter (default 0)
This value is used to filter the sort of the bluetooth devices on inquiring. All the bluetooth devices are
inquired in case of 0. In case of 3E0100, bluetooth devices with COD 3E0100 are inquired.
B.21. S45: Inquiry Access Code (default 0x9E8B33)
Inquiry access code is used during inquiry state. The reserved IAC addresses are 0x9E8B00 ~
0x9E8B3F. The general inquiry IAC is 0x9E8B33.
Parani-SD is able to find the Bluetooth devices that are configured as the same IAC
B.22. S46: BD Address of Last Connected Device
This saves the BD address of the Bluetooth device connected most recently in single connection
mode. This saves the Task1 BD address of the Bluetooth device connected most recently in a multiple
connection mode.
Intercharacter Timeout * Optimal Value(S23 x S26)
50ms 180
100ms 235
200ms 340
43
B.23. S48: Low Power Max Interval (default 5000)
This is the max interval value to use low power mode, which is set to 5000 initially. (5000 x 625μsec =
3125msec)
B.24. S49: Low Power Min Interval (default 4500)
This is the min interval value to use low power mode, which is set to 4500 initially. (4500 x 625μsec =
2812msec)
A small interval increases power consumption, a large interval increases latency.
B.25. S52: Low Power Timeout (default 5)
This is the low power timeout value, which is set to 5 initially. (5sec)
During no data transmission in the timeout, Parani-SD will be in low power mode to save the power.
Therefore, it takes a few seconds to wake the Parani-SD out of low power mode.
B.26. S54: BD Address of Last Connected Device
This saves the Task2 BD address of the Bluetooth device connected most recently in a multiple
connection mode.
B.27. S55: BD Address of Last Connected Device
This saves the Task3 BD address of the Bluetooth device connected most recently in a multiple
connection mode.
B.28. S56: BD Address of Last Connected Device
This saves the Task4 BD address of the Bluetooth device connected most recently in a multiple
connection mode.
B.29. S57: Slave Disconnect Timeout (default 3)
This S57 register value defines the time period in seconds that a master unit waits in case a slave unit
does not receive the data sent from the master. For this time period, the master unit will not send data
to all slave units if any slave unit does not receive the data. If the slave unit does not receive the data
after this time period elapses, the master unit will disconnect the connection with the problematic slave
unit. The value should be greater than 0 and smaller than the Supervision Timeout(S37).
B.30. S58: MAX TX POWER (default 0)
This value describes the peak output power. Setting this causes rebooting and applying. (There can
be a little deviation depending on the each device.)
Parameter dBm
0 Use chip setting.
1 -12
2 -8
3 -4
4 0
5 4
6 8
7 12
8 16
44
B.31. S59: Current Slave in Communication (default 0)
This value shows the current slave number in communication. The value is automatically stored when
the slave is selected for communication. This value can also be set by user so the master unit
connects to a specific slave to connect first in case the master unit reboots. The value range is 0~4. 0
means the maser unit never connected to a slave. The master will connect to a slave whatever
responses first.
B.32. S60: Reconnect Time Interval (default 5)
This value defines reconnect time interval in case a slave is disconnected in multiple connection mode.
The actual reconnect time interval will be the value multiplied by two in seconds. For example, if the
value is set to 5, the reconnect time interval will be 10 seconds. The value should be greater than or
equal to 5. The master unit will only try to reconnect when its mode is set to Mode1.
45
Appendix C: Trouble Shooting
C.1. Data Loss or Malfunctioning
C.1.1. Response Message
AT response messages from the Parani-SD may affect the host system unexpectedly. Do not use
Parani-SD If your applications cannot allow for this wireless time delay.
C.2. Transmission Delay
C.2.1. RF Processing Delay
It takes 30msec approximately for a Parani-SD to complete a data transmission to the other Bluetooth
device. This time delay cannot be reduced and may enlarge as the RF transmission environment
becomes worse. Do not use Parani-SD If your applications cannot allow for this time delay.
C.2.2. RF Transmission Environment
If there are many Bluetooth devices working in a small area and/or the RF communication distance is
too great and/or there are some obstacles affecting RF performance, the Parani-SD repeats the
transmission packet by packet due to interferences and/or low RF performance. This may lead to
increased data transmission time delays.
46
47
Appendix D: Warranty
D.1. GENERAL WARRANTY POLICY
Sena Technologies, Inc. (hereinafter referred to as SENA) warrants that the Product shall conform to
and perform in accordance with published technical specifications and the accompanying written
materials, and shall be free of defects in materials and workmanship, for the period of time herein
indicated, such warranty period commencing upon receipt of the Product.
This warranty is limited to the repair and/or replacement, at SENA’s discretion, of defective or non-
conforming Product, and SENA shall not be responsible for the failure of the Product to perform
specified functions, or any other non- conformance caused by or attributable to: (a) any misapplication
or misuse of the Product; (b) failure of Customer to adhere to any of SENA’s specifications or
instructions; (c) neglect of, abuse of, or accident to, the Product; or (d) any associated or
complementary equipment or software not furnished by SENA.
Limited warranty service may be obtained by delivering the Product to SENA or to the international
distributor it was purchased through and providing proof of purchase or receipt date. Customer agrees
to insure the Product or assume the risk of loss or damage in transit, to prepay shipping charges to
SENA, and to use the original shipping container or equivalent.
D.2. LIMITATION OF LIABILITY
EXCEPT AS EXPRESSLY PROVIDED HEREIN, SENA MAKES NO WARRANTY OF ANY KIND,
EXPRESSED OR IMPLIED, WITH RESPECT TO ANY EQUIPMENT, PARTS OR SERVICES
PROVIDED PURSUANT TO THIS AGREEMENT, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. NEITHER
SENA NOR ITS DEALER SHALL BE LIABLE FOR ANY OTHER DAMAGES, INCLUDING BUT NOT
LIMITED TO DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES,
WHETHER IN AN ACTION IN CONTRACT OR TORT (INCLUDING NEGLIGENCE AND STRICT
LIABILITY), SUCH AS, BUT NOT LIMITED TO, LOSS OF ANTICIPATED PROFITS OR BENEFITS
RESULTING FROM, OR ARISING OUT OF, OR IN CONNECTION WITH THE USE OF FURNISHING
OF EQUIPMENT, PARTS OR SERVICES HEREUNDER OR THE PERFORMANCE, USE OR
INABILITY TO USE THE SAME, EVEN IF SENA OR ITS DEALER HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL SENA OR ITS DEALERS TOTAL LIABILITY
EXCEED THE PRICE PAID FOR THE PRODUCT.
D.3. HARDWARE PRODUCT WARRANTY DETAILS
WARRANTY PERIOD: SENA warranties embedded hardware Product for a period of one (1) year, and
external hardware Product for a period of three (3) or five (5) years according to the Product type.
WARRANTY PROCEDURE: Upon return of the hardware Product SENA will, at its option, repair or
replace Product at no additional charge, freight prepaid, except as set forth below. Repair parts and
replacement Product will be furnished on an exchange basis and will be either reconditioned or new.
All replaced Product and parts become the property of SENA. If SENA determines that the Product is
not under warranty, it will, at the Customers option, repair the Product using current SENA standard
rates for parts and labor, and return the Product at no charge in or out of warranty.
WARRANTY EXCLUSIONS: Damages caused by
- Accidents, falls, objects striking the SENA product,
- Operating the Product in environments that exceed SENA's temperature and humidity specifications,
- Power fluctuations, high voltage discharges,
- Improper grounding, incorrect cabling,
- Misuse, negligence by the customer or any other third party,
- Failure to install or operate the product (s) in accordance to their SENA User Manual,
- Failure caused by improper or inadequate maintenance by the customer or any other third party,
48
- Floods, lightning, earthquakes,
- Water spills,
- Replacement of parts due to normal wear and tear,
- Hardware has been altered in any way,
- Product that has been exposed to repair attempts by a third party without SENA’s written consent,
- Hardware hosting modified SENA Software, or non-SENA Software, unless modifications have been
approved by SENA.
- Battery component capacity degradation due to usage, aging, and with some chemistry, lack of
maintenance.
D.4. SOFTWARE PRODUCT WARRANTY DETAILS
WARRANTY PERIOD: SENA warranties software Product for a period of one (1) year.
WARRANTY COVERAGE: SENA warranty will be limited to providing a software bug fix or a software
patch, at a reasonable time after the user notifies SENA of software non-conformance.
D.5. THIRD-PARTY SOFTWARE PRODUCT WARRANTY DETAILS
The warranty policy of the third-party software is conformed to the policy of the corresponding vendor
