SENA TECHNOLOGIES PARANIUD100 BLUETOOTH USB ADAPTER User Manual
Sena Technologies,Inc. BLUETOOTH USB ADAPTER Users Manual
Users Manual
1
Bluetooth USB Adapter
Parani-UD100
User Guide
Revision 0.1
2008-11-25
2
User Guide for the Parani-UD100
Revision 1.0.1
Firmware version 1.0.X
Printed in Korea
Copyright
Copyright 2008, Sena Technologies, Inc. All rights reserved.
Sena Technologies reserves the right to make changes and improvements to its product without
providing notice.
Trademark
Parani™ is a trademark of Sena Technologies, Inc.
Windows® is a registered trademark of Microsoft Corporation.
Ethernet® is a registered trademark of XEROX Corporation.
Notice to Users
When a system failure may cause serious consequences, protecting life and property against such
consequences with a backup system or safety device is essential. The user agrees that protection
against consequences resulting from system failure is the user's responsibility.
This device is not approved for life-support or medical systems.
Changes or modifications to this device not explicitly approved by Sena Technologies will void the
user's authority to operate this device.
Precautions and Safety
Do not drop or subject the device to impact. Damage to your products may result from improper use.
Keep away from harsh environments including humid, dusty, and smoky areas. Damage to your
products may result from improper use.
Do not use excessive force on the buttons or attempt to disassemble the device. Damage to your
products may result from improper use.
Do not place heavy objects on the product. Damage to your products may result from improper use.
Revision History
Revision Date Name Description
V0.1 2008-11-25 Marc Woo Initial Writing
3
Contents
1. Introduction 4
1.1. Overview ....................................................................................................................................4
1.2. Package Check List....................................................................................................................4
1.3. Product Specification..................................................................................................................4
2. Installing the Bluetooth Software 5
Appendix A. Mechanical Drawing 9
Appendix B. Warranty 10
D.1. GENERAL WARRANTY POLICY............................................................................................10
D.2. LIMITATION OF LIABILITY......................................................................................................10
D.3. HARDWARE PRODUCT WARRANTY DETAILS....................................................................10
D.4. SOFTWARE PRODUCT WARRANTY DETAILS .................................................................... 11
D.5. THIRD-PARTY SOFTWARE PRODUCT WARRANTY DETAILS ........................................... 11
Appendix C. Contact Information 12
4
1. Introduction
1.1. Overview
Thank you for purchasing Parani-UD100. Parani-UD100 is a Bluetooth-USB adapter with replaceable
external antenna. Parani-UD100 supports Bluetooth 2.0+EDR class 1 with working distance up to 100
meters. In addition, working distance can be further extended using optional dipole or patch antennas.
Parani-UD100 supports USB 2.0 for the computer interface and can be used with Windows using
Bluetooth stack driver included in the CD or MAC OS X using MAC OS X Bluetooth stack driver.
1.2. Package Check List
- Parani-UD100
- Stub Antenna
- Quick Start Guide
- CD-ROM including Windows Bluetooth driver and User Guide
1.3. Product Specification
Standards Bluetooth 2.0+EDR Class 1
USB 2.0
Frequency Range 2.4 ~ 2.4835GHz
Transmit Output Power +19dBm (+6dBm EDR) E.I.R.P
Receive Sensitivity Basic 1Mbps: -88 dBm
EDR 2Mbps: -87dBm
EDR 3Mbps: -82dBm
Antenna Connector RP-SMA
Antenna Gain Default Stub Antenna 1 dBi
Optional Dipole Antenna 3 dBi
Optional Dipole Antenna 5 dBi
Working Distance Up to 100M
* working distance can vary depending on install environment
Size 72(L) x 22(W) x 10(H) mm
Operating Temperature -20 ~ +70℃
Storage Temperature -40 ~ +85℃
Regulatory Approvals FCC, CE, TELEC, KCC, Bluetooth SIG
Warranty 1 year limited warranty
5
2. Installing the Bluetooth Software
This chapter describes how to install and set up the Bluetooth software on your computer when you
plug the Parani-UD100 to your computer for the first time.
Before connecting the Parani-UD100, you must install the Bluetooth software.
You should uninstall any kind of Bluetooth driver or utility, Such as Widcomm BTW or Toshiba.
a. Insert the installation software CD.
b. Click on “Install Bluetooth Utility / Driver”
c. The InstallSheld wizard is started. Click the Next button.

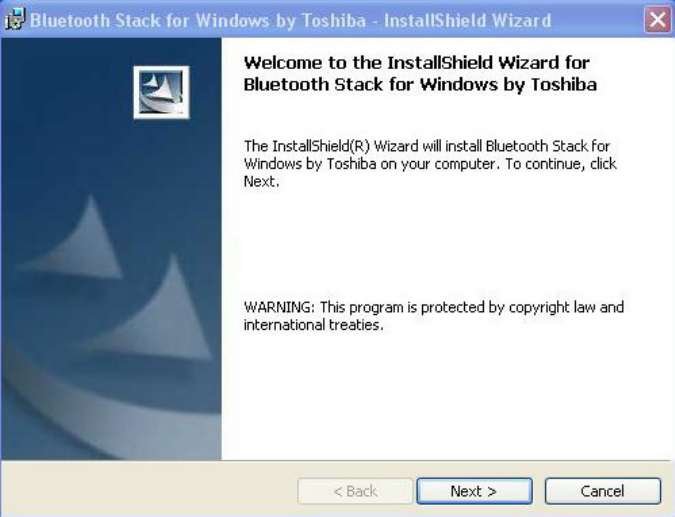

Figure 2.1: InstallShield wizard
6
d. Read the License and click the “I accept the terms in the license agreement” radio button. Then
click the Next button.

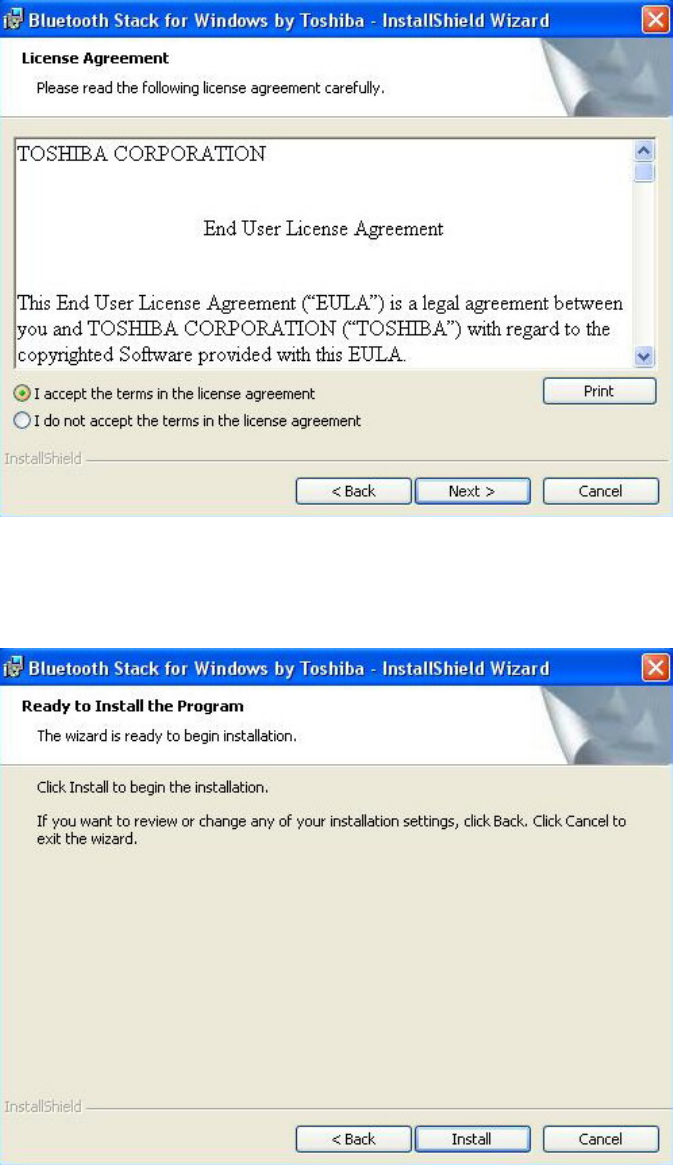

Figure 2.2: License Agreement
e. Click the Install button to begin the installation.
Figure 2.3: Ready to install
7
f. During installation, you should plug in the Parani-UD100 to USB port. After plugging in it, click the
OK button.

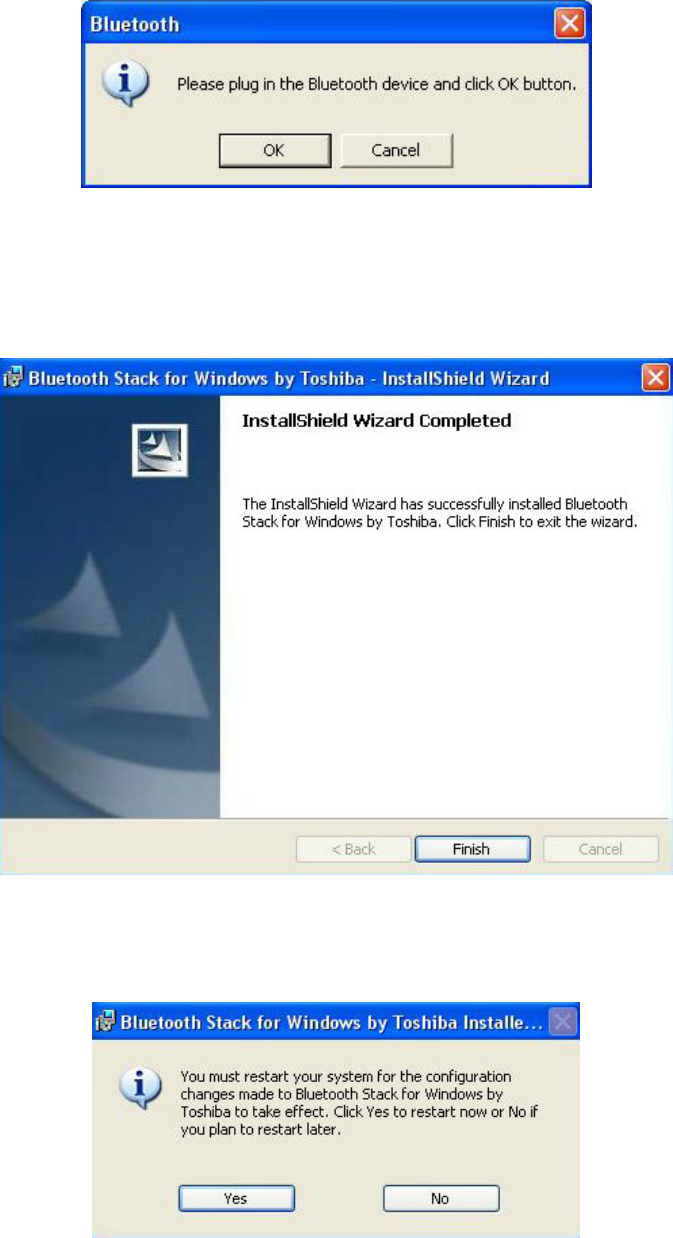

Figure 2.4: Plug in the Bluetooth device
g. Installation is completed. Click the Finish button.
Figure 2.5: InstallShield wizard complete
h. Click the Yes button to restart your PC.
Figure 2.6: restart your PC
8
3. Approval Information
3.1 FCC
3.1.1 FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept any
interference received, Including interference that may cause undesired operation
Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device,
Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio Frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
3.1.2. RF Exposure
Statement The equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This device and its antenna must not be co-located or operation in
conjunction with any other antenna or transmitter.
3.1.3. Caution
Any changes or modifications to the equipment not expressly approved by the party responsible for
compliance could void user’s authority to operate the equipment.
3.2. CE
3.2.1. EC-R&TTE Directive
EN 50385 / EN 60950 / EN 301 489-1/-17 / EN 300 328
9
Appendix A. Mechanical Drawing
TBD
10
Appendix B. Warranty
D.1. GENERAL WARRANTY POLICY
Sena Technologies, Inc. (hereinafter referred to as SENA) warrants that the Product shall conform to
and perform in accordance with published technical specifications and the accompanying written
materials, and shall be free of defects in materials and workmanship, for the period of time herein
indicated, such warranty period commencing upon receipt of the Product.
This warranty is limited to the repair and/or replacement, at SENA’s discretion, of defective or non-
conforming Product, and SENA shall not be responsible for the failure of the Product to perform
specified functions, or any other non- conformance caused by or attributable to: (a) any misapplication
or misuse of the Product; (b) failure of Customer to adhere to any of SENA’s specifications or
instructions; (c) neglect of, abuse of, or accident to, the Product; or (d) any associated or
complementary equipment or software not furnished by SENA.
Limited warranty service may be obtained by delivering the Product to SENA or to the international
distributor it was purchased through and providing proof of purchase or receipt date. Customer agrees
to insure the Product or assume the risk of loss or damage in transit, to prepay shipping charges to
SENA, and to use the original shipping container or equivalent.
D.2. LIMITATION OF LIABILITY
EXCEPT AS EXPRESSLY PROVIDED HEREIN, SENA MAKES NO WARRANTY OF ANY KIND,
EXPRESSED OR IMPLIED, WITH RESPECT TO ANY EQUIPMENT, PARTS OR SERVICES
PROVIDED PURSUANT TO THIS AGREEMENT, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. NEITHER
SENA NOR ITS DEALER SHALL BE LIABLE FOR ANY OTHER DAMAGES, INCLUDING BUT NOT
LIMITED TO DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES,
WHETHER IN AN ACTION IN CONTRACT OR TORT (INCLUDING NEGLIGENCE AND STRICT
LIABILITY), SUCH AS, BUT NOT LIMITED TO, LOSS OF ANTICIPATED PROFITS OR BENEFITS
RESULTING FROM, OR ARISING OUT OF, OR IN CONNECTION WITH THE USE OF FURNISHING
OF EQUIPMENT, PARTS OR SERVICES HEREUNDER OR THE PERFORMANCE, USE OR
INABILITY TO USE THE SAME, EVEN IF SENA OR ITS DEALER HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL SENA OR ITS DEALERS TOTAL LIABILITY
EXCEED THE PRICE PAID FOR THE PRODUCT.
D.3. HARDWARE PRODUCT WARRANTY DETAILS
WARRANTY PERIOD: SENA warranties embedded hardware Product for a period of one (1) year,
and external hardware Product for a period of three (3) or five (5) years according to the Product type.
WARRANTY PROCEDURE: Upon return of the hardware Product SENA will, at its option, repair or
replace Product at no additional charge, freight prepaid, except as set forth below. Repair parts and
replacement Product will be furnished on an exchange basis and will be either reconditioned or new.
All replaced Product and parts become the property of SENA. If SENA determines that the Product is
not under warranty, it will, at the Customers option, repair the Product using current SENA standard
rates for parts and labor, and return the Product at no charge in or out of warranty.
WARRANTY EXCLUSIONS: Damages caused by
- Accidents, falls, objects striking the SENA product,
- Operating the Product in environments that exceed SENA's temperature and humidity specifications,
- Power fluctuations, high voltage discharges,
- Improper grounding, incorrect cabling,
- Misuse, negligence by the customer or any other third party,
- Failure to install or operate the product (s) in accordance to their SENA User Manual,
- Failure caused by improper or inadequate maintenance by the customer or any other third party,
- Floods, lightning, earthquakes,
- Water spills,
11
- Replacement of parts due to normal wear and tear,
- Hardware has been altered in any way,
- Product that has been exposed to repair attempts by a third party without SENA’s written consent,
- Hardware hosting modified SENA Software, or non-SENA Software, unless modifications have been
approved by
SENA.
- Battery component capacity degradation due to usage, aging, and with some chemistry, lack of
maintenance.
D.4. SOFTWARE PRODUCT WARRANTY DETAILS
WARRANTY PERIOD: SENA warranties software Product for a period of one (1) year.
WARRANTY COVERAGE: SENA warranty will be limited to providing a software bug fix or a software
patch, at a reasonable time after the user notifies SENA of software non-conformance.
D.5. THIRD-PARTY SOFTWARE PRODUCT WARRANTY DETAILS
The warranty policy of the third-party software is conformed to the policy of the corresponding vendor
12
Appendix C. Contact Information
If you have any questions regarding the product, please contact your local dealer/distributor or contact
us directly as contact information below:
Contact Technical Support
Web http://www.sena.com/support/contact_support/
Email support@sena.com
Phone Toll Free (US/Canada): 1-8668-US-SENA (1-866-887-7362)
America/EU/Africa/Asia: +1 (408) 573-7425
Contact Sales
Web http://www.sena.com/where_to_buy/contact_sales/
Email sales@sena.com
Phone Toll Free (US/Canada): 1-8668-US-SENA (1-866-887-7362)
America: +1 (408) 573-7425
EU/Africa: +33 (0) 1 53 53 16 29
Asia/Pacific: +82 (2) 529-7024
