SR10
Bluetooth® Two-way Radio Adapter
SENA www.senabluetooth.com Users Guide
| SR10
2
CONTENTS
INTRODUCTION ...................................................................................................................... 3
PACKAGE CONTENTS ............................................................................................................ 4
INSTALLING THE SR10 ........................................................................................................... 5
POWERING ON/OFF AND CHARGING .................................................................................. 6
Powering On ..................................................................................................................... 6
Powering Off ...................................................................................................................... 6
Charging ............................................................................................................................ 6
Low Battery Warning ......................................................................................................... 6
PAIRING THE SR10 WITH BLUETOOTH DEVICES ............................................................... 7
Bluetooth Headset Pairing ................................................................................................. 7
Mobile Phone Pairing ........................................................................................................ 7
USING THE SR10 .................................................................................................................... 8
Using 2-way Radio Devices .............................................................................................. 8
Installing Wired PTT Button ............................................................................................... 8
Auxiliary Devices ............................................................................................................... 8
Using Mobile Phone .......................................................................................................... 8
Reset to Factory Default Settings ...................................................................................... 9
Fault Reset ........................................................................................................................ 9
OPTIONAL ACCESSORIES ................................................................................................... 10
QUICK REFERENCE ............................................................................................................. 11
BATTERY INFORMATION ..................................................................................................... 12
MAINTENANCE AND CARE .................................................................................................. 13
DISPOSAL ............................................................................................................................. 14
CERTIFICATION AND SAFETY APPROVALS ....................................................................... 15
FCC Compliance Statement ............................................................................................ 15
FCC RF Exposure Statement .......................................................................................... 15
FCC Caution ................................................................................................................... 15
CE Declaration of Conformity .......................................................................................... 16
Bluetooth License ............................................................................................................ 16
WAIVER AND GENERAL RELEASE ...................................................................................... 17
Two-Year Limited Warranty ............................................................................................. 19
Limitation of Liability ........................................................................................................ 19
Return for Full Refund ..................................................................................................... 20
WARNING .............................................................................................................................. 21
| SR10
3
INTRODUCTION

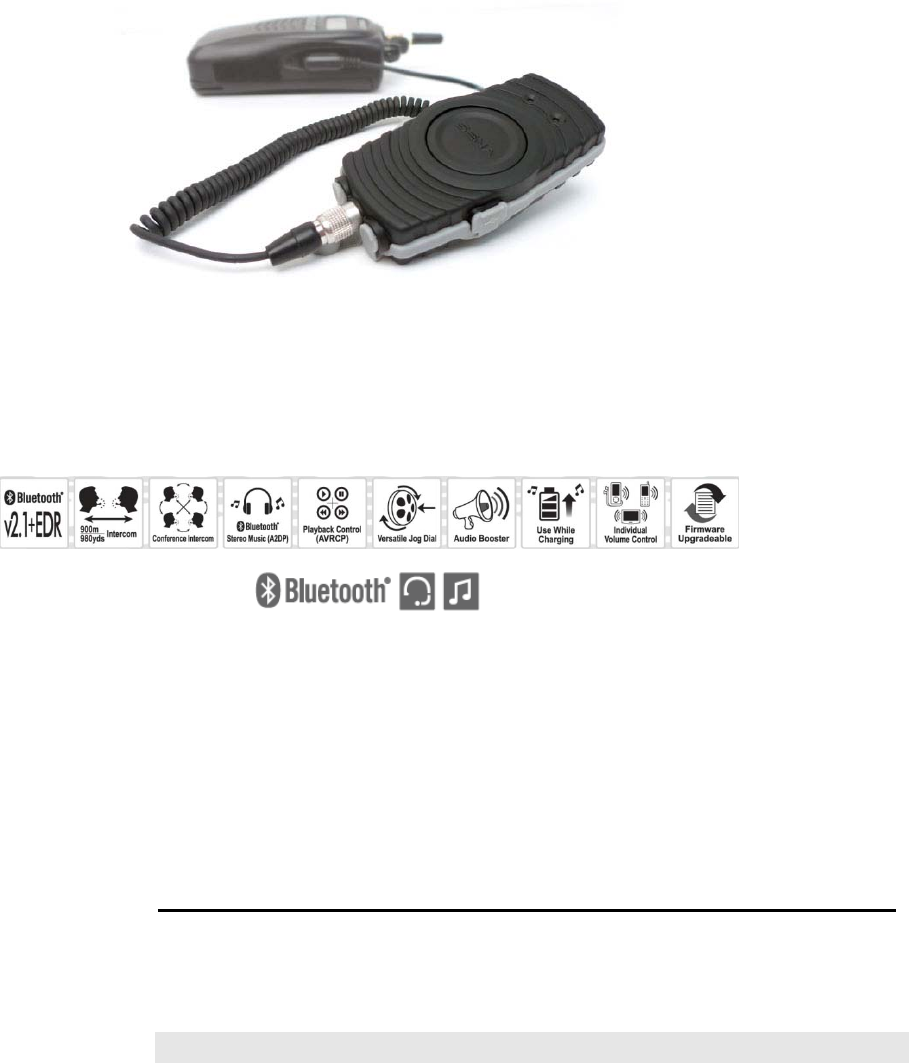

Thank you for choosing the SENA SR10, Bluetooth Two-way Radio adapter. The SR10 is a
Class 1 Bluetooth Two-way Radio adapter based on Bluetooth 2.1+EDR technology. You can
connect various 2-way radios that are in the market today with the SR10 and connect
wirelessly to a variety of Bluetooth communication headsets.
The SR10 has two AUX ports that enable you to connect non-Bluetooth devices such as
mobile phones, radar detector or GPS navigation. Along with the SR10, you can talk by phone
or by two-way radio at the same time, listen to the radar detector alarm or GPS Navigation
guidance.
The SR10 can cover such a variety of applications including motorcycle CB communications,
outdoor sports activities, event security, hunting, motorsports pit crew and other forms of
intercom communications.
Please read this user’s guide carefully before using the Adapter. Also refer to
www.senabluetooth.com for the latest version of the user’s guide and additional information
related to SENA Bluetooth products.
SR10 features:
Bluetooth hands-free for Bluetooth mobile phones
Bluetooth audio gateway for various Bluetooth stereo headset & intercom systems.
Two AUX audio ports for mobile phone, radar detector or GPS navigation
Water resistant for use in inclement weather
Up to 12 hours talk time, 10 days stand-by time
International 2-year warranty
Key Specifications:
Bluetooth v2.1+EDR, Class1
Supporting profiles: Headset Profile, Hand-Free Profile (HFP)
| SR10
4
PACKAGE CONTENTS

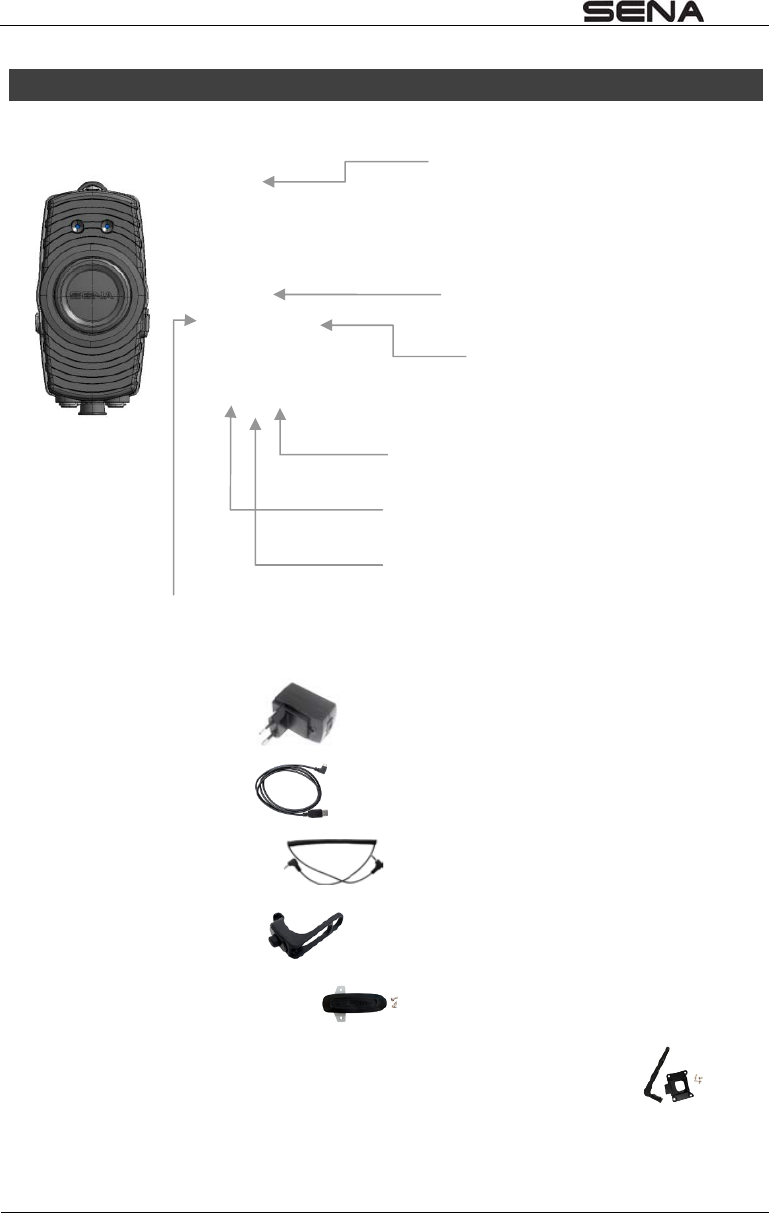

Main Unit
DC 5V Adapter
USB Cable
3.5mm Stereo Cable
Wired PTT Cable
Main Unit Mounting Clip
Main Unit Mounting Kit (Clip, Rubber gripper, assembly plate)
AUX1
GPS Navigation or Radar Detector
DC Power Charging Port
Pairing Button
Bluetooth Headset Pairing Mode
Mobile Phone Pairing Mode
Mini-DIN port for 2-way radio devices
2.5mm jack for wired PTT Button
PTT Button
2-way Radio Activation
Power On/Off Button
AUX2
Mobile Phone, GPS Navigation, Radar Detector
| SR10
5
INSTALLING THE SR10

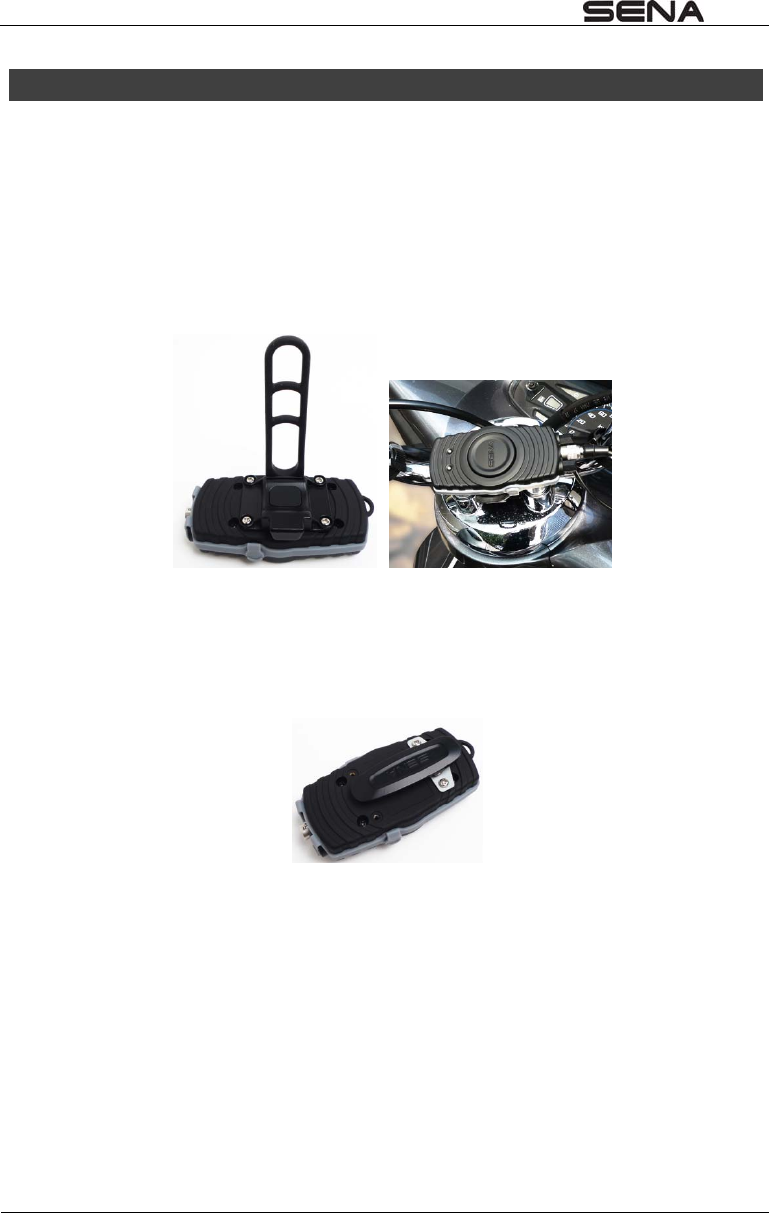

Installing on the Handle Bar
1. Place the rubber on the back of the main unit.
2. Put the joint pad on top of the rubber, and tighten the screw.
3. Place the main unit on the handle bar, wind the rubber band, and hang it on the
hook.
Placing on the Belt / Pocket
1. Place the belt-clip on the back of the main unit, and tighten the screw.
2. Place the main unit on the belt with belt-clip.
| SR10
6
POWERING ON/OFF AND CHARGING
To power on and off the adapter, you don’t need to press and hold any button for several
seconds. Just short press the Pairing Button and the PTT Button simultaneously, and you will
get quick on-and-off convenience.
Powering On
Press and hold the Pairing and the PTT button at the same time for about 1 second to turn the
power on. When the power is on, the blue LED light turns on.
Powering Off
Press Pairing Button and PTT button at the same time for about 1 second to turn the power
off. The Red LED light turns on for about 3 seconds. The SR10 is now powered off.
Charging
The red LED light is visible while charging. It takes about 3.5 hours to be completely charged.
Low Battery Warning
When the battery is running low, the red LED light will flash.
| SR10
7
PAIRING THE SR10 WITH BLUETOOTH DEVICES
Before pairing with Bluetooth devices, SR10 must be in Pairing mode. SR10 can be switched
to pairing mode by pressing the pairing button for 3 seconds. When SR10 is in pairing mode,
the blue LED light will flash, and SR10 is now ready to pair with other devices.
Bluetooth Headset Pairing
1. Turn on the Bluetooth Headset and enter pairing mode, following your Bluetooth
Headset manual.
2. Turn on the Bluetooth Adapter and press the pairing button for 3 seconds until the LED
flashes red and blue alternatively.
3. When the pairing is successful, the blue LED light on the SR10 flashes slowly (Please
refer to the Quick Reference Guide).
Mobile Phone Pairing
1. Turn on the Bluetooth Adapter and press and hold the pairing button for 6 seconds until
the red LED is rapidly flashing. Search for Bluetooth devices on your mobile phone. The
Bluetooth Adapter will be listed on your mobile phone as SR10.
2. Enter 0000 for the PIN. (Some mobile phone may not ask for the PIN number)
3. The Bluetooth Adapter will be paired as Headset. This profile is normally recommended
for most mobile phones.
4. When the pairing is done, the RED LED light flashes slowly. (Please refer to the Quick
Reference)
| SR10
8
USING THE SR10
Using 2-way Radio Devices
1. When SR10 is turned on and connected with the 2-way radio device, the audio from the
2-way radio will be directly sent to your Bluetooth Headset.
2. To talk using the 2-way radio through SR10, press and hold the PTT button or wired PTT
button until you finish talking.

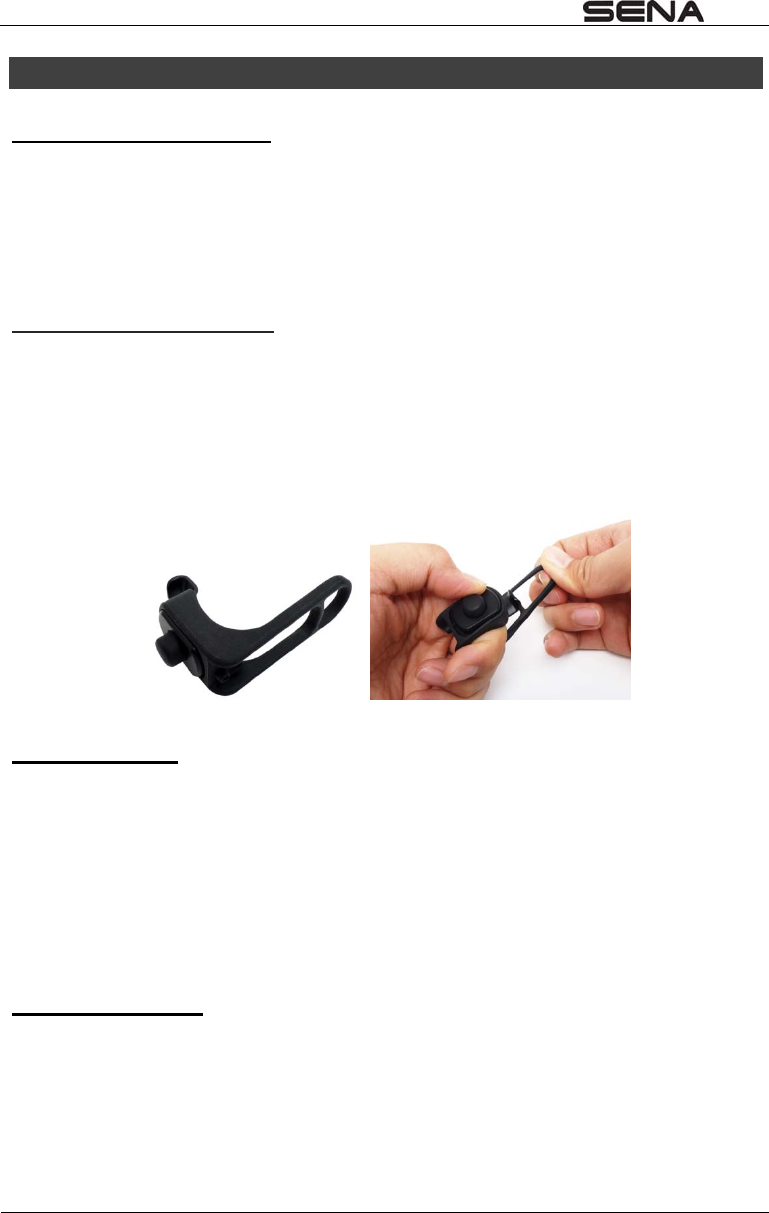

Installing Wired PTT Button
1. Installing on handlebar: Place the PTT button on the handlebar where you can easily
reach it; wind up the rubber on handlebar and hang it on the hook.
2. Installing on your hand: Place the PTT button on your finger; wind up the rubber on your
finger and hang it on the hook.
Auxiliary Devices
The SR10 has three input ports for wired connection with other devices. Below is a list of
connectable devices:
Main: Mini-DIN, 2-way radio devices
AUX1: 3.5mm 3-pole audio jack, MP3 players, GPS navigations, Radar detectors
AUX2: 3.5mm 4-pole audio jack, Mobile phones, GPS navigations, Radar detectors
Using Mobile Phone
For Bluetooth Wireless Connection
Once your Bluetooth Headset is paired with the SR10, you will be able to hear a ring from
incoming calls. To answer the call, refer to your Bluetooth Headset’s Users Guide.
| SR10
9
For Wired Connection
1. Mobile phones must be connected to the AUX2 port for wired connection.
2. Other instructions are the same as for the wireless connection.
Reset to Factory Default Settings
1. To restore the SR10 to factory default settings, press and hold the Pairing Button for 12
seconds until the LED shows solid red and blue.
2. Within 5 seconds, press the Pairing Button again to confirm reset. The SR10 will be
restored to factory settings and switched off automatically.
3. If you don't press the Pairing Button within 5 seconds, the reset attempt is canceled and
the SR10 returns to stand-by-mode.
Fault Reset
IF the SR10 is not working properly or is in a faulty status for any reason, you may reset by
pushing the pin-hole reset button at the top of the SR10 main unit. Insert a paper clip into the
reset pin-hole and press the reset button for 1 second with light pressure. The SR10 will be
switched off. Turn the SR10 back on and try to use it again. However, this will not restore the
SR10 to factory default settings.
| SR10
10
OPTIONAL ACCESSORIES
To connect with two-way radio devices, device-specific optional accessory cables are required.
The SR10 does not include these optional cables in its package; you need to purchase them
separately.

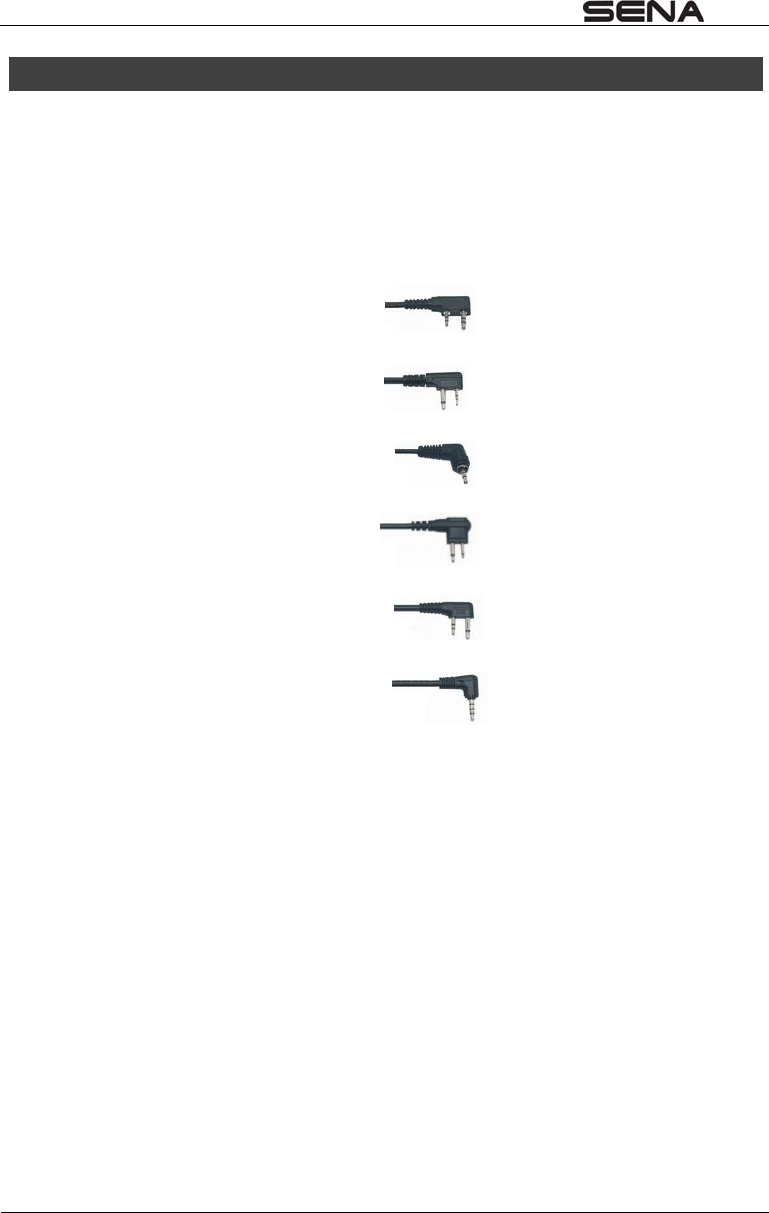

Two-way Radio Cables (6 types)
Kenwood with twin-pin connector
Midland G7 with twin-pin connector
Motorola with single-pin connector
Motorola with twin-pin connector
Icom with twin-pin connector
YAESU with 1-pin connector
Mobile Phone cables (2 types)
iPhone
Nokia
| SR10
11
QUICK REFERENCE
Button Description Duration LED
Pairing
button + PTT
button
Power-on on Solid blue
Power-off 2 sec Solid red
Pairing
button
Bluetooth Headset pairing 3 sec Blue & Red
alternatively
flashing
Mobile phone pairing 6 sec Red flashing
Factory reset 12 sec Solid red
PTT Button 2-way radio transferring a
call - Solid blue
Status
Bluetooth Headset
connected -
Mobile Phone connected -
Talking -
| SR10
12
BATTERY INFORMATION
The SR10 has an internal, non-removable, rechargeable battery. Do not attempt to remove
the battery from the device as you may damage the device. The battery can be charged and
discharged hundreds of times, but it will eventually wear out. Recharge the battery only with
SENA approved chargers designated for this device. Use of an unapproved charger may
present a risk of fire, explosion, leakage, or other hazard.
Always try to keep the battery between 15°C and 25°C (59°F and 77°F). Extreme
temperatures reduce the capacity and lifetime of the battery. A device with a hot or cold
battery may not work temporarily. Battery performance is particularly limited in temperatures
well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also explode if
damaged. Never use any charger that is damaged. Operating times are estimates only and
depend on the devices used together, features used, battery age and condition, temperatures
to which battery is exposed, and many other factors.
| SR10
13
MAINTENANCE AND CARE
The SR10 should be treated with care and the following suggestions will help you protect your
warranty coverage.
1. Do not use or store the device in dusty, dirty areas. Its moving parts and electronic
components can be damaged.
2. Do not store the device in hot areas. High temperatures can shorten the life of electronic
devices, damage batteries, and wrap or melt certain plastics.
3. Do not store the device in cold areas. When the device returns to its normal temperature,
moisture can form inside the device and damage electronic circuit boards.
4. Do not attempt to open the SR10
5. Do not drop or knock the device. Rough handling can break internal circuit boards and
fine mechanics.
6. Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
7. Do not paint the device. Paint can clog the moving parts and prevent proper operation.
These suggestions apply equally to the headset main unit, speaker-microphone clamp unit, or
power charger.
| SR10
14
DISPOSAL
The crossed-out wheel bin symbol on the product, literature, or packaging
reminds you that all electrical and electronic products, batteries, and
accumulators must be taken to separate collection at the end of their working
life. This requirement applies to the European Union and other locations where
separate collection systems are available. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please do not dispose of these products as
unsorted municipal waste, but hand it in at an official collection point for recycling.
| SR10
15
CERTIFICATION AND SAFETY APPROVALS
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC RF Exposure Statement
The antenna(s) used for this device must be installed to provide a separation distance of at
least 20 cm from all persons and must not be co-located or operating in conjunction with any
other antenna or transmitter.
FCC Caution
Any changes or modifications to the equipment not expressly approved by the party
responsible for compliance could void user’s authority to operate the equipment.
| SR10
16
CE Declaration of Conformity
This product is CE marked according to the provisions of the R&TTE Directive (99/5/EC).
Hereby, SENA declares that this product is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC. For further information please consult
http://www.senabluetooth.com. Please note that this product uses radio frequency bands not
harmonized within EU. Within the EU this product is intended to be used in Austria, Belgium,
Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands,
Portugal, Spain, Sweden, United Kingdom and within EFTA in Iceland, Norway and
Switzerland.
Industry Canada Statement
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Bluetooth License
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of
such marks by SENA is under license. Other trademarks and trade names are those of their
respective owners
The SR10 is compliant with and adopts the Bluetooth® Specification 2.1+EDR and has
successfully passed all interoperability tests that are specified in the Bluetooth® specification.
However, interoperability between the device and other Bluetooth®-enabled products is not
guaranteed.
| SR10
17
WAIVER AND GENERAL RELEASE
By using the SR10, you waive any legal rights including the right to sue. Please read the
following carefully before using the device. If you do not accept all terms of this agreement,
you should immediately return the product for a full refund. By using the Adapter, you agree to
be bound to this agreement and forfeit the right to sue. Using a communication device while
riding a motorcycle, scooter, moped, ATV, quad-bike or any other vehicle or equipment,
whether on land, water or air (jointly referred to as “Vehicle”) requires your complete and
undivided attention. SENA Technologies, Inc., including its Officers, Directors, Affiliates,
Parent Company, Representatives, Agents, Contractors, Sponsors, Employees, Suppliers and
Resellers (jointly referred to as the “Company” or “SENA”) strongly advises you to take all
necessary precautions and remain alert to the traffic, weather and road conditions if you
choose to use the SR10 Adapter, including all derivative models irrespective of its commercial
name or branding (the “Device”), and stop your Vehicle on the roadside prior to initiating or
receiving calls. Any publications, advertisements, announcements or similar notes that refer to
using the Device while riding a Vehicle are solely intended to address its technical capabilities
and should not be misconstrued as if encouraging users to operate the Device while actively
involved in traffic.
By way of purchasing this Device and not returning it for a full refund (see below), you are
irrevocably releasing, indemnifying from any liability, loss, claim and expense (including
attorneys fees) and holding SENA harmless for any bodily injuries, harm or death as well as
losses or damages in goods, to any Vehicles including your own, or to any property or asset
that belong to you or to third parties, any of which may result from using the Device under any
circumstances or conditions and irrespective of jurisdiction. SENA will not be responsible for
any physical damages, irrespective of reasons, conditions or circumstances, including
malfunctioning of the Device, and all risks associated with operating it rest solely and entirely
with the user of this Device, irrespective of whether the Device is used by the original
purchaser or any third party.
SENA hereby notifies you that using this Device may also be in contravention to local, federal,
state or national laws or regulations, and that any use of the Device is entirely at your sole risk
and responsibility.
1. You, your heirs, legal representatives, successors or assigns, hereby voluntarily and
forever release, discharge, indemnify and hold harmless SENA from any and all litigation,
claims, debts, demands, actions and liability which may arise, directly or indirectly, from
using the Device for any distress, pain, suffering, discomfort, loss, injury, death,
| SR10
18
damages to or in respect to any person or property however caused, WHETHER
ARISING FROM THE NEGLIGENCE OR OTHERWISE, and which may hereafter accrue
to you on some future date as a result of said use, to the fullest extent permitted by law.
2. You fully understand and assume the risks in using the Device, including risk of negligent
acts or omissions by others.
3. You confirm that you are physically capable to use the Device and that you have no
medical conditions or needs that may infringe upon your abilities to do so in a safe
manner. You confirm that you are at least eighteen (18) years of age and that you have
been advised of the risks associated with the use of the Device. You further confirm that
you will not consume any alcohol that may affect your alertness or any mind-altering
substance, and will not carry, use or consume these substances before or during the use
of the Device.
4. You fully acknowledge our warnings and understand that: (a) risks and dangers exist in
using the Device while in traffic, including but not limited to injury or illness, strains,
fractures, partial and/or total paralysis, death or other ailments that could cause serious
disability; (b) these risks and dangers may be caused by the negligence of the
manufacturers or its agents or any third party involved in designing or manufacturing the
Device; (c) these risks and dangers may arise from foreseeable or unforeseeable causes.
You hereby assume all risks and dangers and all responsibility for any losses and/or
damages, whether caused in whole or in part by the negligence or other conduct of
others, including the Company.
5. You confirm that you have read this release of liability and fully understand its terms and
that you have given up substantial rights by not returning the Device for a full refund (see
refund option below).
| SR10
19
Two-Year Limited Warranty
Sena Technologies, Inc. (“SENA”) warrants that this product (“Product”) shall conform to and
perform in accordance with published technical specifications and the accompanying written
materials, and shall be free of defects in materials and workmanship, for a period of two (2)
year from the date of purchase by the first consumer purchaser of the Product. The limited
warranty extends only to the original consumer purchaser of the Product and is not
assignable or transferable to any subsequent purchaser/end-user.
This warranty is limited to the repair and/or replacement, at SENA’s discretion, of defective or
non-conforming Product, and SENA shall not be responsible for the failure of the Product to
perform specified functions, or any other non- conformance caused by or attributable to: (a)
any misapplication or misuse of the Product; (b) failure of Customer to adhere to any of
SENA’s specifications or instructions; (c) neglect of, abuse of, or accident to, the Product; or
(d) any associated or complementary equipment or software not furnished by SENA.
Limited warranty service may be obtained by delivering the Product to SENA or to the
international distributor it was purchased through and providing proof of purchase or receipt
date. Customer agrees to insure the Product or assume the risk of loss or damage in transit,
to prepay shipping charges to SENA, and to use the original shipping container or equivalent.
Limitation of Liability
EXCEPT AS EXPRESSLY PROVIDED HEREIN, SENA MAKES NO WARRANTY OF ANY
KIND, EXPRESSED OR IMPLIED, WITH RESPECT TO ANY EQUIPMENT, PARTS OR
SERVICES PROVIDED PURSUANT TO THIS AGREEMENT, INCLUDING BUT NOT
LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. NEITHER SENA NOR ITS DEALER SHALL BE LIABLE FOR ANY
OTHER DAMAGES, INCLUDING BUT NOT LIMITED TO DIRECT, INDIRECT, INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER IN AN ACTION IN CONTRACT OR
TORT (INCLUDING NEGLIGENCE AND STRICT LIABILITY), SUCH AS, BUT NOT LIMITED
TO, LOSS OF ANTICIPATED PROFITS OR BENEFITS RESULTING FROM, OR ARISING
OUT OF, OR IN CONNECTION WITH THE USE OF FURNISHING OF EQUIPMENT, PARTS
OR SERVICES HEREUNDER OR THE PERFORMANCE, USE OR INABILITY TO USE THE
SAME, EVEN IF SENA OR ITS DEALER HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN NO EVENT WILL SENA OR ITS DEALERS TOTAL LIABILITY
EXCEED THE PRICE PAID FOR THE PRODUCT.
| SR10
20
Return for Full Refund
IF YOU ARE UNWILLING TO ACCEPT AND AGREE TO THE ABOVE CONDITIONS, YOU
MAY RETURN THIS DEVICE TO SENA FOR A FULL REFUND, PROVIDED THAT YOU DO
SO NO LATER THAN 14 BUSINESS DAYS FOLLOWING THE PURCHASE OF THE
DEVICE AND SUBJECT TO THE WRAPPING BEING INTACT. WHEN DOING SO, PLEASE
REFER TO THIS SECTION. BY NOT RETURNING THE DEVICE FOR REFUND WITHIN
THE PERIOD PROVIDED, YOU ARE EXPLICITLY IN AGREEMENT WITH THE ABOVE AND
RENOUNCE ALL RIGHTS TO FUTURE CLAIMS AND DEMANDS AGAINST SENA AS
DEFINED ABOVE.
| SR10
21
WARNING
SENA informs that using this device in public traffic may not be authorized by the law. Please
check your local law and use this device only out of public traffic such as private properties or
closed circuits. If the simultaneous use of both ear speakers while riding a motorcycle is
prohibited by your local law, please use only a single ear speaker while riding. SENA denies
any liability should you choose not to respect this warning.
Using the headset with loud volume may be harmful to your eardrums and cause hearing loss.
Please maintain proper volume level to protect your ears.
SENA www.senabluetooth.com v1.0.0 Users Guide
