SENA TECHNOLOGIES ZBLINXZU10 ZIGBEE USB ADAPTER User Manual USERS MANUAL

Sena Technologies,Inc. ZIGBEE USB ADAPTER USERS MANUAL

USERS MANUAL

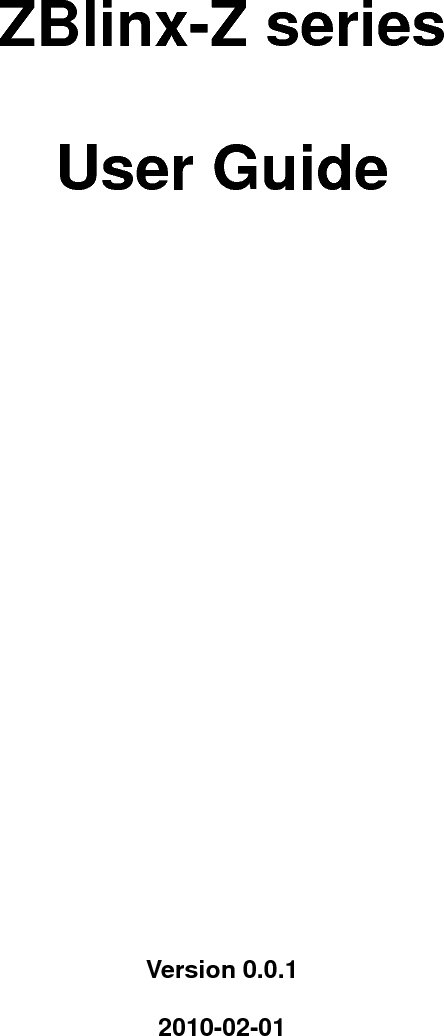

    ZBlinx-Z series  User Guide            Version 0.0.1  2010-02-01

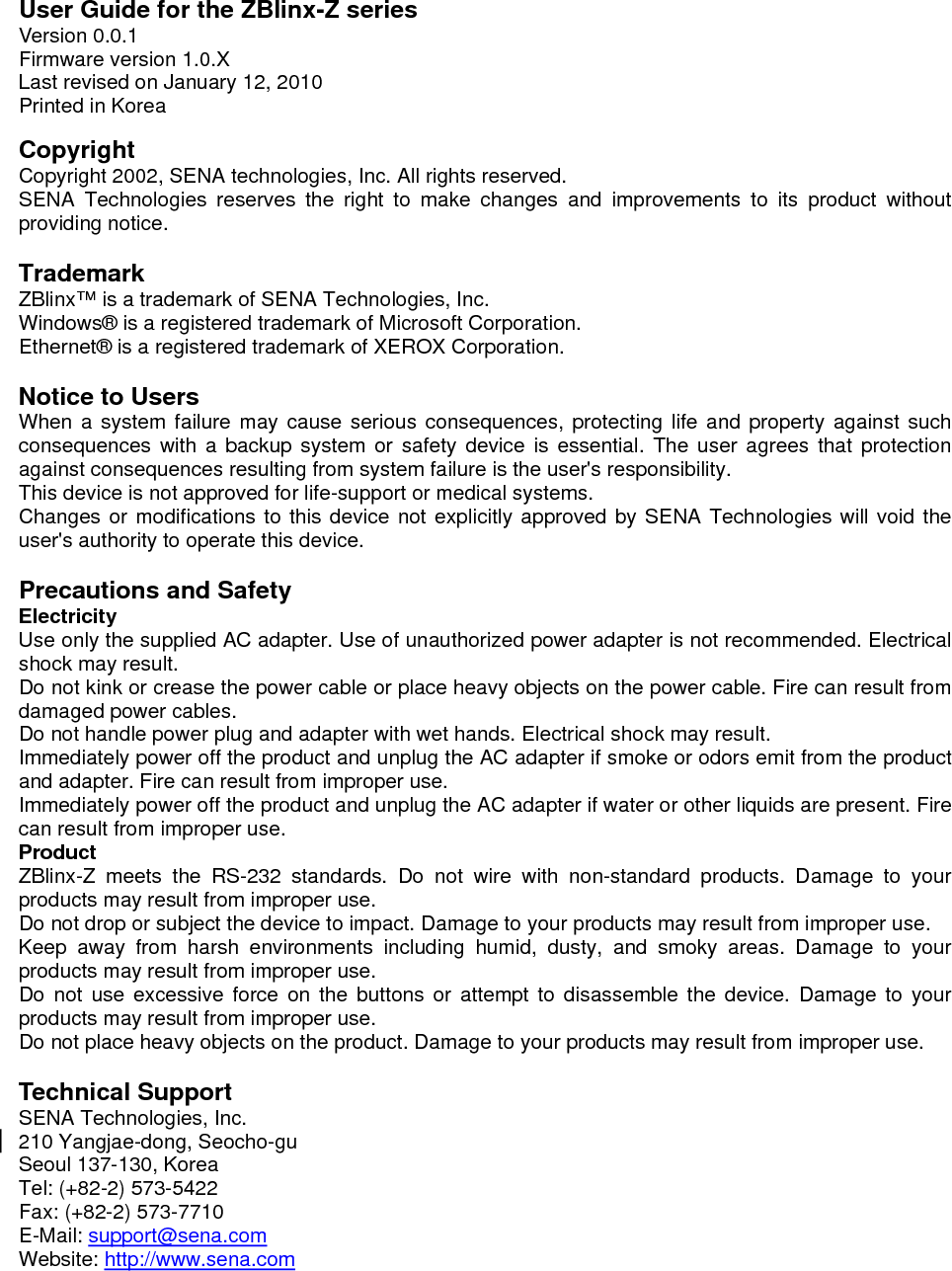

  User Guide for the ZBlinx-Z series Version 0.0.1 Firmware version 1.0.X Last revised on January 12, 2010 Printed in Korea  Copyright Copyright 2002, SENA technologies, Inc. All rights reserved. SENA Technologies reserves the right to make changes and improvements to its product without providing notice.  Trademark ZBlinx™ is a trademark of SENA Technologies, Inc. Windows® is a registered trademark of Microsoft Corporation. Ethernet® is a registered trademark of XEROX Corporation.  Notice to Users When a system failure may cause serious consequences, protecting life and property against such consequences with a backup system or safety device is essential. The user agrees that protection against consequences resulting from system failure is the user's responsibility. This device is not approved for life-support or medical systems. Changes or modifications to this device not explicitly approved by SENA Technologies will void the user's authority to operate this device.  Precautions and Safety Electricity Use only the supplied AC adapter. Use of unauthorized power adapter is not recommended. Electrical shock may result. Do not kink or crease the power cable or place heavy objects on the power cable. Fire can result from damaged power cables. Do not handle power plug and adapter with wet hands. Electrical shock may result. Immediately power off the product and unplug the AC adapter if smoke or odors emit from the product and adapter. Fire can result from improper use. Immediately power off the product and unplug the AC adapter if water or other liquids are present. Fire can result from improper use. Product ZBlinx-Z meets the RS-232 standards. Do not wire with non-standard products. Damage to your products may result from improper use. Do not drop or subject the device to impact. Damage to your products may result from improper use. Keep away from harsh environments including humid, dusty, and smoky areas. Damage to your products may result from improper use. Do not use excessive force on the buttons or attempt to disassemble the device. Damage to your products may result from improper use. Do not place heavy objects on the product. Damage to your products may result from improper use.  Technical Support SENA Technologies, Inc. 210 Yangjae-dong, Seocho-gu Seoul 137-130, Korea Tel: (+82-2) 573-5422 Fax: (+82-2) 573-7710 E-Mail: support@sena.com Website: http://www.sena.com

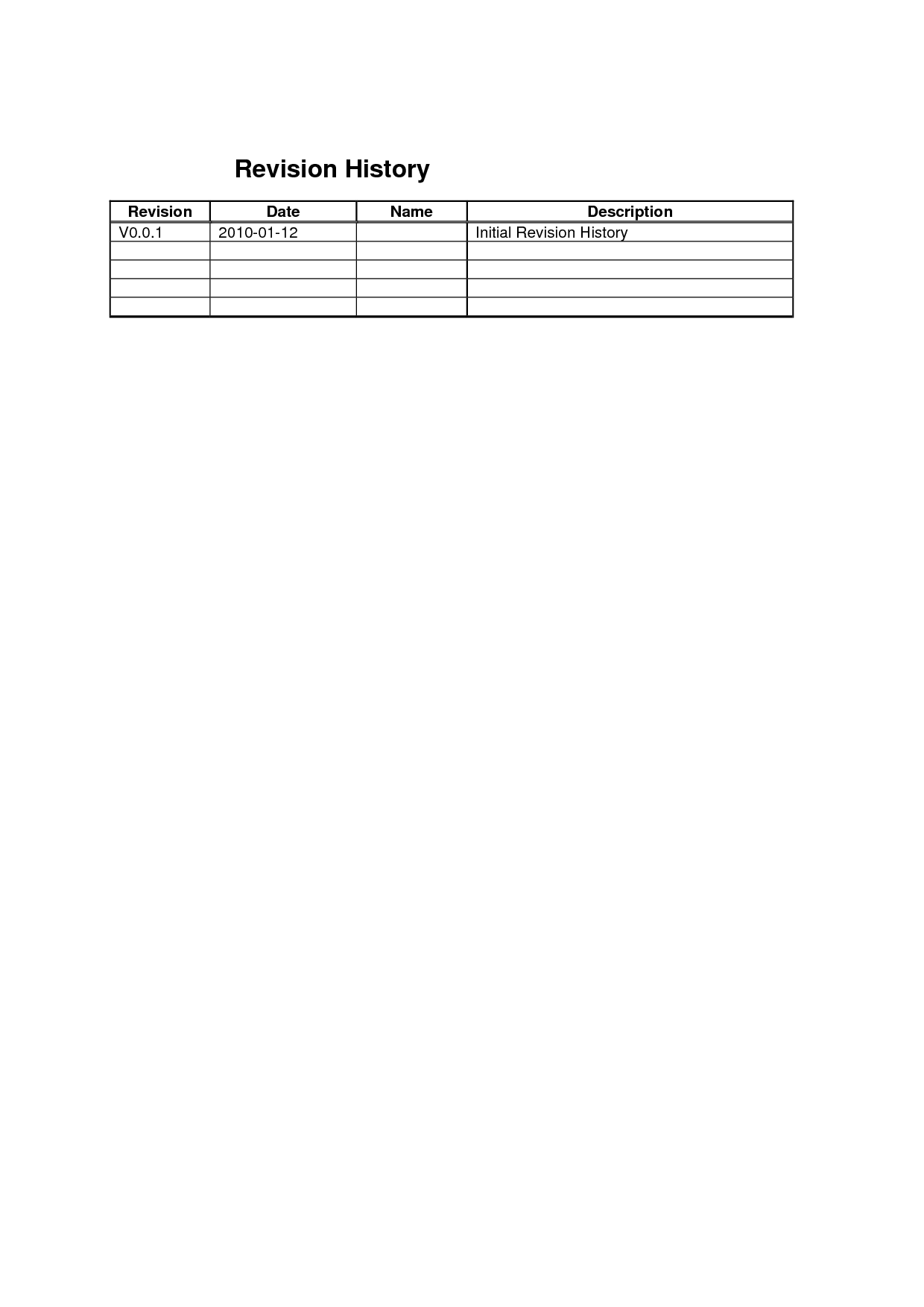

  Revision History  Revision Date  Name  Description V0.0.1  2010-01-12    Initial Revision History

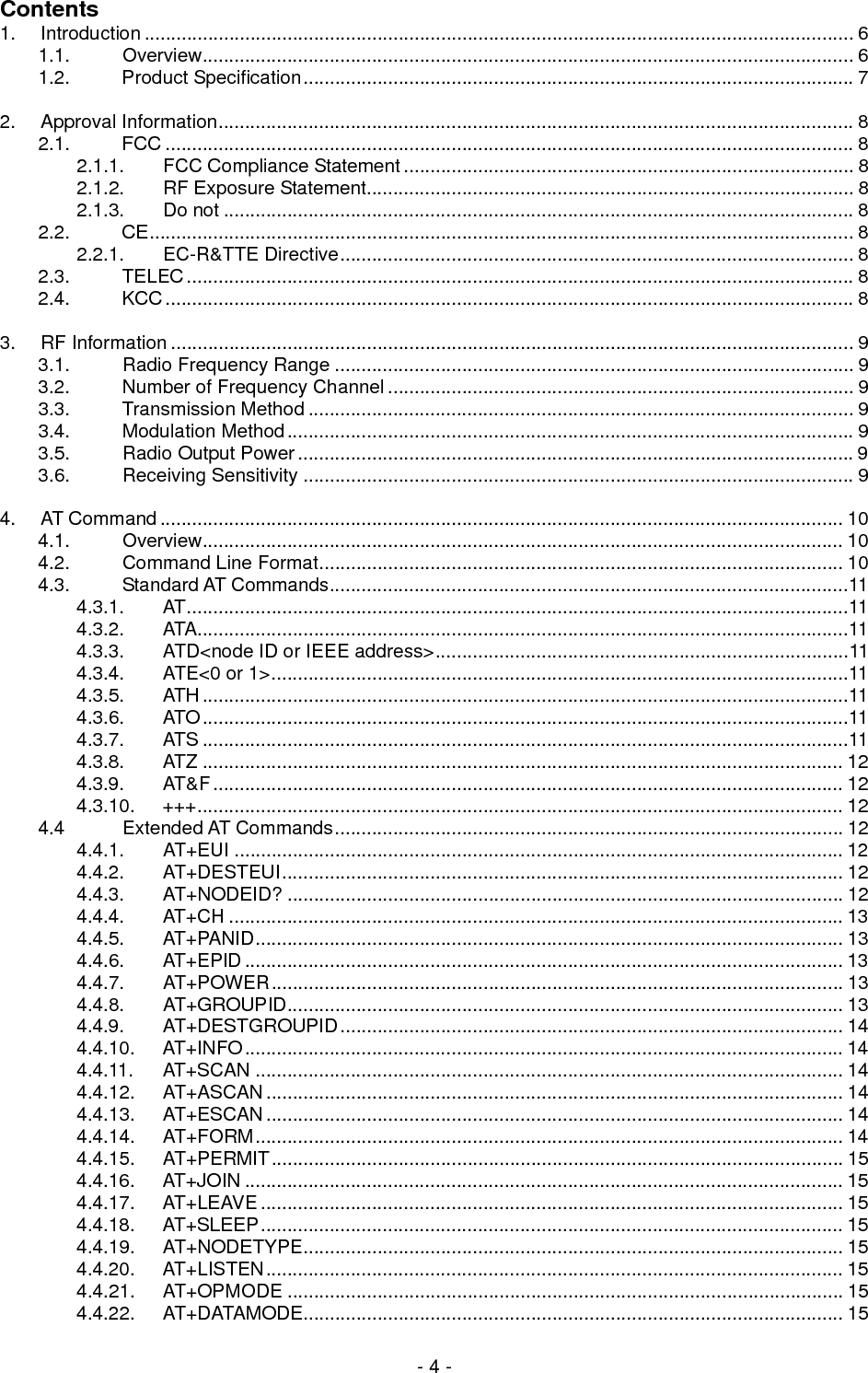

 - 4 - Contents 1. Introduction ...................................................................................................................................... 6 1.1. Overview........................................................................................................................... 6 1.2. Product Specification........................................................................................................ 7  2. Approval Information........................................................................................................................ 8 2.1. FCC .................................................................................................................................. 8 2.1.1. FCC Compliance Statement ..................................................................................... 8 2.1.2. RF Exposure Statement............................................................................................ 8 2.1.3.  Do not ....................................................................................................................... 8 2.2. CE..................................................................................................................................... 8 2.2.1. EC-R&TTE Directive................................................................................................. 8 2.3. TELEC.............................................................................................................................. 8 2.4. KCC.................................................................................................................................. 8  3. RF Information ................................................................................................................................. 9 3.1. Radio Frequency Range .................................................................................................. 9 3.2. Number of Frequency Channel ........................................................................................ 9 3.3. Transmission Method ....................................................................................................... 9 3.4. Modulation Method........................................................................................................... 9 3.5. Radio Output Power.........................................................................................................9 3.6. Receiving Sensitivity ........................................................................................................ 9  4. AT Command................................................................................................................................. 10 4.1. Overview......................................................................................................................... 10 4.2. Command Line Format................................................................................................... 10 4.3. Standard AT Commands..................................................................................................11 4.3.1. AT.............................................................................................................................11 4.3.2. ATA...........................................................................................................................11 4.3.3. ATD<node ID or IEEE address>..............................................................................11 4.3.4. ATE<0 or 1>.............................................................................................................11 4.3.5. ATH..........................................................................................................................11 4.3.6. ATO..........................................................................................................................11 4.3.7. ATS ..........................................................................................................................11 4.3.8. ATZ ......................................................................................................................... 12 4.3.9. AT&F....................................................................................................................... 12 4.3.10. +++.......................................................................................................................... 12 4.4 Extended AT Commands................................................................................................ 12 4.4.1.  AT+EUI ................................................................................................................... 12 4.4.2. AT+DESTEUI.......................................................................................................... 12 4.4.3. AT+NODEID? ......................................................................................................... 12 4.4.4. AT+CH .................................................................................................................... 13 4.4.5. AT+PANID............................................................................................................... 13 4.4.6. AT+EPID ................................................................................................................. 13 4.4.7. AT+POWER............................................................................................................ 13 4.4.8. AT+GROUPID......................................................................................................... 13 4.4.9. AT+DESTGROUPID............................................................................................... 14 4.4.10. AT+INFO................................................................................................................. 14 4.4.11. AT+SCAN ............................................................................................................... 14 4.4.12. AT+ASCAN............................................................................................................. 14 4.4.13. AT+ESCAN............................................................................................................. 14 4.4.14. AT+FORM............................................................................................................... 14 4.4.15. AT+PERMIT............................................................................................................ 15 4.4.16. AT+JOIN ................................................................................................................. 15 4.4.17. AT+LEAVE .............................................................................................................. 15 4.4.18. AT+SLEEP.............................................................................................................. 15 4.4.19. AT+NODETYPE...................................................................................................... 15 4.4.20. AT+LISTEN............................................................................................................. 15 4.4.21. AT+OPMODE ......................................................................................................... 15 4.4.22. AT+DATAMODE...................................................................................................... 15

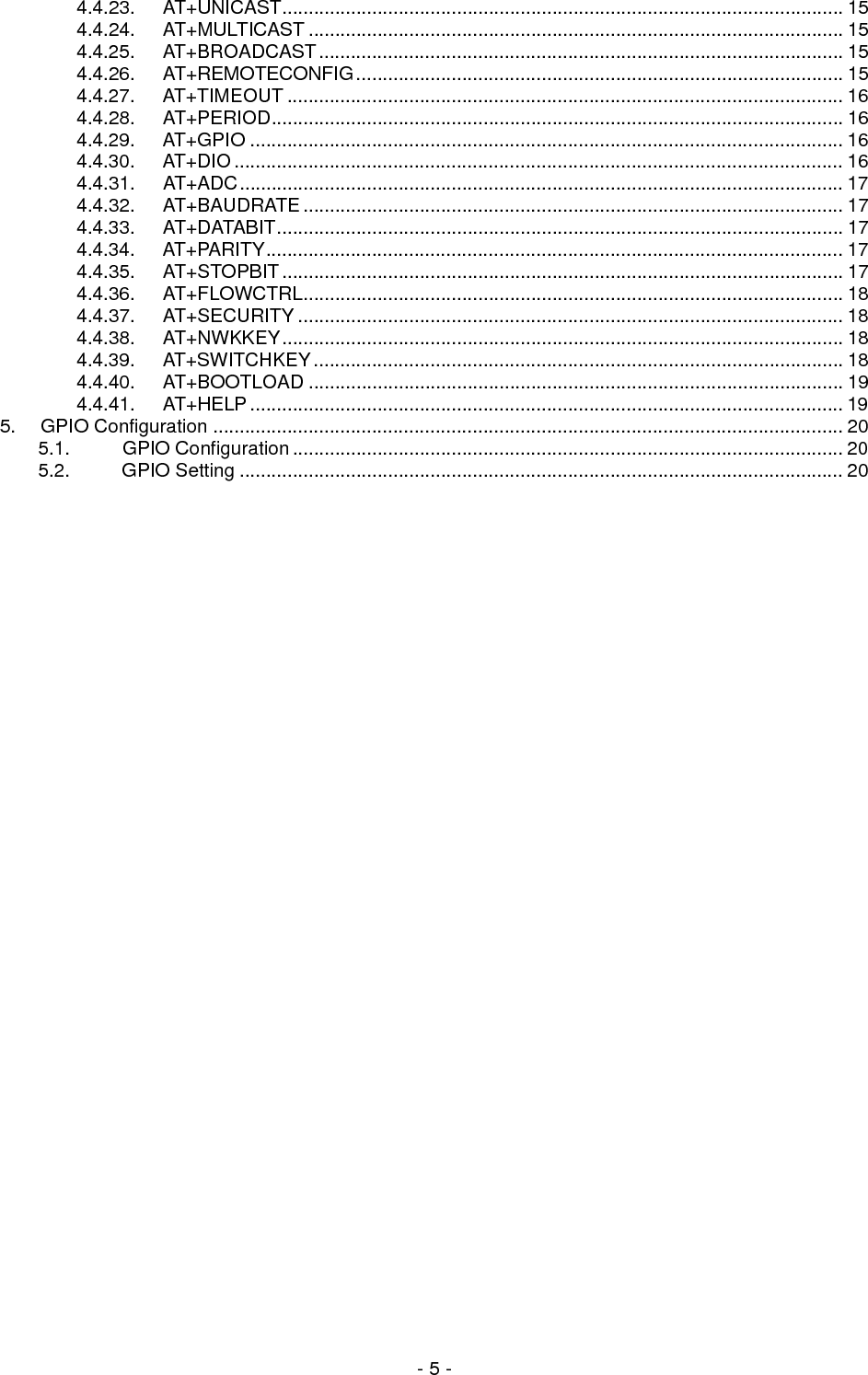

 - 5 - 4.4.23. AT+UNICAST.......................................................................................................... 15 4.4.24. AT+MULTICAST ..................................................................................................... 15 4.4.25. AT+BROADCAST................................................................................................... 15 4.4.26. AT+REMOTECONFIG............................................................................................ 15 4.4.27. AT+TIMEOUT ......................................................................................................... 16 4.4.28. AT+PERIOD............................................................................................................ 16 4.4.29. AT+GPIO ................................................................................................................ 16 4.4.30. AT+DIO ................................................................................................................... 16 4.4.31.  AT+ADC.................................................................................................................. 17 4.4.32. AT+BAUDRATE...................................................................................................... 17 4.4.33. AT+DATABIT........................................................................................................... 17 4.4.34. AT+PARITY............................................................................................................. 17 4.4.35. AT+STOPBIT.......................................................................................................... 17 4.4.36. AT+FLOWCTRL...................................................................................................... 18 4.4.37. AT+SECURITY ....................................................................................................... 18 4.4.38. AT+NWKKEY.......................................................................................................... 18 4.4.39. AT+SWITCHKEY.................................................................................................... 18 4.4.40. AT+BOOTLOAD ..................................................................................................... 19 4.4.41. AT+HELP................................................................................................................ 19 5. GPIO Configuration ....................................................................................................................... 20 5.1. GPIO Configuration........................................................................................................ 20 5.2. GPIO Setting .................................................................................................................. 20

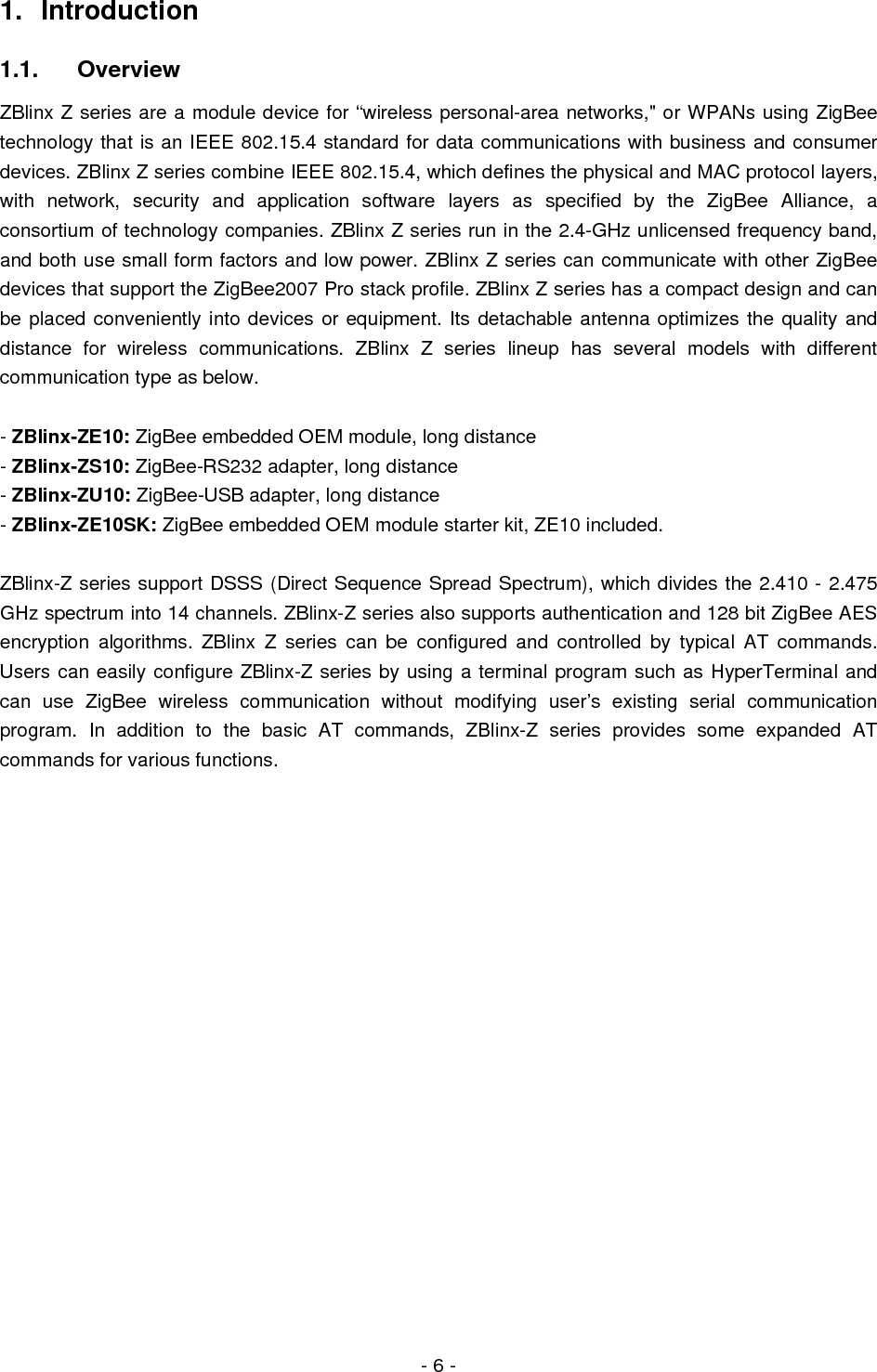

 - 6 - 1. Introduction 1.1. Overview ZBlinx Z series are a module device for “wireless personal-area networks," or WPANs using ZigBee technology that is an IEEE 802.15.4 standard for data communications with business and consumer devices. ZBlinx Z series combine IEEE 802.15.4, which defines the physical and MAC protocol layers, with network, security and application software layers as specified by the ZigBee Alliance, a consortium of technology companies. ZBlinx Z series run in the 2.4-GHz unlicensed frequency band, and both use small form factors and low power. ZBlinx Z series can communicate with other ZigBee devices that support the ZigBee2007 Pro stack profile. ZBlinx Z series has a compact design and can be placed conveniently into devices or equipment. Its detachable antenna optimizes the quality and distance for wireless communications. ZBlinx Z series lineup has several models with different communication type as below.  - ZBlinx-ZE10: ZigBee embedded OEM module, long distance - ZBlinx-ZS10: ZigBee-RS232 adapter, long distance - ZBlinx-ZU10: ZigBee-USB adapter, long distance - ZBlinx-ZE10SK: ZigBee embedded OEM module starter kit, ZE10 included.  ZBlinx-Z series support DSSS (Direct Sequence Spread Spectrum), which divides the 2.410 - 2.475 GHz spectrum into 14 channels. ZBlinx-Z series also supports authentication and 128 bit ZigBee AES encryption algorithms. ZBlinx Z series can be configured and controlled by typical AT commands. Users can easily configure ZBlinx-Z series by using a terminal program such as HyperTerminal and can use ZigBee wireless communication without modifying user’s existing serial communication program. In addition to the basic AT commands, ZBlinx-Z series provides some expanded AT commands for various functions.
 - 7 - 1.2. Product Specification   ZBlinx-Z series  ZE10  ZS10  ZU10 Product type  Embedded module  Serial Adapter  USB Adapter Interface  2.00mm, pin header 14x2  D-SUB9, Female  USB ‘A’, Male ZigBee Stack  ZigBee 2007 Pro  ZigBee 2007 Pro  ZigBee 2007 Pro Frequency range  2.410~2.475GHz 2.410~2.475GHz 2.410~2.475GHz Channel space  5MHz 5MHz 5MHz Channel number  14ch 14ch 14ch TX Power  +13dBm   +13dBm   +10dBm   RX Sensitivity  -100dBm at 1% BER  -100dBm at 1% BER  -100dBm at 1% BER RF connector  RPSMA, COAX, CHIP, WHIP RPSMA  RPSMA Dipole 5.37 dBi  Dipole 5.37 dBi  Dipole 5.37 dBi Dipole 3.27 dBi  Dipole 3.27 dBi  Dipole 3.27 dBi Dipole 1.40dBi  Dipole 1.40dBi  Dipole 1.40dBi Whip ANT 2.1 dBi     Antenna type Chip ANT 0.5dBi     Power  +3.3V  +5~12V  +5V USB power Battery pack  None  Lithium polymer +3.7V None Environmental  -30 ~ 80oC, 95%  -30 ~ 80oC, 95%  -30 ~ 80oC, 95% Configuration  AT command set  AT command set  AT command set Dimension  23 x 37 x 11.15mm  68 x 31 x 16mm  68 x 22 x 10mm Weight  10g 24g 12g Approvals  FCC, CE,TELEC, KCC  FCC, CE,TELEC, KCC FCC, CE,TELEC, KCCWarranty  1-year limited warranty  1-year limited warranty 1-year limited warranty
 - 8 - 2. Approval Information  2.1. FCC  2.1.1.  FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected. • Consult the dealer or an experienced radio/TV technician for help.  Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.  2.1.2.  FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)  This device may not cause harmful interference, and   (2)  This device must accept any interference received, Including interference that may cause undesired operation  2.1.3.  RF Exposure Statement The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter.  2.1.4. Do not Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment.

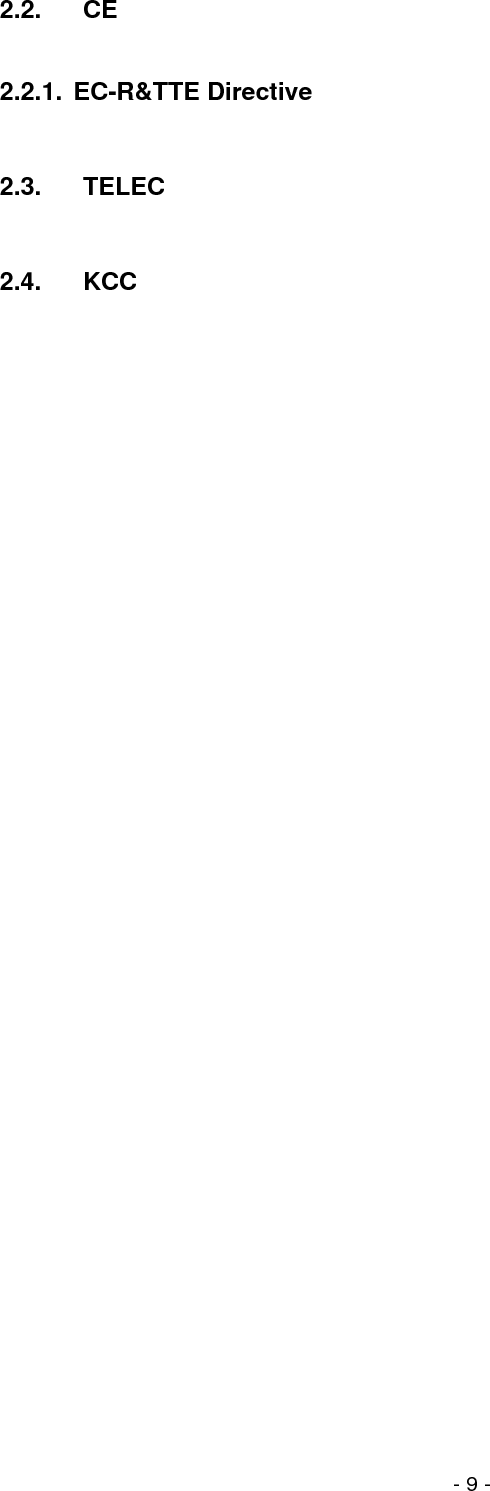

 - 9 - 2.2. CE  2.2.1. EC-R&TTE Directive   2.3. TELEC   2.4. KCC

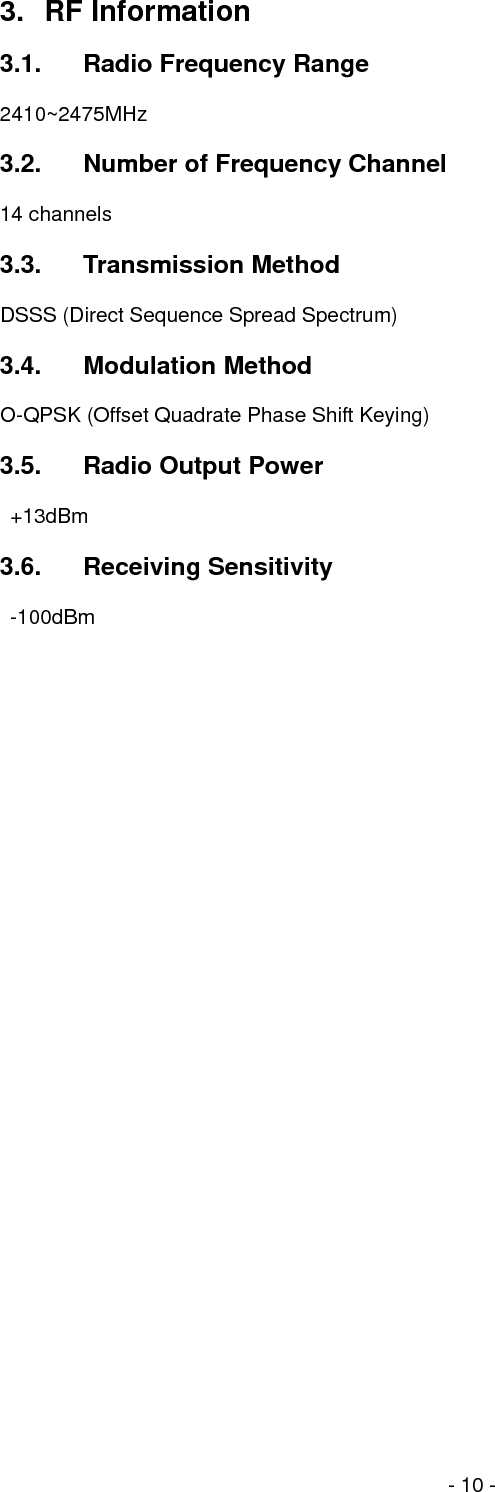

 - 10 - 3. RF Information  3.1.  Radio Frequency Range  2410~2475MHz  3.2.  Number of Frequency Channel  14 channels  3.3. Transmission Method  DSSS (Direct Sequence Spread Spectrum)  3.4. Modulation Method  O-QPSK (Offset Quadrate Phase Shift Keying)  3.5.  Radio Output Power   +13dBm   3.6. Receiving Sensitivity   -100dBm

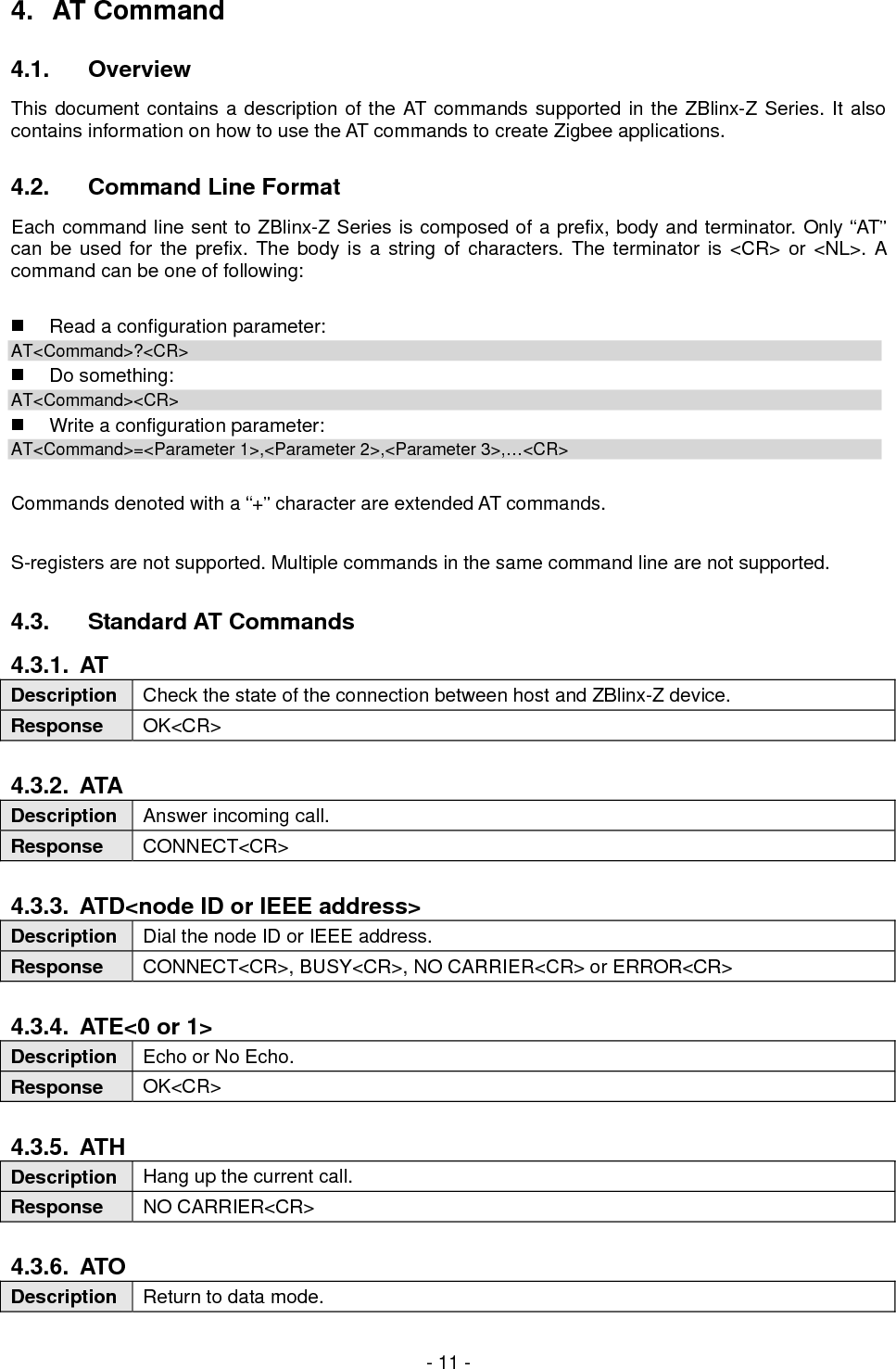

 - 11 - 4. AT Command 4.1. Overview This document contains a description of the AT commands supported in the ZBlinx-Z Series. It also contains information on how to use the AT commands to create Zigbee applications.  4.2.  Command Line Format Each command line sent to ZBlinx-Z Series is composed of a prefix, body and terminator. Only “AT” can be used for the prefix. The body is a string of characters. The terminator is <CR> or <NL>. A command can be one of following:    Read a configuration parameter: AT<Command>?<CR>  Do something: AT<Command><CR>   Write a configuration parameter: AT<Command>=<Parameter 1>,<Parameter 2>,<Parameter 3>,…<CR>  Commands denoted with a “+” character are extended AT commands.    S-registers are not supported. Multiple commands in the same command line are not supported.    4.3. Standard AT Commands 4.3.1. AT Description  Check the state of the connection between host and ZBlinx-Z device. Response  OK<CR>  4.3.2. ATA Description  Answer incoming call. Response  CONNECT<CR>  4.3.3.  ATD<node ID or IEEE address> Description  Dial the node ID or IEEE address. Response  CONNECT<CR>, BUSY<CR>, NO CARRIER<CR> or ERROR<CR>  4.3.4.  ATE<0 or 1> Description  Echo or No Echo. Response  OK<CR>  4.3.5. ATH Description  Hang up the current call. Response  NO CARRIER<CR>  4.3.6. ATO Description  Return to data mode.

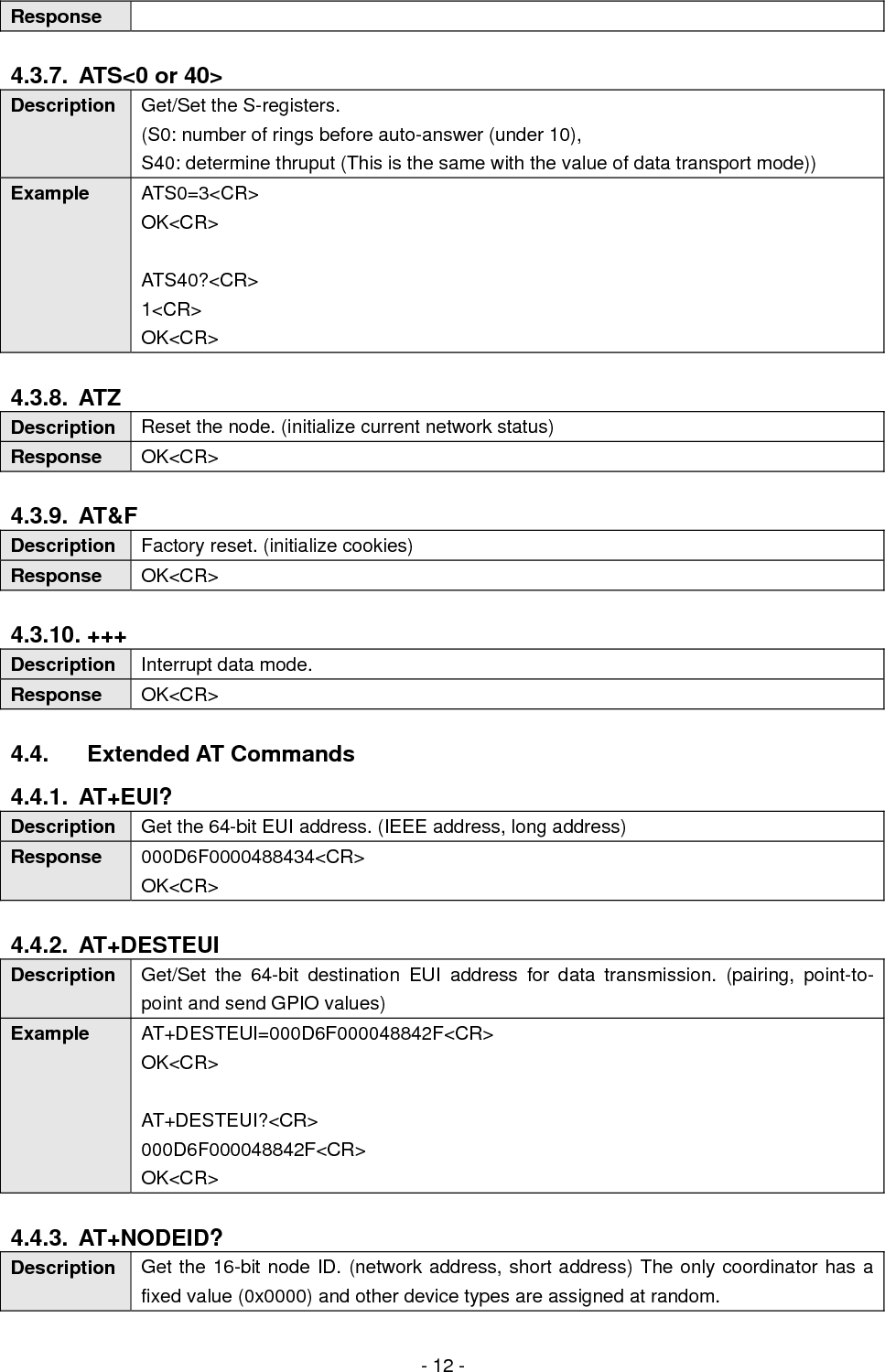

 - 12 - Response    4.3.7.  ATS<0 or 40> Description  Get/Set the S-registers. (S0: number of rings before auto-answer (under 10), S40: determine thruput (This is the same with the value of data transport mode)) Example  ATS0=3<CR> OK<CR>  ATS40?<CR> 1<CR> OK<CR>  4.3.8. ATZ Description  Reset the node. (initialize current network status) Response  OK<CR>  4.3.9. AT&F Description  Factory reset. (initialize cookies) Response  OK<CR>  4.3.10. +++ Description  Interrupt data mode. Response  OK<CR>  4.4. Extended AT Commands 4.4.1. AT+EUI? Description  Get the 64-bit EUI address. (IEEE address, long address) Response  000D6F0000488434<CR> OK<CR>  4.4.2. AT+DESTEUI Description  Get/Set the 64-bit destination EUI address for data transmission. (pairing, point-to-point and send GPIO values) Example  AT+DESTEUI=000D6F000048842F<CR> OK<CR>  AT+DESTEUI?<CR> 000D6F000048842F<CR> OK<CR>  4.4.3. AT+NODEID? Description  Get the 16-bit node ID. (network address, short address) The only coordinator has a fixed value (0x0000) and other device types are assigned at random.

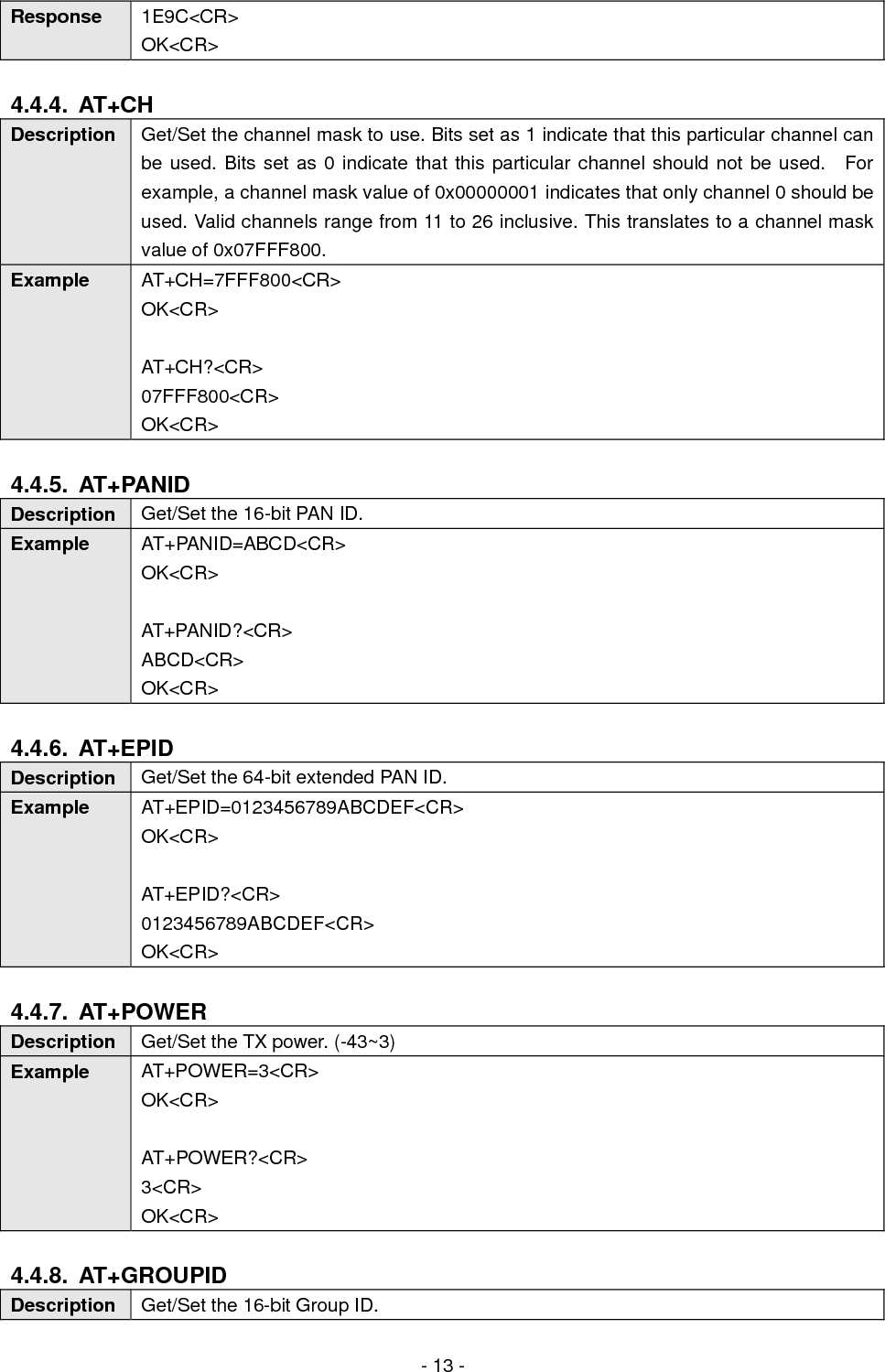

 - 13 - Response  1E9C<CR> OK<CR>  4.4.4. AT+CH Description  Get/Set the channel mask to use. Bits set as 1 indicate that this particular channel can be used. Bits set as 0 indicate that this particular channel should not be used.  For example, a channel mask value of 0x00000001 indicates that only channel 0 should be used. Valid channels range from 11 to 26 inclusive. This translates to a channel mask value of 0x07FFF800.   Example  AT+CH=7FFF800<CR> OK<CR>  AT+CH?<CR> 07FFF800<CR> OK<CR>  4.4.5. AT+PANID Description  Get/Set the 16-bit PAN ID. Example  AT+PANID=ABCD<CR> OK<CR>  AT+PANID?<CR> ABCD<CR> OK<CR>  4.4.6. AT+EPID Description  Get/Set the 64-bit extended PAN ID. Example  AT+EPID=0123456789ABCDEF<CR> OK<CR>  AT+EPID?<CR> 0123456789ABCDEF<CR> OK<CR>  4.4.7. AT+POWER Description  Get/Set the TX power. (-43~3)   Example  AT+POWER=3<CR> OK<CR>  AT+POWER?<CR> 3<CR> OK<CR>  4.4.8. AT+GROUPID Description  Get/Set the 16-bit Group ID.

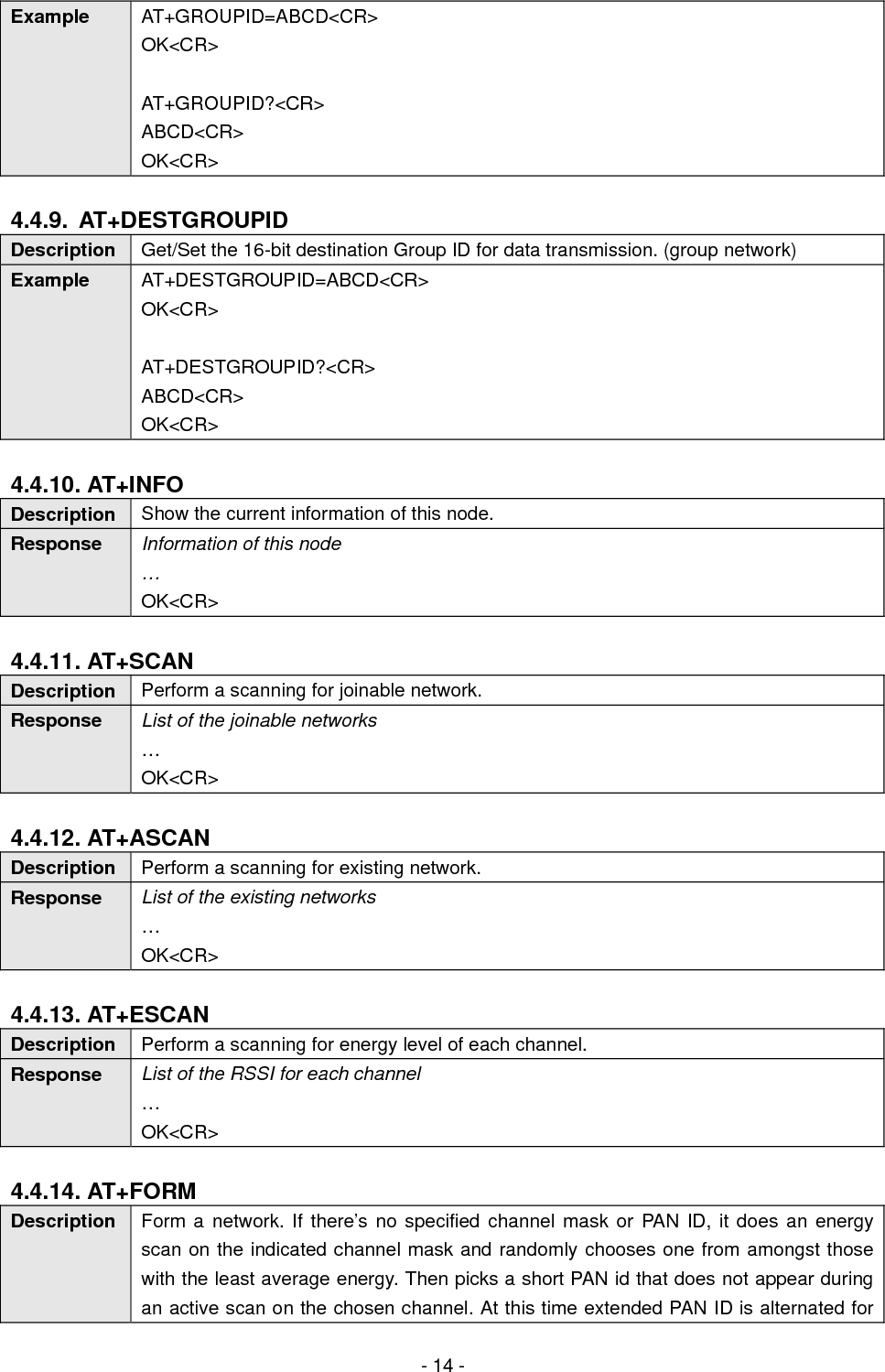

 - 14 - Example  AT+GROUPID=ABCD<CR> OK<CR>  AT+GROUPID?<CR> ABCD<CR> OK<CR>  4.4.9. AT+DESTGROUPID Description  Get/Set the 16-bit destination Group ID for data transmission. (group network) Example  AT+DESTGROUPID=ABCD<CR> OK<CR>  AT+DESTGROUPID?<CR> ABCD<CR> OK<CR>  4.4.10. AT+INFO Description  Show the current information of this node. Response  Information of this node … OK<CR>  4.4.11. AT+SCAN Description  Perform a scanning for joinable network. Response  List of the joinable networks … OK<CR>  4.4.12. AT+ASCAN Description  Perform a scanning for existing network. Response  List of the existing networks … OK<CR>  4.4.13. AT+ESCAN Description  Perform a scanning for energy level of each channel. Response  List of the RSSI for each channel … OK<CR>  4.4.14. AT+FORM Description  Form a network. If there’s no specified channel mask or PAN ID, it does an energy scan on the indicated channel mask and randomly chooses one from amongst those with the least average energy. Then picks a short PAN id that does not appear during an active scan on the chosen channel. At this time extended PAN ID is alternated for

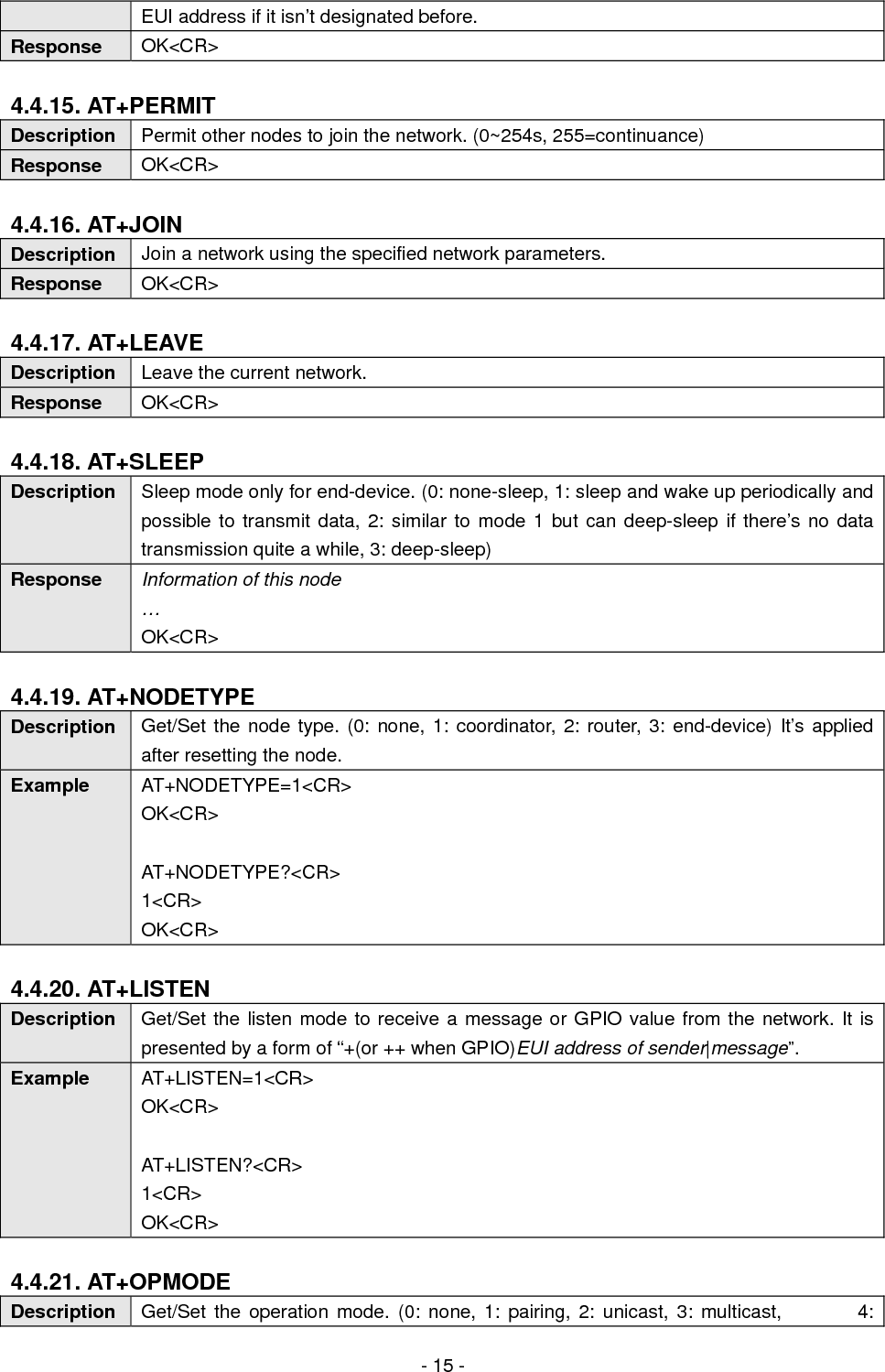

 - 15 - EUI address if it isn’t designated before. Response  OK<CR>  4.4.15. AT+PERMIT Description  Permit other nodes to join the network. (0~254s, 255=continuance) Response  OK<CR>  4.4.16. AT+JOIN Description  Join a network using the specified network parameters. Response  OK<CR>  4.4.17. AT+LEAVE Description  Leave the current network. Response  OK<CR>  4.4.18. AT+SLEEP Description  Sleep mode only for end-device. (0: none-sleep, 1: sleep and wake up periodically and possible to transmit data, 2: similar to mode 1 but can deep-sleep if there’s no data transmission quite a while, 3: deep-sleep) Response  Information of this node … OK<CR>  4.4.19. AT+NODETYPE Description  Get/Set the node type. (0: none, 1: coordinator, 2: router, 3: end-device) It’s applied after resetting the node. Example  AT+NODETYPE=1<CR> OK<CR>  AT+NODETYPE?<CR> 1<CR> OK<CR>  4.4.20. AT+LISTEN Description  Get/Set the listen mode to receive a message or GPIO value from the network. It is presented by a form of “+(or ++ when GPIO)EUI address of sender|message”. Example  AT+LISTEN=1<CR> OK<CR>  AT+LISTEN?<CR> 1<CR> OK<CR>  4.4.21. AT+OPMODE Description  Get/Set the operation mode. (0: none, 1: pairing, 2: unicast, 3: multicast,        4:

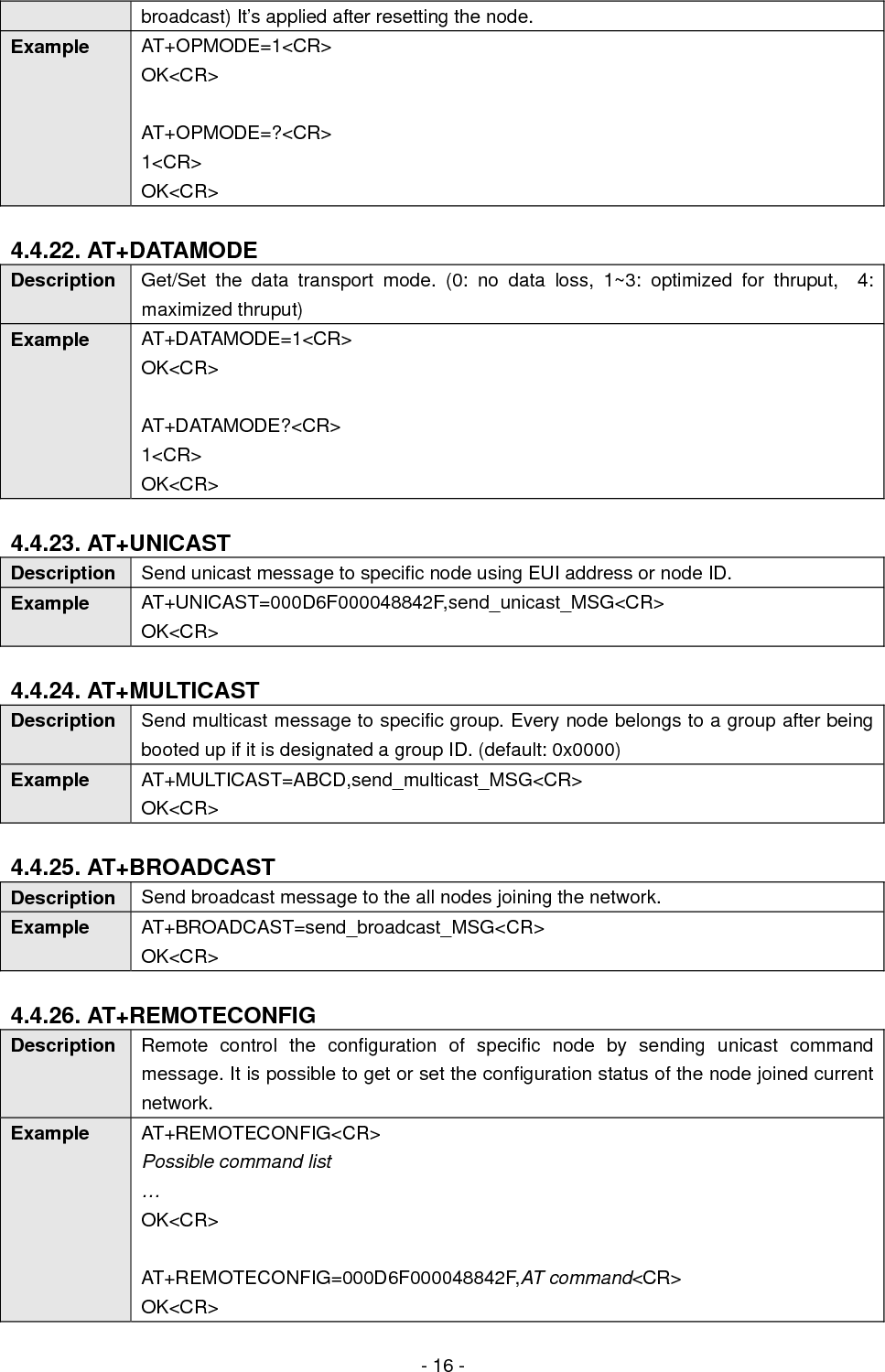

 - 16 - broadcast) It’s applied after resetting the node. Example  AT+OPMODE=1<CR> OK<CR>  AT+OPMODE=?<CR> 1<CR> OK<CR>  4.4.22. AT+DATAMODE Description  Get/Set the data transport mode. (0: no data loss, 1~3: optimized for thruput,  4: maximized thruput) Example  AT+DATAMODE=1<CR> OK<CR>  AT+DATAMODE?<CR> 1<CR> OK<CR>  4.4.23. AT+UNICAST Description  Send unicast message to specific node using EUI address or node ID. Example  AT+UNICAST=000D6F000048842F,send_unicast_MSG<CR> OK<CR>  4.4.24. AT+MULTICAST Description  Send multicast message to specific group. Every node belongs to a group after being booted up if it is designated a group ID. (default: 0x0000) Example  AT+MULTICAST=ABCD,send_multicast_MSG<CR> OK<CR>  4.4.25. AT+BROADCAST Description  Send broadcast message to the all nodes joining the network. Example  AT+BROADCAST=send_broadcast_MSG<CR> OK<CR>  4.4.26. AT+REMOTECONFIG Description  Remote control the configuration of specific node by sending unicast command message. It is possible to get or set the configuration status of the node joined current network. Example  AT+REMOTECONFIG<CR> Possible command list … OK<CR>  AT+REMOTECONFIG=000D6F000048842F,AT command<CR> OK<CR>

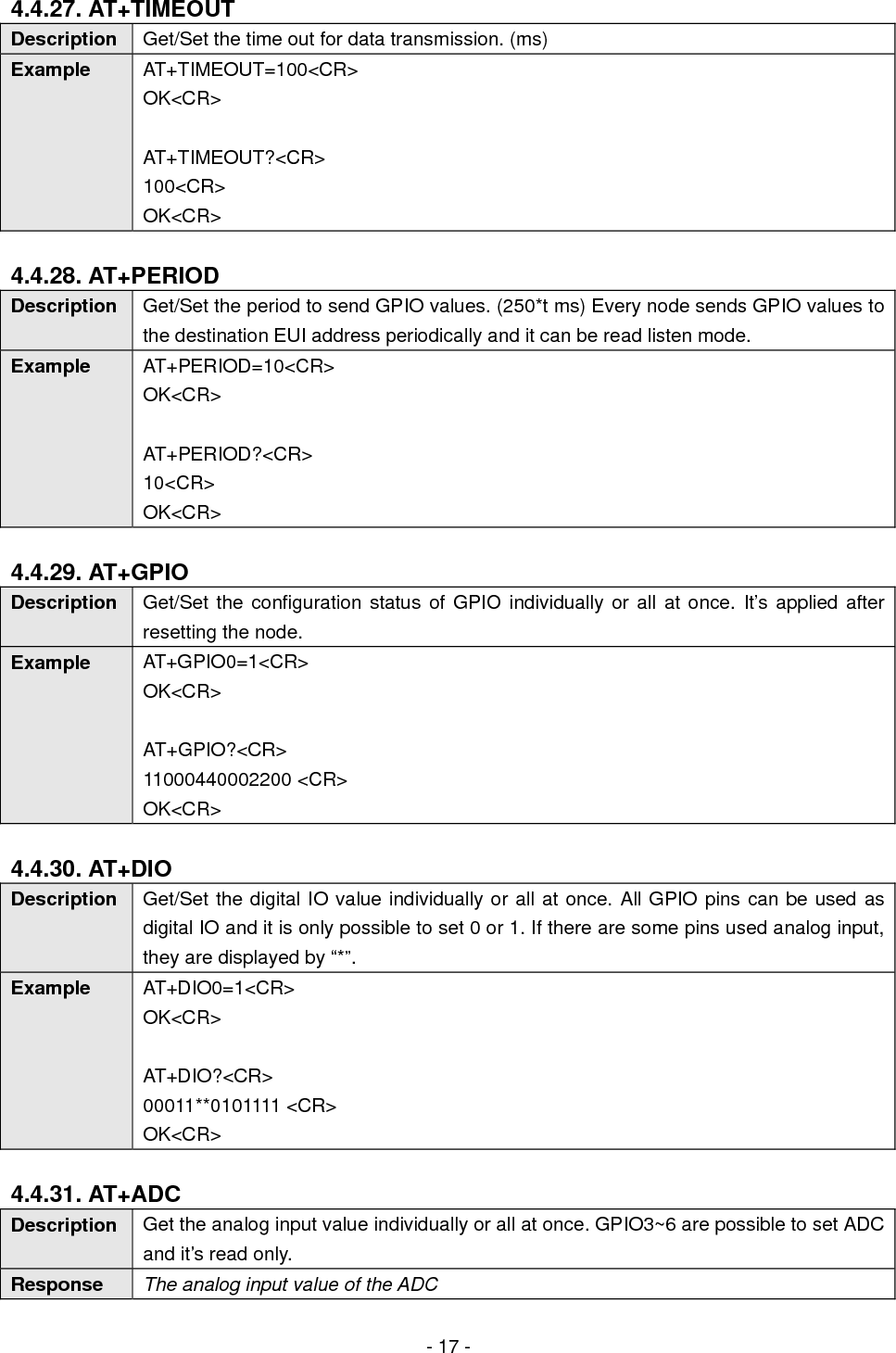

 - 17 -  4.4.27. AT+TIMEOUT Description  Get/Set the time out for data transmission. (ms) Example  AT+TIMEOUT=100<CR> OK<CR>  AT+TIMEOUT?<CR> 100<CR> OK<CR>  4.4.28. AT+PERIOD Description  Get/Set the period to send GPIO values. (250*t ms) Every node sends GPIO values to the destination EUI address periodically and it can be read listen mode. Example  AT+PERIOD=10<CR> OK<CR>  AT+PERIOD?<CR> 10<CR> OK<CR>  4.4.29. AT+GPIO Description  Get/Set the configuration status of GPIO individually or all at once. It’s applied after resetting the node. Example  AT+GPIO0=1<CR> OK<CR>  AT+GPIO?<CR> 11000440002200 <CR> OK<CR>  4.4.30. AT+DIO Description  Get/Set the digital IO value individually or all at once. All GPIO pins can be used as digital IO and it is only possible to set 0 or 1. If there are some pins used analog input, they are displayed by “*”. Example  AT+DIO0=1<CR> OK<CR>  AT+DIO?<CR> 00011**0101111 <CR> OK<CR>  4.4.31. AT+ADC Description  Get the analog input value individually or all at once. GPIO3~6 are possible to set ADC and it’s read only. Response  The analog input value of the ADC

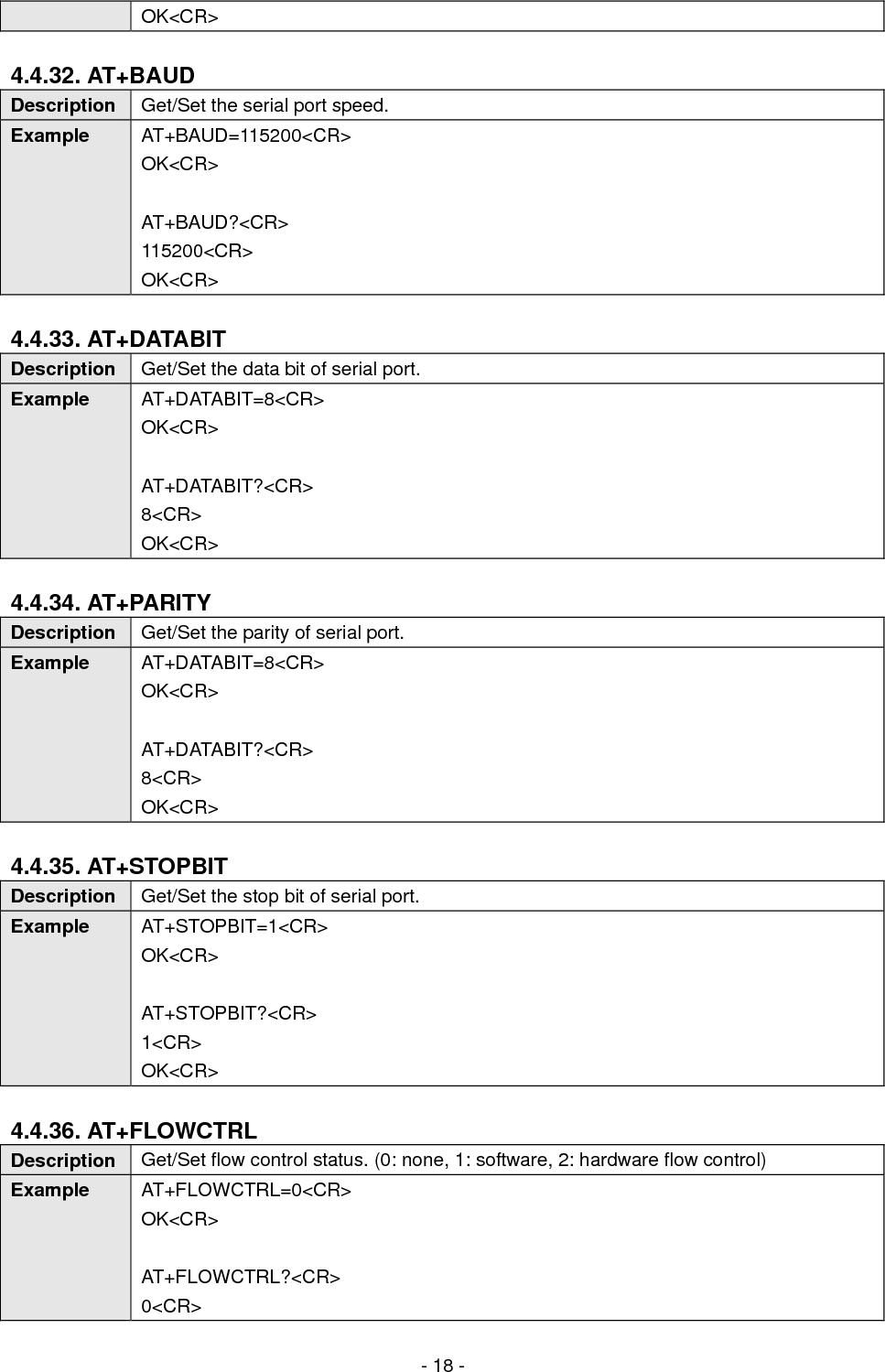

 - 18 - OK<CR>  4.4.32. AT+BAUD Description  Get/Set the serial port speed. Example  AT+BAUD=115200<CR> OK<CR>  AT+BAUD?<CR> 115200<CR> OK<CR>  4.4.33. AT+DATABIT Description  Get/Set the data bit of serial port. Example  AT+DATABIT=8<CR> OK<CR>  AT+DATABIT?<CR> 8<CR> OK<CR>  4.4.34. AT+PARITY Description  Get/Set the parity of serial port. Example  AT+DATABIT=8<CR> OK<CR>  AT+DATABIT?<CR> 8<CR> OK<CR>  4.4.35. AT+STOPBIT Description  Get/Set the stop bit of serial port. Example  AT+STOPBIT=1<CR> OK<CR>  AT+STOPBIT?<CR> 1<CR> OK<CR>  4.4.36. AT+FLOWCTRL Description  Get/Set flow control status. (0: none, 1: software, 2: hardware flow control) Example  AT+FLOWCTRL=0<CR> OK<CR>  AT+FLOWCTRL?<CR> 0<CR>
 - 19 - OK<CR>  4.4.37. AT+SECURITY Description  Get/Set the security status. (0: turning security off, 5: on) Every node must be under the same security level in the network and it’s applied after resetting the node. Example  AT+SECURITY=5<CR> OK<CR>  AT+SECURITY?<CR> 5<CR> OK<CR>  4.4.38. AT+NWKKEY Description  Get/Set the 128-bit encryption key. (possible to set only for coordinator, 0: generate random 128-bit number) Example  AT+NWKKEY=0123456789ABCDEF0123456789ABCDEF<CR> OK<CR>  AT+NWKKEY?<CR> 0123456789ABCDEF0123456789ABCDEF <CR> OK<CR>  4.4.39. AT+SWITCHKEY Description  Switch the encryption key for current network only for coordinator. Response  OK<CR>  4.4.40. AT+BOOTLOAD Description  Start bootloader to perform firmware upgrade. Response  EM250 Bootloader v20 b09  1. upload ebl 2. run 3. ebl info BL >  4.4.41. AT+HELP Description  Show all the available commands Response  Available AT Commands … OK<CR>

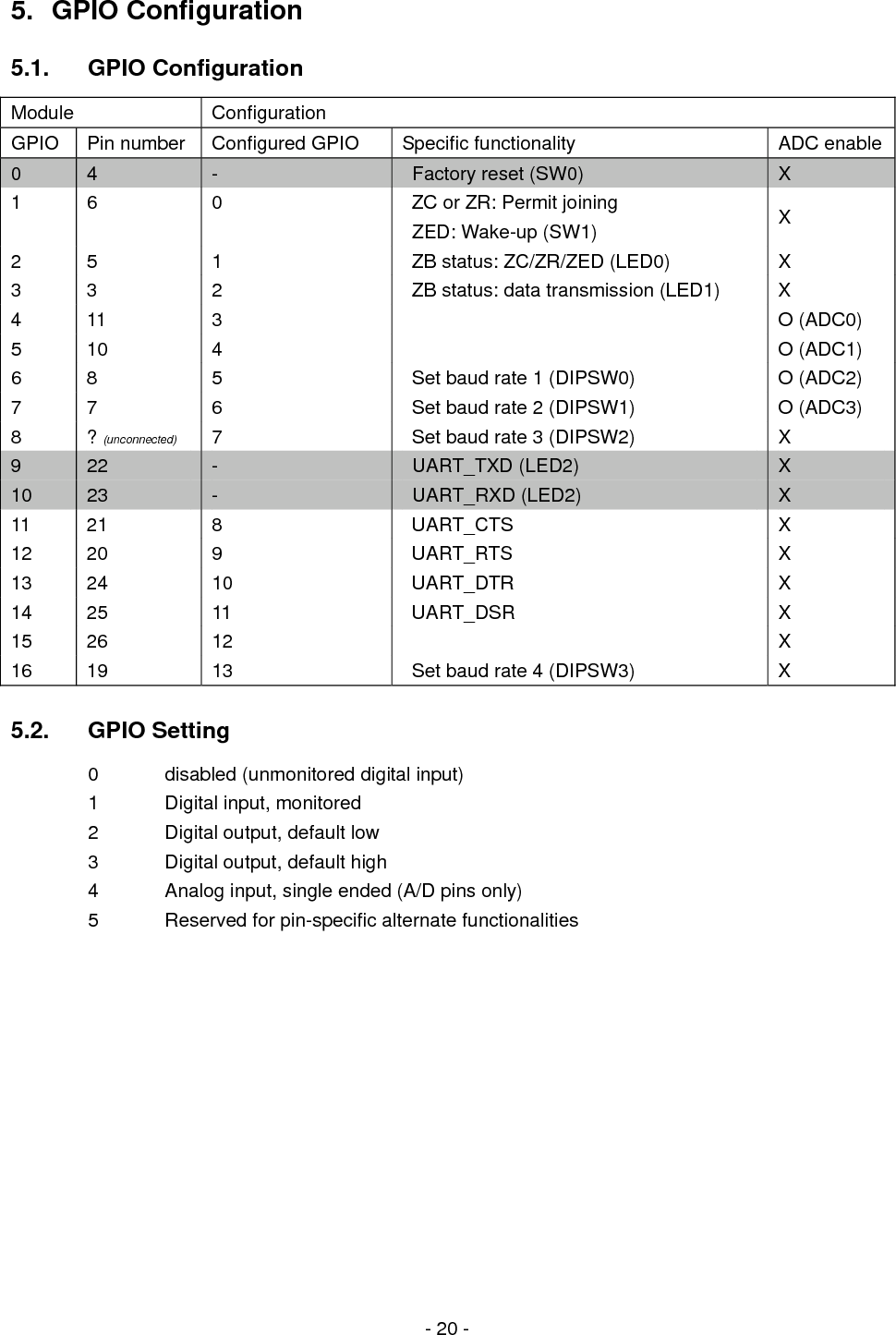

 - 20 -  5. GPIO Configuration 5.1. GPIO Configuration Module Configuration GPIO  Pin number  Configured GPIO  Specific functionality  ADC enable0  4  -    Factory reset (SW0)  X 1  6  0    ZC or ZR: Permit joining   ZED: Wake-up (SW1)  X 2  5  1    ZB status: ZC/ZR/ZED (LED0)  X 3  3  2    ZB status: data transmission (LED1)  X 4 11  3     O (ADC0) 5 10  4     O (ADC1) 6  8  5    Set baud rate 1 (DIPSW0)  O (ADC2) 7  7  6    Set baud rate 2 (DIPSW1)  O (ADC3) 8 ? (unconnected)  7    Set baud rate 3 (DIPSW2)  X 9  22  -   UART_TXD (LED2)  X 10  23  -   UART_RXD (LED2)  X 11 21  8   UART_CTS  X 12 20  9   UART_RTS  X 13 24  10   UART_DTR  X 14 25  11   UART_DSR  X 15 26  12    X 16  19  13    Set baud rate 4 (DIPSW3)  X  5.2. GPIO Setting   0  disabled (unmonitored digital input)   1  Digital input, monitored   2  Digital output, default low   3  Digital output, default high   4  Analog input, single ended (A/D pins only)   5  Reserved for pin-specific alternate functionalities
