SENBO MACHINE MANUFACTURE SHSB 2.4G Wireless Remote Controller User Manual OPERATIONAL DESCRIPTION
SHANGHAI SENBO MACHINE MANUFACTURE CO., LTD 2.4G Wireless Remote Controller OPERATIONAL DESCRIPTION
User Manual
2.4G Wireless Remote Controller User Manual
1. Use description
（1）Battery installation
Unfastening the rear cover screw and remove it, install two NO.7 batteries. Be sure the
correction of polarity of battery. The flash of the SPEED_INDICATOR &
CAR_SELECT_INDICATOR will show it .
（2）The CAR_SELECT key & CAR_SELECT_INDICATOR
Use this key to ensure the unique correct corresponding of the remote to this car. Press the
CAR_SELECT key for more then 2 to 3 seconds, the CAR_SELECT_INDICATOR will turn
off, it shows that the remote can control this car .It can only control this car, and not defect
others. Note: Be Sure the power of the car is on, and the Closer between the transmitter
and the car.
（3）STOP key
The car will be stopped moving immediately as soon as this button is pressed in both
remote and manual operator mode.
（4）The SPEED_SLECT key & SPEED_SELECT indicator
This button is used to select the speed grade of the car. The grade will change in the range
of 3-level: low[one SPEED_INDICATOR flush ]、medium[two SPEED_INDICATOR flush]
and high[three SPEED_INDICATOR flush] speed. The change of the order is
LOW-MEDIUM-HIGH-MEDIUM-LOW as the button pressed. Note: Only the forward
direction moving can own this function, , the back word not
5 FORWARD_KEY & BACKWORD_KEY
Used to control the moving . Press one of the buttons, the car speed will ascend slowly to
the setup speed grade. So the child in this car won't have the sudden shock and feel
comfortable.
（6）LEFT_LEY & RIGHT_LEY
Used to control the left and right direction of the car.

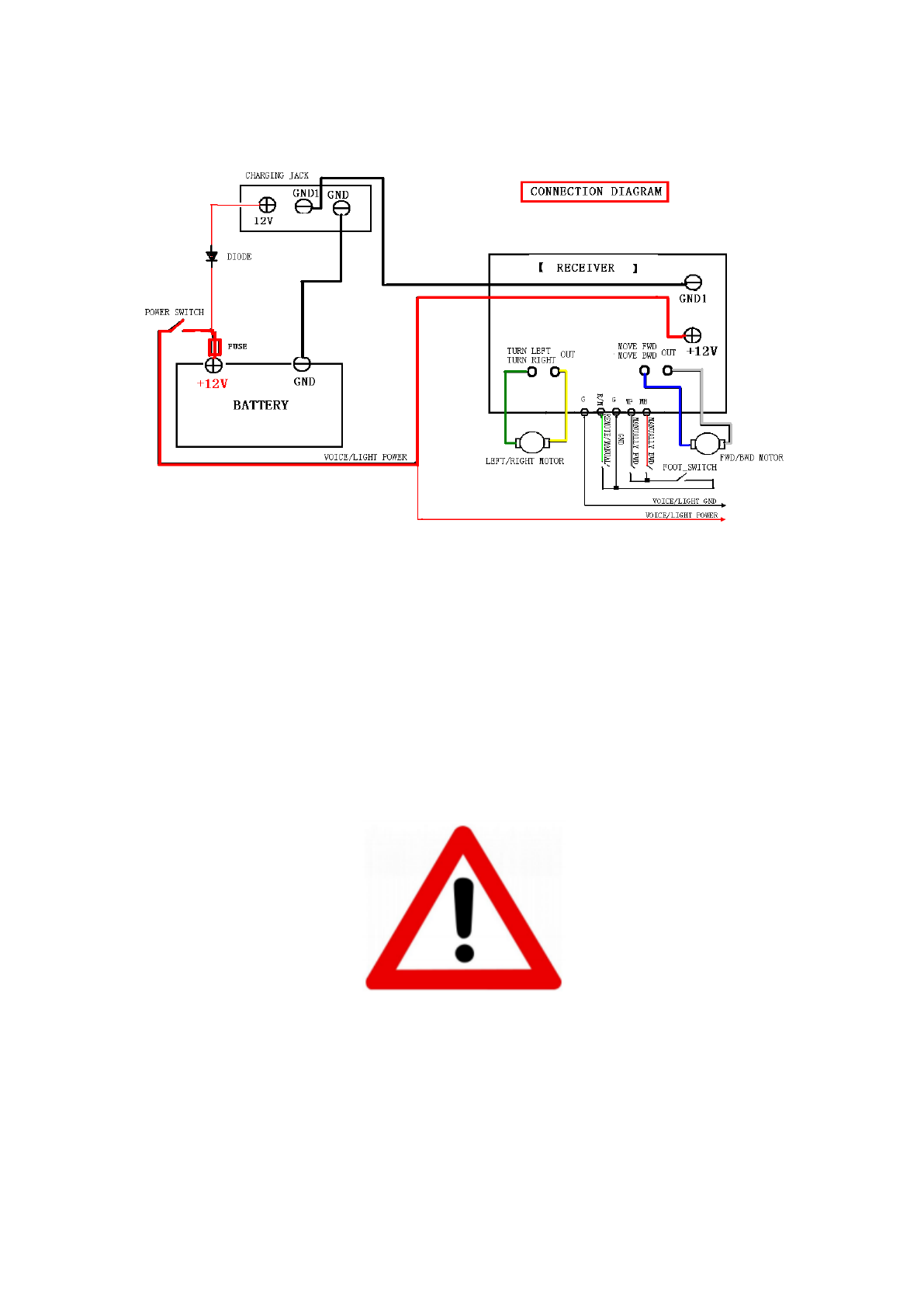

Receiver:
3. Notice
（1）The transmitter owns energy-saving function. The power will automatic turn off as the
remoter is idle for about 10 seconds . it will work as any of the button is pressed.
（2）The CAR_SELECT Key must be operator once in the first time use of the remoter
and replace the remoter batteries.
（3）The performance of the remote will be affected with damp, wet. So keep it off .
（4）The transmitter is only for adult use
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
