SENBO MACHINE MANUFACTURE SHSB12VWS-3 2.4G Wireless Remote Controller User Manual
SHANGHAI SENBO MACHINE MANUFACTURE CO., LTD 2.4G Wireless Remote Controller
User Manual
SHANGHAI SENBO MACHINE MANUFACTURE CO., LTD
2.4G Wireless Remote Controller
Model: SHSB12VWS-3
Trade Mark: SB

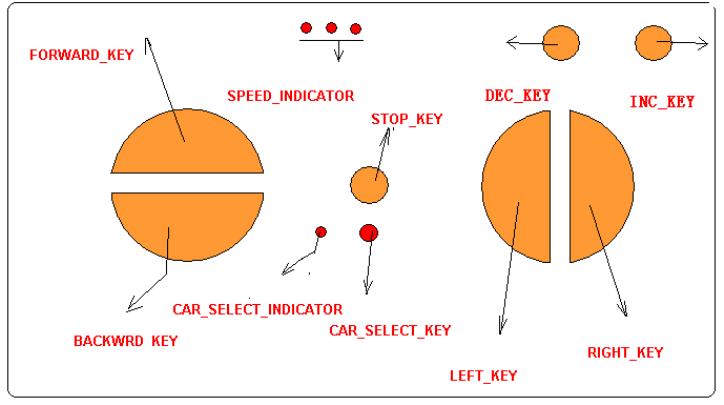

1.Panel description
2. Use description
（1）Battery installation
Unfastening the rear cover screw and remove it, install two NO.7 batteries. Be sure the
correction of polarity of battery. The flash of the SPEED_INDICATOR &
CAR_SELECT_INDICATOR will show it .
（2）The CAR_SELECT key & CAR_SELECT_INDICATOR
Use this key to ensure the unique correct corresponding of the remote to this car. Press
the CAR_SELECT key for more then 2 to 3 seconds, the CAR_SELECT_INDICATOR
will turn off, it shows that the remote can control this car .It can only control this car, and
not deffect others. Note: Be Sure the power of the car is on, and the Closer between
the transmitter and the car.
（3）STOP key
The car will be stopped moving immediately as soon as this button is pressed in both
remote and manual opetator mode.
（4）The SPEED_SLECT key & SPEED_SELECT indicator
This button is used to select the speed grade of the car. The grade will change in the
range of 3-level: low[one SPEED_INDICATOR flush ]、medium[two
SPEED_INDICATOR flush] and high[three SPEED_INDICATOR flush] speed. The
change of the order is LOW-MEDIUM-HIGH-MEDIUM-LOW as the button pressed. Note:
Only the forward direction moving can own this function, , the backword not
5 FORWARD_KEY & BACKWORD_KEY
Used to control the moving . Press one of the buttons, the car speed will ascend slowly
to the setup speed grade. So the child in this car won't have the sudden shock and feel
comfortable.
（6）LEFT_LEY & RIGHT_LEY
Used to control the left and right direction of the car.

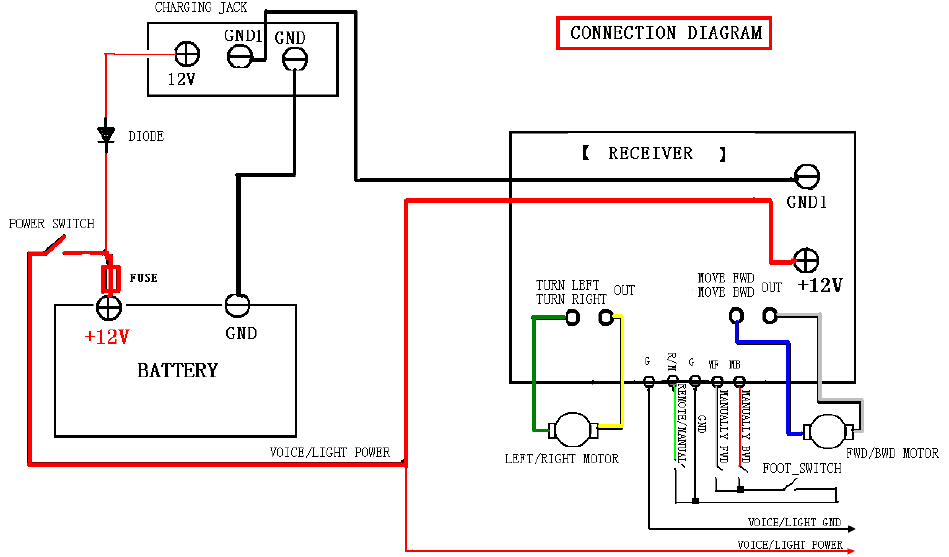

Receiver:
3. Notice
（1）The transmitter owns energy-saving function. The power will automatic turn off as
the remotor is idle for about 10 seconds . it will work as any of the button is pressed.
（2）The CAR_SELECT Key must be operatord once in the first time use of the remotor
and replace the remotor batteries.
（3）The performance of the remote will be affected with damp, wet. So keep it off .
（4）The transmitter is only for adult use
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1)This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
