SENEASY TECHNOLOGY SRC5306 RF REMOTE User Manual
GUANGDONG SENEASY TECHNOLOGY CO.,LTD. RF REMOTE
User Manual
Operating Instructions for Use
1、2.4G function
（1）The code function：
Inserted into the receiving end，Key disk "CAPS key" keyboard surface is released after 3
seconds LED starts flashing code
The success of the code keyboard surface LED off；Code 5s after unsuccessful stop code，
LED is off, into sleep，
Basis having the code to enter the code function。
Power switch control and the sleep wake function：
1、Power switch can control the whole power of the remote control to open and close
2、Goes to sleep and wake up (after the success of the code)：
After the button is not operated 60s into sleep, three seconds after the receiver off into
sleep
3、The receiving end does not insert code on the remote control within 3 seconds after
power goes to sleep。
（2）Mouse Functions
01、 Using a six-axis gyroscope empty mouse X, Y coordinates relative value reported；
02、 By 2.4g usb communication transmitted to the receiving end, follow the
USB HID protocol；
03、 HID MOUSE agreement follows：
Total size: 4 bytes
Byte 0: control byte, bit.0~bit.2, Sequence is left, right, middle button, bit.3 ~ bit.7
fixed to 0
Byte 1: X axis data range: +127~ -127
Byte 2: Y axis data range: +127~ -127
Byte 3: wheel data range: +127~ -127
There are mouse information change only send data
04、 open air mouse / key control: (Follow protocol USB HID KEYBOARD)
Method of
operation
function Usage page Usage D
Left mouse
button
Left mouse
button 0x09 0X01
05、 the default power-mouse is turned off, press the left mouse button to open the air
mouse
06、 no operating 20 seconds after entering the low power consumption, wake air mouse
function press the left mouse button；
07、 air mouse if drift, placed on a horizontal table and save the data automatically
corrects for 3 seconds；
（3） 2.4G Key Functions
1）Hair code agreement
PC remote control plane to send air protocol 2.4G wireless usb to the receiving end,
the master MCU sends the key name in accordance with standard usbHID Key
Description key specific USB HID packet is described as follows：

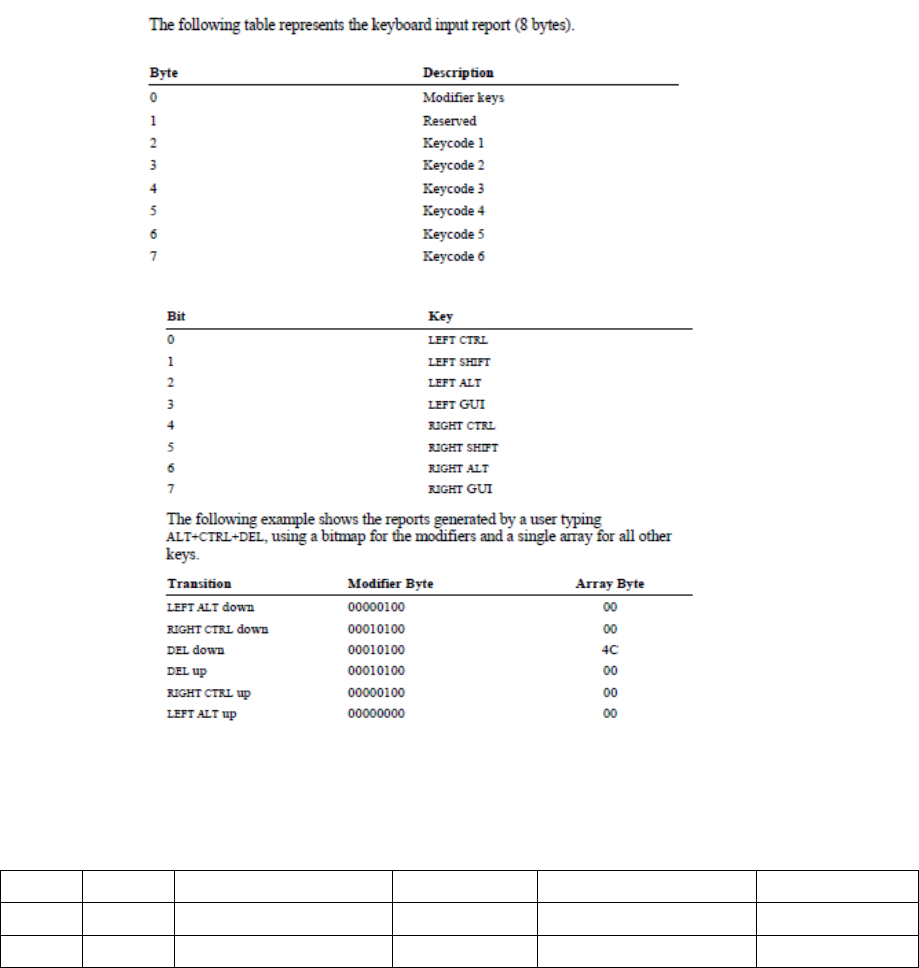

Keyboard format:
Total Size: 8 bytes
Byte 0: modifier keys
Byte 1: reserved
Keyarray:6bytes，Eachbuttonrepresentsabytescanaccommodateuptosix
buttons。
There are mouse information change only send data
Modify keys: Wherein the GUI key is the key microsoft banner
2) PC key name and key below report descriptor：
Remote control plane (when the button is pressed, the remote front left LED blinks to
indicate)
Key name Function Usage page Usage ID AKC
K62 MUTE Mute 0x0C 0xE2 0x00a4
K93 REW Rewind 0x0C 0XB4 0x0059
K95 PLAY/P
AUSE Play / Pause 0x0C 0xCD 0x0055
K97 STOP Stop 0x0C 0XB7 0x0056
K99 FF Fast Forward 0x0C 0XB3 0x005a
K94 RED Red (F1 function) 0x07 0x3A 0x0083
K96 GREEN Green (F2 function) 0x07 0x3B 0x0084
K98 YELLOW Yellow (F3
function) 0x07 0x3C 0x0085
K100 BLUE Blue (F4 function) 0x07 0x3D 0x0086
K70 PLAY Play 0x0C 0XB0 0x007e
K78 Left mouse button 0x09 0x01 Left mouse
button
K6 GAMES F6 function 0x07 0x3F 0x0088
K71
K7
K80 UP UP 0x07 0x52 0x0013
K84 DOWN DOWN 0x07 0x51 0x0014
K81 LEFT LEFT 0x07 0x50 0x0015
K85 RIGHT RIGHT 0x07 0x4F 0x0016
K83 OK Confirm 0x07 0x28 0x0042
K88 BACK Return 0x0C 0x224 0x0004
K92 I Information (F10
function) 0x07 0x43 0x008c
K87 VOL+ VOL+ 0x0C 0xE9 0x0018
K16 VOL- VOL- 0x0C 0xEA 0x0019
K89 Menu 0x0C 0x40 0x0052
K24 Home 0X0C 0X0223 0x0003
K91 CH+ CH+ 0x0C 0x9C 0x00a6
K32 CH- CH- 0x0C 0x9D 0x00a7
K15 1 1 0x07 0x1E 0x0008
K23 2 2 0x07 0x1F 0x0009
K31 3 3 0x07 0x20 0x000a
K14 4 4 0x07 0x21 0x000b
K22 5 5 0x07 0x22 0x000c
K30 6 6 0x07 0x23 0x000d
K38 7 7 0x07 0x24 0x000e
K46 8 8 0x07 0x25 0x000f
K54 9 9 0x07 0x26 0x0010
K39 GUIDE F8 function 0x07 0x41 0x008a
K47 0 0 0x07 0x27 0x0007
3）Keyboardsurface(whenthebuttonispressed,thekeyboardsurfaceLEDblinkstoindicate)
NameUsage
pageUsageIDAKC NameUsage
pageUsageIDAKC
ESC 0x07 0x29 0x006f 0x07 0x50 0x0015
Q 0x07 0x14 0x002d 0x07 0x51 0x0014
W 0x07 0x1a 0x0033 0x07 0x4f 0x0016
E 0x07 0x08 0x0021 PgDn 0x07 0x4E 0x005d
R 0x07 0x15 0x002e 1 0x07 0x1e 0x0008
T 0x07 0x17 0x0030 2 0x07 0x1f 0x0009
Y 0x07 0x1c 0x0035 3 0x07 0x20 0x000a
U 0x07 0x18 0x0031 4 0x07 0x21 0x000b
I 0x07 0x0c 0x0025 5 0x07 0x22 0x000c
O 0x07 0x12 0x002b 6 0x07 0x23 0x000d
P 0x07 0x13 0x002c 70x07 0x24 0x000e
0x07 0x2a 0x0043 8 0x07 0x25 0x000f
TAB 0x07 0x2b 0x003d 9 0x07 0x26 0x0010
A 0x07 0x04 0x001d 0 0x07 0x27 0x0007
S 0x07 0x16 0x002f
D 0x07 0x07 0x0020
F 0x07 0x09 0x0022 ？ 0x07 0x02+0x38 0x004c
G 0x07 0x0a 0x0023 ！ 0x07 0x02+0x1e 0x0008
H 0x07 0x0b 0x0024 # 0x07 0x02+0x20 0x000a
J 0x07 0x0d 0x0026 $ 0x07 0x02+0x21 0x000b
K 0x07 0x0e 0x0027 % 0x07 0x02+0x22 0x000c
L 0x07 0x0f 0x0028 & 0x07 0x02+0x24 0x000e
VOL+ 0X0C 0xE9 0x0018 * 0x07 0x02+0x25 0x000f
0x07 0x28 0x0042 ( 0x07 0x02+0x26 0x0010
SHIFT 0x07 0x68 0x0076 ) 0x07 0x02+0x27 0x0007
Z 0x07 0x1d 0x0036
X 0x07 0x1b 0x0034
C 0x07 0x06 0x001f
V 0x07 0x19 0x0032 + 0x07 0x02+0x2e 0x0046
B 0x07 0x05 0x001e - 0x07 0x2d 0x0045
N 0x07 0x11 0x002a = 0x07 0x2e 0x0046
M 0x07 0x10 0x0029 / 0x07 0x38 0x004c
\ 0x07 0x31 0x0049 _ 0x07 0x02+0x2d 0x0045
0x07 0x52 0x0013 “ 0x07 0x02+0x34 0x004b
VOL- 0x0C 0xEA 0x0019 ‘ 0x07 0x34 0x004b
PgUp 0x07 0x4B 0x005c ； 0x07 0x33 0x004a
K55 F9 function 0x07 0x42 0x008b
CTRL 0x07 0x01 0x0071 . 0x07 0x37 0x0038
Caps 0x07 0x39+69 : 0x07 0x02+0x33 0x004a
Alt 0x07 0x04 0x0039 WWW. 0x07 0x1ax3+0x3
7
0x0033x3+0
x0038
LANG Do not send code value, see the
following Function @ 0x07 0x02+0x1f 0x0009
, 0x07 0x36 0x0037 .COM 0x07 0x37+0x06+
0x12+0x10
0x0038+
0x001f+
0x002b+
0x0029
SPACE 0x07 0x2C 0x003e
4）Key Function：
1、 the shift key SHIFT (press SHIFT releasing press other keys to achieve the shift key
Function)
2、 Caps Lock CAPS
3、 Ctrl key functions, with standard computer keyboard as a combination of the above
4、 AAlt key functions, with standard computer keyboard as a combination of the above
5)、PC remote control plane surface with the same key (2.4G code as)
Remote control surface: up, down, left, right、OK、 VOL+、VOL-、1、2、3、
4、5、6、7、8、9、0
Keyboard surface: up, down, left, right、ENTER、VOL+、VOL-、1、2、3、4、5、
key 6、7、8、9、0
6)、After LANG key, pressing does not send code, but the key code transmitting
mode within the table below as follows：
key Hair code
mode
Usage
page Usage ID key Hair code
mode
Usage
page Usage ID
CTRL+SHIFT+
1 0x07 0x03+0x1E
CTRL+SHIFT+
6 0x07 0x03+0x23
CTRL+SHIFT+
2 0x07 0x03+0x1F
CTRL+SHIFT+
7 0x07 0x03+0x24
CTRL+SHIFT+
3 0x07 0x03+0x20
CTRL+SHIFT+
8 0x07 0x03+0x25
CTRL+SHIFT+
4 0x07 0x03+0x21 CTRL+SHIFT+
9 0x07 0x03+0x26
CTRL+SHIFT+
5 0x07 0x03+0x22
CTRL+SHIFT+
0 0x07 0x03+0x27
