SEO WON K TEC EZ-D50 USB Adapter User Manual Windows Headset Drivers
SEO WON K-TEC., INC. USB Adapter Windows Headset Drivers
users manual
1
Seo Won K-Tec., Inc.
203-11, Anyang 7-Dong, Manan-Gu, Anyang City, Kyonggi-Do, Korea
TEL: 82-31-442-3355 Fax: 82-31-447-5100 Rev. 01A
XPERT
AUDIO CONTROL CENTER SOFTWARE
USER GUIDE
For Xpert Software and
DSP Headset Adapter Installation
Your Xpert Headset Adapter is fully compatible with
Windows 95
Windows 98
Windows 98SE (second edition)
Windows ME, 2000 and
Windows XP.
2
Seo Won K-Tec., Inc.
203-11, Anyang 7-Dong, Manan-Gu, Anyang City, Kyonggi-Do, Korea
TEL: 82-31-442-3355 Fax: 82-31-447-5100 Rev. 01A
Information to user : PART 15, PARAGRAPH 15.21 AND 15.105(b)
Information to user : PART 15, PARAGRAPH 15.21 AND 15.105(b)Information to user : PART 15, PARAGRAPH 15.21 AND 15.105(b)
Information to user : PART 15, PARAGRAPH 15.21 AND 15.105(b)
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment
FCC Notice
FCC NoticeFCC Notice
FCC Notice
NOTE : This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
--------------------------------------------------------------------
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1)this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
3
Seo Won K-Tec., Inc.
203-11, Anyang 7-Dong, Manan-Gu, Anyang City, Kyonggi-Do, Korea
TEL: 82-31-442-3355 Fax: 82-31-447-5100 Rev. 01A
DSP Headset Adapter Installation
With a simple connection of the headset Adapter into your computer, you will be
prompted by the Add New hardware wizard to fine drivers for your headset. When
you have a dialog box, you can just click either Next or Finish to complete your
hardware installation.
You can simply double click a speaker icon at the system tray and if the following
menu box (DSP-1020A or USB Audio) comes up, your installation has been
successfully done.
Double Click
Please see “DSP-1020A” shown in the bottom of the box
4
Seo Won K-Tec., Inc.
203-11, Anyang 7-Dong, Manan-Gu, Anyang City, Kyonggi-Do, Korea
TEL: 82-31-442-3355 Fax: 82-31-447-5100 Rev. 01A
GETTING STARTED
Windows 95, 98, 98SE, ME, 2000 and Xp users: You do not need your Windows
installation CD.
STEP ONE
Install and Register Your Software

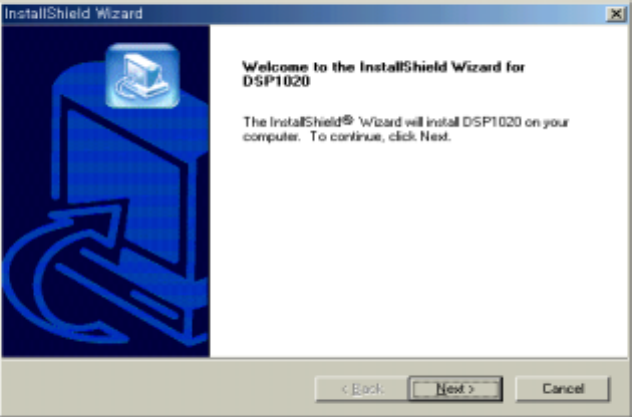

1. Insert the Seo Won K-Tec. Xpert CD into your computer. If the introduction program
does not start automatically soon after you insert the CD in your computer, do the
following:
Windows
On the Windows desktop, double-click the My Computer icon.
Double-click the Seo Won K-Tec. Xpert CD.
Double-click the Setup.exe file.
5
Seo Won K-Tec., Inc.
203-11, Anyang 7-Dong, Manan-Gu, Anyang City, Kyonggi-Do, Korea
TEL: 82-31-442-3355 Fax: 82-31-447-5100 Rev. 01A

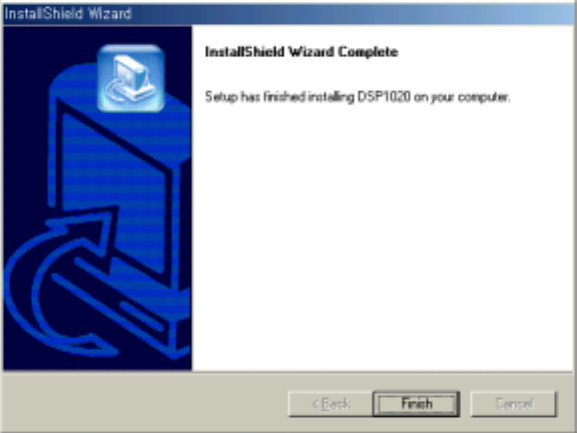

2. Click Next to advance to InstallShield Wizard Complete.
3. Click Finish.
STEP TWO
Headset Installation
When prompted by the installation program, insert the headset’s USB connector in
your computer’s USB port.
Note: To use a USB hub with the Seo Won K-Tec. DSP Series headset, the hub must
have its own power supply.
STEP THREE

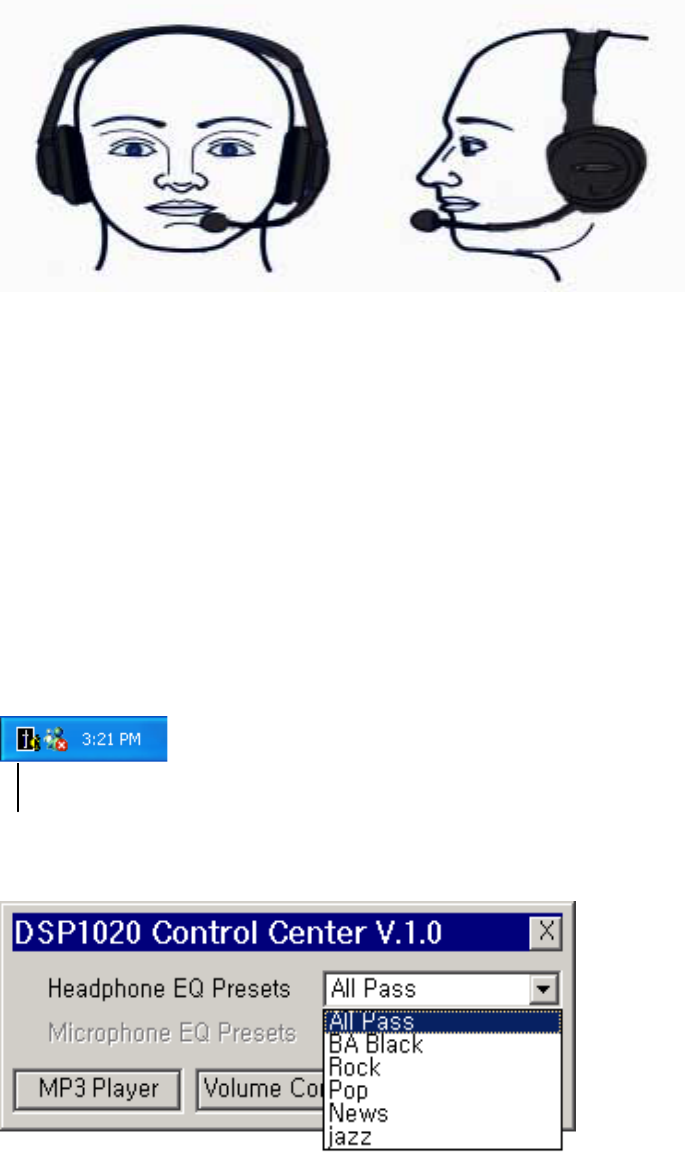

Put on the headset and set the microphone position.
Adjust the microphone so that it is 1cm (about 1/2”) from the center of your mouth
both horizontally and vertically. If you can hear yourself breathe through the
microphone, move it horizontally closer to the side of your mouth.
6
Seo Won K-Tec., Inc.
203-11, Anyang 7-Dong, Manan-Gu, Anyang City, Kyonggi-Do, Korea
TEL: 82-31-442-3355 Fax: 82-31-447-5100 Rev. 01A
** Please see your individual headset user’s manual for applying your headset into
your head and mouth.
STEP FOUR
Launch DSP1020 Control Center V1.0
Double click the Seo Won K-Tec. DSP1020 Control Center V1.0 Software icon in the
system tray to open the Seo Won K-Tec. Xpert application. You can also open the
application by opening the shortcut on the Desktop or program Files/Xpert/Xpert.exe.
Double click system tray icon to open the Seo Won K-Tec. DSP1020 Control Center
V1.0.
7
Seo Won K-Tec., Inc.
203-11, Anyang 7-Dong, Manan-Gu, Anyang City, Kyonggi-Do, Korea
TEL: 82-31-442-3355 Fax: 82-31-447-5100 Rev. 01A
STEP FIVE
Adjust Headset Setting
Make sure that the Microphone Mute button is not off and that the Volume control is in
the center position.

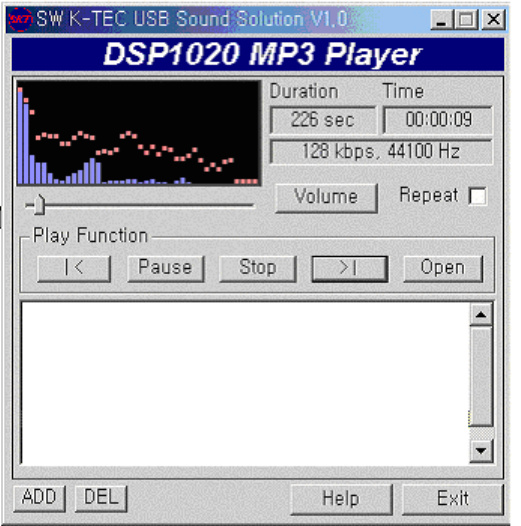

Click on MP3 Player and listen to music.
