SES imagotag EDG1-0600-A digital network transceiver User Manual My

SES-imagotag GmbH digital network transceiver My

Contents

Detailed user manual

G1 Labels
Product
Specification
Last change: 16.08.2018
G1 Labels Product Specification
Page 2 of 31
1 Label Family Introduction 4
1.1 General Key Features 4
1.2 The G1 label family 5
2 Barcode Information 6
2.1 Serial Number 6
2.1.1 Producer is 01 7
2.1.2 Producer is not 01 7
3 Mechanical Characteristics 8
3.1 Technical characteristics 8
3.1.1 G1 1.6 BWR 8
3.1.2 G1 2.2 BWR 9
3.1.3 G1 2.6 BWR and G1 2.7 BW / BWR 9
3.1.4 G1 4.2 BW / BWR and G1 4.4 BW / BWR 10
3.1.5 G1 4.5 BWR 10
3.1.6 G1 6.0 BWR 11
3.1.7 G1 7.4 BW/BWR 11
3.1.8 S-tag 6 HF 12
3.2 Mechanical Dimensions 12
3.2.1 G1 1.6 BWR 12
3.2.2 G1 2.2 BWR 12
3.2.3 G1 2.6 BWR 13
3.2.4 G1 2.7 BW/ BWR 13
3.2.5 G1 4.2 BW /BWR 13
3.2.6 G1 4.4 BW/ BWR 14
3.2.7 G1 4.5 BWR 14
3.2.8 G1 6.0 BWR 15
3.2.9 G1 7.4 BW/ BWR 15
4 Electrical & RF Characteristics 17
4.1 Power and Current Consumption 17
4.2 Transmission power 17
5 NFC 18
5.1 Functionality 18
5.1.1 Application 18
5.1.2 Redirection/Forwarding (for demo purposes only) 19
5.2 Ordering Information 19
6 Environmental 20
6.1 General 20
6.2 Cleaning Instructions 20
6.3 Humidity Conditions 20
7 Storage and warehousing 21
8 Battery lifetime 22
G1 Labels Product Specification
Page 3 of 31
9 Battery Replacement 23
9.1 Audience 23
9.2 Instructions 23
9.3 Steps 23
9.3.1 G1 1.6 BWR 23
9.3.2 All labels except G1 1.6 BWR 23
10 Reliability Test Items 24
11 Certifications 25
11.1 Types 25
11.2 Overview 25
11.3 Applied Standards 25
11.4 Declaration 26
11.4.1 FCC 26
11.4.2 IC 26
11.4.3 IFT 26
11.4.4 NCC 警語: 26
12 Packing 27
12.1 G1 1.6 BWR 27
12.2 G1 2.2 BWR 27
12.3 G1 2.6 BWR 27
12.4 G1 2.7 BW/ BWR 28
12.5 G1 4.2 BW/BWR 28
12.6 G1 4.4 BW / BWR 28
12.7 G1 4.5 BWR 29
12.8 G1 6.0 BWR and G1 7.4 BW / BWR 29
13 Intended Use 30
14 Improper Use 31
G1 Labels Product Specification
Page 4 of 31
1 Label Family Introduction
The SES-imagotag electronic shelf label family offers high-quality display options, operating with a
replaceable battery, thus working without any external power supply.
The performance of the labels (updates per hour) depends on the mode of the access point. In the
USA and Canada the AP-2010 usa/canada bundle incl. antenna with limited data efficiency is
required (based on the FCC/ICregulation).
1.1 General Key Features
l2.4 GHz proprietary radio protocol
lRadio coverage: up to 25 meters
lBi-directional communication
l11 available communication channels
lUltra-low power consumption
lCustomer-replaceable battery
lFull graphical e-Ink display with paper-like readability
lDifferent configurations available (theft protection, display protection, LED flash)
lLabel versions for deep-freezing environments
lSuper wide viewing angle (nearly 180 degrees)
lFlexible mounting options available
lMay be used in landscape and portrait mode
lFast response time (less than 15/30 seconds, depends on wakeup time)
l128-bit AES encryption with secure key exchange
lMultiple pages support with preloading and fast page switching
lIntegrated Passive NFC tag
G1 Labels Product Specification
Page 5 of 31
1.2 The G1 label family
The SES-imagotag G1 BWR label family is capable of changing all pixels to black, white or red. The
current line-up has display sizes from 1.6 inch to 12.2 inch.
Caption Display Res-
olution
Density
(dpi)
Display
Colors
Useable
Pages
Active Dis-
play Area
(mm)
Updates/hour/AP
(standard /
FCC&IC mode)
Battery life-
time: 5
years with
N updates
per day
G1 1.6 BWR NFC 152 x 152 140 b/w/r4* 27.5 x 27.5 7500/4600 1
G1 2.2 BWR NFC 212 x 104 111 b/w/r4* 48.6 x 23.8 8500/5000 2
G1 2.6 BWR NFC 296 x 152 125 b/w/r4* 60.1 x 30.7 4500/2600 2
G1 2.7 BW NFC 264 x 176 117 b/w 8* 57.3 x 38.2 5000/2700 4
G1 2.7 BWR NFC 264 x 176 117 b/w/r4* 57.3 x 38.2 4500 2
G1 4.2 BW NFC 400 x 300 120 b/w 4* 84.8 x 63.6 3000/1600 4
G1 4.2 BWR NFC 400 x 300 120 b/w/r4* 84.8 x 63.6 2000/1300 2
G1 4.5 BWR NFC 480 x 176 117 b/w/r4* 104.2 x 38.2 2500/1500 2
G1 6.0 BWR NFC 600 x 448 129 b/w/r4* 114.9 x 85.8 900/500 2
G1 7.4 BW NFC 480 x 800 126 b/w 12* 97 x 161.6 1000/500 8
G1 7.4 BWR NFC 480 x 800 126 b/w/r4* 97 x 161.6 600/300 2
G1 12.2 BWR NFC 768 x 960 103 b/w/r6* 190.08 x
237.60 300/150 2
*One useable page is shared with the registration code page. This page is initially shown when the
label is shipped. After registration this page can be used as a custom page. To restore the original
content a service utility is required. To prevent accidentials overwrite this page is protected. To unlock
this page contact the SES-imagotag support team.
The content of all pages except page number 0 won't remain after a firmware update.
G1 Labels Product Specification
Page 6 of 31
2 Barcode Information
The labels come with a label ID (which is a unique identifier – just like a MAC address) and this label
ID as a barcode on the display (and printed on the back of the label).
The label ID consists of 8 hexadecimal digits (0-9 / A-F). The first 2 digits identify the different label
types, shown on the following table:
Caption Label-ID Product Code Model Code
G1 1.6 BWR NFC F1xxxxxx R16N01xxx EDG1-0160-A
G1 2.2 BWR NFC A5xxxxxx R22N01xxx
R22N02xxx EDG1-0220-A
G1 2.6 BWR NFC B6xxxxxx R26N01xxx
R26N02xxx EDG1-0260-A
G1 2.7 BW NFC B3xxxxxx G1Bxxxxxx
B27N01xxx EDG1-0270-B
G1 2.7 BWR NFC B5xxxxxx R27N01xxx EDG1-0270-B
G1 4.2 BW NFC C7xxxxxx B42N01xxx EDG1-0420-A
G1 4.2 BWR NFC C5xxxxxx R42N01xxx EDG1-0420-A
G1 4.4 BW NFC C1xxxxxx G1Cxxxxxx
B44N03xxx EDG1-0440-A
G1 4.4 BWR NFC C4xxxxxx R44N01xxx EDG1-0440-A
G1 4.5 BWR NFC C6xxxxxx R45N01xxx EDG1-0450-A
G1 6.0 BWR NFC D4xxxxxx R60N01xxx EDG1-0600-A
G1 7.4 BW NFC D1xxxxxx
G1Dxxxxxx
B74N05xxx
B74N03xxx
EDG1-0740-A
G1 7.4 BWR NFC D3xxxxxx R74N01xxx EDG1-0740-A
2.1 Serial Number
Depends on Producer (A)
G1 Labels Product Specification
Page 7 of 31
2.1.1 Producer is 01
Part Description Format Example Comment Source
A Producer 2 alpha 01
Specified by SES-
imagotag once for
each fab
BProduct
family 3 alpha G1B
Specified by SES-
imagotag in the
product specification
document
CProduct
version 3 alpha 301
DProduct
revision 3 alpha 001
Incremented on every
change of product
specification
- Separator “-“ - Fixed
E Internal 1 alpha B Internal
Calculated during
production
F Year 1 dec 4 4=2014, 5=2015,...
G Week 2 dec 10 Calendar week in current
year (01-53)
H Weekday 1 dec 3
I Internal 5 dec 00060 Continuous Serial
Number (Counter)
Format: AABBBCCCDDD-EFGGHIIIII
Example: 01G1B301001-B410300060
2.1.2 Producer is not 01
Part Description Format Example Comment Source
A Producer 2
alpha 02
Specified by SES-
imagotag once for
each fab
BProduct
family
3
alpha R22
Specified by SES-
imagotag in the
product specification
document
CProduct
version
3
alpha N01 N = with NFC
DProduct
revision
3
alpha 001
Incremented on every
change of product
specification
- Separator “-“ - Fixed
E Year 1
alpha EE=2014, A=2010,
B=2011,.. Calculated during
production
F Week 2 dec 13
G Internal 6 dec 000065 Continuous Serial
Number (Counter)
Format: AABBBCCCDDD-EFFGGGGGG
Example: 02G1B302001-E13000065
Note: Calendar week date is calculated according to ISO 8601 (see http://en.wikipedia.org/wiki/ISO_
week_date)
G1 Labels Product Specification
Page 8 of 31
3 Mechanical Characteristics
3.1 Technical characteristics

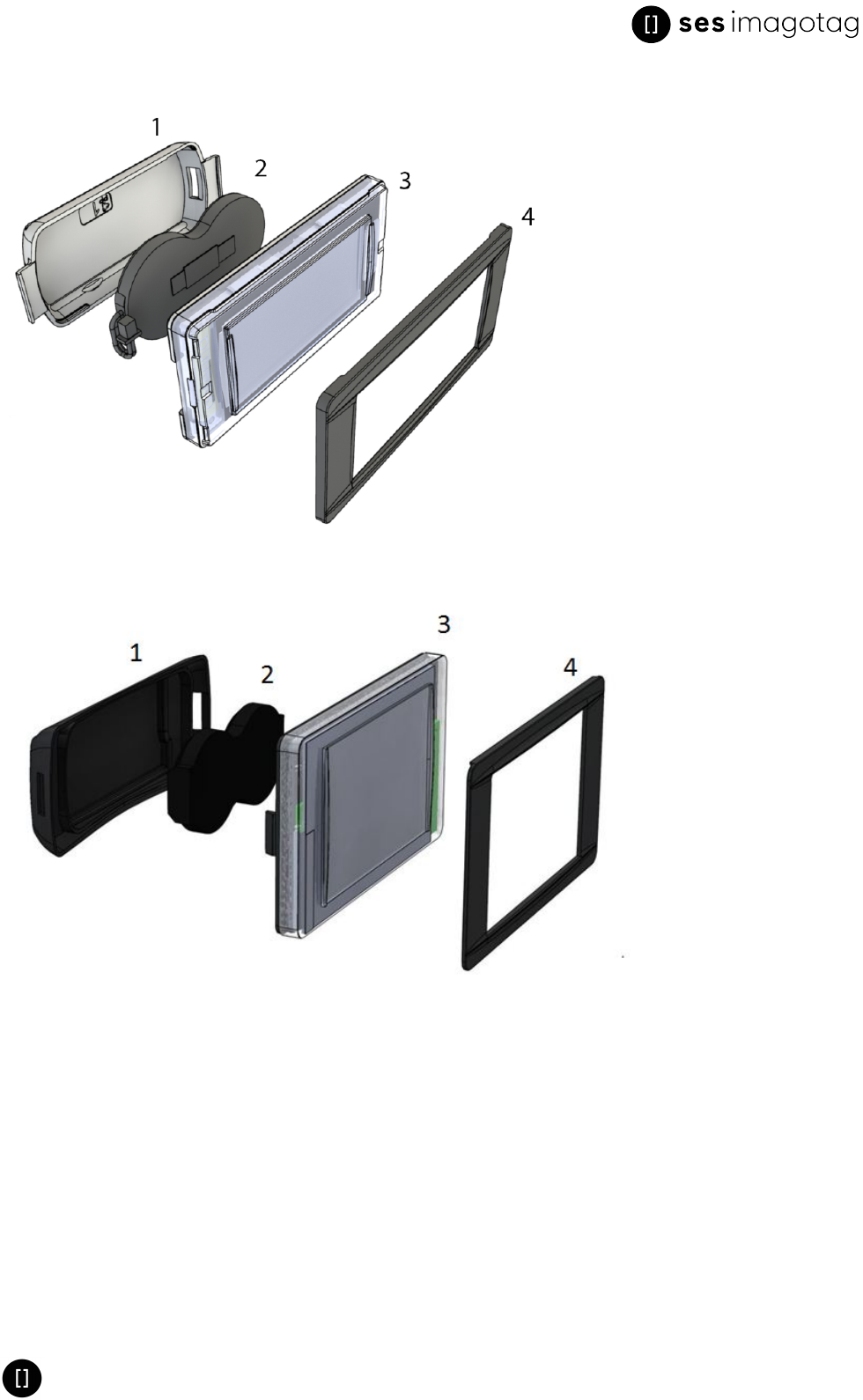

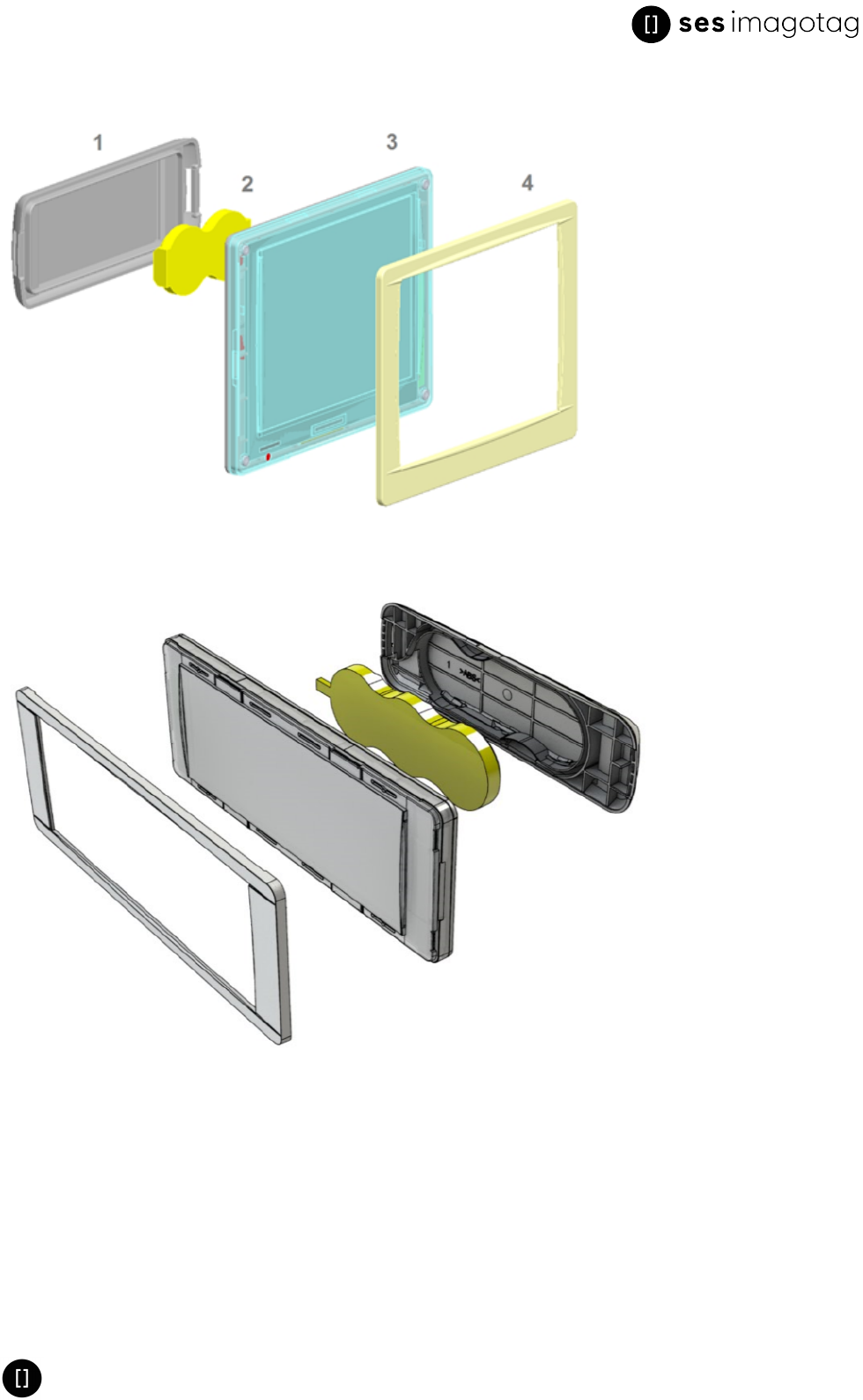

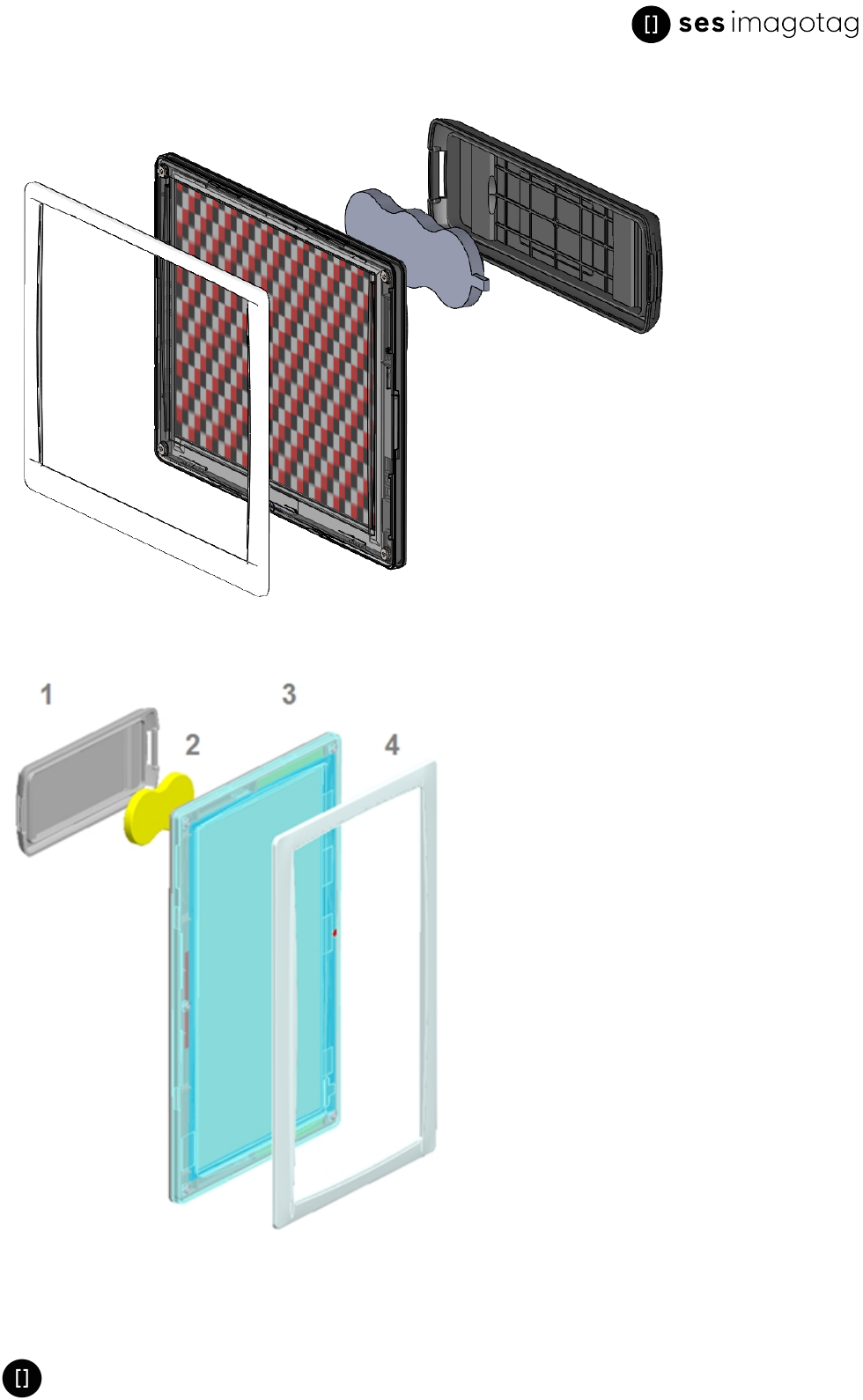

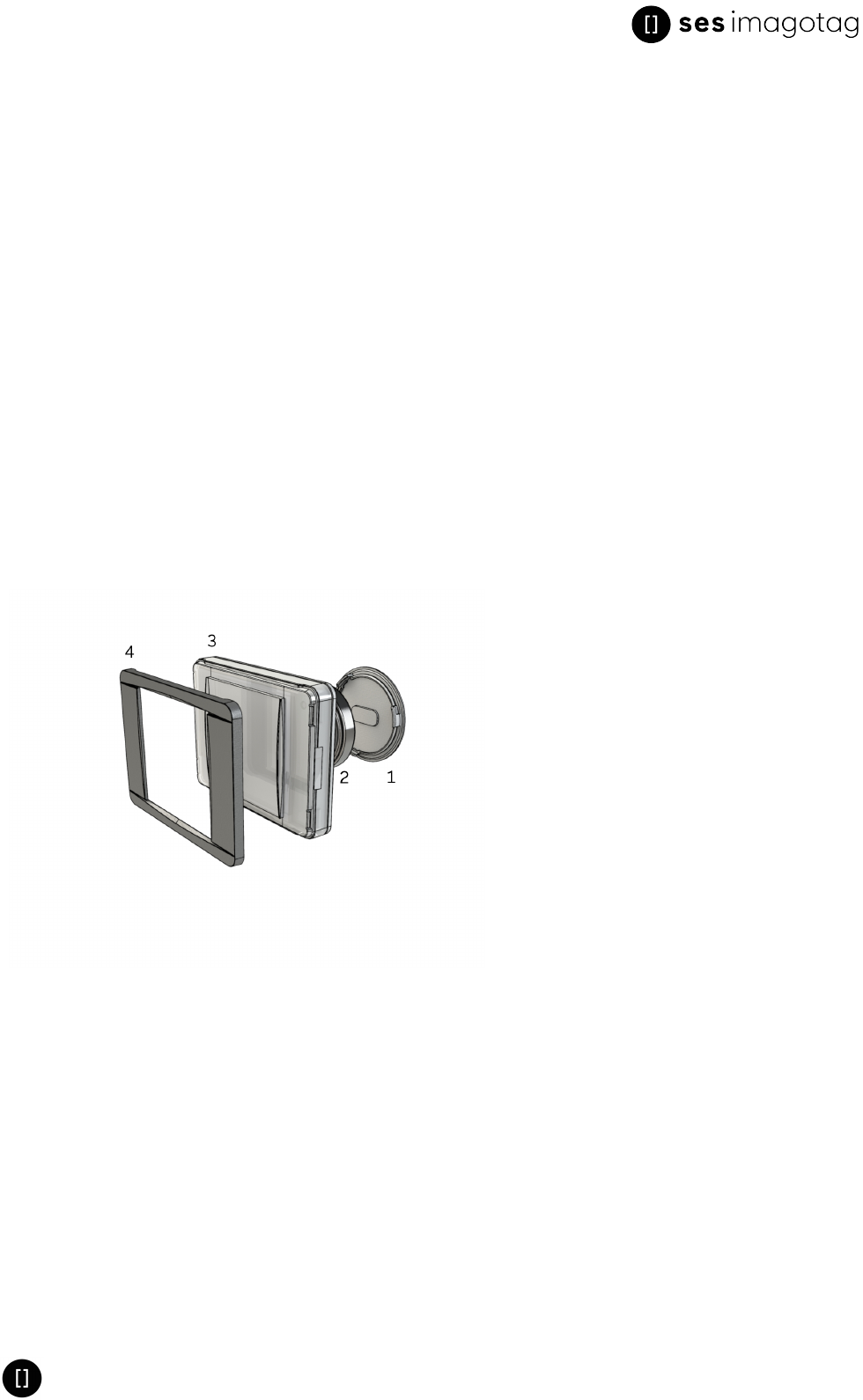

The G1 labels are made of several external parts:
1. Battery Cover including
a. Label ID
b. Label ID barcode
c. S/N
2. Battery pack /Coin cell
3. Main Unit including
a. Back Cover
b. PCB
c. Display
d. Transparent Front Cover
4. Front Cover Frame
a. Customizable in design and color
b. Replaceable
3.1.1 G1 1.6 BWR
G1 Labels Product Specification
Page 9 of 31
3.1.2 G1 2.2 BWR
3.1.3 G1 2.6 BWR and G1 2.7 BW / BWR
G1 Labels Product Specification
Page 10 of 31
3.1.4 G1 4.2 BW / BWR and G1 4.4 BW / BWR
3.1.5 G1 4.5 BWR
G1 Labels Product Specification
Page 11 of 31
3.1.6 G1 6.0 BWR
3.1.7 G1 7.4 BW/BWR
G1 Labels Product Specification
Page 12 of 31
3.1.8 S-tag 6 HF
3.2 Mechanical Dimensions

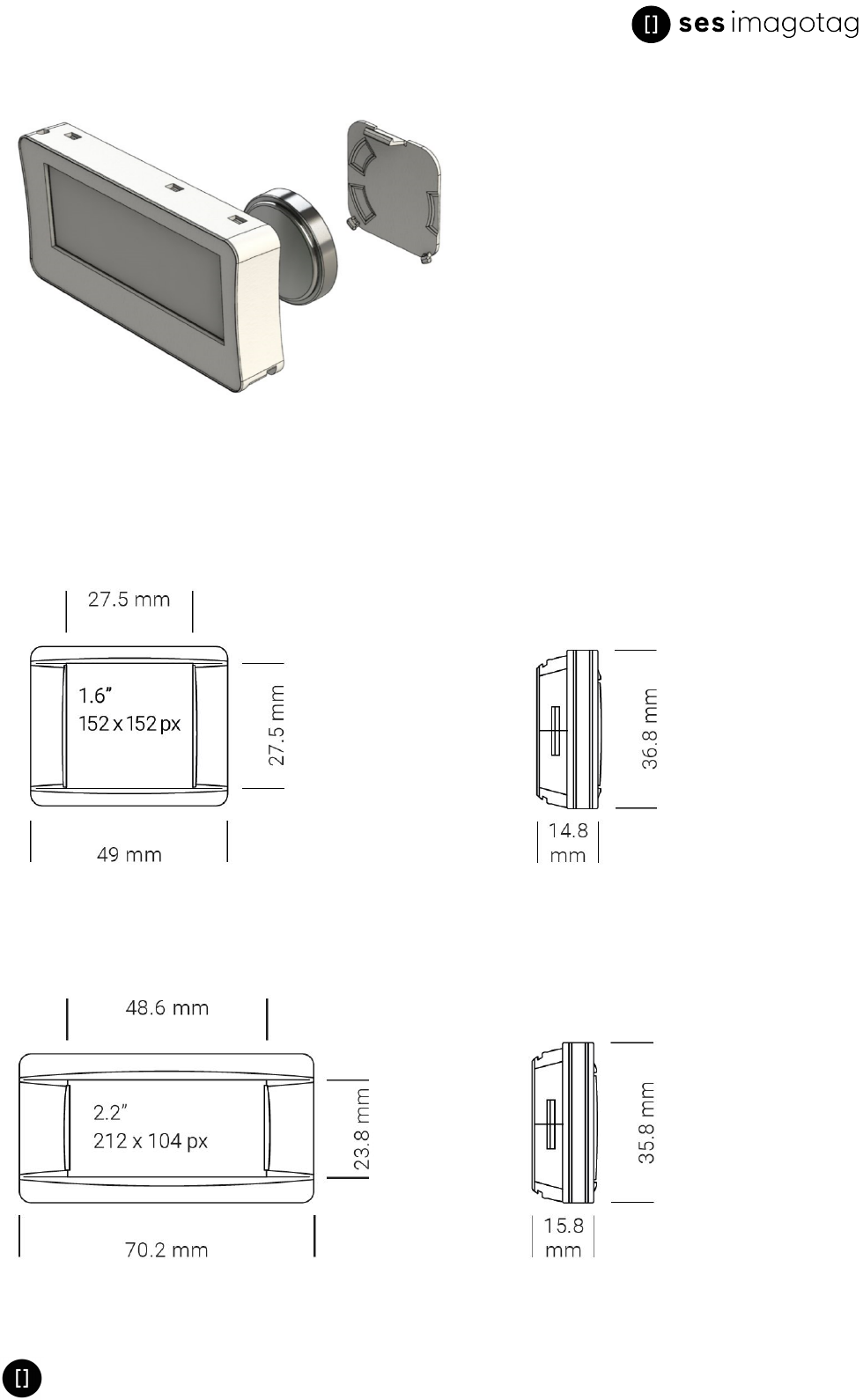

3.2.1 G1 1.6 BWR
Outline (mm): 49 x 36.8 x 14.8
Weight: 24 g
3.2.2 G1 2.2 BWR
Outline (mm): 70.2 x 35.8 x 15.85
Weight: 38 g
G1 Labels Product Specification
Page 13 of 31

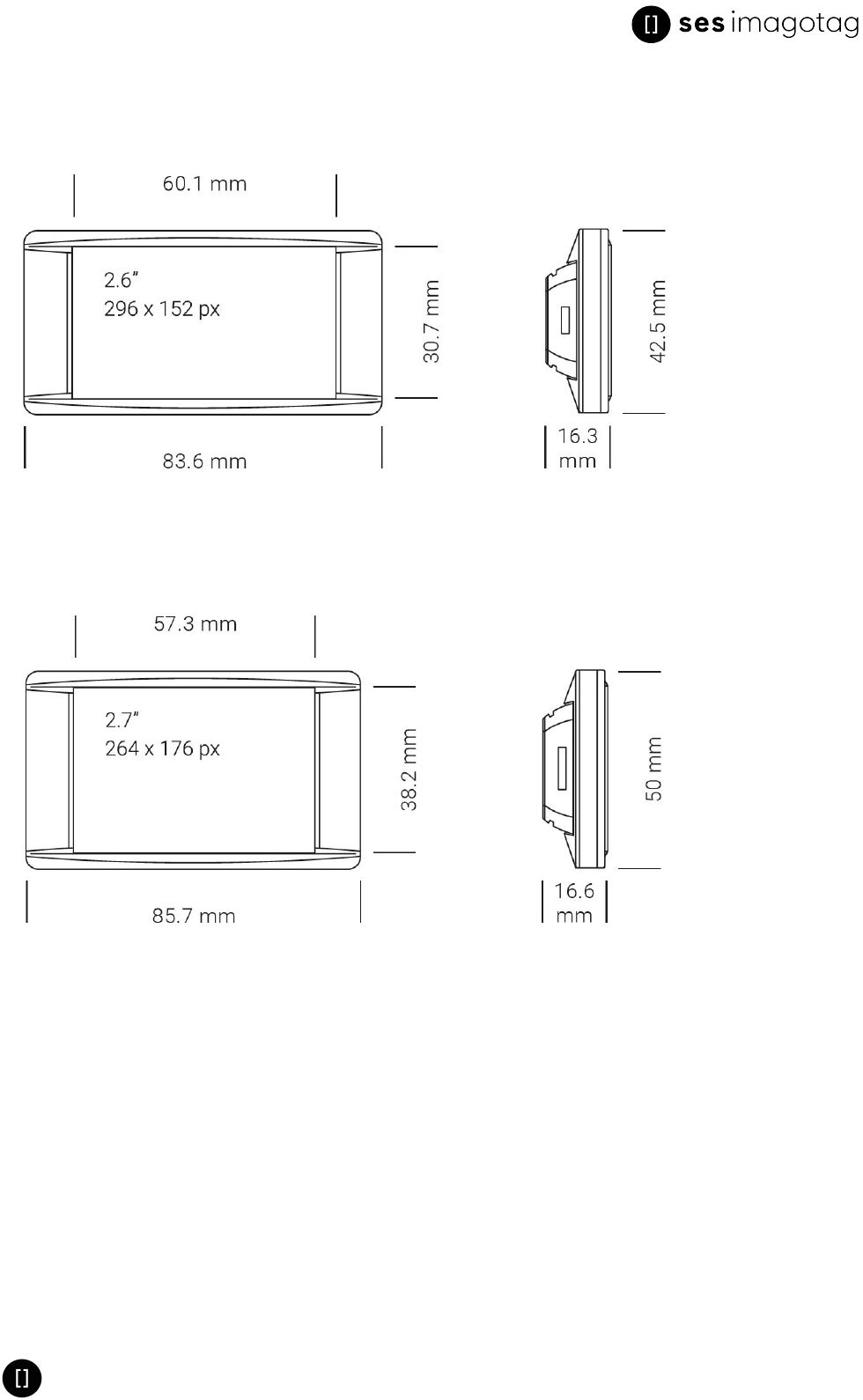

3.2.3 G1 2.6 BWR
Outline (mm): 83.6 x 42.5 x 16.3
Weight: 45 g
3.2.4 G1 2.7 BW/ BWR
Outline (mm): 85.7 x 50 x 16.6
Weight: 50 g

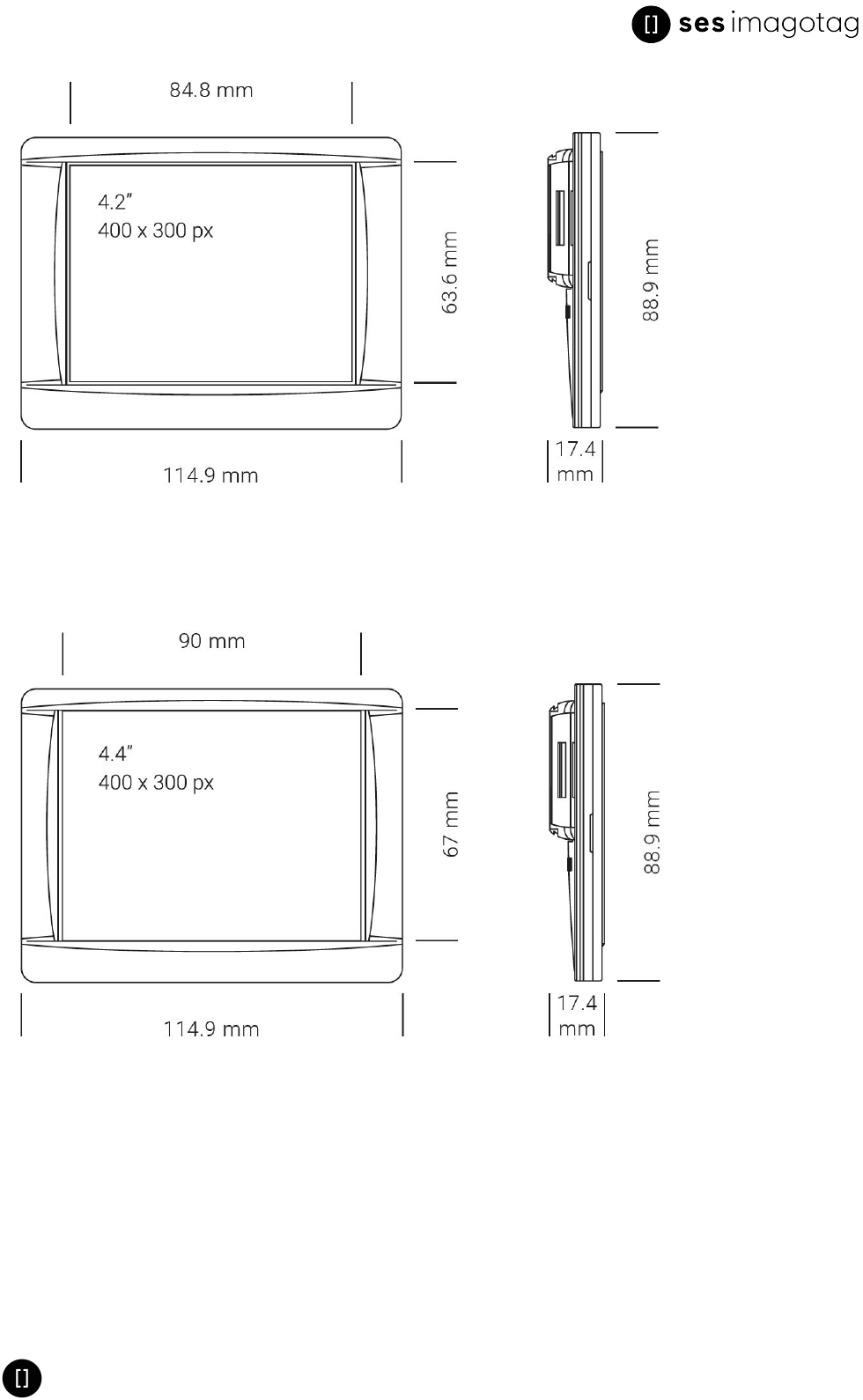

3.2.5 G1 4.2 BW /BWR
Outline (mm): 114.9 x 88.9 x 17.4
Weight: 104 g
G1 Labels Product Specification
Page 14 of 31
3.2.6 G1 4.4 BW/ BWR
Outline (mm): 114.9 x 88.9 x 17.4
Weight: 104 g

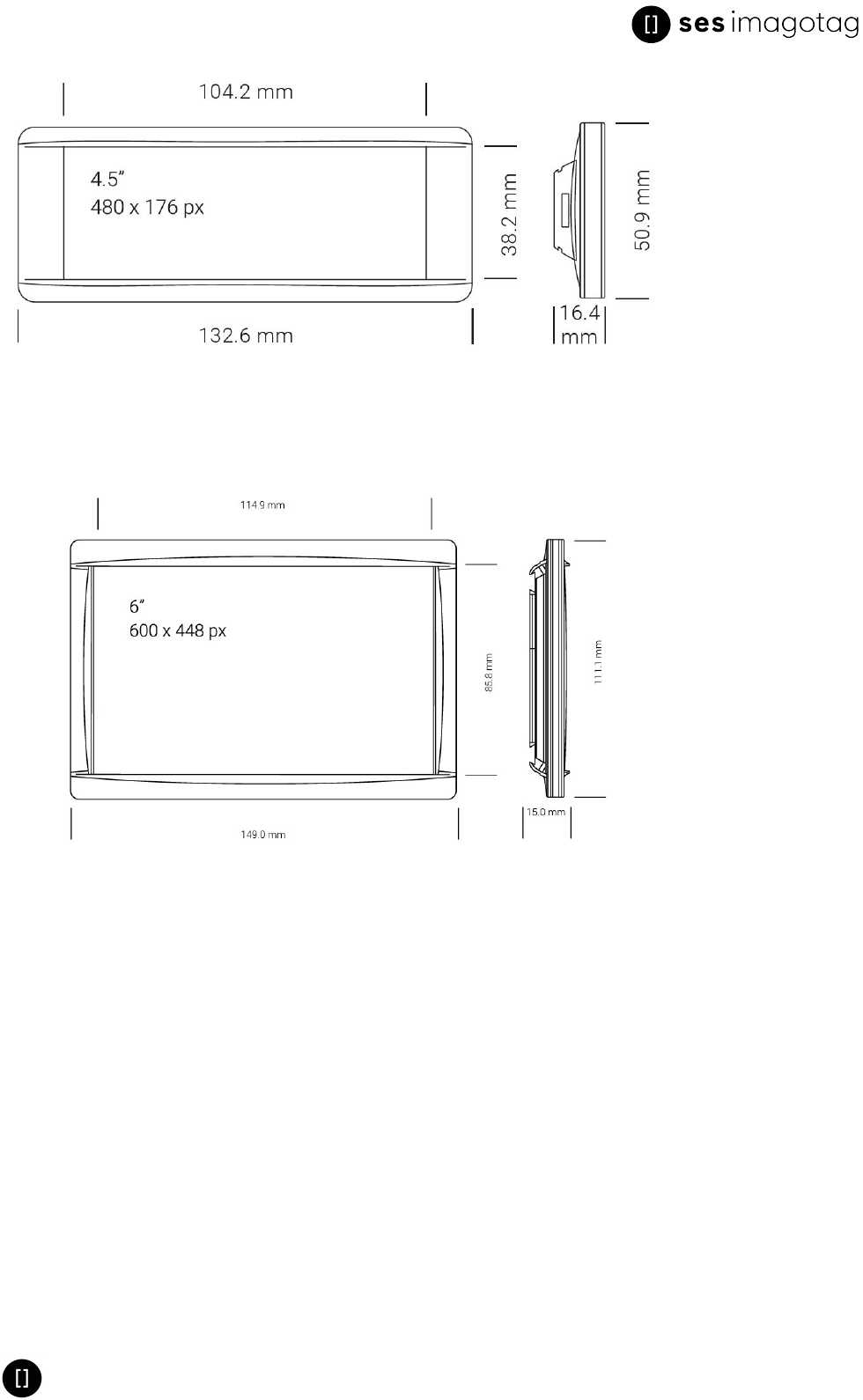

3.2.7 G1 4.5 BWR
Outline(mm): 132.6 x 50.9 x 16.4
Weight: 78g
G1 Labels Product Specification
Page 15 of 31
3.2.8 G1 6.0 BWR
Outline(mm): 149.0 x 111.1 x 15.0
Weight: 139g
3.2.9 G1 7.4 BW/ BWR
Outline (mm): 186.9 x 125.9 x 19.3
Weight: 239 g
G1 Labels Product Specification
Page 16 of 31
G1 Labels Product Specification
Page 17 of 31
4 Electrical & RF Characteristics
4.1 Power and Current Consumption
The power supply are 1, 2 or 3 cell-button batteries. The following table will give you a short overview
about all kinds of labels and their batteries.
Caption Battery
Type
Operating
Voltage
Nominal
capacity
Wakeup
(Seconds)
Battery life-
time 5 years
with N
updates per
day
G1 1.6 BWR NFC 1x CR2450 3 V 550 mAh 30 1
G1 2.2 BWR NFC 2x CR2450 3 V 1100 mAh 15 2
G1 2.6 BWR NFC 2x CR2450 3 V 1100 mAh 15 2
G1 2.7 BW NFC 2x CR2450 3 V 1100 mAh 15 4
G1 2.7 BWR NFC 2x CR2450 3 V 1100 mAh 15 2
G1 4.2 BW NFC 2x CR2450 3 V 1100 mAh 15 4
G1 4.2 BWR NFC 3x CR2450 3 V 1650 mAh 15 2
G1 4.4 BW NFC 2x CR2450 3 V 1100 mAh 15 4
G1 4.4 BWR NFC 3x CR2477 3 V 3000 mAh 15 2
G1 4.5 BWR NFC 3x CR2450 3 V 1650 mAh 15 2
G1 6.0 BWR NFC 3x CR2450 3 V 1650 mAh 15 2
G1 7.4 BW NFC 3x CR2477 3 V 3000 mAh 15 8
G1 7.4 BWR NFC 3x CR2477 3 V 3000 mAh 15 2
Note: battery lifetime can vary depending on the operating conditions of the labels (temperature,
radio usage etc…) see Battery lifetime on page 22
4.2 Transmission power
Each label has got a transmission power of ≤ 10 dBm (according to the FCC certification).
G1 Labels Product Specification
Page 18 of 31
5 NFC
All labels can be ordered with the NFC option. Labels with integrated NFC tag can be identified by the
nameplate on the back of the label.

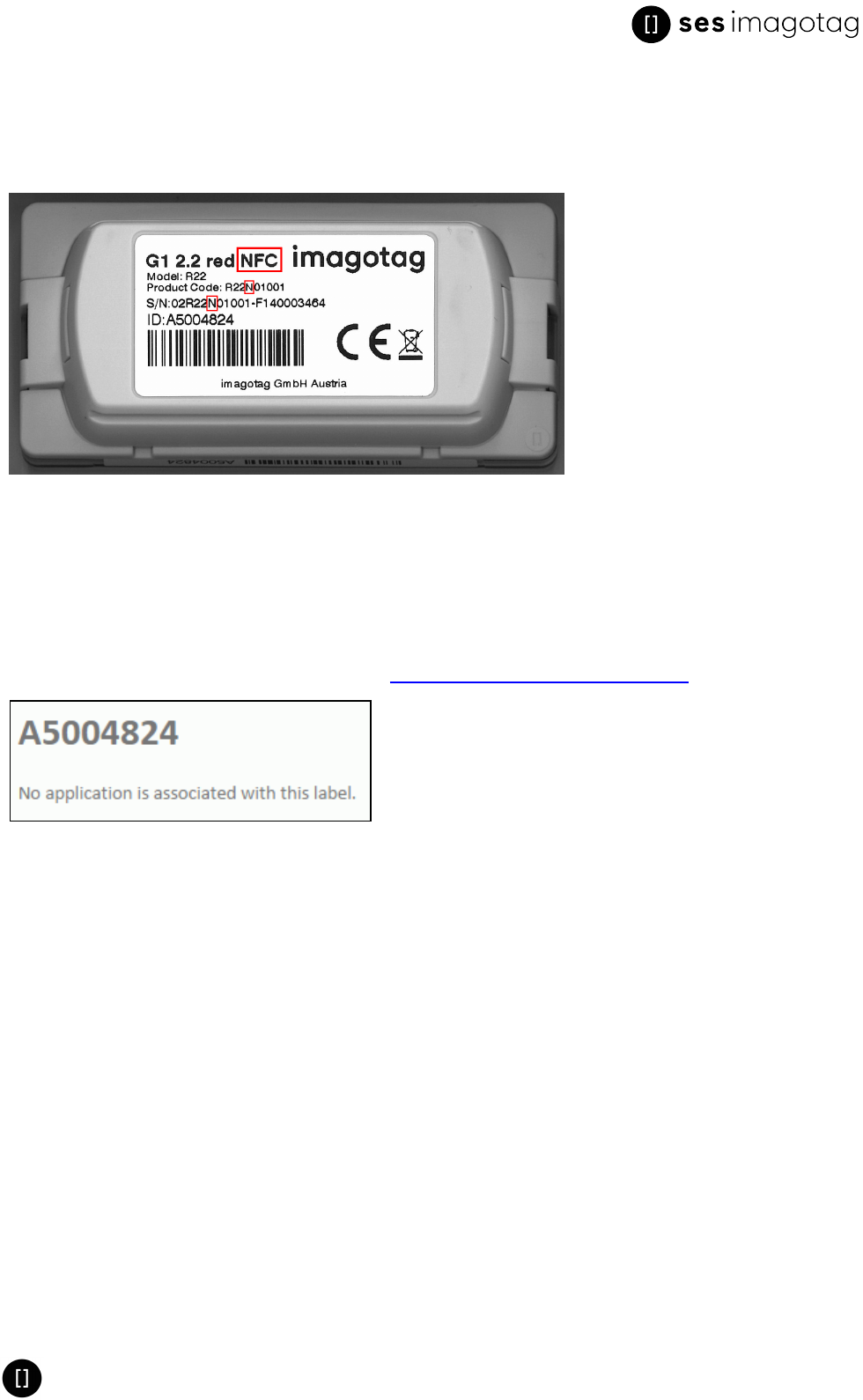

FIGURE 1-1: Label with integrated NFCchip
5.1 Functionality
If you put your NFCreading device on a label with integrated NFC chip, you will be automatically
redirected to the following URL:
https://nfc.imagotag.com/<Label-ID> [e.g. https://nfc.imagotag.com/A5004824]
FIGURE 1-2: NFCredirection to nfc.imagotag.com
This URL/information can be used as follows:
You can useif for your own developed application or redirection/forwarding to a specific URI (for
demo purposes only).
5.1.1 Application
A mobile application could extract the label IDinformation from the NFC tag. Based on the label ID,
the application could get further details about the matched article and e.g. show this details via push.
The required application needs to be developed by the customer.
Example - Digital camera accessories
A customer starts the mobile application and put his/her smartphone next to the label with integrated
NFC chip which belongs to a digital camera. The developed application retrieves the product
information data from the ESL system and pushes matching accessories for this digital camera model
to his/her smartphone.
Example - Recipe information
G1 Labels Product Specification
Page 19 of 31
A customer starts the mobile application and put his/her smartphone next to the label with integrated
NFC chip which belongs topasta. The developed application retrieves the product information data
from the ESL system and pushes corresponding recipes to his/her smartphone.
5.1.2 Redirection/Forwarding (for demo purposes only)
If you don't want to develop your own application to handel NFCreadings there's the possibility to
request a redirection for your specific NFClabel range to a URIof your choice.
Currently this functionality is just for demo purposes. In future we will provide an service for it.
Example - Customer's website
You have bought a number of NFC tags and want to redirect to its website when reading the tags.
Write an email with your forwarding request (relevant labels, customer, URI)to support.at@ses-
imagotag.com. The support team will manage the request and gives you feedback as soon as the
forwarding works.
E.g. Customer XY, G1 2.7 BWR NFClabels with IDs: B501ABC1, B501B324, forward to
http://www.myownwebsite.com
5.2 Ordering Information
Please contact our sales team for ordering information and pricing at sales@ses-imagotag.com.
G1 Labels Product Specification
Page 20 of 31
6 Environmental
6.1 General
Temperature
lblack/white labels
l0° C to + 45° C
lblack/white/red labels
l10° C to 40° C
loptimal operating temperature at 21 ° C.
Humidity: 10% to 80% (non-condensing)
6.2 Cleaning Instructions
Clean the electronic label with the help of a damp cloth.
Note: Do not use liquid or aerosol cleaners and keep it away from water.
6.3 Humidity Conditions
Notes:
lHigh humidity combined with low temperature are not recommended
lLow temperature will reduce the battery lifetime
G1 Labels Product Specification
Page 21 of 31
7 Storage and warehousing
We strongly recommend to observe the following points in order to ensure the best operation,
functioning and battery lifetime:
lStorage temperature
l-10° C to 40° C
lOptimal operating and storage temperature at 21 ° C
lHumidity
l10% to 85% (non-condensing)
lIt isn't allowed to operate an SES-imagotag AP-2010 or LANCOM access point in the ware-
house or in radio coverage area.
lPermanent connection attempts the label to the access point leading to high battery con-
sumption
lFIFO (First In First Out)
lDiffer on base of the package IDs
lThe maximum storage time of labels should not exceed 0.5-1 year
If you not comply with these limits mentioned above, the specified battery runtime can vary.
G1 Labels Product Specification
Page 22 of 31
8 Battery lifetime
For the definition of N update/day following requirements apply to reach the specified lifetime:
lThe radio sync quality between labels and access points has to be “PERFECT” or “GOOD”.
lTo comply with these specifications, a Site Survey according to SES-imagotag GmbH
guidelines is necessary.
lThe declared number of updates per day is an average value applied on the specified lifetime.
lIt’s not allowed to exceed this number more than 20 updates per day.
lThe most of the time the operation temperature of the labels has to be 21° C.
lTo reach the specified lifetime, the requirements regarding see Storage and warehousing on
page 21 also needs to be observed.
lPerforming less than specified updates doesn't extend the battery lifetime significantly.
G1 Labels Product Specification
Page 23 of 31
9 Battery Replacement
9.1 Audience
Only persons with the following knowledge are allowed to replace the battery:
lBattery
lElectronic assemblies like circuit board
lCompliance of the instructions
9.2 Instructions
lRisk of explosion through incorrect battery replacement.
lUse battery pack exclusive provided from the company SES-imagotag GmbH.
lKeep attention that your hands are dry before you start with the replacement.
lDon’t use sharps to open the label.
lDon’t use your fingernails to open the label.
lDon’t touch the circuit board of the open label.
9.3 Steps
9.3.1 G1 1.6 BWR
1. Press a coin in the coin slot on the back side of the label (hidden behind the nameplate).
2. Turn the coin with pressure contraclockwise.
3. Take away the battery cover.
4. Take out the coin cell.
5. Put in the new coin cell.
6. Put the battery cover back on the label.
7. Press a coin in the coin slot on the battery cover and turn it clockwise.
8. Check if the power status of the label switch to "GOOD" otherwise contact the SES-imagotag
support (support.at@ses-imagotag.com).
9.3.2 All labels except G1 1.6 BWR
1. G1 2.2 BWR, G1 2.6 BWR and G1 2.7 BW / BWR: Press both snap-in-mounts of the battery
cover (backside of the label) until the battery cover detaches. Afterwards take the battery cover
from the label.
G1 4.2 BW/ BWR, G1 4.4 BW/ BWR, G1 4.5 BWR, G1 6.0 BWR and G1 7.4 BW /BWR: Use
the SES-imagotag battery opener tool to open the battery cover. Afterwards take the battery
cover from the label.
2. Pull the white plug out of the socket, don’t pull on the cable.
3. Take out the battery pack.
4. Put in the new battery pack.
5. Push the white plug in the socket.
6. Put the battery cover on the label casing (the arrows have to show to each other)
7. Check if the power status of the label switch to "GOOD" otherwise contact the SES-imagotag
support (support.at@ses-imagotag.com).
We can also provide some battery replacement videos, for more information about that please
contact the SES-imagotag support (support.at@ses-imagotag.com).
G1 Labels Product Specification
Page 24 of 31
10 Reliability Test Items
lHigh Temperature Operation
lLow Temperature Operation
lHigh Temperature/Humidity
lOperation
lHigh Temperature Storage
lLow Temperature Storage
lHigh Temperature/Humidity
lStorage
lTemperature Shock (Storage)
lPackage Drop Test
lPackage Random Vibration Test
lFood Contact Test
G1 Labels Product Specification
Page 25 of 31
11 Certifications
11.1 Types
Housing, board and the display are conform with the ROHS Directive
The product meets the EU safety, health and environmental protection requirements
and has the approval of CE marking
This device complies with part 15 of the FCC Rules.
Passed all tests according to “FOOD CONTACT” requirements
11.2 Overview
Caption RoHS Food
Contact CE FCC/IC
G1 1.6 BWR NFC • • •3•4
G1 2.2 BWR NFC • • •3•4
G1 2.6 BWR NFC • • •3•4
G1 2.7 BW NFC • • •2•1
G1 2.7 BWR NFC • • •3•4
G1 4.2 BW NFC • • • •4
G1 4.2 BWR NFC • • •3•4
G1 4.4 BW NFC • • •2•1
G1 4.4 BWR NFC • • •3
G1 4.5 BWR NFC • • •3•
G1 6.0 BWR NFC • • •3•
G1 7.4 BW NFC • • •2•1
G1 7.4 BWR NFC • • •3•4
1FCC/IC certified since calendar week 9 / year 2015 (the FCClogo must be printed on the nameplate)
2R&TTE EN 300328 V1.8.1
3R&TTE EN 300328 V1.9.1
4FCC/IC certified starting calendar week 50 / year 2015 (the FCClogo must be printed on the nameplate)
11.3 Applied Standards
Information Technology Equipment
EN 60950-1/A2:2013
UL 60950-1/A2:2014
CSA CAN/CSA-C22.2 NO.60950-1-07
EMV
EN 301489-17 V2.2.1
R&TTE
EN 300328 V1.8.1 / EN 300328 V1.9.1
Human Exposure to Electromagnetic Fields
EN 62479:2010
G1 Labels Product Specification
Page 26 of 31
Radio international
FCC:47 CFR Part 15 (USA)
RSS-210 Issue 8 (Canada)
11.4 Declaration
The company SES-imagotag GmbH declares on his own responsibility that the G1 labels correspond
to the standards mentioned above.
11.4.1 FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void
the authority to operate the equipment.
11.4.2 IC
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit
pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
11.4.3 IFT
RCPSEM016-1628-A3“La operación de este equipo está sujeta a las siguientes dos condiciones: (1)
es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o
dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no
deseada.”
11.4.4 NCC 警語:
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、
加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停
用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工
業、科學及醫療用電波輻射性電機設備之干擾。
G1 Labels Product Specification
Page 27 of 31
12 Packing
12.1 G1 1.6 BWR
DIMENSIONS STACKING QUANTITY
LENGTH WIDTH HEIGHT
BOX 445 245 100 LAYER / UNIT 10 SETS /
BOX 100
PALLET 1200 800 140 BOXES /
LAYER 6SETS /
LAYER 600
UNIT 1200 800 1140 BOXES / UNIT 60 SETS /
UNIT 6000
Purchase Unit: 100 labels / box
Minimum Order Quantity: 6000
12.2 G1 2.2 BWR
DIMENSIONS STACKING QUANTITY
LENGTH WIDTH HEIGHT
BOX 445 245 100 LAYER / UNIT 10 SETS /
BOX 100
PALLET 1200 800 140 BOXES /
LAYER 6SETS /
LAYER 600
UNIT 1200 800 1140 BOXES / UNIT 60 SETS /
UNIT 6000
Purchase Unit: 100 labels / box
Minimum Order Quantity: 6000
12.3 G1 2.6 BWR
DIMENSIONS STACKING QUANTITY
LENGTH WIDTH HEIGHT
BOX 400 270 135 LAYER / UNIT 9 SETS /
BOX 80
PALLET 1200 800 140 BOXES /
LAYER 8SETS /
LAYER 640
UNIT 1200 800 1355 BOXES / UNIT 72 SETS /
UNIT 5760
Purchase Unit: 80 labels / box
Minimum Order Quantity: 5760
G1 Labels Product Specification
Page 28 of 31
12.4 G1 2.7 BW/ BWR
DIMENSIONS STACKING QUANTITY
LENGTH WIDTH HEIGHT
BOX 400 270 135 LAYER / UNIT 9 SETS /
BOX 80
PALLET 1200 800 140 BOXES /
LAYER 8SETS /
LAYER 640
UNIT 1200 800 1355 BOXES / UNIT 72 SETS /
UNIT 5760
Purchase Unit: 80 labels / box
Minimum Order Quantity: 5760
12.5 G1 4.2 BW/BWR
DIMENSIONS STACKING QUANTITY
LENGTH WIDTH HEIGHT
BOX 400 260 250 LAYER / UNIT 5 SETS /
BOX 60
PALLET 1200 800 140 BOXES /
LAYER 8SETS /
LAYER 480
UNIT 1200 800 1390 BOXES / UNIT 40 SETS /
UNIT 2400
12.6 G1 4.4 BW / BWR
DIMENSIONS STACKING QUANTITY
LENGTH WIDTH HEIGHT
BOX 400 260 250 LAYER / UNIT 5 SETS /
BOX 60
PALLET 1200 800 140 BOXES /
LAYER 8SETS /
LAYER 480
UNIT 1200 800 1390 BOXES / UNIT 40 SETS /
UNIT 2400
Purchase Unit: 60 labels / box
Minimum Order Quantity: 2400
G1 Labels Product Specification
Page 29 of 31
12.7 G1 4.5 BWR
DIMENSIONS STACKING QUANTITY
LENGTH WIDTH HEIGHT
BOX 395 300 155 LAYER / UNIT 8 SETS /
BOX 80
PALLET 1200 800 140 BOXES /
LAYER 8SETS /
LAYER 640
UNIT 1200 800 1380 BOXES / UNIT 64 SETS /
UNIT 5120
Purchase Unit: 80 labels / box
Minimum Order Quantity: 5120
12.8 G1 6.0 BWR and G1 7.4 BW / BWR
DIMENSIONS STACKING QUANTITY
LENGTH WIDTH HEIGHT
BOX 570 260 250 LAYER / UNIT 3 SETS /
BOX 40
PALLET 1200 800 140 BOXES /
LAYER 6SETS /
LAYER 240
UNIT 1200 800 890 BOXES / UNIT 18 SETS /
UNIT 720
Purchase Unit: 40 labels / box
Minimum Order Quantity: 720
G1 Labels Product Specification
Page 30 of 31
13 Intended Use
The G1 electronic shelf label family is exclusively designed to connect to AP-2010, MAP-2014T or
LN-830E of the company SES-imagotag GmbH via radio.
The device may only be used in areas where the environmental conditions be the same as described
in the chapter see Environmental on page 20.
G1 Labels Product Specification
Page 31 of 31
14 Improper Use
Any use that is not mentioned in Section Intended Use (see Intended Use on page 1), shall be
deemed to be improper. Any damage which result from improper use, the operator will assumes
liability.
The following usage is not allowed:
lNever dismantle the electronic device because except battery there is no com-
ponent which could be changed by someone who is not qualified.
lDon't drop it.
lKeep it away from water.
lStrictly avoid direct contact with groceries.
lDon’t use the electronic device with defective parts.
lDon’t use the electronic device with spare parts and accessories which are not
examined and approved by the SES-imagotag GmbH.
lUnauthorized changes or modifications to the electronic device and their com-
ponents without the consent of SES-imagotag GmbH are not allowed.
lDon't heat, recharge or bend battery.
lWe take no responsibility for stolen labels without encryption.
lKeep away batteries from children.
lDon't throw defective batteries into the dustbin. Give them to a reprocessing com-
pany.
lDon't throw electronic device into the dustbin. Give them to a reprocessing com-
pany.
lContact SES-imagotag GmbH for more details about this process.

Navigation menu
