User Manual



USERMANUAL







Thisusermanualhasbeenspeciallydesignedtoguideyouthroughthefunctionsandfeaturesofyourdevice.

• Pleasereadthismanualcarefullybeforeusingyourdevicetoensuresafeandcorrectuse.

• Thedescriptionsinthismanualarebasedonthedefaultsettingsofyourdevice.

• Pleasekeepthismanualforfuturereference.



1/24



MENU

ChapterOne(overview)

1.1Appearance 2

1.2Buttons2

1.3Openandshutdown2

1.4Openandshutdownstandbymode.3

1.5Lockandunlockthescreen.3

1.6Homepageinformationcolumn.4

1.7Textinput 4

1.8Reset.5

1.9USBConnect5

1.1Accessories..6

ChapterTwo(Internet)

2.1Browser.6

ChapterThree(Applications)

3.1Camera8

3.2Gallery9

3.3Video..10

3.4Music..11

3.5Calendar12

3.6Calculator.13

3.7Explorer13

3.8APKInstaller 14

3.9E‐mail.14

3.1Downloads16

3.11Soundrecorder 17

3.12Clock 18

ChapterFour(Systemsetting)

4.1Wirelessnetworkssetting19

4.2Soundsetting20

4.3Displaysetting 20

4.4Applicationsetting 20

4.5Date&Timesetting.20

4.6Languageandinputsetting

ChapterFive(Attentions)

5.1Attentions21



2/24



ChapterOne：Overview

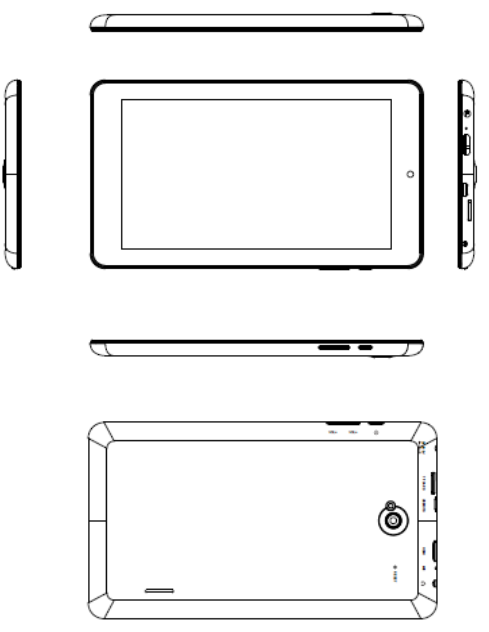

1.1Appearance





 



1.2Buttons

Powerbutton

Longpressthepowerbutton2‐3secondstoopenthescreen

Whenopenthetablet,shortpressthisbuttontoentertheoff‐screenstateandshort

pressagaintolightupthescreen





1.3Openandshutdown

Open

Longpressthepowerbutton(seetheappearance)2‐3seconds,pictureswillshow

upuntiltotheinterface

Shutdown

Longpressthepowerbutton,thenthescreenshows“POWEROFF”andClickit,then

inpoweroffdialogtoselect“OK”toshutdown



3/24



1.4Openandclosestandbymode

Openthestandbymode

Inbootmode,youcantapthepowerbutton,thesystemwillintothestandbymode

whichcansavepower

Closethestandbymode

Inthestandbymode,lighttapofthepowerbuttonofthedevice,enterthenormal

state



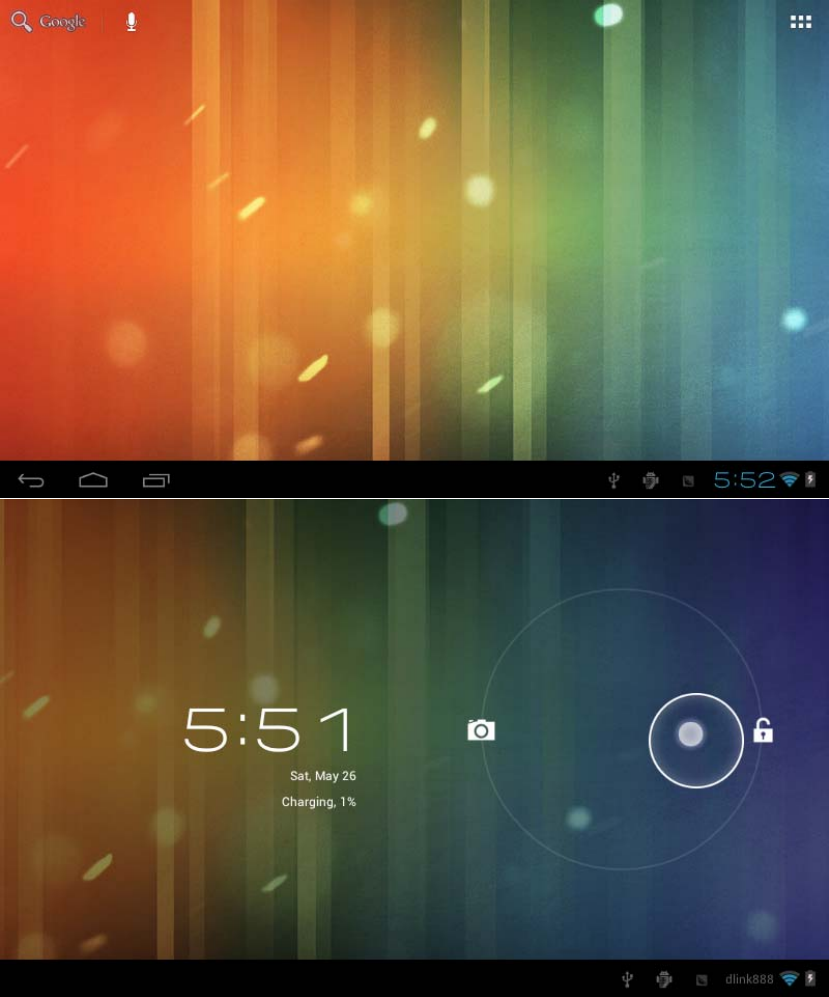

1.5Lockandunlockthescreen

Lock

Youcansetthesleeptimeinthesystemofdisplay

Thesystemwillsleepautomaticallyandlockthescreentothestandbymodeif

withoutanyinactivitywhenreachesthepresetofstandbytime.



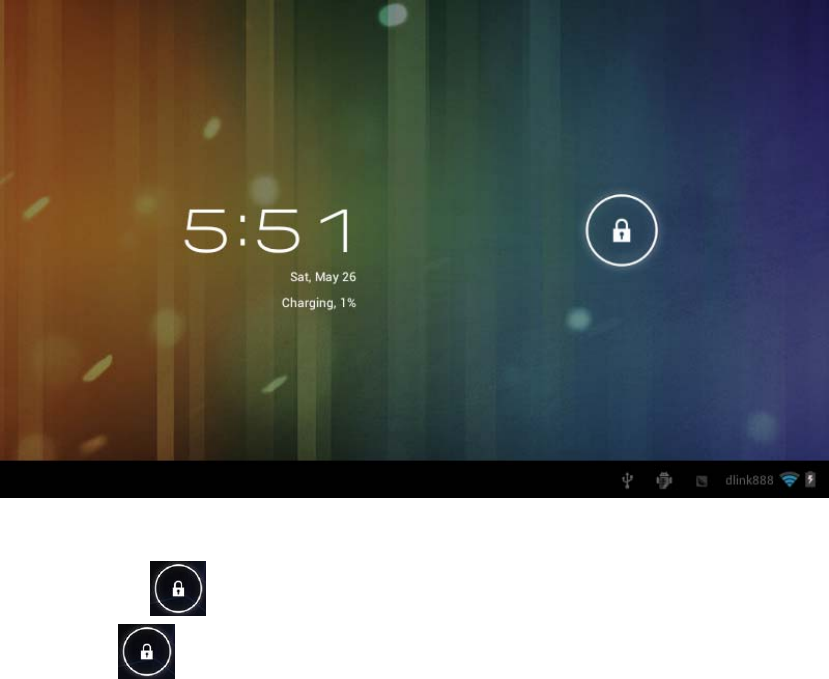

Unlock

Movethesign  tounlock,showasbelow

Dragthistounlockthescreenandentertheapplicationinterface



4/24



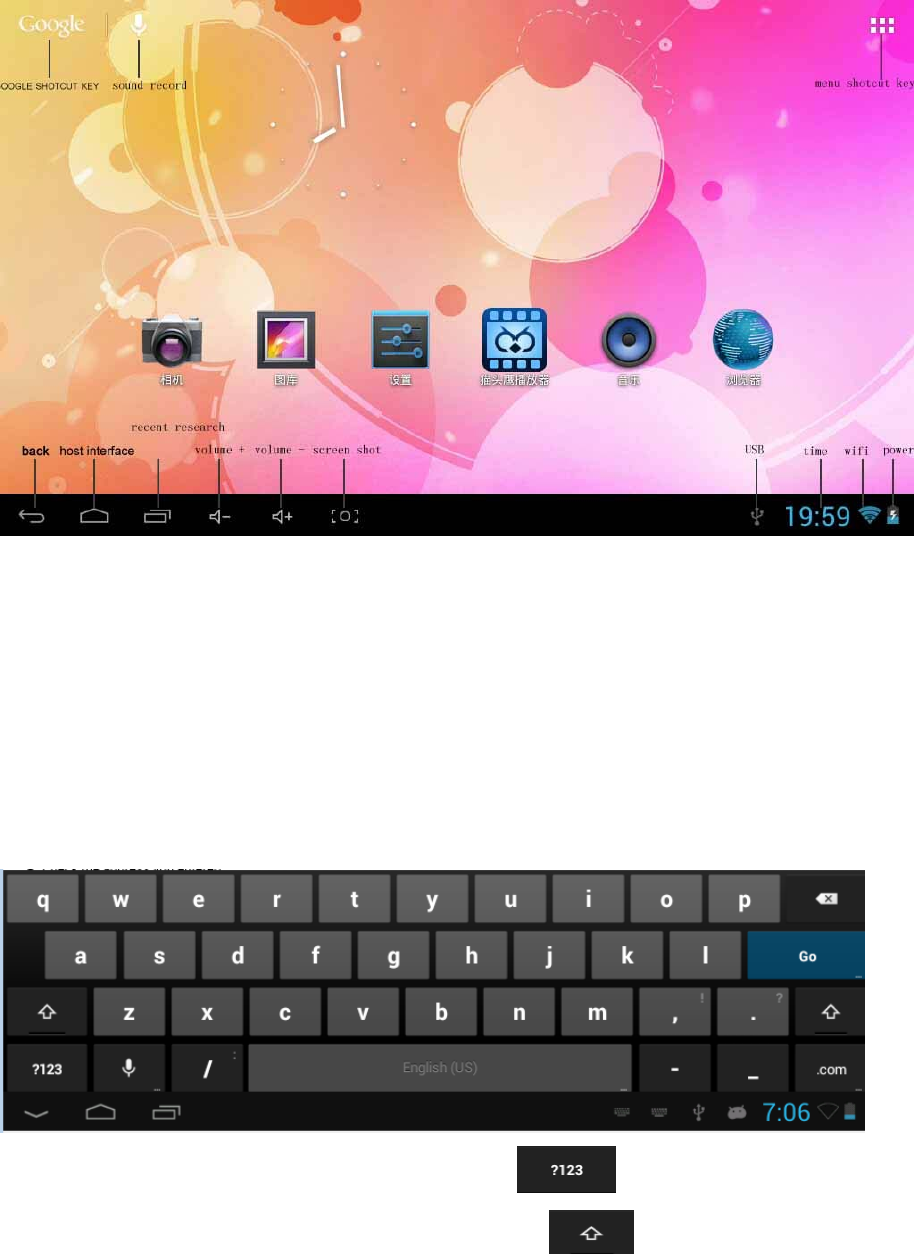

1.6Homepageinformationcolumns



5/24



1.7textinput



Whenusethetablet,youcanusethevirtualkeyboardtoentertext,number,

symbolsdirectlybytouchingscreen.AfterselectingtheAndroidinputmethod,the

defaultkeyboardshowasbelow:



Toswitchthenumbersandletters,pleasepressthis 

Toswitchthecapitalandlowercaseletter,pleasepress 



1.8Reset



6/24



Presstheresetbuttonontheleftsideofthedevicebackcover,thenyoudevicewillrestartand

reset



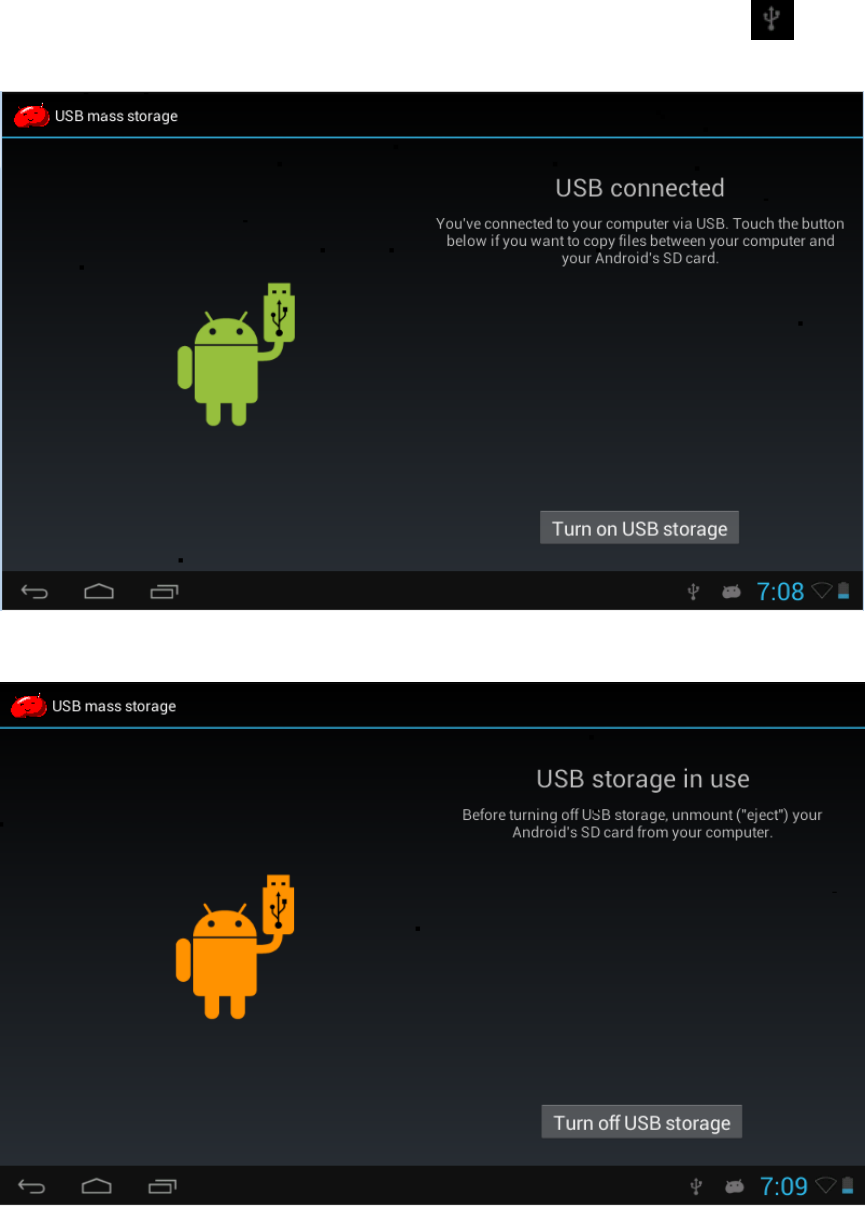

1.9USBconnect

PleaseconnectPCwithin‐boxUSBcableforyourtabletandyouwillsee  on

yourtablet,clickthissignandturnonUSBstoragetoconnectyourdevice



TurnoffUSBstoragetodisconnectyourdevicewithPC



7/24



1.9Accessories

Item What you can do with it

Power Adapter Use power adapter to provide power and

charge the battery

USB Cable Use USB cable to connect device with USB

device

User manual Guide your use



Chaptertwo:Internet

2.1Browser

Requirenetworksupportbeforeusingawebbrowser,iftherearenetwork

supportingproblems,pleasecontactyournetworkoperatorortheserviceprovider.



Tablet’swebbrowsercanconnecttotheInternetviaWIFItosatisfyyourbusiness

andindividualnetworkneeds



Pleasetouch  tosetuptheWIFIsothatcanusethebrowsernormally.Seeas

picture:



Touchhere  intheapplicationlisttoenterthebrowserpages;thedefault

homepageistheRecentlyViewedshowingrecentlyviewedpages.



8/24



Browsersupportsthefollowingfeatures



EntertheURL‐touchtheinputareatogetthesoftkeyboard,thentexttheUPL.

Bookmarksearch—clickthis  toaddintothebookmark

Touchthis  toreadthefavoritewebsitethatcollected

Touchthis  tosearchtheinternet

Touchthis  toaddnewbrowser

Touchthis  toclosethebrowser



Chapterthree:Application



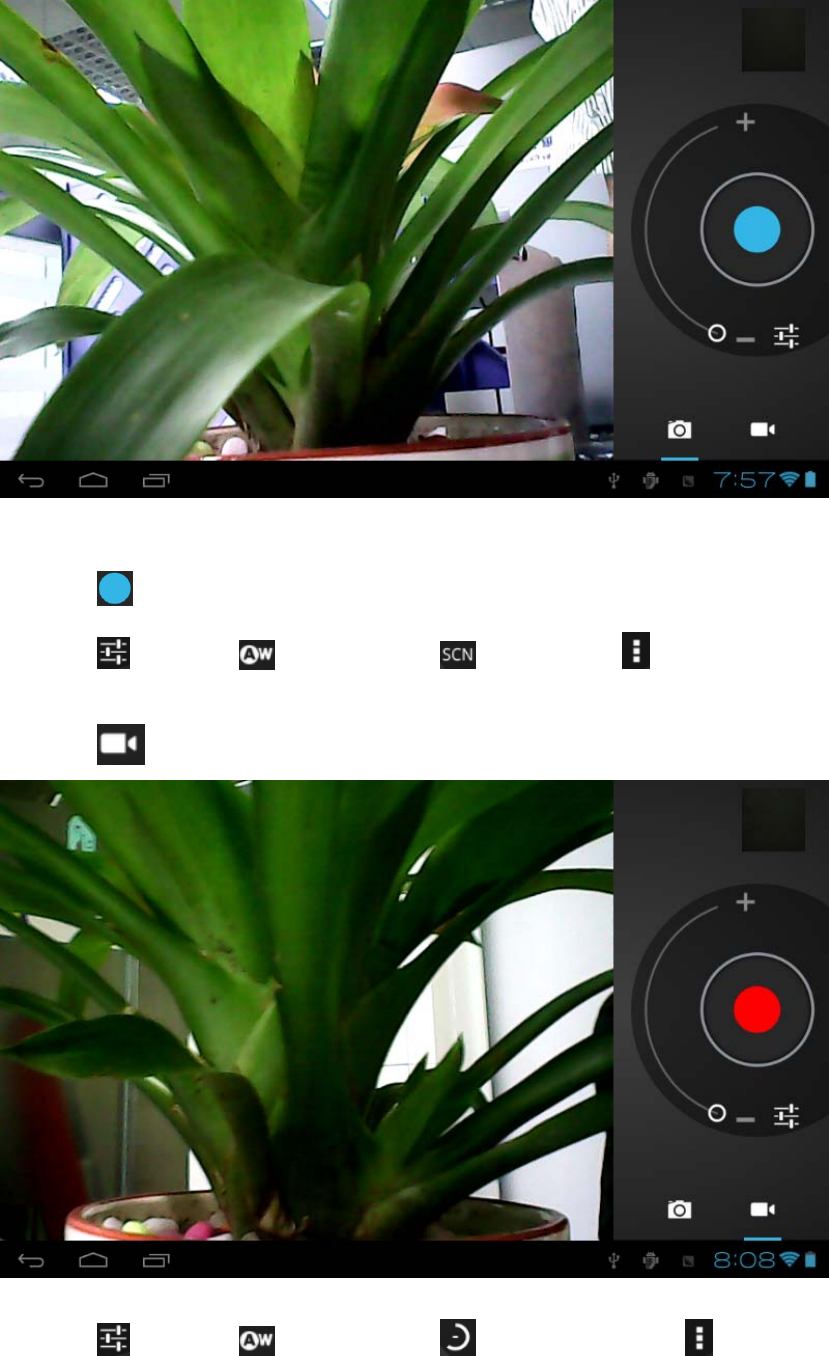

3.1Camera

Touchthis  intheapplicationlisttoenterthecamera,theviewsshowedon

thescreenandyoucandothefollowingaspicture:



9/24



Camera

Clickthis  togetSnapshot

Clickthis  tosetup  whitebalance,  scenemode,  save

Video

Clickthis  tovideoanddotherelevantoperation.



Clickthis  tosetup  whitebalance,  timelapseinterval,  save



10/24



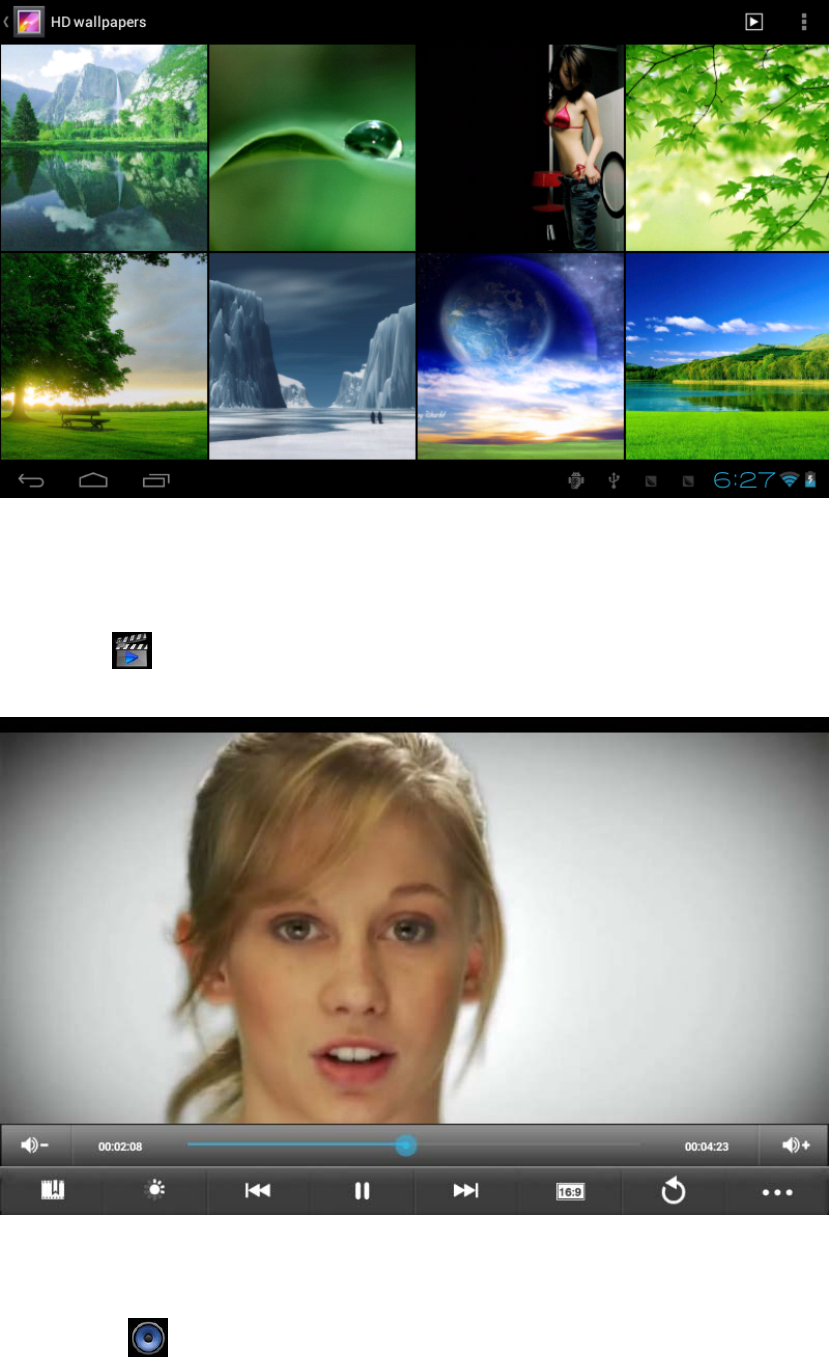

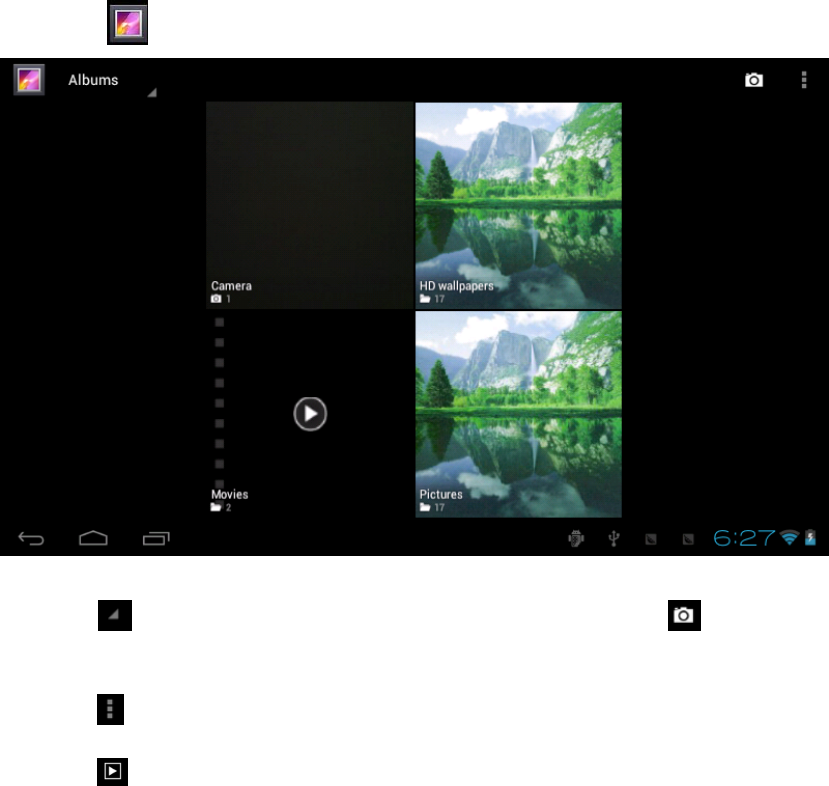

3.2Gallery



Clickhere  intheapplicationlistwhichincludingallthepictures



Clickthis  canclassifythepicturesbytimeandplace.Clickthis  toenterthe

camera.

Clickthis  tochoosethealbumtoeditordelete

Clickthistoenterslidesshowwhenenterthealbum



11/24



3.3Video



Touchthis  tothevideoplay

Therearesomecontrolareasatthebottomafteryouenterthevideo



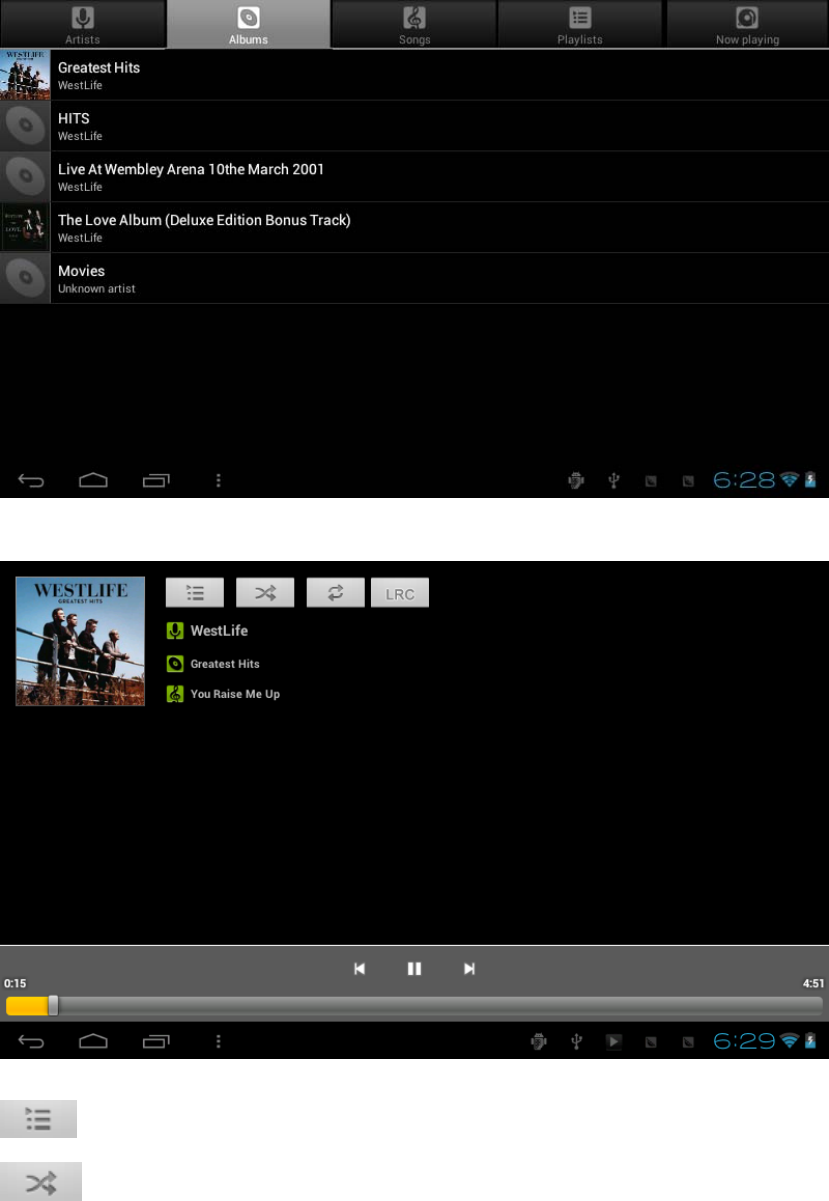

3.4Music

Touchhere  tothemusicplayer.Musiccanbeplayedbyartistsoralbum



12/24



classification.

Thispagedisplaysthesongsalphabetically.

Clickthesongsyouwanttolistenandgetintoselectedstatetoplay.

Clickonthenowplayingwillplayingbeingplayedalbumpage;therewillbelyrics

showsunderthepageright



Play

Clickonesongtoplay



list

randomplay



13/24



repeat

lyrics



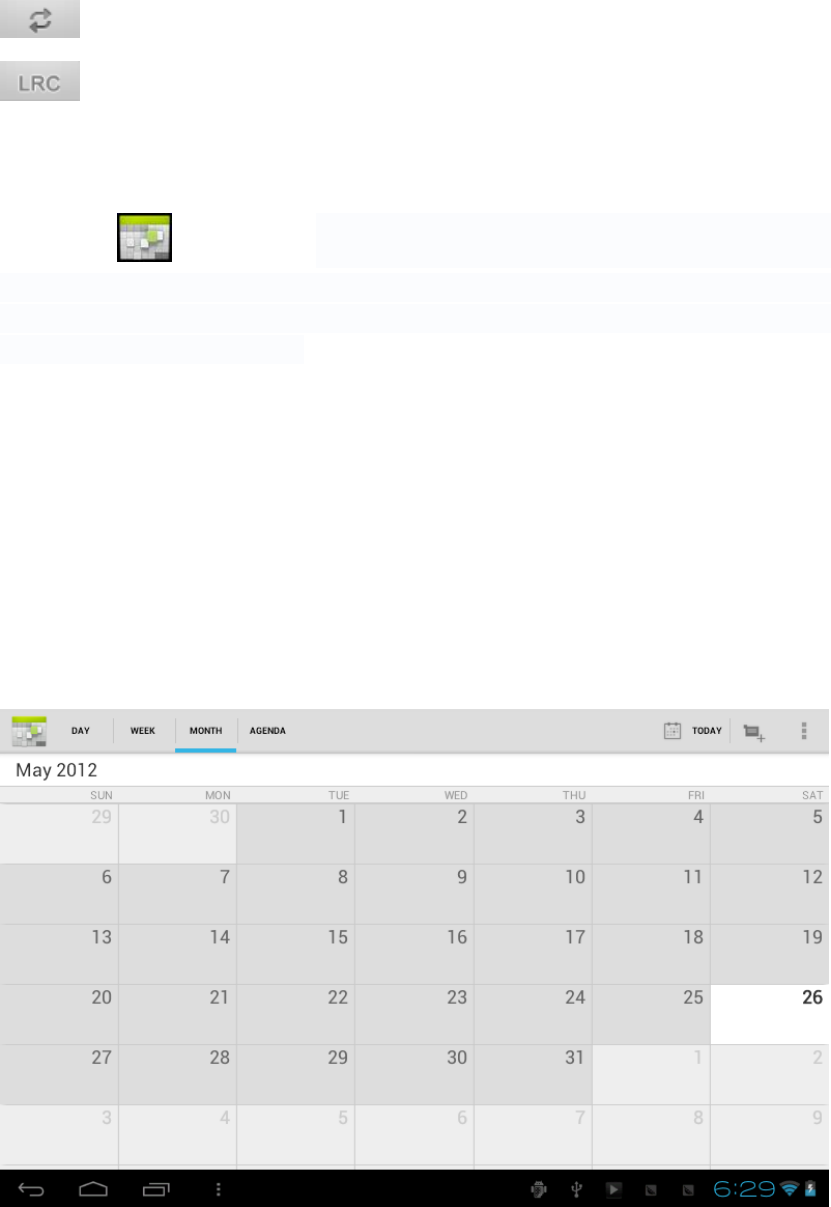

3.5Calendar

Touchthis  tocalendar,forthefirsttimeintothecalendarinterfacewill

remindtoaddtheGoogleaccount,whichfacilitatesmorecalendaroperation,ifdo

notneedtoset,clickonthenotnow,otherwisetosetupGoogleaccountsettings,

setintothecalendarinterface,thedefaultpageshowsthemonths.

Dayview:longpresstotheeventtorebuilt,view,edit,anddelete;Clickontheblank

areacansetupnewevents;longpresstheblankarea,youcanbuiltneweventsor

display/notdisplaythelunardayview.

Weekview:Longpressestheeventtorebuilt,view,edit,anddeleteevents;long

presstheblankareayoucanrebuilteventsordisplay/notdisplaythelunarweeks

view.

Monthview:Longpressdatetobuildnewcalendaritemsordisplay/notdisplaythe

lunarmonthview

Agenda:listalleventsclickorreadthedetails.

Inanyviews,whenyouswitchtootherdate,weekormonth,allcanbebacktotoday

orweekormonthnowytouching“today”button



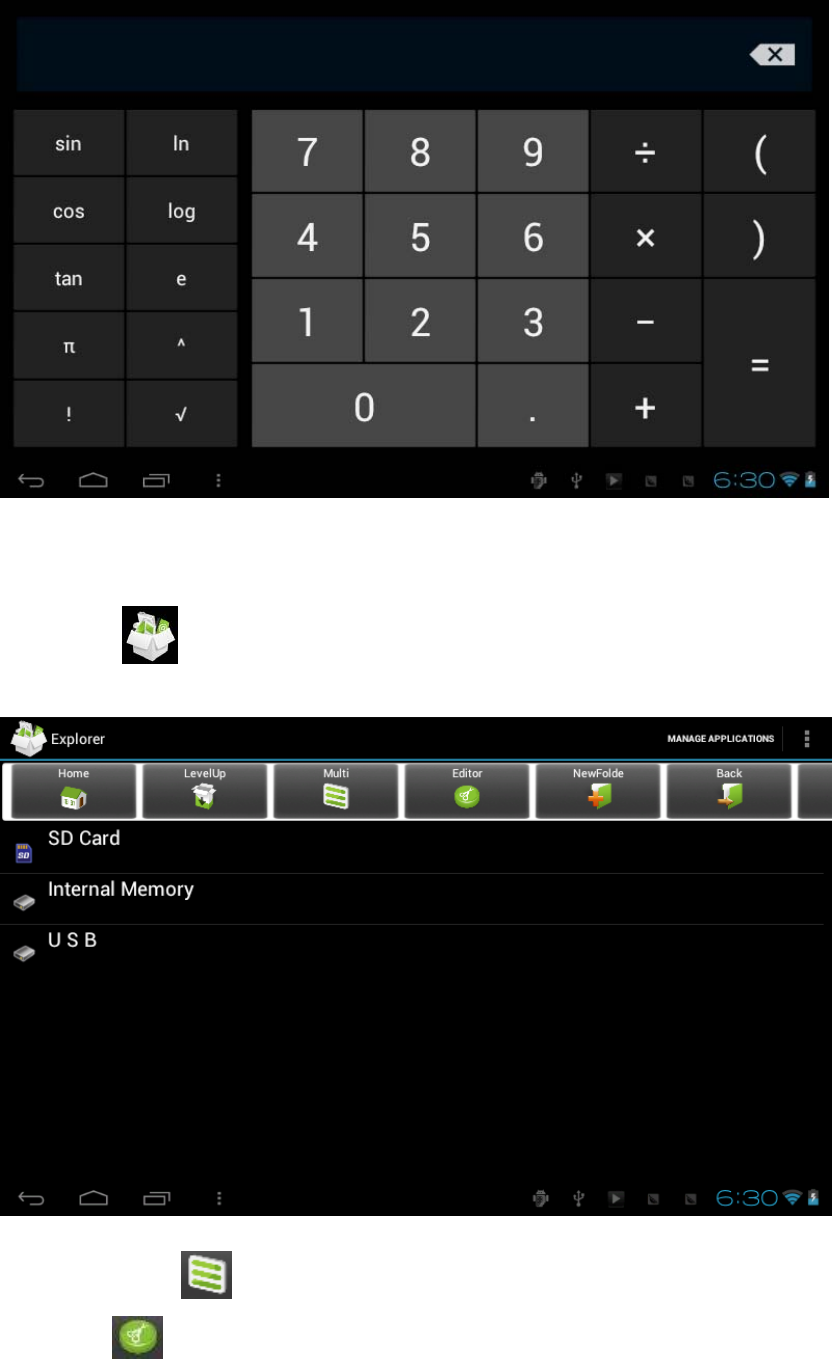

3.6Calculator

Touchhereintheapplicationlisttogetintothecalculator



14/24



3.7Explorer

Touchhere  intheapplicationlist,itsupportsthefilesmutualcopyinthistwo

placesSDCard,internalmemoryandUSB



Touchthebutton  todomultioperationandtheneditthefiles

Touchthis  toedittefileincludingcut/copy/paste/delete



15/24



ForCopy,inthefileslist,longpressthefilewhenitturntomultioperationoption,

clickCopy,click  tochoosewheretoputthefile,abdthenclickthis  to

paste



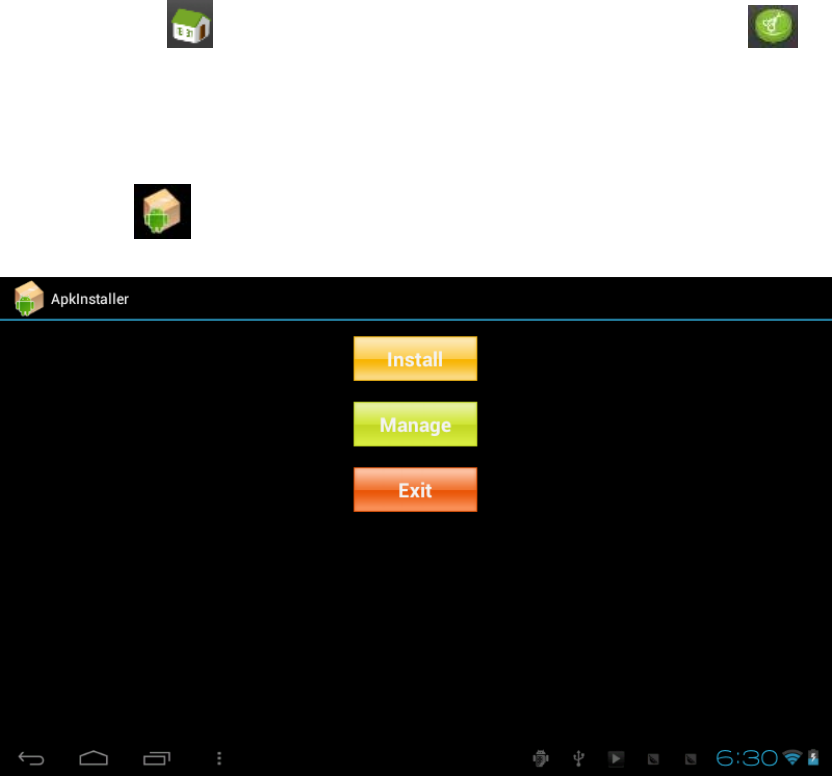

3.8APKInstaller

Touchhere  intheapplicationlist,itwillinstall,unloadtheAPKfile

automatically.ItsearchestheAPKfilefromSDCard,InternalMemory



Install

ClickInstalltoinstallapplicationinstoragepathfromInternalMemoryandSDcard

Manage

ClickManageintheAPKInstallerinterface,clicktheapplicationthatneedtobe

managedtodoLaunch,Export,Uninstall



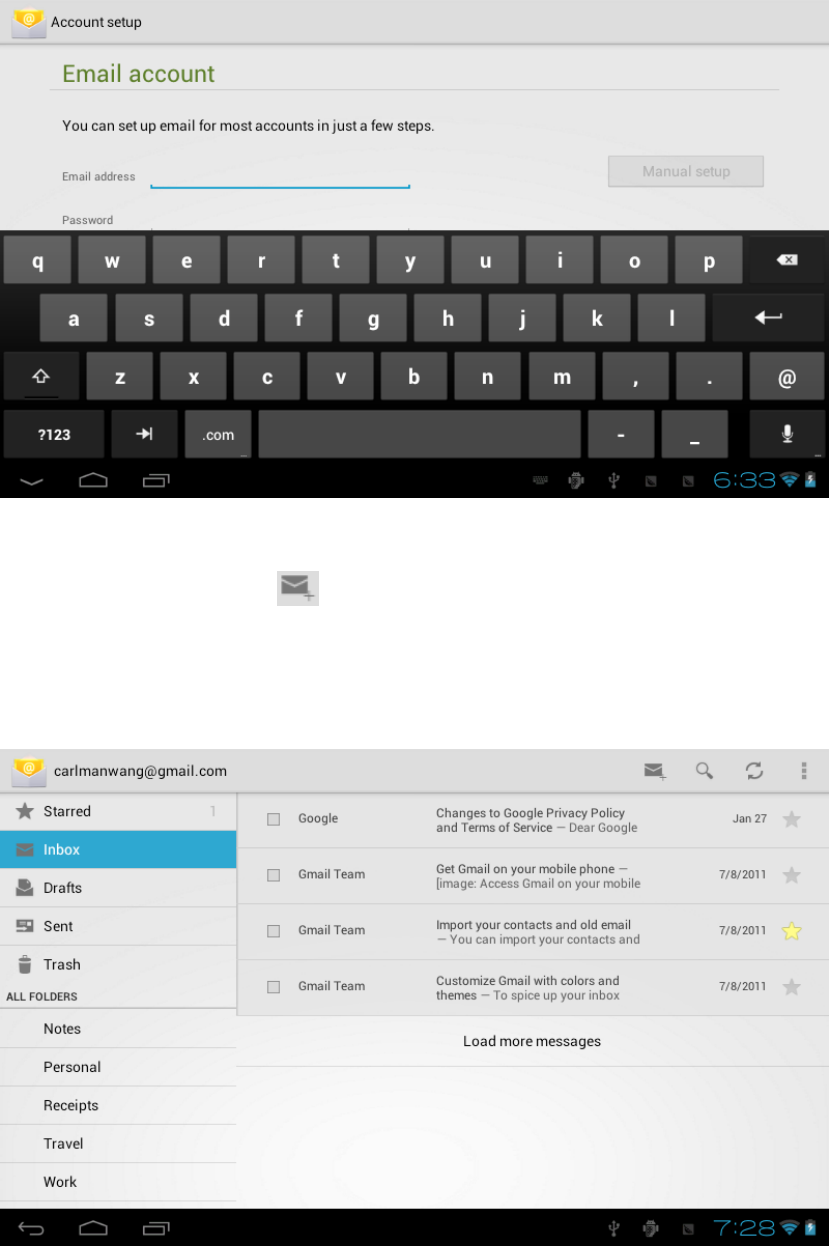

3.9E‐mail



Requiretheinternetsupportbeforeusinge‐mail,ifthereareproblemsinnetwork

supporting;pleasecontactyournetworkoperator



Addaccount

Ifyouarethefirsttimetouseemail,getintoamailboxinterfacedirectlyorsetupan

accountaccordingtoinstruction.

Ifyouwanttoaddmoremailboxes,clickSettingsonthetopofthepagetoaddmore

mailboxes,andthenselectAddaccount.



16/24



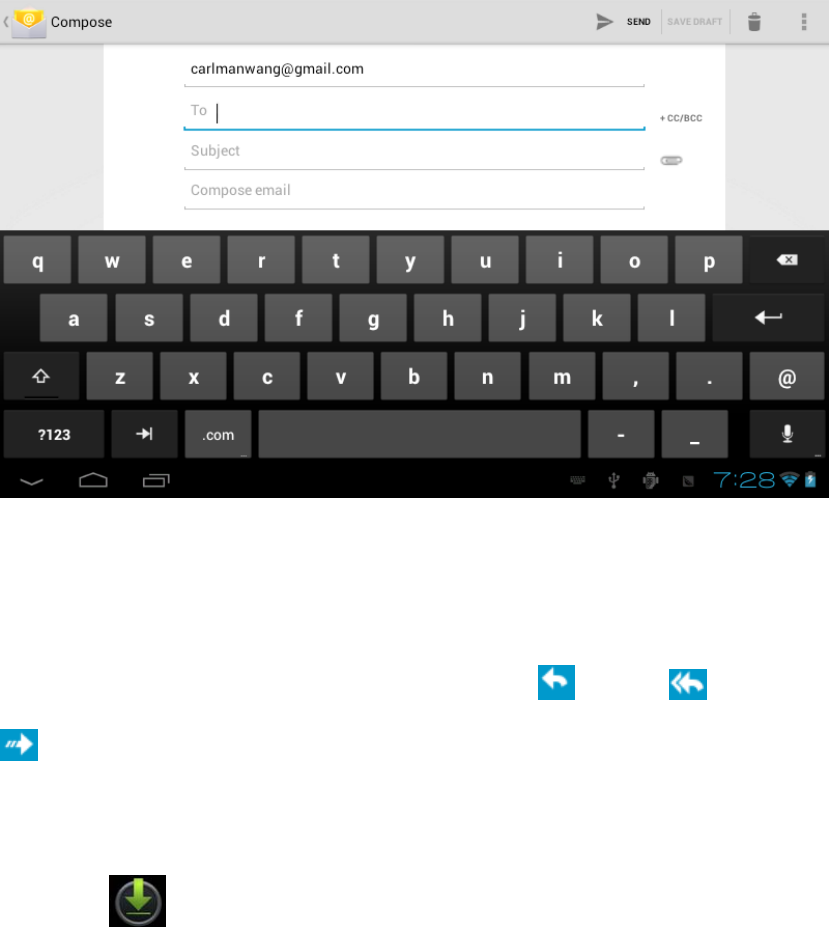

Drafte‐mail

Ininboxpage,youcanclick  thisontherightpagetoptodraftmailquickly.

Inthedraftmailpage,youcan:

Addmailrecipientsquickly.



Entertherecipientaddressinrecipientinputboxorclickonthecontactinthe

contactlistofrecipientstochoosemailaddress;youcancopy/closetosentinput

address



17/24



Writeemailsubjectandtextcontent(thetextareasupportcopy,shareoperation)



Addattachment

Addattachmentsfromthedocumentmanagement,whenitsucceeds,thenamewill

showone“Newe‐mail”page;youcanclicktoselecttoopenorremovethem

Reply,forwardmail

Clicktherightpagepreviewareaofthetoolbarreply ,relayall ,forwarding

choices.Thebaseoperationissamewiththedrafte‐mail.



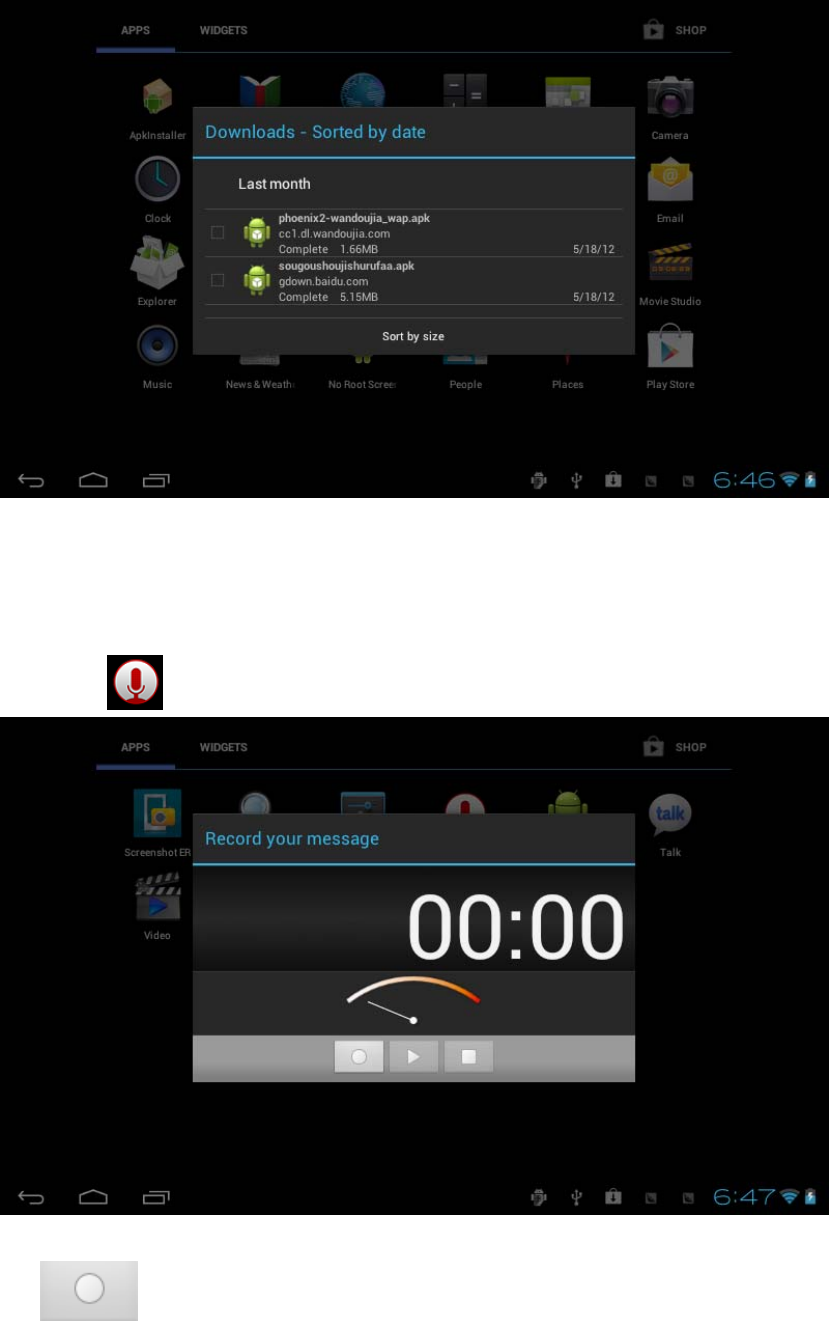

3.10Downloads

Clickhere  intheapplicationlist;youcanpreviewthedownloadingordone

documentcontents



18/24



Clickdownloadfiletostopordeletethedownloadcontents



3.11SoundRecorder

Clickhere  intheapplicationlisttorecordsound



Tap  tostartrecording



19/24



Tap  tostoprecording

Taptoplayrecording



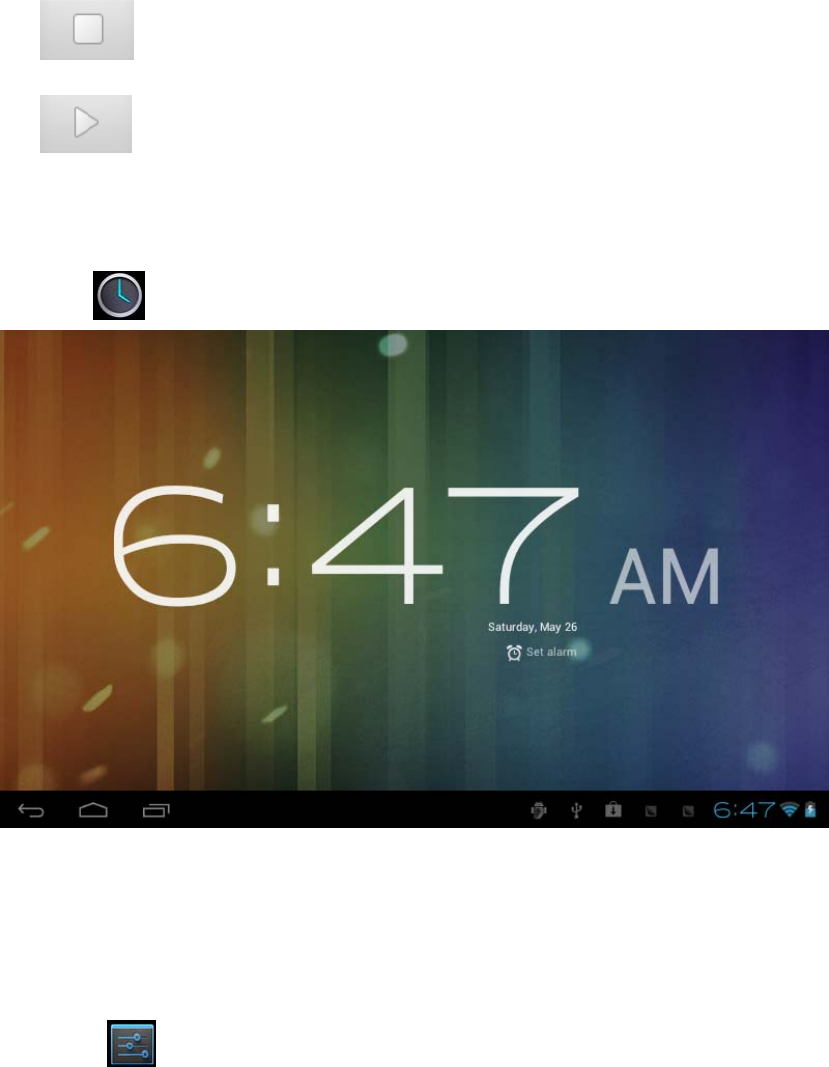

3.12Clock

Clickhere  intheapplicationlisttoaccessclockinterface



Tapsetalarmtosetupclockalarm



ChapterFour:Systemsetting



Clickheretoenterthesystemsettinginterface



20/24



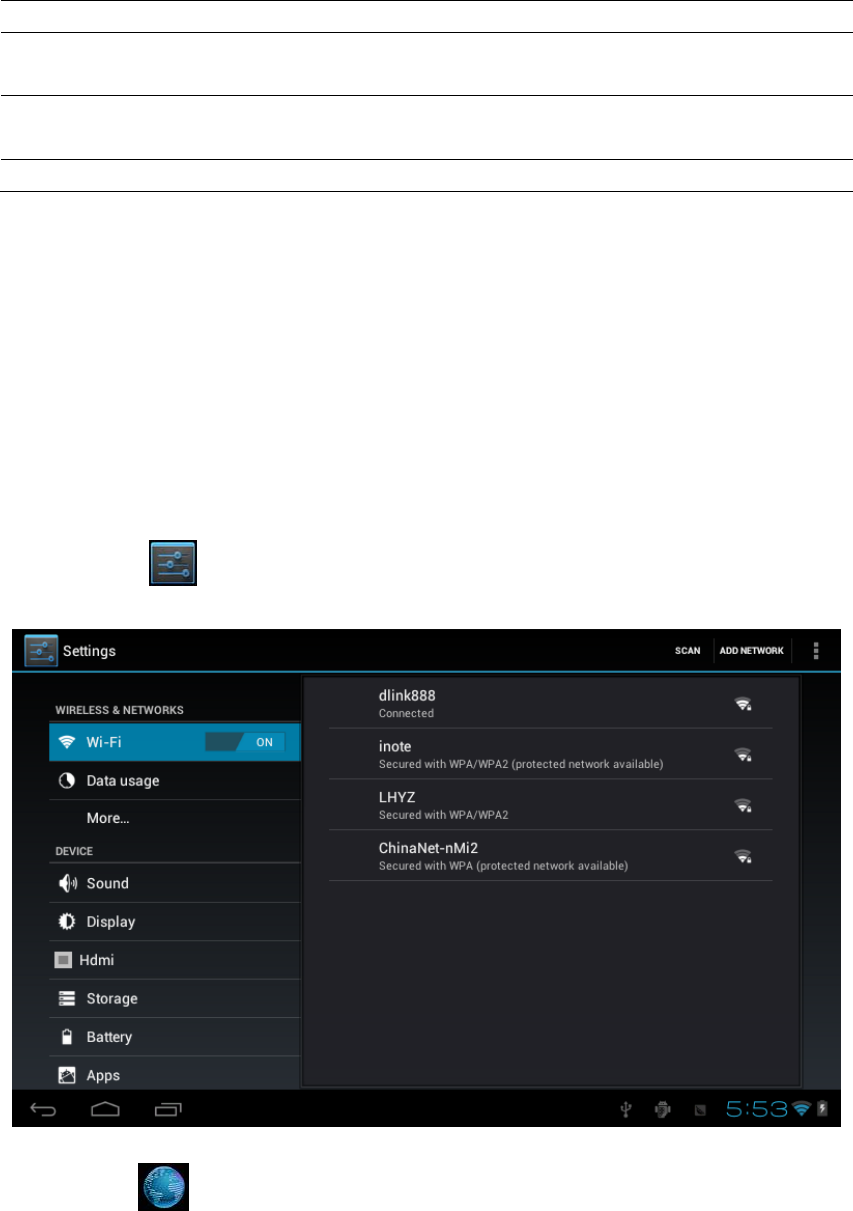

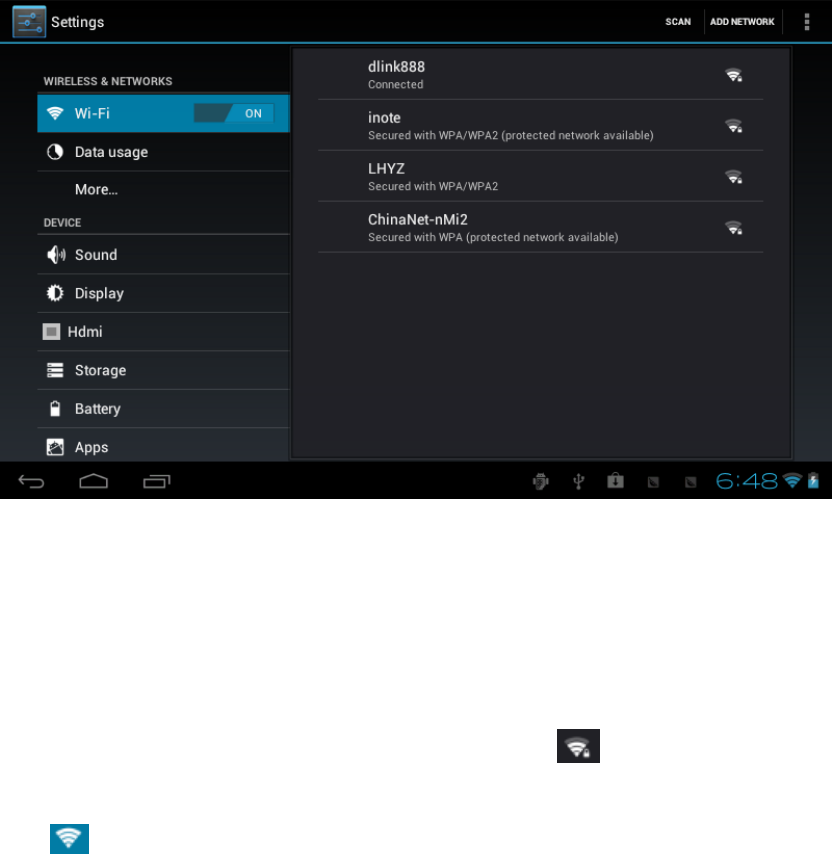

4.1Internetsetting

Thissettingmoduleincludes:thewirelessandnetworkSettings

ThewirelesslocalareanetworkSettings

OpenwirelessLANswitches,thesystemwillscanavailablewirelessnetwork

automaticallyanddisplaythewirelesslocalareanetworkinthelist

Amongthem,ifthelocalareanetworkshavethesignbehindit,itrepresents

thenetworkhasbeenencryption,itneedstoenterthepasswordtoconnection.The

sign  representsthenetworksdonotneedapasswordmcanbeconnected

directly.

Youcanchoosethenetworkfromthelistyouwantmclickittoconnectdirectly,also

youcanclicktheadvanced,thenclickconnectedtonetwork;youcanalsoselect

addwirelesslocalareanetworktoaddbyhand

Networknotice:opentheswitch,itwillnoticeifthereanyopnenetworks

Thewirelesslocalareanetworkcertificate:thewirelesslocalareanetworkloading

andmanagement.



4.2Soundsetting

InSoundsetting,youcanchoosemuteswitchwhichcangetmoredetailedsettingsif

youneed.Clickthevolumesettingcansetupthenotice,themediaandthealarmof

volumeandchoosethepromptoperationsoundandthebellandsoftwarediskboot

switchvoice



21/24



4.3Displaysetting

Displaysettingscontains:Brightness,WallpapersSettings,Automaticrotating

Settings,DormancytimeandFontsize

Brightness

Theusercanadjustbrightnessmanuallytogetthelightnessyouwant.

WallpaperSettings

Inthewallpapersetting,youcansetupthewallpaperanddynamicwallpaper;the

wallpapercanbechosenfromgallery

Dormancytime

Whenthescreensinlightstateaperiodoftime,itwillautomaticallylocktosavethe

powerifwithoutanyoperations.

Fontsize

Youcansetupthefontsizeaccordingtoindividual’sfavorite,therewere

respectively:small,ordinary,big,huge.



4.4Applicationsetting

Intheapplicationsetting,youcanmanagetherunningservicesandaccessrights

managementanddevelopmentbutonlyfordeveloper



Applicationmanagement

Inthissetting,itiseasytomanageanddeletesomeapplicationsthathavebeen

installed.

First,getintotheapplicationlist,clicktheaccordingtonamesortbuttonstoorder

thealphabetandnumber;clicktheallmenutoscantherunningprogramor

programsthatprovidebyathirdpartysoftwaredevelopers.

Clickonanapplication,youcanseetheapplication’srelevantinformationtoclear

thecache,unloadprograms,clearthedefaultvalueorforcedtostopoperation,etc

Runningservices

Inthissetting,youcanendandsetupsomeprogramsthatarerunning

Accessmanagement

Inthissetting,byusingtheopeningorprohibitiontomanagetheapplicationsto

accesscontentpermissions



4.5Date&Timesetting

Inthissettinginterface,youcansetupyoursystemtimeandseriesoptions.

Timesetting

Youcanuseautomatictimefromthenetwork,tochoosethetimezone,toset

specificdateandtimeanddisplayformatintimesetting



4.6LanguageandinputSetting



22/24



Inthissettinginterface,youcanchoosethelanguageyouwant

Inputmethod

Inheretheinputmethodscanbesetbyusers,youcanaddthewordsinthe

dictionaryortodelete

Androidkeyboard

Youcansetupautomaticcapitalfunctionofopeningorclosing



ChapterFive:Attentions



5.1Pleasedonotputyourdeviceinhightemperature,moistureordustplace;the

tabletisnotwaterproof

5.2Avoidfallingorviolentcollision,donotviolentlyshakethetouchscreen,

otherwise,itcouldleadtodamageordisplayunnormal.

5.3Ifsystemshutdownautomatically,bootableagainsoonaftertheshutdown.

5.4Pleasechargethetabletregularlyifnotuseitforlongtimetoavoidthedamage

causedbytheexcessiveconsumptionfrombattery.

5.5Donotdisassembleorusealcohol,thinnerorbenzeneclasstoswabproduct

surface

5.6Pleasedonotusethetabletwhendrivingorwalkinginthestreet,otherwiseit

mayleadanaccident

5.7Pleasechoosetheappropriatevolume,ifhadtinnitus,pleaselowerthevolume

orstopusing

5.8Memoryspaceavailabledishonestnominalfortheandroidsystemitselftakesup

partofthememoryspaceandtheoperationoftheprogramwillalsotakeupspaceif

youopenthem

5.9Storagecapacitythatdishonestnominalforandroidsystemoccupiesabout

hundredsofMBstoragecapacity,alsoinordertoinstallthesoftwareneeds,the

systemmustlayoffcertainstoragecapacity,sotheactualusablespaceandnominal

spacehavedeviation

5.10WhenCPUinhigh‐speedoperation,especiallyin3Dgamesorinlongtime

playbackhigh‐definitionvideo,thefuselagewillhavethephenomenonoffever



FCCRFExposureInformationandStatement



Thisdevicemeetsthegovernment'srequirementsforexposuretoradiowaves.The

guidelinesarebasedonstandardsthatweredevelopedbyindependent

scientificorganizationsthroughperiodicandthoroughevaluationofscientificstudies.

Thestandardsincludeasubstantialsafetymargindesignedtoassurethesafetyofall

personsregardlessofageorhealth.TheSARlimitofUSA(FCC)is1.6W/kg

averaged.Devicetypes:7InchQuadCoreAndroidWifiTablet(FCCID:

2ASJH‐BMPRO7DI1)hasalsobeentestedagainstthisSARlimit.SARinformationon

thisandotherpadcanbeviewedon‐lineathttp://www.fcc.gov/oet/ea/fccid/.

PleaseusethedeviceFCCIDnumberforsearch.Thisdevicewastested



23/24



simulationtypical0mmtobody.TomaintaincompliancewithFCCRFexposure

requirements,theuseofbeltclips,holstersandsimilaraccessoriesshouldnot

containmetalliccomponentsinitsassembly,theuseofaccessoriesthatdonot

satisfytheserequirementsmaynotcomplywithFCCRFexposurerequirements,and

shouldbeavoided.



FCCWarning



ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe

followingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept

anyinterferencereceived,includinginterferencethatmaycauseundesired

operation.



NOTE1:Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora

ClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesigned

toprovidereasonableprotectionagainstharmfulinterferenceinaresidential

installation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergy

and,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.However,thereisnoguaranteethat

interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause

harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby

turningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe

interferencebyoneormoreofthefollowingmeasures:

‐Reorientorrelocatethereceivingantenna.

‐Increasetheseparationbetweentheequipmentandreceiver.

‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe

receiverisconnected.

‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



NOTE2:Anychangesormodificationstothisunitnotexpresslyapprovedbythe

partyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatethe

equipment.



CanadaRFExposureInformationandStatement



Thisdevicemeetsthegovernment'srequirementsforexposuretoradiowaves.The

guidelinesarebasedonstandardsthatweredevelopedbyindependent

scientificorganizationsthroughperiodicandthoroughevaluationofscientificstudies.

Thestandardsincludeasubstantialsafetymargindesignedtoassurethesafetyofall

personsregardlessofageorhealth.TheSARlimitofCanada(IC)is1.6W/kg

averaged.Devicetypes:7InchQuadCoreAndroidWifiTablet(IC:

24777‐BMPRO7DI1)hasalsobeentestedagainstthisSARlimit.Thehighestreported

SARvaluesforbodyis1.474W/kg.Thisdevicewastestedsimulationtypical0mmto



24/24



body.TomaintaincompliancewithICRFexposurerequirements,theuseofbeltclips,

holstersandsimilaraccessoriesshouldnotcontainmetalliccomponentsinits

assembly,theuseofaccessoriesthatdonotsatisfytheserequirementsmaynot

complywithICRFexposurerequirements,andshouldbeavoided.



ICWARNING



ThisdevicecomplieswithIndustryCanada’slicence‐exemptRSSs.Operationis

subjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseinterference;and

(2)Thisdevicemustacceptanyinterference,includinginterferencethatmaycause

undesiredoperationofthedevice.



LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesaux

appareilsradioexemptsdelicence.L'exploitationestautoriséeauxdeuxconditions

suivantes:(1)l'appareilnedoitpasproduiredebrouillage,et(2)l'utilisateurde

l'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageest

susceptibled'encompromettrelefonctionnement.



SETEC BMPRO BMPRO7DI1 7 Inch Quad Core Android Wifi Tablet User Manual 1

Setec Pty Ltd 7 Inch Quad Core Android Wifi Tablet 1

User Manual

Navigation menu

Namespaces

Views

Navigation
