SHEN ZHEN DX SMART TECHNOLOGY DX-BT05 Bluetooth 4.0 module User Manual BLK MD BC04 B

SHEN ZHEN DX-SMART TECHNOLOGY CO.,LTD Bluetooth 4.0 module BLK MD BC04 B

User Manual

DX-BT05 Bluetooth Module
Page 1 of 7
.
DX-BT05
Bluetooth Module
SPECIFICATION
DX-BT05 Bluetooth Module
Page 2 of 7
.
1.
Overview

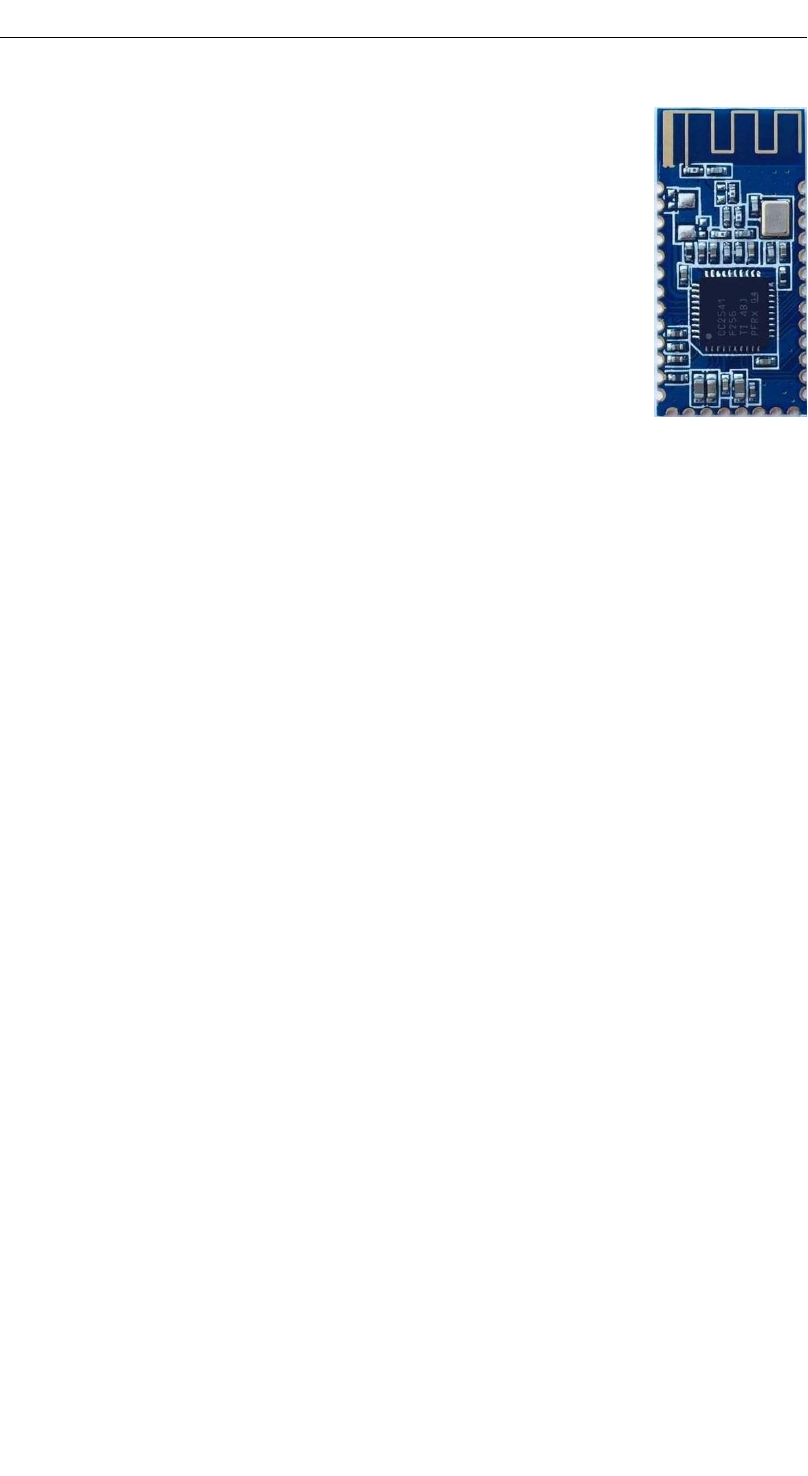

DX-BT05 is a next-generation, class 2, Bluetooth 4.0 module.
Support the AT command, the user can according to need to
change the baud rate of serial port, name of equipment, matching
parameters such as password, use agile.DX-BT05 is a highly
integrated and sophisticated Bluetooth module, containing all the
necessary elements .Therefore DX-BT05 provides an ideal
solution for developers who want to integrate Bluetooth wireless
technology into their designs with limited knowledge of
Bluetooth and RF technologies.
DX-BT05 module combined with DX-SMART’s complete development,
testing and verification services and excellent developer support, OEMs and designers
ensure that their products reach the market rapidly and cost-efficiently in relation to
time and resources. DX-SMART has extensive in-house knowledge of both software
and hardware offering customers a single point of contact to all Bluetooth related
issues.
2.
Feature
Bluetooth protocol: Bluetooth Specification V4.0 BLE, send and receive no byte
limit, open environment and iphone 4 s can achieve 110 meters extreme distance
communication.
Based on TI CC2541 chipset
Bluetooth class 2
Industrial level SPP Bluetooth module
Integrated chip antenna
Size: 26.7 x 13 x 2 mm
Industrial temperature range from -40℃ to +85℃
Support for on-board applications
Operating frequency: 2.4 GHz ISM band
Modulation method: GFSK (Gaussian Frequency Shift Keying)
Acuity: - 84 DBM or less BER at 0.1%
Transfer rate: Asynchronous: 6 KBPS Synchronous: KBPS
Security features: Authentication and encryption
Support services: Central and Peripheral UUID FFE0, FFE1
DX-BT05 Bluetooth Module
Page 3 of 7
.
Power consumption: automatic sleep mode, the standby current 400 ~ 1.5 mA,
transfer 8.5 mA.
Power supply: + 3.3 VDC 50 ma
RoHS compliant
3. Application Fields
Cable replacement
Point-of-sales systems
Barcode readers and pay terminals
Telemetry and machine-to-machine devices
Logistics and transportation systems
Automotive inspection and measurement systems
Medical systems
Fitness and sports telemetry devices
PDA and other portable terminals
PCs and laptop
OBD
4. Physical
Characteristics
Operating Frequency Band
2.4GHz ISM band
Bluetooth Specification
BLE4.0
Output Power Class
Class 2
Operating Voltage
3.3V
Host Interface
UART
Dimension
27mm (L) x 13 (W) mm x 2mm (H)
5. Electrical
Characteristics
Absolute Maximum Ratings
Rating
Min
Max
Storage temperature
-40℃
+150℃
Supply voltage: VBAT
-0.4V
5.6V
Other terminal voltages
VSS-0.4V
VDD+0.4V
Recommended Operating Conditions
Operating Condition
Max
Operating temperature range
+150℃
Guaranteed RF performance range(a)
+150℃
Supply voltage: VBAT
4.2V(b)
DX-BT05 Bluetooth Module
Page 4 of 7
.

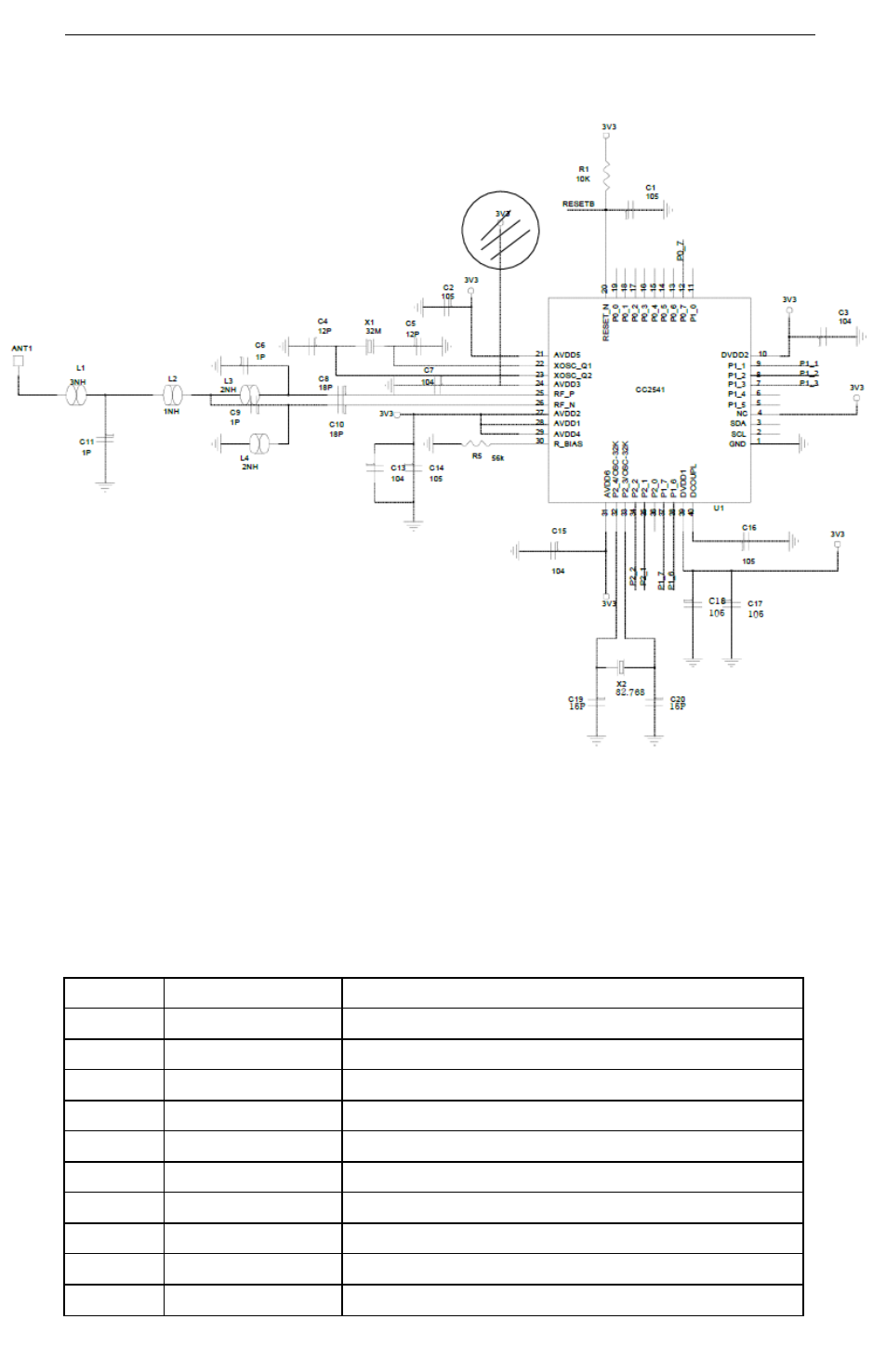

6. Application Circuit
Diagram
Note: This application circuit for the Bluetooth serial port circuitry, such as the need for other
application, please contacts us .
7 .Pin
Configurations
PIN NO.
NAME
FUNCTION
1
UART-TX
UART Data Output
2
UART-RX
UART Data Input
3
UART-CTS
UART Clear To Send Active Low
4
UART-RTS
UART Request To Send Active Low
5
NC
NC
6
NC
NC
7
P2_2
Debug the clock
8
P2_1
Debug the data
9
P2_0
Programmable Input/Output Line
10
NC
NC
DX-BT05 Bluetooth Module
Page 5 of 7
.
11
RESETB
Reset if low Input debounced so must below for>5ms to
cause a reset
12
VCC
+3.3V Supply
13
GND
Ground
14
GND
Ground
15
SDA
Data port
16
NC
NC
17
NC
NC
18
NC
NC
19
NC
NC
20
SDL
Clock port
21
GND
Ground
22
GND
Ground
23
P1_3
SW1 system key, see Other configuration
24
P1_2
State instructions LED, see Other configuration
25
P1_1
Programmable Input/Output Line
26
P1_0
Programmable Input/Output Line
27
P0_7
Programmable Input/Output Line
28
P0_6
Programmable Input/Output Line
29
P0_5
Programmable Input/Output Line
30
P0_4
Programmable Input/Output Line
31
P0_3
Programmable Input/Output Line
32
P0_2
Programmable Input/Output Line
33
P0_1
Programmable Input/Output Line
34
P0_0
Programmable Input/Output Line
DX-BT05 Bluetooth Module
Page 6 of 7
.

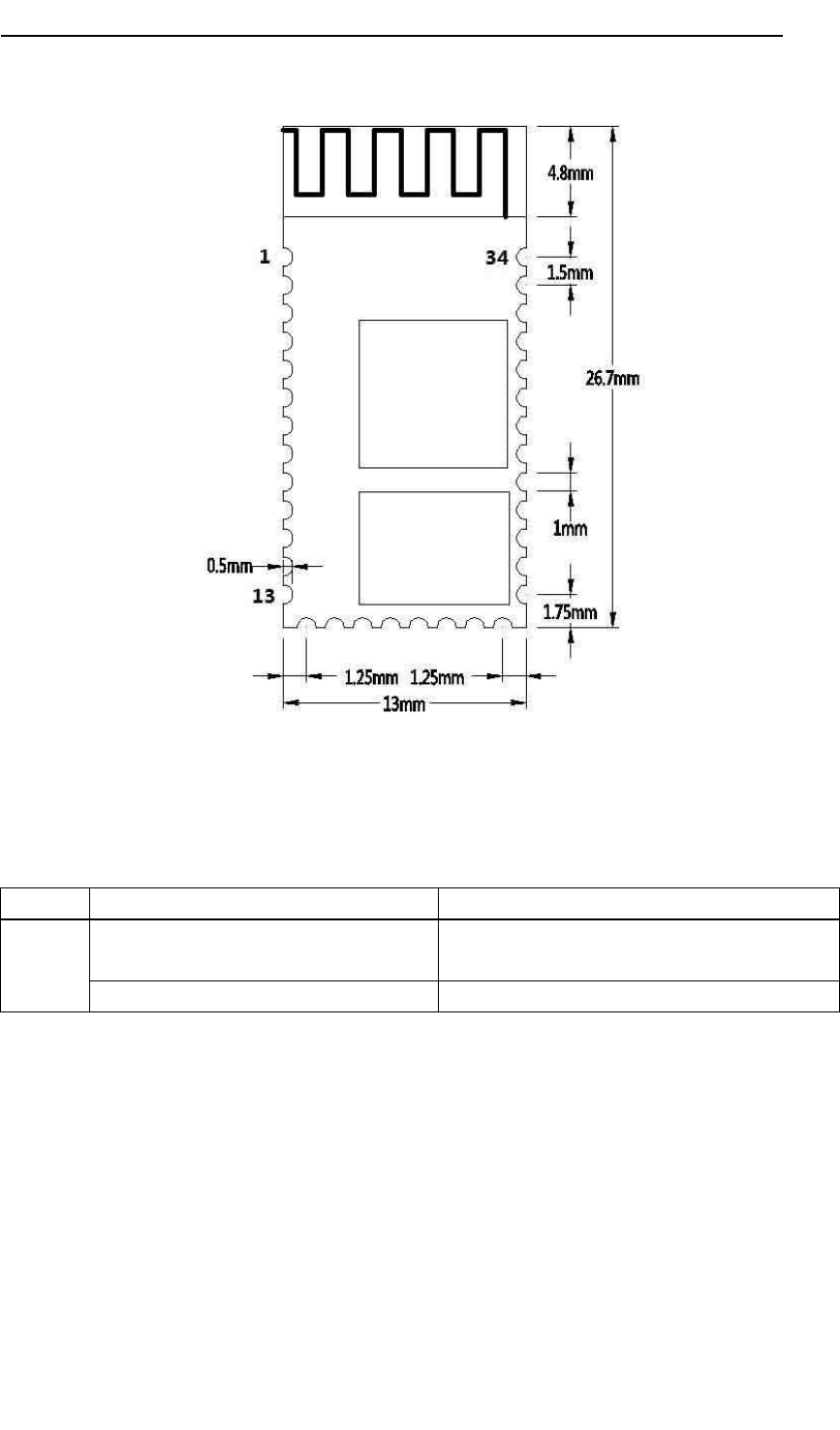

8. Contour
Dimension
9. Other
configuration
State Instructions LED: P1_2
Model
LED Display
Status
Slave
Even slow flash
(800ms-on,800ms-off)
Waiting for matching
Long bright
connection
Module dormancy set
Is only meaningful in from dormancy mode module, from the mode via a serial port
to send "AT + SLEEP", if no accident, the module will return "OK" and enter a
dormant state, this state to be found and connection status.
Wake up the module Settings
There are two ways:
Method one: you can send the length of the string is greater than or equal to 80 to
activate the module. Send the activated string cannot contain the AT command,
success after WAKE up, a serial port will output "+ WAKE OK" string.
Method 2: short press the system button SW1.
DX-BT05 Bluetooth Module
Page 7 of 7
.
System key SW1(P1_3)
P1_3 for input pin, short press control, can realize the following functions:
1, the module is in a state of dormancy:
Module will be awakened to the normal state, the success after WAKE up, a serial
port will output "+ WAKE OK" string.
2, the module is in a state of connection:
Disconnected module will initiate the request.
10.Layout Announcements
1, DX-BT05 bluetooth module serial level should be 3.3 V, if the connection and
5V level system need to increase the level conversion chip.
2, Bluetooth signal is highly affected by the surrounding,such as trees, metal, wall can
have certain absorption on the bluetooth signal or block, so the installation is not
recommended in the metal case.
3, Due to metal will weaken the function of antenna, it is suggested that Lay in the
module board, don't lay GND and a line under the antenna module, it is best to hollow
out.
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
The Bluetooth 4.0 module is designed to comply with the FCC statement. FCC ID is
2AKS8DX-BT05. The host system using Bluetooth 4.0 module, should have label
indicated it contain modular’s FCC ID 2AKS8DX-BT05.
The device has been evaluated to meet general RF exposure requirement. The device can be used in
portable exposure condition without restriction.
