SHEN ZHEN ZHIKE COMMUNICATION ZKTXIPROF6 GSM Mobile Phone User Manual
SHEN ZHEN ZHIKE COMMUNICATION CO.,LTD. GSM Mobile Phone
Users Manual
1
User’s Manual of
F6 PRO Mobile Phone
2
TABLE OF CONTENT
1. BASIC INFORMATION .................... 6
1.1. BRIEF INTRODUCTION ........................................... 6
2. BEFORE USE ..................................... 7
2.1. NAME AND EXPLANATION OF EACH PART ............. 7
2.1.1. Appearance Sketch Map ........................... 7
2.1.2. Description of the Standby Pictures .......... 8
2.1.3. Description of Keys .................................. 9
2.2. INSTALL SIM CARD AND MEMORY CARD ........... 11
2.2.1. SIM Card ................................................. 11
2.2.2. Inserting and Taking out SIM Card ........ 12
2.2.3. Memory Card .......................................... 13
2.3. BATTERY ............................................................ 13
2.3.1. Install the Battery .................................... 14
2.3.2. Charging .................................................. 14
2.4. SECURITY PASSWORD ......................................... 15
3. QUICK USER GUIDE ..................... 16
3
3.1. FEATURE FUNCTIONS .......................................... 16
3.2. DIAL A CALL ....................................................... 18
3.3. REJECT A CALL ................................................... 19
3.4. RECEIVE A CALL ................................................. 19
3.5. END A CALL ........................................................ 19
3.6. EMERGENCY SERVICES ....................................... 19
3.7. EXTENSION SPEED DIAL ..................................... 19
3.8. DIALED CALLS/MISSED CALLS/RECEIVED
CALLS/REJECTED CALLS .............................................. 20
3.9. CALL FORWARD .................................................. 20
3.10. CALL WAITING ................................................... 20
3.11. CALL BARRING ................................................... 21
3.12. POWER OFF THE PHONE ...................................... 21
3.13. T-FLASH CARD ................................................... 21
4. FUNCTION MENU .......................... 22
4.1. CALL LOGS ......................................................... 22
4.1.1. Dialed calls .............................................. 22
4.1.2. Received calls ......................................... 23
4.1.3. Missed calls ............................................. 23
4.1.4. Rejected calls .......................................... 23
4.1.5. Delete all ................................................. 23
4
4.1.6. Call timer ................................................ 24
4.1.7. Call cost .................................................. 24
4.1.8. GPRS counter .......................................... 24
4.2. MESSAGE ............................................................ 25
4.2.1. Write Message ........................................ 25
4.2.2. Inbox ....................................................... 25
4.2.3. Outbox ..................................................... 26
4.2.4. Drafts ....................................................... 27
4.2.5. Sentbox ................................................... 27
4.2.6. Templates ................................................ 28
4.2.7. SMS Settings ........................................... 28
4.2.8. MMS Settings ......................................... 28
4.2.9. Voice mail server .................................... 28
4.2.10. Broadcast message .................................. 29
4.2.11. Message capacity .................................... 29
4.3. CONTACTS .......................................................... 29
4.4. MULTIMEDIA ...................................................... 31
4.4.1. Camera .................................................... 31
4.4.2. Image browser ......................................... 33
4.4.3. Video recorder ........................................ 34
4.4.4. Audio Player ........................................... 35
4.4.5. Video Player ............................................ 36
4.4.6. FM Radio ................................................ 37
5
4.4.7. Recorder .................................................. 38
4.5. PROFILES ............................................................ 38
4.6. FILE MANAGEMENT ............................................ 41
4.7. TOOLS ................................................................ 42
4.7.1. Calendar .................................................. 42
4.7.2. Alarm ...................................................... 43
4.7.3. Torch Light ............................................. 43
4.7.4. STK ......................................................... 43
4.8. SETTINGS ............................................................ 44
4.8.1. Call Settings ............................................ 44
4.8.2. Phone settings ......................................... 48
4.8.3. Display settings ....................................... 49
4.8.4. Security settings ...................................... 50
4.8.5. Connection management ......................... 52
4.9. INTERNET ........................................................... 52
4.10. ENTERTAINMENT ................................................ 53
4.10.1. Sokoban ................................................... 53
4.10.2. eBook ...................................................... 53
4.11. EXTRA ................................................................ 54
4.11.1. Bluetooth ................................................. 54
4.11.2. Calculator ................................................ 55
4.12. SHORTCUTS ........................................................ 55
6
5. TEXT INPUT .................................... 55
6. CARE AND MAINTENANCE ........ 57
1. Basic Information
1.1. Brief Introduction
Thanks for selecting F6 PRO color screen GSM/GPRS digital
mobile phone. Through reading the manual, you can fully know
how to use F6 PRO mobile phone, appreciate its complete function
and simple operating method.
F6 PRO color screen mobile phone is designed aiming at
GSM/GPRS network environment; the phone is Two Card Two
Standby, but you can not call another SIM card when one SIM card
is under phone call. Besides basic call functions, F6 PRO also
provides many kinds of practical functions, such as name card
holder, scene mode, message, audio and video player, camera and
7
video, E-book, game, Bluetooth, alarm clock, calculator, STK,
time and date, auto power-on and shut-down and etc. so that
convenient for your work and leisure activities. In addition, F6
PRO adopts personalized human-computer interface design, its
complete function can meet your different requirements.
F6 PRO color screen mobile phone accords with GSM/GPRS
criterion, has obtained the certification of competent authority.
The company reserves the rights to revise the contents of the
manual without prior notice.
2. Before Use
2.1. Name and Explanation of Each Part

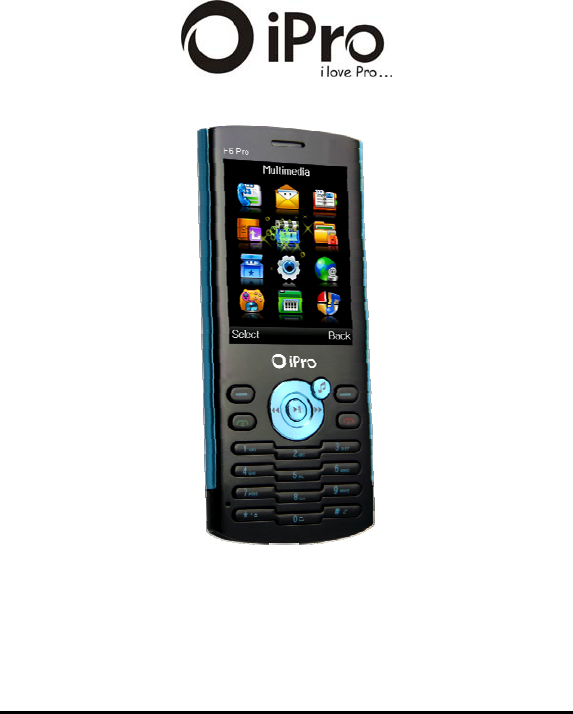

2.1.1. Appearance Sketch Map
The picture is only for your reference.
8
2.1.2. Description of the Standby Pictures
Network signal strength
The more the stripe is, the stronger the signal is.
When SIM card 1s inserted in card slot 1, standby
screen will show the icon.
Network signal strength
The more the stripe is, the stronger the signal is.
When SIM card 1s inserted in card slot 2, standby
screen will show the icon.
Battery strength
The full the fill is, the more electric quantity is.
Standby screen will show the icon.
Standard mode
When scene mode is set as normal mode, standby
screen will show the icon.
Silent mode
When scene mode is set as mute mode, standby
screen will show the icon.
Vibrate mode
When scene mode is set as Vibration mode
, standby screen will show the icon.
9
Indoor mode
When scene mode is set as indoor mode, standby
screen will show the icon.
Outdoor mode
When scene mode is set as high ring and vibrate
mode, standby screen will show the icon.
Power save mode
When setting pattern set to save electricity mode
, standby screen will show the icon.
2.1.3. Description of Keys
Keys Function
Left soft key/
Right soft key
1.Execute functions that the
left-down/right-down corner indicator
shows.
2. In the standby mode, press Left Soft
key to access Menu, Right Soft key to
access Contacts.
Navigation key
On other interfaces, it equals to
navigation key and direction key except
10
for special functions.
MP3 key Enter into audio player.
OK key
In the dial panel mode, press this key to
show or hide dial panel.
Dial key
1. Press this key to dial or receive an
incoming call.
2. When in the standby mode, press this
key to access Dialed Calls.
End key
1. Mainly used as power on/off.
2. Press to return to standby screen in
any interface.
3. End calls or reject incoming calls.
Number key
It is used to dial and input numbers or
characters.
Press and hold Number key 1 or 2 to
get through the preset voice inbox.
# Key
1. In text editing interface, press "#"
key to switch text the input method.
2. On the standby interface Press and
11
hold "#" key to transfer the profile of
Normal/Silent/Vibrate.
* Key
On the standby interface, input *; after
inputting telephone number, if you want
to input extension number, please press
twice asterisk key, after the display
screen shows “+”, please input your
extension number.
2.2. Install SIM Card and Memory Card
2.2.1. SIM Card
Before using the phone, you must insert valid SIM
(Subscriber Identity Module) card in the phone. SIM card 1s
provided by network supplier.
All the information related to network connection are
recorded in the chip of SIM card, also the names, telephone
numbers and SMS that storing in the name card holder of SIM card.
You can take out SIM card from your phone, and use it in any
GSM mobile phone (new mobile phone can read SIM card
automatically).
12
In order to avoid losing or damaging the information saves in
SIM card, please don’t touch the metal contact surface, and place
SIM card in the place that away from electricity and magnetic
force. Once SIM card is damaged, you can’t use the phone
normally.
Prompt: Please make sure to power off the phone before taking
out SIM card. It is absolutely forbidden to insert or take
out SIM card with external power supply; otherwise it
may damage SIM card and the phone.
2.2.2. Inserting and Taking out SIM Card
Metal contact surface of SIM card is easily scratched. You
must take out SIM card carefully before the assembly.
Power off the phone, remove the rear cover, battery or other
external power supply.
Make the end of SIM card without cutting angle inside and
aim at the card slot of the phone and metal surface of SIM
card face downward, then insert SIM card to the card slot of
the phone, the other SIM card is also inserted in this way.
When taking out SIM card, directly pull it outward and then
can take out SIM card.
Prompt: Without special explanation inserting two SIM cards
are defaulted in the manual. If you just insert one
13
SIM card, maybe some options of the menu will not
be shown.
2.2.3. Memory Card
Aim at the T card slot and push the T card gently, and the card
will be inserted correctly.
Prompt: If the memory card is failed, please check whether it
is correctly placed and good contact of metal point.
2.3. Battery
Do not place the battery in fire ; follow local laws and
ordinances in Disposing used battery.
Check the model number of the charger before using it to
charge the mobile.
Only use approved battery , charger and accessories applicable
to the specific mobile model . Using other types of battery ,
charger and accessories may violate the certification or
warranty terms of the accessories may violate the certification
or warranty terms of the equipment and may result in danger .
Return waste and used batteries to the supplier or specified
recovery site .
14
CAUTION!
Risk of explosion if battery is replaced by an incorrect type .
Dispose of used batteries according to the instructions .
2.3.1. Install the Battery
Take off the rear cover, of the mobile.
Make one end of battery with metal surface aim at the battery
connector.
Then gently press the battery downward using the finger, and
then press the other end to install the battery.
Prompt: Please operate correctly to avoid damaging the
battery connector.
2.3.2. Charging
Insert the charger on the charging interface at the side end of
the phone.
After inserting the charging plug, battery strength icon stripe
at the top right corner of the screen is scrolling, which means that
the charging is processing; when the stripe is full of the whole icon
and stop scrolling, which means that the battery charging is
15
completed; when the charging is completed, please pull out the
plug.
When electric quantity is not enough, warning message will
be sent; and electric quantity shows empty. When electric quantity
is too low, the phone will power off automatically. Please don’t
make the battery in the status of not enough electric quantity for a
long time; otherwise it may damage the battery quality and service
life. Please don’t charge the battery for a long time.
Prompt: In order to ensure normal operation of the phone,
please make sure to use the designated charger.
2.4. Security Password
PIN
PIN (Personal Identification Number) is used to prevent your
SIM card from being used illegally. PIN is usually provided with
SIM card together. If you input wrong PIN for continuous three
times, please input PUK to unlock it. Please contact with network
operations company for more details.
PIN 2
You need to input PIN2 when entering some functions (such
as call charge); if you input wrong PIN2 for continuous three times,
you need to input PUK2 to unlock it. Please contact with network
operations company for more details.
16
PUK
When changing the locked PIN, you need to input PUK
(Personal Unlock Key). PUK is provided with SIM card together.
If it is not provided, please contact with your service provider. If
you input wrong PUK for continuous ten times, the SIM card can’t
be used again. Please contact with your service provider to buy
new card. You can’t change PUK. If you lose the code, please
contact with your service provider.
PUK2
When changing the locked PIN2, you need to input PUK2. If
you input wrong PUK2 for continuous ten times, you can’t use the
functions that need PIN2. Please contact with your service provider
to buy new card. You can’t change PUK 2. If you lose the code,
please contact with your service provider.
3. Quick User Guide
3.1. Feature Functions
The phone has not only the basic functions of mobile phone,
but also support rich, practical and rapid feature functions, can be
briefly introduced as follows:
17
Contacts: Each name card holder record stored in the phone
can be related with several telephone numbers at most, the
phone can store 500 records at most; can send SMS in the
name card holder; you can copy name card holder record
between SIM card and the phone.
Profiles: Custom the ringtone (include ringtone settings,
volume adjustment, incoming call prompt, message prompt,
alarm clock prompt, key-press tone, low voltage warning
tone, power-on and power-off tone) according to different
events or environment.
Call log: The phone will automatically store the information
of call log for you to check; support to call the telephone
number in the call log; support to save the telephone number
in the call log to name card holder and set as rejected call;
support the function of sending SMS and etc. to the telephone
numbers in the call log.
Message: The phone supports storing SMS and 200 pieces at
most. The phone supports the storing status of SMS in SIM
card and the phone.
Multimedia: Your phone provides all kinds of entertainment
services including player, camera, FM radio and other
functions.
Camera: The phone supports camera and video function. You
18
can customize the camera and video, and switch between
prepositive and postpositive video captures through menu
option.
Tools: The phone supports various practical functions.
Supports alarm clock, calendar, calculator and other
functions.
Settings: You can customize the phone according to the needs,
include phone settings, display settings, call settings, security
settings and other functions.
Input method: The phone supports various input modes,
which is convenient for you to input English, letters, numbers,
symbols, and etc.
3.2. Dial a Call
In standby mode, press numerical keys to input phone
number to dial phone number. When you finish inputting phone
number, press the dial key to make a call. If you're making a long
distance call, add the area code preceding the telephone number.
Press left soft key to access Options.
19
3.3. Reject a Call
You can press End key to reject an incoming call.
3.4. Receive a Call
When an incoming call arrives, the phone will give out the
corresponding prompt (such as vibration, ringtone, and etc.); if
network support, the phone screen will show the name and
telephone number of the caller; at this time, you can press Dial key
to receive an incoming call.
3.5. End a Call
After finishing a call, you can press End key to end a call.
3.6. Emergency Services
You can directly dial an emergency service call without SIM
card.
Different network uses different emergency numbers, please
consult your network operations company for more details.
3.7. Extension Speed Dial
After inputting telephone number, if you want to input branch
20
number, please press and hold “*”, input your extension number
after the display screen shows “P”. After getting through the call, it
will directly dial the extension.
3.8. Dialed Calls/Missed Calls/Received
Calls/Rejected Calls
You can enter call log to check the relevant details of dialed
calls, missed calls, received calls and rejected calls.
Prompt: The record of incoming call from blacklist number
will be saved in Rejected Calls.
3.9. Call Forward
After call forward function is started, according to different
forward conditions settings (Call Forward Unconditionally,
Forward Busy, Forward No Answer, Forward Can Not Reach), you
can select to switch the incoming call to voice inbox or other
telephone numbers.
3.10. Call Waiting
After call waiting function is started, when you are calling,
the other call can be put through.
21
3.11. Call Barring
After call barring function is started, according to different
restricted conditions settings (all the dialed calls, all the incoming
calls, incoming calls when roaming, dialed international calls,
outgoing international calls when roaming), you can restrict the
call under the corresponding conditions (need to apply to network
operator for business).
3.12. Power off the Phone
In the standby mode, press and hold End key to power off
the phone.
3.13. T-flash Card
Insert the T-Flash card into phone from the background.
This will expand the Flash memory of the phone.
Tap Multimedia menu, you can browse MP3, MP4, picture, video,
photograph etc.
22
4. Function Menu
4.1. Call Logs
Display your recent call log.
4.1.1. Dialed calls
Display the list of your recent dialed numbers.
On the interface of Dialed, choose one record, then press left
soft key “Option” to enter the Option interface and you could go
on the following operations.
Details: Display the information of dial calls (Number, Date,
Time, Duration, From, Style, and SIM Name)
Call: Recall the number.
Save: Save the number to Phone/SIM1/SIM2
Send message: You could send SMS or MMS to this number.
Add to the existed contact: Add this number to the existing
record of the name card holder.
Add to blacklist: Add this number to the blacklist.
Delete: Delete this record.
Delete all: Delete all the records in the Dialed list.
23
4.1.2. Received calls
Display the list of your recent answered numbers. The operation is
the same as the Dialed.
4.1.3. Missed calls
Display the list of your recent missed numbers. The operation is
the same as the Dialed.
4.1.4. Rejected calls
Display the incoming call records in the blacklist. The operation is
the same as the Dialed.
4.1.5. Delete all
You could delete all the records of the Dialed, Received, Missed
and Rejected.
24
4.1.6. Call timer
Display information details of SIM1/SIM2: Last Call, Received
Calls, Dialed Calls, and All Calls. Press left soft key to "Reset".
4.1.7. Call cost
Press up/down navigation key to check: All Costs, Max Costs, Cost
Rate, and Cost Reset.
Prompt: The call expense function shall be supported by the
network operator. The design of the charging unit and
the phone rate limit shall require you to input the PIN2
code. Please contact with your network operator to
achieve the password.
4.1.8. GPRS counter
Display information details of SIM1/SIM2: Last sent, Last
received, Total sent, and Total received. Press left soft key to
"Reset".
25
4.2. Message
4.2.1. Write Message
――New SMS
You could write new message by using this function. When you
input the message to be sent, press left soft key to send, to insert
the templates, to add contact person information and symbol, and
to save, etc.
――New MMS
You could edit the MMS, and insert pictures or ring tones
with this function.
Select the “New MMS” and enter, you could edit the receiver,
forwarder, confidential receiver, the title and content, and operate
the functions of send, preview, save and set the timing send.
4.2.2. Inbox
Store the SMS, MMS and Push message you’ve received.
The SMS, MMS and Push message could be differentiated by
different icons. The icons before the message list means whether
26
this message is SMS, MMS or Push message and which is stored
in SIM1, SIM2 or the phone.
Choose one SMS or MMS and press left soft key, then you
will do several operations, for example, reply the SMS or MMS,
delete, dial and mark. Press OK key directly you can read this SMS,
downloaded MMS or Push message.
――Reply: You could choose to reply the addresser by SMS
or MMS.
――Delete: Delete this message.
――Call: Call the addresser.
－－Lock/unlock: Lock the message or unlock it.
――Mark: Choose this message or all messages in the inbox,
or only choose the messages saved in SIM 1, SIM 2, SIM1storage
SMS or SIM2 storage SMS
――Sort: Sort the messages in the inbox by time, contact
person, theme or message type.
――Delete repeated numbers: Delete all the messages of the
same number.
4.2.3. Outbox
Store the SMS and MMS you’ve sent in failure. The SMS and
MMS could be differentiated by different icons. The two icons
27
before the message list means whether this message is SMS or
MMS, and it is stored in SIM1, SIM2 or the phone.
Choose one SMS or MMS and press left soft key, you could
send, delete, lock, mark, sort, and so on.
4.2.4. Drafts
Store the SMS and MMS you’ve edited. The SMS and MMS
could be differentiated by different icons. The two icons before the
message list means whether this message is SMS or MMS, and it is
stored in SIM1, SIM2 or the phone.
Choose one SMS or MMS and press left soft key, you could
delete, edit, lock, mark, sort, and so on.
4.2.5. Sentbox
Store the SMS and MMS you’ve sent successfully. The SMS
and MMS could be differentiated by different icons. The two icons
before the message list means whether this message is SMS or
MMS, and it is stored in SIM1, SIM2 or the phone.
Choose one SMS or MMS and press left soft key, you could
delete, forward, lock, mark, sort, and so on.
28
4.2.6. Templates
You could edit or delete the templates.
4.2.7. SMS Settings
There are seven options: SIM 1 service center, SIM2 service
center, massage validity period, status report, save sent messages,
preferred storage medium.
4.2.8. MMS Settings
There are twelve options: SIM 1/SIM 2 MMS account, receive
options, send options, play audio, restore default.
4.2.9. Voice mail server
This phone supports the function of the voice mail. You could
choose either SIM1, SIM2. When you receive the calls from others,
they could give you a message in your voice mailbox. When you
phone receives the message notice, you could listen to the
29
messages. Under the voice mail interface you can edit and set the
number of line 1, line 2, fax or data.
Prompt: The realization of the voice mail requires the support
of the network operator and you may firstly apply for
this service. For more information and the number of
the voice mail, please inquire about your local network
operator.
4.2.10. Broadcast message
The area info services send different kinds of messages. Change
the settings of this service and inquire the area info by using this
function.
4.2.11. Message capacity
You could view the capacity of SMS, MMS, WAP P u sh an d
OTA.
4.3. Contacts
This function could help you browse the name card holder,
store, edit and delete the names and phone numbers in the phone
30
and SIM card. To facilitate the management of the records, this
phone sets the group function, collecting the similar items into a
group. The storage capacity of the SIM card varies and the
maximum storage capacity of this phone is 500.
On the standby interface, press right soft key to enter the
interface of the name card holder. When the record of the name
card holder is not empty, press left soft key for the following
operation:
Prompt: Take the records in SIM card 1 for example.
New
Create new name card holder records to SIM card or the
mobile phone.
Search
Search the record stored in the phone or the SIM cards.
Write Message
Send SMS or MMS to this record.
Call
Dial this record directly or by means of IP call.
Delete
Delete this record.
Mark
Choose one record or all records, and cancel what you choose
31
are also allowed.
Copy
Copy the record to SIM cards or memory card.
Others
――Caller ID: You can view or edit the number of this
phone.
――Memory status: You could enquire the capacity of SIM1,
SIM2 and the phone.
――Single /Double line display: You can set the display
mode of record list as one line or two lines.
4.4. Multimedia
4.4.1. Camera
The device is equipped with a webcam with high pixels. You
can take photo at any time and save the photo in the device or
SIM card. The photo can be used as wallpaper of your device or
you can send it to your friends through Bluetooth.
You can view the photo on screen and press camera key to get
a picture. On the photo preview interface (screen rotate), press
32
up/down direction key to adjust focus; press left/right direction
key to adjust menu settings; press OK key to get the picture;
――Size: You can set the photo image size.
――Night mode: You can set up the image modes as
normal and night.
――Brightness: Six levels of brightness are available.
――Contrast: Six levels of contrast are available.
――Exposure bias: Six level of exposure compensation are
available.
――White balance: You can set as automatic white
balance, incandescent lamp, fluorescent
lamp, sunlight and cloudy.
――Delay: You can set up the timer as: Forbidden, 3S and
10S.
――Effect: The special effect can be classified into:
normal, black and white, red, green, blue,
yellow, canvas and negative.
In camera preview interface press left soft key you can
enter options menu as follows:
――Gallery: Enter into image browser list.
――Settings:
―Quality: There are three options in photo image
quality: Advanced, Common and Low.
33
The default mode will be “Common”.
―Banding: You can set as 50Hz or 60Hz.
―Shutter sound: You can set up the sound of shutter as:
Active or Off.
―Auto save: You can select “Active” or “Off”.
―Display parameters: You can select “Active” or “off”.
―Flash: You can select “Active” or “off”.
――Storage: You can save it to the Phone or memory
card.
――Help
Prompt: Observe photographing related local laws and
regulations. Do not use the function in illegal way.
4.4.2. Image browser
Enter the images list interface, press left soft key, you could
go on the following operations.
--Change folder: change the images folder.
--Send: send this file to MMS or Bluetooth.
--Slide play: view this file as full screen.
--Delete: delete this image.
--Set image as wallpaper: set this image as wallpaper
--Rename: rename the file
34
--Mark: choose the image or all of the images.
--Details: to show the images details.
--Slide settings: to setup the slide about effect and slide
delay time.
4.4.3. Video recorder
The device is equipped with a video capture so that you can
chat with your friends through it. A driver is needed to be
installed when the video capture function is used. The details can
be found in driver installation guide.
――Size: You can set the photo image size.
――Brightness: Six levels of brightness are available.
――Contrast: Six levels of contrast are available.
――Effect: The special effect can be classified into:
normal, black and white, red, green, blue,
yellow, canvas and negative.
In camera preview interface press left soft key you can
enter options menu as follows:
――Settings:
―Banding: You can set as 50Hz or 60Hz.
―Audio: You can set as on or off.
35
―Type: You can set as AVI or 3gp
―Display parameters: You can set as on or off.
――Storage: You can save it to the memory card.
――Help
4.4.4. Audio Player
This phone could play the MP3 stored in the phone memory
and support the background play.
Press the left soft key or "OK" key to enter and use the Navigation
keys to operate the MP3 player.
Press up key and down key to adjust volume. Press left soft key to
access Options:
On the audio player interface, move cursor to the shortcut
keys on the screen, you could rapidly operate the MP3 functions.
Under the MP3 list interface, press left soft key, then you can
do operations as follows:
--Music list: Display all the MP3 or the play list you’ve
saved.
--Music mark: Mark the selected MP3 to play.
--Add: Add the selected MP3 to the list.
36
--Set as ringtone: Set the selected MP3 as the call ring or
alarm ring of the incoming call.
--Play mode: Selected the play mode repeat or shuffle.
--Settings: Set the music equalizer or lyrics display.
--Exit: Return to previous menu.
Prompt:
In the main interface of “Play MP3’ press hang-up key
to return, the background broadcasting status will remain
and the standby interface will display the name of the
music played in circulation.
4.4.5. Video Player
This phone supports the video format of 3GP ,AVI and mp4.
Enter the video play list interface, press left soft key, you
could go on the following operations.
--Play list: to show the video files.
-- Fullscreen play
-- Order play: You can set as open or close.
-- Video application: You can set the video file as power
on animation or power off animation
--File attribute: to show the video file details.
37
4.4.6. FM Radio
You can listen to Fm radio freely. Enter the radio interface,
search the frequency automatically by pressing the up and down
direction keys, and change previous or next channel by pressing
the left and right direction keys。
On the interface of the Radio playing, press left soft key you
could enter the options menu and do operations as follows:
--Auto search and save: Search frequency available
automatically and save it to broadcasting station list.
-- Channel list: You can view all the broadcasting stations
you saved.
--Save: Save the frequency you searched to the list.
--Manual search: Search the broadcasting station by input
frequency manually.
--Open/Close speaker: You can start up loudspeaker to
make the sound louder.
--Background play: When the function is on, you can do
other operations while listening to the radio.
--Help
Prompt: Please connect with the earphone before you listen to
the radio, for the device is equal to radio antenna. When the
38
battery of your cell is insufficient, you may not enter the Radio
channel.
4.4.7. Recorder
Use this function you can record or listen to your own record.
The record file format: wav.
Press left soft key and select “record”. You can also do the
following.
――Start recording: Select “record” and continue the
following steps;
――Record file list: Select “records list”.
――Storage: Select phone or memory card.
4.5. Profiles
You could set different scene modes.
——Normal
——Silent
——Vibrate
——Indoor
——Outdoor
——Power save mode
39
——Earphone
——Bluetooth
You could active, customize or rename.
Ring Settings
――SIM1 call ring: You could set the ringtone of SIM1 into
fixed tone or more tones.
――SIM2 call ring: You could set the ringtone of SIM2 into
fixed tone or more tones.
――SIM1 MSG ring: You could set the message tone when
the SIM1 receives the message.
――SIM2 MSG ring: You could set the message tone when
the SIM2 receives the message.
Adjust Volume
――Caller ringtone: You could set the ringtone volume when
there is an incoming call.
――Message ringtone: You could set the ringtone volume
when there is an incoming message.
――Call volume: You could set the volume when you are
calling.
――Alarm & calendar ringtone: You could set the volume of
the alarm clock when it rings.
――Power ring tone: You could set the volume when power
on or power off.
40
Call Alert
You could set the incoming call alert for the SIM1 and
SIM2 and there are five options for you to choose: ringtone,
vibrate, Silent, vibrate then ring, ring and vibrate.
Message Alert
You could set the incoming message alert for the SIM1
and SIM2 and there are four options for you to choose:
ringtone, vibrate, Silent, ring and vibrate.
Alarm & calendar remind
You could set the alarm clock alerts into ringtone, vibrate,
silent, ring and vibrate.
Key Tone
You could set the keypad tone into mute, ringtone 1 and
ringtone 2.
Battery Low alert
You could set to start or close the low voltage alarms.
After starting this function, when the electric quantity of the
battery is low, the low voltage alarm will ring.
Power ring tone
You could set the tones when starting up and shutting
down the phone.
41
4.6. File management
You can check the specific content and service condition of
the phone memory via this function. Meanwhile, you can format
memory, too.
Choose one folder and press left soft key, then you can
operate as follows:
1. Open: open the folder which you selected
2. New folder: Create a new folder.
3. Delete: Delete the folder.
4. Details: Check details of the folder, name,
date, size, position and so on.
5. Edit: Re-name or copy the folder.
6. Search: Search the file in the folder.
7. Sort: To sort according to name, date, size
and type.
8. Mark: Mark one or all the folders in phone
memory.
Prompt: There is no own memory capacity in the phone.
42
4.7. Tools
4.7.1. Calendar
You can use this feature to view the year, date and solar term
easily. Use up/down/left/right direction key to navigator other date.
－Add new schedule
·Subject: Enter the schedule name.
·Date: Edit the schedule date.
·Time: Edit the schedule time
·Ring tone: Fixed rings: Ring1/ Ring2/ Ring3 /More
Ringtones
·Type: Remind once/ Daily/ Weekly/ Monthly/ Yearly/ No
reminding.
·Deadline: Press left soft key to save and right soft key to
return.
――View Schedules
――All Schedules: Display all schedules.
――Clear today is tasks: Delete today schedule.
――Clear All: Delete all schedules.
――Go to Date: Enter the Solar calendar and it can go to the
date you want to check.
――Weekly
43
4.7.2. Alarm
You can edit alarm, time, ring and repeated ring mode.
In “ alarm edit” mode, you can scroll up or down direction
key, when the cursor goes to the desired option, press “OK”, then
you can select desired settings.
The alarm clock feature sounds an alert or makes a vibration
alert at a time you specify.
－Alarm1
－Alarm2
－Alarm3
4.7.3. Torch Light
You can turn on/off torch light or long press 0 key in standby
interface.
4.7.4. STK
Enter STK submenu, you can use the additional services that
the network service operator provided.
The device has STK function. The service is provided by
44
network operator. If SIM card or network operator fails to provide
the service, the function can not be available. Contact network
service operator, if you want to have more information.
4.8. Settings
You can customize the settings, such as time and date,
language, call settings etc.
4.8.1. Call Settings
Dual-SIM
――Standby mode: Only SIM1 enable/ Only SIM2 enable/
Dual SIM dual standby
――Reply by original SIM: Call/SMS/MMS Reply by
original SIM
――Set SIM name: You can set any name you like as the
name of SIM card slot.
Network selection
This function can let you select the network manually or
automatically when the phone is in the roaming state. You can use
this function only after you have made an effective roaming.
Select SIM1/SIM2 and then access:
45
－Auto Select: Press the left key and Ok, the mobile phone will
search various networks. This operation will let your phone
register the most suitable network.
－Manual Select: Press the left soft key and Ok, the mobile phone
will search various networks. You can select the suitable network
from the listed networks.
Call divert: When “call divert” function is started up, you
can transfer the incoming call to voice inbox or other phone
number according to the scheduled “ call divert” conditions.
――Call forwarding unconditional: All incoming calls
will be transferred to voice inbox or
other phone number according to
the setup.
――Call forwarding on busy: When your number is
busy, the incoming calls will be
transferred to voice inbox or other
phone number according to the
setup.
――Call forwarding on no reply: When there are
missed calls in your phone, they
will be transferred to voice inbox or
other phone number according to
the setup.
46
――Divert If Unreachable: When your phone is power
off or out of the service area, the
incoming calls will be transferred to
voice inbox or other phone number
according to the setup.
――Cancel All Diverts: You can delete all settings of
call divert.
Call barred: All outgoing calls, incoming calls, roaming
incoming calls, international outgoing calls, roaming
international outgoing calls are available.
――All outgoing calls: Activate/Deactivate/Check
Status
――All incoming calls: Activate/Deactivate/Check
Status
――Incoming calls when roaming:
Activate/Deactivate/Check Status
―― ISD calling: Activate/Deactivate/Check Status
――Dial when INTL roaming:
Activate/Deactivate/Check Status
――Cancel all barring : Cancel all restrictions on the
call.
――Change Password: You can consult your network
47
operator about the call
barring password.
Prompt: The above-mentioned function will have to need
network support. To use the function, please contact
your network service provider.
Call waiting: You can start up or shut down the function.
When it is started up, even when you are making a call, you
can also receive another income call.
Hide ID: This function must be supported by network.
Select SIM1/SIM2
－Hide ID
－Display own ID
－Display ID by Network
Select line: There are two lines can be selected: line 1 and
line 2. But the function just for the phone which has one
SIM card and two numbers. If your phone is not the type
like that, please just select line 1, because if you choose line
2, dialing will be limited.
Select SIM1/SIM2
—Line 1
—Line 2
Flight mode: You can start up the function directly or
choose when power on. It is used on flight. When flight
48
mode is working all the functions connect with network,
such as SMS, dialing back, WAP network, will be
unavailable, to avoid interfering the signal of the flight you
take.
—Activate
—Select When Power On
Others:
――IP shortcut key: In this function, you can set IP call to
enter the number.
――50 secs warning
――Vibration when connected: Activate/ Deactivate.
――Answer/Reject mode: SMS reply after reject/ anykey
answer
――Auto redial: Activate/ Deactivate
4.8.2. Phone settings
Time & date: You can set up the date and time on the phone
as well as their display mode.
Select Language: You can select phone language.
Auto Power on/off: You can set the time and repeat mode of
power-on and power-off.
Power management: You can view the electric quantity of
49
your battery.
Restore factory settings: You can restore part of the phone
settings as factory settings. The default code of restoring
factory settings is: 1234.
4.8.3. Display settings
Wallpaper settings: You can set as default wallpaper image as
well as more other wallpaper images.
Idle display settings:
――Time & date
――Service provider
――Today`s schedule
――Customized word
Contrast: On the screen backlight interface you can set
different lightness of your phone by pressing the left/right
direction key.
Backlight:
――Always on
――30secs
――20secs
――15secs
――10secs
50
――5secs
Keypad backlight time:
――20secs
――10secs
――5secs
――night mode
――Off
Animation effect:
――Power on display
――Power off display
4.8.4. Security settings
――PIN
You can start up, shut down or modify PIN code.
Correct PIN code shall be input when you unlock or
shut down PIN code. If PIN code verification is
started up, each time when you switch on your
phone, you will have to input PIN code. If you input
mistaken PIN codes three times in a row, SIM card
will be locked. You will have to get PUK1 code to
unlock it. Please contact network operator to get
PUK1 code when necessary. The default PIN code
51
is 1234.
――PIN2
You can review PIN2 code. For details, please
contact network operator.
――Privacy
You can review privacy protection password. Besides,
you can also set passwords for some menus, in this
way, you will have to input password each time
when you desire to open the menus. The default
password of privacy protection mode is 1234.
――Auto Keypad lock
－Off
－5 secs
－15 secs
－30 secs
－1 min
－5 mins
――Lock screen by end-key
－Activate
－Off
――Power-on password
You can start up or shut down “phone password” or
revise it. When “phone password” is started up, you
52
will have to input “password” each time when you
use the phone. The default phone password is 1234.
4.8.5. Connection management
Network account
You can select network count which you want to use.
GPRS settings
You can select connect when needed, always connect.
4.9. Internet
The device is compatible with WAP service. You can visit
various WAP services, for instance, news, weather forecast and
airlines etc. The services are specially designed for the device and
are maintained by WAP service supplier.
WAP service requires network backup. You can consult the
network operator or service supplier about the availability, rates
and tax of WAP services.
Select SIM/SIM2 to enter:
53
4.10. Entertainment
4.10.1. Sokoban
·New Game: You can start a new push cases game.
·Resume: You can continue to play the game you didn’t finish last
time.
·Select level: You can choose the level of the game.
·Help
4.10.2. eBook
Read E-Book stored in the T-Flash Card.
Press left soft key to access Option:
·Add bookmark
·View bookmark
·Jump to start
·Jump to end
·Jump to percent
·Turn off backlight (*)
54
4.11. Extra
4.11.1. Bluetooth
Open/Close Bluetooth
You can choose to “open” or “close” Bluetooth.
Bluetooth visibility
You can choose “show phone” or “hidden” Bluetooth. If the
Bluetooth is hidden, others cannot search your phone.
Paired device
You can search different Bluetooth equipments and find
compatible ones (as long as the PIN codes of two Bluetooth
equipments are identical with each other, the match will be
successful. The PIN code of Bluetooth earphone is different due to
different type, and you can find the code in operating manual of the
Bluetooth earphone.).
Shared folder settings
-- Shared folder permission: You can choose “free read and
write” or “read only”.
--Shared folder: You can choose folder in the phone memory
as the storage position of received files by Bluetooth.
My Bluetooth name
You can change the name of the phone.
55
Storage
Help
You can view the operating instruction of Bluetooth.
4.11.2. Calculator
The function will make your device a calculator with which
you can carry out simple math calculation.
Write by stylus to enter the numbers. Use following
direction keys to calculate：
Up, down, left, right key: ＋、－、×、/
OK key: Show the calculation result.
* Key: Decimal point
4.12. Shortcuts
You can set the menu when you press right softkey to enter in
standby interface.
5. Text Input
The device provides several text input modes so that you can
56
write text or input data in your “contacts”, edit “contacts” record,
search English names and write SMS and to-do list.
In “text input” mode, if you want to change the input way,
you can press “#” key. The selected input way will appear on the
top left of the screen.
Letter (Capital, Normal)
Enter edit page, press “#”and switch the input mode to
“letter”, then press the keys on keypad, selected letters will
appear on the screen.
Press the number key can get the first letter marked on the key,
press twice quickly can get the second letter marked on the key.
Similarly, if the letter you want to input have the same key with the
former letter, please wait until the cursor appears again, then input
the new letter.
For example, if you want to input “ok”, you need to press the
“6” key three times continuously and get “o”, then press the
key”5” twice, “ k” will appear on the screen. Press right soft key,
you can delete the text you input.
Number
Enter “edit” mode, press “＃” key you can change the input
way to “ number”. Then press the keys, number will appear on the
screen. The key 0-9 separately represents the figure from 0 to 9.
57
You can press corresponding key to get desired number. Press right
soft key can delete the number you input.
Punctuation
Enter the “edit” mode, press key “1”, the punctuations will
appear. You can scroll the direction key so that the cursor can
select desired punctuation. Press left soft key can select the desired
punctuation.
6. Care and Maintenance
Maintenance of battery
·Your device is powered by a rechargeable battery. It is necessary
to have the battery charged when it is going to wear out. The full
performance of a new battery is achieved only when it is fully
wore out.
·Unplug the charger from the electrical plug and the device when
not in use. Do not leave fully a charged battery connected to a
charger over a week, since overcharging may shorten its lifetime.
·Temperature tends to affect the limit of battery to be charged.
Therefore, it is necessary for the battery to be cooled or warmed
58
before it is charged. If the temperature of batter exceeds 40ºC ,the
battery cannot be charged.
·Use the battery only for its intended purpose and avoid
short-circuiting. Accidental short-circuiting can occur when a
metallic object causes direct connection of the positive (+) and
negative (-) terminals of the battery.
·Do not use damaged battery.
·Leave the battery in hot or cold places will reduce the capacity
and lifetime of the battery. A device with a hot or cold battery may
not work temporarily, even when the battery is fully charged.
·Do not dispose of batteries in a fire as they may explode. Dispose
of batteries according to local regulations.
Care of maintenance of your device
The suggestions below will help you protect your warranty
coverage.
·Keep the device and accessories out of the reach of small children.
·Keep the device dry. All types of liquids or moisture will corrode
electronic circuits.
· Do not store the device in hot areas. High temperatures can
shorten the life of electronic devices and warp or melt certain
plastics.
·Do not attempt to open the device other than as instructed in this
guide. Non-professional handling may damage the device.
59
·Do not use harsh chemicals or strong detergents to clean the
device.
·Use only the supplied or an approved replacement attachments,
for the unauthorized ones could invalidate the warranty of
maintenance.
FCC Caution.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired operation.
Any Changes or modifications not expressly approved
by the party responsible for compliance could void the
user's authority to operate the equipment.
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and,
60
if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or
television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help.
Specific Absorption Rate (SAR) information:
This GSM Mobile Phone meets the government's
requirements for exposure to radio waves. The guidelines
61
are based on standards that were developed by
independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards
include a substantial safety margin designed to assure the
safety of all persons regardless of age or health.
FCC RF Exposure Information and Statement The SAR
limit of USA (FCC) is 1.6 W/kg averaged over one gram
of tissue. Device types: F6 Pro (FCC ID:
AODZKTXIPROF6) has also been tested against this
SAR limit. The highest SAR value reported under this
standard during product certification for use at the ear is
0.784W/kg and when properly worn on the body is
1.131W/kg. This device was tested for typical body-worn
operations with the back of the handset kept 1.5cm from
the body. To maintain compliance with FCC RF exposure
requirements, use accessories that maintain a 1.5cm
separation distance between the user's body and the back
of the handset. The use of belt clips, holsters and similar
accessories should not contain metallic components in its
assembly. The use of accessories that do not satisfy these
requirements may not comply with FCC RF exposure
requirements, and should be avoided.
62
Body-worn Operation
This device was tested for typical body-worn operations.
To comply with RF exposure requirements, a minimum
separation distance of 1.5 cm must be maintained between
the user’s body and the handset, including the antenna.
Third-party belt-clips, holsters, and similar accessories
used by this device should not contain any metallic
components. Body-worn accessories that do not meet
these requirements may not comply with RF exposure
requirements and should be avoided. Use only the
supplied or an approved antenna.
