SHI KISB Electronic BTK-703 BLUETOOTH User Manual BTK 703 English 1108 1

Shenzhen SHI KISB Electronic Co., Ltd. BLUETOOTH BTK 703 English 1108 1

Users Manual

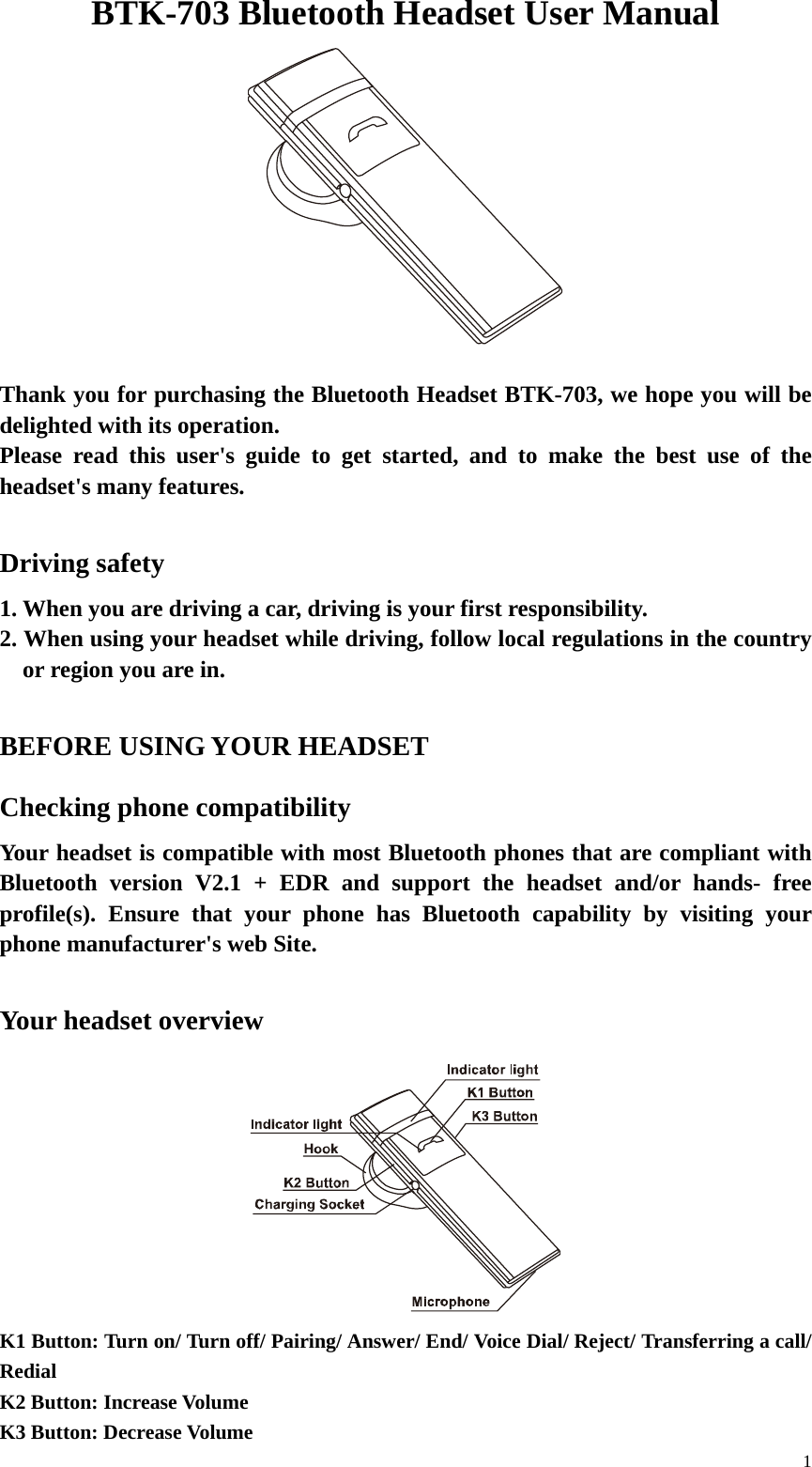

1BTK-703 Bluetooth Headset User Manual Thank you for purchasing the Bluetooth Headset BTK-703, we hope you will be delighted with its operation. Please read this user's guide to get started, and to make the best use of the headset's many features. Driving safety 1. When you are driving a car, driving is your first responsibility. 2. When using your headset while driving, follow local regulations in the country or region you are in. BEFORE USING YOUR HEADSET Checking phone compatibility Your headset is compatible with most Bluetooth phones that are compliant with Bluetooth version V2.1 + EDR and support the headset and/or hands- free profile(s). Ensure that your phone has Bluetooth capability by visiting your phone manufacturer's web Site. Your headset overview K1 Button: Turn on/ Turn off/ Pairing/ Answer/ End/ Voice Dial/ Reject/ Transferring a call/ Redial K2 Button: Increase Volume K3 Button: Decrease Volume

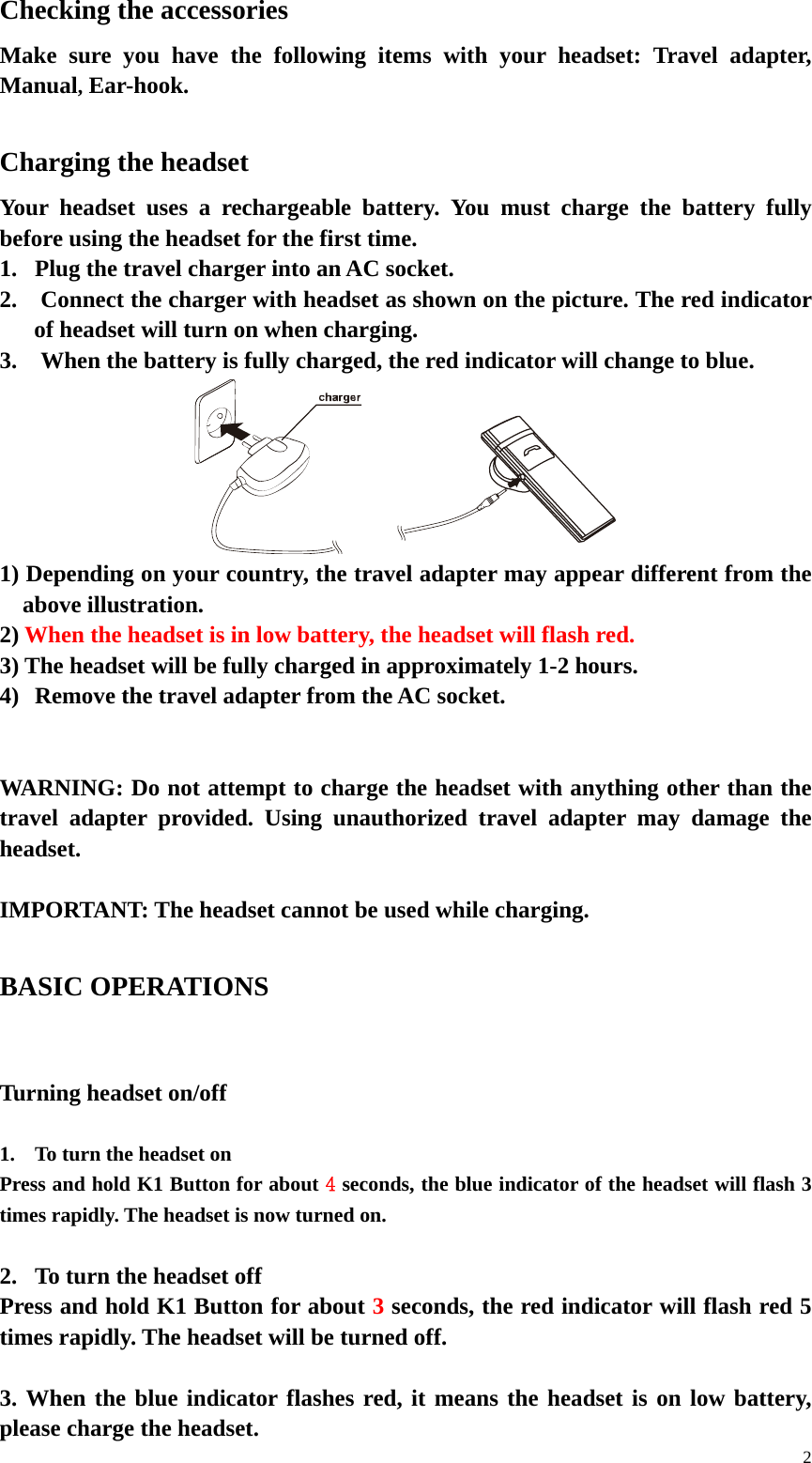

2Checking the accessories Make sure you have the following items with your headset: Travel adapter, Manual, Ear-hook. Charging the headset Your headset uses a rechargeable battery. You must charge the battery fully before using the headset for the first time. 1. Plug the travel charger into an AC socket. 2. Connect the charger with headset as shown on the picture. The red indicator of headset will turn on when charging. 3. When the battery is fully charged, the red indicator will change to blue. 1) Depending on your country, the travel adapter may appear different from the above illustration. 2) When the headset is in low battery, the headset will flash red. 3) The headset will be fully charged in approximately 1-2 hours. 4) Remove the travel adapter from the AC socket. WARNING: Do not attempt to charge the headset with anything other than the travel adapter provided. Using unauthorized travel adapter may damage the headset. IMPORTANT: The headset cannot be used while charging. BASIC OPERATIONS Turning headset on/off 1. To turn the headset on Press and hold K1 Button for about 4 seconds, the blue indicator of the headset will flash 3 times rapidly. The headset is now turned on. 2. To turn the headset off Press and hold K1 Button for about 3 seconds, the red indicator will flash red 5 times rapidly. The headset will be turned off. 3. When the blue indicator flashes red, it means the headset is on low battery, please charge the headset.

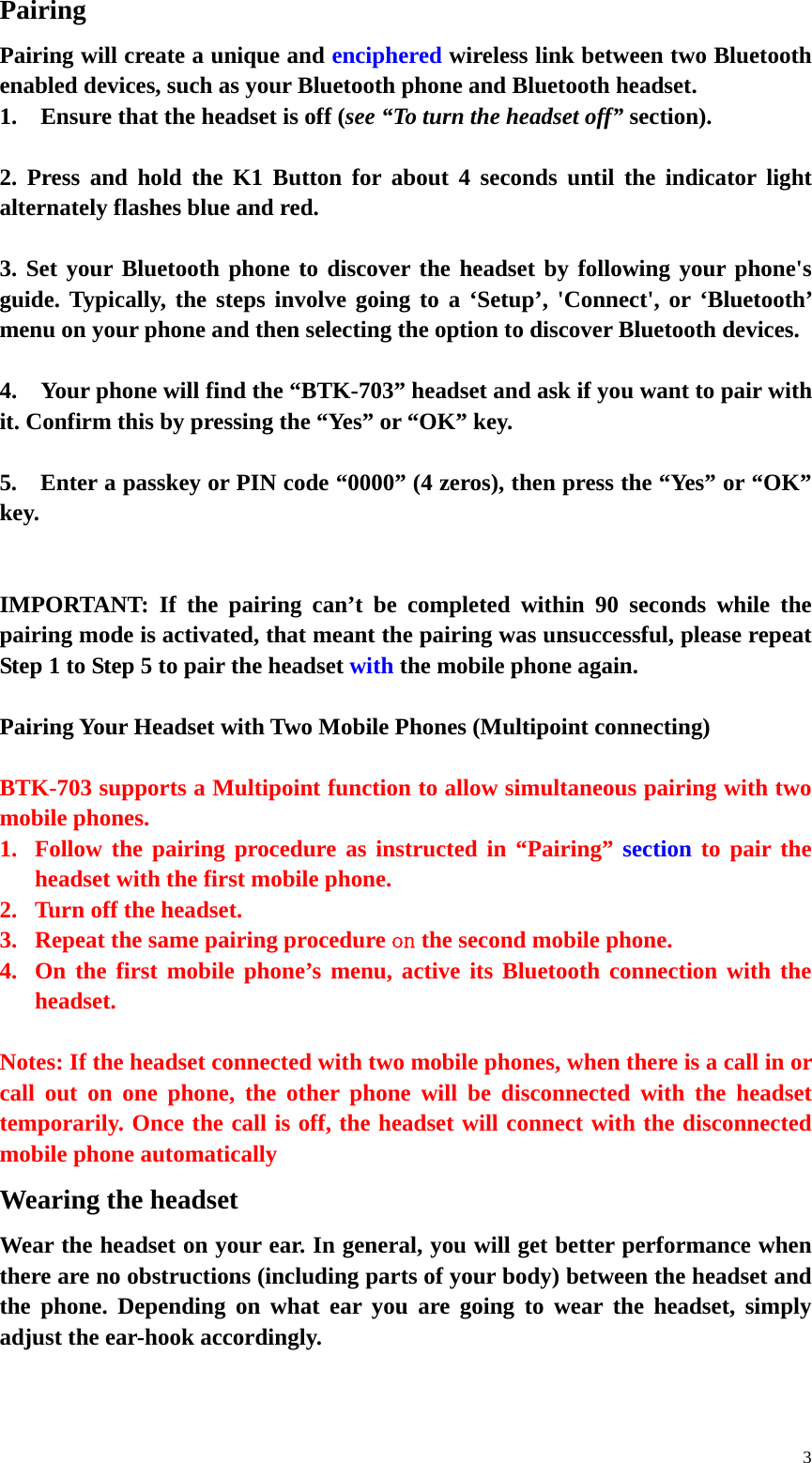

3Pairing Pairing will create a unique and enciphered wireless link between two Bluetooth enabled devices, such as your Bluetooth phone and Bluetooth headset. 1. Ensure that the headset is off (see “To turn the headset off” section). 2. Press and hold the K1 Button for about 4 seconds until the indicator light alternately flashes blue and red. 3. Set your Bluetooth phone to discover the headset by following your phone's guide. Typically, the steps involve going to a ‘Setup’, 'Connect', or ‘Bluetooth’ menu on your phone and then selecting the option to discover Bluetooth devices. 4. Your phone will find the “BTK-703” headset and ask if you want to pair with it. Confirm this by pressing the “Yes” or “OK” key. 5. Enter a passkey or PIN code “0000” (4 zeros), then press the “Yes” or “OK” key. IMPORTANT: If the pairing can’t be completed within 90 seconds while the pairing mode is activated, that meant the pairing was unsuccessful, please repeat Step 1 to Step 5 to pair the headset with the mobile phone again. Pairing Your Headset with Two Mobile Phones (Multipoint connecting) BTK-703 supports a Multipoint function to allow simultaneous pairing with two mobile phones. 1. Follow the pairing procedure as instructed in “Pairing” section to pair the headset with the first mobile phone. 2. Turn off the headset. 3. Repeat the same pairing procedure on the second mobile phone. 4. On the first mobile phone’s menu, active its Bluetooth connection with the headset. Notes: If the headset connected with two mobile phones, when there is a call in or call out on one phone, the other phone will be disconnected with the headset temporarily. Once the call is off, the headset will connect with the disconnected mobile phone automatically Wearing the headset Wear the headset on your ear. In general, you will get better performance when there are no obstructions (including parts of your body) between the headset and the phone. Depending on what ear you are going to wear the headset, simply adjust the ear-hook accordingly.

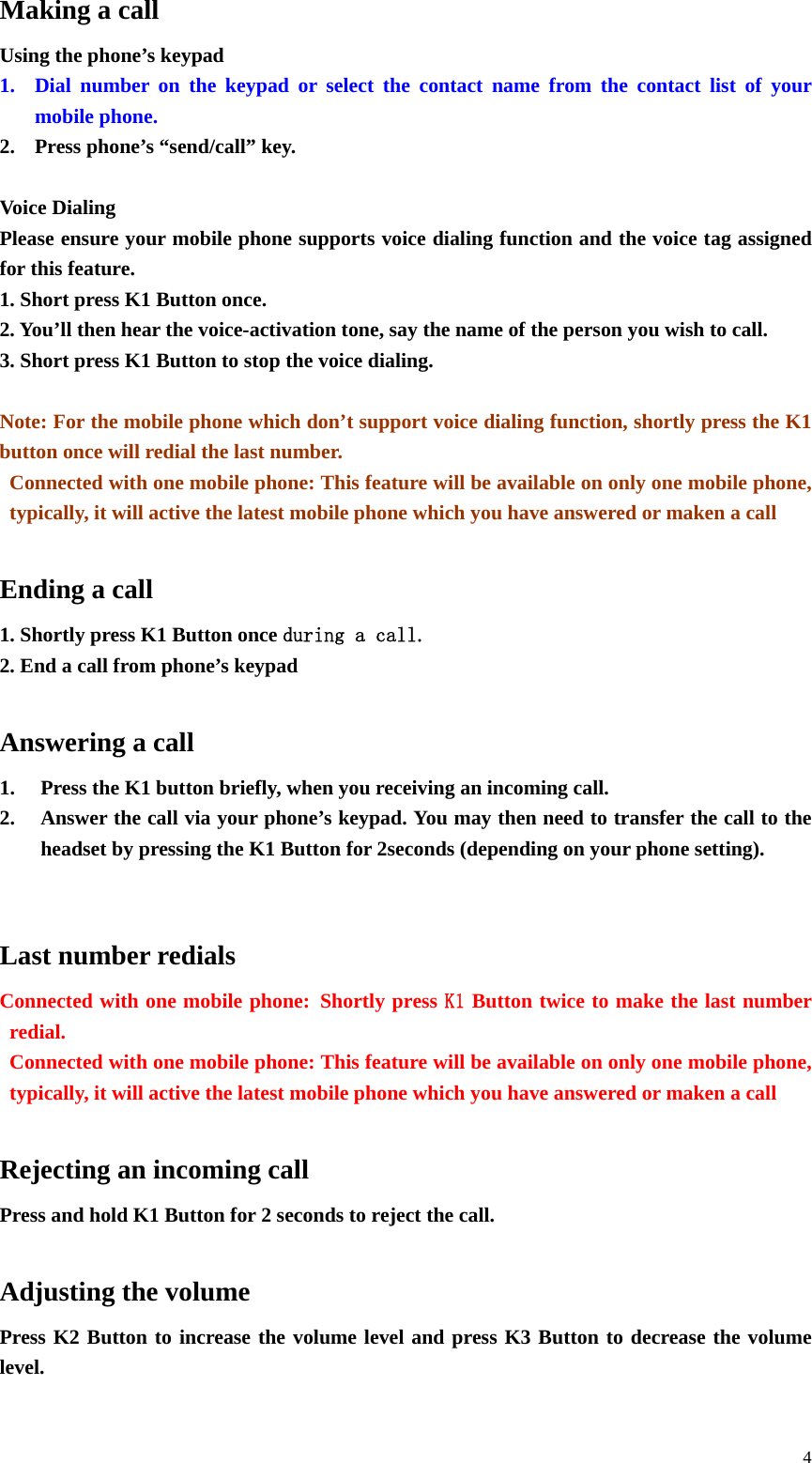

4Making a call Using the phone’s keypad 1. Dial number on the keypad or select the contact name from the contact list of your mobile phone. 2. Press phone’s “send/call” key. Voice Dialing Please ensure your mobile phone supports voice dialing function and the voice tag assigned for this feature. 1. Short press K1 Button once. 2. You’ll then hear the voice-activation tone, say the name of the person you wish to call. 3. Short press K1 Button to stop the voice dialing. Note: For the mobile phone which don’t support voice dialing function, shortly press the K1 button once will redial the last number. Connected with one mobile phone: This feature will be available on only one mobile phone, typically, it will active the latest mobile phone which you have answered or maken a call Ending a call 1. Shortly press K1 Button once during a call. 2. End a call from phone’s keypad Answering a call 1. Press the K1 button briefly, when you receiving an incoming call. 2. Answer the call via your phone’s keypad. You may then need to transfer the call to the headset by pressing the K1 Button for 2seconds (depending on your phone setting). Last number redials Connected with one mobile phone: Shortly press K1 Button twice to make the last number redial. Connected with one mobile phone: This feature will be available on only one mobile phone, typically, it will active the latest mobile phone which you have answered or maken a call Rejecting an incoming call Press and hold K1 Button for 2 seconds to reject the call. Adjusting the volume Press K2 Button to increase the volume level and press K3 Button to decrease the volume level.

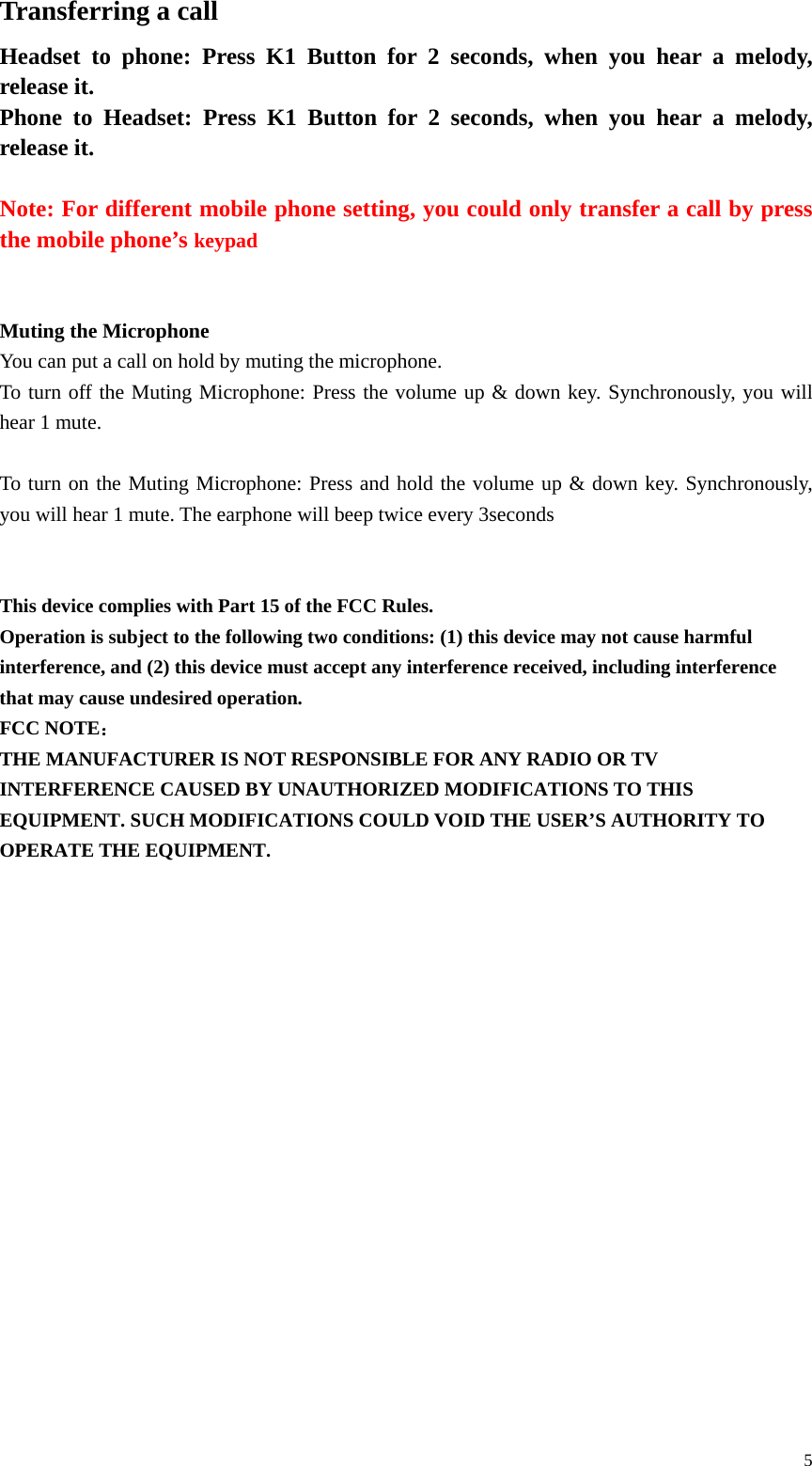

5Transferring a call Headset to phone: Press K1 Button for 2 seconds, when you hear a melody, release it. Phone to Headset: Press K1 Button for 2 seconds, when you hear a melody, release it. Note: For different mobile phone setting, you could only transfer a call by press the mobile phone’s keypad Muting the Microphone You can put a call on hold by muting the microphone. To turn off the Muting Microphone: Press the volume up & down key. Synchronously, you will hear 1 mute. To turn on the Muting Microphone: Press and hold the volume up & down key. Synchronously, you will hear 1 mute. The earphone will beep twice every 3seconds This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC NOTE： THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

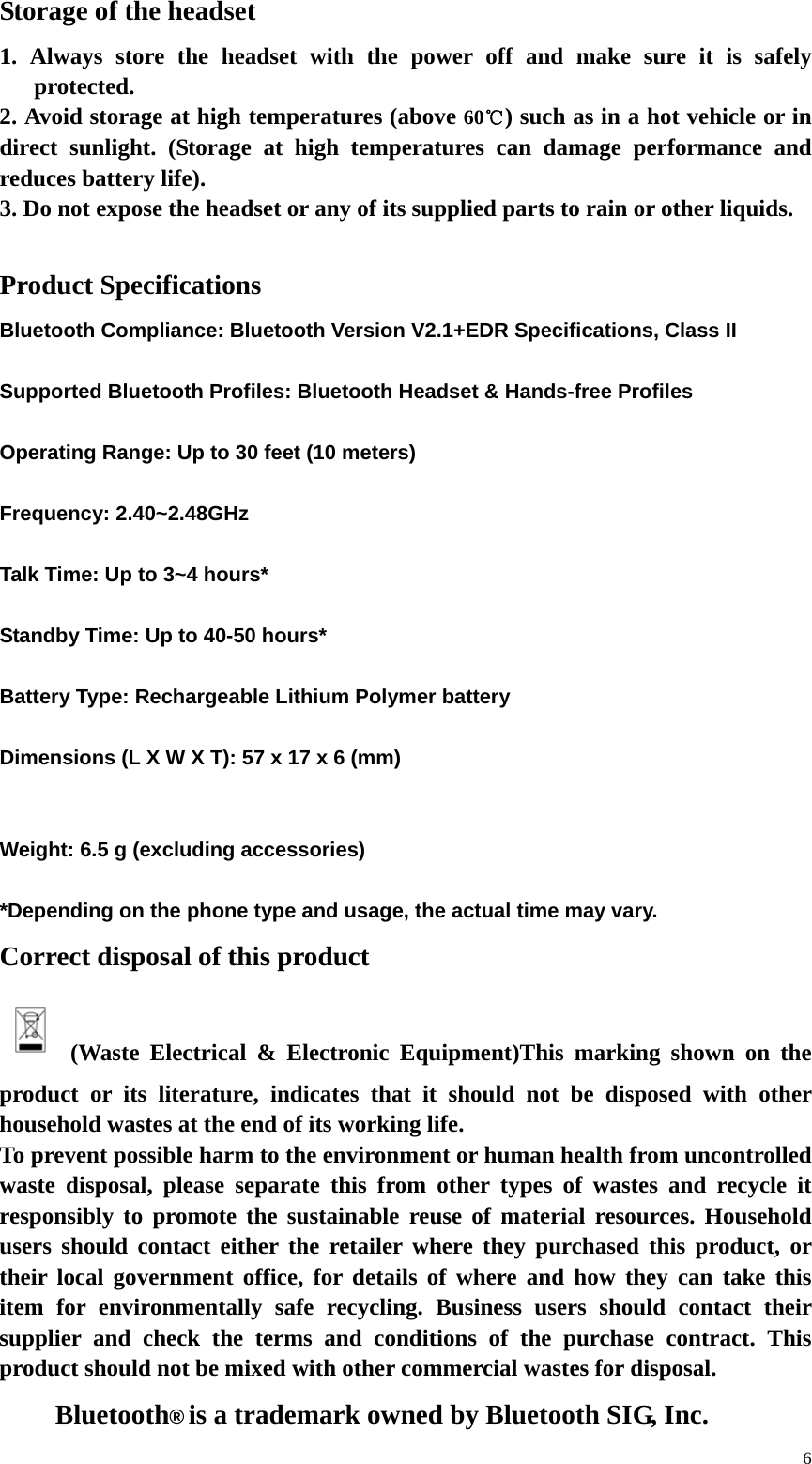

6Storage of the headset 1. Always store the headset with the power off and make sure it is safely protected. 2. Avoid storage at high temperatures (above 60℃) such as in a hot vehicle or in direct sunlight. (Storage at high temperatures can damage performance and reduces battery life). 3. Do not expose the headset or any of its supplied parts to rain or other liquids. Product Specifications Bluetooth Compliance: Bluetooth Version V2.1+EDR Specifications, Class II Supported Bluetooth Profiles: Bluetooth Headset & Hands-free Profiles Operating Range: Up to 30 feet (10 meters) Frequency: 2.40~2.48GHz Talk Time: Up to 3~4 hours* Standby Time: Up to 40-50 hours* Battery Type: Rechargeable Lithium Polymer battery Dimensions (L X W X T): 57 x 17 x 6 (mm) Weight: 6.5 g (excluding accessories) *Depending on the phone type and usage, the actual time may vary. Correct disposal of this product (Waste Electrical & Electronic Equipment)This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. Bluetooth® is a trademark owned by Bluetooth SIG, Inc.
