SHI KISB Electronic BTK-722 Bluetooth Headset User Manual JW Blue BT42 Booklet indd

Shenzhen SHI KISB Electronic Co., Ltd. Bluetooth Headset JW Blue BT42 Booklet indd

User Manual

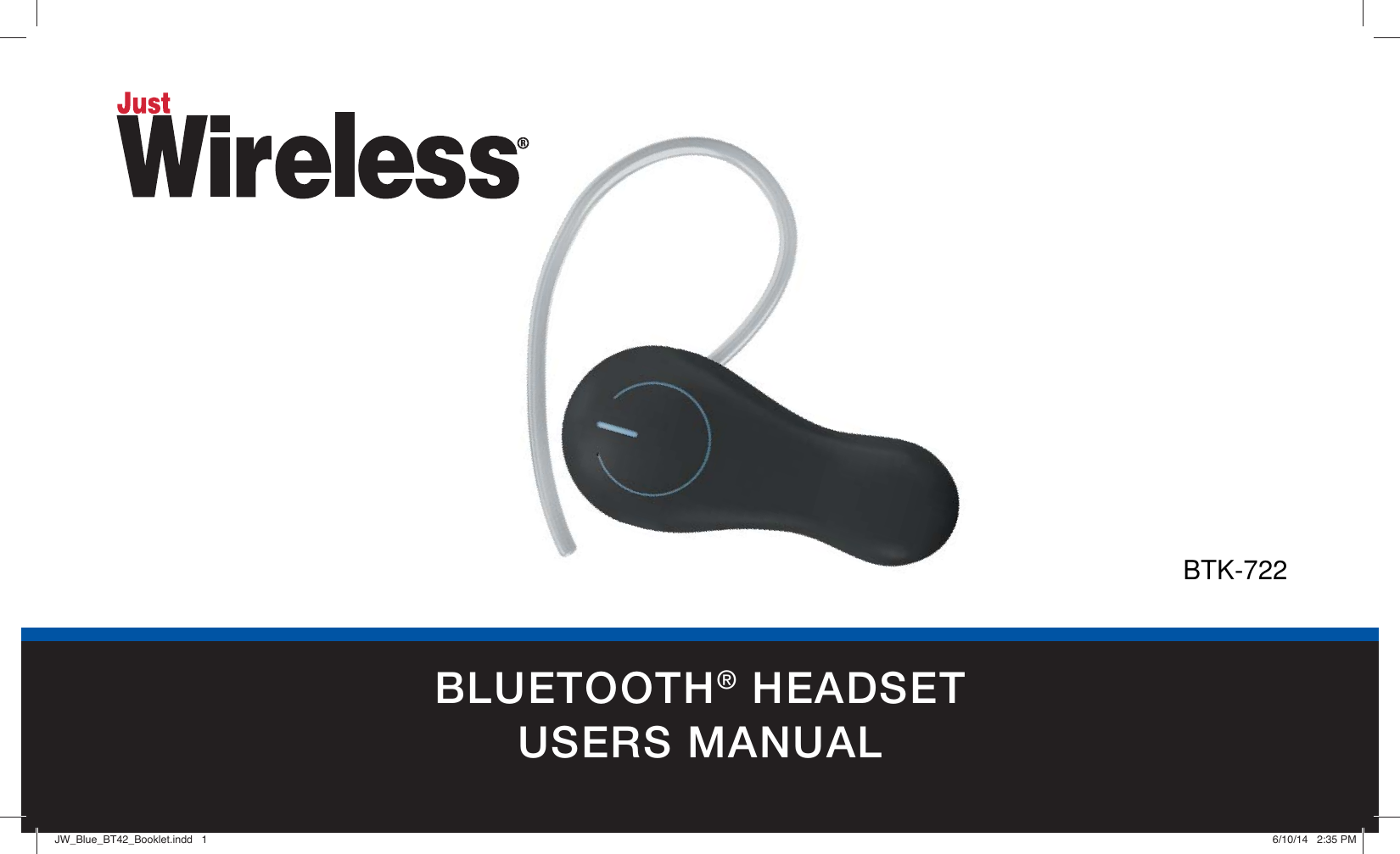

BLUETOOTH® HEADSETUSERS MANUALJW_Blue_BT42_Booklet.indd 1JW_Blue_BT42_Booklet.indd 1 6/10/14 2:35 PM6/10/14 2:35 PMBTK-722

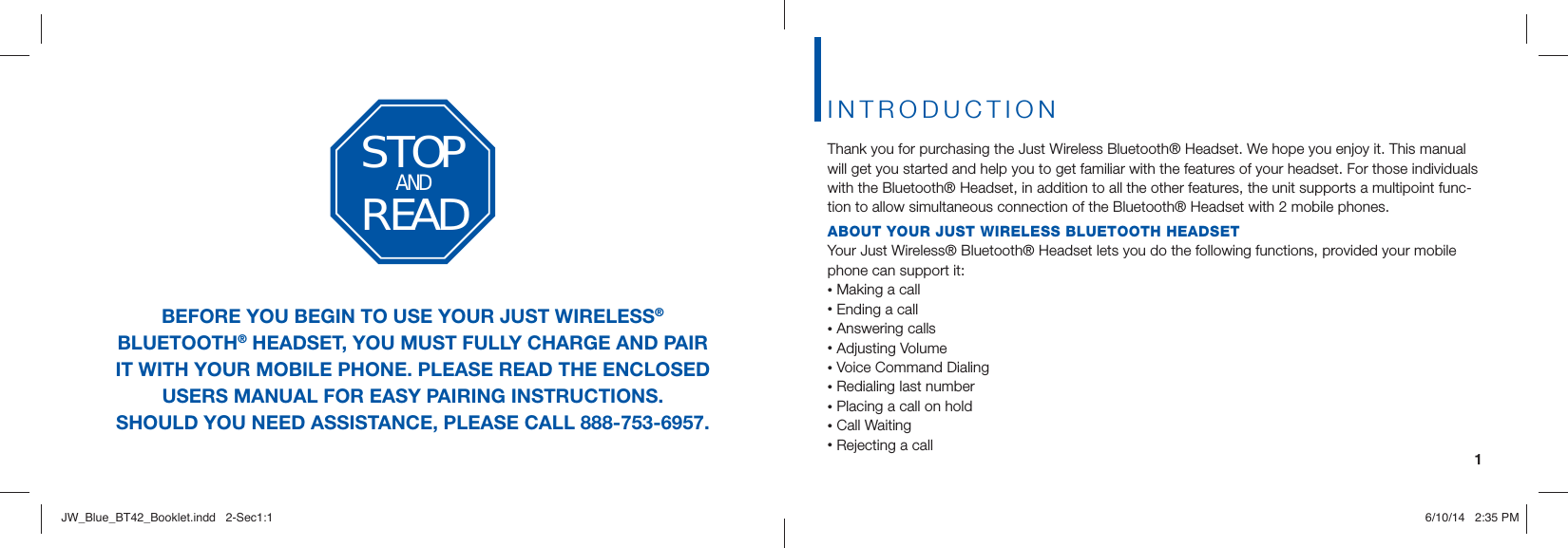

1Thank you for purchasing the Just Wireless Bluetooth® Headset. We hope you enjoy it. This manual will get you started and help you to get familiar with the features of your headset. For those individuals with the Bluetooth® Headset, in addition to all the other features, the unit supports a multipoint func-tion to allow simultaneous connection of the Bluetooth® Headset with 2 mobile phones.ABOUT YOUR JUST WIRELESS BLUETOOTH HEADSETYour Just Wireless® Bluetooth® Headset lets you do the following functions, provided your mobile phone can support it:• Making a call• Ending a call• Answering calls• Adjusting Volume• Voice Command Dialing• Redialing last number• Placing a call on hold• Call Waiting• Rejecting a callINTRODUCTIONBEFORE YOU BEGIN TO USE YOUR JUST WIRELESS® BLUETOOTH® HEADSET, YOU MUST FULLY CHARGE AND PAIR IT WITH YOUR MOBILE PHONE. PLEASE READ THE ENCLOSED USERS MANUAL FOR EASY PAIRING INSTRUCTIONS. SHOULD YOU NEED ASSISTANCE, PLEASE CALL 888-753-6957.STOPANDREADJW_Blue_BT42_Booklet.indd 2-Sec1:1JW_Blue_BT42_Booklet.indd 2-Sec1:1 6/10/14 2:35 PM6/10/14 2:35 PM

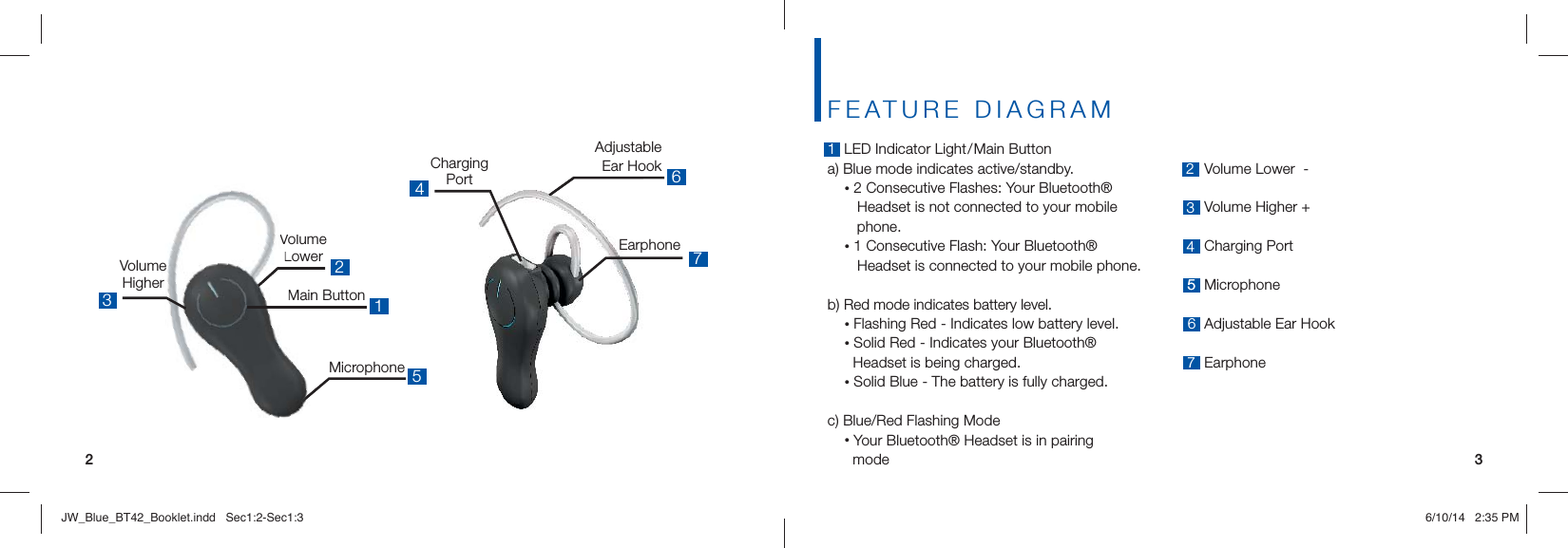

2 3FEATURE DIAGRAM1 LED Indicator Light/Main Buttona) Blue mode indicates active/standby.• 2 Consecutive Flashes: Your Bluetooth® Headset is not connected to your mobile phone.• 1 Consecutive Flash: Your Bluetooth® Headset is connected to your mobile phone.b) Red mode indicates battery level.• Flashing Red - Indicates low battery level.• Solid Red - Indicates your Bluetooth® Headset is being charged. • Solid Blue - The battery is fully charged.c) Blue/Red Flashing Mode• Your Bluetooth® Headset is in pairing mode Volume Lower - Volume Higher + Charging Port5 Microphone6 6 Adjustable Ear Hook Earphone1 2 2 3 4 5 7 5 6 Volume LowerAdjustable Ear HookMain ButtonMicrophoneVoluLowMain4 Charging Port3 Volume Higher7 EarphoneJW_Blue_BT42_Booklet.indd Sec1:2-Sec1:3JW_Blue_BT42_Booklet.indd Sec1:2-Sec1:3 6/10/14 2:35 PM6/10/14 2:35 PM

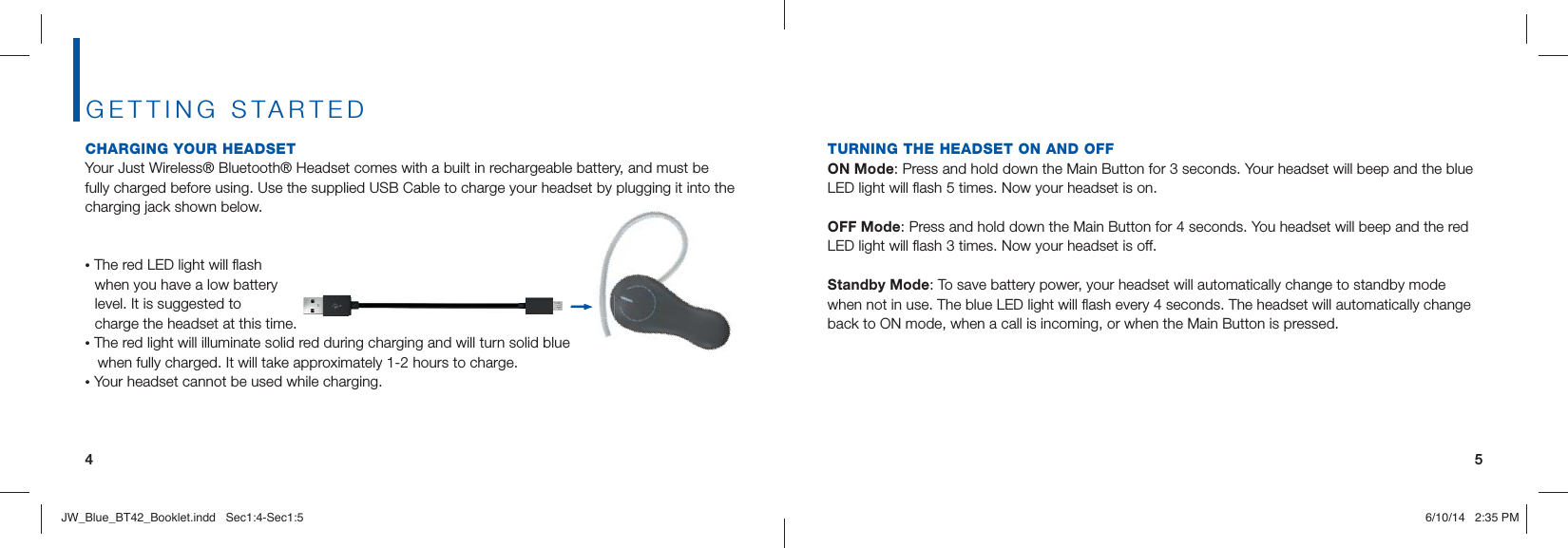

4 5CHARGING YOUR HEADSETYour Just Wireless® Bluetooth® Headset comes with a built in rechargeable battery, and must be fully charged before using. Use the supplied USB Cable to charge your headset by plugging it into the charging jack shown below.• The red LED light will fl ash when you have a low battery level. It is suggested to charge the headset at this time.• The red light will illuminate solid red during charging and will turn solid blue when fully charged. It will take approximately 1-2 hours to charge.• Your headset cannot be used while charging.TURNING THE HEADSET ON AND OFFON Mode: Press and hold down the Main Button for 3 seconds. Your headset will beep and the blue LED light will fl ash 5 times. Now your headset is on.OFF Mode: Press and hold down the Main Button for 4 seconds. You headset will beep and the red LED light will fl ash 3 times. Now your headset is off.Standby Mode: To save battery power, your headset will automatically change to standby mode when not in use. The blue LED light will fl ash every 4 seconds. The headset will automatically change back to ON mode, when a call is incoming, or when the Main Button is pressed.GETTING STARTEDJW_Blue_BT42_Booklet.indd Sec1:4-Sec1:5JW_Blue_BT42_Booklet.indd Sec1:4-Sec1:5 6/10/14 2:35 PM6/10/14 2:35 PM
6 7PAIRING AND CONNECTING YOUR HEADSET TO YOUR MOBILE PHONEPairing is a process of linking the Bluetooth® Headset with your mobile phone. Before using your Bluetooth® Headset, you must successfully pair it to your mobile phone. Your mobile phone must be Bluetooth® compatible. If it is not, you will not be able to pair the headset to your mobile phone. Check the users manual of your mobile phone to see if it is Bluetooth® compatible. Your mobile phone and headset should not be more than 3 feet in distance when pairing.Step 1 - Setting the headset into pairing mode: In the OFF mode, press and hold down the Main Button for 9 seconds, until you see the LED light consecutively fl ashing blue and red. Your Bluetooth® Headset is now in pairing mode.Step 2 - Setting the mobile phone into pairing or “discover” mode: Follow your mobile phone’s instruction manual. Although it is different on all types of mobile phone brands and models, it usually involves going to the “set up”, “connect” or “Bluetooth®” menu on your mobile phone, and selecting the option “discover” or “add” a Bluetooth® device.Step 3 - Completing the pairing: Your mobile phone will search for your Bluetooth® Headset. The LED indicator light must continue to consecutively fl ash blue and red while your mobile phone is searching for your Bluetooth® Headset. If it isn’t fl ashing blue/red repeat step 1 above. When your mobile phone fi nds Bluetooth® Headset, you will need to accept your Bluetooth® Headset by pressing “Pair”, “Yes” or “OK” on your mobile phone and then confi rm using the passkey or PIN number 0000. The headset and mobile phone are now paired and the LED light on the headset will now fl ash blue 2 times consecutively. You will only have to pair your Bluetooth® Headset to your mobile phone once. After this process has been completed you can use the Bluetooth® Headset only with its paired mobile phone. Repeat steps 1-3 if pairing was unsuccessful. JW_Blue_BT42_Booklet.indd Sec1:6-Sec1:7JW_Blue_BT42_Booklet.indd Sec1:6-Sec1:7 6/10/14 2:35 PM6/10/14 2:35 PM

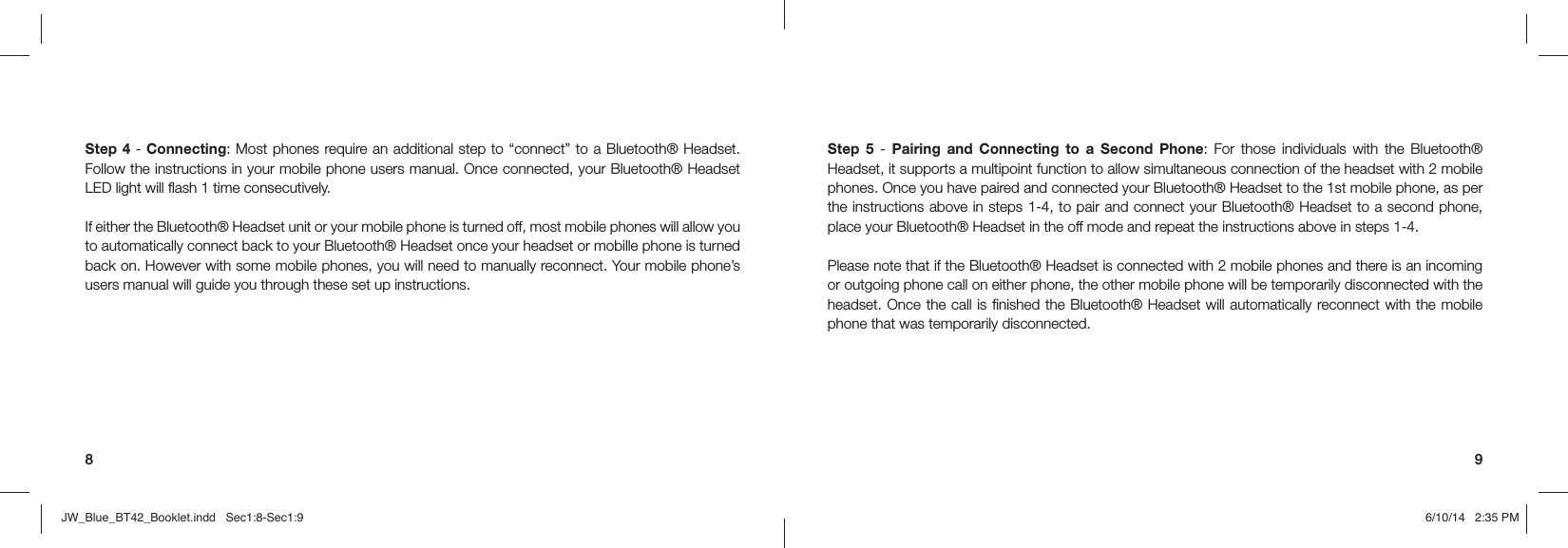

8 9Step 4 - Connecting: Most phones require an additional step to “connect” to a Bluetooth® Headset. Follow the instructions in your mobile phone users manual. Once connected, your Bluetooth® Headset LED light will fl ash 1 time consecutively. If either the Bluetooth® Headset unit or your mobile phone is turned off, most mobile phones will allow you to automatically connect back to your Bluetooth® Headset once your headset or mobille phone is turned back on. However with some mobile phones, you will need to manually reconnect. Your mobile phone’s users manual will guide you through these set up instructions.Step 5 - Pairing and Connecting to a Second Phone: For those individuals with the Bluetooth® Headset, it supports a multipoint function to allow simultaneous connection of the headset with 2 mobile phones. Once you have paired and connected your Bluetooth® Headset to the 1st mobile phone, as per the instructions above in steps 1-4, to pair and connect your Bluetooth® Headset to a second phone, place your Bluetooth® Headset in the off mode and repeat the instructions above in steps 1-4. Please note that if the Bluetooth® Headset is connected with 2 mobile phones and there is an incoming or outgoing phone call on either phone, the other mobile phone will be temporarily disconnected with the headset. Once the call is fi nished the Bluetooth® Headset will automatically reconnect with the mobile phone that was temporarily disconnected.JW_Blue_BT42_Booklet.indd Sec1:8-Sec1:9JW_Blue_BT42_Booklet.indd Sec1:8-Sec1:9 6/10/14 2:35 PM6/10/14 2:35 PM

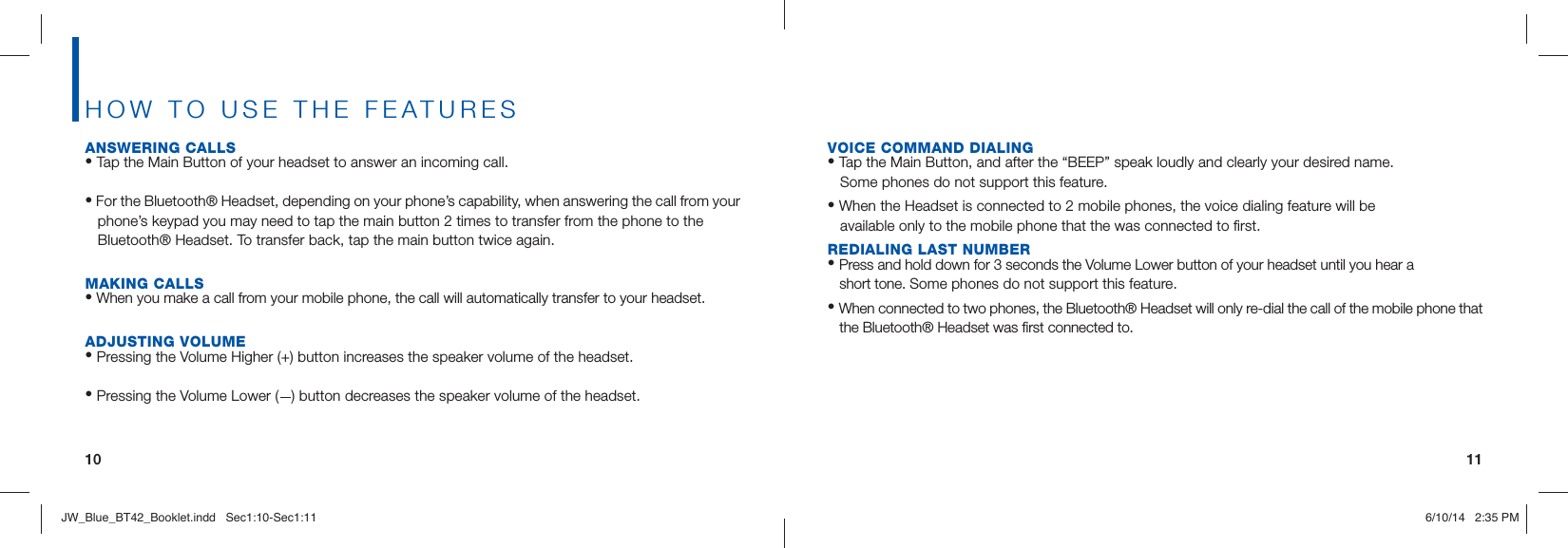

10 11HOW TO USE THE FEATURESANSWERING CALLS• Tap the Main Button of your headset to answer an incoming call.• For the Bluetooth® Headset, depending on your phone’s capability, when answering the call from your phone’s keypad you may need to tap the main button 2 times to transfer from the phone to the Bluetooth® Headset. To transfer back, tap the main button twice again.MAKING CALLS• When you make a call from your mobile phone, the call will automatically transfer to your headset.ADJUSTING VOLUME• Pressing the Volume Higher (+) button increases the speaker volume of the headset.• Pressing the Volume Lower ( ) button decreases the speaker volume of the headset.VOICE COMMAND DIALING• Tap the Main Button, and after the “BEEP” speak loudly and clearly your desired name. Some phones do not support this feature.• When the Headset is connected to 2 mobile phones, the voice dialing feature will be available only to the mobile phone that the was connected to fi rst.REDIALING LAST NUMBER• Press and hold down for 3 seconds the Volume Lower button of your headset until you hear a short tone. Some phones do not support this feature.• When connected to two phones, the Bluetooth® Headset will only re-dial the call of the mobile phone that the Bluetooth® Headset was fi rst connected to.JW_Blue_BT42_Booklet.indd Sec1:10-Sec1:11JW_Blue_BT42_Booklet.indd Sec1:10-Sec1:11 6/10/14 2:35 PM6/10/14 2:35 PM

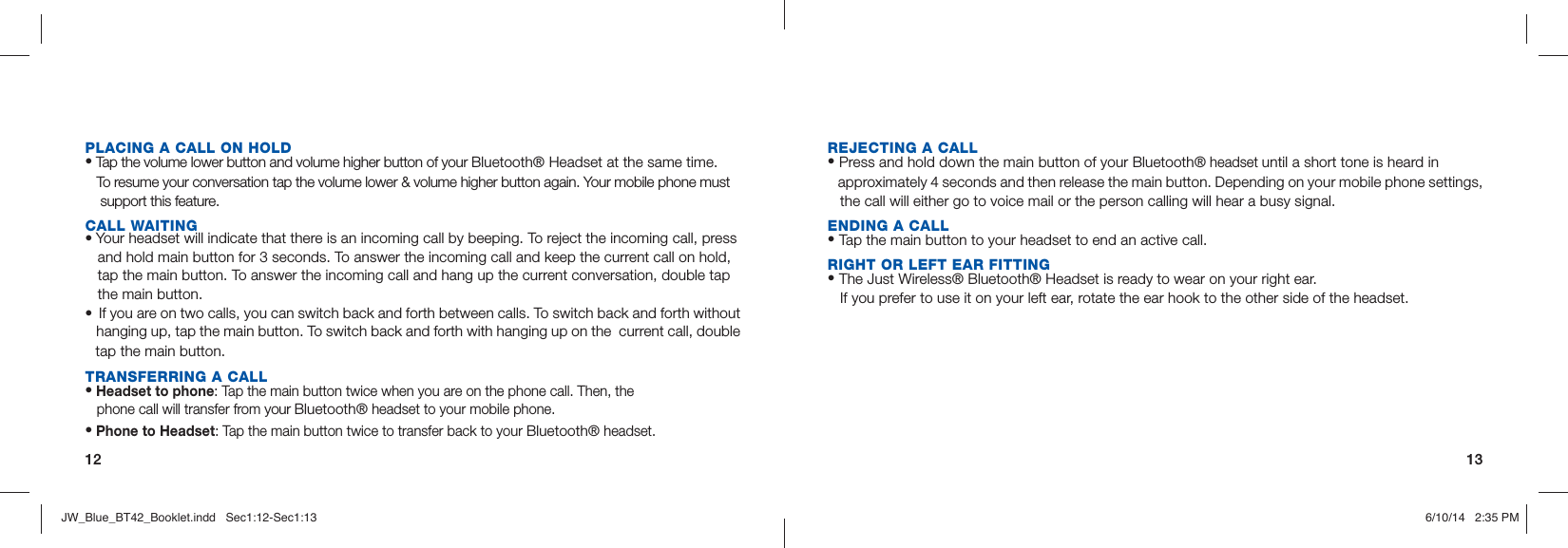

12 13PLACING A CALL ON HOLD• Tap the volume lower button and volume higher button of your Bluetooth® Headset at the same time. To resume your conversation tap the volume lower & volume higher button again. Your mobile phone must support this feature.CALL WAITING• Your headset will indicate that there is an incoming call by beeping. To reject the incoming call, press and hold main button for 3 seconds. To answer the incoming call and keep the current call on hold, tap the main button. To answer the incoming call and hang up the current conversation, double tap the main button. • If you are on two calls, you can switch back and forth between calls. To switch back and forth without hanging up, tap the main button. To switch back and forth with hanging up on the current call, double tap the main button. TRANSFERRING A CALL• Headset to phone: Tap the main button twice when you are on the phone call. Then, the phone call will transfer from your Bluetooth® headset to your mobile phone. • Phone to Headset: Tap the main button twice to transfer back to your Bluetooth® headset.REJECTING A CALL • Press and hold down the main button of your Bluetooth® headset until a short tone is heard in approximately 4 seconds and then release the main button. Depending on your mobile phone settings, the call will either go to voice mail or the person calling will hear a busy signal.ENDING A CALL• Tap the main button to your headset to end an active call.RIGHT OR LEFT EAR FITTING• The Just Wireless® Bluetooth® Headset is ready to wear on your right ear. If you prefer to use it on your left ear, rotate the ear hook to the other side of the headset.JW_Blue_BT42_Booklet.indd Sec1:12-Sec1:13JW_Blue_BT42_Booklet.indd Sec1:12-Sec1:13 6/10/14 2:35 PM6/10/14 2:35 PM

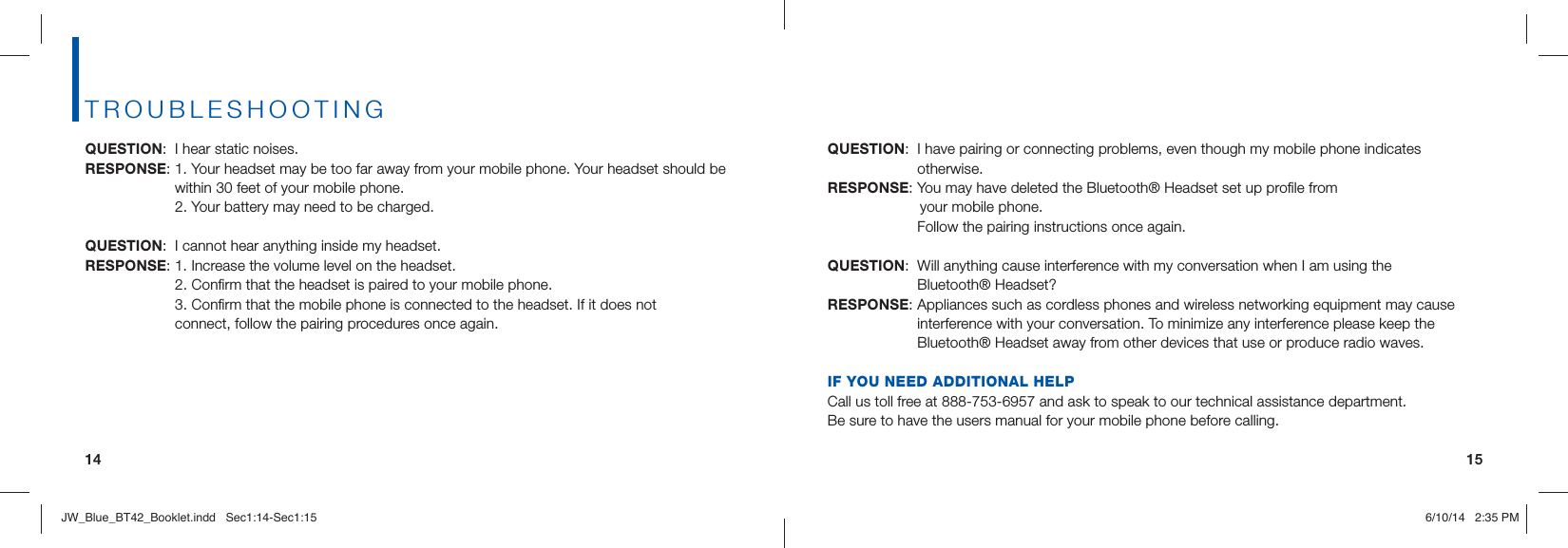

14 15QUESTION: I hear static noises.RESPONSE: 1. Your headset may be too far away from your mobile phone. Your headset should be within 30 feet of your mobile phone. 2. Your battery may need to be charged.QUESTION: I cannot hear anything inside my headset.RESPONSE: 1. Increase the volume level on the headset. 2. Confi rm that the headset is paired to your mobile phone. 3. Confi rm that the mobile phone is connected to the headset. If it does not connect, follow the pairing procedures once again.TROUBLESHOOTINGQUESTION: I have pairing or connecting problems, even though my mobile phone indicates otherwise.RESPONSE: You may have deleted the Bluetooth® Headset set up profi le from your mobile phone. Follow the pairing instructions once again. QUESTION: Will anything cause interference with my conversation when I am using the Bluetooth® Headset?RESPONSE: Appliances such as cordless phones and wireless networking equipment may cause interference with your conversation. To minimize any interference please keep the Bluetooth® Headset away from other devices that use or produce radio waves.IF YOU NEED ADDITIONAL HELPCall us toll free at 888-753-6957 and ask to speak to our technical assistance department. Be sure to have the users manual for your mobile phone before calling.JW_Blue_BT42_Booklet.indd Sec1:14-Sec1:15JW_Blue_BT42_Booklet.indd Sec1:14-Sec1:15 6/10/14 2:35 PM6/10/14 2:35 PM

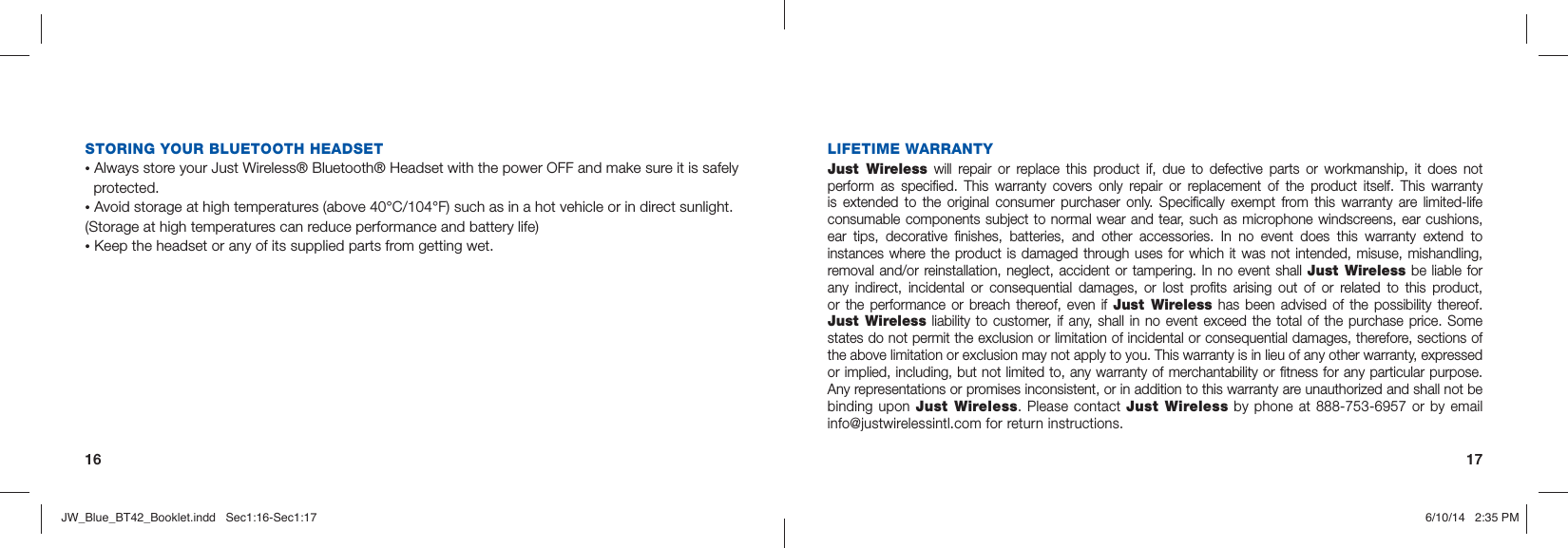

16 17LIFETIME WARRANTYSTORING YOUR BLUETOOTH HEADSET• Always store your Just Wireless® Bluetooth® Headset with the power OFF and make sure it is safely protected.• Avoid storage at high temperatures (above 40°C/104°F) such as in a hot vehicle or in direct sunlight. (Storage at high temperatures can reduce performance and battery life)• Keep the headset or any of its supplied parts from getting wet.Just Wireless will repair or replace this product if, due to defective parts or workmanship, it does not perform as specified. This warranty covers only repair or replacement of the product itself. This warranty is extended to the original consumer purchaser only. Specifically exempt from this warranty are limited-life consumable components subject to normal wear and tear, such as microphone windscreens, ear cushions, ear tips, decorative finishes, batteries, and other accessories. In no event does this warranty extend to instances where the product is damaged through uses for which it was not intended, misuse, mishandling, removal and/or reinstallation, neglect, accident or tampering. In no event shall Just Wireless be liable for any indirect, incidental or consequential damages, or lost profits arising out of or related to this product, or the performance or breach thereof, even if Just Wireless has been advised of the possibility thereof. Just Wireless liability to customer, if any, shall in no event exceed the total of the purchase price. Some states do not permit the exclusion or limitation of incidental or consequential damages, therefore, sections of the above limitation or exclusion may not apply to you. This warranty is in lieu of any other warranty, expressed or implied, including, but not limited to, any warranty of merchantability or fitness for any particular purpose. Any representations or promises inconsistent, or in addition to this warranty are unauthorized and shall not be binding upon Just Wireless. Please contact Just Wireless by phone at 888-753-6957 or by email info@justwirelessintl.com for return instructions.JW_Blue_BT42_Booklet.indd Sec1:16-Sec1:17JW_Blue_BT42_Booklet.indd Sec1:16-Sec1:17 6/10/14 2:35 PM6/10/14 2:35 PM
©2014 Just Wireless. Bluetooth® and associated marks are each trademarks of independently owned and operated companies. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not causeharmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.SKU 08081 REV052014BT-42
