SHI KISB Electronic BTK-801 BLUETOOTH HANDS-FREE CAR KIT MIRROR User Manual
Shenzhen SHI KISB Electronic Co., Ltd. BLUETOOTH HANDS-FREE CAR KIT MIRROR Users Manual
USERS MANUAL
ENGLISH
CONTENTS
BTK-801 ILLUSTRATION……………… 1
INSTALLATION……………… 2
POWER ON/OFF……………… 3
PAIR……………… 3
CONNECTING………………3
ASWERING AND ENDING A CALL……4
VOICE DIALLING………… 4
LAST CALL REDIALING………… 4
REJECTING A CALL…… 5
REC……………… 5
PLAYBACK…… 5
VOLUME CONTROL…… 6
CHARGING…………6
USING THE EARPHONE…… 6
TROUBLESHOOTING………… 7
CARE AND MAINTENANCE ………………9
SPECIFICATIONS…………10
MEMO…………11
Page A
THANK YOU TO PURCHASE THIS PRODUCT
Thank you to purchase the BTK-801 Bluetooth Handsfree Car Kit.We hope you will be satified
with it. For the sake of making use of the Bluetooth Car Kit’s multi-function most adequately,
please read the user manual care fully before use.
Drive Safely
It is dangerous to use mobile phone when driving a car.It will increase the possibility of an
accident.
Please reduce conversation time by mobile as possibly as you can when you are driving. It is good
for you not to do any record or read. You’ d better observe the surroundings before using the
mobile first. When it’s necessary (if the car or something wrong with the car), you should leave
the road and stop the car before the car before dialing or receiving a call.
Page B

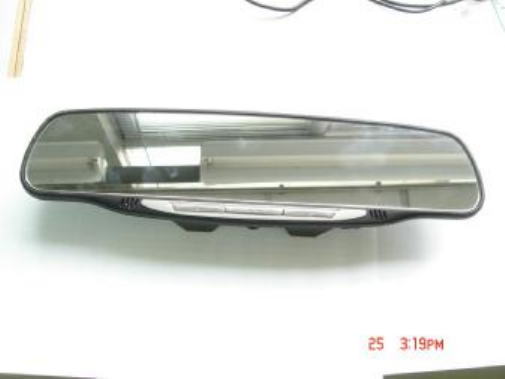

BTK-801 ILLUSTRATION
1.
2.
3.
Page 1
BLUETOOTH HANDSFREE CAR KIT MIRROR USER MANUAL
INSTALLATION
Easy installation, step as following:
First, place the upper holder of BTK-801 to the top side of the rear-view mirror in you car. Push
BTK—801 closely to the mirror and place the lower holder of BTK-801 to fit completely.
Tips:
Place BTK-801 in the center of the rear-view mirror in you car. If not, the sound could be
diminished.
Page 2
POWER ON/OFF
At first, change power switch to “on” place below “ON/OFF”. Press function key
(TALK/RADIAL/WAITING) and hold for 2 seconds,
Until "ON" display on mirror and come with come with indicator LED flashing, the device will be
on. Under standby mode, press function key and hold for 4 seconds, "OFF " will be displayed on
mirror and come with indicator LED off .the device will be off.
PAIRING
"Pair "means to setup connection between device and mobile with blutooth, and the
mobile phone will store device's ID. Under standby state, press "TALK" key for 5 second, the
device will connect to mobile phone after paired. “PAIR” will be displayed on mirror.
Password:0000
CONNECTING
Mobile phone can connect to the device automatically after paired successfully when turn on the
device, or press “FUNCTION” key, it will automatically connect with the last mobile phone which
has paired successfully, and “CONNECT” will be displayed on the mirror.
Page 3
Answering or ending a call
Incoming a call, press “FUNCTION” key to answer a call, and “CALLING”will be displayed on
the mirror., press “FUNCTION” key again to ending a call, and “HANGUP”will be displayed on
the mirror.
Voice dialing
Ensure mobile phone has connected to device, press “FUNCTION” key quickly once, bring out
ore-recoded voice tag, and “VOICE”will displayed on the mirror.
Note: This function depends on mobile phone. Some mobile phone don’t support voice dialing.
Please refer to mobile phone user manual.
Last call redialing
Ensure mobile phone has connected to device, press ”FUNCTION” key quickly twice, if your
mobile phone support last call redialing, it will redial the last number, and “Redial” will be
displayed on the mirror.
Page 4
Rejecting a call
Incoming a call, press “FUNCTION” key for 2 second, ending the call and “HANG UP” will be
displayed on the mirror.
REC
During conversation, press “REC” key, indicate LED flashing, “START RECORD” display on
the mirror; use last for 2 minutes or press “STOP RECORD”key again, the indicate LED will off,
and “STOP RECORD”will display on the mirror. Without conversation model, quickly press the
“ REC ” key will delete the record.
Playback
Without conversation model, quickly press “Play” key, indicate LED will flashing, and “PLAY ”
will display on the mirror; Press “REC” or “Play” key again will stop playback, and “STOP” will
display on the mirror.
Page 5
VOLUME CONTROL
In conversation model, Rotate the knob deasil to increase volume, anticlockwise decrease volume.
Note: Don't adjust volume to maximum when use earphone.
CHARGING
During standby or conversation，handsfree will generate a “Do Do” sound and Blue LED is
flashing. It indicates low battery. Please charge the device use car charger ( DC Jack outlet and
USB outlet are both available) . Charging indicator light will on during charging, and will off
when charged. Approximately charging time is about 2 hours.
USING THE EARPHONE (Option)
You can have a private conversation with the earphone.
For this function, please connect earphone with BTK-801, the device will be in earphone use
mode automatically.
NOTE:
The Character and typeface will be keep to what indicate on the mirror
Page 6
TROUBLESHOOTING
BTK-801 does not turn on.
Check Whether the battery of BTK-801 is full charged.
Charge the battery
Check Whether the Power cable is inserted properly Insert cable again
Check Whether the Power switch is turned on Turn on Power switch
Can not have a conversation through BTK-801
Check Whether the handset
supports handsfree profile
In order to have a conversation through BTK-801,a Bluetooth
handset that support handsfree profile is required
Check Whether the battery of
BTK-801 is low
Charge the battery
Page 7
Can not pair BKT-801 with the Bluetooth device.
Check Whether the power of BTK-801 is
turned on
Turn on the power switch or insert the power
cable
No sound from the speaker
Check Whether the volume status is at lower level
Deasil the knob to decrease volume
Page 8
CARE AND MAINTENANCE
Your device is a products of superior design and craftsmanship and should be treated with
care. The suggestions below will help you protect your warranty coverage.
1. Do not drop the unit from high please.
2. Do not modify, repair nor take apart at discretion.
3. Do not expose directly to the water, alcohol, benzene, etc for cleaning
4. Do not expose directly to flammables.
5. Do not disassemble the battery. It may cause an explosion.
6. Do not place not keep the unit near the flammables. It may cause an explosion.
7. Keep the devise away from humidity & dust.
8. Do not place heavy objects on the device.
9. Keep away from direct light or heat.
10. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Page 9
SPECIFICATIONS
Function Description
Earphone Interface Earphone Type
Battery 3.7V 1300mA Li-ion
Speaker 8 /1W (Normal)
MIC -47+/-1.5dB
Power Consumption Max 250mA
Cigar Lighter Jack OUT: 5V/600Ma
Frequency range 2400Mhz to 2483.5 MHz
(USA, Europe)
Modulation Method GFSK,Imbps,0.5BT
8DPSK 3Mbps Gaussian
Transmission Power Typ, 1.0dBm
Hopping 1600 hops/sec,
3 MHz channel space
RX .Sensitivity Typ.-83.0 dBm
Operating Temperature
-20 — 70 ℃
Storage Temperature -40— 80 ℃
Noise Suppression Up to 18 dB
Echo Cancellation Up to 60 dB
Supported Profile Headset and Handsfree
Security Level Level 3
Standby Time 200 hours
Talking Time 10 Hours
Page 10
MEMO
Notes: Several studies have shown that cell phone usage while driving creates a distraction to the
driver which may increase the likelihood of an accident. This distraction potential is not
eliminated by the use of a handsfree kit. handsfree kits have not been shown to be sager than
hand-held phones with respect to driver distraction. When using the phone while driving, keep
conversations short and resist any temptation to make notes or read documents. Before answering
calls consider you circumstances. Pull off the road and park before making or answering calls
when driving conditions require (e.g. bad weather, high traffic density, presence of children in the
car, difficult junctions or manoeuvres.)
Abide by local laws
Please check if the state and local laws where you live restrict the use of mobile phones while
driving. It is the owner’s responsibility to use this product in compliance with the laws of the place
where you live.
Bluetooth is a registered trademark of Bluetooth SIG, Inc..
Page 11
