SWAN-2
Control No.
HD-AG-A140402 (1/6)
Control name
General Items
Scope
This specification (“Specification”) applies to the hybrid IC “SWAN-2”, a ANTTM+ Bluetooth® 4.2
Low Energy module (“Product”). .
1. Type: SWAN-2
2. Function:
Radio frequency module. ANTTM+Bluetooth® standard Ver 4.2 Low Energy conformity
3. Application: Health & Fitness Equipment, Sensor, Cycle computer
4. Note:
a. Regulatory information:
Compliance with each radio law and/or regulation in below listed countries has been
confirmed under the conditions follows:
- Company name of Manufacturer: SHIMANO INC.
- Equipment name/ Model name: Wireless Module / SWAN-2
- Manufacturing date: traceable from “lot number” shown on device
- Country of origin: JAPAN
- Countries: Canada, Japan, U.S.A., EU countries regulated under R&TTE directive,
Andorra, Brazil, Chile, Costa Rica, Panama, Russia, South Korea (only for RF
scheme), Taiwan and Venezuela,
-
To maintain the compliance, please install SWAN-2 into your final product within the
scope of the specification and regulation of each country.
Canada: Regulatory information
a) SWAN-2 is certified as type of the portable device with Industry Canada Rules.
To maintain compliance with RF Exposure requirement, please use within specification of this
product.
- IC: 8117A-SWAN2
Ce produit est certifié comme type de l'appareil portable avec Industrie Règles de Canada.
Pour maintenir l'acquiescement avec exigence Exposition de RF, veuillez utiliser dans
spécification de ce produit.
- IC: 8117A-SWAN2
b) This device complies with Industry Canada license-exempt RSS standards.
Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit
pas produire de brouillage et (2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage
radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du
dispositif.
Draft V1.00
Confidential
SHIMANO INC.
3/11
SWAN-2
Control No.
HD-AG-A140402 (2/6)
Control name
General Items
c) Please notify certified ID by either one of the following method on your product.
-Contains Transmitter module IC : 8117A-SWAN2
-Contains IC : 8117A-SWAN2
pecifiez ID certifiée dans votre produit par une de méthode suivante.
-Contains Transmitter module IC : 8117A-SWAN2
-Contains IC : 8117A-SWAN2
Japan: Regulatory Information
a) SWAN-2 is approved with the specific antenna on this module.
b) Please ensure that the sentence below is clearly stated on your product or product manual.
- This product has a radio system which was approved as a radio station in a low power data
communication system based on the Radio Law and the Telecommunication Business Law.
Name of the radio system: 001-A06159
U.S.A.: Regulatory Information
a) SWAN-2 is certified as type of the portable device with FCC Rules.
To maintain compliance with RF Exposure requirement, please use within specification of this
product.
- FCC ID: WY7-SWAN2
b) This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
c) Please ensure that one of the following is clearly stated on your product.
-Contains Transmitter Module FCC ID: WY7-SWAN2
-Contains FCC ID: WY7-SWAN2
d) CAUTION: Changes or modifications not expressly approved by the party responsible for
compliance could void the use’s authority to operate the equipment.
e) The antenna used for this transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Draft V1.00
Confidential
SHIMANO INC.
4/11
SWAN-2
Control No.
HD-AG-A140402 (3/6)
Control name
General Items
EU: Regulatory information
a) Hereby, SHIMANO INC., declares that this SWAN-2 is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Българин[Bulgarian] С настоящето [SHIMANO INC.] декларира, че [SWAN-2]
отговаря на съществените изисквания и другите приложими
изисквания на Директива 1999/5/ЕС.
Česky [Czech] [SHIMANO INC.] tímto prohlašuje, že tento [SWAN-2] je ve shodě se
základními požadavky a dalšími příslušnými ustanoveními směrnice
1999/5/ES.
Dansk [Danish] Undertegnede [SHIMANO INC.] erklærer herved, at følgende udstyr
[SWAN-2] overholder de væsentlige krav og øvrige relevante krav i
direktiv 1999/5/EF.
Deutsch [German] Hiermit erklärt [SHIMANO INC.], dass sich das Gerät [SWAN-2] in
Übereinstimmung mit den grundlegenden Anforderungen und den
übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG
befindet.
Eesti [Estonian] Käesolevaga kinnitab [SHIMANO INC.] seadme [SWAN-2] vastavust
direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
Español [Spanish] Por medio de la presente [SHIMANO INC.] declara que el [SWAN-2]
cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [SHIMANO INC.] ∆ΗΛΩΝΕΙ ΟΤΙ [SWAN-2]
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ
ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.
Français [French] Par la présente [SHIMANO INC.] déclare que l'appareil [SWAN-2]
est conforme aux exigences essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente [SHIMANO INC.] dichiara che questo [SWAN-2] è
conforme ai requisiti essenziali ed alle altre disposizioni pertinenti
stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian] Ar šo [SHIMANO INC.] deklarē, ka [SWAN-2] atbilst Direktīvas
1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
Lietuvių [Lithuanian] Šiuo [SHIMANO INC.] deklaruoja, kad šis [SWAN-2] atitinka
esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Draft V1.00
Confidential
SHIMANO INC.
5/11
SWAN-2
Control No.
HD-AG-A140402 (4/6)
Control name
General Items
Nederlands [Dutch] Hierbij verklaart [SHIMANO INC.] dat het toestel [SWAN-2] in
overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, [SHIMANO INC.], jiddikjara li dan [SWAN-2] jikkonforma
mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm
fid-Dirrettiva 1999/5/EC.
Magyar [Hungarian] Alulírott, [SHIMANO INC.] nyilatkozom, hogy a [SWAN-2] megfelel a
vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv
egyéb elõírásainak.
Polski [Polish] Niniejszym [SHIMANO INC.] oświadcza, że [SWAN-2] jest zgodny z
zasadniczymi wymogami oraz pozostałymi stosownymi
postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese] [SHIMANO INC.] declara que este [SWAN-2] está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Român [Romanian] Prin prezenta, [SHIMANO INC.], declară că aparatul [SWAN-2] este
în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente
ale Directivei 1999/5/CE.
Slovensko [Slovenian] [SHIMANO INC.] izjavlja, da je ta [SWAN-2] v skladu z bistvenimi
zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky [Slovak] [SHIMANO INC.] týmto vyhlasuje, že [SWAN-2] spĺňa základné
požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish] [SHIMANO INC.] vakuuttaa täten että [SWAN-2] tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.
Svenska [Swedish] Härmed intygar [SHIMANO INC.] att denna [SWAN-2] står I
överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Draft V1.00
Confidential
SHIMANO INC.
6/11
SWAN-2
Control No.
HD-AG-A140402 (5/6)
Control name
General Items

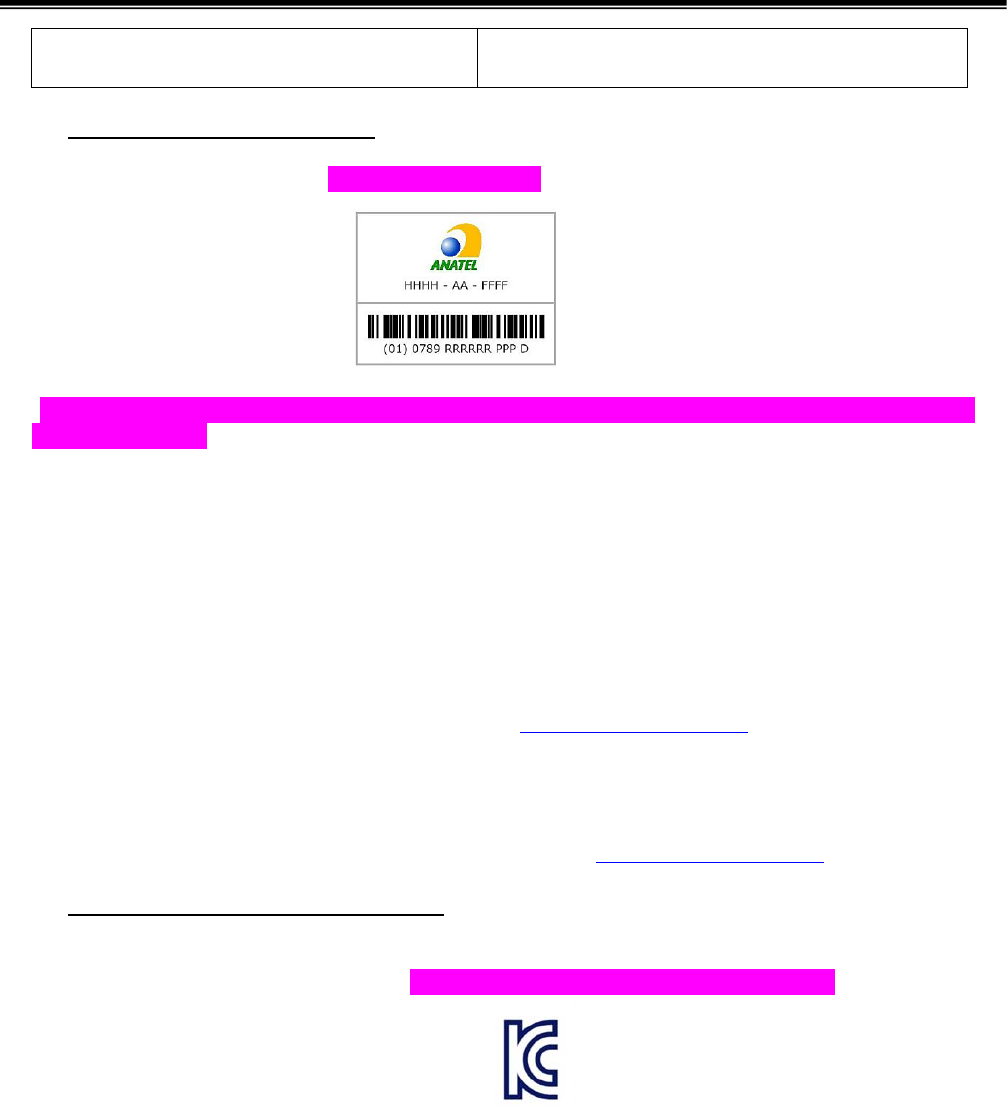

Brazil: Regulatory information
a) SWAN-2 is certified under below certification information:
- ANATEL approval number: HHHH-AA-FFFF(TBD)
*ID barcode in accordance with UCC/EAN-128 and ANATEL approval Number shown in above label format will be replaced after
assignment accordingly.
b) This device works in a secondary level, this means that this kind of device doesn´t have harmful
protection against device of the same type, and they can´t interfered with first class equipments.
Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra
interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a
sistemas operando em caráter primário.
c) Anatel information:
This product is approved by ANATEL, in accordance with the procedures regulated by
Resolution 242/2000, and meets the applicable technical requirements.
For more information, please visit the ANATEL: http://www.anatel.gov.br
Informações Anatel:
Este produto está homologado pela ANATEL, de acordo com os procedimentos regulamentados
pela Resolução 242/2000, e atende aos requisitos técnicos aplicados.
Para maiores informações, consulte o site da ANATEL: http://www.anatel.gov.br
South Korea: Regulatory information
a) SWAN-2 is certified under below certification information:
- Company name of Applicant: SHIMANO INC.
- Conformity assessment number: MSIP-CRM-WY7-XXXXXXXXXXXXXX(TBD)
b) This radio equipment has the possibility of radio interference.
해당
무선
설비는
운용
중
전파
혼신
가능성이
있음
.
c) As this radio equipment has the possibility of radio interference, this equipment cannot be used
for any services related to human life safety.
해당
무선설비는
운용
중
전파혼신
가능성이
있으므로
,
인명
안전과
관련된
서비스는
할
수
없습니다
.
Draft V1.00
Confidential
SHIMANO INC.
7/11
SWAN-2
Control No.
HD-AG-A140402 (6/6)
Control name
General Items
Taiwan: Regulatory information
a) SWAN-2 is certified under below certification information:
- Company name of Applicant: SHIMANO INC.
- NCC certification ID: CCXXxxYYyyyZzW(TBD)
b) Any changes or modifications are not allowed. The product is subject to not cause harmful
interference to radio communications and air flight safety. If this equipment does cause
interference, which can be determined stop shipping till the product is improved.
This device may not cause harmful interference, and this device must accept any interference
received, including interference that may cause undesired operation.
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大
功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，
並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射
頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
c) Caution: SWAN-2 is certified as full modular approval. You can install SWAN-2 into multifunction
device only. For other type of devices, host approval is required. Details and/or definition of
multifunction device should be confirmed authority.
d) Note:
1. The NCC ID should be showed on product casing.(*)
2. If a system contains NCC approved module, please show "This device contains NCC ID:
1. 本模組於取得認證後將依規定於模組本體標示審驗合格標籤
2. 系統廠商應於平台上標示「本
產
品
內
含射頻模組: XXXyyyLPDzzzz-x(TBD)」字樣
(*) SWAN-2 is too small to affix NCC ID on product case, allowance of alternatives method will be asked to and
obtained from NCC.
Draft V1.00
Confidential
SHIMANO INC.
8/11
SWAN-2
Control No.
HD-AM-A140402 (1/1)
Control name
Absolute maximum ratings
Absolute maximum ratings
Symbol Parameter Min. Max. Units
VCC_NRF -0.3 +3.6 V
GND 0 V
VIO -0.3 VCC_NRF+ 0.3 V
Storage temperature -40 +85 Deg-C
MSL Moisture Sensitivity Level 2
ESD HBM Human Body Model 1 kV
ESD CDM Charged Device Model 100 V
Endurance Flash Memory Endurance 20000
write/erase
cycles
Retention Flash Memory Retention 10 years At 40 deg-C
Number of times an
address can be written
between erase cycles
2 times
Draft V1.00
Confidential
SHIMANO INC.
9/11
SWAN-2
Control No.
HD-AE-A140402 (1/1)
Control name
Electrical characteristics
Electrical characteristics
Recommendation operating range
Symbol Parameter Min. Typ. Max. Units
VCC_NRF Supply voltage, normal mode 1.8 3.0 3.6 V
VCC_NRF Supply voltage, normal mode,
DC/DC converter output voltage 1.9 V 2.1 3.0 3.6 V
tR_VCC_NRF Supply rise time (0V to 1.8V) 100 ms
TA Operation temperature -25 25 75 Deg-C
The on-chip power-on reset circuitry may not function properly for rise times outside the specified
interval.
RF Specifications
Symbol Description Min. Typ. Max. Units
Fop Operating frequencies 2402 2480 MHz
PLLres PLL programming resolution 1 MHz
Df Frequency deviation +/-225 +/-250 +/-275 kHz
PRF Maximum output power 4 dBm
PRFC RF power control range 20 24 dB
PRFCR RF power accuracy
+/-4 dB
PWHISP RF power whisper mode -30 dBm
PBW 20 dB bandwidth for modulated carrier 950 1100 kHz
PRF1 1st Adjacent Channel Transmit Power 1 MHz -20 dBc
PRF2 2nd Adjacent Channel Transmit Power 2 MHz -45 dBc
PRXMAX Maximum received signal strength at < 0.1% PER 0 dBm
PSENS IT Receiver sensitivity (0.1% BER) Ideal transmitter -93 dBm
PSENS DT Receiver sensitivity (0.1% BER) dirty transmitter -91 dBm
Draft V1.00
Confidential
SHIMANO INC.
10/11
SWAN-2
Control No.
HD-BA-A140402 (1/2)
Control name
Pin Layout
Pin Descriptions
Pin Pin name Pin
function Description
1 GND Ground Ground (0 V)
2
P0.27
AIN1
XL1
Digital I/O
Analog input
Analog input
General purpose I/O pin
ADC input 1
Crystal connection for 32.768kHz crystal oscillator or
external 32.768kHz crystal reference
3
P0.26
AIN0
XL2
Digital I/O
Analog input
Analog
output
General purpose I/O pin
ADC input 0
Crystal connection for 32.768kHz crystal oscillator
4 P0.21 Digital I/O General purpose I/O pin
5 VCC_NRF Power Power supply
6 AVDD Power Analog Power supply
7 P0.23 Digital I/O General purpose I/O pin
8 P0.17 Digital I/O General purpose I/O pin
9 GND Ground Ground (0 V)
10 DEC2 Power Power supply for low voltage mode
11 P0.19 Digital I/O General purpose I/O pin
12 GND Ground Ground (0 V)
13 OUT_ANT Antenna
In/Out
Internal antenna. It should be connected to Pin 14 OUT_MOD for
normal operation.
14 OUT_MOD RF In/Out
RF I/O pin. It should be connected to Pin 13 OUT_ANT for normal
operation.
15 GND Ground Ground (0 V)
16 SWDIO Digital I/O System reset (active low). Also HW debug and flash programming
I/O
17 SWDCLK Digital input HW debug and flash programming I/O
18 P0.25 Digital I/O General purpose I/O pin
19
P0.03
AIN4
Digital I/O
Analog input
General purpose I/O pin
ADC input 4
20 GND Ground Ground (0 V)
21 P0.01
AIN2
Digital I/O
Analog input
General purpose I/O pin
ADC input 2
22 P0.02
AIN3
Digital I/O
Analog input
General purpose I/O pin
ADC input 3
Draft V1.00
Confidential
SHIMANO INC.
11/11
SWAN-2
Control No.
HD-BA-A140402 (2/2)
Control name
Pin Layout
Pin Pin name Pin
function Description
23 P0.00
AREF0
Digital I/O
Analog input
General purpose I/O pin
ADC Reference voltage
24 DCC Power DC/DC output
25 P0.05
AIN6
Digital I/O
Analog input
General purpose I/O pin
ADC input 6
26
P0.06
AIN7
AREF1
Digital I/O
Analog input
Analog input
General purpose I/O pin
ADC input 7
ADC Reference voltage
27 P0.04
AIN5
Digital I/O
Analog input
General purpose I/O pin
ADC input 5
28 GND Ground Ground (0 V)
