SHUOYING HYCBY Digital Camcorder User Manual
SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD. Digital Camcorder Users Manual
SHUOYING >
Users Manual
1
Contents
Contents
...............................................................................................................................................1
Function Description:
...........................................................................................................................2
Notice for use:
......................................................................................................................................2
System requirements:
..........................................................................................................................4
Start to use:
..........................................................................................................................................5

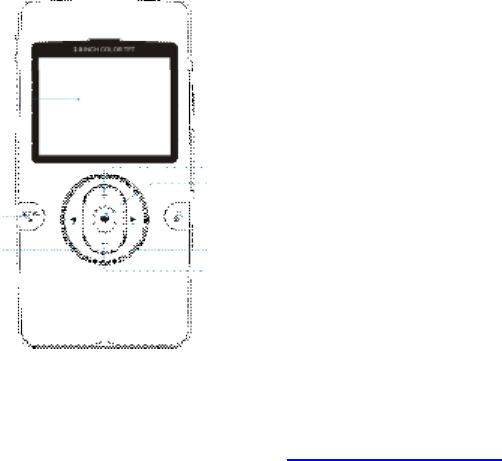

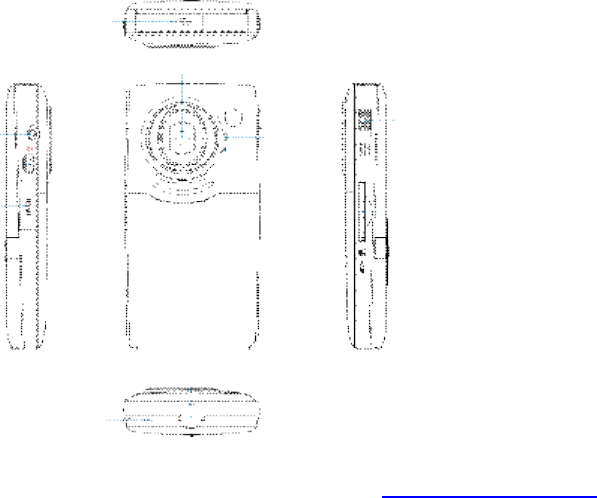

1. Appearance and Buttons.........................................................................................................6
2. Basic operation.......................................................................................................................8
Application of Attached ArcSoft
VideoImpression:.............................................................................14
Introduction interface for software installation..........................................................................14
Xvid codec Installation:.............................................................................................................15
Mediainpression 2 Installation and Use:...................................................................................17

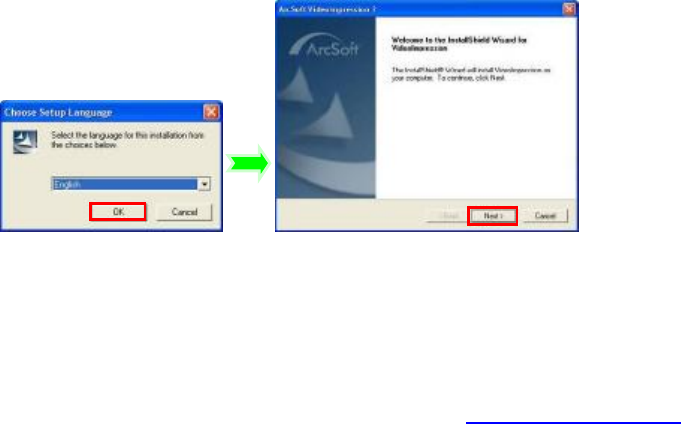

VideoImpression 2 Installation and Use:..................................................................................23
Produc
t specifications:.......................................................................................................................29

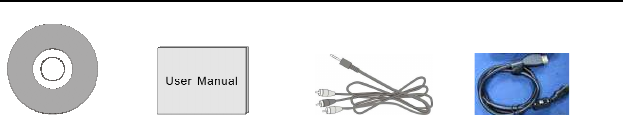

Standard
accessories:........................................................................................................................32
PDF created with pdfFactory Pro trial version www.pdffactory.com
2
Function Description
Welcome to purchase and use this digital video camera. Before use, please read this user
manual carefully.
With this digital video camera, you can take 1300,000 pixels (HD format) .300,000 pixels
(VGA format) video clips. With the playback function, you can playback the taken video with
this digital video camera; in addition, you can download the video from the digital video
camera into your PC. When prepared, this user manual refers to the latest information. The
screens and illustrations etc in this user manual are to particularly and visually detail the
operation of the digital video camera. Due to technology development and different
production batches, the digital video camera herein may be different from that you buy and
use.
Notice for use
General:
1. Never open the housing of the digital video camera; otherwise, some parts may cause
electric shock.
2. Damp, pressure, collision and overheat may damage this digital video camera.
Memory and storage:
1. SD/MMC/SDHC can be used (but not included in the packing list and maximal capacity
16GB).
2. When buying SD/MMC/SDHC card, be sure to take the digital video camera with you so as
to ensure compatibility.
3. When SD/MMC/SDHC card is inserted, the memory of the digital video camera will not
function.
4. SD card has a write-protect switch, which can be used to prevent wrong deletion of data.
PDF created with pdfFactory Pro trial version www.pdffactory.com
3
When this switch is pushed to the bottom and locked, the data in the card will be protected.
However, when the card is in write-protect state, it cannot be used for shooting or deletion etc.
5. These memory cards cannot be used for permanent storage of data. You must copy the
documents in the digital video camera in the proper storage position.
6. When storing documents into the memory or the memory card, make sure that the size of
the documents does not exceed the capacity of the memory.
Maintenance and care:
1. In use, always wear the wrist band so as to prevent slip.
2. Use proper protection sheath to avoid scratching the lens and screen.
3. To clean the lens, firstly blow away the dust on its surface, then use proper cloth or tissue
for optical devices to clean the lens. If necessary, use lens cleanser. Never use organic
cleanser to clean the digital video camera.
4. Never touch the lens with fingers.
5. When left idle for long, keep the digital video camera with the battery taken out in dry and
dark place.
Other notices:
1. When switching video output between LCD display and video devices, be sure to exit from
the play or record state.
2. This digital video camera is suitable the environment between 0℃- 40℃ (32℉-104℉).
Never keep the digital video camera in the place at extremely high temperature, such as in
the car parking under the burning sun, or with much damp. In order to prevent the digital
video camera from condensation, when moving from a cold place to a warm place, be sure to
keep it in sealed plastic bag, and open the bag and take it out when the digital video camera
reaches the indoor temperature.
3. TV programs, movies, music, images and other resources may be protected by copyright;
PDF created with pdfFactory Pro trial version www.pdffactory.com
4
therefore, without prior permission, the shooting/use of these resources may violate
copyright laws and regulations related. Please note that the resources under the protection
of copyright can be used within the permission of related laws and regulations.
System requirements
When operating and using this digital video camera, be sure to meet the requirements on the
basic system for computer. It is strongly recommended to use the best computer units to
operate the camera so as to bring its functions into full play. Below are the requirements on
the basic system:
Operation System Microsoft Windows 2000,XP, vista
CPU Above Intel PIII667 or CPU of equal performance
Memory Above 128 MB
Sound card and display card DirectX8 or above.
CD-ROM 4× speed or above
Hard Disk 1 GB space above useable
Other One standard USB 1.1 or USB 2.0 port
PDF created with pdfFactory Pro trial version www.pdffactory.com
8
2. Basic operation

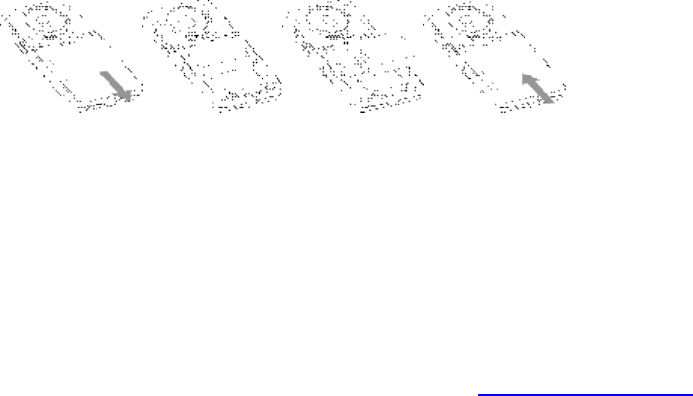

2.1 Install battery
Press / slide down the Battery Cover and insert lithium battery. Align with correct polarity of
battery terminals. Close the Battery Cover.

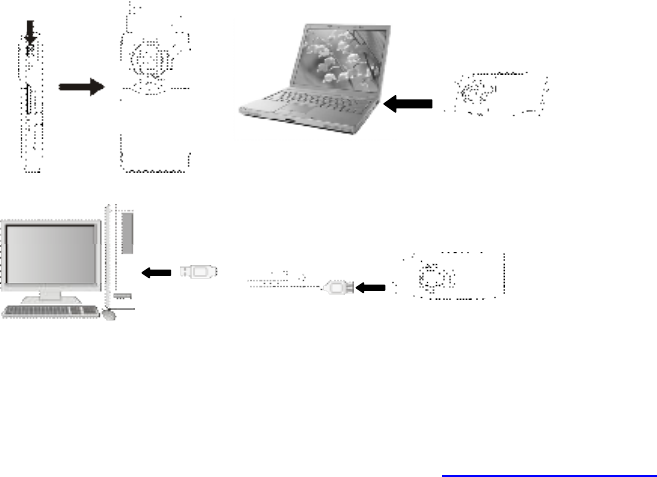

2.2 Charge Battery
1. Power off the camera.
2. Connect the camera to the computer USB port or the power adapter with USB cable to
charge the battery.
3. During charging, Busy light is on and will be off when the battery is fully charged.

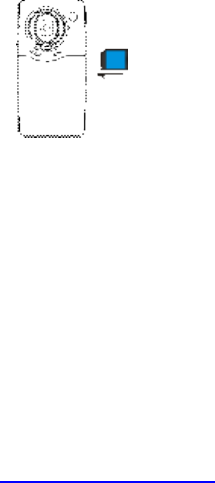

2.3 Use SD/MMC/SDHC card
Insert the SD Memory card into the SD/MCC Card Slot. Push it down until the card stays
latched. Do not force – check card’s position according to the position mark on the camera.
PDF created with pdfFactory Pro trial version www.pdffactory.com
9
Push and release inserted card if you wish to remove or replace the
card.
Turn your camcorder OFF before inserting / removing the SD Card.
- Note that the SD Card has a tiny LOCK switch on the side. Set the
switch to un-LOCK position to be able to store recorded videos, still
pictures on inserted SD Memory Card.
2.4 Power on/off
In power-off state, press and hold the power key to power on the camera.
In power-on state, press the power key to power off the camera.
In power-on state, let the camera idle for 1 minute to power off the camera automatically.
In power-on state, when battery level is very low, the camera will turn off after several
seconds. You must replace the batteries.
2.5 Setup menu
Press the shutter key until display setup menu when power on the video camera. Setup
menu can set Auto power off, Buzzer, LCD brightness, TV output, Date/Time, Light
frequency and Language option. Besides format internal memory/SD card, Default setting
the video camera, Examine the video camera currently software version. Use the
PDF created with pdfFactory Pro trial version www.pdffactory.com
10
up/down/left/right key choose menu, press the shutter key enter to submenu, pitch on
menu background is highlight when choose menu.
2.6 Change mode
After power on, it will enter video record mode, press Left/Right key to change mode within
video record, will go to the playback mode.
2.7 Change resolution
You can press the mode/play key to change video resolution in video model.
Press the mode/play key. LCD screen will display “HD” and “VGA” indicating selected
resolution.
2.8 Video record
In video record mode, press shutter key to begin video recording, press the shutter key
again to stop recording.
Press up key or down key can zoom in or zoom out the image.
2.9 Playback videos
In playback mode, press left or right key to select another file.
Press mode/play key to begin play video, during playing video, press mode/play key to
pause play video, press the shutter key to stop play video.
PDF created with pdfFactory Pro trial version www.pdffactory.com
11

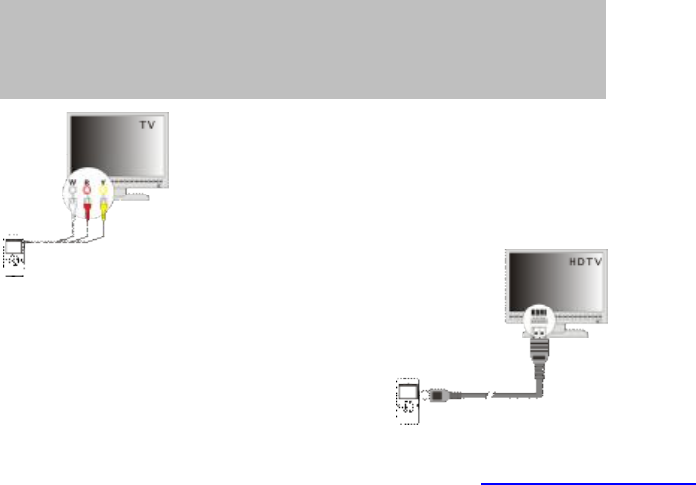

2.10 TV output
After the camera is powered on, insert the terminal of the TV
cable into the TV output port of the camera, the yellow port of
the other terminal should be connected to VIDEO IN port of TV，
red(or white) port of the other terminal should be connected to
AUDIO IN port of TV.
2.11 HDMI output
If you want to output the image and sound in video camera to HD TV,
please insert the HDMI cable (Optional) to the HDMI interface of the
video camera, connect the other terminal of the HDMI cable to the HD TV.
Note: During the period of HDMI output, the video camera can only enter
playback mode.
Note:
l While the memory is full or the SD card was locked, when you press the Shutter key,
the camera will can not recording.
l
Before in
er
t or remove the card, please turn off the
camera
first.
PDF created with pdfFactory Pro trial version www.pdffactory.com
12
2.12 Delete files
When in playback mode .Press the delete key will display Delete menu, Delete menu have
three option: No , All and Yes . Default option is No .Left/Right key can choose the Yes or
All. Shutter key confirm currently option. Choose the No and press the shutter key ,will
display “Not Deleted” and return to playback .If choose the All option ,Press the shutter key
once to display “Delete all videos?”, press the shutter key again to carry out deletion and
display “Deleted”.
When there are no files in the memory: Go to the playback mode/play key will display “No
File”.
2.13 Connect to PC
1. Slide the USB Switch UP to extend the USB connector. And turn the camcorder ON.
2. Insert camcorder USB connector into computer’s USB port, or use supplied USB extension
cable to make connection.
2.14 Download files from camera to PC
1. After connecting to computer, go to "My Computer” and open the "Removable Disk." The
videos will be saved in the \DCIM\ 100MEDIA folder in the removable disk. Choose the desired
video in the 100MEDIA folder and copy (drag with mouse) it into the target folder in the HD of
the computer.

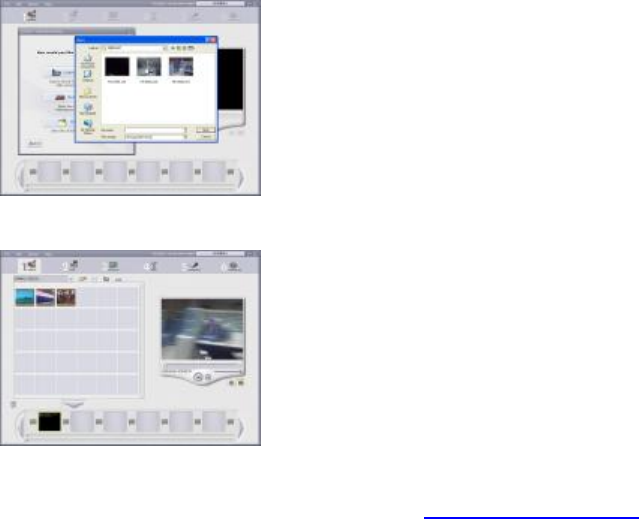

2. You can use ArcSoft VideoImpression to edit videos.
PDF created with pdfFactory Pro trial version www.pdffactory.com
14

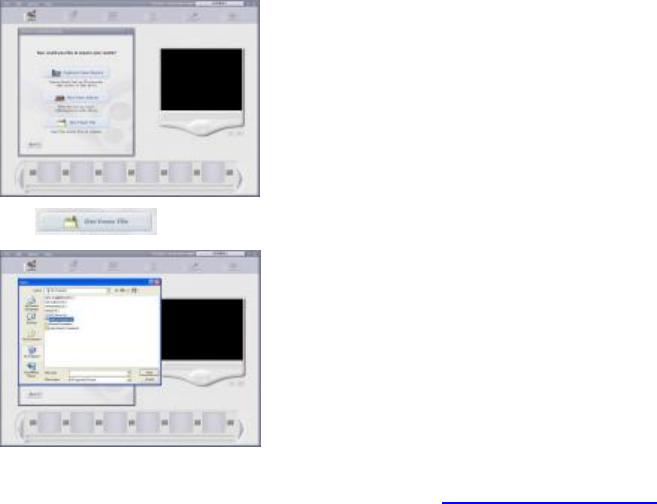

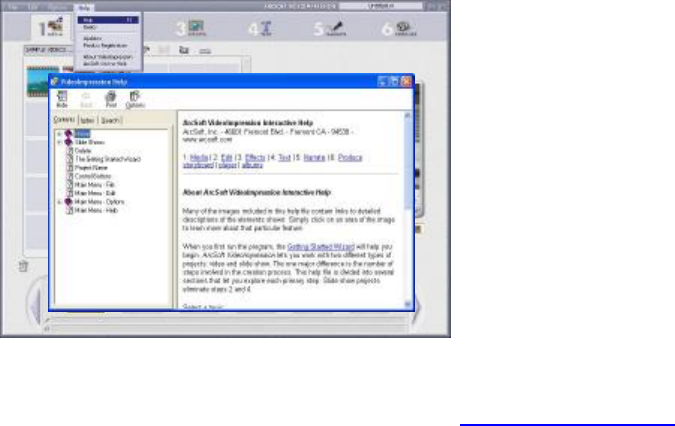

Application of Attached ArcSoft VideoImpress
ion
There are three software in CD provided for image processing: Xvid codec, MediaImpression
and VideoImpression.

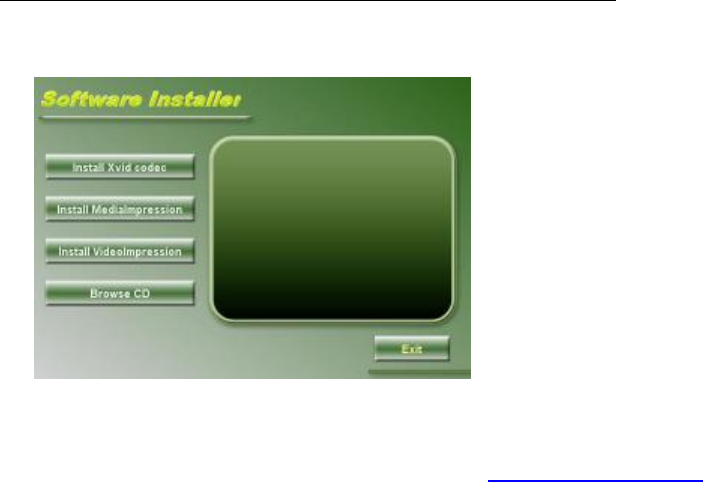

Introduction interface for software installation
Put the CD attached into the CD-ROM of the computer, then the following menu will occur:
PDF created with pdfFactory Pro trial version www.pdffactory.com
15
l If the CD driver does not automatically carry out or close such function, please click autorun.exe
program under the root directory of the CD.

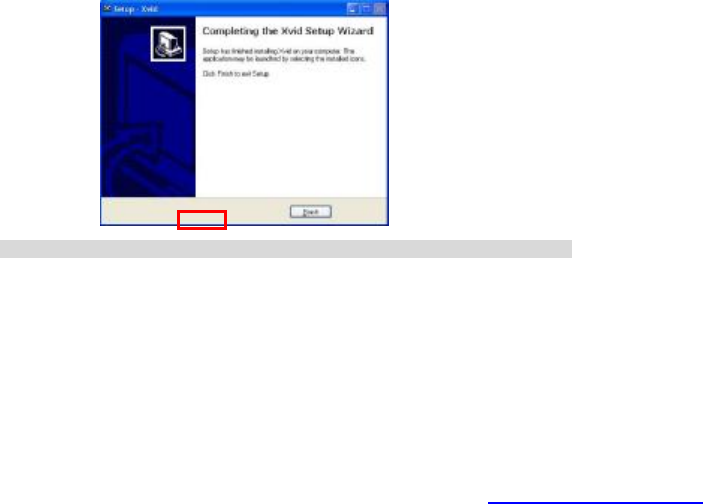

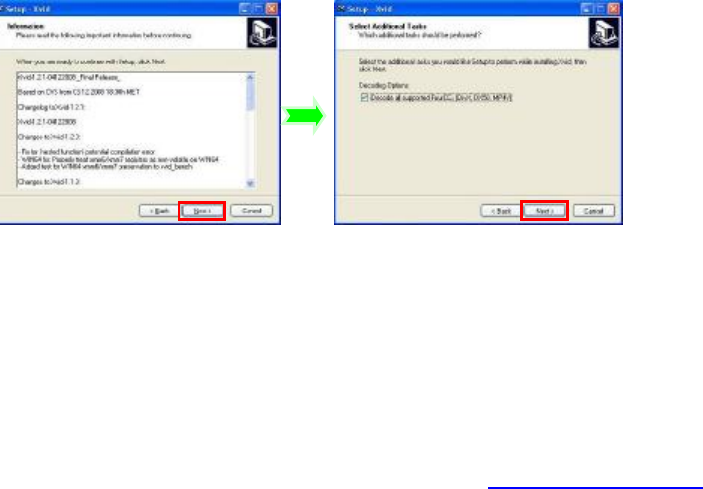

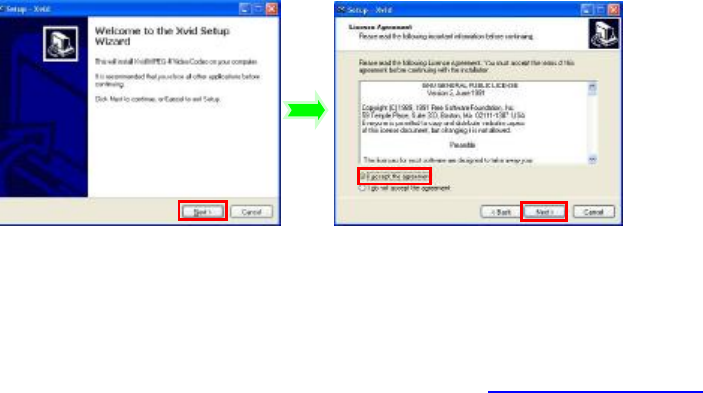

Xvid codec Installation:
Instal Xvid codec:
Click ” Install Xvid codec “ button and complete the installation as per the tips.
PDF created with pdfFactory Pro trial version www.pdffactory.com
17
Notice: If you want to play recorded video on your computer, please install Xvid codec.
Mediainpression
2 Installation and Use:

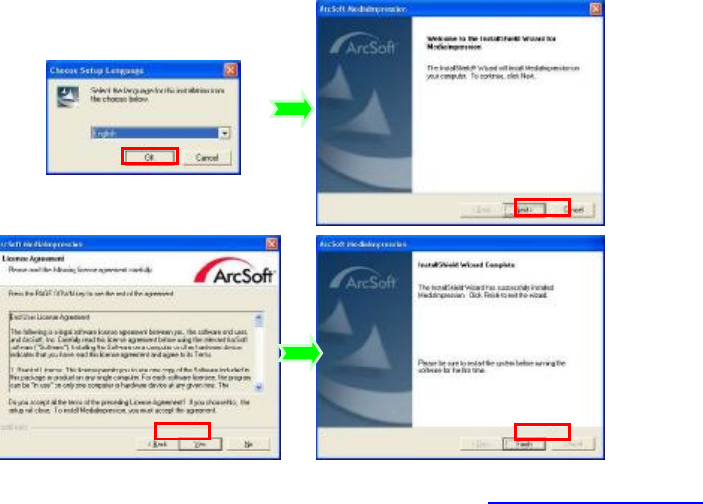

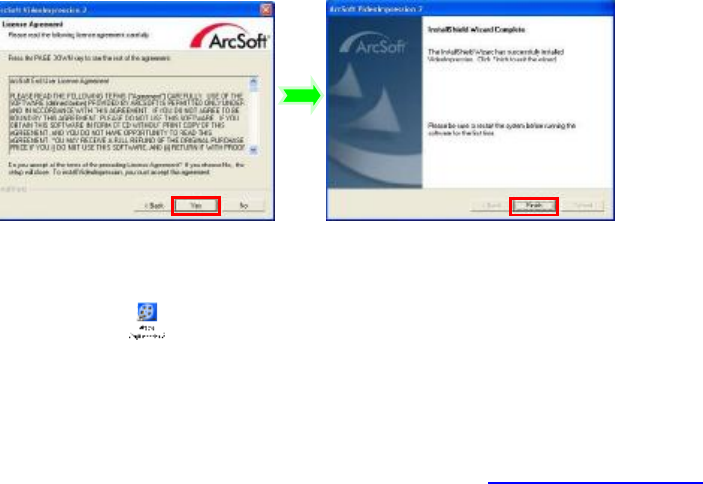

Install Mediainpression2:
Click “Install MediaImpression” button and complete the installation as per the tips.
PDF created with pdfFactory Pro trial version www.pdffactory.com
19
After installation, please restart the computer.
After installation, please restart the computer.

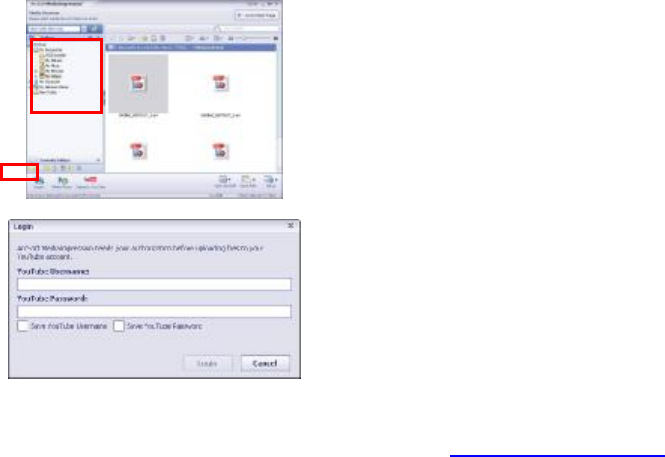

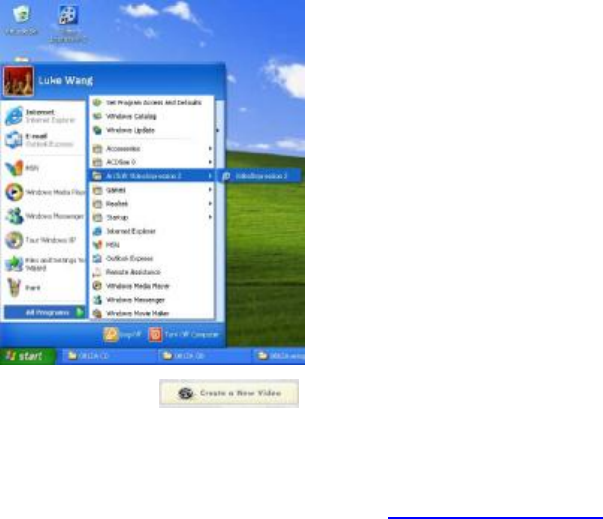

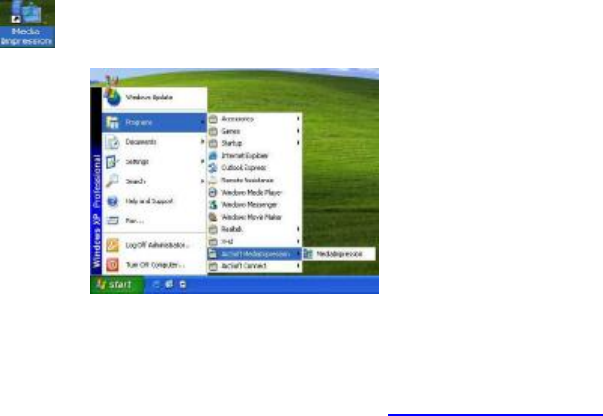

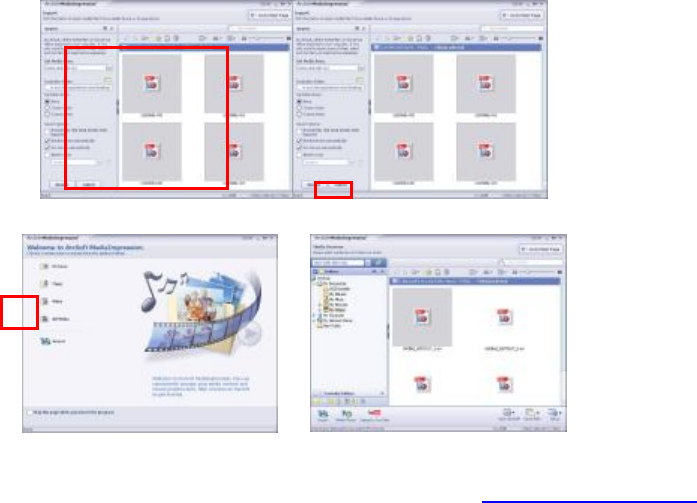

Run MediaImpression 2:
Double click the icon on the desktop or follow “Start → Programs” to open:
MediaImpression5

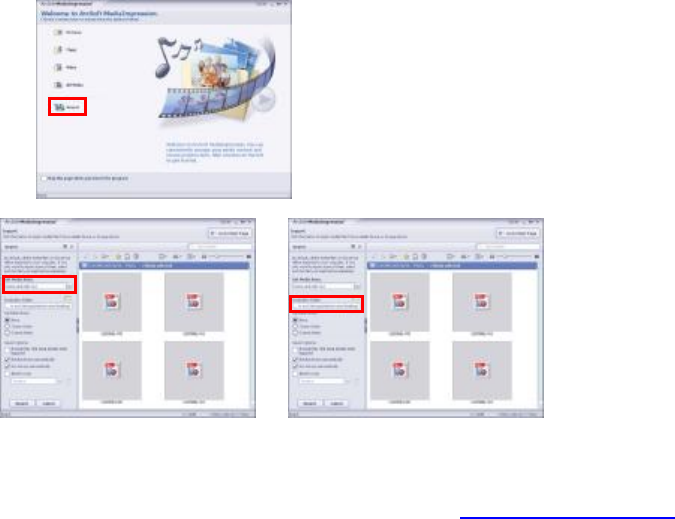

After starting MediaImpression5, click the “Import” to import the media.
PDF created with pdfFactory Pro trial version www.pdffactory.com
29
Product specifications
:
Image sensor 1.3 Mega Pixels
Function mode Record, playback, mobile disk, deletion
Lens F2.8, f=3.1mm
Focus range 120cm~infinite
Digital focusing 4×
Shutter Electronic
LCD display 2.0 inch TFT Display
Resolution Video:HD 1280×720, VGA 640x480
White balance Automatic
Exposure Automatic
File format AVI (Xvid)
Video out TV out, HD TV out
Storage media SD/MMC/SDHC card(max. 16GB)
USB port USB2.0 port
Dimension (LxWxH) 110mm × 57mm × 19.5mm
PDF created with pdfFactory Pro trial version www.pdffactory.com
30
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
o Reorient or relocate the receiving antenna.
o Increase the separation between the equipment and receiver.
PDF created with pdfFactory Pro trial version www.pdffactory.com
31
o Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
o Consult the dealer or an experienced radio/TV technician for help.
Note: The AV Out cable with one ferrite core and HDMI cable with one ferrite core are designed
for exclusive use with this product. Don't use others for this product. Connect PC Directly by
USB port and don’t use extended USB cable.
PDF created with pdfFactory Pro trial version www.pdffactory.com
32
Standard accessories
Installation CD User manual TV cable HDMI cable
