Users Manual

MobileInternetDevices

PA7810

USERMANUAL



ThanksforpurchasingthePA7810MobileInternetDevices

Thisusermanualhasbeenspeciallydesignedtoguideyou

throughthefunctionsandfeaturesofyourdevice.

• Pleasereadthismanualcarefullybeforeusingyour

devicetoensuresafeandcorrectuse.

• Thedescriptionsinthismanualarebasedonthedefault

settingsofyourdevice.

• Pleasekeepthismanualforfuturereference.



TableofContents

ChapterOne(overview)

1.1Appearance

1.2Buttons

1.3Poweron/off

1.4Lock/UnlockScreen

1.5HomeScreenIcons

1.6Textinput

1.7Reset

1.8USBConnection

1.9Accessories

ChapterTwo(Internet)

2.1Browser

ChapterThree(Applications)

3.1Camera

3.2Gallery

3.3Video

3.4Music

3.5Explorer

3.6APKInstaller

3.7Downloads

ChapterFour(Systemsetting)

4.1Wirelessnetworkssetting

4.2Bluetoothsetting

4.3Displaysetting

4.4Date&Timesetting

4.5Languageandinputsetting

ChapterFiveWarnings



ChapterOne:Overview

1.1 Appearance



MicroSD

HDMI HeadphoneJackMicro‐USB VOL+

‐Power

FrontCamera



1.2Buttons

Powerbutton

Holddownthepowerbuttonfor2‐3secondstoturnonthetablet

Whentabletison,shortpressthisbuttontoturnoffthescreenand

anothershortpresstoturnthescreenbackon

Volume

PressVolume+/‐toadjustthevolume



1.3Poweron/off

Poweron

Holddownthepowerbutton(see1.1)for2‐3seconds,yourtablet

willbootup

Poweroff

Holddownthepowerbutton,apromptwiththewordswouldyou

liketoshutdownwilldisplay,pressoktoshutdown

Whilecharging,ashortpressofthepowerbuttonwillshowthe

tabletiscurrentcharging;ifyouholdthepowerbutton,thetablet

willturnon.



1.4Lockandunlockscreen

Lock

Youcansetalocktimerunderthedisplayoption.

Afteraperiodofinactivityasdictatedbythetimeoutoption,the

systemwillautomaticallylockthescreenandgointostandbymode.



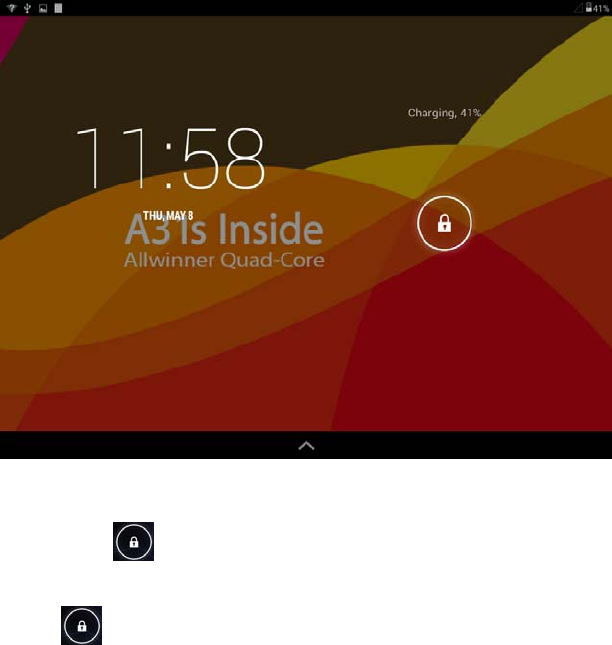

Unlock

Movethesigntounlock,showasbelow

Dragthistounlockthescreenandentertheapplication

interface



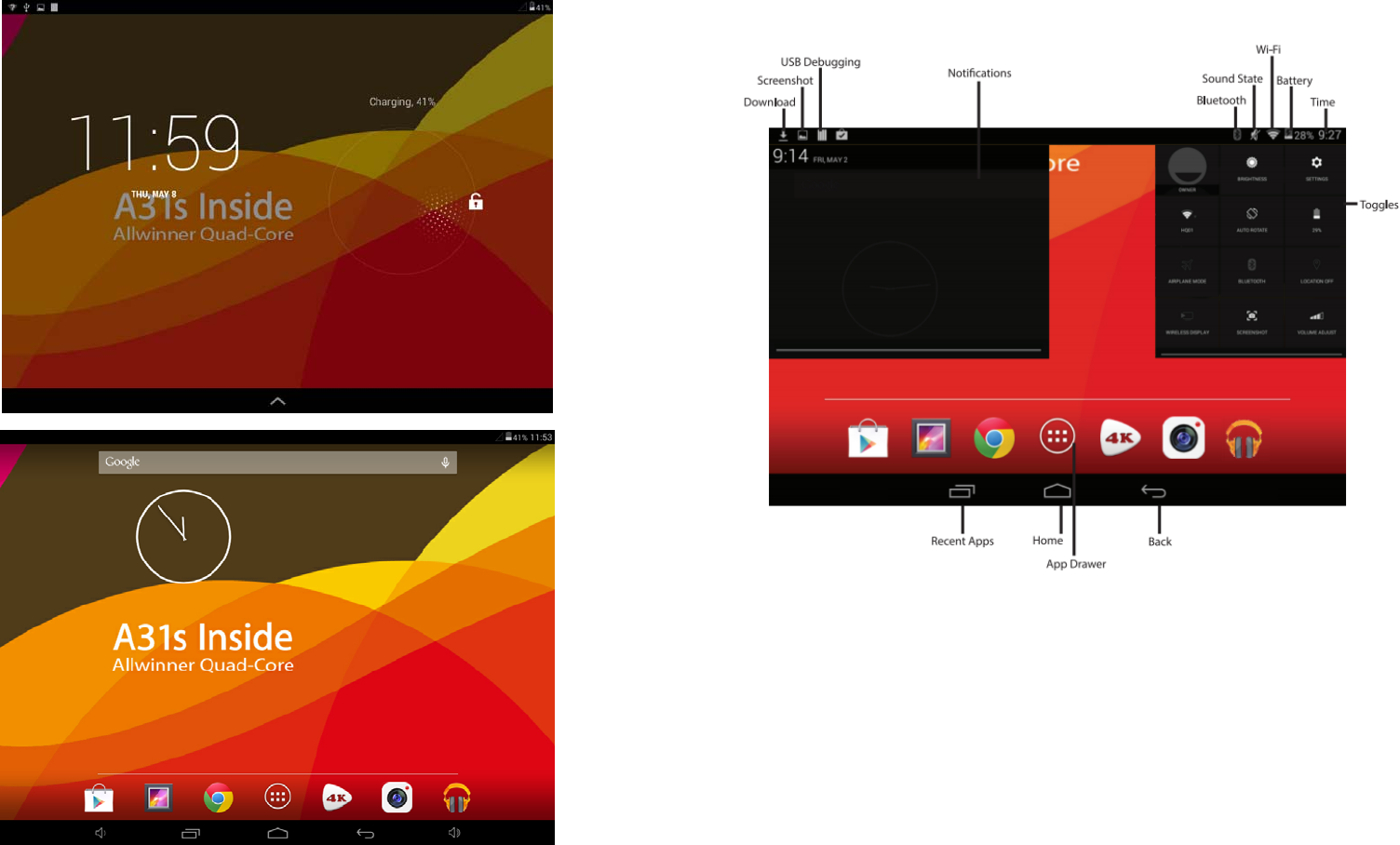

1.5HomeScreenIcons



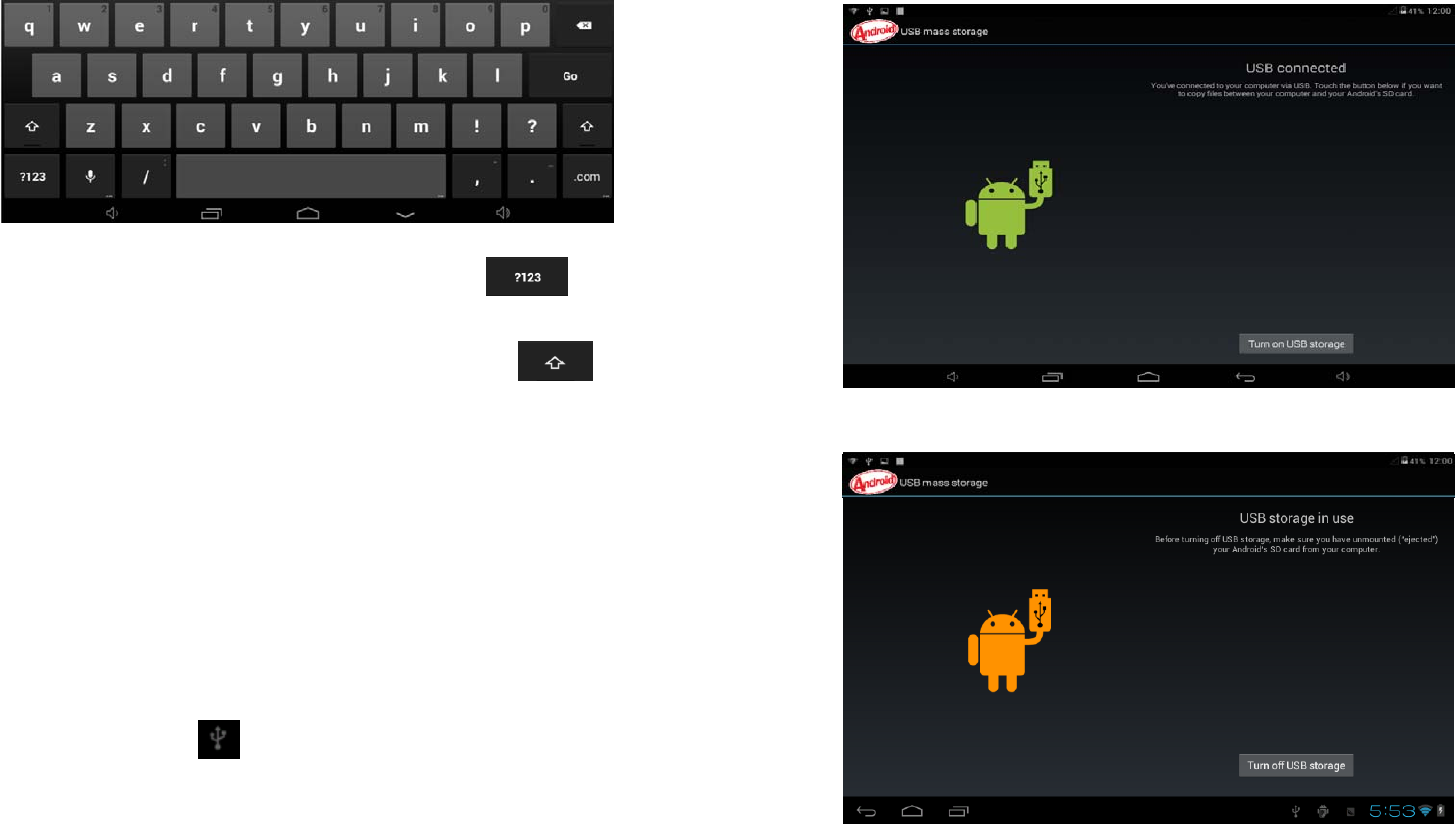

1.6Textinput



Whenusingthetablet,youcanusethevirtualkeyboardtoentertext,

number,andsymbolsdirectlybytouchingscreen.Thedefault

keyboardisshownbelow:



Toswitchthenumbersandletters,pleasepressthis

Toswitchthecapitalandlowercaseletter,pleasepress



1.7Reset

Pressandholdthepowerbuttonontherightsideofthedevicefor1minute,then

youdevicewillresetandrestart.



1.8USBconnection

ConnectyourtablettoyourPCwiththeprovidedMicroUSBtoUSB

cable.Andyouwillseeiconappearonyourtablet,choosethis

optionandafterthatchoosetheturnonUSBstorageoptionto

connectyourdevice.



ChooseTurnoffUSBstoragetodisconnectyourdevicewithPC



1.9Accessories

Item Use

Power Adapter Use power adapter to provide power and charge the battery

USB Cable Use USB cable to connect device with USB device



ChapterTwo:Internet

2.1Browser

Pleaseselect  tosetuptheWIFIsoyoucanusethebrowser

normally.Seethepicturesbelow:



TouchintheAppDrawertostartbrowsingtheinternet;the

defaulthomepageistheRecentlyViewedpageshowingrecently

viewedpages.



Thebrowsersupportsthefollowingfeatures



Bookmark—clicktoaddthecurrentwebpageintoyour

bookmarks.

Touchtoseealistofbookmarks

Touchtosearchtheinternet

Touchtoaddnewbrowsertab

Touchtoclosethetab



ChapterThree:Application



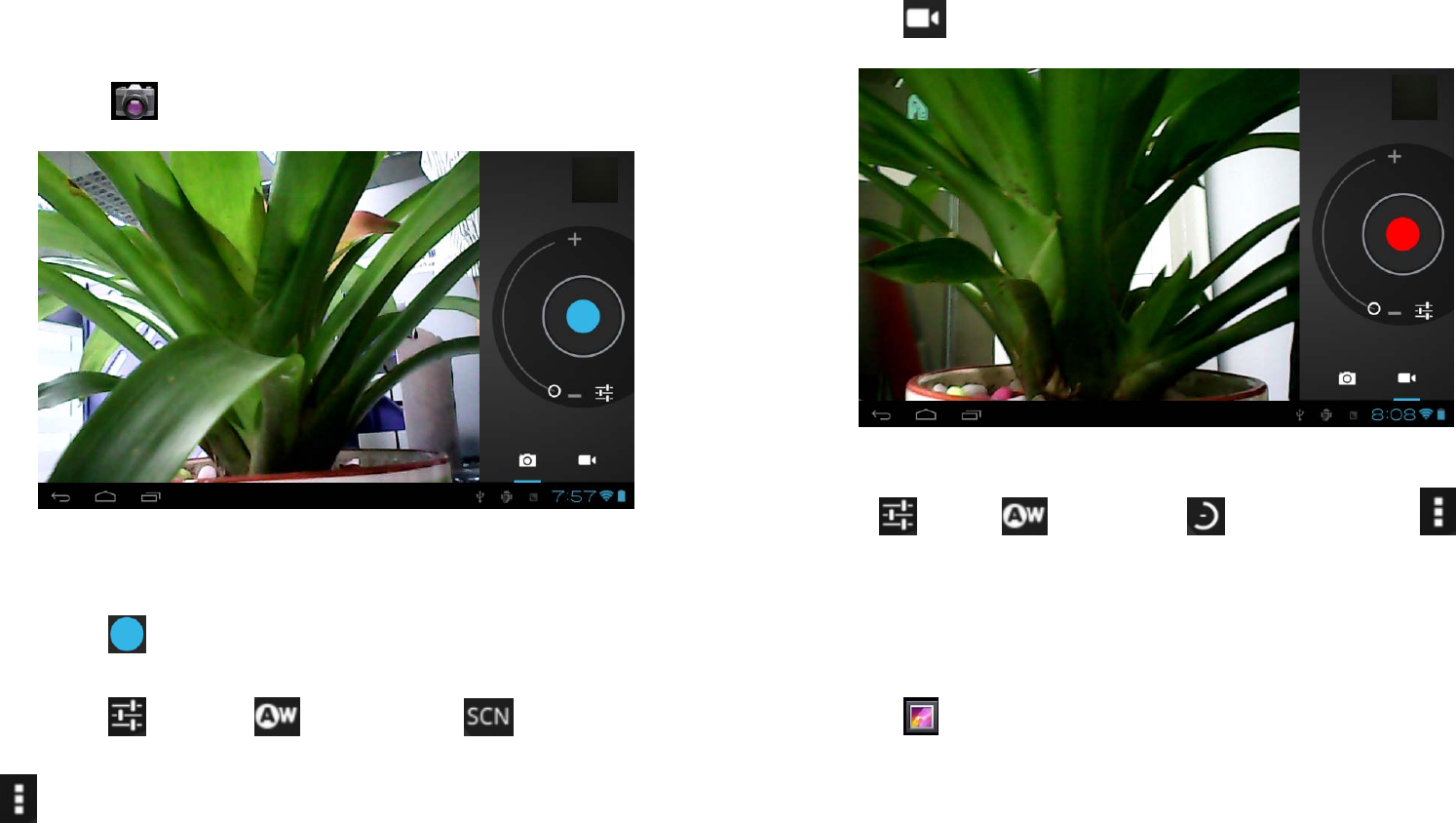

3.1Camera

Touchthis  intheappdrawertousethecameraapp.



Camera

Touchthetogettakeaphoto

Touchthetosetup  whitebalance,  scenemode,

save

Video

Choosetotakevideos.



Touch tosetup whitebalance, timelapseinterval, 

save



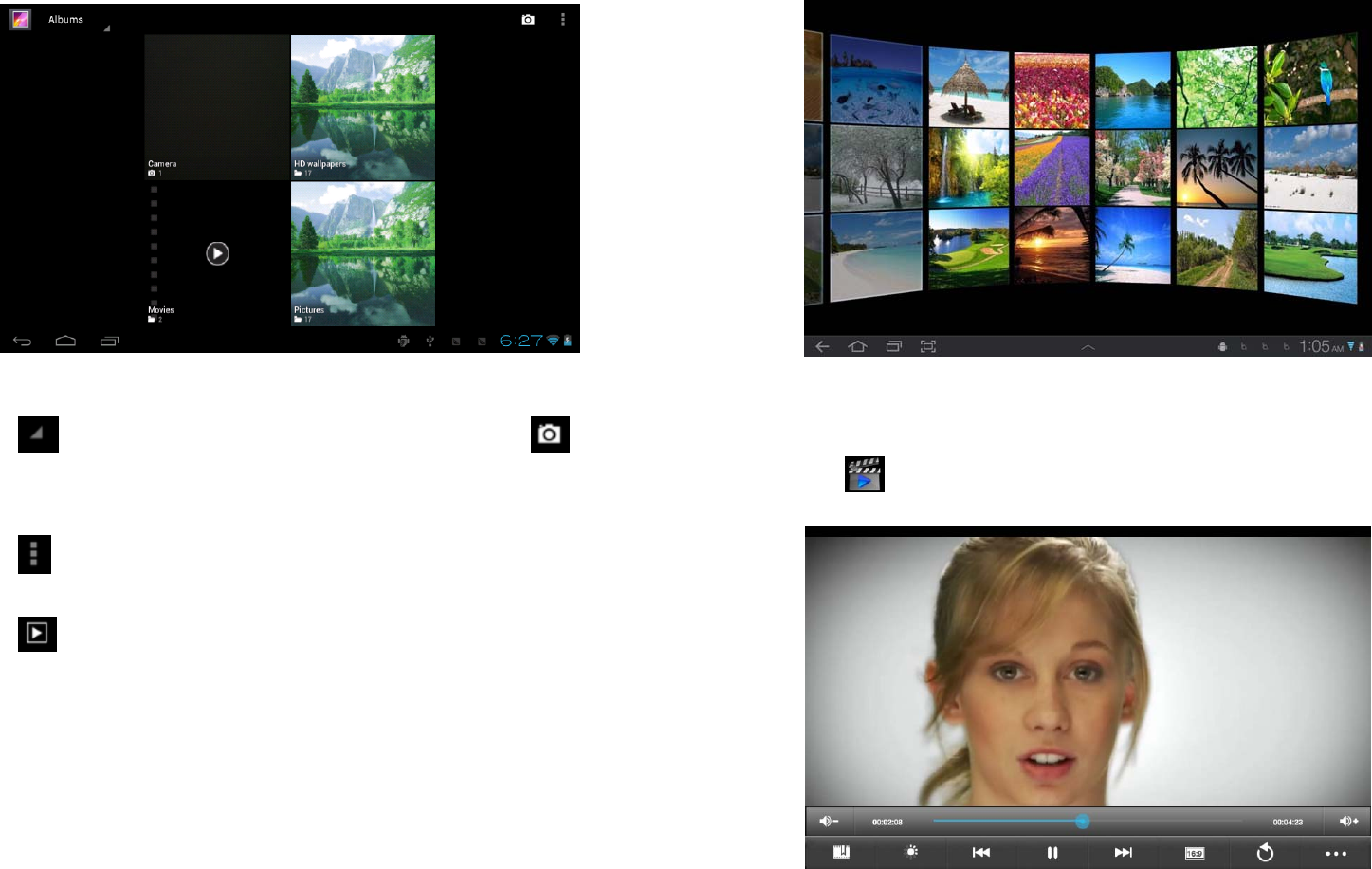

3.2Gallery

Choose  intheappdrawertolaunchthegallery.



Clicktoorganizepicturesbytimeandplace.Clickthis  to

usethecamera.

Clicktochoosethealbumtoeditordelete

Clicktousetheslidesshowfeaturewheninthealbum



3.3Video

Usethe  apptoPlayvideos



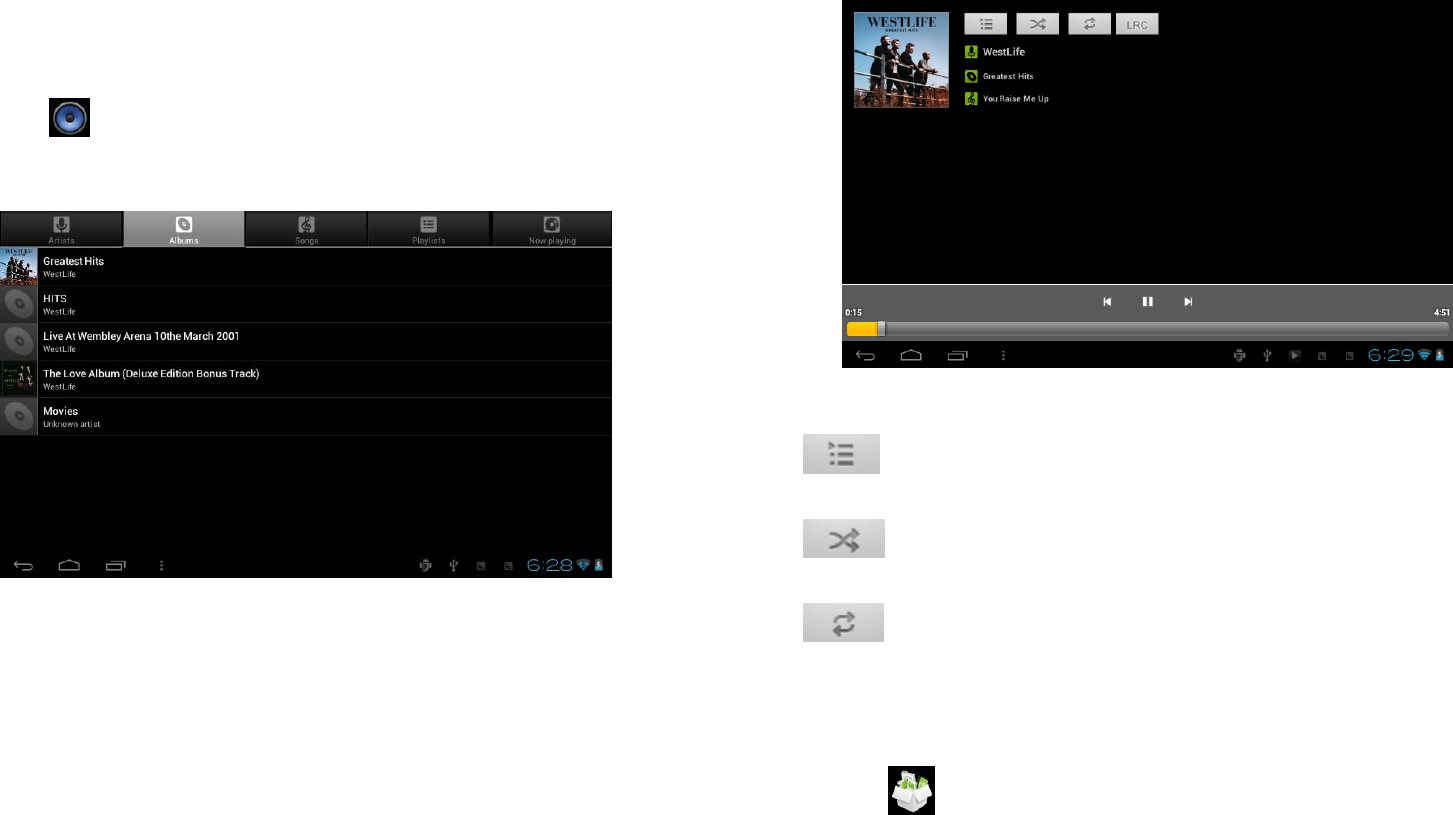

3.4Music

Usethe  apptoplaymusic.Musiccanbesortedbyartistsor

album.



List

Randomplay

Repeat



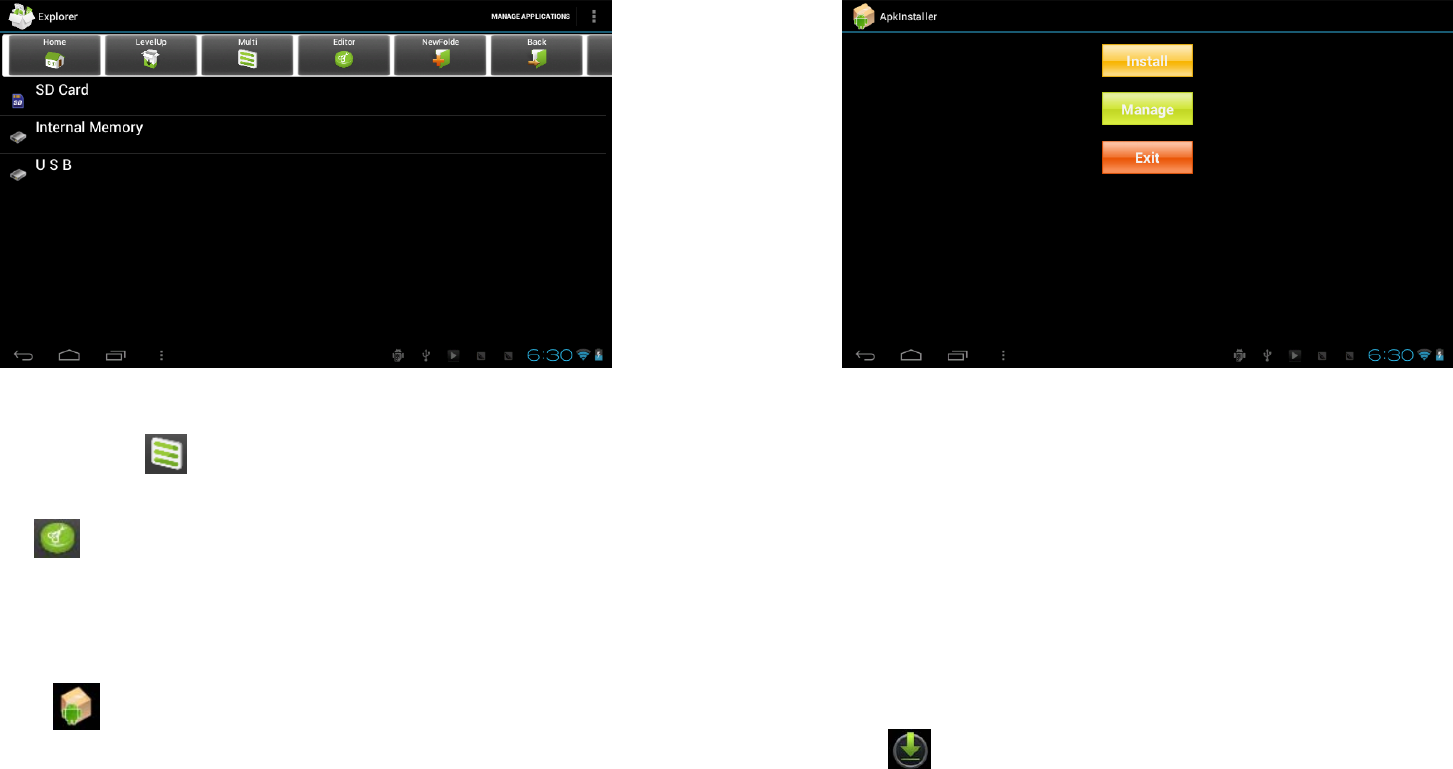

3.5Explorer

Choose  intheappdrawer;thisappisusedtoorganizethe

variousfilesinsideyourtablet.



Touchthebuttontodomultioperationsandeditfiles

Touchtocut/copy/paste/deletefiles



3.6APKInstaller

Choose  intheappdrawer,itsearchesforAPKfilefromtheSD

CardandinternalMemory.



Install

ClickInstalltoinstallapplication.

Manage

ClickManageintheAPKInstallerinterface,clicktheapplicationthat

needtobemanagedtodoLaunch,Export,Uninstall.



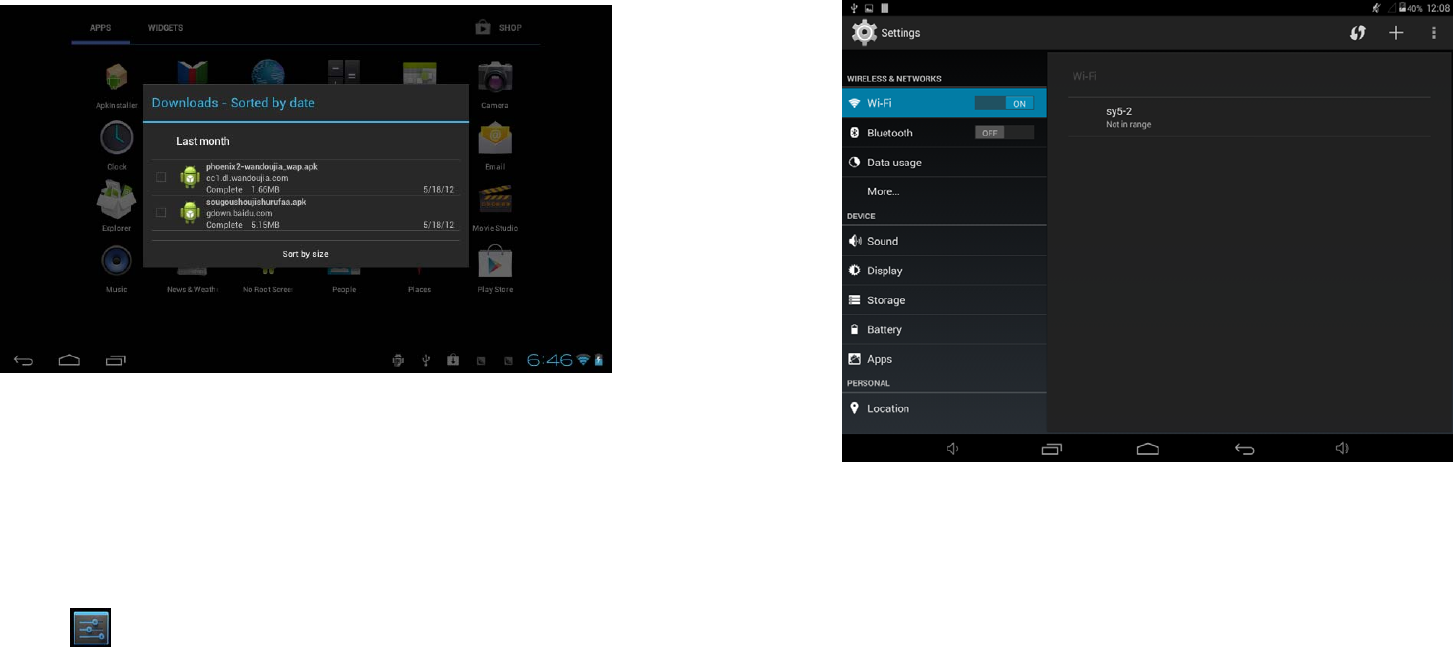

3.7Downloads

Choose  intheappdrawer;youcancheckthestatusofcurrent

downloadsaswellasyourdownloadhistory.



Clickdownloadfiletostopordeletethedownloadedcontents



ChapterFour:Systemsetting



Clickheretoenterthesystemsettinginterface



4.1Wirelessnetworkssetting

Toconnectyourtablettotheinternet,pleasefollowthefollowing

instructions

1. PleaseturnonyourWiFiwhichcanbeaccessedviathe

WirelessandNetworkundersettings

2. Pleasefindthewirelessnetworkyouaretryingtoconnect

toandchoosethatnetwork

3. Enteryourpasswordwhenprompted–ifyoudonothave

thepasswordthatisaclosednetworkandyoucannot

accessit.

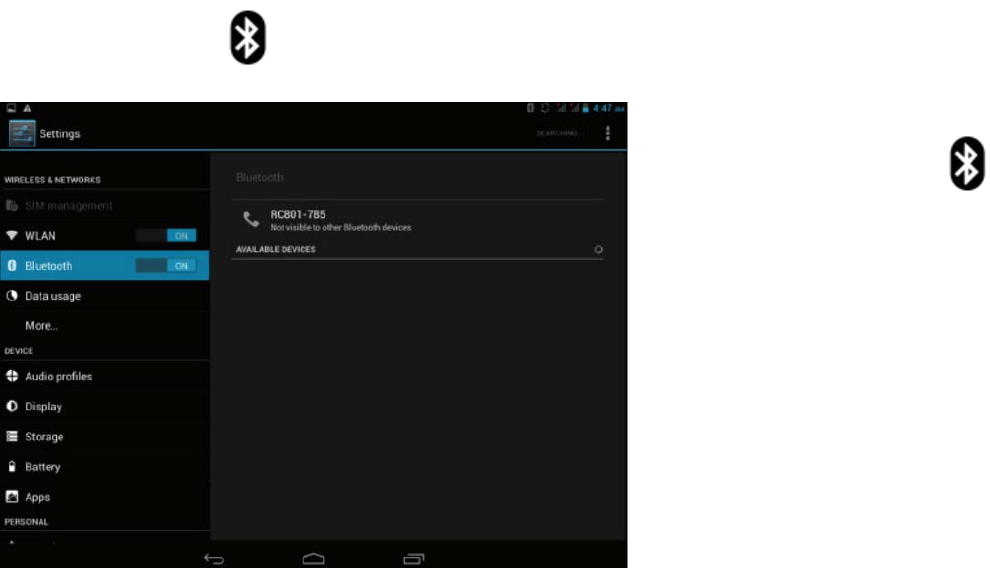

4.2Bluetoothsetting

1.Turnonthebluetoothifitisnotalreadyon.

Totrunonthebluetooth:

1.GototheHomescreen:TouchtheSettingsicon.

2.Openthelauncherscreen:TouchthelauncherTab,thentouch

Settings.

3.Openthenotificationbarmenu:

Touchbluetoothicon



Whenbluetoothison,thetabletwilllookforanddisplayalistof

avalablebluetoothdevices.

Selectanavailablebluetoothdeviceinthelisttoconnectto.

Ifthebluetoothdeviceissecured(asindicatedbyaLockicon),

thetabletwillpromptyoutoenterapasswordorother

credentials.Touchthebluetoothpasswordboxtoshowthe

on‐screenkeyboardandthenuseittoenterthepassword.Touch

OKtoconfirm.

Whenyouhavesuccessfullyconnectedtoabluetoothdevicethe

notificationbaratthebottomofthescreenwillshowasignal

indicator.



4.3Displaysetting

Displaysettingscontains:Brightness,WallpapersSettings,

AutomaticrotatingSettings,DormancytimeandFontsize

Brightness

Theusercanmanuallyadjustthebrightnessofthetablet.

WallpaperSettings

ThewallpaperonthetabletcanbechangedviatheWallpaper

settings.

ScreenTimeout

Choosehowlongbeforethescreenshutsofftoconservebattery.

Fontsize

Youcansetupthefrontsizeaccordingtopreference.



4.4Date&Timesetting

Inthissettinginterface,youcansetupyoursystemtimeandseries

options.

Timesetting

Touseautomatictimefromthenetwork,choosethetimezone;to

timeanddatecanalsobemanuallyset.



4.5Languageandinputsetting

Inputmethod

Inheretheinputmethodscanbesetbyusers,wordscanalsobe

addedandremovedfromyourpersonaldictionary.



ChapterFive:WARNINGS

5.1Pleasedonotputyourdeviceinhightemperature,moistordusty

places;thetabletisnotwaterproof



5.2Avoiddropsandcollisionsasitcouldleadtodamage.



5.3Donotdisassembleorusealcohol,paintthinnerorbenzeneclass

cleanerstocleantheproduct.



5.4Pleasedonotusethetabletwhendriving.



5.5Excessivevolumeviaheadphonescancausehearingdamage.

Pleaseavoidhighvolumeforlongperiodsoftime.



5.6Memorycapacityforyourtabletis8GB.Pleasenotethatsystem

filesanddefaultapplicationswilltakeupsomeofthisstorage.



5.9Prolongeduseespeciallyduringvideoplaybackand3Dgaming

canresultinexcessiveheat.Pleaseavoidextremetemperature.



FCCSTATEMENT

AnyChangesormodificationsnotexpresslyapprovedbytheparty

responsibleforcompliancecouldvoidtheuser’sauthorityto

operatetheequipment.



Thisdevicecomplieswithpart15oftheFCCRules.Operationis

subjecttothefollowingtwoconditions:(1)Thisdevicemaynotcause

harmfulinterference,and(2)thisdevicemustacceptany

interferencereceived,includinginterferencethatmaycause

undesiredoperation.

RadiationExposureStatement

ThisequipmentcomplieswithFCCradiationexposure

limitssetforthforanuncontrolledenvironment.

Thistransmittermustnotbeco‐locatedoroperatinginconjunction

withanyotherantennaortransmitter.

Note:Thisequipmenthasbeentestedandfoundtocomplywiththe

limitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.

Theselimitsaredesignedtoprovidereasonableprotectionagainst

harmfulinterferenceinaresidentialinstallation.Thisequipment

generatesusesandcanradiateradiofrequencyenergyand,ifnot

installedandusedinaccordancewiththeinstructions,maycause

harmfulinterferencetoradiocommunications.However,thereisno

guaranteethatinterferencewillnotoccurinaparticularinstallation.

Ifthisequipmentdoescauseharmfulinterferencetoradioor

televisionreception,whichcanbedeterminedbyturningthe

equipmentoffandon,theuserisencouragedtotrytocorrectthe

interferencebyoneormoreofthefollowingmeasures:



—Reorientorrelocatethereceivingantenna.

—Increasetheseparationbetweentheequipmentandreceiver.

—Connecttheequipmentintoanoutletonacircuitdifferentfrom

thattowhichthereceiverisconnected.

—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
