SHUOYING SY133XSUB Remote Control Toy Transmitter User Manual
Shuo Ying (ShenZhen) Industrial Company Limited Remote Control Toy Transmitter
SHUOYING >
User Manual
8
Product Specification
Remote Controller
Transmitting
Frequency 40MHz、49MHz
Power Source 1.5V AAA Alkaline battery x 2
Feature Forward,
reverse, left/right turn, super
dive key
Submarine
Power Source 1.5V AAA Alkaline battery x 1
Operation Time 150 minutes continuously
Boat Dimension L 73.5 x W 61 x H 37.5 mm
Receivable Range
1~3
meters, varies with different
operation environment
Diving Depth 60 cm
Non-rechargeable batteries are not to be recharged
Rechargeable batteries are to be removed from the boy before being charged
Rechargeable batteries are only to be charged under adult supervision
Only batteries of the same or equivalent type as recommended are to be used
Batteries are to be inserted with the correct polarity
Exhausted batteries ate to be removed from the toy
The supply terminals are not to be short-circuited
Please keep the package since it contains important information
The antenna is not to be inserted into socket outlets。
Caution：Do not put the submarine into the water before its tail cover is installed。
1
Modifications not authorized by the manufacturer may void users authority to operate this device
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Thank you for purchasing the high-tech super-mini full functional remote-controlled
submarine!
Please read the user instruction and caution items before operating, so you can fully enjoy
the fun playing in the water world!
2

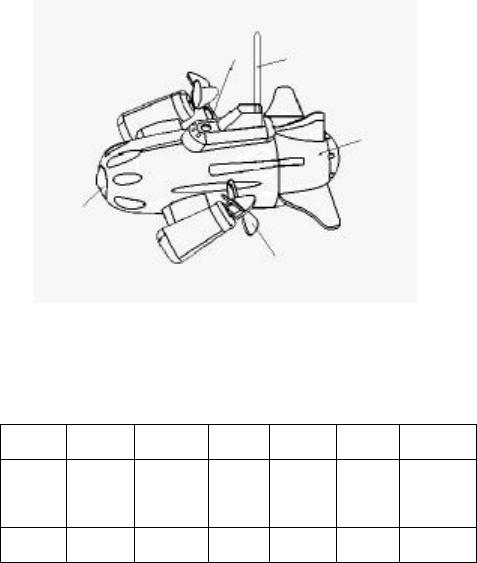

n Submarine Schematics
Please take out the submarine and remote controller from the box. The box contains:
Item 1 2 3 4 5 6
Product
submarine
remote
controller
antenna
adjust
lead ball
Battery
(option)
Instruction
manual
Quantity
1 set 1 set 1 pc 1 bag 3 pcs 1 pc
antenna
tail cover
cabin hole
propeller
light
7
will stop operating. The submarine will turn right.
u Super dive Key
The super dive key is at the top of the remote controller. When pressing super dive key
the submarine will submerge in high speed. When pressing right turn key or left turn
key with super dive key at the same time, the submarine will make right or left turn in
high speed too. .
n Caution Items
1. The enclosed lead balls are used for balancing the buoyancy of the
submarine. Guard children under age 3 from swallowing!
2. For your safety, do not touch the propeller during operation!
3. This submarine may be used in fish tank, bathtub, small pond and generally
clean and clear water. But do not use it in the swimming pool without
lifesaver, seashore, water channel, water pond and water tower!
4. The water quality may affect the operational function and use life of this
submarine. Please use it in clean water without adding any chemical agent,
for example: water with chemical substance, bubble water, salty water,
overly cold or hot water.
5. Keep the interior of the boat dry at all times. In case the interior gets wet,
wipe it dry with towel or paper towel immediately.
6. The remote controller is not water-proof. It will cause damage if we use the
remote controller in the water.
7. When it is not in use, remove the "tail cover" and take out the battery to
keep the interior dry.
8. Keep away from radio appliance during operation.
6
n Function of Remote Controller Key
u Forward Key
When forward key is pressed, the two motors operate simultaneously and the submarine
submerges forward in normal speed. The light is on automatically.
u Forward and Left Turn
Press forward key and left turn key simultaneously, and the motor on the right side will
stop operating. The submarine will turn left and the light is on automatically.
u Forward and Right Turn
Press forward key and right turn key simultaneously, and the motor on the left side will
stop operating. The submarine will turn right and the light is on automatically.
u Backward Key
When pressing backward key, the two motors will operate in reverse phase
simultaneously, and the submarine moves backward and rise slowly.
u Backward and Left Turn
Press backward key and left turn key simultaneously, and the motor on the right side
will stop operating. The submarine will turn left.
u Backward and Right Turn
Press backward key and right turn key simultaneously, and the motor on the left side

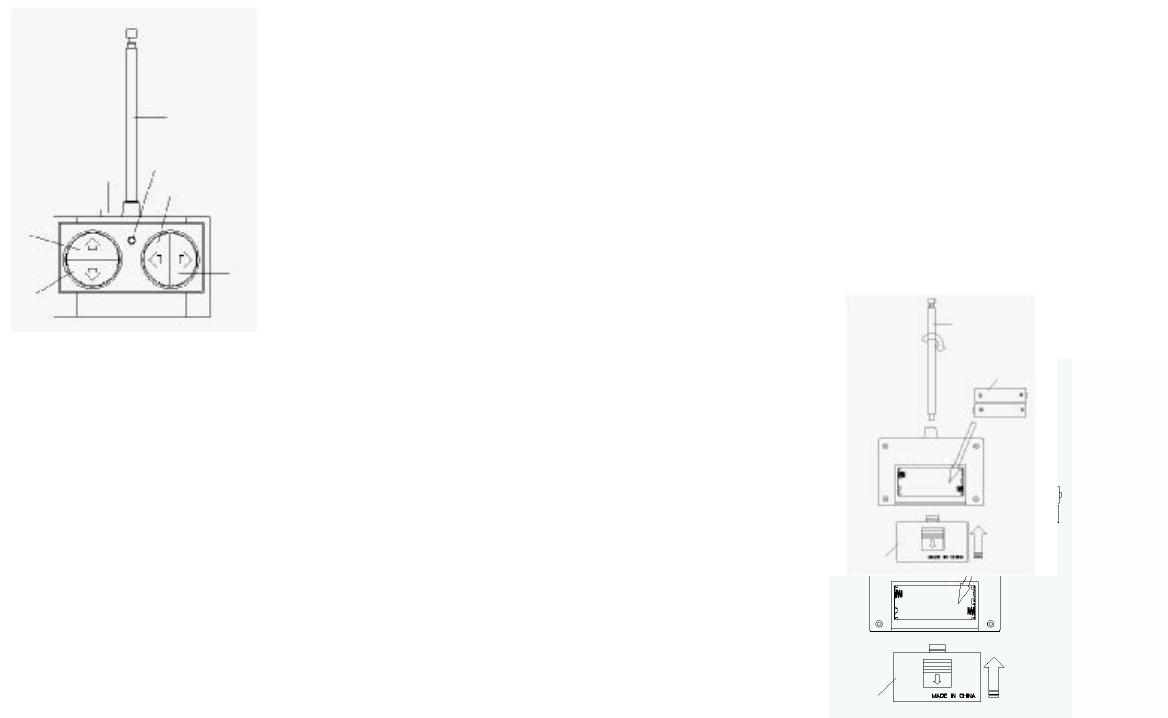

antenna
Super dive key transmission indicator light
left turn key
right turn key
backward key
forward key
3
n Installation and Operation
A、Remote Controller
1. Please remove the "battery cover" of the remote controller, and place 2 size
AAA alkaline batteries. Watch for the "+" (positive) and "-" (negative)
polarity when placing the batteries. The signal will not transmit with wrong
polarity settings.
2. Take out the antenna and attach it to the antenna hole at the top of the remote
controller, and pull
out the antenna completely.
Caution：Do not put the remote controller into the water or get it wet, as it is not
water-proof.
antenna
1.5v battery
"AAA"
battery cover
+
_
4

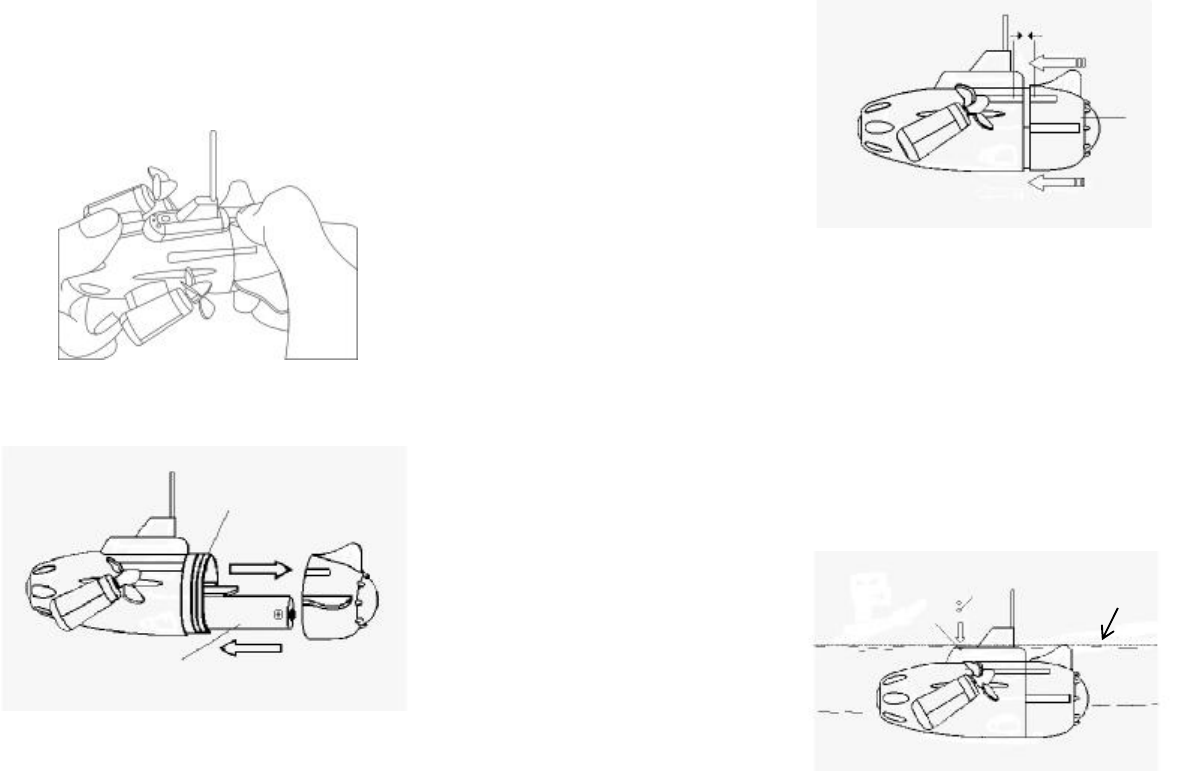

B、Submarine
1. Remove the "tail cover" of the submarine, and place 1 size AAA 1.5V alkaline
battery. Watch for the "+" (positive) and "-" (negative) polarity when placing
the battery. The submarine will not function properly with wrong polarity
setting.
Caution: When opening the tail cover, do not apply force on the tail wing to avoid
the possible breakup.
2. Install the "tail cover" back to the submarine (please do not loose the two
water-proof "black O-ring , or the water will get in). When the upper and
lower cover is in tight fit, the baseline must be aligned, and the power will
start to receive signal. The power will automatically shut down when the "tail
cover" is removed.
O-ring
remove tail
place battery
1.5V
battery "
AAA
"
5
Caution：Remove the "tail cover" when not in use, and take out the battery to keep
the interior dry. Put it in a cool and shady place to avoid high temperature
and humidity.
C、Boat body buoyancy adjustment
Due to the use space may vary, the provided lead balls are placed into the boat body
through the cabin hole on the top (refer to the drawing), to adjust the submergence
and buoyancy capability for easy operation and control.
alignment line
tail cover
water level
lead ball
cabin hole
Main unit assembly
